Introduction

This ordering guide covers the ordering information for the below servers:

The Cisco UCS C245 M8 Rack:

The UCS C245 M8 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 2U form factor with the 4th Gen. AMD EPYC™ CPUs, 12 DIMM slots per CPU for 4800 MT/s DDR5 DIMMs with individual DIMM capacity points up to 256 GB.

The Cisco UCS C225 M8 Rack:

The UCS C225 M8 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the 4th Gen. AMD EPYC™ CPUs, 12 DIMM slots per CPU for 4800 MT/s DDR5 DIMMs with individual DIMM capacity points up to 128 GB.

Purpose, Audience, and Scope

Purpose

This document describes how to order the Cisco UCS M8 Product.

Scope

This ordering guide describes the information for:

   Ordering Structure of Cisco UCS M8 Server

   Catalog of Product IDs

   Ordering Server Hardware and Software options

   Links to additional resources

Audience

 Buy Method Through Cisco (Eg: Direct Customer & Tier 1 Partners):

     Scenario 1: Customer Without Enterprise Agreement for Cisco Intersight Software License

     Scenario 2: Customer With Enterprise Agreement for Cisco Intersight Software License

Buy Method Through Distributor (Eg: Tier 1 & Tier 2 Partners):

     Scenario 1: Customer Without Enterprise Agreement for Cisco Intersight Software License

     Scenario 2: Customer With Enterprise Agreement for Cisco Intersight Software License

Ordering Structure of Cisco UCS M8 Server

Related image, diagram or screenshot

Catalog of Product IDs (PIDs)

Note:       For a complete list of part numbers for the see the Cisco UCS C245 M8 SFF Rack Server Spec Sheet and Cisco UCS C225 M8 SFF Rack Server Spec Sheet

Table 1.           PID of Major Line Bundle (MLB)

Product ID (PID)

Description

UCS-M8-MLB

UCS M8 RACK MLB

Table 2.           Rack Server Major Line PIDs

Product ID (PID)

Description

UCSC-C245-M8SX

UCS C245M8 Rack w/o CPU, memory, drive, 2Uw24SFF HDD/SSD backplane

UCSC-C225-M8S

UCS C225M8 Rack w/o CPU, memory, drive, 1Uw10SFF HDD/SSD backplane

UCSC-C225-M8N

UCS C225M8 Rack w/o CPU, memory, drive, 1Uw10 NVMe drive backplane

Table 3.           Cisco Intersight Major Line PIDs

Product ID (PID)

Description

DC-MGT-SAAS

Cisco Intersight SaaS

CNDL-DESELECT-D

Conditional Deselect

Step By Step Ordering Process

Buy Method Through Cisco (Eg: Direct Customer & Tier 1 Partners)

Scenario 1: Customer Without Enterprise Agreement for Cisco Intersight Software License

Step 1.

Related image, diagram or screenshot

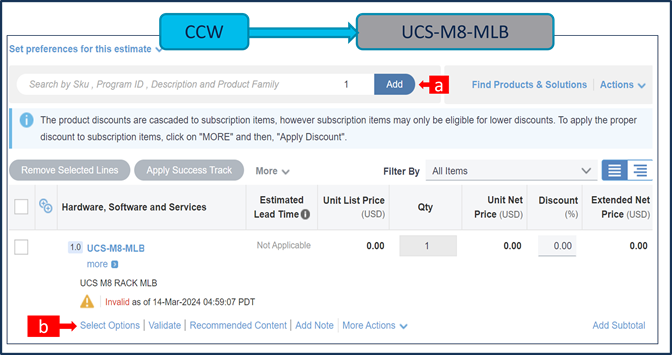

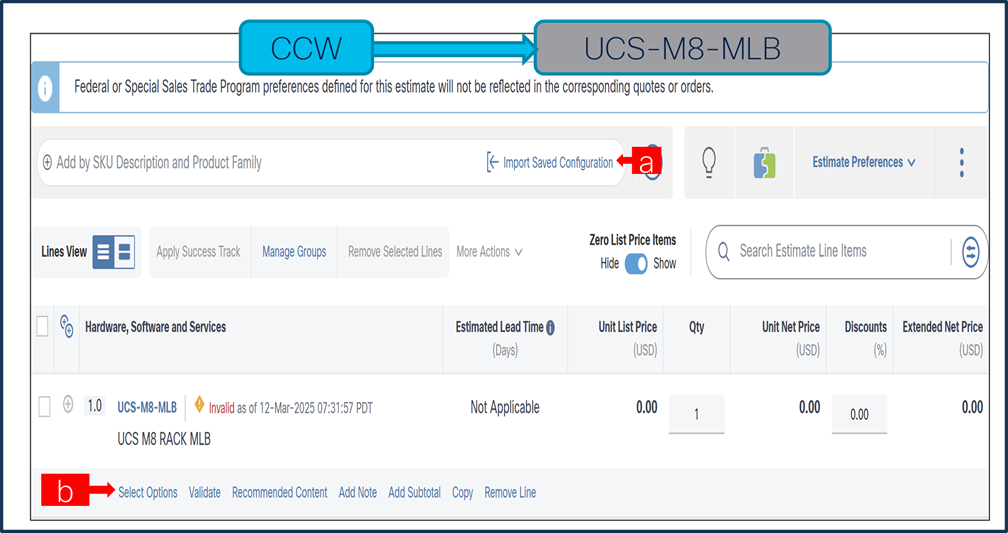

a.     In CCW, search for UCS-M8-MLB PID and click on “Add”

b.    Click on “Select Options” to enter the configurator.

Step 2.

Related image, diagram or screenshot

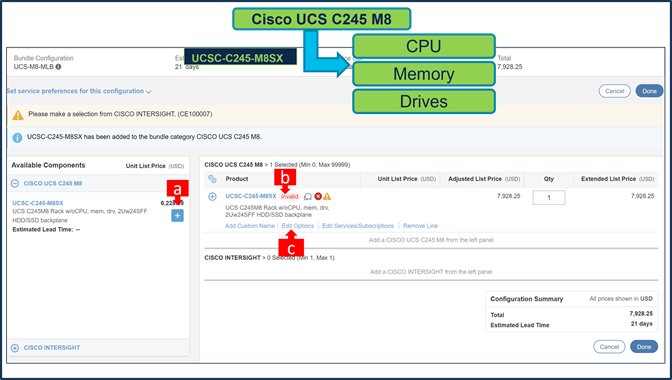

a.     Select UCSC-C245-M8SX ATO from under MLB by clicking the “PLUS”.

b.    Notice the UCSC-C245-M8SX ATO Status is now Invalid as further configuration needed.

c.     Click on “Edit Options” to enter the configurator.

Step 3.

Related image, diagram or screenshot

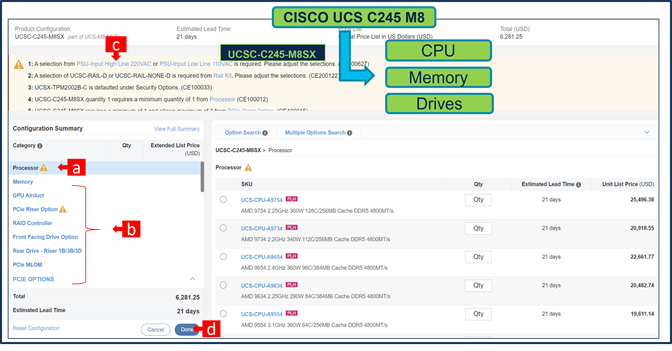

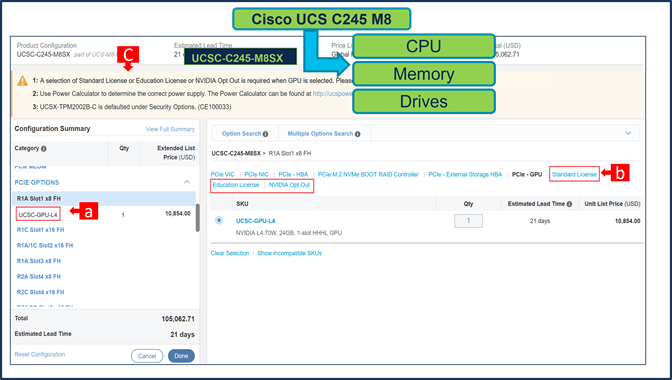

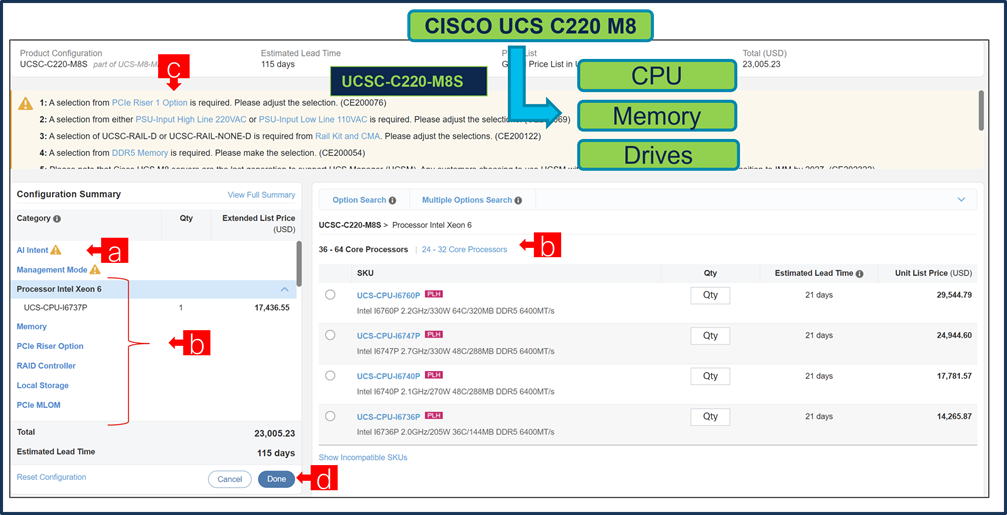

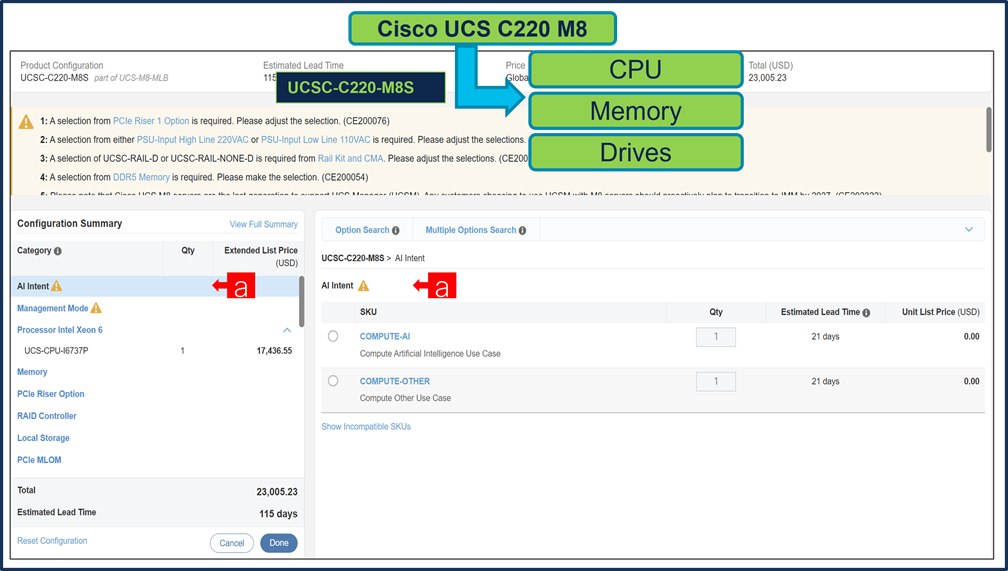

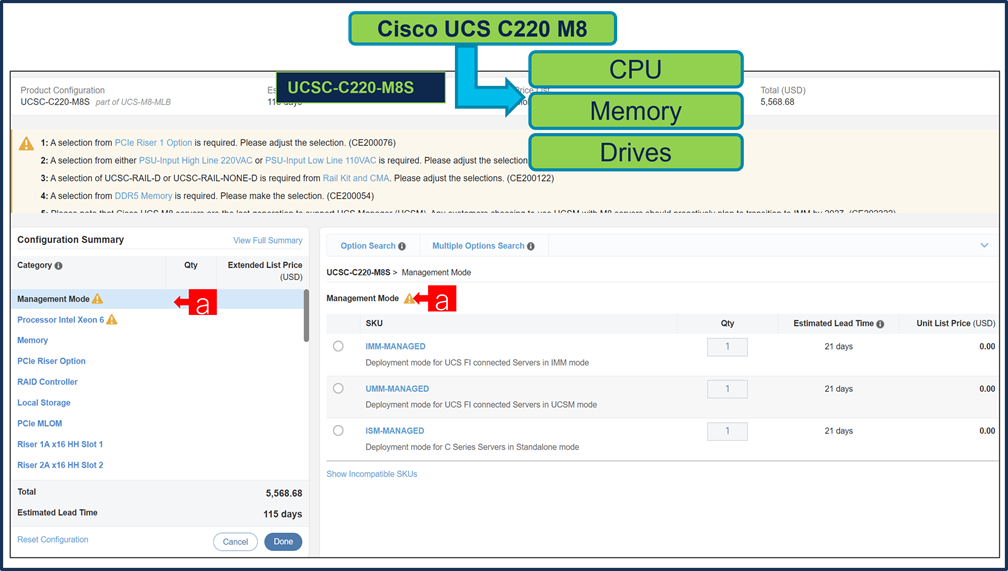

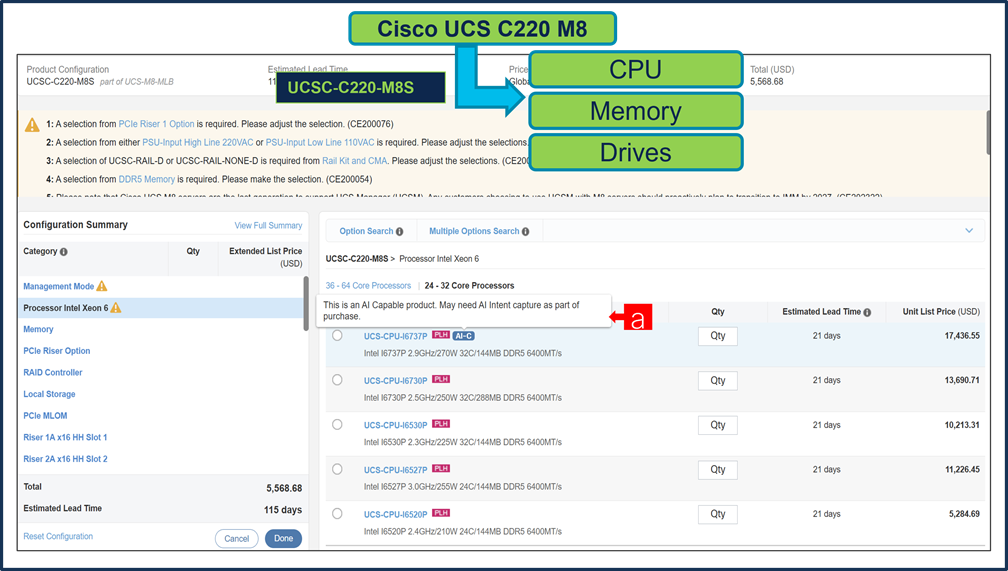

a.     Configure UCSC-C245-M8SX by selecting peripherals from category window on the left.

b.    PIDs are listed in the window on the right. Some PIDs like PCIe Riser and Drives are grouped according to type or series; select from the grouped options located above SKU window on the right.

c.     Follow warning messages to configure the minimum required option PIDs.

d.    Click on “Done” when completed.

Step 4.

Related image, diagram or screenshot

a.     NVIDIA GPU Licenses are now removed from the GPU HW, i.e. GPU is no longer configurable.

b.    NVIDIA GPU Licenses are now structured at the same level of GPU highlighted with red box.

c.     Once GPU HW is selected, Warning Rule/ Message is popped out which requires customer to select NVIDIA Licenses.

d.    Click on “Done”

Step 5.

Related image, diagram or screenshot

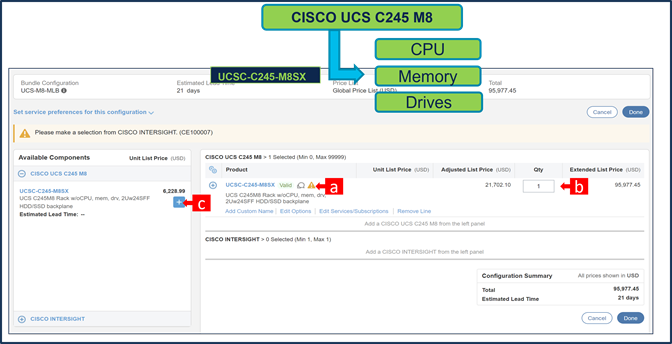

a.     Note Status is now showing as Valid.

b.    Increase the quantity for multiples of same configuration.

c.     Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.

Step 6.

Related image, diagram or screenshot

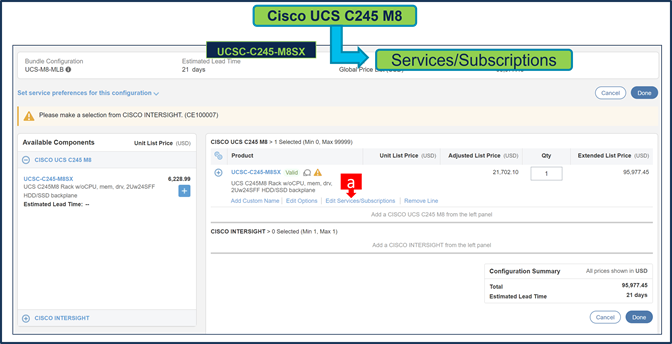

a.     Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.

Note:       It is recommended that Term Duration for HW Support must align with Software Subscription Duration.

Step 7.

Related image, diagram or screenshot

a.     Enter the Term Duration

b.    Click on “Apply” and “Done”

Step 8.

Related image, diagram or screenshot

a.     It is recommended that Term Duration for HW Support align with Software Subscription Duration.

b.    Intersight is a required selection if you have not previously purchased Cisco Intersight Software. Please make selection by clicking “PLUS”. Click on “Edit Options” to configure.

Step 9.

Related image, diagram or screenshot

a.     Requested Start Date (RSD) is now dependent on HW Ship Date and will automatically starts when the HW ships. If you change the RSD, the Software will start either on the RSD you picked or the HW Ship Date whichever is later.

b.    End Date (duration in months) is defaulted to 36 Months, Auto Renewal (on/off) is defaulted to On and Billing Frequency is defaulted to Prepaid Term. You can still change the setting accordingly.

Step 10.

Related image, diagram or screenshot

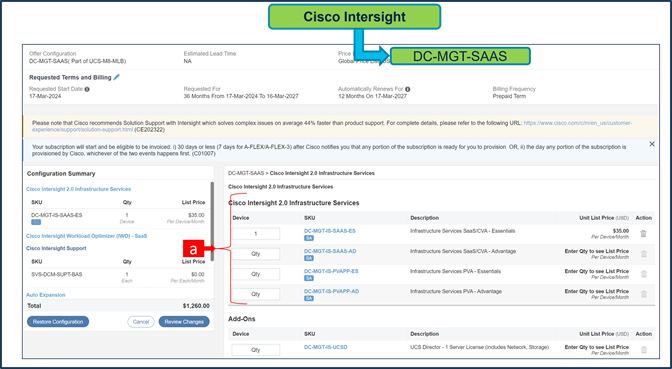

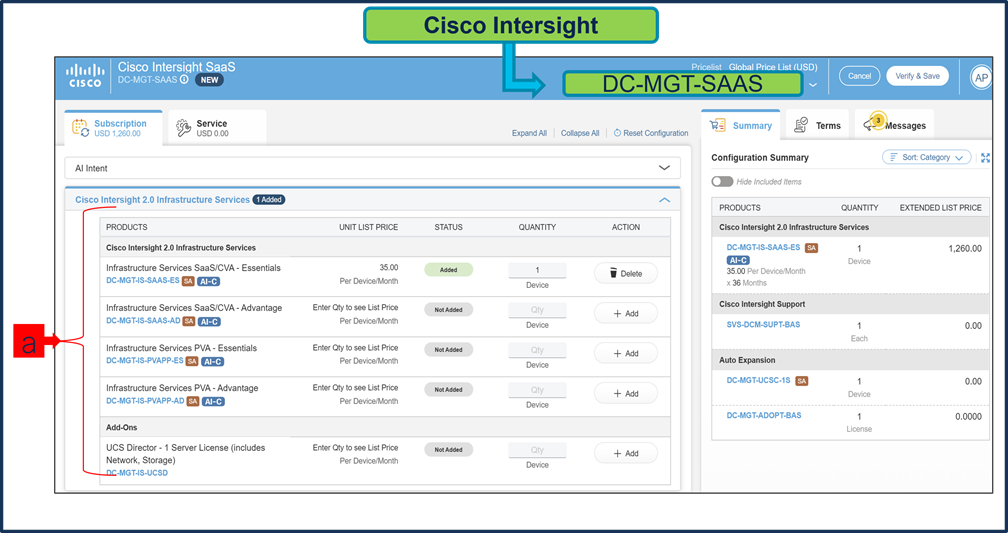

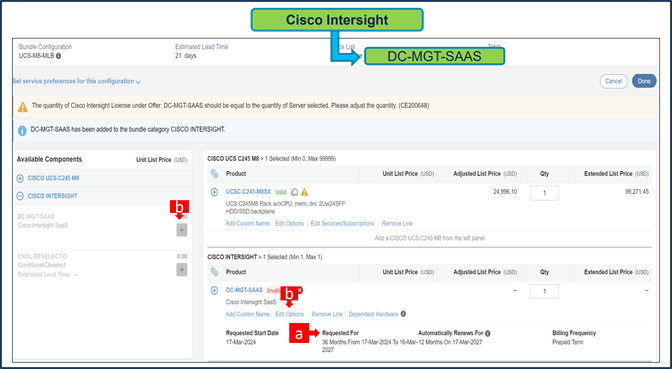

a.     The quantity of Cisco Intersight 2.0 Infrastructure Services License under Offer: DC-MGT-SAAS should be equal to the quantity of Server selected. Enter the quantity.

Step 11.

Related image, diagram or screenshot

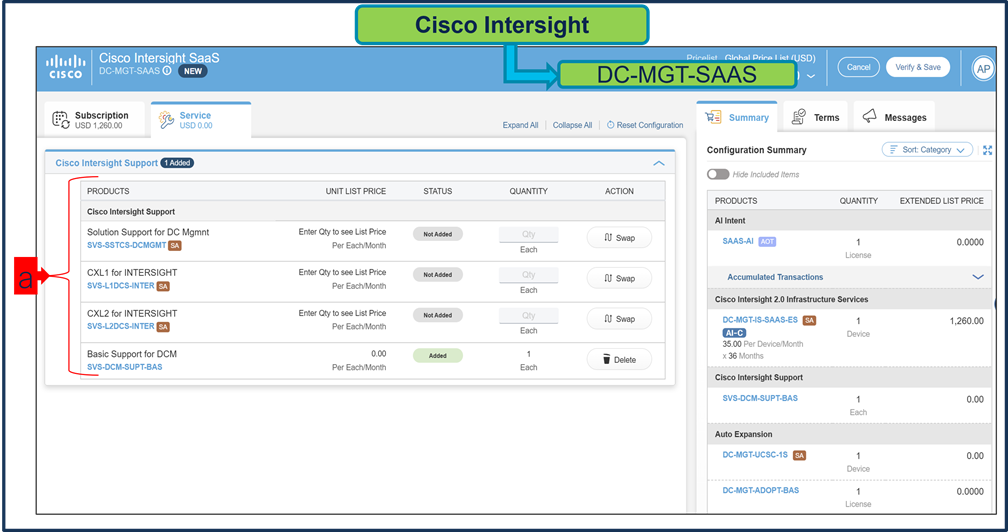

a.     The Cisco Intersight License comes with separate Support. Basic Embedded Support is the default selection. It is recommended that Customer should upgrade to Solution Support or CX Success Track L1 or L2 for the HW.

Step 12.

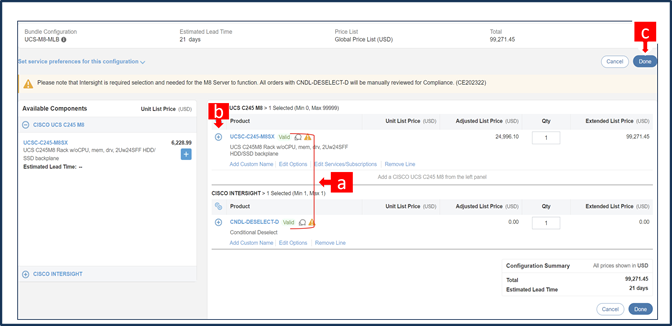

Related image, diagram or screenshot

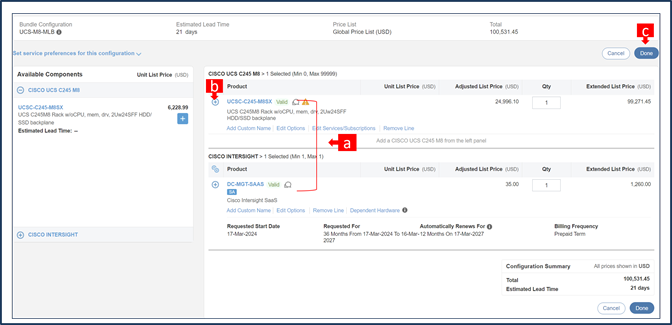

a.     Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.

b.    Click on the PLUSto expand and view the selections made for each Product.

c.     Click on the “DONE” to complete the MLB Configuration.

Scenario 2: Customer With Enterprise Agreement for Cisco Intersight Software License

Step 1.

Related image, diagram or screenshot

a.     In CCW, search for UCS-M8-MLB PID and click on “Add”

b.    Click on “Select Options” to enter the configurator.

Step 2.

Related image, diagram or screenshot

a.     Select UCSC-C245-M8SX ATO from under MLB by clicking the “PLUS”.

b.    Notice the UCSC-C245-M8SX ATO Status is now Invalid as further configuration needed.

c.     Click on “Edit Options” to enter the configurator.

Step 3.

Related image, diagram or screenshot

a.     Configure UCSC-C245-M8SX by selecting peripherals from category window on the left.

b.    PIDs are listed in the window on the right. Some PIDs like PCIe Riser and Drives are grouped according to type or series; select from the grouped options located above SKU window on the right.

c.     Follow warning messages to configure the minimum required option PIDs.

d.    Click on “Done” when completed.

Step 4.

Related image, diagram or screenshot

a.     NVIDIA GPU Licenses are now removed from the GPU HW, i.e. GPU is no longer configurable.

b.    NVIDIA GPU Licenses are now structured at the same level of GPU highlighted with red box.

c.     Once GPU HW is selected, Warning Rule/ Message is popped out which requires customer to select NVIDIA Licenses.

d.    Click on “Done”

Step 5.

Related image, diagram or screenshot

a.     Note Status is now showing as Valid.

b.    Increase the quantity for multiples of same configuration.

c.     Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.

Step 6.

A screenshot of a computerDescription automatically generated

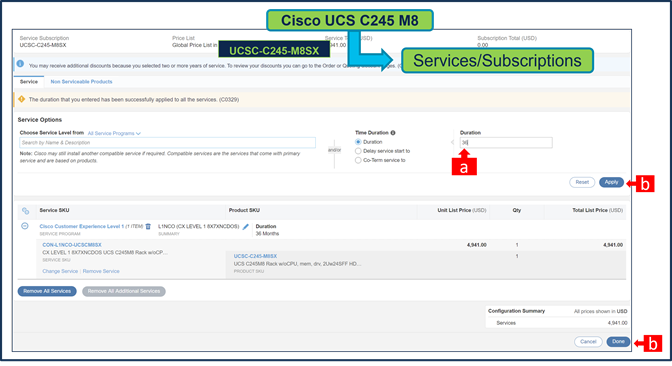

a.     Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.

Note:       It is recommended that Term Duration for HW Support must align with Software Subscription Duration.

Step 7.

Related image, diagram or screenshot

a.     Enter the Term Duration

b.    Click on “Apply” and “Done”

Step 8.

Related image, diagram or screenshot

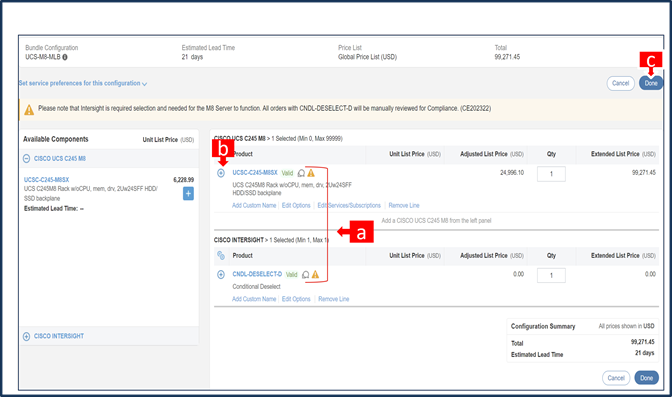

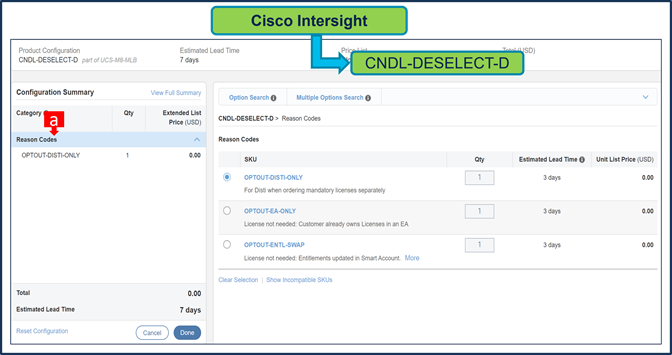

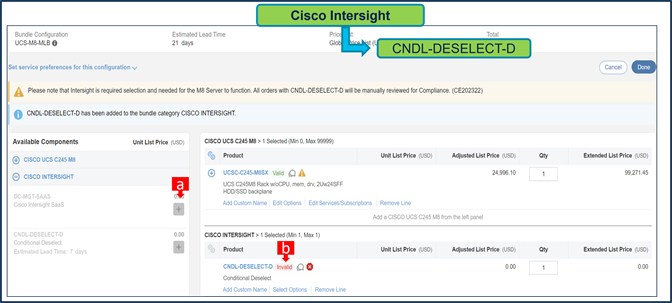

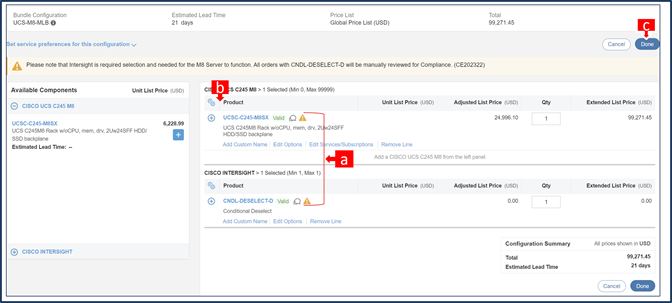

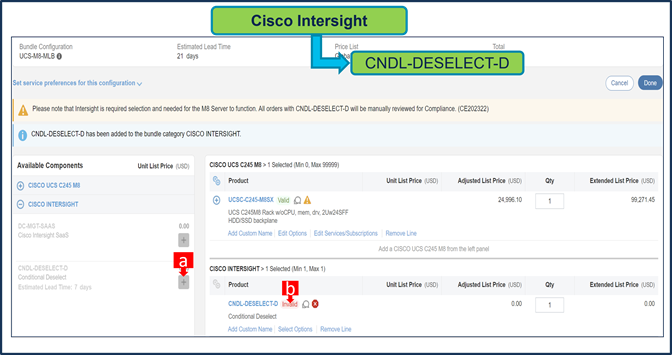

a.     CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment. Please make selection by clicking “PLUS”.

a.     Please note that Intersight is required selection and needed for the Server to function. Click on Select Options to configure.

Step 9.

Related image, diagram or screenshot

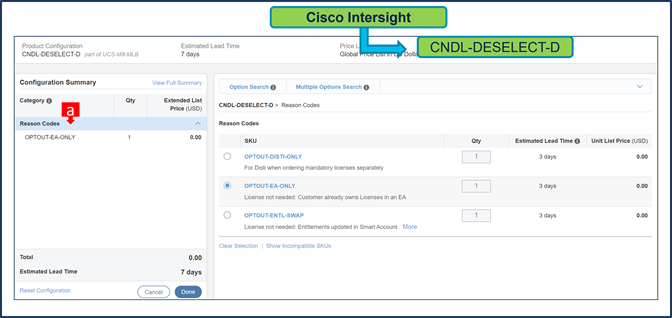

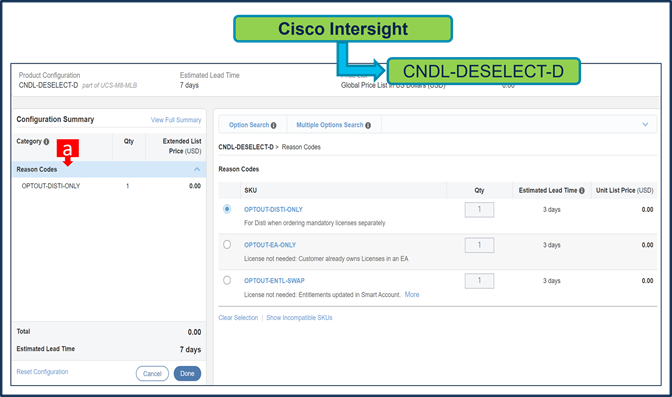

a.     Please select appropriate Reason Code.

Step 10.

Related image, diagram or screenshot

a.     Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.

b.    Click on the PLUSto expand and view the selections made for each Product.

c.     Click on the “DONE” to complete the MLB Configuration.

Buy Method Through Distributor (Eg: Direct Customer & Tier 1 Partners)

Scenario 1: Customer Without Enterprise Agreement for Cisco Intersight Software License

Step 1.

Related image, diagram or screenshot

a.     In CCW, search for UCS-M8-MLB PID and click on “Add”

b.    Click on “Select Options” to enter the configurator.

Step 2.

Related image, diagram or screenshot

a.     Select UCSC-C245-M8SX ATO from under MLB by clicking the “PLUS”.

b.    Notice the UCSC-C245-M8SX ATO Status is now Invalid as further configuration needed.

c.     Click on “Edit Options” to enter the configurator.

Step 3.

Related image, diagram or screenshot

a.     Configure UCSC-C245-M8SX by selecting peripherals from category window on the left.

b.    PIDs are listed in the window on the right. Some PIDs like PCIe Riser and Drives are grouped according to type or series; select from the grouped options located above SKU window on the right.

c.     Follow warning messages to configure the minimum required option PIDs.

d.    Click on “Done” when completed.

Step 4.

Related image, diagram or screenshot

a.     NVIDIA GPU Licenses are now removed from the GPU HW, i.e. GPU is no longer configurable.

b.    NVIDIA GPU Licenses are now structured at the same level of GPU highlighted with red box.

c.     Once GPU HW is selected, Warning Rule/ Message is popped out which requires customer to select NVIDIA Licenses.

d.    Click on “Done”

Step 5.

Related image, diagram or screenshot

a.     Note Status is now showing as Valid.

b.    Increase the quantity for multiples of same configuration.

c.     Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.

Step 6.

Related image, diagram or screenshot

a.     Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.

Note:       It is recommended that Term Duration for HW Support must align with Software Subscription Duration.

Step 7.

Related image, diagram or screenshot

a.     Enter the Term Duration

b.    Click on “Apply” and “Done”

Step 8.

Related image, diagram or screenshot

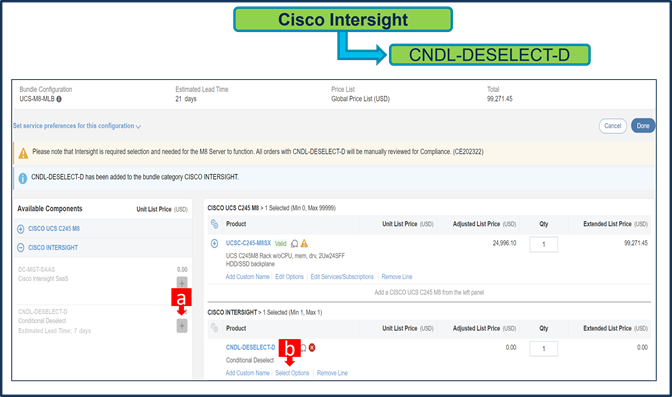

a.     CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment. Please make selection by clicking “PLUS”.

b.    Please note that Intersight is required selection and needed for the Server to function. Click on Select Options to configure.

Step 9.

Related image, diagram or screenshot

a.     Please select appropriate Reason Code.

Step 10.

Related image, diagram or screenshot

a.     Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.

b.    Click on the PLUSto expand and view the selections made for each Product.

Step 11.  Click on the “DONE” to complete the MLB Configuration.

Related image, diagram or screenshot

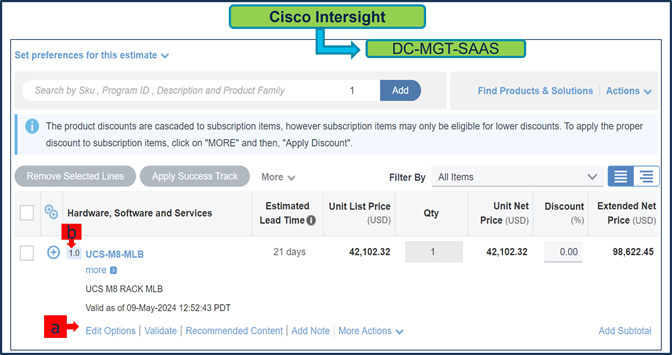

a.     Configuration of UCS-M8-MLB is now Valid and Line No. 1.0 represents HW only Configuration.

b.    Intersight is a required selection, if you have not previously purchased Cisco Intersight Software and needs to add in Line 2.0 which will represent SW only Configuration.

Step 12.

Related image, diagram or screenshot

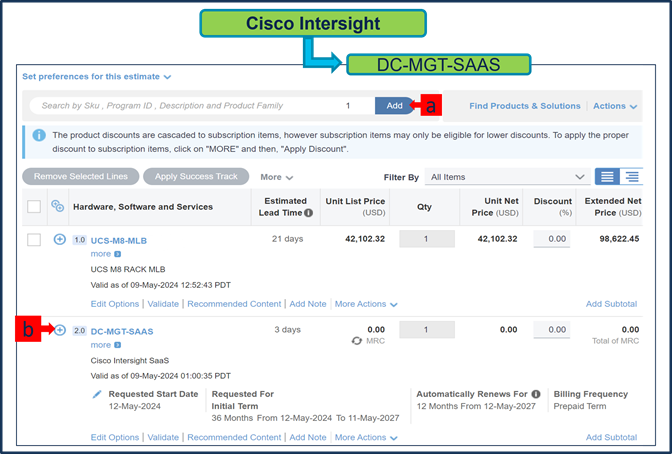

a.     In CCW, search for DC-MGT-SAAS PID and click on “Add”

b.    Intersight is a required selection, if you have not previously purchased Cisco Intersight Software. Click on Select Options to enter the configurator.

Step 13.

A screenshot of a computerDescription automatically generated

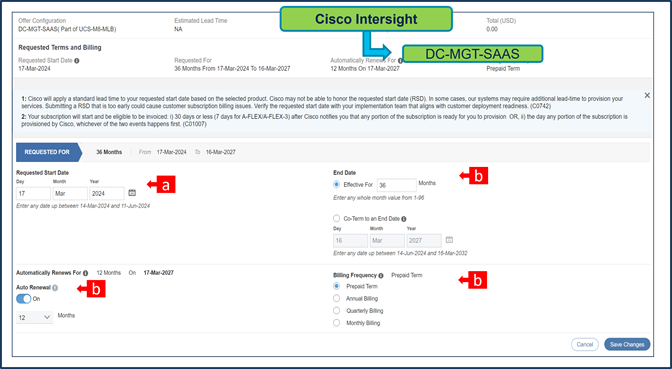

a.     Requested Start Date (RSD) is now dependent on HW Ship Date and will automatically starts when the HW ships. If you change the RSD, the Software will start either on the RSD you picked or the HW Ship Date whichever is later.

b.    End Date (duration in months) is defaulted to 36 Months, Auto Renewal (on/off) is defaulted to On and Billing Frequency is defaulted to Prepaid Term. You can still change the setting accordingly.

Step 14.

A screenshot of a computerDescription automatically generated

c.     The quantity of Cisco Intersight 2.0 Infrastructure Services License under Offer: DC-MGT-SAAS should be equal to the quantity of Server selected. Enter the quantity.

Step 15.

A screenshot of a computerDescription automatically generated

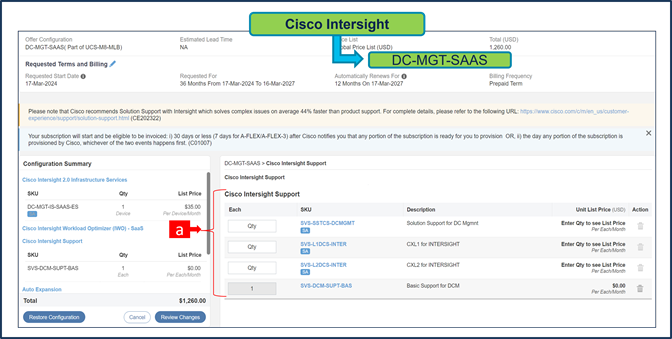

a.     The Cisco Intersight License comes with separate Support. Basic Embedded Support is the default selection. It is recommended that Customer should upgrade to Solution Support or CX Success Track L1 or L2 for the HW.

Step 16.

Related image, diagram or screenshot

a.     Configuration for UCS-M8-MLB and DC-MGT-SAAS is now completed, and status of each Product is Valid.

b.    Click on the PLUSto expand and view the selections made for each Product.

Scenario 2: Customer With Enterprise Agreement for Cisco Intersight Software License

Step 1.

Related image, diagram or screenshot

a.     In CCW, search for UCS-M8-MLB PID and click on “Add”

b.    Click on “Select Options” to enter the configurator.

Step 2.

Related image, diagram or screenshot

a.     Select UCSC-C245-M8SX ATO from under MLB by clicking the “PLUS”.

b.    Notice the UCSC-C245-M8SX ATO Status is now Invalid as further configuration needed.

c.     Click on “Edit Options” to enter the configurator.

Step 3.

Related image, diagram or screenshot

a.     Configure UCSC-C245-M8SX by selecting peripherals from category window on the left.

b.    PIDs are listed in the window on the right. Some PIDs like PCIe Riser and Drives are grouped according to type or series; select from the grouped options located above SKU window on the right.

c.     Follow warning messages to configure the minimum required option PIDs.

d.    Click on “Done” when completed.

Step 4.

Related image, diagram or screenshot

a.     NVIDIA GPU Licenses are now removed from the GPU HW, i.e. GPU is no longer configurable.

b.    NVIDIA GPU Licenses are now structured at the same level of GPU highlighted with red box.

c.     Once GPU HW is selected, Warning Rule/ Message is popped out which requires customer to select NVIDIA Licenses.

d.    Click on “Done”

Step 5.

Related image, diagram or screenshot

a.     Note Status is now showing as Valid.

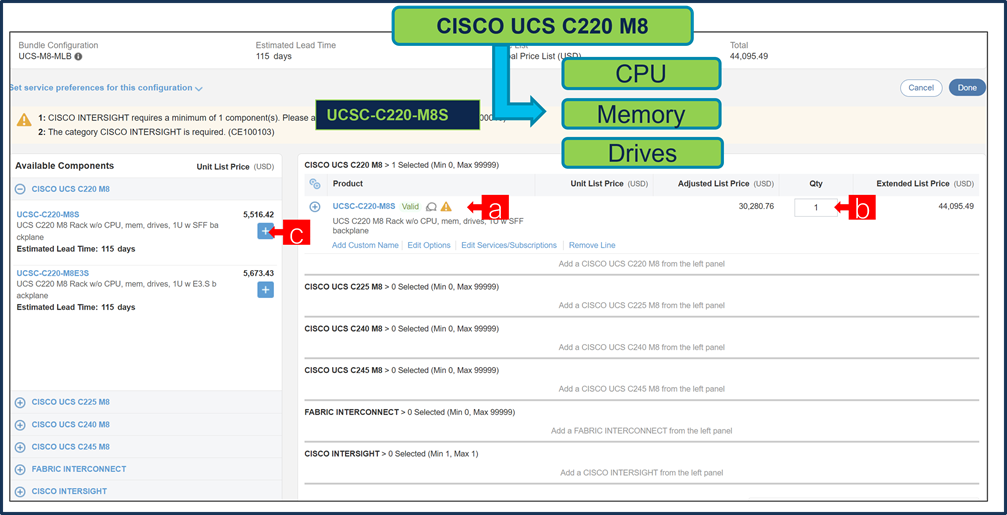

b.    Increase the quantity for multiples of same configuration.

c.     Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.

Step 6.

Related image, diagram or screenshot

a.     Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.

Note:       It is recommended that Term Duration for HW Support must align with Software Subscription Duration.

Step 7.

Related image, diagram or screenshot

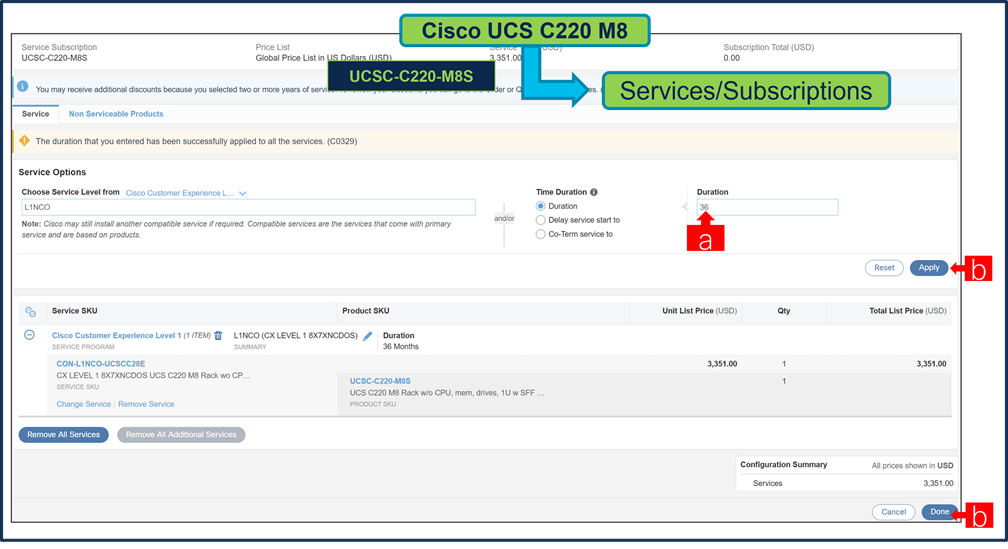

a.     Enter the Term Duration

b.    Click on “Apply” and “Done”

Step 8.

Related image, diagram or screenshot

a.     CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment. Please make selection by clicking “PLUS”.

b.    Please note that Intersight is required selection and needed for the Server to function. Click on Select Options to configure.

Step 9.

Related image, diagram or screenshot

a.     Please select appropriate Reason Code.

Step 10.

Related image, diagram or screenshot

a.     Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.

b.    Click on the PLUSto expand and view the selections made for each Product.

c.     Click on the “DONE” to complete the MLB Configuration.

Learn more
