The Cisco UCS C220 M7 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the 5th Gen. Intel® Xeon® Scalable Processors, 16 DIMM slots per CPU for DDR5-5600 Memory DIMMs with DIMM capacity points up to 128GB or 4th Gen. Intel® Xeon® Scalable Processors, 16 DIMM slots per CPU for DDR5-4800 Memory DIMMs with DIMM capacity points up to 128GB.
The Cisco UCS C240 M7 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 2U form factor with the 5th Gen. Intel® Xeon® Scalable Processors, 16 DIMM slots per CPU for DDR5-5600 Memory DIMMs with DIMM capacity points up to 256GB or 4th Gen. Intel® Xeon® Scalable Processors, 16 DIMM slots per CPU for DDR5-4800 Memory DIMMs with DIMM capacity points up to 256GB.
Purpose
This document describes how to order the CAI Go Win Offer for Rack M7 Server Product
Scope
This ordering guide describes the information for:
● Ordering Structure of Cisco CAI Go Win Offer for Rack M7 Server Product
● Catalog of Product IDs
● Ordering Server Hardware and Software options
● Links to additional resources
Audience
Buy Method Through Cisco (Eg: Direct Customer & Tier 1 Partners):
● Scenario 1: Customer Without Enterprise Agreement for Cisco Intersight Software License
● Scenario 2: Customer With Enterprise Agreement for Cisco Intersight Software License
Buy Method Through Distributor (Eg: Tier 1 & Tier 2 Partners):
● Scenario 1: Customer Without Enterprise Agreement for Cisco Intersight Software License
● Scenario 2: Customer With Enterprise Agreement for Cisco Intersight Software License

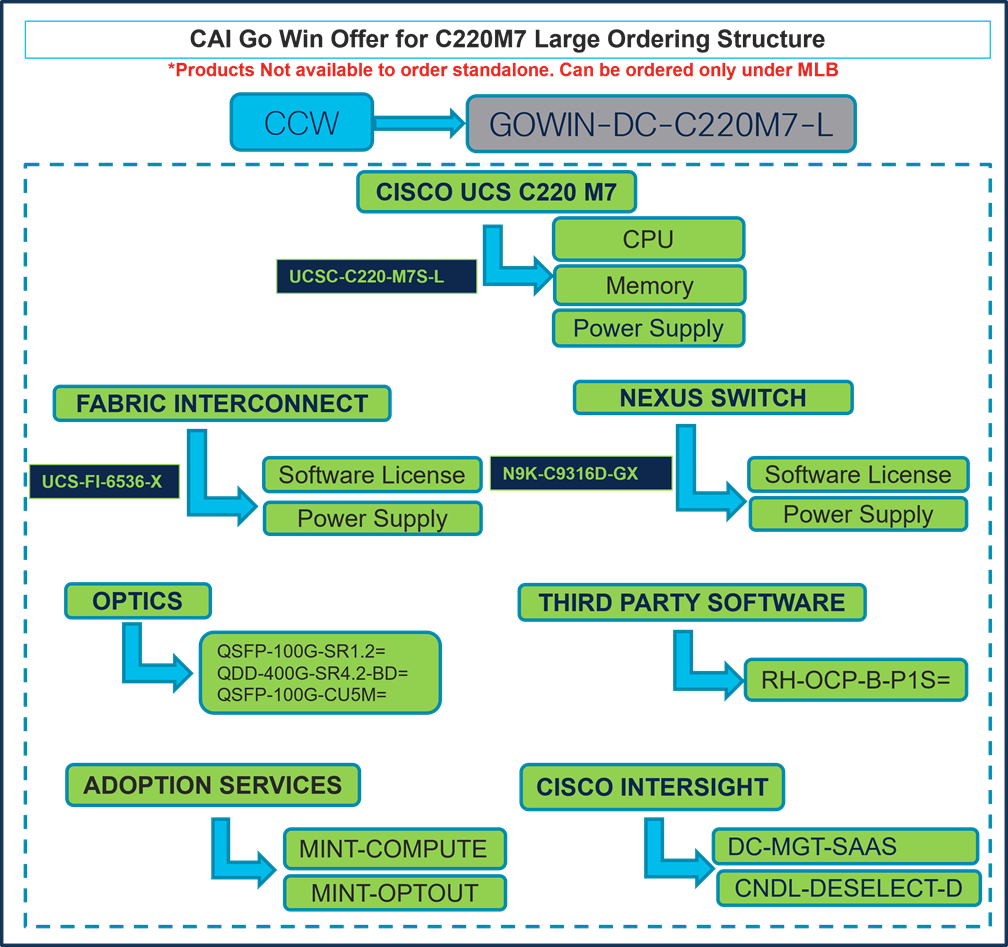

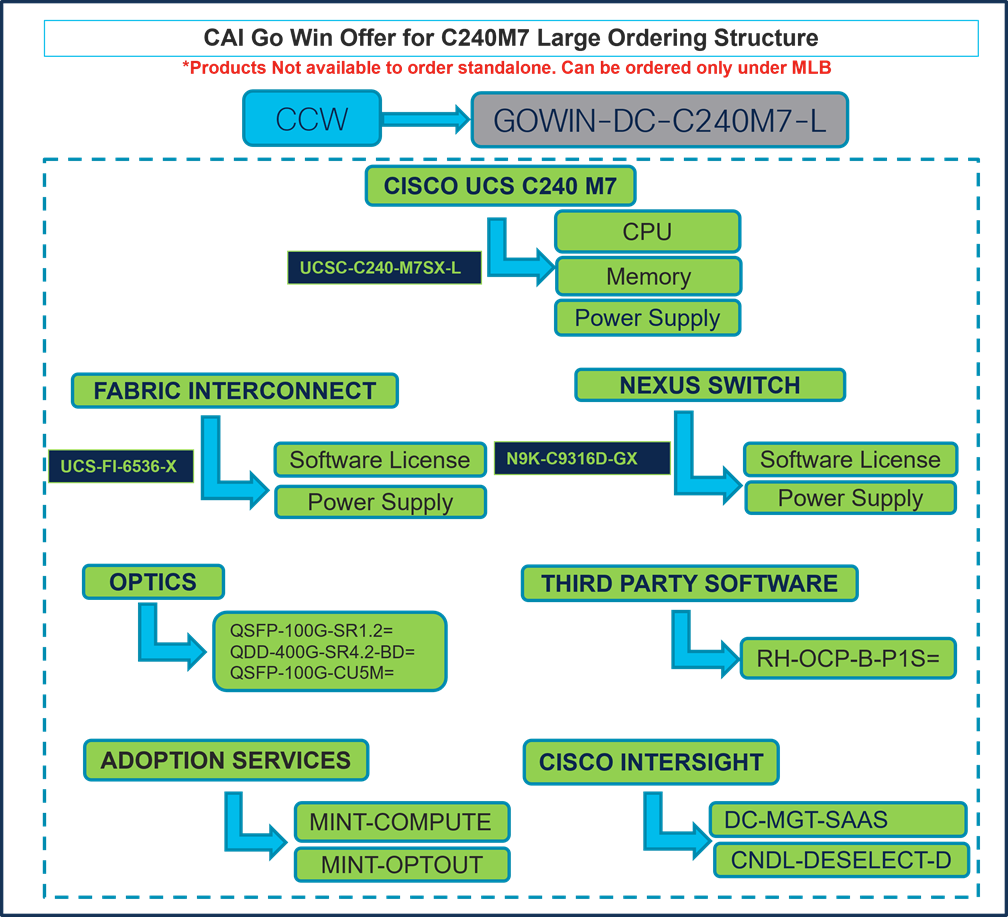

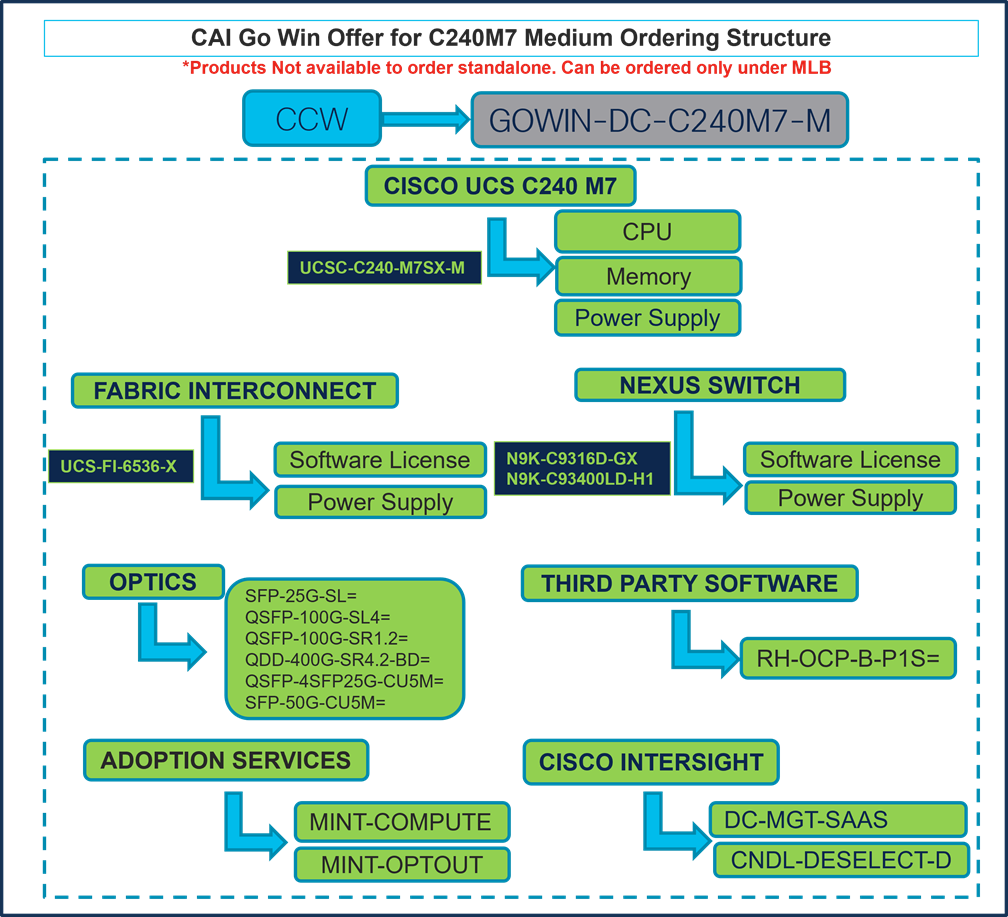

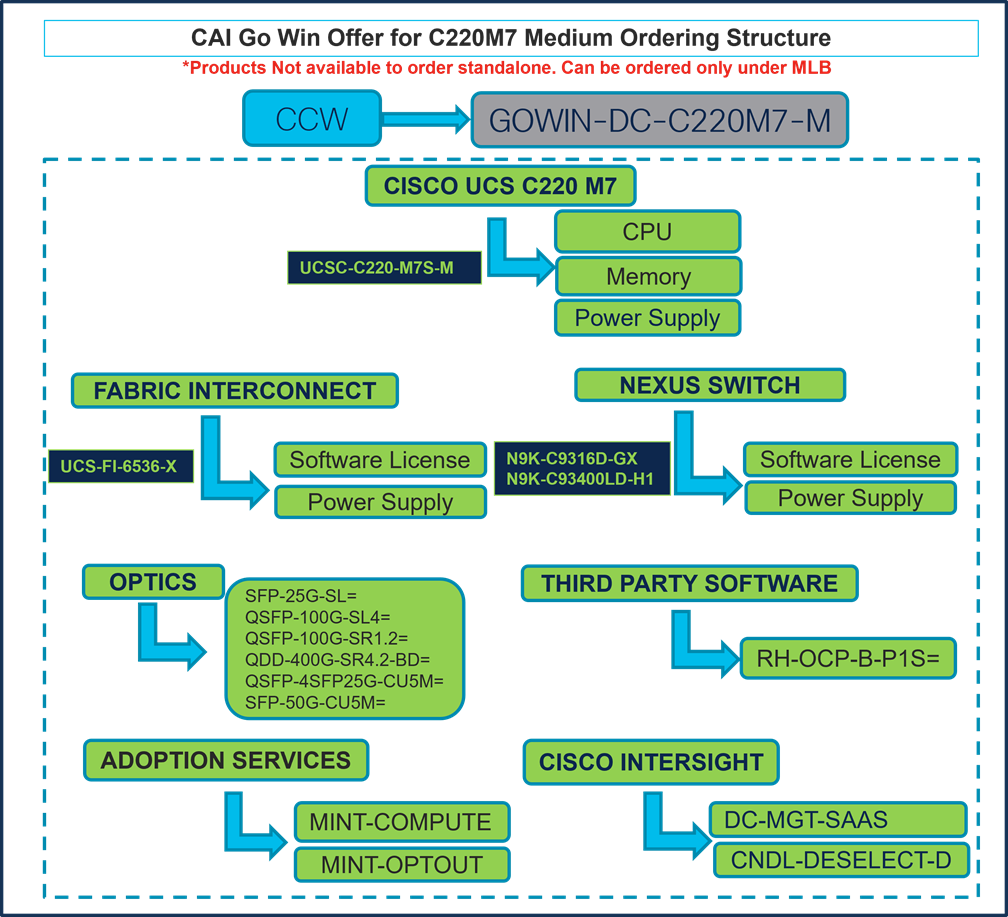

Ordering Structure of Rack M7 Server CAI Gowin Offers
Table 1. PID of Major Line Bundle (MLB)
| Product ID (PID) |
Description |
| GOWIN-DC-C220M7-M |
CAI Go Win Offer for C220M7 Medium |
| GOWIN-DC-C220M7-L |
CAI Go Win Offer for C220M7 Large |
| GOWIN-DC-C240M7-M |
CAI Go Win Offer for C240M7 Medium |
| GOWIN-DC-C240M7-L |
CAI Go Win Offer for C240M7 Large |
Table 2. Server node Major Line PIDs
| Product ID (PID) |
Description |
| UCSC-C220-M7S-M |
UCS C220 M7 CAI Go Win Offer Medium Server |
| UCSC-C220-M7S-L |
UCS C220 M7 CAI Go Win Offer Large Server |
| UCSC-C240-M7SX-M |
UCS C240 M7 CAI Go Win Offer Medium Server |
| UCSC-C240-M7SX-L |
UCS C240 M7 CAI Go Win Offer Large Server |
Table 3. Fabric Interconnect Major Line PIDs
| Product ID (PID) |
Description |
| UCS-FI-6536-X |
CAI Go Win Offer Fabric Interconnect 6536 for UCSM |
Table 4. Nexus Switch
| Product ID (PID) |
Description |
| N9K-C9316D-GX |
Nexus 9300 Series, 16p 400G |
| N9K-C93400LD-H1 |
Nexus 9K 48x 25G/50G + 4x 400G QSFP-DD |
Table 5. Optic Major Line PIDs
| Product ID (PID) |
Description |
| SFP-25G-SL= |
25GBASE-SR SFP SL Module |
| QSFP-100G-SL4= |
100GBASE SL4 for up to 30M over OM4 MMF |
| QSFP-100G-SR1.2= |
100G SR1.2 BiDi QSFP Transceiver, LC, 100m OM4 MMF |
| QDD-400G-SR4.2-BD= |
400G QSFP-DD Transceiver, MPO-12, 100m OM4 MMF 400GBASE-SR4 |
| QSFP-4SFP25G-CU5M= |
100GBase QSFP to 4xSFP25G Passive Copper Splitter Cable, 5m |
| SFP-50G-CU5M= |
25/50GBASE-CU SFP56 Cable 5 Meter LSZH |
| Product ID (PID) |
Description |
| RH-OCP-B-P1S= |
OpenShiftContainerPlatform(BM),Prem 1YSnS Req(1-2CPU-64core) |
Table 7. Adoption Service
| Product ID (PID) |
Description |
| MINT-COMPUTE |
SolutionsPlus: DC Compute Mentored Installation - MINT |
| MINT-OPTOUT |
Partner or CX Services Options - No MINT |
Table 8. Cisco Intersight Major Line PIDs
| Product ID (PID) |
Description |
| DC-MGT-SAAS |
Cisco Intersight SaaS |
| CNDL-DESELECT-D |
Conditional Deselect |
GOWIN-DC-C220M7-M Ordering Process
Buy Method Through Cisco (Eg: Direct Customer & Tier 1 Partners)
Scenario 1: Customer Without Enterprise Agreement for Cisco Intersight Software License
Step 1.

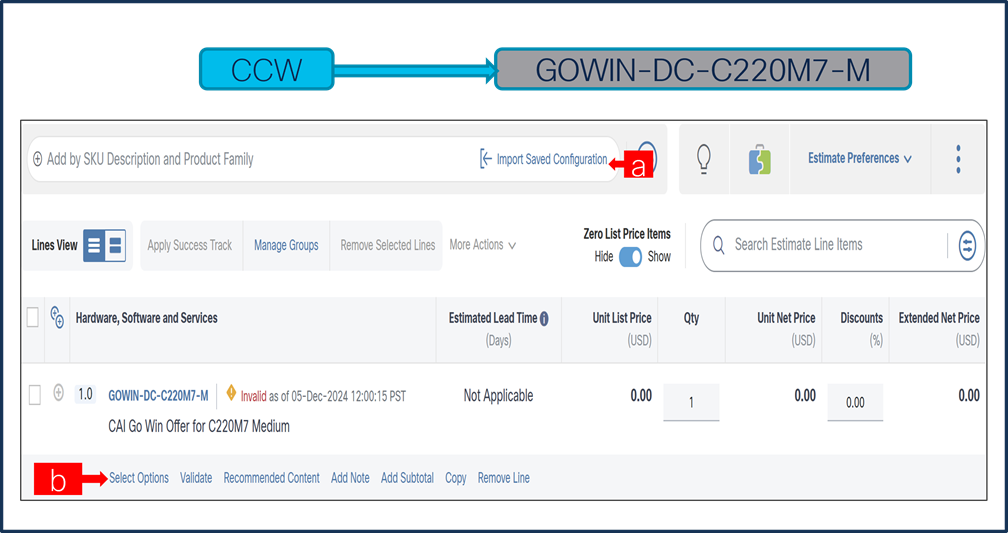

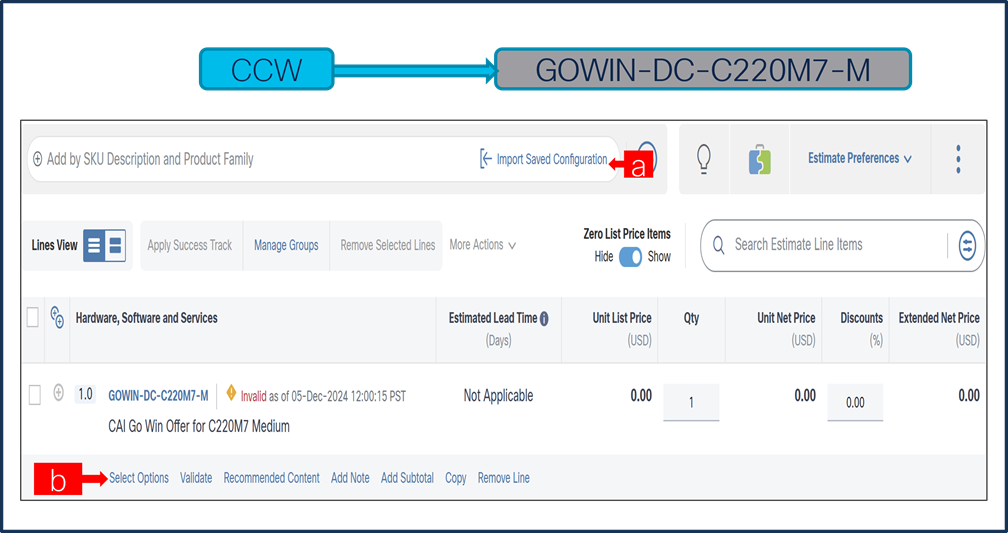

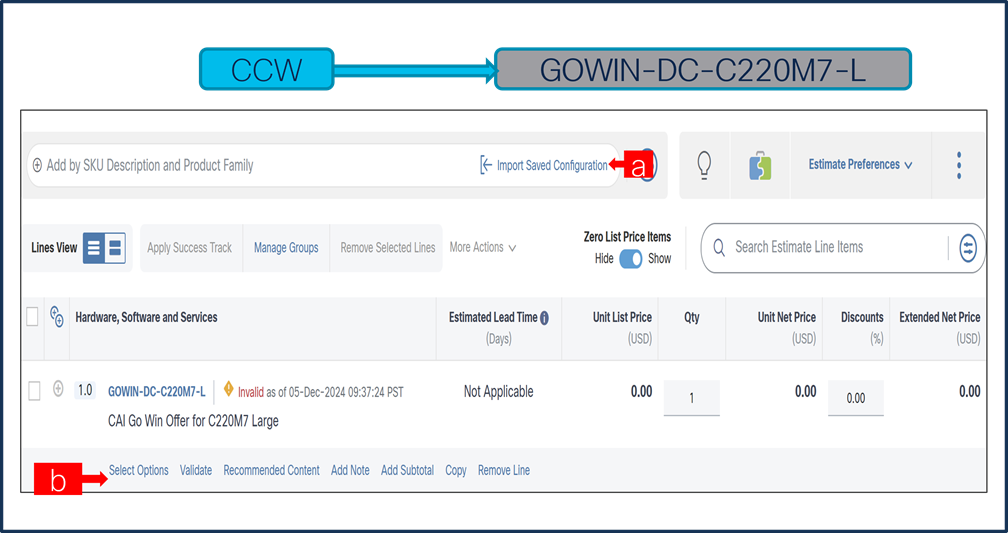

a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.

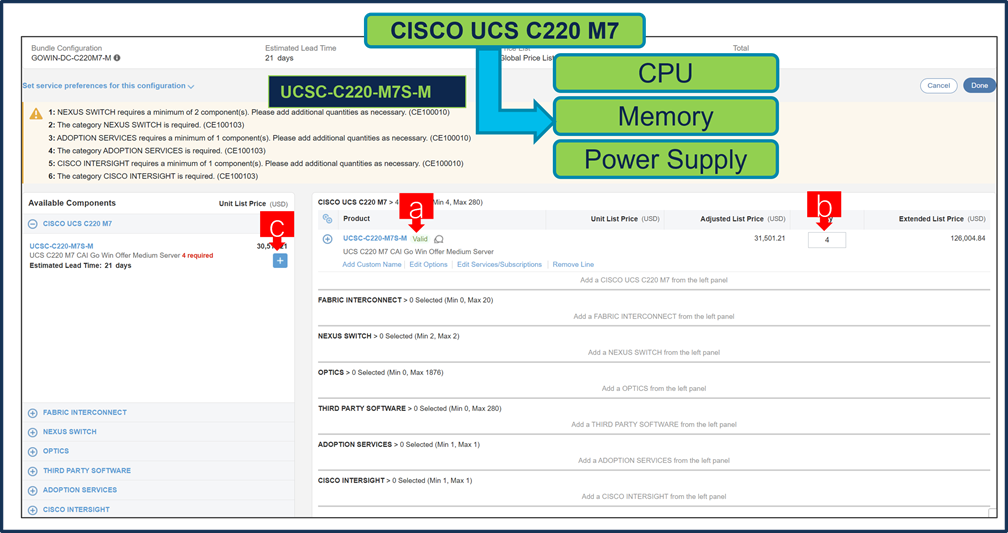

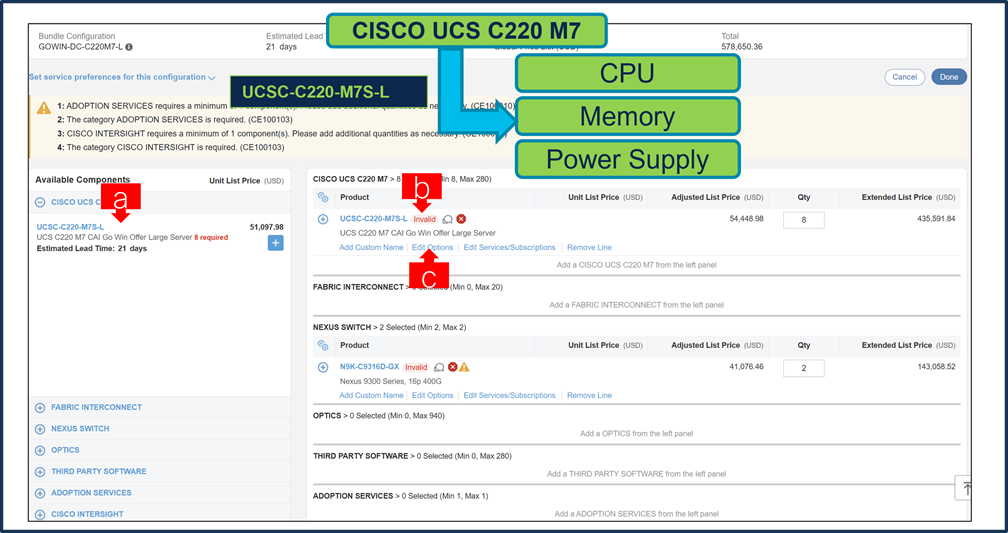

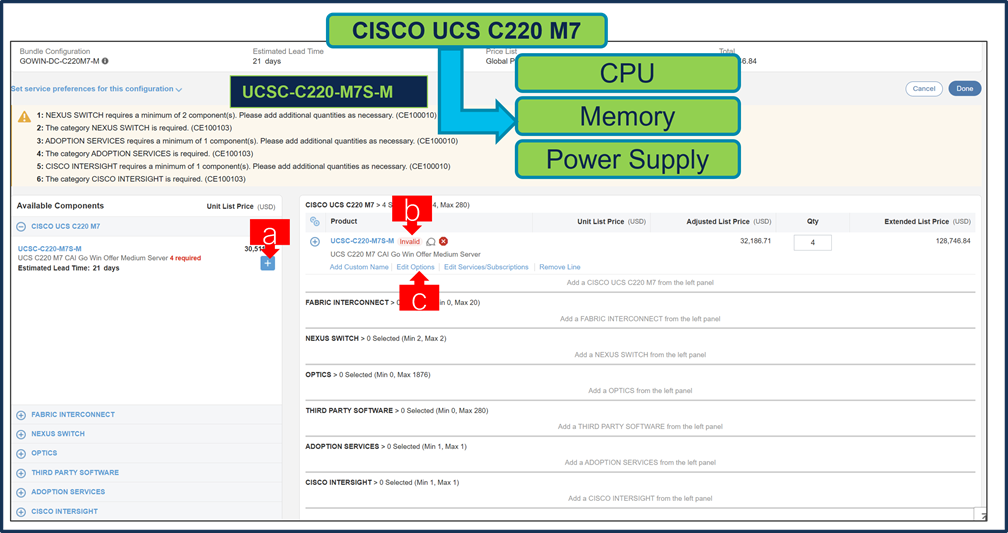

a. ATO: UCSC-C220-M7S-M is preselected from Category: CISCO UCS C220 M7.
b. Notice the UCSC-C220-M7S-M ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.

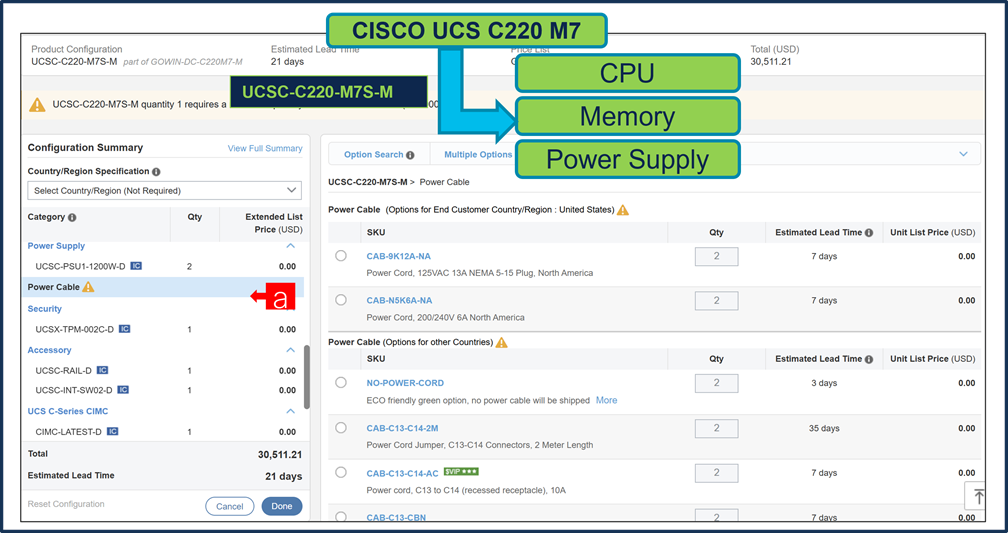

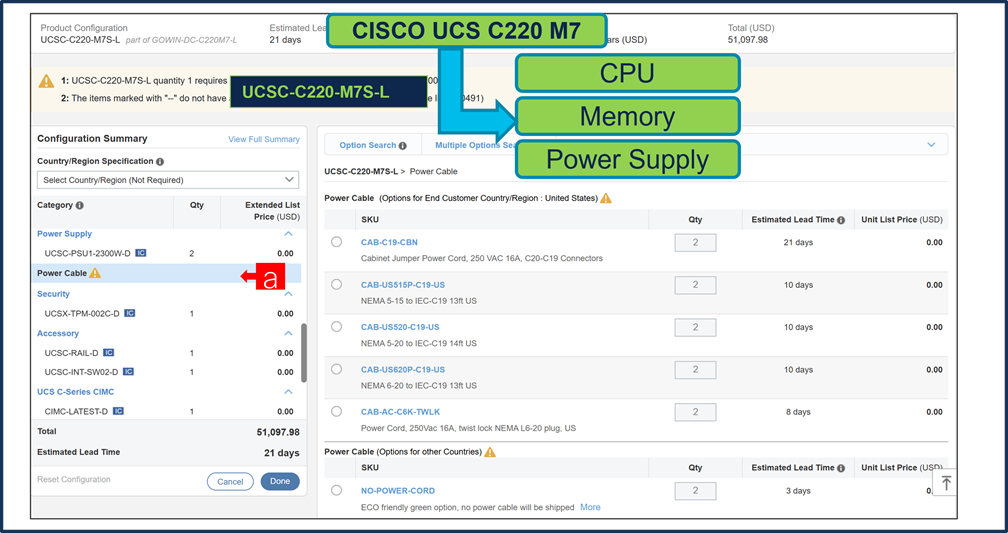

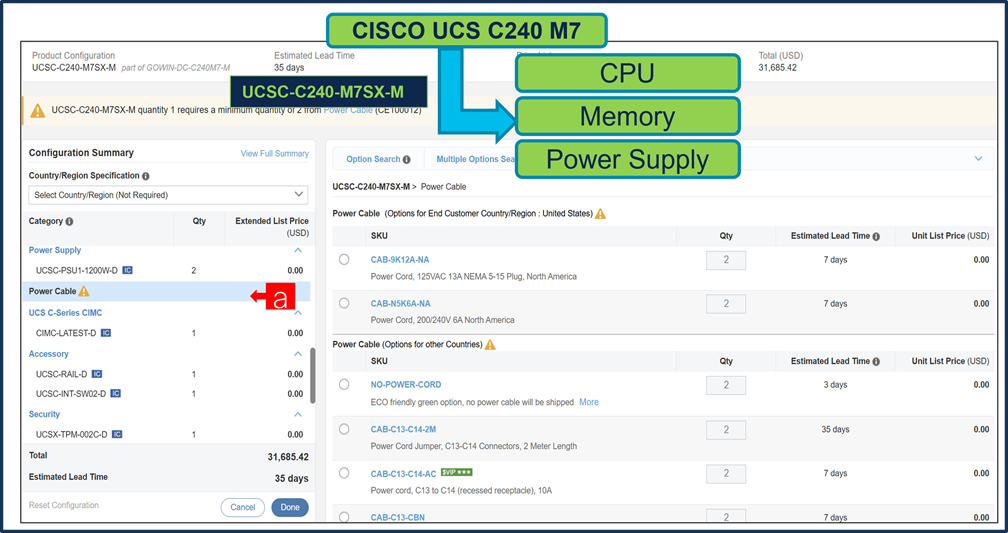

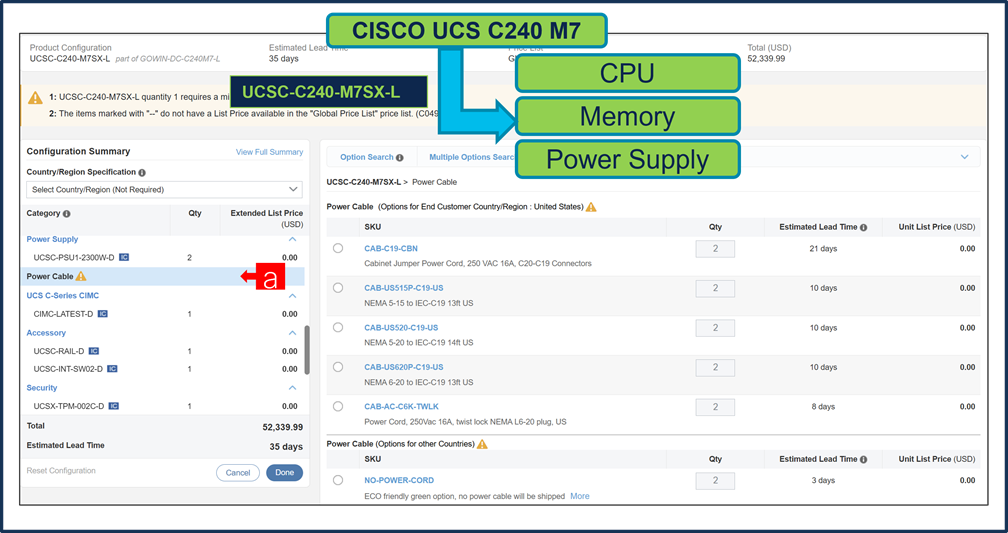

a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.

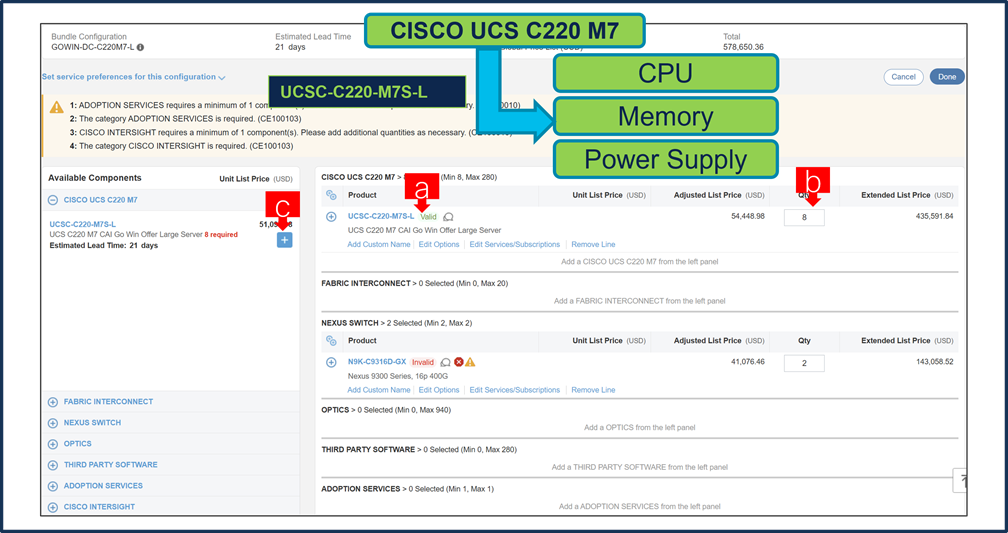

Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.

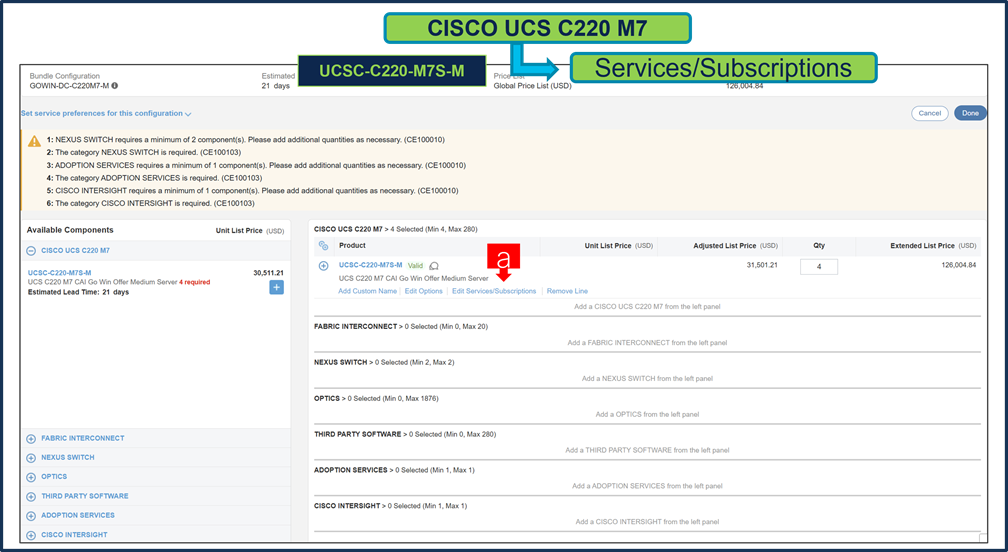

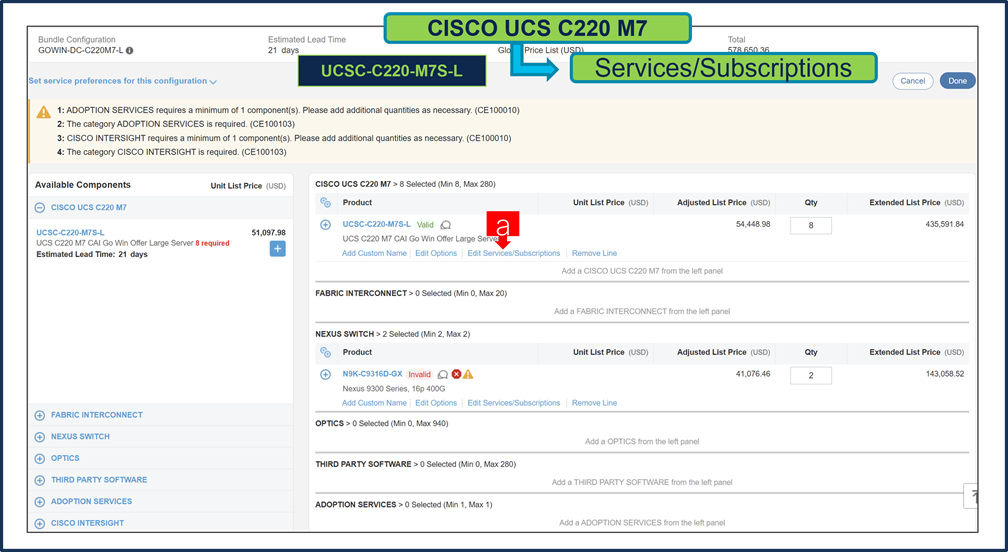

Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.

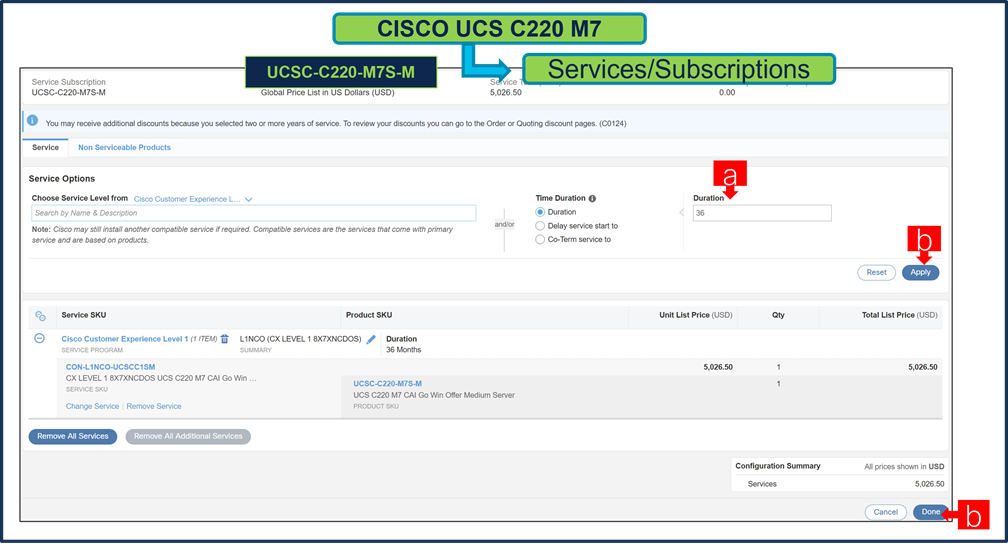

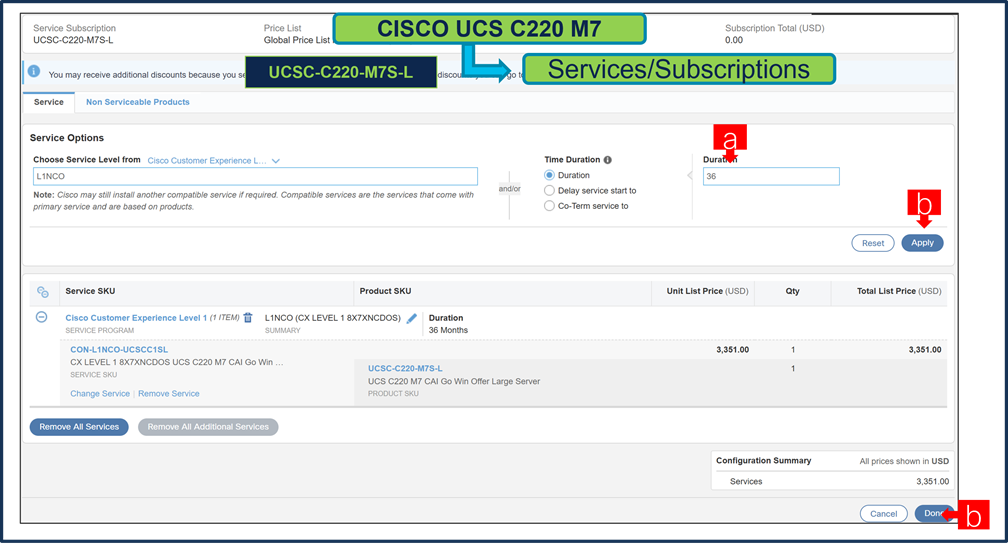

Step 6.

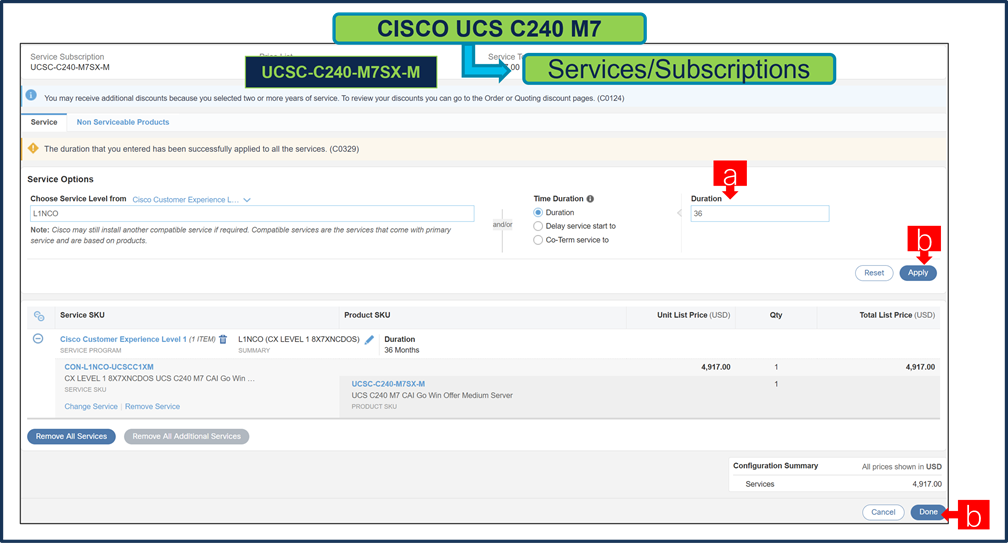

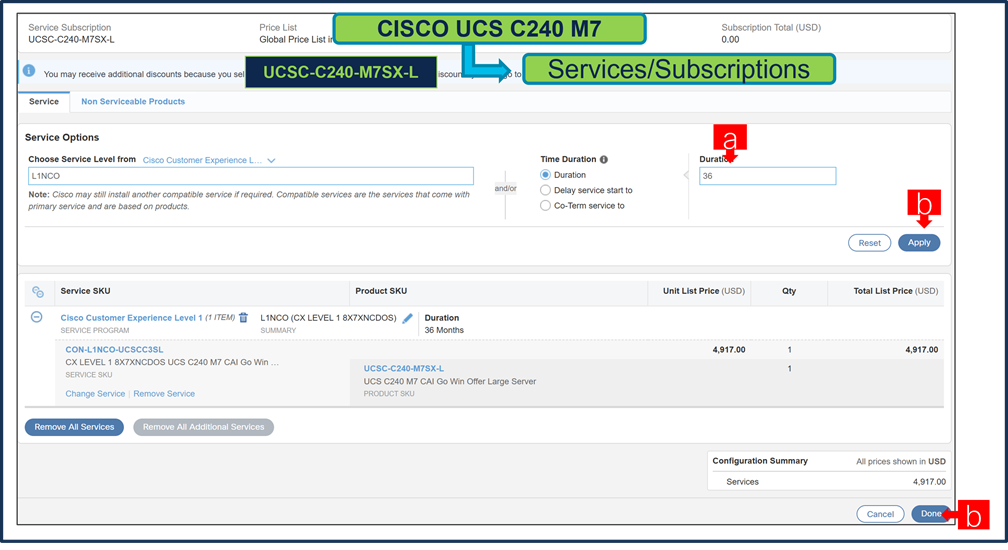

a. Enter the Term Duration
b. Click on “Apply” and “Done”

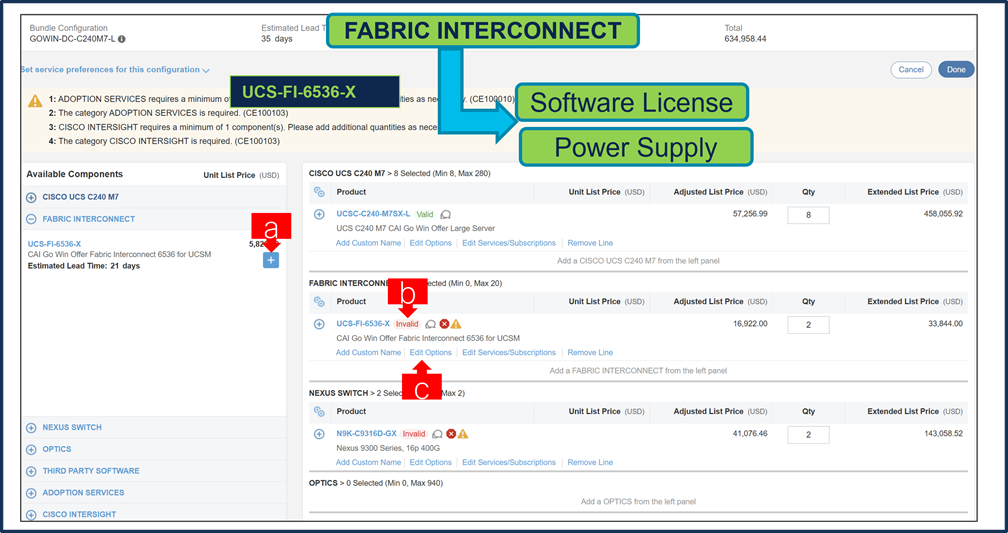

Step 7.

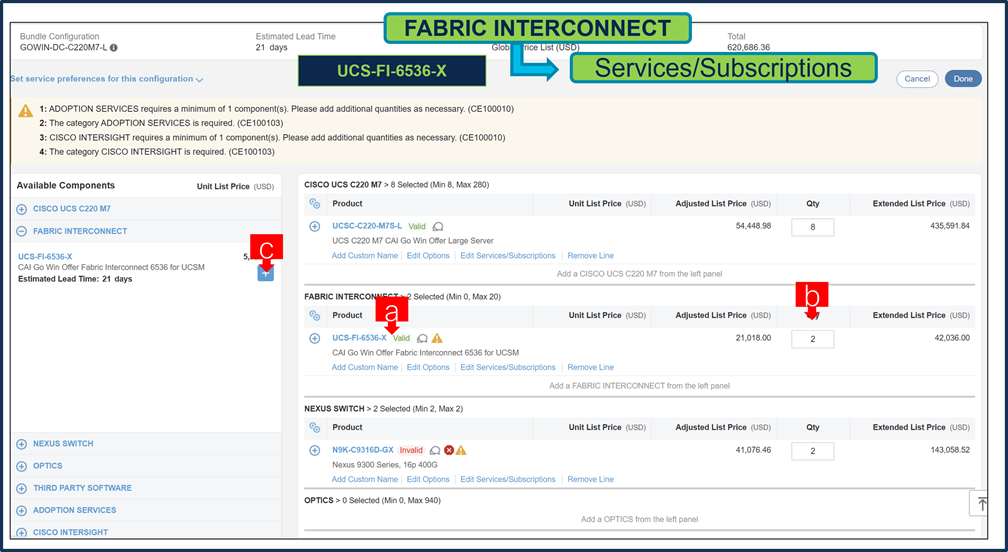

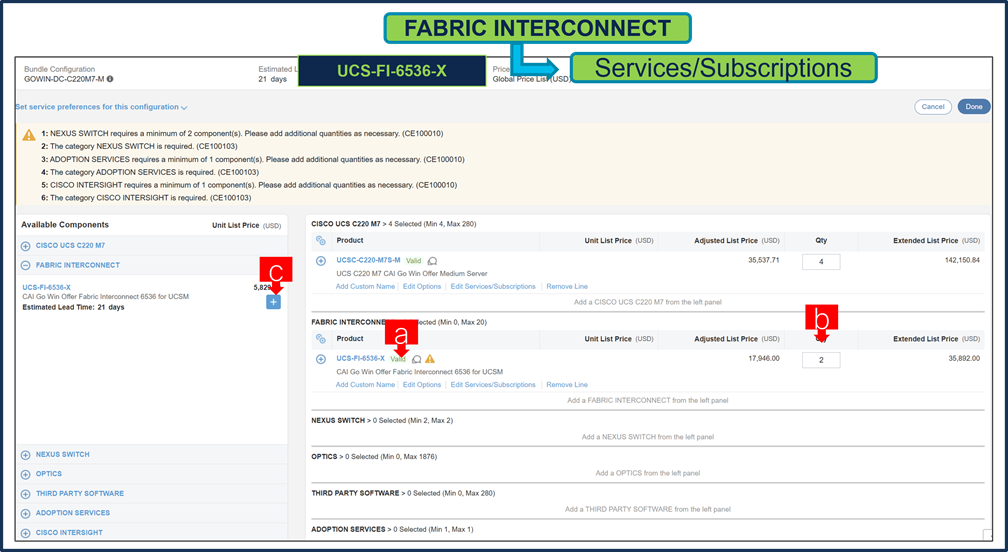

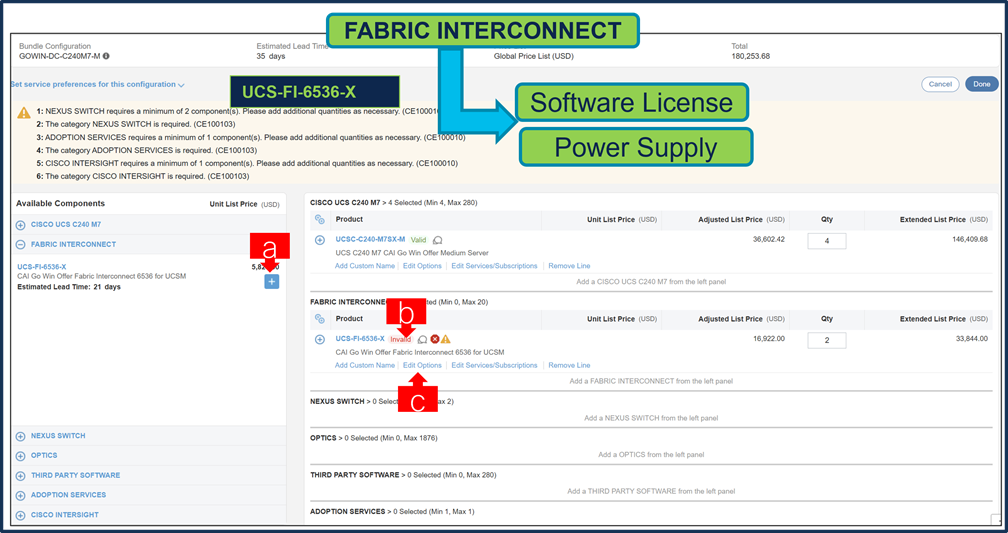

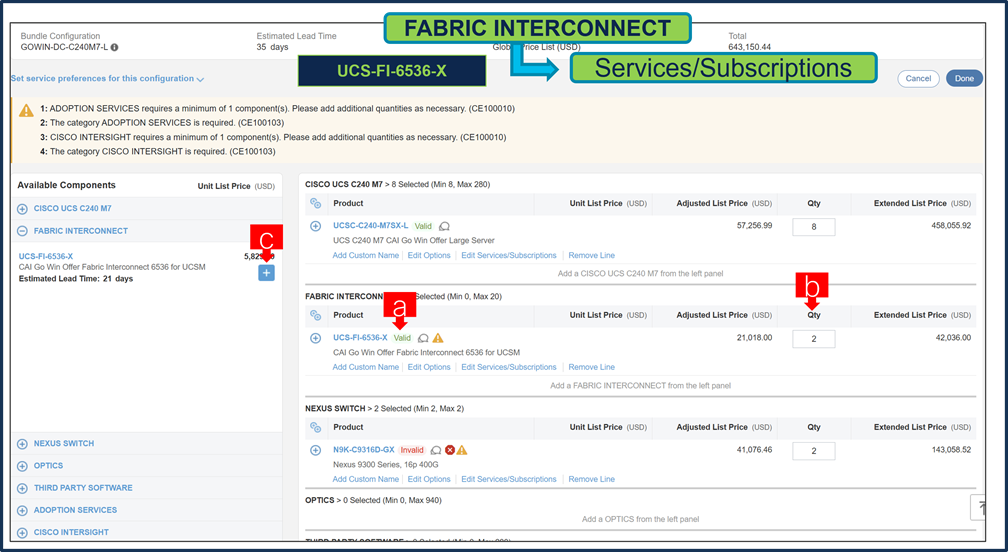

a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.

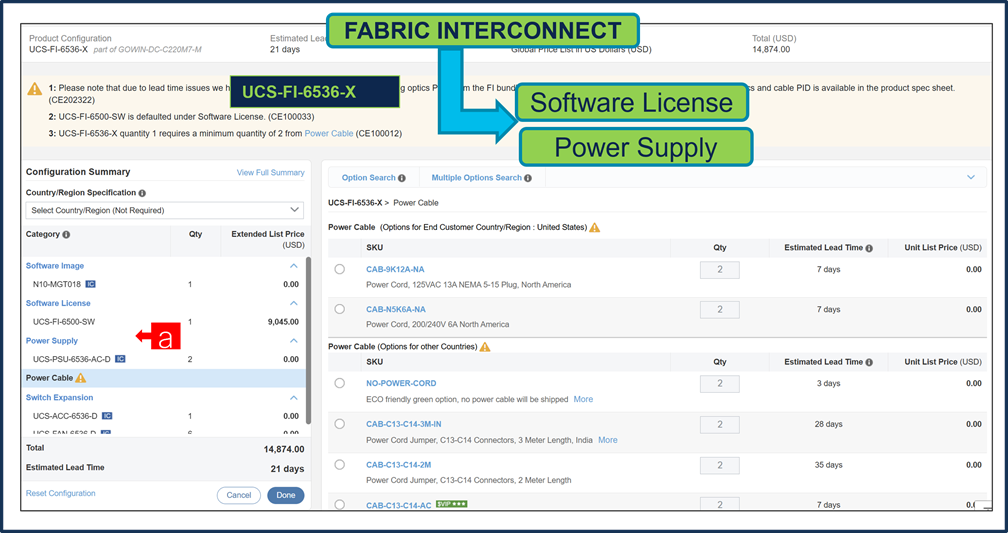

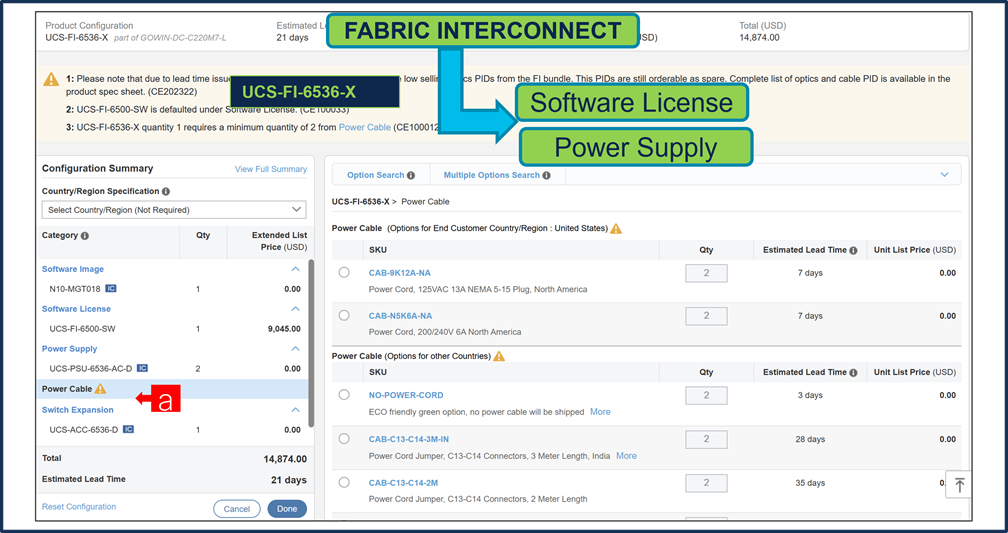

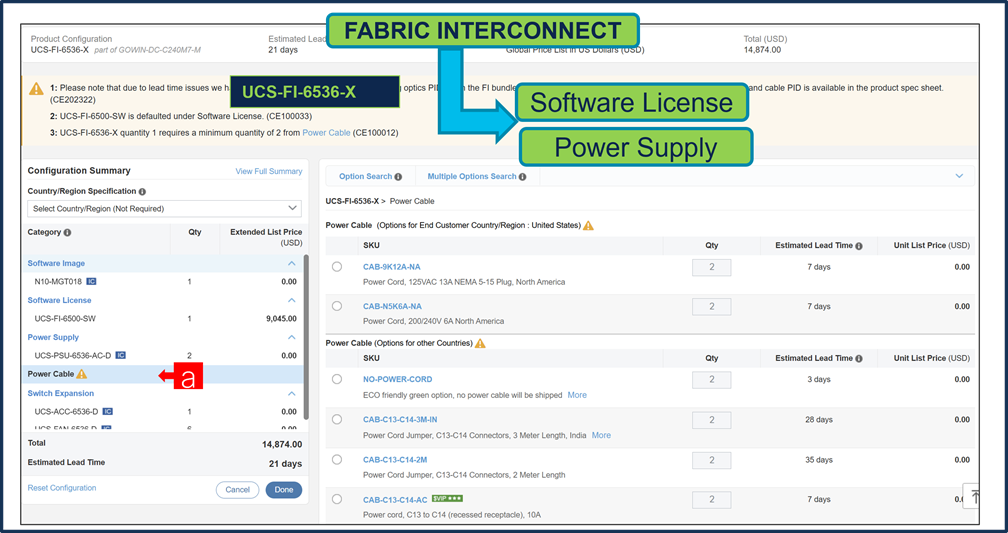

Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.

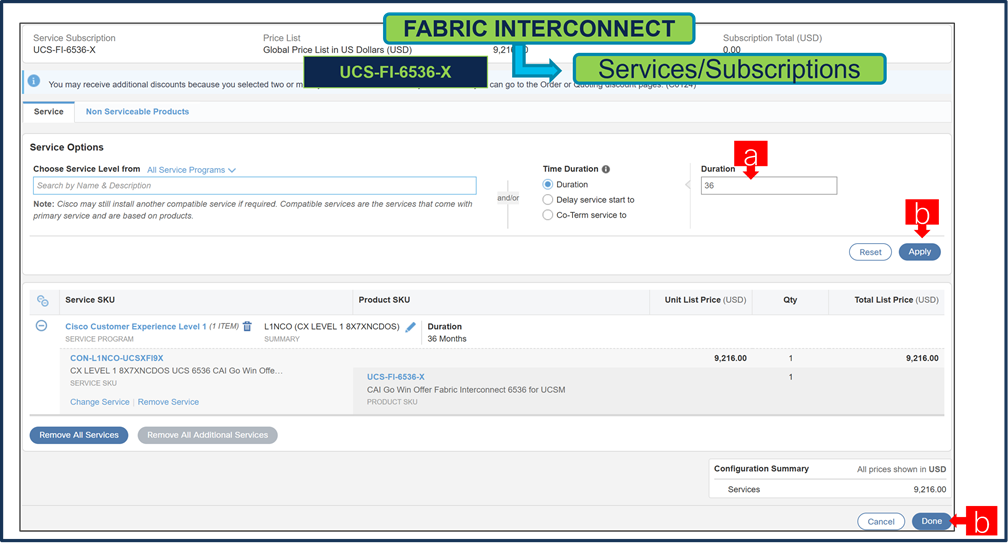

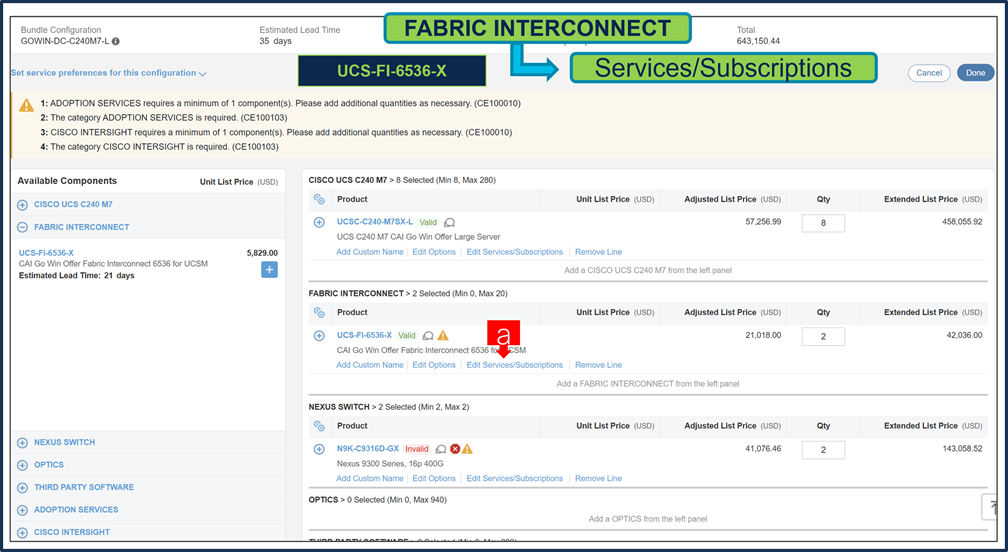

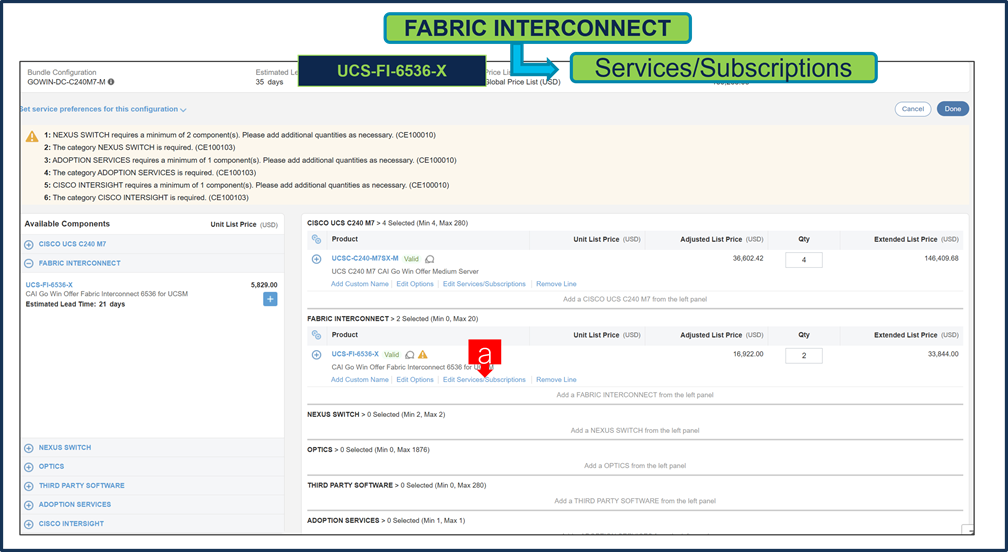

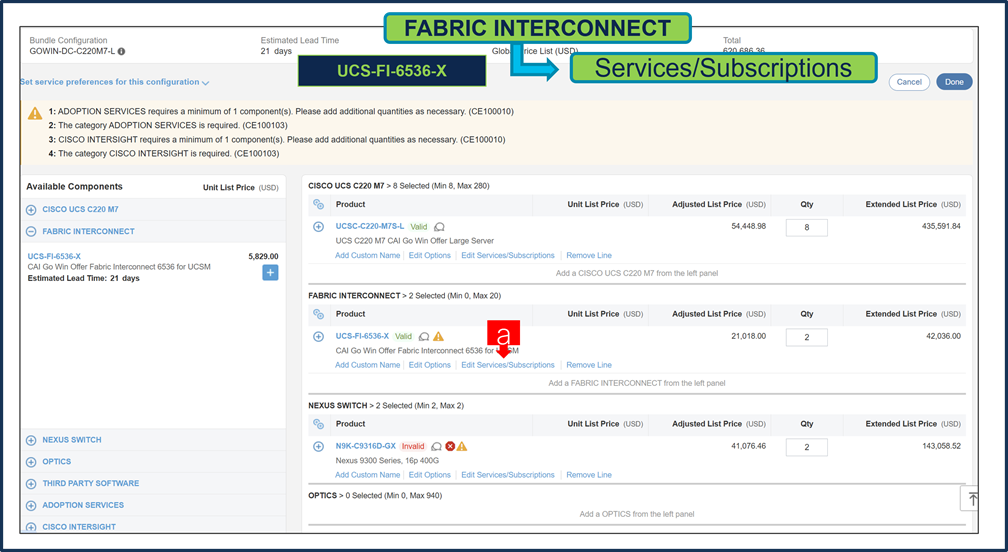

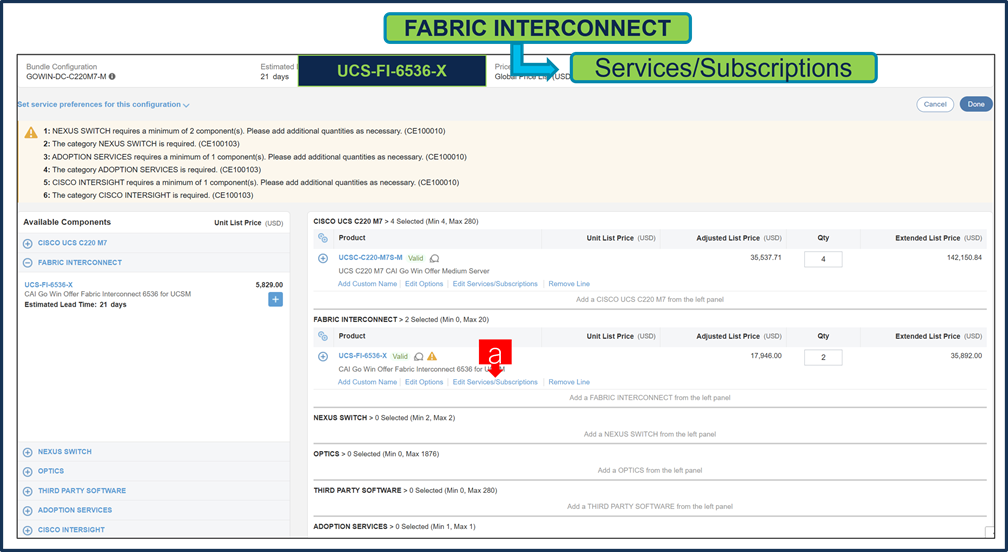

a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.

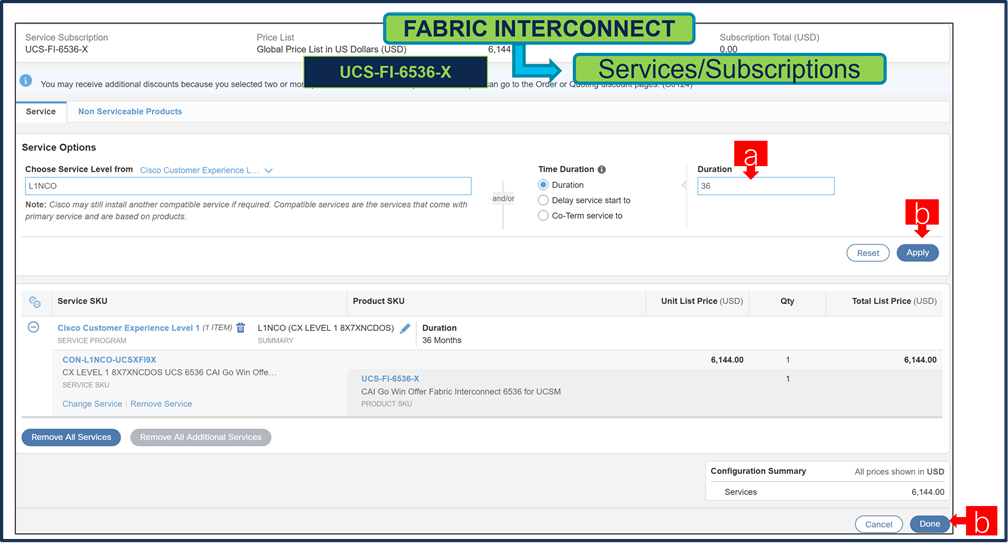

Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.

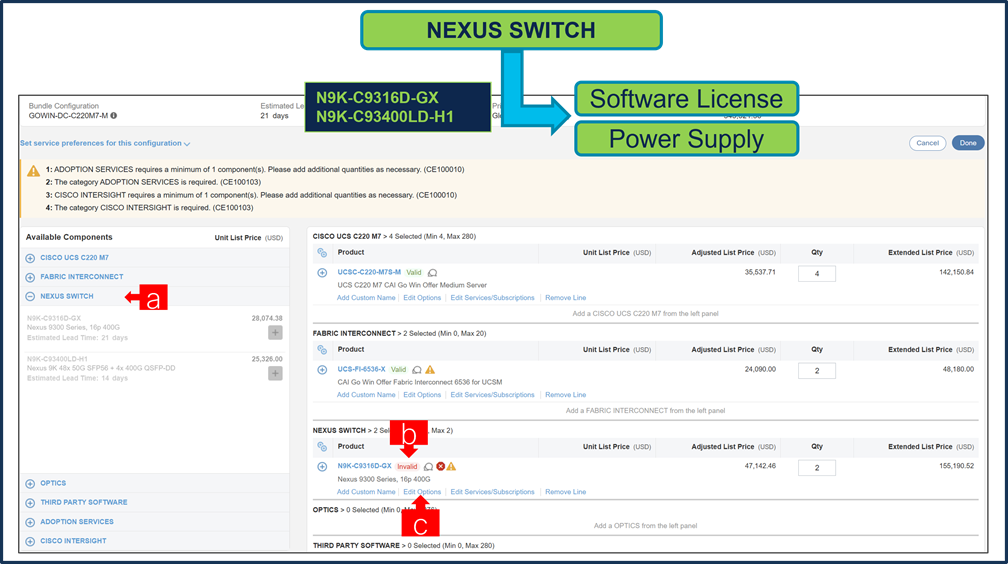

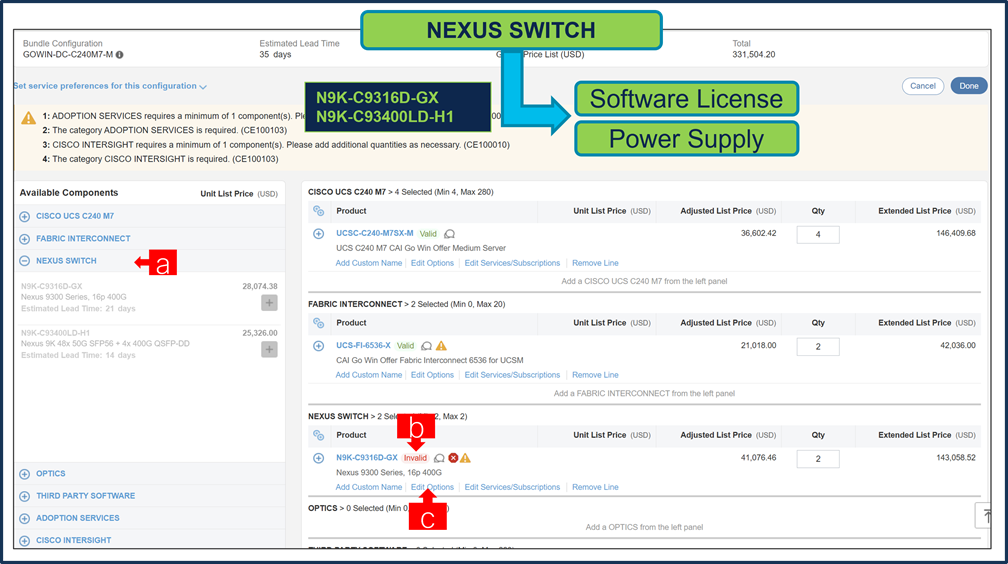

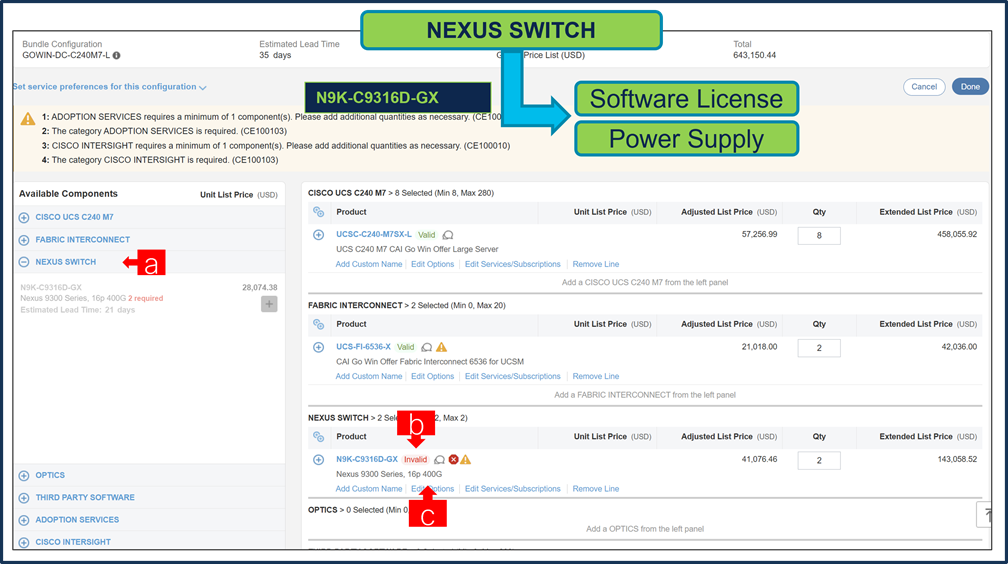

a. At least one selection is required from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Note:
● If FI: UCS-FI-6536-X is selected, then user must select 2 QTY of N9K-C9316D-GX.
● If FI: UCS-FI-6536-X is not selected, then user must select 2 QTY of N9K-C93400LD-H1.
Step 13.

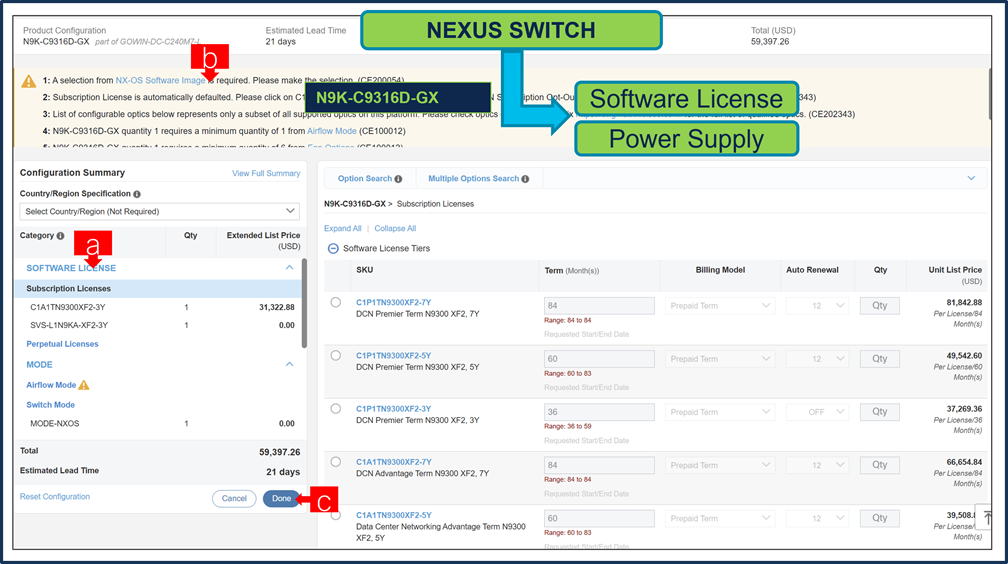

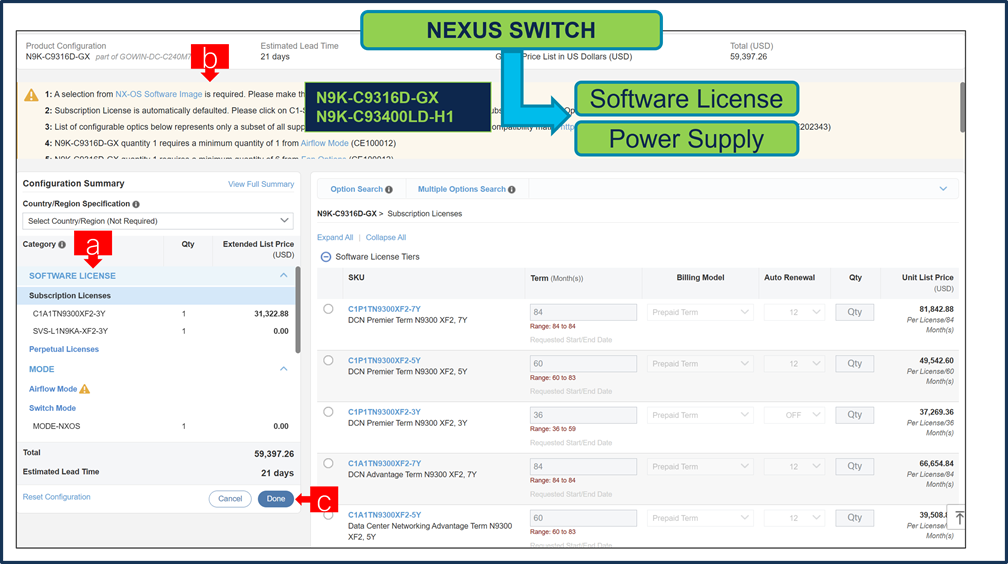

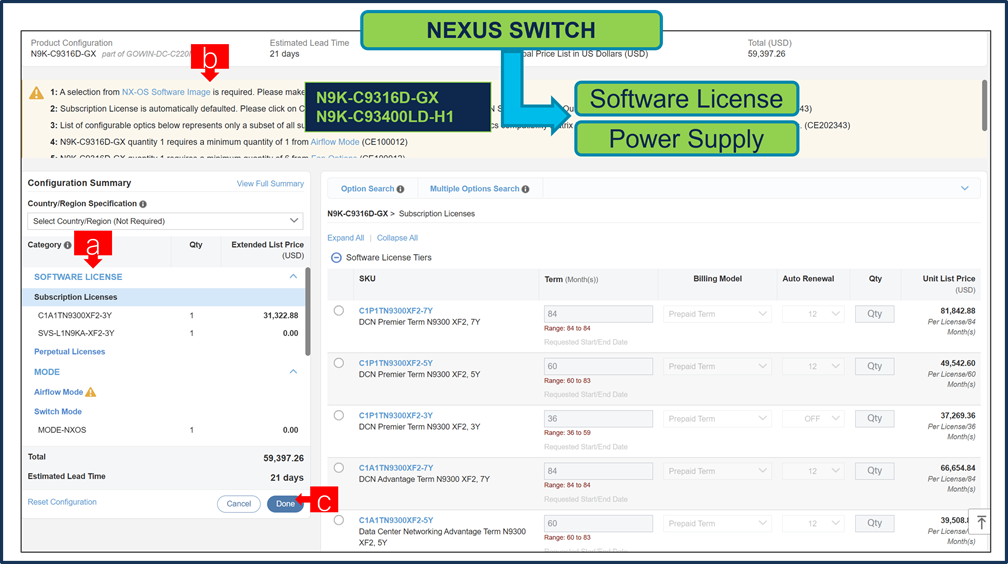

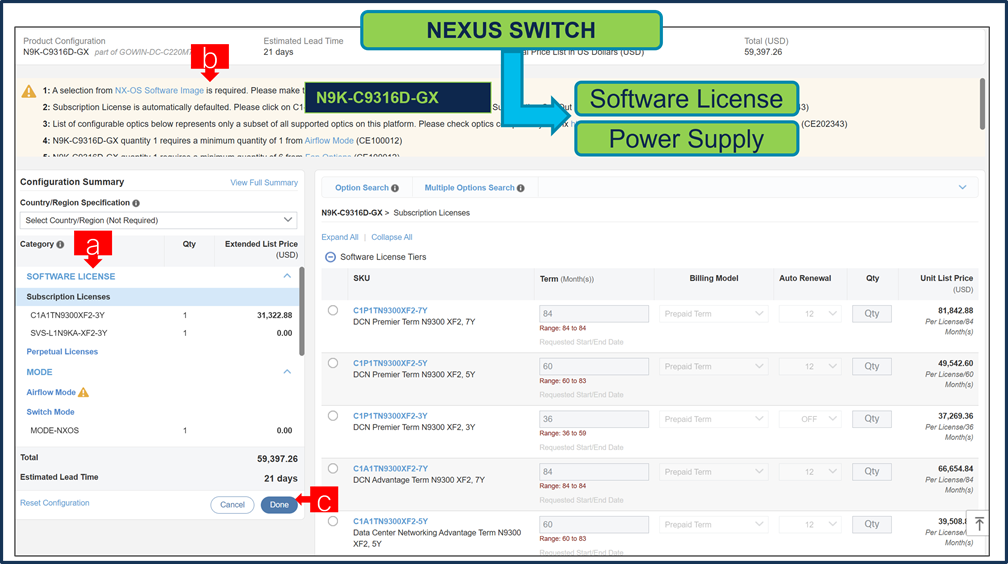

a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.

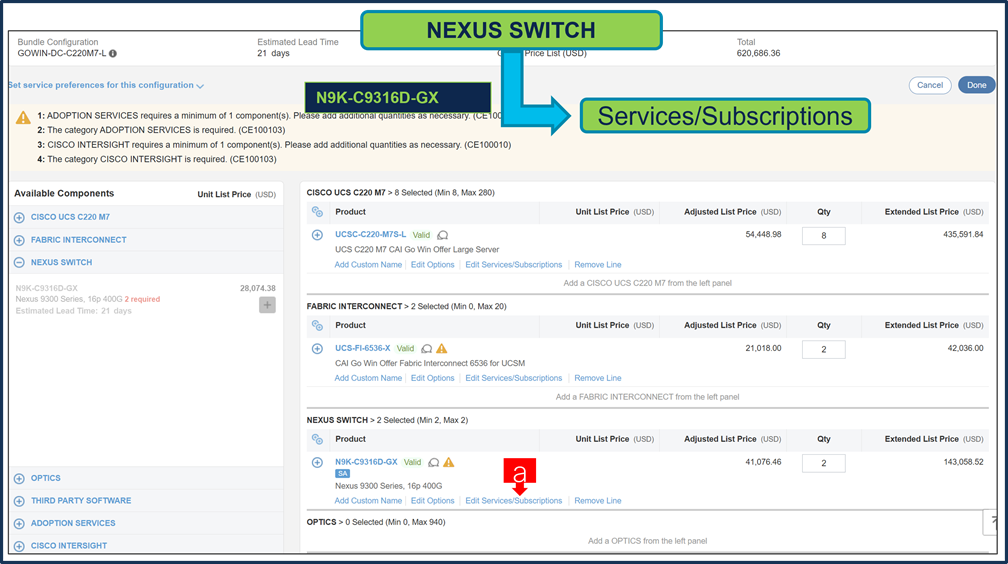

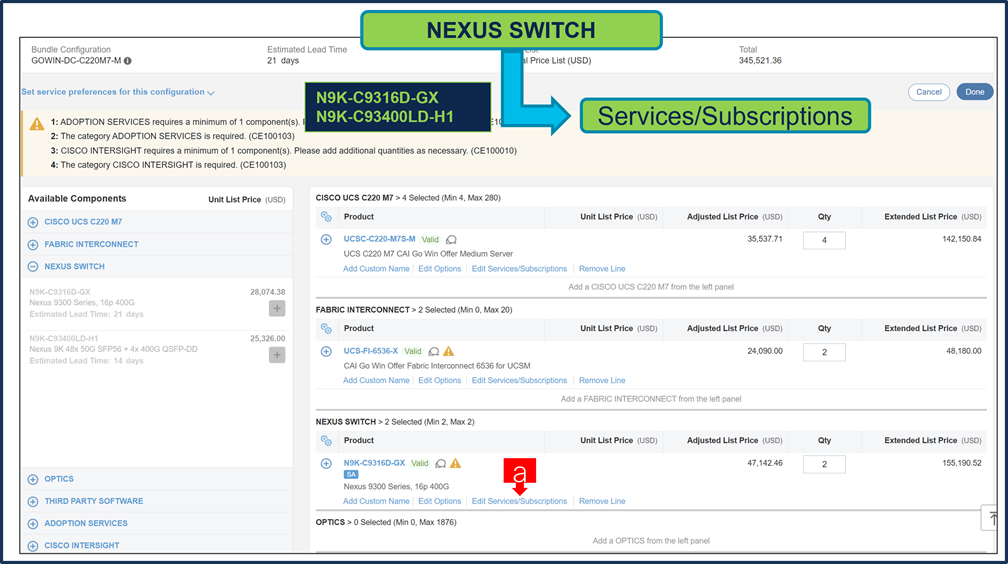

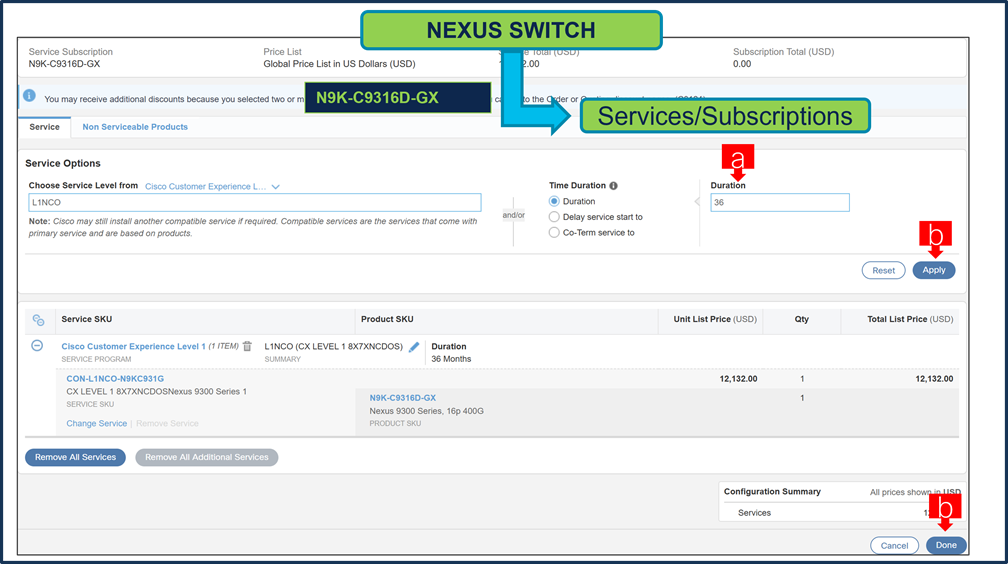

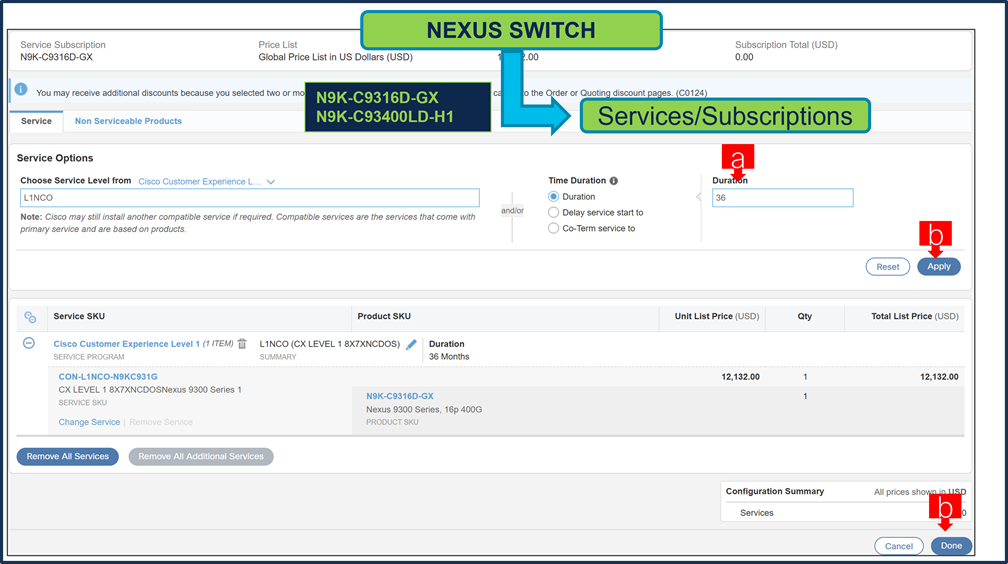

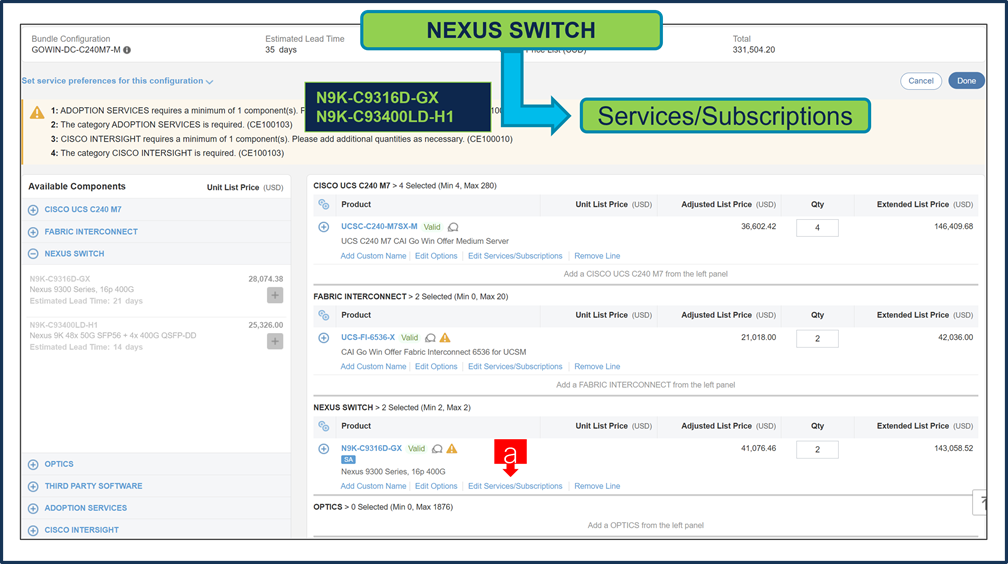

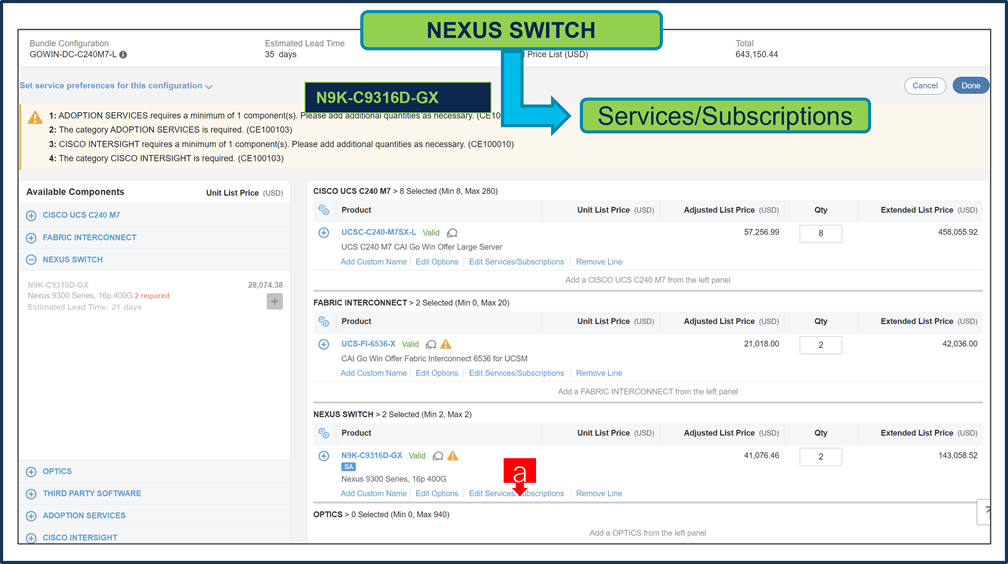

a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.

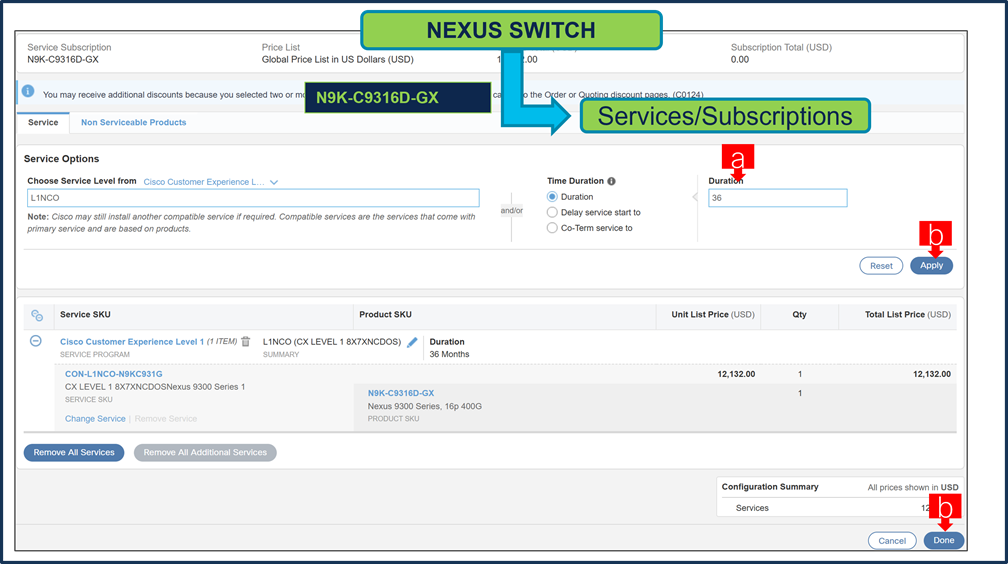

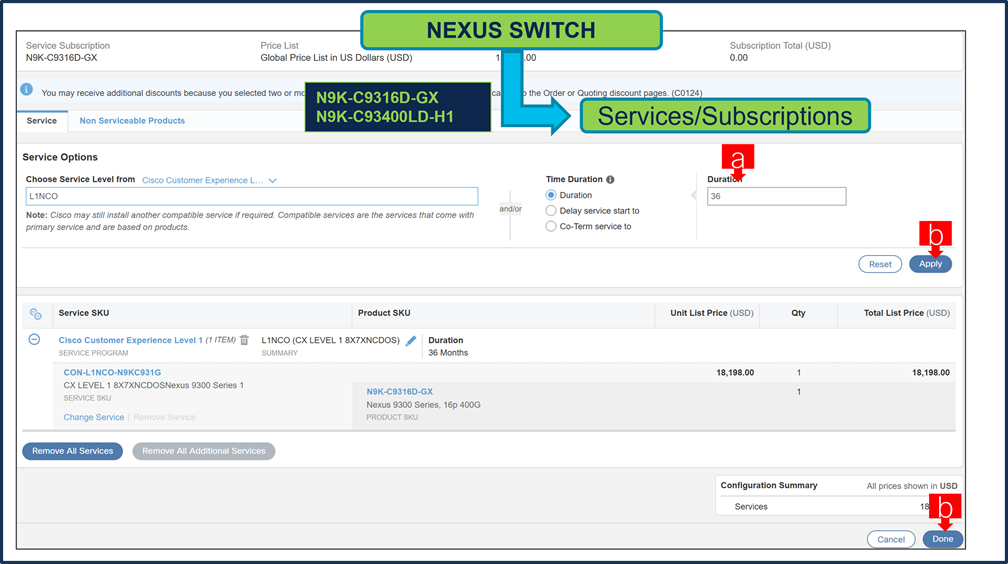

a. Enter the Term Duration.
b. Click on “Apply” and “Done”

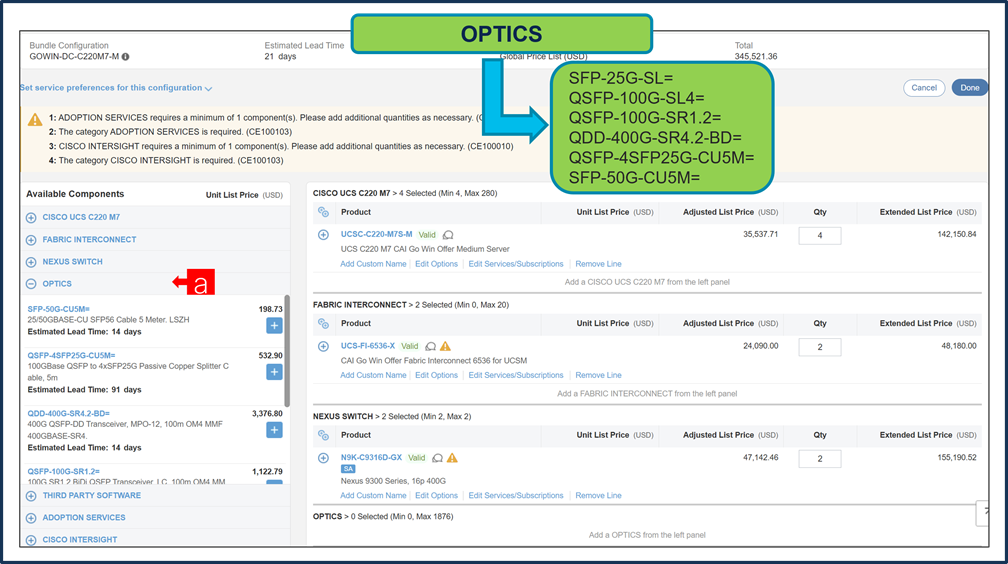

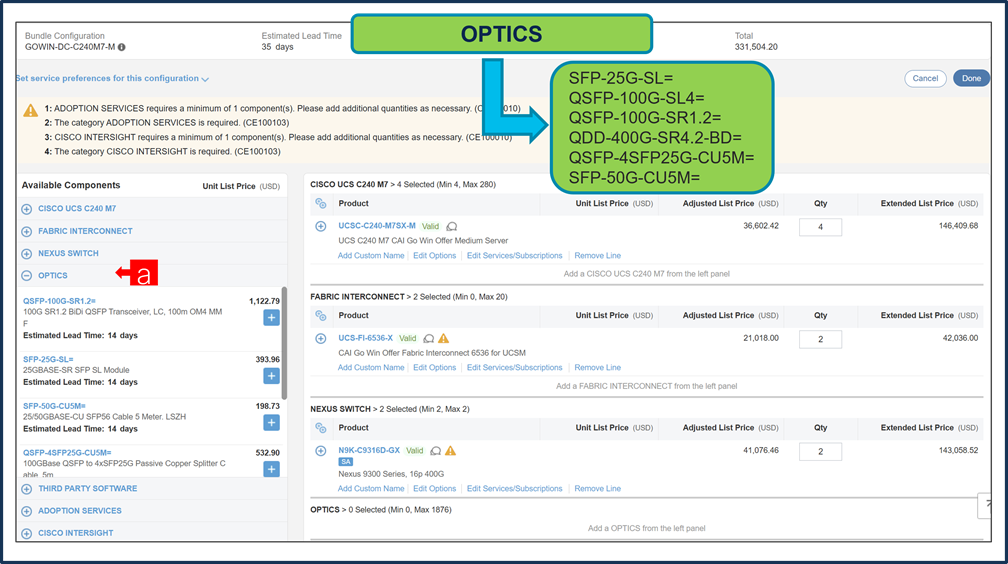

Step 16.

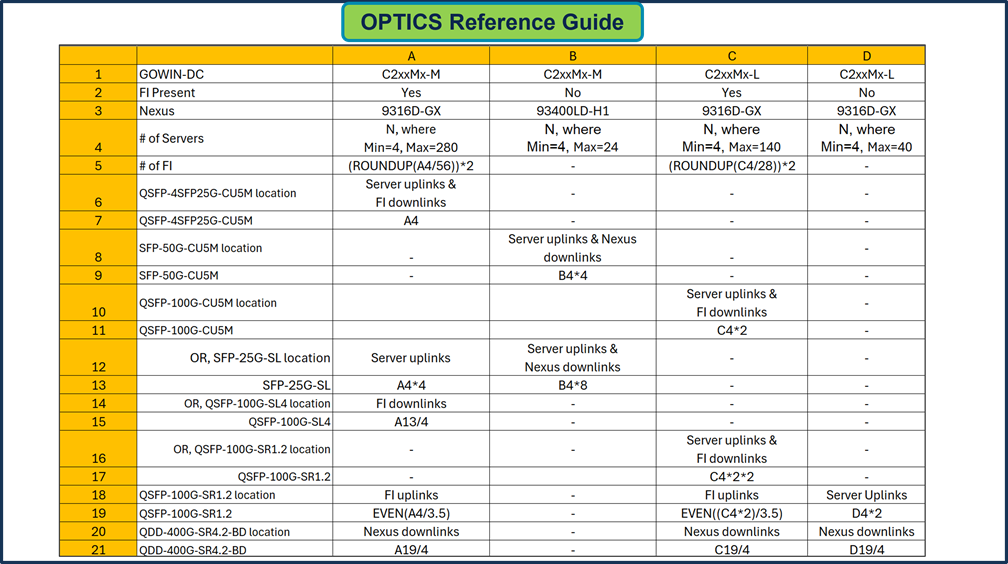

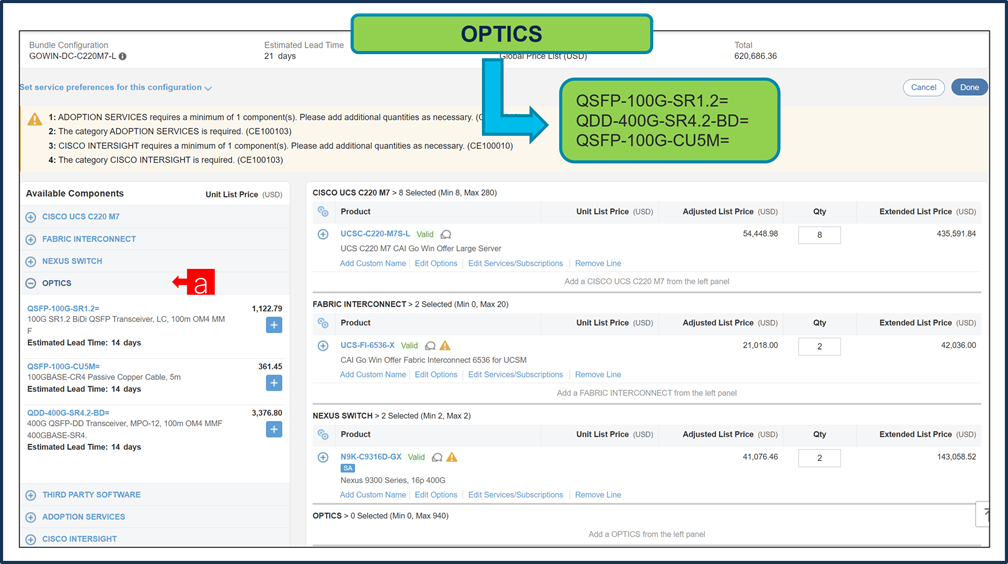

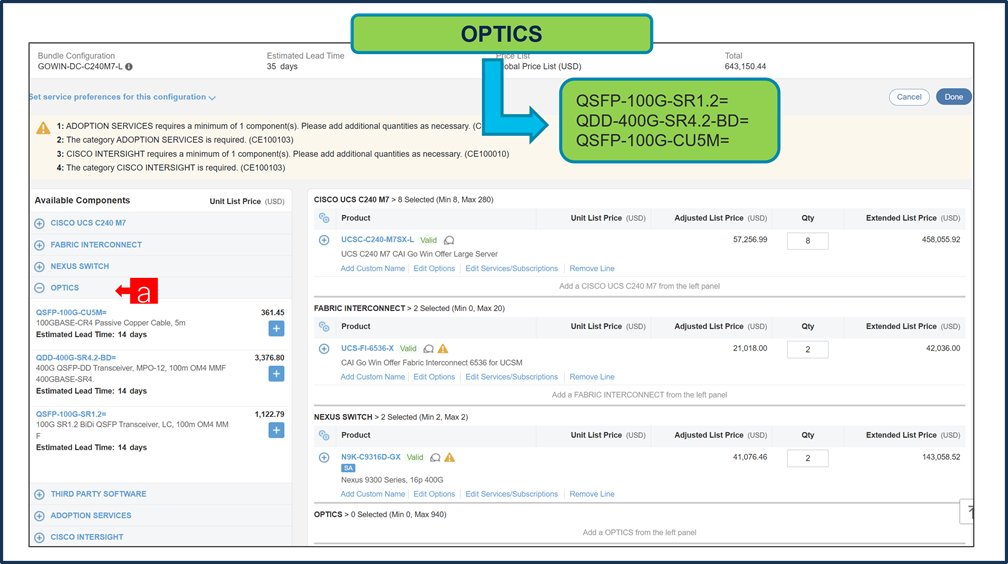

a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.

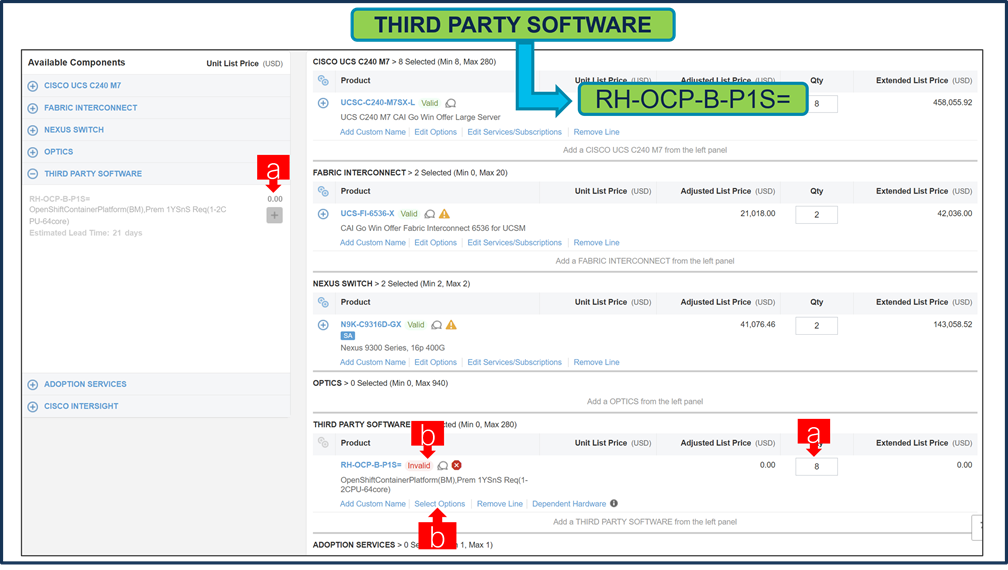

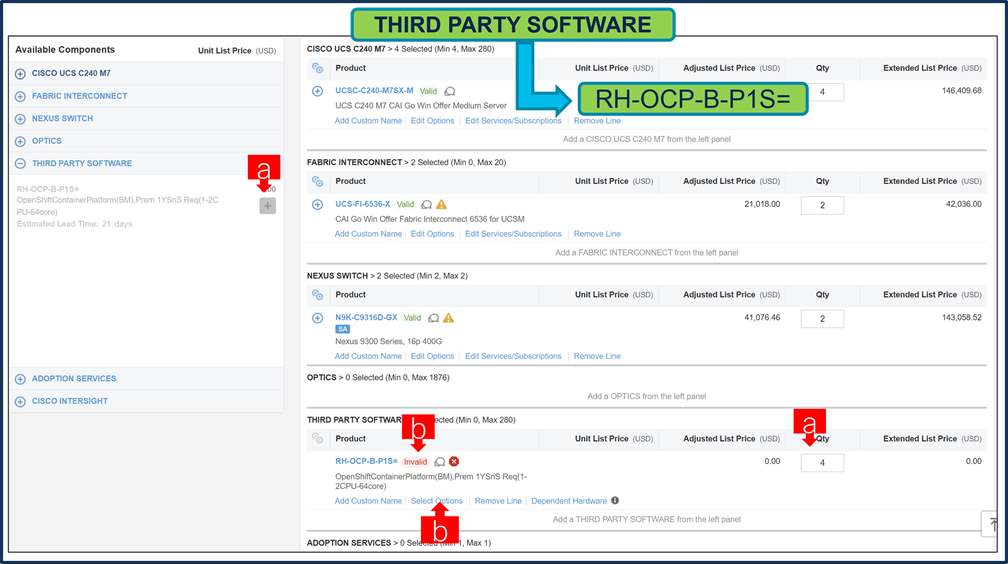

Step 18.

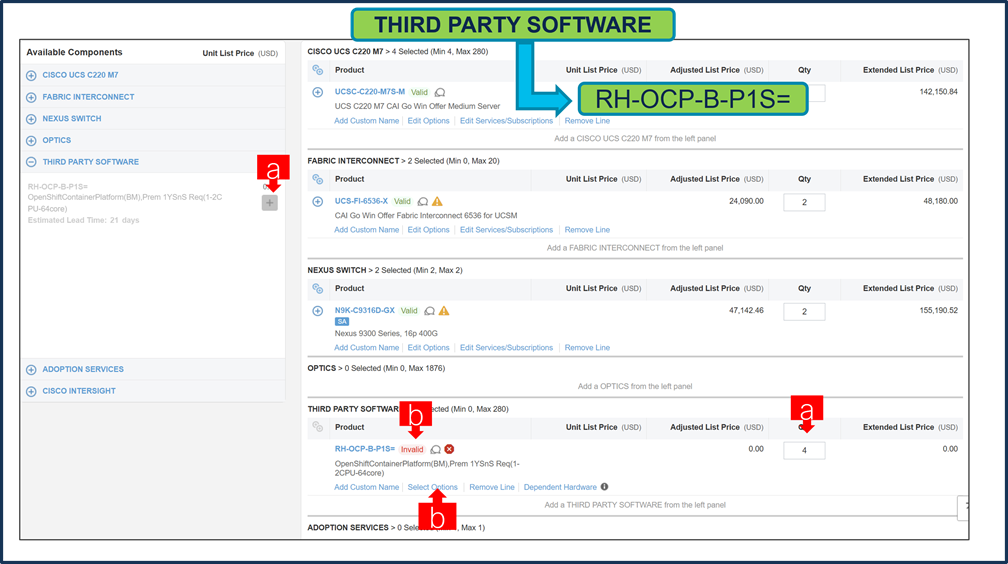

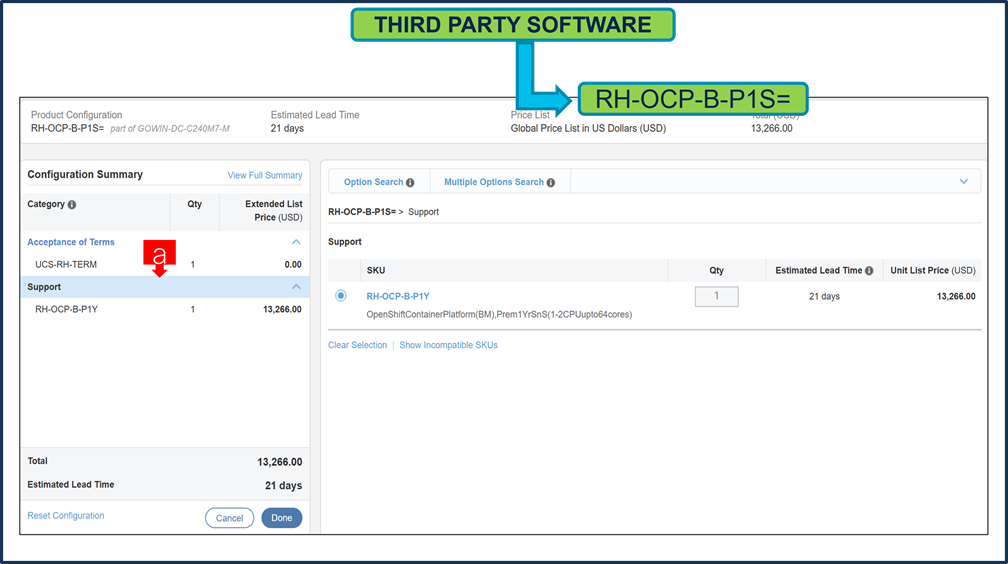

a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.

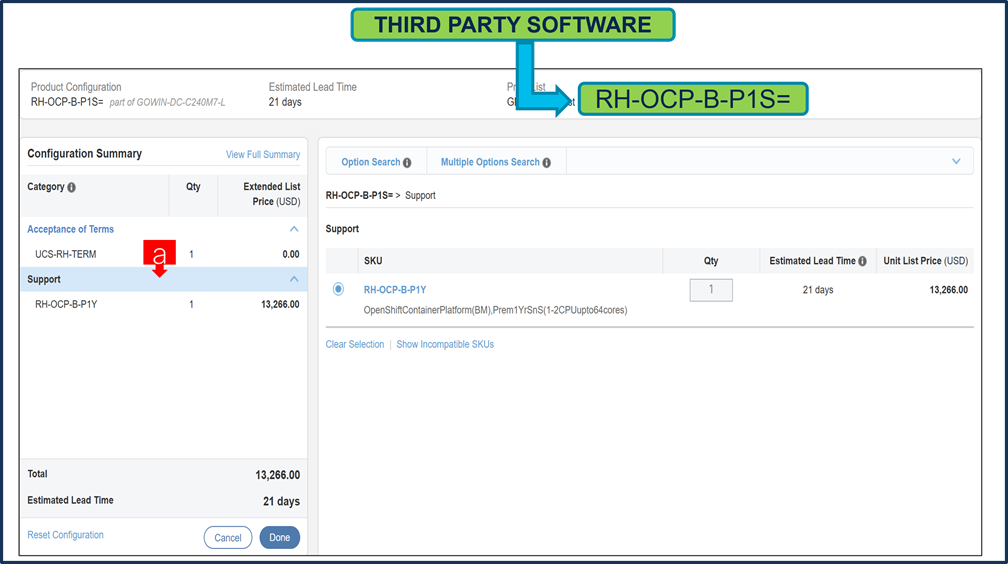

Step 19.

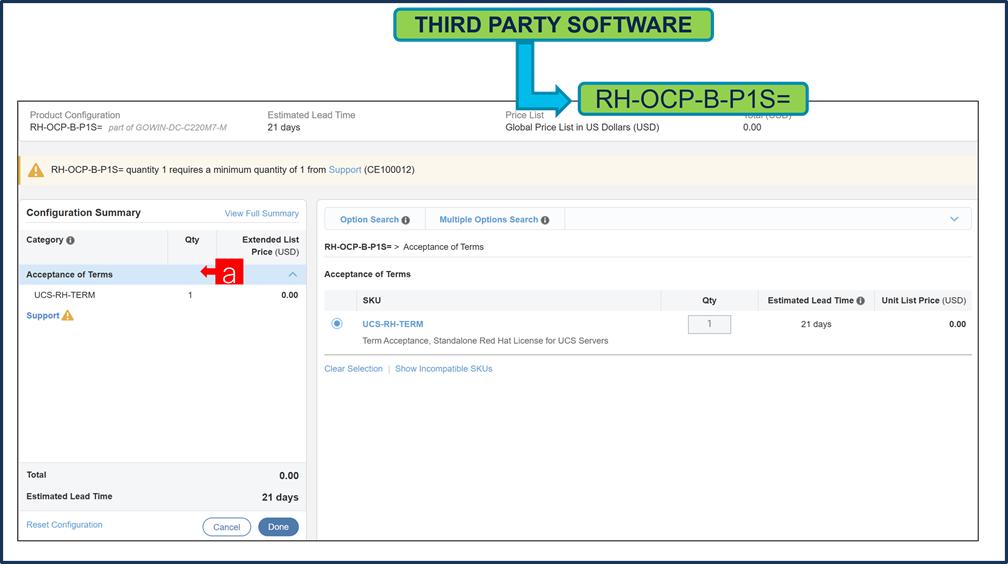

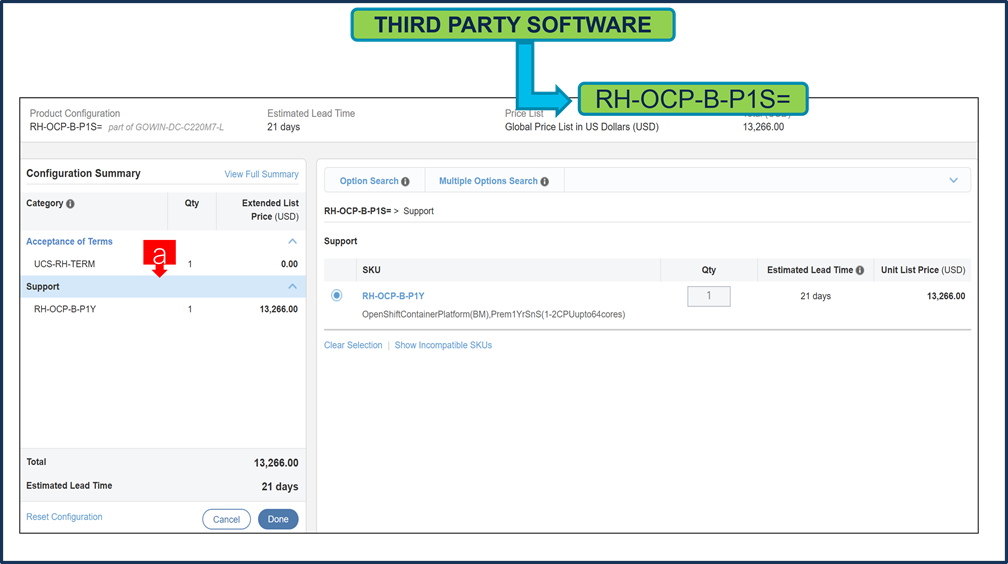

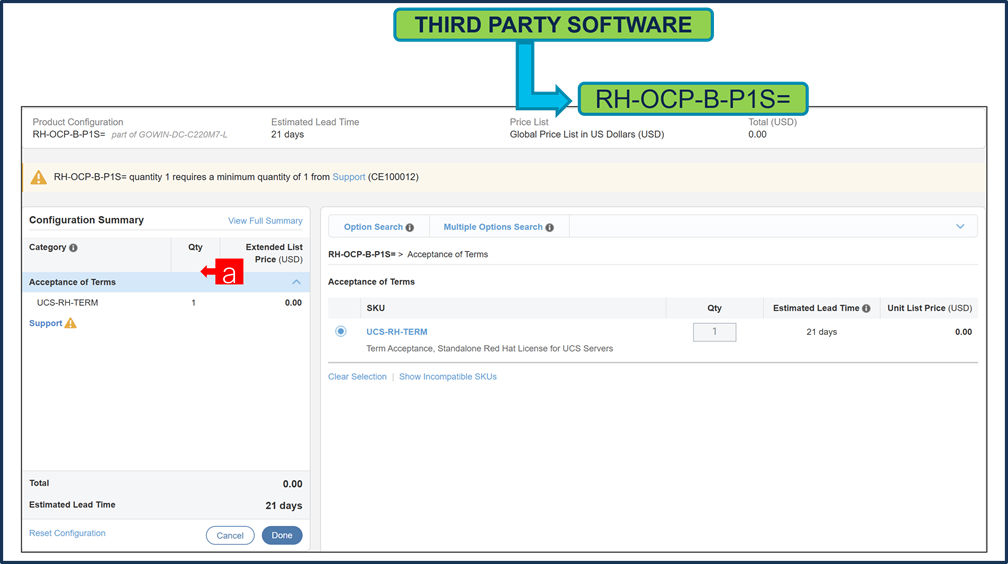

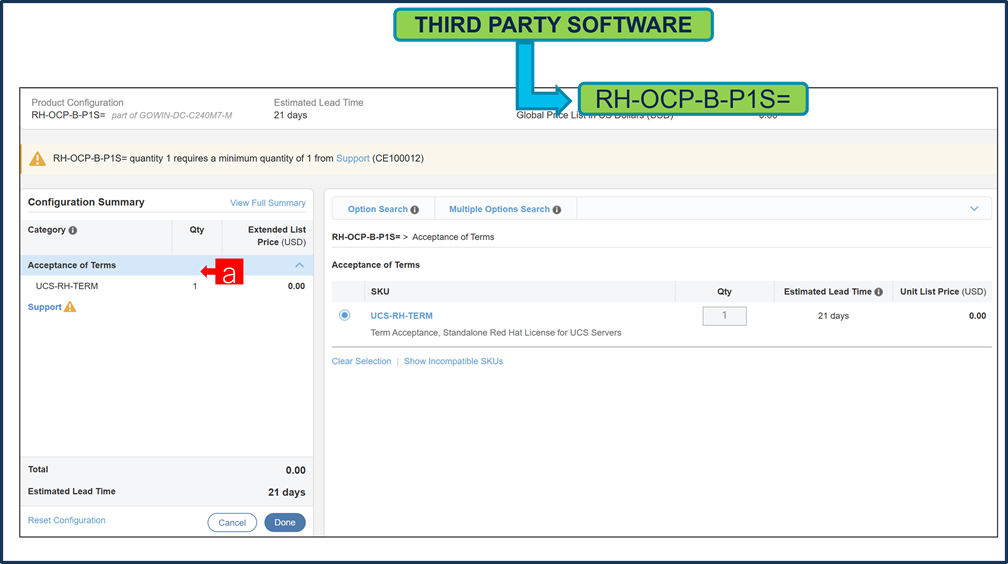

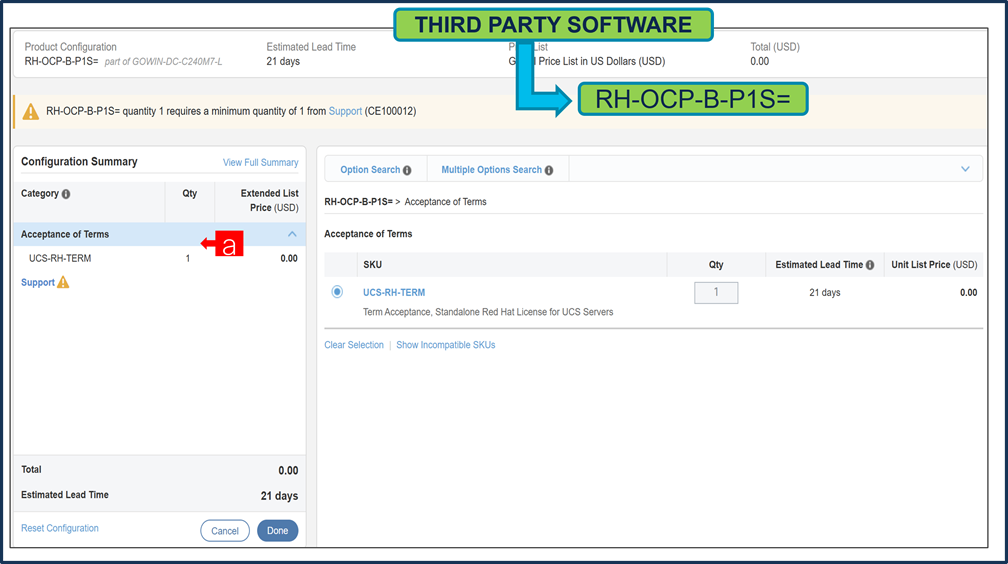

a. Select Acceptance of Terms Option.

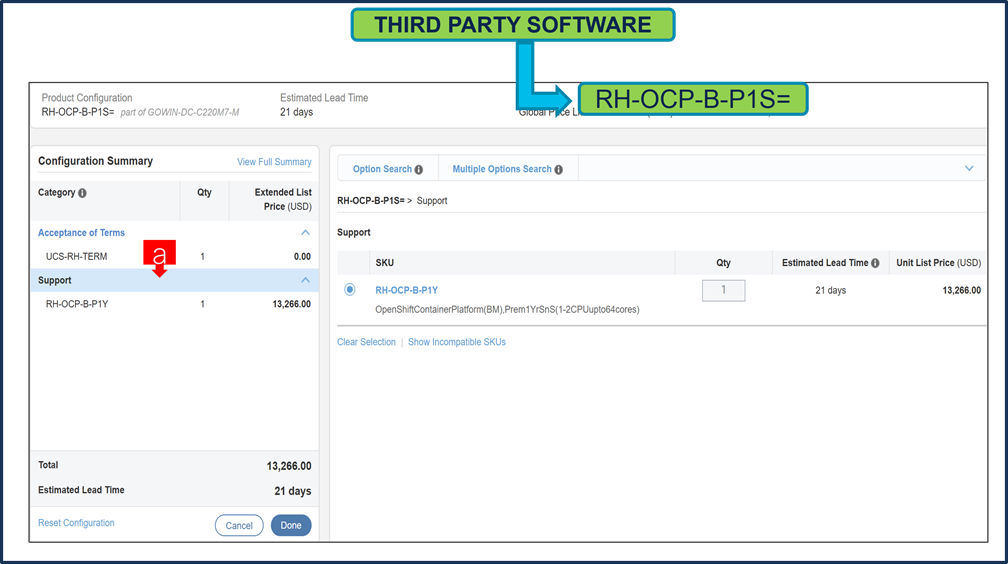

Step 20.
a. Select Support Option.

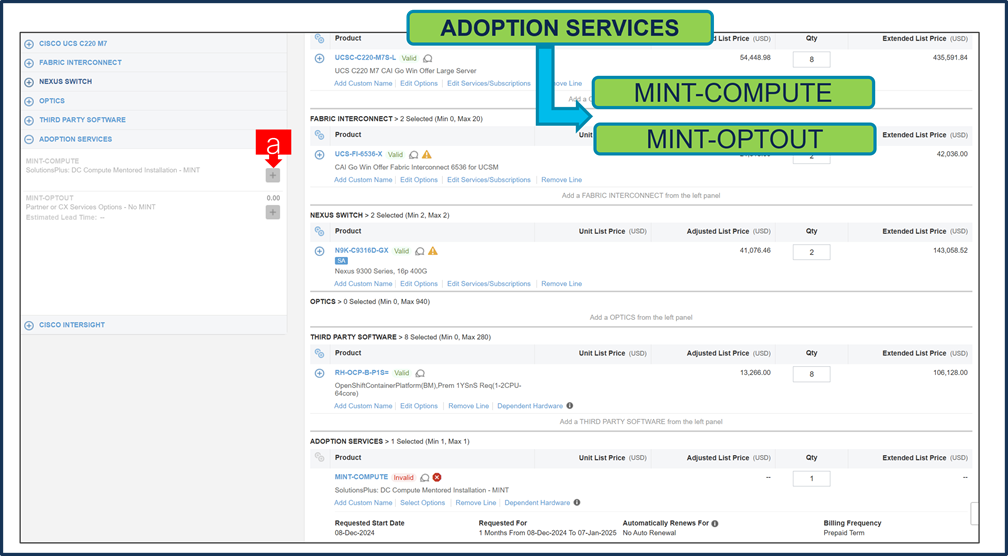

Step 21.

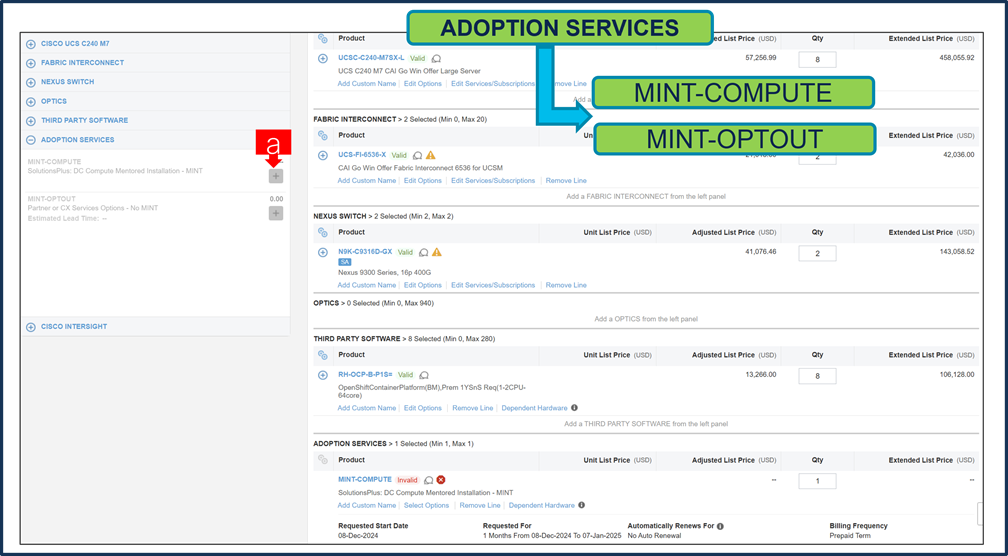

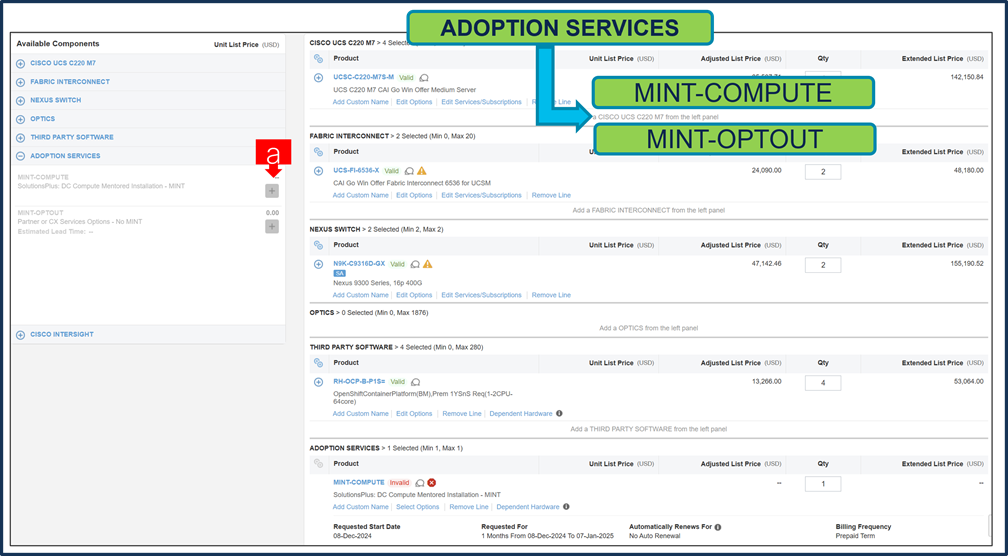

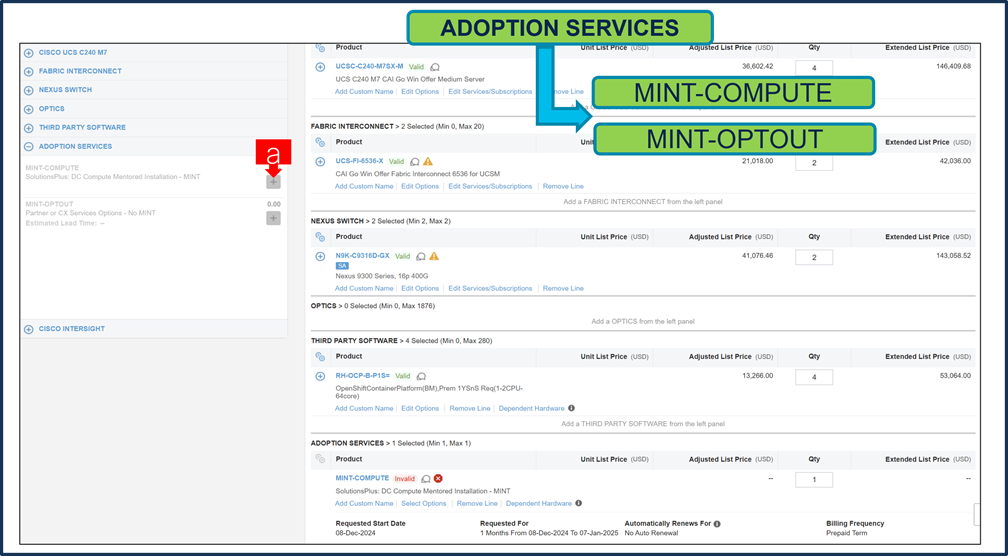

a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.

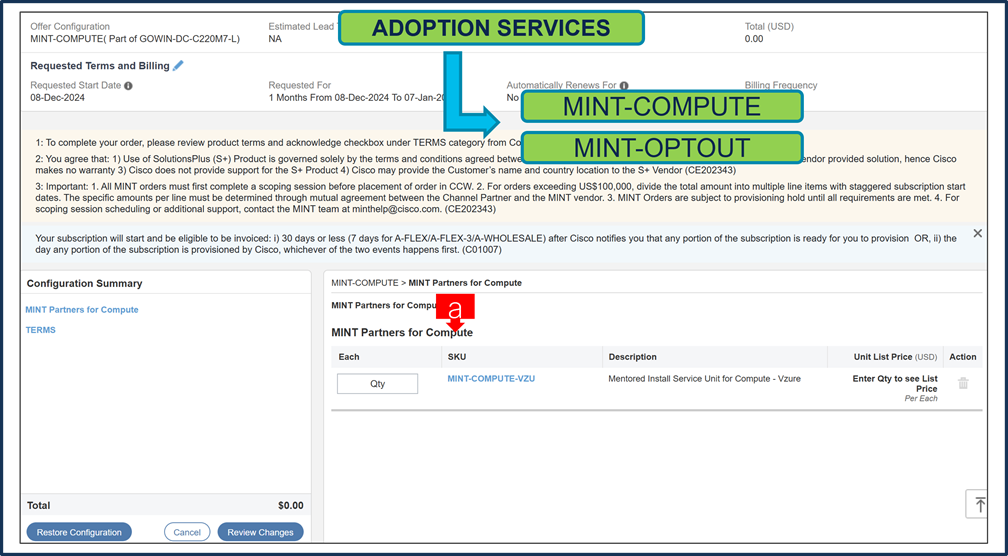

Step 22.

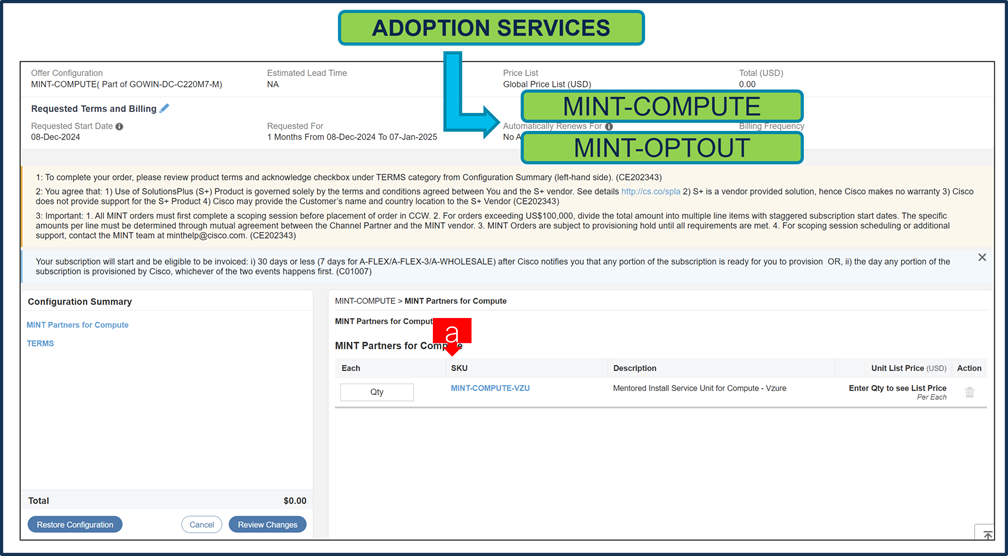

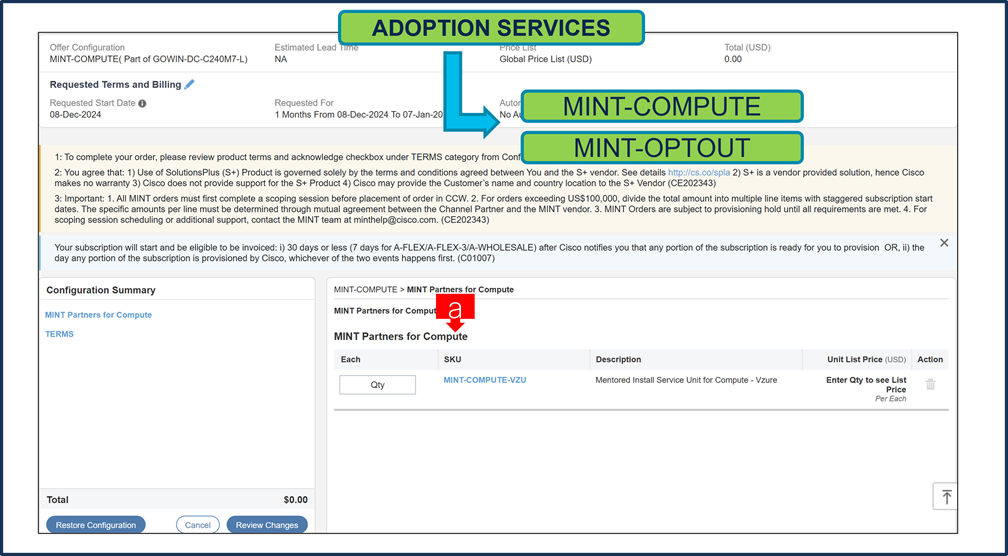

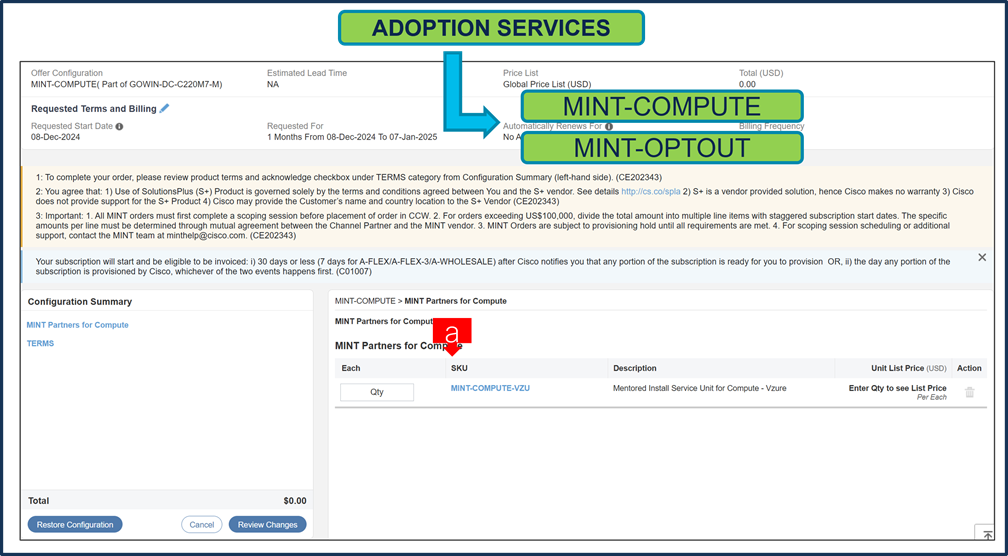

a. Please select appropriate QTY of MINT Service Units.
Step 23.
b. It is recommended that Term Duration for HW Support align with Software Subscription Duration.

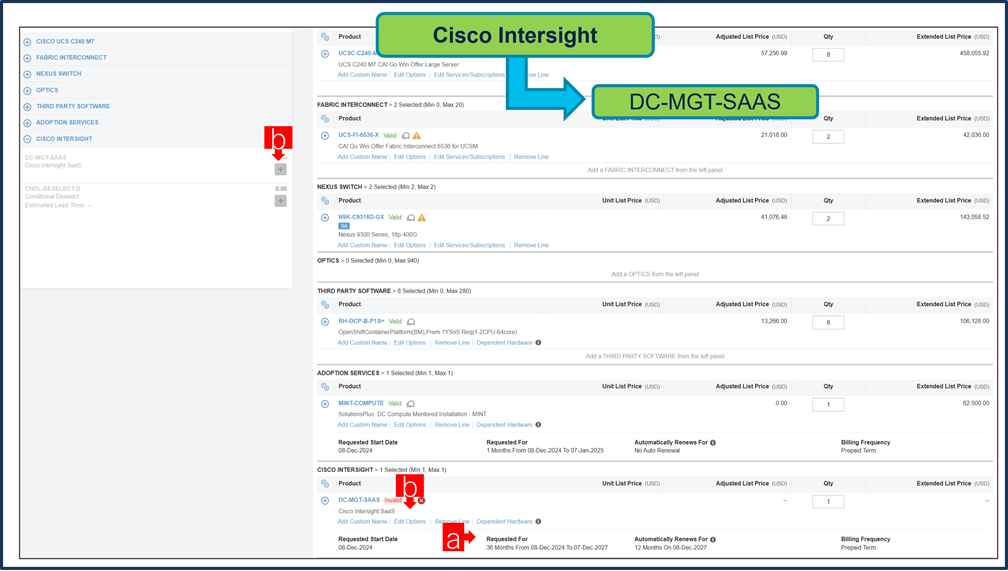

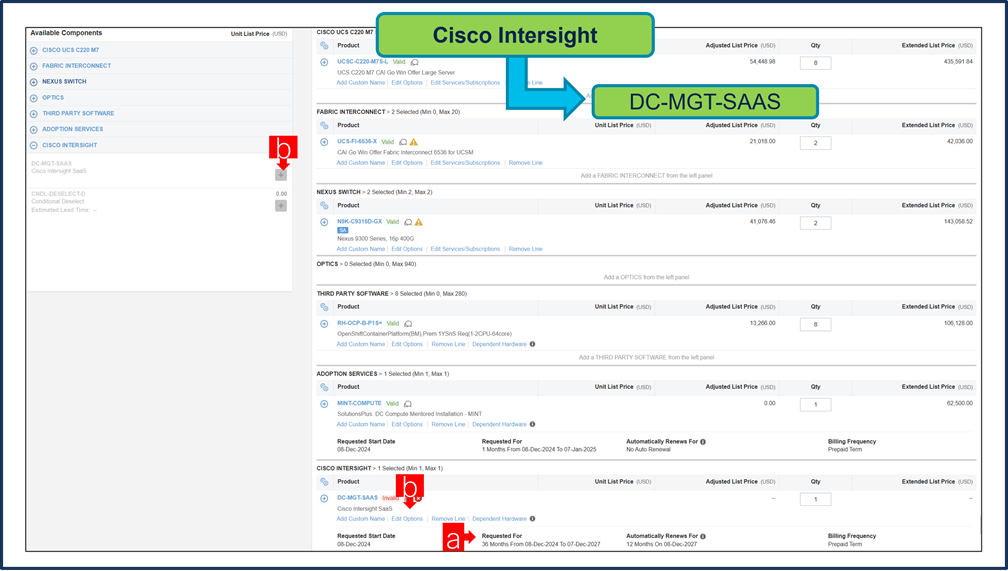

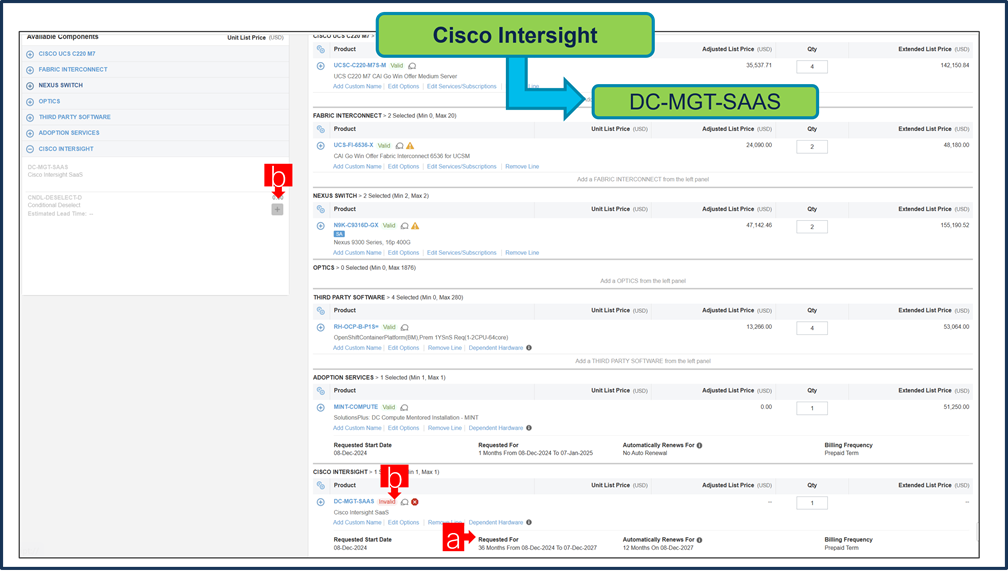

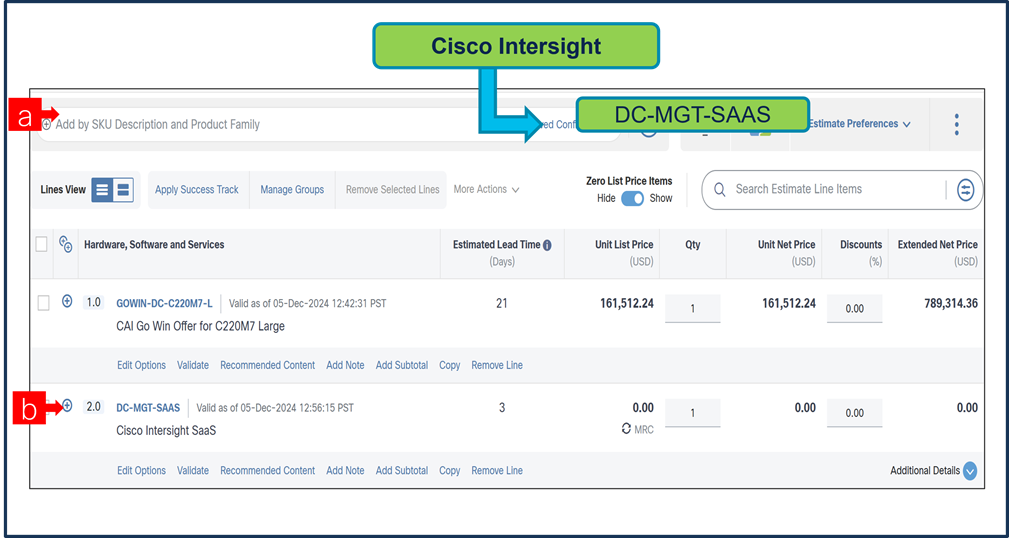

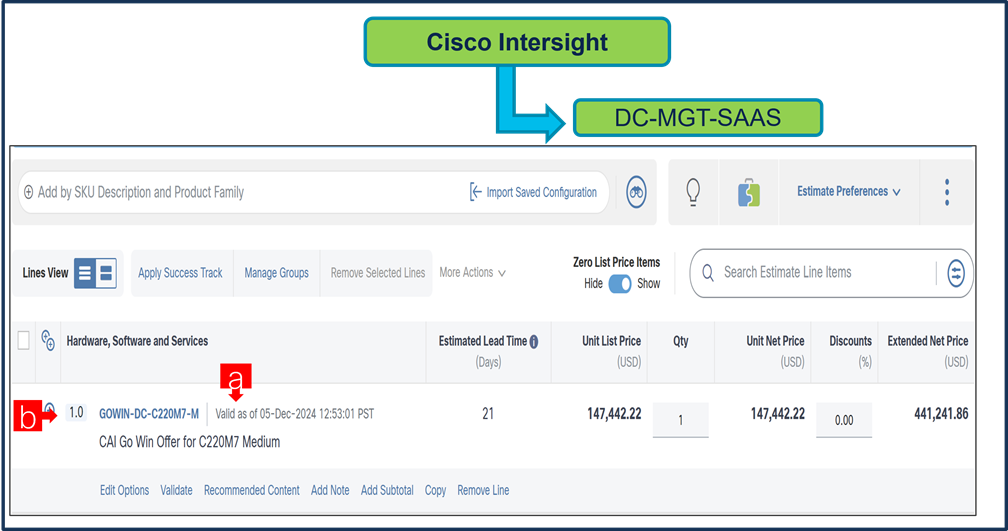

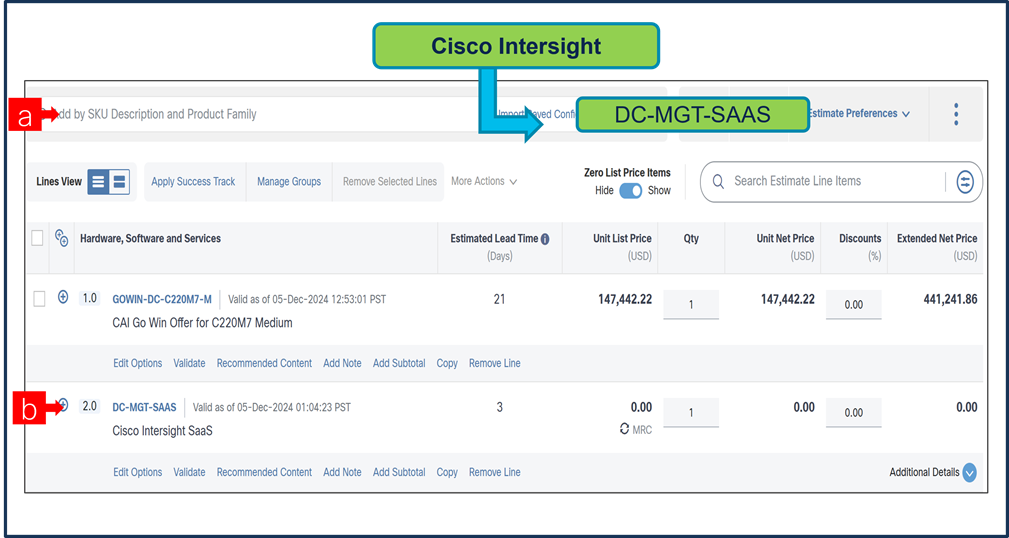

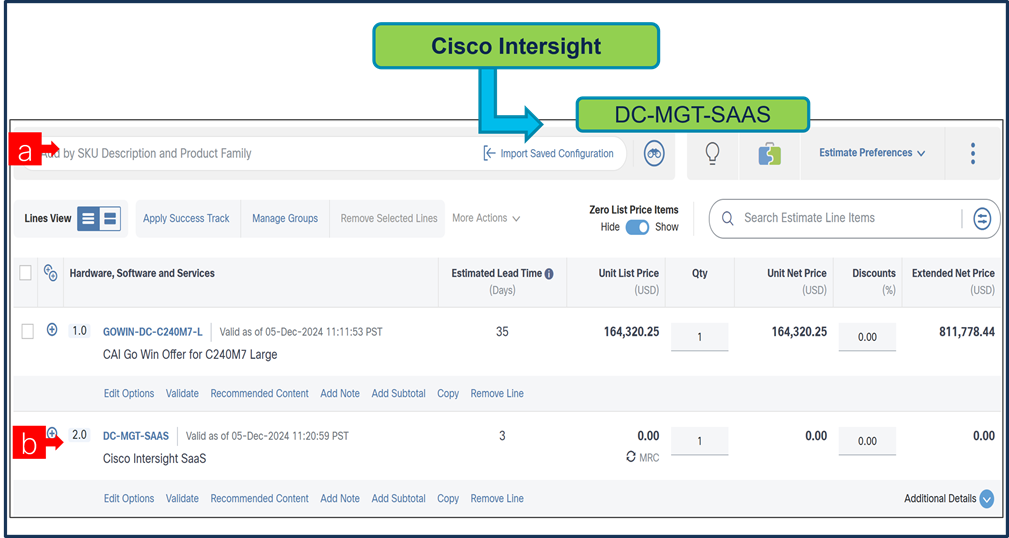

a. Intersight is a required selection, if you have not previously purchased Cisco Intersight Software. Please make selection by clicking “ADD”. Click on “Edit Options” to configure.
Step 24.

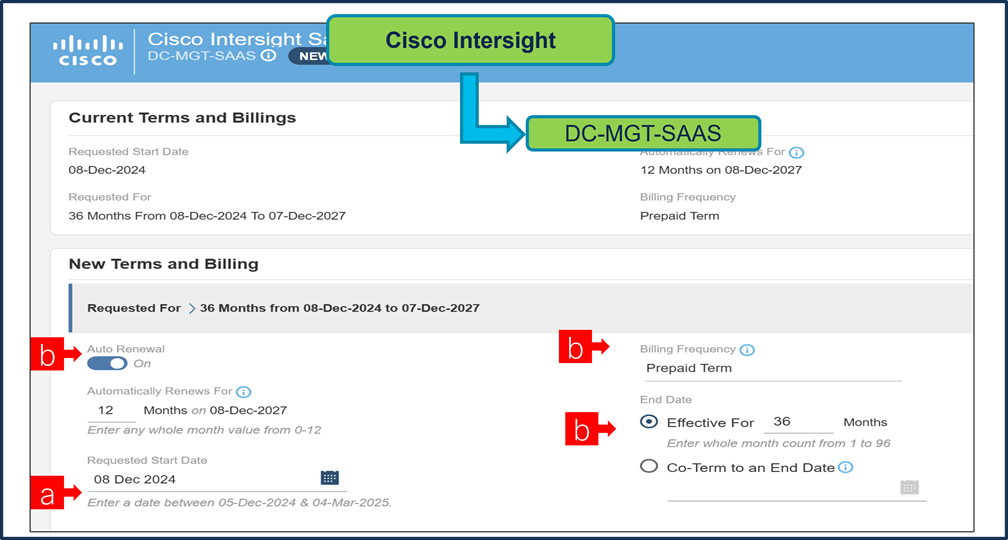

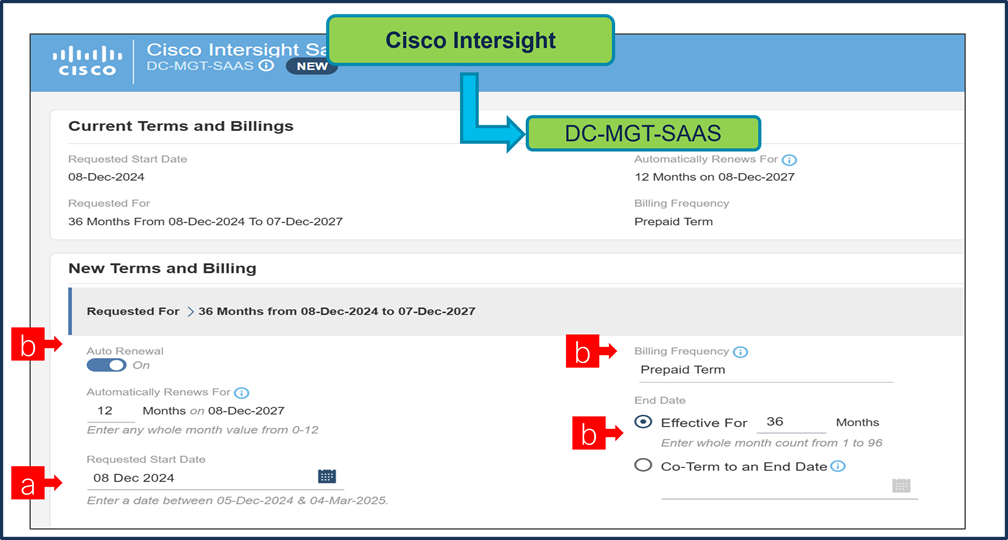

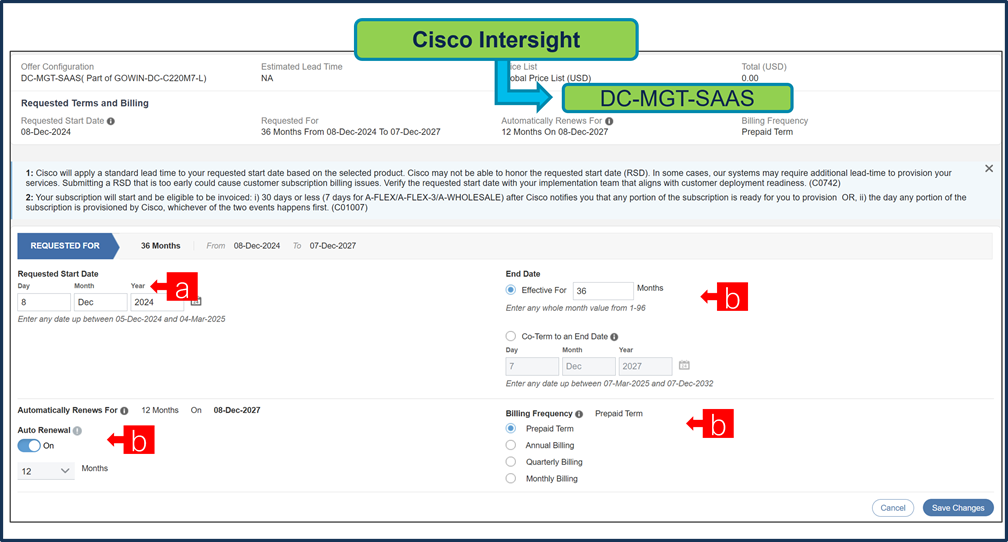

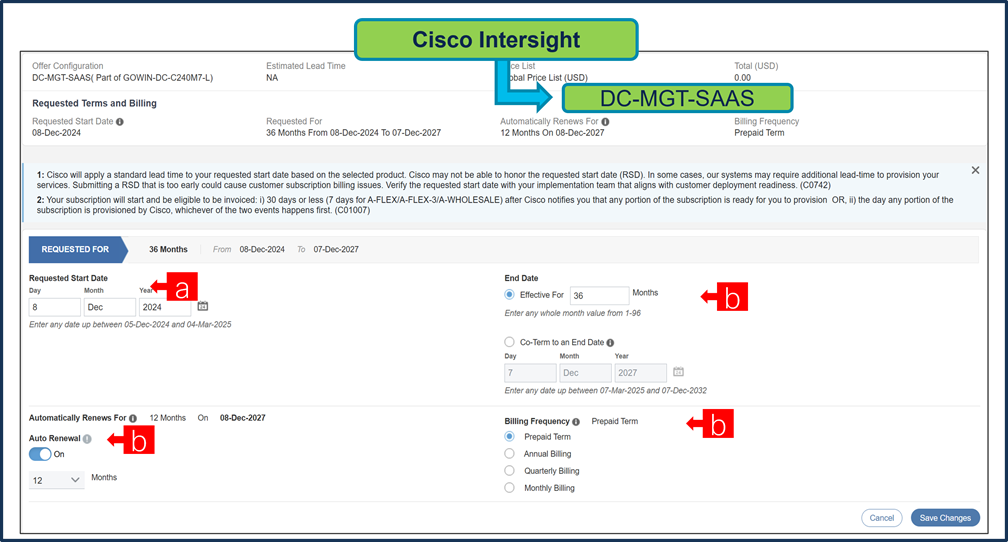

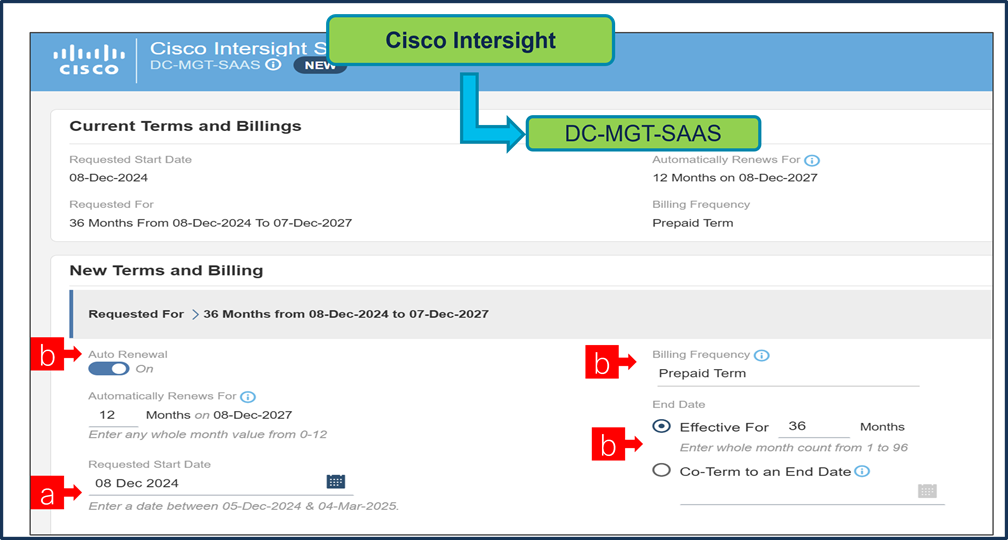

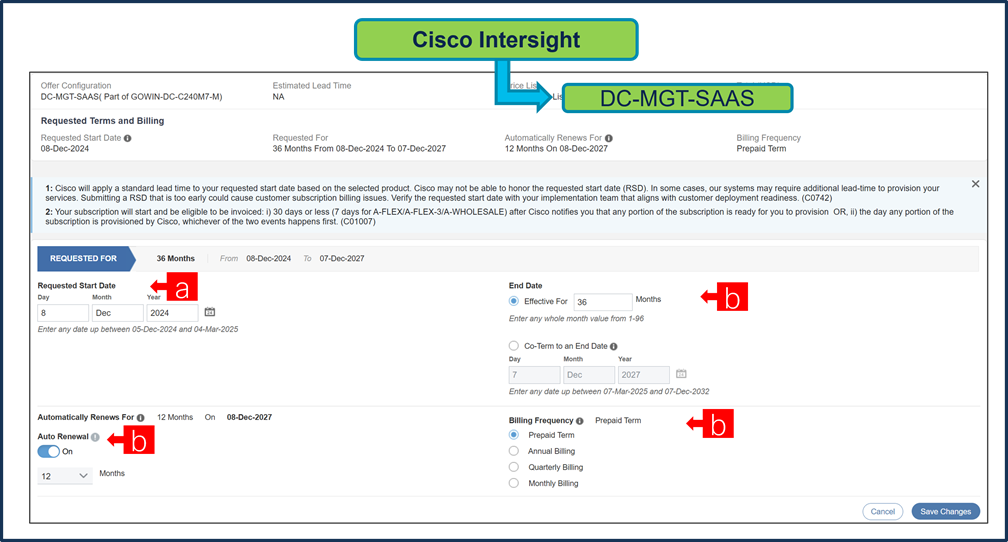

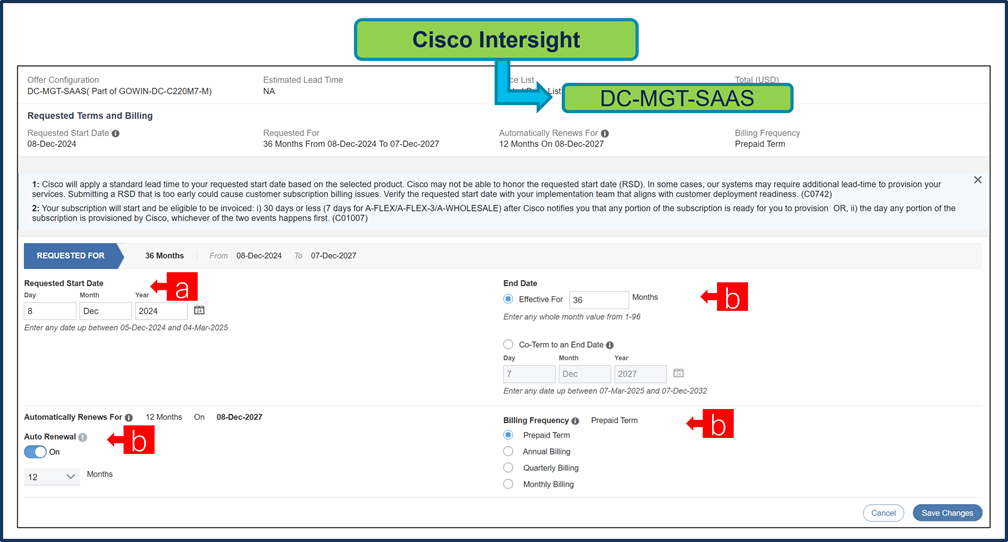

a. Requested Start Date (RSD) is now dependent on HW Ship Date and will automatically starts when the HW ships. If you change the RSD, the Software will start either on the RSD you picked or the HW Ship Date whichever is later.
b. End Date (duration in months) is defaulted to 36 Months, Auto Renewal (on/off) is defaulted to On and Billing Frequency is defaulted to Prepaid Term. You can still change the setting accordingly.

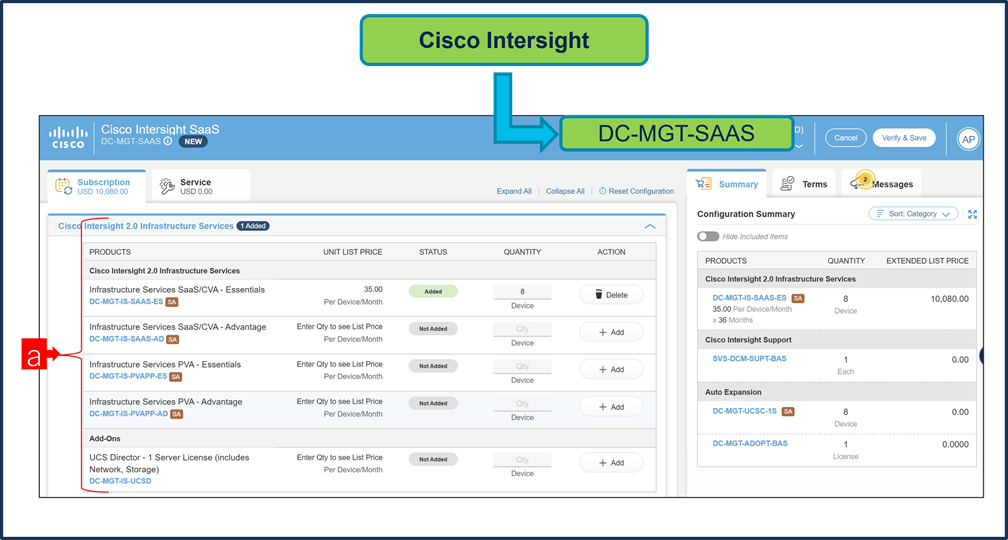

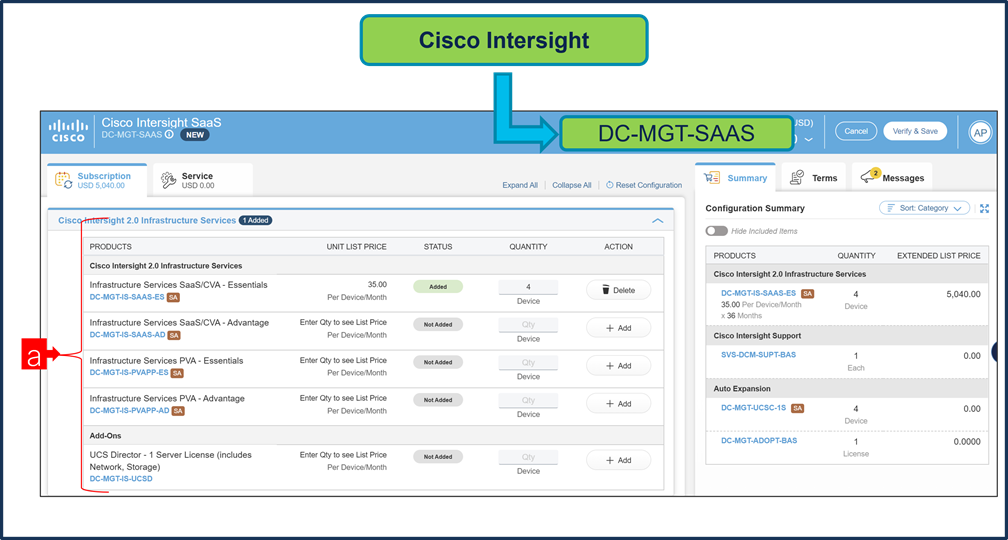

Step 25.

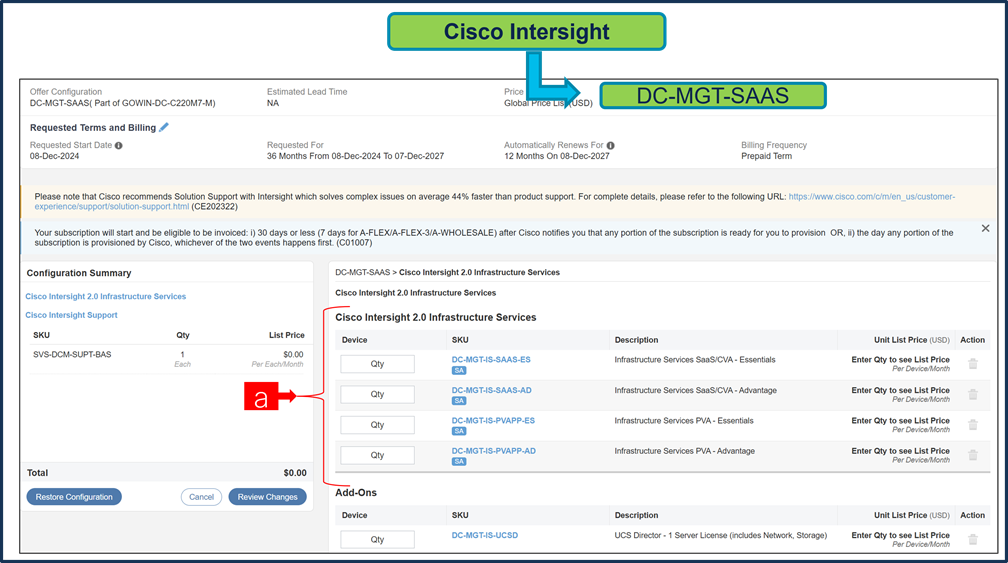

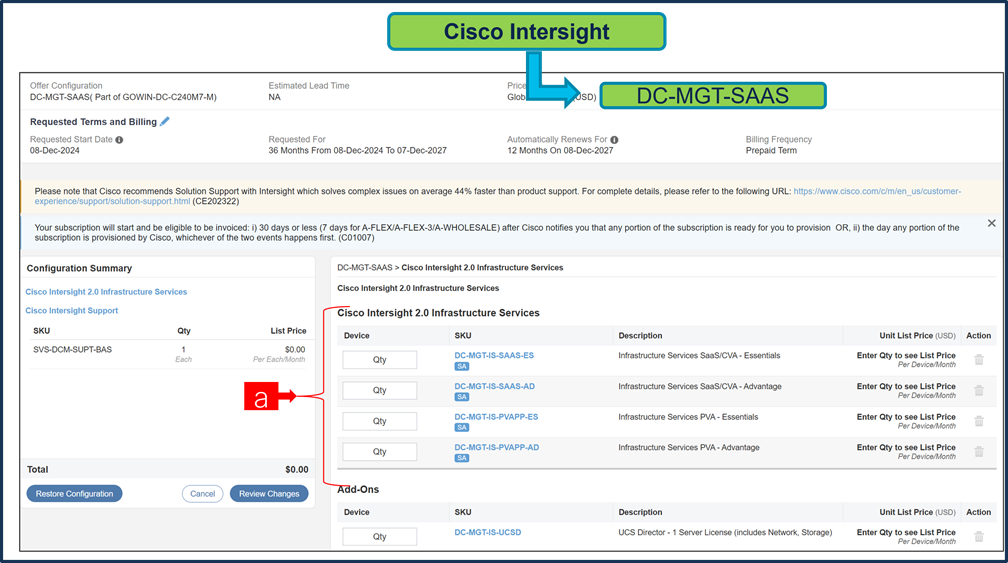

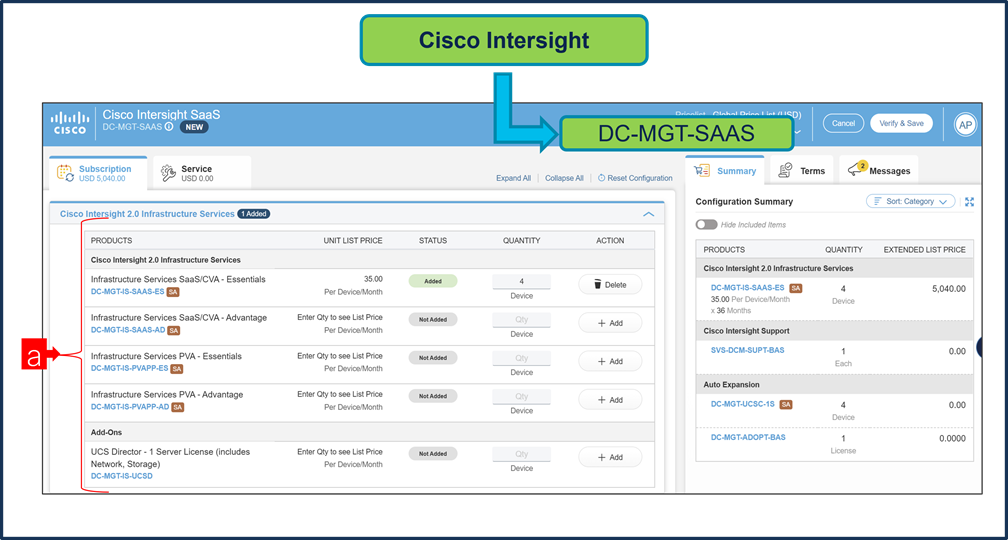

a. The quantity of Cisco Intersight 2.0 Infrastructure Services License under Offer: DC-MGT-SAAS should be equal to the quantity of Server selected. Enter the quantity.
Step 26.

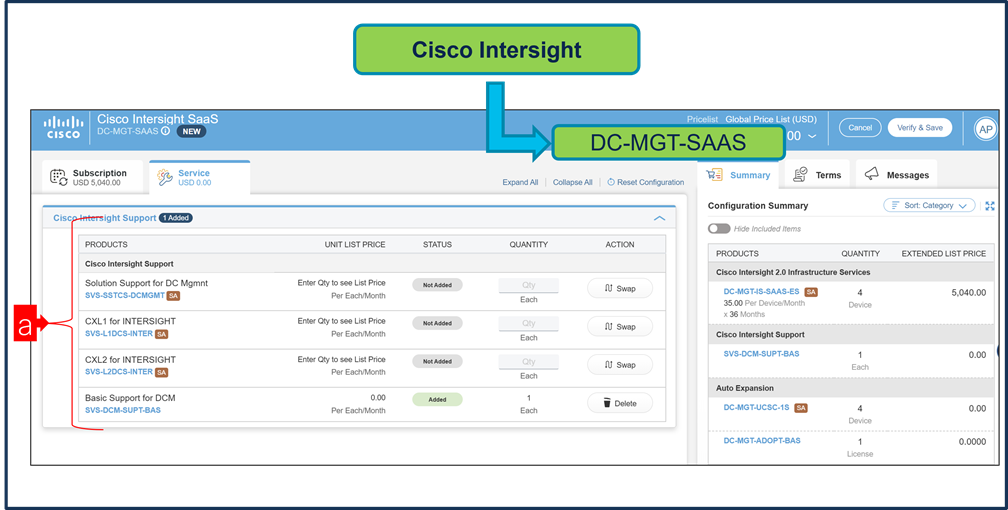

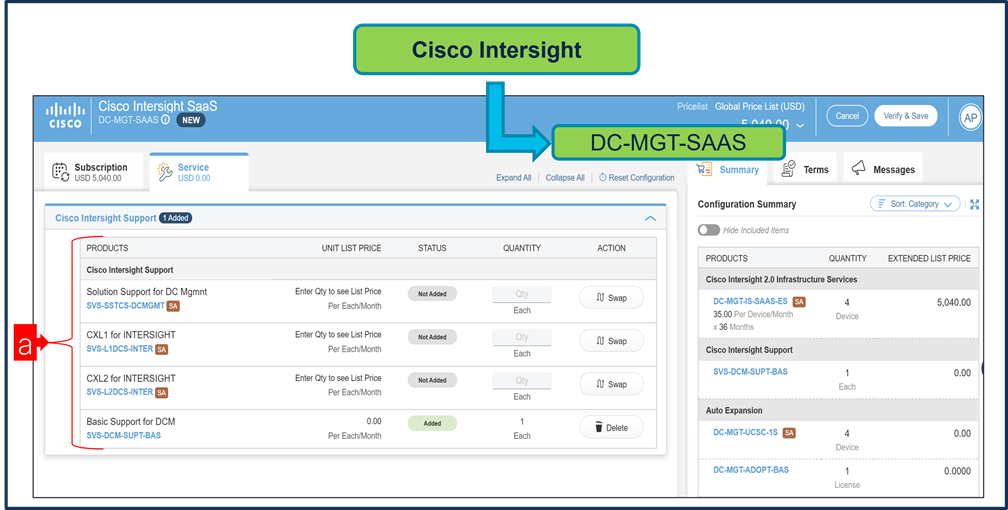

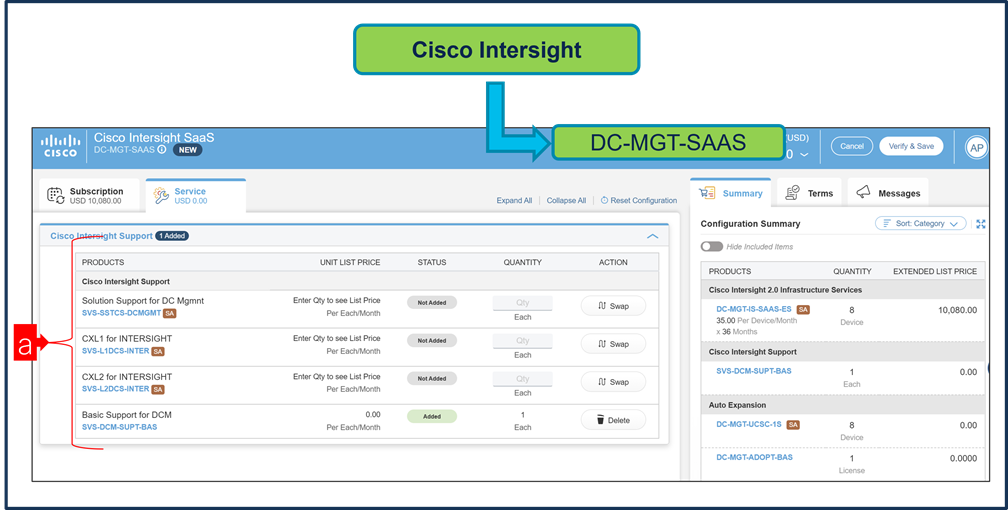

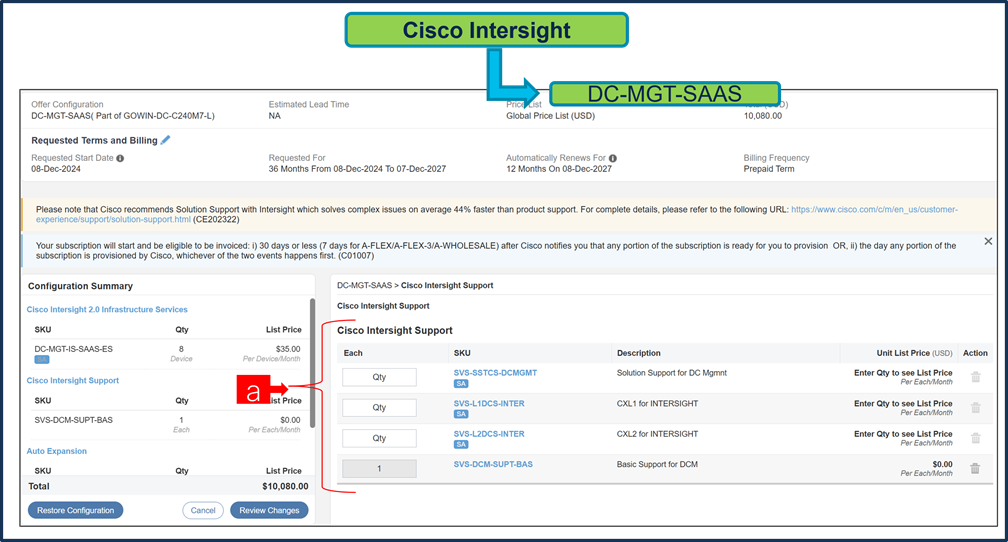

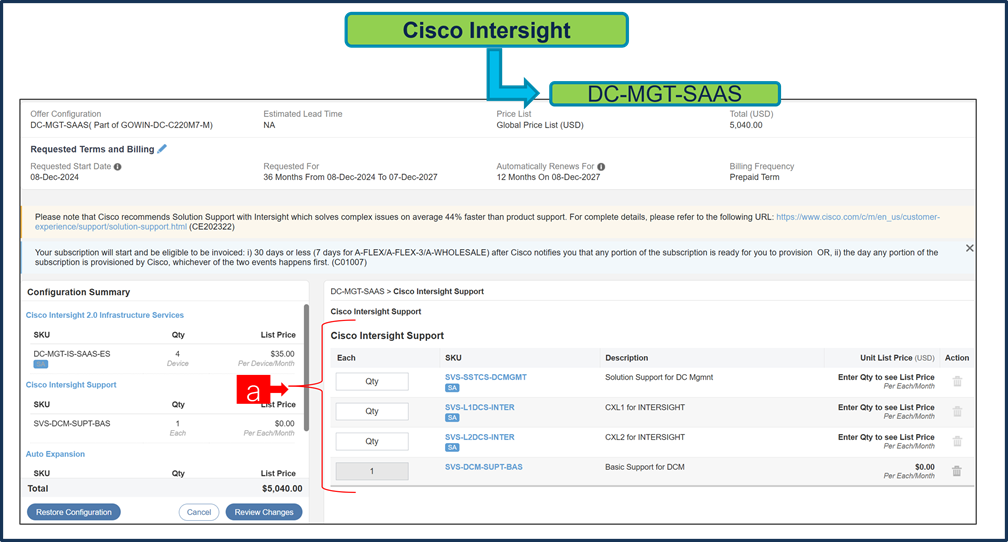

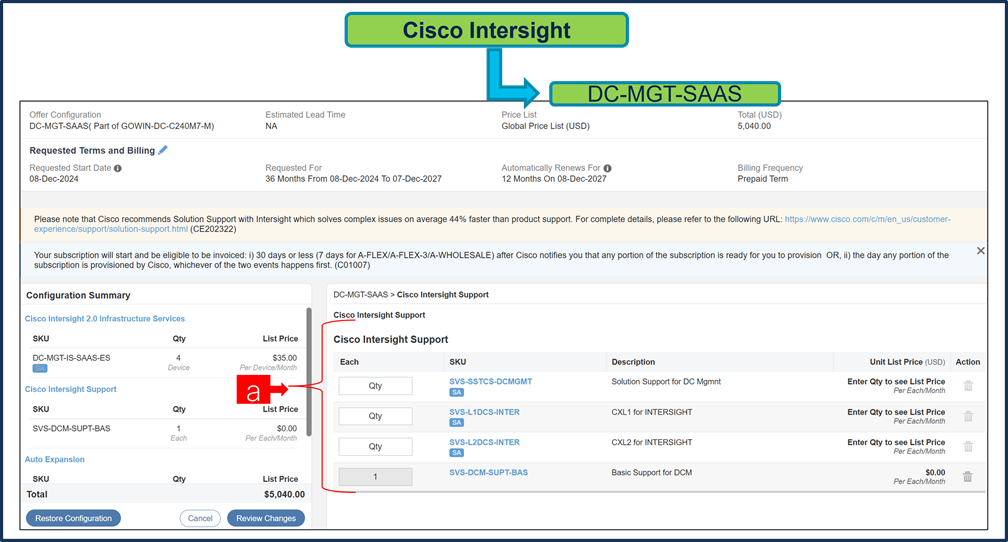

a. The Cisco Intersight License comes with separate Support. Basic Embedded Support is the default selection. However, it is recommended that Customer upgrade to CX Success Track Level 1 or Level 2 to ensure consistent SLA response time between Hardware and Software.

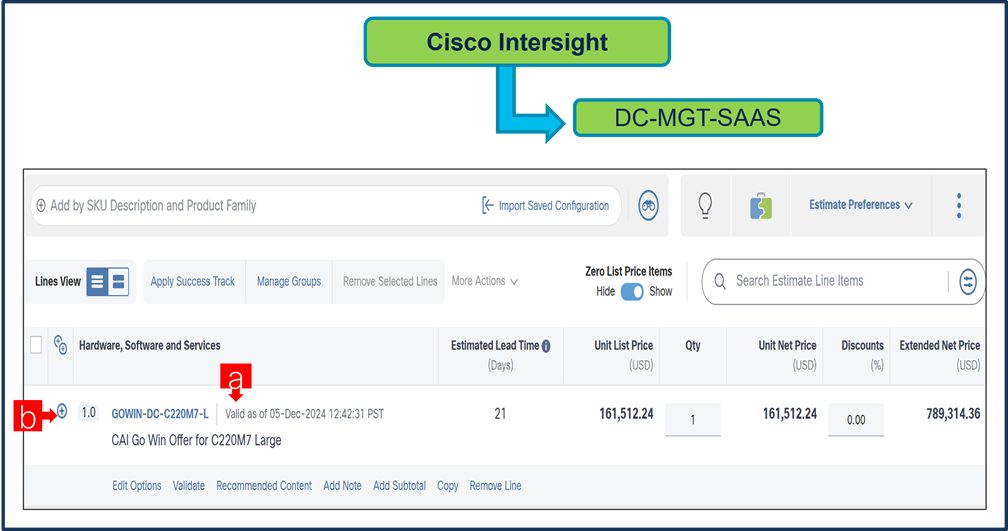

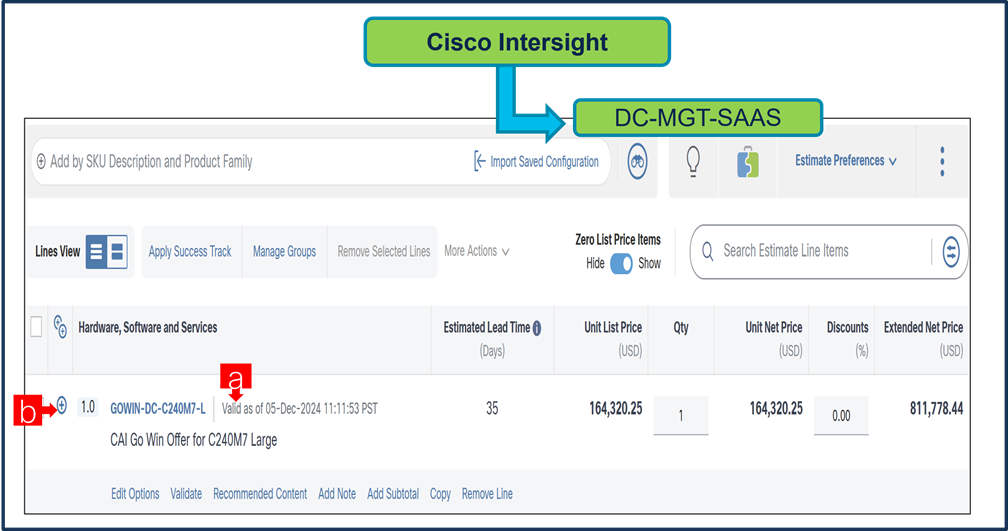

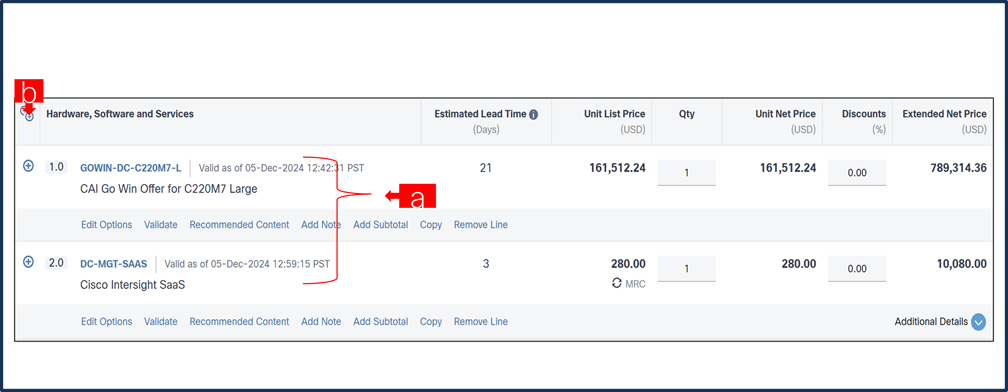

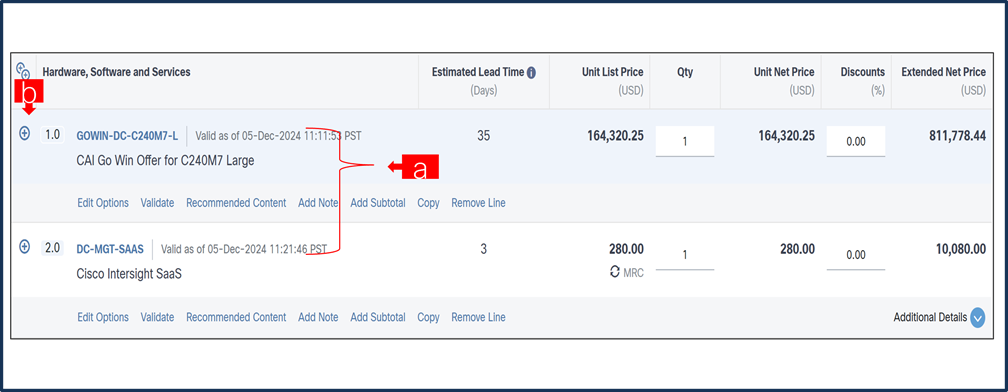

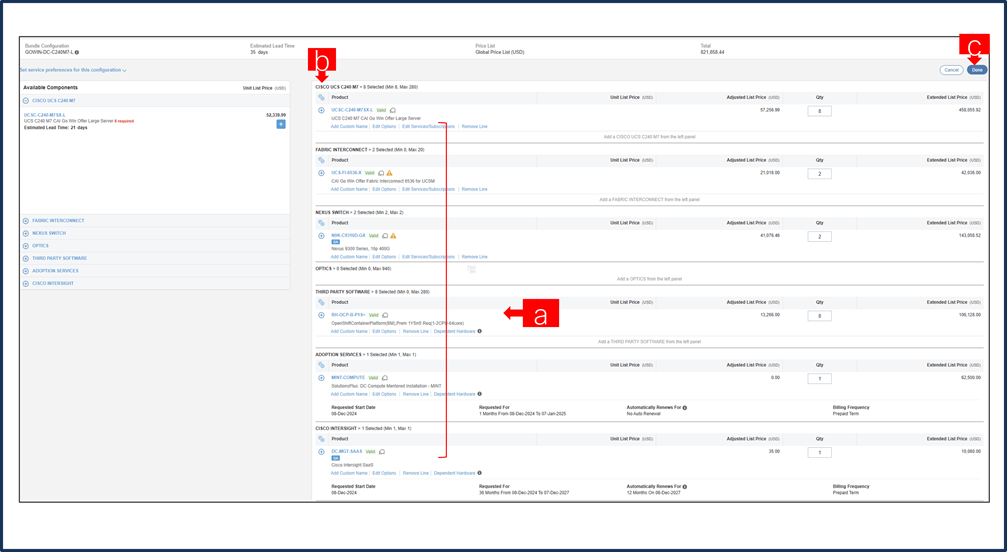

Step 27.

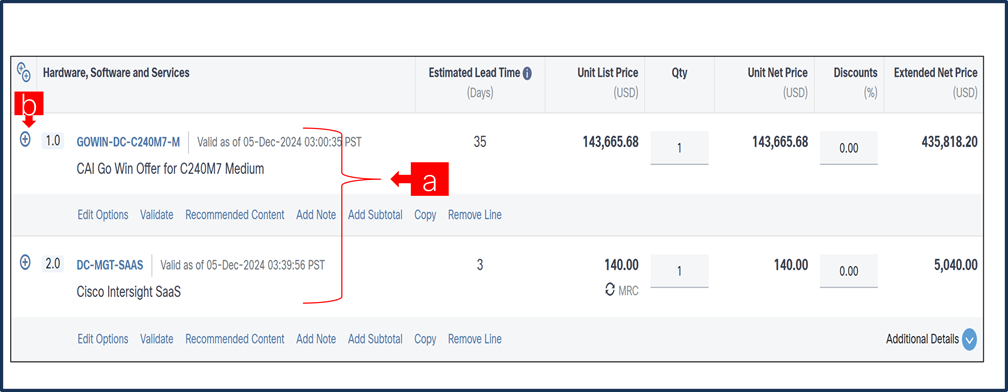

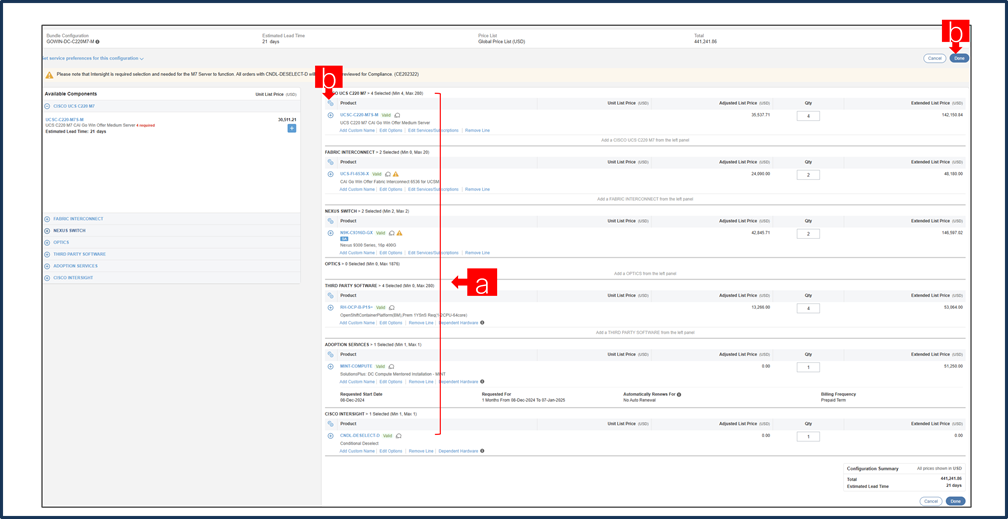

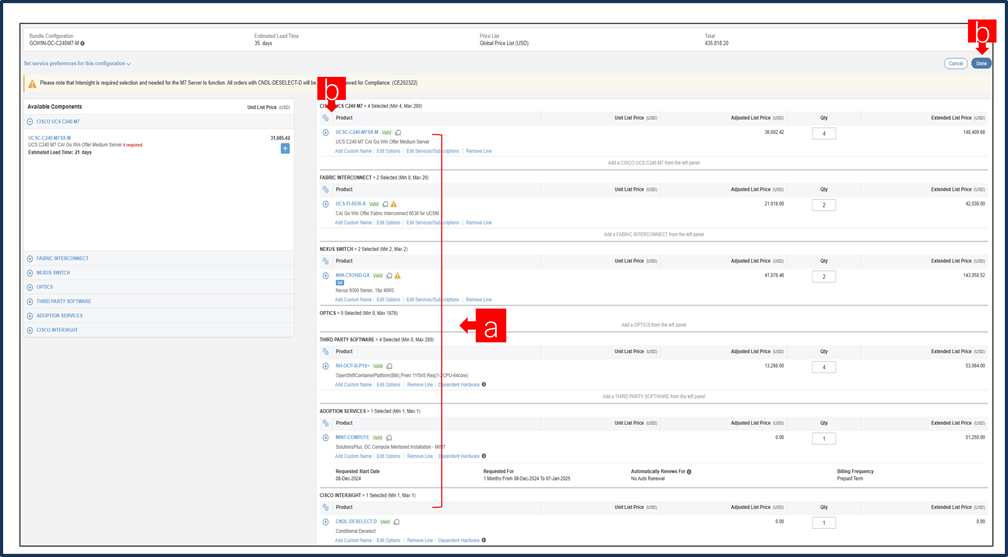

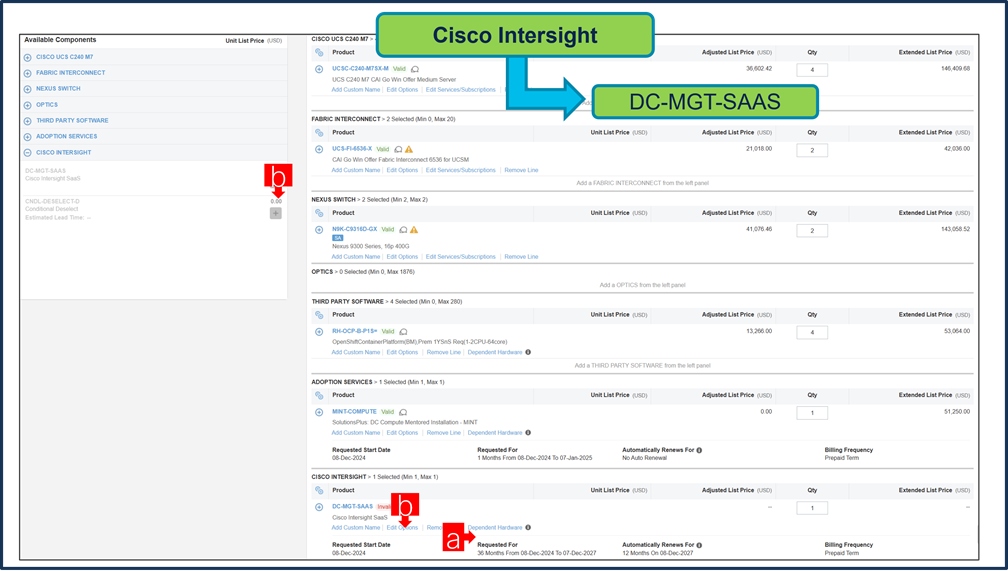

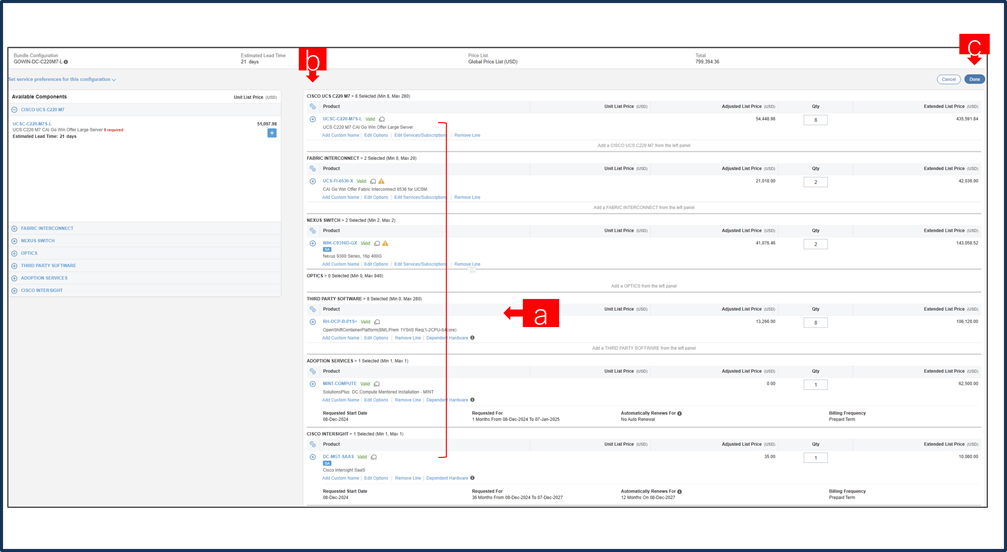

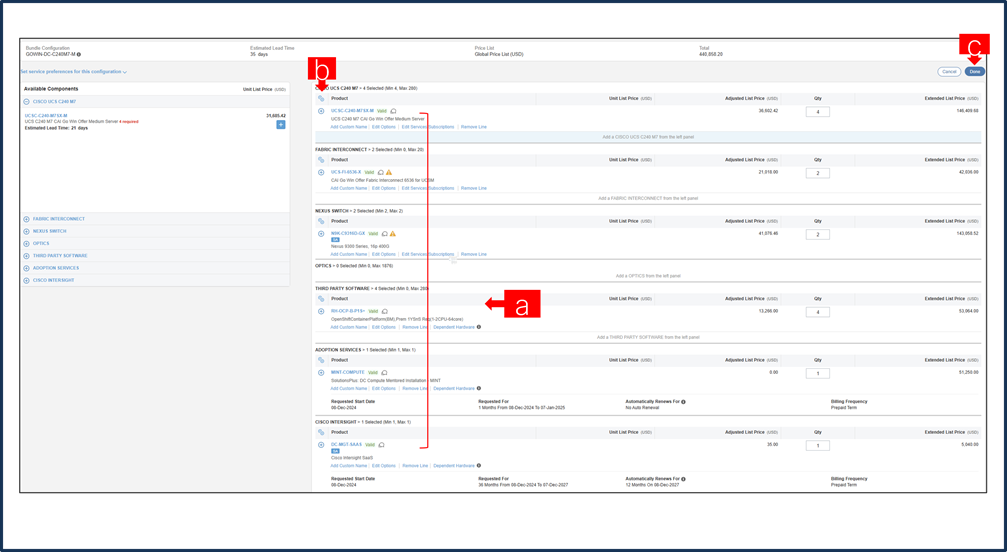

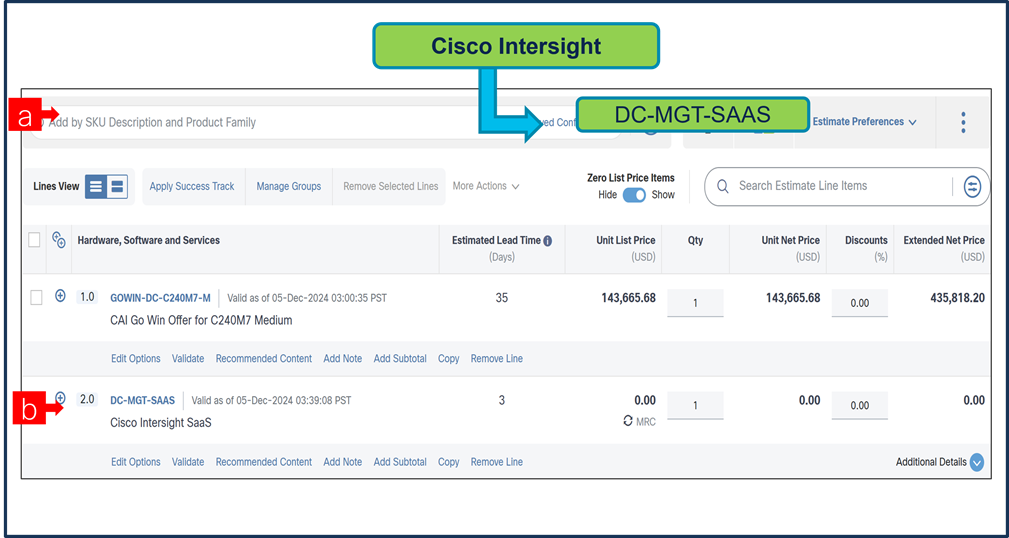

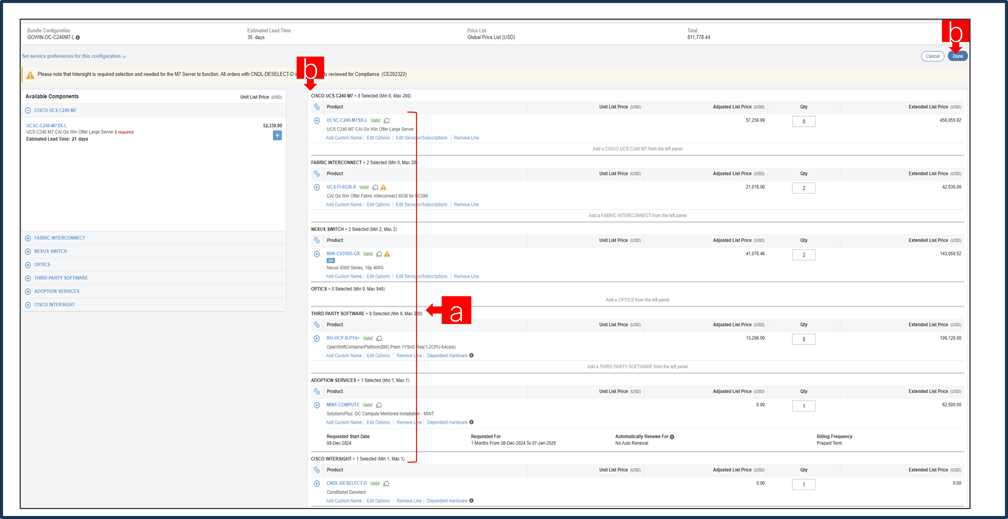

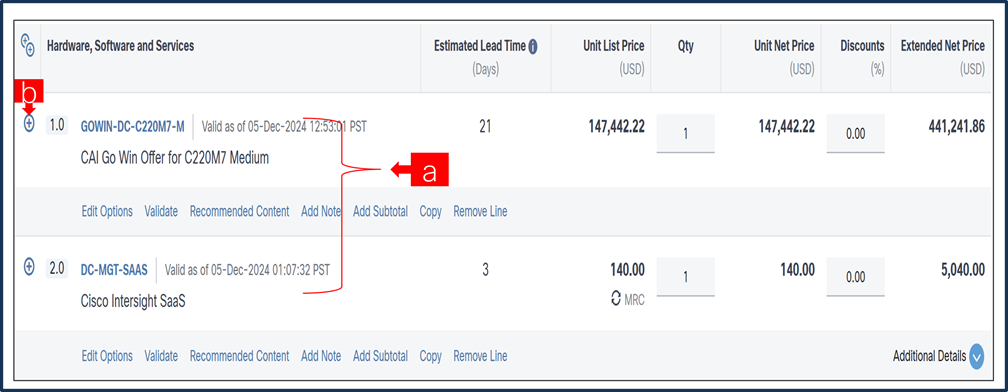

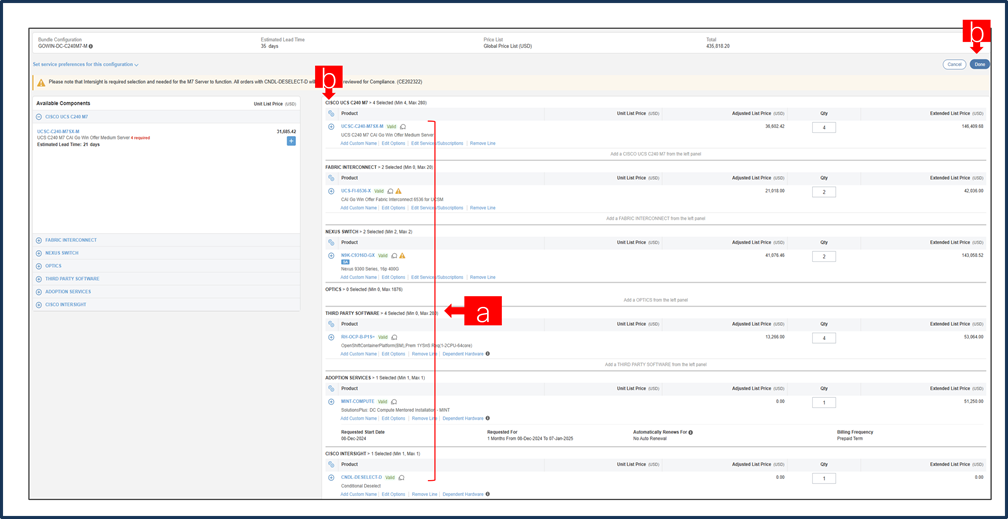

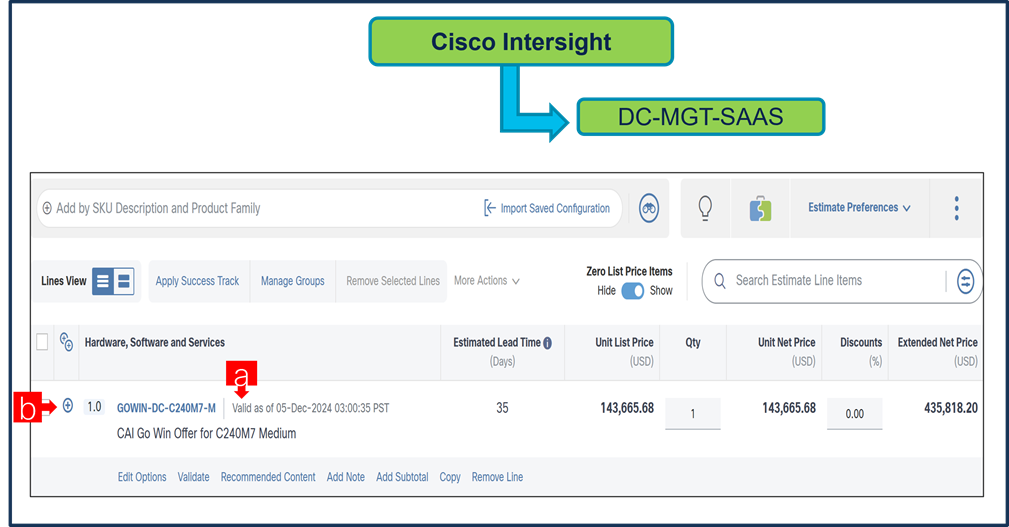

a. Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
Scenario 2: Customer With Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C220-M7S-M is preselected from Category: CISCO UCS C220 M7.
b. Notice the UCSC-C220-M7S-M ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. At least one selection is required from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Note:
● If FI: UCS-FI-6536-X is selected, then user must select 2 QTY of N9K-C9316D-GX.
● If FI: UCS-FI-6536-X is not selected, then user must select 2 QTY of N9K-C93400LD-H1.
Step 13.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 16.
a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.
Step 18.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 19.
a. Select Acceptance of Terms Option.
Step 20.
a. Select Support Option.
Step 21.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 22.
a. Please select appropriate QTY of MINT Service Units.

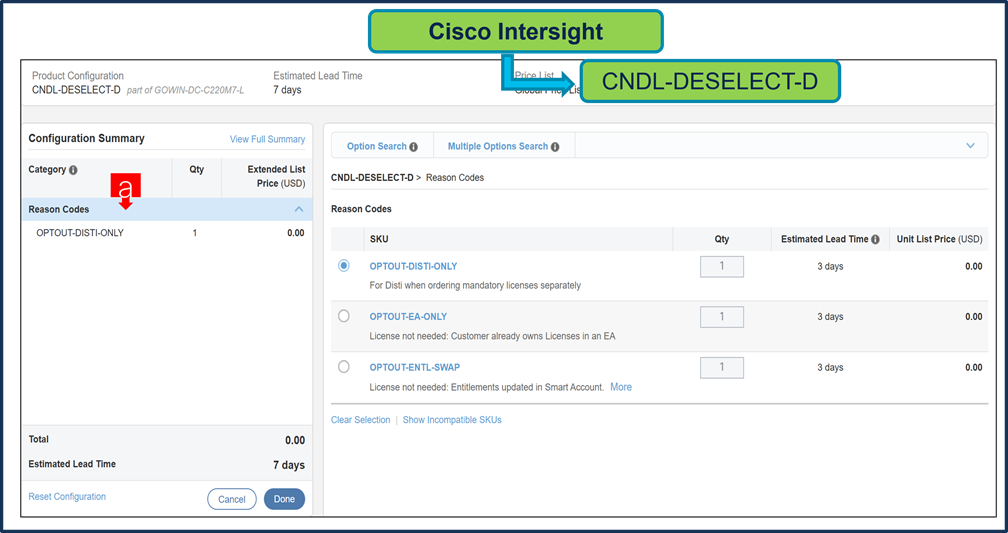

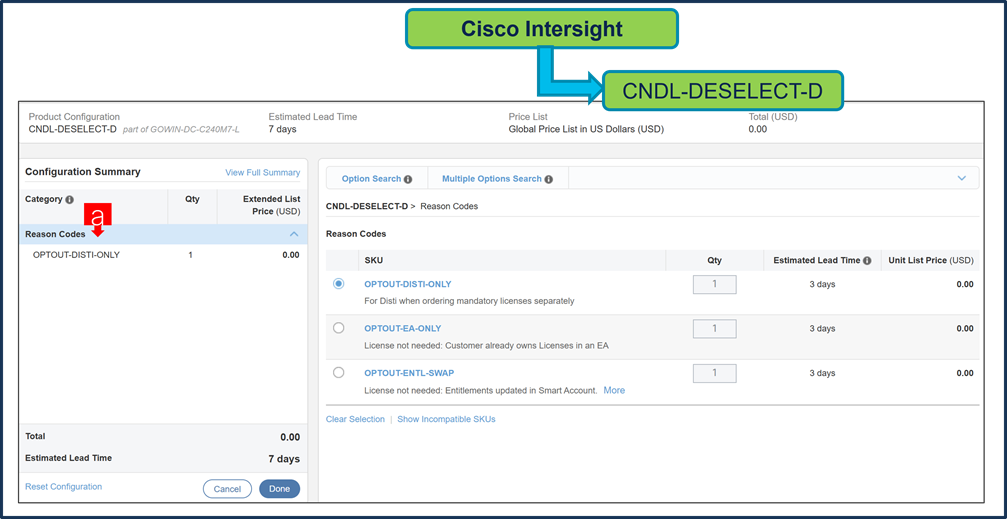

Step 23.

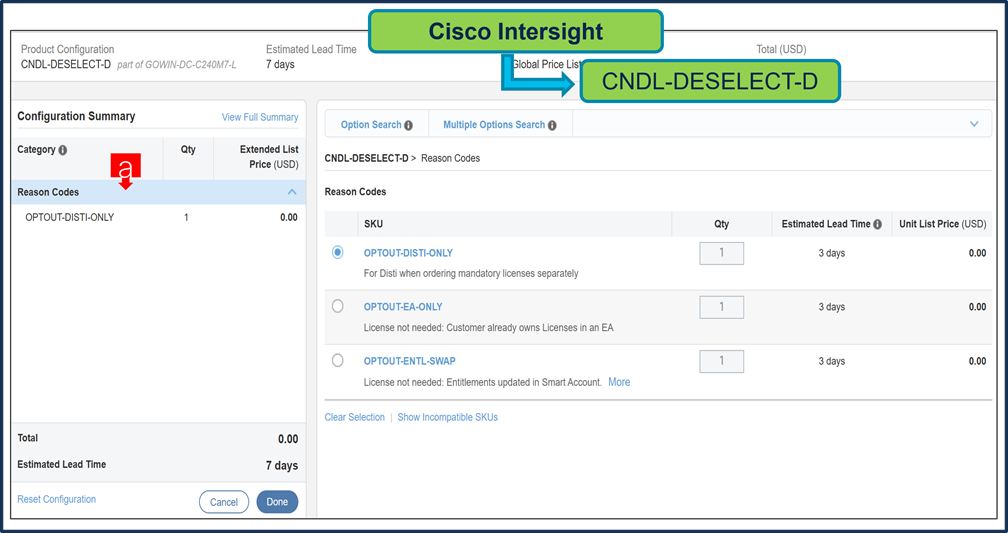

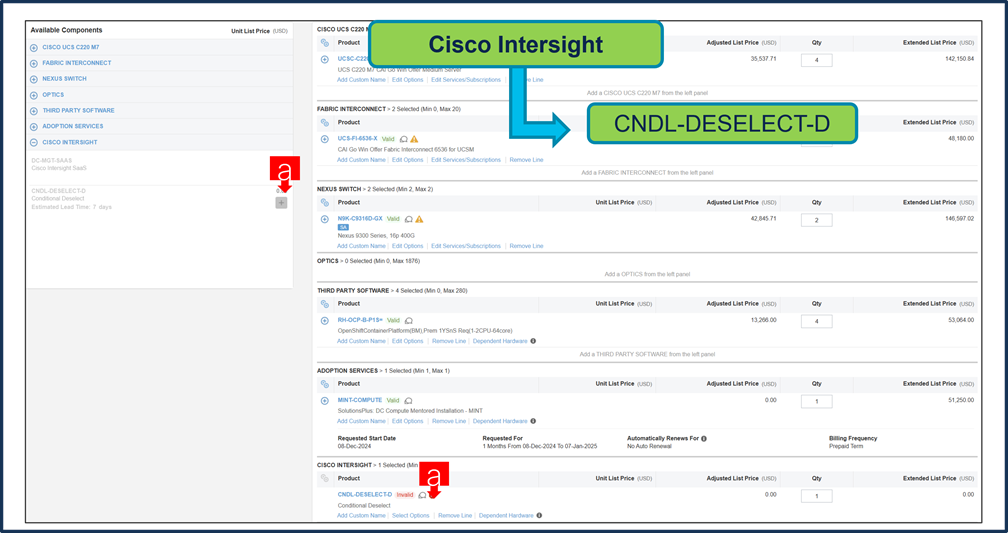

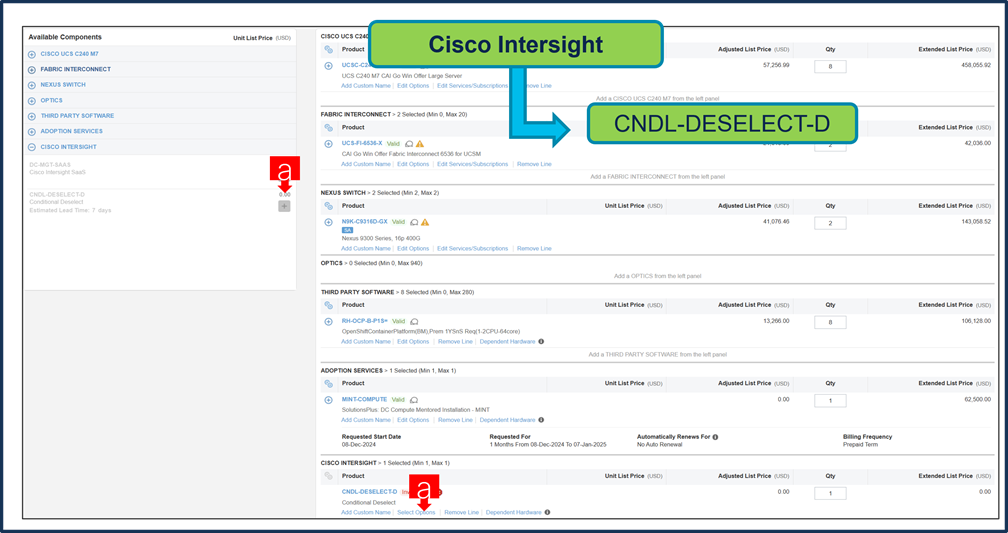

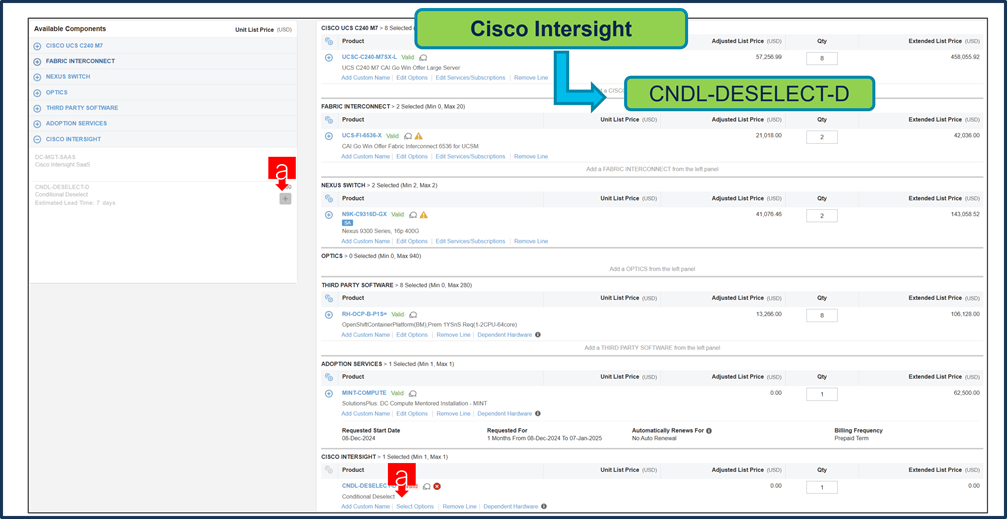

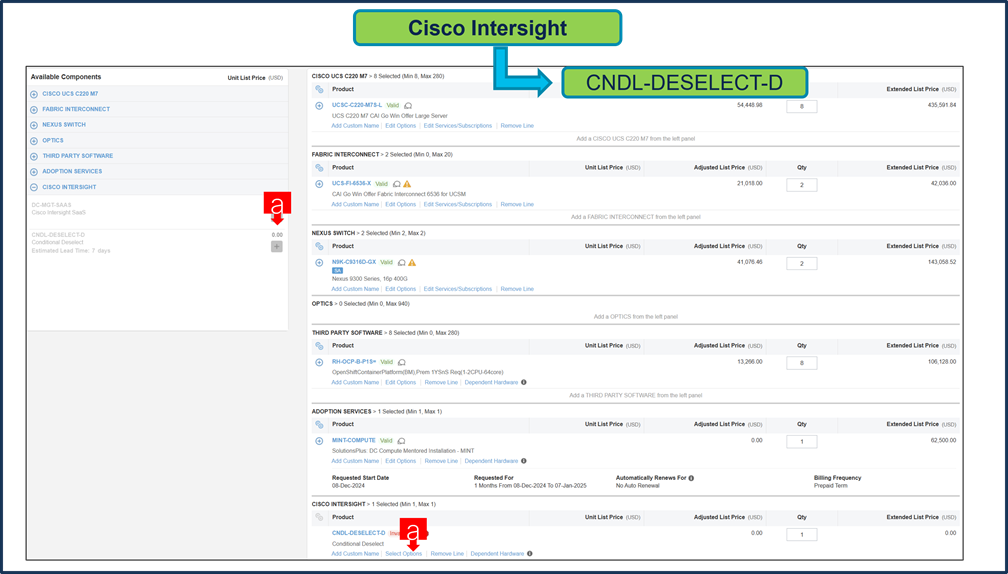

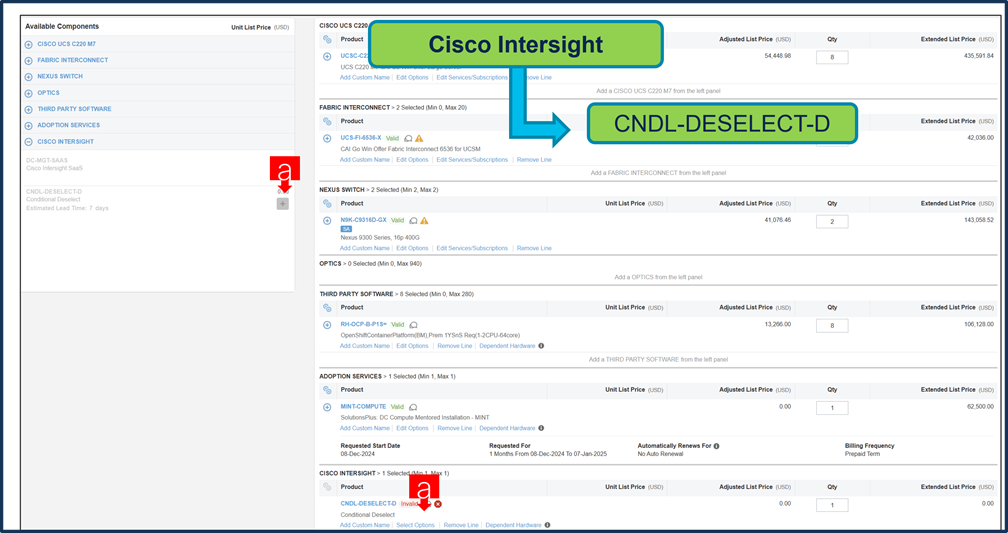

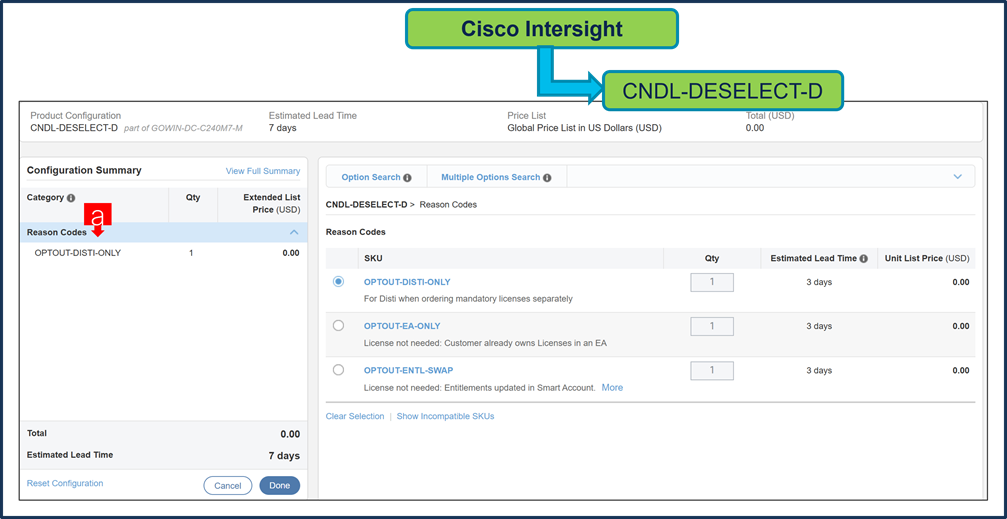

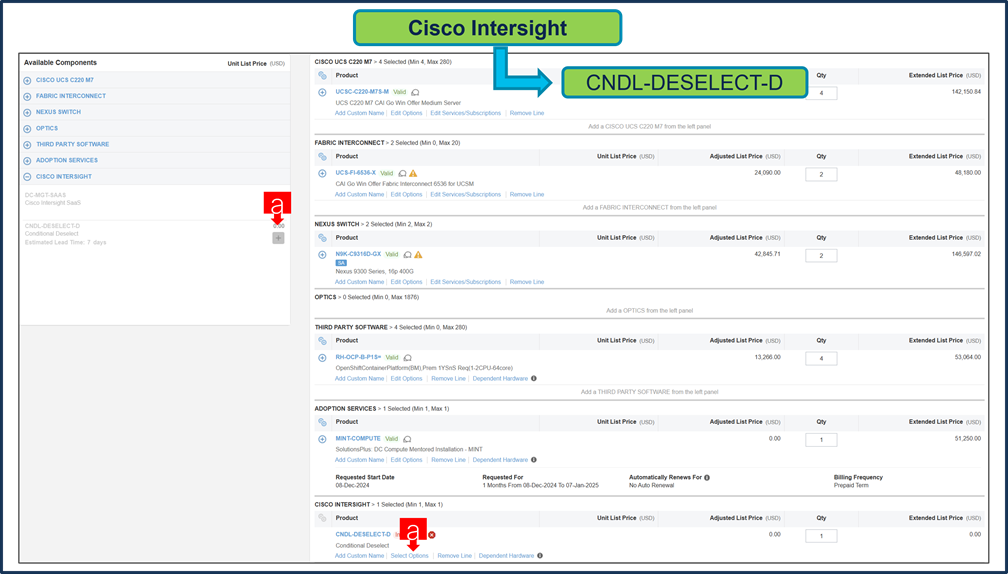

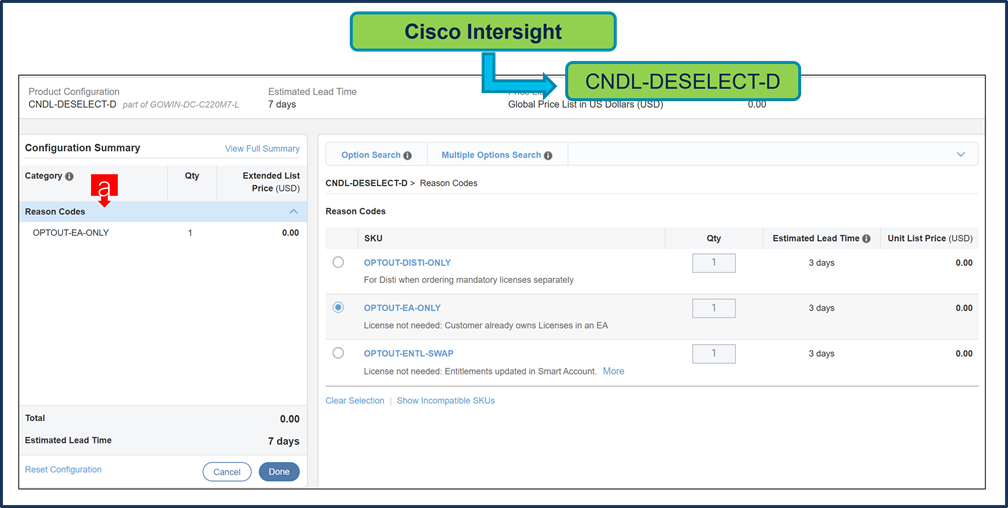

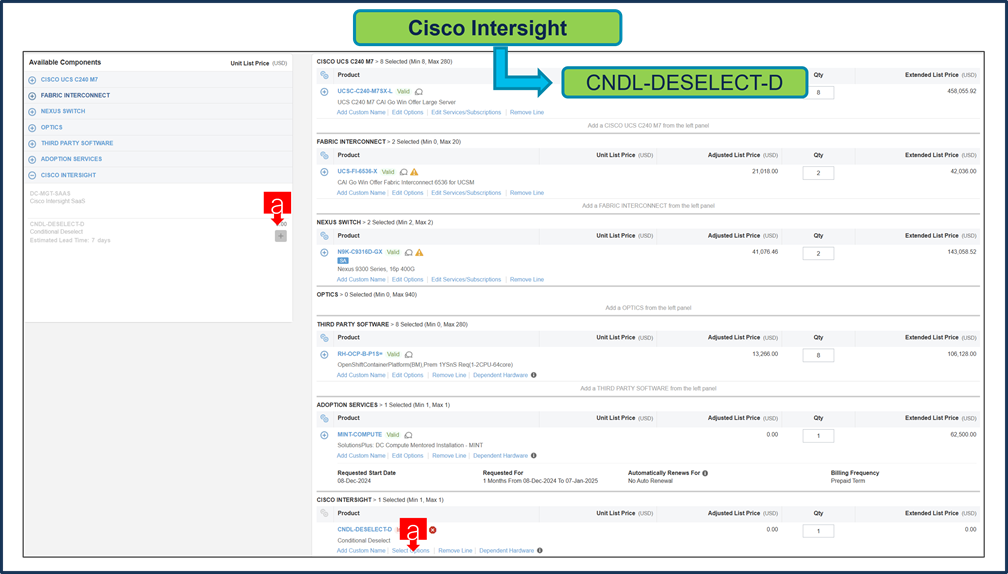

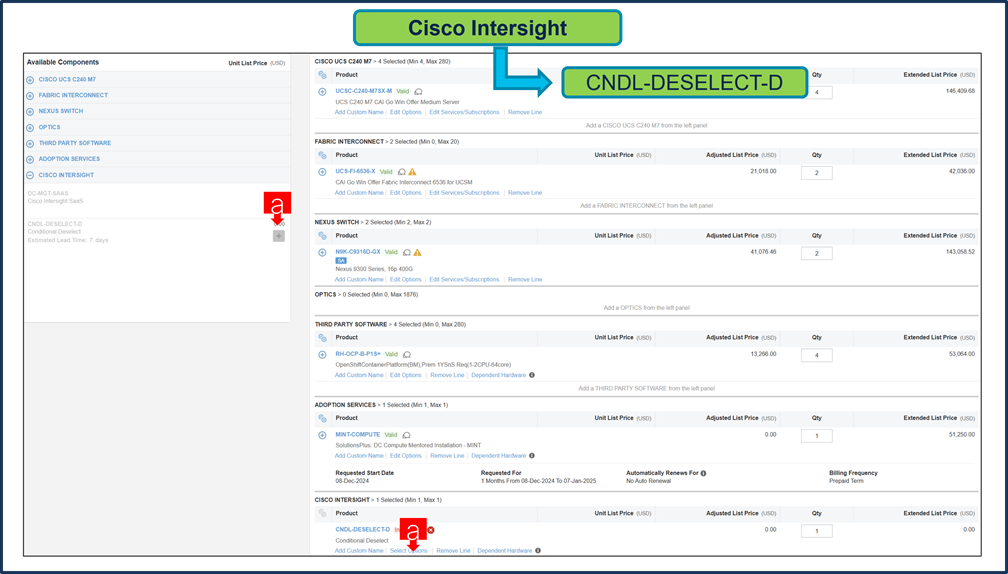

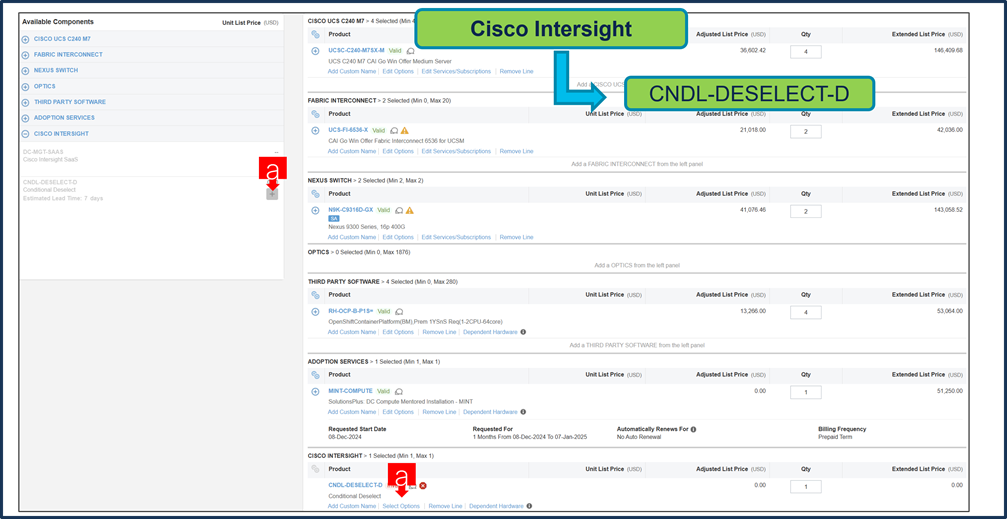

a. CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment.

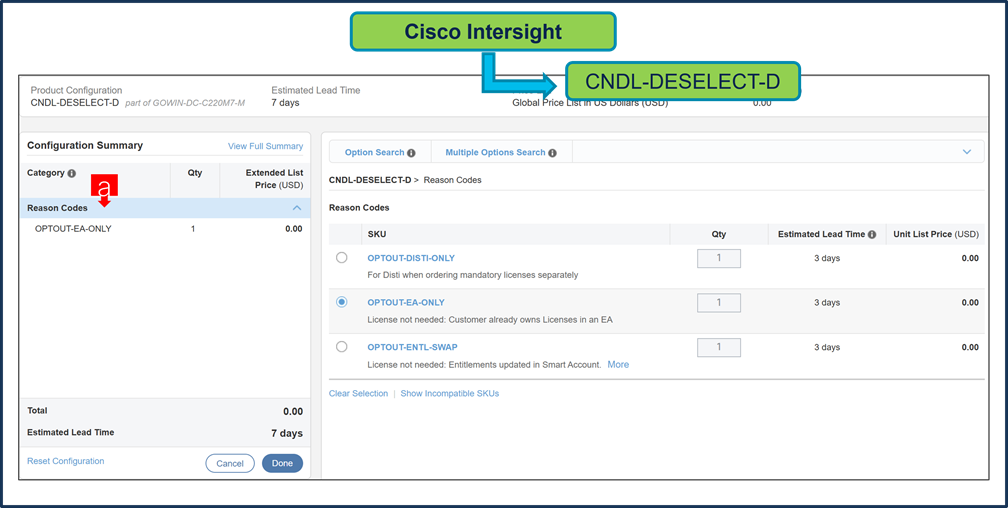

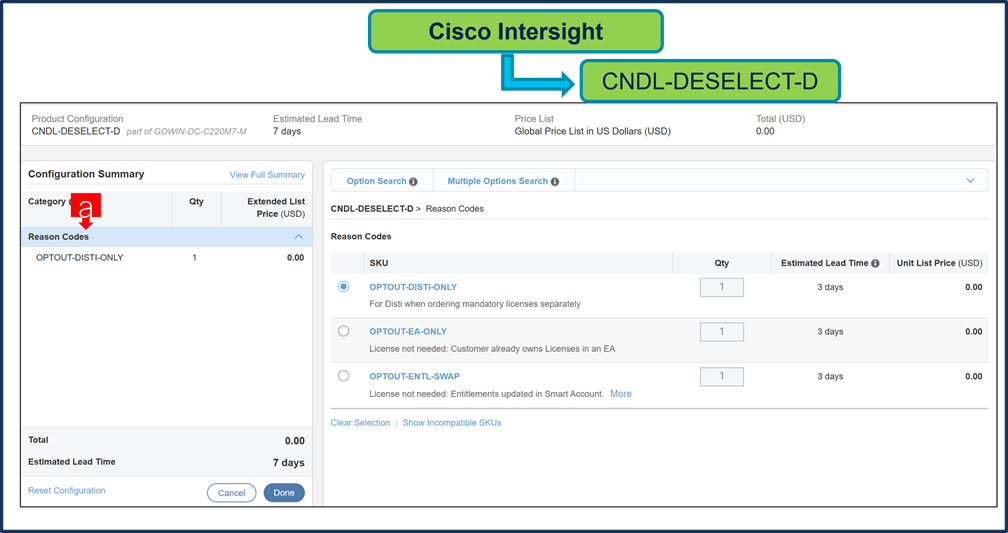

Step 24.

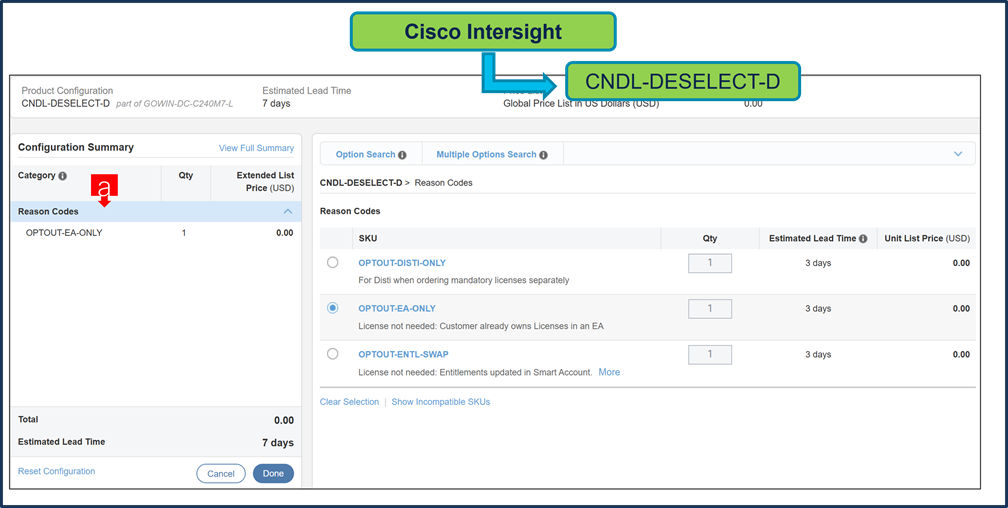

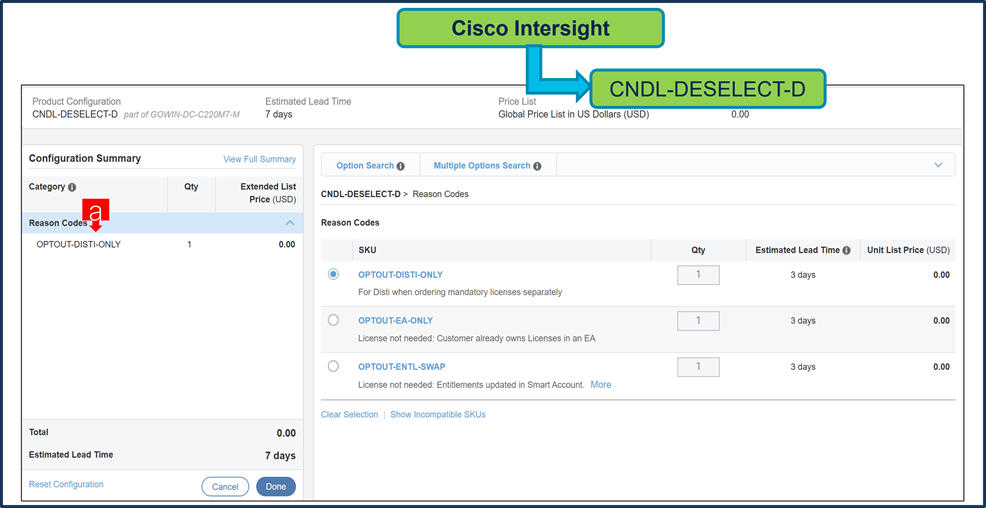

a. Please select appropriate Reason Code
Step 25.

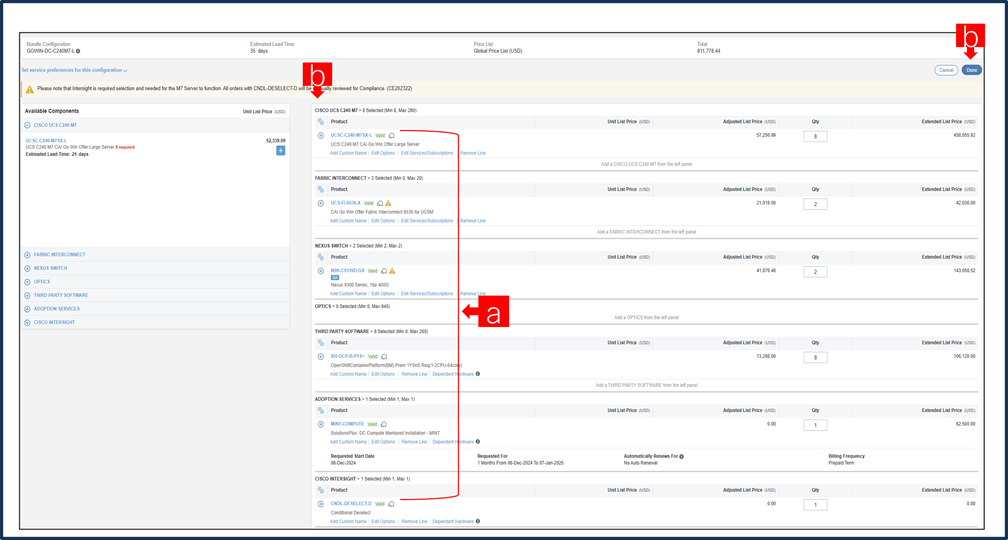

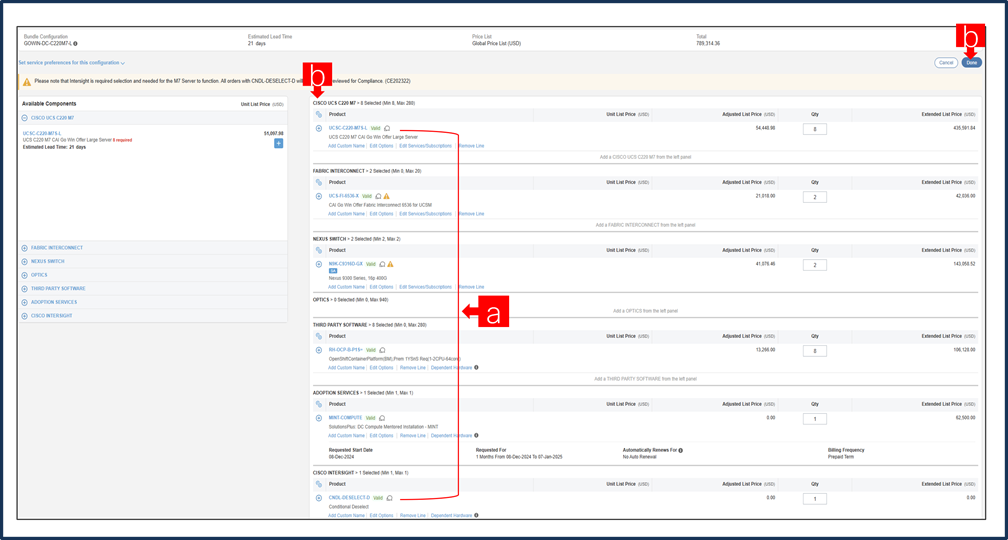

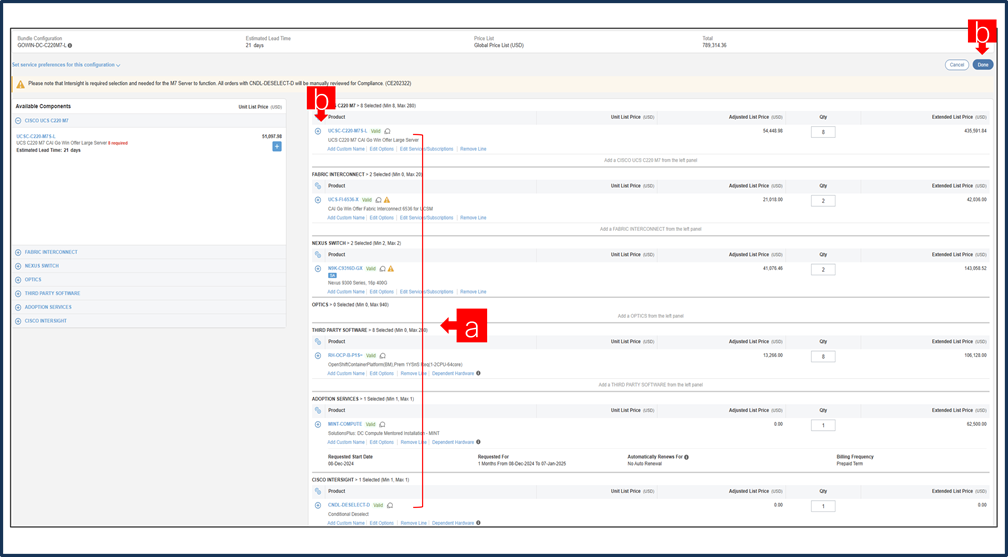

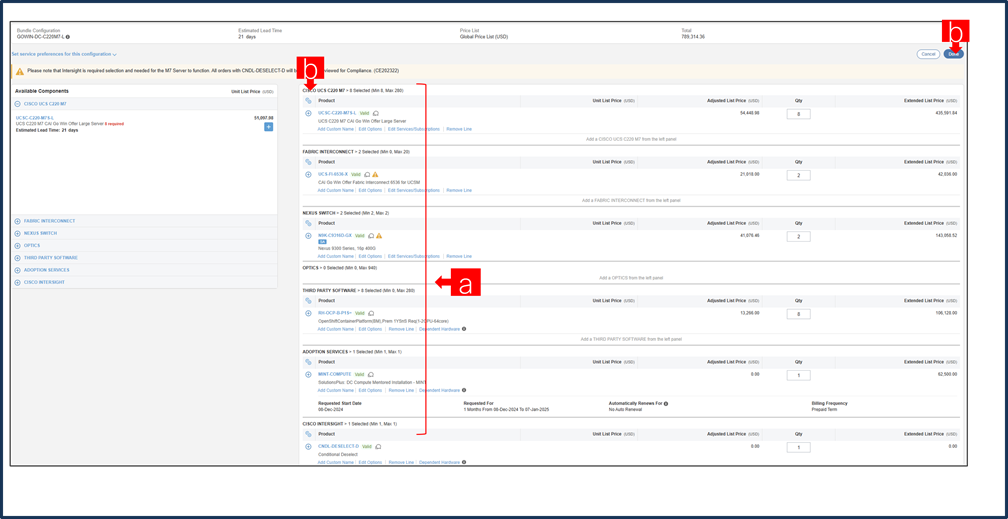

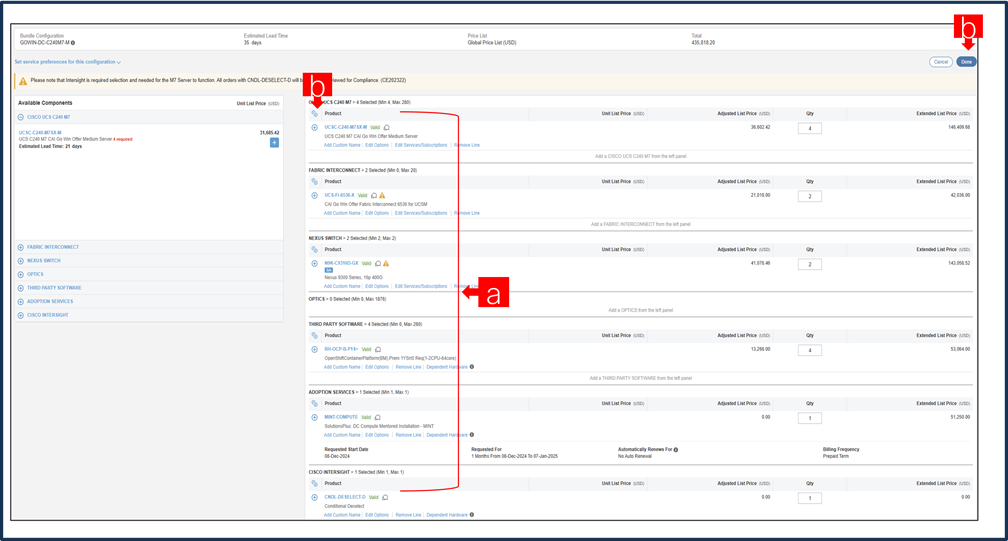

a. Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
Buy Method Through Distributor (Eg: Direct Customer & Tier 1 Partners)
Scenario 1: Customer Without Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C220-M7S-M is preselected from Category: CISCO UCS C220 M7.
b. Notice the UCSC-C220-M7S-M ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.

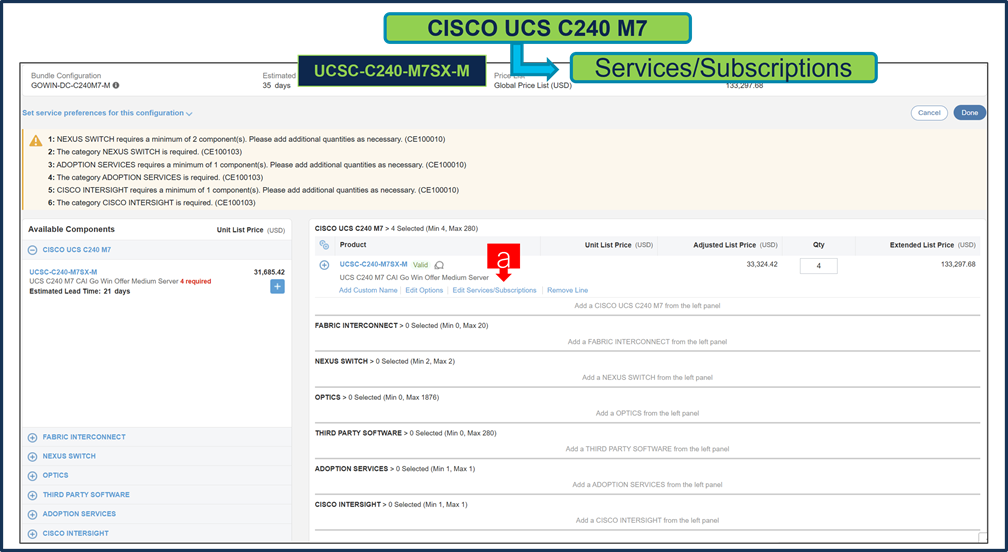

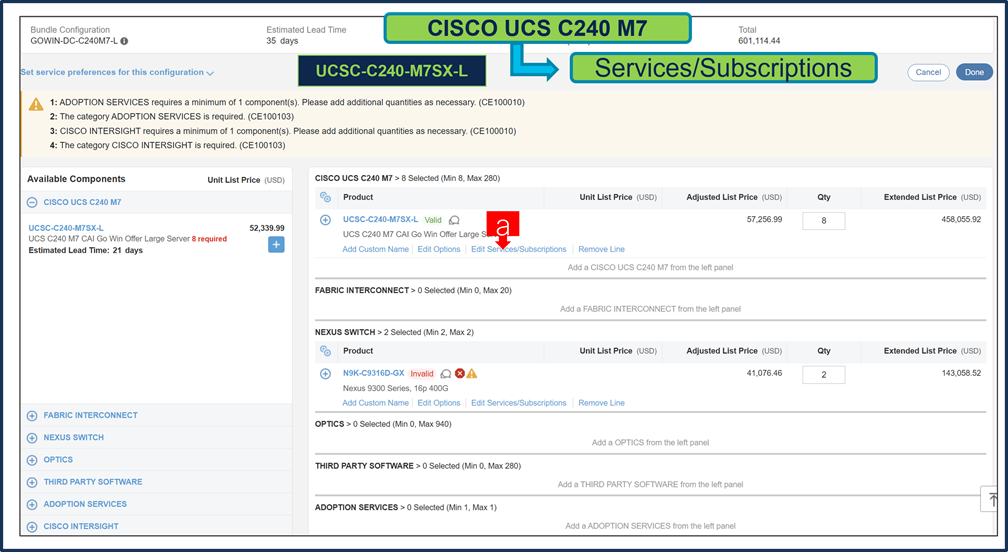

a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. At least one selection is required from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Note:
● If FI: UCS-FI-6536-X is selected, then user must select 2 QTY of N9K-C9316D-GX.
● If FI: UCS-FI-6536-X is not selected, then user must select 2 QTY of N9K-C93400LD-H1.
Step 13.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 16.
c. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.
Step 18.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 19.
a. Select Acceptance of Terms Option.
Step 20.
a. Select Support Option.
Step 21.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 22.
a. Please select appropriate QTY of MINT Service Units.
Step 23.
a. CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment.
Step 24.
a. Please select appropriate Reason Code
Step 25.
a. Configuration for MLB is completed when status of each Product is Valid, and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
Step 26.
a. Configuration of MLB PID is now Valid and Line No. 1.0 represents HW only Configuration.
b. Intersight is a required selection, if you have not previously purchased Cisco Intersight Software and needs to added in Line 2.0 which will represent SW only Configuration.
Step 27.
a. In CCW, search for DC-MGT-SAAS and click on “ADD”.
b. Intersight is a required selection, if you have not previously purchased Cisco Intersight Software. Click on Select Options to enter the configurator.
Step 28.
a. Requested Start Date (RSD) It is recommended that when you book your SaaS Product, you select a Request Start Date (RSD) 90 days into the future.
b. End Date (duration in months) is defaulted to 36 Months, Auto Renewal (on/off) is defaulted to On and Billing Frequency is defaulted to Prepaid Term. You can still change the setting accordingly.
Step 29.
a. The quantity of Cisco Intersight 2.0 Infrastructure Services License under Offer: DC-MGT-SAAS should be equal to the quantity of Server selected. Enter the quantity.
Step 30.
a. The Cisco Intersight License comes with separate Support. Basic Embedded Support is the default selection. It is recommended that Customer should upgrade to Solution Support or CX Success Track L1 or L2 for the HW.
Step 31.
a. Configuration for MLB PID and DC-MGT-SAAS is now completed, and status of each Product is Valid.
b. Click on the “PLUS” to expand and view the selections made for each Product.
Scenario 2: Customer With Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C220-M7S-M is preselected from Category: CISCO UCS C220 M7.
b. Notice the UCSC-C220-M7S-M ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. At least one selection is required from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Note:
● If FI: UCS-FI-6536-X is selected, then user must select 2 QTY of N9K-C9316D-GX.
● If FI: UCS-FI-6536-X is not selected, then user must select 2 QTY of N9K-C93400LD-H1.
Step 13.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 16.
a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.
Step 18.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 19.
a. Select Acceptance of Terms Option.
Step 20.
a. Select Support Option.
Step 21.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 22.
a. Please select appropriate QTY of MINT Service Units.
Step 23.
a. CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment.
Step 24.
a. Please select appropriate Reason Code
Step 25.
a. Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
GOWIN-DC-C220M7-L Ordering Process
Buy Method Through Cisco (Eg: Direct Customer & Tier 1 Partners)
Scenario 1: Customer Without Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C220-M7S-L is preselected from Category: CISCO UCS C220 M7.
b. Notice the UCSC-C220-M7S-L ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. ATO: N9K-C9316D-GX is preselected with 2 QTY from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 13.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 14.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 15.
a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 16.
Step 17.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 18.
a. Select Acceptance of Terms Option.
Step 19.
a. Select Support Option.
Step 20.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 21.
a. Please select appropriate QTY of MINT Service Units.
Step 22.
a. It is recommended that Term Duration for HW Support align with Software Subscription Duration.
b. Intersight is a required selection, if you have not previously purchased Cisco Intersight Software. Please make selection by clicking “ADD”. Click on “Edit Options” to configure.
Step 23.
a. Requested Start Date (RSD) is now dependent on HW Ship Date and will automatically starts when the HW ships. If you change the RSD, the Software will start either on the RSD you picked or the HW Ship Date whichever is later.
b. End Date (duration in months) is defaulted to 36 Months, Auto Renewal (on/off) is defaulted to On and Billing Frequency is defaulted to Prepaid Term. You can still change the setting accordingly.
Step 24.
a. The quantity of Cisco Intersight 2.0 Infrastructure Services License under Offer: DC-MGT-SAAS should be equal to the quantity of Server selected. Enter the quantity.
Step 25.
a. The Cisco Intersight License comes with separate Support. Basic Embedded Support is the default selection. However, it is recommended that Customer upgrade to CX Success Track Level 1 or Level 2 to ensure consistent SLA response time between Hardware and Software.
Step 26.
a. Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
Scenario 2: Customer With Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C220-M7S-L is preselected from Category: CISCO UCS C220 M7.
b. Notice the UCSC-C220-M7S-L ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. ATO: N9K-C9316D-GX is preselected with 2 QTY from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 13.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 16.
a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.
Step 18.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 19.
a. Select Acceptance of Terms Option.
Step 20.
a. Select Support Option.
Step 21.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 22.
a. Please select appropriate QTY of MINT Service Units.
Step 23.
a. CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment.
Step 24.
a. Please select appropriate Reason Code
Step 25.
a. Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
Buy Method Through Distributor (Eg: Direct Customer & Tier 1 Partners)
Scenario 1: Customer Without Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C220-M7S-L is preselected from Category: CISCO UCS C220 M7.
b. Notice the UCSC-C220-M7S-L ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. ATO: N9K-C9316D-GX is preselected with 2 QTY from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 13.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 16.
a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.
Step 18.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 19.
a. Select Acceptance of Terms Option.
Step 20.
a. Select Support Option.
Step 21.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 22.
a. Please select appropriate QTY of MINT Service Units.
Step 23.
a. CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment.
Step 24.
a. Please select appropriate Reason Code
Step 25.
a. Configuration for MLB is completed when status of each Product is Valid, and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
Step 26.
a. Configuration of MLB PID is now Valid and Line No. 1.0 represents HW only Configuration.
b. Intersight is a required selection, if you have not previously purchased Cisco Intersight Software and needs to added in Line 2.0 which will represent SW only Configuration.
Step 27.
a. In CCW, search for DC-MGT-SAAS and click on “ADD”.
b. Intersight is a required selection, if you have not previously purchased Cisco Intersight Software. Click on Select Options to enter the configurator.
Step 28.
a. Requested Start Date (RSD) It is recommended that when you book your SaaS Product, you select a Request Start Date (RSD) 90 days into the future.
b. End Date (duration in months) is defaulted to 36 Months, Auto Renewal (on/off) is defaulted to On and Billing Frequency is defaulted to Prepaid Term. You can still change the setting accordingly.
Step 29.
a. The quantity of Cisco Intersight 2.0 Infrastructure Services License under Offer: DC-MGT-SAAS should be equal to the quantity of Server selected. Enter the quantity.
Step 30.
a. The Cisco Intersight License comes with separate Support. Basic Embedded Support is the default selection. It is recommended that Customer should upgrade to Solution Support or CX Success Track L1 or L2 for the HW.
Step 31.
a. Configuration for MLB PID and DC-MGT-SAAS is now completed, and status of each Product is Valid.
b. Click on the “PLUS” to expand and view the selections made for each Product.
Scenario 2: Customer With Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C220-M7S-L is preselected from Category: CISCO UCS C220 M7.
b. Notice the UCSC-C220-M7S-L ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. ATO: N9K-C9316D-GX is preselected with 2 QTY from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 13.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 16.
a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.
Step 18.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 19.
a. Select Acceptance of Terms Option.
Step 20.
a. Select Support Option.
Step 21.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 22.
a. Please select appropriate QTY of MINT Service Units.
Step 23.
a. CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment.
Step 24.
a. Please select appropriate Reason Code
Step 25.
a. Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
GOWIN-DC-C240M7-M Ordering Process
Buy Method Through Cisco (Eg: Direct Customer & Tier 1 Partners)
Scenario 1: Customer Without Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C240-M7SX-M is preselected from Category: CISCO UCS C240 M7.
b. Notice the UCSC-C240-M7SX-M ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. At least one selection is required from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Note:
● If FI: UCS-FI-6536-X is selected, then user must select 2 QTY of N9K-C9316D-GX.
● If FI: UCS-FI-6536-X is not selected, then user must select 2 QTY of N9K-C93400LD-H1.
Step 13.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 16.
a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.
Step 18.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 19.
a. Select Acceptance of Terms Option.
Step 20.
a. Select Support Option.
Step 21.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 22.
a. Please select appropriate QTY of MINT Service Units.
Step 23.
a. It is recommended that Term Duration for HW Support align with Software Subscription Duration.
b. Intersight is a required selection, if you have not previously purchased Cisco Intersight Software. Please make selection by clicking “ADD”. Click on “Edit Options” to configure.
Step 24.
a. Requested Start Date (RSD) is now dependent on HW Ship Date and will automatically starts when the HW ships. If you change the RSD, the Software will start either on the RSD you picked or the HW Ship Date whichever is later.
b. End Date (duration in months) is defaulted to 36 Months, Auto Renewal (on/off) is defaulted to On and Billing Frequency is defaulted to Prepaid Term. You can still change the setting accordingly.
Step 25.
a. The quantity of Cisco Intersight 2.0 Infrastructure Services License under Offer: DC-MGT-SAAS should be equal to the quantity of Server selected. Enter the quantity.
Step 26.
a. The Cisco Intersight License comes with separate Support. Basic Embedded Support is the default selection. However, it is recommended that Customer upgrade to CX Success Track Level 1 or Level 2 to ensure consistent SLA response time between Hardware and Software.
Step 27.
a. Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
Scenario 2: Customer With Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C240-M7SX-M is preselected from Category: CISCO UCS C240 M7.
b. Notice the UCSC-C240-M7SX-M ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. At least one selection is required from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Note:
● If FI: UCS-FI-6536-X is selected, then user must select 2 QTY of N9K-C9316D-GX.
● If FI: UCS-FI-6536-X is not selected, then user must select 2 QTY of N9K-C93400LD-H1.
Step 13.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 16.
a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.
Step 18.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 19.
a. Select Acceptance of Terms Option.
Step 20.
a. Select Support Option.
Step 21.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 22.
a. Please select appropriate QTY of MINT Service Units.
Step 23.
a. CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment.
Step 24.
a. Please select appropriate Reason Code
Step 25.
a. Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
Buy Method Through Distributor (Eg: Direct Customer & Tier 1 Partners)
Scenario 1: Customer Without Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C240-M7SX-M is preselected from Category: CISCO UCS C240 M7.
b. Notice the UCSC-C240-M7SX-M ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. At least one selection is required from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Note:
● If FI: UCS-FI-6536-X is selected, then user must select 2 QTY of N9K-C9316D-GX.
● If FI: UCS-FI-6536-X is not selected, then user must select 2 QTY of N9K-C93400LD-H1.
Step 13.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 16.
a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.
Step 18.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 19.
a. Select Acceptance of Terms Option.
Step 20.
a. Select Support Option.
Step 21.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 22.
a. Please select appropriate QTY of MINT Service Units.
Step 23.
a. CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment.
Step 24.
a. Please select appropriate Reason Code
Step 25.
a. Configuration for MLB is completed when status of each Product is Valid, and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
Step 26.
a. Configuration of MLB PID is now Valid and Line No. 1.0 represents HW only Configuration.
b. Intersight is a required selection, if you have not previously purchased Cisco Intersight Software and needs to added in Line 2.0 which will represent SW only Configuration.
Step 27.
a. In CCW, search for DC-MGT-SAAS and click on “ADD”.
b. Intersight is a required selection, if you have not previously purchased Cisco Intersight Software. Click on Select Options to enter the configurator.
Step 28.
a. Requested Start Date (RSD) It is recommended that when you book your SaaS Product, you select a Request Start Date (RSD) 90 days into the future.
b. End Date (duration in months) is defaulted to 36 Months, Auto Renewal (on/off) is defaulted to On and Billing Frequency is defaulted to Prepaid Term. You can still change the setting accordingly.
Step 29.
a. The quantity of Cisco Intersight 2.0 Infrastructure Services License under Offer: DC-MGT-SAAS should be equal to the quantity of Server selected. Enter the quantity.
Step 30.
a. The Cisco Intersight License comes with separate Support. Basic Embedded Support is the default selection. It is recommended that Customer should upgrade to Solution Support or CX Success Track L1 or L2 for the HW.
Step 31.
a. Configuration for MLB PID and DC-MGT-SAAS is now completed, and status of each Product is Valid.
b. Click on the “PLUS” to expand and view the selections made for each Product.
Scenario 2: Customer With Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C240-M7SX-M is preselected from Category: CISCO UCS C240 M7.
b. Notice the UCSC-C240-M7SX-M ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. At least one selection is required from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Note:
● If FI: UCS-FI-6536-X is selected, then user must select 2 QTY of N9K-C9316D-GX.
● If FI: UCS-FI-6536-X is not selected, then user must select 2 QTY of N9K-C93400LD-H1.
Step 13.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 16.
a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.
Step 18.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 19.
a. Select Acceptance of Terms Option.
Step 20.
a. Select Support Option.
Step 21.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 22.
a. Please select appropriate QTY of MINT Service Units.
Step 23.
a. CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment.
Step 24.
a. Please select appropriate Reason Code
Step 25.
a. Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
GOWIN-DC-C240M7-L Ordering Process
Buy Method Through Cisco (Eg: Direct Customer & Tier 1 Partners)
Scenario 1: Customer Without Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C240-M7SX-L is preselected from Category: CISCO UCS C240 M7.
b. Notice the UCSC-C240-M7SX-L ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. At least one selection is required from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Note: If FI: UCS-FI-6536-X is selected, then user must select 2 QTY of N9K-C9316D-GX.
Step 13.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 16.
a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.
Step 18.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 19.
a. Select Acceptance of Terms Option.
Step 20.
a. Select Support Option.
Step 21.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 22.
a. Please select appropriate QTY of MINT Service Units.
Step 23.
a. It is recommended that Term Duration for HW Support align with Software Subscription Duration.
b. Intersight is a required selection, if you have not previously purchased Cisco Intersight Software. Please make selection by clicking “ADD”. Click on “Edit Options” to configure.
Step 24.
a. Requested Start Date (RSD) is now dependent on HW Ship Date and will automatically starts when the HW ships. If you change the RSD, the Software will start either on the RSD you picked or the HW Ship Date whichever is later.
b. End Date (duration in months) is defaulted to 36 Months, Auto Renewal (on/off) is defaulted to On and Billing Frequency is defaulted to Prepaid Term. You can still change the setting accordingly.
Step 25.
a. The quantity of Cisco Intersight 2.0 Infrastructure Services License under Offer: DC-MGT-SAAS should be equal to the quantity of Server selected. Enter the quantity.
Step 26.
a. The Cisco Intersight License comes with separate Support. Basic Embedded Support is the default selection. However, it is recommended that Customer upgrade to CX Success Track Level 1 or Level 2 to ensure consistent SLA response time between Hardware and Software.
Step 27.
a. Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
Scenario 2: Customer With Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C240-M7SX-L is preselected from Category: CISCO UCS C240 M7.
b. Notice the UCSC-C240-M7SX-L ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. ATO: N9K-C9316D-GX is preselected with 2 QTY from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 13.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 16.
a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.
Step 18.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 19.
a. Select Acceptance of Terms Option.
Step 20.
a. Select Support Option.
Step 21.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 22.
a. Please select appropriate QTY of MINT Service Units.
Step 23.
a. CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment.
Step 24.
a. Please select appropriate Reason Code
Step 25.
a. Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
Buy Method Through Distributor (Eg: Direct Customer & Tier 1 Partners)
Scenario 1: Customer Without Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C240-M7SX-L is preselected from Category: CISCO UCS C240 M7.
b. Notice the UCSC-C240-M7SX-L ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. ATO: N9K-C9316D-GX is preselected with 2 QTY from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 13.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 16.
a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.
Step 18.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 19.
a. Select Acceptance of Terms Option.
Step 20.
a. Select Support Option.
Step 21.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 22.
a. Please select appropriate QTY of MINT Service Units.
Step 23.
a. CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment.
Step 24.
a. Please select appropriate Reason Code
Step 25.
a. Configuration for MLB is completed when status of each Product is Valid, and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
Step 26.
a. Configuration of MLB PID is now Valid and Line No. 1.0 represents HW only Configuration.
b. Intersight is a required selection, if you have not previously purchased Cisco Intersight Software and needs to added in Line 2.0 which will represent SW only Configuration.
Step 27.
a. In CCW, search for DC-MGT-SAAS and click on “ADD”.
b. Intersight is a required selection, if you have not previously purchased Cisco Intersight Software. Click on Select Options to enter the configurator.
Step 28.
a. Requested Start Date (RSD) It is recommended that when you book your SaaS Product, you select a Request Start Date (RSD) 90 days into the future.
b. End Date (duration in months) is defaulted to 36 Months, Auto Renewal (on/off) is defaulted to On and Billing Frequency is defaulted to Prepaid Term. You can still change the setting accordingly.
Step 29.
a. The quantity of Cisco Intersight 2.0 Infrastructure Services License under Offer: DC-MGT-SAAS should be equal to the quantity of Server selected. Enter the quantity.
Step 30.
a. The Cisco Intersight License comes with separate Support. Basic Embedded Support is the default selection. It is recommended that Customer should upgrade to Solution Support or CX Success Track L1 or L2 for the HW.
Step 31.
a. Configuration for MLB PID and DC-MGT-SAAS is now completed, and status of each Product is Valid.
b. Click on the “PLUS” to expand and view the selections made for each Product.
Scenario 2: Customer With Enterprise Agreement for Cisco Intersight Software License
Step 1.
a. In CCW, search for MLB PID and click on “Add”
b. Click on “Select Options” to enter the configurator.
Step 2.
a. ATO: UCSC-C240-M7SX-L is preselected from Category: CISCO UCS C240 M7.
b. Notice the UCSC-C240-M7SX-L ATO Status is invalid as further configuration needed.
c. Click on “Edit Options” to enter the configurator.
Step 3.
a. All Server Components are Auto Included in the configuration. Please select appropriate Power Cable.
Step 4.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 5.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 6.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 7.
a. FABRIC INTERCONNECT: UCS-FI-6536-X is an optional selection and minimum 2 QTY is required if selected.
b. Notice the UCS-FI-6536-X ATO Status is invalid as further configuration is needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 8.
a. All FI Components are Auto Included in the configuration and Software License is preselected at price. Please select appropriate Power Cable.
Step 9.
a. Note Status is now showing as Valid.
b. Increase the quantity for multiples of same configuration.
c. Click the “PLUS” to add and configure the same product with different option/quantities or select a different product.
Step 10.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 11.
a. Enter the Term Duration
b. Click on “Apply” and “Done”
Step 12.
a. ATO: N9K-C9316D-GX is preselected with 2 QTY from NEXUS SWITCH Category.
b. Notice the ATO: N9K-C9316D-GX Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator..
Step 13.
a. Software Subscription License is default selection. User may select other available options.
b. Please follow the warning messages and make the minimum required selections.
c. Click Done when completed.
Note: If Order is through Distributor, please select C1-SUBS-OPTOUT from Perpetual License Option.
Step 14.
a. Click on “Edit Services/Subscriptions” to edit Term Duration for HW Support.
Note: It is recommended that Term Duration for HW Support must align with Software Subscription Duration.
Step 15.
a. Enter the Term Duration.
b. Click on “Apply” and “Done”
Step 16.
a. Category: OPTICS is an optional selection. It is recommended that user must purchase appropriate QTY of required Optic Cables.
Step 17.
Step 18.
a. THIRD PARTY SOFTWARE: RH-OCP-B-P1S= is an optional selection and QTY must be equal to Server QTY when selected.
b. Notice the PID: RH-OCP-B-P1S= Status is invalid as further configuration needed.
c. Select ‘Edit Options’ to enter the configurator.
Step 19.
a. Select Acceptance of Terms Option.
Step 20.
a. Select Support Option.
Step 21.
a. Please select at least one option from ADOPTION SERVICES Category.
b. User can select either MINT Services or can optout.
Note: Please select MINT-OPTOUT, if Order is through Distributor.
Step 22.
a. Please select appropriate QTY of MINT Service Units.
Step 23.
a. CNDL-DESELECT-D is meant to select only if Customer has already purchased Cisco Intersight License via EA Contract or order is for Disti Fulfillment.
Step 24.
a. Please select appropriate Reason Code
Step 25.
a. Configuration for MLB is completed when status of each Product is Valid and warning messages are cleared.
b. Click on the “PLUS” to expand and view the selections made for each Product.
c. Click on the “DONE” to complete the MLB Configuration.
