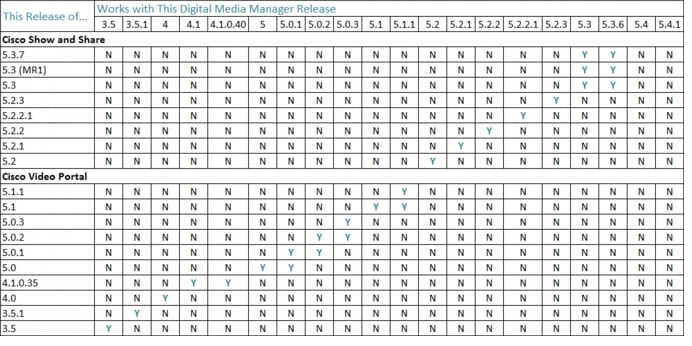

Component Server Interoperation

Server Platform Support

Server Upgrade Matrixes

Server Upgrades to Cisco DMS 4.0.0

Server Upgrades to Cisco DMS 4.1.0

Server Upgrades to Cisco DMS 5.0.0

Server Upgrades to Cisco DMS 5.0.1

Server Upgrades to Cisco DMS 5.0.2

Server Upgrades to Cisco DMS 5.0.3

Server Upgrades to Cisco DMS 5.1.0

Server Upgrades to Cisco DMS 5.1.1

Server Upgrades to Cisco DMS 5.2.0

Server Upgrades to Cisco DMS 5.2.1

Server Upgrades to Cisco DMS 5.2.2

Server Upgrades to Cisco DMS 5.2.2.1

Server Upgrades to Cisco DMS 5.2.3

Server Upgrades to Cisco DMS 5.3.0

Server Upgrades to Cisco DMS 5.3.6

Server Upgrades to Cisco DMS 5.4.0

Server Upgrades to Cisco DMS 5.4.1

Cisco Digital Media Players

DMP Certificate Expiration — CRITICAL HOTFIX AVAILABLE

Formatted Capacity of DMP Internal Storage

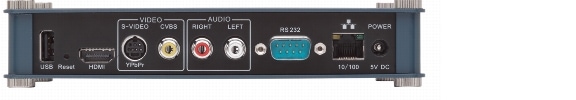

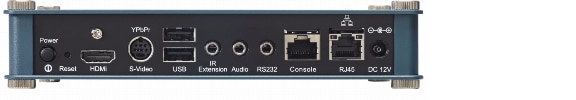

DMP Physical Specifications and Interfaces (I/O Ports)

DMP Support, by Model, for Asset Types

DMP Support, by Model, for USB Local Storage

DMP 4310G Support for USB Local Storage

DMP 4400G Support for USB Local Storage

DMP 4305G Support for USB Local Storage (Discontinued Model)

DMP 4300G Support for USB Local Storage (Discontinued Model)

SSL Encryption Ciphers That DMPs Support

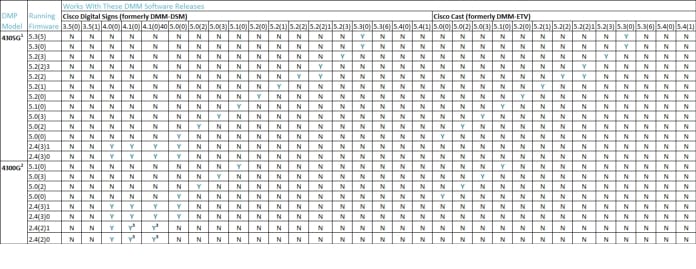

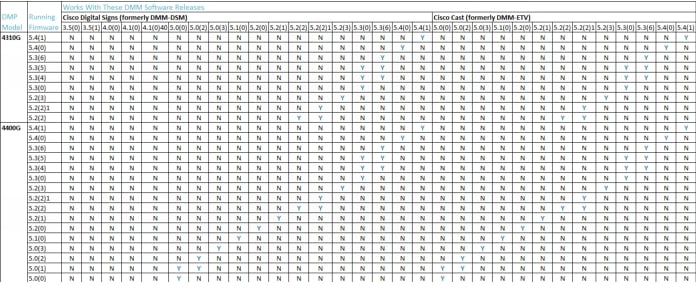

DMP Interoperation with Cisco DMM

DMP Mount Kits

LCD Digital Signs and Other Presentation Systems

Choose Suitable Display Systems for Digital Signs

Choose Media Signal Cables

Generally Supported Touchscreen Driver Categories

Supported Touchscreen Drivers in Cisco DMS 5.4

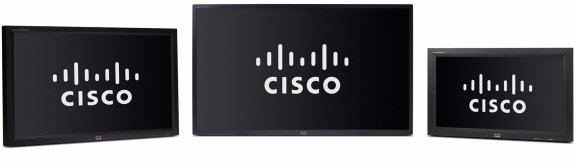

Cisco LCD Professional Series Displays

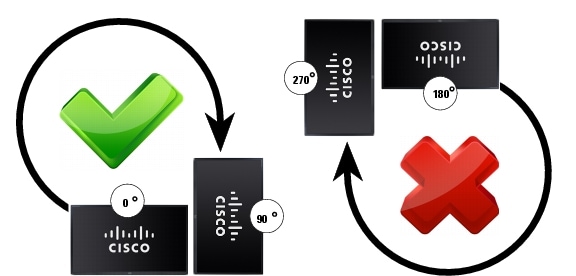

Rotation

Electrical Specifications

Dimensions and Weight

RS-232 Command Strings for Cisco LCD-Professional Series Displays

Learn More About...

Specifications, Supported Features, and Compatibility Information for Cisco Digital Media Suite

Revised: January 20, 2014

•Overview

•Cisco DMS Servers

•Server Upgrades to Cisco DMS 5.4.1

•LCD Digital Signs and Other Presentation Systems

Overview

Cisco Digital Media Suite (Cisco DMS) is an ecosystem for networked digital video. It is also the collective name for a broad range of hardware products, software products, and accessories that are sold and licensed separately but work together seamlessly. Cisco DMS is a key component of several Cisco portfolios. This guide consolidates information for the full range of Cisco DMS products.

•Supported Browsers

•Logical Ports That Cisco DMS Components Use

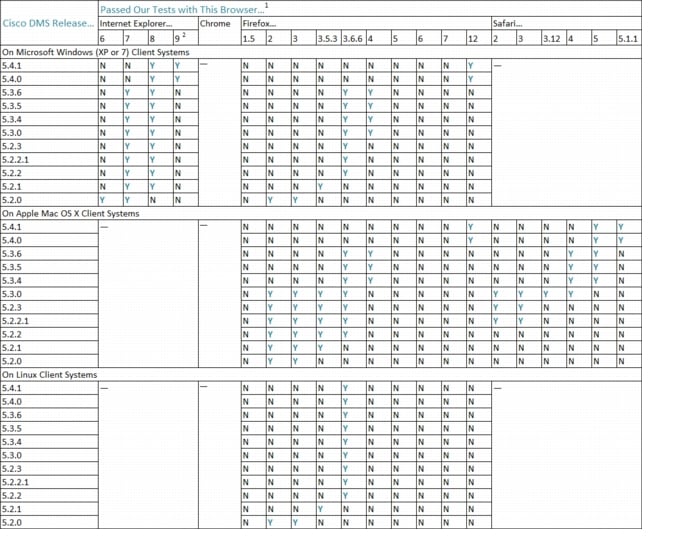

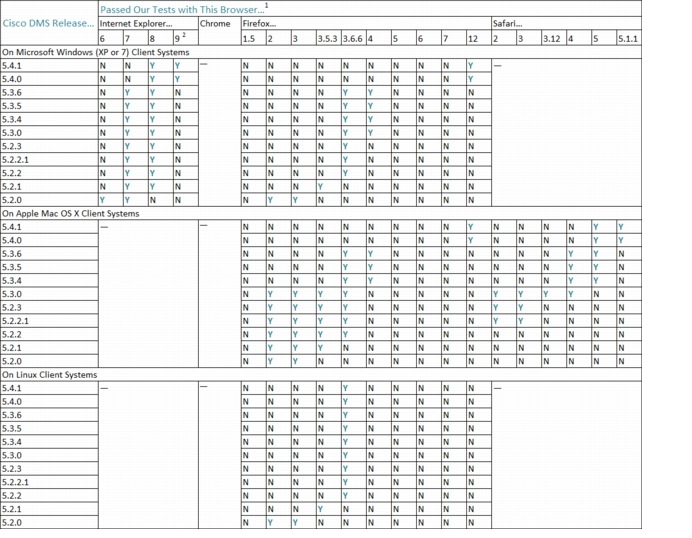

Supported Browsers

•Supported Browsers for Use with Cast

•Supported Browsers for Use with Digital Media Designer

•Supported Browsers for Use with Digital Media Player Device Manager

•Supported Browsers for Use with Digital Signs

•Supported Browsers for Use with DMM Administration (previously called DMS-Admin)

•Supported Browsers for Use with Show and Share

•Supported Browsers for Use with Show and Share Administration

•Supported Browsers for Use with Show and Share Reports

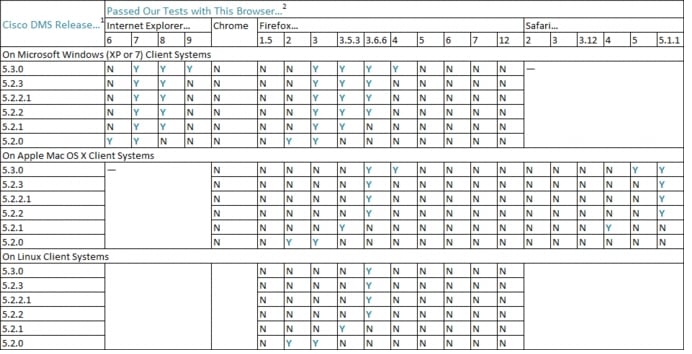

Supported Browsers for Use with Cast

1 Alongside any supported browser, you must have Java Runtime Environment (JRE) 1.6.0 or later installed.

2 32-bit version or 32-bit mode.

Supported Browsers for Use with Digital Media Designer

1 Alongside any supported browser, you must have Java Runtime Environment (JRE) 1.6.0 or later installed.

2 32-bit version or 32-bit mode.

Supported Browsers for Use with Digital Media Player Device Manager

1 Alongside any supported browser, you must have Java Runtime Environment (JRE) 1.6.0 or later installed.

2 32-bit version or 32-bit mode.

Supported Browsers for Use with Digital Signs

1 Alongside any supported browser, you must have Java Runtime Environment (JRE) 1.6.0 or later installed.

2 32-bit version or 32-bit mode.

Supported Browsers for Use with DMM Administration (previously called DMS-Admin)

1 Alongside any supported browser, you must have Java Runtime Environment (JRE) 1.6.0 or later installed.

2 32-bit version or 32-bit mode.

Supported Browsers for Use with Show and Share

1. Cisco DMS 5.3.0 was the final release that included Show and Share as a component product. All subsequent releases of Show and Share after 5.3.0 were sold and supported separately from Cisco DMS. Those independent releases are outside the scope of what this guide describes.

2. Alongside any supported browser, you must have Java Runtime Environment (JRE) 1.6.0 or later installed.

Supported Browsers for Use with Show and Share Administration

1. Cisco DMS 5.3.0 was the final release that included Show and Share as a component product. All subsequent releases of Show and Share after 5.3.0 were sold and supported separately from Cisco DMS. Those independent releases are outside the scope of what this guide describes.

2. Alongside any supported browser, you must have Java Runtime Environment (JRE) 1.6.0 or later installed.

Supported Browsers for Use with Show and Share Reports

1. Cisco DMS 5.3.0 was the final release that included Show and Share as a component product. All subsequent releases of Show and Share after 5.3.0 were sold and supported separately from Cisco DMS. Those independent releases are outside the scope of what this guide describes.

2. Alongside any supported browser, you must have Java Runtime Environment (JRE) 1.6.0 or later installed.

Logical Ports That Cisco DMS Components Use

Make sure to keep these logical ports open to traffic exchanged among Cisco DMS components.

Note Show and Share ports are deprecated after Cisco DMS 5.3.

Port No.

From

To

Bidir?

Protocol

Description

20

Show and Share

deployment server

N

FTP

Show and Share server deploying content to content hosting location using FTP

20

DMM

DMP

N

FTP

DMM server deploying content to DMP using FTP

20

DMP

FTP server

Y

FTP

transfer of content files

21

Show and Share

deployment server

N

FTP

Show and Share server deploying content to content hosting location using FTP

21

DMM

DMP

N

FTP

DMM server deploying content to DMP using FTP

21

DMP

FTP server

Y

FTP

transfer of content files

22

Show and Share

deployment server

N

SFTP

Show and Share server deploying content to content hosting location using SFTP

22

DMM

DMP

N

SFTP

DMM server deploying content to DMP using SFTP

53

DMP

DNS server

N

DNS

DNS services

80

DME

Show and Share

N

HTTP

communication between Show and Share and DME

80

User

Show and Share

N

HTTP

user requesting content from Show and Share

80

User

deployment server

N

HTTP

user requesting content from external server

80

DMP

content server

N

HTTP

123

DMP

NTP server

Y

NTP

NTP services

139

DMP

content server

N

CIFS

CIFS services

161

SNMP client

DMM

N

SNMP

SNMP services

389

DMM

Active Directory(LDAP)

N

LDAP

user database creation or updates

443

Admin Client

DMP

N

SSL

443

User

Show and Share

N

HTTPS

443

User

DMM

N

HTTPS

445

DMP

content server

N

CIFS

CIFS services

514

DMM

Show and Share

N

syslog

syslog services

514

DMP

syslog server

N

syslog

syslog services

554

User

deployment server

N

RTSP

User requesting WMV streaming from external Windows Media Streaming Server

554

DMP

content server

N

RTSP

DMP requesting WMV streaming from external Windows Media Streaming Server

636

DMM

Active Directory(LDAPS)

N

LDAPS

user database creation or updates

694

DMM primary

DMM secondary

Y

(UDP) Heartbeat for failover health monitoring

695

Show and Share primary

Show and Share secondary

Y

(UDP) Heartbeat for failover health monitoring

843

User

DMM

N

proof of play

843

User

DMM

N

Flash policy server daemon in the DMM user interface, used for edits — such as, adding a DMP to a DMP group.¹

1935

User

Show and Share

N

RTMP

User requesting Flash or H.264 streaming from Show and Share

1935

User

deployment server

N

RTMP

User requesting Flash or H.264 streaming from external Flash or H.264 streaming server

5432

DMM

Show and Share

Y

PostGres

PostGres between DMM and Show and Share

7777

Admin Client

DMP

N

SSL

7777

DMM

DMP

Y

SSL

7849

DMM primary

DMM secondary

Y

DRBD (failover)

7850

Show and Share primary

Show and Share secondary

Y

DRBD (failover)

8080

User

Show and Share

N

HTTP

User uploading content to Show and Share

8443

DMM

Show and Share

Y

HTTPS

DMM <--> Show and Share peering

8443

User

Show and Share

N

HTTPS

Access to the Show and Share secured GUI

9161

Y

SNMP

SNMP services

9999

DMM

Show and Share

Y

JMX communication

30865

All cluster nodes (Failover)

All cluster nodes (Failover)

Y

CSYNC

synchronize config files between nodes in a cluster (failover).

45001

DMM

Show and Share

Y

inventory/deployment

46001

DMM

Show and Share

Y

inventory/deployment

61616

Show and Share

DMM

Y

Activemq

User Config

User

deployment server

N

HTTP

user requesting content from external server

User Config

DME

media server

Y

HTTP

signaling between DME and media server

User Config

DMP

content server

N

HTTP

¹When editing problems in the DMM UI are not resolved by rebooting your DMM server, look for software on the client system, including McAfee software, that might have blocked this port.

Legend

DME=Digital Media Encoder
DMM=Digital Media Manager
DMP=Digital Media Player

Cisco DMS Servers

•Component Server Interoperation

•Server Platform Support

•Server Upgrade Matrixes

Component Server Interoperation

Cisco DMS requires that the following software versions be installed respectively on a Cisco Show and Share appliance and the DMM appliance that controls it.

Note Cisco DMS 5.3.0 was the final release that included Show and Share as a component product. Any subsequent releases of Show and Share are sold and supported separately from Cisco DMS. Those independent releases are outside the scope of what this guide describes.

Server Platform Support

Continual improvements to Cisco DMS bring advanced features, which impel us over time to use ever-more capable server platforms. For this reason, we have obsoleted MCS-Series server models that were no longer sufficient to keep pace with our advancements. See http://tools.cisco.com/squish/AE5b2.

Server Appliance

End of Sale Date ¹

Last Date of Support ²

DMS Support

MCS 7825 Models

MCS 7825-H2

30-November-2008

30-November-2011

Up to v.5.2.2.x

MCS 7825-H3

13-March-2009

13-March-2012

Up to v.5.2.2.x

MCS 7835 Models

MCS 7835-H1

13-September-2007

13-September-2010

Up to v.5.2.2.x

MCS 7835-H2

13-March-2009

13-March-2012

Up to v.5.2.2.x

¹The End of Sale (EOS) Date is the last day that a model was offered for sale.

²Cisco EOS policy requires that all EOS hardware products receive software maintenance updates for a period of three years. This is known as the Last Date of Support.

Tip A patch release, Cisco DMS 5.2.2.1, brings many of the bug fixes from our 5.2.3 release to Cisco DMS customers who use MCS-family servers. However, Cisco DMS 5.2.2.1 does not introduce any new features and does not include any support for server failover features.

What are your product migration options?

If you use Cisco DMS with MCS-family servers, we recommend that you migrate to Cisco DMS UCS C-Series Rack-Mount servers. These newer servers improve application performance while supporting features and products in new and future Cisco DMS releases. See: http://cisco.com/en/US/products/ps6682/products_data_sheets_list.html.

Server Upgrade Matrixes

These topics describe server upgrade considerations for platform releases that extend Cisco DMS.

•Server Upgrades to Cisco DMS 4.0.0

•Server Upgrades to Cisco DMS 4.1.0

•Server Upgrades to Cisco DMS 5.0.0

•Server Upgrades to Cisco DMS 5.0.1

•Server Upgrades to Cisco DMS 5.0.2

•Server Upgrades to Cisco DMS 5.0.3

•Server Upgrades to Cisco DMS 5.1.0

•Server Upgrades to Cisco DMS 5.1.1

•Server Upgrades to Cisco DMS 5.2.0

•Server Upgrades to Cisco DMS 5.2.1

•Server Upgrades to Cisco DMS 5.2.2

•Server Upgrades to Cisco DMS 5.2.2.1

•Server Upgrades to Cisco DMS 5.2.3

•Server Upgrades to Cisco DMS 5.3.0

•Server Upgrades to Cisco DMS 5.3.6

•Server Upgrades to Cisco DMS 5.4.0

•Server Upgrades to Cisco DMS 5.4.1

Server Upgrades to Cisco DMS 4.0.0

Note End-of-Sale and End-of-Life Bulletin for Cisco DMS 4.0 — http://tools.cisco.com/squish/c8D00.

Tip See step-by-step upgrade notes for Cisco DMS 4.0 at http://tools.cisco.com/squish/715A4.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 4.0.0...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 3.5

N

—

Y

—

—

—

—

—

Cisco Video Portal 3.5 (500 users)

Y

—

N

—

—

—

—

—

Cisco Video Portal 3.5 (1,000 users)

N

—

Y

—

—

—

—

—

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 4.1.0

Note End-of-Sale and End-of-Life Bulletin for Cisco DMS 4.1 — http://tools.cisco.com/squish/B89d7.

Tip See step-by-step upgrades notes for Cisco DMS 4.1.0 at http://tools.cisco.com/squish/ee89e.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 4.1.0...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 4.0

N

N

Y

N

—

—

—

—

Cisco Video Portal 4.0 (500 users)

Y

N

N

N

—

—

—

—

Cisco Video Portal 4.0 (1,000 users)

N

N

Y

N

—

—

—

—

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.0.0

Note End-of-Sale and End-of-Life Bulletin for Cisco DMS 5.0 — http://tools.cisco.com/squish/95d78.

Tip See step-by-step upgrade notes for all versions of Cisco DMS 5.0.x at http://tools.cisco.com/squish/66c7F.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.0.0...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 4.1

N

N

Y

Y

—

—

—

—

Cisco Video Portal 4.1 (500 users)

Y

Y

N

N

—

—

—

—

Cisco Video Portal 4.1 (1,000 users)

N

N

Y

Y

—

—

—

—

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.0.1

Tip See step-by-step upgrade notes for all versions of Cisco DMS 5.0.x at http://tools.cisco.com/squish/66c7F.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.0.1...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 5.0

N

N

Y

Y

—

—

—

—

Cisco Video Portal 4.1 (500 users)

Y

Y

N

N

—

—

—

—

Cisco Video Portal 4.1 (1,000 users)

N

N

Y

Y

—

—

—

—

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.0.2

Tip See step-by-step upgrade notes for all versions of Cisco DMS 5.0.x at http://tools.cisco.com/squish/66c7F.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.0.2...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 5.0 or 5.0.1

N

N

Y

Y

—

—

—

—

Cisco Video Portal 5.0 or 5.0.1 (500 users)

Y

Y

N

N

—

—

—

—

Cisco Video Portal 5.0 or 5.0.1 (1,000 users)

N

N

Y

Y

—

—

—

—

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.0.3

Tip See step-by-step upgrade notes for all versions of Cisco DMS 5.0.x at http://tools.cisco.com/squish/66c7F.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.0.3...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 5.0.2

N

N

Y

Y

—

—

—

—

Cisco Video Portal 5.0.2 (500 users)

Y

Y

N

N

—

—

—

—

Cisco Video Portal 5.0.2 (1,000 users)

N

N

Y

Y

—

—

—

—

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.1.0

Note End-of-Sale and End-of-Life Bulletin for Cisco DMS 5.1 — http://tools.cisco.com/squish/b41ff.

Tip See step-by-step upgrade notes for all versions of Cisco DMS 5.1.x at http://tools.cisco.com/squish/456B2.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.1.0...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 5.0.2

N

N

Y

Y

—

—

—

—

Cisco Video Portal 5.0.2 (500 users)

Y

Y

N

N

—

—

—

—

Cisco Video Portal 5.0.2 (1,000 users)

N

N

Y

Y

—

—

—

—

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.1.1

Tip See step-by-step upgrade notes for all versions of Cisco DMS 5.1.x at http://tools.cisco.com/squish/456B2.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.1.1...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 5.1

N

N

Y

Y

—

—

—

—

Cisco Video Portal 5.1 (500 users)

Y

Y

N

N

—

—

—

—

Cisco Video Portal 5.1 (1,000 users)

N

N

Y

Y

—

—

—

—

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.2.0

Note Cisco DMS 5.2.0 can interoperate with Microsoft Internet Information Server 6.0 for Windows 2003 Enterprise.

Tip See step-by-step upgrade notes for Cisco DMS 5.2.0 at http://tools.cisco.com/squish/99B16.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.2.0...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 5.1

N

N

Y

Y

—

—

—

—

Cisco Video Portal 5.1 (500 users)

Y

Y

N

N

—

—

—

—

Cisco Video Portal 5.1 (1,000 users)

N

N

Y

Y

—

—

—

—

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.2.1

Note•Cisco DMS 5.2.1 can interoperate with Microsoft Internet Information Server 6.0 for Windows 2003 Enterprise.

•Cisco DMS 5.2.1 can interoperate with Microsoft Active Directory Server releases 2000 and 2003.

Tip See step-by-step upgrade notes for Cisco DMS 5.2.1 at http://tools.cisco.com/squish/0c208.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.2.1...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 5.2

N

N

Y

Y

Y

N

—

—

Cisco Show and Share 5.2 (Workgroup)

Y

Y

N

N

N

Y

—

—

Cisco Show and Share 5.2 (Enterprise)

N

N

Y

Y

Y

N

—

—

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.2.2

Note•Cisco DMS 5.2.2 can interoperate with Microsoft Internet Information Server 6.0 for Windows 2003 Enterprise.

•Cisco DMS 5.2.2 can interoperate with Microsoft Active Directory Server releases 2000 and 2003.

Tip See step-by-step upgrade notes for Cisco DMS 5.2.2 at http://tools.cisco.com/squish/7a40F.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.2.2...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 5.2.1

N

N

Y

Y

Y

N

—

—

Cisco Show and Share 5.2.1 (Workgroup)

Y

Y

N

N

N

Y

—

—

Cisco Show and Share 5.2.1 (Enterprise)

N

N

Y

Y

Y

N

—

—

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.2.2.1

Note•Cisco DMS 5.2.2.1 can interoperate with Microsoft Internet Information Server 6.0 for Windows 2003 Enterprise.

•Cisco DMS 5.2.2.1 can interoperate with Microsoft Active Directory Server releases 2000 and 2003.

Tip See step-by-step upgrade notes for Cisco DMS 5.2.2.1 at http://tools.cisco.com/squish/35a9C.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.2.2.1...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 5.2.2

N

N

Y

Y

N

N

N

N

Cisco Show and Share 5.2.2 (Workgroup)

N

N

Y

Y

N

N

N

N

Cisco Show and Share 5.2.2 (Enterprise)

Y

Y

N

N

N

N

N

N

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.2.3

Note•Cisco DMS 5.2.3 can interoperate with Microsoft Internet Information Server 6.0 for Windows 2003 Enterprise.

•Cisco DMS 5.2.3 can interoperate with Microsoft Active Directory Server releases 2000, 2003, and 2008R2.

Tip See step-by-step upgrade notes for Cisco DMS 5.2.3 at http://tools.cisco.com/squish/1317A.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.2.3...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 5.2.2

N

N

N

N

Y

N

N

N

Cisco Show and Share 5.2.2 (Workgroup)

N

N

N

N

N

Y

N

N

Cisco Show and Share 5.2.2 (Enterprise)

N

N

N

N

Y

N

N

N

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.3.0

Note•Cisco DMS 5.3.0 can interoperate with Microsoft Internet Information Server 6.0 for Windows 2003 Enterprise.

•Cisco DMS 5.3.0 can interoperate with Microsoft Active Directory Server releases 2000, 2003, and 2008R2.

Tip See step-by-step upgrade notes for Cisco DMS 5.3 at http://tools.cisco.com/squish/4B602.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.3.0...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 5.2.3

N

N

N

N

Y

N

N

Y

Cisco Show and Share 5.2.3 (Workgroup)

N

N

N

N

N

Y

Y

N

Cisco Show and Share 5.2.3 (Enterprise)

N

N

N

N

Y

N

N

Y

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.3.6

Note•Cisco DMS 5.3.6 can interoperate with Microsoft Internet Information Server 6.0 for Windows 2003 Enterprise.

•Cisco DMS 5.3.6 can interoperate with Microsoft Active Directory Server releases 2000, 2003, and 2008R2.

•Cisco DMS 5.3.6 can interoperate with Cisco Show and Share 5.3.0 (Workgroup and Enterprise) as well as Cisco Show and Share 5.3.0 MR1 (Workgroup and Enterprise).

Tip See step-by-step upgrade notes for Cisco DMS 5.3.6 at http://www.cisco.com/en/US/docs/video/digital_media_systems/5_x/5_3/dms/upgrade/guide/536UpgradeGuide.html.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.3.6...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 5.3.0

N

N

N

N

Y

N

N

Y

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.4.0

Note•Cisco DMS 5.4.0 can interoperate with Microsoft Internet Information Server 7.2 for Windows Server 2008R2.

•Cisco DMS 5.4.0 can interoperate with Microsoft Active Directory Server releases 2000, 2003, and 2008R2.

Tip See step-by-step upgrade notes for Cisco DMS 5.4 at http://www.cisco.com/en/US/docs/video/digital_media_systems/5_x/5_4/dms/upgrade/guide/54upgrade.html.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.4.0...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 5.3.6

N

N

N

N

Y

N

N

Y

Cisco Digital Media Manager 5.3.0

N

N

N

N

Y

N

N

Y

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Server Upgrades to Cisco DMS 5.4.1

Note•Cisco DMS 5.4.1 can interoperate with Microsoft Internet Information Server 7.2 for Windows Server 2008R2.

•Cisco DMS 5.4.1 can interoperate with Microsoft Active Directory Server releases 2000, 2003, and 2008R2.

Tip See step-by-step upgrade notes for Cisco DMS 5.4.1 at http://www.cisco.com/en/US/docs/video/digital_media_systems/5_x/5_4/dms/upgrade/guide/541upgrade.html.

Legend

•Y   =   supported

•N   =   not supported

•—  =   not applicable

This Server Software Release is Upgradable to 5.4.1...

... On This Appliance Chassis

MCS-7825

MCS-7835

WAVE-574

UCS

7825-H2 ¹

7825-H3 ²

7835-H1 ³

7835-H2 ⁴

7835-H3

C200

C210

Cisco Digital Media Manager 5.4.0

N

N

N

N

Y

N

N

Y

¹Superior equipment replaced the outdated MCS 7825-H2 platform. See http://tools.cisco.com/squish/24Bb1.

  ·   30-November-2008 — END OF SALE
  ·   30-November-2011 — END OF SUPPORT

²Superior equipment replaced the outdated MCS 7825-H3 platform. See http://tools.cisco.com/squish/79Fb7.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

³Superior equipment replaced the outdated MCS 7835-H1 platform. See http://tools.cisco.com/squish/13e78.

  ·   13-September-2007 — END OF SALE
  ·   13-September-2010 — END OF SUPPORT

⁴Superior equipment replaced the outdated MCS 7835-H2 platform.See http://tools.cisco.com/squish/5c06e.

  ·   13-March-2009 — END OF SALE
  ·   13-March-2012 — END OF SUPPORT

Cisco Digital Media Players

•DMP Certificate Expiration — CRITICAL HOTFIX AVAILABLE

•Formatted Capacity of DMP Internal Storage

•DMP Physical Specifications and Interfaces (I/O Ports)

•DMP Support, by Model, for Asset Types

•DMP Support, by Model, for USB Local Storage

•SSL Encryption Ciphers That DMPs Support

•DMP Interoperation with Cisco DMM

•DMP Mount Kits

DMP Certificate Expiration — CRITICAL HOTFIX AVAILABLE

CSCty22538

Communication can fail between Cisco Digital Media Manager (DMM) and its inventory of Cisco Digital Media Players (DMPs). In an affected deployment, error messages indicate that digital certificate expiration is the root cause.

Model

Certificate Expiration Date by DMP Firmware Release

5.2

5.2.1

5.2.2

5.2.2.1

5.2.2.3

5.2.3

5.2.3.2

5.3

5.3.4

5.3.5

DMP 4305G

2012-02-24

N.A.

N.A.

OK
2037-12-18

2012-02-24

N.A.

2012-02-24

N.A.

OK
2037-12-18

DMP 4310G

N.A.

N.A.

2012-02-24

2012-02-24

2021-10-18

2012-02-24

2021-10-18

DMP 4400G

2012-02-24

2013-08-29

2013-08-29

N.A.

2013-08-29

HOTFIX

You can recover from these communication failures in 10 minutes or less by loading a hotfix on your DMM server. See http://cisco.com/web/software/282100271/56598/DMM-patch-CSCty22538-Readme.txt.

•The hotfix also works around a related failure, in which DMP certificate expiration disrupts use of a DMM advanced task called "File Transfer to DMP" (CSCty23792).

•The hotfix DOES NOT improve disrupted IP phone-based remote control of the Cisco Cast electronic program guide (CSCty36771).

The hotfix is fragile. IF YOU DO NOT use the permanent solution described below, any future upgrade of your DMM server could cause it to lose contact again with your affected DMPs. In such cases, you must then REAPPLY the hotfix.

PERMANENT FIX

You can prevent these communication failures altogether by installing DMP firmware release 5.3.5, which resolves these known defects: CSCty22538, CSCty23792, and CSCty36771.

Note To download this DMP firmware, you must have a valid service contract associated to your Cisco.com profile. If you do not have a service contract you can get one through your Cisco account team, your Cisco partner, or a qualified Cisco reseller. Then, once you have the service, you must associate it to your Cisco.com user ID at https://tools.cisco.com/RPF/profile/edit_entitlement.do?Tab=3.

1. Apply the hotfix to your DMM server, if you have not already done so. Otherwise, it cannot direct your DMPs to install their new firmware.

2. Obtain the new DMP firmware.

a. Log in to your Cisco.com account, and then go to http://cisco.com/cisco/software/navigator.html?mdfid=280936311&flowid=21001.

b. Click your DMP model in the Cisco Digital Media Players list.

c. Click Expand All in the versions tree, and then click 5.3.5.

d. Click Download.

3. Install the new DMP firmware, as described in your Cisco DMS upgrade guide at http://cisco.com/en/US/products/ps6681/prod_installation_guides_list.html.

Formatted Capacity of DMP Internal Storage

Caution Do not open a DMP.

Internal storage is formatted to this capacity.

DMP Model

Storage Medium

Formatted Capacity

Available Capacity

DMP 4305G

CF

2 GB

0.9 GB

DMP 4310G

SSD

32 GB

30.9 GB

DMP 4400G

SD

4 GB

2.9 GB

Related Topics

•DMP Support, by Model, for USB Local Storage

DMP Physical Specifications and Interfaces (I/O Ports)

Table 1 describes the connectors, sensors, and buttons on each DMP model.

DMP 4305G

Width: 7.5 in (190 mm)

Height: 1.5 in (38 mm)

Depth: 5 in (127 mm)

Weight: 1 lb (0.45 kg)

Power Consumption: 12W peak and 5W average

Input Current: 3 ADC

Internal Disk: 2GB CF EXT2

DMP 4310G

Width: 7.5 in (190 mm)

Height: 1.5 in (38 mm)

Depth: 5 in (127 mm)

Weight: 1 lb (0.45 kg)

Power Consumption: 12W peak and 8W average

Input Current: 2 ADC

Internal Disk: 32GB SSD EXT2

DMP 4400G

Width: 10 in (254 mm)

Height: 2 in (51 mm)

Depth: 8 in (203 mm)

Weight: 4.4 lb (2 kg)

Power Consumption: 30W peak and 15W average¹

Input Current: 3 ADC

Internal Disk: 4GB SD EXT2

¹On PoE, consumption is constant at 15.4W.

Table 1 DMP Physical Interfaces

Category and Subcategory

Chassis Label

DMP 4305G

DMP 4310G

DMP 4400G

Electrical Power Connectors

DC

5V

•POWER 5V DC

1

0

0

12V

•DC 12V

0

1

0

•Power DC

0

0

1

PoE¹

IEEE 802.3af

•RJ-45

0

1

0

Network Connectors

Wired²

Fast Ethernet

10/100

•10/100

1

0

0

Gigabit Ethernet³

10/100/1000

•RJ45

0

1

0

•RJ-45

0

0

1

Wireless⁴

IEEE 802.11b/g

•Antenna

0

0

1

Debugging (for Cisco use only)

—

•CONSOLE

0

1

0

Media Signal Connectors

Wired⁵

Video connectors

HDMI 1.1

•HDMI

1

0

1

HDMI 1.3⁶

0

1

0

Component⁷

•YPbPr/
S-Video

0

1

0

•S-VIDEO/
YPbPr

1

0

0

•S-Video

0

0

1

Composite

•CVBS

1

0⁸

1

Audio connectors

3.5mm jack⁹

•Audio

0

1

1

RCA

•SPDIF¹⁰

0

0

1

•RIGHT

1

0

0

•LEFT

1

0

0

Infrared

Wired

IR receiver extension

3.5 mm jack

•IR Extension

0

1

1

Wireless

IR receiver

Sensor for remote control¹¹

•—

1

1

1

Serial (Comm Port) Connectors

Wired

Data

USB 1.0

•USB

1

0

0

USB 2.0¹²

0

2¹³

213

RS-232
(9-pin DB9 to 9-pin DB9)

•RS232

1

0

1

RS-232
(9-pin DB9 to 3.55mm jack)

0

1

0

Human

Power On/Off

Latching pushbutton switch

•Power

0

1

0

Device Reset

Recessed pushbutton switch

•Reset

1

1

1

¹IEEE 802.3af interface with integrated switching regulator.

²Category 5 or better. Maximum length: 328 ft (100 m). For any distance greater than 165 ft (50 m), we recommend that you use Category 5e or Category 6 certified Ethernet cabling. For installation behind walls, we recommend plenum-rated cabling unless it does not satisfy the requirements set forth in your regional building code. We do not ship any Ethernet cable with any DMP model. You must obtain this cable separately.

³Wake-on-LAN.

⁴Supporting EAP-FAST, WEP, WPA, and WPA2.

⁵For maximum supported media signal cable lengths, see the "Choose Media Signal Cables" section. Each video and audio signal cable that we ship with DMPs is 6 ft (approximately 1.83 m) long.

⁶Backward-compatible to HDMI 1.1.

⁷Use an S-Video signal cable with a YPbPr-to-S-Video adapter to transmit and receive YPbPr data signals.

⁸Although there is no Composite CVBS connector on a DMP 4310G, its YPbPr/S-Video connector supports Composite CVBS when you use an S-Video-to-Composite adapter.

⁹Stereo audio output, irrespective of the cable type for video output.

¹⁰Your DMP remote control (sold separately) cannot mute audio output from the SPDIF interface.

¹¹Maximum distance from remote control to DMP is 15 ft (5 m). The IR sensor's signal coverage range extends from 45° left to 45° right.

¹²Maximum USB cable length is 15 ft (approximately 5 m).

¹³The expected use is one USB connection for a touchscreen and the other for an external data storage device.

DMP Support, by Model, for Asset Types

We Support These Asset Types...

... On These DMP Models

DMP 4305G

DMP 4310G

DMP 4400G

Image Formats

•GIF

•GIF (animated) ¹, ²

•JPG (nonprogressive)

•PNG ³

Shockwave Flash (SWF) Formats ⁴ , ⁵

•Version 6 (with ActionScript 2) ⁶

•Version 7 (with ActionScript 2) 6

•Version 9 (with ActionScript 2 or 3) ⁷

•Version 10 (with ActionScript 2 or 3)

•FlashLite 3.1 (with ActionScript 2)

Video Codec/Container Pairs

•MPEG-1/TS

•MPEG-2/TS — MP at High Level

•MPEG-4.2/TS — ASP at L5

•H.264/TS — MP at L4.0; HP at L4.0 (or L4.1 for Blu-ray/D)

•H.264/MP4 ⁸ — MP at L4.0; HP at L4.0 (or L4.1 for Blu-ray/D)

•Windows Media 9/ASF ⁹

Audio Codecs ¹⁰

•MPEG-1 Layer 1

•MPEG-1 Layer 2

•MPEG-1 Layer 3 (MP3) ¹¹, ¹²

•HE-AAC v1

•AC3 — Dolby Digital 5.1

•AC3 — Dolby Digital Plus 7.1

•AC3 — Dolby ProLogic IIx 5.1

•AC3 — Dolby TrueHD 7.1

•MPEG-4 AAC LC 5.1

¹But not in standalone Flash content or DMD slideshows. Use DMD's "All Media Playlist," instead.

²In releases 5.1.1 and earlier, DMP 4305G and 4400G models could render the first frame from an animated GIF but not any of its subsequent frames. Thus, it appeared to be an ordinary GIF image instead of an animation (CSCte64283). However, releases 5.2.0 and later render the entire GIF animation.

³In releases 5.1.1 and earlier, DMP 4305G endpoints could not render PNG images at all (CSCte64283). However, releases 5.2.0 and later render such images correctly. Even so, they render slowly on DMP 4305G and 4400G models and we recommend on these models that you prefer another format.

⁴See the "DMD Guidelines for SWF Animations" topics on Cisco.com. Also: Any SWF that includes Stage.scaleMode = "noScale" in its ActionScript code will prevent older DMP models from scaling it correctly. (CSCtn84520)

⁵We do not support audio in Shockwave Flash.

⁶Backward compatible on a DMP 4310G or a DMP 4400G but not any other DMP models.

⁷Supported exclusively in DMD 5.2.0. Not supported thereafter.

⁸The "moov" atom must be located at the beginning of the file.

⁹On-demand (prerecorded), not live. PTS value > 100ms. HTTP, CIFS, or local storage only.

¹⁰The supported audio data rate is 64-320 kbps on a DMP 4305G or DMP 4400G. It is 64-384 kbps on a DMP 4310G.

¹¹HTTP or local storage only. Prerecoded, not live.

¹²Variable Bitrate (VBR) MP3 files are not supported.

DMP Support, by Model, for USB Local Storage

•DMP 4310G Support for USB Local Storage

•DMP 4400G Support for USB Local Storage

•DMP 4305G Support for USB Local Storage (Discontinued Model)

•DMP 4300G Support for USB Local Storage (Discontinued Model)

DMP 4310G Support for USB Local Storage

Table 2 USB Storage for DMP 4310G

DMP Model

Running Firmware

Passed Our Tests with These External USB Storage Devices

Manufacturer

Brand Name (and model number, if applicable)

Capacity

File System

4310G

•5.4(0)

•5.3(6)

•5.3(5)

•5.3(4)

•5.3(0)

•5.2.3(2)

•5.2(3)

•5.2.2(3)

•5.2.2(1)

•5.2(2)

Kingston

Data Traveler USB Flash Key

4 GB

EXT2

EXT3

FAT32

8 GB

EXT2

EXT3

FAT32

16 GB

EXT2

EXT3

FAT32

32 GB

EXT2

EXT3

FAT32

DiskGo

EDGE

32 GB

EXT2

EXT3

FAT32

Western Digital

WD Passport Portable Drive

320 GB

EXT2

EXT3

FAT32

1000 GB

EXT2

EXT3

FAT32

Local Storage Restrictions for DMP 4310G

A DMP 4310G that uses an attached USB storage volume might corrupt or erase data on this attached volume. Likewise, a DMP 4310G might lose its ability to mount this attached volume. After the DMP reaches this general state, it sometimes reports incorrectly that the attached volume is still mounted and working. These problems can occur when you disconnect the external volume from the upper USB interface on a DMP 4310G and then, without any delay, plug it immediately into the lower USB interface on the same DMP. However, these problems do not occur in every such case. In our tests, they occurred approximately 1 percent of the time. (See the "DMP 4310G" photograph, earlier in this guide.)

To reduce your possible exposure to these problems, wait no less than 3 seconds after you connect or disconnect an attached volume, before you do the reverse. In our tests, this best practice eliminated the risk.

Restart the DMP if it merely unmounts its attached volume. There is no workaround after the attached volume is erased or its data becomes corrupted. All that you can do after the fact is reformat the volume and restore its data from a recent backup.

DMP 4400G Support for USB Local Storage

Table 3 USB Storage for DMP 4400G

DMP Model

Running Firmware

Passed Our Tests with These External USB Storage Devices

Manufacturer

Brand Name (and model number, if applicable)

Capacity

File System

4400G

•5.4(0)

•5.3(6)

•5.3(5)

•5.3(4)

•5.3(0)

•5.2(3)

•5.2.2(3)

•5.2.2(1)

•5.2(2)

•5.2(1)

•5.2(0)

Kingston

Data Traveler USB Flash Key

4 GB

EXT2

EXT3

FAT32

8 GB

EXT2

EXT3

FAT32

16 GB

EXT2

EXT3

FAT32

32 GB

EXT2

EXT3

FAT32

DiskGo

EDGE

32 GB

EXT2

EXT3

FAT32

Western Digital

WD Passport Portable Drive

320 GB

EXT2

EXT3

FAT32

1000 GB

EXT2

EXT3

FAT32

•5.1(0)

•5.0(3)

•5.0(2)

•5.0(1)

•5.0(0)

Kingston

Data Traveler USB Flash Key

4 GB

FAT32

8 GB

FAT32

DiskGo

EDGE

32 GB

FAT32

Western Digital

WD Passport Portable Drive

320 GB

FAT32

DMP 4305G Support for USB Local Storage (Discontinued Model)

Table 4 USB Storage for DMP 4305G

DMP Model

Running Firmware

Passed Our Tests with These External USB Storage Devices

Manufacturer

Brand Name (and model number, if applicable)

Capacity

File System

4305G¹

•5.3(5)

•5.3(4)

•5.3(0)

Kingston

Data Traveler USB Flash Key

4 GB

FAT32

8 GB

FAT32

DiskGo

EDGE

32 GB

FAT32

Western Digital

WD Passport Portable Drive

320 GB²

FAT32

•5.2(3)

•5.2.2(3)

•5.2(1)

•5.2(0)

Kingston

Data Traveler USB Flash Key

4 GB

FAT32

8 GB

FAT32

DiskGo

EDGE

32 GB

FAT32

Western Digital

WD Passport Portable Drive

320 GB2

FAT32

•5.1(0)

•5.0(3)

•5.0(2)

•5.0(0)

•2.43(1)

Kingston

Data Traveler USB Flash Key

4 GB

FAT32

8 GB

FAT32

DiskGo

EDGE

32 GB

FAT32

Western Digital

WD Passport Portable Drive

320 GB2

FAT32

¹This model is discontinued. See http://www.cisco.com/en/US/prod/collateral/video/ps9901/ps9892/eol_c51-675115.html.

²See CSCsw67738 in Bug Toolkit on Cisco.com.

DMP 4300G Support for USB Local Storage (Discontinued Model)

Table 5 USB Storage for DMP 4300G

DMP Model

Running Firmware

Passed Our Tests with These External USB Storage Devices

Manufacturer

Brand Name (and model number, if applicable)

Capacity

File System

4300G¹

•5.1(0)

•5.0(3)

•5.0(2)

•5.0(0)

•2.43(1)

•2.43(0)

Western Digital

WD Passport Portable Drive

WD2500U017

250 GB

FAT32

Lexar

JumpDrive Firefly

8 GB

FAT32

•2.42(1)

•2.42(0)

Western Digital

WD Passport Portable Drive

WD1600U017

160 GB

FAT32

Transcend

JetFlash 2A

TS16GJF2A

16 GB

FAT32

¹This model is discontinued. See http://www.cisco.com/en/US/prod/collateral/video/ps9339/ps6681/Prod_EoL_C51-451180.html.

SSL Encryption Ciphers That DMPs Support

•ADH-DES-CBC3-SHA

•DES-CBC-MD5

•DES-CBC-SHA

•DES-CBC3-MD5

•DES-CBC3-SHA

•EDH-DSS-DES-CBC-SHA

•EDH-DSS-DES-CBC3-SHA

•EDH-RSA-DES-CBC-SHA

•EDH-RSA-DES-CBC3-SHA

•EXP-DES-CBC-SHA

•EXP-EDH-RSA-DES-CBC-SHA

•EXP-RC2-CBC-MD5

•EXP-RC4-MD5

•IDEA-CBC-MD5

•IDEA-CBC-SHA

•RC2-CBC-MD5

•RC4-MD5

•RC4-SHA

Note Do not use AES128-SHA or AES256-SHA (including ADH-AES128-SHA, ADH-AES256-SHA, DHE-DSS-AES128-SHA, DHE-DSS-AES256-SHA, DHE-RSA-AES128-SHA, and DHE-RSA-AES256-SHA).

DMP Interoperation with Cisco DMM

Cisco DMS requires that the following firmware and software versions be installed respectively on your DMPs and on the DMM appliance that centrally manages them.

1 This model is discontinued. See http://www.cisco.com/en/US/prod/collateral/video/ps9901/ps9892/eol_c51-675115.html.

2 This model is discontinued. See http://cisco.com/en/US/prod/collateral/video/ps9339/ps6681/Prod_EoL_C51-451180.html.
3 DMM-DSM 4.1 can manage DMPs that use this firmware release. However, these DMPs cannot play presentations that you design in Digital Media Designer (DMD).

DMP Mount Kits

We manufacture and sell optional mount kits for DMPs. These fabricated steel enclosures provide physical stability for a DMP. Perhaps more importantly, they discourage tampering and prevent theft. With the correct mount kit enclosure, you can mount any DMP securely to:

•A wall or pillar.

•A suspended-grid ceiling T-joint.

•A metal pole.

•A VESA-compliant flat-panel display for which you have obtained a third-party VESA mount kit.

Cisco DMP mount kits facilitate airflow for ventilation. In addition, they are an adaptable and cost-effective alternative to complex cabinet-making and construction projects.

For this DMP Model:

Order this Optional Mount Kit:

DMP 4400G

DMP-PRCASE-4400-S1

DMP 4310G

DMP-PRCASE-4305-S1

DMP 4305G

DMP 4300G

•Data Sheet: http://tools.cisco.com/squish/1702C

•Mounting Kit Assembly Guide: http://tools.cisco.com/squish/06C68

LCD Digital Signs and Other Presentation Systems

•Choose Suitable Display Systems for Digital Signs

•Choose Media Signal Cables

•Generally Supported Touchscreen Driver Categories

•RS-232 Command Strings for Cisco LCD-Professional Series Displays

Choose Suitable Display Systems for Digital Signs

We certify that DMPs work as designed with Cisco LCD flat-screen displays. All displays in this series are engineered for intensive use in public settings. See http://cisco.com/go/dms/lcd.

In most cases, DMPs can use displays that comply with modern, international standards. We recommend the following if you must use a third-party display.

•Digital, not analog.

•High-definition, not standard-definition.

•Professional-grade, not consumer-grade. Digital signs and public IPTV installations run many more hours each day than a consumer-grade display is engineered to run. A consumer-grade system is likely to fail years sooner than a professional-grade system would under these circumstances.

•LCD, not plasma. Digital signage uses static images more often than it uses full-motion video. Most often, content is web-based or animated in Flash. The nature of these media types means that some pixels are not updated frequently in digital signage. LCDs are less susceptible to burn-in than plasma displays are. Even though image persistence is sometimes a problem on LCD displays, it is almost always self-correcting and is unlikely to occur when you follow manufacturer guidelines for managing your displays correctly.

•Built-in support for RS-232 signalling. This recommendation is important in direct proportion to the number of displays that you will manage.

Choose Media Signal Cables

Caution Poorly shielded cable can sometimes promote undesired signal leakage ( egress), interference from over-the-air signals ( ingress), or crosstalk between cables that are in close physical proximity.

Special considerations apply when you obtain a signal cable that is longer or of a different type than cables that we included in your product kit. For DMP models that support the following signal cable types, the maximum supported lengths are:

•Composite

10 ft (approximately 3 m)

•HDMI

16 ft (approximately 5 m) ¹

•RCA

10 ft (approximately 3 m)

•S-Video

10 ft (approximately 3 m)

•SPDIF

10 ft (approximately 3 m)

¹Or 150 ft (approximately 45 m) with an HDMI extender.

Cable Quality

The best signal cables objectively are those with the lowest signal resistance. Factors that affect signal resistance include wire gauge, cable shielding quality, and cable connector quality. However, the same materials and engineering designs that reduce signal resistance add to the cost of manufacturing. This added cost is passed along to a consumer. So, it is useful to understand when signal resistance is not relevant. Knowing this can help you to manage and reduce expenses without necessarily lowering your standards. High cost is not inevitable. Nor is it proof of high quality. Sometimes, in fact, high quality (low signal resistance) is irrelevant.

Even mediocre signal cables are sometimes sufficient, and such cables are often very affordable. Figure 1 illustrates the most important factors to consider when you choose signal cables.

Figure 1 Signal Cable Purchasing Factors to Consider

Beyond the general guidelines that Figure 1 illustrates, two additional factors might constrain which types of signal cable you can use.

•The technology, brand, and model of your display — Check its product documentation to understand its compatibility with various signal cable types.

•The DMP model — Table 1 states which I/O ports are available on various DMP models. (Alternatively, if the table does not describe your DMP model, see its datasheet at http://www.cisco.com/go/dms/dmp/datasheets.) Your packing list states which signal cables Cisco planned to ship with your DMP.

Note When image signals are transmitted through a composite cable, image quality suffers. When you use a composite cable and your DMP shows any web-based media, small text might be difficult to read in TVzilla. To work around this limitation, you can lower the browser resolution setting in DMPDM.

Generally Supported Touchscreen Driver Categories

This high-level summary merely categorizes which types of touchscreen drivers we support.

For a comprehensive and specific inventory of all supported drivers, see the "Supported Touchscreen Drivers in Cisco DMS 5.4" section.

DMP Model

Supported Driver Categories

DMP 4400G

•3M MicroTouch

•ELO Acoustic Pulse Recognition systems and non-APR systems

•NEW IN CISCO DMS 5.2.3 — ELO non-Acoustic Pulse Recognition systems

•REMOVED IN CISCO DMS 5.2.3 — GeneralTouch ST6001S and ST6201

•Zytronic Zybrid

DMP 4310G

•NEW IN CISCO DMS 5.4 — ELO IntelliTouch+

•NEW IN CISCO DMS 5.2.3 — 3M Touch Systems Capacitive Pulse SCT

•NEW IN CISCO DMS 5.2.3 — 3M Dispersive Signal DST

•NEW IN CISCO DMS 5.2.3 —  3M Projected Capacitive PCT (with single touch)

•NEW IN CISCO DMS 5.2.3 — ELO non-Acoustic Pulse Recognition systems

•NEW IN CISCO DMS 5.2.3 — GeneralTouch ST6001S and ST6201

Supported Touchscreen Drivers in Cisco DMS 5.4

Touchscreen Technology or Connector Type

Vendor

Supported Models

DMP 4400G
Compatible

DMP 4310G
Compatible

Acoustic Pulse Recognition (APR)

ELO

•Touchmonitors

Yes

Yes

•IDS Touch Display 3200L

Yes

Yes

•IDS Touch Display 4200L

Yes

Yes

•IDS Touch Display 4600L

Yes

Yes

Dispersive Signal Technoloy (DST)

3M

•MicroTouch System DST2270DX

Yes

Yes

Intellitouch

ELO

•Touchmonitors

Yes

Yes

•IDS Touch Display 4200L

Yes

Yes

•IDS Touch Display 4600L

Yes

Yes

•IDS Touch Display 5500L

Yes

Yes

Intellitouch Plus

ELO

•Touchmonitor 2242L

Yes

Yes

•IDS Touch Display 3200L

Yes

Yes

Optical

ELO

No

No

Projected Capacitive Technology (PCT)

3M

No

No

Surface Capacative Technology (SCT)

3M

•MicroTouch System SCT3250EX

Yes

Yes

•MicroTouch System SCT7650EX

Yes

Yes

•MicroTouch Display M1500SS

Yes

Yes

•MicroTouch Display M1700SS

Yes

Yes

•MicroTouch Display C1500SS

Yes

Yes

•MicroTouch Display C1700SS

Yes

Yes

•MicroTouch Display C2234SW

Yes

Yes

Serial

General Touch

No

No

USB

General Touch

No

Yes

Zytronics

Yes

No

Cisco LCD Professional Series Displays

•Rotation

•Electrical Specifications

•Dimensions and Weight

•RS-232 Command Strings for Cisco LCD-Professional Series Displays

Rotation

You can mount your Cisco LCD display at 0° or 90°. Do not use any other angle!

Electrical Specifications

32-inch
Cisco LCD-100L-PRO-32N

40-inch
Cisco LCD-100-PRO-40N

42-inch
Cisco LCD-110L-PRO-42

47-inch
Cisco LCD-110L-PRO-47

52-inch
Cisco LCD-110-PRO-52S

55-inch
Cisco LCD-PRO-110Q

Rated Voltage

AC 100-240V
~ 50/60 Hz
1.5A

Rated Voltage

AC 100-240V
~ 50/60 Hz

Rated Voltage

AC 100-240V
~ 50/60 Hz
2.3A

Rated Voltage

AC 100-240V
~ 50/60 Hz
3.0A

Rated Voltage

AC 100-240V
~ 50/60 Hz

Rated Voltage

AC 100-240V
~ 50/60 Hz
3.0A

Typical Power Consumption

On: 145W
Sleep: 4W
Off: 1W

Typical Power Consumption

On: 230W
Sleep: 2W
Off: 0W

Typical Power Consumption

On: 200W
Sleep: 2W
Off: 0.5W

Typical Power Consumption

On: 260W
Sleep: 2W
Off: 0.5W

Typical Power Consumption

On: 370W
Sleep: 2W
Off: 0W

Typical Power Consumption

On: 350W
Sleep: 1W
Off: 1W

Dimensions and Weight

Measurements are approximate and subject to change without notice.

32-inch
LCD-100L-PRO-32N

40-inch ¹
LCD-100-PRO-40N

42-inch
LCD-110L-PRO-42

47-inch
LCD-110L-PRO-47

52-inch ²
LCD-110-PRO-52S

55-inch ³
LCD-PRO-110Q

Display

Speakers

Stand

W

31.61 in

W

38.20 in

W

38.07 in

W

42.50 in

W

47.68 in

W

48.84 in

80.29 cm

97.03 cm

96.70 cm

107.95 cm

121.10 cm

124.06 cm

H

19.41 in

H

22.90 in

H

22.03 in

H

24.59 in

H

30.58 in

H

28.01 in

49.30 cm

56.17 cm

55.98 cm

62.46 cm

77.66 cm

71.14 cm

D

03.93 in

D

04.70 in

D

04.87 in

D

04.83 in

D

12.24 in

D

4.80 in

09.98 cm

11.94 cm

12.37 cm

12.29 cm

31.10 cm

12.18 cm

31.70 lb

41.90 lb

41.00 lb

48.94 lb

79.37 lb

58.10 lb

14.38 kg

19.00 kg

18.64 kg

22.20 kg

36.80 kg

26.40 kg

Display

Speakers

Stand

W

31.61 in

W

38.20 in

W

38.07 in

W

42.50 in

W

47.68 in

W

48.84 in

80.29 cm

97.03 cm

96.70 cm

107.95 cm

121.10 cm

124.06 cm

H

21.26 in

H

25.30 in

H

24.99 in

H

27.46 in

H

30.58 in

H

30.44 in

54.00 cm

64.26 cm

63.50 cm

69.77 cm

77.66 cm

77.32 cm

D

07.58 in

D

12.20 in

D

10.18 in

D

11.74 in

D

12.24 in

D

15.95 in

19.25 cm

31.00 cm

25.86 cm

29.83 cm

31.10 cm

40.51 cm

37.08 lb

41.90 lb

43.92 lb

52.02 lb

79.37 lb

85.1 lb

16.82 kg

19.00 kg

19.92 kg

23.60 kg

36.80 kg

38.70 kg

Display

Speakers3

Stand

W

31.61 in

N.A.

W

38.07 in

W

42.50 in

N.A.

W

N.A.3

80.29 cm

96.70 cm

107.95 cm

H

19.41 in

H

22.03 in

H

24.59 in

H

49.30 cm

55.98 cm

62.46 cm

D

03.93 in

D

04.87 in

D

05.08 in

D

09.98 cm

12.37 cm

12.92 cm

33.42 lb

42.73 lb

50.70 lb

15.16 kg

19.38 kg

23.00 kg

Display

Speakers3

Stand

W

31.61 in

N.A.

W

38.07 in

W

42.50 in

N.A.

W

48.84 in

80.29 cm

96.70 cm

107.95 cm

124.06 cm

H

21.26 in

H

24.99 in

H

27.46 in

H

30.44 in

54.00 cm

63.50 cm

69.77 cm

77.32 cm

D

07.58 in

D

10.18 in

D

11.74 in

D

15.95 in

19.25 cm

25.86 cm

29.83 cm

40.51 cm

38.80 lb

45.55 lb

53.79 lb

85.1 lb

17.60 kg

20.66 kg

24.40 kg

38.70 kg

VESA Mounting Interface

200 x 200 mm

600 x 400 mm

600 x 400 mm

800 x 400 mm

800 x 400 mm

400 x 400 mm

Datasheets

http://www.cisco.com/en/US/products/ps10099/products_data_sheets_list.html

¹Discontinued. Please see http://www.cisco.com/en/US/prod/collateral/video/ps9339/ps10099/end_of_life_c51-682457.html

²Discontinued. Please see http://www.cisco.com/en/US/prod/collateral/video/ps9339/ps10099/eol_c51-669174.html.

³We do not sell optional speakers for 55-inch displays. Their speakers are already built-in.

RS-232 Command Strings for Cisco LCD-Professional Series Displays

Table 6 RS-232 Commands to Manage Cisco LCD Displays

Task

Hexadecimal RS-232 Command Strings

32-inch
LCD-100L-PRO-32N

40-inch
LCD-100-PRO-40N

42-inch
LCD-110L-PRO-42

47-inch
LCD-110L-PRO-47

52-inch
LCD-110-PRO-52S

55-inch
LCD-PRO-110Q

Power

On

rs232.tx_hex=

6B612030312030310D

rs232.tx_hex=

AA11FF010112

rs232.tx_hex=

6B612030312030310D

rs232.tx_hex=

6B612030312030310D

rs232.tx_hex=

AA11FF010112

rs232.tx_hex=

346230313130303030310d

Off

rs232.tx_hex=

6B612030312030300D

rs232.tx_hex=

AA11FF010011

rs232.tx_hex=

6B612030312030300D

rs232.tx_hex=

6B612030312030300D

rs232.tx_hex=

AA11FF010011

rs232.tx_hex=

346230313130303030300d

Input Source

HDMI

rs232.tx_hex=

6B622030312030380D

rs232.tx_hex=

AA14FF012135

rs232.tx_hex=

6B622030312030380D

rs232.tx_hex=

6B622030312030380D

rs232.tx_hex=

AA14FF012135

rs232.tx_hex=

346230313130313030300d

DVI

—

rs232.tx_hex=

AA14FF01182C

—

—

rs232.tx_hex=

AA14FF01182C

rs232.tx_hex=

346230313130313030310d

Component

rs232.tx_hex=

6B622030312030340D

—

rs232.tx_hex=

6B622030312030340D

rs232.tx_hex=

6B622030312030340D

rs232.tx_hex=

AA14FF01081C

rs232.tx_hex=

346230313130313030360d

AV

rs232.tx_hex=

6B622030312030320D

rs232.tx_hex=

AA14FF010C20

rs232.tx_hex=

6B622030312030320D

rs232.tx_hex=

6B622030312030320D

rs232.tx_hex=

AA14FF010C20

rs232.tx_hex=

346230313130313030380d

PC

rs232.tx_hex=

6B622030312030370D

rs232.tx_hex=

AA14FF011428

rs232.tx_hex=

6B622030312030370D

rs232.tx_hex=

6B622030312030370D

rs232.tx_hex=

AA14FF011428

rs232.tx_hex=

346230313130313030330d

S-Video

—

—

—

—

—

rs232.tx_hex=

346230313130313030370d

BNC

—

—

—

—

rs232.tx_hex=

AA14FF011E32

—

Volume Mute

On

rs232.tx_hex=

6B6520303120300D

rs232.tx_hex=

AA13FF010114

rs232.tx_hex=

6B6520303120300D

rs232.tx_hex=

6B6520303120300D

rs232.tx_hex=

AA13FF010114

rs232.tx_hex=

3462303135353030310d

Off

rs232.tx_hex=

6B6520303120310D

rs232.tx_hex=

AA13FF010013

rs232.tx_hex=

6B6520303120310D

rs232.tx_hex=

6B6520303120310D

rs232.tx_hex=

AA13FF010013

rs232.tx_hex=

3462303135353030300d

Volume Control

0%

rs232.tx_hex=

6B662030312030300D

rs232.tx_hex=

AA12FF010012

rs232.tx_hex=

6B662030312030300D

rs232.tx_hex=

6B662030312030300D

rs232.tx_hex=

AA12FF010012

rs232.tx_hex=

346230313135303030300d

25%

rs232.tx_hex=

6B662030312031390D

rs232.tx_hex=

AA12FF01192B

rs232.tx_hex=

6B662030312031390D

rs232.tx_hex=

6B662030312031390D

rs232.tx_hex=

AA12FF01192B

rs232.tx_hex=

346230313135303032350d

50%

rs232.tx_hex=

6B662030312033320D

rs232.tx_hex=

AA12FF013244

rs232.tx_hex=

6B662030312033320D

rs232.tx_hex=

6B662030312033320D

rs232.tx_hex=

AA12FF013244

rs232.tx_hex=

346230313135303035300d

75%

rs232.tx_hex=

6B662030312034620D

rs232.tx_hex=

AA12FF014b5D

rs232.tx_hex=

6B662030312034620D

rs232.tx_hex=

6B662030312034620D

rs232.tx_hex=

AA12FF014b5D

rs232.tx_hex=

346230313135303037350d

100%

rs232.tx_hex=

6B662030312036340D

rs232.tx_hex=

AA12FF016476

rs232.tx_hex=

6B662030312036340D

rs232.tx_hex=

6B662030312036340D

rs232.tx_hex=

AA12FF016476

rs232.tx_hex=

346230313135303130300d

Brightness

25%

rs232.tx_hex=

6B6820312031390D

rs232.tx_hex=

AA25FF01193E

rs232.tx_hex=

6B6820312031390D

rs232.tx_hex=

6B6820312031390D

rs232.tx_hex=

AA25FF01193E

rs232.tx_hex=

346230313131303032350d

50%

rs232.tx_hex=

6B6820312033320D

rs232.tx_hex=

AA25FF013257

rs232.tx_hex=

6B6820312033320D

rs232.tx_hex=

6B6820312033320D

rs232.tx_hex=

AA25FF013257

rs232.tx_hex=

346230313131303035300d

75%

rs232.tx_hex=

6B6820312034620D

rs232.tx_hex=

AA25FF014B70

rs232.tx_hex=

6B6820312034620D

rs232.tx_hex=

6B6820312034620D

rs232.tx_hex=

AA25FF014B70

rs232.tx_hex=

346230313131303037350d

100%

rs232.tx_hex=

6B6820312036340D

rs232.tx_hex=

AA25FF016489

rs232.tx_hex=

6B6820312036340D

rs232.tx_hex=

6B6820312036340D

rs232.tx_hex=

AA25FF016489

rs232.tx_hex=

346230313131303130300d

Contrast

25%

rs232.tx_hex=

6B672030312031390D

rs232.tx_hex=

AA24FF01193D

rs232.tx_hex=

6B672030312031390D

rs232.tx_hex=

6B672030312031390D

rs232.tx_hex=

AA24FF01193D

rs232.tx_hex=

346230313131313032350d

50%

rs232.tx_hex=

6B672030312033320D

rs232.tx_hex=

AA24FF013256

rs232.tx_hex=

6B672030312033320D

rs232.tx_hex=

6B672030312033320D

rs232.tx_hex=

AA24FF013256

rs232.tx_hex=

346230313131313035300d

75%

rs232.tx_hex=

6B672030312034620D

rs232.tx_hex=

AA24FF014B6F

rs232.tx_hex=

6B672030312034620D

rs232.tx_hex=

6B672030312034620D

rs232.tx_hex=

AA24FF014B6F

rs232.tx_hex=

346230313131313037350d

100%

rs232.tx_hex=

6B672030312036340D

rs232.tx_hex=

AA24FF016488

rs232.tx_hex=

6B672030312036340D

rs232.tx_hex=

6B672030312036340D

rs232.tx_hex=

AA24FF016488

rs232.tx_hex=

346230313131313130300d

Sharpness

25%

rs232.tx_hex=

6B6B2030312031390D

rs232.tx_hex=

AA26FF01193F

rs232.tx_hex=

6B6B2030312031390D

rs232.tx_hex=

6B6B2030312031390D

rs232.tx_hex=

AA26FF01193F

rs232.tx_hex=

346230313131323032350d

50%

rs232.tx_hex=

6B6B2030312033320D

rs232.tx_hex=

AA26FF013258

rs232.tx_hex=

6B6B2030312033320D

rs232.tx_hex=

6B6B2030312033320D

rs232.tx_hex=

AA26FF013258

rs232.tx_hex=

346230313131323035300d

75%

rs232.tx_hex=

6B6B2030312034620D

rs232.tx_hex=

AA26FF014b71

rs232.tx_hex=

6B6B2030312034620D

rs232.tx_hex=

6B6B2030312034620D

rs232.tx_hex=

AA26FF014b71

rs232.tx_hex=

346230313131323037350d

100%

rs232.tx_hex=

6B6B2030312036340D

rs232.tx_hex=

AA26FF01648A

rs232.tx_hex=

6B6B2030312036340D

rs232.tx_hex=

6B6B2030312036340D

rs232.tx_hex=

AA26FF01648A

rs232.tx_hex=

346230313131323130300d

Colorfulness ¹ (Saturation)

25%

rs232.tx_hex=

6B692030312031390D

rs232.tx_hex=

AA27FF011940

rs232.tx_hex=

6B692030312031390D

rs232.tx_hex=

6B692030312031390D

rs232.tx_hex=

AA27FF011940

rs232.tx_hex=

346230313131363032350d

50%

rs232.tx_hex=

6B692030312033320D

rs232.tx_hex=

AA27FF013259

rs232.tx_hex=

6B692030312033320D

rs232.tx_hex=

6B692030312033320D

rs232.tx_hex=

AA27FF013259

rs232.tx_hex=

346230313131363035300d

75%

rs232.tx_hex=

6B692030312034620D

rs232.tx_hex=

AA27FF014B72

rs232.tx_hex=

6B692030312034620D

rs232.tx_hex=

6B692030312034620D

rs232.tx_hex=

AA27FF014B72

rs232.tx_hex=

346230313131363037350d

100%

rs232.tx_hex=

6B692030312036340D

rs232.tx_hex=

AA27FF01648B

rs232.tx_hex=

6B692030312036340D

rs232.tx_hex=

6B692030312036340D

rs232.tx_hex=

AA27FF01648B

rs232.tx_hex=

346230313131363130300d

Tint

25%

rs232.tx_hex=

6B6A2030312031390D

rs232.tx_hex=

AA28FF011941

rs232.tx_hex=

6B6A2030312031390D

rs232.tx_hex=

6B6A2030312031390D

rs232.tx_hex=

AA28FF011941

rs232.tx_hex=

346230313131353032350d

50%

rs232.tx_hex=

6B6A2030312033320D

rs232.tx_hex=

AA28FF01325A

rs232.tx_hex=

6B6A2030312033320D

rs232.tx_hex=

6B6A2030312033320D

rs232.tx_hex=

AA28FF01325A

rs232.tx_hex=

346230313131353035300d

75%

rs232.tx_hex=

6B6A2030312034620D

rs232.tx_hex=

AA28FF014B73

rs232.tx_hex=

6B6A2030312034620D

rs232.tx_hex=

6B6A2030312034620D

rs232.tx_hex=

AA28FF014B73

rs232.tx_hex=

346230313131353037350d

100%

rs232.tx_hex=

6B6A2030312036340D

rs232.tx_hex=

AA28FF01648C

rs232.tx_hex=

6B6A2030312036340D

rs232.tx_hex=

6B6A2030312036340D

rs232.tx_hex=

AA28FF01648C

rs232.tx_hex=

346230313131353130300d

Remote Control Lock ²

On

—

rs232.tx_hex=

AA36FF010036

—

—

rs232.tx_hex=

AA36FF010036

—

Off

—

rs232.tx_hex=

AA36FF010037

—

—

rs232.tx_hex=

AA36FF010037

—

Panel Lock ³

On

—

rs232.tx_hex=

AA5FFF010160

—

—

rs232.tx_hex=

AA5FFF010160

SW Version: V40.14

346230313130333030310d

SW Version: V40.22B

346230313130333030300d

Off

—

rs232.tx_hex=

AA5FFF01005F

—

—

rs232.tx_hex=

AA5FFF01005F

SW Version: V40.14

346230313130333030300d

SW Version: V40.22B

346230313130333030310d

Safety Lock ⁴

On

rs232.tx_hex=

6B6D2030312030310D

rs232.tx_hex=

AA5DFF01015E

rs232.tx_hex=

6B6D2030312030310D

rs232.tx_hex=

6B6D2030312030310D

rs232.tx_hex=

AA5DFF01015E

—

Off

rs232.tx_hex=

6B6D2030312030300D

rs232.tx_hex=

AA5DFF01005D

rs232.tx_hex=

6B6D2030312030300D

rs232.tx_hex=

6B6D2030312030300D

rs232.tx_hex=

AA5DFF01005D

—

¹An image with a colorfulness value of zero percent is grayscale, while the same image with a colorfulness value of 100 percent has vivid colors.

²The display ignores its handheld remote control but still responds to other commands.

³The display ignores its built-in buttons but still responds to other commands.

⁴Control the display exclusively through your DMP. Neither the handheld remote control nor buttons on the display can override your off-site management.

Learn More About...

To Learn About

Go To

Cisco DMS Components

Cisco DMS products and technologies

http://cisco.com/go/dms

Cisco DMS technical documentation

http://cisco.com/go/dms/docroadmap

Cisco DMS APIs

http://developer.cisco.com/web/dms

Cisco DMS MIB (SNMP)

http://cisco.com/go/dms/mib

Cisco Connected Sports

Cisco StadiumVision

http://cisco.com/go/sports

Cisco

Service contracts

http://cisco.com/go/cscc

Product upgrades

http://tools.cisco.com/gct/Upgrade/jsp/productUpgrade.jsp

Standard warranties

http://cisco.com/go/warranty

Technical support

http://cisco.com/go/support

Technical documentation

http://cisco.com/go/techdocs

Product security

http://cisco.com/go/psirt

Sales

http://cisco.com/go/ordering

Obtain Documentation or Submit a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at: http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to What's New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS Version 2.0.

Port No.	From	To	Bidir?	Protocol	Description
20	Show and Share	deployment server	N	FTP	Show and Share server deploying content to content hosting location using FTP
20	DMM	DMP	N	FTP	DMM server deploying content to DMP using FTP
20	DMP	FTP server	Y	FTP	transfer of content files
21	Show and Share	deployment server	N	FTP	Show and Share server deploying content to content hosting location using FTP
21	DMM	DMP	N	FTP	DMM server deploying content to DMP using FTP
21	DMP	FTP server	Y	FTP	transfer of content files
22	Show and Share	deployment server	N	SFTP	Show and Share server deploying content to content hosting location using SFTP
22	DMM	DMP	N	SFTP	DMM server deploying content to DMP using SFTP
53	DMP	DNS server	N	DNS	DNS services
80	DME	Show and Share	N	HTTP	communication between Show and Share and DME
80	User	Show and Share	N	HTTP	user requesting content from Show and Share
80	User	deployment server	N	HTTP	user requesting content from external server
80	DMP	content server	N	HTTP
123	DMP	NTP server	Y	NTP	NTP services
139	DMP	content server	N	CIFS	CIFS services
161	SNMP client	DMM	N	SNMP	SNMP services
389	DMM	Active Directory(LDAP)	N	LDAP	user database creation or updates
443	Admin Client	DMP	N	SSL
443	User	Show and Share	N	HTTPS
443	User	DMM	N	HTTPS
445	DMP	content server	N	CIFS	CIFS services
514	DMM	Show and Share	N	syslog	syslog services
514	DMP	syslog server	N	syslog	syslog services
554	User	deployment server	N	RTSP	User requesting WMV streaming from external Windows Media Streaming Server
554	DMP	content server	N	RTSP	DMP requesting WMV streaming from external Windows Media Streaming Server
636	DMM	Active Directory(LDAPS)	N	LDAPS	user database creation or updates
694	DMM primary	DMM secondary	Y		(UDP) Heartbeat for failover health monitoring
695	Show and Share primary	Show and Share secondary	Y		(UDP) Heartbeat for failover health monitoring
843	User	DMM	N		proof of play
843	User	DMM	N		Flash policy server daemon in the DMM user interface, used for edits — such as, adding a DMP to a DMP group.¹
1935	User	Show and Share	N	RTMP	User requesting Flash or H.264 streaming from Show and Share
1935	User	deployment server	N	RTMP	User requesting Flash or H.264 streaming from external Flash or H.264 streaming server
5432	DMM	Show and Share	Y	PostGres	PostGres between DMM and Show and Share
7777	Admin Client	DMP	N	SSL
7777	DMM	DMP	Y	SSL
7849	DMM primary	DMM secondary	Y		DRBD (failover)
7850	Show and Share primary	Show and Share secondary	Y		DRBD (failover)
8080	User	Show and Share	N	HTTP	User uploading content to Show and Share
8443	DMM	Show and Share	Y	HTTPS	DMM <--> Show and Share peering
8443	User	Show and Share	N	HTTPS	Access to the Show and Share secured GUI
9161			Y	SNMP	SNMP services
9999	DMM	Show and Share	Y		JMX communication
30865	All cluster nodes (Failover)	All cluster nodes (Failover)	Y	CSYNC	synchronize config files between nodes in a cluster (failover).
45001	DMM	Show and Share	Y		inventory/deployment
46001	DMM	Show and Share	Y		inventory/deployment
61616	Show and Share	DMM	Y		Activemq
User Config	User	deployment server	N	HTTP	user requesting content from external server
User Config	DME	media server	Y	HTTP	signaling between DME and media server
User Config	DMP	content server	N	HTTP

Server Appliance	End of Sale Date ¹	Last Date of Support ²	DMS Support
MCS 7825 Models
MCS 7825-H2	30-November-2008	30-November-2011	Up to v.5.2.2.x
MCS 7825-H3	13-March-2009	13-March-2012	Up to v.5.2.2.x
MCS 7835 Models
MCS 7835-H1	13-September-2007	13-September-2010	Up to v.5.2.2.x
MCS 7835-H2	13-March-2009	13-March-2012	Up to v.5.2.2.x

This Server Software Release is Upgradable to 4.0.0...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 3.5	N	—	Y	—	—	—	—	—
Cisco Video Portal 3.5 (500 users)	Y	—	N	—	—	—	—	—
Cisco Video Portal 3.5 (1,000 users)	N	—	Y	—	—	—	—	—

This Server Software Release is Upgradable to 4.1.0...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 4.0	N	N	Y	N	—	—	—	—
Cisco Video Portal 4.0 (500 users)	Y	N	N	N	—	—	—	—
Cisco Video Portal 4.0 (1,000 users)	N	N	Y	N	—	—	—	—

This Server Software Release is Upgradable to 5.0.0...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 4.1	N	N	Y	Y	—	—	—	—
Cisco Video Portal 4.1 (500 users)	Y	Y	N	N	—	—	—	—
Cisco Video Portal 4.1 (1,000 users)	N	N	Y	Y	—	—	—	—

This Server Software Release is Upgradable to 5.0.1...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 5.0	N	N	Y	Y	—	—	—	—
Cisco Video Portal 4.1 (500 users)	Y	Y	N	N	—	—	—	—
Cisco Video Portal 4.1 (1,000 users)	N	N	Y	Y	—	—	—	—

This Server Software Release is Upgradable to 5.0.2...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 5.0 or 5.0.1	N	N	Y	Y	—	—	—	—
Cisco Video Portal 5.0 or 5.0.1 (500 users)	Y	Y	N	N	—	—	—	—
Cisco Video Portal 5.0 or 5.0.1 (1,000 users)	N	N	Y	Y	—	—	—	—

This Server Software Release is Upgradable to 5.0.3...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 5.0.2	N	N	Y	Y	—	—	—	—
Cisco Video Portal 5.0.2 (500 users)	Y	Y	N	N	—	—	—	—
Cisco Video Portal 5.0.2 (1,000 users)	N	N	Y	Y	—	—	—	—

This Server Software Release is Upgradable to 5.1.0...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 5.0.2	N	N	Y	Y	—	—	—	—
Cisco Video Portal 5.0.2 (500 users)	Y	Y	N	N	—	—	—	—
Cisco Video Portal 5.0.2 (1,000 users)	N	N	Y	Y	—	—	—	—

This Server Software Release is Upgradable to 5.1.1...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 5.1	N	N	Y	Y	—	—	—	—
Cisco Video Portal 5.1 (500 users)	Y	Y	N	N	—	—	—	—
Cisco Video Portal 5.1 (1,000 users)	N	N	Y	Y	—	—	—	—

This Server Software Release is Upgradable to 5.2.0...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 5.1	N	N	Y	Y	—	—	—	—
Cisco Video Portal 5.1 (500 users)	Y	Y	N	N	—	—	—	—
Cisco Video Portal 5.1 (1,000 users)	N	N	Y	Y	—	—	—	—

This Server Software Release is Upgradable to 5.2.1...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 5.2	N	N	Y	Y	Y	N	—	—
Cisco Show and Share 5.2 (Workgroup)	Y	Y	N	N	N	Y	—	—
Cisco Show and Share 5.2 (Enterprise)	N	N	Y	Y	Y	N	—	—

This Server Software Release is Upgradable to 5.2.2...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 5.2.1	N	N	Y	Y	Y	N	—	—
Cisco Show and Share 5.2.1 (Workgroup)	Y	Y	N	N	N	Y	—	—
Cisco Show and Share 5.2.1 (Enterprise)	N	N	Y	Y	Y	N	—	—

This Server Software Release is Upgradable to 5.2.2.1...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 5.2.2	N	N	Y	Y	N	N	N	N
Cisco Show and Share 5.2.2 (Workgroup)	N	N	Y	Y	N	N	N	N
Cisco Show and Share 5.2.2 (Enterprise)	Y	Y	N	N	N	N	N	N

This Server Software Release is Upgradable to 5.2.3...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 5.2.2	N	N	N	N	Y	N	N	N
Cisco Show and Share 5.2.2 (Workgroup)	N	N	N	N	N	Y	N	N
Cisco Show and Share 5.2.2 (Enterprise)	N	N	N	N	Y	N	N	N

This Server Software Release is Upgradable to 5.3.0...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 5.2.3	N	N	N	N	Y	N	N	Y
Cisco Show and Share 5.2.3 (Workgroup)	N	N	N	N	N	Y	Y	N
Cisco Show and Share 5.2.3 (Enterprise)	N	N	N	N	Y	N	N	Y

This Server Software Release is Upgradable to 5.3.6...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 5.3.0	N	N	N	N	Y	N	N	Y

This Server Software Release is Upgradable to 5.4.0...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 5.3.6	N	N	N	N	Y	N	N	Y
Cisco Digital Media Manager 5.3.0	N	N	N	N	Y	N	N	Y

This Server Software Release is Upgradable to 5.4.1...	... On This Appliance Chassis
MCS-7825	MCS-7835	WAVE-574	UCS
7825-H2 ¹	7825-H3 ²	7835-H1 ³	7835-H2 ⁴	7835-H3	C200	C210
Cisco Digital Media Manager 5.4.0	N	N	N	N	Y	N	N	Y

Model	Certificate Expiration Date by DMP Firmware Release
5.2	5.2.1	5.2.2	5.2.2.1	5.2.2.3	5.2.3	5.2.3.2	5.3	5.3.4	5.3.5
DMP 4305G	2012-02-24	N.A.	N.A.	OK 2037-12-18	2012-02-24	N.A.	2012-02-24	N.A.	OK 2037-12-18
DMP 4310G	N.A.	N.A.	2012-02-24	2012-02-24	2021-10-18	2012-02-24	2021-10-18
DMP 4400G	2012-02-24	2013-08-29	2013-08-29	N.A.	2013-08-29

HOTFIX	You can recover from these communication failures in 10 minutes or less by loading a hotfix on your DMM server. See http://cisco.com/web/software/282100271/56598/DMM-patch-CSCty22538-Readme.txt. •The hotfix also works around a related failure, in which DMP certificate expiration disrupts use of a DMM advanced task called "File Transfer to DMP" (CSCty23792). •The hotfix DOES NOT improve disrupted IP phone-based remote control of the Cisco Cast electronic program guide (CSCty36771). The hotfix is fragile. IF YOU DO NOT use the permanent solution described below, any future upgrade of your DMM server could cause it to lose contact again with your affected DMPs. In such cases, you must then REAPPLY the hotfix.
PERMANENT FIX	You can prevent these communication failures altogether by installing DMP firmware release 5.3.5, which resolves these known defects: CSCty22538, CSCty23792, and CSCty36771. Note To download this DMP firmware, you must have a valid service contract associated to your Cisco.com profile. If you do not have a service contract you can get one through your Cisco account team, your Cisco partner, or a qualified Cisco reseller. Then, once you have the service, you must associate it to your Cisco.com user ID at https://tools.cisco.com/RPF/profile/edit_entitlement.do?Tab=3. 1. Apply the hotfix to your DMM server, if you have not already done so. Otherwise, it cannot direct your DMPs to install their new firmware. 2. Obtain the new DMP firmware. a. Log in to your Cisco.com account, and then go to http://cisco.com/cisco/software/navigator.html?mdfid=280936311&flowid=21001. b. Click your DMP model in the Cisco Digital Media Players list. c. Click Expand All in the versions tree, and then click 5.3.5. d. Click Download. 3. Install the new DMP firmware, as described in your Cisco DMS upgrade guide at http://cisco.com/en/US/products/ps6681/prod_installation_guides_list.html.

DMP Model	Storage Medium	Formatted Capacity	Available Capacity
DMP 4305G	CF	2 GB	0.9 GB
DMP 4310G	SSD	32 GB	30.9 GB
DMP 4400G	SD	4 GB	2.9 GB

Width: 7.5 in (190 mm)	Height: 1.5 in (38 mm)	Depth: 5 in (127 mm)	Weight: 1 lb (0.45 kg)
Power Consumption: 12W peak and 5W average	Input Current: 3 ADC	Internal Disk: 2GB CF EXT2

Width: 7.5 in (190 mm)	Height: 1.5 in (38 mm)	Depth: 5 in (127 mm)	Weight: 1 lb (0.45 kg)
Power Consumption: 12W peak and 8W average	Input Current: 2 ADC	Internal Disk: 32GB SSD EXT2

Width: 10 in (254 mm)	Height: 2 in (51 mm)	Depth: 8 in (203 mm)	Weight: 4.4 lb (2 kg)
Power Consumption: 30W peak and 15W average¹	Input Current: 3 ADC	Internal Disk: 4GB SD EXT2

Table 1 DMP Physical Interfaces
Category and Subcategory	Chassis Label	DMP 4305G	DMP 4310G	DMP 4400G
Electrical Power Connectors
DC	5V	•POWER 5V DC	1	0	0
12V	•DC 12V	0	1	0
•Power DC	0	0	1
PoE¹	IEEE 802.3af	•RJ-45	0	1	0
Network Connectors
Wired²	Fast Ethernet	10/100	•10/100	1	0	0
Gigabit Ethernet³	10/100/1000	•RJ45	0	1	0
•RJ-45	0	0	1
Wireless⁴	IEEE 802.11b/g	•Antenna	0	0	1
Debugging (for Cisco use only)
—	•CONSOLE	0	1	0
Media Signal Connectors
Wired⁵	Video connectors	HDMI 1.1	•HDMI	1	0	1
HDMI 1.3⁶	0	1	0
Component⁷	•YPbPr/ S-Video	0	1	0
•S-VIDEO/ YPbPr	1	0	0
•S-Video	0	0	1
Composite	•CVBS	1	0⁸	1
Audio connectors	3.5mm jack⁹	•Audio	0	1	1
RCA	•SPDIF¹⁰	0	0	1
•RIGHT	1	0	0
•LEFT	1	0	0
Infrared
Wired	IR receiver extension	3.5 mm jack	•IR Extension	0	1	1
Wireless	IR receiver	Sensor for remote control¹¹	•—	1	1	1
Serial (Comm Port) Connectors
Wired	Data	USB 1.0	•USB	1	0	0
USB 2.0¹²	0	2¹³	213
RS-232 (9-pin DB9 to 9-pin DB9)	•RS232	1	0	1
RS-232 (9-pin DB9 to 3.55mm jack)	0	1	0
Human
Power On/Off	Latching pushbutton switch	•Power	0	1	0
Device Reset	Recessed pushbutton switch	•Reset	1	1	1

Was this Document Helpful?

Feedback

Contact Cisco

Open a Support Case
(Requires a Cisco Service Contract)

This Document Applies to These Products

Digital Media Manager

32-inch Cisco LCD-100L-PRO-32N	40-inch Cisco LCD-100-PRO-40N	42-inch Cisco LCD-110L-PRO-42	47-inch Cisco LCD-110L-PRO-47	52-inch Cisco LCD-110-PRO-52S	55-inch Cisco LCD-PRO-110Q
Rated Voltage AC 100-240V ~ 50/60 Hz 1.5A	Rated Voltage AC 100-240V ~ 50/60 Hz	Rated Voltage AC 100-240V ~ 50/60 Hz 2.3A	Rated Voltage AC 100-240V ~ 50/60 Hz 3.0A	Rated Voltage AC 100-240V ~ 50/60 Hz	Rated Voltage AC 100-240V ~ 50/60 Hz 3.0A
Typical Power Consumption On: 145W Sleep: 4W Off: 1W	Typical Power Consumption On: 230W Sleep: 2W Off: 0W	Typical Power Consumption On: 200W Sleep: 2W Off: 0.5W	Typical Power Consumption On: 260W Sleep: 2W Off: 0.5W	Typical Power Consumption On: 370W Sleep: 2W Off: 0W	Typical Power Consumption On: 350W Sleep: 1W Off: 1W

Task	Hexadecimal RS-232 Command Strings
Task	32-inch LCD-100L-PRO-32N	40-inch LCD-100-PRO-40N	42-inch LCD-110L-PRO-42	47-inch LCD-110L-PRO-47	52-inch LCD-110-PRO-52S	55-inch LCD-PRO-110Q
Power
On	rs232.tx_hex= 6B612030312030310D	rs232.tx_hex= AA11FF010112	rs232.tx_hex= 6B612030312030310D	rs232.tx_hex= 6B612030312030310D	rs232.tx_hex= AA11FF010112	rs232.tx_hex= 346230313130303030310d
Off	rs232.tx_hex= 6B612030312030300D	rs232.tx_hex= AA11FF010011	rs232.tx_hex= 6B612030312030300D	rs232.tx_hex= 6B612030312030300D	rs232.tx_hex= AA11FF010011	rs232.tx_hex= 346230313130303030300d
Input Source
HDMI	rs232.tx_hex= 6B622030312030380D	rs232.tx_hex= AA14FF012135	rs232.tx_hex= 6B622030312030380D	rs232.tx_hex= 6B622030312030380D	rs232.tx_hex= AA14FF012135	rs232.tx_hex= 346230313130313030300d
DVI	—	rs232.tx_hex= AA14FF01182C	—	—	rs232.tx_hex= AA14FF01182C	rs232.tx_hex= 346230313130313030310d
Component	rs232.tx_hex= 6B622030312030340D	—	rs232.tx_hex= 6B622030312030340D	rs232.tx_hex= 6B622030312030340D	rs232.tx_hex= AA14FF01081C	rs232.tx_hex= 346230313130313030360d
AV	rs232.tx_hex= 6B622030312030320D	rs232.tx_hex= AA14FF010C20	rs232.tx_hex= 6B622030312030320D	rs232.tx_hex= 6B622030312030320D	rs232.tx_hex= AA14FF010C20	rs232.tx_hex= 346230313130313030380d
PC	rs232.tx_hex= 6B622030312030370D	rs232.tx_hex= AA14FF011428	rs232.tx_hex= 6B622030312030370D	rs232.tx_hex= 6B622030312030370D	rs232.tx_hex= AA14FF011428	rs232.tx_hex= 346230313130313030330d
S-Video	—	—	—	—	—	rs232.tx_hex= 346230313130313030370d
BNC	—	—	—	—	rs232.tx_hex= AA14FF011E32	—
Volume Mute
On	rs232.tx_hex= 6B6520303120300D	rs232.tx_hex= AA13FF010114	rs232.tx_hex= 6B6520303120300D	rs232.tx_hex= 6B6520303120300D	rs232.tx_hex= AA13FF010114	rs232.tx_hex= 3462303135353030310d
Off	rs232.tx_hex= 6B6520303120310D	rs232.tx_hex= AA13FF010013	rs232.tx_hex= 6B6520303120310D	rs232.tx_hex= 6B6520303120310D	rs232.tx_hex= AA13FF010013	rs232.tx_hex= 3462303135353030300d
Volume Control
0%	rs232.tx_hex= 6B662030312030300D	rs232.tx_hex= AA12FF010012	rs232.tx_hex= 6B662030312030300D	rs232.tx_hex= 6B662030312030300D	rs232.tx_hex= AA12FF010012	rs232.tx_hex= 346230313135303030300d
25%	rs232.tx_hex= 6B662030312031390D	rs232.tx_hex= AA12FF01192B	rs232.tx_hex= 6B662030312031390D	rs232.tx_hex= 6B662030312031390D	rs232.tx_hex= AA12FF01192B	rs232.tx_hex= 346230313135303032350d
50%	rs232.tx_hex= 6B662030312033320D	rs232.tx_hex= AA12FF013244	rs232.tx_hex= 6B662030312033320D	rs232.tx_hex= 6B662030312033320D	rs232.tx_hex= AA12FF013244	rs232.tx_hex= 346230313135303035300d
75%	rs232.tx_hex= 6B662030312034620D	rs232.tx_hex= AA12FF014b5D	rs232.tx_hex= 6B662030312034620D	rs232.tx_hex= 6B662030312034620D	rs232.tx_hex= AA12FF014b5D	rs232.tx_hex= 346230313135303037350d
100%	rs232.tx_hex= 6B662030312036340D	rs232.tx_hex= AA12FF016476	rs232.tx_hex= 6B662030312036340D	rs232.tx_hex= 6B662030312036340D	rs232.tx_hex= AA12FF016476	rs232.tx_hex= 346230313135303130300d
Brightness
25%	rs232.tx_hex= 6B6820312031390D	rs232.tx_hex= AA25FF01193E	rs232.tx_hex= 6B6820312031390D	rs232.tx_hex= 6B6820312031390D	rs232.tx_hex= AA25FF01193E	rs232.tx_hex= 346230313131303032350d
50%	rs232.tx_hex= 6B6820312033320D	rs232.tx_hex= AA25FF013257	rs232.tx_hex= 6B6820312033320D	rs232.tx_hex= 6B6820312033320D	rs232.tx_hex= AA25FF013257	rs232.tx_hex= 346230313131303035300d
75%	rs232.tx_hex= 6B6820312034620D	rs232.tx_hex= AA25FF014B70	rs232.tx_hex= 6B6820312034620D	rs232.tx_hex= 6B6820312034620D	rs232.tx_hex= AA25FF014B70	rs232.tx_hex= 346230313131303037350d
100%	rs232.tx_hex= 6B6820312036340D	rs232.tx_hex= AA25FF016489	rs232.tx_hex= 6B6820312036340D	rs232.tx_hex= 6B6820312036340D	rs232.tx_hex= AA25FF016489	rs232.tx_hex= 346230313131303130300d
Contrast
25%	rs232.tx_hex= 6B672030312031390D	rs232.tx_hex= AA24FF01193D	rs232.tx_hex= 6B672030312031390D	rs232.tx_hex= 6B672030312031390D	rs232.tx_hex= AA24FF01193D	rs232.tx_hex= 346230313131313032350d
50%	rs232.tx_hex= 6B672030312033320D	rs232.tx_hex= AA24FF013256	rs232.tx_hex= 6B672030312033320D	rs232.tx_hex= 6B672030312033320D	rs232.tx_hex= AA24FF013256	rs232.tx_hex= 346230313131313035300d
75%	rs232.tx_hex= 6B672030312034620D	rs232.tx_hex= AA24FF014B6F	rs232.tx_hex= 6B672030312034620D	rs232.tx_hex= 6B672030312034620D	rs232.tx_hex= AA24FF014B6F	rs232.tx_hex= 346230313131313037350d
100%	rs232.tx_hex= 6B672030312036340D	rs232.tx_hex= AA24FF016488	rs232.tx_hex= 6B672030312036340D	rs232.tx_hex= 6B672030312036340D	rs232.tx_hex= AA24FF016488	rs232.tx_hex= 346230313131313130300d
Sharpness
25%	rs232.tx_hex= 6B6B2030312031390D	rs232.tx_hex= AA26FF01193F	rs232.tx_hex= 6B6B2030312031390D	rs232.tx_hex= 6B6B2030312031390D	rs232.tx_hex= AA26FF01193F	rs232.tx_hex= 346230313131323032350d
50%	rs232.tx_hex= 6B6B2030312033320D	rs232.tx_hex= AA26FF013258	rs232.tx_hex= 6B6B2030312033320D	rs232.tx_hex= 6B6B2030312033320D	rs232.tx_hex= AA26FF013258	rs232.tx_hex= 346230313131323035300d
75%	rs232.tx_hex= 6B6B2030312034620D	rs232.tx_hex= AA26FF014b71	rs232.tx_hex= 6B6B2030312034620D	rs232.tx_hex= 6B6B2030312034620D	rs232.tx_hex= AA26FF014b71	rs232.tx_hex= 346230313131323037350d
100%	rs232.tx_hex= 6B6B2030312036340D	rs232.tx_hex= AA26FF01648A	rs232.tx_hex= 6B6B2030312036340D	rs232.tx_hex= 6B6B2030312036340D	rs232.tx_hex= AA26FF01648A	rs232.tx_hex= 346230313131323130300d
Colorfulness ¹ (Saturation)
25%	rs232.tx_hex= 6B692030312031390D	rs232.tx_hex= AA27FF011940	rs232.tx_hex= 6B692030312031390D	rs232.tx_hex= 6B692030312031390D	rs232.tx_hex= AA27FF011940	rs232.tx_hex= 346230313131363032350d
50%	rs232.tx_hex= 6B692030312033320D	rs232.tx_hex= AA27FF013259	rs232.tx_hex= 6B692030312033320D	rs232.tx_hex= 6B692030312033320D	rs232.tx_hex= AA27FF013259	rs232.tx_hex= 346230313131363035300d
75%	rs232.tx_hex= 6B692030312034620D	rs232.tx_hex= AA27FF014B72	rs232.tx_hex= 6B692030312034620D	rs232.tx_hex= 6B692030312034620D	rs232.tx_hex= AA27FF014B72	rs232.tx_hex= 346230313131363037350d
100%	rs232.tx_hex= 6B692030312036340D	rs232.tx_hex= AA27FF01648B	rs232.tx_hex= 6B692030312036340D	rs232.tx_hex= 6B692030312036340D	rs232.tx_hex= AA27FF01648B	rs232.tx_hex= 346230313131363130300d
Tint
25%	rs232.tx_hex= 6B6A2030312031390D	rs232.tx_hex= AA28FF011941	rs232.tx_hex= 6B6A2030312031390D	rs232.tx_hex= 6B6A2030312031390D	rs232.tx_hex= AA28FF011941	rs232.tx_hex= 346230313131353032350d
50%	rs232.tx_hex= 6B6A2030312033320D	rs232.tx_hex= AA28FF01325A	rs232.tx_hex= 6B6A2030312033320D	rs232.tx_hex= 6B6A2030312033320D	rs232.tx_hex= AA28FF01325A	rs232.tx_hex= 346230313131353035300d
75%	rs232.tx_hex= 6B6A2030312034620D	rs232.tx_hex= AA28FF014B73	rs232.tx_hex= 6B6A2030312034620D	rs232.tx_hex= 6B6A2030312034620D	rs232.tx_hex= AA28FF014B73	rs232.tx_hex= 346230313131353037350d
100%	rs232.tx_hex= 6B6A2030312036340D	rs232.tx_hex= AA28FF01648C	rs232.tx_hex= 6B6A2030312036340D	rs232.tx_hex= 6B6A2030312036340D	rs232.tx_hex= AA28FF01648C	rs232.tx_hex= 346230313131353130300d
Remote Control Lock ²
On	—	rs232.tx_hex= AA36FF010036	—	—	rs232.tx_hex= AA36FF010036	—
Off	—	rs232.tx_hex= AA36FF010037	—	—	rs232.tx_hex= AA36FF010037	—
Panel Lock ³
On	—	rs232.tx_hex= AA5FFF010160	—	—	rs232.tx_hex= AA5FFF010160	SW Version: V40.14 346230313130333030310d SW Version: V40.22B 346230313130333030300d
Off	—	rs232.tx_hex= AA5FFF01005F	—	—	rs232.tx_hex= AA5FFF01005F	SW Version: V40.14 346230313130333030300d SW Version: V40.22B 346230313130333030310d
Safety Lock ⁴
On	rs232.tx_hex= 6B6D2030312030310D	rs232.tx_hex= AA5DFF01015E	rs232.tx_hex= 6B6D2030312030310D	rs232.tx_hex= 6B6D2030312030310D	rs232.tx_hex= AA5DFF01015E	—
Off	rs232.tx_hex= 6B6D2030312030300D	rs232.tx_hex= AA5DFF01005D	rs232.tx_hex= 6B6D2030312030300D	rs232.tx_hex= 6B6D2030312030300D	rs232.tx_hex= AA5DFF01005D	—

DMP Model	Running Firmware	Passed Our Tests with These External USB Storage Devices
DMP Model	Running Firmware	Manufacturer	Brand Name (and model number, if applicable)	Capacity	File System
4310G	•5.4(0) •5.3(6) •5.3(5) •5.3(4) •5.3(0) •5.2.3(2) •5.2(3) •5.2.2(3) •5.2.2(1) •5.2(2)	Kingston	Data Traveler USB Flash Key	4 GB	EXT2
					EXT3
					FAT32
				8 GB	EXT2
					EXT3
					FAT32
				16 GB	EXT2
					EXT3
					FAT32
				32 GB	EXT2
					EXT3
					FAT32
		DiskGo	EDGE	32 GB	EXT2
					EXT3
					FAT32
		Western Digital	WD Passport Portable Drive	320 GB	EXT2
					EXT3
					FAT32
				1000 GB	EXT2
					EXT3
					FAT32

For this DMP Model:	Order this Optional Mount Kit:
DMP 4400G	DMP-PRCASE-4400-S1
DMP 4310G	DMP-PRCASE-4305-S1
DMP 4305G
DMP 4300G

•Composite	10 ft (approximately 3 m)
•HDMI	16 ft (approximately 5 m) ¹
•RCA	10 ft (approximately 3 m)
•S-Video	10 ft (approximately 3 m)
•SPDIF	10 ft (approximately 3 m)

DMP Model	Supported Driver Categories
DMP 4400G	•3M MicroTouch •ELO Acoustic Pulse Recognition systems and non-APR systems •NEW IN CISCO DMS 5.2.3 — ELO non-Acoustic Pulse Recognition systems •REMOVED IN CISCO DMS 5.2.3 — GeneralTouch ST6001S and ST6201 •Zytronic Zybrid
DMP 4310G	•NEW IN CISCO DMS 5.4 — ELO IntelliTouch+ •NEW IN CISCO DMS 5.2.3 — 3M Touch Systems Capacitive Pulse SCT •NEW IN CISCO DMS 5.2.3 — 3M Dispersive Signal DST •NEW IN CISCO DMS 5.2.3 — 3M Projected Capacitive PCT (with single touch) •NEW IN CISCO DMS 5.2.3 — ELO non-Acoustic Pulse Recognition systems •NEW IN CISCO DMS 5.2.3 — GeneralTouch ST6001S and ST6201

Touchscreen Technology or Connector Type	Vendor	Supported Models	DMP 4400G Compatible	DMP 4310G Compatible
Acoustic Pulse Recognition (APR)	ELO	•Touchmonitors	Yes	Yes
		•IDS Touch Display 3200L	Yes	Yes
		•IDS Touch Display 4200L	Yes	Yes
		•IDS Touch Display 4600L	Yes	Yes
Dispersive Signal Technoloy (DST)	3M	•MicroTouch System DST2270DX	Yes	Yes
Intellitouch	ELO	•Touchmonitors	Yes	Yes
		•IDS Touch Display 4200L	Yes	Yes
		•IDS Touch Display 4600L	Yes	Yes
		•IDS Touch Display 5500L	Yes	Yes
Intellitouch Plus	ELO	•Touchmonitor 2242L	Yes	Yes
Intellitouch Plus	ELO	•IDS Touch Display 3200L	Yes	Yes
Optical	ELO		No	No
Projected Capacitive Technology (PCT)	3M		No	No
Surface Capacative Technology (SCT)	3M	•MicroTouch System SCT3250EX	Yes	Yes
		•MicroTouch System SCT7650EX	Yes	Yes
		•MicroTouch Display M1500SS	Yes	Yes
		•MicroTouch Display M1700SS	Yes	Yes
		•MicroTouch Display C1500SS	Yes	Yes
		•MicroTouch Display C1700SS	Yes	Yes
		•MicroTouch Display C2234SW	Yes	Yes
Serial	General Touch		No	No
USB	General Touch		No	Yes
USB	Zytronics		Yes	No

	32-inch LCD-100L-PRO-32N		40-inch ¹ LCD-100-PRO-40N		42-inch LCD-110L-PRO-42		47-inch LCD-110L-PRO-47		52-inch ² LCD-110-PRO-52S		55-inch ³ LCD-PRO-110Q
Display Speakers Stand	W	31.61 in	W	38.20 in	W	38.07 in	W	42.50 in	W	47.68 in	W	48.84 in
	W	80.29 cm	W	97.03 cm	W	96.70 cm	W	107.95 cm	W	121.10 cm	W	124.06 cm
	H	19.41 in	H	22.90 in	H	22.03 in	H	24.59 in	H	30.58 in	H	28.01 in
	H	49.30 cm	H	56.17 cm	H	55.98 cm	H	62.46 cm	H	77.66 cm	H	71.14 cm
	D	03.93 in	D	04.70 in	D	04.87 in	D	04.83 in	D	12.24 in	D	4.80 in
	D	09.98 cm	D	11.94 cm	D	12.37 cm	D	12.29 cm	D	31.10 cm	D	12.18 cm
		31.70 lb		41.90 lb		41.00 lb		48.94 lb		79.37 lb		58.10 lb
		14.38 kg		19.00 kg		18.64 kg		22.20 kg		36.80 kg		26.40 kg
Display Speakers Stand	W	31.61 in	W	38.20 in	W	38.07 in	W	42.50 in	W	47.68 in	W	48.84 in
	W	80.29 cm	W	97.03 cm	W	96.70 cm	W	107.95 cm	W	121.10 cm	W	124.06 cm
	H	21.26 in	H	25.30 in	H	24.99 in	H	27.46 in	H	30.58 in	H	30.44 in
	H	54.00 cm	H	64.26 cm	H	63.50 cm	H	69.77 cm	H	77.66 cm	H	77.32 cm
	D	07.58 in	D	12.20 in	D	10.18 in	D	11.74 in	D	12.24 in	D	15.95 in
	D	19.25 cm	D	31.00 cm	D	25.86 cm	D	29.83 cm	D	31.10 cm	D	40.51 cm
		37.08 lb		41.90 lb		43.92 lb		52.02 lb		79.37 lb		85.1 lb
		16.82 kg		19.00 kg		19.92 kg		23.60 kg		36.80 kg		38.70 kg
Display Speakers3 Stand	W	31.61 in	N.A.		W	38.07 in	W	42.50 in	N.A.		W	N.A.3
	W	80.29 cm			W	96.70 cm	W	107.95 cm			W
	H	19.41 in			H	22.03 in	H	24.59 in			H
	H	49.30 cm			H	55.98 cm	H	62.46 cm			H
	D	03.93 in			D	04.87 in	D	05.08 in			D
	D	09.98 cm			D	12.37 cm	D	12.92 cm			D
		33.42 lb				42.73 lb		50.70 lb
		15.16 kg				19.38 kg		23.00 kg
Display Speakers3 Stand	W	31.61 in	N.A.		W	38.07 in	W	42.50 in	N.A.		W	48.84 in
	W	80.29 cm			W	96.70 cm	W	107.95 cm			W	124.06 cm
	H	21.26 in			H	24.99 in	H	27.46 in			H	30.44 in
	H	54.00 cm			H	63.50 cm	H	69.77 cm			H	77.32 cm
	D	07.58 in			D	10.18 in	D	11.74 in			D	15.95 in
	D	19.25 cm			D	25.86 cm	D	29.83 cm			D	40.51 cm
		38.80 lb				45.55 lb		53.79 lb				85.1 lb
		17.60 kg				20.66 kg		24.40 kg				38.70 kg
VESA Mounting Interface	200 x 200 mm		600 x 400 mm		600 x 400 mm		800 x 400 mm		800 x 400 mm		400 x 400 mm
Datasheets	http://www.cisco.com/en/US/products/ps10099/products_data_sheets_list.html

To Learn About	Go To
Cisco DMS Components
Cisco DMS products and technologies	http://cisco.com/go/dms
Cisco DMS technical documentation	http://cisco.com/go/dms/docroadmap
Cisco DMS APIs	http://developer.cisco.com/web/dms
Cisco DMS MIB (SNMP)	http://cisco.com/go/dms/mib
Cisco Connected Sports
Cisco StadiumVision	http://cisco.com/go/sports
Cisco
Service contracts	http://cisco.com/go/cscc
Product upgrades	http://tools.cisco.com/gct/Upgrade/jsp/productUpgrade.jsp
Standard warranties	http://cisco.com/go/warranty
Technical support	http://cisco.com/go/support
Technical documentation	http://cisco.com/go/techdocs
Product security	http://cisco.com/go/psirt
Sales	http://cisco.com/go/ordering
Obtain Documentation or Submit a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at: http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html Subscribe to What's New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS Version 2.0.
