Cisco Nexus 9508 Switch

Cisco Nexus 9508 Switchview expanded image

Get High Performance and Energy Efficiency

Improve performance and efficiency with the Cisco Nexus 9508 Switch. It provides high density 1/10/140GE in a compact, 13-rack-unit modular chassis. This versatile modular switch is designed for high-density, end-of-row, and high-performance aggregation-layer deployments in both traditional and Cisco Application Centric Infrastructure (ACI)–enabled data centers.

Video Data Sheet

Learn more about the Cisco Nexus 9500 Series Switches. (4:40 min)

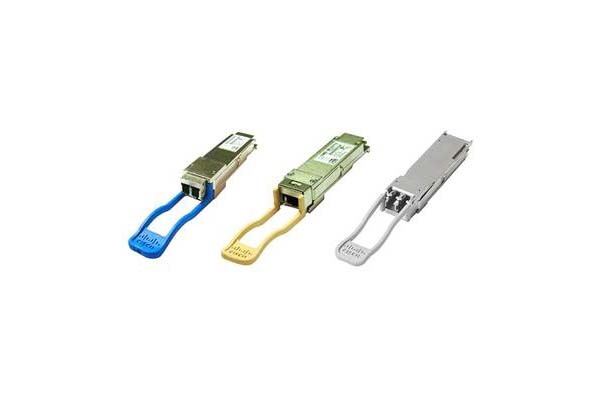

Accelerating 40 GE Adoption

Cisco BiDi transceiver is currently the industry's most cost-effective 40 Gb solution.

Features and Capabilities

The Cisco Nexus 9508 Switch offers a comprehensive feature set, high resiliency, and a broad range of 1/10/40 Gigabit Ethernet line cards to meet the most demanding requirements of enterprise, service provider, and cloud data centers.

ACI Support

  • Designed to support the Cisco next-generation data center based on Cisco ACI

Programmability

  • Open API to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS
  • Automated configuration through Linux shell scripts
  • Support for customer applications through a Linux container environment

High Availability

  • Full Cisco In-Service Software Upgrade (ISSU) and patching support
  • Redundant and hot-swappable supervisors, system controllers, power supplies, and fan trays
  • Mix of third-party and Cisco application-specific integrated circuits (ASICs) for improved reliability

Energy Efficiency

  • Design without a midplane to optimize front-to-back airflow and reduce power consumption
  • Optimized design with fewer ASICs, resulting in lower energy use
  • Efficient power supplies that are rated at 80 Plus Platinum

Raising the Bar in Power Efficiency

Lippis calls the Cisco Nexus 9508 the most power-efficient data center switch today.

Investment Protection

Increase Data Center Performance

Learn why Lippis calls the Cisco Nexus 9505 the most powerful data center switch built.

Specifications at a Glance

  • 30 Tbps of nonblocking performance
  • Up to 1152 10 Gigabit Ethernet nonblocking ports
  • Up to 288 40 Gigabit Ethernet nonblocking ports
  • Up to 384 1/10GBASE-T nonblocking ports
  • 13-rack-unit chassis
  • 8 line card slots
  • Front-to-back airflow
