Comparaison des modèles de calcul de Cisco

Comparer les modèles UCS

Comparez les caractéristiques et particularités des modèles de serveurs racks UCS série C et des modèles de serveurs lames UCS série B pour trouver la solution qui répond le mieux aux besoins de votre entreprise.

Contacter Cisco

  • Demandez à être rappelé
  • Appelez le service des ventes :
  • 1-800-553-6387
  • 9 h à 17 h HNE
  • Assistance technique

UCS de la gamme B

B480 M5

Expand all

Features

Processors4
Processor supported2nd Gen Intel® Xeon® Scalable and Intel Xeon Scalable processors
Maximum memory18 TB with Intel Optane™ DC Persistent Memory
Form factorFull-width blade
RAID0, 1
Mezzanine I/O adapter slotsUp to 5
GPUsUp to 4
Max I/O throughput per blade160 Gbps (4 x 40 Gbps)
Maximum servers per chassis4

Storage

Internal storageUp to four SAS/SATA/SSD/NVMe
Maximum internal storage39 TB

Documentation

Spec sheetB480 M5 Spec Sheet

UCS de la gamme C

C125 M5

C220 M5 LFF

C480 ML M5

Expand all

Features

Processors1 or 222
Processor supportedAMD® EPYC™ 7000 series processors2nd Gen Intel® Xeon® Scalable and Intel Xeon Scalable processorsIntel® Xeon® Scalable processors
Maximum memory2 TB, 16 x DDR4 DIMMs9 TB with Intel Optane™ DC Persistent Memory3 TB, 24 x DDR4 DIMMs
Form factor.5 RU1 RU4 RU
Optional RAID0, 1, 5, 6, 10, 50, 600, 1, 5, 6, 10, 50, 600, 1, 5, 6, 10, 50, 60
Integrated networking (I/O) - LOMDedicated OOB management port2 x 10 Gb ports plus 1 x Modular LOM (mLOM) Dedicated OOB management port2 x 10 Gb ports Dedicated OOB management port
PCIe expansion slots1 PCIe 3.0 x16 slot 1 PCIe 3.0 x8 slot One dedicated OCP 2.0 network mezzanine slotUp to 2 PCIe Gen3 slots: Riser 1: One x16 connector with x16 lane; full-height profile, 3/4-length Riser 2: One x24 connector with x16 lane; half-height profile, half-lengthUp to 4 PCIe Gen3 slots for 4th-generation VIC

Storage

Internal storage6 of 24 drives in C4200 chassis 6 SFF SAS/SATA or 4 SFF SAA/SATA + 2 NVMe Additional options: 2 x Cisco Flexible Flash drives (SD card) 2 x M.2 drivesSFF - Up to 10 SAS/SATA/NVMe/SSD HDD LFF - Up to 4 SAS/SATA/NVMe/ HDD Additional options: 2 x Cisco Flexible Flash drives (SD card) 2 x M.2 drivesSFF - up to 24 SAS/SSD NVMe/SSD HDD
Maximum internal storage47.5 TB SSD + 2x M.2 960 GB per nodeSFF - 76 TB SSD + 2x M.2 960 GB + 15.5 PCIe NVMe LFF - 80 TB HDD + 2x M.2 960 GB + 15.5 PCIe NVMe182.4 TB

Power and Environmental

Power suppliesUp to 2 x 2400 W in C4200 chassisUp to 2 x 770 W, 1050 W, 1050 W DC or 1600 WUp to 4 x 1600W
Product dimensionsHxWxD: 2RU; 3.4 x 16.9 x 32.6 in. (8.6 x 42.9 x 82.8 cm)HxWxD: 1 RU; 1.7 x 16.9 x 29.8 in. (4.3 x 42.9 x 75.6 cm) Weight: up to 37.9 lbs (17.2 kg)HxWxD: 4 RU; 6.9 x 17.5 x 30 in. (17.5 x 44.5 x 76.2 cm) Weight: up to 142 lbs (64.4 kg)

Documentation

Data SheetC125 M5 Data SheetC220 M5 Data SheetC480 ML M5 Data Sheet

Série HX

HX220c M5 Hybrid

HX240c M5 Hyrbid

HX220c All Flash M5

HX240c All Flash M5

HX220c All NVMe M5

HX220c Edge All Flash M5

HX220c Edge Hybrid M5

Expand all

Features

Processors1 or 21 or 21 or 21 or 21 or 211
Processor supported2nd Gen Intel® Xeon® Scalable and Intel Xeon Scalable processors2nd Gen Intel® Xeon® Scalable and Intel Xeon Scalable processors2nd Gen Intel® Xeon® Scalable and Intel Xeon Scalable processors2nd Gen Intel® Xeon® Scalable and Intel Xeon Scalable processors2nd Gen Intel® Xeon® Scalable and Intel Xeon Scalable processors2nd Gen Intel® Xeon® Scalable and Intel Xeon Scalable processors2nd Gen Intel® Xeon® Scalable and Intel Xeon Scalable processors
Maximum memoryUp to 3 TB, 16-, 32-, 64-, or 128-GB DIMMsUp to 3 TB, 16-, 32-, 64-, or 128-GB DIMMsUp to 3 TB, 16-, 32-, 64-, or 128-GB DIMMsUp to 3 TB, 16-, 32-, 64-, or 128-GB DIMMsUp to 3 TB, 16-, 32-, 64-, or 128-GB DIMMsUp to 3 TB, 16-, 32-, 64-, or 128-GB DIMMsUp to 3 TB, 16-, 32-, 64-, or 128-GB DIMMs
Form factor1212111
Unified network fabric2 x 40 Gigabit Ethernet2 x 40 Gigabit Ethernet2 x 40 Gigabit Ethernet2 x 40 Gigabit Ethernet2 x 40 Gigabit EthernetOption to use existing Gigabit EthernetOption to use existing Gigabit Ethernet
PCIe expansion slotsUp to 2 PCI Express (PCIe) 3.0 slotsup to 6 PCI Express (PCIe) 3.0 slots, 4 of which are full-height, full-lengthUp to 2 PCI Express (PCIe) 3.0 slotsup to 6 PCI Express (PCIe) 3.0 slots, 4 of which are full-height, full-lengthUp to 2 PCI Express (PCIe) 3.0 slotsUp to 2 PCI Express (PCIe) 3.0 slotsUp to 2 PCI Express (PCIe) 3.0 slots
Hypervisors supportedVMware ESXi, Microsoft Hyper-VVMware ESXi, Microsoft Hyper-VVMware ESXi, Microsoft Hyper-VVMware ESXi, Microsoft Hyper-VVMware ESXi, vSPhere, Microsoft Hyper-VVMware ESXi, Microsoft Hyper-VVMware ESXi, Microsoft Hyper-V
SoftwareCisco HyperFlex HX Data Platform Software (software subscription)Cisco HyperFlex HX Data Platform Software (software subscription)Cisco HyperFlex HX Data Platform Software (software subscription)Cisco HyperFlex HX Data Platform Software (software subscription)Cisco HyperFlex HX Data Platform Software (software subscription)Cisco HyperFlex HX Data Platform Software (software subscription)Cisco HyperFlex HX Data Platform Software (software subscription)

Storage

Internal storage8 x 1.2- or 1.8-TB SAS HDDs ( or with self-encrypting drives: 8 x 1.2-TB self-encrypting SAS HDDs)Up to 23 x 1.2-TB SAS HDDs (or with self-encrypting drives: Up to 23 x 1.2-TB self-encrypting HDDs) Large Form Factor option: Up to 12 x 6-TB (7.2K-rpm LFF HDD) or 8-TB (7.2K-rpm SFF HDD) SAS or SATA HDDs8 x 3.8-TB or 960-GB SSD drives ( or with self-encrypting drives: 8 x 800-GB, 8 x 960-GB, or 8 x 3.8-TB self-encrypting SSD drives)Up to 23 x 3.8-TB or 23 x 960-GB SSDs (with self-encrypting drives: Up to 23 x 800-GB self-encrypting SSDs or 23 x 960-GB or 23 x 3.8-TB drives)8 x 1-TB or 4-TB NVMe SSD drives8 x 3.8-TB or 960-GB SSD drives ( or with self-encrypting drives: 8 x 800-GB, 8 x 960-GB, or 8 x 3.8-TB self-encrypting SSD drives)8 x 1.2- or 1.8-TB SAS HDDs ( or with self-encrypting drives: 8 x 1.2-TB self-encrypting SAS HDDs)
Log drive1 x 240-GB SSD1 x 240-GB SSD1 x 240-GB SSD1 x 240-GB SSD1 x 240-GB SSD1 x 240-GB SSD1 x 240-GB SSD
CacheSSD caching drive (self-encrypting drive option is available)SSD caching drive (self-encrypting drive option is available)SAS SSD (self-encrypting drive option is available) or NVMe write-logging driveSSD caching drive (self-encrypting drive option is available)1 NVMe SSD caching and 1 NVMe SSD write-logging driveSAS SSD (self-encrypting drive option is available) or NVMe write-logging driveSSD caching drive (self-encrypting drive option is available)

Power and Environmental

Power suppliesUp to 2 hot-pluggable, redundant 770-watt (W) or 1050W power suppliesUp to 2 hot-pluggable, redundant 1050-watt (W) or 1600W power suppliesUp to 2 hot-pluggable, redundant 770-watt (W) or 1050W power suppliesUp to 2 hot-pluggable, redundant 1050-watt (W) or 1600W power suppliesUp to 2 hot-pluggable, redundant 770-watt (W) or 1050W power suppliesUp to 2 hot-pluggable, redundant 770-watt (W) or 1050W power suppliesUp to 2 hot-pluggable, redundant 770-watt (W) or 1050W power supplies
Product dimensionsHxWxD: 1 RU; 1.7 x 16.9 x 29.8 in. (4.3 x 42.9 x 75.6 cm) Weight: up to 37.5 lbs (17 kg)HxWxD: 3.4 x 17.6 x 29 in. (8.7 x 44.8 x 73.8 cm) Weight: x24 HDD up to 57.5 lbs (26.1 kg); and x8 HDD up to 45.5 lbs (20.4 kg) Large Form Factor option: HxWxD: 3.4 x 17.6 x 29 in. (8.7 x 44.8 x 73.8 cm) Weight: up to 64 lbs (29 kg)HxWxD: 1 RU; 1.7 x 16.9 x 29.8 in. (4.3 x 42.9 x 75.6 cm) Weight: up to 37.5 lbs (17 kg)HxWxD: 3.4 x 17.6 x 29 in. (8.7 x 44.8 x 73.8 cm) Weight: x24 HDD up to 57.5 lbs (26.1 kg); and x8 HDD up to 45.5 lbs (20.4 kg)HxWxD: 1 RU; 1.7 x 16.9 x 29.8 in. (4.3 x 42.9 x 75.6 cm) Weight: up to 37.5 lbs (17 kg)HxWxD: 1 RU; 1.7 x 16.9 x 29.8 in. (4.3 x 42.9 x 75.6 cm) Weight: up to 37.5 lbs (17 kg)

Documentation

Data SheetHX220c M5 Hybrid data sheetHX240c M5 Hyrbid data sheetHX220c All Flash M5 data sheetHX240c All Flash M5 data sheetHX220c All NVMe M5 data sheetHX220c Edge All Flash M5 data sheetHX220c Edge Hybrid M5 data sheet
Spec SheetHX220c M5 Hybrid spec sheetHX240c M5 Hyrbid spec sheet (link to: https://www.cisco.com/c/dam/en/us/products/collateral/hyperconverged-infrastructure/hyperflex-hx-series/hx-240c-m5-specsheet.pdf) HX240c M5 Hyrbid Large Form Factor spec sheet (link to: https://www.cisco.com/c/dam/en/us/products/collateral/hyperconverged-infrastructure/hyperflex-hx-series/hx240c-m5-specsheet.pdf) HX220c All Flash M5 spec sheetHX240c All Flash M5 spec sheetHX220c All NVMe M5 spec sheetHX220c Edge All Flash M5 spec sheetHX220c Edge Hybrid M5 spec sheet

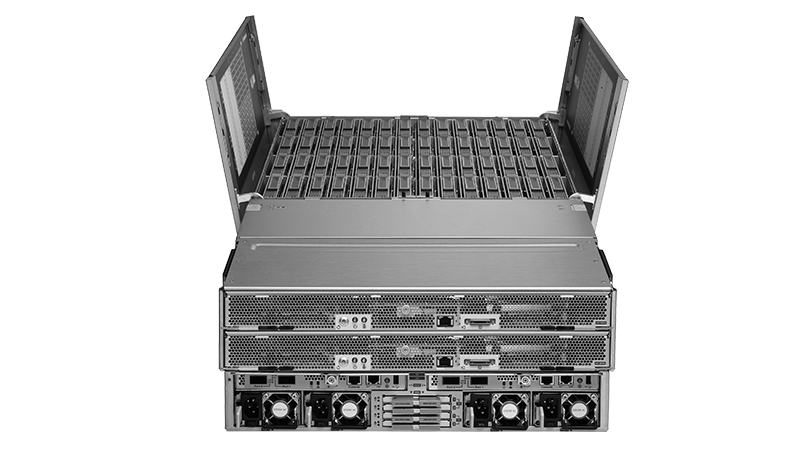

Serveur de stockage Cisco UCS S3260

Un serveur de stockage offrant une évolutivité et des performances élevées pour activer vos données et vos informations en temps réel.
