Risolvere i problemi relativi al registro errori SMF "All Peer Are Dead"

Introduzione

In questo documento viene descritto come risolvere i problemi relativi agli avvisi del registro SMF (Session Management Function) correlati a All Peers are Dead, Setting status code to 0.

Problema

L'impatto della sessione è stato segnalato sul file SMF.

Analisi

Registra tutti i peer inattivi

Il registro indica che tutti i peer in SelectedProfileName:CHF-OFF sono inattivi.

Il log copre tutti gli endpoint configurati su SMF e ogni volta che si rileva che tutti i peer sono inattivi all'interno del profilo, questo determina sempre un impatto sulla sessione.

master-1 b26897bce81a[2516]:
master-1 c77834f772f7[2516]: ************* TRANSACTION: 2475167152 *************
master-1 c77834f772f7[2516]: ************* TRANSACTION: 2475167152 *************
master-1 c77834f772f7[2516]: TRANSACTION SUCCESS:
master-1 c77834f772f7[2516]: TRANSACTION SUCCESS:
master-1 c77834f772f7[2516]: GR Instance ID : 1
master-1 c77834f772f7[2516]: GR Instance ID : 1
master-1 c77834f772f7[2516]: Txn Type : N40ChargingDataReq(3585)
master-1 c77834f772f7[2516]: Txn Type : N40ChargingDataReq(3585)
master-1 c77834f772f7[2516]: Priority : 1
master-1 c77834f772f7[2516]: Priority : 1
master-1 c77834f772f7[2516]: Session Namespace : smf(1)
master-1 c77834f772f7[2516]: Session Namespace : smf(1)
master-1 c77834f772f7[2516]: CDL Slice Name : smf
master-1 c77834f772f7[2516]: CDL Slice Name : smf
master-1 c77834f772f7[2516]: LOG MESSAGES:
master-1 c77834f772f7[2516]: LOG MESSAGES:
master-1 c77834f772f7[2516]: 2023/09/10 15:00:00.007 [ERROR] [nrfClient.Discovery.nrf] All Peers are Dead, Setting status code to 0 (timeout)
master-1 c77834f772f7[2516]: 2023/09/10 15:00:00.007 [ERROR] [nrfClient.Discovery.nrf] All Peers are Dead, Setting status code to 0 (timeout)
master-1 c77834f772f7[2516]: 2023/09/10 15:00:00.007 [ERROR] [nrfClient.Discovery.nrf] Message send failed, response [Type:CHF ServiceName:nchf-convergedcharging SelectedProfileName:"CHF-OFF" FailureProfile:"Fail-H-CHF-OFF" GroupID:"CHF-*" ]
master-1 c77834f772f7[2516]: 2023/09/10 15:00:00.007 [ERROR] [nrfClient.Discovery.nrf] Message send failed, response [Type:CHF ServiceName:nchf-convergedcharging SelectedProfileName:"CHF-OFF" FailureProfile:"Fail-H-CHF-OFF" GroupID:"CHF-*" ]
master-1 c77834f772f7[2516]: ***********************************************
master-1 c77834f772f7[2516]: ***********************************************

In base alla configurazione, SMF tenta di raggiungere il server primario con priorità più alta nel caso in cui sia presente un sistema con codice HTTP 504 (timeout), quindi tenta di raggiungere il server secondario. Se l'operazione non riesce, anche in questo caso il sistema imposta la sessione in modalità Continua.

Nell'esempio, la funzione di caricamento secondaria (CHF) per Offline è 10.10.10.2. SMF ha ricevuto l'errore 504 e l'azione è FailureContinueAction.

master-2 42013075464a[2621]: 2023/09/10 15:00:00.063 rest-ep [ERROR] [RestClient.go:175] [infra.rest_client.core] Error in rest call err Post "http://10.10.10.2:1090/OFFLINE/nchf-convergedcharging/v2/chargingdata": context deadline exceeded
master-2 42013075464a[2621]: 2023/09/10 15:00:00.063 rest-ep [ERROR] [Config.go:1721] [nrfClient.Discovery.nrf] Send to NF rpcName[CHF], method:[DataRequest] EndPoint[http://10.10.10.2:1090/OFFLINE/nchf-convergedcharging/v2] failed
master-2 42013075464a[2621]: ************* TRANSACTION: 2252879781 *************
master-2 42013075464a[2621]: TRANSACTION SUCCESS:
master-2 42013075464a[2621]: GR Instance ID : 1
master-2 42013075464a[2621]: Txn Type : N40ChargingDataReq(3521)
master-2 42013075464a[2621]: Priority : 1
master-2 42013075464a[2621]: Session Namespace : smf(1)
master-2 42013075464a[2621]: CDL Slice Name : smf
master-2 42013075464a[2621]: LOG MESSAGES:
master-2 42013075464a[2621]: 2023/09/10 15:00:00.063 [ERROR] [rest_ep.app.ChargingIntf] {imsi-1234567891011121:21} Received Charging Data Response error with timediff 10001557123 - Request message {{"invocationSequenceNumber":1,"invocationTimeStamp":"2025-11-10T14:29:29Z","nfConsumerIdentification":{"nFIPv4Address":"10.10.10.12","nFName":"dce0c1d7-aa37-4f2c-870b-6f7c1be10af1","nFPLMNID":{"mcc":"123","mnc":"456"},"nodeFunctionality":"SMF"},"notifyUri":"http://10.10.10.12:8195/callbacks/v2/notifyUri/1909959397/chargingNotification","pDUSessionChargingInformation":{"chargingId":1909959397,"pduSessionInformation":{"authorizedQoSInformation":{"5qi":1,"arp":{"preemptCap":"NOT_PREEMPT","preemptVuln":"PREEMPTABLE","priorityLevel":1}},"authorizedSessionAMBR":{"downlink":"2048000 bps","uplink":"2048000 bps"},"chargingCharacteristicsSelectionMode":"VISITING_DEFAULT","dnnId":"data","hPlmnId":{"mcc":"123","mnc":"456"},"networkSlicingInfo":{"sNSSAI":{"sst":1}},"pduAddress":{"iPv6dynamicPrefixFlag":true,"pduIPv6AddresswithPrefix":"x:x:x:x::"},"pduSessionID":21,"pduType":"IPV6","ratType":"WLAN","servingCNPlmnId":{"mcc":"123","mnc":"456"},"sscMode":"SSC_MODE_1","startTime":"2025-11-10T14:29:29Z"},"userInformation":{"roamerInOut":"IN_BOUND","servedGPSI":"msisdn-12345678901"},"userLocationinfo":{"n3gaLocation":{"portNumber":4505,"ueIpv4Addr":"x.x.x.x"}}},"subscriberIdentifier":{"subscriberIdentityType":"SUPI","supi":"imsi-1234567891011121"}}}
master-2 42013075464a[2621]: 2023/09/10 15:00:00.063 [ERROR] [nrfClient.SendMesg.NRF] FHI status 504 timediff 1000332537, Uri: http://10.10.10.2:1090/OFFLINE/nchf-convergedcharging/v2, retryCount = 0 loopMaxRetry = 0, maxRetry = 0
master-2 42013075464a[2621]: 2023/09/10 15:00:00.063 [ERROR] [nrfClient.Discovery.nrf] Message send failed, response [Type:CHF Http2_Status:504 FailAction:FailureContinueAction MsgType:3587 ServiceName:nchf-convergedcharging SelectedProfileName:"CHF-OFF" FailureProfile:"Fail-H-CHF-OFF" GroupID:"CHF-*" ]
master-2 42013075464a[2621]: ***********************************************

Controlli SMF

In SMF, controllare i peer e il tempo di connessione relativo all'endpoint che ha segnalato il problema.

smf# show peers
GR                                                                                POD              CONNECTED              ADDITIONAL
INSTANCE  ENDPOINT        LOCAL ADDRESS         PEER ADDRESS           DIRECTION  INSTANCE   TYPE  TIME           RPC     DETAILS     INTERFACE NAME     VRF
--------------------------------------------------------------------------------------------------------------------------------------------------------------
1         <none>          192.168.1.1       	10.10.10.2:1090      Outbound   rest-ep-0  Rest  4 hours        CHF     <none>      n40                NA
1         <none>          192.168.1.2       	10.10.10.2:1090      Outbound   rest-ep-1  Rest  4 hours        CHF     <none>      n40                NA
1         <none>          192.168.1.3       	10.10.10.1:1090     Outbound   rest-ep-2  Rest  4 hours        CHF     <none>      n40                NA
1         <none>          192.168.1.3       	10.10.10.2:1090      Outbound   rest-ep-2  Rest  4 hours        CHF     <none>      n40                NA
1         <none>          192.168.1.4       	10.10.10.1:1090     Outbound   rest-ep-3  Rest  4 hours        CHF     <none>      n40                NA
1         <none>          192.168.1.2       	10.10.10.1:1090     Outbound   rest-ep-1  Rest  4 hours        CHF     <none>      n40                NA
1         <none>          192.168.1.4       	10.10.10.2:1090      Outbound   rest-ep-3  Rest  2 hours        CHF     <none>      n40                NA
1         <none>          192.168.1.1       	10.10.10.1:1090     Outbound   rest-ep-0  Rest  4 hours        CHF     <none>      n40                NA

// CHF related profiles

profile network-element chf CHF-OFFLINE
 nf-client-profile        CHF-OFF
 failure-handling-profile Fail-H-CHF-OFF
 discovery local
exit

// Here is configuration for CHF profile where all peers are dead

profile nf-client nf-type chf
 chf-profile CHF-OFF
  locality LOC1
   priority 1
   service name type nchf-convergedcharging
    responsetimeout 1000
    endpoint-profile epprof
     capacity   10
     api-root   OFFLINE
     uri-scheme http
     version
      uri-version v2
      exit
     exit
     endpoint-name ep1
      priority 1
      capacity 10
      primary ip-address ipv4 10.10.10.1
      primary ip-address port 1090
     exit
     endpoint-name ep2
      priority 2
      capacity 10
      primary ip-address ipv4 10.10.10.2
      primary ip-address port 1090
     exit
    exit
   exit
  exit
 exit

// Failure handling that in case of timeout (HTTP code 504) then try secondary server one time and then proceed with continuing the session

profile nf-client-failure nf-type chf
 profile failure-handling Fail-H-CHF-OFF
  service name type nchf-convergedcharging
   responsetimeout 1000
   message type ChfConvergedchargingCreate
    status-code httpv2 504
     retry  1
     action continue
    exit
   exit
   message type ChfConvergedchargingUpdate
    status-code httpv2 504
     retry  1
     action continue
    exit
   exit
   message type ChfConvergedchargingDelete
    status-code httpv2 504
     retry  1
     action continue
    exit
   exit
  exit

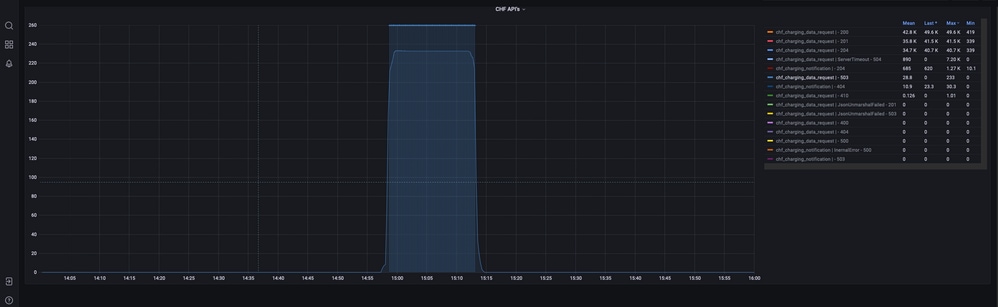

Assegni Grafana

È stata osservata la correlazione diretta tra HTTP 504 Timeout e l'ora del problema.

query: sum(increase(smf_restep_http_msg_total{nf_type="chf", namespace=~"$namespace"}[15m])) by (api_name, response_cause, response_status)

Controlli Nexus

Controllare se si sono verificati flap.

Nexus# show logging last 500 | include BFD

Soluzione

La soluzione a questo problema varia in questo caso perché SMF è il client e CHF è il server.

La perdita della connessione non è stata causata da SMF.
