Cisco Nexus 3016 スイッチの概要
Cisco Nexus 3016(N3K-C3016-40GE)は、16 個の固定 40 ギガビット イーサネット ダウンリンク(ホスト側)およびアップリンク(ネットワーク側)ポート、2 個の固定 100/1000 管理ポート、1 個の RS-232 コンソール ポートと 1 個の USB ポートを備えた 1 ラック ユニット(RU)スイッチです。 このスイッチはポート側排気口とポート側吸気口のエアフロ― スキームの両方をサポートします。このスイッチは、動作のために 1 個の AC または DC 電源を必要としますが、冗長性のために 2 個目の電源をもつこともできます。スイッチには、レイヤ 3 のライセンスが含まれます。
次の図は、シャーシの取り付け時またはモジュールの交換時に使用するファン側のシャーシ機能を示しています。
1 |
AC または DC 電源(1 または 2)、スロット番号 1(左)と 2(右) |
5 |
ステータス LED |
2 |
ファン トレイ(1) |
6 |
USB ポート(1) |
3 |
管理ポート(2) |
7 |
コンソール ポート(1) |
4 |
ID LED |

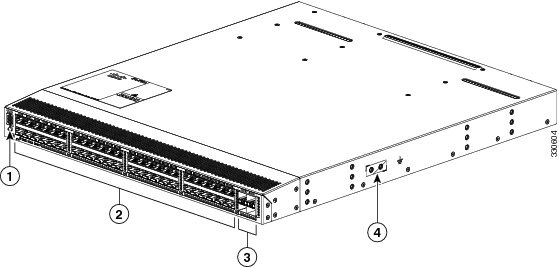

次の図は、シャーシの取り付け時またはモジュールの交換時に使用するポート側のシャーシ機能を示しています。
1 |
ID LED |
3 |
40 ギガビット アップリンクまたはダウンリンク ポート(16) |
2 |
ステータス LED |
4 |
アース パッド |
