验证Catalyst 9000系列交换机上的第2层硬件
简介
本文档介绍如何验证Catalyst 9400系列交换机上的第2层硬件编程和转发。
先决条件
要求
本文档没有任何特定的要求。
使用的组件
本文档中的信息基于Catalyst 9400 (UADP 2.0)系列交换机。
本文档中的信息都是基于特定实验室环境中的设备编写的。本文档中使用的所有设备最初均采用原始（默认）配置。如果您的网络处于活动状态，请确保您了解所有命令的潜在影响。
背景信息
Catalyst 9400 Supervisor1 (C9400-SUP-1)有3个UADP 2.0转发ASIC (0、1、2)。
每个UADP 2.0转发ASIC具有：
- 双核(0、1) -在以前的UADP 2.0 ASIC中不存在此配置。
- SIF（堆栈接口）-用于通过内部堆栈环连接到其他2个UADP 2.0 ASIC。
- NIF（网络接口）-用于通过背板连接一个或多个线卡。
- 线卡和管理引擎上行链路接口的所有数据包转发决策由主用Supervisor上的3个UADP 2.0转发ASIC制定。
- 本示例中使用的板卡有1个不参与数据包转发决策的板卡单核心末节ASIC。
- 线卡上的线卡末节ASIC通过背板连接到Supervisor上的3个UADP 2.0转发ASIC中的1个或多个。
- Supervisor上的3个UADP 2.0转发ASIC会做出所有数据包转发决策。
术语
| 缩写 |
定义 |
| RP |
路由处理器 |
| FP |
转发处理器 |
| FED |
转发引擎驱动程序。对Supervisor转发ASIC进行编程的软件进程。 |
| 对象管理器 |
作为异步对象存储在对象数据库中的FP软件MAC条目。 |
| LSMPI |
Linux共享内存传送接口。数据平面（硬件-UADP 2.0）和控制平面（软件-CPU）之间的传输。 |
| IFM |
接口管理器软件进程。 |
| IF_ID |
接口IDentifier是表示特定接口的唯一值。它用于交换机的内部编程。 |
| Inst |
实例。指示接口所连接的UADP 2.0 Asic/Core：0=Asic0/Core0、1=Asic0/Core1、2=Asic1/Core0、3=Asic1/Core1、4=Asic2/Core0、5=Asic2/Core1。 |
| Asic |
指定接口与哪个UADP 2.0关联：0=UADP 2.0 #0，1=UADP 2.0 #1，2= UADP 2.0 #2。 |
| 核心 |
指定UADP 2.0接口上的哪个核心与关联：0=core0,1=core1。 |
| 端口 |
插槽中端口的序号实例。在同一插槽内，所有端口号都是唯一的。 |
| 子端口 |
标识端口组(Cntx)内作为子端口的前面板端口的端口（Cntx和SubPort一起标识作为子端口的唯一端口）。 |
| MAC |
接口运行MACsec（安全身份验证和加密）时使用的接口标识符。 |
| Cntx |
情景。前面板接口为子端口时端口所属的组编号（Cntx和SubPort一起标识为子端口的唯一端口）。 |
| LPN |
与接口关联的逻辑端口号。 |
| GPN |
与接口关联的全局端口号。 |
| 键入NIF |
网络接口；NRU =网络冗余上行链路 |
| IF_IS |
接口标识符.这是表示特定接口的唯一值。它用于交换机内部的各种编程。 |
| Port_LE |
端口逻辑实体。这是接口配置。 |
| AOM |
异步对象管理器。FP将信息作为对象编程到对象数据库中。 |
| 副总裁 |
虚拟端口 |
| MATM |
MAC地址表管理器 |
| RP |
路由处理器 |
| OM_PTR |
对象管理器指针 |
| Tbl_ID |
表标识符= vlan |
| CMAN |
机箱管理器 |
| FP |
转发处理器 |
| fp_port |
前面板端口。 |
| Sif |
堆栈接口（指向管理引擎上转发ASIC的其他2个UADP 2.0）。 |
| Nif |
网络接口（朝向前面板接口） |
| IGR/EGR |
入口/出口 |
| IQS |
入口队列调度程序 |
| SQS |
堆叠队列调度程序 |
| PBC |
数据包缓冲区综合体 |
| AQM |
活动队列管理。这将执行拥塞管理检查。 |
| AQMRed |
主动队列管理随机早期检测。 |
| EQC |
出口队列控制器 |
| ESM |
出口计划程序管理 |
| RWE |
重写引擎。在数据包中添加或删除报头信息。 |
| IOMD |
输入输出模块驱动程序 |
| fp_port |
前面板端口。 |
| Nif |
网络接口（朝向前面板接口） |
| SLI |
系统链路接口（指向管理引擎） |
| IGR/EGR = |
入口/出口 |
| AQMRed |
主动队列管理随机早期检测。 |
| OCI |
带外控制接口=线卡与主用管理引擎之间的内部通信信道 |
| MATM |
MAC地址表管理器 |
| MAC移动计数 |
这是在新接口上移动（获知）MAC地址时的计数。当终端主机从一个接口物理移动到另一个接口、无线主机从一个接入点(AP)漫游到另一个连接在不同接口上的AP，或者生成树路径更改或环路时，可能会发生移动计数。 |
线卡到UADP

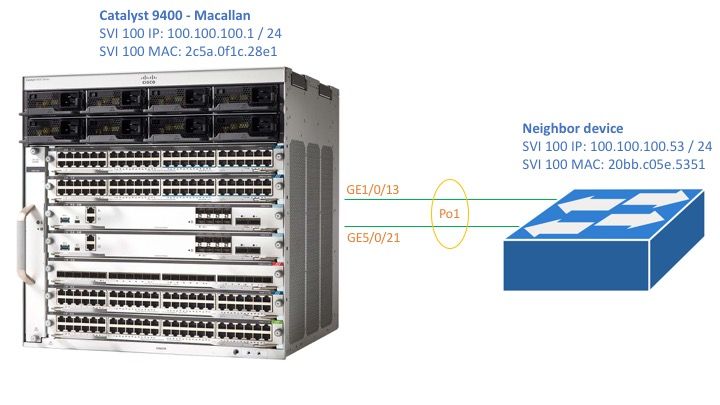

拓扑
C9400#show version Cisco IOS XE Software, Version 16.06.01 Cisco IOS Software [Everest], Catalyst L3 Switch Software (CAT9K_IOSXE), Version 16.6.1, RELEASE SOFTWARE (fc2) Technical Support: http://www.cisco.com/techsupport Copyright (c) 1986-2017 by Cisco Systems, Inc. Compiled Sat 22-Jul-17 05:51 by mcpre --snip--
C9400#show module Chassis Type: C9407R Mod Ports Card Type Model Serial No. ---+-----+--------------------------------------+--------------+-------------- 1 48 48-Port 10/100/1000 (RJ-45) C9400-LC-48T JAE211703RC 2 48 48-Port UPOE 10/100/1000 (RJ-45) C9400-LC-48U JAE21150CGD 3 10 Supervisor 1 Module C9400-SUP-1 JAE21240235 4 10 Supervisor 1 Module C9400-SUP-1 JAE21240235 5 48 48-Port UPOE 10/100/1000 (RJ-45) C9400-LC-48U JAE21150CG9 Mod MAC addresses Hw Fw Sw Status ---+--------------------------------+----+------------+------------------+-------- 1 E4AA.5D54.C84C to E4AA.5D54.C87B 0.6 16.6.1r [FC 16.06.01 ok 2 E4AA.5D54.B430 to E4AA.5D54.B45F 0.6 16.6.1r [FC 16.06.01 ok 3 2C5A.0F1C.28EC to 2C5A.0F1C.28F5 0.6 16.6.1r [FC 16.06.01 ok 4 2C5A.0F1C.28F6 to 2C5A.0F1C.28FF 0.6 16.6.1r [FC 16.06.01 ok 5 E4AA.5D54.B658 to E4AA.5D54.B687 0.6 16.6.1r [FC 16.06.01 ok Mod Redundancy Role Operating Redundancy Mode Configured Redundancy Mode ---+-------------------+-------------------------+--------------------------- 3 Active sso sso 4 Standby sso sso
C9400#show running-config interface port-channel 1 interface Port-channel1 switchport trunk allowed vlan 100 switchport mode trunk
C9400#show running-config interface gigabitEthernet 1/0/13 interface GigabitEthernet1/0/13 switchport trunk allowed vlan 100 switchport mode trunk channel-group 1 mode active
C9400#show running-config interface gigabitEthernet 5/0/21 interface GigabitEthernet5/0/21 switchport trunk allowed vlan 100 switchport mode trunk channel-group 1 mode active
C9400#show etherchannel summary --snip-- Group Port-channel Protocol Ports ------+-------------+-----------+----------------------------------------------- 1 Po1(SU) LACP Gi1/0/13(P) Gi5/0/21(P)
接口编程
接口到UADP 2.0实例映射
接口编程命令显示所有板卡的前面板接口映射到主用Supervisor上3个UADP 2.0转发ASIC之一。
输出示例
该示例显示：
- 接口Gig1/0/3连接到Supervisor上的UADP 2.0实例2 （UADP 2.0 Asic 1，核心0）。
- 接口Gig5/0/21连接到Supervisor上的UADP 2.0实例3（UADP 2.0 Asic 1，核心1）。
C9400#show platform software fed active ifm mappings
Interface IF_ID Inst Asic Core Port SubPort Mac Cntx LPN GPN Type Active GigabitEthernet1/0/1 0x7 2 1 0 0 0 4 4 1 101 NIF Y GigabitEthernet1/0/2 0x8 2 1 0 1 1 4 4 2 102 NIF Y --snip-- GigabitEthernet1/0/13 0x13 2 1 0 12 4 0 0 13 1105 NIF Y --snip-- GigabitEthernet5/0/21 0x8f 3 1 1 20 4 5 5 21 1104 NIF Y --snip--
物理接口编程
show platform命令基于上一个命令示例中的IF_ID值显示Gig1/0/3的软件配置详细信息。
C9400#show platform software fed active ifm if-id 0x13
Interface IF_ID : 0x0000000000000013
Interface Name : GigabitEthernet1/0/13
Interface Block Pointer : 0x7fe5c5aab7b8
Interface State : READY
Interface Status : ADD, UPD
Interface Ref-Cnt : 7
Interface Type : ETHER
Port Type : SWITCH PORT
Port Location : LOCAL
Slot : 1
Unit : 0
Slot Unit : 13
SNMP IF Index : 14
GPN : 1105
EC Channel : 1
EC Index : 1
Port Handle : 0x72000285
LISP v4 Mobility : false
LISP v6 Mobility : false
QoS Trust Type : 0
Port Information
Handle ............ [0x72000285]
Type .............. [Layer2]
Identifier ........ [0x13]
Slot .............. [1]
Unit .............. [13]
Port Physical Subblock
Affinity .......... [local]
Asic Instance ..... [2 (A:1,C:0)]
AsicPort .......... [12]
AsicSubPort ....... [4]
MacNum ............ [0]
ContextId ......... [0]
LPN ............... [13]
GPN ............... [113]
Speed ............. [1GB]
type .............. [NIF]
PORT_LE ........... [0x7fe5c5aabc28]
L3IF_LE ........... [0x0]
EC GPN ............ [1105]
EC L3IF_LE ........ [0x0]
EC Port Mask ...... [0xaaaaaaaaaaaaaaaa]
DI ................ [0x7fe5c5ab5c48]
Port L2 Subblock
Enabled ............. [Yes]
Allow dot1q ......... [Yes] ---> interface Gig1/0/13 is configured as a trunk
Allow native ........ [Yes]
Default VLAN ........ [1]
Allow priority tag ... [Yes]
Allow unknown unicast [Yes]
Allow unknown multicast[Yes]
Allow unknown broadcast[Yes]
Allow unknown multicast[Enabled]
Allow unknown unicast [Enabled]
IPv4 ARP snoop ....... [No]
IPv6 ARP snoop ....... [No]
Jumbo MTU ............ [1500]
Learning Mode ........ [1]
Port QoS Subblock
Trust Type .................... [0x2]
Default Value ................. [0]
Ingress Table Map ............. [0x0]
Egress Table Map .............. [0x0]
Queue Map ..................... [0x0]
Port Netflow Subblock
Port Policy Subblock
List of Ingress Policies attached to an interface
List of Egress Policies attached to an interface
Ref Count : 7 (feature Ref Counts + 1)
IFM Feature Ref Counts
FID : 100, Ref Count : 1
FID : 57, Ref Count : 1
FID : 115, Ref Count : 1
FID : 17, Ref Count : 1
FID : 78, Ref Count : 1
FID : 30, Ref Count : 1
IFM Feature Sub block information
FID : 57, Private Data : 0x7fe5c685e748
FID : 17, Private Data : 0x7fe5c5e85f38
FID : 30, Private Data : 0x7fe5c5e85aa8
此命令根据上一个命令的PORT_LE值显示Gig1/0/3的硬件配置详细信息。
| 价值 |
定义 |
| 值0 |
未设置值。 |
| 值1 |
在大多数情况下设置的值。 |
C9400#show platform hardware fed active fwd-asic abstraction print-resource-handle 0x7fe5c5aabc28 1 Handle:0x7fe5c5aabc28 Res-Type:ASIC_RSC_PORT_LE Res-Switch-Num:0 Asic-Num:2 Feature-ID:AL_FID_IFM Lkp-ftr-id:LKP_FEAT_INGRESS_PRECLASS1_IPV4 ref_count:1 priv_ri/priv_si Handle: (nil)Hardware Indices/Handles: index2:0xc mtu_index/l3u_ri_index2:0x4 sm handle [ASIC 2]: 0x7fe5c5abb588 Detailed Resource Information (ASIC#2) ----------------------------------------
LEAD_PORT_ALLOW_BROADCAST value 1 Pass LEAD_PORT_ALLOW_CAPWAP value 0 Pass LEAD_PORT_ALLOW_CTS value 0 Pass LEAD_PORT_ALLOW_DOT1Q_TAGGED value 1 Pass LEAD_PORT_ALLOW_MULTICAST value 1 Pass LEAD_PORT_ALLOW_NATIVE value 1 Pass LEAD_PORT_ALLOW_NON_CTS value 0 Pass LEAD_PORT_ALLOW_PRIORITY_TAGGED value 1 Pass LEAD_PORT_ALLOW_UNICAST value 1 Pass LEAD_PORT_ALLOW_UNKNOWN_ETHER_TYPE value 0 Pass LEAD_PORT_ALLOW_UNKNOWN_UNICAST value 1 Pass LEAD_PORT_ALLOW_VLAN_LOAD_BALANCE_GROUP value 15 Pass LEAD_PORT_ALLOW_VRF value 0 Pass LEAD_PORT_ARP_OR_ND_SNOOPING_ENABLED_IPV4 value 0 Pass LEAD_PORT_ARP_OR_ND_SNOOPING_ENABLED_IPV6 value 0 Pass LEAD_PORT_AUTH_MODE value 0 Pass LEAD_PORT_CAPWAP_TUNNEL value 0 Pass LEAD_PORT_CONTENT_MATCHING_ENABLED value 0 Pass LEAD_PORT_CTS_ENABLED value 0 Pass LEAD_PORT_CUSTOMER_PORT value 0 Pass LEAD_PORT_DAI_OR_ND_TRUST_MODE_IPV4 value 0 Pass LEAD_PORT_DAI_OR_ND_TRUST_MODE_IPV6 value 0 Pass LEAD_PORT_DATA_GLEAN_LEARN_IPV4 value 0 Pass --snip--
Etherchannel编程
在以下Etherchannel编程示例输出中，RP对FP进行编程，FP对FED进行编程，FED随后对Supervisor转发ASIC硬件进行编程。 RP软件条目作为对象存储在对象数据库中，而FP软件条目作为异步对象存储在对象数据库中。
C9400#show etherchannel summary --snip-- Group Port-channel Protocol Ports ------+-------------+-----------+----------------------------------------------- 1 Po1(SU) LACP Gi1/0/13(P) Gi5/0/21(P)
在此输出中，组掩码为非零。在散列过程中使用它来确定任何流量流流出的EtherChannel中的链路。
C9400#show platform software interface rp active brief Forwarding Manager Interfaces Information Name ID QFP ID ------------------------------------------------------------- Null0 1 0 GigabitEthernet1/0/1 7 0 GigabitEthernet1/0/2 8 0 GigabitEthernet1/0/3 9 0 —snip— GigabitEthernet1/0/13 19 0 —snip— GigabitEthernet5/0/21 143 0 —snip— Port-channel1 748 0 —snip—
C9400#show platform software fed active etherchannel 1 group-mask
Group Mask Info
Aggport IIF Id: 00000000000002EC ---> hex 0x2EC = dec 748
Active Port: : 2 -------------------> 2 active interfaces in the etherchannel = the Member ports below
Member Ports
If Name If Id local Group Mask
-------------------------------------------------------------------
GigabitEthernet1/0/13 0000000000000013 true 5555555555555555 ---> hex 0x13 = dec 19
GigabitEthernet5/0/21 000000000000008f true aaaaaaaaaaaaaaaa ---> hex 0x8f = dec 143
此命令显示Port-channel 1的配置：
C9400#show platform software fed active ifm if-id 0x000002ec Interface IF_ID : 0x00000000000002ec Interface Name : Port-channel1 Interface Block Pointer : 0x7fe5c685df98 Interface State : READY Interface Status : ADD, UPD Interface Ref-Cnt : 5 Interface Type : ETHERCHANNEL Port Type : SWITCH PORT Channel Number : 1 SNMP IF Index : 720 Port Handle : 0x50002f6 #Of Active Ports : 2 Base GPN : 1104 Index[2] : 0000000000000013 ---> Gig1/0/13 from previous command output Index[3] : 000000000000008f ---> Gig5/0/21 from previous command output Port Information Handle ............ [0x50002f6] Type .............. [L2-Ethchannel] Identifier ........ [0x2ec] Unit .............. [1] Port Logical Subblock L3IF_LE handle .... [0x0] Num physical port . [2] GPN Base .......... [1104] Num physical port on asic [0] is [0] DiBcam handle on asic [0].... [0x0] Num physical port on asic [1] is [0] DiBcam handle on asic [1].... [0x0] Num physical port on asic [2] is [1] ------------> Gig1/0/13 is on ASIC instance 2 (Supervisor ASIC 1, core 0) DiBcam handle on asic [2].... [0x7fe5c6ae3608] Num physical port on asic [3] is [1] ------------> Gig5/0/21 is on ASIC instance 3 (Supervisor ASIC 1, core 1) DiBcam handle on asic [3].... [0x7fe5c685d7e8] Num physical port on asic [4] is [0] DiBcam handle on asic [4].... [0x0] Num physical port on asic [5] is [0] DiBcam handle on asic [5].... [0x0] Port L2 Subblock Enabled ............. [No] Allow dot1q ......... [No] Allow native ........ [No] Default VLAN ........ [0] Allow priority tag ... [No] Allow unknown unicast [No] Allow unknown multicast[No] Allow unknown broadcast[No] Allow unknown multicast[Enabled] Allow unknown unicast [Enabled] IPv4 ARP snoop ....... [No] IPv6 ARP snoop ....... [No] Jumbo MTU ............ [0] Learning Mode ........ [0] Port QoS Subblock Trust Type .................... [0x7] Default Value ................. [0] Ingress Table Map ............. [0x0] Egress Table Map .............. [0x0] Queue Map ..................... [0x0] Port Netflow Subblock Port Policy Subblock List of Ingress Policies attached to an interface List of Egress Policies attached to an interface Ref Count : 5 (feature Ref Counts + 1) IFM Feature Ref Counts FID : 115, Ref Count : 1 FID : 78, Ref Count : 1 No Sub Blocks Present
此命令显示映射接口的配置。
| 缩写/实例 |
定义 |
| IFM |
接口管理器 |
| 实例 |
Gig1/0/13位于接口ID为0x13的ASIC实例2（UADP 2.0 ASIC 1，核心0）上 |
| 实例 |
Gig5/0/21位于接口ID为0x8f的ASIC实例3（UADP 2.0 ASIC 1，核心1）上 |
C9400#show platform software fed active ifm mappings
Interface IF_ID Inst Asic Core Port SubPort Mac Cntx LPN GPN Type Active GigabitEthernet1/0/1 0x7 2 1 0 0 0 4 4 1 101 NIF Y GigabitEthernet1/0/2 0x8 2 1 0 1 1 4 4 2 102 NIF Y --snip-- GigabitEthernet1/0/13 0x13 2 1 0 12 4 0 0 13 1105 NIF Y --snip-- GigabitEthernet5/0/21 0x8f 3 1 1 20 4 5 5 21 1104 NIF Y --snip--
全局Etherchannel配置
C9400#show platform software ether-channel rp active global-config Forwarding Manager EtherChannel Global Configuration Information Frame Dist Method: Dest-IP-Address ---> distribution (hash) method: a packet's destination IP address is used to determine which etherchannel member link it is sent out on
C9400#show platform software ether-channel fp active global-config
Forwarding Manager EtherChannel Global Configuration Information
Frame Dist Method: Dest-IP-Address
AOM ID: 27
Status: Done ----------------> Programming in hardware is complete (FP received acknowlegement from FED)
C9400#show platform software object-manager fp active object 27 Object identifier: 27 Description: EtherChannel global configuration object Status: Done, Epoch: 0, Client data: 0x792e6e28
VLAN编程
C9400#show platform software fed active vlan 100 VLAN Fed Information Vlan Id IF Id LE Handle STP Handle L3 IF Handle SVI IF ID MVID --------------------------------------------------------------------------------------------------------------- 100 0x0000000000420011 0x00007fe5c4616ef8 0x00007fe5c4617778 0x00007fe5c50dac28 0x00000000000002ea 10
此命令显示VLAN 100的硬件配置设置详细信息。
| 价值 |
定义 |
| 值0 |
未设置值。 |
| 值1 |
在大多数情况下设置的值。 |
C9400#show platform hardware fed active fwd-asic abstraction print-resource-handle 0x00007fe5c4616ef8 1 Handle:0x7fe5c4616ef8 Res-Type:ASIC_RSC_VLAN_LE Res-Switch-Num:255 Asic-Num:255 Feature-ID:AL_FID_L2 Lkp-ftr-id:LKP_FEAT_INVALID ref_count:1 priv_ri/priv_si Handle: (nil)Hardware Indices/Handles: index0:0xa mtu_index/l3u_ri_index0:0x0 sm handle [ASIC 0]: 0x7fe5c461c1d8 index1:0xa mtu_index/l3u_ri_index1:0x0 sm handle [ASIC 1]: 0x7fe5c461d688 index2:0xa mtu_index/l3u_ri_index2:0x0 sm handle [ASIC 2]: 0x7fe5c461eb38 index3:0xa mtu_index/l3u_ri_index3:0x0 index4:0xa mtu_index/l3u_ri_index4:0x0 index5:0xa mtu_index/l3u_ri_index5:0x0 Cookie length: 56 00 00 00 00 00 00 00 00 64 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Detailed Resource Information (ASIC#0) ---> ASIC instance 0 = Supervisor ASIC 0, core 0 --snip-- Detailed Resource Information (ASIC#1) ---> ASIC instance 1 = Supervisor ASIC 0, core 1 --snip-- Detailed Resource Information (ASIC#2) ---> ASIC instance 2 = Supervisor ASIC 1, core 0 ---------------------------------------- LEAD_VLAN_ALLOW_SNOOPING_IGMP_OR_MLD_IPV4 value 0 Pass LEAD_VLAN_ALLOW_SNOOPING_IGMP_OR_MLD_IPV6 value 0 Pass LEAD_VLAN_ARP_OR_ND_SNOOPING_ENABLED_IPV4 value 0 Pass LEAD_VLAN_ARP_OR_ND_SNOOPING_ENABLED_IPV6 value 0 Pass LEAD_VLAN_BLOCK_L2_LEARN value 0 Pass LEAD_VLAN_CONTENT_MATCHING_ENABLED value 0 Pass LEAD_VLAN_DEST_MOD_INDEX_TVLAN_LE value 0 Pass LEAD_VLAN_DHCP_SNOOPING_ENABLED_IPV4 value 0 Pass LEAD_VLAN_DHCP_SNOOPING_ENABLED_IPV6 value 0 Pass LEAD_VLAN_ENABLE_SECURE_VLAN_LEARNING_IPV4 value 0 Pass LEAD_VLAN_ENABLE_SECURE_VLAN_LEARNING_IPV6 value 0 Pass LEAD_VLAN_EPOCH value 0 Pass LEAD_VLAN_L2_PROCESSING_STP_TCN value 0 Pass LEAD_VLAN_L2FORWARD_IPV4_MULTICAST_PKT value 0 Pass LEAD_VLAN_L2FORWARD_IPV6_MULTICAST_PKT value 0 Pass LEAD_VLAN_L3_IF_LE_INDEX_PRIO value 1 Pass LEAD_VLAN_L3IF_LE_INDEX value 111 Pass LEAD_VLAN_LOOKUP_VLAN value 10 Pass ------------> MVID 10 = vlan 100 LEAD_VLAN_MCAST_LOOKUP_VLAN value 10 Pass LEAD_VLAN_RIET_OFFSET value 1 Pass LEAD_VLAN_SNOOPING_FLOODING_ENABLED_IGMP_OR_MLD_IPV4 value 0 Pass LEAD_VLAN_SNOOPING_FLOODING_ENABLED_IGMP_OR_MLD_IPV6 value 1 Pass LEAD_VLAN_SNOOPING_PROCESSING_STP_TCN_IGMP_OR_MLD_IPV4 value 0 Pass LEAD_VLAN_SNOOPING_PROCESSING_STP_TCN_IGMP_OR_MLD_IPV6 value 0 Pass LEAD_VLAN_VLAN_CLIENT_LABEL value 0 Pass LEAD_VLAN_VLAN_CONFIG value 0 Pass LEAD_VLAN_VLAN_FLOOD_ENABLED value 0 Pass LEAD_VLAN_VLAN_ID_VALID value 1 Pass LEAD_VLAN_VLAN_LOAD_BALANCE_GROUP value 15 Pass LEAD_VLAN_VLAN_ROLE value 0 Pass LEAD_VLAN_VLAN_FLOOD_MODE_BITS value 3 Pass LEAD_VLAN_LVX_VLAN value 0 Pass LEAD_VLAN_EGRESS_DEJAVU_CANON value 0 Pass LEAD_VLAN_EGRESS_INGRESS_VLAN_MODE value 0 Pass LEAD_VLAN_EGRESS_LOOKUP_VLAN value 0 Pass LEAD_VLAN_EGRESS_SGACL_DISABLED value 3 Pass LEAD_VLAN_EGRESS_VLAN_CLIENT_LABEL value 0 Pass LEAD_VLAN_EGRESS_VLAN_ID_VALID value 1 Pass LEAD_VLAN_EGRESS_VLAN_LOAD_BALANCE_GROUP value 15 Pass LEAD_VLAN_EGRESS_INTRA_POD_BCAST value 0 Pass LEAD_VLAN_EGRESS_INTER_POD_BCAST value 0 Pass LEAD_VLAN_MAX value 0 Pass Detailed Resource Information (ASIC#3) ---> ASIC instance 3 = Supervisor ASIC 1, core 1 --snip-- Detailed Resource Information (ASIC#4) ---> ASIC instance 4 = Supervisor ASIC 2, core 0 --snip- Detailed Resource Information (ASIC#5) ---> ASIC instance 5 = Supervisor ASIC 2, core 1 --snip--
生成树编程
C9400#show spanning-tree vlan 100
VLAN0100
Spanning tree enabled protocol rstp Root ID Priority 32868 Address 20bb.c05e.5300 Cost 4 Port 2473 (Port-channel1) Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec Bridge ID Priority 32868 (priority 32768 sys-id-ext 100) Address 2c5a.0f1c.28c0 Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec Aging Time 300 sec Interface Role Sts Cost Prio.Nbr Type ------------------- ---- --- --------- -------- -------------------------------- Gi1/0/1 Desg FWD 19 128.1 Shr Gi2/0/11 Desg FWD 4 128.107 P2p Po1 Root FWD 3 128.2473 P2p Peer(STP)
C9400#show etherchannel summary --snip-- Group Port-channel Protocol Ports ------+-------------+-----------+----------------------------------------------- 1 Po1(SU) LACP Gi1/0/13(P) Gi5/0/21(P)
这些命令显示Port-channel 1的生成树转发状态。
C9400#show platform software interface rp active brief Forwarding Manager Interfaces Information Name ID QFP ID ------------------------------------------------------------- Null0 1 0 GigabitEthernet1/0/1 7 0 GigabitEthernet1/0/2 8 0 GigabitEthernet1/0/3 9 0 —snip— Port-channel1 748 0 —snip—
C9400#show platform software fed active vp summary interface if_id 748
if_id vlan_id pvlan_mode pvlan_vlan stp_state vtp pruned Untagged
-------------------------------------------------------------------------------------------------
748 100 trunk 1 forwarding No No
接下来的命令显示了VLAN 100的生成树硬件转发状态。
C9400#show platform software fed active vp summary vlan 100
if_id vlan_id pvlan_mode pvlan_vlan stp_state vtp pruned Untagged
-------------------------------------------------------------------------------------------------
--snip--
748 100 trunk 1 forwarding No No
--snip--
C9400#show platform hardware fed active vlan 100 ingress VLAN STP State in hardware vlan id is:: 100 Interfaces in forwarding state: : Gi2/0/11(Tagged), Gi1/0/1(Tagged), Gi1/0/13(Tagged), Gi5/0/21(Tagged) flood list: : Gi2/0/11, Gi1/0/1, Gi1/0/13, Gi5/0/21
C9400#show platform hardware fed active vlan 100 egress VLAN STP State in hardware vlan id is:: 100 Interfaces in forwarding state: : Gi2/0/11(Tagged), Gi1/0/1(Tagged), Gi1/0/13(Tagged), Gi5/0/21(Tagged)
检查生成树稳定性。确保不经常看到拓扑更改通知(TCN)。
C9400#show spanning-tree vlan 100 detail
VLAN0100 is executing the rstp compatible Spanning Tree protocol
Bridge Identifier has priority 32768, sysid 10, address 2c5a.0f1c.28c0
Configured hello time 2, max age 20, forward delay 15, transmit hold-count 6
Current root has priority 32868, address 2c5a.0f1c.5300
Root port is 2473 (Port-channel1), cost of root path is 4
Topology change flag not set, detected flag not set
Number of topology changes 1 last change occurred 2w6d ago
from Port-channel1
Times: hold 1, topology change 35, notification 2
hello 2, max age 20, forward delay 15
Timers: hello 0, topology change 0, notification 0, aging 300
--snip--
L2转发编程
C9400#show etherchannel summary --snip-- Group Port-channel Protocol Ports ------+-------------+-----------+----------------------------------------------- 1 Po1(SU) LACP Gi1/0/13(P) Gi5/0/21(P)
C9400#ping 100.100.900.53 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 100.100.900.53, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 3/4/5 ms
C9400#show mac address-table dynamic vlan 100 Mac Address Table ------------------------------------------- Vlan Mac Address Type Ports ---- ----------- -------- ----- 100 0000.0200.0800 DYNAMIC Gi1/0/1 100 20bb.c05e.5318 DYNAMIC Po1 100 20bb.c05e.5351 DYNAMIC Po1 Total Mac Addresses for this criterion: 3
软件编程
在下面的输出示例中，RP对FP进行编程，FP对FED进行编程，FED最终对Supervisor转发ASIC硬件进行编程。 RP软件MAC条目作为对象存储在对象数据库中，而FP软件MAC条目作为异步对象存储在对象数据库中。
C9400#show platform software matm rp active mac 20bb.c05e.5351 1 100 ---> 100 = vlan Tbl_Type Tbl_ID MAC_Address Type Ports AOM_ID/OM_PTR MAT_VLAN 100 20bb.c05e.5351 1 1 OM: 0x3700860010
List of Ports: 748
C9400#show platform software interface rp active brief Forwarding Manager Interfaces Information Name ID QFP ID ------------------------------------------------------------- Null0 1 0 GigabitEthernet1/0/1 7 0 GigabitEthernet1/0/2 8 0 GigabitEthernet1/0/3 9 0 —snip— Port-channel1 748 0 —snip—
C9400#show platform software matm fp active mac 20bb.c05e.5351 Tbl_Type Tbl_ID MAC_Address Type Ports AOM_ID/OM_PTR MAT_VLAN 100 20bb.c05e.5351 1 1 6567 created List of Ports: 748
C9400#show platform software object-manager fp active object 6567 Object identifier: 6567 Description: matm mac entry type VLAN, id 100, 20bb.c05e.5351
Status: Done, Epoch: 0, Client data: 0x799633f8
硬件编程-方法1
C9400#show platform softwarefed active matm macTable vlan 100
VLAN MAC Type Seq# macHandle siHandle diHandle *a_time *e_time ports 100 2c5a.0f1c.28e1 0X8002 0 0x7fe5c5eaf1c8 0x7fe5c5924f38 0x0 0 0 Vlan100 100 20bb.c05e.5351 0X1 589 0x7fe5c6b03d68 0x7fe5c6865f78 0x7fe51001b458 300 1 Port-channel1 100 0000.0200.0800 0X1 610 0x7fe5c6b07888 0x7fe5c6b076e8 0x7fe5c5972ce8 300 1 GigabitEthernet1/0/1 Total Mac number of addresses:: 3 *a_time=aging_time(secs) *e_time=total_elapsed_time(secs) Type: MAT_DYNAMIC_ADDR 0x1 MAT_STATIC_ADDR 0x2 ---> Type = dynamically learned MAC address entry MAT_CPU_ADDR 0x4 MAT_DISCARD_ADDR 0x8 MAT_ALL_VLANS 0x10 MAT_NO_FORWARD 0x20 MAT_IPMULT_ADDR 0x40 MAT_RESYNC 0x80 MAT_DO_NOT_AGE 0x100 MAT_SECURE_ADDR 0x200 MAT_NO_PORT 0x400 MAT_DROP_ADDR 0x800 MAT_DUP_ADDR 0x1000 MAT_NULL_DESTINATION 0x2000 MAT_DOT1X_ADDR 0x4000 MAT_ROUTER_ADDR 0x8000 MAT_WIRELESS_ADDR 0x10000 MAT_SECURE_CFG_ADDR 0x20000 MAT_OPQ_DATA_PRESENT 0x40000 MAT_WIRED_TUNNEL_ADDR 0x80000 MAT_DLR_ADDR 0x100000 MAT_MRP_ADDR 0x200000 MAT_MSRP_ADDR 0x400000 MAT_LISP_LOCAL_ADDR 0x800000 MAT_LISP_REMOTE_ADDR 0x1000000 MAT_VPLS_ADDR 0x2000000
macHandle编程
| 缩写/术语 |
定义 |
| vlan：10 |
MVID 10。VLAN 100在交换机内部使用映射VLAN ID (MVID) 10。 |
| gpn：1104 |
Port-channel 1的全局端口号。 |
| mac：0x20bbc05e5351 |
MAC地址20bb.c05e.5351 |
这是macHandle编程输出示例：
C9400#show platform hardware fed active fwd-asic abstraction print-resource-handle 0x7fe5c6b03d68 1 Handle:0x7fe5c6b03d68 Res-Type:ASIC_RSC_HASH_TCAM Res-Switch-Num:0 Asic-Num:255 Feature-ID:AL_FID_L2 Lkp-ftr-id:LKP_FEAT_L2_SRC_MAC_VLAN ref_count:1 priv_ri/priv_si Handle: (nil)Hardware Indices/Handles: handle [ASIC: 0]: 0x7fe5c6aed898 handle [ASIC: 1]: 0x7fe5c6b00fd8 handle [ASIC: 2]: 0x7fe5c6858208 Features sharing this resource:Cookie length: 12 5e c0 bb 20 51 53 0a 80 07 00 00 00 Detailed Resource Information (ASIC#0) ---------------------------------------- Number of HTM Entries: 1
Entry 0: (handle 0x7fe5c6aed898) Abs_hash_index: 294 KEY - vlan:10 mac:0x20bbc05e5351 l3_if:0 gpn:1104 epoch:0 static:0 flood_en: 0 vlan_lead_wless_flood_en: 0 client_home_asic: 0 MASK - vlan:0 mac:0x0 l3_if:0 gpn:0 epoch:0 static:0 flood_en:0 vlan_lead_wless_flood_en: 0 client_home_asic: 0 SRC_AD - need_to_learn:0 lrn_v:0 catchall:0 static_mac:0 chain_ptr_v:0 chain_ptr: 0 static_entry_v:0 auth_state:0 auth_mode:0 auth_behavior_tag:0 traf_m:0 is_src_ce:0 DST_AD - si:0xcd bridge:0 replicate:0 blk_fwd_o:0 v4_rmac:0 v6_rmac:0 catchall:0 ign_src_lrn:0 port_mask_o:0 afd_cli_f:0 afd_lbl:0 prio:3 dest_mod_idx:0 destined_to_us:0 pv_trunk:1 smr:0 Detailed Resource Information (ASIC#1) --snip-- Detailed Resource Information (ASIC#2) --snip--
C9400#show platform software fed active vlan 100 VLAN Fed Information Vlan Id IF Id LE Handle STP Handle L3 IF Handle SVI IF ID MVID --------------------------------------------------------------------------------------------------------------- 100 0x0000000000420011 0x00007fe5c4616ef8 0x00007fe5c4617778 0x00007fe5c50dac28 0x00000000000002ea 10
C9400#show platform software fed active ifm mappings etherchannel Mappings Table Chan Interface IF_ID ---------------------------------------------------- 1 Port-channel1 0x000002ec --snip--
C9400#show platform software fed active ifm if-id 0x000002ec <-- IF_ID from previous output Interface IF_ID : 0x00000000000002ec Interface Name : Port-channel1 Interface Block Pointer : 0x7fe5c685df98 Interface State : READY Interface Status : ADD, UPD Interface Ref-Cnt : 5 Interface Type : ETHERCHANNEL Port Type : SWITCH PORT Channel Number : 1 SNMP IF Index : 720 Port Handle : 0x50002f6 #Of Active Ports : 2 Base GPN : 1104 Index[2] : 0000000000000013 Index[3] : 000000000000008f Port Information Handle ............ [0x50002f6] Type .............. [L2-Ethchannel] Identifier ........ [0x2ec] Unit .............. [1] Port Logical Subblock L3IF_LE handle .... [0x0] Num physical port . [2] GPN Base .......... [1104] --snip--
C9400#show platform software fed active ifm mappings gpn Mappings Table GPN Interface IF_ID ---------------------------------------------------------------- 101 GigabitEthernet1/0/1 0x00000007 102 GigabitEthernet1/0/2 0x00000008 103 GigabitEthernet1/0/3 0x00000009 --snip--
siHandle编程
| 缩写/术语 |
定义 |
||
| siHandle |
station index句柄。数据包重写信息（RI =重写索引）和传出接口信息（DI =目标索引）。 |
||
| 单Supervisor ASIC上双核的复制位图： |
|||
| 缩写/术语 |
定义 |
||
| 本地ASIC（LD =本地数据） |
位于同一ASIC上的目的地，与源位于同一核心。 |
||
| 核心拷贝(CD =核心数据 |
位于同一ASIC（另一个核心）上的目标。 |
||
| 远程ASIC（RD =远程数据） |
另一ASIC上的目标。 |
||
C9400#show platform hardware fed active fwd-asic abstraction print-resource-handle 0x7fe5c6865f78 1 Handle:0x7fe5c6865f78 Res-Type:ASIC_RSC_SI Res-Switch-Num:255 Asic-Num:255 Feature-ID:AL_FID_L3_UNICAST_IPV4 Lkp-ftr-id:LKP_FEAT_INVALID ref_count:2 priv_ri/priv_si Handle: 0x7fe5c6864938Hardware Indices/Handles: index0:0xcd mtu_index/l3u_ri_index0:0x0 index1:0xcd mtu_index/l3u_ri_index1:0x0 index2:0xcd mtu_index/l3u_ri_index2:0x0 index3:0xcd mtu_index/l3u_ri_index3:0x0 index4:0xcd mtu_index/l3u_ri_index4:0x0 index5:0xcd mtu_index/l3u_ri_index5:0x0 Features sharing this resource:64 (1)] 55 (1)] Cookie length: 56 00 00 00 00 00 00 00 00 64 00 00 00 00 00 00 00 00 00 00 00 07 00 20 bb c0 5e 53 51 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Detailed Resource Information (ASIC#0) ---> ASIC instance 0 = Supervisor ASIC 0, core 0 ---------------------------------------- Station Index (SI) [0xcd] RI = 0x29 -------------------------------> Rewrite index (no MAC rewrite for L2 forwarding)
DI = 0x51c2 -------------------------------> Destination index = outgoing interface stationTableGenericLabel = 0 stationFdConstructionLabel = 0 lookupSkipIdIndex = 0 rcpServiceId = 0 dejaVuPreCheckEn = 0x1 Replication Bitmap: LD RD CD Detailed Resource Information (ASIC#1) ---> ASIC instance 1 = Supervisor ASIC 0, core 1 --snip-- Detailed Resource Information (ASIC#2) ---> ASIC instance 2 = Supervisor ASIC 1, core 0 --snip-- Detailed Resource Information (ASIC#3) ---> ASIC instance 3 = Supervisor ASIC 1, core 1 --snip-- Detailed Resource Information (ASIC#4) ---> ASIC instance 4 = Supervisor ASIC 2, core 0 --snip-- Detailed Resource Information (ASIC#5) ---> ASIC instance 5 = Supervisor ASIC 2, core 1 --snip--
C9400#show platform hardware fed active fwd-asic resource asic all destination-index range 0x51c2 0x51c2 ASIC#0: --snip-- ASIC#1: --snip-- ASIC#2: -------------------------> ASIC Instance 2 = Supervisor ASIC 1, core 0 Destination Index (DI) [0x51c2] portMap = 0x00000000 00001000 ---> binary 0001 0000 0000 0000 = Port 12 (see next command output) cmi1 = 0 (read right to left, zero based) rcpPortMap = 0 CPU Map Index (CMI) [0] ctiLo0 = 0 ctiLo1 = 0 ctiLo2 = 0 cpuQNum0 = 0 cpuQNum1 = 0 cpuQNum2 = 0 npuIndex = 0 stripSeg = 0 copySeg = 0 ASIC#3: -------------------------> ASIC instance 3 = Supervisor ASIC 1, core 1 Destination Index (DI) [0x51c2] portMap = 0x00000000 00100000 ---> binary 0001 0000 0000 0000 0000 0000 = Port 20 (see next command output) cmi1 = 0 (read right to left, zero based) rcpPortMap = 0 CPU Map Index (CMI) [0] ctiLo0 = 0 ctiLo1 = 0 ctiLo2 = 0 cpuQNum0 = 0 cpuQNum1 = 0 cpuQNum2 = 0 npuIndex = 0 stripSeg = 0 copySeg = 0 ASIC#4: --snip-- ASIC#5: --snip--
C9400#show platform software fed active ifm mappings Interface IF_ID Inst Asic Core Port SubPort Mac Cntx LPN GPN Type Active GigabitEthernet1/0/1 0x7 2 1 0 0 0 4 4 1 101 NIF Y GigabitEthernet1/0/2 0x8 2 1 0 1 1 4 4 2 102 NIF Y --snip-- GigabitEthernet1/0/13 0x13 2 1 0 12 4 0 0 13 1105 NIF Y --snip-- GigabitEthernet5/0/21 0x8f 3 1 1 20 4 5 5 21 1104 NIF Y --snip--
C9400#show etherchannel summary --snip-- Group Port-channel Protocol Ports ------+-------------+-----------+----------------------------------------------- 1 Po1(SU) LACP Gi1/0/13(P) Gi5/0/21(P)
没有预期的MAC重写信息，因为这是第2层MAC转发条目。
C9400#show platform hardware fed active fwd-asic resource asic all rewrite-index range 0x29 0x29 1 ASIC#0: Rewrite Data Table Entry, ASIC#:0, rewrite_type:1, RI:41 ---> dec 41 = hex 0x29 MAC Addr: MAC Addr: 20:bb:c0:5e:53:51, L3IF LE Index 111 ASIC#1: Rewrite Data Table Entry, ASIC#:1, rewrite_type:1, RI:41 MAC Addr: MAC Addr: 20:bb:c0:5e:53:51, L3IF LE Index 111 ASIC#2:
--snip--
ASIC#3:
--snip--
ASIC#4:
--snip--
ASIC#5:
--snip--
C9400#show mac address-table address 20bb.c05e.5351
Mac Address Table
-------------------------------------------
Vlan Mac Address Type Ports
---- ----------- -------- -----
100 20bb.c05e.5351 DYNAMIC Po1
Total Mac Addresses for this criterion: 1
diHandle编程
| 缩写 |
定义 |
| diHandle |
目标索引句柄。这是传出接口信息。 |
C9400#show platform hardware fed active fwd-asic abstraction print-resource-handle 0x7fe51001b458 1 Handle:0x7fe51001b458 Res-Type:ASIC_RSC_DI Res-Switch-Num:0 Asic-Num:255 Feature-ID:AL_FID_INVALID Lkp-ftr-id:LKP_FEAT_INVALID ref_count:21 priv_ri/priv_si Handle: (nil)Hardware Indices/Handles: index0:0x51c2 mtu_index/l3u_ri_index0:0x0 index1:0x51c2 mtu_index/l3u_ri_index1:0x0 index2:0x51c2 mtu_index/l3u_ri_index2:0x0 index3:0x51c2 mtu_index/l3u_ri_index3:0x0 index4:0x51c2 mtu_index/l3u_ri_index4:0x0 index5:0x51c2 mtu_index/l3u_ri_index5:0x0 Features sharing this resource:Cookie length: 8 01 00 00 00 c2 51 00 00 Detailed Resource Information (ASIC#0) --snip-- Detailed Resource Information (ASIC#1) --snip-- Detailed Resource Information (ASIC#2) ---> ASIC Instance 2 = Supervisor ASIC 1, core 0 ---------------------------------------- Destination Index (DI) [0x51c2] portMap = 0x00000000 00001000 -------------> binary 0001 0000 0000 0000 = Port 12 (see next command output) cmi1 = 0 (read right to left, zero based) rcpPortMap = 0 CPU Map Index (CMI) [0] ctiLo0 = 0 ctiLo1 = 0 ctiLo2 = 0 cpuQNum0 = 0 cpuQNum1 = 0 cpuQNum2 = 0 npuIndex = 0 stripSeg = 0 copySeg = 0
Detailed Resource Information (ASIC#3) ---> ASIC Instance 3 = Supervisor ASIC 1, core 1 ---------------------------------------- Destination Index (DI) [0x51c2] portMap = 0x00000000 00100000 ---> binary 0001 0000 0000 0000 0000 0000 = Port 20 (see next command output) cmi1 = 0 (read right to left, zero based) rcpPortMap = 0 CPU Map Index (CMI) [0] ctiLo0 = 0 ctiLo1 = 0 ctiLo2 = 0 cpuQNum0 = 0 cpuQNum1 = 0 cpuQNum2 = 0 npuIndex = 0 stripSeg = 0 copySeg = 0
Detailed Resource Information (ASIC#4) --snip-- Detailed Resource Information (ASIC#5) --snip--
C9400#show platform software fed active ifm mappings
Interface IF_ID Inst Asic Core Port SubPort Mac Cntx LPN GPN Type Active GigabitEthernet1/0/1 0x7 2 1 0 0 0 4 4 1 101 NIF Y GigabitEthernet1/0/2 0x8 2 1 0 1 1 4 4 2 102 NIF Y --snip-- GigabitEthernet1/0/13 0x13 2 1 0 12 4 0 0 13 1105 NIF Y --snip-- GigabitEthernet5/0/21 0x8f 3 1 1 20 4 5 5 21 1104 NIF Y --snip--
C9400#show etherchannel summary --snip-- Group Port-channel Protocol Ports ------+-------------+-----------+----------------------------------------------- 1 Po1(SU) LACP Gi1/0/13(P) Gi5/0/21(P)
硬件编程-方法2
| 缩写/术语 |
定义 |
| vlan：10 |
MVID 10。VLAN 100在交换机内部使用映射VLAN ID (MVID) 10。 |
| gpn：1104 |
Port-channel 1的全局端口号。 |
| mac：0x20bbc05e5351 |
MAC地址20bb.c05e.5351 |
硬件编程方法2示例输出：
C9400#show platform hardware fed active matm macTable vlan 100 --snip-- HEAD: MAC address 20bb.c05e.5351 in VLAN 100 KEY: vlan 10, mac 0x20bbc05e5351, l3_if 0, gpn 1104, epoch 0, static 0, flood_en 0, vlan_lead_wless_flood_en 0, client_home_asic 0 MASK: vlan 0, mac 0x0, l3_if 0, gpn 0, epoch 0, static 0, flood_en 0, vlan_lead_wless_flood_en 0, client_home_asic 0 SRC_AD: need_to_learn 0, lrn_v 0, catchall 0, static_mac 0, chain_ptr_v 0, chain_ptr 0, static_entry_v 0, auth_state 0, auth_mode 0, traf_mode 0, is_src_ce 0 DST_AD: si 0xc7, bridge 0, replicate 0, blk_fwd_o 0, v4_mac 0, v6_mac 0, catchall 0, ign_src_lrn 0, port_mask_o 0, afd_cli_f 0, afd_lbl 0, priority 3, dest_mod_idx 0, destined_to_us 0, pv_trunk 1
--snip--
C9400#show platform software fed active vlan 100 VLAN Fed Information Vlan Id IF Id LE Handle STP Handle L3 IF Handle SVI IF ID MVID --------------------------------------------------------------------------------------------------------------- 100 0x0000000000420011 0x00007fe5c4616ef8 0x00007fe5c4617778 0x00007fe5c50dac28 0x00000000000002ea 10
C9400#show platform software fed active ifm mappings etherchannel Mappings Table Chan Interface IF_ID ---------------------------------------------------- 1 Port-channel1 0x000002ec --snip--
C9400#show platform software fed active ifm if-id 0x000002ec Interface IF_ID : 0x00000000000002ec Interface Name : Port-channel1 Interface Block Pointer : 0x7fe5c685df98 Interface State : READY Interface Status : ADD, UPD Interface Ref-Cnt : 5 Interface Type : ETHERCHANNEL Port Type : SWITCH PORT Channel Number : 1 SNMP IF Index : 720 Port Handle : 0x50002f6 #Of Active Ports : 2 Base GPN : 1104 Index[2] : 0000000000000013 Index[3] : 000000000000008f Port Information Handle ............ [0x50002f6] Type .............. [L2-Ethchannel] Identifier ........ [0x2ec] Unit .............. [1] Port Logical Subblock L3IF_LE handle .... [0x0] Num physical port . [2] GPN Base .......... [1104] --snip--
C9400#show platform software fed active ifm mappings gpn Mappings Table GPN Interface IF_ID ---------------------------------------------------------------- 101 GigabitEthernet1/0/1 0x00000007 102 GigabitEthernet1/0/2 0x00000008 103 GigabitEthernet1/0/3 0x00000009 --snip--
TCAM 利用率
检查每个Supervisor ASIC实例上的MAC地址条目的TCAM利用率，以确保交换机不会耗尽TCAM空间来在硬件中存储条目。
C9400show platform hardware fed active fwd-asic resource tcam utilization CAM Utilization for ASIC Instance [0] --snip-- CAM Utilization for ASIC Instance [1] --snip-- CAM Utilization for ASIC Instance [2] --snip-- CAM Utilization for ASIC Instance [3]---> ASIC instance 3 = Supervisor ASIC 1, Core 1
Table Max Values Used Values -------------------------------------------------------------------------------- Unicast MAC addresses 65536/1024 13/1 -------------> prefix/mask IGMP and Multicast groups 16384/1024 0/7 L2 Multicast groups 16384/1024 1/9 Directly or indirectly connected routes 49152/65536 0/0 NAT/PAT SA address and Port 0 0 QoS Access Control Entries 18432 34 Security Access Control Entries 18432 0 Ingress Netflow ACEs 1024 0 Policy Based Routing ACEs 2048 9 Egress Netflow ACEs 2048 8 Input Microflow policer ACEs 0 0 Output Microflow policer ACEs 0 0 Flow SPAN ACEs 1024 13 Control Plane Entries 1024 0 Tunnels 1024 0 Lisp Instance Mapping Entries 1024 0 Input Security Associations 512 3 Output Security Associations and Policies 512 0 SGT_DGT 8192/512 0/0 CLIENT_LE 4096/256 2/0 INPUT_GROUP_LE 1024 0 OUTPUT_GROUP_LE 1024 0 Macsec SPD 256 0 CAM Utilization for ASIC Instance [4] --snip-- CAM Utilization for ASIC Instance [5] --snip--
成功的硬件编程
所有功能（无论是mac地址、接口、vlan等等）都存储在对象数据库中，并作为对象编程到硬件中。
RP对FP进行编程，FP对FED进行编程，FED最终对转发ASIC硬件的管理引擎进行编程。RP软件条目作为对象存储在对象数据库中，而FP软件条目作为异步对象存储在对象数据库中。
当FP对FED编程（FED进而对Supervisor转发ASIC编程）时，FED会向FP发送确认消息。然后，FP将其转发到RP，以表明硬件编程已成功完成。如果FED硬件编程缺失或不正确，您可以使用此下一命令检查问题和/或确认。
C9400#show platform software object-manager fp active statistics Forwarding Manager Asynchronous Object Manager Statistics Object update: Pending-issue: 0, Pending-acknowledgement: 0 Batch begin: Pending-issue: 0, Pending-acknowledgement: 0 Batch end: Pending-issue: 0, Pending-acknowledgement: 0 Command: Pending-acknowledgement: 0 Total-objects: 3269 Stale-objects: 0 Resolve-objects: 0 Error-objects: 0 Paused-types: 0
如果之前的命令显示非零对象处于挂起发出状态，请使用此命令查找所涉及的对象编号：
C9400#show platform software object-manager fp active pending-issue-update
然后使用此命令确定与对象编号关联的停滞进程：
C9400#show platform software object-manager fp active object {object#}
在RP端，使用此命令检查FP未确认的对象的删除挂起（删除挂起）。
C9400#show platform software object-manager rp active object-type-info
Object type Name Count Del Pend Layer ------------------------------------------------------------------------------ CC cc 5 0 2 SPA spa 0 0 4 PORT_DPIDB port_dpidb 164 0 10 CHANNEL_DPIDB channel_dpidb 0 0 12 VIRTUAL_DPIDB virtual_dpidb 503 0 13 SW_DPIDB sw_dpidb 0 0 17 VLAN vlan 0 0 19
--snip--
运行状况检查
控制平面流量和策略
检查硬件UADP 2.0中流向软件CPU的流量的CoPP（控制平面策略）丢弃。这可能会影响MAC学习和生成树稳定性。
C9400#show policy-map control-plane
Control Plane
Service-policy input: system-cpp-policy
--snip--
Class-map: system-cpp-police-sw-forward (match-any)
0 packets, 0 bytes
5 minute offered rate 0000 bps, drop rate 0000 bps
Match: none
police:
rate 1000 pps, burst 244 packets
conformed 1298 bytes; actions:
transmit
exceeded 0 bytes; actions:
drop
--snip--
Class-map: system-cpp-police-l2-control (match-any)
0 packets, 0 bytes
5 minute offered rate 0000 bps, drop rate 0000 bps
Match: none
police:
rate 500 pps, burst 122 packets
conformed 239197001 bytes; actions:
transmit
exceeded 0 bytes; actions:
drop
--snip--
Class-map: system-cpp-default (match-any)
0 packets, 0 bytes
5 minute offered rate 0000 bps, drop rate 0000 bps
Match: none
police:
rate 1000 pps, burst 244 packets
conformed 0 bytes; actions:
transmit
exceeded 0 bytes; actions:
drop
Class-map: class-default (match-any)
0 packets, 0 bytes
5 minute offered rate 0000 bps, drop rate 0000 bps
Match: any
与上一个示例相同的CoPP输出在此以更加精细和易于读取（压缩）的格式显示。
C9400#show platform hardware fed active qos queue stats internal cpu policer
CPU Queue Statistics
============================================================================================
(default) (set) Queue Queue
QId PlcIdx Queue Name Enabled Rate Rate Drop(Bytes) Drop(Frames)
0 11 DOT1X Auth Yes 1000 1000 0 0
1 1 L2 Control Yes 2000 400 0 0
2 14 Forus traffic Yes 1000 1000 0 0
3 0 ICMP GEN Yes 600 600 0 0
4 2 Routing Control Yes 5400 1800 0 0
5 14 Forus Address resolution Yes 1000 1000 0 0
6 0 ICMP Redirect Yes 600 600 0 0
7 16 Unused Yes 1000 1000 0 0
8 4 L2 LVX Cont Pack Yes 1000 1000 0 0
9 16 EWLC Control Yes 1000 1000 0 0
10 16 EWLC Data Yes 1000 1000 0 0
11 13 L2 LVX Data Pack Yes 1000 1000 0 0
12 0 BROADCAST Yes 600 600 0 0
13 10 Learning cache ovfl Yes 100 200 0 0
14 13 Sw forwarding Yes 1000 1000 0 0
15 8 Topology Control Yes 13000 13000 0 0
16 12 Proto Snooping Yes 2000 2000 0 0
17 16 DHCP Snooping Yes 1000 1000 0 0
18 9 Transit Traffic Yes 500 400 0 0
19 10 RPF Failed Yes 100 200 0 0
20 15 MCAST END STATION Yes 2000 2000 0 0
21 13 LOGGING Yes 1000 1000 0 0
22 7 Punt Webauth Yes 1000 1000 0 0
23 10 Crypto Control Yes 100 200 0 0
24 10 Exception Yes 100 200 0 0
25 3 General Punt Yes 200 200 0 0
26 10 NFL SAMPLED DATA Yes 100 200 0 0
27 2 Low Latency Yes 5400 1800 0 0
28 10 EGR Exception Yes 100 200 0 0
29 5 Stackwise Virtual Control No 8000 8000 0 0
30 9 MCAST Data Yes 500 400 0 0
31 10 Gold Pkt Yes 100 200 0 0
* NOTE: CPU queue policer rates are configured to the closest hardware supported value
CPU Queue Policer Statistics
====================================================================
Policer Policer Accept Policer Accept Policer Drop Policer Drop
Index Bytes Frames Bytes Frames
-------------------------------------------------------------------
0 3132 36 0 0
1 239197001 721952 0 0
2 123004776 978818 0 0
3 0 0 0 0
4 0 0 0 0
5 0 0 0 0
6 0 0 0 0
7 0 0 0 0
8 1024 16 0 0
9 0 0 0 0
10 13600 200 0 0
11 0 0 0 0
12 0 0 0 0
13 1298 3 0 0
14 80520 9158 0 0
15 2189268 23733 0 0
16 0 0 0 0
17 0 0 0 0
CPP Classes to queue map
======================================================================================
PlcIdx CPP Class : Queues
--------------------------------------------------------------------------------------
0 system-cpp-police-data : ICMP GEN/BROADCAST/ICMP Redirect/
10 system-cpp-police-sys-data : Learning cache ovfl/Crypto Control/Exception/EGR Exception/NFL SAMPLED DATA/Gold Pkt/RPF Failed/
13 system-cpp-police-sw-forward : Sw forwarding/LOGGING/L2 LVX Data Pack/
9 system-cpp-police-multicast : Transit Traffic/MCAST Data/
15 system-cpp-police-multicast-end-station : MCAST END STATION /
7 system-cpp-police-punt-webauth : Punt Webauth/
1 system-cpp-police-l2-control : L2 Control/
5 system-cpp-police-stackwise-virt-control : Stackwise Virtual Control/
2 system-cpp-police-routing-control : Routing Control/Low Latency/
3 system-cpp-police-control-low-priority : General Punt/
4 system-cpp-police-l2lvx-control : L2 LVX Cont Pack/
8 system-cpp-police-topology-control : Topology Control/
11 system-cpp-police-dot1x-auth : DOT1X Auth/
12 system-cpp-police-protocol-snooping : Proto Snooping/
14 system-cpp-police-forus : Forus Address resolution/Forus traffic/
5 system-cpp-police-stackwise-virt-control : Stackwise Virtual Control/
16 system-cpp-default : DHCP Snooping/Unused/EWLC Control/EWLC Data/
从软件(CPU)的角度检查CPU传送路径（硬件-UADP 2.0到软件-CPU）统计信息。
C9400#show platform software infrastructure lsmpi
LSMPI interface internal stats:
enabled=0, disabled=0, throttled=0, unthrottled=0, state is ready
Input Buffers = 8801257
Output Buffers = 5506129
rxdone count = 8801257
txdone count = 5506128
Rx no particletype count = 0
Tx no particletype count = 0
Txbuf from shadow count = 0
No start of packet = 0
No end of packet = 0
Punt drop stats:
Bad version 0
Bad type 0
Had feature header 0
Had platform header 0
Feature header missing 0
Common header mismatch 0
Bad total length 0
Bad packet length 0
Bad network offset 0
Not punt header 0
Unknown link type 0
No swidb 0
Bad ESS feature header 0
No ESS feature 0
No SSLVPN feature 0
No PPP bridge feature 0
Punt For PPP bridge type packets 0
Punt For Us type unknown 0
EPC CP RX Pkt cleansed 0
Punt cause out of range 0
IOSXE-RP Punt packet causes:
42879 Layer2 control and legacy packets
3644168 ARP request or response packets
7584 For-us data packets
1794 Mcast Directly Connected Source packets
1573 Mcast PIM signaling packets
750076 For-us control packets
38058 Layer2 bridge domain data packet packets
3823736 Layer2 control protocols packets
FOR_US Control IPv4 protcol stats:
750076 [proto=0] packets
Packet histogram(500 bytes/bin), avg size in 125, out 126:
Pak-Size In-Count Out-Count
0+: 8228322 5207592
500+: 41355 1717
1000+: 4331 2402
1500+: 35860 20017
Lsmpi11/3 is up, line protocol is up <-- CPU interface
Hardware is LSMPI
MTU 1500 bytes, BW 1000000 Kbit/sec, DLY 10 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA, loopback not set
Keepalive not set
Unknown, Unknown, media type is unknown media type
output flow-control is unsupported, input flow-control is unsupported
ARP type: ARPA, ARP Timeout 04:00:00
Last input never, output never, output hang never
Last clearing of "show interface" counters never
Input queue: 0/1500/0/0 (size/max/drops/flushes); Total output drops: 0
Queueing strategy: fifo
Output queue: 0/40 (size/max)
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
8309868 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts (0 IP multicasts)
0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 watchdog, 0 multicast, 0 pause input
5231728 packets output, 659535525 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 unknown protocol drops
0 output buffer failures, 0 output buffers swapped out
C9400#show platform software infrastructure lsmpi punt
LSMPI punt statistics
Total packets consumed: 876
Total packets forwarded: 8468766
First frag packets: 0
Total packets consumed & forwarded: 0
Cause Total Total Length Dot1q encap Other SKB
consumed forwarded error exceeded linktype invalid
MPLS ICMP Can't Fragment 0 0 0 0 0 0
IPv4 Options 0 0 0 0 0 0
Layer2 control and legacy 0 0 0 0 0 0
PPP Control 0 0 0 0 0 0
CLNS IS-IS Control 0 0 0 0 0 0
HDLC keepalives 0 0 0 0 0 0
--snip--
从软件(CPU)的角度检查CPU注入路径（软件-CPU到硬件-管理引擎）统计信息。
C9400#show platform software infrastructure inject Statistics for L3 injected packets: 5233473 total inject pak, 3 failed 0 sent, 859329 prerouted 0 non-CEF capable, 855296 non-unicast 859826 IP, 0 IPv6 0 MPLS, 0 Non-IP Tunnel 0 UDLR tunnel, 0 P2MP replicated mcast 0 Non-IP Fastswitched over Tunnel, 4373497 legacy pak path 0 Other packet 0 IP fragmented 644 normal, 391 nexthop 858788 adjacency, 150 feature 0 undefined 3 pak find no adj, 0 no adj-id 137322 sb alloc, 856085 sb local 0 p2mcast failed count 0 p2mcast enqueue fail 0 unicast dhc 0 mobile ip 0 IPv6 NA 0 IPv6 NS 0 Transport failed cases 0 Grow packet buffer per feature packet inject statistics 150 Feature multicast 0 Feature Edge Switching Service 0 Feature Session Border Controller 0 Feature interrupt level 0 Feature use outbound interface 0 Feature interrupt level with OCE 0 Feature ICMPv6 error message 0 Feature Session Border Controller media packet injection 0 Feature Tunnel Ethernet over GRE 0 Feature Secure Socket Layer Virtual Private Network 0 Feature EPC Wireshark injecting packets Statistics for L2 injected packets: 0 total L2 inject pak, 0 failed 0 total BD inject pak, 0 failed 0 total EFP inject pak, 0 failed 0 total VLAN inject pak, 0 failed
从FED (UADP 2.0)角度检查CPU传送/注入路径统计信息。
C9400#show platform software fed active lsmpi stat
LSMPI Statistics
-------------------------------------------
Transmit: -----------------------------------> FED transmit = FED (Supervisor) punt to CPU
Packet Count : 8469445
Bytes Count : 1055390613
particle Count : 8951009
particle with App : 7258
Ring Full Error : 0
No Buff Error : 0
TX Ring Free : 2047
TX Ring Busy : 0
TX Ring Size : 2048
TXDone Ring Free : 6816
TXDone Ring Busy : 9567
TXDone Ring Size : 16384
Receive: ---------------------------------> FED receive = CPU inject to FED (Supervisor)
Packet Count : 5450099
Bytes Count : 675084903
Particle Count : 5695697
Particles with App : 4294966854
RX Done Count : 5696139
No SOP : 0
No EOP : 0
Not Enough Buf : 0
Max Not Enough Buf : 0
RX Ring Free : 4095
RX Ring Busy : 0
RX Ring Size : 4096
RXDone Ring Free : 8191
RXDone Ring Busy : 0
RXDone Ring Size : 8192
-------------------------------------------
从FED (Supervisor)的角度检查CPU传送路径（硬件-Supervisor到软件-CPU）统计信息。
C9400#show platform software fed active punt cause summary Statistics for all causes Cause Cause Info Rcvd Dropped ------------------------------------------------------------------------------ 7 ARP request or response 3644168 0 11 For-us data 1524 0 12 Mcast Directly Connected Source 1794 0 25 Mcast PIM signaling 1573 0 55 For-us control 750461 0 58 Layer2 bridge domain data packet 38058 0 96 Layer2 control protocols 3825228 0 ------------------------------------------------------------------------------
从FED (Supervisor)角度检查31个单独的CPU传送队列的运行状况。
C9400#show platform software fed active cpu-interface queue retrieved dropped invalid hol-block ------------------------------------------------------------------------- Routing Protocol 790844 0 0 0 L2 Protocol 2774488 0 0 0 sw forwarding 0 0 0 0 broadcast 0 0 0 0 icmp 0 0 0 0 icmp redirect 0 0 0 0 logging 0 0 0 0 rpf-fail 1573 0 0 0 DOT1X authentication 0 0 0 0 Forus Traffic 1524 0 0 0 Forus Resolution 3644192 0 0 0 Wireless q5 0 0 0 0 Wireless q1 0 0 0 0 Wireless q2 0 0 0 0 Wireless q3 0 0 0 0 Wireless q4 0 0 0 0 Learning cache 0 0 0 0 Topology control 1198807 0 0 0 Proto snooping 0 0 0 0 BFD Low latency 0 0 0 0 Transit Traffic 0 0 0 0 Multi End station 38058 0 0 0 Health Check 0 0 0 0 Health Check 0 0 0 0 Crypto control 0 0 0 0 Exception 0 0 0 0 General Punt 0 0 0 0 NFL sampled data 0 0 0 0 STG cache 0 0 0 0 EGR exception 0 0 0 0 FSS 0 0 0 0 Multicast data 1794 0 0 0
C9400#show platform software fed active punt cpuq all
Punt CPU Q Statistics
===========================================
—snip—
CPU Q Id : 1
CPU Q Name : CPU_Q_L2_CONTROL
Packets received from ASIC : 2669864 -----------> Packets received by the FED process from the Supervisor forwarding ASICs
Send to IOSd total attempts : 2669864 -----------> Packets sent from the FED process to IOSd
Send to IOSd failed count : 0
RX suspend count : 0
RX unsuspend count : 0
RX unsuspend send count : 0
RX unsuspend send failed count : 0
RX consumed count : 0
RX dropped count : 0
RX non-active dropped count : 0
RX conversion failure dropped : 0
RX INTACK count : 2243784
RX packets dq'd after intack : 5074
Active RxQ event : 2243785
RX spurious interrupt : 322266
CPU Q Id : 2
CPU Q Name : CPU_Q_FORUS_TRAFFIC
Packets received from ASIC : 1524
Send to IOSd total attempts : 1524
Send to IOSd failed count : 0
RX suspend count : 0
RX unsuspend count : 0
RX unsuspend send count : 0
RX unsuspend send failed count : 0
RX consumed count : 0
RX dropped count : 0
RX non-active dropped count : 0
RX conversion failure dropped : 0
RX INTACK count : 1347
RX packets dq'd after intack : 8
Active RxQ event : 1347
RX spurious interrupt : 38
—snip—
从FED (Supervisor)角度检查CPU注入路径（软件-CPU到硬件-Supervisor）统计信息。
C9400#show platform software fed active inject cause summary Statistics for all causes Cause Cause Info Rcvd Dropped ------------------------------------------------------------------------------ 1 L2 control/legacy 4331682 0 2 QFP destination lookup 290 0 3 QFP IPv4/v6 nexthop lookup 391 0 7 QFP adjacency-id lookup 859393 265 8 Mcast specific inject packet 150 0 12 ARP request or response 601 0 ------------------------------------------------------------------------------
从FED (UADP 2.0)的角度检查两个单独的CPU注入队列的运行状况。
C9400#show platform software fed active inject cpuq all Inject CPU Q Statistics =========================================== CPU Q Id : 0 CPU Q Name : TX_CPUQ_PRIO_LOW ---> low priority CPU inject queue Packets received from IOSd : 168342 Enq to pkt driver total attempts : 168277 Enq to pkt driver failed count : 0 Count of TX CMPL received : 168277 TX suspend count : 0 TX unsuspend count : 0 TX dropped count : 265 TX punted count : 0 TX App enq failed : 0 CPU Q Id : 7 CPU Q Name : TX_CPUQ_PRIO_HI ---> high priority CPU inject queue Packets received from IOSd : 5024664 Enq to pkt driver total attempts : 5024664 Enq to pkt driver failed count : 0 Count of TX CMPL received : 5024664 TX suspend count : 0 TX unsuspend count : 0 TX dropped count : 0 TX punted count : 0 TX App enq failed : 0 Stats for all txq: --------------------------------------------- TX chunk malloc fail count : 0 ---------------------------------------------
MAC表事件统计信息
C9400#show platform software fed active matm stats MATM counters Total non-cpu mac entries : 10 Mac Learn SPI Msg Count : 0 Mac Learn SPI Err Count : 0 Mac Delete SPI Msg Count : 0 Mac Delete SPI Err Count : 0 Mac Learn Count : 967 Mac Add Count : 989 Mac AL add Count : 971 Mac Del Count : 957 Mac AL Del Count : 961 Mac Move Count : 2 ---> MAC moves between interfaces (see details above) Mac AL Move Count : 0 Mac Clear Count : 0 Mac Del all count : 6 Mac table create Count : 9 Mac VP event Count : 5 Mac Update info Count : 0 Mac Vlan age config Event Count : 0 Mac Vlan Link Event Count : 6 Mac SVI linkEvent Count : 3 Mac Bsync Event Count : 0 Mac Isync Event Count : 0 Mac Recon Start Count : 0 Mac Recon Event Count : 0 Mac IFM event Count : 75 Mac FEC Event Count : 0 Mac Aging Tick Count : 0 Mac Retry event Count : 0 Mac Hw Update Err Count : 0 Mac In retryQ Count : 0
C9400#configure terminal C9400(config)#mac address-table notification ? change Enable/Disable MAC Notification feature on the switch mac-move Enable Mac Move Notification threshold Configure L2 Table monitoring C9400(config)#C9400(config)#mac address-table notification mac-move ---> enabled by default, syslog generated for any MAC move (show logging) C9400(config)#mac address-table notification change ? history-size Number of MAC notifications to be stored interval Interval between the MAC notifications <cr> <cr> C9400(config)#mac address-table notification change ---> disabled by default
C9400#show mac address-table notification mac-move MAC Move Notification: enabled
C9400#show mac address-table notification change
MAC Notification Feature is Enabled on the switch Interval between Notification Traps : 1 secs Number of MAC Addresses Added : 0 Number of MAC Addresses Removed : 0 Number of Notifications sent to NMS : 0 Maximum Number of entries configured in History Table : 1 Current History Table Length : 0 MAC Notification Traps are Disabled History Table contents ----------------------
UADP 2.0异常丢弃
此命令详细介绍UADP 2.0转发ASIC丢弃数据包的任何原因：
C9400#show platform hardware fed active fwd-asic drops exceptions
****EXCEPTION STATS ASIC INSTANCE 0 (asic/core 0/0)**** ================================================================================= Asic/core | NAME | prev | current | delta ================================================================================= 0 0 NO_EXCEPTION 0 0 0 0 0 IPV4_CHECKSUM_ERROR 0 0 0 0 0 ROUTED_AND_IP_OPTIONS_EXCEPTION 0 0 0 0 0 CTS_FILTERED_EXCEPTION 0 0 0 0 0 SIA_TTL_ZERO 0 0 0 0 0 ALLOW_NATIVE_EXCEPTION_COUNT 0 0 0 0 0 ALLOW_DOT1Q_EXCEPTION_COUNT 0 0 0 0 0 ALLOW_PRIORITY_TAGGED_EXCEPTION_COUNT 0 0 0 0 0 ALLOW_UNKNOWN_ETHER_TYPE_EXCEPTION 0 0 0 0 0 IP_SOURCE_GUARD_VIOLATION 0 0 0 0 0 SECURE_L3IF_LEARNING_VIOLATION 0 0 0 0 0 AUTH_DRIVEN_DROP 0 0 0 0 0 VLAN_LOADBALANCE_GROUP_DENY 0 0 0 0 0 RPF_UNICAST_FAIL 0 0 0 0 0 RPF_UNICAST_FAIL_SUPPRESS 0 0 0 0 0 RPF_UNICAST_CHECK_INCOMPLETE 0 0 0 0 0 RPF_MULTICAST_FAIL 0 0 0 0 0 PKT_DROP_COUNT 0 0 0 0 0 SOURCE_ROUTE_EXCEPTION 0 0 0 0 0 IGR_MISC_FATAL_ERROR 0 0 0 0 0 BLOCK_FORWARD 0 0 0 0 0 POLICER_DROP 0 0 0 0 0 DENY_ROUTE 0 0 0 0 0 DENY_BRIDGE 0 0 0 0 0 STATIC_MAC_VIOLATION 0 0 0 0 0 STATIC_IP_VIOLATION 0 0 0 0 0 FPM_DROP_PACKET 0 0 0 0 0 IGR_EXCEPTION_L4_ERROR 0 0 0 0 0 IGR_EXCEPTION_L5_ERROR 0 0 0 0 0 IGR_EXCEPTION_HARDWARE_PARSE_EXCEPTION 0 0 0 0 0 IGR_EXCEPTION_INVALID_VLAN_DROP 0 0 0 0 0 IGR_EXCEPTION_31 0 0 0 0 0 FRAGMENTING_IPV4_WITH_OPTIONS 0 0 0 0 0 FRAGMENTING_IPV6_WITH_EXTENSIONS 0 0 0 0 0 ICMP_REDIRECT 0 0 0 0 0 MTU_FAIL_PUNT_TO_CPU_NO_IP_UNREACHABLE 0 0 0 0 0 LINK_LOCAL_CHECK_FAIL_NO_IP_UNREACHABLE 0 0 0 0 0 IP_UNICAST_TTL_REACHED_ZERO 0 0 0 0 0 MISC_FATAL_ERROR 0 0 0 0 0 STP_OR_FLEXLINK_DROP 0 0 0 0 0 PROTECTED_PORT_DROP 0 0 0 0 0 PVLAN_ISOLATED_CHECK_FAILED 0 0 0 0 0 PVLAN_COMMUNITY_CHECK_FAILED 0 0 0 0 0 DEJA_VU_CHECK_FAILED 0 0 0 0 0 NOT_VLAN_LOAD_BALANCE_GROUP_ALLOWED 0 0 0 0 0 RSPAN_DROP 0 0 0 0 0 SPLIT_HORIZON_DROP 0 0 0 0 0 SYSTEM_TTL_DROP 0 0 0 0 0 PRUNED 0 0 0 0 0 DENY_NO_IP_UNREACHABLE 0 0 0 0 0 IP_MULTICAST_TTL_REACHED_ZERO 0 0 0 0 0 MTU_FAIL_DROP_BRIDGED 0 0 0 0 0 MTU_FAIL_DROP_BRIDGED_IP_ROUTED 0 0 0 0 0 MTU_FAIL_ERSPAN 0 0 0 0 0 LINK_LOCAL_CHECK_FAIL_L3M_VALID 0 0 0 0 0 DENY_NOT_NO_IP_UNREACHABLE 0 0 0 0 0 MTU_FAIL_PUNT_TO_CPU_NOT_NO_IP_UNREACHABLE 0 0 0 0 0 LINK_LOCAL_CHECK_FAIL_NOT_NO_IP_UNREACHABLE 0 0 0 0 0 COPY_TO_CPU 0 0 0 0 0 EGR_L3_ERROR 0 0 0 0 0 EGR_L4_ERROR 0 0 0 0 0 EGR_L5_ERROR 0 0 0 0 0 EGR_HARDWARE_PARSE_EXCEPTION 0 0 0 0 0 EGR_SHOW_FORWARD_DROP 0 0 0 ****EXCEPTION STATS ASIC INSTANCE 1 (asic/core 0/1)**** ================================================================================= Asic/core | NAME | prev | current | delta ================================================================================= 0 1 NO_EXCEPTION 13168 16679 3511 0 1 IPV4_CHECKSUM_ERROR 0 0 0 0 1 ROUTED_AND_IP_OPTIONS_EXCEPTION 81 103 22
--snip--
Supervisor统计信息- Supervisor到线卡的数据路径
检查与特定前面板接口相关联的活动Supervisor UADP 2.0转发ASIC统计信息。在本例中，使用接口Gig1/0/13。
输出示例：
- 检查线卡上的哪些接口属于同一端口组。
- 每个端口组共享从线卡末节ASIC到Supervisor转发ASIC的8 Gbps带宽。
- 每个端口组与板卡末节ASIC上指向管理引擎转发ASIC的一个SLI（系统链路接口）关联。
C9400#show platform hardware cman fp active data-path 1 13 detail ---> Slot 1, interface 13
showing cman data-path for frontpanel 1/0/13 fp_portmap.xml: ---> Supervisor ASIC 1, core 0 is associated with front panel (fp) interface Gig1/0/13 id 13 asic 1 core 0 port 12 mac 0 subport 4 contextid 0 maxspeed DEV_PORT_SPEED_1G gpn 113 active 1 data path: slot 3 +- ACTIVE_SUP --+ | Sif 0 | | IQS SQS | ---> Supervisor ASIC 1, core 0 on the slot 3 active Supervisor associated with interface Gig1/0/13 | PBC | | AQM | | EQC | | ESM | | RWE | | ASIC 1 | | Core 0 | | Asic Port 12 | | | | (Mac 0) | |Nif_Rx NifTx| +--------------+ ^ | | | | | | V ============================================== Nif MAC 0 Inforation: NifRxByteGroupStats: NifTxByteGroupStats: rxBytes 4495494 txBytes 6499427 NifRxByteDestinationGroupStats: NifTxByteDestinationGroupStats: rxUnicastBytes 1174628 txUnicastBytes 1175536 rxMulticastBytes 3320866 txMulticastBytes 5298482 rxBroadcastBytes 0 txBroadcastBytes 25409 NifRxPortStatusGroupStats: NifTxFrameDestinationGroupStats: rxUnicastFrames 18326 txUnicastFrames 18330 rxMulticastFrames 21387 txMulticastFrames 24834 rxBroadcastFrames 0 txBroadcastFrames 51 rxPauseFrames 0 txPauseFrames 0 rxCos0PauseFrames 0 txCos0PauseFrames 0 rxCos1PauseFrames 0 txCos1PauseFrames 0 rxCos2PauseFrames 0 txCos2PauseFrames 0 rxCos3PauseFrames 0 txCos3PauseFrames 0 rxCos4PauseFrames 0 txCos4PauseFrames 0 rxCos5PauseFrames 0 txCos5PauseFrames 0 rxCos6PauseFrames 0 txCos6PauseFrames 0 rxCos7PauseFrames 0 txCos7PauseFrames 0 rxOamProcessedFrames 0 txOamFrames 0 NifRxPortStatusGroupStats: NifTxPortStatusGroupStats: rxCollisionFragments 0 txLateCollisionFrames 0 rxFcsErrorFrames 0 txsystemFcsErrorFrames 0 rxInvalidOversizeFrames 0 txOversizeFrames 0 rxMacOverrunFrames 0 txMacUnderrunFrames 0 rxIpgViolationFrames 0 txDeferredFrames 0 rxOamDroppedFrames 0 txExcessiveDeferralFrames 0 rxSymbolErrorFrames 0 txOkMultipleCollisionFrames 0 rxValidOversizeFrames 0 txOkSingleCollisionFrames 0 rxValidUndersizeFrames 0 goldFramesTruncated 0 NifRxSizeGroupStats: NifTxSizeGroupStats: rx32768toMtuFrames 0 tx32768toMtuFrames 0 rx16384to32767ByteFrames 0 tx16384to32767ByteFrames 0 rx8192to16383ByteFrames 0 tx8192to16383ByteFrames 0 rx4096to8191ByteFrames 0 tx4096to8191ByteFrames 0 rx2048to4095ByteFrames 0 tx2048to4095ByteFrames 0 rx1519to2047ByteFrames 51 tx1519to2047ByteFrames 0 rx1024to1518ByteFrames 15 tx1024to1518ByteFrames 0 rx512to1023ByteFrames 17 tx512to1023ByteFrames 187 rx256to511ByteFrames 3406 tx256to511ByteFrames 9407 rx128to255ByteFrames 6567 tx128to255ByteFrames 6580 rx65to127ByteFrames 11295 tx65to127ByteFrames 8583 rx64ByteFrames 18362 tx64ByteFrames 18458 ============================================== ----------------------------------------------------> Input queue (Igr = Ingress) IgrPacketCounters: EgrPacketCounters: packetsIn 97777 packetsIn 580324 packetsOut 97777 packetsEnqueueFcd_val 0 packetsDropped 3383 packetsMarkedForDrop 278 fpsSourcedPadErrorCount 0 padErrorPacketsIn 0 igrSourcedPadErrorCount 0 padErrorPacketsOut 0 ============================================== For RWE for core 0: RweTotalEnqStats: packetCount 580324 RweTotalDeqStats: packetCount 580046 FragmentCount 580046 ============================================== For EQC for core 0: EqcTotalEnqStats: Count 580704 EqcTotalDeqStats: Count 580324 ============================================== For aqmRedQueueStats for asic port 12: AqmRedQueueStats: (sum of all queues) ---> Output queue (Aqm = Active queue management) acceptByteCnt0 0 acceptFrameCnt0 0 acceptByteCnt1 6407742 acceptFrameCnt1 43070 acceptByteCnt2 39609 acceptFrameCnt2 395 dropByteCnt0 0 dropFrameCnt0 0 dropByteCnt1 0 dropFrameCnt1 0 dropByteCnt2 0 dropFrameCnt2 0 outOfSoftBufDropByteCnt 0 outOfSoftBufDropFrameCnt 0 maxQebDropByteCnt 0 maxQebDropFrameCnt 0 ============================================== For PBC for core 0: PbcIngressErrorDropCount: PbcEgressErrorDropCount: iCount 0 eS0Count 0 iCount 0 eS1Count 0 PbcCreditCount: PbcEnqFcErrorDropCount: creditCount 64 fCount 0 rwePbcStall 0 ============================================== For local/core 0 Switching: SqsCumulativeStatistics totalEnqStat 1368200 totalDeqStat 1368200 totalDropStat 0 SqsCumulativeStatisticsB totalEnqStat 173449513 totalDeqStat 173449513 totalDropStat 0 ============================================== For local/core 1 Switching: SqsCumulativeStatistics totalEnqStat 890114 totalDeqStat 890114 totalDropStat 0 SqsCumulativeStatisticsB totalEnqStat 105061923 totalDeqStat 105061923 totalDropStat 0 ============================================== For Sif 0 Switching: SifSifPbcCnt0: Count 81302675 SifSifPbcCnt1: Count 58187651 SifRacInsertedCnt: SifRacCopiedCnt: SifRacInsertedCnt[0] 2295051 SifRacCopiedCnt[0] 35850468 SifRacInsertedCnt[1] 1738892 SifRacCopiedCnt[1] 19265491 SifRacInsertedCnt[2] 1666479 SifRacCopiedCnt[2] 23814855 SifRacInsertedCnt[3] 2773364 SifRacCopiedCnt[3] 32727259 SifRacInsertedCnt[4] 3126116 SifRacCopiedCnt[4] 38376676 SifRacInsertedCnt[5] 2066567 SifRacCopiedCnt[5] 22176467 ============================================== For Sif 1 Switching: SifSifPbcCnt0: Count 40956521 SifSifPbcCnt1: Count 40956521 SifRacInsertedCnt: SifRacCopiedCnt: SifRacInsertedCnt[0] 11713808 SifRacCopiedCnt[0] 8615615 SifRacInsertedCnt[1] 8319576 SifRacCopiedCnt[1] 7489596 SifRacInsertedCnt[2] 8816344 SifRacCopiedCnt[2] 7608895 SifRacInsertedCnt[3] 15404080 SifRacCopiedCnt[3] 8717898 SifRacInsertedCnt[4] 16161715 SifRacCopiedCnt[4] 9685735 SifRacInsertedCnt[5] 9745420 SifRacCopiedCnt[5] 7866174
从管理引擎的角度检查前面板接口的流量控制状态。这有助于确定接口上是否存在拥塞。
C9400#show platform hardware cman fp active flowcontrol status
slot 1:Port 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 EsmF - - - - - - - - - - - - - - - - - - - - - - - - IqsC - - - - - - - - - - - - - - - - - - - - - - - - Port 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 EsmF - - - - - - - - - - - - - - - - - - - - - - - - IqsC - - - - - - - - - - - - - - - - - - - - - - - - slot 2: Port 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 EsmF - - - - - - - - - - - - - - - - - - - - - - - - IqsC - - - - - - - - - - - - - - - - - - - - - - - - Port 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 EsmF - - - - - - - - - - - - - - - - - - - - - - - - IqsC - - - - - - - - - - - - - - - - - - - - - - - - slot 3: Port 01 02 03 04 05 06 07 08 09 10 EsmF - - - - - - - - - - IqsC 01 - - - - - - - - - slot 4: Port 01 02 03 04 05 06 07 08 09 10 EsmF - - - - - - - - - - IqsC - - - - - - - - - - slot 5: Port 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 EsmF - - - - - - - - - - - - - - - - - - - - - - - - IqsC - - - - - - - - - - - - - - - - - - - - 01 - - - Port 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 EsmF - - - - - - - - - - - - - - - - - - - - - - - - IqsC - - - - - - - - - - - - - - - - - - - - - - - - slot 6: Possibly linecard is not inserted slot 7: Possibly linecard is not inserted
检查控制流量是否通过OCI接口在活动Supervisor上的Supervisor转发ASIC和线卡上的Line card stub ASIC之间从Supervisor转发ASIC角度流动。
C9400#show platform hardware cman fp active oci status
processing oci information:
chassis_type: 1
sup slot: 4
sup num oci ports: 8
slot_id 1 : oci_enable Enabled Link Status 0 (UP)
asic_id 1 core_id 0 oci_port 3 mac_id 0
NruRxByteGroupStats: rxBytes 417829462717812 NruTxByteGroupStats: txBytes 588911286106332
slot_id 2 : oci_enable Enabled Link Status 0 (UP)
asic_id 0 core_id 0 oci_port 1 mac_id 1
NruRxByteGroupStats: rxBytes 417938235716344 NruTxByteGroupStats: txBytes 588917607864892
slot_id 5 : oci_enable Enabled Link Status 0 (UP)
asic_id 1 core_id 0 oci_port 4 mac_id 1
NruRxByteGroupStats: rxBytes 53195855717244 NruTxByteGroupStats: txBytes 588915422236932
slot_id 6 : oci_enable Enabled Link Status 1 (DOWN)
asic_id 2 core_id 0 oci_port 6 mac_id 0
NruRxByteGroupStats: rxBytes 0 NruTxByteGroupStats: txBytes 0
slot_id 7 : oci_enable Enabled Link Status 1 (DOWN)
asic_id 0 core_id 0 oci_port 2 mac_id 2
NruRxByteGroupStats: rxBytes 0 NruTxByteGroupStats: txBytes 0
线卡统计信息-管理引擎到线卡数据路径
检查与特定前面板接口关联的线卡线卡末节ASIC统计信息。在本例中，重点介绍接口Gig1/0/13。
输出示例：
-
从Gig 1/0/13接收的数据包进入网络接口接收端口，然后通过IQS进入堆栈接口。
-
数据包从那里通过堆栈接口传到另一个Supervisor ASIC ，或者通过SQS、AQM、EQC、ESM、RWE返回，然后通过Gig 1/0/13的网络接口传输。
-
从Gig 1/0/13传出的其他Supervisor ASIC接口发送的数据包进入Sif，然后通过SQS、AQM、EQC、ESM和RWE，然后通过Gig 1/0/13的NifTx。
-
AQM有8个Tx队列。如果看到来自这些队列的丢包，可以使用此命令确定哪个队列发生丢包：show platform hardware fed active goes queue stats interface Gig 1/0/13
C9400#show platform hardware iomd 1/0 data-path 13 detail ----> slot 1, interface 13 lcportmap.xml: ---> Line Card (lc) ASIC instance 0 is associated with interface Gig1/0/13 id 13 asic 0 asicport 12 mac 23 contextid 12 intl_port_sup0 9 intl_port_sup1 1 maxspeed DEV_PORT_SPEED_1G asic_subport 4 fp_portmap.xml: ---> Supervisor ASIC 1, core 0 is associated with front panel (fp) interface Gig1/0/13 id 13 asic 1 core 0 port 12 mac 0 subport 4 contextid 0 maxspeed DEV_PORT_SPEED_1G gpn 113 active 1 data path:
slot 3 +--ACTIVE SUP--+ | | ---> Supervisor ASIC 1, core 0 on the slot 3 active Supervisor associated with interface Gig1/0/13 | ASIC 1 | | Core 0 | | Asic Port 12 | | | | (Mac 0) | |Nif_Rx NifTx| +--------------+ | | | | SLI MAC 9 | | +---------------+ | SLI_Tx SLI_Rx| ---> Line Card 1. The statistic output below is only for this Line card ASIC | | | ASIC 0 | | Asic Port 12 | | | | (Mac 23) | | NIF_Rx NIF_Tx| +---------------+ Front Port 1/0/13 ^ | | | | | | V ============================================== Nif MAC 23 Inforation: NifRxByteGroupStats: NifTxByteGroupStats: rxBytes 4457854 txBytes 6440428 NifRxByteDestinationGroupStats: NifTxByteDestinationGroupStats: rxUnicastBytes 1163684 txUnicastBytes 1164528 rxMulticastBytes 3294170 txMulticastBytes 5250491 rxBroadcastBytes 0 txBroadcastBytes 25409 NifRxPortStatusGroupStats: NifTxFrameDestinationGroupStats: rxUnicastFrames 18155 txUnicastFrames 18158 rxMulticastFrames 21235 txMulticastFrames 24625 rxBroadcastFrames 0 txBroadcastFrames 51 rxPauseFrames 0 txPauseFrames 0 rxCos0PauseFrames 0 txCos0PauseFrames 0 rxCos1PauseFrames 0 txCos1PauseFrames 0 rxCos2PauseFrames 0 txCos2PauseFrames 0 rxCos3PauseFrames 0 txCos3PauseFrames 0 rxCos4PauseFrames 0 txCos4PauseFrames 0 rxCos5PauseFrames 0 txCos5PauseFrames 0 rxCos6PauseFrames 0 txCos6PauseFrames 0 rxCos7PauseFrames 0 txCos7PauseFrames 0 rxOamProcessedFrames 0 txOamFrames 0 NifRxPortStatusGroupStats: NifTxPortStatusGroupStats: rxCollisionFragments 0 txLateCollisionFrames 0 rxFcsErrorFrames 0 txsystemFcsErrorFrames 0 rxInvalidOversizeFrames 0 txOversizeFrames 0 rxMacOverrunFrames 0 txMacUnderrunFrames 0 rxIpgViolationFrames 0 txDeferredFrames 0 rxOamDroppedFrames 0 txExcessiveDeferralFrames 0 rxSymbolErrorFrames 0 txOkMultipleCollisionFrames 0 rxValidOversizeFrames 0 txOkSingleCollisionFrames 0 rxValidUndersizeFrames 0 goldFramesTruncated 0 NifRxSizeGroupStats: NifTxSizeGroupStats: rx32768toMtuFrames 0 tx32768toMtuFrames 0 rx16384to32767ByteFrames 0 tx16384to32767ByteFrames 0 rx8192to16383ByteFrames 0 tx8192to16383ByteFrames 0 rx4096to8191ByteFrames 0 tx4096to8191ByteFrames 0 rx2048to4095ByteFrames 0 tx2048to4095ByteFrames 0 rx1519to2047ByteFrames 51 tx1519to2047ByteFrames 0 rx1024to1518ByteFrames 15 tx1024to1518ByteFrames 0 rx512to1023ByteFrames 17 tx512to1023ByteFrames 186 rx256to511ByteFrames 3374 tx256to511ByteFrames 9318 rx128to255ByteFrames 6505 tx128to255ByteFrames 6518 rx65to127ByteFrames 11237 tx65to127ByteFrames 8526 rx64ByteFrames 18191 tx64ByteFrames 18286 ============================================== ----------------------------------------------------> Input queue (Igr = Ingress) IgrPacketCounters: EgrPacketCounters: packetsIn 97078 packetsIn 576307 packetsOut 97078 packetsEnqueueFcd_val 0 packetsDropped 0 packetsMarkedForDrop 0 fpsSourcedPadErrorCount 0 padErrorPacketsIn 0 igrSourcedPadErrorCount 0 padErrorPacketsOut 0 ============================================== For aqmRedQueueStats for asic port 12: AqmRedQueueStats: (sum of all queues) ---> Output queue (Agm = Active queue management) acceptByteCnt0 0 acceptFrameCnt0 0 acceptByteCnt1 0 acceptFrameCnt1 0 acceptByteCnt2 6440428 acceptFrameCnt2 42834 dropByteCnt0 0 dropFrameCnt0 0 dropByteCnt1 0 dropFrameCnt1 0 dropByteCnt2 0 dropFrameCnt2 0 outOfSoftBufDropByteCnt 0 outOfSoftBufDropFrameCnt 0 maxQebDropByteCnt 0 maxQebDropFrameCnt 0 ============================================== SLI MAC 9 - SUP 0: ( an ACTIVE sup in slot 3 ) SliTxByteGroupStats: SliRxByteGroupStats: txBytes 4457854 rxBytes 6440428 SLI MAC 1 - SUP 1: SliTxByteGroupStats: SliRxByteGroupStats: txBytes 0 rxBytes 0
从线卡角度检查前面板接口的流量控制状态。这有助于识别接口上的任何拥塞。
- 如果没有流量控制，则值为“-”，否则表示经历流量控制（拥塞）的队列编号。
- 接口接收的流控制从线卡上的线卡ASIC传递到Supervisor上的Supervisor ASIC，其中AQM丢弃通常在Supervisor Supervisor ASIC上可见。OCI（带外控制接口）是线卡和主用管理引擎之间的内部通信通道，用于将流量控制从线卡发送到管理引擎。
C9400#show platform hardware iomd 1/0 flowcontrol status ---> slot 1
Slot 1 - number of ports 48
slot 1: Port 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
IsmF - - - - - - - - - - - - - - - - - - - - - - - -
IqmC - - - - - - - - - - - - - - - - - - - - - - - -
Port 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
IsmF - - - - - - - - - - - - - - - - - - - - - - - -
IqmC - - - - - - - - - - - - - - - - - - - - - - - -
检查控制流量是否通过OCI接口从线路卡末节ASIC角度在线路卡上的线路卡末节ASIC与活动和备用Supervisor上的Supervisor转发ASIC之间流动。
- OCI =带外控制接口=线卡与主用和备用管理引擎之间的内部通信通道
C9400#show platform hardware iomd 1/0 oci status ---> slot 1 Asic 0, Mac 10, Tx OCI Config 0, OCI Merge FALSE, OCI Enabled, Link Status 0 (UP) Network Port Range 0---47, Local Port Range 0---47 NifRxByteGroupStats: rxBytes 177402572782108 NifTxByteGroupStats: txBytes 141925777717156 Asic 0, Mac 11, Tx OCI Config 0, OCI Merge FALSE, OCI Enabled, Link Status 0 (UP) Network Port Range 0---47, Local Port Range 0---47 NifRxByteGroupStats: rxBytes 963489284 NifTxByteGroupStats: txBytes 770809988
检查线卡上的哪些接口属于同一个端口组，该端口组共享从线卡上的线卡末节ASIC到活动Supervisor上的Supervisor转发ASIC的8 Gbps带宽。每个端口组与线路卡末节ASIC上指向管理引擎的一个SLI（系统链路接口）关联。
C9400#show platform hardware iomd 1/0 portgroups ---> slot 1
Port Interface Status Interface Group Max <-- aggregate bandwidth for 8 ports
Group Bandwith Bandwidth 1 TenGigabitEthernet1/0/1 up 1G 1 TenGigabitEthernet1/0/2 down 1G 1 TenGigabitEthernet1/0/3 admindown 1G 1 TenGigabitEthernet1/0/4 down 1G 1 TenGigabitEthernet1/0/5 down 1G 8G 1 TenGigabitEthernet1/0/6 down 1G 1 TenGigabitEthernet1/0/7 down 1G 1 TenGigabitEthernet1/0/8 down 1G 2 TenGigabitEthernet1/0/9 down 1G 2 TenGigabitEthernet1/0/10 down 1G 2 TenGigabitEthernet1/0/11 down 1G 2 TenGigabitEthernet1/0/12 down 1G 2 TenGigabitEthernet1/0/13 up 1G 8G 2 TenGigabitEthernet1/0/14 down 1G 2 TenGigabitEthernet1/0/15 down 1G 2 TenGigabitEthernet1/0/16 down 1G 3 TenGigabitEthernet1/0/17 down 1G 3 TenGigabitEthernet1/0/18 down 1G 3 TenGigabitEthernet1/0/19 down 1G 3 TenGigabitEthernet1/0/20 down 1G 3 TenGigabitEthernet1/0/21 down 1G 8G 3 TenGigabitEthernet1/0/22 down 1G 3 TenGigabitEthernet1/0/23 down 1G 3 TenGigabitEthernet1/0/24 down 1G 4 TenGigabitEthernet1/0/25 down 1G 4 TenGigabitEthernet1/0/26 down 1G 4 TenGigabitEthernet1/0/27 down 1G 4 TenGigabitEthernet1/0/28 down 1G 4 TenGigabitEthernet1/0/29 down 1G 8G 4 TenGigabitEthernet1/0/30 down 1G 4 TenGigabitEthernet1/0/31 down 1G 4 TenGigabitEthernet1/0/32 down 1G 5 TenGigabitEthernet1/0/33 down 1G 5 TenGigabitEthernet1/0/34 down 1G 5 TenGigabitEthernet1/0/35 down 1G 5 TenGigabitEthernet1/0/36 down 1G 5 TenGigabitEthernet1/0/37 down 1G 8G 5 TenGigabitEthernet1/0/38 down 1G 5 TenGigabitEthernet1/0/39 down 1G 5 TenGigabitEthernet1/0/40 down 1G 6 TenGigabitEthernet1/0/41 down 1G 6 TenGigabitEthernet1/0/42 down 1G 6 TenGigabitEthernet1/0/43 down 1G 6 TenGigabitEthernet1/0/44 down 1G 6 TenGigabitEthernet1/0/45 down 1G 8G 6 TenGigabitEthernet1/0/46 down 1G 6 TenGigabitEthernet1/0/47 down 1G 6 TenGigabitEthernet1/0/48 up 1G
修订历史记录
| 版本 | 发布日期 | 备注 |
|---|---|---|
1.0 |
22-Jun-2022 |
初始版本 |
反馈
