注意：本文档使用Microsoft Windows 2003 Server作为方案的CA服务器。

注意：有关如何将Windows 2003 Server配置为CA的完整信息，请参阅在Windows服务器上配置CA。

使用的组件

本文档中的信息基于以下软件和硬件版本：

运行软件版本 8.0(2) 和 ASDM 版本 6.0(2) 的 ASA 5510
运行软件版本 4.x 及更高版本的 VPN Client

本文档中的信息都是基于特定实验室环境中的设备编写的。本文档中使用的所有设备最初均采用原始（默认）配置。如果您使用的是真实网络，请确保您已经了解所有命令的潜在影响。

ASA 配置
ASA 配置概要
VPN 客户端配置

ASA 配置

要在 ASA 上安装第三方供应商数字证书，请执行下列步骤：

步骤1:验证Date、Time和Time Zone值是否准确
第二步：生成证书签名请求
第三步：验证信任点
第四步：安装证书
第五步：配置远程访问VPN (IPSec)以使用新安装的证书

步骤1:验证Date、Time和Time Zone值是否准确

ASDM 步骤

单击 Configuration，然后单击 Device Setup。
展开 System Time，然后选择 Clock。
验证列出的信息是否准确。

要正确通过证书验证，Date、Time 和 Time Zone 值必须准确。

命令行示例

CiscoASA
CiscoASA#show clock 05:37:37.904 UTC Fri Dec 21 2007

第二步：生成证书签名请求

要让第三方 CA 发放身份证书，需要提供证书签名请求 (CSR)。CSR 包含 ASA 的可分辨名称 (DN) 字符串与 ASA 的已生成公钥。ASA 将使用生成的私钥对 CSR 进行数字签名。

ASDM 步骤

单击 Configuration，然后单击 Device Management。
展开 Certificate Management，然后选择 Identity Certificates。
单击 Add。
单击 Add a new identity certificate 单选按钮。
对于 Key Pair，单击 New。
单击 Enter new key pair name 单选按钮。您必须明确指出密钥对名称以进行识别。
单击 Generate Now。

这将立即创建密钥对。

要定义 Certificate Subject DN，请单击 Select，然后配置下表中列出的属性：

属性	描述
CN	将用于连接防火墙的完全限定域名 (FQDN)。例如：CiscoASA.cisco.com
OU	部门名称
O	公司名称（请避免使用特殊字符）
C	国家/地区代码（不带标点的 2 位字母代码）
圣	州/省（必须拼写完整，例如：北卡罗来纳州）
L	城市

要配置这些值，可以从 Attribute 下拉列表中选择值或输入值，然后单击 Add。

注意：某些第三方供应商要求在颁发身份证书之前包含特定属性。如果不确定需要提供什么属性，请与您的供应商联系以了解详细信息。

添加相应的值之后，单击 OK。

将会出现 Add Identity Certificate 对话框，并显示已填入的 Certificate Subject DN。
单击 Advanced。
在 FQDN 字段中，输入要用于从 Internet 访问设备的 FQDN。

此值必须与用于公用名称 (CN) 的 FQDN 相同。
单击 OK，然后单击 Add Certificate。

系统会提示您将 CSR 保存到本地计算机上的文件中。
单击 Browse，选择用于保存 CSR 的位置，然后使用 .txt 扩展名保存文件。

注意：以.txt扩展名保存文件时，可以使用文本编辑器（如记事本）打开文件并查看PKCS#10请求。
将保存的 CSR 提交到第三方供应商（例如 Microsoft CA），如下所示。
1. 使用为 vpnserver 提供的用户凭证通过 Web 登录到 CA 服务器 172.16.5.1。

  注意：请确保您具有用于ASA （vpn服务器）的用户帐户和CA服务器。
2. 单击 Request a certificate > advanced certificate request，然后选择 Submit a certificate request by using a base-64-encoded CMC or PKCS#10 file or submit a renewal request by using a base-64-encoded PKCS#7 file。
3. 复制编码信息，并将其粘贴到 Saved Request 框中，然后单击 Submit。
4. 单击 Base 64 encoded 单选按钮，然后单击 Download certificate。
5. 将会出现 File Download 窗口。使用文件名 cert_client_id.cer 保存文件，这是要安装在 ASA 上的身份证书。

命令行示例

CiscoASA
CiscoASA# configure terminal CiscoASA(config)#crypto key generate rsa label my.ca.key modulus 1024 !--- Generates 1024 bit RSA key pair. "label" defines the name of the Key Pair. INFO: The name for the keys will be: my.CA.key Keypair generation process begin. Please wait... ciscoasa(config)#crypto ca trustpoint CA1 ciscoasa(config-ca-trustpoint)# subject-name CN=CiscoASA.cisco.com,OU=TSWEB, O=Cisco Systems,C=US,St=North Carolina,L=Raleigh !--- Defines x.500 distinguished name. Use the attributes defined in table as a guide. CiscoASA(config-ca-trustpoint)#keypair my.CA.key !--- Specifies key pair generated in Step 3 CiscoASA(config-ca-trustpoint)#fqdn CiscoASA.cisco.com !--- Specifies the FQDN (DNS:) to be used as the subject alternative name CiscoASA(config-ca-trustpoint)#enrollment terminal !--- Specifies manual enrollment. CiscoASA(config-ca-trustpoint)#exit CiscoASA(config)#crypto ca enroll CA1 !--- Initiates certificate signing request. This is the request to be !--- submitted via Web or Email to the third party vendor. % Start certificate enrollment .. % The subject name in the certificate will be: cn=CiscoASA.cisco.com OU=TSWEB, O=Cisco Systems, C=US,St=North Carolina,L=Raleigh % The fully-qualified domain name in the certificate will be: CiscoASA.cisco.com % Include the device serial number in the subject name? [yes/no]: no !--- Do not include the device's serial number in the subject. Display Certificate Request to terminal? [yes/no]: y !--- Displays the PKCS#10 enrollment request to the terminal. You will need to !--- copy this from the terminal to a text file or web text field to submit to !--- the third party CA. Certificate Request follows: MIICKzCCAZQCAQAwga0xEDAOBgNVBAcTB1JhbGVpZ2gxFzAVBgNVBAgTDk5vcnRo IENhcm9saW5hMQswCQYDVQQGEwJVUzEWMBQGA1UEChMNQ2lzY28gU3lzdGVtczEk MCIGA1UEAxMbQ2lzY29BU0EuY2lzY28uY29tIE9VPVRTV0VCMTUwEgYDVQQFEwtK TVgwOTM1SzA1NDAfBgkqhkiG9w0BCQIWEkNpc2NvQVNBLmNpc2NvLmNvbTCBnzAN BgkqhkiG9w0BAQEFAAOBjQAwgYkCgYEAuOIKqDMjVrdbZgBzUAjTc10jxSlbkkcr XgKoH2PcelcGZ9dUXn+Y09Qjm0Krj68L6KXTlPgNAaFMwB2YsTIOn+hJBVq5Sxjv MI6xLyKrGo7bOPAsLPeOBxl/LVLTy3ORqcyy2QP3Ir1BSwoyBaoFPsReJGSAYG+O QX8Jp6qcZE0CAwEAAaA9MDsGCSqGSIb3DQEJDjEuMCwwCwYDVR0PBAQDAgWgMB0G A1UdEQQWMBSCEkNpc2NvQVNBLmNpc2NvLmNvbTANBgkqhkiG9w0BAQQFAAOBgQBM 3tzyAD7o6R5ej9EW7Ej4BfcXd20LCbXAoP5LlKbPaEeaCkfN/Pp5mATAsG832TBm bsxSvljSSXQsQlSb842D6MEG6cu7Bxj/KlZ6MxafUvCHrOPYWVU1wgRJGh+ndCZK j89/Y4S8XhQ79fvBWbR8Ux9emhFHpGHnQ/MpSfU0dQ== ---End - This line not part of the certificate request--- Redisplay enrollment request? [yes/no]: n CiscoASA(config)#

CiscoASA

CiscoASA# configure terminal

CiscoASA(config)#crypto key generate rsa label my.ca.key modulus 1024



!--- Generates 1024 bit RSA key pair. "label" defines the name of the Key Pair.

INFO: The name for the keys will be: my.CA.key
Keypair generation process begin. Please wait...
ciscoasa(config)#crypto ca trustpoint CA1
ciscoasa(config-ca-trustpoint)# subject-name CN=CiscoASA.cisco.com,OU=TSWEB,
                                O=Cisco Systems,C=US,St=North Carolina,L=Raleigh


!--- Defines x.500 distinguished name. Use the attributes defined in table as a guide.


CiscoASA(config-ca-trustpoint)#keypair my.CA.key


!--- Specifies key pair generated in Step 3


CiscoASA(config-ca-trustpoint)#fqdn CiscoASA.cisco.com


!--- Specifies the FQDN (DNS:) to be used as the subject alternative name


CiscoASA(config-ca-trustpoint)#enrollment terminal


!--- Specifies manual enrollment.


CiscoASA(config-ca-trustpoint)#exit
CiscoASA(config)#crypto ca enroll CA1

!--- Initiates certificate signing request. This is the request to be !--- submitted via Web or Email to the third party vendor.


% Start certificate enrollment ..
% The subject name in the certificate will be: cn=CiscoASA.cisco.com OU=TSWEB,
 O=Cisco Systems, C=US,St=North Carolina,L=Raleigh

% The fully-qualified domain name in the certificate will be: CiscoASA.cisco.com
% Include the device serial number in the subject name? [yes/no]: no

!--- Do not include the device's serial number in the subject.


Display Certificate Request to terminal? [yes/no]: y

!--- Displays the PKCS#10 enrollment request to the terminal. You will need to !--- copy this from the terminal to a text file or web text field to submit to !--- the third party CA.

Certificate Request follows:

MIICKzCCAZQCAQAwga0xEDAOBgNVBAcTB1JhbGVpZ2gxFzAVBgNVBAgTDk5vcnRo
IENhcm9saW5hMQswCQYDVQQGEwJVUzEWMBQGA1UEChMNQ2lzY28gU3lzdGVtczEk
MCIGA1UEAxMbQ2lzY29BU0EuY2lzY28uY29tIE9VPVRTV0VCMTUwEgYDVQQFEwtK
TVgwOTM1SzA1NDAfBgkqhkiG9w0BCQIWEkNpc2NvQVNBLmNpc2NvLmNvbTCBnzAN
BgkqhkiG9w0BAQEFAAOBjQAwgYkCgYEAuOIKqDMjVrdbZgBzUAjTc10jxSlbkkcr
XgKoH2PcelcGZ9dUXn+Y09Qjm0Krj68L6KXTlPgNAaFMwB2YsTIOn+hJBVq5Sxjv
MI6xLyKrGo7bOPAsLPeOBxl/LVLTy3ORqcyy2QP3Ir1BSwoyBaoFPsReJGSAYG+O
QX8Jp6qcZE0CAwEAAaA9MDsGCSqGSIb3DQEJDjEuMCwwCwYDVR0PBAQDAgWgMB0G
A1UdEQQWMBSCEkNpc2NvQVNBLmNpc2NvLmNvbTANBgkqhkiG9w0BAQQFAAOBgQBM
3tzyAD7o6R5ej9EW7Ej4BfcXd20LCbXAoP5LlKbPaEeaCkfN/Pp5mATAsG832TBm
bsxSvljSSXQsQlSb842D6MEG6cu7Bxj/KlZ6MxafUvCHrOPYWVU1wgRJGh+ndCZK
j89/Y4S8XhQ79fvBWbR8Ux9emhFHpGHnQ/MpSfU0dQ==

---End - This line not part of the certificate request---

Redisplay enrollment request? [yes/no]: n
CiscoASA(config)#

第三步：验证信任点

从第三方供应商处收到身份证书后，您可以继续执行此步骤。

ASDM 步骤

将身份证书保存到本地计算机中。
如果您收到的是非文件形式的 base64 加密证书，则您必须复制此 base64 信息，并将其粘贴到文本文件中。
将文件扩展名改为 .cer

注意：使用.cer扩展名重命名文件后，文件图标将显示为证书，如下所示。
双击此证书文件。

注意：如果General选项卡中显示Windows does not have enough information to verify this certificate消息，则在继续执行此步骤之前，您必须获取第三方供应商的根CA或中间CA证书。请与第三方供应商或 CA 管理员联系，以获得其发放的根 CA 或中间 CA 证书。
单击 Certificate Path 选项卡。
单击与所发放的身份证书关联的 CA 证书，然后单击 View Certificate。

将会出现 CA 证书的详细信息。
单击 Details 以查看身份证书的详细信息。
在安装身份证书之前，您必须从 CA 服务器中下载 CA 证书，并将其安装到 ASA 中，如下所示。

要从名为 CA1 的 CA 服务器中下载 CA 证书，请执行下列步骤。
1. 使用为 VPN 服务器提供的凭证通过 Web 登录到 CA 服务器 172.16.5.1。
2. 单击 Download a CA certificate, certificate chain or CRL 以打开如下所示的窗口。单击 Base64 单选按钮以选择其作为编码方法，然后单击 Download CA certificate。
3. 使用文件名 certnew.cer 将 CA 证书保存到计算机中。
浏览到 CA 证书的保存位置。
使用文本编辑器打开文件，例如记事本。右键单击文件，然后选择 Send To > Notepad。
将会显示类似于下图中证书的 base64 编码信息：
在 ASDM 中，单击 Configuration，然后单击 Device Management。
展开 Certificate Management，然后选择 CA Certificates。
单击 Add。
单击 Paste certificate in PEM Format 单选按钮，然后将第三方供应商提供的 base64 CA 证书粘贴到文本字段中。
单击 Install Certificate。

将会出现一个确认安装成功的对话框。

命令行示例

CiscoASA
CiscoASA(config)#crypto ca authenticate CA1 !--- Initiates the prompt for paste-in of base64 CA intermediate certificate. ! This should be provided by the third party vendor. Enter the base 64 encoded CA certificate. End with the word "quit" on a line by itself -----BEGIN CERTIFICATE----- MIIEnTCCA4WgAwIBAgIQcJnxmUdk4JxGUdqAoWt0nDANBgkqhkiG9w0BAQUFADBR MRMwEQYKCZImiZPyLGQBGRYDY29tMRUwEwYKCZImiZPyLGQBGRYFY2lzY28xFTAT BgoJkiaJk/IsZAEZFgVUU1dlYjEMMAoGA1UEAxMDQ0ExMB4XDTA3MTIxNDA2MDE0 M1oXDTEyMTIxNDA2MTAxNVowUTETMBEGCgmSJomT8ixkARkWA2NvbTEVMBMGCgmS JomT8ixkARkWBWNpc2NvMRUwEwYKCZImiZPyLGQBGRYFVFNXZWIxDDAKBgNVBAMT A0NBMTCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBAOqP7seuVvyiLmA9 BSGzMz3sCtR9TCMWOx7qM8mmiD0o7OkGApAvmtHrK431iMuaeKBpo5Zd4TNgNtjX bt6czaHpBuyIsyoZOOU1PmwAMuiMAD+mL9IqTbndosJfy7Yhh2vWeMijcQnwdOq+ Kx+sWaeNCjs1rxeuaHpIBTuaNOckueBUBjxgpJuNPAk1G8YwBfaTV4M7kZf4dbQI y3GoFGmh8zGx6ys1DEaUQxRVwhDbMIvwqYBXWKh4uC04xxQmr//Sct1tdWQcvk2V uBwCsptW7C1akTqfm5XK/d//z2eUuXrHYySQCfoFyk1vE6/Qlo+fQeSSz+TlDhXx wPXRO18CAwEAAaOCAW8wggFrMBMGCSsGAQQBgjcUAgQGHgQAQwBBMAsGA1UdDwQE AwIBhjAPBgNVHRMBAf8EBTADAQH/MB0GA1UdDgQWBBTZrb8I8jqI8RRDL3mYfNQJ pAPlWDCCAQMGA1UdHwSB+zCB+DCB9aCB8qCB74aBtWxkYXA6Ly8vQ049Q0ExLENO PVRTLVcySzMtQUNTLENOPUNEUCxDTj1QdWJsaWMlMjBLZXklMjBTZXJ2aWNlcyxD Tj1TZXJ2aWNlcyxDTj1Db25maWd1cmF0aW9uLERDPVRTV2ViLERDPWNpc2NvLERD PWNvbT9jZXJ0aWZpY2F0ZVJldm9jYXRpb25MaXN0P2Jhc2U/b2JqZWN0Q2xhc3M9 Y1JMRGlzdHJpYnV0aW9uUG9pbnSGNWh0dHA6Ly90cy13MmszLWFjcy50c3dlYi5j aXNjby5jb20vQ2VydEVucm9sbC9DQTEuY3JsMBAGCSsGAQQBgjcVAQQDAgEAMA0G CSqGSIb3DQEBBQUAA4IBAQAavFpAsyESItqA+7sii/5L+KUV34/DoE4MicbXJeKr L6Z86JGW1Rbf5VYnlTrqRy6HEolrdU6cHgHUCD9/BZWAgfmGUm++HMljnW8liyIF DcNwxlQxsDT+n9YOk6bnG6uOf4SgETNrN8EyYVrSGKOlE+OC5L+ytJvw19GZhlzE lOVUfPA+PT47dmAR6Uo2V2zDW5KGAVLU8GsrFd8wZDPBvMKCgFWNcNItcufu0xlb 1XXc68DKoZY09pPq877uTaou8cLtuiiPOmeOyzgJ0N+xaZx2EwGPn149zpXv5tqT 9Ms7ABAu+pRIoi/EfjQgMSQGFl457cIH7dxlVD+p85at -----END CERTIFICATE----- quit !--- Manually pasted certificate into CLI. INFO: Certificate has the following attributes: Fingerprint: 98d66001 f65d98a2 b455fbce d672c24a Do you accept this certificate? [yes/no]: yes Trustpoint CA certificate accepted. % Certificate successfully imported CiscoASA(config)#

CiscoASA

CiscoASA(config)#crypto ca authenticate CA1

!--- Initiates the prompt for paste-in of base64 CA intermediate certificate. ! This should be provided by the third party vendor.


Enter the base 64 encoded CA certificate.
End with the word "quit" on a line by itself
-----BEGIN CERTIFICATE-----
MIIEnTCCA4WgAwIBAgIQcJnxmUdk4JxGUdqAoWt0nDANBgkqhkiG9w0BAQUFADBR
MRMwEQYKCZImiZPyLGQBGRYDY29tMRUwEwYKCZImiZPyLGQBGRYFY2lzY28xFTAT
BgoJkiaJk/IsZAEZFgVUU1dlYjEMMAoGA1UEAxMDQ0ExMB4XDTA3MTIxNDA2MDE0
M1oXDTEyMTIxNDA2MTAxNVowUTETMBEGCgmSJomT8ixkARkWA2NvbTEVMBMGCgmS
JomT8ixkARkWBWNpc2NvMRUwEwYKCZImiZPyLGQBGRYFVFNXZWIxDDAKBgNVBAMT
A0NBMTCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBAOqP7seuVvyiLmA9
BSGzMz3sCtR9TCMWOx7qM8mmiD0o7OkGApAvmtHrK431iMuaeKBpo5Zd4TNgNtjX
bt6czaHpBuyIsyoZOOU1PmwAMuiMAD+mL9IqTbndosJfy7Yhh2vWeMijcQnwdOq+
Kx+sWaeNCjs1rxeuaHpIBTuaNOckueBUBjxgpJuNPAk1G8YwBfaTV4M7kZf4dbQI
y3GoFGmh8zGx6ys1DEaUQxRVwhDbMIvwqYBXWKh4uC04xxQmr//Sct1tdWQcvk2V
uBwCsptW7C1akTqfm5XK/d//z2eUuXrHYySQCfoFyk1vE6/Qlo+fQeSSz+TlDhXx
wPXRO18CAwEAAaOCAW8wggFrMBMGCSsGAQQBgjcUAgQGHgQAQwBBMAsGA1UdDwQE
AwIBhjAPBgNVHRMBAf8EBTADAQH/MB0GA1UdDgQWBBTZrb8I8jqI8RRDL3mYfNQJ
pAPlWDCCAQMGA1UdHwSB+zCB+DCB9aCB8qCB74aBtWxkYXA6Ly8vQ049Q0ExLENO
PVRTLVcySzMtQUNTLENOPUNEUCxDTj1QdWJsaWMlMjBLZXklMjBTZXJ2aWNlcyxD
Tj1TZXJ2aWNlcyxDTj1Db25maWd1cmF0aW9uLERDPVRTV2ViLERDPWNpc2NvLERD
PWNvbT9jZXJ0aWZpY2F0ZVJldm9jYXRpb25MaXN0P2Jhc2U/b2JqZWN0Q2xhc3M9
Y1JMRGlzdHJpYnV0aW9uUG9pbnSGNWh0dHA6Ly90cy13MmszLWFjcy50c3dlYi5j
aXNjby5jb20vQ2VydEVucm9sbC9DQTEuY3JsMBAGCSsGAQQBgjcVAQQDAgEAMA0G
CSqGSIb3DQEBBQUAA4IBAQAavFpAsyESItqA+7sii/5L+KUV34/DoE4MicbXJeKr
L6Z86JGW1Rbf5VYnlTrqRy6HEolrdU6cHgHUCD9/BZWAgfmGUm++HMljnW8liyIF
DcNwxlQxsDT+n9YOk6bnG6uOf4SgETNrN8EyYVrSGKOlE+OC5L+ytJvw19GZhlzE
lOVUfPA+PT47dmAR6Uo2V2zDW5KGAVLU8GsrFd8wZDPBvMKCgFWNcNItcufu0xlb
1XXc68DKoZY09pPq877uTaou8cLtuiiPOmeOyzgJ0N+xaZx2EwGPn149zpXv5tqT
9Ms7ABAu+pRIoi/EfjQgMSQGFl457cIH7dxlVD+p85at
-----END CERTIFICATE-----
quit

!--- Manually pasted certificate into CLI.


INFO: Certificate has the following attributes:
Fingerprint:     98d66001 f65d98a2 b455fbce d672c24a
Do you accept this certificate? [yes/no]: yes
Trustpoint CA certificate accepted.

% Certificate successfully imported
CiscoASA(config)#

第四步：安装证书

ASDM 步骤

使用第三方供应商提供的身份证书执行下列步骤：

单击 Configuration，然后单击 Device Management。
展开 Certificate Management，然后选择 Identity Certificates。
选择在第 2 步中创建的身份证书。

注意：Expiry Date显示为Pending。
单击 Install。

单击 Paste the certificate data in base-64 format 单选按钮，然后将第三方供应商提供的身份证书粘贴到文本字段中。
单击 Install Certificate。

将会出现一个确认导入成功的对话框。

命令行示例

CiscoASA
CiscoASA(config)#crypto ca import CA1 certificate !--- Initiates prompt to paste the base64 identity !--- certificate provided by the third party vendor. %The fully-qualified domain name in the certificate will be: CiscoASA.cisco.com Enter the base 64 encoded certificate. End with the word "quit" on a line by itself !--- Paste the base 64 certificate provided by the third party vendor. -----BEGIN CERTIFICATE----- MIIFpzCCBI+gAwIBAgIKYR7lmwAAAAAABzANBgkqhkiG9w0BAQUFADBRMRMwEQYK CZImiZPyLGQBGRYDY29tMRUwEwYKCZImiZPyLGQBGRYFY2lzY28xFTATBgoJkiaJ k/IsZAEZFgVUU1dlYjEMMAoGA1UEAxMDQ0ExMB4XDTA3MTIxNTA4MzUzOVoXDTA5 MTIxNDA4MzUzOVowdjELMAkGA1UEBhMCVVMxFzAVBgNVBAgTDk5vcnRoIENhcm9s aW5hMRAwDgYDVQQHEwdSYWxlaWdoMRYwFAYDVQQKEw1DaXNjbyBTeXN0ZW1zMSQw IgYDVQQDExtDaXNjb0FTQS5jaXNjby5jb20gT1U9VFNXRUIwgZ8wDQYJKoZIhvcN AQEBBQADgY0AMIGJAoGBALjiCqgzI1a3W2YAc1AI03NdI8UpW5JHK14CqB9j3HpX BmfXVF5/mNPUI5tCq4+vC+il05T4DQGhTMAdmLEyDp/oSQVauUsY7zCOsS8iqxqO 2zjwLCz3jgcZfy1S08tzkanMstkD9yK9QUsKMgWqBT7EXiRkgGBvjkF/CaeqnGRN AgMBAAGjggLeMIIC2jALBgNVHQ8EBAMCBaAwHQYDVR0RBBYwFIISQ2lzY29BU0Eu Y2lzY28uY29tMB0GA1UdDgQWBBQsJC3bSQzeGv4tY+MeH7KMl0xCFjAfBgNVHSME GDAWgBTZrb8I8jqI8RRDL3mYfNQJpAPlWDCCAQMGA1UdHwSB+zCB+DCB9aCB8qCB 74aBtWxkYXA6Ly8vQ049Q0ExLENOPVRTLVcySzMtQUNTLENOPUNEUCxDTj1QdWJs aWMlMjBLZXklMjBTZXJ2aWNlcyxDTj1TZXJ2aWNlcyxDTj1Db25maWd1cmF0aW9u LERDPVRTV2ViLERDPWNpc2NvLERDPWNvbT9jZXJ0aWZpY2F0ZVJldm9jYXRpb25M aXN0P2Jhc2U/b2JqZWN0Q2xhc3M9Y1JMRGlzdHJpYnV0aW9uUG9pbnSGNWh0dHA6 Ly90cy13MmszLWFjcy50c3dlYi5jaXNjby5jb20vQ2VydEVucm9sbC9DQTEuY3Js MIIBHQYIKwYBBQUHAQEEggEPMIIBCzCBqQYIKwYBBQUHMAKGgZxsZGFwOi8vL0NO PUNBMSxDTj1BSUEsQ049UHVibGljJTIwS2V5JTIwU2VydmljZXMsQ049U2Vydmlj ZXMsQ049Q29uZmlndXJhdGlvbixEQz1UU1dlYixEQz1jaXNjbyxEQz1jb20/Y0FD ZXJ0aWZpY2F0ZT9iYXNlP29iamVjdENsYXNzPWNlcnRpZmljYXRpb25BdXRob3Jp dHkwXQYIKwYBBQUHMAKGUWh0dHA6Ly90cy13MmszLWFjcy50c3dlYi5jaXNjby5j b20vQ2VydEVucm9sbC9UUy1XMkszLUFDUy5UU1dlYi5jaXNjby5jb21fQ0ExLmNy dDAhBgkrBgEEAYI3FAIEFB4SAFcAZQBiAFMAZQByAHYAZQByMAwGA1UdEwEB/wQC MAAwEwYDVR0lBAwwCgYIKwYBBQUHAwEwDQYJKoZIhvcNAQEFBQADggEBAIqCaA9G +8h+3IS8RfVAGzcWAEVRXCyBlx0NpR/jlocGJ7QbQxkjKEswXq/O2xDB7wXQaGph zRq4dxALll1JkIjhfeQY+7VSkZlGEpuBnENTohdhthz5vBjGlcROXIs8+3Ghg8hy YZZEM73e8EC0sEMedFb+KYpAFy3PPy4l8EHe4MJbdjUp/b90l5l6IzQP5l51YB0y NSLsYWqjkCBg+aUO+WPFk4jICr2XUOK74oWTPFNpfv2x4VFI/Mpcs87ychngKB+8 rPHChSsZsw9upzPEH2L/O34wm/dpuLuHirrwWnF1zCnqfcyHcETieZtSt1nwLpsc lL5nuPsd8MaexBc= -----END CERTIFICATE----- quit INFO: Certificate successfully imported CiscoASA(config)#

CiscoASA

CiscoASA(config)#crypto ca import CA1 certificate


!--- Initiates prompt to paste the base64 identity !--- certificate provided by the third party vendor.


%The fully-qualified domain name in the certificate will be: CiscoASA.cisco.com


Enter the base 64 encoded certificate.
End with the word "quit" on a line by itself


!--- Paste the base 64 certificate provided by the third party vendor.


-----BEGIN CERTIFICATE-----
MIIFpzCCBI+gAwIBAgIKYR7lmwAAAAAABzANBgkqhkiG9w0BAQUFADBRMRMwEQYK
CZImiZPyLGQBGRYDY29tMRUwEwYKCZImiZPyLGQBGRYFY2lzY28xFTATBgoJkiaJ
k/IsZAEZFgVUU1dlYjEMMAoGA1UEAxMDQ0ExMB4XDTA3MTIxNTA4MzUzOVoXDTA5
MTIxNDA4MzUzOVowdjELMAkGA1UEBhMCVVMxFzAVBgNVBAgTDk5vcnRoIENhcm9s
aW5hMRAwDgYDVQQHEwdSYWxlaWdoMRYwFAYDVQQKEw1DaXNjbyBTeXN0ZW1zMSQw
IgYDVQQDExtDaXNjb0FTQS5jaXNjby5jb20gT1U9VFNXRUIwgZ8wDQYJKoZIhvcN
AQEBBQADgY0AMIGJAoGBALjiCqgzI1a3W2YAc1AI03NdI8UpW5JHK14CqB9j3HpX
BmfXVF5/mNPUI5tCq4+vC+il05T4DQGhTMAdmLEyDp/oSQVauUsY7zCOsS8iqxqO
2zjwLCz3jgcZfy1S08tzkanMstkD9yK9QUsKMgWqBT7EXiRkgGBvjkF/CaeqnGRN
AgMBAAGjggLeMIIC2jALBgNVHQ8EBAMCBaAwHQYDVR0RBBYwFIISQ2lzY29BU0Eu
Y2lzY28uY29tMB0GA1UdDgQWBBQsJC3bSQzeGv4tY+MeH7KMl0xCFjAfBgNVHSME
GDAWgBTZrb8I8jqI8RRDL3mYfNQJpAPlWDCCAQMGA1UdHwSB+zCB+DCB9aCB8qCB
74aBtWxkYXA6Ly8vQ049Q0ExLENOPVRTLVcySzMtQUNTLENOPUNEUCxDTj1QdWJs
aWMlMjBLZXklMjBTZXJ2aWNlcyxDTj1TZXJ2aWNlcyxDTj1Db25maWd1cmF0aW9u
LERDPVRTV2ViLERDPWNpc2NvLERDPWNvbT9jZXJ0aWZpY2F0ZVJldm9jYXRpb25M
aXN0P2Jhc2U/b2JqZWN0Q2xhc3M9Y1JMRGlzdHJpYnV0aW9uUG9pbnSGNWh0dHA6
Ly90cy13MmszLWFjcy50c3dlYi5jaXNjby5jb20vQ2VydEVucm9sbC9DQTEuY3Js
MIIBHQYIKwYBBQUHAQEEggEPMIIBCzCBqQYIKwYBBQUHMAKGgZxsZGFwOi8vL0NO
PUNBMSxDTj1BSUEsQ049UHVibGljJTIwS2V5JTIwU2VydmljZXMsQ049U2Vydmlj
ZXMsQ049Q29uZmlndXJhdGlvbixEQz1UU1dlYixEQz1jaXNjbyxEQz1jb20/Y0FD
ZXJ0aWZpY2F0ZT9iYXNlP29iamVjdENsYXNzPWNlcnRpZmljYXRpb25BdXRob3Jp
dHkwXQYIKwYBBQUHMAKGUWh0dHA6Ly90cy13MmszLWFjcy50c3dlYi5jaXNjby5j
b20vQ2VydEVucm9sbC9UUy1XMkszLUFDUy5UU1dlYi5jaXNjby5jb21fQ0ExLmNy
dDAhBgkrBgEEAYI3FAIEFB4SAFcAZQBiAFMAZQByAHYAZQByMAwGA1UdEwEB/wQC
MAAwEwYDVR0lBAwwCgYIKwYBBQUHAwEwDQYJKoZIhvcNAQEFBQADggEBAIqCaA9G
+8h+3IS8RfVAGzcWAEVRXCyBlx0NpR/jlocGJ7QbQxkjKEswXq/O2xDB7wXQaGph
zRq4dxALll1JkIjhfeQY+7VSkZlGEpuBnENTohdhthz5vBjGlcROXIs8+3Ghg8hy
YZZEM73e8EC0sEMedFb+KYpAFy3PPy4l8EHe4MJbdjUp/b90l5l6IzQP5l51YB0y
NSLsYWqjkCBg+aUO+WPFk4jICr2XUOK74oWTPFNpfv2x4VFI/Mpcs87ychngKB+8
rPHChSsZsw9upzPEH2L/O34wm/dpuLuHirrwWnF1zCnqfcyHcETieZtSt1nwLpsc
lL5nuPsd8MaexBc=
-----END CERTIFICATE-----
quit

INFO: Certificate successfully imported
CiscoASA(config)#

第五步：配置远程访问VPN (IPSec)以使用新安装的证书

ASDM 步骤

执行下列步骤以配置远程访问 VPN：

选择 Configuration > Remote Access VPN > Network (Client) Access > Advanced > IPSec > IKE Policies > Add 以创建 ISAKMP 策略 65535，如下所示。

单击 OK，然后单击 Apply。
选择 Configuration > Remote Access VPN > Network (Client) Access > Advanced > IPSec > IPSec Transform Sets > Add 以创建 myset 转换集，如下所示。

单击 OK，然后单击 Apply。
选择 Configuration > Remote Access VPN > Network (Client) Access > Advanced > IPSec > Crypto Maps > Add 以使用优先级为 10 的动态策略创建加密映射，如下所示。

单击 OK，然后单击 Apply。

注意：ASA 8.0不支持SHA 2。此外，不支持使用具有256哈希值的证书的IPSec客户端。
选择 Configuration > Remote Access VPN > Network (Client) Access > Advanced > Group Policies > Add 以创建 Defaultgroup 组策略，如下所示。

单击 OK，然后单击 Apply。
选择 Configuration > Remote Access VPN > Network (Client) Access > Address Assignment > Address Pools > Add 以便为要动态指定的 VPN Client 用户配置 vpnpool 地址池。

单击 OK，然后单击 Apply。
选择 Configuration > Remote Access VPN > AAA Setup > Local Users > Add 以便为 VPN Client 访问创建 vpnuser 用户帐户。同时，将此用户设为 DefaultRAGroup 成员。
选择 Configuration > Remote Access VPN > Network (Client) Access > IPSec Connection Profiles > Edit 以编辑 DefaultRAGroup，如下所示。
- 从 IKE Peer Authentication 字段的下拉列表中选择相应的 identity certificate。
- 为 User Authentication 字段的 Server Group 选择 LOCAL。
- 为 Client Address Assignment 字段的 Client Address Pool 选择 vpnpool。
- 为 Default Group Policy 字段的 Group Policy 选择 defaultgroup。
单击 OK，然后单击 Apply。

命令行示例

CiscoASA
CiscoASA(config)#crypto isakmp enable outside CiscoASA(config)#crypto isakmp policy 65535 CiscoASA(config-isakmp-policy)#authentication rsa-sig CiscoASA(config-isakmp-policy)#encryption 3des CiscoASA(config-isakmp-policy)#hash md5 CiscoASA(config-isakmp-policy)#group 2 CiscoASA(config-isakmp-policy)#lifetime 86400 CiscoASA(config-isakmp-policy)#exit CiscoASA(config)#crypto isakmp identity auto !--- Phase 1 Configurations CiscoASA(config)#crypto ipsec transform-set myset esp-3des esp-md5-hmac CiscoASA(config)#crypto dynamic-map dynmap 10 set transform-set myset CiscoASA(config)#crypto map mymap 10 ipsec-isakmp dynamic dynmap CiscoASA(config)#crypto map mymap interface outside !--- Phase 2 Configurations CiscoASA(config)#group-policy defaultgroup internal CiscoASA(config)#group-policy defaultgroup attributes CiscoASA(config-group-policy)#default-domain value cisco.com CiscoASA(config-group-policy)# exit !--- Create a group policy "defaultgroup" with domain name !--- cisco.com CiscoASA(config)#username vpnuser password Cisco123 CiscoASA(config)#username vpnuser attributes CiscoASA(config-username)#memberof DefaultRAGroup CiscoASA(config-username)#exit !--- Create a user account "vpnuser" and added to !--- "DefaultGroup" CiscoASA(config)#tunnel-group DefaultRAGroup general-attributes !--- The Security Appliance provides the default tunnel groups !--- for remote access (DefaultRAGroup). CiscoASA(config-tunnel-general)#address-pool vpnpool !--- Associate the vpnpool to the tunnel group using the address pool. CiscoASA(config-tunnel-general)#default-group-policy Defaultgroup !--- Associate the group policy "Defaultgroup" to the tunnel group. CiscoASA(config-tunnel-general)# exit CiscoASA(config)#tunnel-group DefaultRAGroup ipsec-attributes CiscoASA(config-tunnel-ipsec)#trust-point CA1 CiscoASA(config-tunnel-ipsec)#exit !--- Associate the trustpoint CA1 for IPSec peer !--- authentication

CiscoASA

CiscoASA(config)#crypto isakmp enable outside
CiscoASA(config)#crypto isakmp policy 65535
CiscoASA(config-isakmp-policy)#authentication rsa-sig
CiscoASA(config-isakmp-policy)#encryption 3des
CiscoASA(config-isakmp-policy)#hash md5
CiscoASA(config-isakmp-policy)#group 2
CiscoASA(config-isakmp-policy)#lifetime 86400
CiscoASA(config-isakmp-policy)#exit
CiscoASA(config)#crypto isakmp identity auto


!--- Phase 1 Configurations


CiscoASA(config)#crypto ipsec transform-set myset esp-3des esp-md5-hmac
CiscoASA(config)#crypto dynamic-map dynmap 10 set transform-set myset
CiscoASA(config)#crypto map mymap 10 ipsec-isakmp dynamic dynmap
CiscoASA(config)#crypto map mymap interface outside


!--- Phase 2 Configurations


CiscoASA(config)#group-policy defaultgroup internal
CiscoASA(config)#group-policy defaultgroup attributes
CiscoASA(config-group-policy)#default-domain value cisco.com
CiscoASA(config-group-policy)# exit


!--- Create a group policy "defaultgroup" with domain name !--- cisco.com


CiscoASA(config)#username vpnuser password Cisco123
CiscoASA(config)#username vpnuser attributes
CiscoASA(config-username)#memberof  DefaultRAGroup
CiscoASA(config-username)#exit


!--- Create a user account "vpnuser" and added to !--- "DefaultGroup"


CiscoASA(config)#tunnel-group DefaultRAGroup general-attributes



!--- The Security Appliance provides the default tunnel groups !--- for remote access (DefaultRAGroup).


CiscoASA(config-tunnel-general)#address-pool vpnpool



!--- Associate the vpnpool to the tunnel group using the address pool.


CiscoASA(config-tunnel-general)#default-group-policy Defaultgroup


!--- Associate the group policy "Defaultgroup" to the tunnel group.


CiscoASA(config-tunnel-general)# exit
CiscoASA(config)#tunnel-group DefaultRAGroup ipsec-attributes
CiscoASA(config-tunnel-ipsec)#trust-point CA1
CiscoASA(config-tunnel-ipsec)#exit


!--- Associate the trustpoint CA1 for IPSec peer !--- authentication

ASA 配置概要

CiscoASA
CiscoASA#show running-config : Saved : ASA Version 8.0(2) ! hostname CiscoASA domain-name cisco.com enable password 8Ry2YjIyt7RRXU24 encrypted names ! interface Ethernet0/0 nameif outside security-level 0 ip address 192.168.1.5 255.255.255.0 ! interface Ethernet0/1 shutdown nameif inside security-level 100 ip address 10.2.2.1 255.255.255.0 ! interface Ethernet0/2 nameif DMZ security-level 90 ip address 10.77.241.142 255.255.255.192 ! interface Ethernet0/3 shutdown no nameif no security-level no ip address ! interface Management0/0 shutdown no nameif no security-level no ip address ! passwd 2KFQnbNIdI.2KYOU encrypted ftp mode passive dns server-group DefaultDNS domain-name cisco.com access-list 100 extended permit ip 10.2.2.0 255.255.255.0 10.5.5.0 255.255.255.0 pager lines 24 mtu outside 1500 mtu inside 1500 mtu DMZ 1500 ip local pool vpnpool 10.5.5.10-10.5.5.20 no failover icmp unreachable rate-limit 1 burst-size 1 asdm image disk0:/asdm-602.bin no asdm history enable arp timeout 14400 nat (inside) 0 access-list 100 route DMZ 0.0.0.0 0.0.0.0 10.77.241.129 1 route outside 10.1.1.0 255.255.255.0 192.168.1.1 1 route outside 172.16.5.0 255.255.255.0 192.168.1.1 1 timeout xlate 3:00:00 timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02 timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00 timeout sip 0:30:00 sip_media 0:02:00 sip-invite 0:03:00 sip-disconnect 0:02:00 timeout uauth 0:05:00 absolute dynamic-access-policy-record DfltAccessPolicy http server enable http 0.0.0.0 0.0.0.0 DMZ http 0.0.0.0 0.0.0.0 outside no snmp-server location no snmp-server contact snmp-server enable traps snmp authentication linkup linkdown coldstart crypto ipsec transform-set myset esp-3des esp-md5-hmac crypto dynamic-map dynmap 10 set transform-set myset crypto map mymap 10 ipsec-isakmp dynamic dynmap crypto map mymap interface outside crypto ca trustpoint CA1 enrollment terminal subject-name cn=CiscoASA.cisco.com OU=TSWEB, O=Cisco Systems, C=US, St=North Carolina,L=Rale serial-number keypair my.CA.key crl configure crypto ca certificate chain CA1 certificate 611ee59b000000000007 308205a7 3082048f a0030201 02020a61 1ee59b00 00000000 07300d06 092a8648 86f70d01 01050500 30513113 3011060a 09922689 93f22c64 01191603 636f6d31 15301306 0a099226 8993f22c 64011916 05636973 636f3115 3013060a 09922689 93f22c64 01191605 54535765 62310c30 0a060355 04031303 43413130 1e170d30 37313231 35303833 3533395a 170d3039 31323134 30383335 33395a30 76310b30 09060355 04061302 55533117 30150603 55040813 0e4e6f72 74682043 61726f6c 696e6131 10300e06 03550407 13075261 6c656967 68311630 14060355 040a130d 43697363 6f205379 7374656d 73312430 22060355 0403131b 43697363 6f415341 2e636973 636f2e63 6f6d204f 553d5453 57454230 819f300d 06092a86 4886f70d 01010105 0003818d 00308189 02818100 b8e20aa8 332356b7 5b660073 5008d373 5d23c529 5b92472b 5e02a81f 63dc7a57 0667d754 5e7f98d3 d4239b42 ab8faf0b e8a5d394 f80d01a1 4cc01d98 b1320e9f e849055a b94b18ef 308eb12f 22ab1a8e db38f02c 2cf78e07 197f2d52 d3cb7391 a9ccb2d9 03f722bd 414b0a32 05aa053e c45e2464 80606f8e 417f09a7 aa9c644d 02030100 01a38202 de308202 da300b06 03551d0f 04040302 05a0301d 0603551d 11041630 14821243 6973636f 4153412e 63697363 6f2e636f 6d301d06 03551d0e 04160414 2c242ddb 490cde1a fe2d63e3 1e1fb28c 974c4216 301f0603 551d2304 18301680 14d9adbf 08f23a88 f114432f 79987cd4 09a403e5 58308201 03060355 1d1f0481 fb3081f8 3081f5a0 81f2a081 ef8681b5 6c646170 3a2f2f2f 434e3d43 41312c43 4e3d5453 2d57324b 332d4143 532c434e 3d434450 2c434e3d 5075626c 69632532 304b6579 25323053 65727669 6365732c 434e3d53 65727669 6365732c 434e3d43 6f6e6669 67757261 74696f6e 2c44433d 54535765 622c4443 3d636973 636f2c44 433d636f 6d3f6365 72746966 69636174 65526576 6f636174 696f6e4c 6973743f 62617365 3f6f626a 65637443 6c617373 3d63524c 44697374 72696275 74696f6e 506f696e 74863568 7474703a 2f2f7473 2d77326b 332d6163 732e7473 7765622e 63697363 6f2e636f 6d2f4365 7274456e 726f6c6c 2f434131 2e63726c 3082011d 06082b06 01050507 01010482 010f3082 010b3081 a906082b 06010505 07300286 819c6c64 61703a2f 2f2f434e 3d434131 2c434e3d 4149412c 434e3d50 75626c69 63253230 4b657925 32305365 72766963 65732c43 4e3d5365 72766963 65732c43 4e3d436f 6e666967 75726174 696f6e2c 44433d54 53576562 2c44433d 63697363 6f2c4443 3d636f6d 3f634143 65727469 66696361 74653f62 6173653f 6f626a65 6374436c 6173733d 63657274 69666963 6174696f 6e417574 686f7269 7479305d 06082b06 01050507 30028651 68747470 3a2f2f74 732d7732 6b332d61 63732e74 73776562 2e636973 636f2e63 6f6d2f43 65727445 6e726f6c 6c2f5453 2d57324b 332d4143 532e5453 5765622e 63697363 6f2e636f 6d5f4341 312e6372 74302106 092b0601 04018237 14020414 1e120057 00650062 00530065 00720076 00650072 300c0603 551d1301 01ff0402 30003013 0603551d 25040c30 0a06082b 06010505 07030130 0d06092a 864886f7 0d010105 05000382 0101008a 82680f46 fbc87edc 84bc45f5 401b3716 0045515c 2c81971d 0da51fe3 96870627 b41b4319 23284b30 5eafcedb 10c1ef05 d0686a61 cd1ab877 100b965d 499088e1 7de418fb b5529199 46129b81 9c4353a2 1761b61c f9bc18c6 95c44e5c 8b3cfb71 a183c872 61964433 bddef040 b4b0431e 7456fe29 8a40172d cf3f2e25 f041dee0 c25b7635 29fdbf74 97997a23 340fe65e 75601d32 3522ec61 6aa39020 60f9a50e f963c593 88c80abd 9750e2bb e285933c 53697efd b1e15148 fcca5cb3 cef27219 e0281fbc acf1c285 2b19b30f 6ea733c4 1f62ff3b 7e309bf7 69b8bb87 8abaf05a 7175cc29 ea7dcc87 7044e279 9b52b759 f02e9b1c 94be67b8 fb1df0c6 9ec417 quit certificate ca 7099f1994764e09c4651da80a16b749c 3082049d 30820385 a0030201 02021070 99f19947 64e09c46 51da80a1 6b749c30 0d06092a 864886f7 0d010105 05003051 31133011 060a0992 268993f2 2c640119 1603636f 6d311530 13060a09 92268993 f22c6401 19160563 6973636f 31153013 060a0992 268993f2 2c640119 16055453 57656231 0c300a06 03550403 13034341 31301e17 0d303731 32313430 36303134 335a170d 31323132 31343036 31303135 5a305131 13301106 0a099226 8993f22c 64011916 03636f6d 31153013 060a0992 268993f2 2c640119 16056369 73636f31 15301306 0a099226 8993f22c 64011916 05545357 6562310c 300a0603 55040313 03434131 30820122 300d0609 2a864886 f70d0101 01050003 82010f00 3082010a 02820101 00ea8fee c7ae56fc a22e603d 0521b333 3dec0ad4 7d4c2316 3b1eea33 c9a6883d 28ece906 02902f9a d1eb2b8d f588cb9a 78a069a3 965de133 6036d8d7 6ede9ccd a1e906ec 88b32a19 38e5353e 6c0032e8 8c003fa6 2fd22a4d b9dda2c2 5fcbb621 876bd678 c8a37109 f074eabe 2b1fac59 a78d0a3b 35af17ae 687a4805 3b9a34e7 24b9e054 063c60a4 9b8d3c09 351bc630 05f69357 833b9197 f875b408 cb71a814 69a1f331 b1eb2b35 0c469443 1455c210 db308bf0 a9805758 a878b82d 38c71426 afffd272 dd6d7564 1cbe4d95 b81c02b2 9b56ec2d 5a913a9f 9b95cafd dfffcf67 94b97ac7 63249009 fa05ca4d 6f13afd0 968f9f41 e492cfe4 e50e15f1 c0f5d13b 5f020301 0001a382 016f3082 016b3013 06092b06 01040182 37140204 061e0400 43004130 0b060355 1d0f0404 03020186 300f0603 551d1301 01ff0405 30030101 ff301d06 03551d0e 04160414 d9adbf08 f23a88f1 14432f79 987cd409 a403e558 30820103 0603551d 1f0481fb 3081f830 81f5a081 f2a081ef 8681b56c 6461703a 2f2f2f43 4e3d4341 312c434e 3d54532d 57324b33 2d414353 2c434e3d 4344502c 434e3d50 75626c69 63253230 4b657925 32305365 72766963 65732c43 4e3d5365 72766963 65732c43 4e3d436f 6e666967 75726174 696f6e2c 44433d54 53576562 2c44433d 63697363 6f2c4443 3d636f6d 3f636572 74696669 63617465 5265766f 63617469 6f6e4c69 73743f62 6173653f 6f626a65 6374436c 6173733d 63524c44 69737472 69627574 696f6e50 6f696e74 86356874 74703a2f 2f74732d 77326b33 2d616373 2e747377 65622e63 6973636f 2e636f6d 2f436572 74456e72 6f6c6c2f 4341312e 63726c30 1006092b 06010401 82371501 04030201 00300d06 092a8648 86f70d01 01050500 03820101 001abc5a 40b32112 22da80fb bb228bfe 4bf8a515 df8fc3a0 4e0c89c6 d725e2ab 2fa67ce8 9196d516 dfe55627 953aea47 2e871289 6b754e9c 1e01d408 3f7f0595 8081f986 526fbe1c c9639d6f 258b2205 0dc370c6 5431b034 fe9fd60e 93a6e71b ab8e7f84 a011336b 37c13261 5ad218a3 a513e382 e4bfb2b4 9bf0d7d1 99865cc4 94e5547c f03e3d3e 3b766011 e94a3657 6cc35b92 860152d4 f06b2b15 df306433 c1bcc282 80558d70 d22d72e7 eed3195b d575dceb c0caa196 34f693ea f3beee4d aa2ef1c2 edba288f 3a678ecb 3809d0df b1699c76 13018f9f 5e3dce95 efe6da93 f4cb3b00 102efa94 48a22fc4 7e342031 2406165e 39edc207 eddc6554 3fa9f396 ad quit crypto isakmp enable outside crypto isakmp policy 65535 authentication rsa-sig encryption 3des hash md5 group 2 lifetime 86400 crypto isakmp identity auto telnet timeout 5 ssh timeout 5 console timeout 0 threat-detection basic-threat threat-detection statistics access-list ! class-map inspection_default match default-inspection-traffic ! ! policy-map type inspect dns preset_dns_map parameters message-length maximum 512 policy-map global_policy class inspection_default inspect dns preset_dns_map inspect ftp inspect h323 h225 inspect h323 ras inspect netbios inspect rsh inspect rtsp inspect skinny inspect esmtp inspect sqlnet inspect sunrpc inspect tftp inspect sip inspect xdmcp ! service-policy global_policy global group-policy defaultgroup internal group-policy defaultgroup attributes default-domain value cisco.com username vpnuser password TXttW.eFqbHusJQM encrypted username vpnuser attributes memberof DefaultRAGroup tunnel-group DefaultRAGroup general-attributes address-pool vpnpool tunnel-group DefaultRAGroup ipsec-attributes trust-point CA1 prompt hostname context Cryptochecksum:dd6f2e3390bf5238815391c13e42cd21 : end CiscoASA#

CiscoASA

CiscoASA#show running-config
: Saved
:
ASA Version 8.0(2)
!
hostname CiscoASA
domain-name cisco.com
enable password 8Ry2YjIyt7RRXU24 encrypted
names
!
interface Ethernet0/0
 nameif outside
 security-level 0
 ip address 192.168.1.5 255.255.255.0
!
interface Ethernet0/1
 shutdown
 nameif inside
 security-level 100
 ip address 10.2.2.1 255.255.255.0
!
interface Ethernet0/2
 nameif DMZ
 security-level 90
 ip address 10.77.241.142 255.255.255.192
!
interface Ethernet0/3
 shutdown
 no nameif
 no security-level
 no ip address
!
interface Management0/0
 shutdown
 no nameif
 no security-level
 no ip address
!
passwd 2KFQnbNIdI.2KYOU encrypted
ftp mode passive
dns server-group DefaultDNS
 domain-name cisco.com
access-list 100 extended permit ip 10.2.2.0 255.255.255.0 10.5.5.0
 255.255.255.0
pager lines 24
mtu outside 1500
mtu inside 1500
mtu DMZ 1500
ip local pool vpnpool 10.5.5.10-10.5.5.20
no failover
icmp unreachable rate-limit 1 burst-size 1
asdm image disk0:/asdm-602.bin
no asdm history enable
arp timeout 14400
nat (inside) 0 access-list 100
route DMZ 0.0.0.0 0.0.0.0 10.77.241.129 1
route outside 10.1.1.0 255.255.255.0 192.168.1.1 1
route outside 172.16.5.0 255.255.255.0 192.168.1.1 1
timeout xlate 3:00:00
timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02
timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00
timeout sip 0:30:00 sip_media 0:02:00 sip-invite 0:03:00 sip-disconnect 0:02:00
timeout uauth 0:05:00 absolute
dynamic-access-policy-record DfltAccessPolicy
http server enable
http 0.0.0.0 0.0.0.0 DMZ
http 0.0.0.0 0.0.0.0 outside
no snmp-server location
no snmp-server contact
snmp-server enable traps snmp authentication linkup linkdown coldstart
crypto ipsec transform-set myset esp-3des esp-md5-hmac
crypto dynamic-map dynmap 10 set transform-set myset
crypto map mymap 10 ipsec-isakmp dynamic dynmap
crypto map mymap interface outside
crypto ca trustpoint CA1
 enrollment terminal
 subject-name cn=CiscoASA.cisco.com OU=TSWEB, O=Cisco Systems, C=US,
 St=North Carolina,L=Rale
 serial-number
 keypair my.CA.key
 crl configure
crypto ca certificate chain CA1
 certificate 611ee59b000000000007
    308205a7 3082048f a0030201 02020a61 1ee59b00 00000000 07300d06 092a8648
    86f70d01 01050500 30513113 3011060a 09922689 93f22c64 01191603 636f6d31
    15301306 0a099226 8993f22c 64011916 05636973 636f3115 3013060a 09922689
    93f22c64 01191605 54535765 62310c30 0a060355 04031303 43413130 1e170d30
    37313231 35303833 3533395a 170d3039 31323134 30383335 33395a30 76310b30
    09060355 04061302 55533117 30150603 55040813 0e4e6f72 74682043 61726f6c
    696e6131 10300e06 03550407 13075261 6c656967 68311630 14060355 040a130d
    43697363 6f205379 7374656d 73312430 22060355 0403131b 43697363 6f415341
    2e636973 636f2e63 6f6d204f 553d5453 57454230 819f300d 06092a86 4886f70d
    01010105 0003818d 00308189 02818100 b8e20aa8 332356b7 5b660073 5008d373
    5d23c529 5b92472b 5e02a81f 63dc7a57 0667d754 5e7f98d3 d4239b42 ab8faf0b
    e8a5d394 f80d01a1 4cc01d98 b1320e9f e849055a b94b18ef 308eb12f 22ab1a8e
    db38f02c 2cf78e07 197f2d52 d3cb7391 a9ccb2d9 03f722bd 414b0a32 05aa053e
    c45e2464 80606f8e 417f09a7 aa9c644d 02030100 01a38202 de308202 da300b06
    03551d0f 04040302 05a0301d 0603551d 11041630 14821243 6973636f 4153412e
    63697363 6f2e636f 6d301d06 03551d0e 04160414 2c242ddb 490cde1a fe2d63e3
    1e1fb28c 974c4216 301f0603 551d2304 18301680 14d9adbf 08f23a88 f114432f
    79987cd4 09a403e5 58308201 03060355 1d1f0481 fb3081f8 3081f5a0 81f2a081
    ef8681b5 6c646170 3a2f2f2f 434e3d43 41312c43 4e3d5453 2d57324b 332d4143
    532c434e 3d434450 2c434e3d 5075626c 69632532 304b6579 25323053 65727669
    6365732c 434e3d53 65727669 6365732c 434e3d43 6f6e6669 67757261 74696f6e
    2c44433d 54535765 622c4443 3d636973 636f2c44 433d636f 6d3f6365 72746966
    69636174 65526576 6f636174 696f6e4c 6973743f 62617365 3f6f626a 65637443
    6c617373 3d63524c 44697374 72696275 74696f6e 506f696e 74863568 7474703a
    2f2f7473 2d77326b 332d6163 732e7473 7765622e 63697363 6f2e636f 6d2f4365
    7274456e 726f6c6c 2f434131 2e63726c 3082011d 06082b06 01050507 01010482
    010f3082 010b3081 a906082b 06010505 07300286 819c6c64 61703a2f 2f2f434e
    3d434131 2c434e3d 4149412c 434e3d50 75626c69 63253230 4b657925 32305365
    72766963 65732c43 4e3d5365 72766963 65732c43 4e3d436f 6e666967 75726174
    696f6e2c 44433d54 53576562 2c44433d 63697363 6f2c4443 3d636f6d 3f634143
    65727469 66696361 74653f62 6173653f 6f626a65 6374436c 6173733d 63657274
    69666963 6174696f 6e417574 686f7269 7479305d 06082b06 01050507 30028651
    68747470 3a2f2f74 732d7732 6b332d61 63732e74 73776562 2e636973 636f2e63
    6f6d2f43 65727445 6e726f6c 6c2f5453 2d57324b 332d4143 532e5453 5765622e
    63697363 6f2e636f 6d5f4341 312e6372 74302106 092b0601 04018237 14020414
    1e120057 00650062 00530065 00720076 00650072 300c0603 551d1301 01ff0402
    30003013 0603551d 25040c30 0a06082b 06010505 07030130 0d06092a 864886f7
    0d010105 05000382 0101008a 82680f46 fbc87edc 84bc45f5 401b3716 0045515c
    2c81971d 0da51fe3 96870627 b41b4319 23284b30 5eafcedb 10c1ef05 d0686a61
    cd1ab877 100b965d 499088e1 7de418fb b5529199 46129b81 9c4353a2 1761b61c
    f9bc18c6 95c44e5c 8b3cfb71 a183c872 61964433 bddef040 b4b0431e 7456fe29
    8a40172d cf3f2e25 f041dee0 c25b7635 29fdbf74 97997a23 340fe65e 75601d32
    3522ec61 6aa39020 60f9a50e f963c593 88c80abd 9750e2bb e285933c 53697efd
    b1e15148 fcca5cb3 cef27219 e0281fbc acf1c285 2b19b30f 6ea733c4 1f62ff3b
    7e309bf7 69b8bb87 8abaf05a 7175cc29 ea7dcc87 7044e279 9b52b759 f02e9b1c
    94be67b8 fb1df0c6 9ec417
  quit
 certificate ca 7099f1994764e09c4651da80a16b749c
    3082049d 30820385 a0030201 02021070 99f19947 64e09c46 51da80a1 6b749c30
    0d06092a 864886f7 0d010105 05003051 31133011 060a0992 268993f2 2c640119
    1603636f 6d311530 13060a09 92268993 f22c6401 19160563 6973636f 31153013
    060a0992 268993f2 2c640119 16055453 57656231 0c300a06 03550403 13034341
    31301e17 0d303731 32313430 36303134 335a170d 31323132 31343036 31303135
    5a305131 13301106 0a099226 8993f22c 64011916 03636f6d 31153013 060a0992
    268993f2 2c640119 16056369 73636f31 15301306 0a099226 8993f22c 64011916
    05545357 6562310c 300a0603 55040313 03434131 30820122 300d0609 2a864886
    f70d0101 01050003 82010f00 3082010a 02820101 00ea8fee c7ae56fc a22e603d
    0521b333 3dec0ad4 7d4c2316 3b1eea33 c9a6883d 28ece906 02902f9a d1eb2b8d
    f588cb9a 78a069a3 965de133 6036d8d7 6ede9ccd a1e906ec 88b32a19 38e5353e
    6c0032e8 8c003fa6 2fd22a4d b9dda2c2 5fcbb621 876bd678 c8a37109 f074eabe
    2b1fac59 a78d0a3b 35af17ae 687a4805 3b9a34e7 24b9e054 063c60a4 9b8d3c09
    351bc630 05f69357 833b9197 f875b408 cb71a814 69a1f331 b1eb2b35 0c469443
    1455c210 db308bf0 a9805758 a878b82d 38c71426 afffd272 dd6d7564 1cbe4d95
    b81c02b2 9b56ec2d 5a913a9f 9b95cafd dfffcf67 94b97ac7 63249009 fa05ca4d
    6f13afd0 968f9f41 e492cfe4 e50e15f1 c0f5d13b 5f020301 0001a382 016f3082
    016b3013 06092b06 01040182 37140204 061e0400 43004130 0b060355 1d0f0404
    03020186 300f0603 551d1301 01ff0405 30030101 ff301d06 03551d0e 04160414
    d9adbf08 f23a88f1 14432f79 987cd409 a403e558 30820103 0603551d 1f0481fb
    3081f830 81f5a081 f2a081ef 8681b56c 6461703a 2f2f2f43 4e3d4341 312c434e
    3d54532d 57324b33 2d414353 2c434e3d 4344502c 434e3d50 75626c69 63253230
    4b657925 32305365 72766963 65732c43 4e3d5365 72766963 65732c43 4e3d436f
    6e666967 75726174 696f6e2c 44433d54 53576562 2c44433d 63697363 6f2c4443
    3d636f6d 3f636572 74696669 63617465 5265766f 63617469 6f6e4c69 73743f62
    6173653f 6f626a65 6374436c 6173733d 63524c44 69737472 69627574 696f6e50
    6f696e74 86356874 74703a2f 2f74732d 77326b33 2d616373 2e747377 65622e63
    6973636f 2e636f6d 2f436572 74456e72 6f6c6c2f 4341312e 63726c30 1006092b
    06010401 82371501 04030201 00300d06 092a8648 86f70d01 01050500 03820101
    001abc5a 40b32112 22da80fb bb228bfe 4bf8a515 df8fc3a0 4e0c89c6 d725e2ab
    2fa67ce8 9196d516 dfe55627 953aea47 2e871289 6b754e9c 1e01d408 3f7f0595
    8081f986 526fbe1c c9639d6f 258b2205 0dc370c6 5431b034 fe9fd60e 93a6e71b
    ab8e7f84 a011336b 37c13261 5ad218a3 a513e382 e4bfb2b4 9bf0d7d1 99865cc4
    94e5547c f03e3d3e 3b766011 e94a3657 6cc35b92 860152d4 f06b2b15 df306433
    c1bcc282 80558d70 d22d72e7 eed3195b d575dceb c0caa196 34f693ea f3beee4d
    aa2ef1c2 edba288f 3a678ecb 3809d0df b1699c76 13018f9f 5e3dce95 efe6da93
    f4cb3b00 102efa94 48a22fc4 7e342031 2406165e 39edc207 eddc6554 3fa9f396 ad
  quit
crypto isakmp enable outside
crypto isakmp policy 65535
 authentication rsa-sig
 encryption 3des
 hash md5
 group 2
 lifetime 86400
crypto isakmp identity auto
telnet timeout 5
ssh timeout 5
console timeout 0
threat-detection basic-threat
threat-detection statistics access-list
!
class-map inspection_default
 match default-inspection-traffic
!
!
policy-map type inspect dns preset_dns_map
 parameters
  message-length maximum 512
policy-map global_policy
 class inspection_default
  inspect dns preset_dns_map
  inspect ftp
  inspect h323 h225
  inspect h323 ras
  inspect netbios
  inspect rsh
  inspect rtsp
  inspect skinny
  inspect esmtp
  inspect sqlnet
  inspect sunrpc
  inspect tftp
  inspect sip
  inspect xdmcp
!
service-policy global_policy global
group-policy defaultgroup internal
group-policy defaultgroup attributes
 default-domain value cisco.com
username vpnuser password TXttW.eFqbHusJQM encrypted
username vpnuser attributes
 memberof DefaultRAGroup
tunnel-group DefaultRAGroup general-attributes
 address-pool vpnpool
tunnel-group DefaultRAGroup ipsec-attributes
 trust-point CA1
prompt hostname context
Cryptochecksum:dd6f2e3390bf5238815391c13e42cd21
: end
CiscoASA#

VPN 客户端配置

执行下列步骤以配置 VPN 客户端。

选择 Start > Programs > Cisco Systems VPN Client > VPN Client 以启动 VPN Client 软件。
执行下列步骤，以便从名为 CA1 的 CA 服务器中下载 CA 证书，然后将其安装到 Cisco VPN Client 中。
1. 使用为 vpnuser 提供的凭证通过 Web 登录到 CA 服务器 172.16.5.1。

  注意：请确保您具有用于CA服务器的VPN客户端用户帐户。
2. 单击 Download a CA certificate, certificate chain or CRL 以打开如下所示的窗口。单击 Base64 单选按钮以选择其作为编码方法，然后单击 Download CA certificate。
3. 使用文件名 certnew.cer 将 CA 证书保存到计算机中。默认情况下，它将存储在 C:\Program Files\Cisco Systems\VPN Client 路径中。
4. 在 VPN Client 中，选择 Certificates tab > Import，然后单击 Import from File 单选按钮。单击 Browse 以便从存储位置 C:\Program Files\Cisco Systems\VPN Client 中导入 CA 证书，如下所示。

  单击 Import。将会出现一个导入成功窗口，如下所示。

  在 Certificates 选项卡中，将会出现 CA 证书 CA1，如下所示。

  注意：请确保选中Show CA/RA Certificates选项（如下所示），否则CA证书将不会出现在证书窗口中。
执行下列步骤以下载身份证书，并将其安装到 VPN Client 中。
1. 在 CA 服务器 CA1 中，选择 Request a Certificate > advanced certificate request > Create and submit a request to this CA 以注册身份证书。

  单击“Submit”。
2. 单击 Yes 以继续操作。
3. 单击 Install this certificate。
4. 单击 Yes 以继续操作。

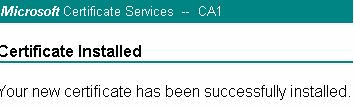

5. 您必须收到证书已安装的消息，如下所示。
6. 退出然后重新启动 VPN Client，以使已安装的证书出现在 VPN Client 的证书选项卡中，如下所示。
在 Connection entries 选项卡中，单击 New 以创建连接项 vpnuser，如下所示。
- 在 Host 字段中输入远程对等体 IP 地址（可路由）。
- 单击 Certificate Authentication 单选按钮，然后从下拉列表中选择身份证书，如下所示。
- Click Save.
单击 Connect。
出现提示时，输入 xauth 的用户名和口令信息，然后单击 OK 以连接远程网络。
VPN Client 即会连接 ASA，如下所示。

验证

在 ASA 上，您可以在命令行中发出一些 show 命令以验证证书的状态。

使用本部分可确认配置能否正常运行。

show crypto ca trustpoint 命令可显示已配置的信任点。

CiscoASA#show crypto ca trustpoints

Trustpoint CA1:
    Subject Name:
    cn=CA1
    dc=TSWeb
    dc=cisco
    dc=com
          Serial Number: 7099f1994764e09c4651da80a16b749c
    Certificate configured.

show crypto ca certificate 命令可显示系统上安装的所有证书。

CiscoASA# show crypto ca certificate
Certificate
  Status: Available
  Certificate Serial Number: 3f14b70b00000000001f
  Certificate Usage: Encryption
  Public Key Type: RSA (1024 bits)
  Issuer Name:
    cn=CA1
    dc=TSWeb
    dc=cisco
    dc=com
  Subject Name:
    cn=vpnserver
    cn=Users
    dc=TSWeb
    dc=cisco
    dc=com
  PrincipalName: vpnserver@TSWeb.cisco.com
  CRL Distribution Points:
    [1]  ldap:///CN=CA1,CN=TS-W2K3-ACS,CN=CDP,CN=Public%20Key%20Services,
    CN=Services,CN=Configuration,DC=TSWeb,DC=cisco,
    DC=com?certificateRevocationList?base?objectClass=cRLDistributionPoint
    [2]  http://ts-w2k3-acs.tsweb.cisco.com/CertEnroll/CA1.crl
  Validity Date:
    start date: 14:00:36 UTC Dec 27 2007
    end   date: 14:00:36 UTC Dec 26 2008
  Associated Trustpoints: CA1

CA Certificate
  Status: Available
  Certificate Serial Number: 7099f1994764e09c4651da80a16b749c
  Certificate Usage: Signature
  Public Key Type: RSA (2048 bits)
  Issuer Name:
    cn=CA1
    dc=TSWeb
    dc=cisco
    dc=com
  Subject Name:
    cn=CA1
    dc=TSWeb
    dc=cisco
    dc=com
  CRL Distribution Points:
    [1]  ldap:///CN=CA1,CN=TS-W2K3-ACS,CN=CDP,CN=Public%20Key%20Services,
    CN=Services,CN=Configuration,DC=TSWeb,DC=cisco,
    DC=com?certificateRevocationList?base?objectClass=cRLDistributionPoint
    [2]  http://ts-w2k3-acs.tsweb.cisco.com/CertEnroll/CA1.crl
  Validity Date:
    start date: 06:01:43 UTC Dec 14 2007
    end   date: 06:10:15 UTC Dec 14 2012
  Associated Trustpoints: CA1


Certificate
  Subject Name:
    Name: CiscoASA.cisco.com
  Status: Pending terminal enrollment
  Key Usage: General Purpose
  Fingerprint:  1a022cf2 9771e335 12c3a530 1f9a0345
  Associated Trustpoint: CA1

show crypto ca crls 命令可显示缓存的证书撤销列表 (CRL)。

show crypto key mypubkey rsa 命令可显示所有生成的加密密钥对。

CiscoASA# show crypto key mypubkey rsa
Key pair was generated at: 01:43:45 UTC Dec 11 2007
Key name: <Default-RSA-Key>
 Usage: General Purpose Key
 Modulus Size (bits): 1024
 Key Data:

  30819f30 0d06092a 864886f7 0d010101 05000381 8d003081 89028181 00d4a509
  99e95d6c b5bdaa25 777aebbe 6ee42c86 23c49f9a bea53224 0234b843 1c0c8541
  f5a66eb1 6d337c70 29031b76 e58c3c6f 36229b14 fefd3298 69f9123c 37f6c43b
  4f8384c4 a736426d 45765cca 7f04cba1 29a95890 84d2c5d4 adeeb248 a10b1f68
  2fe4b9b1 5fa12d0e 7789ce45 55190e79 1364aba4 7b2b21ca de3af74d b7020301 0001
Key pair was generated at: 06:36:00 UTC Dec 15 2007
Key name: my.CA.key
 Usage: General Purpose Key
 Modulus Size (bits): 1024
 Key Data:

  30819f30 0d06092a 864886f7 0d010101 05000381 8d003081 89028181 00b8e20a
  a8332356 b75b6600 735008d3 735d23c5 295b9247 2b5e02a8 1f63dc7a 570667d7
  545e7f98 d3d4239b 42ab8faf 0be8a5d3 94f80d01 a14cc01d 98b1320e 9fe84905
  5ab94b18 ef308eb1 2f22ab1a 8edb38f0 2c2cf78e 07197f2d 52d3cb73 91a9ccb2
  d903f722 bd414b0a 3205aa05 3ec45e24 6480606f 8e417f09 a7aa9c64 4d020301 0001
Key pair was generated at: 07:35:18 UTC Dec 21 2007
CiscoASA#

show crypto isakmp sa 命令可显示 IKE 1 隧道信息。

CiscoASA#show crypto isakmp sa

   Active SA: 1
    Rekey SA: 0 (A tunnel will report 1 Active and 1 Rekey SA during rekey)
Total IKE SA: 1

1   IKE Peer: 10.1.1.5
    Type    : user            Role    : responder
    Rekey   : no              State   : MM_ACTIVE

show crypto ipsec sa 命令可显示 IPSec 隧道信息。

CiscoASA#show crypto ipsec sa
interface: outside
    Crypto map tag: dynmap, seq num: 10, local addr: 192.168.1.5

      local ident (addr/mask/prot/port): (0.0.0.0/0.0.0.0/0/0)
      remote ident (addr/mask/prot/port): (10.5.5.10/255.255.255.255/0/0)
      current_peer: 10.1.1.5, username: vpnuser
      dynamic allocated peer ip: 10.5.5.10

      #pkts encaps: 0, #pkts encrypt: 0, #pkts digest: 0
      #pkts decaps: 144, #pkts decrypt: 144, #pkts verify: 144
      #pkts compressed: 0, #pkts decompressed: 0
      #pkts not compressed: 0, #pkts comp failed: 0, #pkts decomp failed: 0
      #pre-frag successes: 0, #pre-frag failures: 0, #fragments created: 0
      #PMTUs sent: 0, #PMTUs rcvd: 0, #decapsulated frgs needing reassembly: 0
      #send errors: 0, #recv errors: 0

      local crypto endpt.: 192.168.1.5, remote crypto endpt.: 10.1.1.5

      path mtu 1500, ipsec overhead 58, media mtu 1500
      current outbound spi: FF3EEE7D

    inbound esp sas:
      spi: 0xEFDF8BA9 (4024404905)
         transform: esp-3des esp-md5-hmac none
         in use settings ={RA, Tunnel, }
         slot: 0, conn_id: 4096, crypto-map: dynmap
         sa timing: remaining key lifetime (sec): 28314
         IV size: 8 bytes
         replay detection support: Y
    outbound esp sas:
      spi: 0xFF3EEE7D (4282314365)
         transform: esp-3des esp-md5-hmac none
         in use settings ={RA, Tunnel, }
         slot: 0, conn_id: 4096, crypto-map: dynmap
         sa timing: remaining key lifetime (sec): 28314
         IV size: 8 bytes
         replay detection support: Y

命令输出解释程序（仅限注册用户）(OIT) 支持某些 show 命令。使用 OIT 可查看对 show 命令输出的分析。

故障排除

本部分提供了可用于对配置进行故障排除的信息。

以下是您可能会遇到的一些可能的错误：

错误：无法分析或验证导入的证书

在安装身份证书时，如果您不具有通过相关信任点验证的正确的中间或根 CA 证书验证，则可能会出现此错误。您必须删除此身份证书，然后使用正确的中间或根 CA 证书重新验证身份。请与您的第三方供应商联系以验证您收到的 CA 证书是否正确。
Certificate does not contain general purpose public key

当您尝试将身份证书安装到错误的信任点时，可能会出现此错误。这是因为您尝试安装无效的身份证书，或者与信任点关联的密钥对不匹配身份证书中包含的公钥。请发出 show crypto ca certificates trustpointname 命令以验证您是否将身份证书安装到正确的信任点。请查找以Associated Trustpoints开头的行：如果列出的信任点错误，请使用本文档中介绍的过程删除并重新安装适当的信任点。同时，请验证在生成 CSR 之后密钥对是否未更改。
错误：ASA/PIX。Sev=Warning/3 IKE/0xE3000081 Invalid remote certificate id:

如果您具有证书验证问题，则在 VPN Client 中可能会出现此错误信息。请在 ASA/PIX 配置中使用 crypto isakmp identity auto 命令以解决此问题。

用数字证书和Microsoft CA的ASA/PIX 8.x和VPN客户端IPSec认证使配置示例

下载选项

非歧视性语言

关于此翻译

目录

简介

先决条件

要求

使用的组件

相关产品

规则

配置

网络图

配置

ASA 配置

步骤1:验证Date、Time和Time Zone值是否准确

第二步：生成证书签名请求

第三步：验证信任点

第四步：安装证书

第五步：配置远程访问VPN (IPSec)以使用新安装的证书

ASA 配置概要

VPN 客户端配置

验证

故障排除

相关信息

修订历史记录

此文档是否有帮助?

联系我们

本文档适用于以下产品
