簡介

本文檔介紹當ACI枝葉交換機透過EIGRP和eBGP接收同一路由時，其路由行為。

必要條件

讀者必須很好地瞭解ACI元件、術語和操作以及路由協定（EIGRP和BGP）。

設定和拓撲

此設定是使用兩個不同的ACI網狀架構來完成的，連線方式如下：

兩個DC邊界枝葉交換機(BGP)之間的直接鏈路。
透過WAN網路(EIGRP)擴展。SW1和SW2是WAN交換機。

2. 192.168.10.0/24是連線到Fabric-1的內部ACI子網，透過eBGP和EIGRP通告給Fabric-2。

問題陳述

Fabric-2邊界枝葉交換機透過EIGRP和eBGP接收相同的路由，其中eBGP路由按預期安裝在交換機的路由表中。當eBGP會話斷開時，EIGRP路由將安裝在交換機的路由表中。即使eBGP啟動，交換機仍保留EIGRP路由。這裡的期望是，eBGP路由必須在eBGP會話啟動後立即安裝到路由表中，因為eBGP的AD值[ 20 ]小於EIGRP [ 90 ]。

問題摘要

Fabric-1和Fabric-2資料中心透過WAN網路(EIGRP)以及兩個站點之間的直接鏈路連線，運行eBGP的BL交換機。
Fabric-1邊界枝葉交換機透過eBGP和EIGRP向Fabric-2通告子網192.168.10.0/24。
兩個L3Out都位於同一個VRF中。
根據AD值，BGP路由被安裝到Fabric-2邊界枝葉交換機的路由表中。
當Fabric-1和Fabric-2之間的eBGP會話斷開時，EIGRP路由將安裝在預期的Fabric-2_BL交換機的路由表中。
當eBGP啟動時，期望的是eBGP路由必須重新安裝，而EIGRP路由將從路由表中刪除，但路由表沒有出現。
Fabric-2邊界枝葉交換機在其路由表中保留EIGRP路由。

疑難排解和驗證

驗證Fabric-1和Fabric-2邊界枝葉交換機之間的eBGP鄰居關係。

Fabric-2_BL# show bgp sessions vrf snTn:snTn_VRF
Total peers 3, established peers 3
ASN 100
VRF snTn:snTn_VRF, local ASN 100
peers 1, established peers 1, local router-id 172.16.2.100
State: I-Idle, A-Active, O-Open, E-Established, C-Closing, S-Shutdown

Neighbor        ASN    Flaps LastUpDn|LastRead|LastWrit St Port(L/R)  Notif(S/R)

10.10.10.3     65001     2   1d23h   |never   |never    E  179/26051    45/6

檢驗Fabric-2上的EIGRP鄰居關係。

Fabric-2_BL# show ip eigrp neighbors vrf snTn:snTn_VRF
EIGRP neighbors for process 500 VRF snTn:snTn_VRF
H   Address                 Interface       Hold  Uptime  SRTT   RTO  Q  Seq
                                            (sec)         (ms)       Cnt Num
0   10.10.20.3              vlan7           13   2d00h     1    50    0   8

SW-2# show ip eigrp neighbors VRF default
IP-EIGRP neighbors for process 500 VRF default
H   Address                 Interface       Hold  Uptime  SRTT   RTO  Q  Seq
                                            (sec)         (ms)       Cnt Num

0   10.10.20.2              Vlan776          14   2d00h    6    50    0   9

最初，BGP路由會安裝在路由表中，而相同的路由會出現在交換矩陣2邊界枝葉交換機的EIGRP拓撲表中。

Fabric-2_BL# show ip route 192.168.10.0/24 vrf snTn:snTn_VRF
IP Route Table for VRF "snTn:snTn_VRF"
'*' denotes best ucast next-hop
'**' denotes best mcast next-hop
'[x/y]' denotes [preference/metric]
'%<string>' in via output denotes VRF <string>

192.168.10.0/24, ubest/mbest: 1/0

    *via 10.10.10.3%snTn:snTn_VRF, [20/0], 00:00:17, bgp-100, external, tag 65005

         recursive next hop: 10.10.10.3/32%snTn:snTn_VRF

Fabric-2_BL# show ip eigrp topology 192.168.10.0/24 vrf snTn:snTn_VRF

EIGRP (AS 500): VRF: snTn:snTn_VRF , Topology entry for 192.168.10.0/24
  State is Passive, Query origin: Local origin, 0 Successor(s),  FD is Infinity
  Routing Descriptor Blocks:

   10.10.20.3(vlan7), from 10.10.20.3
    Urib State: in-rib,up-to-date
      Composite metric is (128576/128320), Route is Internal
      Vector metric:
        Minimum bandwidth is 8000000 Kbit
        Total delay is 5010 microseconds
        Reliability is 255/255
        Load is 1/255
        Minimum MTU is 1500
        Hop count is 1
        Internal tag is 0

當eBGP會話在Fabric-1和Fabric-2邊界枝葉交換機之間斷開時，EIGRP路由將安裝在交換矩陣-2邊界枝葉交換機的路由表中，並且即使在eBGP啟動時仍保留EIGRP路由。

Fabric-2_BL# show ip route 192.168.10.0/24 vrf snTn:snTn_VRF
IP Route Table for VRF "snTn:snTn_VRF
'*' denotes best ucast next-hop
'**' denotes best mcast next-hop
'[x/y]' denotes [preference/metric]
'%<string>' in via output denotes VRF <string>

192.168.10.0/24, ubest/mbest: 1/0
    *via 10.10.20.3, vlan7, [90/128576], 2d00h, eigrp-default, internal

這裡的期望是，一旦eBGP會話啟動，eBGP路由必須重新安裝到路由表中。但Fabric-2_BL交換機只保留EIGRP路由。

為什麼EIGRP路由優先於eBGP路由？

當eBGP會話關閉時，Fabric-2_BL交換機在路由表中安裝EIGRP路由，並將該路由重分配到MP-BGP中，以將其轉發到Fabric-2中的其他服務枝葉交換機。
由於Fabric-2_BL交換機正在重新分發它，因此會成為預設權重值為32768的該路由的源。但是，來自eBGP的路由的權重為0。
由於權重較高是首選路由，因此Fabric-2_BL交換機將重分發的路由視為最佳路由，並且不安裝eBGP路由。
下面顯示的輸出是eBGP會話恢復運行的時間。

Fabric-2_BL# show ip bgp 192.168.10.0/24 vrf snTn:snTn_VRF
BGP routing table information for VRF snTn:snTn_VRF, address family IPv4 Unicast
BGP routing table entry for 192.168.10.0/24, version 28 dest ptr 0xa0fe0328
Paths: (2 available, best #1)
Flags: (0x80c0002 00000000) on xmit-list, is not in urib, exported
  vpn: version 371, (0x100002) on xmit-list
Multipath: eBGP iBGP

  Advertised path-id 1, VPN AF advertised path-id 1
  Path type (0xa961d880): redist 0x408 0x1 ref 0 adv path ref 2, path is valid, is best path
  AS-Path: NONE, path locally originated
  Tx Domain path attribute Flag 0xc0,Code 36, Length 8, segment length 1
  domain path: { <1:5345:128>}

    0.0.0.0 (metric 0) from 0.0.0.0 (172.16.0.10)
      Origin incomplete, MED 128576, localpref 100, weight 32768 tag 0, propagate 0
      Extcommunity:
          RT:100:2129921
          VNID:2129921
          COST:pre-bestpath:128:128576
          COST:pre-bestpath:162:90
          0x8800:32768:0 (Flags = 32768, Tag = 0)
          0x8801:500:128256 (ASN = 500, Delay = 128256)
          0x8802:65281:320 (Reliability = 255, Hop = 1, Bandwidth = 320)
          0x8803:1:1500 (Reserve = 0, Load = 1, MTU = 1500)
          0x8804:0:0 (Remote ASN = 0, Remote ID = 0)
          0x8805:0:0 (Remote Prot = 0, Remote Metric = 0)

  VPN AF advertised path-id 2
  Path type (0xa961e0bc): external 0x28 0x0 ref 0 adv path ref 1, path is valid, not best reason: Weight
  AS-Path: 65001 , path sourced external to AS
  Source Domain: <1:16:128>
  Tx Domain path attribute Flag 0xc0,Code 36, Length 15, segment length 2
  domain path: { <1:5345:128>,<1:16:128>}

    10.10.10.3 (metric 0) from 10.10.10.3 (172.16.1.100)
      Origin IGP, MED not set, localpref 100, weight 0 tag 0, propagate 0
      Extcommunity:
          RT:100:2129921
          VNID:2129921

  VRF advertise information:
  Path-id 1 not advertised to any peer
  VPN AF advertise information:
  Path-id 1 advertised to peers:
    10.0.152.65        10.0.152.66
  Path-id 2 not advertised to any peer

解決方案

解決此問題的方法有兩種：

LPM是解決方案之一：
1. 透過eBGP在EIGRP和/24掩碼下使用/23掩碼通告相同的子網，以便兩條路由都出現在Fabric-2_BL交換機的路由表中。

SW-2# show run interface vlan 776

!Command: show running-config interface Vlan776
!Time: Sun Jun 23 06:30:43 2024

version 7.0(3)I7(5) Bios:version 07.66

interface Vlan776
  no shutdown
  ip address 10.10.20.3/24
  ip router eigrp 500
  ip summary-address eigrp 500 192.168.10.0/23   >>>>>> Advertised /23 via EIGRP

Fabric-2_BL# show ip route vrf snTn:snTn_VRF

IP Route Table for VRF "snTn:snTn_VRF"
'*' denotes best ucast next-hop
'**' denotes best mcast next-hop
'[x/y]' denotes [preference/metric]
'%<string>' in via output denotes VRF <string>

192.168.10.0/23, ubest/mbest: 1/0
    *via 10.10.20.3, vlan20, [90/128576], 00:24:11, eigrp-default, internal    >>>>>>>>> EIGRP Route

192.168.10.0/24, ubest/mbest: 1/0
    *via 10.10.10.3%snTn:snTn_VRF, [20/0], 00:04:12, bgp-100, external, tag 65005   >>>>>>>> BGP Route

b.當eBGP會話斷開時，EIGRP路由仍存在於路由表中以實現冗餘。

c.一旦BGP會話啟動，BGP路由就會被重新安裝到路由表中並優先用於流量轉發。

在eBGP路由上應用權重：
1. 如果需要透過EIGRP和BGP通告具有相同子網掩碼的子網，則可以對eBGP路由應用更高的權重(大於32768)以始終作為首選路由。
2. 如何對ACI應用權重：

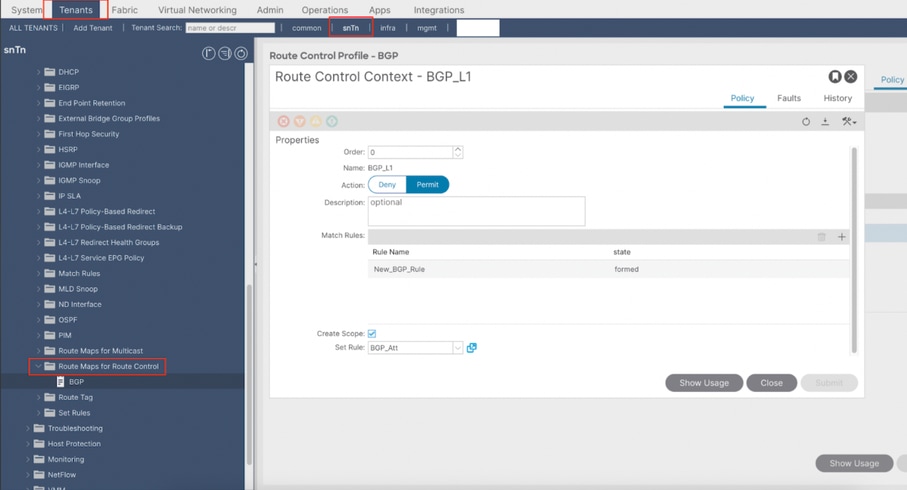

  1. 建立路由對映策略。

租戶---->策略---->路由控制的路由對映（按一下右鍵並建立新策略，填寫所有必需的詳細資訊）---->建立「設定規則」策略—>選擇「權重」屬性策略並輸入值

config 1

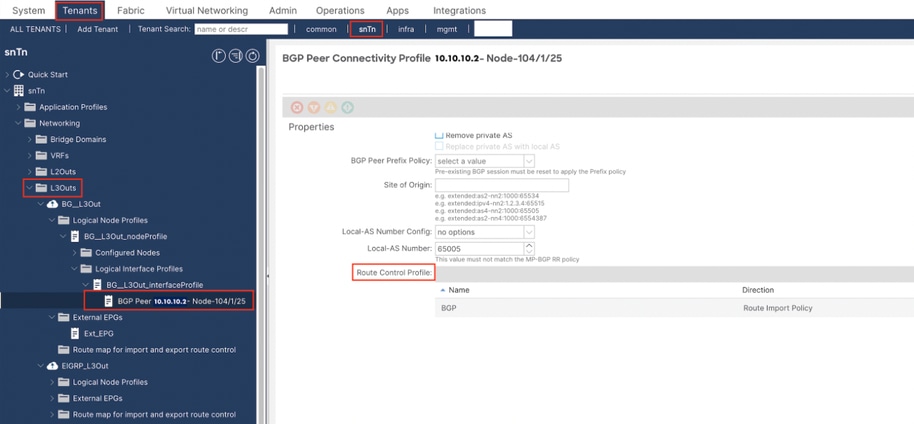

ii.將路由對映應用到L3Out：

租戶—> Networking —> L3Out ----> Logical Node Profiles —> Node Profile ----> Logical Interface Profile —> Interface Profile —> Peer Profile —>按一下「Route Control Profile」下的「+」並選擇已建立的新路由對映

配置2

Fabric-2_BL# show ip bgp 192.168.10.0/24 vrf snTn:snTn_VRF

BGP routing table information for VRF snTn:snTn_VRF, address family IPv4 Unicast
BGP routing table entry for 192.168.10.0/24, version 61 dest ptr 0xa0fa3f70
Paths: (1 available, best #1)
Flags: (0x80c001a 00000000) on xmit-list, is in urib, is best urib route, is in HW, exported
  vpn: version 79, (0x100002) on xmit-list
Multipath: eBGP iBGP

  Advertised path-id 1, VPN AF advertised path-id 1
  Path type (0xa95a2d5c): external 0x28 0x0 ref 0 adv path ref 2, path is valid, is best path
  AS-Path: 65005 65001 , path sourced external to AS
  Source Domain: <1:16:128>
  Tx Domain path attribute Flag 0xc0,Code 36, Length 15, segment length 2
  domain path: { <1:5345:128>,<1:16:128>}
    10.10.10.3 (metric 0) from 10.10.10.3 (172.16.0.10)
      Origin IGP, MED not set, localpref 100, weight 32769 tag 0, propagate 0
      Extcommunity:
          RT:100:2129921
          VNID:2129921

  VRF advertise information:
  Path-id 1 not advertised to any peer

  VPN AF advertise information:
  Path-id 1 advertised to peers:
    10.0.152.65        10.0.152.66

c.此處所捕獲的是，當BGP會話啟動時，您在BGP表中看不到重分發的EIGRP路由。原因是EIGRP外部路由的FD設定為無限。

Fabric-2_BL# show ip eigrp topology vrf snTn:snTn_VRF

EIGRP Topology Table for AS(500)/ID(172.16.2.100) VRF snTn:snTn_VRF
Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
r - reply Status, s - sia Status

    P 192.168.10.0/24, 0 Successors, FD is Infinity
      via 10.10.20.3(128576/128320), vlan20

d. 「FD is Infinity」消息實際上是EIGRP中指示RIB由於存在管理距離較低的路由而拒絕該路由。

e.當BGP會話斷開時，EIGRP路由只會重分配到MP-BGP中並安裝到fabric-2_BL交換機的路由表中。

Fabric-2_BL# show ip bgp summary vrf snTn:snTn_VRF

BGP summary information for VRF snTn:snTn_VRF, address family IPv4 Unicast
BGP router identifier 172.16.2.100, local AS number 100
BGP table version is 65, IPv4 Unicast config peers 1, capable peers 0
6 network entries and 6 paths using 1248 bytes of memory
BGP attribute entries [4/704], BGP AS path entries [0/0]
BGP community entries [0/0], BGP clusterlist entries [2/8]

Neighbor        V    AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd

10.10.10.3      4 65001   18530   18554        0    0    0 00:04:25   Idle

Fabric-2_BL# show ip eigrp topology vrf snTn:snTn_VRF

IP-EIGRP Topology Table for AS(500)/ID(172.16.2.100) VRF snTn:snTn_VRF
Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
       r - reply Status, s - sia Status

P 192.168.10.0/24, 1 successors, FD is 128576
        via 10.10.20.3 (128576/128320), Vlan20

Fabric-2_BL# show ip route vrf snTn:snTn_VRF

IP Route Table for VRF "snTn:snTn_VRF"
'*' denotes best ucast next-hop
'**' denotes best mcast next-hop
'[x/y]' denotes [preference/metric]
'%<string>' in via output denotes VRF <string>

192.168.10.0/24, ubest/mbest: 1/0
    *via 10.10.20.3, Vlan20, [90/128576], 02:31:52, eigrp-default, internal  >>>>>>> EIGRP Route

Fabric-2_BL# show ip bgp 192.168.10.0/24 vrf snTn:snTn_VRF

BGP routing table information for VRF snTn:snTn_VRF, address family IPv4 Unicast
BGP routing table entry for 192.168.10.0/24, version 65 dest ptr 0xa0fa3f70
Paths: (1 available, best #1)
Flags: (0x80c0002 00000000) on xmit-list, is not in urib, exported
  vpn: version 83, (0x100002) on xmit-list
Multipath: eBGP iBGP

  Advertised path-id 1, VPN AF advertised path-id 1
  Path type (0xa95a2c64): redist 0x408 0x1 ref 0 adv path ref 2, path is valid, is best path
  AS-Path: NONE, path locally originated
  Tx Domain path attribute Flag 0xc0,Code 36, Length 8, segment length 1
  domain path: { <1:5345:128>}
    0.0.0.0 (metric 0) from 0.0.0.0 (172.16.0.10)
      Origin incomplete, MED 128576, localpref 100, weight 32768 tag 0, propagate 0
      Extcommunity:
          RT:100:2129921
          VNID:2129921
          COST:pre-bestpath:128:128576
          COST:pre-bestpath:162:90
          0x8800:32768:0 (Flags = 32768, Tag = 0)
          0x8801:500:128256 (ASN = 500, Delay = 128256)
          0x8802:65281:320 (Reliability = 255, Hop = 1, Bandwidth = 320)
          0x8803:1:1500 (Reserve = 0, Load = 1, MTU = 1500)
          0x8804:0:0 (Remote ASN = 0, Remote ID = 0)
          0x8805:0:0 (Remote Prot = 0, Remote Metric = 0)

  VRF advertise information:
  Path-id 1 not advertised to any peer

  VPN AF advertise information:
  Path-id 1 advertised to peers:
    10.0.152.65        10.0.152.66

修訂記錄

修訂	發佈日期	意見
1.0	01-Jul-2024	初始版本

由思科工程師貢獻

謝卡爾·尼赫特
TAC
