簡介

本文說明如何使用身分識別服務引擎(ISE)伺服器設定RADIUS授權，以便其透過RADIUS屬性8 Framed-IP-Address將同一IP位址轉送到特定Cisco AnyConnect安全行動化使用者端的Firepower威脅防禦(FTD)。

必要條件

需求

思科建議您瞭解以下主題：

FTD
Firepower Management Center (FMC)
ISE
Cisco AnyConnect Security Mobility Solution — 遠端存取
RADIUS通訊協定

採用元件

本檔案中的資訊是根據以下軟體版本：

FMCv - 7.0.0（內部版本94）
FTDv - 7.0.0（內部版本94）
ISE - 2.7.0.356
AnyConnect - 4.10.02086
Windows 10 Pro

本文中的資訊是根據特定實驗室環境內的裝置所建立。文中使用到的所有裝置皆從已清除（預設）的組態來啟動。如果您的網路運作中，請確保您瞭解任何指令可能造成的影響。

設定

網路圖表

通過FMC使用AAA/RADIUS身份驗證配置遠端訪問VPN

如需逐步程式，請參閱本檔案及以下影片：

FTD CLI上的遠端存取VPN組態為：

ip local pool AC_Pool 10.0.50.1-10.0.50.100 mask 255.255.255.0

interface GigabitEthernet0/0
 nameif Outside_Int
 security-level 0
 ip address 192.168.0.100 255.255.255.0

aaa-server ISE_Server protocol radius
aaa-server ISE_Server host 172.16.0.8
 key *****
 authentication-port 1812
 accounting-port 1813

crypto ca trustpoint RAVPN_Self-Signed_Cert
 enrollment self
 fqdn none
 subject-name CN=192.168.0.100
 keypair <Default-RSA-Key>
 crl configure

ssl trust-point RAVPN_Self-Signed_Cert

webvpn
 enable Outside_Int
 http-headers
  hsts-server
   enable
   max-age 31536000
   include-sub-domains
   no preload
  hsts-client
   enable
  x-content-type-options
  x-xss-protection
  content-security-policy
 anyconnect image disk0:/csm/anyconnect-win-4.10.02086-webdeploy-k9.pkg 1 regex "Windows"
 anyconnect enable
 tunnel-group-list enable
 cache
  no disable
 error-recovery disable

group-policy DfltGrpPolicy attributes
 vpn-tunnel-protocol ikev2 ssl-client
 user-authentication-idle-timeout none
 webvpn
  anyconnect keep-installer none
  anyconnect modules value none
  anyconnect ask none default anyconnect
  http-comp none
  activex-relay disable
  file-entry disable
  file-browsing disable
  url-entry disable
  deny-message none

tunnel-group RA_VPN type remote-access
tunnel-group RA_VPN general-attributes
 address-pool AC_Pool
 authentication-server-group ISE_Server
tunnel-group RA_VPN webvpn-attributes
 group-alias RA_VPN enable

在ISE上配置授權策略（RADIUS伺服器）

步驟1.登入到ISE伺服器並導航到管理>網路資源>網路裝置。

TZ_Static_IP_Address_RADIUS_Authorization_16

步驟2.在「網路裝置」區段中，按一下Add，以便ISE可以處理來自FTD的RADIUS存取要求。

TZ_Static_IP_Address_RADIUS_Authorization_17

輸入網路裝置名稱和IP地址欄位，然後選中RADIUS身份驗證設定框。Shared Secret的值必須與建立FMC上的RADIUS伺服器對象時使用的值相同。

TZ_Static_IP_Address_RADIUS_Authorization_18

使用此頁面結尾的按鈕儲存。

步驟3.導航到管理>身份管理>身份。

TZ_Static_IP_Address_RADIUS_Authorization_19

步驟4.在Network Access Users部分，按一下Add以便在ISE的本地資料庫中建立user1。

TZ_Static_IP_Address_RADIUS_Authorization_20

在Name和Login Password欄位中輸入使用者名稱和密碼，然後按一下Submit。

TZ_Static_IP_Address_RADIUS_Authorization_21

步驟5.重複上述步驟以建立user2。

TZ_Static_IP_Address_RADIUS_Authorization_22

步驟6.導覽至Policy > Policy Sets。

TZ_Static_IP_Address_RADIUS_Authorization_23

步驟7.按一下屏幕右側的箭頭>。

TZ_Static_IP_Address_RADIUS_Authorization_24

步驟8.按一下Authorization Policy旁邊的箭頭>將其展開。現在，按一下+符號以新增新規則。

TZ_Static_IP_Address_RADIUS_Authorization_25

為規則提供名稱，並在條件列下選擇+符號。

TZ_Static_IP_Address_RADIUS_Authorization_26

在「屬性編輯器」(Attribute Editor)文本框中按一下，然後按一下「主題」(Subject)圖示。向下滾動，直到找到RADIUS User-Name屬性並選擇它。

TZ_Static_IP_Address_RADIUS_Authorization_27

保留Equals作為運算子，並在其旁邊的文本框中輸入user1。按一下「Use」以儲存屬性。

TZ_Static_IP_Address_RADIUS_Authorization_28

現在已設定此規則的條件。

步驟9.在Results/Profiles列中，按一下+號並選擇Create a New Authorization Profile。

TZ_Static_IP_Address_RADIUS_Authorization_29

為其指定名稱，並保留ACCESS_ACCEPT作為存取型別。向下滾動至高級屬性設定部分。

TZ_Static_IP_Address_RADIUS_Authorization_30

按一下橙色箭頭並選擇Radius > Framed-IP-Address - [8]。

TZ_Static_IP_Address_RADIUS_Authorization_31

鍵入要始終為此使用者靜態分配的IP地址，然後按一下Save。

TZ_Static_IP_Address_RADIUS_Authorization_32

步驟10.現在，選擇新建立的授權配置檔案。

TZ_Static_IP_Address_RADIUS_Authorization_33

現在已設定授權規則。按一下「Save」。

TZ_Static_IP_Address_RADIUS_Authorization_34

驗證

步驟1.導航到安裝了Cisco AnyConnect Security Mobility客戶端的客戶端電腦。連線到FTD頭端（此處使用Windows機器），並輸入user1憑證。

TZ_Static_IP_Address_RADIUS_Authorization_35

TZ_Static_IP_Address_RADIUS_Authorization_36

按一下齒輪圖示（左下角）並導航到Statistics頁籤。在Address Information部分中確認分配的IP地址確實是為該使用者在ISE授權策略中配置的地址。

TZ_Static_IP_Address_RADIUS_Authorization_36_

TZ_Static_IP_Address_RADIUS_Authorization_37

FTD上的debug radius all命令輸出顯示：

firepower# SVC message: t/s=5/16: The user has requested to disconnect the connection.
webvpn_svc_np_tear_down: no ACL
webvpn_svc_np_tear_down: no IPv6 ACL
np_svc_destroy_session(0x9000)
radius mkreq: 0x13
alloc_rip 0x0000145d043b6460
new request 0x13 --> 3 (0x0000145d043b6460)
got user 'user1'
got password
add_req 0x0000145d043b6460 session 0x13 id 3
RADIUS_REQUEST
radius.c: rad_mkpkt
rad_mkpkt: ip:source-ip=192.168.0.101

RADIUS packet decode (authentication request)




RADIUS packet decode (response)

--------------------------------------
Raw packet data (length = 136).....
02 03 00 88 0c af 1c 41 4b c4 a6 58 de f3 92 31 | .......AK..X...1
7d aa 38 1e 01 07 75 73 65 72 31 08 06 0a 00 32 | }.8...user1....2
65 19 3d 43 41 43 53 3a 63 30 61 38 30 30 36 34 | e.=CACS:c0a80064
30 30 30 30 61 30 30 30 36 31 34 62 63 30 32 64 | 0000a000614bc02d
3a 64 72 69 76 65 72 61 70 2d 49 53 45 2d 32 2d | :driverap-ISE-2-
37 2f 34 31 37 34 39 34 39 37 38 2f 32 31 1a 2a | 7/417494978/21.*
00 00 00 09 01 24 70 72 6f 66 69 6c 65 2d 6e 61 | .....$profile-na
6d 65 3d 57 69 6e 64 6f 77 73 31 30 2d 57 6f 72 | me=Windows10-Wor
6b 73 74 61 74 69 6f 6e | kstation

Parsed packet data.....
Radius: Code = 2 (0x02)
Radius: Identifier = 3 (0x03)
Radius: Length = 136 (0x0088)
Radius: Vector: 0CAF1C414BC4A658DEF392317DAA381E
Radius: Type = 1 (0x01) User-Name
Radius: Length = 7 (0x07)
Radius: Value (String) =
75 73 65 72 31 | user1
Radius: Type = 8 (0x08) Framed-IP-Address
Radius: Length = 6 (0x06)
Radius: Value (IP Address) = 10.0.50.101 (0x0A003265)
Radius: Type = 25 (0x19) Class
Radius: Length = 61 (0x3D)
Radius: Value (String) =
43 41 43 53 3a 63 30 61 38 30 30 36 34 30 30 30 | CACS:c0a80064000
30 61 30 30 30 36 31 34 62 63 30 32 64 3a 64 72 | 0a000614bc02d:dr
69 76 65 72 61 70 2d 49 53 45 2d 32 2d 37 2f 34 | iverap-ISE-2-7/4
31 37 34 39 34 39 37 38 2f 32 31 | 17494978/21
Radius: Type = 26 (0x1A) Vendor-Specific
Radius: Length = 42 (0x2A)
Radius: Vendor ID = 9 (0x00000009)
Radius: Type = 1 (0x01) Cisco-AV-pair
Radius: Length = 36 (0x24)
Radius: Value (String) =
70 72 6f 66 69 6c 65 2d 6e 61 6d 65 3d 57 69 6e | profile-name=Win
64 6f 77 73 31 30 2d 57 6f 72 6b 73 74 61 74 69 | dows10-Workstati
6f 6e | on
rad_procpkt: ACCEPT
Got AV-Pair with value profile-name=Windows10-Workstation
RADIUS_ACCESS_ACCEPT: normal termination
RADIUS_DELETE
remove_req 0x0000145d043b6460 session 0x13 id 3
free_rip 0x0000145d043b6460
radius: send queue empty

FTD 記錄顯示：

firepower#
<omitted output>
Sep 22 2021 23:52:40: %FTD-6-725002: Device completed SSL handshake with client Outside_Int:192.168.0.101/60405 to 192.168.0.100/443 for TLSv1.2 session
Sep 22 2021 23:52:48: %FTD-7-609001: Built local-host Outside_Int:172.16.0.8
Sep 22 2021 23:52:48: %FTD-6-113004: AAA user authentication Successful : server = 172.16.0.8 : user = user1
Sep 22 2021 23:52:48: %FTD-6-113009: AAA retrieved default group policy (DfltGrpPolicy) for user = user1
Sep 22 2021 23:52:48: %FTD-6-113008: AAA transaction status ACCEPT : user = user1
Sep 22 2021 23:52:48: %FTD-7-734003: DAP: User user1, Addr 192.168.0.101: Session Attribute aaa.radius["1"]["1"] = user1
Sep 22 2021 23:52:48: %FTD-7-734003: DAP: User user1, Addr 192.168.0.101: Session Attribute aaa.radius["8"]["1"] = 167785061
Sep 22 2021 23:52:48: %FTD-7-734003: DAP: User user1, Addr 192.168.0.101: Session Attribute aaa.radius["25"]["1"] = CACS:c0a800640000c000614bc1d0:driverap-ISE-2-7/417494978/23
Sep 22 2021 23:52:48: %FTD-7-734003: DAP: User user1, Addr 192.168.0.101: Session Attribute aaa.cisco.grouppolicy = DfltGrpPolicy
Sep 22 2021 23:52:48: %FTD-7-734003: DAP: User user1, Addr 192.168.0.101: Session Attribute aaa.cisco.ipaddress = 10.0.50.101
Sep 22 2021 23:52:48: %FTD-7-734003: DAP: User user1, Addr 192.168.0.101: Session Attribute aaa.cisco.username = user1
Sep 22 2021 23:52:48: %FTD-7-734003: DAP: User user1, Addr 192.168.0.101: Session Attribute aaa.cisco.username1 = user1
Sep 22 2021 23:52:48: %FTD-7-734003: DAP: User user1, Addr 192.168.0.101: Session Attribute aaa.cisco.username2 =
Sep 22 2021 23:52:48: %FTD-7-734003: DAP: User user1, Addr 192.168.0.101: Session Attribute aaa.cisco.tunnelgroup = RA_VPN
Sep 22 2021 23:52:48: %FTD-6-734001: DAP: User user1, Addr 192.168.0.101, Connection AnyConnect: The following DAP records were selected for this connection: DfltAccessPolicy
Sep 22 2021 23:52:48: %FTD-6-113039: Group <DfltGrpPolicy> User <user1> IP <192.168.0.101> AnyConnect parent session started.
<omitted output>
Sep 22 2021 23:53:17: %FTD-6-725002: Device completed SSL handshake with client Outside_Int:192.168.0.101/60412 to 192.168.0.100/443 for TLSv1.2 session
Sep 22 2021 23:53:17: %FTD-7-737035: IPAA: Session=0x0000c000, 'IPv4 address request' message queued
Sep 22 2021 23:53:17: %FTD-7-737035: IPAA: Session=0x0000c000, 'IPv6 address request' message queued
Sep 22 2021 23:53:17: %FTD-7-737001: IPAA: Session=0x0000c000, Received message 'IPv4 address request'
Sep 22 2021 23:53:17: %FTD-6-737010: IPAA: Session=0x0000c000, AAA assigned address 10.0.50.101, succeeded
Sep 22 2021 23:53:17: %FTD-7-737001: IPAA: Session=0x0000c000, Received message 'IPv6 address request'
Sep 22 2021 23:53:17: %FTD-5-737034: IPAA: Session=0x0000c000, IPv6 address: no IPv6 address available from local pools
Sep 22 2021 23:53:17: %FTD-5-737034: IPAA: Session=0x0000c000, IPv6 address: callback failed during IPv6 request
Sep 22 2021 23:53:17: %FTD-4-722041: TunnelGroup <RA_VPN> GroupPolicy <DfltGrpPolicy> User <user1> IP <192.168.0.101> No IPv6 address available for SVC connection
Sep 22 2021 23:53:17: %FTD-7-609001: Built local-host Outside_Int:10.0.50.101
Sep 22 2021 23:53:17: %FTD-5-722033: Group <DfltGrpPolicy> User <user1> IP <192.168.0.101> First TCP SVC connection established for SVC session.
Sep 22 2021 23:53:17: %FTD-6-722022: Group <DfltGrpPolicy> User <user1> IP <192.168.0.101> TCP SVC connection established without compression
Sep 22 2021 23:53:17: %FTD-7-746012: user-identity: Add IP-User mapping 10.0.50.101 - LOCAL\user1 Succeeded - VPN user
Sep 22 2021 23:53:17: %FTD-6-722055: Group <DfltGrpPolicy> User <user1> IP <192.168.0.101> Client Type: Cisco AnyConnect VPN Agent for Windows 4.10.02086
Sep 22 2021 23:53:17: %FTD-4-722051: Group


       User

        IP <192.168.0.101> IPv4 Address <10.0.50.101> IPv6 address <::> assigned to session

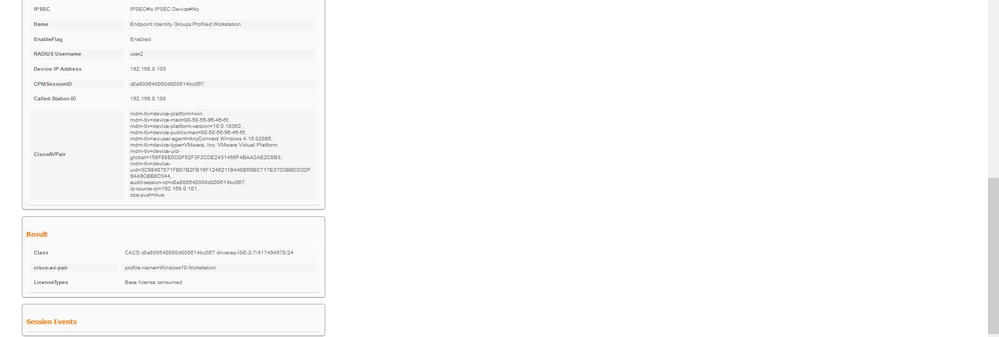

ISE上的RADIUS Live日誌顯示：

TZ_Static_IP_Address_RADIUS_Authorization_40

TZ_Static_IP_Address_RADIUS_Authorization_41

TZ_Static_IP_Address_RADIUS_Authorization_42

步驟2.連線到FTD頭端（此處使用Windows電腦）並輸入user2憑證。

TZ_Static_IP_Address_RADIUS_Authorization_38

Address Information部分顯示，分配的IP地址實際上是通過FMC配置的IPv4本地池中的第一個IP地址。

TZ_Static_IP_Address_RADIUS_Authorization_39

FTD上的debug radius all命令輸出顯示：

firepower# SVC message: t/s=5/16: The user has requested to disconnect the connection.
webvpn_svc_np_tear_down: no ACL
webvpn_svc_np_tear_down: no IPv6 ACL
np_svc_destroy_session(0xA000)
radius mkreq: 0x15
alloc_rip 0x0000145d043b6460
new request 0x15 --> 4 (0x0000145d043b6460)
got user 'user2'
got password
add_req 0x0000145d043b6460 session 0x15 id 4
RADIUS_REQUEST
radius.c: rad_mkpkt
rad_mkpkt: ip:source-ip=192.168.0.101

RADIUS packet decode (authentication request)




RADIUS packet decode (response)

--------------------------------------
Raw packet data (length = 130).....
02 04 00 82 a6 67 35 9e 10 36 93 18 1f 1b 85 37 | .....g5..6.....7
b6 c3 18 4f 01 07 75 73 65 72 32 19 3d 43 41 43 | ...O..user2.=CAC
53 3a 63 30 61 38 30 30 36 34 30 30 30 30 62 30 | S:c0a800640000b0
30 30 36 31 34 62 63 30 61 33 3a 64 72 69 76 65 | 00614bc0a3:drive
72 61 70 2d 49 53 45 2d 32 2d 37 2f 34 31 37 34 | rap-ISE-2-7/4174
39 34 39 37 38 2f 32 32 1a 2a 00 00 00 09 01 24 | 94978/22.*.....$
70 72 6f 66 69 6c 65 2d 6e 61 6d 65 3d 57 69 6e | profile-name=Win
64 6f 77 73 31 30 2d 57 6f 72 6b 73 74 61 74 69 | dows10-Workstati
6f 6e | on

Parsed packet data.....
Radius: Code = 2 (0x02)
Radius: Identifier = 4 (0x04)
Radius: Length = 130 (0x0082)
Radius: Vector: A667359E103693181F1B8537B6C3184F
Radius: Type = 1 (0x01) User-Name
Radius: Length = 7 (0x07)
Radius: Value (String) =
75 73 65 72 32 | user2
Radius: Type = 25 (0x19) Class
Radius: Length = 61 (0x3D)
Radius: Value (String) =
43 41 43 53 3a 63 30 61 38 30 30 36 34 30 30 30 | CACS:c0a80064000
30 62 30 30 30 36 31 34 62 63 30 61 33 3a 64 72 | 0b000614bc0a3:dr
69 76 65 72 61 70 2d 49 53 45 2d 32 2d 37 2f 34 | iverap-ISE-2-7/4
31 37 34 39 34 39 37 38 2f 32 32 | 17494978/22
Radius: Type = 26 (0x1A) Vendor-Specific
Radius: Length = 42 (0x2A)
Radius: Vendor ID = 9 (0x00000009)
Radius: Type = 1 (0x01) Cisco-AV-pair
Radius: Length = 36 (0x24)
Radius: Value (String) =
70 72 6f 66 69 6c 65 2d 6e 61 6d 65 3d 57 69 6e | profile-name=Win
64 6f 77 73 31 30 2d 57 6f 72 6b 73 74 61 74 69 | dows10-Workstati
6f 6e | on
rad_procpkt: ACCEPT
Got AV-Pair with value profile-name=Windows10-Workstation
RADIUS_ACCESS_ACCEPT: normal termination
RADIUS_DELETE
remove_req 0x0000145d043b6460 session 0x15 id 4
free_rip 0x0000145d043b6460
radius: send queue empty

FTD 記錄顯示：

<omitted output>
Sep 22 2021 23:59:26: %FTD-6-725002: Device completed SSL handshake with client Outside_Int:192.168.0.101/60459 to 192.168.0.100/443 for TLSv1.2 session
Sep 22 2021 23:59:35: %FTD-7-609001: Built local-host Outside_Int:172.16.0.8
Sep 22 2021 23:59:35: %FTD-6-113004: AAA user authentication Successful : server = 172.16.0.8 : user = user2
Sep 22 2021 23:59:35: %FTD-6-113009: AAA retrieved default group policy (DfltGrpPolicy) for user = user2
Sep 22 2021 23:59:35: %FTD-6-113008: AAA transaction status ACCEPT : user = user2
Sep 22 2021 23:59:35: %FTD-7-734003: DAP: User user2, Addr 192.168.0.101: Session Attribute aaa.radius["1"]["1"] = user2
Sep 22 2021 23:59:35: %FTD-7-734003: DAP: User user2, Addr 192.168.0.101: Session Attribute aaa.radius["25"]["1"] = CACS:c0a800640000d000614bc367:driverap-ISE-2-7/417494978/24
Sep 22 2021 23:59:35: %FTD-7-734003: DAP: User user2, Addr 192.168.0.101: Session Attribute aaa.cisco.grouppolicy = DfltGrpPolicy
Sep 22 2021 23:59:35: %FTD-7-734003: DAP: User user2, Addr 192.168.0.101: Session Attribute aaa.cisco.username = user2
Sep 22 2021 23:59:35: %FTD-7-734003: DAP: User user2, Addr 192.168.0.101: Session Attribute aaa.cisco.username1 = user2
Sep 22 2021 23:59:35: %FTD-7-734003: DAP: User user2, Addr 192.168.0.101: Session Attribute aaa.cisco.username2 =
Sep 22 2021 23:59:35: %FTD-7-734003: DAP: User user2, Addr 192.168.0.101: Session Attribute aaa.cisco.tunnelgroup = RA_VPN
Sep 22 2021 23:59:35: %FTD-6-734001: DAP: User user2, Addr 192.168.0.101, Connection AnyConnect: The following DAP records were selected for this connection: DfltAccessPolicy
Sep 22 2021 23:59:35: %FTD-6-113039: Group <DfltGrpPolicy> User <user2> IP <192.168.0.101> AnyConnect parent session started.
<omitted output>
Sep 22 2021 23:59:52: %FTD-6-725002: Device completed SSL handshake with client Outside_Int:192.168.0.101/60470 to 192.168.0.100/443 for TLSv1.2 session
Sep 22 2021 23:59:52: %FTD-7-737035: IPAA: Session=0x0000d000, 'IPv4 address request' message queued
Sep 22 2021 23:59:52: %FTD-7-737035: IPAA: Session=0x0000d000, 'IPv6 address request' message queued
Sep 22 2021 23:59:52: %FTD-7-737001: IPAA: Session=0x0000d000, Received message 'IPv4 address request'
Sep 22 2021 23:59:52: %FTD-5-737003: IPAA: Session=0x0000d000, DHCP configured, no viable servers found for tunnel-group 'RA_VPN'
Sep 22 2021 23:59:52: %FTD-7-737400: POOLIP: Pool=AC_Pool, Allocated 10.0.50.1 from pool
Sep 22 2021 23:59:52: %FTD-7-737200: VPNFIP: Pool=AC_Pool, Allocated 10.0.50.1 from pool
Sep 22 2021 23:59:52: %FTD-6-737026: IPAA: Session=0x0000d000, Client assigned 10.0.50.1 from local pool AC_Pool
Sep 22 2021 23:59:52: %FTD-6-737006: IPAA: Session=0x0000d000, Local pool request succeeded for tunnel-group 'RA_VPN'
Sep 22 2021 23:59:52: %FTD-7-737001: IPAA: Session=0x0000d000, Received message 'IPv6 address request'
Sep 22 2021 23:59:52: %FTD-5-737034: IPAA: Session=0x0000d000, IPv6 address: no IPv6 address available from local pools
Sep 22 2021 23:59:52: %FTD-5-737034: IPAA: Session=0x0000d000, IPv6 address: callback failed during IPv6 request
Sep 22 2021 23:59:52: %FTD-4-722041: TunnelGroup <RA_VPN> GroupPolicy <DfltGrpPolicy> User <user2> IP <192.168.0.101> No IPv6 address available for SVC connection
Sep 22 2021 23:59:52: %FTD-7-609001: Built local-host Outside_Int:10.0.50.1
Sep 22 2021 23:59:52: %FTD-5-722033: Group <DfltGrpPolicy> User <user2> IP <192.168.0.101> First TCP SVC connection established for SVC session.
Sep 22 2021 23:59:52: %FTD-6-722022: Group <DfltGrpPolicy> User <user2> IP <192.168.0.101> TCP SVC connection established without compression
Sep 22 2021 23:59:52: %FTD-7-746012: user-identity: Add IP-User mapping 10.0.50.1 - LOCAL\user2 Succeeded - VPN user
Sep 22 2021 23:59:52: %FTD-6-722055: Group <DfltGrpPolicy> User <user2> IP <192.168.0.101> Client Type: Cisco AnyConnect VPN Agent for Windows 4.10.02086
Sep 22 2021 23:59:52: %FTD-4-722051: Group


       User

        IP <192.168.0.101> IPv4 Address <10.0.50.1> IPv6 address <::> assigned to session

ISE上的RADIUS Live日誌顯示：

TZ_Static_IP_Address_RADIUS_Authorization_43

TZ_Static_IP_Address_RADIUS_Authorization_44

TZ_Static_IP_Address_RADIUS_Authorization_45

附註：您必須在FTD IP本地池和ISE授權策略上對IP地址分配使用不同的IP地址範圍，以避免您的AnyConnectClients之間的重複IP地址衝突。在此組態範例中，FTD設定為從10.0.50.1 到10.0.50.100的IPv4本機池，而ISE伺服器指派靜態IP位址10.0.50.101。

疑難排解

本節提供的資訊可用於對組態進行疑難排解。

在FTD上：

debug radius all

在ISE上：

RADIUS即時日誌

修訂記錄

修訂	發佈日期	意見
1.0	05-Oct-2021	初始版本

由思科工程師貢獻

David Rivera Perez
Cisco TAC工程師

這份文件是否有所幫助？

意見

讓思科協助您

開啟支援問題單
(需有思科服務合約)
