瞭解eStreamer並排除eCore整合故障
目錄
簡介
本檔案將介紹Cisco Event Streamer（也稱為eStreamer）Ncore CLI客戶端。具體而言，介紹該操作並提供故障排除資訊。此外，它還涵蓋思科技術支援中心(TAC)發現的常見問題以及常見問題(FAQ)。
作者：David Torres Rivas、Mikis Zafiroudis、思科TAC工程師。
概觀
eCore是一個通用客戶端，它從eStreamer伺服器(FMC)請求所有可能的事件，分析二進位制內容，並以各種格式輸出事件以支援其他安全資訊和事件管理工具(SIEM)。
eStreamer連線建立
客戶端(eNcore)發起與FMC TCP埠8302的連線，在此執行SSL握手：
1: 11:34:02.901091 192.168.27.100.46538 > 10.48.26.49.8302: S 1607291631:1607291631(0) win 29200 <mss 1460,sackOK,timestamp 2350959 0,nop,wscale 10> 2: 11:34:02.902220 10.48.26.49.8302 > 192.168.27.100.46538: S 2529774236:2529774236(0) ack 1607291632 win 28960 <mss 1380,sackOK,timestamp 940036669 2350959,nop,wscale 7> 3: 11:34:02.902739 192.168.27.100.46538 > 10.48.26.49.8302: . ack 2529774237 win 29 <nop,nop,timestamp 2350959 940036669>
FMC接受連線，在同一埠上執行SSL握手，並驗證客戶端公用名(CN):
Mar 2 11:45:06 FMC SF-IMS[22601]: [22601] Event Streamer:ConnectionHandler [INFO] Accepted IPv4 connection from 10.48.26.47:46538/tcp Mar 2 11:45:06 FMC SF-IMS[22601]: [22601] Event Streamer:ConnectionHandler [INFO] Added 10.48.26.47 to host table Mar 2 11:45:06 FMC SF-IMS[22601]: [22601] Event Streamer:ConnectionHandler [INFO] Added 10.48.26.47(23935) to host table Mar 2 11:45:06 FMC SF-IMS[23935]: [23935] EventStreamer child(10.48.26.47):ConnectionHandler [INFO] Resolved CN 10.48.26.47 to 10.48.26.47 Mar 2 11:45:06 FMC SF-IMS[23935]: [23935] EventStreamer child(10.48.26.47):ConnectionHandler [INFO] Matched Certificate CN:10.48.26.47 to 10.48.26.47 (IPv4) Mar 2 11:45:06 FMC SF-IMS[23935]: [23935] EventStreamer child(10.48.26.47):sfestreamer [INFO] Got EVENT_STREAM_REQUEST length 8 Mar 2 11:45:06 FMC SF-IMS[23935]: [23935] EventStreamer child(10.48.26.47):sfestreamer [INFO] Publishing service INFO total data size 48 Mar 2 11:45:06 FMC SF-IMS[23935]: [23935] EventStreamer child(10.48.26.47):sfestreamer [INFO] Publishing service id:5001 - length size 8 Mar 2 11:45:06 FMC SF-IMS[23935]: [23935] EventStreamer child(10.48.26.47):sfestreamer [INFO] Publishing service id:5000 - length size 8 Mar 2 11:45:06 FMC SF-IMS[23935]: [23935] EventStreamer child(10.48.26.47):sfestreamer [INFO] Publishing service id:6667 - length size 8
然後，eStreamer客戶端檢查其配置和書籤檔案，以確定請求哪些事件和開始時間：
2020-03-02 07:18:11,500 Connection INFO Connecting to 10.48.26.49:8302 2020-03-02 07:18:11,500 Connection INFO Using TLS v1.2 2020-03-02 07:18:11,500 Monitor INFO Starting Monitor. 2020-03-02 07:18:11,500 Monitor INFO Starting. 0 handled; average rate 0 ev/sec; 2020-03-02 07:18:11,501 Writer INFO Starting process. 2020-03-02 07:18:11,506 Transformer INFO Starting process. 2020-03-02 07:18:11,985 Bookmark INFO Bookmark file /root/eStreamer-eNcore/10.48.26.49-8302_bookmark.dat does not exist. 2020-03-02 07:18:11,986 Settings INFO Timestamp: Start = 2 (Bookmark = 0) 2020-03-02 07:18:11,986 Receiver INFO EventStreamRequestMessage: 00010002000000080000000048900061 2020-03-02 07:18:11,986 SubscriberParser INFO Starting process. 2020-03-02 07:18:11,996 Bookmark INFO Bookmark file /root/eStreamer-eNcore/10.48.26.49-8302_bookmark.dat does not exist. 2020-03-02 07:18:11,996 Settings INFO Timestamp: Start = 2 (Bookmark = 0) 2020-03-02 07:18:11,997 Receiver INFO StreamingRequestMessage: 000108010000003800001a0b0000003848900061000000000009000c000400150009001f000b003d000e00470004005b000700650006006f0002008300000000
EventStreamRequest可在FMC上關聯：
Mar 2 12:29:16 FMC SF-IMS[6671]: [6671] EventStreamer child(10.48.26.47):sfestreamer [INFO] EventStream Request (0x48900061): Since 0 w/ NS Events w/ NS 6.0 Events
w/ Packets w/ Extra IDS Event data w/ Metadata v4 w/ RUA 5.2 Events w/ Impact Alerts w/ 5.3 Impact Alerts w/ Impact Flags w/ RNA 5.3 Events w/ RNA 6.0 Flow w/ Policy 5.4 Events
w/ FireAMP 6.0 Events w/ Filelog 6.0 Events w/ Send archive timestamp w/ Send Detail Request
EventStreamRequest是Request Flags中描述的請求標誌的十六進位制表示形式，必須轉換為二進位制才能瞭解客戶端是否請求了所需的資料。範例如下：
根據請求位，FMC將資料推送到eStreamer客戶端。
誰啟動eStreamer連線和資料傳輸？
eStreamer客戶端。具體而言，客戶端建立TCP連線（三次握手），然後與客戶端進行SSL協商（雙向）身份驗證。最後，無論何時有資料要傳送，FMC都會通過建立的隧道傳送資料：
root@kali:~/eStreamer-eNcore# ./encore.sh foreground 2020-06-03 20:50:53,365 Monitor INFO Running. 100 handled; average rate 0.42 ev/sec; 2020-06-03 20:52:53,488 Monitor INFO Running. 100 handled; average rate 0.28 ev/sec; 2020-06-03 20:54:53,601 Monitor INFO Running. 100 handled; average rate 0.21 ev/sec; 2020-06-03 20:56:53,725 Monitor INFO Running. 100 handled; average rate 0.17 ev/sec;
總而言之：
- 客戶端發起SSL隧道以請求資料（拉入）
- 一旦通道建立，通道就會一直運作，每當從受管裝置取得資料時，FMC都會推送資料（例如連線事件）

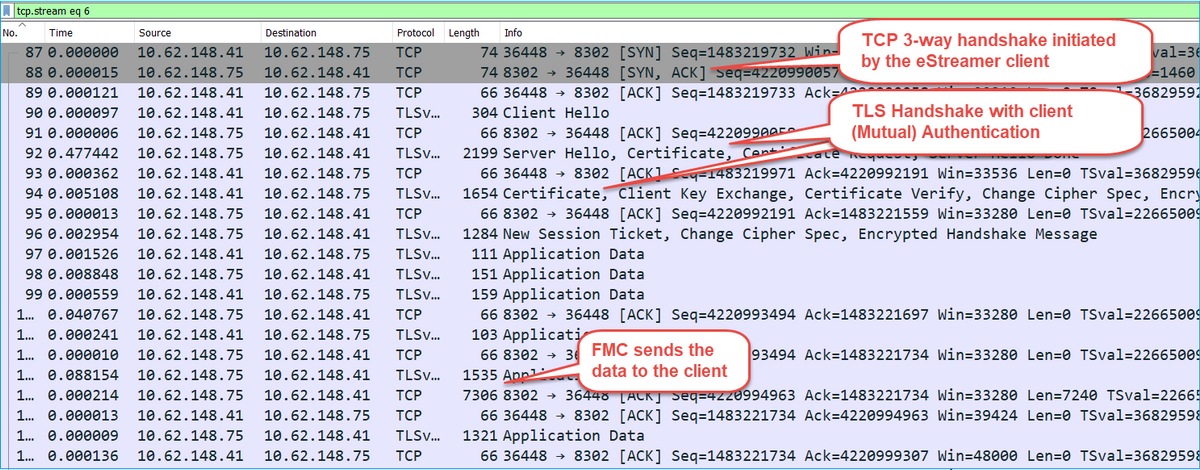

在本示例中，IP 10.62.148.41是eStreamer客戶端(eNcore)，而IP 10.62.148.75是FMC:
設定
有關eCore CLI客戶端的詳細資訊，請參閱eStreamer eCore CLI操作指南3.5版。
Event Streamer Integration Guide中介紹了eStreamer應用程式的詳細資訊以及FMC配置步驟。
estreamer.conf檔案調整
本節介紹為了讓解決方案正常工作，可以或者必須在estreamer.conf上修改哪些內容。estreamer.conf檔案位於path/eStreamer-eNcore目錄中。以下是檔案內容的範例：
root@kali:~/eStreamer-eNcore# cat estreamer.conf
{
"connectTimeout": 10,
"enabled": true,
"handler": {
"output@comment": "If you disable all outputters it behaves as a sink",
"outputters": [
{
"adapter": "json",
"enabled": true,
"stream": {
"options": {
"maxLogs": 10000,
"rotate": true
},
"uri": "relfile:///data/json/encore.{0}.json"
}
}
],
"records": {
"connections": true,
"core": true,
"excl@comment": [
"These records will be excluded regardless of above (overrides 'include')",
"e.g. to exclude flow and IPS events use [ 71, 400 ]"
],
"exclude": [],
"inc@comment": "These records will be included regardless of above",
"include": [],
"intrusion": true,
"metadata": true,
"packets": true,
"rna": true,
"rua": true
}
},
"logging": {
"filepath": "estreamer.log",
"format": "%(asctime)s %(name)-12s %(levelname)-8s %(message)s",
"lev@comment": "Levels include FATAL, ERROR, WARNING, INFO, DEBUG, VERBOSE and TRACE",
"level": "INFO",
"stdOut": true
},
"monitor": {
"bookmark": false,
"handled": true,
"period": 120,
"subscribed": true,
"velocity": false
},
"responseTimeout": 2,
"star@comment": "0 for genesis, 1 for now, 2 for bookmark",
"start": 2,
"subscription": {
"records": {
"@comment": [
"Just because we subscribe doesn't mean the server is sending. Nor does it mean",
"we are writing the records either. See handler.records[]"
],
"archiveTimestamps": true,
"eventExtraData": true,
"extended": true,
"impactEventAlerts": true,
"intrusion": true,
"metadata": true,
"packetData": true
},
"servers": [
{
"host": "10.62.148.75",
"pkcs12Filepath": "client.pkcs12",
"port": 8302,
"tls@comment": "Valid values are 1.0 and 1.2",
"tlsVersion": 1.2
}
]
},
"workerProcesses": 4
預訂部分
要修改對伺服器(FMC)的事件流處理器請求，請修改eStreamer.conf訂閱部分。例如，將擴展請求設定為false時，會更改FMC上的EventStream請求：
"subscription": {
"records": {
"@comment": [
"Just because we subscribe doesn't mean the server is sending. Nor does it mean",
"we are writing the records either. See handler.records[]"
],
"archiveTimestamps": true,
"connection": true,
"eventExtraData": true,
"extended": false,
"impactEventAlerts": true,
"intrusion": true,
"metadata": true,
"packetData": true
},
擴展請求= false:
Jun 3 13:48:24 firepower SF-IMS[16084]: [16084] EventStreamer child(10.48.26.47):sfestreamer [INFO]
EventStream Request (0x08900061): Since 4294967295 w/ NS Events w/ Packets w/ Extra IDS Event data w/
Metadata v4 w/ Impact Alerts w/ Impact Flags w/ Send archive timestamp
使用擴展請求= true:
Jun 3 13:50:52 firepower SF-IMS[17167]: [17167] EventStreamer child(10.48.26.47):sfestreamer [INFO]
EventStream Request (0x48900061): Since 1590497346 w/ NS Events w/ NS 6.0 Events w/ Packets w/ Extra IDS Event data w/ Metadata
v4 w/ RUA 5.2 Events w/ Impact Alerts w/ 5.3 Impact Alerts w/ Impact Flags w/ RNA 5.3 Events w/ RNA 6.0 Flow w/ Policy 5.4 Events
v w/ FireAMP 6.0 Events w/ Filelog 6.0 Events w/ Send archive timestamp w/ Send Detail Request
日誌記錄部分
要在eCore CLI上啟用調試，請編輯estreamer.conf檔案並更改日誌級別：
"logging": {
"filepath": "estreamer.log",
"format": "%(asctime)s %(name)-12s %(levelname)-8s %(message)s",
"lev@comment": "Levels include FATAL, ERROR, WARNING, INFO, DEBUG, VERBOSE and TRACE",
"level": "DEBUG",
"stdOut": true
},
Monitor部分
要檢視每秒處理的事件的數量和當前書籤，請編輯estreamer.conf上的monitor部分：
"monitor": {
"bookmark": true, #If true, adds date/timestamp (see above)
"handled": true, #Number of records processed
"period": 120, #How often (in seconds) monitor writes to the log
"subscribed": true, #Number of records received
"velocity": false #A measure of whether eNcore is keeping up (>=1 is good)
},
其他相關頂級金鑰：
"connectTimeout": 10, <- The number of seconds to wait for a response when establishing a connection to the FMC.
"workerProcesses": 4, <- The number of processes that eNcore spawns.
此值可以設定為2-12。更多進程旨在改進效能，但每個進程都會產生開銷成本。結果表明，在主機處理能力與「處理次數」的正確組合下，可以獲得最優的效能。現有的最佳准則包括：
- 對於2個核心："workerProcesses":4
- 對於4個或更多核心："workerProcesses":12
疑難排解
有關一般eStreamer故障排除過程，請參閱文檔FireSIGHT系統和eStreamer客戶端(SIEM)之間的故障排除問題
出於測試目的，您可以啟用eNcore作為前台進程並驗證與FMC的通訊
root@kali:~/eStreamer-eNcore# ./encore.sh foreground 2020-06-04 11:48:00,048 Controller INFO eNcore version: 3.5.4 2020-06-04 11:48:00,049 Controller INFO Python version: 2.7.13 (default, Jan 19 2017, 14:48:08) \n[GCC 6.3.0 20170118] 2020-06-04 11:48:00,051 Controller INFO Platform version: Linux-4.13.0-kali1-amd64-x86_64-with-Kali-kali-rolling-kali-rolling 2020-06-04 11:48:00,052 Controller INFO Starting client (pid=12374). 2020-06-04 11:48:00,052 Controller INFO Sha256: 77ac7e72d0b96e0a4b9c1c4f9a16c2de0b2b5ccf2929dd2857cf94ed96b295e3 2020-06-04 11:48:00,052 Controller INFO Processes: 4 2020-06-04 11:48:00,053 Controller INFO Settings: … 2020-06-04 11:48:00,053 Diagnostics INFO Check certificate 2020-06-04 11:48:00,054 Diagnostics INFO Creating connection 2020-06-04 11:48:00,054 Connection INFO Connecting to 10.62.148.75:8302 2020-06-04 11:48:00,054 Connection INFO Using TLS v1.2 2020-06-04 11:48:00,136 Diagnostics INFO Creating request message 2020-06-04 11:48:00,137 Diagnostics INFO Request message=0001000200000008ffffffff48900061 2020-06-04 11:48:00,137 Diagnostics INFO Sending request message 2020-06-04 11:48:00,137 Diagnostics INFO Receiving response message 2020-06-04 11:48:00,229 Diagnostics INFO Response message=KGRwMApTJ2xlbmd0aCcKcDEKSTQ4CnNTJ3ZlcnNpb24nCnAyCkkxCnNTJ2RhdGEnCnAzClMnXHgwMFx4MDBceDEzXHg4OVx4MDBceDAwXHgwMFx4MDhceDAwXHgwMFx4MDBceDAwXHgwMFx4MDBceDAwXHgwMFx4MDBceDAwXHgxM1x4ODhceDAwXHgwMFx4MDBceDA4XHgwMFx4MDBceDAwXHgwMFx4MDBceDAwXHgwMFx4MDBceDAwXHgwMFx4MWFceDBiXHgwMFx4MDBceDAwXHgwOFx4MDBceDAwXHgwMFx4MDBceDAwXHgwMFx4MDBceDAwJwpwNApzUydtZXNzYWdlVHlwZScKcDUKSTIwNTEKcy4= 2020-06-04 11:48:00,229 Diagnostics INFO Streaming info response 2020-06-04 11:48:00,230 Diagnostics INFO Connection successful 2020-06-04 11:48:00,230 Monitor INFO Starting Monitor. 2020-06-04 11:48:00,236 Decorator INFO Starting process. 2020-06-04 11:48:00,236 Transformer INFO Starting process. 2020-06-04 11:48:00,237 Connection INFO Connecting to 10.62.148.75:8302 2020-06-04 11:48:00,237 Connection INFO Using TLS v1.2 2020-06-04 11:48:00,238 Writer INFO Starting process. 2020-06-04 11:48:00,639 Bookmark INFO Opening bookmark file /root/eStreamer-eNcore/10.62.148.75-8302_bookmark.dat. 2020-06-04 11:48:00,640 Settings INFO Timestamp: Start = 2 (Bookmark = 1591210934) 2020-06-04 11:48:00,640 Receiver INFO EventStreamRequestMessage: 00010002000000085ed7f3b648900061 2020-06-04 11:48:00,640 SubscriberParser INFO Starting process. 2020-06-04 11:48:00,640 Bookmark INFO Opening bookmark file /root/eStreamer-eNcore/10.62.148.75-8302_bookmark.dat. 2020-06-04 11:48:00,646 Bookmark INFO Opening bookmark file /root/eStreamer-eNcore/10.62.148.75-8302_bookmark.dat. 2020-06-04 11:48:00,646 Settings INFO Timestamp: Start = 2 (Bookmark = 1591210934) 2020-06-04 11:48:00,647 Receiver INFO StreamingRequestMessage: 000108010000003800001a0b00000038489000615ed7f3b60009000c000400150009001f000b003d000e00470004005b000700650006006f0002008300000000 2020-06-04 11:48:00,653 Monitor INFO Running. 0 handled; average rate 1.2 ev/sec;
同時，在FMC上，當eNcore流處理器客戶端建立連線時，您可以看到類似這些日誌。請注意，FMC後端時區始終為UTC:
root@FMC2000-2:~# tail -f /var/log/messages Jun 4 09:48:00 FMC2000-2 SF-IMS[4135]: [4135] Event Streamer:ConnectionHandler [INFO] Accepted IPv4 connection from 10.62.148.41:36528/tcp Jun 4 09:48:00 FMC2000-2 SF-IMS[4135]: [4135] Event Streamer:ConnectionHandler [INFO] Added 10.62.148.41(8512) to host table Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):SFUtil [INFO] Found IPv4 address 10.62.148.41 for ksec-sfvm-win7-3.cisco.com Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):ConnectionHandler [INFO] Resolved CN ksec-sfvm-win7-3.cisco.com to 10.62.148.41 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):ConnectionHandler [INFO] Matched Certificate CN:ksec-sfvm-win7-3.cisco.com to 10.62.148.41 (IPv4) Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):sfestreamer [INFO] Got EVENT_STREAM_REQUEST length 8 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):sfestreamer [INFO] Publishing service INFO total data size 48 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):sfestreamer [INFO] Publishing service id:5001 - length size 8 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):sfestreamer [INFO] Publishing service id:5000 - length size 8 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):sfestreamer [INFO] Publishing service id:6667 - length size 8 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):sfestreamer [INFO] Got UEC_STREAM_REQUEST length 56 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):ConnectionHandler [INFO] requested service [6667] timestamp [1591210934] Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):ConnectionHandler [INFO] Got Event type 12, version 9 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):ConnectionHandler [INFO] Got Event type 21, version 4 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):ConnectionHandler [INFO] Got Event type 31, version 9 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):ConnectionHandler [INFO] Got Event type 61, version 11 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):ConnectionHandler [INFO] Got Event type 71, version 14 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):ConnectionHandler [INFO] Got Event type 91, version 4 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):ConnectionHandler [INFO] Got Event type 101, version 7 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):ConnectionHandler [INFO] Got Event type 111, version 6 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):ConnectionHandler [INFO] Got Event type 131, version 2 Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):sfestreamer [INFO] EventStream Request (0x48900061): Since 1591210934 w/ NS Events
w/ NS 6.0 Events w/ Packets w/ Extra IDS Event data w/ Metadata v4 w/ RUA 5.2 Events w/ Impact Alerts w/ 5.3 Impact Alerts w/ Impact Flags w/ RNA 5.3 Events w/ RNA 6.0
Flow w/ Policy 5.4 Events w/ FireAMP 6.0 Events w/ Filelog 6.0 Events w/ Send archive timestamp w/ Send Detail Request Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):ConnectionHandler [INFO] creating iterator for service [6667] prefix [unified2.] timestamp [1591210934] Jun 4 09:48:00 FMC2000-2 SF-IMS[8512]: [8512] EventStreamer child(ksec-sfvm-win7-3.cisco.com):Unified2Iterator [INFO] Opened /var/sf/archive/netmap_2/unified2.1591210800 Jun 4 09:48:02 FMC2000-2 SF-IMS[4135]: [4135] Event Streamer:ConnectionHandler [INFO] Child with pid 8510 exited with status 5120 Jun 4 09:48:02 FMC2000-2 SF-IMS[4135]: [4135] Event Streamer:ConnectionHandler [INFO] Removed host entry for pid: 8510 Jun 4 09:48:04 FMC2000-2 SF-IMS[22296]: [25092] CloudAgent:url_license [INFO] Peer with active URLFiltering: 310f4c00-a415-11ea-bf5b-a2d6028849fe Jun 4 09:48:04 FMC2000-2 SF-IMS[22296]: [25092] CloudAgent:url_license [INFO] Peer with active URLFiltering: d637b6f0-a414-11ea-ad97-cc17b6ea4c03 Jun 4 09:48:04 FMC2000-2 SF-IMS[22296]: [25092] CloudAgent:url_license [INFO] Peer with active URLFiltering: 873709b8-78b6-11ea-ae87-b82f93835447 Jun 4 09:48:04 FMC2000-2 SF-IMS[22296]: [25092] CloudAgent:url_license [INFO] Peer with active URLFiltering: c7c0217c-78b6-11ea-a719-b7f0a277eb86
在聯絡思科技術協助中心(TAC)之前收集的專案
強烈建議您在聯絡Cisco TAC之前收集以下專案：
- eStreamer eCore的版本
- Python版本
- 主機作業系統的版本
- 您看到FMC上的事件嗎？共用來自事件+ FMC eStreamer配置的螢幕截圖
- 在eCore CLI上啟用調試（如「logging section」中所述）
- 從FMC生成故障排除檔案
- 從eCore提供以下檔案：
estreamer.conf
estreamer.log
常見問題
TCP埠8302無連線
從eStreamer客戶端Telnet至FMC埠8302，並驗證是否已建立連線。
此外，您還可以使用eNcore測試選項來測試連線：
root@kali:~/eStreamer-eNcore# ./encore.sh test 2020-05-28T16:02:56.931919 Diagnostics INFO Checking that configFilepath (estreamer.conf) exists 2020-05-28 16:02:56,935 Diagnostics INFO Check certificate 2020-05-28 16:02:56,936 Diagnostics INFO Creating connection 2020-05-28 16:02:56,936 Connection INFO Connecting to 10.62.148.75:8302 2020-05-28 16:02:56,936 Connection INFO Using TLS v1.2 2020-05-28 16:02:56,946 Diagnostics INFO Creating request message 2020-05-28 16:02:56,946 Diagnostics INFO Request message=0001000200000008ffffffff48900061 2020-05-28 16:02:56,946 Diagnostics INFO Sending request message 2020-05-28 16:02:56,946 Diagnostics INFO Receiving response message 2020-05-28 16:02:56,957 Diagnostics INFO Response message=KGRwMApTJ2xlbmd0aCcKcDEKSTQ4CnNTJ3ZlcnNpb24nCnAyCkkxCnNTJ2RhdGEnCnAzClMnXHgwMFx4MDBceDEzXHg4OVx4MDBceDAwXHgwMFx4MDhceDAwXHgwMFx4MDBceDAwXHgwMFx4MDBceDAwXHgwMFx4MDBceDAwXHgxM1x4ODhceDAwXHgwMFx4MDBceDA4XHgwMFx4MDBceDAwXHgwMFx4MDBceDAwXHgwMFx4MDBceDAwXHgwMFx4MWFceDBiXHgwMFx4MDBceDAwXHgwOFx4MDBceDAwXHgwMFx4MDBceDAwXHgwMFx4MDBceDAwJwpwNApzUydtZXNzYWdlVHlwZScKcDUKSTIwNTEKcy4= 2020-05-28 16:02:56,957 Diagnostics INFO Streaming info response 2020-05-28 16:02:56,957 Diagnostics INFO Connection successful
這是一次成功的連線嘗試，如在Wireshark中所見（10.62.148.41是eCore IP，而10.62.148.75是FMC）：
證書CN與遠端主機不匹配
如果eStreamer客戶端位於NAT之後，必須使用上游IP地址生成證書，或者出現以下錯誤：
Mar 2 11:30:01 FMC SF-IMS[16921]: [16921] Event Streamer:ConnectionHandler [INFO] Accepted IPv4 connection from 10.48.26.47:46529/tcp Mar 2 11:30:01 FMC SF-IMS[16921]: [16921] Event Streamer:ConnectionHandler [INFO] Added 10.48.26.47 to host table Mar 2 11:30:01 FMC SF-IMS[16921]: [16921] Event Streamer:ConnectionHandler [INFO] Added 10.48.26.47(17659) to host table Mar 2 11:30:01 FMC SF-IMS[17659]: [17659] EventStreamer child(192.168.27.100):ConnectionHandler [INFO] Resolved CN 192.168.27.100 to 192.168.27.100 Mar 2 11:30:01 FMC SF-IMS[17659]: [17659] EventStreamer child(192.168.27.100):ConnectionHandler [ERROR] Certificate Common Name 192.168.27.100 does not match remote host: 10.48.26.47. It was issued to a different client. Mar 2 11:30:02 FMC SF-IMS[16921]: [16921] Event Streamer:ConnectionHandler [INFO] Child with pid 17659 exited with status 0 Mar 2 11:30:02 FMC SF-IMS[16921]: [16921] Event Streamer:ConnectionHandler [INFO] Removed host entry for pid: 17659
eStreamer客戶端的FMC DNS解析不正確
如果FMC的eStreamer客戶端的DNS條目有誤，則事件不會到達客戶端。要確定問題是否存在，請捕獲有關FMC的資訊。在此範例中，FMC收到來自串流器使用者端主機ksec-sfvm-win7-3.cisco.com的TCP SYN封包：
root@FMC2000-2:/var/sf/archive/netmap_2# tcpdump -i eth0 port 8302 HS_PACKET_BUFFER_SIZE is set to 4. tcpdump: verbose output suppressed, use -v or -vv for full protocol decode listening on eth0, link-type EN10MB (Ethernet), capture size 262144 bytes 18:32:45.453401 IP ksec-sfvm-win7-3.cisco.com.36428 > FMC2000-2.8302: Flags [S], seq 2427598184, win 29200, options [mss 1460,sackOK,TS val 3681355935 ecr 0,nop,wscale 7], length 0 18:32:45.453425 IP FMC2000-2.8302 > ksec-sfvm-win7-3.cisco.com.36428: Flags [S.], seq 1996800475, ack 2427598185, win 28960, options [mss 1460,sackOK,TS val 2264897265 ecr 3681355935,nop,wscale 7], length 0 18:32:45.453539 IP ksec-sfvm-win7-3.cisco.com.36428 > FMC2000-2.8302: Flags [.], ack 1, win 229, options [nop,nop,TS val 3681355935 ecr 2264897265], length 0
您可以使用-n標誌檢視已解析的IP:
root@FMC2000-2:/var/sf/archive/netmap_2# tcpdump -i eth0 port 8302 -n HS_PACKET_BUFFER_SIZE is set to 4. tcpdump: verbose output suppressed, use -v or -vv for full protocol decode listening on eth0, link-type EN10MB (Ethernet), capture size 262144 bytes 18:34:58.015971 IP 10.62.148.41.36434 > 10.62.148.75.8302: Flags [S], seq 713101140, win 29200, options [mss 1460,sackOK,TS val 3681488496 ecr 0,nop,wscale 7], length 0
或者，您可以從FMC CLI使用nslookup命令工具：
root@FMC2000-2:/var/sf/archive/netmap_2# nslookup ksec-sfvm-win7-3.cisco.com Server: 1.2.3.4 Address: 1.2.3.4#53 Name: ksec-sfvm-win7-3.cisco.com Address: 10.62.148.41
由於SSL證書錯誤而導致的電子流處理器通訊問題
確保eStreamer客戶端使用正確的FMC SSL證書。如果FMC /var/log/message檔案中的證書不正確，您將看到以下事件：
Jun 11 14:15:33 FMC SF-IMS[14211]: [14211] Event Streamer:ConnectionHandler [INFO] estreamer.c:2149:AcceptConnections(): Accepted IPv4 connection from 192.0.2.100:42143/tcp Jun 11 14:15:33 FMC SF-IMS[14211]: [14211] Event Streamer:ConnectionHandler [INFO] estreamer.c:389:allowConnection(): Added 192.0.2.100 to host table Jun 11 14:15:33 FMC SF-IMS[14211]: [14211] Event Streamer:ConnectionHandler [INFO] estreamer.c:334:rememberPid(): Added 192.0.2.100(13687) to host table Jun 11 14:15:33 FMC SF-IMS[14211]: [14211] Event Streamer:ConnectionHandler [DEBUG] estreamer.c:1347:AcceptConnection(): Created new estreamer child with src 192.0.2.100 : pid 13615 Jun 11 14:15:34 FMC SF-IMS[13687]: [13615] Event Streamer:ConnectionHandler [ERROR] estreamer.c:1116:AcceptConnection(): SSL_accept failed, SSL_get_error reports SSL_ERROR_SYSCALL
您可以刪除FMC上的eStreamer客戶端並重新配置。這會重新生成SSL證書。將新證書匯入到eStreamer客戶端。
在eStreamer上為ASA SFR模組整合配置的IP地址錯誤
在eStreamer客戶端上，必須使用SFR模組IP。在ASA上，運行命令show sfr module details以檢視模組IP。
ArcSight公共事件格式(CEF)
Arcsight公共事件格式標準定義了必須從Core CLI傳送的鍵值對。如果Arcisght上收到的資料不一致，即：缺少欄位、順序錯誤或某些資料在Arcsight客戶端上未正確分析，通過設定來修改配置以寫入日誌檔案非常有用。這有助於確定問題所在。
"handler": {
"output@comment": "If you disable all outputters it behaves as a sink",
"outputters": [
{
"adapter": "cef",
"enabled": true,
"stream": {
"uri": "relfile:///data/data.{0}.cef"
}
}
],
RAW CEF事件以線條書寫，每個欄位用管道「|」分隔：
<13>May 26 09:31:39 kali2 CEF:0|Cisco|Firepower|6.0|RNA:1003:1|CONNECTION STATISTICS|3|act=Allow app=STUN bytesOut=820 cs1=test cs1Label=fwPolicy
cs2=Default Action cs2Label=fwRule cs3=INSIDE cs3Label=ingressZone cs4=OUTSIDE cs4Label=egressZone cs5Label=secIntelCategory deviceExternalId=1
deviceInboundInterface=inside deviceOutboundInterface=outside dpt=9000 dst=216.151.129.103 dvchost=10.48.26.45 dvcpid=2 end=1590497212000 externalId=50850
proto=17 reason=N/A requestClientApplicatio
eStreamer客戶端不顯示所有日誌
這通常是由於eStreamer客戶端超訂用（FMC傳送的事件太多）。 在eStreamer客戶端運行此命令，並檢查Recv-Q計數器是否高。這是連線到此套接字的使用者程式未複製的位元組數。在本示例中，客戶端有143143個待處理的位元組：
root@kali:~# netstat -an | egrep "8302|Recv-Q" Proto Recv-Q Send-Q Local Address Foreign Address State tcp 143143 0 10.62.148.41:36732 10.62.148.75:8302 ESTABLISHED
檢查eStreamer客戶端每秒接收的事件。這為您提供了每秒事件數的指示：
root@kali:~/eStreamer-eNcore# cat estreamer.log | grep "ev/sec"
嘗試減少eStreamer客戶端請求的資料量或FMC傳送的事件的型別。或者，您可以嘗試增加在eStreamer客戶端上分配的資源量。
常見問題 (FAQ)
從何處獲取eCore-cli軟體包？
- 檢查FMC軟體下載頁面、Firepower System Tools and APIs - eNcore for CEF
- 或者，您可以從https://github.com/CiscoSecurity/fp-05-firepower-cef-connector-arcsight/tree/master/assets獲取最新的eNcore檔案
進行FMC完全備份時，eStreamer不會生成事件。這正常嗎？
是的，這是預期行為。在FMC配置指南的備份時間：
當系統收集備份資料時，資料關聯中可能會出現臨時暫停（僅限FMC），並且可能會阻止您更改與備份相關的配置。
FMC與eStreamer客戶端（例如Qradar）整合是否需要任何特殊許可證？
否
eStreamer事件的來源是什麼？
FMC。具體而言，FMC從受管裝置(FTD)取得事件，並將其轉送到eStreamer使用者端，例如eNcore、ArcSight、Splunk、QRadar、LogRhythm等。
Splunk和eNcore之間是否存在任何相容性矩陣？
檢查Splunk文檔以獲取相容性資訊。例如，要檢視哪些Splunk版本與eNcore 3.6.8版相容，請檢視https://splunkbase.splunk.com/app/3662/
eStreamer eNcore能否使用來自多個FMC的資料？
在撰寫本文時，否。請檢查增強請求CSCvq14351
為FMC高可用性(HA)設定配置eStreamer的建議選項是什麼？
建議只為eStreamer配置活動FMC單元。如果為eStreamer配置兩個FMC單元，則SIEM會收到重複事件，因為備用FMC會響應eStreamer請求。相關增強請求：CSCvi95944
FMC升級是否需要手動生成新的eStreamer證書？
否
是否將安全情報事件傳送到eStreamer客戶端？是否可以選擇安全情報事件作為單獨的類別並將其傳送到eStreamer客戶端？
安全情報(SI)事件包含在「連線」事件的類別下，而不是作為一個單獨的類別。因此，沒有單獨的SI事件傳送到流處理器。相關增強請求：CSCva39052
是否可以在FMC上指定將其eStreamer事件傳送到eStreamer客戶端的感測器/受管裝置？
目前只有一個FMC網域，這是不可能的。相關增強請求CSCvt31270。或者，您可以在FMC上設定兩個不同的網域。在第一個域中，新增要為eStreamer客戶端啟用eStreamer的所有受管裝置並對其進行配置。對於第二個域，您可以新增其餘裝置而不配置eStreamer。
Firepower上的eStreamer版本是什麼？我需要SIEM配置的此資訊（例如LogRhythm）
要從FMC UI檢查Firepower(FMC)版本，請導航至Help（右上角）> About > Software version
當FMC配置了域時，如何檢視FMC電子流處理器資料中的域資訊？
在eStreamer Integration Guide中，檢查許多不同記錄型別的標題部分中記錄型別旁邊的Netmap ID號。可以分別使用Netmap Domain Metadata（記錄型別350）和Managed Device Record Metadata（記錄型別123）將Netmap ID號轉換為域或裝置名稱。
客戶端應用程式必須根據《eStreamer整合指南》中提供的資訊解釋二進位制資料和後設資料。
已知的問題
開啟Bug Search Tool，並搜尋串流器和核心問題，例如
