簡介

本文檔介紹如何使用Oracle資料庫配置身份服務引擎(ISE)，以便使用開放資料庫連線(ODBC)進行ISE身份驗證。

開放式資料庫連線(ODBC)身份驗證要求ISE能夠獲取純文字檔案使用者密碼。密碼可以在資料庫中加密，但必須通過儲存過程解密。

必要條件

需求

思科建議您瞭解以下主題：

思科身分識別服務引擎2.3
資料庫和ODBC概念
Oracle

採用元件

本文中的資訊係根據以下軟體和硬體版本：

身分識別服務引擎2.3.0.298
Centos 7
Oracle資料庫12.2.0.1.0
Oracle SQL Developer 4.1.5

設定

附註：將本文檔中介紹的SQL過程視為示例。這不是正式推薦的Oracle DB配置方式。確保您瞭解提交的每個SQL查詢的結果和影響。

步驟1. Oracle基本配置

在此示例中，Oracle配置了以下引數：

資料庫名稱：ORCL
服務名稱：orcl.vkumov.local
連接埠:1521(預設)
已使用使用者名稱ise為ISE建立帳戶

配置Oracle資料庫，然後繼續操作。

步驟2. ISE基本配置

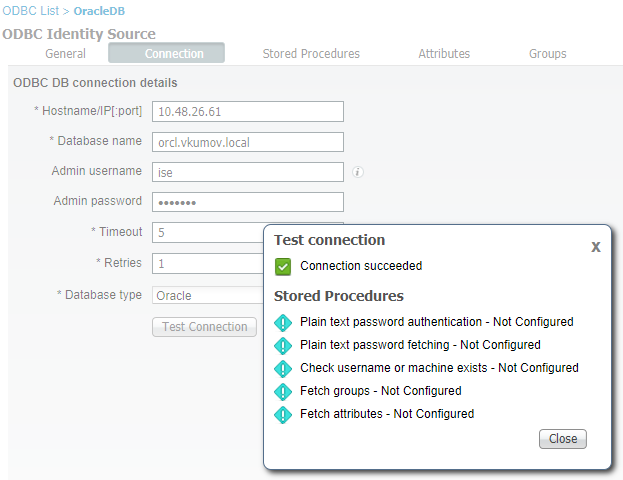

在Administration > External Identity Source > ODBC處建立ODBC身份源並測試連線：

附註： ISE使用服務名稱連線到Oracle，因此[資料庫名稱]欄位應填寫Oracle中存在的服務名稱，而不是SID（或資料庫名稱）。由於存在錯誤CSCvf06497 dots(.)，無法在[資料庫名稱]欄位中使用。此錯誤已在ISE 2.3中修正。

步驟3.配置使用者身份驗證

ODBC的ISE身份驗證使用儲存過程。可以選擇過程型別。在本示例中，我們使用記錄集作為返回。

有關其他步驟，請參閱思科身份服務引擎管理員指南2.3版

提示：可以返回命名引數而不是resultSet。它只是一種不同型別的輸出，功能是相同的。

1.使用使用者憑據建立表。請確保在主鍵上設定身份設定。

--------------------------------------------------------
--  DDL for Table USERS
--------------------------------------------------------

  CREATE TABLE "ISE"."USERS"
   (	"USER_ID" NUMBER(*,0) GENERATED ALWAYS AS IDENTITY MINVALUE 1 MAXVALUE 9999999999999999999999999999 INCREMENT BY 1 START WITH 1 CACHE 20 NOORDER  NOCYCLE  NOKEEP  NOSCALE ,
	"USERNAME" VARCHAR2(120 BYTE),
	"PASSWORD" VARCHAR2(120 BYTE)
   ) SEGMENT CREATION IMMEDIATE
  PCTFREE 10 PCTUSED 40 INITRANS 1 MAXTRANS 255
 NOCOMPRESS LOGGING
  STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
  PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1
  BUFFER_POOL DEFAULT FLASH_CACHE DEFAULT CELL_FLASH_CACHE DEFAULT)
  TABLESPACE "USERS" ;
--------------------------------------------------------
--  DDL for Index USERS_PK
--------------------------------------------------------

  CREATE UNIQUE INDEX "ISE"."USERS_PK" ON "ISE"."USERS" ("USER_ID")
  PCTFREE 10 INITRANS 2 MAXTRANS 255
  STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
  PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1
  BUFFER_POOL DEFAULT FLASH_CACHE DEFAULT CELL_FLASH_CACHE DEFAULT)
  TABLESPACE "USERS" ;
--------------------------------------------------------
--  Constraints for Table USERS
--------------------------------------------------------

  ALTER TABLE "ISE"."USERS" MODIFY ("USER_ID" NOT NULL ENABLE);
  ALTER TABLE "ISE"."USERS" MODIFY ("USERNAME" NOT NULL ENABLE);
  ALTER TABLE "ISE"."USERS" MODIFY ("PASSWORD" NOT NULL ENABLE);
  ALTER TABLE "ISE"."USERS" ADD CONSTRAINT "USERS_PK" PRIMARY KEY ("USER_ID")
  USING INDEX PCTFREE 10 INITRANS 2 MAXTRANS 255
  STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
  PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1
  BUFFER_POOL DEFAULT FLASH_CACHE DEFAULT CELL_FLASH_CACHE DEFAULT)
  TABLESPACE "USERS"  ENABLE;

或者從SQL Developer GUI:

2.新增使用者

INSERT INTO "ISE"."USERS" (USERNAME, PASSWORD) VALUES ('alice', 'password1')
INSERT INTO "ISE"."USERS" (USERNAME, PASSWORD) VALUES ('bob', 'password1')
INSERT INTO "ISE"."USERS" (USERNAME, PASSWORD) VALUES ('admin', 'password1')

3.建立純文字檔案密碼身份驗證過程（用於PAP、EAP-GTC內部方法、TACACS）

create or replace function ISEAUTH_R
(
  ise_username IN VARCHAR2,
  ise_userpassword IN VARCHAR2
) return sys_refcursor AS
BEGIN
  declare
    c integer;
    resultSet SYS_REFCURSOR;
  begin
    select count(*) into c from USERS where USERS.USERNAME = ise_username and USERS.PASSWORD = ise_userpassword;
    if c > 0 then
      open resultSet for select 0 as code, 11, 'good user', 'no error' from dual;
    ELSE
      open resultSet for select 3, 0, 'odbc','ODBC Authen Error' from dual;
    END IF;
    return resultSet;
  end;
END ISEAUTH_R;

4.建立純文字檔案密碼提取過程（用於CHAP、MSCHAPv1/v2、EAP-MD5、LEAP、EAP-MSCHAPv2內部方法、TACACS）

create or replace function ISEFETCH_R
(
  ise_username IN VARCHAR2
) return sys_refcursor AS
BEGIN
  declare
    c integer;
    resultSet SYS_REFCURSOR;
  begin
    select count(*) into c from USERS where USERS.USERNAME = ise_username;
    if c > 0 then
      open resultSet for select 0, 11, 'good user', 'no error', password from USERS where USERS.USERNAME = ise_username;
      DBMS_OUTPUT.PUT_LINE('found');
    ELSE
      open resultSet for select 3, 0, 'odbc','ODBC Authen Error' from dual;
      DBMS_OUTPUT.PUT_LINE('not found');
    END IF;
    return resultSet;
  end;
END;

5.建立檢查使用者名稱或電腦存在的過程（用於MAB、PEAP快速重新連線、EAP-FAST和EAP-TTLS）

create or replace function ISELOOKUP_R
(
  ise_username IN VARCHAR2
) return sys_refcursor AS
BEGIN
  declare
    c integer;
    resultSet SYS_REFCURSOR;
  begin
    select count(*) into c from USERS where USERS.USERNAME = ise_username;
    if c > 0 then
      open resultSet for select 0, 11, 'good user', 'no error' from USERS where USERS.USERNAME = ise_username;
    ELSE
      open resultSet for select 3, 0, 'odbc','ODBC Authen Error' from dual;
    END IF;
    return resultSet;
  end;
END;

6.在ISE上配置過程並儲存

7.返回「連線」頁籤，然後按一下「測試連線」按鈕

步驟4.配置組檢索

1.建立包含使用者組和用於多對多對映的另一使用者組的表

--------------------------------------------------------
--  DDL for Table GROUPS
--------------------------------------------------------

  CREATE TABLE "ISE"."GROUPS"
   (	"GROUP_ID" NUMBER(*,0) GENERATED ALWAYS AS IDENTITY MINVALUE 1 MAXVALUE 9999999999999999999999999999 INCREMENT BY 1 START WITH 1 CACHE 20 NOORDER  NOCYCLE  NOKEEP  NOSCALE ,
	"GROUP_NAME" VARCHAR2(255 BYTE),
	"DESCRIPTION" CLOB
   ) SEGMENT CREATION IMMEDIATE
  PCTFREE 10 PCTUSED 40 INITRANS 1 MAXTRANS 255
 NOCOMPRESS LOGGING
  STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
  PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1
  BUFFER_POOL DEFAULT FLASH_CACHE DEFAULT CELL_FLASH_CACHE DEFAULT)
  TABLESPACE "USERS"
 LOB ("DESCRIPTION") STORE AS SECUREFILE (
  TABLESPACE "USERS" ENABLE STORAGE IN ROW CHUNK 8192
  NOCACHE LOGGING  NOCOMPRESS  KEEP_DUPLICATES
  STORAGE(INITIAL 106496 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
  PCTINCREASE 0
  BUFFER_POOL DEFAULT FLASH_CACHE DEFAULT CELL_FLASH_CACHE DEFAULT)) ;
--------------------------------------------------------
--  DDL for Table USER_GROUPS_MAPPING
--------------------------------------------------------

  CREATE TABLE "ISE"."USER_GROUPS_MAPPING"
   (	"USER_ID" NUMBER(*,0),
	"GROUP_ID" NUMBER(*,0)
   ) SEGMENT CREATION IMMEDIATE
  PCTFREE 10 PCTUSED 40 INITRANS 1 MAXTRANS 255
 NOCOMPRESS LOGGING
  STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
  PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1
  BUFFER_POOL DEFAULT FLASH_CACHE DEFAULT CELL_FLASH_CACHE DEFAULT)
  TABLESPACE "USERS" ;
--------------------------------------------------------
--  DDL for Index GROUPS_PK
--------------------------------------------------------

  CREATE UNIQUE INDEX "ISE"."GROUPS_PK" ON "ISE"."GROUPS" ("GROUP_ID")
  PCTFREE 10 INITRANS 2 MAXTRANS 255
  STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
  PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1
  BUFFER_POOL DEFAULT FLASH_CACHE DEFAULT CELL_FLASH_CACHE DEFAULT)
  TABLESPACE "USERS" ;
--------------------------------------------------------
--  DDL for Index USER_GROUPS_MAPPING_UK1
--------------------------------------------------------

  CREATE UNIQUE INDEX "ISE"."USER_GROUPS_MAPPING_UK1" ON "ISE"."USER_GROUPS_MAPPING" ("USER_ID", "GROUP_ID")
  PCTFREE 10 INITRANS 2 MAXTRANS 255 COMPUTE STATISTICS
  STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
  PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1
  BUFFER_POOL DEFAULT FLASH_CACHE DEFAULT CELL_FLASH_CACHE DEFAULT)
  TABLESPACE "USERS" ;
--------------------------------------------------------
--  Constraints for Table GROUPS
--------------------------------------------------------

  ALTER TABLE "ISE"."GROUPS" MODIFY ("GROUP_ID" NOT NULL ENABLE);
  ALTER TABLE "ISE"."GROUPS" MODIFY ("GROUP_NAME" NOT NULL ENABLE);
  ALTER TABLE "ISE"."GROUPS" ADD CONSTRAINT "GROUPS_PK" PRIMARY KEY ("GROUP_ID")
  USING INDEX PCTFREE 10 INITRANS 2 MAXTRANS 255
  STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
  PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1
  BUFFER_POOL DEFAULT FLASH_CACHE DEFAULT CELL_FLASH_CACHE DEFAULT)
  TABLESPACE "USERS"  ENABLE;
--------------------------------------------------------
--  Constraints for Table USER_GROUPS_MAPPING
--------------------------------------------------------

  ALTER TABLE "ISE"."USER_GROUPS_MAPPING" MODIFY ("USER_ID" NOT NULL ENABLE);
  ALTER TABLE "ISE"."USER_GROUPS_MAPPING" MODIFY ("GROUP_ID" NOT NULL ENABLE);
  ALTER TABLE "ISE"."USER_GROUPS_MAPPING" ADD CONSTRAINT "USER_GROUPS_MAPPING_UK1" UNIQUE ("USER_ID", "GROUP_ID")
  USING INDEX PCTFREE 10 INITRANS 2 MAXTRANS 255 COMPUTE STATISTICS
  STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
  PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1
  BUFFER_POOL DEFAULT FLASH_CACHE DEFAULT CELL_FLASH_CACHE DEFAULT)
  TABLESPACE "USERS"  ENABLE;

在 GUI 上：

2.新增組和對映，以便alice和bob屬於組Users，而admin屬於組Admins

-- Adding groups
INSERT INTO "ISE"."GROUPS" (GROUP_NAME, DESCRIPTION) VALUES ('Admins', 'Group for administrators')
INSERT INTO "ISE"."GROUPS" (GROUP_NAME, DESCRIPTION) VALUES ('Users', 'Corporate users')

-- Alice and Bob are users
INSERT INTO "ISE"."USER_GROUPS_MAPPING" (USER_ID, GROUP_ID) VALUES ('1', '2')
INSERT INTO "ISE"."USER_GROUPS_MAPPING" (USER_ID, GROUP_ID) VALUES ('2', '2')

-- Admin is in Admins group
INSERT INTO "ISE"."USER_GROUPS_MAPPING" (USER_ID, GROUP_ID) VALUES ('3', '1')

3.建立組檢索過程。如果使用者名稱是「*」，則返回所有組

create or replace function ISEGROUPSH
(
  ise_username IN VARCHAR2,
  ise_result OUT int
) return sys_refcursor as
BEGIN
  declare
    c integer;
    userid integer;
    resultSet SYS_REFCURSOR;
  begin
    IF ise_username = '*' then
      ise_result := 0;
      open resultSet for select GROUP_NAME from GROUPS;
    ELSE
      select count(*) into c from USERS where USERS.USERNAME = ise_username;
      select USER_ID into userid from USERS where USERS.USERNAME = ise_username;
      IF c > 0 then
          ise_result := 0;
          open resultSet for select GROUP_NAME from GROUPS where GROUP_ID IN ( SELECT m.GROUP_ID from USER_GROUPS_MAPPING m where m.USER_ID = userid );
      ELSE
          ise_result := 3;
          open resultSet for select 0 from dual where 1=2;
      END IF;
    END IF;
    return resultSet;
  end;
END ;

4.將其對映到提取組

5.獲取組並將其新增到ODBC身份源

選擇所需的組並按一下「確定」，這些組將顯示在「組」頁籤上

步驟5.配置屬性檢索

1.為了簡化此示例，將平面表用於屬性

--------------------------------------------------------
--  DDL for Table ATTRIBUTES
--------------------------------------------------------

  CREATE TABLE "ISE"."ATTRIBUTES"
   (	"USER_ID" NUMBER(*,0),
	"ATTR_NAME" VARCHAR2(255 BYTE),
	"VALUE" VARCHAR2(255 BYTE)
   ) SEGMENT CREATION IMMEDIATE
  PCTFREE 10 PCTUSED 40 INITRANS 1 MAXTRANS 255
 NOCOMPRESS LOGGING
  STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
  PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1
  BUFFER_POOL DEFAULT FLASH_CACHE DEFAULT CELL_FLASH_CACHE DEFAULT)
  TABLESPACE "USERS" ;
--------------------------------------------------------
--  DDL for Index ATTRIBUTES_PK
--------------------------------------------------------

  CREATE UNIQUE INDEX "ISE"."ATTRIBUTES_PK" ON "ISE"."ATTRIBUTES" ("ATTR_NAME", "USER_ID")
  PCTFREE 10 INITRANS 2 MAXTRANS 255
  STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
  PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1
  BUFFER_POOL DEFAULT FLASH_CACHE DEFAULT CELL_FLASH_CACHE DEFAULT)
  TABLESPACE "USERS" ;
--------------------------------------------------------
--  Constraints for Table ATTRIBUTES
--------------------------------------------------------

  ALTER TABLE "ISE"."ATTRIBUTES" MODIFY ("USER_ID" NOT NULL ENABLE);
  ALTER TABLE "ISE"."ATTRIBUTES" MODIFY ("ATTR_NAME" NOT NULL ENABLE);
  ALTER TABLE "ISE"."ATTRIBUTES" ADD CONSTRAINT "ATTRIBUTES_PK" PRIMARY KEY ("ATTR_NAME", "USER_ID")
  USING INDEX PCTFREE 10 INITRANS 2 MAXTRANS 255
  STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
  PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1
  BUFFER_POOL DEFAULT FLASH_CACHE DEFAULT CELL_FLASH_CACHE DEFAULT)
  TABLESPACE "USERS"  ENABLE;

在 GUI 上：

2.為使用者建立一些屬性

INSERT INTO "ISE"."ATTRIBUTES" (USER_ID, ATTR_NAME, VALUE) VALUES ('3', 'SecurityLevel', '15')
INSERT INTO "ISE"."ATTRIBUTES" (USER_ID, ATTR_NAME, VALUE) VALUES ('1', 'SecurityLevel', '5')
INSERT INTO "ISE"."ATTRIBUTES" (USER_ID, ATTR_NAME, VALUE) VALUES ('2', 'SecurityLevel', '10')

3.建立過程。與組檢索相同，如果使用者名稱是「*」，它將返回所有不同的屬性

create or replace function ISEATTRSH
(
  ise_username IN VARCHAR2,
  ise_result OUT int
) return sys_refcursor as
BEGIN
  declare
    c integer;
    userid integer;
    resultSet SYS_REFCURSOR;
  begin
    IF ise_username = '*' then
      ise_result := 0;
      open resultSet for select DISTINCT ATTR_NAME, '0' as "VAL" from ATTRIBUTES;
    ELSE
      select count(*) into c from USERS where USERS.USERNAME = ise_username;
      select USER_ID into userid from USERS where USERS.USERNAME = ise_username;
      if c > 0 then
          ise_result := 0;
          open resultSet for select ATTR_NAME, VALUE from ATTRIBUTES where USER_ID = userid;
      ELSE
          ise_result := 3;
          open resultSet for select 0 from dual where 1=2;
      END IF;
    END IF;
    return resultSet;
  end;
END ;

4.將其對映到Fetch屬性

5.提取屬性

選擇屬性並按一下確定。

步驟6.配置身份驗證/授權策略

在此示例中，配置了以下簡單授權策略：

SecurityLevel = 5的使用者將被拒絕。

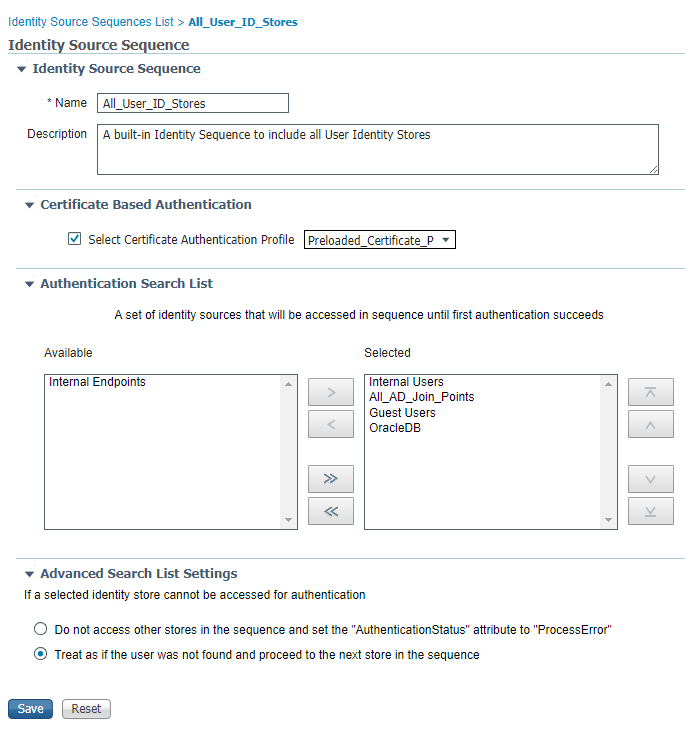

步驟7.將Oracle ODBC新增到身份源序列

導航到Administration > Identity Management > Identity Source Sequences，選擇序列並將ODBC新增到序列：

儲存它。

驗證

現在，您應該能夠根據ODBC驗證使用者並檢索其組和屬性。

RADIUS即時日誌

執行一些身份驗證並導航到操作> RADIUS >即時日誌

您可以看到，使用者Alice的SecurityLevel = 5,因此訪問被拒絕。

詳細報表

按一下相關會話的Details列中的Detail報告以檢查流。

使用者Alice的詳細報告（由於安全級別低而被拒絕）：

疑難排解

如果在ISE上連線不成功，請在嘗試連線時使用命令show logging application prrt-management.log tail。

使用的憑據不正確

2017-08-08 16:50:47,851 WARN   [admin-http-pool11][] cisco.cpm.odbcidstore.impl.OracleDbAccess -:admin::- Connection to ODBC DB failed. Exception: java.sql.SQLException: ORA-01017: invalid username/password
; logon denied

java.sql.SQLException: ORA-01017: invalid username/password; logon denied

        at oracle.jdbc.driver.T4CTTIoer.processError(T4CTTIoer.java:445)
        at oracle.jdbc.driver.T4CTTIoer.processError(T4CTTIoer.java:389)
        at oracle.jdbc.driver.T4CTTIoer.processError(T4CTTIoer.java:382)
        at oracle.jdbc.driver.T4CTTIfun.processError(T4CTTIfun.java:600)
        at oracle.jdbc.driver.T4CTTIoauthenticate.processError(T4CTTIoauthenticate.java:445)
        at oracle.jdbc.driver.T4CTTIfun.receive(T4CTTIfun.java:450)
        at oracle.jdbc.driver.T4CTTIfun.doRPC(T4CTTIfun.java:192)
        ...

錯誤的資料庫名稱（服務名稱）

2017-08-08 10:53:12,002 WARN   [admin-http-pool2][] cisco.cpm.odbcidstore.impl.OracleDbAccess -:admin::- Connection to ODBC DB failed. Exception: java.sql.SQLException: Listener refused the connection with
the following error:
ORA-12514, TNS:listener does not currently know of service requested in connect descriptor

java.sql.SQLException: Listener refused the connection with the following error:
ORA-12514, TNS:listener does not currently know of service requested in connect descriptor

        at oracle.jdbc.driver.T4CConnection.logon(T4CConnection.java:419)
        at oracle.jdbc.driver.PhysicalConnection.<init>(PhysicalConnection.java:536)
        at oracle.jdbc.driver.T4CConnection.<init>(T4CConnection.java:228)
        at oracle.jdbc.driver.T4CDriverExtension.getConnection(T4CDriverExtension.java:32)
        at oracle.jdbc.driver.OracleDriver.connect(OracleDriver.java:521)
        at java.sql.DriverManager.getConnection(DriverManager.java:664)
        at java.sql.DriverManager.getConnection(DriverManager.java:208)
        at com.cisco.cpm.odbcidstore.impl.OracleDbAccess.connect(OracleDbAccess.java:42)

排除使用者身份驗證故障

為了對DB操作進行故障排除，請在管理>系統>日誌記錄>調試日誌配置下啟用日誌記錄元件odbc-id-store到DEBUG級別。

日誌放在prrt-management.log檔案中。

alice的輸出示例：

2017-08-08 16:56:32,403 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcIdStore -:::- ODBC ID Store Operation: Authenticate Plain Text Password. Username=alice, SessionID=0a301a36RUXmaX9ttCZfrQI3ItQf
96x6eiTpiEMIfkUBybDj7jY
2017-08-08 16:56:32,409 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.CustomerLog -:::- Write customer log message: 24852
2017-08-08 16:56:32,409 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - get connection
2017-08-08 16:56:32,409 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - use existing connection
2017-08-08 16:56:32,409 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - connections in use: 1
2017-08-08 16:56:32,409 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Authenticate plain text password
2017-08-08 16:56:32,409 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Call function instead of procedure
2017-08-08 16:56:32,409 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Prepare stored procedure call, procname=ISEAUTH_R
2017-08-08 16:56:32,410 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Using recordset to obtain stored procedure result values
2017-08-08 16:56:32,410 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.CustomerLog -:::- Write customer log message: 24855
2017-08-08 16:56:32,410 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Text: {? = call ISEAUTH_R(?, ?)}
2017-08-08 16:56:32,410 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Setup stored procedure input parameters, username=alice, password=***
2017-08-08 16:56:32,410 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Execute stored procedure call
2017-08-08 16:56:32,412 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Process stored procedure results
2017-08-08 16:56:32,412 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Obtain stored procedure results from recordset
2017-08-08 16:56:32,413 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Received result recordset, number of columns=4
2017-08-08 16:56:32,413 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Results successfully parsed from recordset
2017-08-08 16:56:32,413 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - release connection
2017-08-08 16:56:32,413 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - connections in use: 0
2017-08-08 16:56:32,413 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcIdStore -:::- Call to ODBC DB succeeded
2017-08-08 16:56:32,413 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.OdbcAuthResult -:::- Authentication result: code=0, Conection succeeded=false, odbcDbErrorString=no error, odbcStoredProcedureCusto
merErrorString=null, accountInfo=good user, group=11
2017-08-08 16:56:32,413 DEBUG  [Thread-47197][] cisco.cpm.odbcidstore.impl.CustomerLog -:::- Write customer log message: 24853
2017-08-08 16:56:32,425 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcIdStore -:::- ODBC ID Store Operation: Get all user groups. Username=alice, SessionID=0a301a36RUXmaX9ttCZfrQI3ItQf96x6eiTpiEMIf
kUBybDj7jY
2017-08-08 16:56:32,431 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcIdStore -:::- ODBC ID Store Operation: Fetch user groups. Username=alice, SessionID=0a301a36RUXmaX9ttCZfrQI3ItQf96x6eiTpiEMIfkU
BybDj7jY
2017-08-08 16:56:32,431 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.CustomerLog -:::- Write customer log message: 24869
2017-08-08 16:56:32,431 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - get connection
2017-08-08 16:56:32,431 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - use existing connection
2017-08-08 16:56:32,431 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - connections in use: 1
2017-08-08 16:56:32,431 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Fetch user groups
2017-08-08 16:56:32,431 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Call function instead of procedure
2017-08-08 16:56:32,431 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Prepare stored procedure call, procname=ISEGROUPSH
2017-08-08 16:56:32,431 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Text: {? = call ISEGROUPSH(?,?)}
2017-08-08 16:56:32,431 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Setup stored procedure input parameters, username=alice
2017-08-08 16:56:32,431 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Execute stored procedure call
2017-08-08 16:56:32,434 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Process stored procedure results
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Received result recordset, total number of columns=1
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- According to column number expect multiple rows (vertical attributes/groups retured result)
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Fetched data: ExternalGroup=Users
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Results successfully parsed from recordset
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Result code indicates success
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - release connection
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - connections in use: 0
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcIdStore -:::- Call to ODBC DB succeeded
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.CustomerLog -:::- Write customer log message: 24870
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcIdStore -:::- ODBC ID Store Operation: Get all user groups. Got groups...
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcIdStore -:::- ODBC ID Store Operation: Get all user groups. Got groups(0) = Users
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcIdStore -:::- ODBC ID Store Operation: Get all user groups. Setting Internal groups(0) = Users
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcIdStore -:::- ODBC ID Store Operation: Get all user groups. Username=alice, ExternalGroups=[Users]
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcIdStore -:::- ODBC ID Store Operation: Fetch user attributes. Username=alice, SessionID=0a301a36RUXmaX9ttCZfrQI3ItQf96x6eiTpiEM
IfkUBybDj7jY
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.CustomerLog -:::- Write customer log message: 24872
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - get connection
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - use existing connection
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - connections in use: 1
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Fetch user attributes
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Call function instead of procedure
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Prepare stored procedure call, procname=ISEATTRSH
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Text: {? = call ISEATTRSH(?,?)}
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Setup stored procedure input parameters, username=alice
2017-08-08 16:56:32,435 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Execute stored procedure call
2017-08-08 16:56:32,437 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Process stored procedure results
2017-08-08 16:56:32,437 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Received result recordset, total number of columns=2
2017-08-08 16:56:32,437 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- According to column number expect multiple rows (vertical attributes/groups retured result)
2017-08-08 16:56:32,437 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Fetched data: SecurityLevel=5
2017-08-08 16:56:32,437 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Results successfully parsed from recordset
2017-08-08 16:56:32,437 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Result code indicates success
2017-08-08 16:56:32,437 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - release connection
2017-08-08 16:56:32,437 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - connections in use: 0
2017-08-08 16:56:32,437 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcIdStore -:::- Call to ODBC DB succeeded
2017-08-08 16:56:32,437 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.CustomerLog -:::- Write customer log message: 24873
2017-08-08 16:56:32,438 DEBUG  [Thread-47198][] cisco.cpm.odbcidstore.impl.OdbcIdStore -:::- ODBC ID Store Operation: Get all user attrs. Username=alice, Setting OracleDB.SecurityLevel to 5
2017-08-08 16:56:35,292 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcIdStore -:::- ODBC ID Store Operation: Lookup. Username=alice, SessionID=ise23-3:userauth7
2017-08-08 16:56:35,292 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.CustomerLog -:::- Write customer log message: 24865
2017-08-08 16:56:35,292 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - get connection
2017-08-08 16:56:35,292 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - use existing connection
2017-08-08 16:56:35,292 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - connections in use: 1
2017-08-08 16:56:35,292 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Lookup
2017-08-08 16:56:35,292 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Call function instead of procedure
2017-08-08 16:56:35,292 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Prepare stored procedure call, procname=ISELOOKUP_R
2017-08-08 16:56:35,292 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Using recordset to obtain stored procedure result values
2017-08-08 16:56:35,292 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.CustomerLog -:::- Write customer log message: 24855
2017-08-08 16:56:35,292 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Text: {? = call ISELOOKUP_R(?)}
2017-08-08 16:56:35,292 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Setup stored procedure input parameters, username=alice
2017-08-08 16:56:35,292 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Execute stored procedure call
2017-08-08 16:56:35,294 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Process stored procedure results
2017-08-08 16:56:35,294 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Obtain stored procedure results from recordset
2017-08-08 16:56:35,295 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Received result recordset, number of columns=4
2017-08-08 16:56:35,295 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnection -:::- Results successfully parsed from recordset
2017-08-08 16:56:35,295 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - release connection
2017-08-08 16:56:35,295 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcConnectionPool -:::- OdbcConnectionPool - connections in use: 0
2017-08-08 16:56:35,295 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcIdStore -:::- Call to ODBC DB succeeded
2017-08-08 16:56:35,295 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.OdbcAuthResult -:::- Authentication result: code=0, Conection succeeded=false, odbcDbErrorString=no error, odbcStoredProcedureCusto
merErrorString=null, accountInfo=good user, group=11
2017-08-08 16:56:35,295 DEBUG  [Thread-47187][] cisco.cpm.odbcidstore.impl.CustomerLog -:::- Write customer log message: 24866

參考資料

由思科工程師貢獻

Vitaly Kumov
Cisco TAC工程師
