身份驗證代理身份驗證出站 — 無Cisco IOS防火牆或NAT配置

version 12.2
service timestamps debug datetime msec
service timestamps log datetime msec
service password-encryption
!
hostname psy-rtr-2
!
logging queue-limit 100
!
username admin password 7 <deleted>
aaa new-model


!--- Enable AAA.


aaa authentication login default group radius none


!--- Use RADIUS to authenticate users.

aaa authorization exec default group radius none
aaa authorization auth-proxy default group radius


!--- Utilize RADIUS for auth-proxy authorization.

aaa session-id common
ip subnet-zero
!
ip cef
!

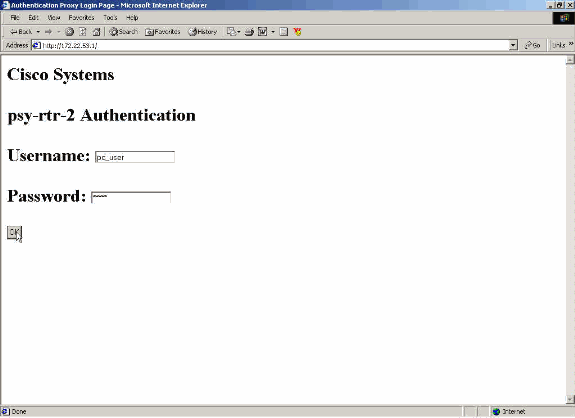

ip auth-proxy auth-proxy-banner


!--- Displays the name of the firewall router !--- in the Authentication Proxy login page.

ip auth-proxy auth-cache-time 10


!--- Sets the global Authentication Proxy idle !--- timeout value in minutes.


ip auth-proxy name restrict_pc http


!--- Associates connections that initiate HTTP traffic with !--- the "restrict_pc" Authentication Proxy name.


ip audit notify log
ip audit po max-events 100
!
no voice hpi capture buffer
no voice hpi capture destination
!
mta receive maximum-recipients 0
!
!
interface FastEthernet0/0
 ip address 192.168.10.10 255.255.255.0
 ip access-group 116 in


!--- Apply access list 116 in the inbound direction.

 ip auth-proxy restrict_pc


!--- Apply the Authentication Proxy list !--- "restrict_pc" configured earlier.


 duplex full
!
interface FastEthernet4/0
 ip address 10.89.129.195 255.255.255.240
 duplex full
!
ip classless
ip http server


!--- Enables the HTTP server on the router.


!--- The Authentication Proxy uses the HTTP server to communicate !--- with the client for user authentication.


ip http authentication aaa


!--- Sets the HTTP server authentication method to AAA.


!
access-list 116 permit tcp host 192.168.10.200 host 192.168.10.10 eq www


!--- Permit HTTP traffic (from the PC) to the router.


access-list 116 deny tcp host 192.168.10.200 any
access-list 116 deny udp host 192.168.10.200 any
access-list 116 deny icmp host 192.168.10.200 any


!--- Deny TCP, UDP, and ICMP traffic from the client by default.


access-list 116 permit tcp 192.168.10.0 0.0.0.255 any
access-list 116 permit udp 192.168.10.0 0.0.0.255 any
access-list 116 permit icmp 192.168.10.0 0.0.0.255 any


!--- Permit TCP, UDP, and ICMP traffic from other !--- devices in the 192.168.10.0/24 network.

!
radius-server host 192.168.10.103 auth-port 1645 acct-port 1646 key 7 <deleted>


!--- Specify the IP address of the RADIUS !--- server along with the key.


radius-server authorization permit missing Service-Type
call rsvp-sync
!
!
line con 0
 stopbits 1
line aux 0
 stopbits 1
line vty 0 4
!
end
