New and Changed Information

The following table provides an overview of the significant changes up to this current release. The table does not provide an exhaustive list of all changes or of the new features up to this release.

Cisco ACI CNI plug-in Release Version

Feature

5.2(3)

Cisco Application Centric Infrastructure (ACI) supports Red Hat OpenShift 4.7 on a bare metal server.

Openshift 4.7 on Bare Metal

This document pertains to installing OCP with the ACI CNI. However, to identify and resolve issues in your infrastructure not related to the ACI CNI, see the relevant installation guide to first install OCP on your bare metal nodes using the default OpenShift SDN CNI. You can check the OpenShift 4.7 container platform documentation.


Note

This document can not be used standalone. This document should be used along with the Red Hat OpenShift 4.7 Installing a Cluster on Bare Metal with Network Customizations document to perform the OpenShift cluster installation.

Requirements for supporting OpenShift 4.7 on a Bare Metal Server

At least two network interfaces are required for bare metal nodes, one for the node network, and the second for the pod network. The design separates OpenShift node traffic from the pod traffic. The separation results in the control and compute machines having two network interfaces, as shown in the following illustration:

The first interface is used for the node network and the second one is used for the pod network. The second interface also carries Cisco ACI control plane traffic. A VLAN tagged subinterface is configured on the second interface to carry the cluster's pod traffic and also the Cisco ACI control plane traffic.

Installation Process

The following sections detail the steps required to install the OpenShift cluster using the ACI CNI.

Configuring the OpenShift Installer

Use this procedure to configure the OpenShift installer.

Before you begin

Download the OpenShift installer and OC client.

For details of the location from where you can download the installer , see the OpenShift 4.7 document titled, Installing a Cluster on Bare Metal with Network Customizations.

Procedure

Create the install-config.yaml file.


$ ~/openupi$ pwd
/home/<user>/openupi

$ ~/openupi$ cat install-config.yaml
apiVersion: v1
baseDomain: noiro.local
compute:
- hyperthreading: Enabled
  name: worker
  replicas: 0
controlPlane:
  hyperthreading: Enabled
  name: master
  replicas: 3
metadata:
  name: openupi
networking:
  clusterNetwork:
  - cidr: 10.2.0.0/16
    hostPrefix: 23
  networkType: CiscoACI
  serviceNetwork:
  - 172.30.0.0/16
platform:
  none: {}
fips: false
proxy:
  httpsProxy: <http-proxy>
  httpProxy: <https-proxy>
  noProxy: <no-proxy>
publish: External
pullSecret: <RH-account-pull-secret>
sshKey: <host-ssh-key>

Configuring ACI Infra and CNI

Use this procedure for configuring ACI infra and CNI using acc-provision.

Procedure

Sample ACI configuration:


# Configuration for ACI Fabric
#
aci_config:
  system_id: openupi                       # Every opflex cluster on the same fabric must have a distict ID
  apic_hosts:                           # List of APIC hosts to connect to for APIC API access
    - <APIC-IP>
  apic_login:
    username: <username>
    password: <password>
  vmm_domain:                     # Kubernetes VMM domain configuration
    encap_type: vxlan             # Encap mode: vxlan or vlan
    mcast_range:                  # Every vxlan VMM on the same fabric must use a distinct range
        start: 225.115.1.1
        end: 225.115.255.255
    nested_inside:
       installer_provisioned_lb_ip: <loadbalancer_ip>    # This IP should match the one configured in the loadbalancer during installation.
  # The following resources must already exist on the APIC,
  # this is a reference to use them
  aep: <AAEP_NAME>            # The attachment profile for ports/VPCs connected to this cluster
  vrf:                         # VRF used to create all subnets used by this Kubernetes cluster
    name: <VRF_NAME>           # This should exist, the provisioning tool does not create it
    tenant: <TENANT_WITH_VRF_DEFINITION>            # This can be tenant for this cluster (system-id) or common
  l3out:                       # L3out to use for this kubernetes cluster (in the VRF above)
    name:<L3OUT_NAME>        # This is used to provision external service IPs/LB
    external_networks:
        <EXTERNAL_EPG_NAME>    # This should also exist, the provisioning tool does not create it
#
# Networks used by Kubernetes
#
net_config:
  node_subnet: 172.253.3.1/24         # Subnet to use for nodes
  pod_subnet: 10.2.0.1/16           # Subnet to use for Kubernetes Pods
  extern_dynamic: 10.3.0.1/16       # Subnet to use for dynamically allocated external services
  extern_static: 10.4.0.1/16        # Subnet to use for statically allocated external services
  node_svc_subnet: 10.5.0.1/16      # Subnet to use for service graph
  kubeapi_vlan: 3                   # The VLAN used by the internal physdom for nodes
  service_vlan: 202                   # The VLAN used for external LoadBalancer services
  infra_vlan: 4093

Note


The *.apps.<cluster_name>.<base_domain> records in the user-provisioned DNS should refer to the same IP address used in the installer_provisioned_lb_ip.

Customize the sample acc-provision input file shown above as per your requirements. Then install the latest acc-provision package and run the acc-provision as follows:


$ ~/openupi$ pwd
/home/<user>/openupi

$ ~/openupi$ acc-provision -a -c acc_provision_input.yaml -f openshift-4.7-baremetal -u <user> -p <password> -o aci_deployment.yaml -z aci deployment.yaml.tar.gz

This generates a new aci_deployment.yaml.tar.gz file which contains the ACI CNI manifests, and is used later during the OpenShift installation.

Configuring Ignition Files

Use this procedure for configuring ignition files for the bare metal nodes.

Before you begin

Prepare the Ignition Files

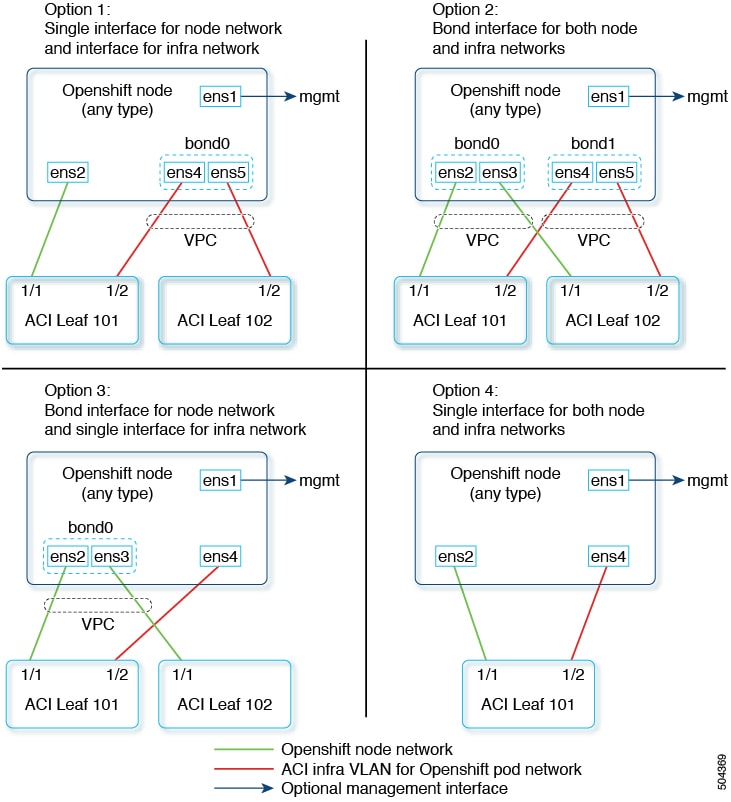

From Github download the config.yaml and update_ign.py files. This script updates the CoreOS ignition file, with additional NIC configuration, required to extend the Cisco ACI internal network (Infra VLAN) up to the server level. This interface is used to carry VxLAN traffic from OVS towards the ACI leaf switch with an appropriate tag for the pod network. The script offers four options for node and pod network configuration:

  • Single interface for node network and bond interface for infra network.

  • Bond interface for both node and infra networks.

  • Bond interface for node network and single interface for infra network.

  • Single interface for both node and infra networks.

Each of the above options have been illustrated as shown below:


Note

Node network is configured as VLAN subinterface of either bond0 or physical NIC. You can configure the server with additional VLAN(s) for management purpose or use the node network for management network. The design might be dependent on the server provisioning method (PXE or manual ISO boot).

Read the instructions provided at the top of the update_ign.py script and accordingly update the config.yaml file to match your environment.

Update the config.yaml file to match your environment.

all:
  infra_vlan: 4093
  kubeapi_vlan: 3
  service_vlan: 202
  network_interfaces:
   node:
     mtu: 1500
   opflex:
     mtu: 1700
  os_compute_nodes_number: 2
  os_cp_nodes_number: 3
  node_network_interface:
    - ens2
    - ens3
  aci_infra_network_interface:
    - ens4
    - ens5

Procedure

Step 1

Create a root folder for your cluster.


cd /home/<user>/openupi
mkdir upi

Step 2

Copy the install-config.yaml, config.yaml, and the update_ign.py in the newly created upi folder.

Step 3

Create the manifests.

openshift-install create manifests --log-level debug --dir=upi

Step 4

Extract all the ACI manifest files in upi/manifests/.

tar -xvf aci_deployment.yaml.tar.gz -C upi/manifests/

Step 5

Create the ignition configurations.

openshift-install create ignition-configs  --log-level debug --dir=upi

Step 6

Update the ignition files with the ACI CNI specific configuration(s).


cd upi
export INFRA_ID=$(jq -r .infraID metadata.json)
python3 update_ign.py

The ignition files are now ready and can be copied to your HTTP server, so they can be served to your nodes. The update_ign.py will generate one ignition file per node following the ocpbm-<cluster-id>-<node-name>-ignition.json format.

What to do next

Proceed with the installation of the cluster; see the Redhat OpenShift 4.7 document (mentioned earlier in the chapter).

Updating the Default Ingress Controller

For updating the default Ingress Controller publish strategy to use the ACI Loadbalancer, log in as a user with cluster-admin privileges and run the following:


oc replace --force --wait --filename - <<EOF
apiVersion: operator.openshift.io/v1
kind: IngressController
metadata:
  namespace: openshift-ingress-operator
  name: default
spec:
  endpointPublishingStrategy:
    type: LoadBalancerService
    loadBalancer:
      scope: External
EOF

For more details, see the Configuring the Default Ingress Controller for your Cluster to be Internal section in the Ingress Operator in OpenShift Container Platform Red Hat guide.
