Antenna

This chapter contains information about the antennas for the Cisco Industrial Routers (IR500) Series WPAN Gateway and WPAN Range Extender devices. The antennas provide connectivity to the CG-Mesh.

This chapter contains the following sections:

Antennas Overview

WPAN Gateway Antenna Configurations

Gateway Pole Mounted Antenna with Below Grade Conduit Routed Cabling Configuration

Table 4-1 lists the antenna, cables and connectors in the antenna configuration, and Figure 4-1 shows the setup of the antenna.



Table 4-1 Pole Mounted Antenna with Below Grade Conduit Routed Cabling Configuration for the IR509UWP-915/K9 Gateway

Antenna Arrangement and Gateway Connector
Enclosure Internal Cable
Lightning Arrestor or Adapter
Outdoor Cable
Antenna

Pole mounted antenna, single antenna cable routed through below grade conduit, 1 QMA (f) gateway antenna connector

Select one cable from:

  • 1 RA-QMA (m) to N (m) cable, LMR-240-FR, 10’, Cisco PID1 CAB-L240-10-Q-N, Cisco PN2 37-1351-02
  • 1 RA-QMA (m) to N (m) cable, LMR-240-FR, 15’, Cisco PID CAB-L240-15-Q-N, Cisco part number 37-1352-02
  • 1 RA-QMA (m) to N (m) cable, LMR-240-FR, 20’, Cisco PID CAB-L240-20-Q-N, Cisco PN 37-1353-02

—

A single cable routed from inside the enclosure to outside the enclosure

1 900 MHz ISM band, omni stick, 24”, 5 dBi, N (f), Cisco PID ANT-WPAN-OM-OUT-N, Cisco PN 07-1163-01

1.PID = Product Identifier

2.PN = Part number

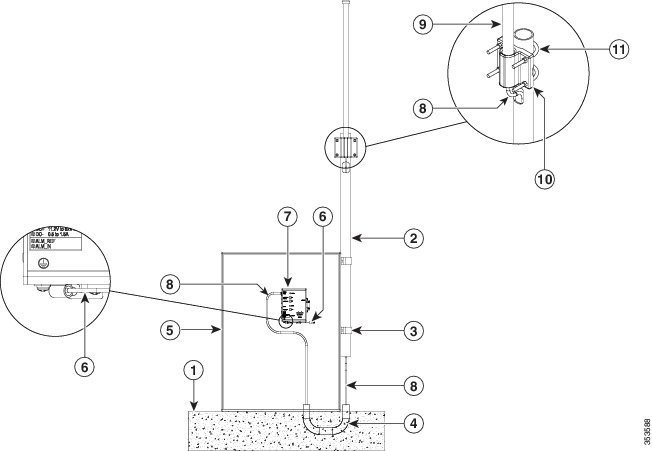

Figure 4-1 Pole Mounted Antenna with Below Grade Conduit Routed Cabling Setup for the IR509UWP-915/K9 Gateway



353588.eps



1

Ground/grade
6

Ground wire (16-14 AWG)—attached to enclosure earth ground)
2

Antenna pole
7

WPAN gateway
3

Pole clamp
8

One cable3 from:

  • 10 ft. RA-QMA (m) to N (m)
  • 15 ft. RA-QMA (m) to N (m)
  • 20 ft. RA-QMA (m) to N (m)
4

Below grade conduit
9

900 MHz ISM band, omni stick, 24", 5 dBi, N (f) antenna 1

5

Enclosure




3.For Cisco PID and PN details, see Table 4-1.

Gateway Enclosure Mounted Antenna Configuration



Table 4-2 Enclosure Mounted Antenna Configuration for the IR509UWP-915/K9 Gateway

Antenna Arrangement and Gateway Connector
Enclosure Internal Cable
Lightning Arrestor or Adapter
Outdoor Cable
Antenna

Antenna directly mounted to lightning arrestor at enclosure interface to exterior, 1 QMA (f) gateway antenna connector

Select one cable from:

  • 1 RA-QMA (m) to N(m) cable, LMR-240-FR, 10’, Cisco Product Identifier (PID) CAB-L240-10-Q-N, Cisco PN 37-1351-02
  • 1 RA-QMA (m) to N(m) cable, LMR-240-FR, 15’, Cisco PID CAB-L240-15-Q-N, Cisco PN 37-1352-02
  • 1 RA-QMA (m) to N(m) cable, LMR-240-FR, 20’, Cisco PID CAB-L240-20-Q-N, Cisco PN 37-1353-02

1 lightning arrestor, N (f)-N (f), Cisco PID CGR-LA-NF-NF, Cisco PN 07-1158-02

—

1 900 MHz ISM band, omni stick, 8”, 1.5 dBi, N (f), Cisco PID ANT-WPAN-OD-OUT-N, Cisco PN 07-1318-01

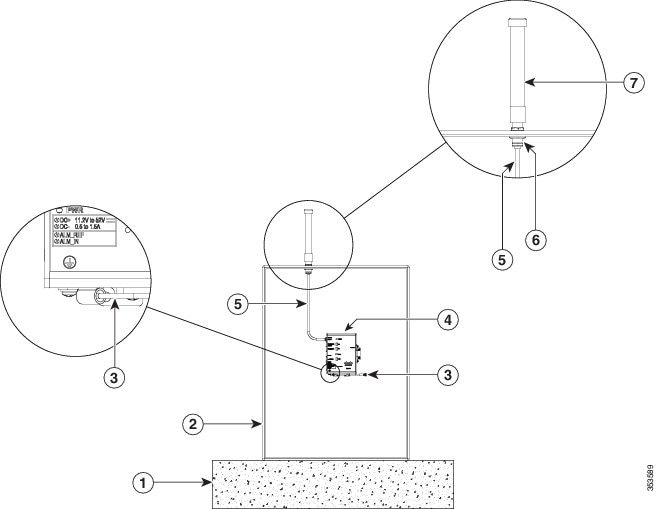

Figure 4-2 Enclosure Mounted Antenna Setup for the IR509UWP-915/K9 Gateway



353589.eps



1

Ground/grade
5

One cable4 from:

  • 10 ft. RA-QMA (m) to N (m)
  • 15 ft. RA-QMA (m) to N (m)
  • 20 ft. RA-QMA (m) to N (m)
2

Enclosure
6

Lightning arrestor 1 , N (f) to N (f)
3

Ground wire (16-14 AWG)—attached to enclosure earth ground)
7

900 MHz ISM band, omni stick, 8”, 1.5 dBi, N (f) antenna 1

4

WPAN gateway




4.For Cisco PID and PN details, see Table 4-2.

Gateway Pole Mounted Antenna with Enclosure Interface Lightning Arrestor Configuration



Table 4-3 Pole Mounted Antenna with Enclosure Interface Lightning Arrestor Configuration for the IR509UWP-915/K9 Gateway

Antenna Arrangement and Gateway Connector
Enclosure Internal Cable
Lightning Arrestor or Adapter
Outdoor Cable
Antenna

Pole mounted antenna, lightning arrestor at enclosure interface to exterior, antenna exterior and internal cables used, 1 QMA (f) gateway antenna connector

Select one cable from:

  • 1 RA-QMA (m) to N(m) cable, LMR-240-FR, 10’, Cisco Product Identifier (PID) CAB-L240-10-Q-N, Cisco PN 37-1351-02
  • 1 RA-QMA (m) to N(m) cable, LMR-240-FR, 15’, Cisco PID CAB-L240-15-Q-N, Cisco PN 37-1352-02
  • 1 RA-QMA (m) to N(m) cable, LMR-240-FR, 20’, Cisco PID CAB-L240-20-Q-N, Cisco PN 37-1353-02

1 lightning arrestor, N (f)-N (f), Cisco PID CGR-LA-NF-NF, Cisco PN 07-1158-02

Select one option from:

  • 1 RA-N(m) to N(m) cable, LMR-400-DB, 5’, Cisco PID CAB-L400-5-N-N, Cisco PN 37-1436-01
  • 1 N(m) to N(m) cable, LMR-400-DB, 5’, Cisco PID CAB-L400-5-N-NS, Cisco PN 37-1446-01
  • 1 RA-N(m) to N(m) cables, LMR-400-DB, 20’, Cisco PID CAB-L400-20-N-N, Cisco PN 37-1392-01
  • 1 RA-N(m)-N(m) cables, LMR-600-DB, 30’, Cisco PID CAB-L600-30-N-N, Cisco PN 37-1396-01

1 900 MHz ISM band, omni stick, 24”, 5 dBi, N (f), Cisco PID ANT-WPAN-OM-OUT-N, Cisco PN 07-1163-01

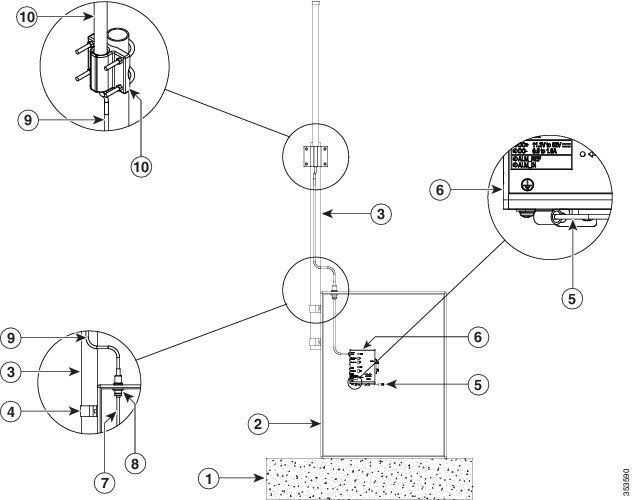

Figure 4-3 Pole Mounted Antenna with Enclosure Interface Lightning Arrestor Setup for the IR509UWP-915/K9 Gateway



353590.eps



1

Ground/grade
6

WPAN gateway
2

Enclosure
7

One cable from:

  • 10 ft. RA-QMA (m) to N (m)
  • 15 ft. RA-QMA (m) to N (m)
  • 20 ft. RA-QMA (m) to N (m)
3

Antenna pole
8

Lightning arrestor, N (f) to N (f)
4

Pole clamp
9

One cable from:

  • 5 ft. RA-N (m) to N (m)
  • 5 ft. N (m) to N (m)
  • 20FT RA-N (m) to N (m)
  • 30FT RA-N (m) to N (m)
5

Ground wire (14-16 AWG)—attached to enclosure earth ground)
10

900 MHz ISM band, omni stick, 24", 5 dBi, N (f) antenna

WPAN Range Extender Antenna Configurations

Base Range Extender—Direct Connect Antenna Configuration



Table 4-4 Direct Connect Antenna Configuration for the IR529WP-915S/K9 Base Range Extender

Antenna Arrangement and Range Extender Connector(s)
Enclosure Internal Cable
Lightning Arrestor or Adapter
Outdoor Cable
Antenna

Direct connect antenna,
N (f) range extender antenna connector

—

None

None

1 900 MHz ISM band, omni stick, 8”, 1.5 dBi, N (m), Cisco PID ANT-WPAN-OD-
OUT-N, Cisco PN 07-1318-01

Base Range Extender—Pole Mounted Antenna Configuration



Table 4-5 Pole Mounted Antenna Configuration for the IR529WP-915S/K9 Base Range Extender

Antenna Arrangement and Range Extender Connector(s)
Enclosure Internal Cable
Lightning Arrestor or Adapter
Outdoor Cable
Antenna

Pole mounted antenna, N (f) range extender antenna connector

—

1 Lightning Arrestor, DC Pass, N (m)-N (f), Cisco PID CGR-LA-NM-NF, Cisco PN 07-1091-02

Select one option from:

  • 1 RA-N (m) to N (m) cable, LMR-400-DB, 5’, Cisco PID CAB-L400-5-N-N, Cisco PN 37-1436-01
  • 1 N(m) to N(m) cable, LMR-400-DB, 5’, Cisco PID CAB-L400-5-N-NS, Cisco PN 37-1446-01
  • 1 RA-N(m) to N(m) cables, LMR-400-DB, 20’, Cisco PID CAB-L400-20-N-N, Cisco PN 37-1392-01
  • 1 RA-N(m)-N(m) cables, LMR-600-DB, 30’, Cisco PID CAB-L600-30-N-N, Cisco PN 37-1396-01

1 900 MHz ISM band, omni stick, 24”, 5 dBi, N (f), Cisco PID ANT-WPAN-OM-OUT-N, Cisco PN 07-1163-01

Single Antenna Advanced Range Extender—Direct Connect Antenna Configuration



Table 4-6 Direct Connect Antenna Configuration for the IR529UBWP-915S/K9 Single Antenna Advanced Range Extender

Antenna Arrangement and Range Extender Connector(s)
Enclosure Internal Cable
Lightning Arrestor or Adapter
Outdoor Cable
Antenna

Direct connect single antenna,
1 N (f) range extender antenna connector

—

None

None

1 900 MHz ISM band, omni stick, 8”, 1.5 dBi, N(m), Cisco PID ANT-WPAN-OD-
OUT-N, Cisco PN 07-1318-01

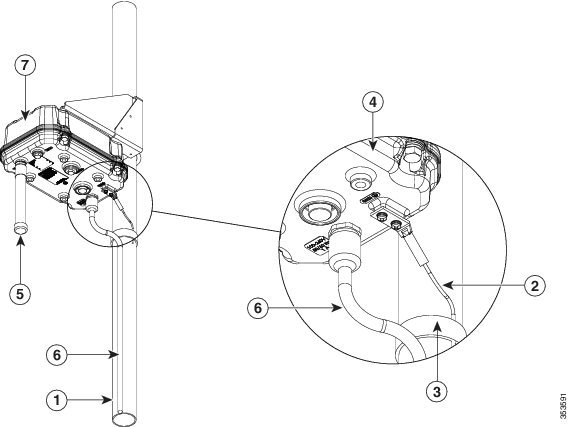

Figure 4-4 Direct Connect Antenna Setup for the IR529UBWP-915S/K9 Single Antenna Advanced Range Extender



353591.eps



1

Antenna pole
4

Single antenna advanced WPAN range extender5
2

Ground wire (4 to 6AWG)
5

900 MHz ISM band, omni stick, 8", 1.5 dBi, N (f) antenna6
3

Ground pipe clamp
6

AC power chord

5.IR529UBWP-915S/K9 model

6.For Cisco PID and PN details, see Table 4-6.

Single Antenna Advanced Range Extender—Pole Mounted Antenna Configuration



Table 4-7 Pole Mounted Antenna Configuration for the IR529UBWP-915S/K9 Single Antenna Advanced Range Extender

Antenna Arrangement and Range Extender Connector(s)
Enclosure Internal Cable
Lightning Arrestor or Adapter
Outdoor Cable
Antenna

Pole mounted single antenna, 1 N (f) range extender antenna connector

—

1 Lightning Arrestor, DC Pass, N (m)-N (f), Cisco PID CGR-LA-NM-NF, Cisco PN 07-1091-02

Select one option from:

  • 1 RA-N (m) to N (m) cable, LMR-400-DB, 5’, Cisco PID CAB-L400-5-N-N, Cisco PN 37-1436-01
  • 1 N (m) to N (m) cable, LMR-400-DB, 5’, Cisco PID CAB-L400-5-N-NS, Cisco PN 37-1446-01
  • 1 RA-N (m) to N (m) cables, LMR-400-DB, 20’, Cisco PID CAB-L400-20-N-N, Cisco PN 37-1392-01
  • 1 RA-N (m)-N (m) cables, LMR-600-DB, 30’, Cisco PID CAB-L600-30-N-N, Cisco PN 37-1396-01

1 900 MHz ISM band, omni stick, 24”, 5 dBi, N (f), Cisco PID ANT-WPAN-OM-OUT-N, Cisco PN 07-1163-01

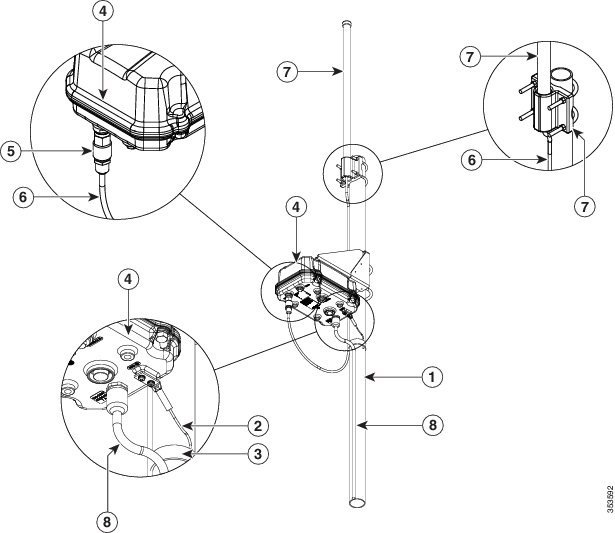

Figure 4-5 Pole Mounted Antenna Setup for the IR529UBWP-915S/K9 Single Antenna Advanced Range Extender



353592.eps



1

Antenna pole
5

Lightning arrestor7, N (m) to N (f)
2

Ground wire (4 to 6 AWG)
6

One cable 1 from:

  • 5 ft. RA-N (m) to N (m)
  • 5 ft. N (m) to N (m)
  • 20 ft. RA-N (m) to N (m)
  • 30 ft. RA-N (m) to N (m)
3

Ground pipe clamp
7

900 MHz ISM band, omni stick, 24", 5 dBi, N (f) antenna 1

4

Single antenna advanced WPAN range extender8
8

AC power chord

7.For Cisco PID and PN details, see Table 4-7.

8.IR529UBWP-915S/K9 model

Dual Antenna Advanced Range Extender—Dual Antenna Configuration


Noteblank.gif The dual antenna configuration applies to the dual antenna advanced range extender models with and without battery support:
- IR529UBWP-915D/K9 (with battery support
- IR529UWP-915D/K9 (without battery support)



Table 4-8 Dual Antenna Configuration for the IR529UBWP-915D/K9 and IR529UWP-915D/K9 Dual Antenna Advanced Range Extenders

Antenna Arrangement and Connector(s)
Enclosure Internal Cable
Lightning Arrestor or Adapter
Outdoor Cable
Antenna

Dual antenna,
2 N (f) antenna connectors

—

2 Lightning Arrestors, N (m)-N (f), Cisco PID CGR-LA-NM-NF, Cisco PN 07-1091-02

Select one option:

  • 2 RA-N (m) to N (m) cables, LMR-400-DB, 20’, Cisco PID CAB-L400-20-N-N, Cisco PN 37-1392-01
  • 2 RA-N (m)-N (m) cables, LMR-600-DB, 30’, Cisco PID CAB-L600-30-N-N, Cisco PN 37-1396-01

2 900 MHz ISM Band, directional Yagi antennas, 10 dBi, N (f), Cisco PID ANT-WPAN-Y-OUT-N, Cisco PN 07-1328-01

Figure 4-6 Dual Antenna Setup for the IR529UBWP-915D/K9 and IR529UWP-915D/K9 Dual Antenna Advanced Range Extenders



353593.eps



1

Antenna pole
5

One cable from:

  • 20 ft. RA-N (m) to N (m)
  • 30 ft. RA-N (m) to N (m)
2

Dual antenna advanced WPAN range extender9
6

Ground pipe clamp
3

900 MHz ISM band, 10 dBi, N (F), directional Yagi antenna
7

AC power chord
4

Lightning arrestor, N (m) to N (f)
8

Ground wire (4 to 6 AWG)

9.IR529UBWP-915D/K9 or IR529UWP-915D/K9 model

Additional Information for WPAN Gateway Antenna Installations

For all outdoor antenna/WPAN gateway installations, the coax shield should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.

In addition, please refer to Section 820.93 of the National Electrical Code, ANSI/NFPA 70: 2005; and EN60728-11: 2005, which provide guidelines for proper grounding and, in particular, specify that the coaxial cable shield shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

For indoor antenna/WPAN gateway installations, no additional considerations are required.

Installing or Replacing Antennas

Depending on the configuration you specified, the WPAN gateway and WPAN range extender could be shipped with all required antennas already installed and connected. You may need to install an antenna when you purchase an antenna separately to replace a faulty or damaged antenna.

For procedures and safety information required to install or replace antennas, see the Connected Grid Antenna Installation Guide, at: www.cisco.com/go/cg-modules.
