Multitenant WAN Edge Devices

Table 1. Feature History

Feature Name

Release Information

Description

Multitenant WAN Edge Devices

Cisco IOS XE Catalyst SD-WAN Release 17.7.1a

Cisco vManage Release 20.7.1

With this feature, a service provider can deploy, configure, and manage multitenant WAN edge devices in a multitenant Cisco Catalyst SD-WAN deployment.

Distribute Device Resources Among Tenants Using Tiers

Cisco IOS XE Catalyst SD-WAN Release 17.8.1a

Cisco vManage Release 20.8.1

With this feature, you can define tiers and assign tenants to tiers. While defining a tier, you limit the amount of a multitenant WAN edge resource that is allocated to a tenant in the tier, when the tenant is onboarded to a multitenant WAN edge device.

From this release, you can specify how many tenant VPNs can be created for a tenant belonging to a tier. In subsequent releases, tiers will be enhanced to support limits on the usage of additional device resources such as firewall, NAT, and TLOCs.

Enhanced Multitenant Tier Definition to include Route and TLOC Resource-Usage Limits

Cisco IOS XE Catalyst SD-WAN Release 17.10.1a

Cisco vManage Release 20.10.1

This feature is enhanced to support route and TLOC resource-usage limits. A service provider can assign a tier to limit the routes and TLOC resource-usage to the tenant based on the service agreement.

Enhanced Multitenant Tier Definition to include NAT Limits

Cisco IOS XE Catalyst SD-WAN Release 17.12.1a

Cisco Catalyst SD-WAN Manager Release 20.12.1

With this feature, you can configure maximum limit on NAT translations per tenant.

From this release Tier is called Resource Profile in Cisco SD-WAN Manager.

Information About Multitenant WAN Edge Devices

As a service provider managing a multitenant Cisco Catalyst SD-WAN deployment, you may wish to deploy a multitenant WAN edge device in the overlay network to serve as a shared gateway for traffic belonging to multiple tenants. For example, you can deploy such a shared gateway in each regional point of presence (PoP). You can carry inter-region traffic belonging to multiple tenants through these shared gateways and the transport backbone linking the PoPs.

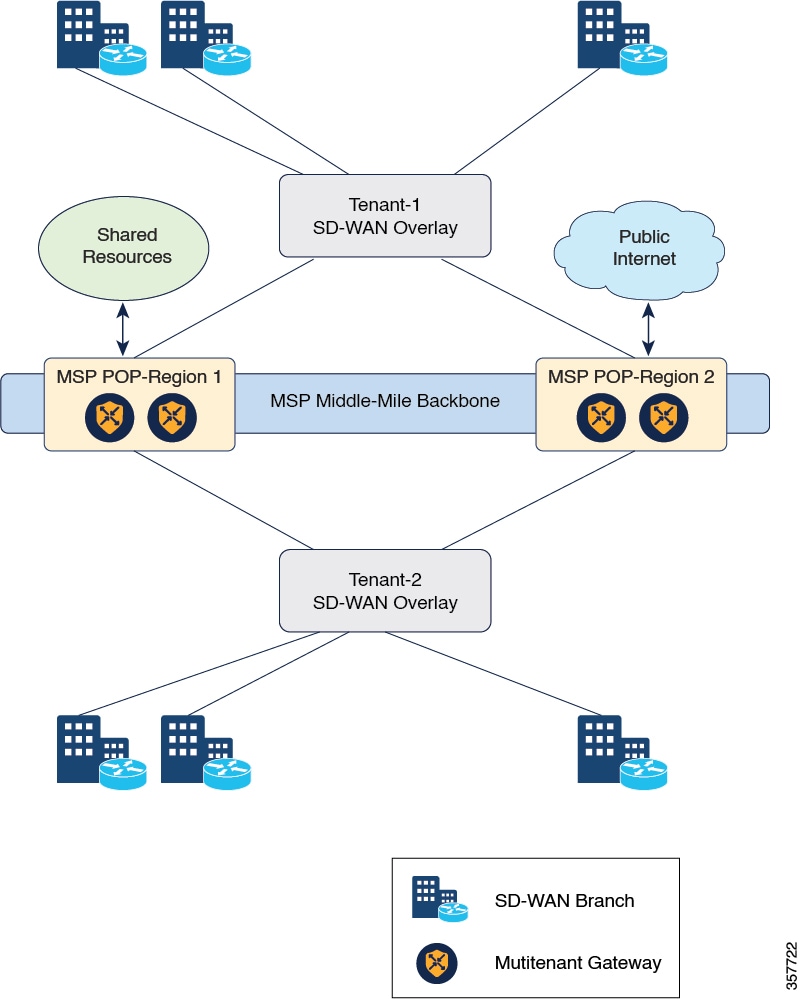

Figure 1. Multitenant WAN Edge Devices as Shared Gateways

Multitenant WAN edge devices isolate traffic belonging to different tenants by mapping a tenant service VPN (referred to as tenant VPN) to a device VPN (also referred to as the device VRF). Cisco SD-WAN Manager performs the mapping between the tenant and device VPNs when you onboard a tenant on a multitenant WAN edge device.

Multitenant WAN edge devices establish control connections with the Cisco SD-WAN Validator nodes specified in the bootstrap configuration, and then connect to nodes in the Cisco SD-WAN Manager cluster. When you onboard a tenant to a multitenant WAN edge device, the device establishes control connections to the Cisco SD-WAN Controller assigned to the tenant.

The service provider must deploy, configure, and manage multitenant WAN edge devices. The devices and their states are displayed only in the Cisco SD-WAN Manager provider view. The provider, acting on behalf of the tenant, must deploy, configure, and manage single-tenant WAN edge devices owned by a tenant. The devices and their states are displayed in the tenant view or the provider-as-tenant view. When a tenant is onboarded to a multitenant WAN edge device, the multitenant WAN edge device can interoperate with single-tenant WAN edge devices owned by the tenant and other multitenant WAN edge devices to which the tenant is onboarded.

Resource Profiles (Tiers)

When you onboard many tenants on a multitenant WAN edge device, you may need to distribute the limited device resources among the tenants to ensure fair usage of resources or to implement different service-level agreements (SLAs). A tier lets you define and limit how much of each device resource a tenant assigned to the tier can consume. After creating a tier, when you onboard a tenant, you assign a tenant to a particular tier to apply the resource-usage limits to the tenant.

Usage Notes

  • After you create a tier, you cannot modify the device-resource-usage limits specified in the tier. To apply a different set of limits to tenants, you must create a new tier and assign the relevant tenants to the new tier.

  • You can delete a tier only when no tenants are assigned to it.

Resource Usage Limits in Resource Profiles (Tiers)

Table 2. Resource Usage Limits in Tiers

Resource Usage Limit

Description

Available From

Number of VPNs

Maximum number of tenant VPNs that can be created for a tenant belonging to the tier.

Cisco SD-WAN Manager enforces the limit when you create a new tenant VPN for a tenant.

  • If you have already created the maximum number of tenant VPNs specified in the tier, Cisco SD-WAN Manager reports the error and doesn't apply the configuration.

Cisco IOS XE Release 17.8.1 and Cisco vManage Release 20.8.1

Route-limit

The number of IPv4 unicast and IPv6 unicast routes that can be created for a tenant belonging to the tier.

Route limit on a tenant is the sum of routes from all VRFs.

Cisco IOS XE Catalyst SD-WAN Release 17.10.1a

Cisco vManage Release 20.10.1

TLOC

TLOC allows you to map transport interfaces to tenants. At least one TLOC needs to be selected per tier and you can include up to 16 TLOCs in a tier.

Cisco IOS XE Catalyst SD-WAN Release 17.10.1a

Cisco vManage Release 20.10.1

NAT limit

The maximum limit on the number of NAT translations per tenant.

Once the maximum limit has reached for a tenant, the packets are dropped and further translations are not allowed.

Cisco IOS XE Catalyst SD-WAN Release 17.12.1a

Cisco Catalyst SD-WAN Manager Release 20.12.1

Benefits of Multitenant WAN Edge Devices

As a managed service provider, by deploying multitenant WAN edge devices, you can

  • reuse the edge devices and the interconnecting transport backbone to serve multiple tenants

  • lower capital and operational expenditure

  • provide faster access to tenants to shared resources, SaaS, and IaaS through the shared transport backbone

  • manage tenant association with the devices, tenant-specific policies, and QoS requirements with Cisco SD-WAN Manager as the unified management interface

Supported Devices for Multitenant WAN Edge Devices

Device Family Device Model
Cisco ASR 1000 Series Aggregation Services Routers

ASR 1001-HX

ASR 1001-X

ASR 1002-HX

ASR 1002-X

Note



Cisco IOS XE Catalyst SD-WAN Release 17.9.1a is the last supported release for ASR 1001-X and ASR 1002-X.

Cisco Catalyst 8000V Edge Software Catalyst 8000V
Cisco Catalyst 8300 Series Edge Platforms

C8300-1N1S-4T2X

C8300-1N1S-6T

C8300-2N2S-4T2X

C8300-2N2S-6T
Cisco Catalyst 8500 Series Edge Platforms

C8500-12X

C8500-12X4QC

C8500L-8S4X
Cisco ISR 4000 Series Integrated Services Routers ISR 4461

Prerequisites for Multitenant WAN Edge Devices

  • You must have completed the initial setup for a multitenant Cisco Catalyst SD-WAN deployment.

    • Multitenant Cisco SD-WAN Validator and Multitenant Cisco SD-WAN Controller must run Cisco SD-WAN Release 20.7.1 or a later release software.

    • Multitenant Cisco SD-WAN Manager must run Cisco vManage Release 20.7.1 or a later release software.

    • Cisco IOS XE Catalyst SD-WAN devices must run Cisco IOS XE Release 17.7.1 or a later release software.

Restrictions for Multitenant WAN Edge Devices

  • The provider must own, deploy, and manage all multitenant WAN edge devices in the deployment. The provider must also deploy and manage any single-tenant device owned by a specific tenant.

  • You must configure unique system IP address for each WAN edge device in the multitenant Cisco Catalyst SD-WAN deployment, irrespective of whether the device is a multitenant device owned and managed by the provider or a single-tenant device owned by a tenant and managed by the provider on behalf of the tenant.

  • You can configure a maximum of 16 SLA classes. You can either assign specific SLA classes to tenants or share SLA classes among tenants.

  • You cannot migrate a single-tenant WAN edge device from the tenant-level to serve as a multitenant WAN edge device at the provider-level. You must decommission the single-tenant device and delete it from Cisco SD-WAN Manager, perform a factory reset on the device to erase the existing configuration, and onboard the device at the provider-level.

  • Multitenant WAN edge device do not support the following:

    • Cloud Express and Multicloud workflows

    • Zone-Based Firewall (ZBFW) and advanced security features

    • Per-tenant DPI statistics

    • Dynamic on-demand tunnels

    • SNMP

    • Per-tenant management of NAT resources

    • OMP IPv6 route filtering

    • OMP notifications

  • Tenant limits takes precedence when VRF limits are also configured.

Configure Multitenant WAN Edge Devices

Configuration Workflow

Perform the following configuration procedures as the Provider admin user.

  1. Complete Initial Setup for Multitenancy.

    1. Add Tenants.

    2. (Optional) Onboard Tenant-Owned WAN Edge Devices.


      Note

      As the provider admin, you must onboard the devices from the provider-as-tenant view. Configure unique system IP address for each WAN edge device in the deployment across all tenant overlay networks.

  2. Enable Multitenant WAN Edge Deployment.

  3. Onboard WAN Edge Devices at the Provider Level.


    Note

    • Importing WAN edge device details from the Plug and Play (PnP) portal to Cisco SD-WAN Manager using Sync Smart Account is not supported. Export the device serial file from the PnP portal and import the file to Cisco SD-WAN Manager.

    • Configure unique system IP address for each WAN edge device in the deployment across all tenant overlay networks.

  4. Enable Multitenancy on Provider-Managed WAN Edge Devices.

  5. Create Tiers.

  6. Onboard Tenants to a Multitenant WAN Edge Device.

  7. Create Tenant VPN for Onboarded Tenants.

  8. (Optional) Configure Required Policies.

Enable Multitenant WAN Edge Deployment

Before You Begin

Ensure that every WAN edge device in the deployment, across tenants, is configured with a unique system IP address.

  1. Log in to Cisco SD-WAN Manager as the Provider admin user.

  2. From the Cisco SD-WAN Manager menu, choose Administration > Settings.

  3. Find MT Edge Deployment Settings and click Edit.

  4. For Enable MT Edge Deployment, click Enabled.

    By default, Enable MT Edge Deployment is Disabled.

  5. Click Save.

If two or more WAN edge devices in the deployment are configured with the same system IP address, Cisco SD-WAN Manager reports an error. Modify the configuration of the WAN edge devices and try to enable multitenant WAN edge deployment.

Onboard WAN Edge Devices at the Provider Level

  1. Log in to Cisco SD-WAN Manager as the Provider admin user.

  2. Upload the device serial number file to Cisco SD-WAN Manager. While uploading the file, choose the option to validate and send the device list to controllers.

  3. Bootstrap the device using bootstrap configuration generated through Cisco SD-WAN Manager or manually create the initial configuration on the device.

  4. If you are using Enterprise Certificates to authenticate the device, download the Certificate Signing Request (CSR) from Cisco SD-WAN Manager and get the CSR signed by the Enterprise CA. Install the certificate on Cisco SD-WAN Manager.

  5. Create a configuration template for the device and attach the device to the template.

    While configuring the device, configure the service provider organization name as sp-organization-name and the tenant organization-name.

Enable Multitenancy on Provider-Level WAN Edge Devices

You can enable multitenancy on a provider-level WAN edge using the Multi Tenant parameter in the System template.

  1. Log in to Cisco SD-WAN Manager as the Provider admin user.

  2. From the Cisco SD-WAN Manager menu, choose Configuration > Templates.

  3. Click Feature.

  4. Find the System template of the provider-level WAN edge device for which you wish to enable multitenancy.

  5. For the System template, click … and click Edit.

  6. In the Basic Configuration area, find the Multi Tenant parameter. Initially, the parameter has a default scope and the default value Off. For the Multi Tenant parameter,

    1. Click the scope drop-down list and choose Global scope.

    2. Click On to enable multitenancy.

  7. Click Update to save and apply the modified configuration.

The provider-level WAN edge device can serve more than one tenant.

Create a Resource Profile (Tier)

  1. Log in to Cisco SD-WAN Manager as the Provider admin user.

  2. From the Cisco SD-WAN Manager menu, choose Administration > Tenant Management.

  3. Click Resource Profiles.

    In Cisco vManage Release 20.11.1 and earlier releases, Resource Profiles is called Tiers.

    Any existing tiers are displayed in a table.

  4. Click Add a Resource Profile.

    In Cisco vManage Release 20.11.1 and earlier releases, Add a Resource Profile is called Add Tier.

  5. In the Add Tier slide-in pane, do the following:

    1. Enter the following details:

      Field

      Description
      Resource Profile Name

      In Cisco vManage Release 20.11.1 and earlier releases, Resource Profile Name is called Tier Name.

      		Enter a unique name for the tier.
      Maximum VPN

      Enter the maximum number of VPNs that can be created on a multitenant WAN edge device for a tenant assigned to this tier.

      Minimum value: 1

      Maximum value: The maximum number of VPNs that you can specify for a tier depends on the device model. See Table 1.

      NAT Limit (Optional)

      Minimum supported release: Cisco IOS XE Catalyst SD-WAN Release 17.12.1a and Cisco Catalyst SD-WAN Manager Release 20.12.1

      Enter the maximum number of NAT translations that are allowed on each tenant.
      Route Limit (Optional)

      Minimum supported release: Cisco IOS XE Catalyst SD-WAN Release 17.10.1a and Cisco vManage Release 20.10.1

      (Optional) Specify IPv4 unicast or IPv6 unicast route limits. Route limit on a tenant is the sum of routes from all VRFs.

      Default value is 0.

      Note



      The value 0 means there is no route limit configured in the tier definition.
      Route Limit Type

      Minimum supported release: Cisco IOS XE Catalyst SD-WAN Release 17.10.1a and Cisco vManage Release 20.10.1

      The following two route limit types can be configured for IPv4 or IPv6 routes on the device:

      • Warning-only: This option allows to install new tenant IPv4 or IPv6 routes even after total exceeds their respective limit. A warning message is shown on device console when IPv4 route limit or IPv6 route limit is exceeded.

      • Warning with threshold: This option allows to configure a warning threshold, which is the percentage of the route limit. A warning message is shown on device console when the threshold percentage of IPv4 route limit or IPv6 route limit is reached. When a tenant’s total IPv4 or IPv6 routes exceed the configured IPv4 or IPv6 route limit, routes are rejected.

      Threshold

      Minimum supported release: Cisco IOS XE Catalyst SD-WAN Release 17.10.1a and Cisco vManage Release 20.10.1

      Specify the route limit threshold value when you chose Warning with threshold option. When threshold percentage of IPv4 or IPv6 route limit is reached, a warning message is displayed on the device console.

      Range: 1 to 100.
      Allowed Transport

      In Cisco vManage Release 20.11.1 and earlier releases, Allowed Transport is called TLOC.

      Minimum supported release: Cisco IOS XE Catalyst SD-WAN Release 17.10.1a and Cisco vManage Release 20.10.1

      Add TLOC details for the tier. For a tier, add at least one TLOC and up to 16 TLOCs. A TLOC definition includes the TLOC color and the encapsulation type.

      Range: 1 to 16
      Color

      Minimum supported release: Cisco IOS XE Catalyst SD-WAN Release 17.10.1a and Cisco vManage Release 20.10.1

      Select the color from the drop-down list. The color attribute helps to identify an individual WAN transport tunnel.
      Encapsulation

      Minimum supported release: Cisco IOS XE Catalyst SD-WAN Release 17.10.1a and Cisco vManage Release 20.10.1

      Select encapsulation type as either GRE or IPSec per TLOC configuration.
      Table 3. Maximum Number of VPNs Supported by Each Device Model

      Device Model

      Maximum Number of VPNs
      ASR1001-X 80
      ASR1001-HX 336
      ASR1002-X 336
      ASR1002-HX 336
      C8500-12X4QC 336
      C8500-12X 336
      C8500L-8S4X 336
      C8300-1N1S-6T 200
      C8300-1N1S-4T2X 200
      C8300-2N2S-6T 200
      C8300-2N2S-4T2X 200
      Catalyst 8000V 300
      ISR4461 80

    2. To add the tier, click Save. To discard your entries and close the slide-in pane, click Cancel.

      After you click Save, the slide-in pane is closed and the new tier is listed in the table along with any existing tiers.

Onboard Tenants to a Multitenant WAN Edge Device

You can onboard tenants to a multitenant WAN edge device using the Tenant template. If you haven’t onboarded a tenant to the device, create a tenant template, add tenants, and attach the tenant template to the device template. If you have onboarded tenants to the device, to onboard a new tenant, update the tenant template attached to the device.

When a new tenant is onboarded to the multitenant WAN edge device, the device establishes control connections to the Cisco SD-WAN Controllers assigned to the tenant.

Before You Begin

Before onboarding the tenant to a multitenant WAN edge device, add the tenant to the multitenant deployment and create the tier with which you wish to associate the tenant.

Create a Tenant Template

  1. Log in to Cisco SD-WAN Manager as the Provider admin user.

  2. From the Cisco SD-WAN Manager menu, choose Configuration > Templates.

  3. Find the device template for the multitenant WAN edge device to which you wish to onboard tenants.

  4. For the device template, click … and click Edit.

    The device template is displayed.

  5. Click Additional Templates.

  6. In the Additional Templates area, click the Tenant template drop-down list and then click Create Template.

  7. In the Tenant template form, do as follows:

    1. Enter a unique Template Name. The template name can contain up to 128 alphanumeric characters.

    2. Enter a Description for the template. The description can contain up to 2048 alphanumeric characters.

    3. In the Tenant area, click New Tenant.

    4. From the Tenant Name drop-down list, choose the tenant organization name.

      In Cisco vManage Release 20.11.1 and earlier releases, Tenant Name is called Org Name.

    5. From the Resource Profile Name drop-down list, choose a tier for the tenant.

      In Cisco vManage Release 20.11.1 and earlier releases, Resource Profile Name is called Tier Name.

    6. Click Add.

    7. Repeat Step c to Step f to add additional tenants.

  8. Click Save.

  9. For the device template, click Update to save and apply the modified configuration.

  10. Select the target device in the left pane and click Configure Devices.

Update a Tenant Template

  1. Log in to Cisco SD-WAN Manager as the Provider admin user.

  2. From the Cisco SD-WAN Manager menu, choose Configuration > Templates.

  3. Click Feature.

  4. For the tenant template attached to the device, click … and click Edit.

    The tenant template is displayed.

  5. In the Tenant template form, do the following:

    1. In the Tenant area, click New Tenant.

    2. From the Org Name drop-down list, choose the tenant organization name.

    3. From the Tier Name drop-down list, choose a tier for the tenant.

    4. Click Add.

    5. Repeat Step a to Step d to add additional tenants.

  6. Click Update.

Create Tenant VPN for Onboarded Tenants

After onboarding a tenant to a multitenant WAN edge device, use the Cisco VPN template to create tenant VPNs. To isolate VPN traffic of one tenant from the VPN traffic of other tenants onboarded on the multitenant WAN edge device, Cisco SD-WAN Manager maps a tenant VPN ID to a device VPN ID while you create the tenant VPN.

Create a Cisco VPN Template

  1. Log in to Cisco SD-WAN Manager as the Provider admin user.

  2. From the Cisco SD-WAN Manager menu, choose Configuration > Templates.

  3. Find the Device template for the multitenant WAN edge device to which you wish to onboard tenants.

  4. For the device template, click … and click Edit.

    The device template is displayed.

  5. Click Service VPN.

  6. In the Service VPN area, click Add VPN.

  7. In the Add VPN slide-in pane, click Create VPN Template.

  8. In the Create VPN Template slide-in pane, do the following:

    1. Enter a unique Template Name. The template name can contain up to 128 alphanumeric characters.

    2. Enter a Description for the template. The description can contain up to 2048 alphanumeric characters.

    3. In the Basic Configuration area, map the tenant VPN ID to a device VPN ID:

      1. From drop-down list corresponding to Tenant VPN, choose the tenant organization name.

      2. In the text field corresponding to Tenant VPN, enter the tenant VPN ID.

      3. Click Generate VPN ID.

        A read-only VPN field displays the device VPN ID for the tenant VPN ID. This mapping is performed by Cisco SD-WAN Manager. For a tenant, Cisco SD-WAN Manager maps a particular tenant VPN ID to the same device VPN ID on all the multitenant WAN edge devices.

    4. Configure other properties of the tenant VPN in the template.

    5. Click Save.

  9. In the Add VPN slide-in pane, move the template created in Step 8 from Available VPN Templates to Selected VPN Templates.

  10. Click Next.

  11. Add any additional Cisco VPN templates as needed.

  12. Click Add.

  13. For the device template, click Update to save and apply the modified configuration.

  14. Select the target device in the left pane and click Configure Devices.

Update a Cisco VPN Template

If you made a copy of an existing Cisco VPN template, you must modify the template for the new tenant VPN that you wish to create.

  1. Log in to Cisco SD-WAN Manager as the Provider admin user.

  2. From the Cisco SD-WAN Manager menu, choose Configuration > Templates.

  3. Click Feature.

  4. For the copied Cisco VPN template, click … and click Edit.

    The Cisco VPN template is displayed.

  5. In the Cisco VPN template form, do the following:

    1. In the Basic Configuration area, map the tenant VPN ID to a device VPN ID:

      1. From drop-down list corresponding to Tenant VPN, choose the tenant organization name.

      2. In the text field corresponding to Tenant VPN, enter the tenant VPN ID.

      3. Click Update VPN ID.

        A read-only VPN field displays the device VPN ID for the tenant VPN ID. This mapping is performed by Cisco SD-WAN Manager. For a tenant, Cisco SD-WAN Manager maps a particular tenant VPN ID to the same device VPN ID on all the multitenant WAN edge devices.

    2. Configure other properties of the tenant VPN in the template.

    3. Click Update.

  6. Attach the Cisco VPN template to the device template of the target multitenant WAN edge device.

When you try to apply the tenant VPN configuration to the device, Cisco SD-WAN Manager checks the following:

  1. The number of tenant VPNs that can be created for a tenant is restricted by the maximum number of the VPNs that is specified in the tier to which the tenant belongs. If the maximum number of tenant VPNs is already created for the tenant, Cisco SD-WAN Manager reports an error and does not apply the VPN configuration to the device.

  2. Each device model supports a certain maximum number of device VPNs. On a multitenant WAN edge device, each tenant VPN is mapped to device VPN. If the maximum number of device VPNs supported by the device are already created and mapped to tenant VPNs, Cisco SD-WAN Manager reports an error and does not apply the configuration to the device.

Remove Tenant from a Multitenant WAN Edge Device

To remove a tenant from a multitenant WAN Edge Device, you must detach the tenant service VPN template from the device template and delete the tenant from the Tenant template.

  1. Log in to Cisco SD-WAN Manager as the Provider admin user.

  2. Remove the tenant service VPN template from the Device template:

    1. From the Cisco SD-WAN Manager menu, choose Configuration > Templates.

    2. Find the device template for the multitenant WAN edge device to which you wish to onboard tenants.

    3. For the device template, click … and click Edit.

      The device template is displayed.

    4. Click Service VPN.

    5. In the Service VPN area, check the check box for the VPN template to be removed.

    6. Click Remove VPN.

    7. Click Update to save and apply the modified configuration.

  3. Delete tenant from the Tenant template:

    1. From the Cisco SD-WAN Manager menu, choose Configuration > Templates.

    2. Click Feature.

    3. Find the Tenant template from which you should delete the tenant.

    4. For the Tenant template, click … and click Edit.

    5. In the Tenant section, find the organization name of the tenant you wish to delete.

    6. Click the Trash icon corresponding to the tenant organization name.

    7. Click Update to save and apply the modified configuration.

Delete a Tier

  1. Log in to Cisco SD-WAN Manager as the Provider admin user.

  2. From the Cisco SD-WAN Manager menu, choose Administration > Tenant Management.

  3. Click Tiers.

    Existing tiers are displayed in a table.

  4. For the desired tier, click … in the Actions column, and then, click Delete.

  5. In the Delete Tier dialog box, confirm that you wish to delete the tier.

    The tier is deleted and is no longer listed in the table.

Verify Configuration and Operation of Multitenant WAN Edge Devices

View Tenants Onboarded to Multitenant WAN Edge Device

  • The following is a sample output of the show sdwan running-config tenant command.


Device# show sdwan running-config tenant
tenant "multitenancy-Customer1"
 tier
  tier-name tier_tenant1
  max-vpn   10
 !
 tenant-vpn 1
  device-vpn 1
 !
 tenant-tloc mpls ipsec
 !
 tenant-tloc public-internet ipsec
 !
!
tenant "multitenancy-Customer2"
 tier
  tier-name tier_tenant2
  max-vpn   12
 !
 tenant-vpn 1
  device-vpn 2
 !
 tenant-tloc mpls ipsec
 !
 tenant-tloc public-internet ipsec
 !
!
tenant "multitenancy-Customer3"
 tier
  tier-name tier_tenant3
  max-vpn   10
 !
 tenant-vpn 1
  device-vpn 3
 !
 tenant-tloc mpls ipsec
 !
 tenant-tloc public-internet ipsec
 !
!
tenant "multitenancy-Customer4"
 tier
  tier-name tier_tenant4
  max-vpn   10
 !
 tenant-vpn 1
  device-vpn 4
 !
 tenant-tloc mpls ipsec
 !
 tenant-tloc public-internet ipsec
 !
!

  • The following is a sample output of the show sdwan tenant-summary command.


Device# show sdwan tenant-summary
tenants-summary max-tenants 30
tenants-summary num-active-tenants 4
                                    GLOBAL
ORG NAME                  ID      UUID
----------------------------------------------------------------------------------
multitenancy-Customer1  16880   774cf81a-1d35-47f3-8c3f-ccb12506e09c
multitenancy-Customer2  23216   62c614be-fc18-4ed0-8f77-ddcd5196a412
multitenancy-Customer3  22400   48ba0449-f177-49c3-926c-a6d5077e34ae
multitenancy-Customer4  14624   61684731-4bda-40b9-9067-c2c9b846f8e8

  • The following is a sample output of the show tenant all command.


Device# show tenant all

Tenant          ID         Tier            Tenant VPNs
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Tenant1        16880      tier_tenant1           1
Tenant2        23216      tier_tenant2           1
Tenant3        22400      tier_tenant3           1
Tenant4        14624      tier_tenant4           1

  • The following is a sample output of the show tenant mapping table command.


Device# show tenant mapping table

Tenant       Tenant VPN        Device VPN         Active
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Tenant1          1                1                YES
Tenant2          1                2                YES
Tenant3          1                3                YES
Tenant4          1                4                YES

  • The following is a sample output of the show tenant Tenant1 command.


Device# show tenant Tenant1

Tenant Tenant1
  Tenant ID:     30176
  UUID:          5a8b858d-d090-4cc3-8321-a663b08043d3
  Flags:         0x0000
  Resource Limits (Tier "tier_tenant1"):
    Maximum IPv4 Routes           100 (warning-threshold:50)
    Maximum IPv6 Routes           100 (warning-only)
    Maximum NAT Sessions            3

  Mapping Entries:
    Tenant VPN       ->               Device VPN
    1                ->               1               (Active)

  • The following is a sample output of the show ip route tenant Tenant1 command.


Device# show ip route tenant Tenant1

Tenant name is Tenant1 (id:30176)
    route_limit: 100, warning_limit_percent: 50%
    route_count: 7, rejected_routes: 0

    vrf_name: 1, vrf_id: 4, tenant_vpn_id: 1 route_count: 7, rejected_routes: 0


Routing Table: 1
    Tenant Name: Tenant1, Tenant ID: 30176
    Rejected Routes in tenant: 0, Rejected Routes in this routing table: 0
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2, m - OMP
       n - NAT, Ni - NAT inside, No - NAT outside, Nd - NAT DIA
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       H - NHRP, G - NHRP registered, g - NHRP registration summary
       o - ODR, P - periodic downloaded static route, l - LISP
       a - application route
       + - replicated route, % - next hop override, p - overrides from PfR
       & - replicated local route overrides by connected

Gateway of last resort is not set

      172.16.0.0/16 is variably subnetted, 4 subnets, 2 masks
C        172.16.11.0/24 is directly connected, GigabitEthernet4.101
L        172.16.11.2/32 is directly connected, GigabitEthernet4.101
m        172.16.21.0/24 [251/0] via 172.16.255.16, 2w4d, Sdwan-system-intf
m        172.16.31.0/24 [251/0] via 172.16.255.14, 2w4d, Sdwan-system-intf
S     192.168.11.0/24 [1/0] via 172.16.11.1
m     192.168.21.0/24 [251/0] via 172.16.255.16, 2w4d, Sdwan-system-intf
m     192.168.31.0/24 [251/0] via 172.16.255.14, 2w4d, Sdwan-system-intf

  • The following is a sample output of the show ipv6 route tenant Tenant1 command.


Device# show ipv6 route tenant Tenant1

Tenant name is Tenant1 (id:30176)
    route_limit: 100, warning_only: True
    route_count: 1, rejected_routes: 0

    vrf_name: 1, vrf_id: 4, tenant_vpn_id: 1 route_count: 1, rejected_routes: 0

IPv6 Routing Table - 1 - 1 entries
    Tenant Name: Tenant1, Tenant ID: 30176
    Rejected Routes in tenant: 0, Rejected Routes in this routing table: 0
Codes: C - Connected, L - Local, S - Static, U - Per-user Static route
       B - BGP, R - RIP, H - NHRP, I1 - ISIS L1
       I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary, D - EIGRP
       EX - EIGRP external, ND - ND Default, NDp - ND Prefix, DCE - Destination
       NDr - Redirect, RL - RPL, O - OSPF Intra, OI - OSPF Inter
       OE1 - OSPF ext 1, OE2 - OSPF ext 2, ON1 - OSPF NSSA ext 1
       ON2 - OSPF NSSA ext 2, la - LISP alt, lr - LISP site-registrations
       ld - LISP dyn-eid, lA - LISP away, le - LISP extranet-policy
       lp - LISP publications, ls - LISP destinations-summary, a - Application
       m - OMP
L   FF00::/8 [0/0]
     via Null0, receive

  • The following is a sample output of the Show run | sec tenant-definition command.


Device# show run | sec tenant-definition

tenant-definition "Tenant1"
 global-tenant-id 45516
 universal-unique-id 696e6fa0-078c-47fb-81b1-40df3b04c8e1
 !
 tier tier_tenant6
  max nat-session 10
  max routes
   !
   address-family ipv4
    unicast-route-limit 15000 warning-threshold 80
   !
   address-family ipv6
    unicast-route-limit 15000 warning-threshold 80
 !
 tenant-vpn-id 1
  device-vpn 1

  • The following is a sample output of the show ip nat translations tenant Tenant1 total command.


Device# show ip nat translations tenant Tenant1 total

Total number of translations: 2

  • The following is a sample output of the show logging | i TENANT command.


Device# show logging | i TENANT

*Feb  4 21:10:33.625: %IOSXE-4-PLATFORM: R0/0: cpp_cp: QFP:0.0 Thread:000 TS:00000004456610265827 %NAT-4-PER_TENANT_MAX_ENTRIES: per-tenant maximum limit of 10 reached for 26144.

  • The following is a sample output IPv4 WARNING-ONLY Syslog Messages.


Device# show logging process ios start last boot | i route limit

2022/11/18 09:16:23.973714834 {iosrp_R0-0}{255}: [iosrp] [16608]: (ERR): Nov 18 09:16:23.973: %RIBTENANT-3-ROUTELIMITWARNING_ON: tenant(name:Tenant1, id:16880) ipv4 unicast route limit warning threshold: alarm_on

    Note

    ROUTELIMITWARNING_ON: “alarm_on” means the route count has crossed the route limit.



Device# show ip route tenant "Tenant2"

2022/11/18 09:33:40.651174649 {iosrp_R0-0}{255}: [iosrp] [16608]: (ERR): Nov 18 09:33:40.651: %RIBTENANT-3-ROUTELIMITWARNING_OFF: tenant(name:Tenant1, id:16880) ipv4 unicast route limit warning threshold:
alarm_off

    Note

    ROUTELIMITWARNING_OFF: “alarm_off” means for the time being, route count is reduced and it has not crossed the warning/route limit.

  • The following is a sample output of IPv6 WARNING-ONLY Syslog Messages.


Device# show logging process ios start last boot | i route limit

2022/11/18 09:11:23.589778787 {iosrp_R0-0}{255}: [iosrp] [16608]: (ERR): Nov 18 09:11:23.589: %RIBTENANT-3-ROUTELIMITWARNING_ON: tenant(name:Tenant1, id:16880) ipv6 unicast route limit warning threshold: alarm_on

    Note

    ROUTELIMITWARNING_ON: "alarm_on" means the route count has crossed the route limit.



Device# show ip route tenant "Tenant2 Inc"

2022/11/18 09:33:40.661037261 {iosrp_R0-0}{255}: [iosrp] [16608]: (ERR): Nov 18 09:33:40.661: %RIBTENANT-3-ROUTELIMITWARNING_OFF: tenant(name:Tenant1, id:16880) ipv6 unicast route limit warning threshold:
alarm_off

    Note

    ROUTELIMITWARNING_OFF: “alarm_off” means for the time being, route count is reduced and it has not crossed the warning/route limit.

  • The following is a sample output IPv4 Warning Threshold Syslog Messages.


Device# show logging process ios start last boot | i route limit

2022/11/17 19:07:04.330712142 {iosrp_R0-0}{255}: [iosrp] [16608]: (ERR): Nov 17 19:07:04.330: %RIBTENANT-3-ROUTELIMITWARNING_ON: tenant(name:Tenant2, id:23216) ipv4 unicast route limit warning threshold: alarm_on

    Note

    ROUTELIMITWARNING_ON: “alarm_on” means the route count has crossed the warning threshold



Device# show ip route tenant "Tenant2"

2022/11/18 01:36:02.083288966 {iosrp_R0-0}{255}: [iosrp] [16608]: (ERR): Nov 18 01:36:02.083: %RIBTENANT-3-ROUTELIMITWARNING_OFF: tenant(name:Tenant2, id:23216) ipv4 unicast route limit warning threshold: alarm_off

    Note

    ROUTELIMITWARNING_OFF: “alarm_off” means means for the time being, route count is reduced and it has not crossed the warning threshold.

  • The following is a sample output IPv4 Warning Threshold Route-Limit Exceeded Syslog Messages.


Device# show logging process ios start last boot | i route limit

2022/11/18 10:06:35.698972324 {iosrp_R0-0}{255}: [iosrp] [16608]: (ERR): Nov 18 10:06:35.698: %RIBTENANT-3-ROUTELIMITEXCEEDED_ON: tenant(name:Tenant2, id:23216) ipv4 unicast route limit exceeded: alarm_on

2022/11/18 10:06:35.699002244 {iosrp_R0-0}{255}: [ribcmn] [16608]: (info): Failed to add static route 192.168.202.0/24 to table(name:2, id:0x5) due to tenant(name:Tenant2, id:23216) route limit exceeded

    Note

    ROUTELIMITEXCEEDED_ON: “alarm_on” means the route count has exceeded tenant route limit


Device# show logging process ios start last boot | i route limit

2022/11/17 20:12:02.090953653 {iosrp_R0-0}{255}: [iosrp] [16608]: (ERR): Nov 17 20:12:02.090: %RIBTENANT-3-ROUTELIMITEXCEEDED_OFF: tenant(name:Tenant2, id:23216) ipv4 unicast route limit exceeded: alarm_off

    Note

    ROUTELIMITEXCEEDED_OFF: “alarm_off” means for the time being, route count is reduced and it has not exceeded the tenant route limit.

  • The following is a sample output IPv6 Warning Threshold Syslog Messages.


Device# show logging process ios start last boot | i route limit

2022/11/17 19:41:31.886639286 {iosrp_R0-0}{255}: [iosrp] [16608]: (ERR): Nov 17 19:41:31.886: %RIBTENANT-3-ROUTELIMITWARNING_ON: tenant(name:Tenant2, id:23216) ipv6 unicast route limit warning threshold: alarm_on

    Note

    ROUTELIMITWARNING_ON: “alarm_on” means the route count has crossed the warning threshold


Device# show logging process ios start last boot | i route limit

2022/11/17 19:49:06.553836193 {iosrp_R0-0}{255}: [iosrp] [16608]: (ERR): Nov 17 19:49:06.553: %RIBTENANT-3-ROUTELIMITWARNING_OFF: tenant(name:Tenant2, id:23216) ipv6 unicast route limit warning threshold: alarm_off

    Note

    ROUTELIMITWARNING_OFF: “alarm_off” means means for the time being, route count is reduced and it has not crossed the warning threshold.

  • The following is a sample output IPv6 Warning Threshold Route-Limit Exceeded Syslog Messages.


Device# show logging process ios start last boot | i route limit

2022/11/17 05:07:19.326942097 {iosrp_R0-0}{255}: [iosrp] [17094]: (ERR): *Nov 17 05:07:19.326: %RIBTENANT-3-ROUTELIMITEXCEEDED_ON: tenant(name:Tenant2, id:7888) ipv6 unicast route limit exceeded: alarm_on

2022/11/17 05:07:19.327070153 {iosrp_R0-0}{255}: [ribcmn] [17094]: (info): Failed to add static route 2001:C0A8:29C::/64 to table(name:2, id:0x1E000002) due to tenant(name:Tenant2, id:7888) route limit exceeded

    Note

    ROUTELIMITEXCEEDED_ON: “alarm_on” means the route count has exceeded tenant route limit.



Device# show logging process ios start last boot | i route limit

2022/11/17 05:15:32.132557582 {iosrp_R0-0}{255}: [iosrp] [17094]: (ERR): *Nov 17 05:15:32.132: %RIBTENANT-3-ROUTELIMITEXCEEDED_OFF: tenant(name:Tenant2, id:7888) ipv6 unicast route limit exceeded: alarm_off

    Note

    ROUTELIMITEXCEEDED_OFF: “alarm_off” means for the time being, route count is reduced and it has not exceeded the tenant route limit.

View Tenant-Device Mapping on Cisco SD-WAN Validator

The following is a sample output of the show support orchestrator tenant-uuid-map command.

vBond# show support orchestrator tenant-uuid-map
---------------------------------------------------------------------------------------
|  Type  |             Chassis-num/uuid             | Tenant id list                 |
---------------------------------------------------------------------------------------
| vSmart | 0c90593a-0f40-4890-a980-5e14907482f7     | 18624,6672,27120               |
---------------------------------------------------------------------------------------
| vSmart | 8a083d5e-1350-4946-932e-237758bb2280     | 12448,6672,10384               |
---------------------------------------------------------------------------------------
| vSmart | c99c50da-3dff-4951-a598-b3cf71530e99     | 18624,12448,27120,10384        |
---------------------------------------------------------------------------------------
| vEdge  | c8k-24d9f68c-8c01-4e6c-813a-959752f30e73 | 18624,12448,6672,27120,10384   |
---------------------------------------------------------------------------------------
| vEdge  | c8k-fdd9c202-8756-4079-9a56-278e6635412b | 18624,12448,6672               |

You can view the tenant global ID on a multitenant WAN edge device using the show sdwan tenant-summary command. On a Cisco SD-WAN Controller, you can use the show tenant-summary command.

View Tenant-Cisco SD-WAN Controller Mapping on Cisco SD-WAN Validator

The following is a sample output of the show tenant-mapping command.

vBond# show tenant-mapping
VSMART
SERIAL
NUM       TENANT NAMES                                              TENANT COUNT
---------------------------------------------------------------------------------------
12345990  [ "multitenancy-Customer6" "multitenancy-Customer4" "multitenancy-Customer3" "multitenancy-Customer1" ]  4
12345992  -                                                                                                        0
12345994  [ "multitenancy-Customer6" "multitenancy-Customer5" "multitenancy-Customer3" "multitenancy-Customer2" ]  4
12345997  -                                                                                                        0
12345998  -                                                                                                        0
12346001  [ "multitenancy-Customer5" "multitenancy-Customer4" "multitenancy-Customer2" "multitenancy-Customer1" ]  4

View Tenant-Mapping on Cisco SD-WAN Controller

The following is a sample output of the show tenant-summary command.

vSmart# show tenant-summary
tenant-summary max-tenants 24
tenant-summary num-active-tenants 4
                                    TENANT  TENANT
TENANT ORG NAME                     ID      VPN ID
----------------------------------------------------
multitenancy-Customer1              1       1003
multitenancy-Customer2              2       1004
multitenancy-Customer3              3       1005
multitenancy-Customer4              4       1006

View Multitenant WAN Edge Device to Cisco SD-WAN Controller Connections

The following is a sample output of the show sdwan control tenant-connections command.

Device# show sdwan control tenant-connections

PEER LOCAL TENANT
SYSTEM IP COLOR NAME
-------------------------------------------------------------------------------------------------
172.16.255.19 mpls multitenancy-Customer3
172.16.255.19 mpls multitenancy-Customer2
172.16.255.19 public-internet multitenancy-Customer3
172.16.255.19 public-internet multitenancy-Customer2
172.16.255.20 mpls multitenancy-Customer4
172.16.255.20 mpls multitenancy-Customer1 Inc
172.16.255.20 mpls multitenancy-Customer2 Inc
172.16.255.20 public-internet multitenancy-Customer4 Inc
172.16.255.20 public-internet multitenancy-Customer1 Inc
172.16.255.20 public-internet multitenancy-Customer2 Inc
172.16.255.24 mpls multitenancy-Customer4 Inc
172.16.255.24 mpls multitenancy-Customer1 Inc
172.16.255.24 mpls multitenancy-Customer3 Inc
172.16.255.24 public-internet multitenancy-Customer4 Inc
172.16.255.24 public-internet multitenancy-Customer1 Inc
172.16.255.24 public-internet multitenancy-Customer3 Inc

The PEER SYSTEM IP column shows the IP address of the Cisco SD-WAN Controller the multitenant WAN edge device is connected to. The TENANT NAME entry for a PEER SYSTEM IP shows the name of the tenant organization for which the connection to the Cisco SD-WAN Controller is established.

View OMP Information on a Multitenant WAN Edge Device

  • The following is a sample output of the show sdwan tenant tenant-name omp peers command.

    Device# show sdwan tenant multitenancy-Customer1 omp peers
R -> routes received
I -> routes installed
S -> routes sent

TENANT DOMAIN OVERLAY SITE REGION
ID PEER TYPE ID ID ID ID STATE UPTIME R/I/S
-----------------------------------------------------------------------------------------------------------------
23216 172.16.255.19 vsmart 1 1 101 None up 1:13:42:12 24/24/22
23216 172.16.255.20 vsmart 1 1 102 None up 1:13:42:12 24/0/22

    The output shows the Cisco SD-WAN Controllers to which the multitenant WAN edge device is connected for the particular tenant and summarizes the OMP exchanges between the Cisco SD-WAN Controllers and the device.

  • The following is a sample output of the show sdwan tenant tenant-name omp routes command.

    Device# show sdwan tenant multitenancy-Customer1 omp routes
Code:
C   -> chosen
I   -> installed
Red -> redistributed
Rej -> rejected
L   -> looped
R   -> resolved
S   -> stale
Ext -> extranet
Inv -> invalid
Stg -> staged
IA  -> On-demand inactive
U   -> TLOC unresolved
Reo -> reoriginated
                                                      PATH                      ATTRIBUTE


TENANT    VPN    PREFIX              FROM PEER        ID     LABEL    STATUS    TYPE       TLOC IP          COLOR            ENCAP  PREFERENCE  REGION ID   REGION PATH
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
23184     1      172.16.11.0/24      0.0.0.0          66     1003     C,Red,R   installed  172.16.255.15    mpls             ipsec  -           None        65534
                                     0.0.0.0          69     1003     C,Red,R   installed  172.16.255.15    public-internet  ipsec  -           None        65534
23184     1      172.16.31.0/24      172.16.255.19    5      1003     C,I,R     installed  172.16.255.14    mpls             ipsec  -           None        65534
                                     172.16.255.19    6      1003     C,I,R     installed  172.16.255.14    public-internet  ipsec  -           None        65534
23184     1      192.168.11.0/24     0.0.0.0          66     1003     C,Red,R   installed  172.16.255.15    mpls             ipsec  -           None        65534
                                     0.0.0.0          69     1003     C,Red,R   installed  172.16.255.15    public-internet  ipsec  -           None        65534
23184     1      192.168.31.0/24     172.16.255.19    7      1003     C,I,R     installed  172.16.255.14    mpls             ipsec  -           None        65534
                                     172.16.255.19    8      1003     C,I,R     installed  172.16.255.14    public-internet  ipsec  -           None        65534

  • The following is a sample output of the show sdwan tenant tenant-name omp services command.

    Device# show sdwan tenant multitenancy-Customer1 omp services
C   -> chosen
I   -> installed
Red -> redistributed
Rej -> rejected
L   -> looped
R   -> resolved
S   -> stale
Ext -> extranet
Stg -> staged
IA  -> On-demand inactive
Inv -> invalid
Reo -> reoriginated

ADDRESS                                                            PATH   REGION
FAMILY   TENANT    VPN    SERVICE  ORIGINATOR     FROM PEER        ID     ID        LABEL    STATUS    VRF
------------------------------------------------------------------------------------------------------------
ipv4     23184     1      VPN      172.16.255.15  0.0.0.0          66     NA        1003     C,Red,R   1
                                                  0.0.0.0          69     NA        1003     C,Red,R   1
ipv6     23184     1      VPN      172.16.255.15  0.0.0.0          66     NA        1003     C,Red,R   1
                                                  0.0.0.0          69     NA        1003     C,Red,R   1

Related per-Tenant OMP commands:

  • show sdwan tenant tenant-name omp tlocs

  • show sdwan tenant tenant-name omp multicast-routes

  • show sdwan tenant tenant-name omp ipv6-routes

Related global OMP commands:

  • show sdwan omp tloc-paths

  • show sdwan omp summary

View OMP Information on a Cisco SD-WAN Controller

  • The following is a sample output of the show tenant tenant-name omp peers command.

    vSmart# show tenant multitenancy-Customer1 omp peers
R -> routes received
I -> routes installed
S -> routes sent

                         DOMAIN    OVERLAY   SITE
PEER             TYPE    ID        ID        ID        STATE    UPTIME           R/I/S
------------------------------------------------------------------------------------------
172.16.255.14    vedge   1         1         400       up       23:09:40:04      4/0/0
172.16.255.15    vedge   1         1         500       up       0:14:33:55       0/0/0
172.16.255.24    vsmart  1         1         103       up       44:06:36:31      4/0/4

    The output shows the other Cisco SD-WAN Controller serving the tenant and the multitenant or tenant-managed WAN edge devices connected to the Cisco SD-WAN Controller.

  • The following is a sample output of the show tenant tenant-name omp routes command.

    vSmart# show tenant multitenancy-Customer1 omp routes

---------------------------------------------------
omp route entries for vpn 1 route 172.16.33.0/24
---------------------------------------------------
            RECEIVED FROM:
peer            172.16.255.14
path-id         66
label           1005
status          C,R
loss-reason     not set
lost-to-peer    not set
lost-to-path-id not set
    Attributes:
     originator       172.16.255.14
     type             installed
     tloc             172.16.255.14, mpls, ipsec
     ultimate-tloc    not set
     domain-id        not set
     overlay-id       1
     site-id          400
     region-id        None
     region-path      65534
     preference       not set
     tag              not set
     origin-proto     connected
     origin-metric    0
     as-path          not set
     community        not set
     unknown-attr-len not set
.
.
.                                                                                                                                                                                                                                             ---------------------------------------------------
omp route entries for vpn 1 route 192.168.33.0/24
---------------------------------------------------
            RECEIVED FROM:
peer            172.16.255.14
path-id         66
label           1005
status          C,R
loss-reason     not set
lost-to-peer    not set
lost-to-path-id not set
    Attributes:
     originator       172.16.255.14
     type             installed
     tloc             172.16.255.14, mpls, ipsec
     ultimate-tloc    not set
     domain-id        not set
     overlay-id       1
     site-id          400
     region-id        None
     region-path      65534
     preference       not set
     tag              not set
     origin-proto     static
     origin-metric    0
     as-path          not set
     community        not set
     unknown-attr-len not set

The command output shows the routes advertised by multitenant and tenant-managed WAN edge devices for the tenant VPNs.

View Per Tenant Policy Configuration on a Multitenant WAN Edge Device

To view per tenant policy configuration, use the following commands:

  • show sdwan tenant tenant-name policy from-vsmart

  • show sdwan tenant tenant-name policy data-policy-filter

  • show sdwan tenant tenant-name policy app-route-policy-filter

  • show sdwan tenant tenant-name policy from-vsmart policy data-policy

  • show sdwan tenant tenant-name policy from-vsmart policy app-route-policy

Troubleshoot Multitenant WAN Edge Device Errors

Error Scenario Log File
Device Onboarding Cisco SD-WAN Manager: /var/log/nms/vmanage-server.log
Device Configuration Pull

Cisco SD-WAN Manager: /var/log/nms/vmanage-server-deviceconfig-template.log

WAN edge device: /bootflash/sdwan/cfgloader.log
