Sharing IPsec with Tunnel Protection

Last Updated: September 30, 2012

The Sharing IPsec with Tunnel Protection feature allows sharing an IPsec security association database (SADB) between two or more generic routing encapsulation (GRE) tunnel interfaces when tunnel protection is used. Shared tunnel interfaces have a single underlying cryptographic SADB, cryptographic map, and IPsec profile in the Dynamic Multipoint Virtual Private Network (DMVPN) configuration.

The Sharing IPsec with Tunnel Protection feature is required in some DMVPN configurations. If IPsec SA sessions are not shared within the same IPsec SADB, then an IPsec SA may get associated with the wrong IPsec SADB and therefore with the wrong tunnel interface, thereby causing duplicate IPsec SAs and tunnel interfaces to flap, which in turn results in network connectivity problems.


Note
Security threats and the cryptographic technologies to help protect against such threats are constantly changing. For more information about the latest Cisco cryptographic recommendations, see the Next Generation Encryption (NGE) white paper.

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest caveats and feature information, see Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table at the end of this module.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/go/cfn. An account on Cisco.com is not required.

Restrictions for Sharing IPsec with Tunnel Protection

  • The tunnel source command on all tunnel interfaces using the same tunnel source must be configured using the interface type and number, not the IP address.
  • All tunnels with the same tunnel source interface must use the same IPsec profile and the shared keyword with the tunnel protection command. The only exception is when only point-to-point generic route encapsulation (GRE) tunnel interfaces are configured with the same tunnel source in the system and associated with unique tunnel destination IP addresses. Shared tunnel protection can be used when the same local address between point-to-multipoint and point-to-point GRE interfaces are shared only if the device is an initiator of the point-to-point tunnels and not a responder.
  • Different IPsec profile names must be used for shared and unshared tunnels. For example, if "tunnel 1" is configured with thetunnel source loopback0 command, and "tunnel 2" and "tunnel 3" are shared using the tunnel source loopback1 command, then define IPsec_profile_1 for tunnel 1 and IPsec_profile_2 for tunnels 2 and 3.
  • A different IPsec profile must be used for each set of shared tunnels. For example, if tunnels 1 through 5 use tunnel source loopback1 command as their tunnel source and tunnels 6 through 10 use loopback1, then define IPsec_profile_1 for tunnels 1 through 5 and ipsec_profile_2 for tunnels 6 through 10.
  • Sometimes, it may be desirable to not share an IPsec session between two or more tunnel interfaces using the same tunnel source. For example, in a service provider environment, each DMVPN cloud can represent a different customer. It is desirable to lock the connections from a customer to a tunnel interface and not share or allow IPsec sessions from other customers. For such scenarios, Internet Security Association and Key Management Protocol (ISAKMP) profiles can be used to identify and bind customer connections to an ISAKMP profile and through that to an IPsec profile. This ISAKMP profile limits the IPsec profile to accept only those connections that matched the corresponding ISAKMP profile. Separate ISAKMP and IPsec profiles can be obtained for each DMVPN cloud (tunnel interface) without sharing the same IPsec SADB.
  • Sharing IPsec is not desired and not supported for a virtual tunnel interface (VTI) as VTI provides a routable interface type for terminating IPsec tunnels and a way to define protection between sites to form an overlay network.
  • Shared tunnel protection can be used when the same local address between multiple multipoint generic route encapsulation (mGRE) interfaces are shared.
  • Shared tunnel protection can be used when the same local and remote addresses between multiple point-to-point GRE interfaces are shared.

Information About Sharing IPsec with Tunnel Protection

Single IPsec SA

In a dual-hub dual-Dynamic Multipoint VPN topology, it is possible to have two or more generic route encapsulation (GRE) tunnel sessions (same tunnel source and destination, but different tunnel keys) between the same two endpoints. In this case, it is desirable to use a single IPsec SA to secure both GRE tunnel sessions. It is also not possible to decide under which tunnel interface an IPsec Quick Mode (QM) request must be processed and bound when two tunnel interfaces use the same tunnel source.

The tunnel protection IPsec profile shared command is used to create a single IPsec SADB for all the tunnel interfaces that use the same profile and tunnel source interface. This allows a single IPsec SA to be used for all GRE tunnels (same tunnel source and destination, but different tunnel keys) between the same two endpoints. It also makes IPsec QM processing unambiguous because there is one SADB to process the incoming IPsec QM request for all shared tunnel interfaces as opposed to multiple SADBs, one for each tunnel interface when the tunnel interface is not shared.

The SA of a QM proposal to a tunnel interface is processed by using the shared SADB and crypto map parameters. On the crypto-data plane, the decrypted and GRE decapsulated packets are demultiplexed to the appropriate tunnel interface by the GRE module using a local address, remote address, and optional tunnel key information.


Note
The tunnel source, tunnel destination, and tunnel key (triplet) must be unique for all tunnel interfaces on a device. For a multipoint GRE interfaces where tunnel destination is not configured, the pair (tunnel source and tunnel key) must be unique. Incoming GRE packets are also matched to point-to-point GRE tunnels first; if there is not a match, they are matched to mGRE tunnels.

How to Share an IPsec Session Between Multiple Tunnels

Sharing an IPsec SADB Between Multiple Tunnel Interfaces in a DMVPN

SUMMARY STEPS

1.    enable

2.    configure terminal

3.    interface tunnel number

4.    tunnel source {ip-address | interface-type number}

5.    tunnel protection IPsec profile name shared

6.    end

7.   Repeat this task to configure additional spokes.


DETAILED STEPS
 Command or ActionPurpose
Step 1
enable


Example:

Device> enable



Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2
configure terminal


Example:

Device# configure terminal



Enters global configuration mode.


Step 3
interface tunnel number


Example:

Device(config)# interface tunnel 5



Configures a tunnel interface and enters interface configuration mode.

  • The number argument specifies the number of the tunnel interface that you want to create or configure. There is no limit on the number of tunnel interfaces you can create.

Step 4
tunnel source {ip-address | interface-type number}


Example:

Device(config-if)# tunnel source Ethernet 0



Sets source IP address or source interface type number for a tunnel interface.

  • When using the tunnel protection IPsec profile shared command, the tunnel source must specify an interface, not an IP address.

Step 5
tunnel protection IPsec profile name shared


Example:

Device(config-if)# tunnel protection IPsec profile vpnprof shared



Associates a tunnel interface with an IPsec profile.

  • The name argument specifies the name of the IPsec profile; this value must match the name specified in the crypto IPsec profile name command.
  • The shared keyword allows IPsec sessions to be shared between multiple tunnel interfaces configured with the same tunnel source IP.

Step 6
end


Example:

Device(config-if)# end



Exits the tunnel interface and returns to privileged EXEC mode.


Step 7
Repeat this task to configure additional spokes.

--



Configuration Examples for Sharing IPsec with Tunnel Protection

Example: Sharing IPsec Sessions between Multiple Tunnels

The following example shows how to share IPsec sessions between multiple tunnels. This example uses the dual-hub router, dual Dynamic Multipoint (DM) VPN topology as shown in the figure below, having the following attributes:

  • Each hub router is configured with a single multipoint generic routing encapsulation (mGRE) tunnel interface.
  • Each hub router is connected to one DMVPN subnet (blue cloud), and the spokes are connected to both DMVPN 1 and DMVPN 2.
  • Each spoke router is configured with two mGRE tunnel interfaces.
  • One mGRE tunnel interface belongs to DMVPN 1 and the other mGRE tunnel interface belongs to DMVPN 2.
  • Each mGRE tunnel interface is configured with a same tunnel source IP address and uses shared tunnel protection between them.

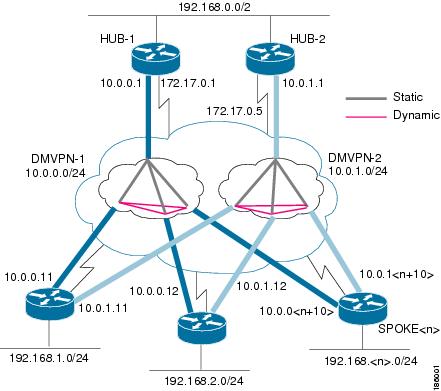

Figure 1Dual-hub Router and Dual-DMVPN Topology


Hub 1 Configuration

Hub 1 and Hub 2 configurations are similar, except that each hub belongs to a different DMVPN.

Hub 1 has the following DMVPN configuration:

  • IP subnet: 10.0.0.0/24
  • Next Hop Address Resolution Protocol (NHRP) network ID: 100000
  • Tunnel key: 100000
  • Dynamic routing protocol: Enhanced Interior Gateway Routing Protocol (EIGRP)
!
hostname Hub1
 !
 crypto isakmp policy 1
 encryption aes
 authentication pre-share
 group 14
 crypto isakmp key cisco47 address 0.0.0.0 0.0.0.0
 !
 crypto IPsec transform-set trans2 esp-aes esp-sha-hmac
  mode transport
 !
 crypto IPsec profile vpnprof
  set transform-set trans2
 !
 interface Tunnel0
  bandwidth 1000
  ip address 10.0.0.1 255.255.255.0
  ip mtu 1400
  no ip next-hop-self eigrp 1
  ip nhrp authentication test
  ip nhrp map multicast dynamic
  ip nhrp network-id 100000
  ip nhrp holdtime 600
no ip split-horizon eigrp 1
ip tcp adjust-mss 1360
  delay 1000
  tunnel source Ethernet0
  tunnel mode gre multipoint
  tunnel key 100000
  tunnel protection IPsec profile vpnprof
 !
 interface Ethernet0
  ip address 172.17.0.1 255.255.255.252
 !
 interface Ethernet1
  ip address 192.168.0.1 255.255.255.0
 !
 router eigrp 1
  network 10.0.0.0 0.0.0.255
  network 192.168.0.0 0.0.0.255
  no auto-summary
 !

Hub 2 Configuration

Hub 2 has the following DMVPN configuration:

  • IP subnet: 10.0.1.0/24
  • NHRP network ID: 100001
  • Tunnel key: 100001
  • Dynamic routing protocol: EIGRP
!
hostname Hub2
 !
 crypto isakmp policy 1
 encryption aes
 authentication pre-share
 group 14
 crypto isakmp key cisco47 address 0.0.0.0 0.0.0.0
 !
 crypto IPsec transform-set trans2 esp-aes esp-sha-hmac
  mode transport
 !
 crypto IPsec profile vpnprof
  set transform-set trans2
 !
 interface Tunnel0
  bandwidth 1000
  ip address 10.0.1.1 255.255.255.0
  ip mtu 1400
  no ip next-hop-self eigrp 1
  ip nhrp authentication test
  ip nhrp map multicast dynamic
  ip nhrp network-id 100001
  ip nhrp holdtime 600
no ip split-horizon eigrp 1
ip tcp adjust-mss 1360
  delay 1000
  tunnel source Ethernet 0
  tunnel mode gre multipoint
  tunnel key 100001
  tunnel protection IPsec profile vpnprof
 !
 interface Ethernet0
  ip address 172.17.0.5 255.255.255.252
 !
 interface Ethernet1
  ip address 192.168.0.2 255.255.255.0
 !
 router eigrp 1
  network 10.0.1.0 0.0.0.255
  network 192.168.0.0 0.0.0.255
  no auto-summary
 !

Spoke 1 Configuration

Spoke 1 has the following DMVPN configuration:

!
 hostname Spoke1
 !
 crypto isakmp policy 1
 encryption aes
 authentication pre-share
 group 14
 crypto isakmp key cisco47 address 0.0.0.0 0.0.0.0
 !
 crypto IPsec transform-set trans2 esp-aes esp-sha-hmac
  mode transport
 !
 crypto IPsec profile vpnprof
  set transform-set trans2
 !
 interface Tunnel0
  bandwidth 1000
  ip address 10.0.0.11 255.255.255.0
  ip mtu 1400
  ip nhrp authentication test
ip nhrp map 10.0.0.1 172.17.0.1
ip nhrp map multicast 172.17.0.1
  ip nhrp network-id 100000
  ip nhrp holdtime 300
ip nhrp nhs 10.0.0.1
ip tcp adjust-mss 1360
  delay 1000
  tunnel source Ethernet 0
  tunnel mode gre multipoint
  tunnel key 100000
  tunnel protection IPsec profile vpnprof shared
 !
 interface Tunnel1
  bandwidth 1000
  ip address 10.0.1.11 255.255.255.0
  ip mtu 1400
  ip nhrp authentication test
ip nhrp map 10.0.1.1 172.17.0.5
ip nhrp map multicast 172.17.0.5
  ip nhrp network-id 100001
  ip nhrp holdtime 300
ip nhrp nhs 10.0.1.1
ip tcp adjust-mss 1360
  delay 1000
  tunnel source Ethernet0
  tunnel mode gre multipoint
  tunnel key 100001
  tunnel protection IPsec profile vpnprof shared
 !
 interface Ethernet 0
  ip address dhcp hostname Spoke1
 !
 interface Ethernet1
  ip address 192.168.1.1 255.255.255.0
 !
 router eigrp 1
  network 10.0.0.0 0.0.0.255
  network 10.0.1.0 0.0.0.255
  network 192.168.1.0 0.0.0.255
  no auto-summary
 !

Spoke 2 Configuration

Spoke 2 has the following DMVPN configuration:

!
 hostname Spoke2
 !
 crypto isakmp policy 1
 encryption aes
 authentication pre-share
 group 14
 crypto isakmp key cisco47 address 0.0.0.0 0.0.0.0
 !
 crypto IPsec transform-set trans2 esp-aes esp-sha-hmac
  mode transport
 !
 crypto IPsec profile vpnprof
  set transform-set trans2
 !
 interface Tunnel0
  bandwidth 1000
  ip address 10.0.0.12 255.255.255.0
  ip mtu 1400
  ip nhrp authentication test
ip nhrp map 10.0.0.1 172.17.0.1
ip nhrp map multicast 172.170.1
  ip nhrp network-id 100000
  ip nhrp holdtime 300
ip nhrp nhs 10.0.0.1
ip tcp adjust-mss 1360
  delay 1000
  tunnel source Ethernet 0
  tunnel mode gre multipoint
  tunnel key 100000
  tunnel protection IPsec profile vpnprof shared
 !
 interface Tunnel1
  bandwidth 1000
  ip address 10.0.1.12 255.255.255.0
  ip mtu 1400
  ip nhrp authentication test
ip nhrp map 10.0.1.1 172.17.0.5
ip nhrp map multicast 172.17.05
  ip nhrp network-id 100001
  ip nhrp holdtime 300
ip nhrp nhs 10.0.1.1
ip tcp adjust-mss 1360
  delay 1000
  tunnel source Ethernet0
  tunnel mode gre multipoint
  tunnel key 100001
  tunnel protection IPsec profile vpnprof shared
 !
 interface Ethernet 0
  ip address dhcp hostname Spoke2
 !
 interface Ethernet1
  ip address 192.168.2.1 255.255.255.0
 !
 router eigrp 1
  network 10.0.0.0 0.0.0.255
  network 10.0.1.0 0.0.0.255
  network 192.168.2.0 0.0.0.255
  no auto-summary
 !
Spoke 1 Output

Spoke 1 displays the following output for its DMVPN configuration:

Spoke1# show ip nhrp

10.0.0.1/32 via 10.0.0.1, Tunnel0 created 00:06:52, never expire
  Type: static, Flags: used
  NBMA address: 172.17.0.1
10.0.0.12/32 via 10.0.0.12, Tunnel0 created 00:03:17, expire 00:01:52
  Type: dynamic, Flags: router
  NBMA address: 172.17.0.12
10.0.1.1/32 via 10.0.1.1, Tunnel1 created 00:13:45, never expire
  Type: static, Flags: used
  NBMA address: 172.17.0.5
10.0.1.12/32 via 10.0.1.12, Tunnel1 created 00:00:02, expire 00:04:57
  Type: dynamic, Flags: router
  NBMA address: 172.17.0.12

Spoke1# show crypto socket

Note
There are only three crypto connections because the two NHRP sessions (10.0.0.12, Tunnel0) and (10.0.1.12, Tunnel1) are only one IPsec session, because they both have the same nonbroadcast multiaccess (NBMA) IPsec peer address.
Number of Crypto Socket connections 3
   Shd Peers (local/remote): 172.17.0.11
/172.17.0.12
       Local Ident  (addr/mask/port/prot): (172.17.0.11/255.255.255.255/0/47)
       Remote Ident (addr/mask/port/prot): (172.17.0.12/255.255.255.255/0/47)
       Flags: shared
       IPsec Profile: "vpnprof"
       Socket State: Open
       Client: "TUNNEL SEC" (Client State: Active)
   Shd Peers (local/remote): 172.17.0.11
/172.17.0.5
       Local Ident  (addr/mask/port/prot): (172.17.0.11/255.255.255.255/0/47)
       Remote Ident (addr/mask/port/prot): (172.17.0.5/255.255.255.255/0/47)
       Flags: shared
       IPsec Profile: "vpnprof"
       Socket State: Open
       Client: "TUNNEL SEC" (Client State: Active)
   Shd Peers (local/remote): 172.17.0.11
/172.17.0.1
       Local Ident  (addr/mask/port/prot): (172.17.0.11/255.255.255.255/0/47)
       Remote Ident (addr/mask/port/prot): (172.17.0.1/255.255.255.255/0/47)
       Flags: shared
       IPsec Profile: "vpnprof"
       Socket State: Open
       Client: "TUNNEL SEC" (Client State: Active)
Crypto Sockets in Listen state:
Client: "TUNNEL SEC" Profile: "vpnprof" Map-name: "vpnprof-head-1"

Spoke1# show crypto map

Crypto Map: "vpnprof-head-1" idb: Ethernet0/0 local address: 172.17.0.11
Crypto Map "vpnprof-head-1" 65536 IPsec-isakmp
        Profile name: vpnprof
        Security association lifetime: 4608000 kilobytes/3600 seconds
        PFS (Y/N): N
        Transform sets={
                trans2,
        }
Crypto Map "vpnprof-head-1" 65537 IPsec-isakmp
        Map is a PROFILE INSTANCE.
        Peer = 172.17.0.5
        Extended IP access list
            access-list  permit gre host 172.17.0.11 host 172.17.0.5
        Current peer: 172.17.0.5
        Security association lifetime: 4608000 kilobytes/3600 seconds
        PFS (Y/N): N
        Transform sets={
                trans2,
        }
Crypto Map "vpnprof-head-1" 65538 IPsec-isakmp
        Map is a PROFILE INSTANCE.
        Peer = 172.17.0.1
        Extended IP access list
            access-list  permit gre host 172.17.0.11 host 172.17.0.1
        Current peer: 172.17.0.1
        Security association lifetime: 4608000 kilobytes/3600 seconds
        PFS (Y/N): N
        Transform sets={
                trans2,
        }
Crypto Map "vpnprof-head-1" 65539 IPsec-isakmp
        Map is a PROFILE INSTANCE.
        Peer = 172.17.0.12
        Extended IP access list
            access-list  permit gre host 172.17.0.11 host 172.17.0.12
        Current peer: 172.17.0.12
        Security association lifetime: 4608000 kilobytes/3600 seconds
        PFS (Y/N): N
        Transform sets={
                trans2,
        }
        Interfaces using crypto map vpnprof-head-1:
                Tunnel1
                Tunnel0

Note
All three crypto sessions are shown under each tunnel interface (three entries, twice) in the show crypto IPsec sa output, because both interfaces are mapped to the same IPsec SADB, which has three entries. This duplication of output is expected in this case.
Spoke1# show crypto IPsec sa

interface: Tunnel0
    Crypto map tag: vpnprof-head-1, local addr 172.17.0.11
   protected vrf: (none)
   local  ident (addr/mask/prot/port): (172.17.0.11/255.255.255.255/47/0)
   remote ident (addr/mask/prot/port): (172.17.0.1/255.255.255.255/47/0)
   current_peer 172.17.0.1 port 500
     PERMIT, flags={origin_is_acl,}
    #pkts encaps: 134, #pkts encrypt: 134, #pkts digest: 134
    #pkts decaps: 118, #pkts decrypt: 118, #pkts verify: 118
    #pkts compressed: 0, #pkts decompressed: 0
    #pkts not compressed: 0, #pkts compr. failed: 0
    #pkts not decompressed: 0, #pkts decompress failed: 0
    #send errors 22, #recv errors 0
     local crypto endpt.: 172.17.0.11, remote crypto endpt.: 172.17.0.1
     path mtu 1500, ip mtu 1500, ip mtu idb Ethernet0/0
     current outbound spi: 0xA75421B1(2807308721)
     inbound esp sas:
      spi: 0x96185188(2518176136)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 3, flow_id: SW:3, crypto map: vpnprof-head-1
        sa timing: remaining key lifetime (k/sec): (4569747/3242)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE
     inbound ah sas:
     inbound pcp sas:
     outbound esp sas:
      spi: 0xA75421B1(2807308721)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 4, flow_id: SW:4, crypto map: vpnprof-head-1
        sa timing: remaining key lifetime (k/sec): (4569745/3242)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE
     outbound ah sas:
     outbound pcp sas:
   protected vrf: (none)
   local  ident (addr/mask/prot/port): (172.17.0.11/255.255.255.255/47/0)
   remote ident (addr/mask/prot/port): (172.17.0.5/255.255.255.255/47/0)
   current_peer 172.17.0.5 port 500
     PERMIT, flags={origin_is_acl,}
    #pkts encaps: 244, #pkts encrypt: 244, #pkts digest: 244
    #pkts decaps: 253, #pkts decrypt: 253, #pkts verify: 253
    #pkts compressed: 0, #pkts decompressed: 0
    #pkts not compressed: 0, #pkts compr. failed: 0
    #pkts not decompressed: 0, #pkts decompress failed: 0
    #send errors 1, #recv errors 0
     local crypto endpt.: 172.17.0.11, remote crypto endpt.: 172.17.0.5
     path mtu 1500, ip mtu 1500, ip mtu idb Ethernet0/0
     current outbound spi: 0x3C50B3AB(1011921835)
     inbound esp sas:
      spi: 0x3EBE84EF(1052673263)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 1, flow_id: SW:1, crypto map: vpnprof-head-1
        sa timing: remaining key lifetime (k/sec): (4549326/2779)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE
     inbound ah sas:
     inbound pcp sas:
     outbound esp sas:
      spi: 0x3C50B3AB(1011921835)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 2, flow_id: SW:2, crypto map: vpnprof-head-1
        sa timing: remaining key lifetime (k/sec): (4549327/2779)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE
     outbound ah sas:
     outbound pcp sas:
   protected vrf: (none)
   local  ident (addr/mask/prot/port): (172.17.0.11/255.255.255.255/47/0)
   remote ident (addr/mask/prot/port): (172.17.0.12/255.255.255.255/47/0)
   current_peer 172.17.0.12 port 500
     PERMIT, flags={origin_is_acl,}
    #pkts encaps: 0, #pkts encrypt: 0, #pkts digest: 0
    #pkts decaps: 2, #pkts decrypt: 2, #pkts verify: 2
    #pkts compressed: 0, #pkts decompressed: 0
    #pkts not compressed: 0, #pkts compr. failed: 0
    #pkts not decompressed: 0, #pkts decompress failed: 0
    #send errors 0, #recv errors 0
     local crypto endpt.: 172.17.0.11, remote crypto endpt.: 172.17.0.12
     path mtu 1500, ip mtu 1500, ip mtu idb Ethernet0/0
     current outbound spi: 0x38C04B36(952126262)
     inbound esp sas:
      spi: 0xA2EC557(170837335)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 5, flow_id: SW:5, crypto map: vpnprof-head-1
        sa timing: remaining key lifetime (k/sec): (4515510/3395)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE
     inbound ah sas:
     inbound pcp sas:
     outbound esp sas:
      spi: 0x38C04B36(952126262)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 6, flow_id: SW:6, crypto map: vpnprof-head-1
        sa timing: remaining key lifetime (k/sec): (4515511/3395)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE
     outbound ah sas:
     outbound pcp sas:
interface: Tunnel1
    Crypto map tag: vpnprof-head-1, local addr 172.17.0.11
   protected vrf: (none)
   local  ident (addr/mask/prot/port): (172.17.0.11/255.255.255.255/47/0)
   remote ident (addr/mask/prot/port): (172.17.0.1/255.255.255.255/47/0)
   current_peer 172.17.0.1 port 500
     PERMIT, flags={origin_is_acl,}
    #pkts encaps: 134, #pkts encrypt: 134, #pkts digest: 134
    #pkts decaps: 118, #pkts decrypt: 118, #pkts verify: 118
    #pkts compressed: 0, #pkts decompressed: 0
    #pkts not compressed: 0, #pkts compr. failed: 0
    #pkts not decompressed: 0, #pkts decompress failed: 0
    #send errors 22, #recv errors 0
     local crypto endpt.: 172.17.0.11, remote crypto endpt.: 172.17.0.1
     path mtu 1500, ip mtu 1500, ip mtu idb Ethernet0/0
     current outbound spi: 0xA75421B1(2807308721)
     inbound esp sas:
      spi: 0x96185188(2518176136)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 3, flow_id: SW:3, crypto map: vpnprof-head-1
        sa timing: remaining key lifetime (k/sec): (4569747/3242)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE
     inbound ah sas:
     inbound pcp sas:
     outbound esp sas:
      spi: 0xA75421B1(2807308721)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 4, flow_id: SW:4, crypto map: vpnprof-head-1
        sa timing: remaining key lifetime (k/sec): (4569745/3242)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE
     outbound ah sas:
     outbound pcp sas:
   protected vrf: (none)
   local  ident (addr/mask/prot/port): (172.17.0.11/255.255.255.255/47/0)
   remote ident (addr/mask/prot/port): (172.17.0.5/255.255.255.255/47/0)
   current_peer 172.17.0.5 port 500
     PERMIT, flags={origin_is_acl,}
    #pkts encaps: 244, #pkts encrypt: 244, #pkts digest: 244
    #pkts decaps: 253, #pkts decrypt: 253, #pkts verify: 253
    #pkts compressed: 0, #pkts decompressed: 0
    #pkts not compressed: 0, #pkts compr. failed: 0
    #pkts not decompressed: 0, #pkts decompress failed: 0
    #send errors 1, #recv errors 0
     local crypto endpt.: 172.17.0.11, remote crypto endpt.: 172.17.0.5
     path mtu 1500, ip mtu 1500, ip mtu idb Ethernet0/0
     current outbound spi: 0x3C50B3AB(1011921835)
     inbound esp sas:
      spi: 0x3EBE84EF(1052673263)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 1, flow_id: SW:1, crypto map: vpnprof-head-1
        sa timing: remaining key lifetime (k/sec): (4549326/2779)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE
     inbound ah sas:
     inbound pcp sas:
     outbound esp sas:
      spi: 0x3C50B3AB(1011921835)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 2, flow_id: SW:2, crypto map: vpnprof-head-1
        sa timing: remaining key lifetime (k/sec): (4549327/2779)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE
     outbound ah sas:
     outbound pcp sas:
   protected vrf: (none)
   local  ident (addr/mask/prot/port): (172.17.0.11/255.255.255.255/47/0)
   remote ident (addr/mask/prot/port): (172.17.0.12/255.255.255.255/47/0)
   current_peer 172.17.0.12 port 500
     PERMIT, flags={origin_is_acl,}
    #pkts encaps: 0, #pkts encrypt: 0, #pkts digest: 0
    #pkts decaps: 2, #pkts decrypt: 2, #pkts verify: 2
    #pkts compressed: 0, #pkts decompressed: 0
    #pkts not compressed: 0, #pkts compr. failed: 0
    #pkts not decompressed: 0, #pkts decompress failed: 0
    #send errors 0, #recv errors 0
     local crypto endpt.: 172.17.0.11, remote crypto endpt.: 172.17.0.12
     path mtu 1500, ip mtu 1500, ip mtu idb Ethernet0/0
     current outbound spi: 0x38C04B36(952126262)
     inbound esp sas:
      spi: 0xA2EC557(170837335)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 5, flow_id: SW:5, crypto map: vpnprof-head-1
        sa timing: remaining key lifetime (k/sec): (4515510/3395)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE
     inbound ah sas:
     inbound pcp sas:
     outbound esp sas:
      spi: 0x38C04B36(952126262)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 6, flow_id: SW:6, crypto map: vpnprof-head-1
        sa timing: remaining key lifetime (k/sec): (4515511/3395)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE
     outbound ah sas:
     outbound pcp sas:
Spoke1#

Additional References for Sharing IPsec with Tunnel Protection

Related Documents

Related Topic

Document Title

Configuring DMVPN

Dynamic Multipoint VPN (DMVPN)

Implementing DMVPN with IPsec VPN solution

Dynamic Multipoint IPsec VPNs (Using Multipoint GRE/NHRP to Scale IPsec VPNs)

Configuring basic IPsec VPNs

Configuring Security for VPNs with IPsec

Recommended cryptographic algorithms

Next Generation Encryption

Standards and RFCs

Standard/RFC

Title

RFC 2401

Security Architecture for the Internet Protocol

RFC 2547

BGP/MPLS VPNs

RFC 2784

Generic Routing Encapsulation (GRE)

Technical Assistance

Description

Link

The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

http://www.cisco.com/cisco/web/support/index.html

Feature Information for Sharing IPsec with Tunnel Protection

The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/go/cfn. An account on Cisco.com is not required.

Table 1Feature Information for Sharing IPsec with Tunnel Protection

Feature Name

Releases

Feature Information

Sharing IPsec with Tunnel Protection

12.4(15)T

The Sharing IPsec with Tunnel Protection feature allows sharing an Internet Protocol Security (IPsec) session between two or more generic routing encapsulation (GRE) tunnel interfaces.

The following command was introduced or modified: tunnel protection IPsec profile.

Glossary

GRE--generic routing encapsulation. Tunnels that provide a specific pathway across the shared WAN and encapsulate traffic with new packet headers to ensure delivery to specific destinations. The network is private because traffic can enter a tunnel only at an endpoint. Tunnels do not provide true confidentiality (encryption does) but can carry encrypted traffic.

GRE tunneling can also be used to encapsulate non-IP traffic into IP and send it over the Internet or IP network. The Internet Package Exchange (IPX) and AppleTalk protocols are examples of non-IP traffic.

IKE--Internet Key Exchange. A hybrid protocol that implements Oakley key exchange and Skeme key exchange inside the ISAKMP framework. Although IKE can be used with other protocols, its initial implementation is with IPsec. IKE provides authentication of the IPsec peers, negotiates IPsec keys, and negotiates IPsec security associations.

IPsec--IP security. A framework of open standards developed by the Internet Engineering Task Force (IETF). IPsec provides security for transmission of sensitive information over unprotected networks such as the Internet. IPsec acts at the network layer, protecting and authenticating IP packets between participating IPsec peers, such as Cisco routers.

ISAKMP--Internet Security Association Key Management Protocol. A protocol framework that defines payload formats, the mechanics of implementing a key exchange protocol, and the negotiation of a security association.

NHRP--Next Hop Resolution Protocol. Protocol that routers, access servers, and hosts can use to discover the addresses of other routers and hosts connected to an NBMA network.

The Cisco implementation of NHRP supports the IETF draft version 11 of NBMA NHRP.

The Cisco implementation of NHRP supports IP Version 4, Internet Packet Exchange (IPX) network layers, and, at the link layer, ATM, Ethernet, SMDS, and multipoint tunnel networks. Although NHRP is available on Ethernet, NHRP need not be implemented over Ethernet media because Ethernet is capable of broadcasting. Ethernet support is unnecessary (and not provided) for IPX.

SA--security association. Describes how two or more entities use security services to communicate securely. For example, an IPsec SA defines the encryption algorithm (if used), the authentication algorithm, and the shared session key to be used during the IPsec connection.

Both IPsec and IKE require and use SAs to identify the parameters of their connections. IKE can negotiate and establish its own SA. The IPsec SA is established either by IKE or by manual user configuration.

transform--List of operations performed on a data flow to provide data authentication, data confidentiality, and data compression. An example of a transform is the ESP with the 256-bit AES encryption algorithm and the AH protocol with the HMAC-SHA authentication algorithm.

tunnel --In the context of this module, a secure communication path between two peers, such as two routers. It does not refer to using IPsec in tunnel mode. VPN-- Virtual Private Network. A framework that consists of multiple peers transmitting private data securely to one another over an otherwise public infrastructure. In this framework, inbound and outbound network traffic is protected using protocols that tunnel and encrypt all data. This framework permits networks to extend beyond their local topology, while remote users are provided with the appearance and functionality of a direct network connection.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)

Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.

© 2012 Cisco Systems, Inc. All rights reserved.
