Configuring Accounting

Last Updated: May 30, 2011

The AAA Accounting feature allows the services that users are accessing and the amount of network resources that users are consuming to be tracked. When AAA Accounting is enabled, the network access server reports user activity to the TACACS+ or RADIUS security server (depending on which security method is implemented) in the form of accounting records. Each accounting record contains accounting attribute-value (AV) pairs and is stored on the security server. This data can then be analyzed for network management, client billing, and auditing.

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest feature information and caveats, see the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the Feature Information Table at the end of this document.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/go/cfn. An account on Cisco.com is not required.

Prerequisites for Configuring Accounting

The following tasks must be performed before configuring accounting using named method lists:

  • Enable AAA on the network access server by using the aaa new-modelcommand in global configuration mode.
  • Define the characteristics of the RADIUS or TACACS+ security server if RADIUS or TACACS+ authorization is issued. For more information about configuring the Cisco network access server to communicate with the RADIUS security server, see the Configuring RADIUS module. For more information about configuring the Cisco network access server to communicate with the TACACS+ security server, see the Configuring TACACS+ module.

Restrictions for Configuring Accounting

  • Accounting information can be sent simultaneously to a maximum of only four AAA servers.
  • For Service Selection Gateway (SSG) systems, the aaa accounting network broadcast command broadcasts only start-stop accounting records. If interim accounting records are configured using the ssg accounting interval command, the interim accounting records are sent only to the configured default RADIUS server.

Information About Configuring Accounting

Named Method Lists for Accounting

Similar to authentication and authorization method lists, method lists for accounting define the way accounting is performed and the sequence in which these methods are performed.

Named accounting method lists allow particular security protocol to be designated and used on specific lines or interfaces for accounting services. The only exception is the default method list (which is named “default”). The default method list is automatically applied to all interfaces except those that have a named method list explicitly defined. A defined method list overrides the default method list.

A method list is simply a named list describing the accounting methods to be queried (such as RADIUS or TACACS+), in sequence. Method lists allow one or more security protocols to be designated and used for accounting, thus ensuring a backup system for accounting in case the initial method fails. Cisco IOS software uses the first method listed to support accounting; if that method fails to respond, the Cisco IOS software selects the next accounting method listed in the method list. This process continues until there is successful communication with a listed accounting method, or all methods defined are exhausted.


Note
The Cisco IOS software attempts accounting with the next listed accounting method only when there is no response from the previous method. If accounting fails at any point in this cycle--meaning that the security server responds by denying the user access--the accounting process stops and no other accounting methods are attempted.

Accounting method lists are specific to the type of accounting being requested. AAA supports seven different types of accounting:

  • Network --Provides information for all PPP, SLIP, or ARAP sessions, including packet and byte counts.
  • EXEC --Provides information about user EXEC terminal sessions of the network access server.
  • Commands --Provides information about the EXEC mode commands that a user issues. Command accounting generates accounting records for all EXEC mode commands, including global configuration commands, associated with a specific privilege level.
  • Connection --Provides information about all outbound connections made from the network access server, such as Telnet, local-area transport (LAT), TN3270, packet assembler/disassembler (PAD), and rlogin.
  • System --Provides information about system-level events.
  • Resource --Provides “start” and “stop” records for calls that have passed user authentication, and provides “stop” records for calls that fail to authenticate.
  • VRRS --Provides information about Virtual Router Redundancy Service (VRRS).

Note
System accounting does not use named accounting lists; only the default list for system accounting can be defined.

Once again, when a named method list is created, a particular list of accounting methods for the indicated accounting type are defined.

Accounting method lists must be applied to specific lines or interfaces before any of the defined methods are performed. The only exception is the default method list (which is named “default”). If the aaa accounting command for a particular accounting type is issued without specifying a named method list, the default method list is automatically applied to all interfaces or lines except those that have a named method list explicitly defined (A defined method list overrides the default method list). If no default method list is defined, then no accounting takes place.

This section includes the following subsections:

Method Lists and Server Groups

A server group is a way to group existing RADIUS or TACACS+ server hosts for use in method lists. The figure below shows a typical AAA network configuration that includes four security servers: R1 and R2 are RADIUS servers, and T1 and T2 are TACACS+ servers. R1 and R2 comprise the group of RADIUS servers. T1 and T2 comprise the group of TACACS+ servers.

Figure 1. Typical AAA Network Configuration

Cisco IOS software, RADIUS and TACACS+ server configurations are global. A subset of the configured server hosts can be specified using server groups. These server groups can be used for a particular service. For example, server groups allow R1 and R2 to be defined as separate server groups (SG1 and SG2), and T1 and T2 as separate server groups (SG3 and SG4). This means either R1 and T1 (SG1 and SG3) or R2 and T2 (SG2 and SG4) can be specified in the method list, which provides more flexibility in the way that RADIUS and TACACS+ resources are assigned.

Server groups also can include multiple host entries for the same server, as long as each entry has a unique identifier. The combination of an IP address and a UDP port number creates a unique identifier, allowing different ports to be individually defined as RADIUS hosts providing a specific AAA service. In other words, this unique identifier enables RADIUS requests to be sent to different UDP ports on a server from the same IP address. If two different host entries on the same RADIUS server are configured for the same service--for example, accounting--the second host entry configured acts as failover backup to the first one. Using this example, if the first host entry fails to provide accounting services, the network access server tries the second host entry configured on the same device for accounting services (The RADIUS host entries are tried in the order in which they are configured).

For more information about configuring server groups and about configuring server groups based on Dialed Number Identification Service (DNIS) numbers, see the “Configuring RADIUS” or “Configuring TACACS+” module in the Cisco IOS Security Configuration Guide: Securing User Services .

AAA Accounting Methods

The Cisco IOS software supports the following two methods for accounting:

  • TACACS+--The network access server reports user activity to the TACACS+ security server in the form of accounting records. Each accounting record contains accounting AV pairs and is stored on the security server.
  • RADIUS--The network access server reports user activity to the RADIUS security server in the form of accounting records. Each accounting record contains accounting AV pairs and is stored on the security server.

Accounting Record Types

For minimal accounting, use the stop-only keyword, which instructs the specified method (RADIUS or TACACS+) to send a stop record accounting notice at the end of the requested user process. For more accounting information, use the start-stop keyword to send a start accounting notice at the beginning of the requested event and a stop accounting notice at the end of the event. To stop all accounting activities on this line or interface, use the none keyword.

Accounting Methods

The table below lists the supported accounting methods.

Table 1 AAA Accounting Methods

Keyword

Description

group radius

Uses the list of all RADIUS servers for accounting.

group tacacs+

Uses the list of all TACACS+ servers for accounting.

group group-name

Uses a subset of RADIUS or TACACS+ servers for accounting as defined by the server group group-name.

The method argument refers to the actual method the authentication algorithm tries. Additional methods of authentication are used only if the previous method returns an error, not if it fails. To specify that the authentication should succeed even if all other methods return an error, specify additional methods in the command. For example, to create a method list named acct_tac1 that specifies RADIUS as the backup method of authentication in the event that TACACS+ authentication returns an error, enter the following command:

aaa accounting network acct_tac1 stop-only group tacacs+ group radius

To create a default list that is used when a named list is not specified in the aaa accountingcommand, use the default keyword followed by the methods that are wanted to be used in default situations. The default method list is automatically applied to all interfaces.

For example, to specify RADIUS as the default method for user authentication during login, enter the following command:

aaa accounting network default stop-only group radius

AAA Accounting supports the following methods:

  • group tacacs --To have the network access server send accounting information to a TACACS+ security server, use the group tacacs+ method keyword.
  • group radius --To have the network access server send accounting information to a RADIUS security server, use the group radius method keyword.

Note
Accounting method lists for SLIP follow whatever is configured for PPP on the relevant interface. If no lists are defined and applied to a particular interface (or no PPP settings are configured), the default setting for accounting applies.
  • group group-name --To specify a subset of RADIUS or TACACS+ servers to use as the accounting method, use the aaa accountingcommand with the group group-name method. To specify and define the group name and the members of the group, use the aaa group server command. For example, use the aaa group server command to first define the members of group loginrad:
aaa group server radius loginrad
 server 172.16.2.3
 server 172.16.2 17
 server 172.16.2.32

This command specifies RADIUS servers 172.16.2.3, 172.16.2.17, and 172.16.2.32 as members of the group loginrad.

To specify group loginrad as the method of network accounting when no other method list has been defined, enter the following command:

aaa accounting network default start-stop group loginrad

Before a group name can be used as the accounting method, communication with the RADIUS or TACACS+ security server must be enabled.

AAA Accounting Types

Network Accounting

Network accounting provides information for all PPP, SLIP, or ARAP sessions, including packet and byte counts.

The following example shows the information contained in a RADIUS network accounting record for a PPP user who comes in through an EXEC session:

Wed Jun 27 04:44:45 2001
        NAS-IP-Address = “172.16.25.15”
        NAS-Port = 5
        User-Name = “username1”
        Client-Port-DNIS = “4327528”
        Caller-ID = “562”
        Acct-Status-Type = Start
        Acct-Authentic = RADIUS
        Service-Type = Exec-User
        Acct-Session-Id = “0000000D”
        Acct-Delay-Time = 0
        User-Id = “username1”
        NAS-Identifier = “172.16.25.15”

Wed Jun 27 04:45:00 2001
        NAS-IP-Address = “172.16.25.15”
        NAS-Port = 5
        User-Name = “username1”
        Client-Port-DNIS = “4327528”
        Caller-ID = “562”
        Acct-Status-Type = Start
        Acct-Authentic = RADIUS
        Service-Type = Framed
        Acct-Session-Id = “0000000E”
        Framed-IP-Address = “10.1.1.2”
        Framed-Protocol = PPP
        Acct-Delay-Time = 0
        User-Id = “username1”
        NAS-Identifier = “172.16.25.15”
Wed Jun 27 04:47:46 2001
        NAS-IP-Address = “172.16.25.15”
        NAS-Port = 5
        User-Name = “username1”
        Client-Port-DNIS = “4327528”
        Caller-ID = “562”
        Acct-Status-Type = Stop
        Acct-Authentic = RADIUS
        Service-Type = Framed
        Acct-Session-Id = “0000000E”
        Framed-IP-Address = “10.1.1.2”
        Framed-Protocol = PPP
        Acct-Input-Octets = 3075
        Acct-Output-Octets = 167
        Acct-Input-Packets = 39
        Acct-Output-Packets = 9
        Acct-Session-Time = 171
        Acct-Delay-Time = 0
        User-Id = “username1”
        NAS-Identifier = “172.16.25.15”
Wed Jun 27 04:48:45 2001
        NAS-IP-Address = “172.16.25.15”
        NAS-Port = 5
        User-Name = “username1”
        Client-Port-DNIS = “4327528”
        Caller-ID = “408”
        Acct-Status-Type = Stop
        Acct-Authentic = RADIUS
        Service-Type = Exec-User
        Acct-Session-Id = “0000000D”
        Acct-Delay-Time = 0
        User-Id = “username1”
        NAS-Identifier = “172.16.25.15”

The following example shows the information contained in a TACACS+ network accounting record for a PPP user who first started an EXEC session:

Wed Jun 27 04:00:35 2001 172.16.25.15    username1   tty4    562/4327528     starttask_id=28      service=shell
Wed Jun 27 04:00:46 2001 172.16.25.15    username1   tty4 562/4327528     starttask_id=30      addr=10.1.1.1   service=ppp
Wed Jun 27 04:00:49 2001 172.16.25.15    username1   tty4    408/4327528     update       task_id=30      addr=10.1.1.1   service=ppp     protocol=ip     addr=10.1.1.1
Wed Jun 27 04:01:31 2001 172.16.25.15    username1   tty4    562/4327528     stoptask_id=30       addr=10.1.1.1   service=ppp     protocol=ip     addr=10.1.1.1   bytes_in=2844        bytes_out=1682  paks_in=36      paks_out=24     elapsed_time=51
Wed Jun 27 04:01:32 2001 172.16.25.15    username1   tty4    562/4327528     stoptask_id=28       service=shell   elapsed_time=57

Note
The precise format of accounting packets records may vary depending on the security server daemon.

The following example shows the information contained in a RADIUS network accounting record for a PPP user who comes in through autoselect:

Wed Jun 27 04:30:52 2001
        NAS-IP-Address = “172.16.25.15”
        NAS-Port = 3
        User-Name = “username1”
        Client-Port-DNIS = “4327528”
        Caller-ID = “562”
        Acct-Status-Type = Start
        Acct-Authentic = RADIUS
        Service-Type = Framed
        Acct-Session-Id = “0000000B”
        Framed-Protocol = PPP
        Acct-Delay-Time = 0
        User-Id = “username1”
        NAS-Identifier = “172.16.25.15”

Wed Jun 27 04:36:49 2001
        NAS-IP-Address = “172.16.25.15”
        NAS-Port = 3
        User-Name = “username1”
        Client-Port-DNIS = “4327528”
        Caller-ID = “562”
        Acct-Status-Type = Stop
        Acct-Authentic = RADIUS
        Service-Type = Framed
        Acct-Session-Id = “0000000B”
        Framed-Protocol = PPP
        Framed-IP-Address = “10.1.1.1”
        Acct-Input-Octets = 8630
        Acct-Output-Octets = 5722
        Acct-Input-Packets = 94
        Acct-Output-Packets = 64
        Acct-Session-Time = 357
        Acct-Delay-Time = 0
        User-Id = “username1”
        NAS-Identifier = “172.16.25.15”

The following example shows the information contained in a TACACS+ network accounting record for a PPP user who comes in through autoselect:

Wed Jun 27 04:02:19 2001 172.16.25.15    username1   Async5  562/4327528     starttask_id=35      service=ppp
Wed Jun 27 04:02:25 2001 172.16.25.15    username1   Async5  562/4327528     update       task_id=35      service=ppp     protocol=ip     addr=10.1.1.2
Wed Jun 27 04:05:03 2001 172.16.25.15    username1   Async5  562/4327528     stoptask_id=35       service=ppp     protocol=ip     addr=10.1.1.2   bytes_in=3366   bytes_out=2149       paks_in=42      paks_out=28     elapsed_time=164

EXEC Accounting

EXEC accounting provides information about user EXEC terminal sessions (user shells) on the network access server, including username, date, start and stop times, the access server IP address, and (for dial-in users) the telephone number the call originated from.

The following example shows the information contained in a RADIUS EXEC accounting record for a dial-in user:

Wed Jun 27 04:26:23 2001
        NAS-IP-Address = “172.16.25.15”
        NAS-Port = 1
        User-Name = “username1”
        Client-Port-DNIS = “4327528”
        Caller-ID = “5622329483”
        Acct-Status-Type = Start
        Acct-Authentic = RADIUS
        Service-Type = Exec-User
        Acct-Session-Id = “00000006”
        Acct-Delay-Time = 0
        User-Id = “username1”
        NAS-Identifier = “172.16.25.15”
Wed Jun 27 04:27:25 2001
        NAS-IP-Address = “172.16.25.15”
        NAS-Port = 1
        User-Name = “username1”
        Client-Port-DNIS = “4327528”
        Caller-ID = “5622329483”
        Acct-Status-Type = Stop
        Acct-Authentic = RADIUS
        Service-Type = Exec-User
        Acct-Session-Id = “00000006”
        Acct-Session-Time = 62
        Acct-Delay-Time = 0
        User-Id = “username1”
        NAS-Identifier = “172.16.25.15”

The following example shows the information contained in a TACACS+ EXEC accounting record for a dial-in user:

Wed Jun 27 03:46:21 2001        172.16.25.15    username1   tty3    5622329430/4327528  start    task_id=2       service=shell
Wed Jun 27 04:08:55 2001        172.16.25.15    username1   tty3    5622329430/4327528  stop     task_id=2       service=shell   elapsed_time=1354

The following example shows the information contained in a RADIUS EXEC accounting record for a Telnet user:

Wed Jun 27 04:48:32 2001
        NAS-IP-Address = “172.16.25.15”
        NAS-Port = 26
        User-Name = “username1”
        Caller-ID = “10.68.202.158”
        Acct-Status-Type = Start
        Acct-Authentic = RADIUS
        Service-Type = Exec-User
        Acct-Session-Id = “00000010”
        Acct-Delay-Time = 0
        User-Id = “username1”
        NAS-Identifier = “172.16.25.15”

Wed Jun 27 04:48:46 2001
        NAS-IP-Address = “172.16.25.15”
        NAS-Port = 26
        User-Name = “username1”
        Caller-ID = “10.68.202.158”
        Acct-Status-Type = Stop
        Acct-Authentic = RADIUS
        Service-Type = Exec-User
        Acct-Session-Id = “00000010”
        Acct-Session-Time = 14
        Acct-Delay-Time = 0
        User-Id = “username1”
        NAS-Identifier = “172.16.25.15”

The following example shows the information contained in a TACACS+ EXEC accounting record for a Telnet user:

Wed Jun 27 04:06:53 2001        172.16.25.15    username1   tty26   10.68.202.158  starttask_id=41      service=shell
Wed Jun 27 04:07:02 2001        172.16.25.15    username1   tty26   10.68.202.158  stoptask_id=41       service=shell   elapsed_time=9

Command Accounting

Command accounting provides information about the EXEC shell commands for a specified privilege level that are being executed on a network access server. Each command accounting record includes a list of the commands executed for that privilege level, as well as the date and time each command was executed, and the user who executed it.

The following example shows the information contained in a TACACS+ command accounting record for privilege level 1:

Wed Jun 27 03:46:47 2001        172.16.25.15    username1   tty3    5622329430/4327528  stop     task_id=3       service=shell   priv-lvl=1      cmd=show version <cr>
Wed Jun 27 03:46:58 2001        172.16.25.15    username1   tty3    5622329430/4327528  stop     task_id=4       service=shell   priv-lvl=1      cmd=show interfaces Ethernet 0 <cr>
Wed Jun 27 03:47:03 2001        172.16.25.15    username1   tty3    5622329430/4327528  stop     task_id=5       service=shell   priv-lvl=1      cmd=show ip route <cr>

The following example shows the information contained in a TACACS+ command accounting record for privilege level 15:

Wed Jun 27 03:47:17 2001        172.16.25.15    username1   tty3    5622329430/4327528  stop     task_id=6       service=shell   priv-lvl=15     cmd=configure terminal <cr>
Wed Jun 27 03:47:21 2001        172.16.25.15    username1   tty3    5622329430/4327528  stop     task_id=7       service=shell   priv-lvl=15     cmd=interface Serial 0 <cr>
Wed Jun 27 03:47:29 2001        172.16.25.15    username1   tty3    5622329430/4327528  stop     task_id=8       service=shell   priv-lvl=15     cmd=ip address 10.1.1.1 255.255.255.0 <cr>

Note
The Cisco implementation of RADIUS does not support command accounting.

Connection Accounting

Connection accounting provides information about all outbound connections made from the network access server such as Telnet, LAT, TN3270, PAD, and rlogin.

The following example shows the information contained in a RADIUS connection accounting record for an outbound Telnet connection:

Wed Jun 27 04:28:00 2001
        NAS-IP-Address = “172.16.25.15”
        NAS-Port = 2
        User-Name = “username1”
        Client-Port-DNIS = “4327528”
        Caller-ID = “5622329477”
        Acct-Status-Type = Start
        Acct-Authentic = RADIUS
        Service-Type = Login
        Acct-Session-Id = “00000008”
        Login-Service = Telnet
        Login-IP-Host = “10.68.202.158”
        Acct-Delay-Time = 0
        User-Id = “username1”
        NAS-Identifier = “172.16.25.15”

Wed Jun 27 04:28:39 2001
        NAS-IP-Address = “172.16.25.15”
        NAS-Port = 2
        User-Name = “username1”
        Client-Port-DNIS = “4327528”
        Caller-ID = “5622329477”
        Acct-Status-Type = Stop
        Acct-Authentic = RADIUS
        Service-Type = Login
        Acct-Session-Id = “00000008”
        Login-Service = Telnet
        Login-IP-Host = “10.68.202.158”
        Acct-Input-Octets = 10774
        Acct-Output-Octets = 112
        Acct-Input-Packets = 91
        Acct-Output-Packets = 99
        Acct-Session-Time = 39
        Acct-Delay-Time = 0
        User-Id = “username1”
        NAS-Identifier = “172.16.25.15”

The following example shows the information contained in a TACACS+ connection accounting record for an outbound Telnet connection:

Wed Jun 27 03:47:43 2001        172.16.25.15    username1   tty3    5622329430/4327528  start    task_id=10      service=connection      protocol=telnet addr=10.68.202.158 cmd=telnet username1-sun
Wed Jun 27 03:48:38 2001        172.16.25.15    username1   tty3    5622329430/4327528  stop     task_id=10      service=connection      protocol=telnet addr=10.68.202.158 cmd=telnet username1-sun     bytes_in=4467   bytes_out=96    paks_in=61      paks_out=72 elapsed_time=55

The following example shows the information contained in a RADIUS connection accounting record for an outbound rlogin connection:

Wed Jun 27 04:29:48 2001
        NAS-IP-Address = “172.16.25.15”
        NAS-Port = 2
        User-Name = “username1”
        Client-Port-DNIS = “4327528”
        Caller-ID = “5622329477”
        Acct-Status-Type = Start
        Acct-Authentic = RADIUS
        Service-Type = Login
        Acct-Session-Id = “0000000A”
        Login-Service = Rlogin
        Login-IP-Host = “10.68.202.158”
        Acct-Delay-Time = 0
        User-Id = “username1”
        NAS-Identifier = “172.16.25.15”

Wed Jun 27 04:30:09 2001
        NAS-IP-Address = “172.16.25.15”
        NAS-Port = 2
        User-Name = “username1”
        Client-Port-DNIS = “4327528”
        Caller-ID = “5622329477”
        Acct-Status-Type = Stop
        Acct-Authentic = RADIUS
        Service-Type = Login
        Acct-Session-Id = “0000000A”
        Login-Service = Rlogin
        Login-IP-Host = “10.68.202.158”
        Acct-Input-Octets = 18686
        Acct-Output-Octets = 86
        Acct-Input-Packets = 90
        Acct-Output-Packets = 68
        Acct-Session-Time = 22
        Acct-Delay-Time = 0
        User-Id = “username1”
        NAS-Identifier = “172.16.25.15”

The following example shows the information contained in a TACACS+ connection accounting record for an outbound rlogin connection:

Wed Jun 27 03:48:46 2001        172.16.25.15    username1   tty3    5622329430/4327528  start    task_id=12      service=connection      protocol=rlogin addr=10.68.202.158 cmd=rlogin username1-sun /user username1
Wed Jun 27 03:51:37 2001        172.16.25.15    username1   tty3    5622329430/4327528  stop     task_id=12      service=connection      protocol=rlogin addr=10.68.202.158 cmd=rlogin username1-sun /user username1 bytes_in=659926 bytes_out=138   paks_in=2378    paks_
out=1251        elapsed_time=171

The following example shows the information contained in a TACACS+ connection accounting record for an outbound LAT connection:

Wed Jun 27 03:53:06 2001        172.16.25.15    username1   tty3    5622329430/4327528  start    task_id=18      service=connection      protocol=lat    addr=VAX        cmd=lat VAX
Wed Jun 27 03:54:15 2001        172.16.25.15    username1   tty3    5622329430/4327528  stop     task_id=18      service=connection      protocol=lat    addr=VAX        cmd=lat VAX  bytes_in=0      bytes_out=0     paks_in=0      paks_out=0      elapsed_time=6

System Accounting

System accounting provides information about all system-level events (for example, when the system reboots or when accounting is turned on or off).

The following accounting record shows a typical TACACS+ system accounting record server indicating that AAA Accounting has been turned off:

Wed Jun 27 03:55:32 2001        172.16.25.15    unknown unknown unknown start   task_id=25   service=system  event=sys_acct  reason=reconfigure

Note
The precise format of accounting packets records may vary depending on the TACACS+ daemon.

The following accounting record shows a TACACS+ system accounting record indicating that AAA Accounting has been turned on:

Wed Jun 27 03:55:22 2001        172.16.25.15    unknown unknown unknown stop    task_id=23   service=system  event=sys_acct  reason=reconfigure

Additional tasks for measuring system resources are covered in the Cisco IOS software configuration guides. For example, IP accounting tasks are described in the Configuring IP Services chapter in the CiscoIOS Application Services Configuration Guide .

Resource Accounting

The Cisco implementation of AAA accounting provides “start” and “stop” record support for calls that have passed user authentication. The additional feature of generating “stop” records for calls that fail to authenticate as part of user authentication is also supported. Such records are necessary for users employing accounting records to manage and monitor their networks.

This section includes the following subsections:

AAA Resource Failure Stop Accounting

Before AAA resource failure stop accounting, there was no method of providing accounting records for calls that failed to reach the user authentication stage of a call setup sequence. Such records are necessary for users employing accounting records to manage and monitor their networks and their wholesale customers.

This functionality generates a “stop” accounting record for any calls that do not reach user authentication; “stop” records are generated from the moment of call setup. All calls that pass user authentication behave as they did before; that is, no additional accounting records are seen.

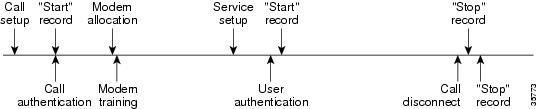

The figure below illustrates a call setup sequence with normal call flow (no disconnect) and without AAA resource failure stop accounting enabled.

Figure 2. Modem Dial-In Call Setup Sequence With Normal Flow and Without Resource Failure Stop Accounting Enabled

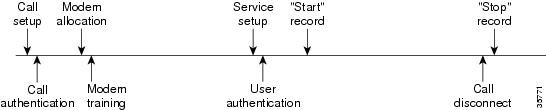

The figure below illustrates a call setup sequence with normal call flow (no disconnect) and with AAA resource failure stop accounting enabled.

Figure 3. Modem Dial-In Call Setup Sequence With Normal Flow and WIth Resource Failure Stop Accounting Enabled

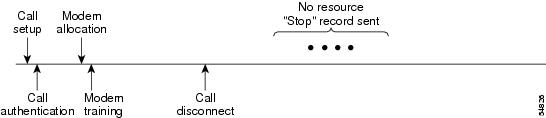

The figure below illustrates a call setup sequence with call disconnect occurring before user authentication and with AAA resource failure stop accounting enabled.

Figure 4. Modem Dial-In Call Setup Sequence With Call Disconnect Occurring Before User Authentication and With Resource Failure Stop Accounting Enabled

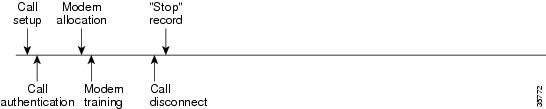

The figure below illustrates a call setup sequence with call disconnect occurring before user authentication and without AAA resource failure stop accounting enabled.

Figure 5. Modem Dial-In Call Setup Sequence With Call Disconnect Occurring Before User Authentication and Without Resource Failure Stop Accounting Enabled

AAA Resource Accounting for Start-Stop Records

AAA resource accounting for start-stop records supports the ability to send a “start” record at each call setup, followed by a corresponding “stop” record at the call disconnect. This functionality can be used to manage and monitor wholesale customers from one source of data reporting, such as accounting records.

With this feature, a call setup and call disconnect “start-stop” accounting record tracks the progress of the resource connection to the device. A separate user authentication “start-stop” accounting record tracks the user management progress. These two sets of accounting records are interlinked by using a unique session ID for the call.

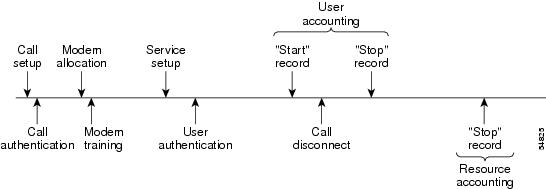

The figure below illustrates a call setup sequence with AAA resource start-stop accounting enabled.

Figure 6. Modem Dial-In Call Setup Sequence With Resource Start-Stop Accounting Enabled

VRRS Accounting

Virtual Router Redundancy Service (VRRS) provides a multiclient information abstraction and management service between a First Hop Redundancy Protocol (FHRP) and a registered client. The VRRS multiclient service provides a consistent interface with FHRP protocols by abstracting over several FHRPs and providing an idealized view of their state. VRRS manages data updates, allowing interested clients to register in one place and receive updates for named FHRP groups or all registered FHRP groups.

Virtual Router Redundancy Protocol (VRRP) is an FHRP that acts as a server that pushes FHRP status information out to all registered VRRS clients. Clients obtain status on essential information provided by the FHRP, including current and previous redundancy states, active and inactive L3 and L2 addresses, and, in some cases, information about other redundant gateways in the network. Clients can use this information to provide stateless and stateful redundancy information to clients and protocols.

VRRS Accounting Plug-in

The VRRS Accounting plug-in provides a configurable AAA method list mechanism that provides updates to a RADIUS server when a VRRS group transitions its state. The VRRS accounting plug-in is an extension of existing AAA system accounting messages. The VRRS Accounting plug-in provides accounting-on and accounting-off messages and an additional Vendor-Specific Attribute (VSA) that sends the configured VRRS name in RADIUS accounting messages. The VRRS name is configured using the vrrp name command in interface configuration mode.

The VRRS Accounting plug-in provides a configurable AAA method list mechanism that provides updates to a RADIUS server when a VRRS group transitions its state.

The VRRS accounting plug-in is an extension of existing AAA system accounting messages. The VRRS Accounting plug-in provides accounting-on and accounting-off messages and an additional Vendor-Specific Attribute (VSA) that sends the configured VRRS name in RADIUS accounting messages. The VRRS name is configured using the vrrp name command in interface configuration mode. The VRRS Accounting plug-in sends an accounting-on message to RADIUS when a VRRS group transitions to the master state, and it sends an accounting-off message when a VRRS group transitions from the master state.

The following RADIUS attributes are included in VRRS accounting messages by default:

  • Attribute 4, NAS-IP-Address
  • Attribute 26, Cisco VSA Type 1, VRRS Name
  • Attribute 40, Acct-Status-Type
  • Attribute 41, Acct-Delay-Time
  • Attribute 44, Acct-Session-Id

Accounting messages for a VRRS transitioning out of master state are sent after all PPPoE accounting stop messages for sessions that are part of that VRRS.

AAA Accounting Enhancements

AAA Broadcast Accounting

AAA broadcast accounting allows accounting information to be sent to multiple AAA servers at the same time; that is, accounting information can be broadcast to one or more AAA servers simultaneously. This functionality allows service providers to send accounting information to their own private AAA servers and to the AAA servers of their end customers. It also provides redundant billing information for voice applications.

Broadcasting is allowed among groups of RADIUS or TACACS+ servers, and each server group can define its backup servers for failover independently of other groups.

Thus, service providers and their end customers can use different protocols (RADIUS or TACACS+) for the accounting server. Service providers and their end customers can also specify their backup servers independently. As for voice applications, redundant accounting information can be managed independently through a separate group with its own failover sequence.

AAA Session MIB

The AAA session MIB feature allows customers to monitor and terminate their authenticated client connections using Simple Network Management Protocol (SNMP). The data of the client is presented so that it correlates directly to the AAA Accounting information reported by either the RADIUS or the TACACS+ server. AAA session MIB provides the following information:

  • Statistics for each AAA function (when used in conjunction with the show radius statistics command)
  • Status of servers providing AAA functions
  • Identities of external AAA servers
  • Real-time information (such as idle times), providing additional criteria for use by SNMP networks for assessing whether or not to terminate an active call

Note
This command is supported only on Cisco AS5300 and Cisco AS5800 universal access server platforms.

The table below shows the SNMP user-end data objects that can be used to monitor and terminate authenticated client connections with the AAA session MIB feature.

Table 2 SNMP End-User Data Objects

SessionId

The session identification used by the AAA Accounting protocol (same value as reported by RADIUS attribute 44 (Acct-Session-ID)).

UserId

The user login ID or zero-length string if a login is unavailable.

IpAddr

The IP address of the session or 0.0.0.0 if an IP address is not applicable or unavailable.

IdleTime

The elapsed time in seconds that the session has been idle.

Disconnect

The session termination object used to disconnect the given client.

CallId

The entry index corresponding to this accounting session that the Call Tracker record stored.

The table below describes the AAA summary information provided by the AAA session MIB feature using SNMP on a per-system basis.

Table 3 SNMP AAA Session Summary

ActiveTableEntries

Number of sessions currently active.

ActiveTableHighWaterMark

Maximum number of sessions present at once since last system reinstallation.

TotalSessions

Total number of sessions since last system reinstallation.

DisconnectedSessions

Total number of sessions that have been disconnected using since last system reinstallation.

Accounting Attribute-Value Pairs

The network access server monitors the accounting functions defined in either TACACS+ AV pairs or RADIUS attributes, depending on which security method is implemented.

How to Configure AAA Accounting

Configuring AAA Accounting Using Named Method Lists

To configure AAA Accounting using named method lists, perform the following steps:


Note
System accounting does not use named method lists. For system accounting, define only the default method list.
SUMMARY STEPS

1.    enable

2.    configure terminal

3.    Router(config)# aaa accounting {system | network | exec | connection | commands level} {default | list-name} {start-stop | stop-only | none} [method1 [method2...]]

4.   Do one of the following:

  • Router(config)# line [aux | console | tty | vty] line-number [ending-line-number]
  • Router(config)# interface interface-type interface-number

5.   Do one of the following:

  • Router(config-line)# accounting {arap | commands level | connection | exec} {default | list-name}
  • Router(config-if)# ppp accounting{default | list-name}

6.    Router(config-line)# end


DETAILED STEPS
 Command or ActionPurpose
Step 1 enable


Example:

Router> enable



Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2 configure terminal


Example:

Router# configure terminal



Enters global configuration mode.


Step 3 Router(config)# aaa accounting {system | network | exec | connection | commands level} {default | list-name} {start-stop | stop-only | none} [method1 [method2...]]

Example:

Router(config)# aaa accounting system default start-stop



Creates an accounting method list and enables accounting. The argument list-name is a character string used to name the created list.


Step 4Do one of the following:
  • Router(config)# line [aux | console | tty | vty] line-number [ending-line-number]
  • Router(config)# interface interface-type interface-number


Example:

Router(config)# line aux line1



Enters the line configuration mode for the lines to which the accounting method list is applied.

or

Enters the interface configuration mode for the interfaces to which the accounting method list is applied.


Step 5Do one of the following:
  • Router(config-line)# accounting {arap | commands level | connection | exec} {default | list-name}
  • Router(config-if)# ppp accounting{default | list-name}


Example:

Router(config-line)# accounting arap default



Applies the accounting method list to a line or set of lines.

or

Applies the accounting method list to an interface or set of interfaces.


Step 6 Router(config-line)# end

Example:

Router(config-line)# end



(Optional) Exits line configuration mode and returns to global configuration mode.


What to Do Next

This section includes the following subsection:

Configuring RADIUS System Accounting

Perform this task to configure RADIUS system accounting on the global RADIUS server:

SUMMARY STEPS

1.    enable

2.    configure terminal

3.    aaa new-model

4.    radius-server accounting system host-config

5.    aaa group server radius server-name

6.    server-private {host-name | ip-address} key {[0 server-key | 7 server-key] server-key

7.    accounting system host-config

8.    end


DETAILED STEPS
 Command or ActionPurpose
Step 1 enable


Example:

Router> enable



Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2 configure terminal


Example:

Router# configure terminal



Enters global configuration mode.


Step 3 aaa new-model


Example:

Router(config)# aaa new-model



Enables AAA network security services.


Step 4 radius-server accounting system host-config


Example:

Router(config)# radius-server accounting system host-config



Enables the router to send a system accounting record for the addition and deletion of a RADIUS server.


Step 5 aaa group server radius server-name


Example:

Router(config)# aaa group server radius radgroup1



Adds the RADIUS server and enters server-group configuration mode.

  • The server-name argument specifies the RADIUS server group name.

Step 6 server-private {host-name | ip-address} key {[0 server-key | 7 server-key] server-key


Example:

Router(config-sg-radius)# server-private 172.16.1.11 key cisco



Enters the hostname or IP address of the RADIUS server and hidden server key.

  • (Optional) 0 with the server-keyargument specifies that an unencrypted (cleartext) hidden server key follows.
  • (Optional) 7 with the server-key argument specifies that an encrypted hidden server key follows.
  • The server-key argument specifies the hidden server key. If the server-keyargument is configured without the 0 or 7 preceding it, it is unencrypted.
Note    Once the server-private command is configured, RADIUS system accounting is enabled.

Step 7 accounting system host-config


Example:

Router(config-sg-radius)# accounting system host-config



Enables the generation of system accounting records for private server hosts when they are added or deleted.


Step 8 end


Example:

Router(config-sg-radius)# end



Exits server-group (config-sg-radius) configuration mode and returns to global configuration mode.



Suppressing Generation of Accounting Records for Null Username Sessions

When AAA Accounting is activated, the Cisco IOS software issues accounting records for all users on the system, including users whose username string, because of protocol translation, is NULL. An example of this is users who come in on lines where the aaa authentication login method-list none command is applied. To prevent accounting records from being generated for sessions that do not have usernames associated with them, use the following command in global configuration mode:

Command

Purpose


Router(config)# aaa accounting suppress null-username

Prevents accounting records from being generated for users whose username string is NULL.

Generating Interim Accounting Records

To enable periodic interim accounting records to be sent to the accounting server, use the following command in global configuration mode:

Command

Purpose


Router(config)# aaa accounting update [newinfo] [periodic] number

Enables periodic interim accounting records to be sent to the accounting server.

When the aaa accounting updatecommandis activated, the Cisco IOS software issues interim accounting records for all users on the system. If the keyword newinfo is used, interim accounting records are sent to the accounting server every time there is new accounting information to report. An example of this would be when IPCP completes IP address negotiation with the remote peer. The interim accounting record includes the negotiated IP address used by the remote peer.

When used with the keyword periodic, interim accounting records are sent periodically as defined by the number argument. The interim accounting record contains all of the accounting information recorded for that user up to the time the interim accounting record is sent.


Caution

Using the aaa accounting update periodic command can cause heavy congestion when many users are logged in to the network.

Generating Accounting Records for Failed Login or Session

When AAA Accounting is activated, the Cisco IOS software does not generate accounting records for system users who fail login authentication, or who succeed in login authentication but fail PPP negotiation for some reason.

To specify that accounting stop records be generated for users who fail to authenticate at login or during session negotiation, use the following command in global configuration mode:

Command

Purpose


Router(config)# aaa accounting send stop-record authentication failure

Generates “stop” records for users who fail to authenticate at login or during session negotiation using PPP.



                  Router(config)#

                  aaa accounting send stop-record always

Sends authentication, authorization, and accounting (AAA) stop records regardless of whether a start record was sent earlier.

Specifying Accounting NETWORK-Stop Records Before EXEC-Stop Records

For PPP users who start EXEC terminal sessions, you can specify the NETWORK records to be generated before EXEC-stop records. In cases such as billing customers for specific services, it can be desirable to keep network start and stop records together, essentially “nesting” them within the framework of the EXEC start and stop messages. For example, a user dialing in using PPP can create the following records: EXEC-start, NETWORK-start, EXEC-stop, NETWORK-stop. By nesting the accounting records, NETWORK-stop records follow NETWORK-start messages: EXEC-start, NETWORK-start, NETWORK-stop, EXEC-stop.

To nest accounting records for user sessions, use the following command in global configuration mode:

Command

Purpose


Router(config)# aaa accounting nested

Nests network accounting records.

Configuring AAA Resource Failure Stop Accounting

To enable resource failure stop accounting, use the following command in global configuration mode:

Command

Purpose

Router(config)# aaa accounting resource method-list stop-failure group server-group

Generates a “stop” record for any calls that do not reach user authentication.

Note    Before configuring this feature, the tasks described in the Prerequisites for Configuring Accounting section must be performed, and SNMP must be enabled on the network access server. For more information about enabling SNMP on a Cisco router or access server, see the Configuring SNMP Support chapter in the Cisco IOS Network Management Configuration Guide.

Configuring AAA Resource Accounting for Start-Stop Records

To enable full resource accounting for start-stop records, use the following command in global configuration mode:

Command

Purpose

Router(config)# aaa accounting resource method-list start-stop group server-group

Supports the ability to send a “start” record at each call setup. followed with a corresponding “stop” record at the call disconnect.

Note    Before configuring this feature, the tasks described in the Prerequisites for Configuring Accounting section must be performed, and SNMP must be enabled on the network access server. For more information about enabling SNMP on a Cisco router or access server, see the Configuring SNMP Support chapter in the Cisco IOS Network Management Configuration Guide.
Note

Configuring AAA Broadcast Accounting

To configure AAA broadcast accounting, use the aaa accounting command in global configuration mode:

Command

Purpose


Router(config)# aaa accounting {system | network | exec | connection | commands level} {default | list-name} {start-stop | stop-only | none} [broadcast] method1 [method2...]

Enables sending accounting records to multiple AAA servers. Simultaneously sends accounting records to the first server in each group. If the first server is unavailable, failover occurs using the backup servers defined within that group.

Configuring Per-DNIS AAA Broadcast Accounting

To configure AAA broadcast accounting per DNIS, use the aaa dnis map accounting networkcommand in global configuration mode:

Command

Purpose


Router(config)# aaa dnis map dnis-number accounting network [start-stop | stop-only | none] [broadcast] method1 [method2...]

Allows per-DNIS accounting configuration. This command has precedence over the global aaa accounting command.

Enables sending accounting records to multiple AAA servers. Simultaneously sends accounting records to the first server in each group. If the first server is unavailable, failover occurs using the backup servers defined within that group.

Configuring AAA Session MIB

The following tasks must be performed before configuring the AAA session MIB feature:

  • Configure SNMP. For information on SNMP, see the chapter Configuring SNMP Support in the Cisco IOS Network Management Configuration Guide.
  • Configure AAA.
  • Define the RADIUS or TACACS+ server characteristics.

Note
Overusing SNMP can affect the overall system performance; therefore, normal network management performance must be considered when this feature is used.

To configure AAA session MIB, use the following command in global configuration mode

SUMMARY STEPS

1.    Router(config)# aaa session-mib disconnect


DETAILED STEPS
 Command or ActionPurpose
Step 1 Router(config)# aaa session-mib disconnect

Monitors and terminates authenticated client connections using SNMP.

To terminate the call, the disconnect keyword must be used.



Configuring VRRS Accounting

Perform the following task to configure Virtual Router Redundancy Service (VRRS) to send AAA Accounting messages to the AAA server:

SUMMARY STEPS

1.    enable

2.    configure terminal

3.    aaa accounting vrrs {default | list-name} start-stop method1 [method2...]

4.    aaa attribute list list-name

5.    attribute type name value [service service] [protocol protocol][mandatory][tag tag-value]

6.    exit

7.    vrrs vrrs-group-name

8.    accounting delay seconds

9.    accounting method {default | accounting-method-list}

10.    exit


DETAILED STEPS
 Command or ActionPurpose
Step 1 enable


Example:

Router> enable



Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2 configure terminal


Example:

Router# configure terminal



Enters global configuration mode.


Step 3 aaa accounting vrrs {default | list-name} start-stop method1 [method2...]


Example:

Router(config)# aaa accounting vrrs default start-stop



Enables AAA accounting for VRRS.


Step 4 aaa attribute list list-name


Example:

Router(config)# aaa attribute list list1



Defines a AAA attribute list locally on a router, and enters attribute list configuration mode.


Step 5 attribute type name value [service service] [protocol protocol][mandatory][tag tag-value]


Example:

Router(config-attr-list)# attribute type example 1



Defines an attribute type that is to be added to an attribute list locally on a router.


Step 6 exit


Example:

Router(config-attr-list)# exit



Exits attribute list configuration mode and returns to global configuration mode.


Step 7 vrrs vrrs-group-name


Example:

Router(config)# vrrs vrrs1



(Optional) Defines a VRRP group and configures parameters for the VRRS group, and enters VRRS configuration mode.


Step 8 accounting delay seconds


Example:

Router(config-vrrs)# accounting delay 10



(Optional) Specifies the delay time for sending accounting-off messages to the VRRS.


Step 9 accounting method {default | accounting-method-list}


Example:

Router(config-vrrs)# accounting method default



(Optional) Enables VRRS accounting for a VRRP group.


Step 10 exit


Example:

Router(config-vrrs)# exit



Exits VRRS configuration mode.



Establishing a Session with a Router if the AAA Server is Unreachable

To establish a console or telnet session with a router if the AAA server is unreachable, use the following command in global configuration mode:

Command

Purpose


Router(config)# no aaa accounting system guarantee-first

The aaa accounting system guarantee-first command guarantees system accounting as the first record, which is the default condition.

In some situations, users may be prevented from starting a session on the console or terminal connection until after the system reloads, which can take more than three minutes. To resolve this problem, the no aaa accounting system guarantee-first command can be used.

Note
Entering the no aaa accounting system guarantee-first command is not the only condition by which the console or telnet session can be started. For example, if the privileged EXEC session is being authenticated by TACACS and the TACACS server is not reachable, then the session cannot start.

Monitoring Accounting

No specific show command exists for either RADIUS or TACACS+ accounting. To obtain accounting records displaying information about users currently logged in, use the following command in privileged EXEC mode:

Command

Purpose


Router# show accounting

Allows display of the active accountable events on the network and helps collect information in the event of a data loss on the accounting server.

Troubleshooting Accounting

To troubleshoot accounting information, use the following command in privileged EXEC mode:

Command

Purpose


Router# debug aaa accounting

Displays information on accountable events as they occur.

Configuration Examples for AAA Accounting

Example Configuring Named Method List

The following example shows how to configure a Cisco AS5200 (enabled for AAA and communication with a RADIUS security server) in order for AAA services to be provided by the RADIUS server. If the RADIUS server fails to respond, then the local database is queried for authentication and authorization information, and accounting services are handled by a TACACS+ server.

aaa new-model
aaa authentication login admins local
aaa authentication ppp dialins group radius local
aaa authorization network blue1 group radius local
aaa accounting network red1 start-stop group radius group tacacs+
username root password ALongPassword
tacacs-server host 172.31.255.0
tacacs-server key goaway
radius-server host 172.16.2.7
radius-server key myRaDiUSpassWoRd
interface group-async 1
 group-range 1 16
 encapsulation ppp
 ppp authentication chap dialins
 ppp authorization blue1
 ppp accounting red1
line 1 16
 autoselect ppp
 autoselect during-login
 login authentication admins
 modem dialin

The lines in this sample RADIUS AAA configuration are defined as follows:

  • The aaa new-model command enables AAA network security services.
  • The aaa authentication login admins local command defines a method list “admins”, for login authentication.
  • The aaa authentication ppp dialins group radius local command defines the authentication method list “dialins”, which specifies that first RADIUS authentication and then (if the RADIUS server does not respond) local authentication is used on serial lines using PPP.
  • The aaa authorization network blue1 group radius local command defines the network authorization method list named “blue1”, which specifies that RADIUS authorization is used on serial lines using PPP. If the RADIUS server fails to respond, then local network authorization is performed.
  • The aaa accounting network red1 start-stop group radius group tacacs+command defines the network accounting method list named red1, which specifies that RADIUS accounting services (in this case, start and stop records for specific events) are used on serial lines using PPP. If the RADIUS server fails to respond, accounting services are handled by a TACACS+ server.
  • The username command defines the username and password to be used for the PPP Password Authentication Protocol (PAP) caller identification.
  • The tacacs-server host command defines the name of the TACACS+ server host.
  • The tacacs-server key command defines the shared secret text string between the network access server and the TACACS+ server host.
  • The radius-server host command defines the name of the RADIUS server host.
  • The radius-server key command defines the shared secret text string between the network access server and the RADIUS server host.
  • The interface group-async command selects and defines an asynchronous interface group.
  • The group-range command defines the member asynchronous interfaces in the interface group.
  • The encapsulation ppp command sets PPP as the encapsulation method used on the specified interfaces.
  • The ppp authentication chap dialinscommand selects Challenge Handshake Authentication Protocol (CHAP) as the method of PPP authentication and applies the “dialins” method list to the specified interfaces.
  • The ppp authorization blue1command applies the blue1 network authorization method list to the specified interfaces.
  • The ppp accounting red1command applies the red1 network accounting method list to the specified interfaces.
  • The line command switches the configuration mode from global configuration to line configuration and identifies the specific lines being configured.
  • The autoselect ppp command configures the Cisco IOS software to allow a PPP session to start up automatically on these selected lines.
  • The autoselect during-login command is used to display the username and password prompt without pressing the Return key. After the user logs in, the autoselect function (in this case, PPP) begins.
  • The login authentication admins command applies the admins method list for login authentication.
  • The modem dialin command configures modems attached to the selected lines to only accept incoming calls.

The show accountingcommand yields the following output for the preceding configuration:

Active Accounted actions on tty1, User username2 Priv 1
 Task ID 5, Network Accounting record, 00:00:52 Elapsed
 task_id=5 service=ppp protocol=ip address=10.0.0.98

The table below describes the fields contained in the preceding output.

Table 4 show accounting Field Descriptions

Field

Description

Active Accounted actions on

Terminal line or interface name user with which the user logged in.

User

User’s ID.

Priv

User’s privilege level.

Task ID

Unique identifier for each accounting session.

Accounting record

Type of accounting session.

Elapsed

Length of time (hh:mm:ss) for this session type.

attribute=value

AV pairs associated with this accounting session.

Example Configuring AAA Resource Accounting

The following example shows how to configure the resource failure stop accounting and resource accounting for start-stop records functions:

!Enable AAA on your network access server.
aaa new-model
!Enable authentication at login and list the AOL string name to use for login authentication.
aaa authentication login AOL group radius local
!Enable authentication for ppp and list the default method to use for PPP authentication.
aaa authentication ppp default group radius local
!Enable authorization for all exec sessions and list the AOL string name to use for authorization.
aaa authorization exec AOL group radius if-authenticated
!Enable authorization for all network-related service requests and list the default method to use for all network-related authorizations.
aaa authorization network default group radius if-authenticated
!Enable accounting for all exec sessions and list the default method to use for all start-stop accounting services.
aaa accounting exec default start-stop group radius
!Enable accounting for all network-related service requests and list the default method to use for all start-stop accounting services.
aaa accounting network default start-stop group radius
!Enable failure stop accounting.
aaa accounting resource default stop-failure group radius
!Enable resource accounting for start-stop records.
aaa accounting resource default start-stop group radius

Example Configuring AAA Broadcast Accounting

The following example shows how to turn on broadcast accounting using the global aaa accounting command:

aaa group server radius isp
 server 10.0.0.1
 server 10.0.0.2
aaa group server tacacs+ isp_customer
 server 172.0.0.1
aaa accounting network default start-stop broadcast group isp group isp_customer
radius-server host 10.0.0.1
radius-server host 10.0.0.2
radius-server key key1
tacacs-server host 172.0.0.1 key key2

The broadcast keyword causes “start” and “stop” accounting records for network connections to be sent simultaneously to server 10.0.0.1 in the group isp and to server 172.0.0.1 in the group isp_customer. If server 10.0.0.1 is unavailable, failover to server 10.0.0.2 occurs. If server 172.0.0.1 is unavailable, no failover occurs because backup servers are not configured for the group isp_customer.

Example Configuring Per-DNIS AAA Broadcast Accounting

The following example shows how to turn on per DNIS broadcast accounting using the global aaa dnis map accounting networkcommand:

aaa group server radius isp
 server 10.0.0.1
 server 10.0.0.2
aaa group server tacacs+ isp_customer
 server 172.0.0.1
aaa dnis map enable
aaa dnis map 7777 accounting network start-stop broadcast group isp group isp_customer
radius-server host 10.0.0.1
radius-server host 10.0.0.2
radius-server key key_1
tacacs-server host 172.0.0.1 key key_2

The broadcast keyword causes “start” and “stop” accounting records for network connection calls having DNIS number 7777 to be sent simultaneously to server 10.0.0.1 in the group isp and to server 172.0.0.1 in the group isp_customer. If server 10.0.0.1 is unavailable, failover to server 10.0.0.2 occurs. If server 172.0.0.1 is unavailable, no failover occurs because backup servers are not configured for the group isp_customer.

Example AAA Session MIB

The following example shows how to set up the AAA session MIB feature to disconnect authenticated client connections for PPP users:

aaa new-model
aaa authentication ppp default group radius
aaa authorization network default group radius
aaa accounting network default start-stop group radius
aaa session-mib disconnect

Example Configuring VRRS Accounting

The following example shows how to configure VRRS to send AAA Accounting messages to the AAA server:

Router# configure terminal
Router(config)# aaa accounting vrrs vrrp-mlist-1 start-stop group radius
Router(config)# aaa attribute list vrrp-1-attr
Router(config-attr-list)# attribute type account-delay 10
Router(config-attr-list)# exit
Router(config)# vrrs vrrp-group-1
Router(config-vrrs)# accounting delay 10
Router(config-vrrs)# accounting method vrrp-mlist-1
Router(config-vrrs)# exit

Additional References

Related Documents

Related Topic

Document Title

Authorization

Configuring Authorization module

Authentication

Configuring Authentication module

Accounting Commands

Cisco IOS Security Command Reference

Standards

Standard

Title

No new or modified standards are supported by this feature, and support for existing standards has not been modified by this feature.

--

MIBs

MIB

MIBs Link

No new or modified MIBs are supported, and support for existing MIBs has not been modified.

To locate and download MIBs for selected platforms, Cisco software releases, and feature sets, use Cisco MIB Locator found at the following URL:

http://www.cisco.com/go/mibs

RFCs

RFC

Title

RFC 2903

Generic AAA Architecture

RFC 2904

AAA Authorization Framework

RFC 2906

AAA Authorization Requirements

RFC 2989

Criteria for Evaluating AAA Protocols for Network Access

Technical Assistance

Description

Link

The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

http://www.cisco.com/cisco/web/support/index.html

Feature Information for Configuring Accounting

The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/go/cfn. An account on Cisco.com is not required.

Table 5 Feature Information for Configuring Accounting

Feature Name

Releases

Feature Information

AAA Broadcast Accounting

12.2 12.2S 12.2SB 12.2SX 12.4T

AAA broadcast accounting allows accounting information to be sent to multiple AAA servers at the same time; that is, accounting information can be broadcast to one or more AAA servers simultaneously.

AAA Resource Accounting for Start-Stop Records

12.2 12.4T 12.2S 12.2SB 12.2SX

AAA resource accounting for start-stop records supports the ability to send a “start” record at each call setup, followed by a corresponding “stop” record at the call disconnect. This functionality can be used to manage and monitor wholesale customers from one source of data reporting, such as accounting records.

AAA Session MIB

12.2 12.4T 12.2S 12.2SB 12.2SX

The AAA session MIB feature allows customers to monitor and terminate their authenticated client connections using SNMP. The data of the client is presented so that it correlates directly to the AAA Accounting information reported by either the RADIUS or the TACACS+ server.

AAA: IPv6 Accounting Delay Enhancements

15.1(1)S

VRRS provides a multiclient information abstraction and management service between a First Hop Redundancy Protocol (FHRP) and a registered client.

Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1005R)

Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.
