Cisco ASA 5500 Series Configuration Guide using the CLI, 8.4 and 8.6

Information About DNS Inspection

• General Information About DNS
• DNS Inspection Actions

General Information About DNS

A single connection is created for multiple DNS sessions, as long as they are between the same two hosts, and the sessions have the same 5-tuple (source/destination IP address, source/destination port, and protocol). DNS identification is tracked by app_id, and the idle timer for each app_id runs independently. Because the app_id expires independently, a legitimate DNS response can only pass through the ASA within a limited period of time and there is no resource build-up. However, if you enter the show conn command, you will see the idle timer of a DNS connection being reset by a new DNS session. This is due to the nature of the shared DNS connection and is by design.

DNS Inspection Actions

DNS inspection is enabled by default. You can customize DNS inspection to perform many tasks:

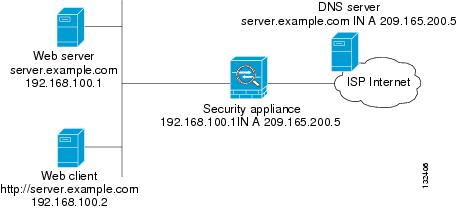

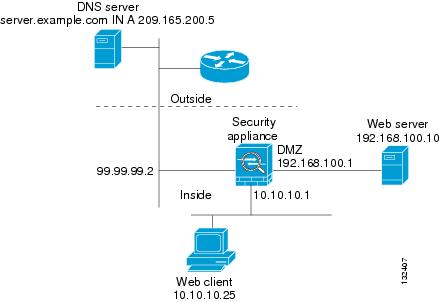

• Translate the DNS record based on the NAT configuration. For more information, see the “DNS and NAT” section.
• Enforce message length, domain-name length, and label length.
• Verify the integrity of the domain-name referred to by the pointer if compression pointers are encountered in the DNS message.
• Check to see if a compression pointer loop exists.
• Inspect packets based on the DNS header, type, class and more.

Default Settings for DNS Inspection

DNS inspection is enabled by default, using the preset_dns_map inspection class map:

• The maximum DNS message length is 512 bytes.
• The maximum client DNS message length is automatically set to match the Resource Record.
• DNS Guard is enabled, so the ASA tears down the DNS session associated with a DNS query as soon as the DNS reply is forwarded by the ASA. The ASA also monitors the message exchange to ensure that the ID of the DNS reply matches the ID of the DNS query.
• Translation of the DNS record based on the NAT configuration is enabled.
• Protocol enforcement is enabled, which enables DNS message format check, including domain name length of no more than 255 characters, label length of 63 characters, compression, and looped pointer check.

See the following default DNS inspection commands:

(Optional) Configuring a DNS Inspection Policy Map and Class Map

To match DNS packets with certain characteristics and perform special actions, create a DNS inspection policy map. You can also configure a DNS inspection class map to group multiple match criteria for reference within the inspection policy map. You can then apply the inspection policy map when you enable DNS inspection.

Prerequisites

If you want to match a DNS message domain name list, then create a regular expression using one of the methods below:

• “Creating a Regular Expression” section.
• “Creating a Regular Expression Class Map” section.

Detailed Steps

Examples

The following example shows a how to define a DNS inspection policy map.

Configuring DNS Inspection

The default ASA configuration includes many default inspections on default ports applied globally on all interfaces. A common method for customizing the inspection configuration is to customize the default global policy. The steps in this section show how to edit the default global policy, but you can alternatively create a new service policy as desired, for example, an interface-specific policy.

Detailed Steps

Examples

The following example shows a how to use a new inspection policy map in the global default configuration:

Monitoring DNS Inspection

To view information about the current DNS connections, enter the following command:

For connections using a DNS server, the source port of the connection may be replaced by the IP address of DNS server in the show conn command output.

A single connection is created for multiple DNS sessions, as long as they are between the same two hosts, and the sessions have the same 5-tuple (source/destination IP address, source/destination port, and protocol). DNS identification is tracked by app_id, and the idle timer for each app_id runs independently.

Because the app_id expires independently, a legitimate DNS response can only pass through the security appliance within a limited period of time and there is no resource build-up. However, when you enter the show conn command, you see the idle timer of a DNS connection being reset by a new DNS session. This is due to the nature of the shared DNS connection and is by design.

To display the statistics for DNS application inspection, enter the show service-policy command. The following is sample output from the show service-policy command:

FTP Inspection Overview

The FTP application inspection inspects the FTP sessions and performs four tasks:

• Prepares dynamic secondary data connection
• Tracks the FTP command-response sequence
• Generates an audit trail
• Translates the embedded IP address

FTP application inspection prepares secondary channels for FTP data transfer. Ports for these channels are negotiated through PORT or PASV commands. The channels are allocated in response to a file upload, a file download, or a directory listing event.

Note If you disable FTP inspection engines with the no inspect ftp command, outbound users can start connections only in passive mode, and all inbound FTP is disabled.

Using the strict Option

Using the strict option with the inspect ftp command increases the security of protected networks by preventing web browsers from sending embedded commands in FTP requests.

Note To specify FTP commands that are not permitted to pass through the ASA, create an FTP map according to the “Configuring an FTP Inspection Policy Map for Additional Inspection Control” section.

After you enable the strict option on an interface, FTP inspection enforces the following behavior:

• An FTP command must be acknowledged before the ASA allows a new command.
• The ASA drops connections that send embedded commands.
• The 227 and PORT commands are checked to ensure they do not appear in an error string.

Caution Using the strict option may cause the failure of FTP clients that are not strictly compliant with FTP RFCs.

---

If the strict option is enabled, each FTP command and response sequence is tracked for the following anomalous activity:

• Truncated command—Number of commas in the PORT and PASV reply command is checked to see if it is five. If it is not five, then the PORT command is assumed to be truncated and the TCP connection is closed.
• Incorrect command—Checks the FTP command to see if it ends with <CR><LF> characters, as required by the RFC. If it does not, the connection is closed.
• Size of RETR and STOR commands—These are checked against a fixed constant. If the size is greater, then an error message is logged and the connection is closed.
• Command spoofing—The PORT command should always be sent from the client. The TCP connection is denied if a PORT command is sent from the server.
• Reply spoofing—PASV reply command (227) should always be sent from the server. The TCP connection is denied if a PASV reply command is sent from the client. This prevents the security hole when the user executes “227 xxxxx a1, a2, a3, a4, p1, p2.”
• TCP stream editing—The ASA closes the connection if it detects TCP stream editing.
• Invalid port negotiation—The negotiated dynamic port value is checked to see if it is less than 1024. As port numbers in the range from 1 to 1024 are reserved for well-known connections, if the negotiated port falls in this range, then the TCP connection is freed.
• Command pipelining—The number of characters present after the port numbers in the PORT and PASV reply command is cross checked with a constant value of 8. If it is more than 8, then the TCP connection is closed.
• The ASA replaces the FTP server response to the SYST command with a series of Xs. to prevent the server from revealing its system type to FTP clients. To override this default behavior, use the no mask-syst-reply command in the FTP map.

Configuring an FTP Inspection Policy Map for Additional Inspection Control

FTP command filtering and security checks are provided using strict FTP inspection for improved security and control. Protocol conformance includes packet length checks, delimiters and packet format checks, command terminator checks, and command validation.

Blocking FTP based on user values is also supported so that it is possible for FTP sites to post files for download, but restrict access to certain users. You can block FTP connections based on file type, server name, and other attributes. System message logs are generated if an FTP connection is denied after inspection.

If you want FTP inspection to allow FTP servers to reveal their system type to FTP clients, and limit the allowed FTP commands, then create and configure an FTP map. You can then apply the FTP map when you enable FTP inspection.

To create an FTP map, perform the following steps:

Step 1 (Optional) Add one or more regular expressions for use in traffic matching commands according to the “Creating a Regular Expression” section. See the types of text you can match in the match commands described in Step 3.

Step 2 (Optional) Create one or more regular expression class maps to group regular expressions according to the “Creating a Regular Expression Class Map” section.

Step 3 (Optional) Create an FTP inspection class map by performing the following steps.

A class map groups multiple traffic matches. Traffic must match all of the match commands to match the class map. You can alternatively identify match commands directly in the policy map. The difference between creating a class map and defining the traffic match directly in the inspection policy map is that the class map lets you create more complex match criteria, and you can reuse class maps.

To specify traffic that should not match the class map, use the match not command. For example, if the match not command specifies the string “example.com,” then any traffic that includes “example.com” does not match the class map.

For the traffic that you identify in this class map, you can specify actions such as drop, drop-connection, reset, mask, set the rate limit, and/or log the connection in the inspection policy map.

If you want to perform different actions for each match command, you should identify the traffic directly in the policy map.

a. Create the class map by entering the following command:

Where class_map_name is the name of the class map. The match-all keyword is the default, and specifies that traffic must match all criteria to match the class map. The match-any keyword specifies that the traffic matches the class map if it matches at least one of the criteria. The CLI enters class-map configuration mode, where you can enter one or more match commands.

b. (Optional) To add a description to the class map, enter the following command:

c. (Optional) To match a filename for FTP transfer, enter the following command:

Where the regex_name is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2.

d. (Optional) To match a file type for FTP transfer, enter the following command:

Where the regex_name is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2.

e. (Optional) To disallow specific FTP commands, use the following command:

Where ftp_command with one or more FTP commands that you want to restrict. See Table 40-1 for a list of the FTP commands that you can restrict.

.

f. (Optional) To match an FTP server, enter the following command:

Where the regex_name is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2.

g. (Optional) To match an FTP username, enter the following command:

Where the regex_name is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2.

Step 4 Create an FTP inspection policy map, enter the following command:

Where the policy_map_name is the name of the policy map. The CLI enters policy-map configuration mode.

Step 5 (Optional) To add a description to the policy map, enter the following command:

Step 6 To apply actions to matching traffic, perform the following steps.

a. Specify the traffic on which you want to perform actions using one of the following methods:

• Specify the FTP class map that you created in Step 3 by entering the following command:

• Specify traffic directly in the policy map using one of the match commands described in Step 3. If you use a match not command, then any traffic that does not match the criterion in the match not command has the action applied.

b. Specify the action you want to perform on the matching traffic by entering the following command:

Not all options are available for each match or class command. See the CLI help or the command reference for the exact options available.

The drop keyword drops all packets that match.

The send-protocol-error keyword sends a protocol error message.

The drop-connection keyword drops the packet and closes the connection.

The mask keyword masks out the matching portion of the packet.

The reset keyword drops the packet, closes the connection, and sends a TCP reset to the server and/or client.

The log keyword, which you can use alone or with one of the other keywords, sends a system log message.

The rate-limit message_rate argument limits the rate of messages.

You can specify multiple class or match commands in the policy map. For information about the order of class and match commands, see the “Defining Actions in an Inspection Policy Map” section.

Step 7 To configure parameters that affect the inspection engine, perform the following steps:

a. To enter parameters configuration mode, enter the following command:

b. To mask the greeting banner from the FTP server, enter the following command:

c. To mask the reply to syst command, enter the following command:

Before submitting a username and password, all FTP users are presented with a greeting banner. By default, this banner includes version information useful to hackers trying to identify weaknesses in a system. The following example shows how to mask this banner:

Verifying and Monitoring FTP Inspection

FTP application inspection generates the following log messages:

• An Audit record 303002 is generated for each file that is retrieved or uploaded.
• The FTP command is checked to see if it is RETR or STOR and the retrieve and store commands are logged.
• The username is obtained by looking up a table providing the IP address.
• The username, source IP address, destination IP address, NAT address, and the file operation are logged.
• Audit record 201005 is generated if the secondary dynamic channel preparation failed due to memory shortage.

In conjunction with NAT, the FTP application inspection translates the IP address within the application payload. This is described in detail in RFC 959.

HTTP Inspection Overview

Use the HTTP inspection engine to protect against specific attacks and other threats that are associated with HTTP traffic. HTTP inspection performs several functions:

• Enhanced HTTP inspection
• URL screening through N2H2 or Websense

See Information About URL Filtering for information.

• Java and ActiveX filtering

The latter two features are configured in conjunction with the filter command. For more information about filtering, see Chapter39, “Configuring Filtering Services”

The enhanced HTTP inspection feature, which is also known as an application firewall and is available when you configure an HTTP map (see “Configuring an HTTP Inspection Policy Map for Additional Inspection Control”), can help prevent attackers from using HTTP messages for circumventing network security policy. It verifies the following for all HTTP messages:

• Conformance to RFC 2616
• Use of RFC-defined methods only.
• Compliance with the additional criteria.

Configuring an HTTP Inspection Policy Map for Additional Inspection Control

To specify actions when a message violates a parameter, create an HTTP inspection policy map. You can then apply the inspection policy map when you enable HTTP inspection.

Note When you enable HTTP inspection with an inspection policy map, strict HTTP inspection with the action reset and log is enabled by default. You can change the actions performed in response to inspection failure, but you cannot disable strict inspection as long as the inspection policy map remains enabled.

To create an HTTP inspection policy map, perform the following steps:

Step 1 (Optional) Add one or more regular expressions for use in traffic matching commands according to the “Creating a Regular Expression” section. See the types of text you can match in the match commands described in Step 3.

Step 2 (Optional) Create one or more regular expression class maps to group regular expressions according to the “Creating a Regular Expression Class Map” section.

Step 3 (Optional) Create an HTTP inspection class map by performing the following steps.

A class map groups multiple traffic matches. Traffic must match all of the match commands to match the class map. You can alternatively identify match commands directly in the policy map. The difference between creating a class map and defining the traffic match directly in the inspection policy map is that the class map lets you create more complex match criteria, and you can reuse class maps.

To specify traffic that should not match the class map, use the match not command. For example, if the match not command specifies the string “example.com,” then any traffic that includes “example.com” does not match the class map.

For the traffic that you identify in this class map, you can specify actions such as drop, drop-connection, reset, mask, set the rate limit, and/or log the connection in the inspection policy map.

If you want to perform different actions for each match command, you should identify the traffic directly in the policy map.

a. Create the class map by entering the following command:

Where class_map_name is the name of the class map. The match-all keyword is the default, and specifies that traffic must match all criteria to match the class map. The match-any keyword specifies that the traffic matches the class map if it matches at least one of the criteria. The CLI enters class-map configuration mode, where you can enter one or more match commands.

b. (Optional) To add a description to the class map, enter the following command:

c. (Optional) To match traffic with a content-type field in the HTTP response that does not match the accept field in the corresponding HTTP request message, enter the following command:

d. (Optional) To match text found in the HTTP request message arguments, enter the following command:

Where the regex_name is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2.

e. (Optional) To match text found in the HTTP request message body or to match traffic that exceeds the maximum HTTP request message body length, enter the following command:

Where the regex regex_name argument is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2. The length gt max_bytes is the maximum message body length in bytes.

f. (Optional) To match text found in the HTTP request message header, or to restrict the count or length of the header, enter the following command:

Where the field is the predefined message header keyword. The regex regex_name argument is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2. The length gt max_bytes is the maximum message body length in bytes. The count gt max_count is the maximum number of header fields.

g. (Optional) To match text found in the HTTP request message method, enter the following command:

Where the method is the predefined message method keyword. The regex regex_name argument is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2.

h. (Optional) To match text found in the HTTP request message URI, enter the following command:

Where the regex regex_name argument is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2. The length gt max_bytes is the maximum message body length in bytes.

i. Optional) To match text found in the HTTP response message body, or to comment out Java applet and Active X object tags in order to filter them, enter the following command:

Where the regex regex_name argument is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2. The length gt max_bytes is the maximum message body length in bytes.

j. (Optional) To match text found in the HTTP response message header, or to restrict the count or length of the header, enter the following command:

Where the field is the predefined message header keyword. The regex regex_name argument is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2. The length gt max_bytes is the maximum message body length in bytes. The count gt max_count is the maximum number of header fields.

k. (Optional) To match text found in the HTTP response message status line, enter the following command:

Where the regex regex_name argument is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2.

Step 4 Create an HTTP inspection policy map, enter the following command:

Where the policy_map_name is the name of the policy map. The CLI enters policy-map configuration mode.

Step 5 (Optional) To add a description to the policy map, enter the following command:

Step 6 To apply actions to matching traffic, perform the following steps.

a. Specify the traffic on which you want to perform actions using one of the following methods:

• Specify the HTTP class map that you created in Step 3 by entering the following command:

• Specify traffic directly in the policy map using one of the match commands described in Step 3. If you use a match not command, then any traffic that does not match the criterion in the match not command has the action applied.

b. Specify the action you want to perform on the matching traffic by entering the following command:

Not all options are available for each match or class command. See the CLI help or the command reference for the exact options available.

The drop keyword drops all packets that match.

The send-protocol-error keyword sends a protocol error message.

The drop-connection keyword drops the packet and closes the connection.

The mask keyword masks out the matching portion of the packet.

The reset keyword drops the packet, closes the connection, and sends a TCP reset to the server and/or client.

The log keyword, which you can use alone or with one of the other keywords, sends a system log message.

The rate-limit message_rate argument limits the rate of messages.

You can specify multiple class or match commands in the policy map. For information about the order of class and match commands, see the “Defining Actions in an Inspection Policy Map” section.

Step 7 To configure parameters that affect the inspection engine, perform the following steps:

a. To enter parameters configuration mode, enter the following command:

b. To check for HTTP protocol violations, enter the following command:

Where the drop-connection action closes the connection. The reset action closes the connection and sends a TCP reset to the client. The log action sends a system log message when this policy map matches traffic.

c. To substitute a string for the server header field, enter the following command:

Where the string argument is the string to substitute for the server header field. Note: WebVPN streams are not subject to the spoof-server comand.

The following example shows how to define an HTTP inspection policy map that will allow and log any HTTP connection that attempts to access “www\.xyz.com/.*\.asp" or "www\.xyz[0-9][0-9]\.com" with methods "GET" or "PUT." All other URL/Method combinations will be silently allowed.

IM Inspection Overview

The IM inspect engine lets you apply fine grained controls on the IM application to control the network usage and stop leakage of confidential data, propagation of worms, and other threats to the corporate network.

Configuring an Instant Messaging Inspection Policy Map for Additional Inspection Control

To specify actions when a message violates a parameter, create an IM inspection policy map. You can then apply the inspection policy map when you enable IM inspection.

To create an IM inspection policy map, perform the following steps:

Step 1 (Optional) Add one or more regular expressions for use in traffic matching commands according to the “Creating a Regular Expression” section. See the types of text you can match in the match commands described in Step 3.

Step 2 (Optional) Create one or more regular expression class maps to group regular expressions according to the “Creating a Regular Expression Class Map” section.s

Step 3 (Optional) Create an IM inspection class map by performing the following steps.

A class map groups multiple traffic matches. Traffic must match all of the match commands to match the class map. You can alternatively identify match commands directly in the policy map. The difference between creating a class map and defining the traffic match directly in the inspection policy map is that the class map lets you create more complex match criteria, and you can reuse class maps.

To specify traffic that should not match the class map, use the match not command. For example, if the match not command specifies the string “example.com,” then any traffic that includes “example.com” does not match the class map.

For the traffic that you identify in this class map, you can specify actions such as drop-connection, reset, and/or log the connection in the inspection policy map.

If you want to perform different actions for each match command, you should identify the traffic directly in the policy map.

a. Create the class map by entering the following command:

Where the class_map_name is the name of the class map. The match-all keyword is the default, and specifies that traffic must match all criteria to match the class map. The match-any keyword specifies that the traffic matches the class map if it matches at least one of the criteria. The CLI enters class-map configuration mode, where you can enter one or more match commands.

b. (Optional) To add a description to the class map, enter the following command:

Where the string is the description of the class map (up to 200 characters).

c. (Optional) To match traffic of a specific IM protocol, such as Yahoo or MSN, enter the following command:

d. (Optional) To match a specific IM service, such as chat, file-transfer, webcam, voice-chat, conference, or games, enter the following command:

e. (Optional) To match the source login name of the IM message, enter the following command:

Where the regex regex_name argument is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2.

f. (Optional) To match the destination login name of the IM message, enter the following command:

Where the regex regex_name argument is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2.

g. (Optional) To match the source IP address of the IM message, enter the following command:

Where the ip_address and the ip_address_mask is the IP address and netmask of the message source.

h. (Optional) To match the destination IP address of the IM message, enter the following command:

Where the ip_address and the ip_address_mask is the IP address and netmask of the message destination.

i. (Optional) To match the version of the IM message, enter the following command:

Where the regex regex_name argument is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2.

j. (Optional) To match the filename of the IM message, enter the following command:

Where the regex regex_name argument is the regular expression you created in Step 1. The class regex_class_name is the regular expression class map you created in Step 2.

Note Not supported using MSN IM protocol.

Step 4 Create an IM inspection policy map, enter the following command:

Where the policy_map_name is the name of the policy map. The CLI enters policy-map configuration mode.

Step 5 (Optional) To add a description to the policy map, enter the following command:

Step 6 Specify the traffic on which you want to perform actions using one of the following methods:

• Specify the IM class map that you created in Step 3 by entering the following command:

• Specify traffic directly in the policy map using one of the match commands described in Step 3. If you use a match not command, then any traffic that does not match the criterion in the match not command has the action applied.

You can specify multiple class or match commands in the policy map. For information about the order of class and match commands, see the “Defining Actions in an Inspection Policy Map” section.

Step 7 Specify the action you want to perform on the matching traffic by entering the following command:

Where the drop-connection action closes the connection. The reset action closes the connection and sends a TCP reset to the client. The log action sends a system log message when this policy map matches traffic.

The following example shows how to define an IM inspection policy map.

IP Options Inspection Overview

Each IP packet contains an IP header with the Options field. The Options field, commonly referred to as IP Options, provide for control functions that are required in some situations but unnecessary for most common communications. In particular, IP Options include provisions for time stamps, security, and special routing. Use of IP Options is optional, and the field can contain zero, one, or more options.

You can configure IP Options inspection to control which IP packets with specific IP options are allowed through the ASA. Configuring this inspection instructs the ASA to allow a packet to pass or to clear the specified IP options and then allow the packet to pass.

IP Options inspection can check for the following three IP options in a packet:

• End of Options List (EOOL) or IP Option 0—This option, which contains just a single zero byte, appears at the end of all options to mark the end of a list of options. This might not coincide with the end of the header according to the header length.
• No Operation (NOP) or IP Option 1—The Options field in the IP header can contain zero, one, or more options, which makes the total length of the field variable. However, the IP header must be a multiple of 32 bits. If the number of bits of all options is not a multiple of 32 bits, the NOP option is used as “internal padding” to align the options on a 32-bit boundary.
• Router Alert (RTRALT) or IP Option 20—This option notifies transit routers to inspect the contents of the packet even when the packet is not destined for that router. This inspection is valuable when implementing RSVP and similar protocols require relatively complex processing from the routers along the packets delivery path.

Note IP Options inspection is included by default in the global inspection policy. Therefore, the ASA allows RSVP traffic that contains packets with the Router Alert option (option 20) when the ASA is in routed mode.

Dropping RSVP packets containing the Router Alert option can cause problems in VoIP implementations.

When you configure the ASA to clear the Router Alert option from IP headers, the IP header changes in the following ways:

• The Options field is padded so that the field ends on a 32 bit boundary.
• Internet header length (IHL) changes.
• The total length of the packet changes.
• The checksum is recomputed.

If an IP header contains additional options other than EOOL, NOP, or RTRALT, regardless of whether the ASA is configured to allow these options, the ASA will drop the packet.

Configuring an IP Options Inspection Policy Map for Additional Inspection Control

Step 1 To create an IP Options inspection policy map, enter the following command:

Where the policy_map_name is the name of the policy map. The CLI enters policy-map configuration mode.

Step 2 (Optional) To add a description to the policy map, enter the following command:

Step 3 To configure parameters that affect the inspection engine, perform the following steps:

a. To enter parameters configuration mode, enter the following command:

b. To allow or clear packets with the End of Options List (EOOL) option, enter the following command:

This option, which contains just a single zero byte, appears at the end of all options to mark the end of a list of options. This might not coincide with the end of the header according to the header length.

c. To allow or clear packets with the No Operation (NOP) option, enter the following command:

The Options field in the IP header can contain zero, one, or more options, which makes the total length of the field variable. However, the IP header must be a multiple of 32 bits. If the number of bits of all options is not a multiple of 32 bits, the NOP option is used as “internal padding” to align the options on a 32-bit boundary.

d. To allowor clear packets with the Router Alert (RTRALT) option, enter the following command:

This option notifies transit routers to inspect the contents of the packet even when the packet is not destined for that router. This inspection is valuable when implementing RSVP and similar protocols require relatively complex processing from the routers along the packets delivery path.

Note Enter the clear command to clear the IP option from the packet before allowing the packet through the ASA.

IPsec Pass Through Inspection Overview

Internet Protocol Security (IPsec) is a protocol suite for securing IP communications by authenticating and encrypting each IP packet of a data stream. IPsec also includes protocols for establishing mutual authentication between agents at the beginning of the session and negotiation of cryptographic keys to be used during the session. IPsec can be used to protect data flows between a pair of hosts (for example, computer users or servers), between a pair of security gateways (such as routers or firewalls), or between a security gateway and a host.

IPsec Pass Through application inspection provides convenient traversal of ESP (IP protocol 50) and AH (IP protocol 51) traffic associated with an IKE UDP port 500 connection. It avoids lengthy access list configuration to permit ESP and AH traffic and also provides security using timeout and max connections.

Specify IPsec Pass Through inspection parameters to identify a specific map to use for defining the parameters for the inspection. Configure a policy map for Specify IPsec Pass Through inspection to access the parameters configuration, which lets you specify the restrictions for ESP or AH traffic. You can set the per client max connections and the idle timeout in parameters configuration.

NAT and non-NAT traffic is permitted. However, PAT is not supported.

Example for Defining an IPsec Pass Through Parameter Map

The following example shows how to use access lists to identify IKE traffic, define an IPsec Pass Thru parameter map, define a policy, and apply the policy to the outside interface:

Information about IPv6 Inspection

IPv6 inspection lets you selectively log or drop IPv6 traffic based on the extension header. In addition, IPv6 inspection can check conformance to RFC 2460 for type and order of extension headers in IPv6 packets.

Default Settings for IPv6 Inspection

If you enable IPv6 inspection and do not specify an inspection policy map, then the default IPv6 inspection policy map is used, and the following actions are taken:

• Allows only known IPv6 extension headers
• Enforces the order of IPv6 extension headers as defined in the RFC 2460 specification

If you create an inspection policy map, the above actions are taken by default unless you explicitly disable them.

(Optional) Configuring an IPv6 Inspection Policy Map

To identify extension headers to drop or log, and/or to disable packet verification, create an IPv6 inspection policy map to be used by the service policy.

Detailed Steps

Examples

The following example creates an inspection policy map that will drop and log all IPv6 packets with the hop-by-hop, destination-option, routing-address, and routing type 0 headers:

Configuring IPv6 Inspection

To enable IPv6 inspection, perform the following steps.

Detailed Steps

Examples

The following example drops all IPv6 traffic with the hop-by-hop, destination-option, routing-address, and routing type 0 headers:

NetBIOS Inspection Overview

NetBIOS inspection is enabled by default. The NetBios inspection engine translates IP addresses in the NetBios name service (NBNS) packets according to the ASA NAT configuration.

Configuring a NetBIOS Inspection Policy Map for Additional Inspection Control

To specify actions when a message violates a parameter, create a NETBIOS inspection policy map. You can then apply the inspection policy map when you enable NETBIOS inspection.

To create a NETBIOS inspection policy map, perform the following steps:

Step 1 (Optional) Add one or more regular expressions for use in traffic matching commands according to the “Creating a Regular Expression” section. See the types of text you can match in the match commands described in Step 3.

Step 2 (Optional) Create one or more regular expression class maps to group regular expressions according to the “Creating a Regular Expression Class Map” section.

Step 3 Create a NetBIOS inspection policy map, enter the following command:

Where the policy_map_name is the name of the policy map. The CLI enters policy-map configuration mode.

Step 4 (Optional) To add a description to the policy map, enter the following command:

Step 5 To apply actions to matching traffic, perform the following steps.

a. Specify the traffic on which you want to perform actions using one of the following methods:

• Specify the NetBIOS class map that you created in Step 3 by entering the following command:

• Specify traffic directly in the policy map using one of the match commands described in Step 3. If you use a match not command, then any traffic that does not match the criterion in the match not command has the action applied.

b. Specify the action you want to perform on the matching traffic by entering the following command:

Not all options are available for each match or class command. See the CLI help or the command reference for the exact options available.

The drop keyword drops all packets that match.

The send-protocol-error keyword sends a protocol error message.

The drop-connection keyword drops the packet and closes the connection.

The mask keyword masks out the matching portion of the packet.

The reset keyword drops the packet, closes the connection, and sends a TCP reset to the server and/or client.

The log keyword, which you can use alone or with one of the other keywords, sends a system log message.

The rate-limit message_rate argument limits the rate of messages.

You can specify multiple class or match commands in the policy map. For information about the order of class and match commands, see the “Defining Actions in an Inspection Policy Map” section.

Step 6 To configure parameters that affect the inspection engine, perform the following steps:

a. To enter parameters configuration mode, enter the following command:

b. To check for NETBIOS protocol violations, enter the following command:

Where the drop-connection action closes the connection. The reset action closes the connection and sends a TCP reset to the client. The log action sends a system log message when this policy map matches traffic.

The following example shows how to define a NETBIOS inspection policy map.

SMTP and ESMTP Inspection Overview

ESMTP application inspection provides improved protection against SMTP-based attacks by restricting the types of SMTP commands that can pass through the ASA and by adding monitoring capabilities.

ESMTP is an enhancement to the SMTP protocol and is similar is most respects to SMTP. For convenience, the term SMTP is used in this document to refer to both SMTP and ESMTP. The application inspection process for extended SMTP is similar to SMTP application inspection and includes support for SMTP sessions. Most commands used in an extended SMTP session are the same as those used in an SMTP session but an ESMTP session is considerably faster and offers more options related to reliability and security, such as delivery status notification.

Extended SMTP application inspection adds support for these extended SMTP commands, including AUTH, EHLO, ETRN, HELP, SAML, SEND, SOML, STARTTLS, and VRFY. Along with the support for seven RFC 821 commands (DATA, HELO, MAIL, NOOP, QUIT, RCPT, RSET), the ASA supports a total of fifteen SMTP commands.

Other extended SMTP commands, such as ATRN, ONEX, VERB, CHUNKING, and private extensions and are not supported. Unsupported commands are translated into Xs, which are rejected by the internal server. This results in a message such as “500 Command unknown: 'XXX'.” Incomplete commands are discarded.

The ESMTP inspection engine changes the characters in the server SMTP banner to asterisks except for the “2”, “0”, “0” characters. Carriage return (CR) and linefeed (LF) characters are ignored.

With SMTP inspection enabled, a Telnet session used for interactive SMTP may hang if the following rules are not observed: SMTP commands must be at least four characters in length; must be terminated with carriage return and line feed; and must wait for a response before issuing the next reply.

An SMTP server responds to client requests with numeric reply codes and optional human-readable strings. SMTP application inspection controls and reduces the commands that the user can use as well as the messages that the server returns. SMTP inspection performs three primary tasks:

• Restricts SMTP requests to seven basic SMTP commands and eight extended commands.
• Monitors the SMTP command-response sequence.
• Generates an audit trail—Audit record 108002 is generated when invalid character embedded in the mail address is replaced. For more information, see RFC 821.

SMTP inspection monitors the command and response sequence for the following anomalous signatures:

• Truncated commands.
• Incorrect command termination (not terminated with <CR><LR>).
• The MAIL and RCPT commands specify who are the sender and the receiver of the mail. Mail addresses are scanned for strange characters. The pipeline character (|) is deleted (changed to a blank space) and “<” ‚”>” are only allowed if they are used to define a mail address (“>” must be preceded by “<”). To close the session when the PIPE character is found as a parameter to a MAIL from or RCPT to command, include the special-character command in the configuration as part of the inspection parameters (parameters command).
• Unexpected transition by the SMTP server.
• For unknown commands, the ASA changes all the characters in the packet to X. In this case, the server generates an error code to the client. Because of the change in the packed, the TCP checksum has to be recalculated or adjusted.
• TCP stream editing.
• Command pipelining.

Configuring an ESMTP Inspection Policy Map for Additional Inspection Control

ESMTP inspection detects attacks, including spam, phising, malformed message attacks, buffer overflow/underflow attacks. It also provides support for application security and protocol conformance, which enforce the sanity of the ESMTP messages as well as detect several attacks, block senders/receivers, and block mail relay.

To specify actions when a message violates a parameter, create an ESMTP inspection policy map. You can then apply the inspection policy map when you enable ESMTP inspection.

To create an ESMTP inspection policy map, perform the following steps:

Step 1 (Optional) Add one or more regular expressions for use in traffic matching commands according to the “Creating a Regular Expression” section. See the types of text you can match in the match commands described in Step 3.

Step 2 (Optional) Create one or more regular expression class maps to group regular expressions according to the “Creating a Regular Expression Class Map” section.

Step 3 Create an ESMTP inspection policy map, enter the following command:

Where the policy_map_name is the name of the policy map. The CLI enters policy-map configuration mode.

Step 4 (Optional) To add a description to the policy map, enter the following command:

Step 5 To apply actions to matching traffic, perform the following steps.

a. Specify the traffic on which you want to perform actions using one of the following methods:

• Specify the ESMTP class map that you created in Step 3 by entering the following command:

• Specify traffic directly in the policy map using one of the match commands described in Step 3. If you use a match not command, then any traffic that does not match the criterion in the match not command has the action applied.

b. Specify the action you want to perform on the matching traffic by entering the following command:

Not all options are available for each match or class command. See the CLI help or the command reference for the exact options available.

The drop keyword drops all packets that match.

The send-protocol-error keyword sends a protocol error message.

The drop-connection keyword drops the packet and closes the connection.

The mask keyword masks out the matching portion of the packet.

The reset keyword drops the packet, closes the connection, and sends a TCP reset to the server and/or client.

The log keyword, which you can use alone or with one of the other keywords, sends a system log message.

The rate-limit message_rate argument limits the rate of messages.

You can specify multiple class or match commands in the policy map. For information about the order of class and match commands, see the “Defining Actions in an Inspection Policy Map” section.

Step 6 To configure parameters that affect the inspection engine, perform the following steps:

a. To enter parameters configuration mode, enter the following command:

b. To configure a local domain name, enter the following command:

Where the drop-connection action closes the connection. The log action sends a system log message when this policy map matches traffic.

c. To enforce banner obfuscation, enter the following command:

The following example shows how to define an ESMTP inspection policy map.
