Campus 3.0 Virtual Switching System Design Guide

Virtual Switch Domain (VSD) and Switch ID

Virtual Domain

Defining the domain identifier (ID) is the first step in creating a VSS from two physical chassis. A unique domain ID identifies two switches that are intended to be part of the same VSS pair that defines the VSS domain. Assignment of a domain ID allows multiple virtual switch pairs to be connected in a hierarchical manner. Only one VSS pair can participate in a particular domain. The domain ID can have a value ranging from 1 to 255 and must be unique when multiple VSS pairs are connected together. See Figure 2.

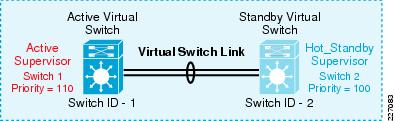

Figure 2 VSS Domain IDs

The domain ID is defined in both physical switches as shown in the following examples.

Standalone Switch 1:

Standalone Switch 2:

The use of a domain ID is important for networks in which VSS is deployed at multiple layers in a manner as shown in Figure 2. This unique ID is used in many different protocol and systems configurations—such as virtual Media Access Control (MAC), Port Aggregation Protocol (PAgP), and Link Aggregate Control Protocol (LACP) control packets. If two connected VSS domains contain the same domain ID, the conflict will affect VSS operation.

The following command output example illustrates the domain ID used in the LACP system ID. The last octet—0a (hex)— is derived from the domain ID of 10 (decimal).

Tip The recommendation is to use a unique domain ID as a best practice, even when you are not connecting multiple VSS domains together.

Switch Identifier

A VSS comprises of pair of physical switches and requires a switch ID to identify each chassis with a unique number. The switch ID can be either 1 or 2 and must be unique on each member chassis. This number is used as part of the interface naming to ensure that the interface name remains the same regardless of the virtual switch role (active or hot-standby switch). Usually the switch ID should be set in configuration mode as shown in the following examples.

Standalone Switch 1:

Standalone Switch 2:

However, when a hardware problem on one supervisor prompts the adoption of a new supervisor, you can set the switch ID via the command-line interface (CLI) in enable mode as shown in the following configuration examples.

Standalone Switch 1:

Standalone Switch 2:

Both methods write the switch identifier in each member chassis ROMMON. The domain ID and switch number via following can be shown via the following CLI example.

Virtual Switch Link (VSL)

The VSS is made of two physical chassis combined to form a single logical entity. This unification of the control plane is only possible if the system controls, signaling, and backplane exist as a single entity in both chassis. This extension of the system control plane is achieved via a special purpose EtherChannel bundle. The link belonging to EtherChannel is called Virtual Switch Link (VSL). The VSL serves as logical connection that carries critical system control information such as hot-standby supervisor programming, line card status, Distributed Forwarding Card (DFC) card programming, system management, diagnostics, and more. In addition, VSL is also capable of carrying user data traffic when necessary. Thus, the VSL has a dual purpose, supporting system control synchronization and a data link.

The VSL link is treated as a systems control link and encapsulates all traffic into a special system header called the Virtual Switch Header (VSH). This encapsulation is done via dedicated hardware resources and the VSL can only be configured on a 10-Gigabit interface with following hardware ports:

• Sup720-10G, 10-Gbps ports
• WS-X6708
• WS-X6716 (in performance mode only, requires 12.2(33)SXI)

The size of the VSH is the same as that of the internal compact header used by the Cisco Catalyst 6500—it is 32 bytes long. This header is placed after the Ethernet preamble and directly before the Layer-2 header. See Figure 3.

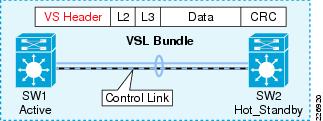

Figure 3 VSL Header and Control Link

VSL link Initialization and Operational Characteristics

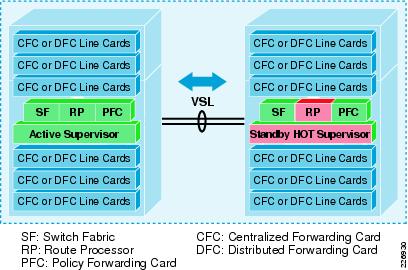

The VSS features a single control plane with a distributed forwarding architecture (see the “Stateful Switch Over Technology” section). Although only one supervisor manages the control plane, both switches participate in learning the control plane information. Any network and system control plane information learned via the hot-standby switch is sent to the active supervisor which in turn updates the hot-standby supervisor. This bidirectional process of learning and updating between switches is carried out over the VSL link.

The VSL is an integral component of the VSS because it is the only path through which the two independent systems can become aware of each other during system initialization. This mutual awareness during system initialization is needed to determine the respective role of each physical chassis in becoming either the active or hot-standby virtual switch. For this reason, VSL links are brought up very early in the boot up process—before any other major service or component. To accomplish this task, each switch stores the switch number and other information necessary in ROMMON to activate the VSL link and associated line card booting sequence. During the VSL initialization, the system undergoes a variety of compatibility checks required to form a virtual switch. The VSS requires identical supervisor types and Cisco IOS software versions on both chassis. Please refer to the applicable release note for additional system requirements needed to form a virtual switch. VSL link initialization and maintenance are done through the VSL Protocol (VSLP) framework, which consists of two protocols: Link Management Protocol (LMP) and Role Resolution Protocol (RRP). LMP manages link integrity, while RRP determines the role of each switch member in the virtual switch domain. RRP is covered under “Stateful Switch Over Technology” section.

Link Management Protocol (LMP)

LMP is the first protocol to be initialized, once the VLS line card diagnostics is finished and VSL link comes on line. See Figure 4. The LMP is designed to perform following critical functions:

• Establishing and verifying bidirectional communications during startup and normal operation.
• Exchanging switch IDs to detect a duplicate switch ID or member that is connected to another virtual switch. This will be used by the RRP to determine the role of the switch (active or hot-standby).
• Independently transmitting and receiving LMP hello timers to monitor the health of the VSL and peer switch.

Figure 4 Link Management Protocol (LMP)

LMP operates independently on each member switch in the same Virtual Switch Domain (VSD). Unlike other protocols—such as PAgP, LACP and Interior Gateway Protocol (IGP) hello—that use a single control plane over which the active switch originates and terminates the protocol, both switches in the VSD independently originate and terminate LMP control-plane packets on the Switch Processor (SP). See the dotted-red circle highlighting in Figure 5. LMP is designed to run on each VSL member link to maintain multiple state machines with the same peer over different ports. In a case in which a unidirectional condition on a port is detected, LMP marks it as down and attempts to restart VSLP negotiation—instead of err-disabling the port. On each member switch of a VSD, LMP internally forms a single unique peer group (PG) ID with a common set of VSL links. When all VSL interfaces are down, LMP destroys the peer group and notifies RRP to take an appropriate action. The active switch will detach all the interfaces associated with the hot-standby switch. At the same time the hot-standby switch performs switchover, assumes the active role, and detaches all interfaces associated with the previously active switch.

LMP hello packets are Logical Link Control (LLC)/ Sub-network Access Protocol (SNAP)-encapsulated with the destination MAC address matching the Cisco Discovery Protocol (CDP)—01.00.0C.CC.CC.CC. All inter-chassis control plane traffic, including LMP and hello packets, are classified as bridge protocol data unit (BDPU) packets and are automatically placed in transmit priority queue.

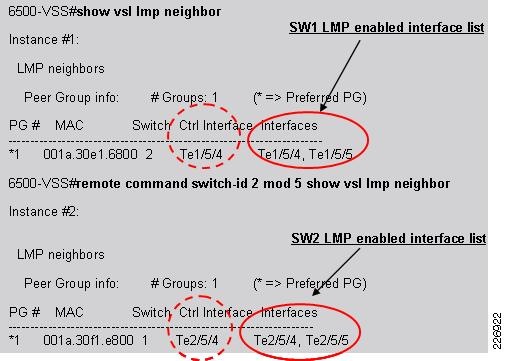

Figure 5 Output Showing LMP Enabled Interface List

Control Link and Inter-Chassis Control Plane

The VSL bundle is special purpose EtherChannel that can have up to eight members. Only one link out of a configured member is selected as the control link and that control link is the only link that can carry the inter-chassis control plane. The control link carries the inter-switch External Out-of-Band Channel (EOBC) control traffic that includes the Switch Control Packet (SCP) for line card communication, Inter-process Communication Packets (IPC), and Inter-Card Communication (ICC) for communicating the protocol database and state—as well as updates to the hot-standby supervisor. In addition, the same link can carry user and other network control traffic—depending how the traffic is hashed (based on source and destination MAC and/or IP addresses). The remaining bundled links carry network control plane and user data traffic, but not the inter-chassis control plane traffic (see the “Traffic Prioritization and Load-sharing with VSL” section). The control link is shown in Figure 4

The control-link selection procedure is determined by the VSS system and cannot be managed by the user. During the bootup process, the first VSL link that establishes LMP relationship (state-machine) will be selected as the control link. Based on the Cisco Catalyst 6500 architecture, the supervisor module becomes operational ahead of any other module installed in the switch. If the 10-Gbps port of Sup720-10G module is bundled in the VSL EtherChannel, then it will be selected as control-link interface whenever both switches undergo the boot process.

The show vslp lmp neighbor command output illustrated in Figure 6 depicts the current control link interface (see the dotted red circle) and list of backup VSL interfaces (which can be used if the current control-link path fails). Backup interfaces are member links of the local virtual switch’s VSL EtherChannel. For a highly redundant VSL network design, the VSL EtherChannel must be bundled with multiple, VSL-capable 10-Gbps ports between the switch members. In such a case, the first listed interface under the Interfaces column of the show vslp lmp neighbor command will immediately become control link interface if the current control link interface fails. When the 10-Gbps port of a Sup720-10G module is restored and rejoins the VSL EtherChannel, it will be placed as the next available control-link backup path without affecting the current control link interface (see second part of the output illustrated Figure 6 after control link is brought back up).

Figure 6 Control Link Interfaces Selection

LMP Heart Beat

The LMP heart beat—also referred as the LMP hello timer—plays a key role in maintaining the integrity of VSS by checking peer switch availability and connectivity. Both VSS members execute independent, deterministic SSO switchover actions if they fail to detect the LMP hello message within configured hold-timer settings on the last bundled VSL link. The set of LMP timers are used in combination to determine the interval of the hello transmission applied to maintain the healthy status of the VSL links. The three timers are as follows:

• Hello Transmit Timer (T4)
• Minimum Receive Timer (min_rx)
• T5 Timer (min_rx * multiplier)

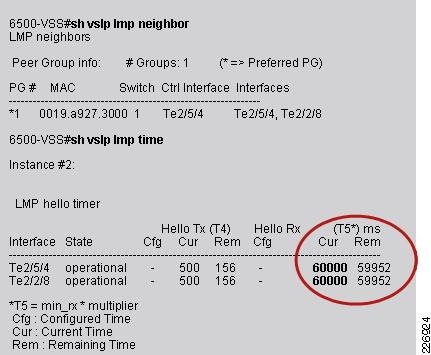

Figure 7 illustrates an example CLI output depicting the timer values per VSL link member.

Figure 7 Timer Values per VLS Link Member

By default, the LMP hello transmit timer (T4) and receive timer (min_rx) are assigned values of 500 msec each. The hold-timer (T5 timer) is derived from a min_rx and default multiplier of 120 (the CLI does not show the default multiplier). By default, a VSL member link time out is detected in 60,000 msec (60 seconds). The expiration of T5 indicates possible instability on the remote peer (active or hot-standby switch). Each switch member will take an independent action if the T5 timer expires. These actions include (but are not limited to) the following:

• If expiration occurs on a VSL port that is the control link, then the switch that detected the problem will force the new control link selection. It is entirely possible that T5 timer would have not yet expired on the remote peer; however, the remote peer switch will respect the request and reprogram internal logic to send control plane traffic to the newly elected VSL port as the control link port.
• If expiration occurs on a non-control link port, the switch that detected the failure selects an available port for user data traffic. Eventually, the remote peer detects a change and removes the link from the bundle.
• If expiration occurs on the last VSL port (a combination control link and user data port) and the timeout is detected on the active switch, then the active switch removes all the peer switch interfaces and announces the change to rest of the network—depending on the configuration on those interface (Layer-2 or Layer-3 protocol). Eventually, the peer switch that is in hot-standby mode will detect the T5 timer expiration and LMP will inform RRP, which forces the hot-standby switch to become the active switch. This triggers a condition known as dual active in which both switches declare active roles leading to instability in the network (refer to the “Campus Recovery with VSS Dual-Active Supervisors” section for information about avoiding such conditions).

Why Timer Should Not be Modified

The LMP timer is used primarily for ensuring the integrity of VSS (during high CPU usage or abnormal software behavior). Normal hardware failure detection or switchover (user or system initiated) is invoked via the hardware mechanism known as Fast Link Notification (FLN). When an applicable event occurs, FLN informs the firmware of WS-X6708 or Sup720-10G ports to take any necessary action—typically within 50 to 100 msec. FLN is not designed to detect the failure of the remote switch. In most cases, modifying the default LMP timer to a shorter value does not improve convergence. This is because inter-chassis control plane protocol timer (IPC timer) expires before LMP timers and thus supersede the action taken.

Unintended effects can result when VSLP timers are aggressively modified. For example, modifying the VSLP timer to a lower value will add significant instability. An example scenario description follows:

When configured with a lower VSLP timer value, the VSL will typically fail to establish neighbor relationships between member switches—leading to continuous rebooting (a crash in Cisco IOS parlance) of the switch. During the boot up process, the VSS switch must process multiple high-priority activities. When enabled with an aggressive VSLP timer, each member might be unable to maintain the VSLP session due to the lack of resources. When LMP hello times out on either side, LMP removes the VSL member link from VSL EtherChannel. Eventually, all links between the active and hot-standby switches can fail. For the hot-standby switch, this is considered a catastrophic error and the only way to recover is to immediately send a reset signal (crash) and start over. This can continue until at least one LMP session is established and thus can cause significant network instability.

In addition, a VSS member might also fail to send or receive LMP hello message within a configured T5 timer limit due to VSL link congestion or high CPU utilization. In such situations, the VSS system will become unstable, which can lead to a dual-active condition.

Tip Cisco strongly recommends that you do not modify the default LMP (VSLP) timers.

Role Resolution Protocol (RRP)

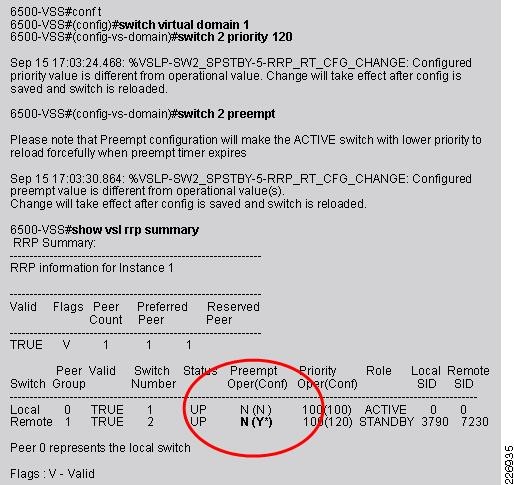

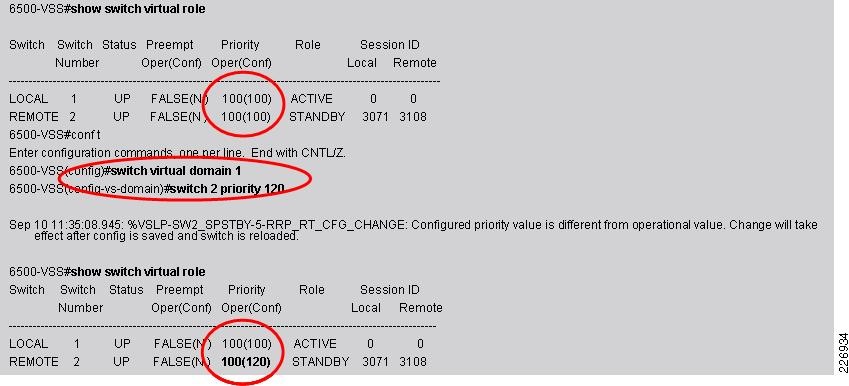

RRP is responsible for determining the operational status of each VSS switch member. Based on the configured parameter, a member switch can assume a role of the active, hot standby, or Route Process Redundancy (RPR). The RRP provides checks for Cisco IOS software compatibility. If the software versions are not compatible, RRP forces one of the switches into RPR mode and all line cards are powered off. The “Virtual Switch Role, Priorities and Switch Preemption” section provides details of the RRP because its application is more relevant to chassis redundancy and SSO operation.

Configuring VSL Bundle

Configuring VSL is the second step in creating a virtual switch (after defining the domain ID). The VSL bundle is a special-purpose port channel. Each standalone switch is required to be configured with unique port-channel interface numbers; before assigning a port-channel number, you must make sure that the port-channel interface number is not used by an existing standalone configuration on either switch. The following configuration steps are required in each switch to convert the standalone switch to a VSS. The detailed conversion process is beyond the scope of this document. For addressing VSS conversion, refer to the Migrate Standalone Cisco Catalyst 6500 Switch to Cisco Catalyst 6500 Virtual Switching System document at the following URL:

http://www.cisco.com/en/US/products/ps9336/products_tech_note09186a0080a7c74c.shtml

Standalone Switch 1:

Standalone Switch 2:

Since VSL EtherChannel uses LMP per member link, the link-aggregation protocols, such as PAgP and LACP, are not required; each member link must be configured in unconditional EtherChannel mode using the channel-group group-number mode on command. Once the VSL configuration is completed, using the switch convert mode virtual CLI command at the enable prompt will start the conversion process. The conversion process includes changing the interface naming convention from slot/interface to switch_number/slot/interface , saving the configuration, and rebooting. During switch rebooting, the systems recognize the VSL configuration and proceeds with their respective VSL ports initialization processes. The two switches communicate with each other and determine which will have active and hot-standby roles. This exchange of information is evident through the following console messages:

Standalone Switch 1 console:

Standalone Switch 2 console:

A first-time VSS conversion requires that you must execute the following command as the final step of accepting the virtual mode operation of the combined switches. If the switch has been converted, or partially converted, you cannot use this command.

The preceding command forces the integration of all VSL-link related configurations from the hot-standby switch and populates the running configuration with those commands. In addition, the startup configurations are updated with the new merged configurations. The following prompt appears:

Note Only VSL-related configurations are merged with the conversion step. All other configurations must be managed per your network site implementation requirements. Follow the related Cisco product documentation for further details.

VSL Characteristics

The VSL port channel is treated as an internal systems link. As a result, its configuration, resiliency, mode of operation, quality of service (QoS), and traffic load sharing follow a set of rules that are specific to VSL. This section covers configuration requirements relating to those rules. The logical port channel and its member link both have distinct sets of restrictions.

VSL port-channel logical interface configuration is restricted to VSL-related configuration; all other Cisco IOS features are disabled. The following output illustrates available options:

VSL member links are in restricted configuration mode once the VSL configuration is applied. All Cisco IOS configuration options are disabled except following:

• EtherChannel
• Netflow configuration
• Default QoS configuration

The following output illustrates available options:

When configuring VSL interfaces, only one VSL EtherChannel configuration per virtual-switch is possible. Configuring an additional VSL EtherChannel will result in an error. The following are examples of error messages generated:

In addition, for post VSS conversion, a neighbor switch port cannot be bundled into the local switch’s VSL EtherChannel. In the example used here, the Switch 1 VSL EtherChannel cannot bundle a physical port from Switch 2. However, a regular EtherChannel does not have such a restriction. The following example output illustrates the error message generated when attempting to configure this unsupported mode:

The remainder of this section covers design considerations for prioritizing traffic over VSL links, resiliency, and traffic load-sharing options available with VSL.

VSL QoS and Prioritization of Traffic

Today’s enterprise application requirements are diverse. Many time-critical services (including voice, video and multicast)—as well as enterprise applications, such as customer relationship management (CRM), SAP, and Oracle—require specific priorities in the campus network. The QoS design guide (available at the URL below) describes an approach for classifying user traffic at the edge and using those priorities intelligently via the Differentiated Services Code Point (DSCP) trust model. This design guide does not cover generic QoS requirements and behavior in VSS; however, this section does address QoS as it applies to a VSL link in terms of default behavior, how the control plane is protected, and implementation options that network designers should consider.

http://www.cisco.com/en/US/docs/solutions/Enterprise/WAN_and_MAN/QoS_SRND_40/QoSCampus_40.html

Hardware Configuration Dependency

Due to the ease of configuration, flexibility, and bandwidth requirement, the distribution layer traditionally leverages line cards for connectivity to the core and access layer, thus the use of supervisor ports is limited. The access layer uses the uplink from either a supervisor or a dedicated port on non-modular switches. The Sup720-10G supervisor offers a new option of using the 10-Gbps port available on the supervisor to provide uplink connectivity to the core. This requires an understanding of the current design choices with the Sup720-10G uplink port with respect to QoS when used as the VSL port and/or uplink to the rest of the network. The VSL link can only be configured on 10-Gbps ports. Choosing the VSL link configuration on either a supervisor port or line card affects the QoS capability on the unused ports of the supervisor. The Sup720-10G supervisor has two 10-Gbps ports and three 1-Gbps ports. The Sup720-10G uplink ports can be configured in one of two modes:

• Default—Non-10 gigabit-only mode

In this mode, all ports must follow a single queuing mode. If any 10-Gbps port is used for the VSL link, the remaining ports (10 Gbps or 1Gbps) follow the same CoS-mode of queuing for any other non-VSL connectivity because VSL only allows class of service (CoS)-based queuing.

• Non-blocking—10 gigabit-only mode

In this mode all 1-Gbps ports are disabled, as the entire module operates in a non-blocking mode. Even if only one 10G port used as VSL link, still both 10-Gbps port is restricted to CoS-based trust model. 12.2(33)SXI removes this limitation by allowing the unused (non-VSL configured)10-Gbps port be configured based on user preference, including DSCP-based queuing.

Figure 8 shows that a 10-Gbps-only mode increases transmit queue from default 1p3q4t to the 1p7q4t setting. It also increases the receive queue size from 2p4t to 8q4t similar to the WS-X6708 module. However, the default Tx and Rx queue mapping remains CoS-based with or without 10-Gbps-only mode. As a result, there is no real benefit to using an improved queue structure to map each class of traffic in separate queues because the default COS-to-queue mapping cannot be changed.

Figure 8 Comparison of Default and Non-Blocking Modes

If one of the WS-X6708 line card port is used as the VSL link, port queuing for that port is limited to being CoS-based; however, the remaining ports can have independent sets of QoS configuration.

The resilient VSL design uses these facts as a design factor. summarizes the options and restrictions for Sup720-10G uplink ports. The “Resilient VSL Design Consideration” section describes incorporating these design factors when developing highly resilient and flexible VSL configurations.

Default QOS Setting for VSL

The VSL (by default) uses a CoS-based trust model. This default CoS-trust setting on VSL EtherChannel cannot be modified or removed. Regardless of the QoS configuration in global mode, the VSL EtherChannel is set to CoS-based queuing mode. Figure 9 shows the QoS configuration of VSL link on SW1 and SW2. As with a standalone switch, the VSS uses the internal CoS-based queuing with various mapping tables for placing user traffic into the egress queue. Traffic traversing the VSL link uses the same facilities with a CoS-based trust model. The Weighted Round Robin (WRR) queuing scheduler is enabled by default on each VSL member link. The VSL link’s QoS configuration does not alter the QoS marking set in the user traffic when that traffic traverses the VSL link.

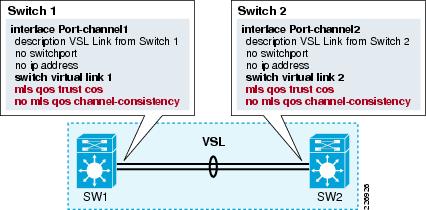

Figure 9 VSL CoS Configuration Example Comparison

The best-practice recommendation for VSL link resiliency is to bundle two 10-Gbps ports from different sources. Doing this might require having one port from the supervisor and other from a Cisco 6708 line card. By default, the Sup720-10G supervisor 10-Gbps port has a non-Distributed Forwarding Card (DFC) 1p3q4t Tx-queue structure in contrast with the WS-X6708 linecard which has a DFC-based 1p7q4t Tx-queue structure. For the conventional configuration of EtherChannel, a bundle between non-congruent queue structures would fail. However, the VSL bundle is by default enabled with the configuration which allows the EtherChannel to be formed. This is enabled via the no mls qos channel-consistency command.

The following QoS configuration restrictions apply once the port is bundled in the VSL EtherChannel:

• The CoS-mode setting cannot be changed or removed from VSL port-channel.
• Any QoS configuration, such as DSCP-based trust, receive-queue bandwidth, or threshold limit, cannot be modified on any of the 1-Gbps or 10-Gbps ports of the Sup720-10GE module after bundling the link to the VSL port-channel. Applying such restricted QoS configurations will result in an error.
• User-defined Modular QoS CLI (MQC) service-policies cannot be attached to the VSL EtherChannel.
• Bundling of the 10-Gbps port in the VSL port-channel will fail if unsupported QoS capabilities are preconfigured. All QoS configuration must be removed prior bundling the port into the VSL EtherChannel.

Note The WS-X6708 module supports independent QoS policies on non-VSL configured ports, even if one of its 10-Gbps ports is bundled in the VSL EtherChannel.

Traffic Prioritization and Load-sharing with VSL

This section addresses the following topics:

• Prioritizing Specific Traffic Types
• User Data Traffic
• Network Control Plane Traffic
• VSS Inter-Switch Communication and Layer-2 per Link Control Traffic
• Load-Sharing with VSL

Prioritizing Specific Traffic Types

The VSL link can potentially carry three types of traffic and uses QoS mapping to distinguish between each. Traffic types carried over a VSL link include the following:

• User data traffic
• Network control plan traffic
• VSS inter-switch communication and Layer-2 per link control traffic

These are described briefly in the sections that follow.

User Data Traffic

In a recommended best-practice configuration implementation, all devices are attached to the VSS via MEC-based connections (see the “MEC Configuration” section). In dual-homed MEC connectivity, pass-through user data traffic does not traverse the VSL link. However, during certain conditions user data must traverse VSL link; applicable conditions include (but are not limited to) the following:

• Failure of uplink from access layer to VSS causing downstream traffic to flow over the VSL link
• Remote Switched Port Analyzer (SPAN) traffic from one VSS switch member to the other
• Service-module traffic flow from FWSM, Wireless Services Module (WiSM), Intrusion Detection System (IDS), and other modules

VSL itself does not alter the QoS marking of user data traffic. It simply categorizes the preceding types of traffic using the CoS-based queuing. As a result, any ingress traffic QoS marking that is not based on CoS must use the internal QoS mapping table to provide the translation to CoS-based queuing. Any end-user application traffic marked with 802.1p CoS 5, DSCP 46, or IPP 5 will be placed in the priority-queue.

Network Control Plane Traffic

The active switch always originates and terminates network control plane traffic from participating adjacent devices. The active switch always uses a locally attached interface (link) to forward the control plane traffic. The network control plane traffic that must traverse the VSL due to either a failure of local links connected to active switch or traffic sourced by a hot-standby switch, including the following:

• Layer-3 protocol traffic for Layer-3 Equal Cost Multipath (ECMP) links on the hot-standby switch—Routing protocol control traffic, such as hello, update, database, and so on
• Traffic intended for the VSS supervisor—Internet Control Message Protocol (ICMP) responses from other devices, time-to-live (TTL) with value of 1 in increments of hop counts (it must terminate at the active switch), SNMP, Telnet/SSH, and so on.

VSS Inter-Switch Communication and Layer-2 per Link Control Traffic

All communications among VSS member switches are defined as inter-switch traffic. VSS systems automatically classify the following inter-switch control plane protocols as Bridge Protocol Data Unit (BPDU)-type traffic:

• Inter-Switch Communication

– Inter-Chassis Ethernet Out Band Channel (EOBC) traffic— Serial Communication Protocol ( SCP), IPC, and ICC

– Virtual Switch Link Protocol (VSLP) —LMP and RRP control-link packets

• Any Layer-2 per link protocol—Spanning Tree Protocol (STP) BPDU, Port Aggregation Protocol (PagP)+, LACP, CDP and Unidirectional Link Detection (UDLD), Link Layer Discovery Protocol (LLDP), Root Link Query (RLQ), Ethernet Operations, Administration, and Maintenance (OAM), 802.1x, Dynamic Trunking Protocol (DTP), and so on.

These BPDU packets are automatically placed in transmit priority-queue ahead of any other traffic

Note Network control plane traffic (Layer 2 and Layer 3) is always sent out links connected to the active switch. It will only cross over the VSL either due to a local link being unavailable or the protocol frame needing to be originated from the hot-standby port (e.g. PAgP, LACP or UDLD).

Note Priority-queues are shared by the high-priority user data traffic (marked as expedited forwarding -EF) along with control plane traffic. However, an internal mechanism always ensures that control plane traffic takes precedence over of any other priority-queued traffic. This ensures that user data does not inadvertently affect the operational stability of the entire VSS domain.

Load-Sharing with VSL

As described in the preceding section, the VSL carries multiple types of the traffic over the VSL bundle. From the traffic load-sharing perspective, the VSL bundle is just like any other EtherChannel. It follows the same rules of EtherChannel hashing algorithm available in any given Cisco IOS software. In standalone or virtual-switch mode, a single EtherChannel load-balance hashing is applicable system wide. This means the VSL bundle uses the same configured load-sharing mode that applies to all EtherChannel groups in the VSS. The following output example illustrates load-balancing options:

Note This section only covers the characteristics of EtherChannel related to VSL. For generic EtherChannel design and recommendation refer to the “MEC Configuration” section.

The load-balancing method implemented applies to all network control traffic and user data traffic. The only exceptions to this rule are inter-switch communication traffic (always carried by control link) and LMP hello (sent on every VSL link). The network control plane and user data traffic use source and/or destination MAC addresses and/or the IP address as input to the hash calculation that is used to load-share the traffic. The network control plane traffic that can be load-shared between VSL links includes, but is not limited to, the following (note the difference in QoS categorization of the traffic):

• Layer-2 protocol traffic—Broadcast, STP BPDU, PAgP+, LACP, CDP and UDLD , LLDP, RLQ , Ethernet OAM, 802.1x, and DTP
• Layer-3 protocol traffic for Layer-3 ECMP links on the hot standby switch—Routing protocol control traffic (such as Hello, Update, and database) and ICMP response
• Traffic designated to VSS supervisor—ICMP response from other devices, TTL with 1, and so on

The type of user data traffic crossing VSL links are described in the “Prioritizing Specific Traffic Types” section section.

Hashing Methods—Fixed versus Adaptive

Traffic across port-channel is distributed based on Result Based Hash (RBH) computation for each port-channel member link. Whenever a port-channel member link is added or removed from a group, RBH must be recomputed for every link in the group. For a short period of time, each flow will be rehashed—causing disruption for the traffic. This hash implementation is called fixed.

As of Cisco IOS Release 12.2(33) SXH, Cisco Catalyst 6500 supports the enhanced hash algorithm that pre-computes the hash for each port-channel member link. When the link member fails, dynamic pre-computation of hashing allows new flows to be added to the existing link and also reduces the loss of packets for the flows that were already hashed to the link. This enhanced hash implementation is called adaptive . The following example illustrates the hash-distribution options:

By default, the load-sharing hashing method on all non-VSL EtherChannel is fixed. In contrast, the default hash algorithm for the VSL bundle is adaptive because it carries critical inter-switch control plane traffic. The default hashing method can be changed, but the only way to make the hash algorithm effective is to reset the link. Applying this to the VSL will trigger the dual-active condition because both chassis will lose connection with each other when the VSL links bounce (see the “Campus Recovery with VSS Dual-Active Supervisors” section).

Tip It is recommended to keep the VSL link load-sharing hash method to default (adaptive) as that method is more effective in recovering flows from failed links.

The current EtherChannel hardware can only load-share with three unique binary buckets, thus any combination of links in the EtherChannel bundle that can fill the all the buckets would optimally use all the links in the bundle. This translates into a number of links in the bundle with a formula of the power of 2 for optimal load sharing.

Tip Always bundle the numbers of links in the VSL port-channels in the power of 2 (2, 4, and 8) to optimize the traffic flow for load-sharing.

Resilient VSL Design Consideration

The VSL can be configured as single member EtherChannel. Configuration of a resilient VSL link follows the same design principles that apply to deploying a resilient EtherChannel-connected device. Resilient EtherChannel design consists of avoiding any single point-of-failure in terms of line cards or ports. Redundancy of VSL is important so as to avoid the dual-active condition and instability of the VSS. VSL redundancy is useful whether or not the supervisor fails. In the case of an active supervisor failure, the hot-standby switch (supervisor) is ready to take over—VSL resiliency notwithstanding. VSL resiliency is important when the supervisor has not failed and somehow the systems have lost their VSS links—leading to a dual-active condition.

The following key factors should be considered when designing resilient VSL:

• Use port-channels with more than one member in a bundle to reduce the number of potential single points of failure (ports, line cards)
• Use redundant hardware (ports, line cards, and internal resources connecting the port)
• Use diverse fiber paths (separate conduits, fiber terminations, and physical paths) for each VSL links.
• Manage traffic forwarded over the VSL link to avoid single homed devices. This is covered under the “Traffic Flow in the VSS-Enabled Campus” section.
• Since the VSL can only be configured on 10-Gbps port, choices for deploying the VSL bundle are limited to the Sup720-10G, WS-X6708, or WS-X6716 hardware. Besides redundancy, capacity planning also influences number of VSL members per VSL bundle. The capacity planning is explained under the “Capacity Planning for the VSL Bundle” section. There are three design options for avoiding a single point-of-failure:

– Use two 10-Gbps ports available with Sup720-10G supervisor

Design option 1 (Figure 10) is the most common and most intuitive choice. It uses both 10-Gbps ports on the supervisor. However, this option does not provide optimal hardware diversity as both ports are connected to single internal fabric connection. The probability of having both port connections to the fabric backplane having hardware errors is low, but not impossible.

Figure 10 VSL over Supervisor Port

– Use one 10-Gbps port from the Sup720-10G supervisor and another from a VSL capable line card (WS-X6708 or WS-X6716)

Design option 2 (Figure 11) diversifies the VSL links onto two separate hardware line cards—one port from the Sup720-10G uplink and another from the WS-X6708 line card. This is the best baseline and most practical option for balancing cost and redundancy. This design restricts unused ports on Sup720-10G with CoS-based queuing. Cisco IOS 12.2(33) SXI removes this restriction.

Figure 11 Distributed VSL Bundle between Bundle and 67xx Line Card

– Use both 10-Gbps ports from VSL capable line cards (WS-X6708 or WS-X6716)

Design option 3 (Figure 12) uses separate line cards for VSL connectivity. This provides the best flexibility in term of QoS configurations for uplink ports on supervisors, but is not as cost effective as design option 2.

Figure 12 Distributed VSL Bundle between Dual 67xx Cards

Besides avoiding single point-of-failure, the right design selection depends on the availability of the hardware and usage of the uplink ports on the supervisor (see the “VSL QoS and Prioritization of Traffic” section). If one 10-Gbps uplink port is used as the VSL link, then the other 10-Gbps port can only have CoS-based queuing. The Cisco IOS software as of Cisco IOS 12.2(33) SXI removes the CoS-based queuing restriction and allows the other non-VSL 10-Gbps port to be configured for DSCP-based queuing. If any of the Sup720-10G ports are used for connectivity to the core or other network layer in which QoS requirements require flexibility, then design options 2 and 3 are the available choices.

For superior resiliency, having one VSL link on the supervisor and other on a line card is the best option. This design option avoids possible catastrophic disconnection of line cards and allows more ports to be added in the VSL bundle for future growth. details the design choices for the VSL links. You should be aware that there is no clear choice that emerges from the following options for all implementations; however, does provide some risk categorization for available choices.

1.Queue structure and depth is not a factor in VSL since the mapping and ration remains the same. Refer to “VSL QoS and Prioritization of Traffic” section. 2.The VSL link on Sup720-10G ports will come up faster than VSL on line cards since line cards need more time for image download, initialization etc. VSS is optimized for faster booting with VSL link on supervisor port. Was this Document Helpful? Yes No Feedback Contact Cisco Open a Support Case (Requires a Cisco Service Contract)
