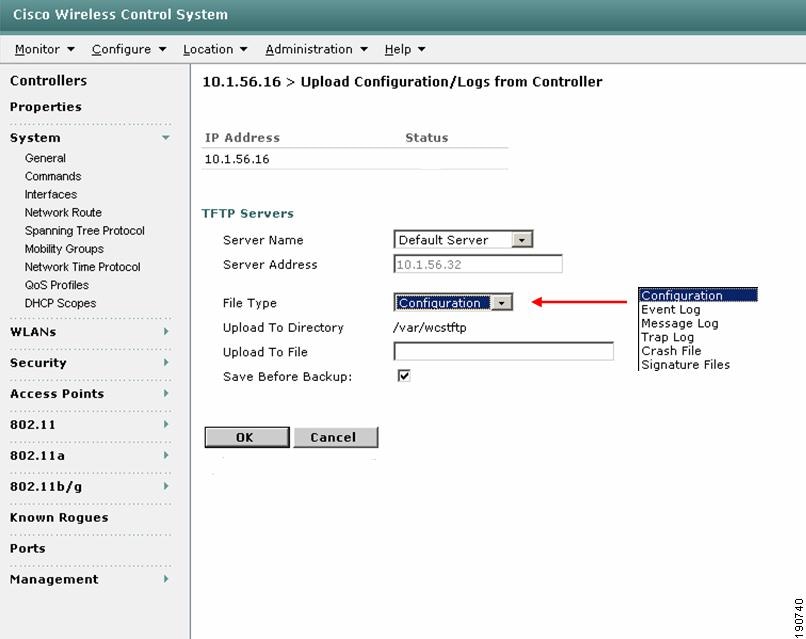

Controller Configuration Archival
Configuring WCS Campus, Building, Outdoor, and Floor Maps
Configuring WCS to Manage the Cisco Wireless Location Appliance
Using WCS to Monitor Your Wireless Network

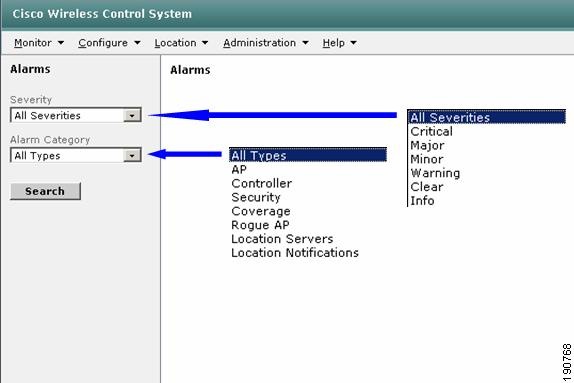

Monitoring Events and Alarms, and Generating Notifications
Using WCS to Locate Devices in Your Wireless Network
On-Demand Location of WLAN Clients
On-Demand Location of Individual 802.11 Active RFID Asset Tags

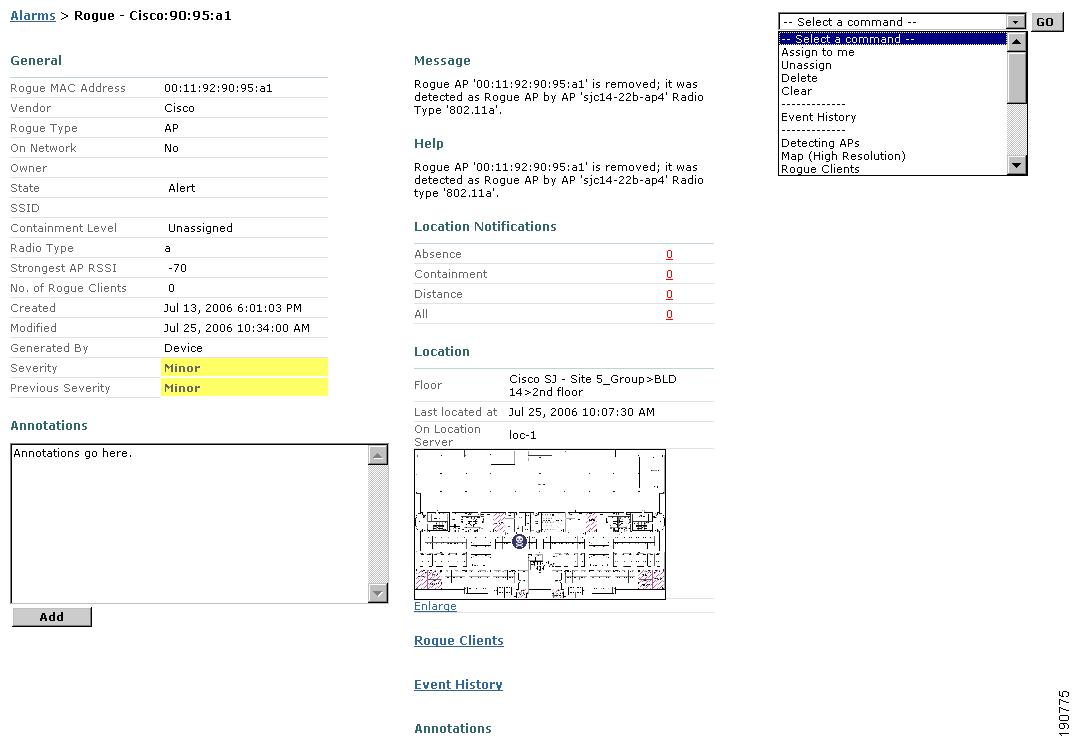

On-Demand Location of Individual Rogue Access Points

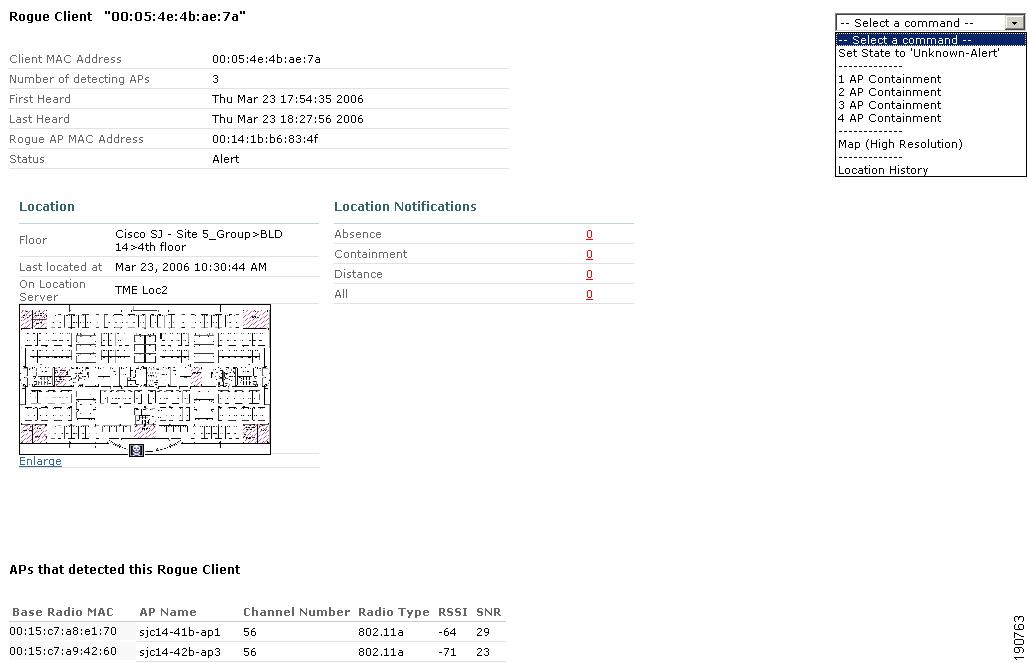

On-Demand Location of Individual Rogue Clients
WCS and the Location Appliance
Tracking Clients, Asset Tags, and Rogues with the Location Appliance
Using WCS to Efficiently Deploy Your Wireless Network
Performing Tasks Across Multiple WLAN Controllers

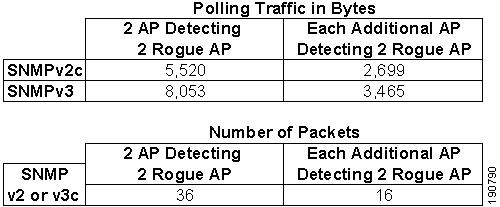

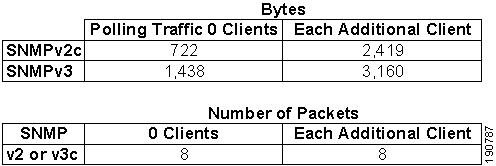

Traffic Considerations When Using WCS in Large Networks
WLAN Controllers and the Location Appliance
WCS and the Location Appliance
Viewing User and Group Audit Trails
Cisco Unified Wireless Control System
Introduction
The modern day Wi-Fi 802.11 wireless network has evolved to become an integral part of the overall enterprise infrastructure, and because such organizations are seeking similar capabilities from their wireless systems management as they have from their enterprise infrastructure management systems in the past. IT managers and other networking professionals expect capabilities in such tools, enabling them to ensure their mission-critical wireless network systems are reliable, available, and performing optimally. A robust and reliable centralized network management solution capable of uniformly managing geographically disparate WLANs is necessary to simplify operations and to reduce total cost of ownership.
This chapter describes the Cisco Wireless Control System (WCS) and addresses management considerations that you should consider when using it to design, deploy, and manage your enterprise wireless LAN. It is intended for the reader responsible for performing such tasks using Cisco Unified Wireless Network (UWN) technology.
The following sections discuss various areas of WLAN management including wireless LAN configuration and monitoring, RF management and system planning, intrusion monitoring, and location tracking as follows:
•
Wireless Control System Overview—Describes network management in general, along with a brief overview of the Cisco Wireless Control System (WCS).
•
•
•
•
•
•
•
Wireless Control System Overview
The Cisco Wireless Control System (WCS) is a component of the Cisco Unified Wireless Network (UWN) that provides a powerful network management solution allowing the design, control, and monitoring of enterprise wireless networks from a centralized location. The benefit of this is simplified operations and reduced total cost of ownership because network administrators now have a single solution for RF prediction, policy provisioning, network optimization, troubleshooting, user tracking, security monitoring, and general WLAN systems management. WCS enhances the management and control capabilities already present in the Cisco UWM via the WLAN controller web user interface and command line interface (CLI).
WCS makes it possible for the point of control in an enterprise WLAN to move from individual controllers to a network of controllers. WCS provides graphical views of multiple controller hardware formats and offers a comparable level of configuration, performance monitoring, accounting, security, and fault management to that offered at the controller level.
WCS functionality can be grouped into the following areas:
•
Cisco WCS provides tools that enables the visualization of wireless networks as well as the monitoring of ongoing WLAN performance. Cisco WCS also provides a portal into the real-time RF management capabilities provided by Cisco wireless LAN controllers including automated channel assignments and access point transmit power settings. Quick visibility into coverage holes, device status alarms, and key usage statistics is provided for easy WLAN monitoring and troubleshooting.
•
Cisco WCS provides you with the ability to efficiently track wireless devices, including Wi-Fi enabled laptops, PDAs, and voice handsets as well as mobile assets equipped with Wi-Fi 802.11 active RFID tags. The base version of WCS can determine with which access point a wireless device is associated and provides a general idea of where wireless devices are situated. Environments that require more granular location services can optionally license additional location-based services capabilities within WCS and take advantage of Cisco RF Fingerprinting technology, which is capable of providing accuracy to 10 meters or better. To scale the use of location tracking beyond single threaded device localization, Cisco WCS with location can be deployed in conjunction with the Cisco Wireless Location Appliance for real-time simultaneous tracking of up to 2500 wireless devices.
•
Integrated RF prediction tools are available to create detailed wireless LAN designs, including lightweight access point placement, configuration, and performance/coverage estimates. Floor plans can be imported into Cisco WCS and RF characteristics assigned to building components to increase design accuracy. Graphical heat maps help visualize anticipated wireless LAN behavior to facilitate planning and deployment.
•
A full suite of tools is provided for the management and enforcement of security policies within a Cisco wireless infrastructure, including the following:
–
–
–
–
–
•
Cisco WCS allows customizable guest access capabilities that allow organizations to keep their wireless networks secure while providing customers, vendors, and partners with controlled access to their WLANs. Organizations can enable the Guest Access Lobby Ambassador feature on the wireless LAN controller to allow for the creation of local usernames and passwords and for local or RADIUS-based authentication of guest users.
•
–
–
–
–
Role of WCS Within the Unified Wireless Network Architecture
The Cisco Unified Wireless Network is designed to provide robust 802.11 wireless networking solutions for large enterprises, branch, and remote offices as well as outdoor areas. The system manages all data client communications and system administration functions, performs radio resource management (RRM), and manages system-wide mobility policies.
In this solution, the various Cisco WLAN controllers (embedded and standalone) together with their registered lightweight access points may be managed via the following:
•
•
•
Figure 8-1 shows the interoperation of WCS along with the other components of the Cisco Wireless LAN Solution when deployed in a Cisco Unified Wireless Network.

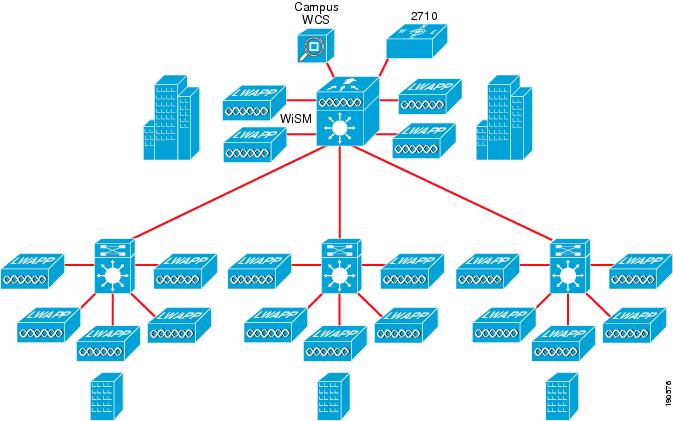

Figure 8-1 Overall Wireless Network Architecture with WCS
Various communication protocols (SNMP, SMTP, HTTP/HTTPS, FTP, TFTP, SOAP/XML, and so on) are implemented between these components to provide the management, alerting, and notification functionality necessary to efficiently manage modern enterprise wireless infrastructures.
Figure 8-2 shows the typical client/server communication flows between WCS, the client workstation browser, and the infrastructure components comprising the enterprise wireless LAN. WCS does not directly manage lightweight access points but rather communicates with SNMP agents contained within the wireless LAN controllers to which lightweight access points have been assigned. Configuration changes, inquiries, monitoring, and reporting are all handled via the exchange of SNMP traps, commands, and responses between WCS and the WLC SNMP agents. Any information or configuration requests concerning controller or access point resources are sent by WCS to these WLC SNMP agents. Working in conjunction with other controller hardware and software, these SNMP agents participate in the initiation of appropriate actions on internal controller resources, or communicate such actions to assigned lightweight access points via the lightweight access point protocol (LWAPP).
Figure 8-2 Management Data Flows within the Cisco Unified Wireless Network
Figure 8-2 also shows the ability of controllers to transmit SNMP traps to up to six trap receivers as well as transmitting syslog messages to a remote syslog receiver. The ability to send traps to multiple trap receivers is useful in networks that, in addition to WCS, possess an overall enterprise network management system (NMS) that you would like to inform when traps are generated by the wireless network devices. The multiple trap capability in WLCs allow you to send traps to WCS and the enterprise NMS.
The information contained within SNMP traps and polling responses are the foundation of events, and based on their severity, these events can result in the triggering of WCS alarms. Depending on the configuration of WCS alarm notification, WCS can generate messages to e-mail destinations such as desktop and laptop clients, pagers, PDAs, and other systems notifying them of newly-triggered critical and coverage hole alarms.
File transfer protocols are used to update a variety of WLC software and configuration information. WCS readily accommodates this by providing for integrated TFTP and FTP server capability. WCS can also be used to configure TFTP file transfer between wireless LAN controllers and other TFTP servers that may be located closer on the network to the managed devices.
Real-time RF management is a hallmark feature of the Cisco lightweight wireless solution, and a unique product differentiator. Each WLAN controller uses dynamic algorithms to create an environment that is completely self-configuring, self-optimizing, and self-healing, making a Cisco-powered WLAN ideal for the delivery of secure and reliable business applications. This is done via specific radio resource management (RRM) functions such as the following:
•
•
•
•
•
•
Note
The Cisco WCS allows for straightforward configuration of RRM parameters that can be applied to multiple WLAN controllers using the policy template facility. If controllers detect that one or more various predefined RRM thresholds are violated, a trap is sent to the Cisco Wireless Control System (WCS). WCS provides multiple reporting facilities that can be used to view the RF environment in real time, aiding greatly in understanding what is happening in the air space and facilitating the troubleshooting process.
WCS provides both the user and control interfaces to the Cisco Wireless LAN Location Appliance, allowing simultaneous location display of WLAN clients, asset tags, rogue access points, and rogue clients. Additionally, WCS provides the ability to configure the location appliance to send various forms of user notification when changes occur in client or asset location. In this way, the location appliance can be defined to transmit messages using SOAP, SMTP, SNMP traps, or syslog messaging if clients or assets become missing, enter or leave coverage areas, or stray beyond a set distance from a pre-determined marker.
For complete information about WCS hardware and software requirements, and for complete step-by-step guidance on installing and accessing the WCS server, see the following documents:
•
•
Defining Network Devices to WCS
Before being able to manage WLAN controllers and location appliances, these devices must be defined to WCS. You need to specify the IP and SNMP information necessary to communicate with each device that you wish to include in the management domain of your WCS server. After these devices are defined, they are considered to be within the management domain of that WCS. WCS implicitly learns of the existence of any lightweight access points registered to any WLAN controllers defined to it.
When using commands in the following subsections that allow multiple objects to be selected as targets, the selected objects must all be present on one display page. This is important, for example, if the total population of controllers displayed spans several pages and requires paging forward and backward. The selected objects cannot be present across multiple pages.
Adding Controllers to WCS
Adding Controllers
Before being defined to WCS, all WLAN controllers should be properly configured as per the Cisco Wireless Control System Configuration Guide, Release 4.0. Basic communication settings for each deployed WLAN controller such as IP addressing, SNMP communities, strings and passwords, SNMP version in use, and so on, should be noted before attempting to define these resource to WCS.
Define properly configured WLAN controllers to WCS as follows:
Step 1
Step 2
Figure 8-3 Adding a Controller to WCS
Step 3
Figure 8-4 Defining New Controller IP and SNMP Parameters
Note that if you use the SNMP read-only community string on this screen, you are able to query (but not modify) controller configurations using WCS. With SNMPv3, read-only access is achieved by specifying the name of a user profile that has been defined in the WLAN controller with an authentication password and privacy password to which read-only access has been permitted. In either case, the use of read-only credentials when attempting to modify a configuration results in a "MIB Access Failed" error message. This occurs whenever WCS attempts to modify the value of a parameter in a controller but SNMP read-only access has been specified. Note that WCS still modifies its internal database with the change even though the WLAN controller itself could not be modified because of the read-only community string. Therefore, if you receive a "MIB Access Failed" message, be sure to back out any changes made to the WCS database, either manually or by using the selective or non-selective synchronization methods described in Synchronizing WCS with Controller and Access Point Configurations.
Step 4
WCS displays a "Please Wait" dialog box while it contacts the controller and adds the current controller configuration to the WCS database. It then returns you to the Add Controller page.
•
•
•
•
Step 5
Restricting SNMP v1/v2c Access using Source IP Address
SNMPv1 and SNMPv2c access to WLAN controllers is typically limited on the basis of whether the management system has been configured with the correct read-only or read-write community strings for the device. Cisco WLAN controllers allow you to add another layer of SNMP access restriction using source IP addresses as well. This makes it more difficult for an unauthorized SNMP manager that somehow has obtained your community strings from gaining control of your WLAN controllers (keep in mind that SNMP v1 and v2c community strings are sent in the clear and can easily be seen using an Ethernet protocol analyzer, as seen in Figure 8-5, where the community string is use is "private".
Figure 8-5 SNMPv2c Ethereal Trace Showing Plainly Visible Community Strings
By associating valid IP addresses (or a range of addresses) with each defined community string, only SNMP v1/v2c commands coming from these sources addresses are honored by WLAN controllers so configured, even if the correct community strings are specified.
To configure your controllers in this fashion, use the Management > Communities menu option in the controller web interface (not WCS) and add IP address and netmask information to your community string definitions. You can also perform this via the controller CLI by using the config snmp community ipaddr ip-address ip-mask name command.
This source address-based restriction capability is not used with WLAN controllers using SNMPv3. SNMPv3 does not use community strings and sends all SNMP Protocol Data Units (PDUs) encrypted between WCS and the WLAN controllers. Figure 8-6 shows an example of a protocol analyzer trace of an encrypted SNMPv3 PDU.

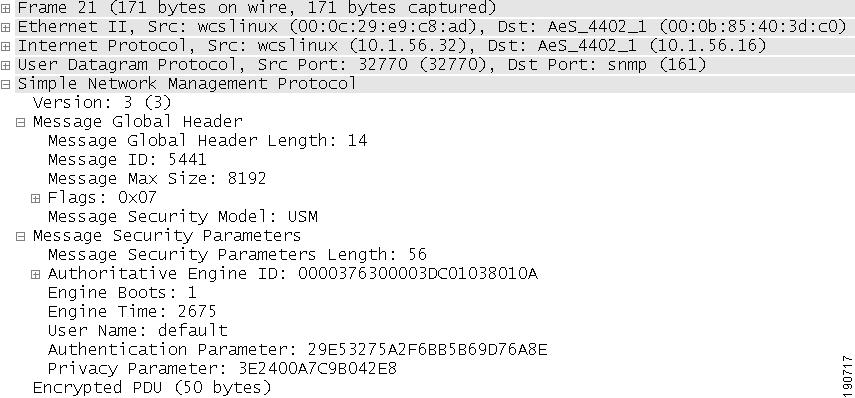

Figure 8-6 Example of Encrypted SNMPv3 PDU
Further information about this capability can be found in the Cisco Wireless Control System Configuration Guide, Release 4.0.
Adding Location Appliances To WCS
The Cisco Wireless Location Appliance enhances the capabilities of a location-enabled WCS server by computing, collecting, and storing historical location data and allowing WCS to display graphical location information for multiple clients, tags, and rogue devices simultaneously.
Configuration of the location appliance is performed from WCS using the menus and submenus located under the main menu Location tab after initial configuration of IP parameter settings, as described in the Cisco Wireless Location Appliance—Installation Guide, available at the following URL: http://www.cisco.com/en/US/docs/wireless/location/2700/quick/guide/li31main.html.
To define a location server(s) to WCS, follow these steps:
Step 1
Step 2
Step 3

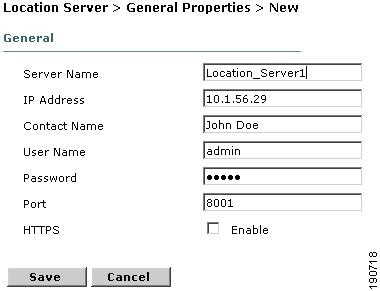

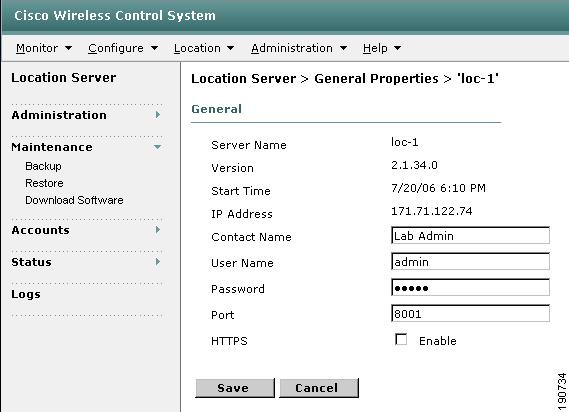

Figure 8-7 Defining a Location Appliance to WCS
Step 4
Using WCS to Configure Your Wireless Network
Configuring Network Components
After network components have been successfully defined to WCS and two-way communication via SNMP has been established, these devices can be configured and managed centrally as part of the management domain of that WCS server. Of course, WCS allows devices to be configured one parameter screen at a time in a similar fashion to the controller web interface that is available when accessing the WLAN controller individually. However, WCS goes much further and allows for the provisioning of policy templates that can be applied to WLAN controllers and lightweight access points. Policy templates are groups of configuration parameters that in most cases are defined once and then applied to multiple controllers without the need to manually re-key each value and send each screen of configuration data to each controller and lightweight access point individually. After being defined and implemented in WCS, the use of policy templates greatly reduces the possibility of controller misconfiguration by ensuring that the proper values are defined once and then saved for future re-application.
When using the commands in the following subsections allowing multiple target objects to be selected, these objects must all be present on one display page. This is important if the total population of controllers displayed, for example, spans several pages and requires paging forward and backward.
Configuring WLAN Controllers
WCS allows for the configuration of network components via the Configure option on the main menu bar. WLAN controllers can be configured via Configure > Controllers, and lightweight access points can be configured via Configure > Access Points. In this manner, controller and lightweight access points can be either individually configured or the configuration that was applied to a group of devices via the application of a policy template can be overridden.
To configure a WLAN controller that is currently managed by WCS, perform the following steps:
Step 1
Step 2
Step 3
There are also three check box fields available on the Controller Properties screen:
•
Note
This procedure entails WCS refreshing the configuration in the controller from the current contents of the WCS database. This is a valuable feature designed to ensure that the configuration loaded into a freshly-booted WLAN controller is indeed the configuration of record currently contained within the WCS database. In this manner, any unauthorized local changes made to the controller configuration via the controller web interface or CLI are overridden with the configuration of record stored in the WCS database.
Note that the configuration programmed into the controller is not implicitly saved when the restore on cold-start feature is used. This means that the controller retains its original configuration in nonvolatile memory and not the changes that were transferred to it in conjunction with the cold-start restore. If this is not desired, after the controller is fully booted and has received its configuration from WCS, perform an explicit save of the running configuration of the controller to nonvolatile (flash) memory using the Save Config to Flash function as shown in Figure 8-10.
See Non-Selective Synchronization, for further details on the Restore Config to Controller function.
•
•
When enabled, Save Before Backup indicates that the running configuration of this controller should be saved to the nonvolatile memory of the controller before the scheduled task archiving the controller-saved configuration. Because the Configuration Backup scheduled task archives only the saved configuration of the controller and not the currently running configuration, enabling this check box to ensure that any recent unsaved changes are saved and therefore included in the archive. See Configuration Backup for further details on the Configuration Backup scheduled task.
Step 4

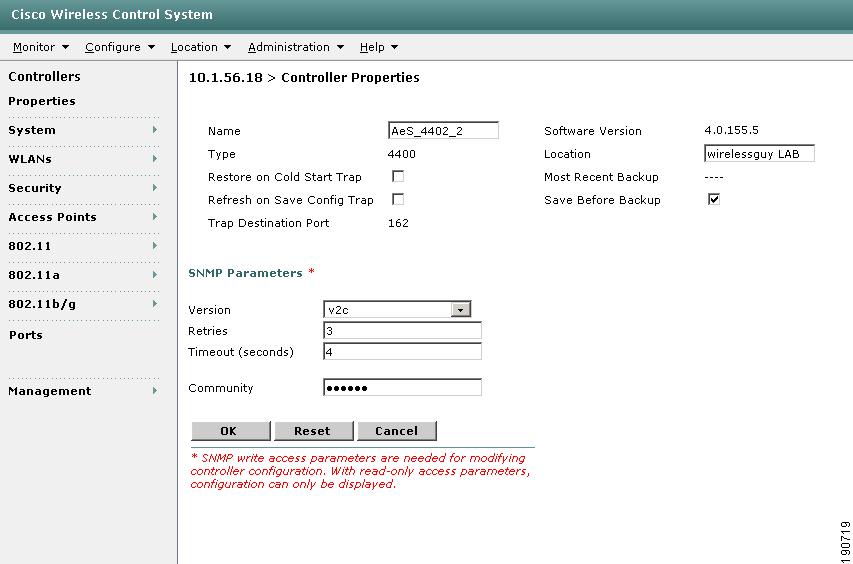

Figure 8-8 Controller Properties
After making your desired changes in each of the various controller configuration object categories, you need to save your changes (as shown in Figure 8-9) in each category for your changes to be applied to the current running configuration of the controller.

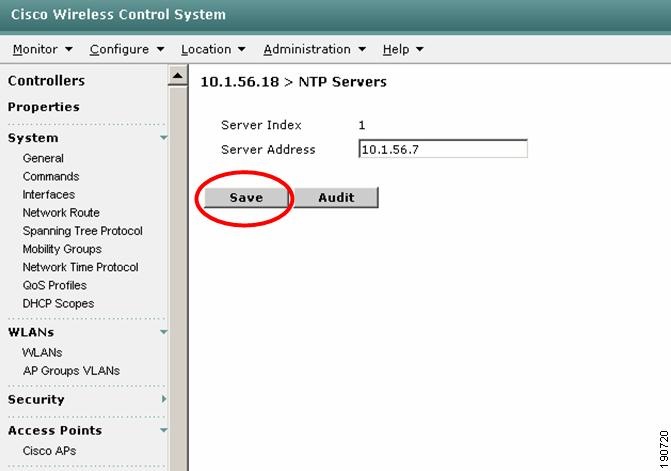

Figure 8-9 Save and Apply Changes for Configuration Object Category "Network Time Protocol"
Keep in mind that the procedure outlined thus far does not save your changes to the nonvolatile memory of the controller (that is, your changes are lost if the controller is rebooted or loses power). To write your newly modified controller running configuration to nonvolatile memory, perform the following steps:
Step 1
Step 2
Step 3
The running configuration for each controller selected is written to their respective nonvolatile memories.

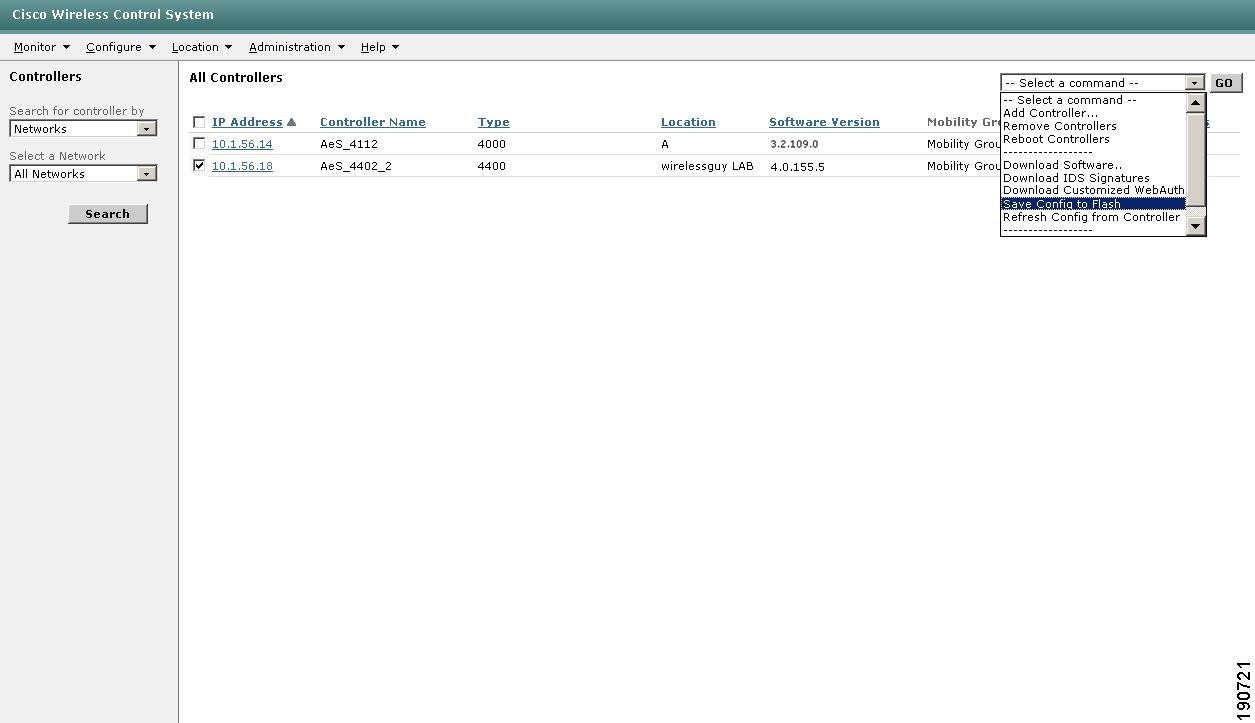

Figure 8-10 Saving Configuration to Controller Nonvolatile (Flash) Memory
Further guidance about configuring WLAN controllers can be found in the WCS main menu bar under Help > Online Help.
Configuring Lightweight Access Points
Lightweight access points can be configured using WCS in a similar fashion to that described in the previous section on WLAN controllers. As mentioned previously, WCS does not configure lightweight access points directly but rather does so via the SNMP agent and other software components present in the WLAN controller to which the lightweight access points are currently registered. Thus, only access points that are registered with controllers can ultimately be managed via WCS.
By using the Configure > Access Points menu option, lightweight access points can be individually configured or the configuration that was applied to a group of access points using policy templates can be overridden.
Step 1
In large networks, it is helpful to narrow the listing by using the "Search for APs By" filter in the left-hand margin of the screen (see Figure 8-11). Access points can be filtered based on several filter types such as MAC addresses, AP name, assigned controller, unassociated or unassigned status and outdoor, campus, building, or floor location.

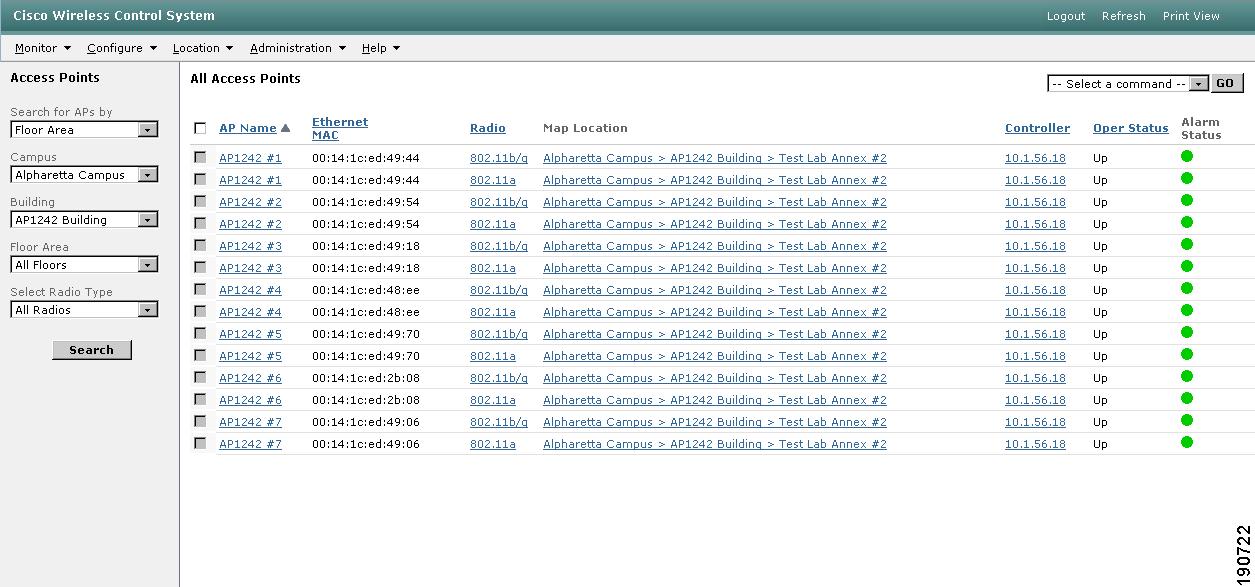

Figure 8-11 All Access Points Display Menu
Note that the All Access Points page (shown in Figure 8-11) is a bit more involved than the All Controllers page seen in previous sections. Each dual-band lightweight access point is actually represented twice in WCS with a separate line item entry for each radio interface contained within the lightweight access point. Therefore, unless a specific radio type is selected using the display filter in the left-hand column, a typical dual-band lightweight access point has two line item entries on the "All Access Points" menu. Each entry is differentiated by the values listed under the Radio column heading.
Note also that unlike in All Controllers, there is more than just a single hyperlink entry per line item in the All Access Points menu. Clicking on the AP name takes you to the general lightweight access point configuration panel, while the Radio identifier takes you directly to the submenu for a specific radio in that lightweight access point. Clicking on the Location hyperlink immediately links you to the location map where that lightweight access point has been assigned. Clicking on the Controller hyperlink takes you to the Controller Summary screen for the WLAN controller to which this lightweight access point is assigned.
Figure 8-11 shows the All Access Points menu sorted by campus, building, and floor. Access points that are currently registered with controllers show the controller IP address as a hyperlink in the Controller column. Attempting to configure an access point that is not registered results in the error "This AP is not associated with any Controller" being displayed.
You are now ready to select an access point that is registered with a controller and to modify its configuration.
Step 2
Step 3
Figure 8-12 Access Point > ap name Configuration Screen
Any parameters modified within the confines of the red dashed rectangle indicate areas that apply to the access point in general. The "Name" parameter shown in this red dashed rectangle is default to the value "AP" concatenated with the MAC address of the access point. You may find it useful to use this field to assign a new name that conveys more meaning within the context of your particular organization, or perhaps to assign a numerical differentiator to each name that assists when sorting and searching the full list of managed access points (seen in Figure 8-12). An example of how this can be used can be seen in Figure 8-11, where access points are named in numerical sequence ("AP1242#1", "AP1242#2", and so on) sorted by name in numerical order.
The two radio protocol hyperlinks under the radio interfaces heading (located within the blue dashed rectangle) provide access to Access Point > ap name > 802.11a and Access Point > ap name > 802.11b/g radio specific sections (shown in Figure 8-13). Changes to parameters contained within these radio-specific screens affect only the radio interface concerned.

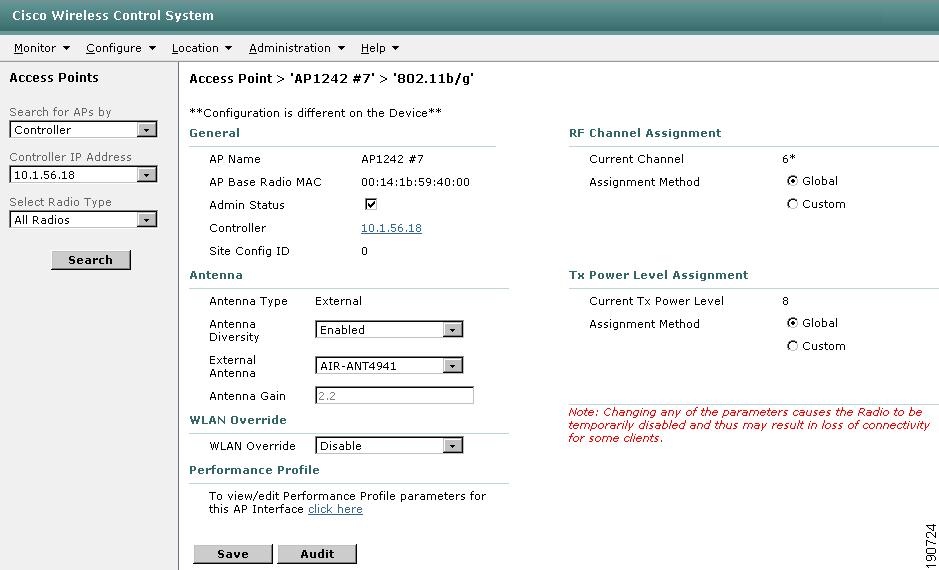

Figure 8-13 Radio-Specific Access Point Configuration
Note that Figure 8-12 also provides a few other options. For example, you find the ability to issue a hardware reset only on the access point or performing a hardware reset and setting the access point configuration to factory defaults. In addition, an option is present to audit configuration parameters. This audit option compares the settings stored in the WCS database to those that are currently resident in the lightweight access point. If they differ, you are presented with a screen similar to that shown in Figure 8-14 asking which set of values (those contained within WCS databases or those contained within the access point/controller) should prevail.
Keep in mind that any parameters changed on this page must be saved to the WCS database (using the Save button) before being subject to comparison as part of an audit. If entries are changed and the Audit button is used before the changes are saved, the changed entries are discarded. In addition, when an Audit button appears in a configuration-section specific menu such as this, only the values contained in the WCS database for the parameters shown on the page are subject to the audit. You are not notified of any discrepancies between the current AP/controller configuration and stored WCS values for parameters other than those shown here.

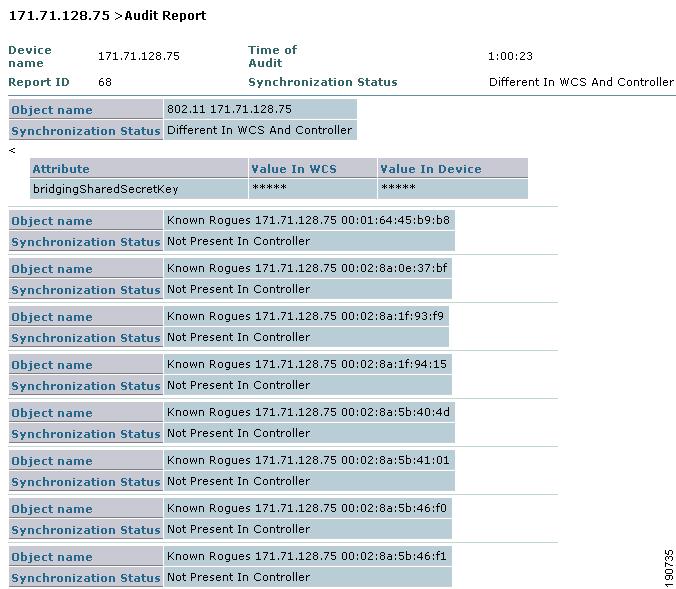

Figure 8-14 Access Point Audit Report
Step 4
Configuring WLAN Controllers, showed that when configuring WLAN controllers with WCS, the new configuration is applied as a running configuration and is not automatically saved to nonvolatile memory. However, this is not the case when configuring lightweight access points. When configuring lightweight access points, any changes that are applied from WCS to the access points via the controller are saved to the nonvolatile memory of the access points. Therefore, there is no need for an explicit save procedure to ensure that your changes are still intact after access points are rebooted. In fact, after your changes are applied, they migrate with lightweight access point even if the lightweight access point become registered to a different controller.
Further guidance about configuring lightweight access points can be found in the WCS main menu bar under Help > Online Help.
Copying Lightweight Access Point Configurations
In some cases, it may be necessary to copy the configuration that is stored in the WCS database for a lightweight access point to a new lightweight access point. A good example of when this might be necessary is when replacing a lightweight access point that has become damaged in some way with a replacement lightweight access point that has been sent via the Cisco SmartNet program.
WCS makes it possible to copy the configuration-of-record stored in WCS for the original (source) access point and apply it to the replacement (target) access point. When performed, the configuration of the target lightweight access point is overwritten and it assumes the majority of the parameters originally configured for source lightweight access point.
Note
Only lightweight access points that are known to WCS but not registered with a WLAN controller can serve as the source of the lightweight access point copy operation. Similarly, only lightweight access points that are known to WCS and currently registered with a controller within this management domain can serve as the target of a lightweight access point copy operation. From the perspective of WCS, it does not matter if the source lightweight access point was originally used on a different WLAN controller than where the target lightweight access point is installed.
To perform this copy operation, follow these steps:
Step 1
Step 2
Note
Step 3
Step 4
Step 5
The copy and replace operation is now complete. Notice that the destination registered AP is now configured with the name of the originating non-registered lightweight access point. To avoid confusion, the name of the source or target lightweight access point should be changed or the source lightweight access point deleted, as described in Removing Lightweight Access Point Configurations.
Additional information on copying lightweight access point configurations can be found in the WCS main menu bar under Help > Online Help.
Removing Lightweight Access Point Configurations
After the Copy and Replace AP operation in Copying Lightweight Access Point Configurations is performed, you are still left with the original lightweight access point definition resident in WCS. In the case of the replacement of a damaged lightweight access point, the source definition is no longer used because the replacement lightweight access point has assumed its duties. In this case, Cisco recommends that after the lightweight access point configuration has been copied, the original access point configuration should be removed. Otherwise, you will have the old unused access point configurations simply cluttering up the WCS database and adding unnecessary confusion to WCS screens when displaying lists of all lightweight access points.
You can use the Remove APs command in WCS to remove the configuration for the original lightweight access point. Keep in mind that only lightweight access points that are not currently registered with any WLAN controller can be removed from the WCS database via the Remove AP operation.
To remove a non-registered lightweight access point configuration from WCS, perform the following steps:
Step 1
Step 2
Step 3
Step 4
Additional information on removing lightweight access point configurations can be found in the WCS main menu bar under Help > Online Help.
Defining and Applying Policy Templates
Policy templates are groups of configuration objects that are typically defined once and then applied to multiple controllers without the need to manually re-key each object value and send each screen of configuration data to each controller, lightweight access point, or radio interface individually. After being defined and implemented in WCS, the use of policy templates greatly reduces the possibility of controller misconfiguration by ensuring that the proper values are defined once and saved for future use when defining subsequent resources.
Policy templates allow for the creation of configuration objects along with a simple means with which to propagate those configuration objects among multiple WLAN controllers, lightweight access points, or access point radios. By using WCS policy templates, uniform QoS, security, and RF management policies can be easily created and enforced across an entire enterprise or outdoor deployment.
The definition of WLAN controller and lightweight access point policy templates is a relatively straightforward task and is similar in many aspects to the procedure described in Configuring WLAN Controllers and Configuring Lightweight Access Points for directly configuring managed resources.
Complete guidance concerning how to properly define policy templates within WCS can be found in the Cisco Wireless LAN Controller Configuration Guide, Release 4.0 and also in the WCS main menu bar under Help > Online Help. In addition, the following are key points to keep in mind when planning to use WCS policy templates to assist in managing your wireless LAN enterprise network:
•
•
•
Note
This stored configuration is updated whenever a policy template is successfully applied to a managed resource by WCS.
•
•
–
–
•
Figure 8-15 Configuration Object Categories Available Via Policy Templates
For some configuration parameters, explicit configuration is required via the WCS Configure > Controllers facility. (Some WLAN controller parameters must be configured via the controller web interface or the CLI. Examples of this include SNMP trap destination port, NTP polling interval, and serial port configuration.) The majority of the configuration objects not addressed by policy templates are typically site or controller unique, which tends to exclude them from application as part of a enterprise-wide policy template.
•
•

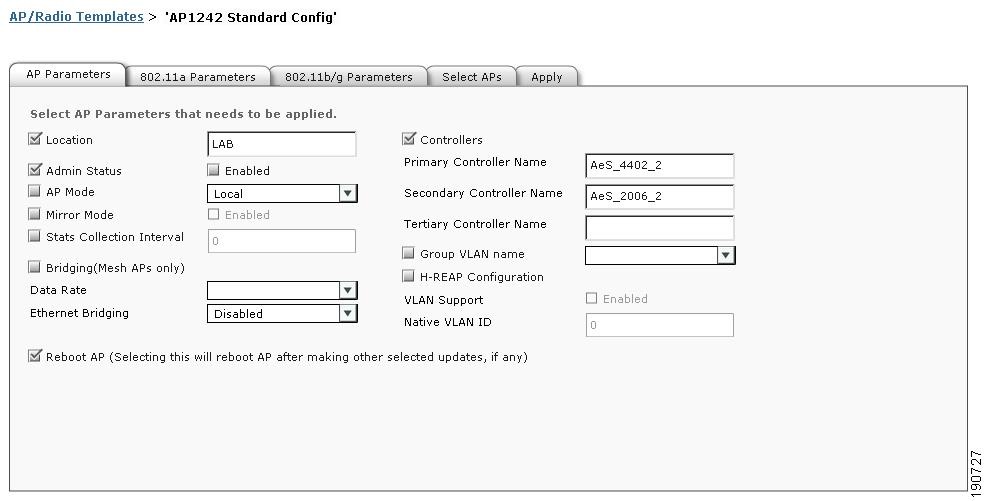

Figure 8-16 Access Point/Radio Policy Template
These access points can be on a single controller or spread among two or more controllers (the search parameters in the left-hand margin of Figure 8-17 facilitate choosing access points). Note that after selecting the parameters you wish to configure in all configuration tab areas, you must save the template before applying it to any access points (see red circle in Figure 8-17). Failure to save the template before application results in any changes made being ignored. Beginning with release 4.0 of WCS, access point and radio templates can be saved in WCS for subsequent re-use.

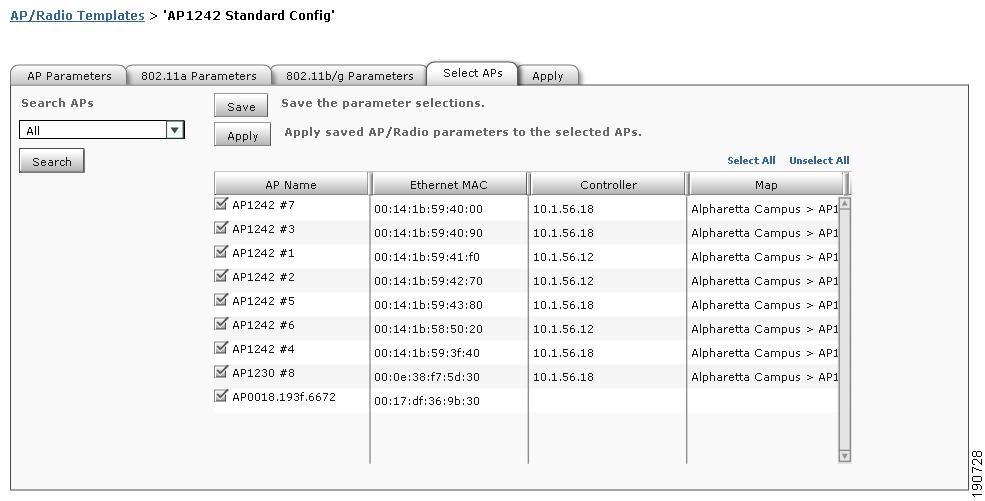

Figure 8-17 Saving and Applying the AP/Radio Template
•
•
Using Policy Template Configuration Groups
By creating a configuration (config) group, you can group controllers that should have the same mobility group name and similar configuration. You can assign templates to the group and push templates to all the controllers in a group. You can add, delete, or remove config groups, and download software, IDS signatures, or a customized web authentication page to controllers in the selected config groups. You can also save the current configuration to the nonvolatile (flash) memory of all controllers in selected config groups.
Complete guidance on the use of Configuration > Config Groups can be found in the Cisco Wireless Control System Configuration Guide, Release 4.0.
Keep the following points in mind when using policy template configuration groups:
•
•

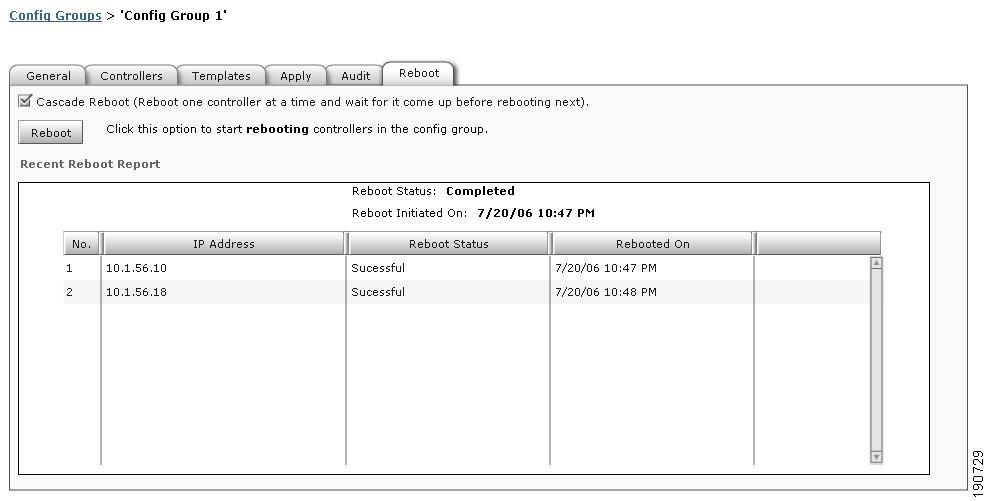

Figure 8-18 Config Groups Reboot Menu
If you wish to save the updated configuration of all controllers in the configuration group to their respective nonvolatile memories without rebooting them, perform the following:
Step 1
Step 2
You can perform other utility functions on the controllers in the configuration group in a similar fashion, such as downloading controller software, IDS signatures, and web authentication credentials. Complete details about how to perform these tasks and more can be found in the Cisco Wireless Control System Configuration Guide, Release 4.0.
Configuring Location Appliances
When a Cisco Wireless Location Appliance is introduced and configured for use within a Cisco Unified Wireless Network that contains a location-enabled WCS server, the location appliance assumes responsibility for several important tasks. Key among these are the execution of location positioning algorithms for multiple devices, the ongoing processing of historical location and statistical information, the issuance of location notifications, and the provisioning of a defined SOAP/XML Application Programming Interface (API) for other business applications wishing to make use of the device positioning information available in the location appliance.
WCS acts in concert with the location appliance by serving as the user interface (UI) for the enhanced services provided by the location appliance. Other than during the initial installation and shutdown, direct user interaction with the location appliance via the CLI is typically not required.
Integrating a Cisco Wireless Location Appliance into a Cisco Unified Wireless Network architecture immediately enables key operational advantages, such as the following:
•
•
•
•
Complete guidance about how to use the Location menu option under WCS to properly configure the Cisco Wireless Location Appliance is available in the Cisco Wireless Location Appliance—Configuration Guide.
Managing Network Component Software
An often-overlooked but nevertheless critical feature of any effective enterprise network management system is the ability to inventory and update the operating software levels of the various components comprising the network. An effective enterprise wireless network management system must be able to regularly inventory software levels and facilitate their upgrade by authorized personnel from either centralized or distributed software repositories.
It is generally regarded as standard industry best practice for network architects and network management staff to be aware of current operating software levels throughout the network. Periodic reviews of http://www.cisco.com and regular discussions with your Cisco account team should be conducted to keep abreast of new features, feature improvements, and bug fixes as they become available and posted. Software updates should be applied to your network only after a careful analysis of new enhancements and bug fixes has been performed and a determination made of the applicability of these software updates to your specific environment. This may be done in conjunction with your local Cisco account systems engineering representative or the Cisco Technical Assistance Center.
WCS offers the ability to effectively manage device operating software such as device operating systems, web certificates, and IDS signatures across various components of the Cisco Unified Wireless Network. In addition, WCS makes it possible to routinely archive controller configurations (as well as the WCS database itself) to protect against potential inadvertent loss of data. The subsections that follow describe how WCS provides effective management of these categories of operating software in wireless LAN controllers, lightweight access points, and location services appliances.
Keep in mind that the level of operating software in registered lightweight access points is automatically managed by the WLAN controller. The version of operating software loaded into any registered lightweight access points is dependent on the level of operating software present in the controller. Although WCS clearly displays the current software levels in each lightweight access point, there is no need (and therefore no ability exists in WCS) to explicitly manage the level of operating software present in lightweight access points.
Managing Controller Operating Software, Web Authentication Bundles, and IDS Signatures
Cisco WCS allows for WLAN controller operating software to be updated via two approaches. Each of these involves the use of the TFTP file transfer protocol, but there are differences in the source server that is used to update the controller.
The actual data transfer can be configured to occur between one of the following:
•
•
The use of the internal WCS TFTP server is probably the easiest and most straightforward method for most users. This option allows for the file to be loaded onto the TFTP server via one of the following two ways:
•
•
If you are updating multiple controllers in multiple download sessions throughout the day, it is more efficient to transfer the file from your desktop to a TFTP server only once and then specify a single stage transfer from the home directory of the WCS TFTP server for all subsequent controller downloads. (This is because when the source of a downloaded file is your local client workstation ("local machine"), the amount of traffic is increased twofold. The reason for this is because the software file is transferred twice: once between your desktop and WCS server using HTTPS, and then again between the controller and the WCS server using TFTP.)
The remainder of this section describes how to do this along with other options.
In the majority of centralized WLAN management implementations, the network traffic that results from the maintenance of controller software should not represent a major traffic component, especially with modern high-bandwidth campus LAN implementations. In larger implementations that may use slower or more congested WAN links between campus network and remote sites, it may be beneficial to transfer controller software files across the WAN to local TFTP servers during off-peak periods, especially if it is forecast that controller upgrades might need to be performed during peak traffic periods. By placing software files on TFTP servers that may be local to the network devices that require upgrading, transferring the files across the WAN during periods of peak traffic can be avoided.
In rarer cases of very large networks (such as those considered in Using WCS to Efficiently Deploy Your Wireless Network), additional considerations may be warranted. Given that controller operating software files are typically 25 MB in size, Cisco recommends that the performance impact of initiating multiple simultaneous controller operating software downloads during periods of peak network usage be more carefully examined. Multiple controller selections result in the initiation of multiple TFTP sessions (up to any limitation imposed by the TFTP server being used). The WCS administrator should keep this behavior in mind and limit the number of controllers selected, considering the underlying network topology, the bandwidth available, and other users on the network. As with other WCS displays, all controllers selected for software download must be present on one WCS display page when using the Configure > Controllers menu selection.
Perform the follow steps to download new software to WLAN controllers:
Step 1

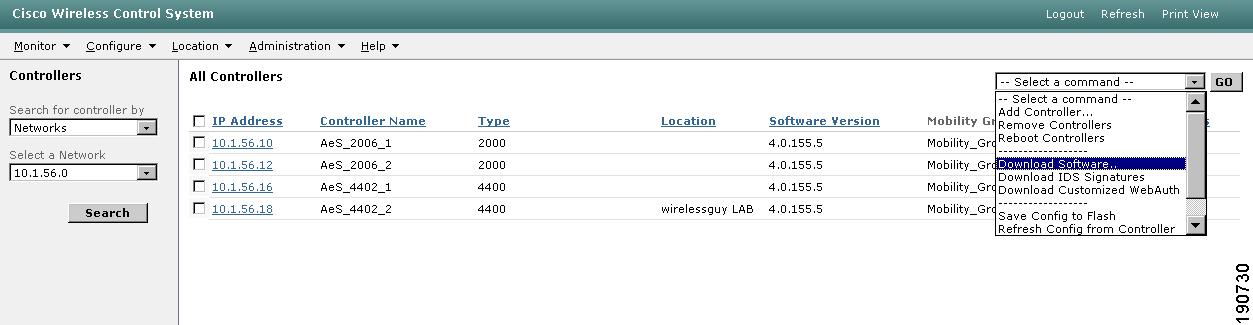

Figure 8-19 All Controllers WCS Page
Step 2
Step 3
•
To do this, ensure that Local Machine is selected for the "File is Located on" option, as shown in Figure 8-20. Then click Browse to select the software file on your local computer. The file is transferred from your local machine to the internal WCS TFTP server, and then transferred to the controller.
Figure 8-20 Downloading Controller Software From the Local Machine
•
–
–
–
–

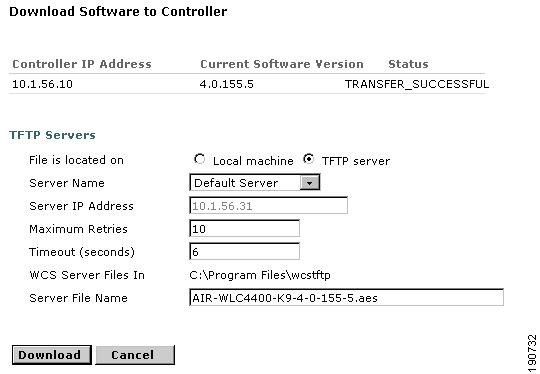

Figure 8-21 Downloading Controller Software from WCS TFTP Server
–
•
Note
To accomplish this, ensure the following:
–
–
–

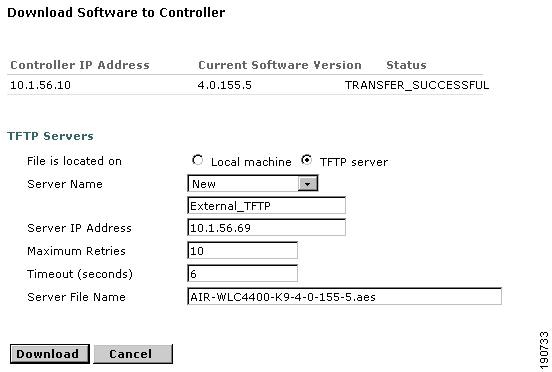

Figure 8-22 Downloading Controller Software From an External TFTP Server
Step 4
Step 5
Using the same basic steps outlined above, WCS also allows for web authentication bundles and intrusion detection (IDS) signatures to be downloaded to the controller as well in an analogous fashion. The commands to perform these functions can be accessed from the Configure > Controllers > All Controllers screen shown in Figure 8-19.
Further guidance concerning how to download controller operating software, web authentication bundles, and IDS signatures can be found in the Cisco Wireless LAN Controller Configuration Guide, Release 4.0 and also in the WCS main menu bar under Help > Online Help.
Managing Location Server Software Level
As mentioned previously, WCS is the user interface to the location appliance and as such provides the control mechanism through which the location application and history databases on the location appliance are managed. All such software level management is performed for the location appliance from the Location > Location Servers > Maintenance screen shown in Figure 8-23. The Maintenance category shown provides several sub-category options for downloading new operating system software to the location appliance as well as performing a backup and restore of historical data on the appliance.
Figure 8-23 Location Server Maintenance
Complete step-by-step guidance about the updating of operating system software as well as how to perform appliance database backup and restore using WCS is available in the Cisco Wireless Location Appliance—Configuration Guide.
Ensuring Configuration Integrity
To ensure consistency, Cisco recommends that WCS be used whenever possible to configure and maintain the components of your Cisco Unified Wireless Network instead of direct CLI and GUI device access. As part of their configuration management functionality, many network management systems (including WCS) possess both an internal database structure where the last known configurations of network components are stored as well as the ability to query those components for their actual current configuration. Under normal operating circumstances, in an ideal environment where configuration access to network components is tightly controlled and only allowed from authorized network management stations, there should be little if any discrepancy between the actual configuration information contained in each network component and the configuration contained in the management system database.
In the real world, such discrepancies can and do arise. Whether from access by another group within the organization performing troubleshooting or from misconfiguration during hardware replacement, such situations may occur more often than is desirable in real-world deployments. To maintain integrity and value, an enterprise wireless network management system must possess a configuration management subsystem with which such discrepancies can be quickly identified and efficiently resolved.
When using the Configuration > Controllers function under the WCS main menu bar to manage WLAN controller configurations, the configuration object values that are displayed originate from the WCS internal database, not the controllers themselves.
Because WCS stores its representation of current WLAN controller configurations apart from the actual values present in the devices, the state of synchronization should occasionally be validated between the WCS databases and the actual managed device and if necessary, a re-synchronization should be initiated. WCS provides the network administrator with several tools to accomplish this. The subsections that follow describe these tools, which include the following:
•
•
•
•
Configuration Audit Reporting
Configuration audit reports compare the complete current running configuration of a controller and its registered access points with the configuration stored in the WCS databases. Any exceptions are noted and brought to the attention of the network administrator via screen reports.
WCS offers both an on-demand as well as a periodically scheduled configuration audit reporting feature.
On-Demand Configuration Audit Reporting
To initiate an on-demand configuration audit report on behalf of a WLAN controller and its registered lightweight access points, follow these steps:
Step 1
Step 2
Step 3
Step 4
The result is a configuration audit report listing any discrepancies found, as shown in Figure 8-24.
Figure 8-24 On Demand Audit Report
Scheduled-Task Network Audit Reporting

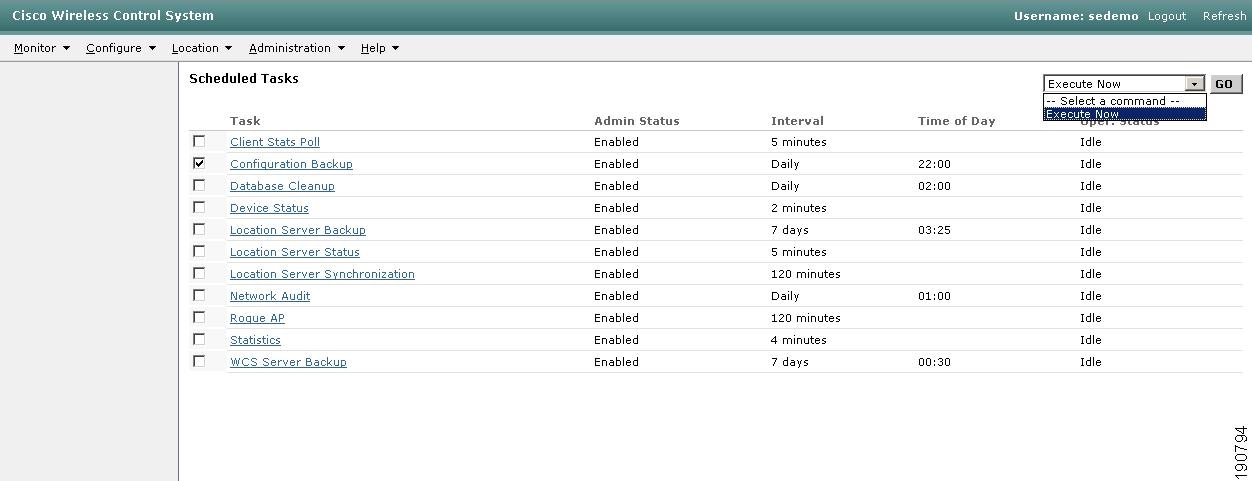

WCS can also produce configuration audit reports automatically on a routine basis without user intervention. The output of this report is very similar to what has just been described. Known as the network audit report, this runs as a scheduled task and reports on discrepancies found between the configuration values in WCS databases and all WLAN controllers defined to WCS and their currently registered lightweight access points. Unlike the on-demand configuration report, the network audit report is non-selective and reports against all defined controllers that are SNMP reachable.

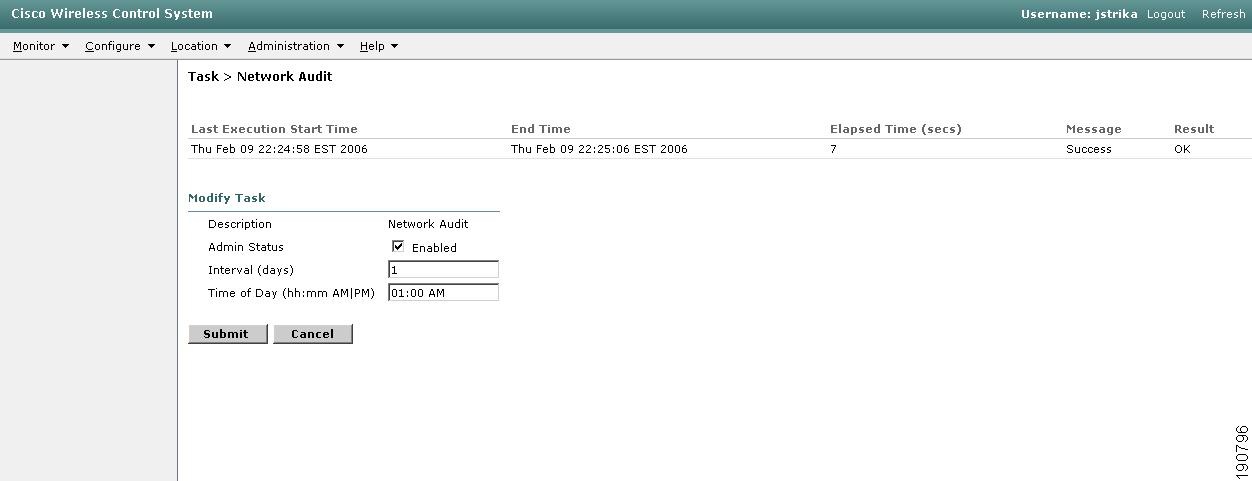

The network audit report can be configured to execute at a pre-defined time and with a pre-defined repetition interval. Alternatively, it can also be executed on a one-time "execute now" basis (which is equivalent in function to what was discussed in On-Demand Configuration Audit Reporting). The network audit report facilitates running unattended reports at times when network utilization is low and allows the viewing of report output to be deferred.
For further information on this scheduled task configuration audit report capability, see Network Audit.
Synchronizing WCS with Controller and Access Point Configurations
Synchronization in WCS is performed as a distinctly separate operation in relation to the identification of discrepancies. WCS offers several mechanisms through which configuration discrepancies between WCS, controllers, and lightweight access points can be resolved without requiring the operator to initiate a manual configuration change. These options can be broken into two groups. The first of these is a selective synchronization option where the administrator may individually audit and synchronize select portions of controller and lightweight access point configurations. Access is via the same controller and lightweight access point configuration menus used to edit the configurations as described in Configuring WLAN Controllers and Configuring Lightweight Access Points. The second group of options are non-selective one-way mechanisms that can either refresh the content of the WCS database from the controller configuration or restore the controller configuration from the information contained in the WCS databases.
Selective Synchronization

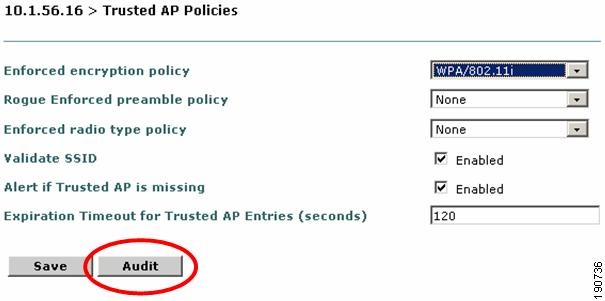

Selective synchronizations options are available on the same WCS menu panels that are used to specify parameters for controller and lightweight access point configuration. To initiate selective synchronization, access the screen of interest for the particular parameter category you want to audit by following the procedures already outlined in Configuring WLAN Controllers and Configuring Lightweight Access Points. When you arrive at the parameter definition screen, you should notice that an "Audit" option is available alongside the option to save the configuration objects. An example is shown in Figure 8-25.
Figure 8-25 Selective Audit Option Example
Selecting "Audit" in this case does not perform simple audit reporting, as was discussed in previous sections, but rather initiates the process of synchronizing the values of the displayed configuration parameters between the WCS database and the actual device running configuration. When a selective synchronization audit is performed, WCS queries the WLC and requests the audit parameter values contained in the WLC for the specified Management Information Base (MIB) objects. WLC responds with the current values for the audit parameters. When the responses are received, WCS compares the values contained in its databases to the values received from the device.
If the results of the comparison indicate that the device is in synchronization with WCS, WCS indicates that no differences exist. However, if there are any discrepancies found during the comparison, WCS presents the operator with a screen similar to that shown in Figure 8-26.

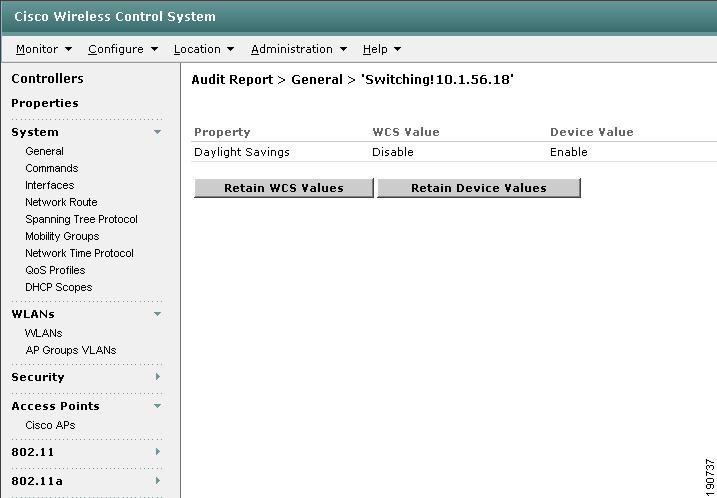

Figure 8-26 Auditing a Configuration Category
Clicking on one of the two options in Figure 8-26 causes one of the following to occur:
•
•
In either case, WCS presents confirmation of the selection and the action performed as a result.
In this way, WCS allows the operator to review as little or as much of the device configuration as desired, and synchronize only selected parts of the configuration.
This same procedure can be used to perform selective synchronization of lightweight access point configurations as well. See Configuring Lightweight Access Points for information about the configuration of lightweight access points.
Non-Selective Synchronization
In some cases, you may wish to perform synchronization between WCS and its managed resources on a grander scale than that which is available via selective synchronization. WCS offers the capability of performing one-way non-selective synchronizations of the WCS database with the entire running configuration contained within the controller (or vice-versa).
•
Refresh Config from Controller can be performed against either a single WLAN controller or multiple WLAN controllers simultaneously. To perform the refresh, follow these steps:
Step 1
Step 2
Step 3
The page shown in Figure 8-27 is presented.
Figure 8-27 Refresh Config from Controller Conflict Resolution
This information displayed concerns itself with what to do in the event that a configuration object exists in the WCS database for the controller but does not exist in the running configuration of the controller.
Step 4
a.
b.
Step 5
•
Unlike Refresh Config from Controller, Restore Config to Controller can only be applied on an individual basis against specific controllers.
To refresh the running configuration of a WLAN controller from the WCS database using Restore Config to Controller, perform the following procedure:
Step 1
In large networks, you may find it helpful to use the "Search for Controllers" feature in the left-hand margin column to narrow the selection of displayed controllers by name, IP address, or network.
Step 2
Step 3

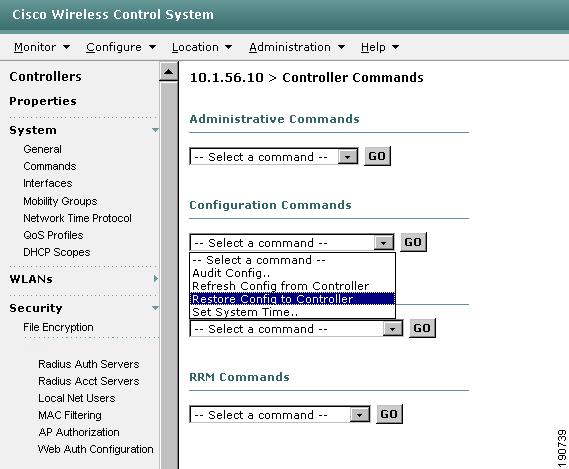

Figure 8-28 Controller Commands
Step 4
Be careful not to inadvertently select Refresh Config from Controller instead of Restore Config to Controller because both options appear in the drop-down menu selector.
Step 5
Controller Configuration Archival
The ability to identify discrepancies between the contents of WCS and the actual configuration of network devices, coupled with two powerful mechanisms allowing for re-synchronization is usually sufficient to recover from most accidental or unintentional out-of-sync situations. In some cases, however, the out-of-sync situation can become somewhat aggravated because of the passage of time or the inadvertent operator acceptance of controller configuration changes into the WCS database that are later found not to have been valid. To address these situations and others, WCS also provides the ability for archival and restoration from external configuration archive files that are independent of the WCS database itself.
Note
Regular archiving of device configuration is a best practice because it allows the recovery of lost configuration, and it also provides an audit trail of when changes occurred in device configuration. This section describes how WCS provides for controller configurations to be archived to individually named and time-stamped files on a designated TFTP server. The archival process can be initiated either on-demand or via a scheduled task.
Archiving of Individual Controller Configuration Files
WCS provides the ability to manually archive the configuration of a WLAN controller to a file on a designated TFTP server via the following process.
Step 1
Step 2
Step 3
Step 4
Figure 8-29 Manually Archiving Controller Configurations, Logs, and Signature Files
Step 5
Step 6
Step 7
Step 8
You may see a warning about enabling file encryption on this page. AES file encryption can be configured using Configure > Controllers > Security > File Encryption. File encryption is highly recommended when archiving controller configurations over WANs and other public communications facilities.
Automatic Archival of Controller Configurations
WCS also provides a automated routine (known as the Configuration Backup scheduled task) that automatically archives the configuration of each reachable controller that has been defined to WCS.
Note
The Configuration Backup scheduled task can be configured to run at a pre-defined time of day and with a pre-defined repetition interval. It can also be submitted for execution on a on-demand basis.
See Configuration Backup for further details on the Configuration Backup scheduled task.
Restoring Controller Configuration Archives
WCS provides the ability to manually restore an individual configuration archive to a controller via Configure > Controllers > Commands > Upload/Download Commands > Download Config. Note that controller configuration archives can only be restored on an individual, one-at-a-time basis.
Configuring WCS Campus, Building, Outdoor, and Floor Maps
Cisco WCS allows for the addition of maps to its internal database that can then be used to assist in the visualization of client, asset tag, and rogue location as well as estimated coverage during the monitoring of your wireless LAN. Adding maps to the Cisco WCS database enables you to view your managed system on realistic outdoor, campus, building, and floor plans that you have defined that allow more meaning to be imparted to the viewer. Maps can originate from actual floor plans that are imported into WCS using .PNG, .JPEG, .JPG, or .GIF graphic file formats (AutoCAD .DXF file formats are not supported at this time). After they are imported and sized, RF characteristics can be added to various building components to increase coverage prediction and design accuracy.
Maps are usually added in campus, building, and floor sequence; however, the existence of a campus map is not mandatory (buildings can be freestanding and not part of a campus in smaller designs). Floor maps cannot exist independently of building maps. Outdoor areas are typically associated with campus maps and do not exist independently.
The WCS map editor can be used to define, draw, and enhance floor plan information. The map editor enables the creation of obstacles that can be taken into consideration when computing RF prediction heat maps for access points. (Although supported, Cisco recommends the use of the map editor to draw walls and other obstacles rather than importing .FPE files from the legacy floor plan editor.) You can also add coverage areas that are used by the location appliance to locate clients and 802.11 active RFID tags and provide alarm notifications on their movement.
WCS planning mode is a feature that enables you to calculate the number of access points required to cover an area by placing fictitious access points on a map and allowing you to view the coverage area that they would yield. Based on the throughput specified for each protocol (802.11a or 802.11b/g), planning mode calculates the total number of access points required to provide optimum coverage in your network.
Detailed step-by-step guidance on how to define, add, and edit campus, building, and outdoor floor maps can be found in the Cisco Wireless Control System Configuration Guide, Release 4.0.
Configuring WCS to Manage the Cisco Wireless Location Appliance
The location appliance enhances the high-accuracy location capabilities that are integrated into location-enabled WCS servers. The location appliance enhances WCS location capabilities by computing, collecting, and storing historical location data and allowing WCS to display location data for multiple tracked devices at a time. In addition, the location appliance handles the dispatch of location notifications and provides the SOAP/XML API to which third-party applications can interface to the location information stored within the location appliance databases. Before use, the location appliance must be configured and defined to the WCS server that has been licensed for location services.
After initial IP parameter settings as described in the Cisco Wireless Location Appliance—Installation Guide and the Cisco Wireless Location Appliance—Configuration Guide, all configuration of the location appliance is performed from WCS using the menus and submenus located under the Location tab.
Complete guidance in configuring and managing the location appliance via the menus located under the WCS Location tab can be found in the Cisco Wireless Location Appliance—Configuration Guide. This includes step-by-step configuration instructions on the following topics:
•
•
•
•
•
•
•
In addition, extensive coverage of location-based services and positioning technologies, location-aware design, deployment best practices and RFID tag technology are available in the following documents:
•
•
Using WCS to Monitor Your Wireless Network
WCS facilitates the monitoring of device status within its management domain via several avenues. Whether looking at the omnipresent alarm counters that appear in the lower left-hand corner of every WCS screen or the detailed status information available under the Monitor tab, information about the current status of your enterprise network is presented to the operator in a clear, efficient, and visually attractive manner. Access to this information and more starts with a simple mouse click on the Monitor tab on the main menu bar (or the Alt-M keyboard shortcut).
The following sections briefly describe the information available to you under each of the selections in the Monitor menu tree. Keep in mind that as seen in the Configuration menus discussed previously, the majority of device status information in the WCS databases is accessible via multiple paths in the GUI. For example, although information about controller and lightweight access point status is readily available by clicking on Monitor > Devices > Controllers or Monitor > Devices > Access Points respectively, much of the same information is accessible via strategically located hyperlinks on many other Monitor > Device submenus as well.
WCS also provides a northbound notification system that can dispatch e-mails to specified destinations (pager, cell phone, PDA, laptop, and so on) whenever certain types of alarms occur.
The following sections describe the monitoring capabilities of WCS and how these can be put to use in monitoring the enterprise wireless network.
Network Summary

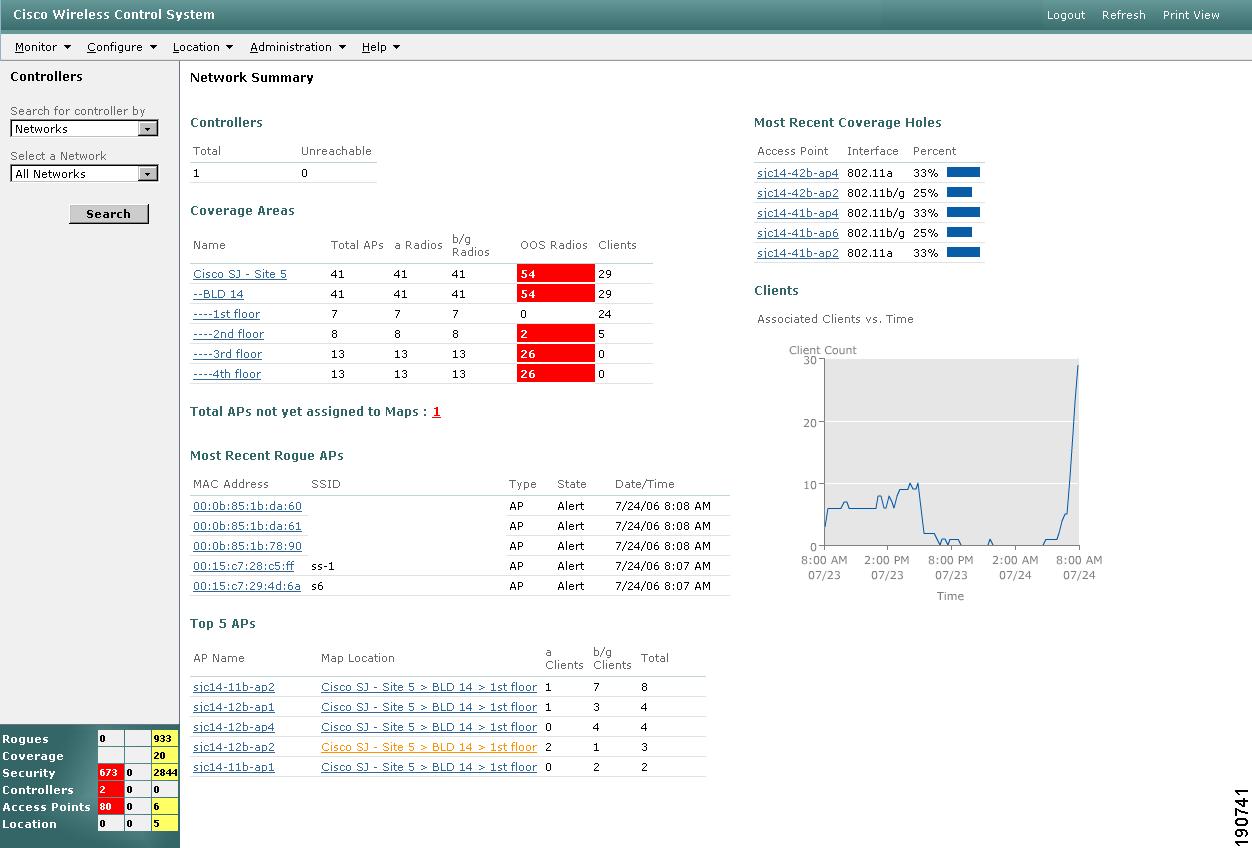

WCS typically presents a summary page at the top of the Monitoring menu tree called the Network Summary. Network Summary is presented immediately after clicking on the Monitoring main menu selection (or using the keyboard shortcut Alt-M). As shown in Figure 8-30, Network Summary shows what is currently taking place in your wireless network that may warrant your immediate attention.
Figure 8-30 Network Summary
Along with the information that is presented via the alarm summary panel in the lower left-hand corner of the screen, you are shown a cross-sectional view into the status of several key areas that may affect not only the operational and performance characteristics of your wireless LAN but its overall security as well.
The following can be learned from the Network Summary panel:
•
•
Note
The coverage areas listing may consist of a combination of campuses, buildings, floors, or outdoor areas. If WCS determines that ten or more campus or standalone building maps have been defined, it displays a "View All Maps" hyperlink that enables you to jump to the Monitor > Maps page where the entire list of defined maps can be seen.
Clicking on any of the hyperlinks shown in this area allows you to move to the associated map screen where you are able to obtain detailed information on which lightweight access points in that area are experiencing difficulties and what those difficulties may be. In some cases, a hyperlink may appear indicating the total number of lightweight access points that have not been assigned to any maps.
•
•
•
Keep in mind that although a coverage hole alarm may have already been cleared, the cleared alarm is still listed in this area unless superseded by other coverage hole alarms.
•
•
Monitoring Maps
As discussed in the previous section, WCS allows for visual status of devices to be displayed on campus, building, floor, and outdoor maps. The following examines how Monitor > Maps allows the WCS user to fully take advantage of these capabilities in managing the enterprise wireless LAN.
The main page under Monitor > Maps (shown in Figure 8-31) contains similar information to what was displayed in the Coverage Areas portion of the Network Summary screen.
Figure 8-31 Monitor > Maps
However, here you see the entire listing of all known maps instead of simply a summary excerpt. In large networks comprising more than a single campus with each in turn made up of several buildings with multiple floors, the viewer may find it easier to manage the contents of the display by using the "Search For" selector in the left-hand margin. The display content can also be sorted as per the viewers preference (default sort order is by type). This sort order can be changed by clicking on any of the column headings, which sort the display by the column values in either ascending or descending order.
Figure 8-31 shows that the visual alarm status color indication is provided for the indicated resources. Note that the alarm status of any map in the hierarchy depends not only upon the status of the resources on that map but also on the status of resources located on any lower level maps as well. Thus, if a resource on a floor map generates an event triggering a critical alarm, the campus and building maps as well as the floor map all show a red critical alarm status. In this manner, the presence of an alarm attracts the attention of the WCS administrator no matter what level of the campus hierarchy they happen to browse to in pursuit of the matter.

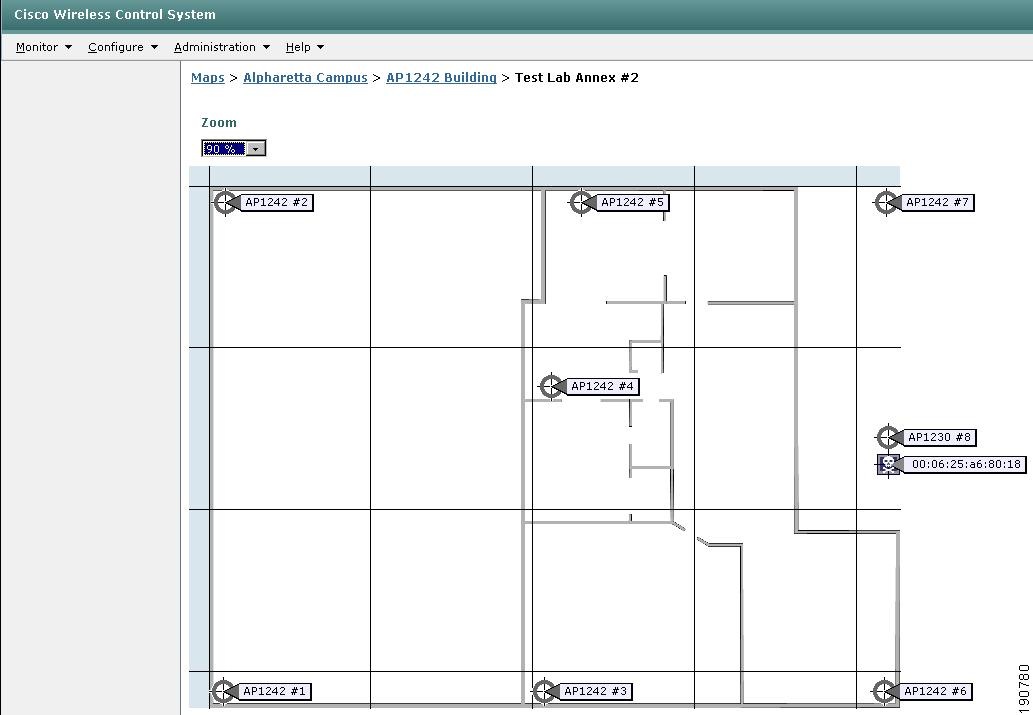

Clicking on any of the map name hyperlinks results in campus, building, floor, or outdoor area maps being displayed. Floor maps (shown in Figure 8-32) contain icons representing each lightweight access point. The color of these access point icons vary to reflect the state of alarm that has been triggered by events occurring at the lightweight access point.

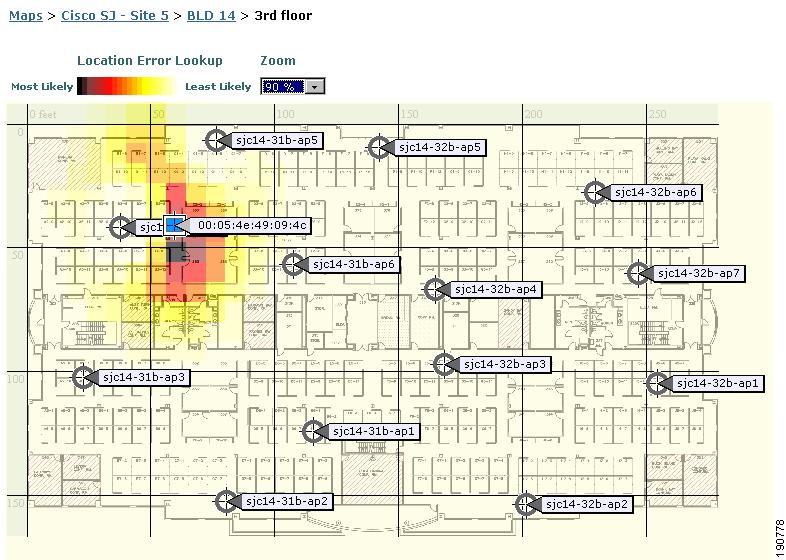

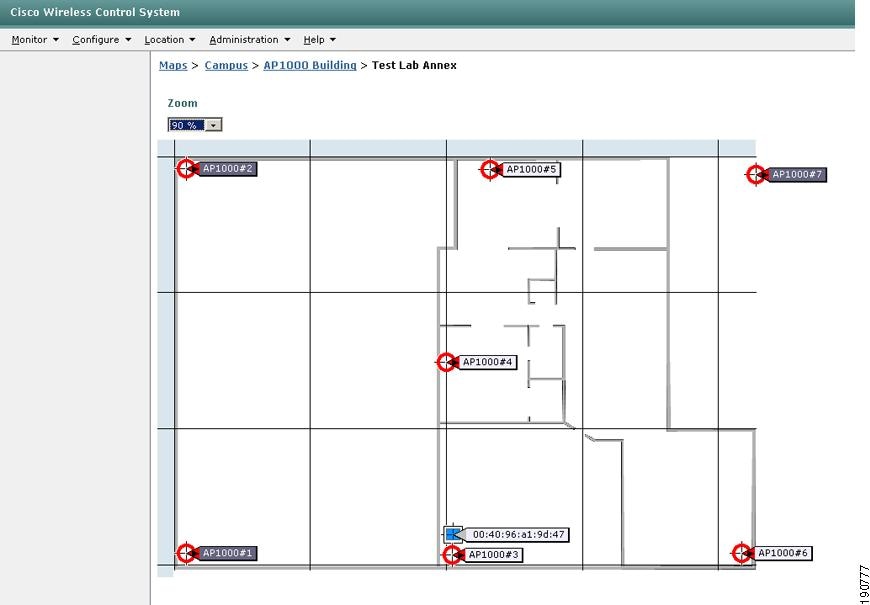

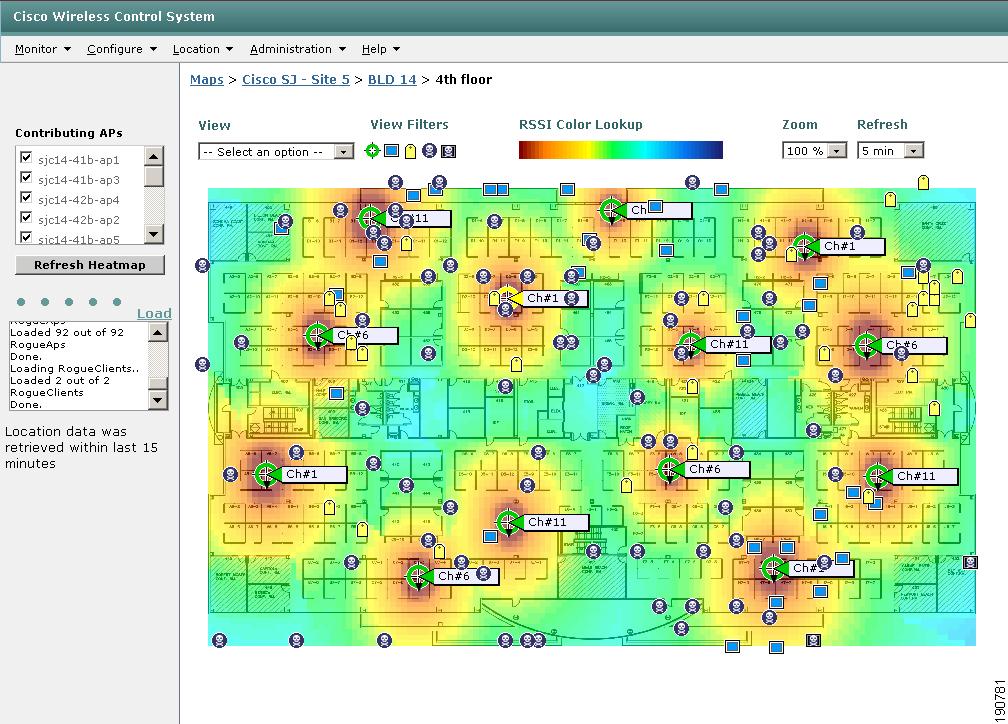

Figure 8-32 Graphical Floor Map Showing AP Locations and Heat Maps
Floor maps can be viewed at various zoom settings (50-800 percent and full screen) with a screen refresh timer that can be configured from 5 seconds to 15 minutes. The following bullets outline just some of the information that WCS provides graphically using floor maps as shown in Figure 8-32:
•
•
–
–
–
Using a version of WCS licensed for location-based services along with a location appliance adds graphical capabilities such as the following:
•
•
–
–
•
–
–
•
–
•
–
–
Figure 8-32 also indicates a drop-down menu selector in the left-hand margin that allows all "live" location data retrieved from the location appliance to be filtered by age. In Figure 8-32, this is defaulted to 15 minutes but it can be set from 2 minutes to as long as 24 hours.
This is only a brief overview of the many capabilities available under WCS and its graphical monitoring facilities. Additional information pertaining to the entire range of information viewable under Monitor > Maps can be found in the Cisco Wireless Control System Configuration Guide, Release 4.0. Additional information can also be found in the WCS menu bar under Help > Online Help.
Information specific to the configuration of WCS floor maps for displaying the location of clients, asset tags, rogue access points, and rogue access point clients when using WCS with the Wireless Location Appliance can be found in the following documents:
•
•
Monitoring Devices
Thus far, this guide has examined the monitoring capabilities of WCS based primarily based on network geography. This section describes the capabilities available that are indexed instead by device category. This proves useful when you are primarily interested in seeing current alarm status for all devices comprising a resource category, regardless of where they may be located within the management domain (although you can filter the listings on location as well).
Clicking on Monitor > Devices on the main WCS menu bar shows that device status is grouped into four main device categories: Controllers, Access Points, Clients, and Tags. The subsections that follow take a brief look at each of these.
Monitoring WLAN Controllers
Clicking on Monitor > Devices > Controllers displays the page shown in Figure 8-33.
Figure 8-33 Monitor > Devices > Controllers
As seen previously in Configure > Controllers, Figure 8-33 indicates whether all controllers managed by this WCS indicate are SNMP reachable. A controller becoming unreachable is an event that triggers a critical alarm, so in this monitor screen it is shown in red. Clicking on the hyperlink for any controller IP address leads the WCS user to the Controller > Summary page, as shown in Figure 8-34. The Controller > Summary page is the main launching point from which you can drill down into more in-depth status information about a particular controller within the WCS management domain.

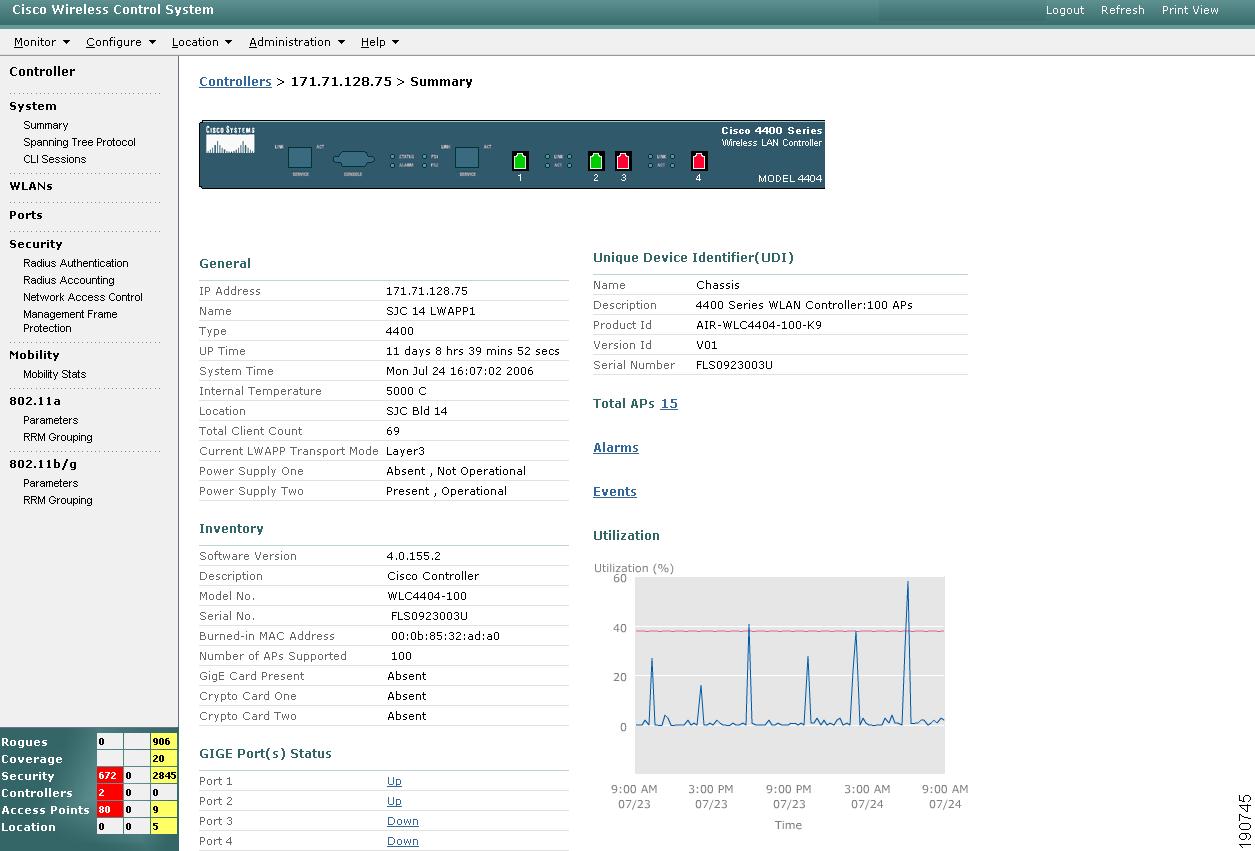

Figure 8-34 illustrates and example of a controller summary display for a Cisco WLAN controller model 4400 with 100 lightweight access point capacity.
Figure 8-34 Monitor > Devices > Controller Summary for 4400 Series WLAN Controller
The graphic that appears varies depending on the model of the controller hardware (4400, 2000, Cat6500/WiSM, ISR/WLCM, and so on). For example, the Cisco Catalyst 6500 Wireless Solutions Module (WiSM) and its two onboard controllers can be visually represented as shown in Figure 8-35.

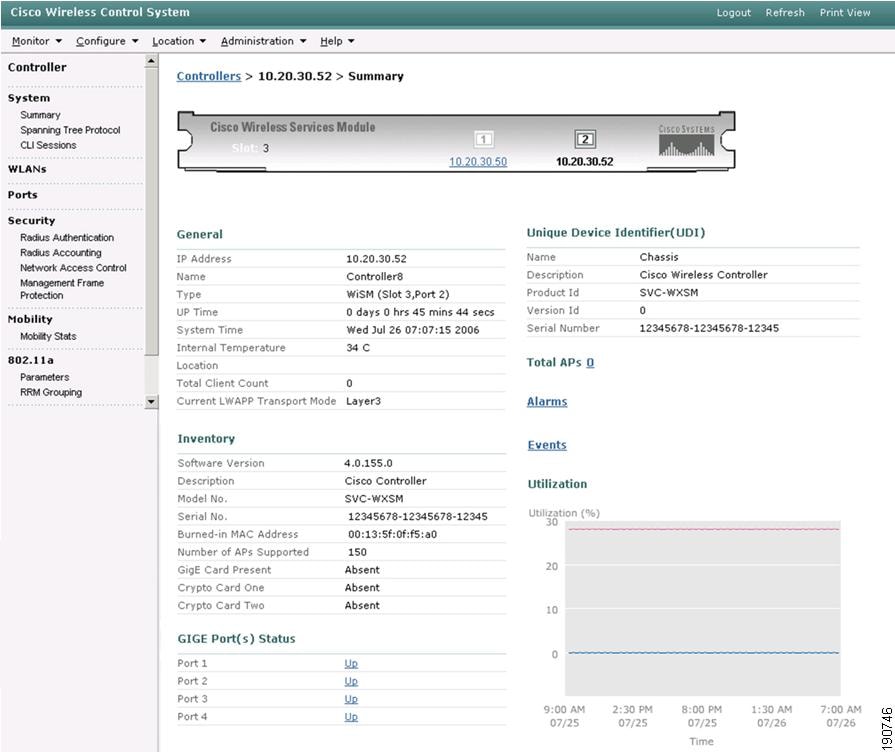

Figure 8-35 Monitor > Controller > Summary for Catalyst WiSM
Note that in all cases, however, the screen format used in Controller > Summary is very similar with pertinent summary information in the main body of the screen and visual color representation used for the status of the physical Ethernet ports. Clicking on any of the red or green port graphics summons the Monitor > Devices > Controllers > Ports panel for the port in question, where a full range of Ethernet port performance information is available. Links are also available to applicable Alarms, Events, and AP Status pages from the controller summary display.
The left column of both Figure 8-34 and Figure 8-35 indicates the complete range of controller-specific information available from the controller summary page. WCS makes it possible to click on one category after another without requiring you to use the "back" browser function, thereby saving time and effort.
Monitoring Access Points
In addition to obtaining information about access point status indirectly via the Monitor > Maps and Monitor > Devices > Controller menu trees, WCS allows immediate and direct access the same information via the Monitor > Devices > Access Points menu selection. After clicking on Monitor > Devices > Access Points, you are presented with the Access Point > Search Results menu shown in Figure 8-36. Depending on the number of access points that WCS has discovered, the complete list of search results menu may be quite long. Therefore, the "Search for APs" and "Select Radio Type" filters in the left-hand margin can be especially useful in narrowing down the total number of access points displayed.

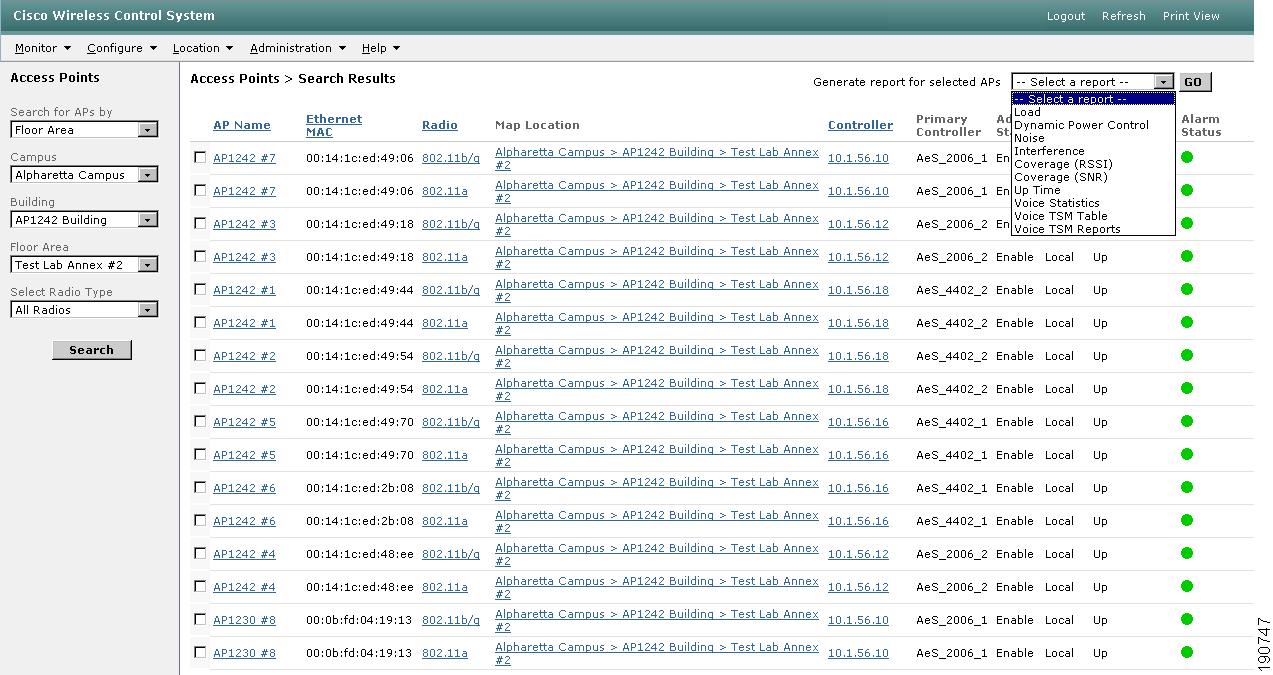

Figure 8-36 Monitor > Devices > Access Points > Search Results
The various hyperlinks available from this screen allow access to a wide variety of information about the lightweight access point and its radio interfaces, the location map that it is currently assigned to, the controller to which it is currently registered as well as detailed information concerning the alarms that are currently active regarding it. Note that the Alarm Status indicator on this page is actually a hyperlink to detailed information about the alarm.
As was seen with Configure > Access Points, the search results page shown in Figure 8-36 displays all lightweight access points known to this WCS including any lightweight access points that are not currently registered to any WLAN controllers in the management domain. However, WCS only allows you to display detailed current status for lightweight access points that are currently registered to a WLAN controller (as indicated by the IP address of a WLAN controller appearing in the "Primary Controller" display column).
The drop-down command selector in the upper right-hand corner of Figure 8-36 indicates that several useful reporting functions are available from the search results page. Here you see the ability to generate load, dynamic power control, noise, interference, client distribution by RSSI / SNR, total uptime, and voice statistics, and traffic stream metrics reports for selected access points. This can be done by selecting up to five access point radio interfaces shown on the Access Points > Search Results screen, selecting a report type from the "Select a Report" menu drop-down at the top right-hand corner of the screen, and then clicking on GO.
Note
Samples of the reports that are generated by these seven options can be seen in Appendix E, "Sample Monitor > Devices > Access Points Reports."
Clicking on any of the AP Name hyperlinks yields the AP detail screen shown in Figure 8-37. This provides hyperlinks to the WLAN controller information found in Monitor > Controllers and the map information found in Monitor > Maps as well as hyperlinks to any alarms or events that concern this access point. On this screen, you can verify general operational parameters, software levels, access point model, serial number as well as the type of certificate with which it was provisioned. In addition, this page provides hyperlinks to 802.11a and 802.11b/g radio interfaces along with alarm status hyperlinks.
Figure 8-37 Access Point Detail
Clicking on one of the AP interface hyperlinks at the bottom of Figure 8-37 brings up the on-demand statistics page for the access point (Figure 8-38) where information about the status of the four radio resource management (RRM) profiles can be found (load, coverage, noise, and interference) along with information about the status of Management Frame Protection (MFP) on that access point. In addition, graphical charts displaying noise and interference by channel, percentage of client count, and channel radar detection along with receive, transmit, and channel utilization metrics can be found here and are illustrated in Figure 8-38. A bar-chart displaying the RSSI of neighboring lightweight access points as last detected by the lightweight access point you are monitoring is also shown.
Using the selector in the upper right-hand corner of the on-demand statistics page shown in Figure 8-38, considerable detail is available about access point operational parameters, 802.11 MAC counters, and any outstanding alarms and events associated with this access point.

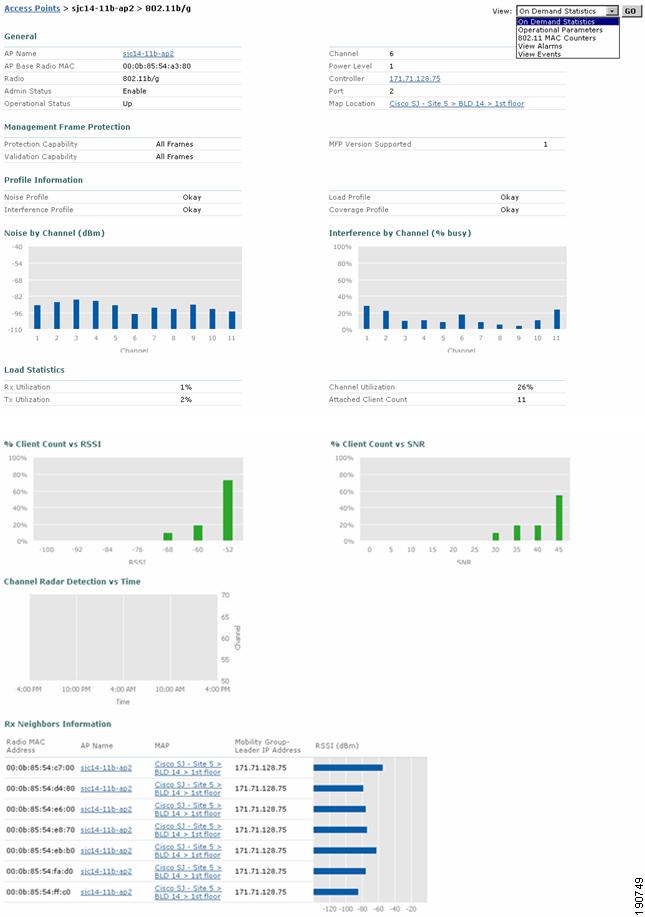

Figure 8-38 Access Point On-Demand Statistics Display
Monitoring Clients
As seen in the previous sections, WCS indirectly makes information available about clients associated to lightweight access points and controllers via the Monitor > Devices > Controllers and Monitor > Devices > Access Points menu options. WCS provides for direct access to an even larger base of client information via Monitor > Devices > Clients.
Although WCS is not a "client manager," it does allow you to configure and manage the various aspects of how client devices are permitted to interact with the network infrastructure. Through its tight integration with the various controllers, lightweight access points, and location servers comprising the wireless network, WCS accumulates a lot of information about the activities of clients on the network, regardless of whether they are probing, associated, or currently disassociated. This section briefly describes some of the information available via the Monitor > Devices > Clients selection.

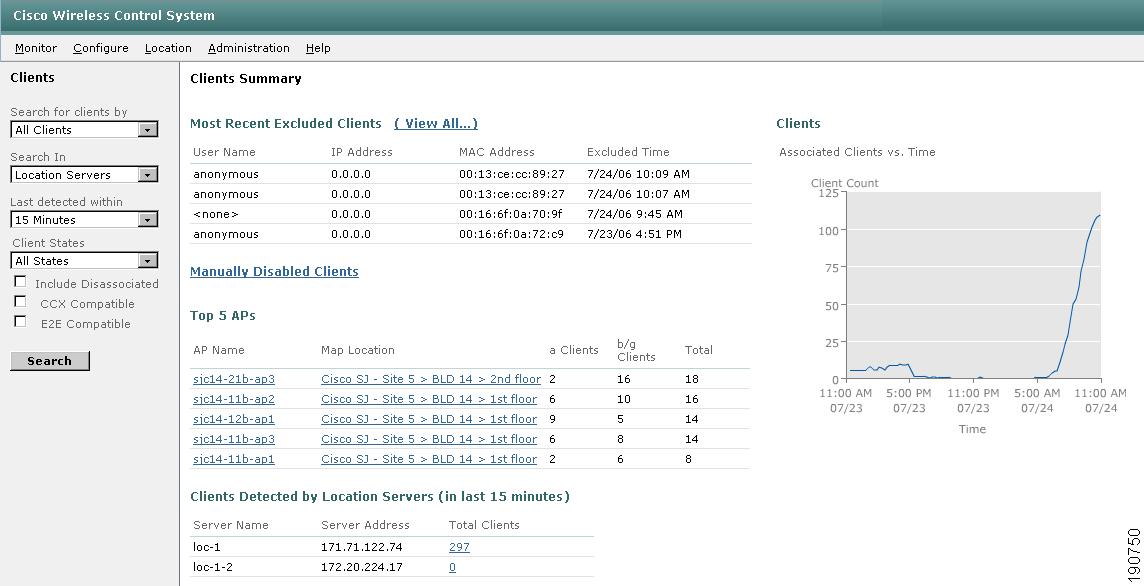

After clicking on Monitor > Devices > Clients, the Clients Summary screen (seen in Figure 8-39) is immediately presented.
Figure 8-39 Monitor > Devices > Clients Summary
As seen in other summary screens, Client Summary attempts to display an overall view of client activity in your wireless LAN by displaying information in the following basic areas:
•
Additional information regarding configuring client exclusion and the timeouts that are available can be found in the WCS menu bar under Help > Online Help.
To view additional information about any of the excluded clients listed in this section, click on the View All hyperlink. This displays an Alarms screen where all the excluded clients are listed. The text of the reason for exclusion can be viewed by performing a mouse-over of the failure object name. Clicking on the failure object name hyperlink of any client displays detailed information about the alarm including hyperlinks to view the event history.
•
•
•
The total count of clients is a hyperlink that links the WCS user to the same information available by manually configuring the left-hand margin "Search For" feature. In this case, the hyperlink displays all clients found in all states in that particular location server within the last fifteen minutes.
•

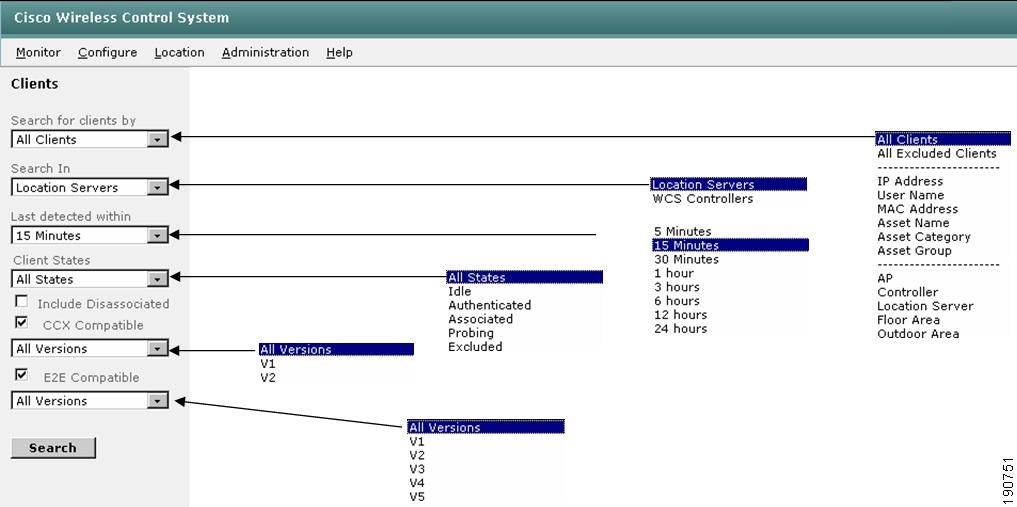

Control over the data displayed in Monitor > Devices > Clients is provided by the "Search For" selection bar in the left-hand margin. Figure 8-40 illustrates the full range of search criteria that are available to the WCS administrator when using this selection bar.
Figure 8-40 Search Criteria Available under Monitor > Devices >Clients

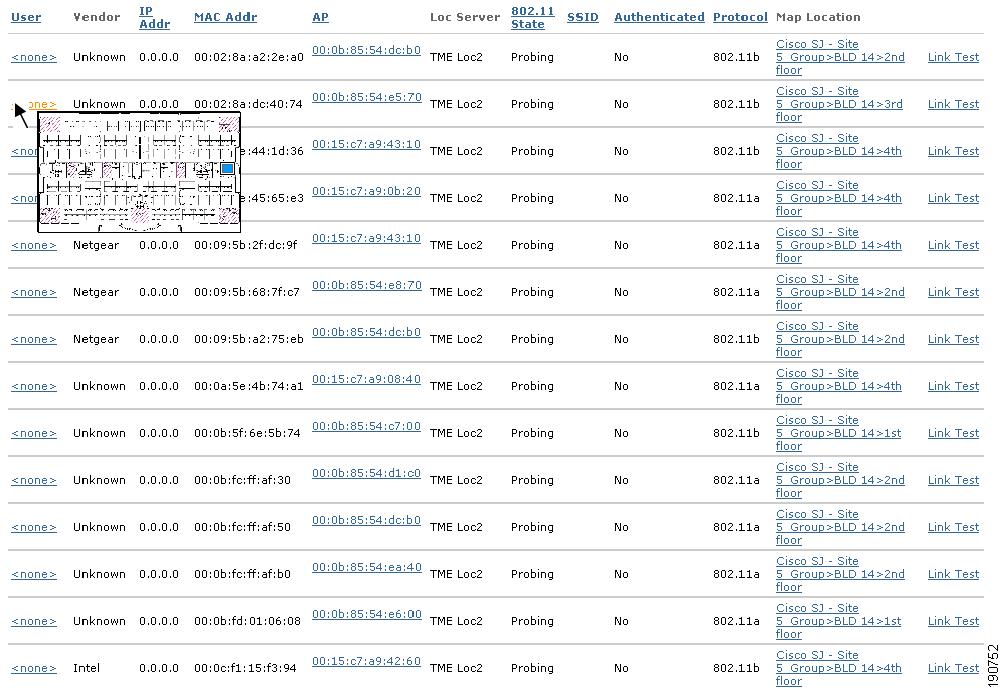

After selecting the appropriate criteria as shown in Figure 8-40, WCS returns a detailed listing of results in which several fields (user, AP, Map Location, and Link Test) are hyperlink-enabled as shown in Figure 8-41. Note the display of the miniature location floor map when performing a mouse-over of the user name hyperlink. Although small in size, this location floor map does indeed indicate the approximate location of the client. This handy method of quickly scanning each client in the list for their approximate location is available only when using a location-enabled version of WCS with the Wireless Location Appliance.
Figure 8-41 Monitor > Devices > Clients Listing

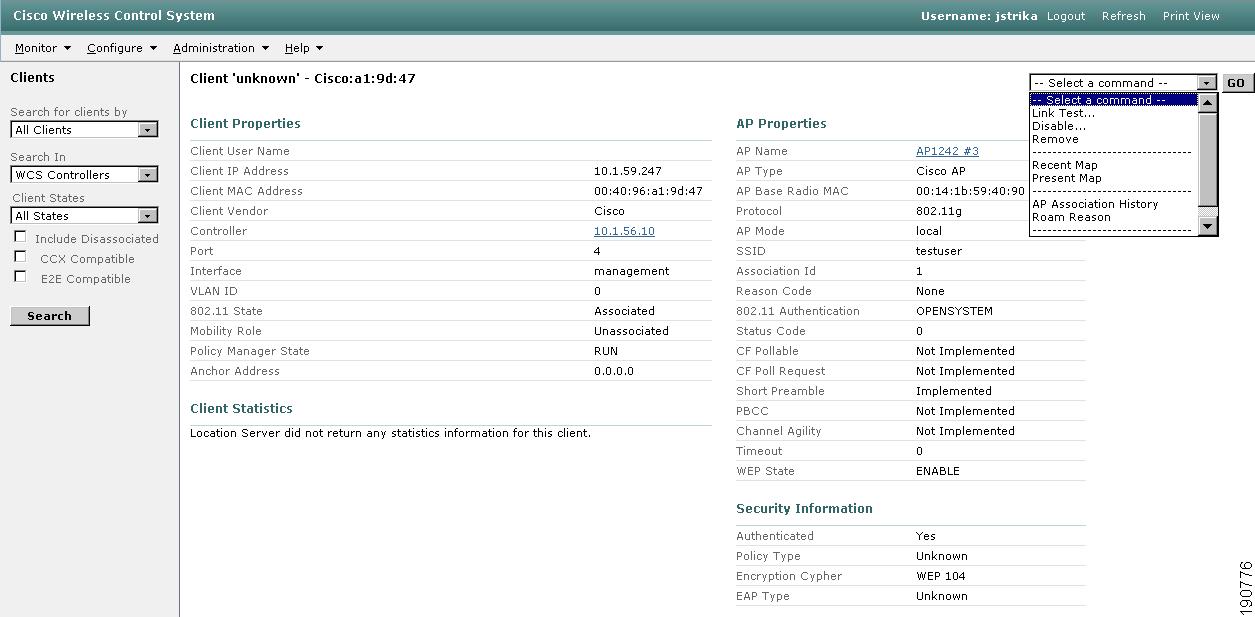

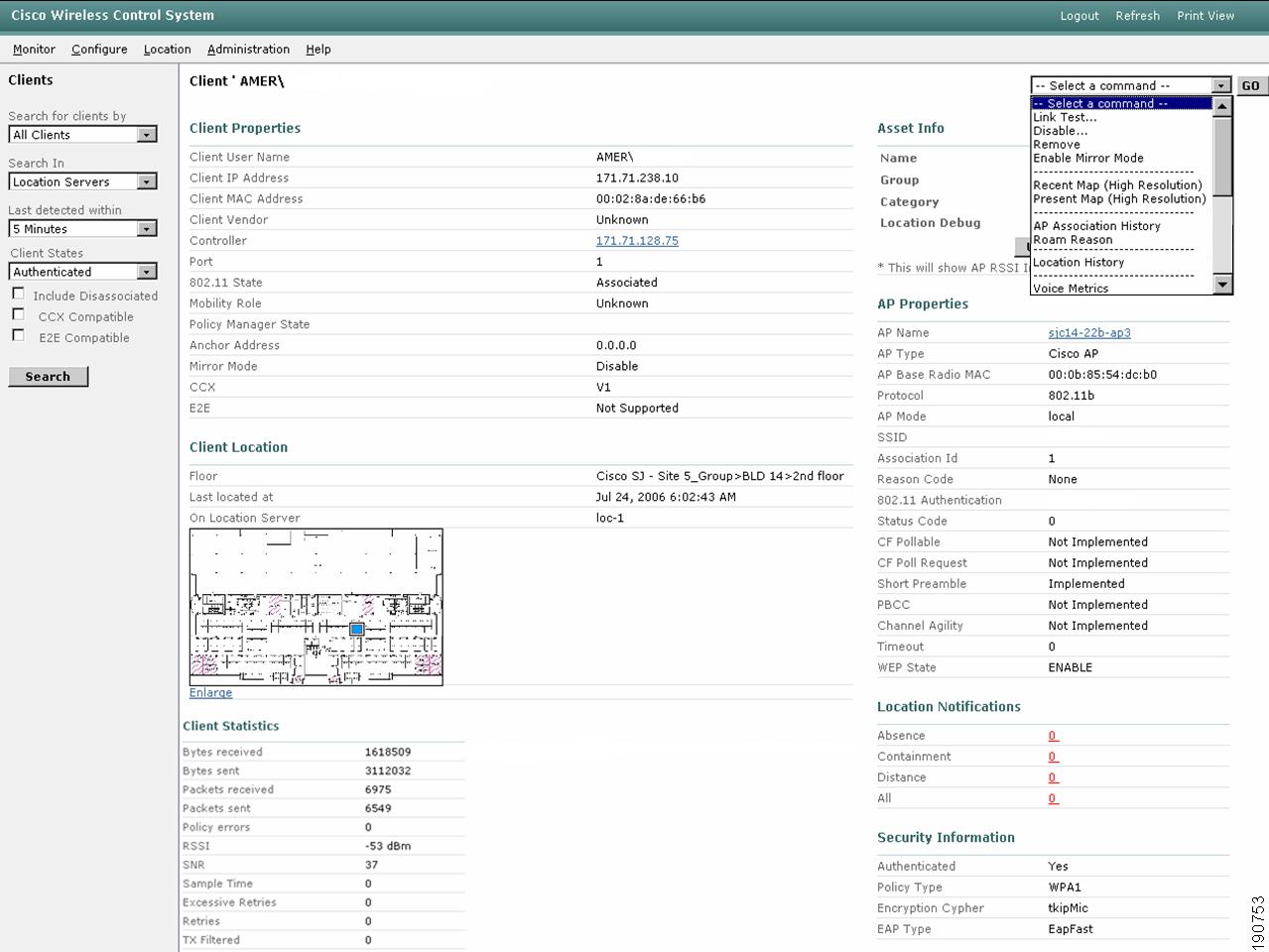

Clicking on the username hyperlink produces the Client Detail page (shown in Figure 8-42) that contains a wealth of information about the properties and statistics associated with the monitored client. Associated access point properties and security summary information for the client is also available from this page. If a location-enabled version of WCS is used with the location appliance present, a current floor map (which can be enlarged) showing the estimated location of the client is displayed under the Client Location heading.
Figure 8-42 Monitor > Devices > Clients Detail Page
The location notification alarm display, AP name, and controller IP address are all hyperlinks leading to further detail about location notification alarms that may have been generated based on the movement of this client, the lightweight access point to which this client is associated, and the controller to which the lightweight access point is registered. The asset name, group, and category of the client device can also be updated in this location. Asset information entered for WLAN clients here can be used to define client filters in other WCS functions. For example, asset information can be used when large groups of WLAN clients must be quickly narrowed down by asset group or category and displayed as icons when viewing devices on location maps via the Monitor > Maps facility.

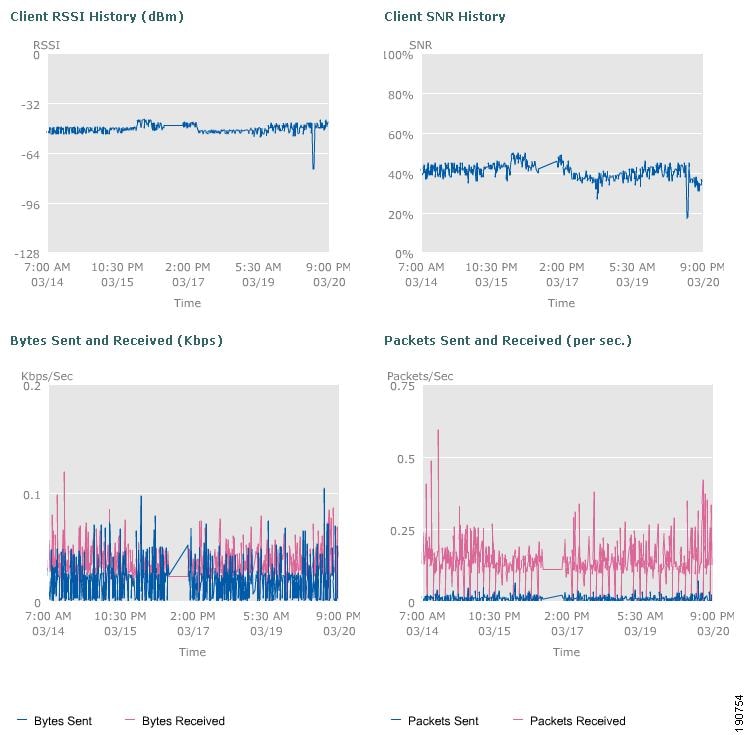

The client detail page also provides graphical trending displays for client RSSI, SNR, packets sent, and packets received, as shown in Figure 8-43.
Figure 8-43 Monitor > Devices > Clients Detail Graphical Displays
Using the command drop-down selector in the upper right-hand corner of the client detail screen in Figure 8-42, you can select from the following options:
•
Figure 8-44 Link Test Results
•
•
•
•
•

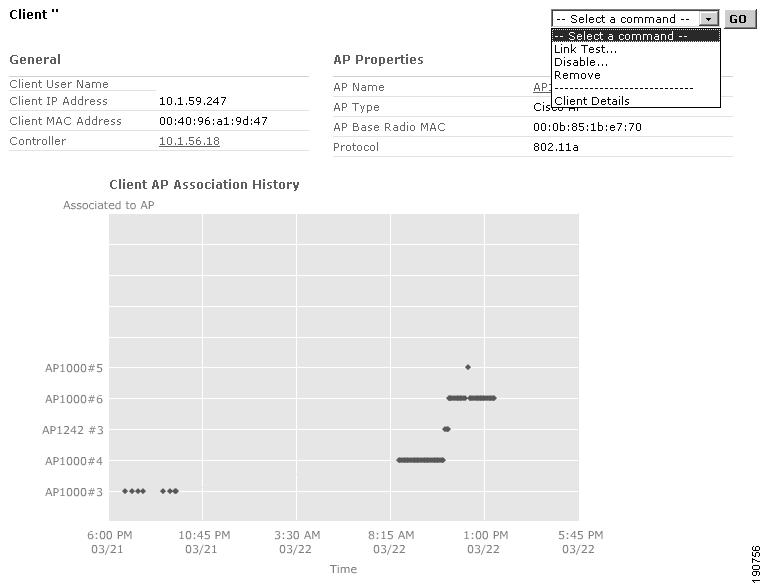

Figure 8-45 Monitor > Clients > AP Association History
•
–
–
–
–
•
For additional details about location history features and the location appliance, see Wi-Fi Location Based Services 4.1Design Guide at the following URL: http://www.cisco.com/en/US/docs/solutions/Enterprise/Mobility/WiFiLBS-DG.html.
Figure 8-46 Monitor > Clients > Client Detail > Location History
•
Monitoring Asset Tags
Information about asset tags that have been detected by lightweight access points and controllers can be accessed indirectly via the Monitor > Controllers and Monitor > Access Points menu selections. When WCS has been installed and licensed for location-based services, the WCS user is able to directly access this information via the Monitor > Devices > Tags function. Note that the Monitor > Devices > Tags submenu does not appear for a WCS that has been licensed only for base level functionality (WCS-Base). Only 802.11 active RFID Layer 2 asset tags (such as those from AeroScout) are displayed under Monitor > Devices > Tags. Asset tags acting in Layer 2 mode typically do not associate or authenticate to the WLAN but rather communicate their payload information via Layer 2 multicasts. Other types of 802.11 active RFID asset tags that associate/authenticate to the wireless infrastructure are detected as WLAN clients and are not listed under Monitor > Devices > Tags (instead, they can be found under Monitor > Devices > Clients).
Note
After clicking on Monitor > Devices > Tags, the Tag Summary screen (seen in Figure 8-47) displays the total number of asset tags detected by the location appliance within the previous fifteen minutes as a hyperlink. Clicking on this hyperlink allows you to quickly initiate a search in the associated location server for all tags from all vendors detected within the last fifteen minutes.
Figure 8-47 Monitor > Tags Tag Summary Screen
If you want to modify the terms of the search (that is, to specify a different search time frame, vendor, or other tag search criteria) use the drop-down menus in the left-hand margin of Figure 8-47.
The tag search results page, tag detail page, and asset tag location history display all have a very similar look and feel to their respective client page counterparts discussed in the previous section. On the Tag Search Results page, you can see tag-specific information such as tag asset information, tag vendor, location server, and tag battery status. Of the displayed fields, tag MAC address, switch IP address, and tag map location are hyperlink-enabled.
Note that performing a mouse-over of the tag MAC addresses shows a miniature location map with the asset tag located estimated using a yellow tag icon, as shown in Figure 8-48.

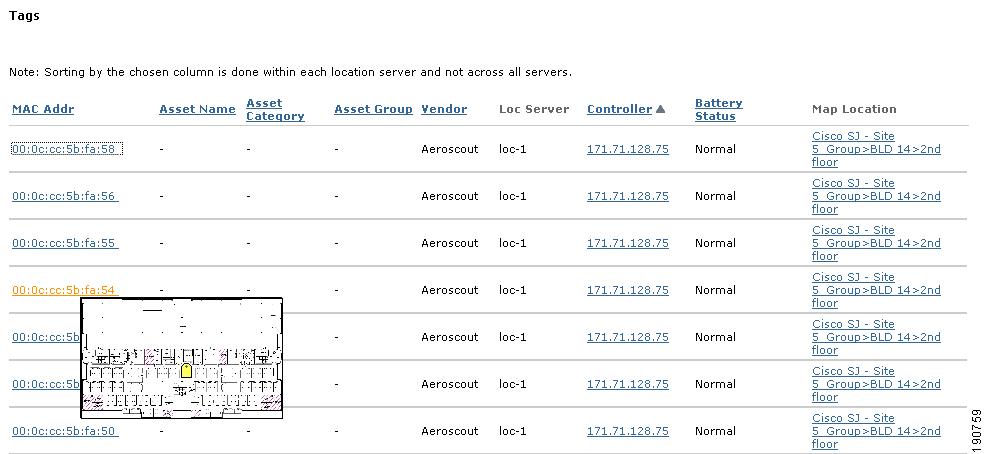

Figure 8-48 Tag Search Results
The tag detail page is similar to what has been seen before for clients, and allows for only the Location History option via the right-hand command drop-down menu selector (see Figure 8-49).

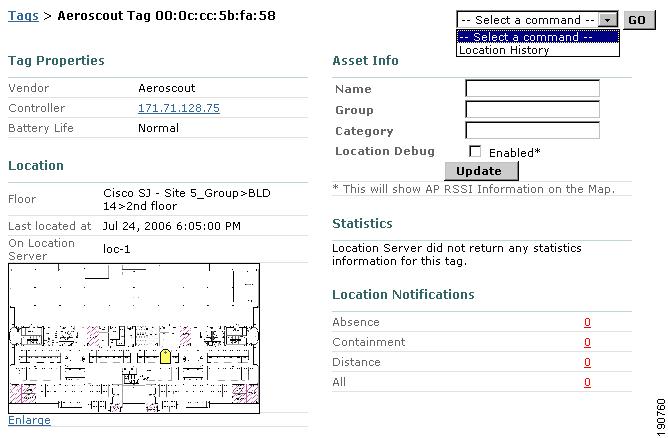

Figure 8-49 Tag Detail Page
The format and function of the asset tag location history display is similar to that described for clients as well. Note the check box for "Location Debug" that enables WCS to display graphically the RSSI at which each access point has detected the asset along with an indication of how much time has passed since the asset tag has been detected. The enabling of Location Debug and how it can be used to facilitate the proper design and maintenance of a location-aware Cisco WLAN is discussed further in the Wi-Fi Location-Based Services 4.1 Design Guide.
Monitoring Security
WCS provides a summarization of security-related events in the network via the Security Summary page (shown in Figure 8-50), which is available from the main menu bar via Monitor > Security. Although every page in WCS displays the latest tally of critical, major, and minor alarms via the lower left-hand corner (the alarm monitor), the Security Summary page provides an especially detailed view of the security-related events that have recently transpired in the wireless network.
Figure 8-50 Monitor > Security Summary Page with Main Information Groups Emphasized
Because consumer-grade 802.11 access points are so readily available, maintaining constant vigilance against the proliferation of unauthorized rogue access points and rogue clients in the enterprise is typically one of the top priorities of security staff. Employees, contractors, and sometimes even visiting customers and guests commonly plug these unauthorized access points into existing LANs or build ad hoc wireless networks to facilitate their own mobility without the knowledge or consent of corporate IT or security departments.
These rogue access points can be a serious breach of network security because they can be very easily plugged into a network port behind the corporate firewall. Because these products often ship configured for easy wireless connectivity, security is usually disabled, and their owners often leave these settings at factory defaults. This being the case, it is very easy for malicious third-party users or outside hackers to gain access to the corporate intranet by using these unauthorized rogue access points as an easy entry point to the corporate intranet. After being discovered, the location of these unsecured portals can be published on the Internet, thereby drawing even greater attention to them from an unscrupulous community and increasing the odds of an enterprise security breach.
Rather than having a technician with a wireless analyzer constantly patrolling physical sites for new rogue access points, the Cisco Unified Wireless Network offers the ability to automatically collect information on these unauthorized devices via its managed access points. This allows the system administrator to determination the location of these rogues and make conscious decisions about their status.
These integrated anti-rogue client and access point capabilities allow WCS system administrators and other authorized users to do the following:
•
•
•
•
•
•
•
Figure 8-50 shows the Security Summary page divided into four key areas:
•
–
See Monitoring Events for a further discussion of the rogue access point alarm detail page.
–
To use this facility, the search criteria in the left-hand column of the Rogue Client search screen must be configured to search for desired rogue clients in either the databases of WCS or the location appliance. When this is performed, a listing of rogue clients such as that displayed in Figure 8-52 can be viewed.

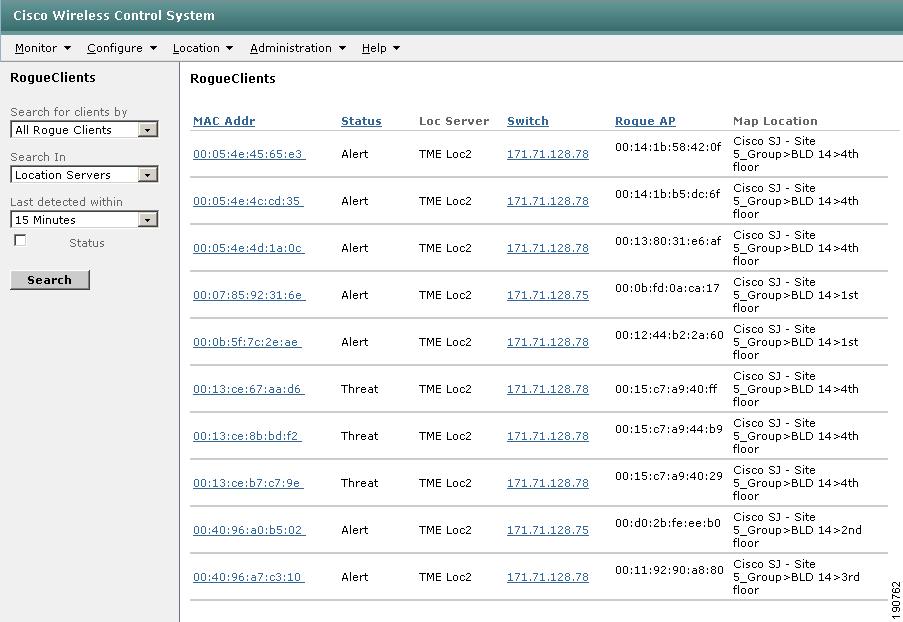

Figure 8-51 Monitor > Security > Rogue Clients
Clicking on any of the rogue client MAC addresses yields the rogue client detail screen (shown in Figure 8-52) providing detailed information about the rogue client such as which and how many lightweight infrastructure access points have detected it, when it was first and last heard, and its location.
Figure 8-52 Rogue Client Detail
The drop-down menu selector in the upper right-hand portion of the rogue client detail screen shown in Figure 8-52 allows the WCS user to perform additional functions concerning the rogue client such as displaying its location history and current location, changing its status, or initiating containment of the rogue client. When you select level 1 containment, one lightweight infrastructure access point in the vicinity of the rogue client sends de-authenticate and disassociate frames to the client. When you select level 2 through 4 containment, two through four lightweight infrastructure access points participate in containing the rogue client.
–
Using this facility, a search can be conducted of all associated clients that have been detected by a Cisco IDS device as sending malicious traffic through the network. The IDS device detects such activity and sends "shun" requests to Cisco Wireless LAN Controllers, which in turn disassociate the client device. This search facility provides access to a listing of shunned clients by client IP address, IDS sensor address, and controller.
•
Note
Most of the categories in the Security Alarms area are self-explanatory, but a few are clarified as follows:
–
–
–
•
•
Monitoring Events and Alarms, and Generating Notifications
WCS contains an alarm and notification subsystem that maintains an automated watch over the network, alerting the administrator (or anyone else with an e-mail account) even when they are not logged into WCS. Multiple recipients can be alerted about potential issues as they are discovered and before they turn into full-fledged problems.
Relationship Between Traps, Events, Alarms, and Notifications
In the Cisco Unified Wireless Network:
•
•
•
•
If operational exceptions (access point not found, controller unreachable, location appliance not responding, and so on) or other changes in state are deemed to have taken place within the domain of control of the controller (excessive interference, rogue access point detected, and so on), an event is registered as having occurred within the WLAN controller. An event is an occurrence or detection of some condition in and around the network. It can be a report about radio interference crossing a threshold, the detection of a new rogue access point, a controller rebooting, or some situation which takes places at a particular time.
Events are communicated to WCS via one of two ways:
•
•

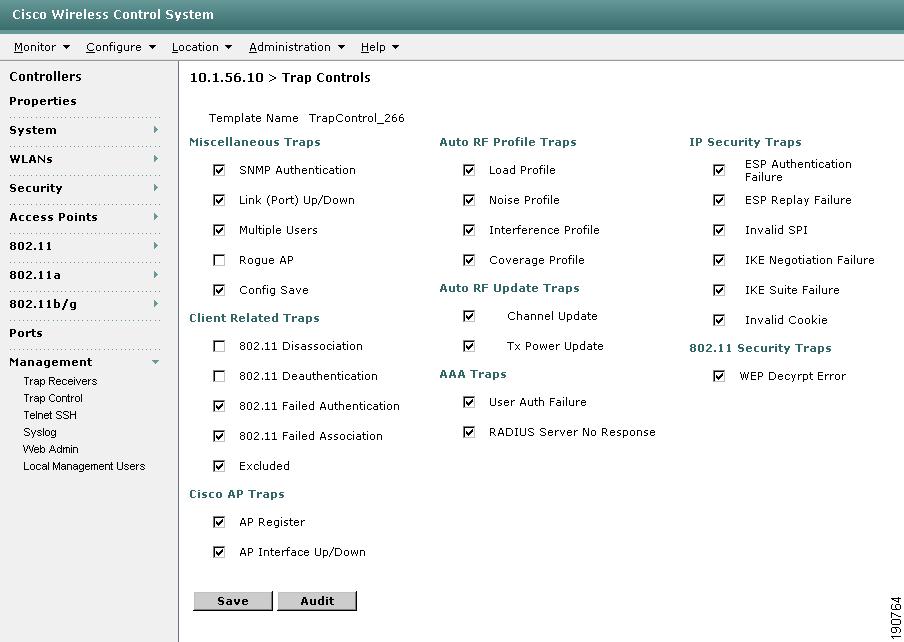

SNMP traps enable WLAN controllers and location appliances to notify WCS of significant changes in condition within the network by way of an unsolicited SNMP message known as a trap. Traps are normally sent to trap receivers at UDP port 162. Controllers can be configured to send traps to multiple trap receivers. The trap port to which a controller sends traps cannot be changed via WCS (it must be changed via the controller web interface or CLI). Traps are sent to the same trap port for all trap receivers defined in a controller.
Controller traps can be enabled or disabled in WCS via Configure > Controllers > Management > Trap Control.
Depending on the nature of the condition detected by the controller, a system log (syslog) message may also be generated. An example of this is the automatic addition of a client to an exclusion list because of repeated authentication failures or the loss of connectivity to a lightweight access point that was formerly associated with this controller. Note that traps and syslog messages do not necessarily duplicate one another. Events may not always be severe enough to generate syslog messages but may trigger pre-configured traps, and conditions that are severe enough to trigger a message to be sent to the system log may not be addressed by any configured traps.
SNMP traps and UDP syslog messages are logged internally at the controller and can be sent to external destinations. Both SNMP traps and syslog messages are sent using UDP; controllers can send traps to multiple IP destinations but they send syslog messages only to a single IP destination. Traps should always be sent to WCS for proper management function, but there is no need to send syslog messages to WCS because WCS does not natively run a remote syslog server to process them.
Figure 8-53 illustrates the various individual trap categories for a WLAN controller.
Figure 8-53 Configure > Controllers > Management > Trap Control
Trap categories are as follows:
•
–
•
–
In addition to the traps defined in Figure 8-53, there are a few others that are associated with thresholds to consider. The thresholds associated with these traps are not configurable:
•
•
–
–
When WCS receives any of these traps from the WLAN controller, a critical event referring to a potential "Fake AP or other attack" is logged as shown in Appendix B, "WCS Event and Alarm Severities.".
WCS should always be configured as a trap receiver to ensure proper function. Trap receivers may be defined and removed for controllers via the Configure > Controllers > Management > Trap Receivers menu selections. WLAN controllers allow the definition of up to six trap receivers, and WCS allows the application of up to six trap receiver templates to a WLAN controller.
Appendix D, "Examples of SNMP Traps," contains several examples of SNMP traps captured during lab testing. Although not an exhaustive list of all traps available from Cisco WLAN controllers, this appendix does show actual received traps and decodes much of their content for easier viewing. Complete trap definitions for 4400, 4100, and 2000 Series WLAN controllers are defined in MIB files that are available to registered users on the Cisco Connection Online (CCO) at http://www.cisco.com.
Although WCS itself is not a syslog server, it does enable the configuration of syslog receivers for controllers via Configure > Controllers > Management > Syslog. If you have a system in your network that can function as a syslog server and accept remote syslog updates, you can define that system as the recipient of syslog messages from WLAN controllers using this feature.
Note
All syslog messages are sent to UDP port 514 using facility level Local0; therefore, you should ensure that your syslog server is configured appropriately for UDP port 514. Only UDP is supported as a transport for syslog traffic at this time.
After receiving and processing a received trap, WCS logs the fact that an event has occurred at the trap originator. Events are filtered into assigned classes of severities. These events trigger alarms of corresponding severity at WCS. An alarm is a WCS response to one or more related events. If an event is considered of high enough severity (critical, major, minor warning, clear, or informational), the WCS raises an alarm until the condition that resulted in the alarm is judged to be no longer occurring. For example, an alarm may be raised while a rogue access point is detected, but the alarm terminates after the rogue has not been detected for several hours. A WCS administrator currently has no control over which events generate alarms, when they time out, or what severity they are.
One or more events can result in a single alarm being raised. Certain classes of alarms are deemed of utmost importance and when they occur, WCS can generate a outbound notification to alert critical personnel that events have occurred that may warrant their immediate attention.
Figure 8-54 illustrates the logic behind this event-driven alarm and notification system in more detail. This example is that of a WLAN controller, but this same process is used by all members of the Cisco Unified Wireless Network that wish to enlist the alarming and notification services of WCS.
Figure 8-54 High-Level WCS Event, Alarm, and Notification Flow Diagram
The following sequence takes place:
1.
2.
Note
•
Active alarms (that is, alarm status of other than "clear") have an indefinite lifetime while cleared alarms linger within WCS for 24 hours. Events, on the other hand, remain in the WCS database for up to seven days. The current set of active and cleared alarms can be viewed at Monitor > Alarms while the WCS event log can be viewed at Monitor > Events (these are examined in more detail in Monitoring Events and Monitoring Alarms and Configuring E-mail Notifications).
Alarms are assigned to severity classes in a similar fashion to events. For the majority of non-critical alarm severities, WCS logs the alarm, changes displayed icon colors appropriately, and increments the alarm monitor counters displayed in the lower left-hand corner of each WCS screen. Indication of the alarm can be seen on the Monitor > Alarms screen and by changes in the color of icons seen on campus, building, and floor maps; pictorial displays of network equipment; and other screens within WCS.
•
Recipients of WCS-generated notifications commonly include organizational team members such as network administrators, lead technicians, operations management, and perhaps those members of management responsible for mission-critical applications that depend on wireless services. You can see from the event flow in Figure 8-54 that if notifications have been enabled and properly configured, WCS ultimately issues an email notification. This is performed via one or more Simple Mail Transfer Protocol (SMTP) servers defined to WCS.
In determining whether an e-mail notification should be sent when a particular alarm is triggered, WCS uses alarm severity in conjunction with alarm categories. There are currently the following seven alarm categories:
–
–
–
–
–
Note
–
–

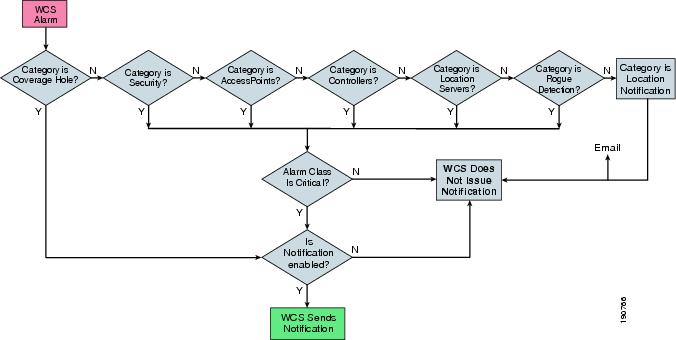

Figure 8-55 presents a conceptual flow diagram that illustrates how WCS decides whether or not a notification is sent.
Figure 8-55 E-Mail Notification Logic Flow
•
The special case of the Location Notification alarm should be noted in Figure 8-55. Location Notification alarms are alarms that have been generated because of the reception of absence, containment, movement from marker, location changes, or battery level events from a location appliance. Because the location appliance itself is responsible for generating e-mail, syslog, SOAP/XML, and SNMP trap notification for these types of events, WCS does not provide for redundant notification capabilities and does not issue email notifications for Location Notification alarms.
Monitoring Alarms and Configuring E-mail Notifications discusses how to configure WCS to successfully dispatch e-mail notifications.
Monitoring Events
As discussed previously, WCS maintains a log of all received events for a fixed seven-day retention period. These can be displayed by selecting Monitor > Events from the main menu selection bar. Because of the number of events that can be present in the event log in large networks, WCS provides the ability to filter the displayed events using the filter selector located in the left-hand margin of the Monitor > Events page. Using this tool, the displayed selection of events can be limited to a combination based on severity class and category.
Each column of the event display can be sorted by clicking on the column heading and choosing either ascending or descending sort sequence. Note that this can be very helpful not only in ensuring that the data you are viewing is in the proper date order but also in helping spot repeated patterns of events (that is, sorting on message or failure type). There is only one hyperlink available in the event log data for further information and that is for the failure object. Clicking on any of the failure objects brings up additional information about the event in question.
Monitoring Alarms and Configuring E-mail Notifications
WCS maintains a log of all triggered alarms (shown in Figure 8-56) that can be displayed by selecting Monitor > Alarms from the main menu selection bar.
Figure 8-56 Monitor > Alarms
When performing a mouse-over of the failure object hyperlinks listed in the alarm display list, the alarm text associated with each message is displayed as shown in Figure 8-56. This mouse-over capability is useful when quickly scanning the list of alarms because it avoids the necessity of opening each alarm line item to simply determine the details. Each column of the alarm display list can be sorted by clicking on the column heading and choosing either ascending or descending sort sequence. This can be very helpful, not only in ensuring that the data you are viewing is in the proper date order but also in helping to spot repeated patterns in alarms.
As mentioned previously, alarms that have not been cleared (or manually deleted) remain in the database indefinitely. Cleared alarms remain in the database for a fixed period of 24 hours. In the case of very large networks, many alarms can be displayed; thus, WCS provides the ability to filter the displayed alarms using the selectors located in the left-hand margin of the alarms listing page. This allows the displayed selection of alarms to be limited by severity class and category, as shown in Figure 8-57.
Figure 8-57 Setting Display Filters in Monitor > Alarms
Depending on the alarm category, additional filtering options may be available. For example, when selecting the Rogue AP category, the filtering options shown in Figure 8-58 are available. Additional options become available when the AP Name, Floor Area, and Outdoor Area filters are selected to further qualify the rogue AP list.

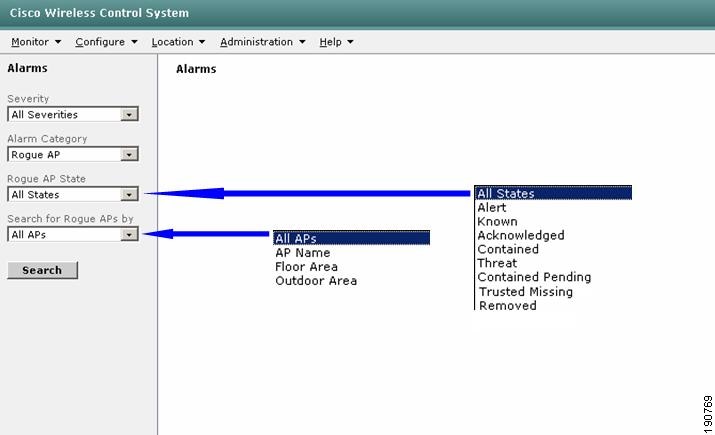

Figure 8-58 Rogue AP Alarm Filtering Options
The options shown in Figure 8-58 for rogue AP state are defined as follows:
•
•
•
•
•
•
•
•
The drop-down command selector in the upper right-hand corner of the Monitor > Alarms alarms listing page provides the following options for most alarm categories:
•
•
•
•
•
Figure 8-59 Monitor > Alarms > E-mail Notification
To configure the parameters for one of the seven categories, click on the hyperlink for the alarm category. This displays the page shown in Figure 8-60.

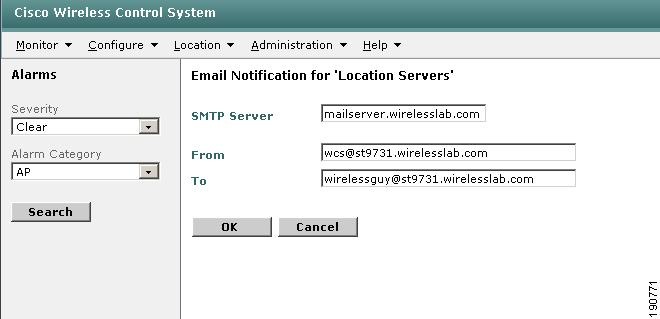

Figure 8-60 Specifying E-mail Parameters
Within each category, only one SMTP server can be specified (either as a fully qualified domain name or IP address); however, multiple e-mail destination addresses can be specified and separated by commas. When specifying multiple e-mail destinations, be aware that there is a 56-byte total length limitation on the "To" field.
Notice that there is no e-mail notification configurable for the Location Notifications alarm category, as described in Relationship Between Traps, Events, Alarms, and Notifications and Figure 8-55.
When you have specified the e-mail notification parameters, click OK and return to the e-mail notifications screen. Before your e-mail notifications become active, you must enable them as shown in Figure 8-59 by checking the applicable check box(es) in the Enabled column and clicking OK. Your e-mail notification configuration is complete at that point and e-mail notification should be functional.

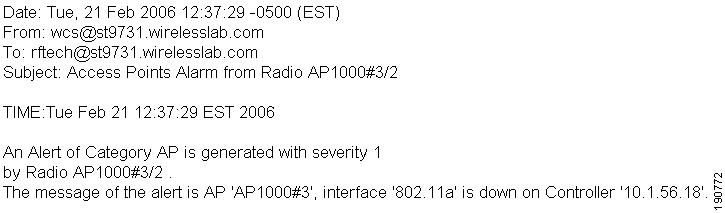

An example of an actual e-mail alert received can be seen in Figure 8-61.
Figure 8-61 E-mail Notification
Compared to the other alarms categories available under Monitor > Alarms, rogue AP alarms are somewhat of a special case in that the options presented under the drop-down command selector are expanded, as shown in Figure 8-62.
Figure 8-62 Monitor > Alarm Rogue AP Alarms
The following additional command options are available under rogue AP alarms:
•
•
•
•
•
•
Clicking on the failure object hyperlink of any of the items listed on the Monitor > Alarms listing page results in the Alarms Detail page being displayed. The look and feel of the alarm detail page varies somewhat based on the type of alarm being displayed. A common alarm detail format shared among most alarms (except for the rogue AP alarm) is shown in Figure 8-63.

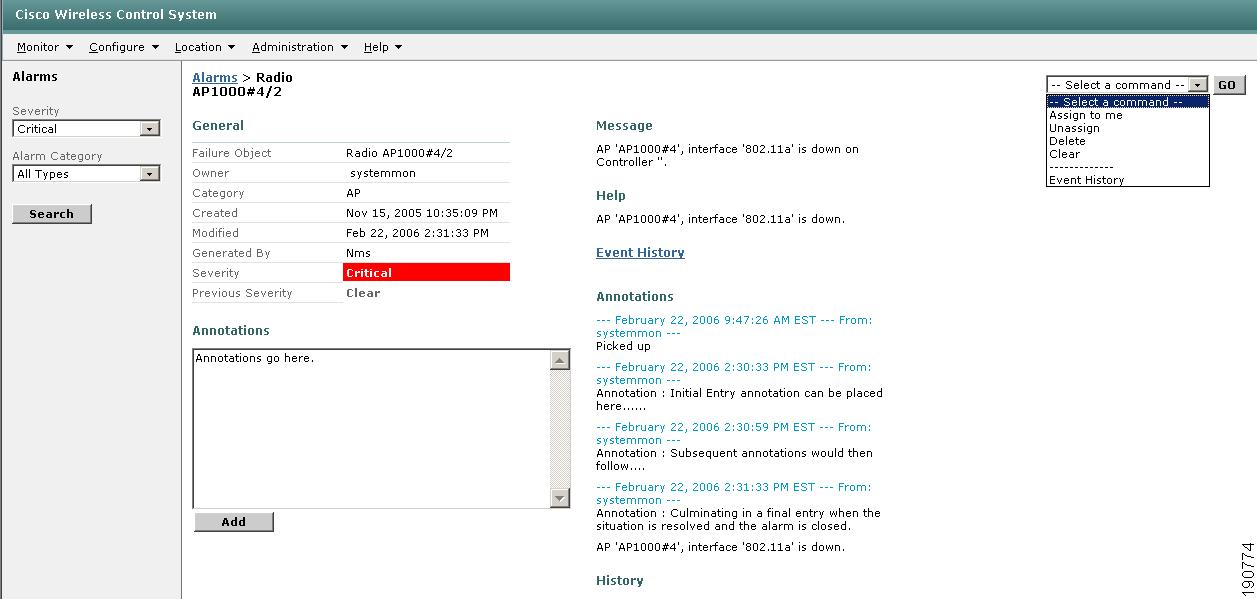

Figure 8-63 Alarm Detail Page—Annotations
In all cases, the value shown for the "Generated By" field in the alarm detail page shown in Figure 8-63 indicates the source of the information that triggered the alarm or event:
•
•
Note the use of the Annotations area for keeping a running log of what has occurred and who has been involved in resolving the alarm. Annotations are added via the entry box on the left-hand side and appear in the order in which they were added in the annotations area on the right. The date and time of the alarm assignment is indicated by the "picked up" entry (if the alarm were to be unassigned, an "unpicked" entry would show up here as well). The clearing of an alarm results in a severity change but no additional entry in the annotations area.
Rogue AP alarms use a somewhat different detail page format, with additional information provided about location, location notification, and any rogue clients that might be associated to this rogue AP available. The rogue AP alarm detail page is shown in Figure 8-64.
Figure 8-64 Rogue AP Alarm Detail
The drop-down menu selector in the upper right-hand corner of the rogue AP alarms page offers an expanded set of command options when compared to other alarms. The majority of the command options are familiar from the discussion of rogue AP alarms listings. Two options found here that are not available when listing rogue AP alarms are event history and location history. Event history is available both as a command drop-down selection and as a hyperlink on the rogue AP alarm detail page. The function in both cases is the same; the list of events that are associated with this alarm are displayed. Location history is available for the rogue access point in a similar fashion to that described for WLAN clients in Monitoring Clients.
Using WCS to Locate Devices in Your Wireless Network
WCS offers the ability to locate rogue client devices, 802.11 active RFID tags, rogue access points, and rogue clients when they are detected within your wireless network. Location of these devices can be provided by WCS on either an on-demand basis for a single device or on a routinely updated basis for multiple devices when used with a location appliance.
For users requiring location services only when the need arises to locate a lost device, the on-demand location capabilities afforded by WCS-Base or WCS-Location may be all that is required. However, for users that rely on the ability to track the movement of devices in their environment on a regular basis, require alarms and notifications when devices move into or out of defined areas, maintain location history for more than seven days, or interface to third-party location client applications, the use of a location-licensed WCS server with the location appliance is a more appropriate choice.
This section describes each of these options in further detail.
On-Demand Device Location
In this section, "on-demand" device location refers to the ability of WCS to display the current position of a single device whenever you explicitly request the system to do so without the use of a location appliance. Although both the base as well as the location-enabled version of WCS can perform on-demand location, they vary both in for which devices each provide positioning information as well as the level of position granularity.
Only a WCS server that is licensed for base-level functions can perform on-demand client and rogue device location, by placing an icon on a floor map nearest the access point that has detected the device with the highest signal strength. Knowing which infrastructure access point detects the device with the highest signal strength usually provides sufficient resolution for casual location services use, especially in cases where the need for location services in a particular business situation may not justify additional investment in software or hardware.
A location-licensed WCS server improves these on-demand capabilities by providing "high-resolution" location of WLAN clients and rogues using Cisco RF Fingerprinting positioning technology. As opposed to simply knowing the lightweight access point that detected the client with the highest signal strength, RF Fingerprinting can provide location accuracy of 10 meters, 90 percent of the time (90 percent precision) in a properly-designed system. A location-licensed WCS server can perform on-demand location of a single device at a time, and is an excellent choice where higher accuracy is desired to reduce the amount of time and effort that must be expended searching for items that are within the range of a particular access point.
The location appliance does not play an active role in establishing on-demand location because it is typically entirely driven using the client and rogue information available in WCS databases and the WLAN controllers. Rather, the Wireless Location Appliance allows WCS to display the location of multiple devices simultaneously by performing location calculations on the data acquired by the location appliance during its polling of WLAN controllers. The location appliance polls based on configured polling parameters and does not poll WLAN controllers on-demand. The information that is used to establish device location during an on-demand location request is supplied by WCS and the WLC.
On-Demand Location of WLAN Clients
On-demand location of a single WLAN client at a time without the use of a location appliance can be performed from WCS using the Monitor > Devices > Clients Summary menu shown in Figure 8-39. To do so, follow these steps:
Step 1
Step 2
WCS displays the client detail screen shown in Figure 8-65 for the client you have selected.
Figure 8-65 Client Details
Step 3
•
•
In most cases, if on-demand location is being used to locate a lost device, this interruption has little impact because if the device is still powered on, it is typically not in use. However, lost devices tend to eventually power down because of battery exhaustion, and in that case the Recent Map option is of much more use in determining the last known location.
Choose either of the mapping options and then click Go.
Step 4
Figure 8-66 On-Demand WLAN Client Location (Base Level WCS)
When using a location-licensed WCS server without a location appliance, the process is essentially the same with the exception that WCS uses RF Fingerprinting to derive estimated client location on a "high-resolution" map. In this case, your on-demand location results resemble Figure 8-67 instead of Figure 8-66.
Figure 8-67 High Resolution On-Demand Client Location (Location-Licensed WCS)
The main difference between what Figure 8-66 and Figure 8-67 is that in Figure 8-67, the placement of the blue rectangular WLAN client icon is intended to represent the estimated client position on the map. The various color bands in the display indicate varying location probabilities, as shown in the "Location Error Lookup" legend at the top of the display. Performing a mouse-over of the various colors in the legend itself displays the error probability associated with each color band. In contrast, the positioning of the blue rectangular WLAN client icon in Figure 8-66 is not intended to convey estimated client position on the map, but merely to indicate which access point has detected the WLAN with the greatest signal strength.
On-Demand Location of Individual 802.11 Active RFID Asset Tags
The 802.11 active RFID asset tags that can be tracked by the Cisco Location-Based Services solution can be grouped into two basic categories:
•
Note
•
To locate 802.11 Active RFID asset tags that are of the latter category, see On-Demand Location of WLAN Clients because these types of asset tags are technically treated as WLAN clients by the Cisco UWN.
Note that beginning with release 4.0 of WCS, a location appliance is required to determine the position of any Layer 2 multicast-based RFID asset tags. A subsequent maintenance release is expected to reinstate the capability to perform on-demand location of individual Layer 2 multicast-based RFID tags when using a WCS server that is licensed for location use. In addition, beginning with release 4.0, WCS servers that are licensed only for base-level functionality do not have the capability to perform any type of location determination for Layer 2 multicast-based RFID tags.
On-Demand Location of Individual Rogue Access Points
On-demand location of a single rogue access point at a time without the use of a location appliance can be performed with base-level WCS using the Rogue AP Alarms menu accessible via Monitor > Security > Rogue APs. To do so, select a single Rogue AP by enabling its check box. From the command drop-down located at the upper right-hand corner of the screen, select "Map" and then click GO.
When using the base-level WCS, the screen shown in Figure 8-68 is displayed.
Figure 8-68 On-Demand Rogue Access Point Location (Base-Level WCS)
Note that the circular black "skull-and-crossbones" icon representing a rogue access point is placed directly adjacent to the lightweight infrastructure access point that has detected it with the highest signal level.
When using a version of WCS that is licensed for high resolution location tracking, the process is identical with the exception that WCS uses RF Fingerprinting to determine the estimated position of the rogue access point and displays it on a "high resolution" map similar to that shown in Figure 8-67. With the exception of the icon used to indicate the location of the rogue AP, the look and feel of the high-resolution on-demand map is the same as that shown in Figure 8-67.
On-Demand Location of Individual Rogue Clients
On-demand location of a single rogue client at a time can be performed from WCS without a location appliance using the Monitor > Security > Clients Summary menu shown in Figure 8-39. To do so, follow these steps:
Step 1
Click Search.
Step 2
Step 3
The base-level WCS displays a location map with a black rectangular icon representing a rogue client, as shown in Figure 8-69. It is placed nearest the infrastructure lightweight access point that has detected it with the highest signal level.
Figure 8-69 On-Demand Rogue Client Location (Base Level WCS)
When using a version of WCS that is licensed for high resolution location tracking, the process is essentially the same with the exception that WCS uses RF Fingerprinting to determine the estimated position of the rogue client and displays it on a "high resolution" map similar to that shown in Figure 8-67. With the exception of the icon used to indicate the location of the rogue client, the look and feel of the high-resolution on-demand map is the same.
WCS and the Location Appliance
When a Cisco Wireless Location Appliance is added to a location-licensed WCS server, its high-resolution location capabilities are enhanced by the ability of the location appliance to issue location notifications and compute positioning information for multiple devices simultaneously while maintaining a much larger amount of location history data in its internal databases.
The location appliance interfaces to WCS using the SOAP/XML API interface. Via this API, WCS serves in the role of both a location client in displaying the location of many simultaneous devices, asset tags, and rogues on location maps as well as a control client in acting as the primary user interface to the location appliance and handling its configuration.
This same SOAP/XML API allows for integration with other business applications that can use the location information contained within the location appliance for a variety of creative applications. Asset tracking, inventory management, location-based security, and automated workflow management are just a few examples of this. Third-party location client applications access the location appliance only via the API and typically do not access WLAN controllers or other components of the network directly.
Operators can configure location appliances to collect client RSSI data and statistics from WLAN controllers at defined intervals. The location appliance allows WCS to display the location of multiple devices simultaneously by performing location calculations on the data acquired by the location appliance during its polling of WLAN controllers. The location appliance polls based on configured polling parameters and does not participate in on-demand location display.
The location appliance also provides location-based event notification, whereupon it generates e-mail and other notifications directly to specified destinations. These alarms and notifications can be triggered through area boundary, allowed areas, and distance definitions in the location appliance. These alarms and notifications can also provide advanced warning of rogue movement and appearance/disappearance. Using WCS, you can configure location appliance event notification parameters that allow the location appliance to send notifications to destinations configured via the WCS Location > Notifications menu option. The location appliance can be defined to transmit messages using SOAP, SMTP, SNMP traps, or syslog messages if clients or assets become missing, enter or leave coverage areas, or stray beyond a set distance from a pre-determined marker.
Architecture Overview
The overall architecture of the Cisco location-based services solution is shown in Figure 8-70.
Figure 8-70 Cisco Location-Based Services Architecture
Access points forward information to WLAN controllers about the detected signal strength of any Wi-Fi clients, 802.11 active RFID tags, rogue access points, or rogue clients. In normal operation, access points collect this information on their primary channel of operation, going off-channel and scanning all channels in their regulatory channel set periodically. The collected information is forwarded to the WLAN controller with which the access point is currently registered. Each controller manages and aggregates all such signal strength information coming from its access points. The location appliance uses SNMP to poll each controller for the latest information for each tracked category of device. In the case of a location tracking system deployed without a location appliance, WCS obtains this information from each controller directly.
WCS and the location appliance exchange information about calibration maps and network designs during a process known as synchronization. During a network design synchronization between WCS and the location appliance, the up-to-date partner updates the design and calibration information of the out-of-date partner. The location appliance synchronizes with each controller containing access points participating in location tracking during controller synchronization. The synchronization of notification schedules and destinations between the location appliance and WCS is handled via a process referred to as event group synchronization. Synchronization occurs either on-demand or as a scheduled task, the timing of which is determined by the Administration > Scheduled Tasks main menu option in WCS.
Location information is displayed to the end user using a location client application in conjunction with the Cisco Wireless Location Appliance. Typically, this role is fulfilled by the Cisco WCS, which is capable of displaying a wide range of information about the location of clients, asset tags, rogue access points, and rogue clients. However, location client functionality is not limited to WCS, because other third-party applications written in accordance with the Cisco Location Appliance API and using the SOAP/XML protocol can also serve as a location client to the Wireless Location Appliance (as shown in Figure 8-70).
Although it is most common to have a single WCS paired with a single location appliance, variations on this theme are also possible to better support specific configurations. For example, in some cases because of a high number of clients and rogues, the supported device tracking capability of a single location appliance may be exceeded while being substantially under the supported access point and controller limitations of WCS. In this case, you can partition the network from the perspective of location service only and assign one half of the network (for example) to location appliance A, with the other half to location appliance B. Both of these location servers can then be managed under a single common WCS. Using this approach, the WCS administrator is presented with the simplicity of managing a single management domain from a single WCS server, but with the extensibility of multiple location domains that allow for addressing client, asset tag, and rogue counts that exceed the supported capacities of a single location appliance.
Tracking Clients, Asset Tags, and Rogues with the Location Appliance
As mentioned in On-Demand Device Location, WCS can perform on-demand location of clients, rogue access points, and rogue clients regardless of the presence of a location appliance. However, the addition of the location appliance allows you to view the location of multiple devices across all these classes simultaneously and track their history for longer periods than WCS allows.
Figure 8-71 provides a visual example of this multiple device simultaneous tracking capability. It may be helpful to compare the capabilities shown here to those shown in Figure 8-66 and Figure 8-67 for on-demand location. In Figure 8-71, devices from all supported categories are displayed on a floor with a periodic screen refresh set to five minutes. The floor plan loaded by the WCS administrator used as a background onto which is superimposed an RF "heatmap" showing the predicted RF coverage of each access point. Access points are shown on the floorplan along with internally generated channel information tags. Using information contained in the location appliance database, WCS displays icons for each device at locations that were determined by the location appliance using RF Fingerprinting positioning calculations.
Figure 8-71 Floor Map—Simultaneous Tracking of all Device Categories
For a comprehensive discussion of the device tracking capabilities that are available when using WCS with the Wireless Location Appliance, see Wi-Fi Location-Based Services 4.1 Design Guide at the following URL: http://www.cisco.com/en/US/docs/solutions/Enterprise/Mobility/WiFiLBS-DG.html.
Using WCS to Efficiently Deploy Your Wireless Network
One of the challenges facing network designers and installers is how to efficiently and rapidly deploy large numbers of lightweight access points and controllers across numerous sites.
In very large deployments, the ability to rapidly deploy and configure the network infrastructure is a key aspect of a successful and economically successful project implementation. It is not always feasible to deploy experienced network technicians to perform configuration, troubleshooting, and software upgrades on-site to each and every site in a large-scale deployment. Often there are simply too many sites being installed simultaneously and not enough personnel available to make this practical.
To address this situation, the wireless networking solution should require only minimal, basic configuration on-site at installation time to allow IP connectivity back to a centralized management site. This allows further configuration to be performed over the network by a central pool of experienced technical personnel. Experienced central site technical staff can make use of configuration efficiencies present within the WCS management system that greatly reduce the number of steps required to configure WLAN controllers and lightweight access points in accordance with all policies and standards set forth for the enterprise.
In the Cisco Unified Wireless Network, each controller requires only basic interface and IP configuration before it is accessible over an IP network. This is typically performed via the controller serial console and is a relatively simple affair. After interfaces are configured and the controller is attached to the IP network, WCS can be used to complete the application of configuration parameters to WLAN controllers as well as the latest software levels. After configuration of WLAN controllers has been completed, there is no need to individually configure lightweight access points because they derive their configuration parameters as well as their internal operating software in a "zero-touch" fashion from the WLAN controllers themselves.
Several WCS features are described in this chapter that can be particularly helpful during the deployment of large wireless networks across numerous sites, allowing far more efficient configuration than would be possible by simply accessing each controller using a web browser or CLI session and performing all configuration manually.
Policy Templates
Policy templates (Defining and Applying Policy Templates) are a key feature of WCS that can reduce the amount of effort required to configure remote site WLAN controllers during a deployment of any size. Policy templates allow for a set of related configuration objects to be defined, applied to selected controllers, and then saved for later use with subsequent controllers awaiting deployment. As each controller is physically installed and made available over the IP network, policy templates can be applied to one or more controllers, access points, or radios by the WCS operator. (Access points and radios must be registered with controllers to be eligible for configuration via templates. See Defining and Applying Policy Templates for further information.)
When configuring multiple WLAN controllers that are part of the same mobility group, consider using the Configuration Groups facility described in Using Policy Template Configuration Groups as opposed to applying templates one at a time. The use of configuration groups allows you to assign multiple controllers to a mobility group and apply one or more templates to them, saving a considerable amount of labor.
An example of how policy templates can be used to save both time and effort can be seen in the following steps taken to remotely configure a newly-installed Cisco 4400 WLAN Controller at a remote site.
The WLAN controller to be installed should receive its initial basic configuration via a local CLI session using the serial port. This is typically performed either before shipment at a staging center or at the remote site during installation by on-site installers. Appendix C, "Example of Wireless LAN Controller Initial Setup," indicates an example of the controller Setup Wizard and the type of information that is required for basic setup. Complete guidance and step-by-step instructions for configuring a WLAN controller using the controller Setup Wizard can be found in the document entitled Cisco 4400 Wireless LAN Controller—Quick Start Guide.
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
If the policy templates are successfully applied to the access points and radios, they are automatically saved within those devices and retained during any future reboot.
Step 8
Performing Tasks Across Multiple WLAN Controllers
As has been described in other sections of this document, WCS makes it easy to update WLAN controller resident software such as operating software and IDS signatures from either WCS itself or other TFTP servers in the network. When working with multiple WLAN controllers, especially during a network upgrade or other deployment, WCS makes it possible to perform these types of tasks and others for a group of selected controllers with a minimal amount of keystrokes. The maximum number of WLAN controllers that can be selected for these operations is currently set at the display page size of 20 controller entries. All selected WLAN controllers must be resident on a single WCS display page using the Configure > Controllers menu selection. Controllers cannot be included in a selection set if the desired controllers are found on multiple display pages.
For example, if two controllers are being installed at six sites that are located in three different regions of a country, this capability can be used to initiate a download of the latest controller operating software to each of the controllers in each region. Instead of having to initiate twelve separate WCS command sequences to get this done, the ability to specify multiple controllers allows it to be done with three (each sequence specifying a download to all controllers in a single region from a regional TFTP server). If you want to initiate a save to configuration and reboot for all twelve controllers, this can be done via two WCS commands instead of twelve. During a deployment where many controllers may need many of the same functions performed repeatedly, the ability to use WCS to direct such actions at multiple controllers across the management domain saves time and work on the part of the central administration staff.
The types of functions that can be targeted at multiple controllers in this manner include the following:
•
•
•
•
This function can also be performed on all controllers in configuration groups via Configuration > Controllers > Config Groups.
•
•
•
•
Note
Unlike other methods of performing configuration backups, a snapshot of all controller configuration in the entire network can be obtained simply by running this one scheduled task. Running this task before making major changes to widespread controller configurations in your network is typically a good idea. See Configuration Backup for more information about this useful configuration management utility.
Deployment Models
This section discusses two basic deployment models for WCS in the enterprise:
•
•
Note that all illustrations in the following sections have been simplified to focus primarily on the deployment of wireless network management. As such, these illustrations may not illustrate in detail all recommended wired or wireless infrastructure components as specified in other chapters of this SRND.
Campus Deployment
The most common campus deployment model for WCS is as a centralized component managing multiple WLAN controllers (one or more combinations of WLC, WLCM, or WiSMs) interconnected via a modern high-speed campus local area network as shown in Figure 8-72 (optional location appliance is also shown here).
Figure 8-72 Campus WCS Deployment using Single WCS and Location Appliance
In this model, up to 3000 lightweight access points dispersed among a maximum of 250 WLAN controllers are supported as of WCS version 4.0. (This is dependent on the type of system used for WCS deployment and other factors. See Cisco Wireless Control System Release Notes, Release 4.0 for further details about WCS capacities.)
This is not a "hard" limitation but rather a limit to which the solution has been tested and is supported by Cisco Systems.
The campus management model illustrated in Figure 8-72 illustrates the use of the Catalyst 6500 Wireless Services Module (WiSM) at the main campus site that provides WLAN controller services for lightweight access points in the main building complex as well as the other locations shown. This use of a Catalyst 6500 WiSM controller module is not mandatory, and the same design model can be applied using external WLAN controllers located centrally instead if so desired.
The approach shown in Figure 8-72 has been found to be suitable for the vast majority of customer wireless campus deployments. In combination with well-designed modern high speed LANs, it provides excellent performance with a highly scalable centralized management base (including optional location-based services) that can be easily scaled without requiring an extensive re-design of the network as the enterprise grows.
In the few cases of very large campuses, this model can be scaled for even greater capacity by grouping WLAN controllers and placing each group under the control of a different WCS server. This approach is known as the separation of management domains and is illustrated in Figure 8-73.
Figure 8-73 Multiple WCS/Location Appliance Campus Deployment
Three WCS servers (WCS1, WCS2, and WCS3) and three location appliances (2710-1, 2710-2, and 2710-3) are co-located at the campus data center and main office building. Each of these WCS/Location Appliance pairs has been configured such that their management and location domains coincide with a different portion of the overall campus (as shown by the red, blue, and green outline boxes). Color-coded text has been used in the illustration provide clarity, indicating that each of the two controllers on the WiSM module are assigned to the management domain of WCS-1 and WCS-2 respectively with the standalone 4400 WLAN controller assigned to WCS-3. Note that each and every WLAN controller is defined to a single WCS management domain (and therefore only one WCS management server).
One or more client workstations (shown in Figure 8-73) can access any of the WCS servers. Each management server can be accessed from a single client workstation using multiple browser windows. It is not uncommon to see client workstations used precisely for this purpose located at the main campus building complex, typically within a network operations center (NOC).
Each WCS server can be configured to generate e-mail notifications (which can be relayed as pager and cell phone text messages) to NOC management staff personnel informing them of critical alarms that have been generated within any of the management domains. NOC personnel can then respond by accessing the proper WCS server from WCS client workstations to investigate and rectify the alarm situation.
To assure that NOC personnel have visibility to all traps issued by WLAN controllers in any of the management domains, the IP address of an overall enterprise network management system such as HP OpenView, Tivoli, and so on, can be entered as an additional trap receiver for each WLAN controller. This assures that all traps can be seen in a central location (in addition to each individual WCS), which facilitates problem resolution in organizations so equipped. Each WLAN controller can also be configured with the address of a NOC remote syslog server. In a similar fashion, this practice provides NOC personnel with visibility to all syslog messages generated by WLAN controllers in each management domain.
As shown in Figure 8-73, the use of a modular approach allows you to scale the campus model beyond the controller and access point limitations mentioned previously. This provides the ability to manage much larger (albeit much less common) campus networks than would otherwise be the case with a single WCS server but still retain a design that is supported by Cisco.
Branch Deployment
This section describes scenarios where the main corporate campus comprises only a minority presence in terms of installed wireless infrastructure within the enterprise. In these cases, the majority of wireless infrastructure as well as mission-critical wireless usage are found in remote branch offices.
Figure 8-74 shows a typical WLAN management deployment model in a network servicing remote branch offices (with optional location appliance included). This design illustrates the most common scenario of a single WCS server at a central headquarters location. As can be seen from the information contained in the Cisco Wireless Control System Release Notes, Release 4.0, depending on the choice of hardware and network capacity considerations, this WCS server can support up to 3000 lightweight access points distributed over 250 WLAN controllers (keep in mind that the limit on total tracked devices in the location appliance is 2500).
Figure 8-74 Remote Management of Branch Offices—Single Centralized WCS Server
In this type of network design, application computing resources may be located centrally with backup WAN services provisioned in the event of a network outage. In the case of mission-critical application computing resources, these resources may be located in the branch (such as for point-of-sale systems in a retail environment) so as to withstand a complete interruption of primary and backup WAN service. In the event of a WAN connectivity failure, management and location services are lost but basic wireless connectivity to local resources are preserved. (This availability is for wireless traffic that does not depend on a AAA server located at the central headquarters site, or traffic that is using a AAA server located in the branch.)
Non-mission critical systems (such as accounting systems, personnel records, and so on) are usually centrally located in both cases. As shown in Figure 8-74, the choice of WLAN controller at each site can vary. This can range from a Hybrid REAP (H-REAP) implementation designed to service sites requiring no more than two or three H-REAP lightweight access points per site to those with as many as 50 lightweight access points per site or more, which requires one or more 4400-series WLAN controllers to be deployed.
In some cases, the number of branch locations as well as the number of lightweight access points may be greater than the capacity of a single WCS server, even when deployed on the most robust available hardware. The network illustrated in Figure 8-75 illustrates such a case, where either the total number of lightweight access points is greater than 3000 or the total number of deployed controllers exceeds 250. In those situations, multiple centralized WCS servers can be deployed at the central site, splitting the network into multiple management domains (and multiple location domains).
Figure 8-75 Remote Management of Branch Offices—Multiple Centralized WCS Servers
The allocation of WLAN controllers between the WCS servers in Figure 8-75 is the choice of the designer; however, a common approach is to partition the design into at least two WCS management domains. The first management domain you might specify can be for the wireless infrastructure that resides at the headquarters site. One or more additional management domains can then include the branch sites. WCS servers and location appliances can then be allocated to these management domains as appropriate. These WCS servers are then accessible from WCS client workstations located at the headquarters site.
Although the design described in Figure 8-75 may provide satisfactory performance for the majority of large scale wireless branch networks, there are alternatives for even larger (albeit much less common) branch networks that may make more sense depending on the organization itself, the way it is structured, and its underlying WAN topology. Some organizations structured along regional boundaries may find that a network infrastructure more representative of their structure is a better overall fit. In these cases, for example, it is not uncommon to find a central headquarters site along with several regional headquarters sites containing corporate resources in both locations. Figure 8-76 illustrates one such regionalized approach for an enterprise that is sub-divided into four regions plus a headquarters campus site.

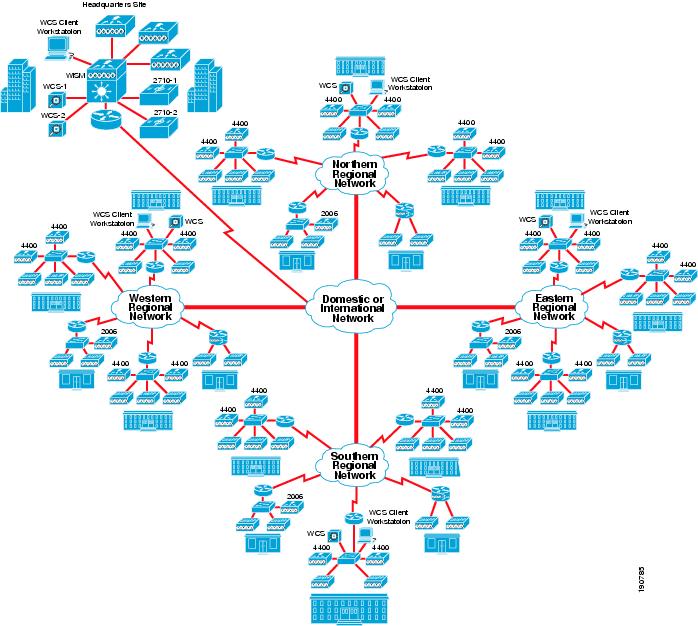

Figure 8-76 Remote Management of Branch Offices—Multiple Regionalized WCS Servers
The branch sites in each region are network-managed by regional network operations staff located at each respective regional headquarters location. These regional headquarters locations are also full-time branch locations that, from a business operational standpoint, are peers with the other branch locations in the region. Regional connectivity is provided by one of the WAN networking alternatives already discussed, and the regional networks are connected via very high bandwidth connections to a corporate WAN network that is provided by one or more major service providers.
At the corporate headquarters site, a WCS server and location appliance are present to provide management and location services for the headquarters campus only (these do not interact with branch sites). Headquarters NOC staff can directly manage the wireless network in any branch location via their WCS client workstations (which have access to the WCS server in any region). Each regional WCS server can be configured to generate e-mail notifications (which in turn can translate into text message notifications to cell phones, pagers, and PDAs) to headquarters network management staff, informing them of critical alarms that have been generated within the region. Headquarters personnel can then respond appropriately via their global WCS client workstations.
The IP address of a headquarters-based enterprise network management system (NMS) can be entered as an additional trap receiver for each WLAN controller in all sites. This ensures that headquarters personnel are made aware via the enterprise NMS of any conditions that trigger trap generation in any of the branch sites.
Note
Each branch WLAN controller can be configured with the address of a remote syslog server at the headquarters site to ensure that headquarters personnel have visibility to syslog messages generated by any of the branch WLAN controllers.
The regionalized approach shown in Figure 8-76 and other regionalized designs like it can offer the following key advantages to those customers whose organizational makeup and size allows them to make good use of it:
•
•
Thus far, two remote branch management deployment models have been discussed that provide a very workable solution for the great majority of all wireless network management needs. Even so, there are still some organizations whose sheer scope and size may make even a regionalized solution such as shown in Figure 8-76 less than optimal. For this small group of extraordinarily large (in many cases multi-national) entities, you can institute WCS management at lower levels of the network, further down below even the regional level.
Some of the specialized concerns in these extremely large networks that can require such designs include the following:
•
In this type of organization, it may be preferred for the local branch to have the capability of managing its wireless LAN infrastructure in an autonomous fashion more analogous to its operational capabilities, even when situations make it impossible to establish external network connectivity. In both the centralized as well as the regional approaches illustrated in Figure 8-74, Figure 8-75, and Figure 8-76, this type of outage requires local branch personnel lacking access to their WCS servers to manage their WLAN controllers directly via the web or command line interfaces. No location services capabilities are available during any such outage because of the lack of accessibility to WCS and the location appliances located at the corporate or regional headquarters (this includes on-demand location).
•
•
In the few extremely large-scale deployments where these areas must be addressed, the added cost of deploying a WCS server (and location appliance) within each branch may be justified. This approach eliminates the impact of management and location services polling upon the WAN completely by relocating the WCS servers and location appliances to each individual branch. It also adds full management and location-based services survivability to the branch in spite of prolonged WAN interruption, thereby allowing branch wireless management autonomy. In the event of a WAN interruption at either the regional or corporate level, local branch WLAN users continue to have access to branch-resident mission-critical resources located, and local branch technical personnel have complete and unfettered management access to their wireless LAN infrastructure as well.
Traffic Considerations When Using WCS in Large Networks
For customers wishing to deploy large or very large networks, an understanding of the traffic volumes that are involved when routine management polling occurs can be useful in making proper design choices.
Traffic Sources
In a system consisting of a WCS, location appliance, WLAN controllers, and lightweight access points, the following categories are the main sources of network traffic:
•
–
–
–
–
–
–
–
–
–
•
–
–
–
–
•
–
–
WLAN Controllers and WCS
WCS obtains information about the status of WLAN controllers, lightweight access points, WLAN clients, asset tags, and rogues in two ways: via WCS-initiated SNMP polling of the WLAN controllers, and unsolicited SNMP traps generated by WLAN controllers. As mentioned in previous sections, WCS does not poll lightweight access points, WLAN clients, asset tags, or rogue devices directly, but instead relies on information that WLAN controllers proxy to WCS about these entities.
In WCS, configure the various categories of polling as well as the regularity of polling via one of four scheduled tasks:
•
•
•
•
The following sections discuss each of these in more detail and provide a brief understanding of the level of traffic impact each polling categories can assess on total network management traffic.

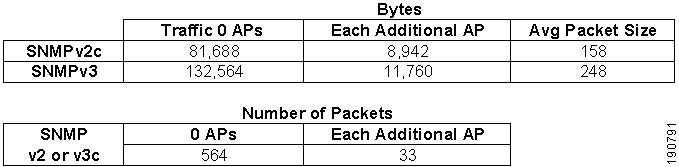

Although SNMP polling makes up the predominant portion of the total management traffic between WCS and WLAN controllers, it is by no means the exclusive source of management traffic. SNMP traps flowing from controllers to WCS and other trap receivers also contribute a traffic component, albeit one that is rarely a concern in most cases. The number of traps enabled, the number of WLAN controllers, the amount of times additional SNMP polling is triggered by the reception of traps, the number of trap receivers, and the frequency at which trap-generating events occur all dictate the impact of SNMP traps on overall management traffic.
Utility functions such as backup and restores of controller and WCS database configurations can also contribute to network congestion, primarily in very large networks when such functions might be performed on many controllers simultaneously. Taken individually, such actions are typically of minor consequence, but when initiated on large groups of controllers simultaneously, it would not be unusual to see traffic spikes that may become noticeable overall. An example of where this may be commonly seen is with the case of controller software downloads (see Managing Controller Operating Software, Web Authentication Bundles, and IDS Signatures) and controller configuration backups that tend to be the most traffic intensive of the utility functions. Traffic because of other utility functions such as configuration refreshes to and from WLAN controllers (described in Non-Selective Synchronization) are usually not significant and typically should not pose a problem.
Reporting functions (such as the configuration audit reports) cause WCS to inventory the configuration of each selected controller and compare the results against the contents of the WCS database. Configuration Audit Reports and Network Audits discusses the best practices surrounding the running of these reports and also some detailed analysis of the traffic flows that are involved for both SNMPv2c and SNMPv3. The network audit scheduled task (Network Audit) is a derivative of the configuration audit report except that it runs against all controllers defined to WCS instead of a subset of selected controllers. In large networks comprising many WLAN controllers and lightweight access points, it is always good practice to consider running the network-wide network audit scheduled task at times of low network usage.
Using the discussions of initial and incremental traffic as a guide (described in Device Status Polling through SNMP Traps), it is possible to gain a general understanding of the traffic volume that might be generated by the various management polling methods in a proposed design. Note that estimates stated in the subsections to follow are based on lab testing under closely controlled circumstances. The number of devices, clients, and rogues detected in your network will likely vary between polling cycles.
This information is provided so that designers and architects of network systems can use the traffic volume information in conjunction with information they already know about network utilization in their own environment to make intelligent design decisions. It is not provided with the intent of serving as a precision prediction tool, but rather to educate readers with large networks as to the magnitude of potential management traffic volumes they may incur in an effort to enable better overall network designs.
Management traffic volumes should be considered not only in conjunction with the present network utilization, but with those traffic loads that can be reasonably expected in the near future because of growth and expansion. If location appliances are to be included in the design, a separate analysis should be conducted focusing on polling traffic between the location appliance and the WLAN controllers (see WLAN Controllers and the Location Appliance).
In the minority of large wireless networks where the impact of SNMP polling on network utilization is deemed to be excessive, the polling intervals for device status, client statistics, radio statistics, and rogue access point polling can be adjusted as described in Cisco Wireless Control System Release Notes, Release 4.0, which is available at the following URL: http://www.cisco.com/en/US/docs/wireless/wcs/release/notes/wcsrn_MR2.html.
By staggering and increasing the polling intervals, you can better distribute the aggregate volume of polling traffic that is being introduced into the network and lower increases in peak network utilization that are because of management SNMP polling.
Unless otherwise noted, all traffic quantities in the following sub-sections are UDP byte and packet counts for a single controller that were measured on a 10/100/1000 Ethernet LAN using Ethereal 0.99.0. Measurements were taken for both bidirectional and unidirectional traffic flows, along with a measurement of the total elapsed time required for the polling process to complete. Hardware used in these tests were Cisco Catalyst c3750 Ethernet switches and 4400-12 WLAN Controllers with 4.0.155.5 controller software and AP1242 access points.
Device Status Polling
Device status polling is conducted in WCS by the Device Status scheduled task. WCS is configured by default to conduct device status polling every five minutes. In addition to being responsible for updating device reachability, device status polling provides WCS with information such as the following:
•
•
•
•
•
•
The amount of traffic exchanged during device status polling is not affected by the presence of wireless LAN clients, asset tags, rogue access points, or rogue clients. The volume of polling traffic produced was seen to be tied to the number of lightweight access points registered to the WLAN controller.
Figure 8-77 provides average SNMP v2c/SNMPv3 UDP traffic volumes observed during testing between WCS and a 4400-12 WLAN controller. The tables provide us with baseline device status polling traffic figures for a single 4400-12 controller with zero access points registered, and allows visualization of how this traffic flow increases with additional registered access points.
The table in Figure 8-77 is broken down into ranges. Note that within each range, the traffic quantities listed represent the amount of traffic observed when the number of registered access points was within the range. For example, when device status polling occurs using SNMPv2c between WCS and a controller with four registered infrastructure access points, on average an exchange of approximately 4805 bytes of UDP data was observed each time WCS polled the WLAN controller for device status information. However, if the number of registered infrastructure access points increases to nine, the average number of bytes exchanged between WCS and the WLAN controller increases to approximately 7154 during each iteration of device status polling.
Although not intended as a precision prediction tool, this information can be useful in understanding how device status polling traffic might grow beyond the twelve access points shown.

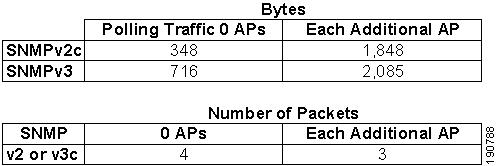

Figure 8-77 Device Status Polling Traffic
Client Statistics Polling
Client statistics polling is conducted in WCS by the clients statistics polling scheduled task (Client Stats Poll). WCS is configured by default to conduct client statistics polling every fifteen minutes. Some of the information that is gathered by WCS via client statistics polling includes but is not limited to the following:
•
•
•
•
•
The amount of traffic exchanged during client status polling is not related to the number of lightweight access points registered to the WLAN controller. It is also not affected by the presence of Layer 2 asset tags, rogue access points, or rogue clients.
Note
The traffic volume is driven primarily by the number of WLAN clients that have associated to the lightweight access points serviced by the controller being observed. Lightweight access points that do not have WLAN clients associated do not contribute to client statistics polling traffic.
The distribution of clients between lightweight infrastructure access points was seen to have little if any impact on the aggregate amount of client statistics polling traffic produced for that controller. For example, four WLAN clients associated to a single lightweight access point affiliated with a controller result in approximately the same volume of client statistics polling traffic between that controller and WCS as four WLAN clients, each associated to individual lightweight access points on the same controller.
Figure 8-78 provides average SNMP v2c/SNMPv3 UDP traffic volumes observed during testing between WCS and a 4400-12 WLAN controller with a single registered lightweight access point. The tables provide baseline client statistics polling traffic figures for a single 4400-12 controller with zero clients associated, and allows visualization of how this flow might increase with additional clients.
Figure 8-78 Client Statistics Polling Traffic
The table in Figure 8-78 is divided into ranges. Note that within each range, the traffic quantities listed represent the amount of traffic observed when the number of clients associated to registered access points is within the range. For example, when client statistics polling occurs using SNMPv2c between WCS and a controller with three associated clients, on average approximately 3950 bytes of UDP data are exchanged between WCS and the WLAN controller. However, if the number of associated clients increases to six, the average number of bytes exchanged between WCS and the WLAN controller increases to approximately 6118 during each iteration of client statistics polling.
Although not intended as a precision prediction tool, this information can be useful in understanding how client statistics polling traffic might grow beyond the six clients shown.
Statistics Polling
Statistics polling is conducted in WCS using the Statistics scheduled task. The statistics that are gathered by this scheduled task concern the lightweight access point radio interfaces. WCS is configured by default to conduct statistics polling every fifteen minutes. Some of the information that is gathered by WCS via statistics polling includes but is not limited to the following:
•
•
•
•
•
•
•
•
•
The amount of traffic exchanged during statistics polling is not affected by the presence of wireless LAN clients, asset tags, rogue access points, or rogue clients. Rather, the volume of traffic produced is primarily driven by the number of lightweight access points (and the number of 802.11 radios they contain) that registered with the WLAN controller.
Figure 8-79 provides average SNMP v2c/SNMPv3 UDP traffic volumes observed during testing between WCS and a 4400-12 WLAN controller. The tables provide baseline statistics polling traffic figures for a single 4400-12 controller with zero registered lightweight access points and allows you to visualize how this flow of traffic might increase as the number of registered infrastructure dual-band lightweight access points is increased.

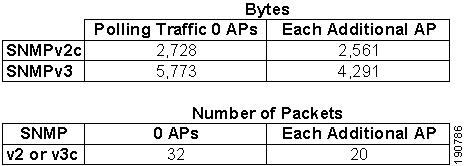

Figure 8-79 Statistics Polling Traffic
The table in Figure 8-79 is divided into ranges. Note that within each range, the traffic quantities listed represent the amount of traffic observed when the number of registered dual-band access points was within the range. For example, when statistics polling occurs using SNMPv2c between WCS and a controller with four registered dual-band access points, on average approximately 10,279 bytes of UDP data are exchanged each time WCS polls the WLAN controller. However, if the number of registered dual-band access points increases to six, the average number of bytes exchanged between WCS and the WLAN controller increases to approximately 13,229 during each iteration of statistics polling.
Although not a precision prediction tool, this information can be useful in understanding how polling traffic might grow beyond the 12 access points shown.
Rogue Access Point Polling
Rogue access point polling is conducted in WCS via the Rogue AP scheduled task. WCS is configured by default to start rogue AP polling of all controllers every 120 minutes. Some of the information that is gathered by WCS during rogue access point polling includes but is not limited to the following:
•
•
•
•
•
•
•
•
•
The amount of traffic exchanged between WCS and the WLAN controller during rogue AP polling is not affected by the presence of wireless LAN clients or asset tags. It is driven primarily by the number of rogue access points detected by the lightweight infrastructure access points.
Figure 8-80 provides average SNMP v2c/SNMPv3 IPv4 traffic volumes observed during testing between WCS and a 4400-12 WLAN controller. The tables provide baseline rogue polling traffic figures for a single 4400-12 controller with zero detected rogue APs through 29 detected rogue access points, and allows you to visualize how this flow of traffic might increase as the number of detected rogue access points increases.

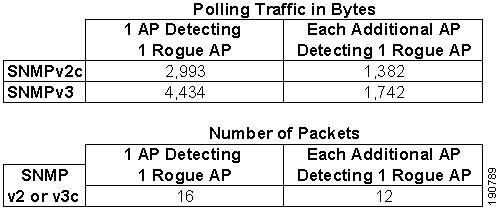

Figure 8-80 Rogue AP Polling Traffic
The table in Figure 8-80 is divided into ranges of detected rogue access points. Note that within each range, the traffic quantities listed represents the amount of traffic that was observed when the number of detected rogue access points was within the range. For example, when rogue AP polling occurs using SNMPv2c between WCS and a controller with nine detected rogue access points, on average approximately 2592 bytes of IPv4 data was exchanged between WCS and the WLAN controller each time WCS polls the WLAN controller. However, if the number of detected rogue access points rises to 12, then the average number of bytes exchanged increases to approximately 5158 on each polling iteration.
Although not intended as a precision prediction tool, this information can be useful in understanding how rogue polling traffic might grow beyond the 29 detected rogue access points tested here.
Note that the presence of associated rogue clients was not found to add any appreciable amount of traffic to the results recorded in Figure 8-80.
SNMP Traps
As described in Relationship Between Traps, Events, Alarms, and Notifications, a trap is a notification issued by a managed device to the network management station (WCS) when a significant event occurs at the managed device. WLAN controllers can be configured to send SNMP traps to up to six trap receivers. In contrast to a response to a polling request, the information contained in a trap is typically sent in an unsolicited manner. When traps are configured and enabled in the managed device (WLAN controller), they are sent to WCS as the events that generate them occur.
Traps are enabled or disabled via Configure > Controllers > Management > Trap Control, and trap receivers are defined using Configure > Controllers > Management > Trap Receivers, as described in Relationship Between Traps, Events, Alarms, and Notifications. Both trap receiver as well as trap control configuration objects can be defined via policy templates. For proper WCS event notification, it is always required that WCS be defined as one of the trap receivers in each WLAN controller comprising the management domain. You may opt to define other trap receivers as well depending on your organizational policy and any other enterprise management systems in use, but always make sure to include a WCS server as a trap receiver for your WLAN controllers.
Because traps are sent without acknowledgement, it is possible that a transmitted trap is never received by WCS. This can happen, for example, in highly utilized or congested WAN networks because of packet discard algorithms that take place in the service providers network, or simply because of QoS mechanisms doing their job and discarding low-priority traffic. Because trap delivery is not guaranteed, WCS also polls for some of the same information that is available via the trap mechanism. Examples include rogue AP traps and various traps pertaining to the state of the lightweight access point radios. The WLAN controller makes much of this same information available to WCS via rogue access point and statistics polling, thereby ensuring that if this information is not received via the trap mechanism, WCS still learns of any extraordinary conditions during the next polling cycle.
The traps sent from WLAN controllers to WCS can vary in size (during lab testing traps were analyzed that ranged in size from approximately 120 bytes to almost 400 bytes). In most cases, the amount of overall traffic added to the network specifically attributable to SNMP traps is inconsequential. However, for those customers that may be considering deploying very large networks with large numbers of controllers and several WCS servers, a few key points should be kept in mind:
•
An example of this can be seen in the AP Registered trap. After reception of this trap, WCS immediately issues a series of poll requests to the controller that initiated the trap for additional device status information. Other examples include traps indicating that the channel country set or power levels have changed. This is a well-known and perfectly acceptable method of obtaining additional information that has not been included in the trap itself, and it allows WCS to gain a better understanding of precisely what the condition is at the WLAN controller that initiated the trap. The point to keep in mind here is that the net contribution to management traffic in this case is more than simply the traffic volume incurred transmitting the trap itself.
•
The amount of trap traffic generated by a controller increases in direct proportion to the total number of trap receivers specified, up to the maximum of six trap receivers (that is, a fully configured controller with six trap receivers defined generates six times more trap traffic that a controller that has only a single WCS configured as a trap receiver and nothing more). In large networks, trap receivers should be specified strictly on a need-to-know basis and only for stations that are actually active trap receivers. Trap receivers used during troubleshooting, testing, or network diagnostics should be promptly disabled or removed promptly after their usefulness has expired and they are no longer necessary. The use of policy templates can make the assignment and prompt removal of any unnecessary trap receivers much easier.
Additional information about the traps configurable via the Configure > Controllers > Management > Trap Control page can be found in online help system available under the WCS main menu bar as Help > Online Help.
Appendix D, "Examples of SNMP Traps," contains several examples of SNMP traps captured during lab testing. Although not a complete listing of all traps available from Cisco WLAN controllers, this appendix does show actual received traps and decodes much of their content for easier viewing. Complete trap definitions for 4400, 4100, and 2000 series WLAN controllers are defined in MIB files that are available to registered users on the Cisco Connection Online (CCO): http://www.cisco.com.
Configuration Audit Reports and Network Audits
The routine examination of periodic configuration audit reports is a useful tool for the WCS administrator toward ensuring that the integrity of the WCS databases is being verified and maintained. This is especially important in organizations where disparate groups may be responsible for various facets of network operation and maintenance. As is often the case when there are service impacting outages in remote field locations, modifications to WLAN controller configurations may sometimes occur outside the auspices of the network operations center and WCS (in the name of expeditious problem resolution and service restoration).
In these cases, an out-of-sync condition can exist between the configuration stored within the WCS databases and the current configuration of the actual WLAN controller or lightweight access point. Adherence to a policy of routine configuration audit report examination can give advanced warning that such activities have occurred, and more importantly prompt the WCS administrator to the fact that re-synchronization or the re-application of uniform policy templates may be justified.
Configuration audit reports can be run for either a single controller in the management domain (see On-Demand Configuration Audit Reporting), or for all controllers in the management domain via the Network Audit scheduled task (see Scheduled-Task Network Audit Reporting). Although there is typically little concern regarding running the standalone configuration audit report for a single controller, customers with very large wireless networks may wish to consider the traffic impact of the Network Audit task before use during peak periods of network use.
When a configuration audit report is run for a controller, WCS basically retrieves the content of the WLAN controller configuration via SNMP. This is done both for the WLAN controller itself as well as the configuration of any currently registered lightweight access points. The amount of data sent is therefore partially determined by the number of lightweight access points currently registered with the WLAN controller. A small excerpt of the entire SNMP v2c exchange that occurs between a WCS and a 4400-series WLAN controller during a configuration audit can be found in Appendix A, "Excerpt of Configuration Audit Exchange, WCS <-> 4400 WLAN Controller.".
Figure 8-81 provides us with an analysis of the traffic flow observed between WCS and a 4400-12 WLAN controller during the execution of the single controller configuration audit. The number of registered access points varied from zero to the maximum capacity of the controller. Keep in mind that the amount of information transferred during the network audit did not depend on the number of WLAN clients or asset tags associated to the access points registered to the controller, but was very dependent on the complexity of the controller configuration. The data in Figure 8-81 was based on a very minimally (default) configured 4400-12 WLAN controller. More complex controller configurations increases the amount of data transferred during the configuration audit.
Figure 8-81 Configuration Audit Traffic Analysis
As mentioned previously, the primary use for this information is in gauging the amount of traffic to expect if one is planning on running the all-controller-inclusive network audit scheduled task in very large network configurations. In most such cases, the Network Audit configuration should be scheduled to run during off-peak times of operation or other times when any such audit of all controllers in the management domain would have minimal impact on the users of the network. In those very large networks where there are several WCS servers, each managing different portions of the network over a shared network infrastructure, you may wish to stagger scheduling of Network Audit tasks between the WCS servers such that all WCS servers are not attempting to audit their management domains simultaneously.
Configuration Backup
Lab testing has shown that under version 4.0, a controller configuration archive for a controller with a nearly default configuration is approximately 740,000 bytes in size. When the WLAN controller configuration was archived (either on-demand or via the Configuration Backup scheduled task) using SNMPv2c the traffic flows shown in Figure 8-82 were observed over a time period of 13.45 seconds.
Figure 8-82 Single WLC Configuration Archival Traffic Analysis, SNMPv2c
The use of SNMPv3 in (Figure 8-83) was shown to have only minimal impact in this case because the bulk of the traffic was because of TFTP and not SNMP components. Elapsed time for the SNMP traffic flow was 13.29 seconds.
Figure 8-83 Single WLC Configuration Archival Traffic Analysis, SNMPv3
Designers of very large wireless networks may wish to consider the potential traffic associated with the Configuration Backup scheduled task in their environment because it initiates configuration backups of all reachable controllers defined to WCS in a serial fashion.
Note
Although the peak traffic impact of this task is not high (WLCs are archived one at a time in sequence), it can run for some time depending on the number of the controllers that are reachable. It is good practice to schedule this archival tool for execution during off-peak periods of low usage instead of during peak traffic periods.
Non-Selective Configuration Refresh
Lab testing has shown that the traffic volumes experienced under version 4.0 for the Refresh Config from Controller and the Restore Config to Controller operations are nominal. For SNMPv2c, the traffic flow was observed as 372 packets of 129,000 bytes in a time period of about 1.06 seconds. This traffic was allocated as 186 packets in each direction, with 39,000 bytes from WCS to the WLAN controller and 91,000 bytes returned from the WLAN controller to WCS, with an average UDP packet size of 400 bytes. For SNMPv3, the traffic flow increases to about 372 packets of 160,000 bytes in a time period of about 1.77 seconds. This SNMPv3 traffic was observed to be 186 packets in each direction, 55,000 bytes from WCS to the WLAN controller, and 104,000 bytes returned from the WLAN controller to WCS with an average UDP packet size of 475 bytes.
For Restore Config to Controller, lab testing has indicated that under SNMPv2c, the traffic flow was observed as 1244 packets of 316,000 bytes in a time period of about 6.3 seconds. This traffic was allocated as 622 packets in each direction, with 128,000 bytes from WCS to the WLAN controller and 188,000 bytes returned from the WLAN controller to WCS, with an average UDP packet size of 275 bytes. For SNMPv3, the traffic flow increases to 1244 packets of 427,000 bytes in a time period of about 7 seconds. This SNMPv3 traffic was observed to be 622 bytes in each direction, 184,000 bytes from WCS to the WLAN controller and 243,000 bytes returned from the WLAN controller to WCS, with an average UDP packet size of 362 bytes.
Keep in mind that these traffic volumes are affected by the complexity of the controller configuration, which in turn increases the overall size of the controller configuration. The controller configuration used during this test was relatively simple; controllers with much more complex configurations generate more traffic during these operations.
WLAN Controllers and the Location Appliance
The Wireless Location Appliance learns about WLAN controllers in the management domain from WCS and when synchronized, queries these controllers using SNMP for signal strength and other information necessary to properly determine client, asset tag, and rogue location. Note that in terms of determining device location, the location appliance does not obtain device location information or signal strength data from WCS but independently polls each WLAN controller for the information it needs to perform these calculations. This occurs independently of the on-demand location capabilities present in WCS.
Wi-Fi Location Based Services: Design and Deployment Considerations discusses in detail the communication flows between the location appliance and WLAN controllers. Included in this document are traces and analysis of actual traffic flows between controllers and location appliances in both small and large footprint installations. This document is available at the following URL: http://www.cisco.com.
WCS and the Location Appliance
WCS and the location appliance exchange information regarding calibration maps and network designs during the design synchronization process. During a network design synchronization, we are generally transferring network design information from the more current to the less current partner in order to promote a common understanding of the overall design of the network and the environmental factors included in the most recent calibration maps. Lab analysis of the routine communication flows between WCS and the location appliance indicate that peak traffic flows occur during the synchronization and location server backup/restore processes.
The Wi-Fi Location Based Services 4.1 Design Guide (see above) discusses in detail the communication flows between WCS and the location appliance as well as best practice recommendations that should be considered in deciding where the location appliance should be placed within your network.
Administering WCS
Administering Scheduled Tasks
WCS provides several pre-defined system tasks that address various areas of configuration and database backup, device status, and synchronization and statistics collection. The currently available scheduled tasks can be accessed via Administration > Scheduled Task, as shown in Figure 8-84. These tasks can be scheduled to run at pre-determined times of the day and with varying repetition intervals. When configured, each task can be administratively enabled or disabled. Any task can be submitted for immediate execution (including tasks that have been administratively disabled) by selecting the task check box and then selecting Execute Now from the command drop-down menu in the upper right-hand corner of the screen. This immediate execution capability allows the scheduled tasks feature to flexibly serve in dual roles:
•
•
Figure 8-84 Administration > Scheduled Tasks
The online help system accessible via under the WCS menu bar as Help > Online Help contains guidance on how each of the scheduled tasks should be configured for proper operation. The following subsections provide further detail on the Configuration Backup, Network Audit, and WCS Server Backup scheduled tasks.
Configuration Backup
The Configuration Backup scheduled task archives the configurations of all controllers that have been added to WCS and are reachable at the time the task is submitted for execution.
Note
For each controller that is defined and currently reachable, WCS creates a configuration archive file in the default directory of the TFTP server selected with a filename that is in the format of nnn_nnn_nnn_nnn_YYMMDD_hhmm.cfg where nnn represents each octet of the IP address of the controller.
For example, a display of the tftp directory on a Linux-based WCS server shows the following files after a successful execution of this task:
[root@wcslinux wcs_tftp]# ls10_1_56_10_060301_2238.cfg 10_1_56_14_060301_2237.cfg 10_1_56_18_060301_2237.cfg10_1_56_16_060301_2238.cfg 10_1_56_12_060301_2238.cfg[root@wcslinux wcs_tftp]#To configure this task, perform the following:
Step 1
a.
Note that this option saves the current running configuration of the controller to nonvolatile memory before archiving it. The saved configuration that was present in nonvolatile memory is overwritten. See Configuring WLAN Controllers, for further information on the Save Before Backup check box parameter.
b.
Step 2
Step 3
Step 4
Step 5
The task is now enabled for automatic submission at the time and with the daily repetition interval you have selected. If you want to schedule the task for immediate submission, select the task by enabling the check box as shown in Figure 8-84, then select Execute Now from the command drop-down menu in the upper right-hand screen corner and click Go.
Network Audit
To initiate a network audit report scheduled task, perform the following steps:
Step 1
Step 2
Figure 8-85 Network Audit Configuration
Step 3
To view the results of a network audit that has completed running, perform the following:
Step 1
Step 2
Step 3
WCS then displays the same format configuration audit report for the WLAN controller and its registered lightweight access points as is shown in Figure 8-86.
Figure 8-86 Configuration Audit Report
Step 4
Step 5
WCS submits the Network Audit task for immediate execution (the status of the network audit changes to "Executing"). You may view the results of this network audit as has been previously described.
WCS Backup
The WCS Backup scheduled task provides a convenient mechanism to ensure that the WCS databases are archived on a regular basis. Unlike the "Backup" script that is executed from the operating system outside the WCS user interface, the WCS Backup scheduled task does not offer a choice of destination system or folder. Rather, the database archive is always placed on the WCS server itself in a "WCSBackup" subdirectory below the directory chosen by you at WCS installation time for the storage of FTP files. Each database archive file is named as per the following format:
DD-mon-YY_hh-mm-ss.nmsbackup.Thus, for a WCS-Linux installation, if /opt/WCS32/wcs_ftp was chosen as the FTP directory, the archive files created by the WCS Backup scheduled task is found in /opt/WCS32/wcs_ftp/WCSBackup. The database archive files that can be found under that directory appears as follows:
[root@wcslinux WCSBackup]# ls02-Mar-06_22-13-11.nmsbackup 02-Mar-06_22-13-47.nmsbackup 02-Mar-06_22-15-06.nmsbackup02-Mar-06_22-13-21.nmsbackup 02-Mar-06_22-13-55.nmsbackup02-Mar-06_22-13-30.nmsbackup 02-Mar-06_22-14-05.nmsbackup[root@wcslinux WCSBackup]#To configure the WCS Backup scheduled task, perform the following steps:
Step 1
Step 2
Step 3
Step 4
The task is now enabled for automatic submission at the time and with the daily repetition interval you have selected.
Step 5
Note
Managing WCS Users
Adding User Accounts
WCS is installed by default with a single user root with a password of public that is a member of group SuperUsers. The password for root should be changed to a secure password as soon as possible after installation to prevent unauthorized access.
To add user accounts to WCS, use the following procedure:
Step 1
Step 2
Step 3
Step 4
Step 5
a.
b.
c.
d.
e.
f.
Step 6
Modifying Group Privileges
The default privileges that are assigned to each of the groups described in the previous section are shown in Figure 8-87.

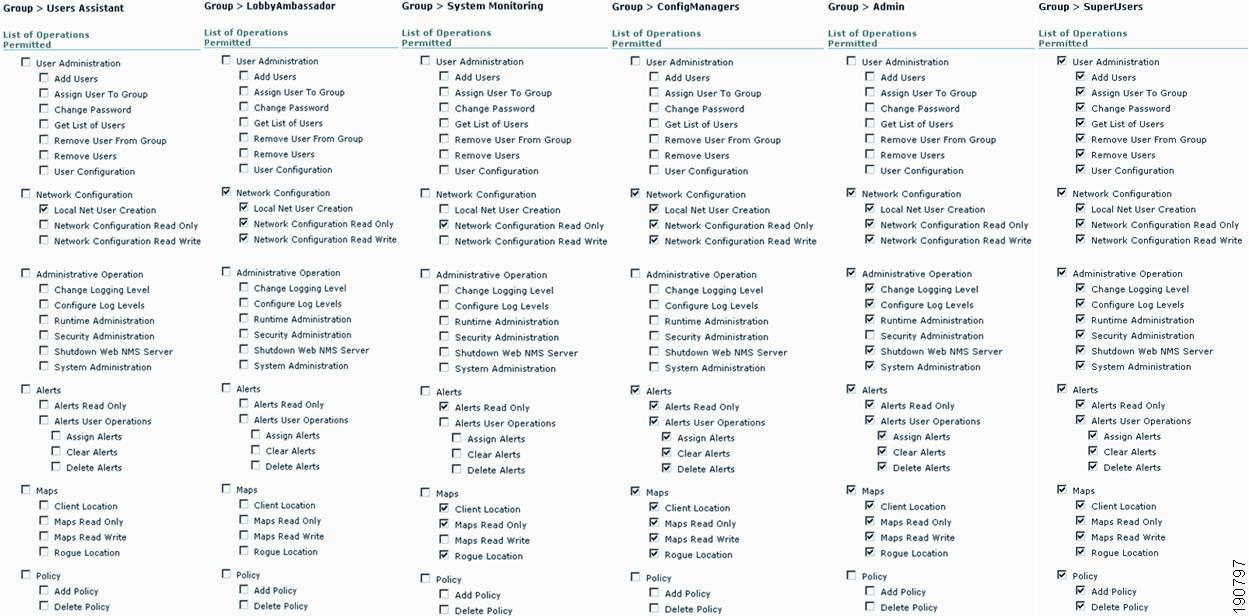

Figure 8-87 Comparison of Default WCS User Group Privileges
In some cases, it may be necessary to modify the specific privileges associated with a specific group (the procedure for accomplishing this is shown below). Keep in mind that any changes made to the group affecting the user in question affect all users assigned to that group.
Step 1
Step 2
Step 3
Step 4
Step 5
Note that although users can be restricted from performing classes of activities from all lightweight access points or WLAN controllers in the WCS management domain, these privileges are not specified on a per-access point or per-controller basis.
Viewing User and Group Audit Trails
WCS allows users that are members of the SuperUser group to view the past WCS access audit trail of any user or group defined to WCS and also clear that audit trail if desired. User and group audit trail information is maintained indefinitely by WCS and contains the time, date, and status of authentication attempts made by each user against WCS.
To view the audit trail for a WCS user, perform the following steps:
Step 1
Step 2
Step 3
Step 4
icon under the extreme right-hand column entitled "Audit Trail". The audit trail log is displayed.
To view the audit trail for a WCS user group, use the same basic procedure but substitute Administration > Accounts > Groups in Step 2.
Logging Options
WCS provides extensive command logging options that are accessed and controlled via the Administration > Logging option from the WCS main menu bar. Logging message levels can be configured for Error, Informational, and Trace (in order of increasing detail). The default logging configuration is shown in Figure 8-88 and includes all possible logging modules enabled.

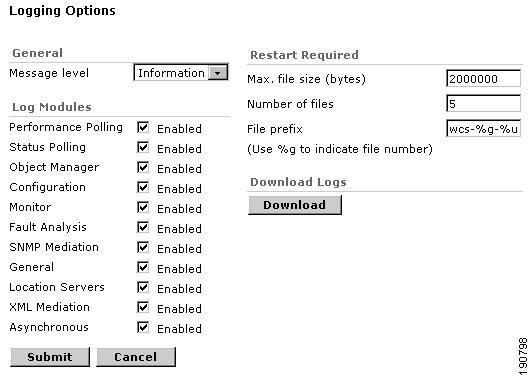

Figure 8-88 Default Logging Configuration
The standard configuration is for WCS to create up to five rotating log files with a maximum size of 2 MB each. The names are specified using the file prefixes listed (for example, wcs-0-0.log through wcs-4-0.log.) Note that a restart is required if log file size, name, or number is changed.
To view WCS log files, use the Download selection shown in Figure 8-88 to download the entire set of logs as a .zip compressed archive to your desktop or elsewhere for viewing with one of many popular ASCII text viewing programs, such as Microsoft Notepad, Wordpad, and so on.
There are very many log files contained in the compressed archive. However, the wcs*.log files are the first places to look when inquiring into the reason behind the abnormal termination of scheduled tasks, audit reports, configuration file archivals, and other tasks. This is also the first place to look for information about why other screen functions or commands issued from within WCS may have terminated abnormally or produced unexpected results.
When experiencing difficulties with WCS that you cannot resolve, you will likely be asked to download the compressed zip archive from the screen shown in Figure 8-88 for use by the Cisco Technical Assistance Center in resolving your problem.
Reference Publications
This chapter makes reference to the following Cisco publications:
•
•
•
•
•
•
•
•
•
