CISCO 1700 Series Router Hardware View
Table of Contents

Cisco 1700 Series modular access routers are ideal for enterprise small branch offices and small and medium-sized businesses that need secure access to business applications, network resources, and Internet services for all users. The Cisco 1700 Series delivers fast, reliable and secure Internet/network access through a wide-range of high-speed WAN access technologies for primary and backup WAN connections.

The Cisco 1700 Series modular design provides the flexibility to meet the most demanding and evolving business requirements such as high-speed broadband and leased-line access, comprehensive security, and multiservice data/voice integration.

Cisco 1700 Series routers also deliver a comprehensive suite of integrated security capabilities with wire speed IPSec VPN, stateful firewall protection and intrusion detection. Cisco 1700 Series routers also provide a migration path to voice-over-IP (VoIP) and IP telephony services through a converged data and voice network in a single modular platform that offers a complete suite of call processing and QoS services.

End-of-Sale / End-of-Life announcement for the Cisco 1700 Series (March 27, 2007). Product Substitution - CISCO 1800/2800 Series

Base Models WAN Interface Cards Voice Interface Cards
CISCO1701-K9 WIC-1T VIC-2E/M
CISCO1710-VPN-M/K9 WIC-2T VIC2-2E/M
CISCO1711-VPN/K9 WIC-2A/S VIC-2FXS
CISCO1712-VPN/K9 WIC-1ENET VIC2-2FXS
CISCO1720 WIC-4ESW VIC-4FXS/DID
CISCO1721 WIC-1ADSL VIC-2FXO
CISCO1750 WIC-1SHDSL - EoS VIC2-2FXO
CISCO1750-2V WIC-1SHDSL-V2 VIC2-4FXO
CISCO1750-4V WIC-1SHDSL-V3 VIC-2BRI-NT/TE
CISCO1751 WIC-1B-S/T-V3 VIC-2DID
CISCO1751-V WIC-1AM VWIC-1MFT-E1
CISCO1760 WIC-2AM VWIC-2MFT-E1
CISCO1760-V WIC-1DSU-T1-V2 VWIC-2MFT-E1-DI
- AIM's VWIC-1MFT-G703
- MOD1700-VPN VWIC-2MFT-G703
- - 2nd Generation VWIC
- - Echo cancellation module

CISCO1701-K9


  1. Kensington-compatible locking socket.
  2. WIC slot 0 (WIC0)—Contains the WIC-1ADSL.
  3. CONSOLE port (blue)
  4. WIC slot 1 (WIC1)—Contains the WIC-1B-S/T.
  5. Power switch.
  6. Power socket.
  7. WIC1 OK LED
  8. MOD OK LED
  9. AUX port (black)
  10. 10/100 ETHERNET port (yellow)
  11. Ethernet LEDs.
  12. WIC0 OK LED

Cisco 1701 ADSL Security Access Router with ISDN backup. Optional hardware-accelerated VPN encryption module.

One ADSL o POTS WAN port, One ISDN BRI WAN port, One 10/100BASE-TX Fast Ethernet port (RJ-45).

Return to Top

CISCO1710-VPN-M/K9



Dual-Ethernet Security Router VPN/FW/IDS 16MB Flsh/64MB DRAM. No WIC slots, One fast ethernet port - 10 Base-T or 100 Base-TX only, no AUI and One 10 Mbps ethernet port.

Return to Top

CISCO1711-VPN/K9



  1. Kensington-compatible locking socket.
  2. WIC slot 0 (WIC0)—Contains the 4-port Ethernet switch.
  3. CONSOLE port (blue)
  4. WIC slot 1(WIC1)—Contains the WIC-1-AM
  5. Power switch.
  6. Power socket.
  7. WIC1 OK LED
  8. MOD OK LED
  9. AUX port (black)
  10. 10/100 ETHERNET port (yellow)
  11. Ethernet LEDs
  12. WIC0 OK LED

Security access router with integrated 4-port switch, 10/100BASE-TX for WAN and analog modem backup.

Four 10/100BASE-TX autosensing Fast Ethernet switched ports, One analog modem port RJ-11 jack(Support for speeds up to 56 Kbps V.90), One 10/100BASE-TX Fast Ethernet WAN port (RJ-45)

Return to Top

CISCO1712-VPN/K9



  1. Kensington-compatible locking socket.
  2. WIC slot 0 (WIC0)—Contains the 4-port Ethernet switch.
  3. CONSOLE port (blue)
  4. WIC slot 1 (WIC1)—Contains the WIC-1B-S/T
  5. Power switch.
  6. Power socket.
  7. WIC1 OK LED
  8. MOD OK LED
  9. AUX port (black)
  10. 10/100 ETHERNET port (yellow)
  11. Ethernet LEDs
  12. WIC0 OK LED

Security access router with integrated 4-port switch, 10/100BASE-TX for WAN and ISDN S/T backup

Four 10/100BASE-TX autosensing Fast Ethernet switched ports, One ISDN BRI port (ISDN WAN port features are consistent with Cisco 1-port ISDN WAN interface card WIC-1B-S/T), One 10/100BASE-TX Fast Ethernet WAN port (RJ-45)

Return to Top

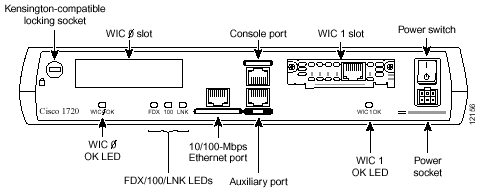

CISCO1720 - End Of Sale Announcement of 1720 / CISCO1721



Two WIC slots, One fast ethernet port - 10 Base-T or 100 Base-TX only, no AUI.

FEATURES CISCO1721 CISCO1720
Routing performance (based on 64-byte packet) 12,000 pps 8,400 pps
DRAM (default/maximum) 32 MB/96 MB 32 MB/48 MB
Flash (default/maximum) 16 MB/16 MB (Nonupgradable) 8 MB/16 MB
IEEE 802.1Q VLAN routing Yes No
Encryption module LED indicator Yes No

Return to Top

CISCO1750 / CISCO1750-2V / CISCO1750-4V - End Of Sale of 1750 series



Two VIC/WIC slots, One VIC only slot, One fast ethernet port - 10 Base-T or 100 Base-TX only, no AUI, One internal mini-flash card slot (max 16MB flash) and One internal slot for PVDM (Packet Voice DSP Module).

Product Description
CISCO1750 1750, includes IP only software, no PVDM (DSPs), no WICs, no VICs.
CISCO1750-2V 1750, includes IP/Voice software, PVDM-4, no WICs, no VICs.
CISCO1750-4V 1750, includes IP/Voice software, PVDM-8, no WICs, no VICs.

Return to Top

CISCO1751 / CISCO1751-V



Two VIC/WIC slots, One VIC only slot, One fast ethernet port - 10 Base-T or 100 Base-TX only, no AUI, Two internal slots for PVDM (Packet Voice DSP Module) and One internal slot for hardware encryption accelerator.

Product Description
CISCO1751 1751, 16 MB flash, 32 MB SDRAM, IP only software, no PVDM.
CISCO1751-V 1751, 32 MB flash, 64 MB SDRAM, IP Plus Voice software, one PVDM-256K-4=.

Return to Top

CISCO1760 / CISCO1760-V



  1. WIC/VIC Slot 0
  2. WIC/VIC Slot 1
  3. Console Port
  4. VIC Slot 2
  5. VIC Slot 3
  6. Slot 3 LEDs
  7. Slot 2 LEDs
  8. Auxiliary Port
  9. Ethernet Port
  10. Ethernet LEDs
  11. Slot 1 LEDs
  12. Slot 0 LEDs
  13. MOD OK LED
  14. PVDM 0/1 OK LEDs
  15. Router OK LED
  16. Power LED
Product Description
CISCO1760 10/100 Modular Router with WIC/VIC slots, 19 inch Chassis, 16 MB Flash, 32 MB DRAM.
CISCO1760-V 10/100 Modular Router w/Voice IP/VOICE Plus, 19 inch Chassis, 32 MB Flash, 64 MB DRAM, PVDM-256K-4.

Return to Top

WIC-1T



One port serial (DB60, Cisco 60-pin "5-in-1" connector ). Supports Max sync speed 2 Mbps. Does not support hot swap.

Platform Support

Feature Carrier Module Cisco IOS software support Sync Max Speed Async Max Speed Description
1600 On-Board All Cisco IOS versions 2.048 Mbps 115.2 Kbps Cisco IOS Versions 11.2(8)P and later
1700 On-Board All Cisco IOS versions 2.048 Mbps 115.2 Kbps All Cisco IOS versions
1800 On-Board 12.3(8)T4 2.048 Mbps - -
2600 On-Board , NM-2W All Cisco IOS versions 2.048 Mbps Not supported All Cisco IOS versions
2800 On-Board 12.3(8)T4 2.048 Mbps - -
3600 NM-1E2W, NM-1E1R2W, NM-2E2W, NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W All Cisco IOS versions 2.048 Mbps Not supported Cisco IOS Versions 11.2(4)XA, 11.3, 11.3T, and all 12.x
3631 On-Board Cisco IOS versions 12.2(13)T, 12.3(1), 12.3(2)T and higher 2.048 Mbps Not supported Cisco IOS versions 12.2(13)T, 12.3(1), 12.3(2)T and higher
2691, 3725, 3745 On-Board , NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T and higher 2.048 Mbps Not supported Cisco IOS versions 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T and higher
3800 On-Board , NM-2W, NM-1FE1R2W, NM-1FE2W, NM-2FE2W, NM-1FE2W-V2, NM-2FE2W-V2 12.3(11)T 2.048 Mbps - -

Return to Top

WIC-2T



Provides two serial ports using the "smart serial" connector.

  • Asynchronous support with a maximum speed (per port) of 115.2 Kbps, minimum 600 bps. If you need to run at speeds lower than 600 bps, use the AUX port instead.
  • Synchronous support with a maximum speed of 2.048 Mbps per port.
    • Supports one port at 8 Mbps when used in NM-1FE1R2W, NM-1FE2W, NM-2FE2W, or NM-2W, or Cisco 2600 chassis WIC slots. All other WIC ports on that network module or Cisco 2600 chassis must not be used.
    • Supports two ports at 4 Mbps each when used in NM-1FE1R2W, NM-1FE2W, NM-2FE2W, or NM-2W, or Cisco 2600 chassis WIC slots. All other WIC ports on that network module or Cisco 2600 chassis must not be used.
    • Supports 8 Mbps on all ports simultaneously on 2691, 3725, and 3745. No restrictions. Maximum six ports at 8 Mbps each.

Platform Support

Feature 1600 1700 1800 2600 2600XM 2800 3620, 3640, 3660 3631 2691, 3725, 3745 3800
Carrier Module Not Required On-Board On-Board On-Board NM-2W On-Board NM-2W On-Board NM-1E2W, NM-1E1R2W, and NM-2E2W NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W On-Board On-Board, NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W On-Board NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
Cisco IOS software support Not Required All Cisco IOS versions 12.3(8)T4 All Cisco IOS versions 12.0(7)XK, 12.1(1)T, 12.2, 12.2T All Cisco IOS versions 12.3(8)T1 12.3(8)T4 Not supported 12.0(7)XK, 12.1(1)T, 12.2, 12.2T All Cisco IOS versions All Cisco IOS versions 12.3(11)T 12.3(11)T

The Cisco 1600 Series is not capable of supporting the WIC-2T due to lack of Serial Communications Controllers.

The NM-1E2W, NM-1E1R2W, and NM-2E2W Network Modules do not have enough performance power to support the WIC-2T due to hardware limitations.

Return to Top

WIC-2A/S



The WIC-2A/S provides two serial ports using the Smart Serial connector. The only difference between the WIC-2A/S and the WIC-2T is the maximum supported sync speed.

  • Aysnchronous support with a maximum speed of 115.2 Kbps, and a minimum of 600 bps. If you need to run at speeds lower than 600 bps, use the AUX port instead.
  • Synchronous support with a maximum speed of 128 Kbps.

Platform Support

Feature 1600 1700 1800 2600 2600XM 2800 3620, 3640, 3660 3631 2691, 3725, 3745 3800
Carrier Module Not Required On-Board On-Board On-Board NM-2W On-Board NM-2W On-Board NM-1E2W, NM-1E1R2W, and NM-2E2W NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W On-Board On-Board, NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W On-Board On-Board, NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
Cisco IOS software support Not Required All Cisco IOS versions 12.3(8)T4 All Cisco IOS versions Cisco IOS versions 12.0(7)XK, 12.1(1)T, 12.2, 12.2T All Cisco IOS versions Cisco IOS versions 12.2(8)T1 12.3(8)T4 Not supported Cisco IOS versions 12.0(7)XK, 12.1(1)T, 12.2, 12.2T All Cisco IOS versions All Cisco IOS versions 12.3(11)T 12.3(11)T

The Cisco 1600 series is not capable of supporting the WIC-2A/S due to the lack of Serial Communications Controllers.

The NM-1E2W, NM-1E1R2W, and NM-2E2W Network Modules do not have enough performance power to support the WIC-2A/S due to hardware limitations.

Return to Top

WIC-1ENET



10BaseT Ethernet interface with one RJ-45 port. Half- and full-duplex data-transfer support. Point-to-point (PPP) over Ethernet (PPPoE) support. No VLAN support.

Platform Support

Platform Cisco 1600 Cisco 1700 Cisco 2600 and 2600XM Cisco 3600 Cisco 2691, 3725, and 3745
WIC-1ENET Not supported Cisco IOS versions 12.1(3)XT, 12.1(5)YB, 12.2(2)XJ, 12.2(4)T Not supported Not supported Not supported

WIC card is only supported in slot 0 on CISCO 1700. Starting with 12.2(2)XJ, 12.2(2)XK, and 12.2(8)T, no restriction on slot number, supports up to two WIC-1ENET cards.

WIC-1ENET is Not planned to be supported on CISCO 1600, 2600, 2600XM, 3600, 3700 series router.

Return to Top


WIC-4ESW



4 Port 10/100 autosensing RJ-45 managed switch for Cisco 1721, 1751, and 1760 routers only. Supports IEEE 802.1q VLAN routing and 802.1D Spanning Tree Protocol.. Maximum of four VLANs per switched port.

The switch is a layer 2 Ethernet switch with layer 3 routing capability (Layer 3 routing is forwarded to the host, and is not actually at the switch).

Platform Support

Platform Cisco 1600 Cisco 1721, 1751, and 1760 Cisco 2600 and 2600XM Cisco 3600 Cisco 2691, 3725, and 3745
WIC-4ESW Not supported 12.3(2)XC and later Not supported Not supported Not supported

Return to Top


WIC-1ADSL



One RJ-11 ADSL interface. Supports ADSL over POTS with Annex A ITU 992.1 (G.dmt). Supports up to 23 virtual circuits per WIC. Dying gasp is not supported on WIC-1ADSL, For Dying gasp support please refer to WIC-1ADSL-DG.

Platform Support

Platform Cisco 1600 Cisco 1700 Cisco 1800 Cisco 2600 Cisco 2600XM Cisco 2800 Cisco 3600 Cisco 3631 Cisco 2691, 3725, and 3745 3800
Carrier Module On-Board On-Board On-Board On-Board NM-2W On-Board NM-2W On-Board NM-1E1R2W, NM-1E2W, NM-2E2W NM-1FE1R2W, NM-1FE2W, NM-2FE2W, NM-2W On-Board On-Board NM-1FE1R2W, NM-1FE2W, NM-2FE2W, NM-2W On-Board NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
Cisco IOS software support Not Supported 12.1(3)XJ, 12.1(3)XP, 12.1(3)XT1, 12.1(5)YB, 12.2(2)T 12.3(8)T4 12.1(5)YB, 12.2(4)T 12.3(8)T1 12.3(8)T4 Not supported 12.1(5)YB, 12.2(4)T Not Supported All Cisco IOS versions All Cisco IOS versions 12.3(11)T 12.3(11)T

Requires an "ADSL" feature set for CISCO 1700 series. Requires a "Plus" feature set for CISCO 2600 / 2600XM / 3600 / 3700 series.

Return to Top

WIC-1SHDSL - End Of Sale



One RJ-11 G.SHDSL interface. Symmetrical WAN speeds (up to 2.3 Mbps) over a single copper pair. Supports up to 23 virtual circuits per WIC.

Platform Support

Platform Cisco 1600 Cisco 1700 Cisco 1800 Cisco 2600 Cisco 2600XM Cisco 2800 Cisco 3600 Cisco 3631 Cisco 2691, 3725, and 3745 Cisco 3800
WIC-1SHDSL Not supported 12.2(13)T 12.3(8)T4 12.2(4)XL, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(8)T4 12.2(8)T 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Requires 1700, 1800, 2600, 2800, 3700, 3800 Chassis WIC Slot, or NM-1FE1R2W, NM-1FE2W, NM-2FE2W, NM-2W WIC slots. Not supported in NM-1E1R2W, NM-1E2W, or NM-2E2W.

Requires an "ADSL" feature set for CISCO 1700 series. Requires a "Plus" feature set for CISCO 2600 / 2600XM / 3600 / 3700 series.

Return to Top

WIC-1SHDSL-V2 - End Of Sale



One RJ-11 G.SHDSL interface. Symmetrical WAN speeds up to 2.3Mbps over a single copper pair and up to 4.6Mbps over two copper pairs. Supports up to 23 virtual circuits per WIC.

Platform Support

Platform Cisco 1600 Cisco 1700 Cisco 1800 Cisco 2691 2610-2651XM 2800 3725, 3745 3800
WIC-1SHDSL-V2 Not supported 12.3(8)T 12.3(8)T4 12.3(4)XD 12.3(4)XD 12.3(8)T4 12.3(4)XD 12.3(11)T

Requires 1700, 1800,2600, 2800, 3800 Chassis WIC Slot, or NM-1FE2W-V2, NM-2FE2W-V2, and NM-FE1R2W-V2.

Return to Top

WIC-1SHDSL-V3



One RJ-11 G.SHDSL interface. Symmetrical WAN speeds up to 2.3Mbps over a single copper pair and up to 4.6Mbps over two copper pairs. Supports up to 23 virtual circuits per WIC.

Platform Support

Platform Cisco 1600 1721,1751,1760 1841 Cisco 2691 2610-2651XM 2811-2851 3725, 3745 2825,3845
WIC-1SHDSL-V3 Not supported IP/ADSL IP Base and up IP Base and up IP Base and up IP Base and up IP Base and up IP Base and up IP Base and up

* Minimum IOS release 12.4(2)XA and Mimimum IOS T train support 12.4(3rd)T or 12.4(6)T

**Difference between V2 and V3 - Conexant Firmware Version as of 8/20/2005, A29733 (based on 2.3.1)for V2, 3.0.1 for V3

***Requires 1700, 1800,2600, 2800, 3800 Chassis WIC Slot, or NM-1FE2W-V2, NM-2FE2W-V2, and NM-1FE1R2W-V2.

Return to Top

WIC-1B-S/T End Of Sale , WIC-1B-S/T-V2, WIC-1B-S/T-V3



One ISDN BRI port (S/T interface, requires external NT-1, RJ-45 connector). Does not support hot swap.

Platform Support

Platform Cisco 1601(R), 1602 (R), and 1605-R Cisco 1603, 1603-R, 1604, and 1604-R Cisco 1720, 1721, 1751, 1760 Cisco 1750 Cisco 1800 Cisco 2600 and 2600XM Cisco 2800 Cisco 3620 and 3640, 3640A Cisco 3631 Cisco 3660 Cisco 2691, 3725, and 3745 Cisco 3800
Carrier Module On-Board On-Board On-Board On-Board On-Board On-Board NM-2W On-Board On-Board NM-2W On-Board NM-1E2W, NM-1E1R2W, and NM-2E2W NM-1FE2W, NM-1FE1R2W, and NM-2FE2W, NM-2W On-Board NM-1FE2W, NM-1FE1R2W, NM-2FE2W, and NM-2W Onboard, NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
WIC-1B-S/T All Cisco IOS versions Not supported All Cisco IOS versions All Cisco IOS versions Not supported All Cisco IOS versions Not supported Cisco IOS versions 11.2(4)XA, 11.2(5)P, 11.3, 11.3T, all 12.x All Cisco IOS versions All Cisco IOS versions All Cisco IOS versions Not supported
WIC-1B-S/T-V2 Not supported Not supported First supported in 12.0(25), 12.1(19), 12.2(16), and 12.3(1) Not supported - First supported in 12.0(25), 12.1(19), 12.2(16), and 12.3(1) - First supported in 12.0(25), 12.1(19), 12.2(16), and 12.3(1) First supported 12.3(1) First supported in 12.0(25), 12.1(19), 12.2(16), and 12.3(1) First supported in 12.3(1) -
WIC-1B-S/T-V3 Not supported Not supported 12.3(10) Not supported 12.3(8)T4 12.3(10) 12.3(8)T Not Supported Not Supported 12.3(10) 12.3(10) 12.3(11)T

Return to Top

Analogue Modem WICs

WIC-1AM



WIC-2AM



WIC-1AM and WIC-2AM provide V.90 analog modem interfaces for low density applications (router management, dial backup and access). WIC-1AM includes jack for handset sharing access to PSTN line.

Platform Support

Platform Cisco 1600 Cisco 1700 Cisco 1800 Cisco 2600 Cisco 2600XM Cisco 2800 Cisco 3600 Cisco 3631 Cisco 2691, 3725, and 3745 Cisco 3800
WIC-1AM Not supported 12.2(4)YB 12.3(8)T4 12.2(2)XB, 12.2(8)T 12.2(8)T1 12.3(8)T4 12.2(2)XB, 12.2(8)T All Cisco IOS versions All Cisco IOS versions 12.3(11)T
WIC-2AM Not Supported 12.2(4)YB 12.3(8)T4 12.2(2)XB, 12.2(8)T 12.2(8)T1 12.3(8)T4 12.2(2)XB, 12.2(8)T All Cisco IOS versions All Cisco IOS versions 12.3(11)T

V.92 is not currently supported.

Return to Top

WIC-1DSU-T1-V2



Cisco® T1 data service unit/channel service unit (DSU/CSU) WAN Interface Card (WIC) is an integrated, fully managed DSU/CSU for T1 or fractional T1 service and is Wet T1 Capable

Platform Support

Platform Cisco 1720,1721,1751,1760 Cisco 2600XM and 2691 Cisco 3631 Cisco 3725, 3745
WIC-1DSU-T1-V2 12.2(15)ZL PCBU special
12.3(1st)T,
12.2(17)Mainline,
12.3(1)Mainline		 12.3(1st)T,
12.2(17)Mainline,
12.3(1)Mainline 		12.3(1st)T,
12.2(17)Mainline,
12.3(1)Mainline 		12.3(1st)T,
12.2(17)Mainline,
12.3(1)Mainline

Return to Top

VIC-2E/M



2-Port E&M voice/fax interface card. Used to connect to PBX or key system as tie lines. Supports 2 and 4 wire, E&M signaling types I, II, III, V via RJ-45 connectors. Both ports must use the same signaling type.

Platform Support

IOS Support 1750, 1751, 1760 2600, 2600XM 3620, 3640 3631 3660 2691, 3725, 3745
VIC-2E/M All Cisco IOS versions All Cisco IOS versions 11.3(1)T, all 12.x Not Supported. Voice is not supported on 3631. All Cisco IOS versions All Cisco IOS versions

Voice requires an IOS "Plus" feature set.

Return to Top

VIC2-2E/M



2-port E&M voice/fax interface card. Used to connect to PBX or key system as tie lines.

Platform Support

IOS Support 1751, 1760 1800 2691 2600XM 2800 3620, 3640 3631 3640, 3660 3725, 3745 3800
VIC2-2E/M 12.2(15)ZL, 12.3(2)XA, 12.3(2)XC, 12.3(2)XE, 12.3(4)T, 12.3(5) Not Supported. 12.2(15)ZJ, 12.3(4)T, 12.3(4)XD 12.2(15)ZJ, 12.3(4)T 12.3(8)T4 11.3(1)T, all 12.x Not Supported. Voice is not supported on 3631. 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T 12.3(11)T

Voice requires an IOS "Plus" feature set. 12.3 Mainline and forward supported in “IP Voice” feature set.

Return to Top

VIC-2FXS



2-port FXS(Foreign Exchange Station) voice / fax interface card. Connects to a telephone or fax, or to a PBX or key set that emulates a telephone. Uses RJ-11 connectors.

Platform Support

IOS Support 1750, 1751, 1760 2600, 2600XM 3620, 3640 3631 3660 2691, 3725, 3745
VIC-2FXS All Cisco IOS versions All Cisco IOS versions 11.3(1)T, all 12.x Not Supported. Voice is not supported on 3631. All Cisco IOS versions All Cisco IOS versions

Voice requires a "Voice" feature set on 1700 Series, "Plus" feature set on 2600/3600.

Return to Top

VIC2-2FXS



2-port FXS voice/fax interface card. FXS port is used to connect directly to phones, fax machines, and key systems. Generates battery polarity reversal and caller ID.

Platform Support

IOS Support 1751, 1760 2600XM 2691 2801 2811,2821,2851 3631 3640, 3660 3725, 3745 3800
VIC2-2FXS 12.2(15)ZL, 12.3(2)XA, 12.3(2)XC, 12.3(2)XE, 12.3(4)T, 12.3(5) 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T, 12.3(4)XD 12.3(8)T4 12.3(8)T4 Not Supported. Voice is not supported on 3631. 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T 12.3(11)T

Note:

  1. When used in a Cisco 2600, 3600, or 3700 Series Router, requires a voice / fax network module: NM-1V or NM-2V.
  2. Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" feature set. 12.3 Mainline and forward supported in "IP Voice" feature set.
Return to Top

VIC-4FXS/DID



4-port FXS voice/fax interface card. FXS port is used to connect directly to phones, fax machines, and key systems. Generates battery polarity reversal and caller ID.

Platform Support

IOS Support 1751 1760 2600XM 2691 2801, 2811,2821,2851 3640,3660 3700 3800
VIC-4FXS/DID 12.3(4)T 12.3(4)T 12.3(4)T 12.3(4)T 12.3(8)T4 12.3(4)T 12.3(4)T 12.3(11)T

Notes:

  1. When used in a Cisco 2600, 3600, or 3700 Series Router, requires a voice/fax network module: NM-1V or NM-2V
  2. Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" features set. 12.3 Mainline and forward supported in "IP Voice" feature set.
Return to Top

VIC-2FXO



2-port FXO voice/fax interface card, Australia uses VIC-2FXO-M3. Connects to a telco line, or to a PBX or key set that emulates a telco line. Uses RJ-11 connectors.

Platform Support

IOS Support 1750, 1751 1760 2600 2600XM 3620, 3640 3631 3660 2691, 3725, 3745
VIC-2FXO All Cisco IOS versions All Cisco IOS versions All Cisco IOS versions All Cisco IOS versions 11.3(1)T, all 12.x Not Supported. Voice is not supported on 3631. All Cisco IOS versions All Cisco IOS versions
VIC-2FXO-M3 12.1(5)T , 12.2, 12.2T All Cisco IOS versions 11.3(6)T, 12.0(2), 12.0(2)T, 12.0XK, 12.1, 12.1T, 12.2, 12.2T All Cisco IOS versions 11.3(6)T, 12.0(2), 12.0(2)T, 12.0XK, 12.1, 12.1T, 12.2, 12.2T Not Supported. Voice is not supported on 3631. All Cisco IOS versions All Cisco IOS versions

Voice requires a "Voice" feature set on 1700 Series, "Plus" feature set on 2600/3600.

Return to Top

VIC2-2FXO



2-port FXO voice/fax interface card [universal card for all countries]. Also supports analog Centralized Automated Message Accounting (CAMA) on any port. FXO port is used to connect to PBX or key system, or to provide off-premises connections to PSTN or PTT. Supports battery reversal detection and caller ID. These Cisco VICs can be software configured to work in all countries. Also used to connect to analog CAMA trunk to provide dedicated E-911 service (North America only)

Platform Support

IOS Support 1750, 1751, and 1760 2691 2600XM 2801 2811,2821,2851 3631 3640, 3660 3745, 3725 3800
VIC2-2FXO 12.2(15)ZL, 12.3(2)XA, 12.3(2)XC, 12.3(2)XE, 12.3(4)T, 12.3(5) 12.2(15)ZJ, 12.3(4)T, 12.3(4)XD 12.2(15)ZJ, 12.3(4)T 12.3(8)T4 12.3(8)T4 Not Supported. 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T 12.3(11)T

Notes:

  1. When used in a Cisco 2600, 3600, or 3700 Series Router, requires a voice / fax network module: NM-1V or NM-2V.
  2. Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" feature set. 12.3 Mainline and forward supported in "IP Voice" feature set.
Return to Top

VIC2-4FXO



4-port FXO voice/fax interface card [universal card for all countries]. Also supports analog CAMA on any port. FXO port is used to connect to PBX or key system, or to provide off-premises connections to PSTN or PTT. Supports battery reversal detection and caller ID. These Cisco VICs can be software configured to work in all countries. Also used to connect to analog CAMA trunk to provide dedicated E-911 service (North America only)

Platform Support

IOS Support 1750, 1751, and 1760 2691 2600XM 3640 3620, 3631 3660 3725, 3745 3800
VIC2-2FXO 12.2(15)ZL, 12.3(2)XA, 12.3(2)XC, 12.3(2)XE, 12.3(4)T, 12.3(5) 12.2(15)ZJ, 12.3(4)T, 12.3(4)XD 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T Not Supported. 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T 12.3(11)T

Notes:

  1. In the Cisco 1751 router, a maximum of one VIC2-4FXO card can be supported.
  2. In the Cisco 1760 router, a maximum of two VIC2-4FXO cards can be supported.
  3. When used in a Cisco 2600, 3600, or 3700 Series Router, requires a voice / fax network module: NM-1V or NM-2V.
  4. Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" feature set. 12.3 Mainline and forward supported in "IP Voice" feature set.
Return to Top

VIC-2BRI-S/T-TE / VIC-2BRI-NT/TE



VIC-2BRI-S/T-TE - Two port ISDN BRI Voice Interface Card, S/T interface, Terminal Equipment
VIC-2BRI-NT/TE - Two port ISDN BRI Voice Interface Card, S/T interface, Network Termination or Terminal Equipment

Two ISDN BRI (RJ-45), total of 4 B channels, thus 4 voice calls per VIC.

Platform Support

IOS Support 1750 1751 1760 2600 2600XM 3620, 3640 3631 3660 2691, 3725, 3745
VIC-2BRI-S/T-TE Not Supported Not Supported Not Supported 12.0(2)XD, 12.0(3)T, 12.0XK, 12.1, 12.1T, 12.2, 12.2T All Cisco IOS versions 12.0(2)XD, 12.0(3)T, 12.0XK, 12.1, 12.1T, 12.2, 12.2T Not Supported. Voice is not supported on 3631. 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions
VIC-2BRI-NT/TE Not Supported Not Supported All Cisco IOS versions 12.1(3)XI, 12.1(4)T, 12.2, 12.2T 12.2(8)T1 12.1(3)XI, 12.1(4)T, 12.2, 12.2T Not Supported. Voice is not supported on 3631. 12.1(3)XI, 12.1(4)T, 12.2, 12.2T All Cisco IOS versions

Voice requires a "Voice" feature set on 1700 Series, "Plus" feature set on 2600/3600. Voice is not supported on 3631.

When you use the VIC-2BRI-S/T-TE with a NM-1V, you will only be able to place 2 calls. The second BRI port will be shutdown. When you use the VIC-2BRI-S/T-TE with a NM-2V, you can place 4 calls. If you have another VIC in the second slot, the second BRI port on the VIC-2BRI-S/T-TE will be shut down.

Return to Top

VIC-2DID



2-port DID voice/fax interface card. Used to provide off-premises DID connection from central office. Serves only incoming calls from the PSTN. Supports caller ID. Connects to a telco line. Uses RJ-11 connectors.

Platform Support

IOS Support 1750, 1751 1841 2600 2600XM 2691 2801 2811,2821,2851 3620,3640,3660 3725, 3745 3800
VIC-2DID 12.2(2)XJ Not Supported 12.1(5)XM1, 12.2(2)T 12.2(8)T1 12.2(8)T1 12.3(8)T4 12.3(8)T4 12.1(5)XM1 12.2(8)T 12.3(11)T

Notes:

  1. When used in a Cisco 2600, 3600, or 3700 Series router, requires a voice / fax network module: NM-1V or NM-2V.
  2. When used in a Cisco 1751 or Cisco 1760 Series Router, requires a DSP module.
  3. Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" feature set. 12.3 Mainline and forward supported in "IP Voice" feature set.
Return to Top

1 and 2 Port E1 Multi-Flex Trunk VWIC



Product Description
VWIC-1MFT-E1 1-Port RJ-48 Multiflex Trunk - E1
VWIC-2MFT-E1 2-Port RJ-48 Multiflex Trunk - E1
VWIC-2MFT-E1-DI 2-Port RJ-48 Multiflex Trunk - E1 With Drop and Insert
VWIC-1MFT-G703 1-Port RJ-48 Multiflex Trunk - E1 for unstructured G.703
VWIC-2MFT-G703 2-Port RJ-48 Multiflex Trunk - E1 for unstructured G.703

This Multi-Flex Trunk may be used as a Voice Interface Card or as a WAN Interface Card (in a WIC slot in the 2600 or 3600). Thus it is a Voice WAN Interface Card (VWIC).

Platform Support

Feature 1600 1700 1800 2600 2600XM 2800 3600 3631 2691, 3725, 3745 3800
Carrier Module On-Board On-Board On-Board On-Board NM-2W High Density Voice NM On-Board NM-2W High Density Voice NM On-Board NM-1E2W, NM-1E1R2W, NM-2E2W NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W High Density Voice NM On-Board On-Board NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W 		High Density Voice NM On-Board NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
VWIC-1MFT-E1 Not supported 12.2(4)YB, 12.2(8)YJ 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T1 12.2(8)T1 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T
12.2(13)T3 for V2 NMs 		12.3(4)T 12.3(11)T
VWIC-2MFT-E1 Not supported 12.2(4)YB, 12.2(8)YJ 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T1 12.2(8)T1 12.3(8)T4 Not supported 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T
12.2(13)T3 for V2 NMs 		12.3(4)T 12.3(11)T
VWIC-2MFT-E1-DI Not supported 12.2(4)YB, 12.2(8)YJ 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T1 12.2(8)T1 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T
12.2(13)T3 for V2 NMs 		12.3(4)T 12.3(11)T
VWIC-1MFT-G703 Not supported 12.2(8)YJ 12.3(8)T4 12.1(1)T, 12.2, 12.2T 12.1(1)T, 12.2, 12.2T Not supported 12.2(8)T1 12.2(8)T1 Not supported 12.3(8)T4 12.1(1)T, 12.2, 12.2T 12.1(1)T, 12.2, 12.2T Not supported All Cisco IOS versions 12.2(8)T
12.2(13)T3 for V2 NMs 		12.3(4)T 12.3(11)T
VWIC-2MFT-G703 Not supported 12.2(8)YJ 12.3(8)T4 12.1(1)T, 12.2, 12.2T 12.1(1)T, 12.2, 12.2T Not supported 12.2(8)T1 12.2(8)T1 Not supported 12.3(8)T4 Not supported 12.1(1)T, 12.2, 12.2T Not supported All Cisco IOS versions 12.2(8)T
12.2(13)T3 for V2 NMs 		12.3(4)T 12.3(11)T

For futher reference please refer to http://www.cisco.com/en/US/products/hw/routers/ps274/products_tech_note09186a00800b6e0f.shtml

Return to Top

2nd Generation 1 and 2 Port T1E1 Multiflex Trunk Voice WAN Interface Cards



Product Description
VWIC2-1MFT-T1/E1 1-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card
VWIC2-2MFT-T1/E1 2-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card
VWIC2-1MFT-G703 1-Port G.703 Multiflex Trunk Voice/WAN Interface Card
VWIC2-2MFT-G703 2-Port G.703 Multiflex Trunk Voice/WAN Interface Card

* Have an onboard slot for a Cisco MFT Dedicated Echo Cancellation (ECAN) Module (part number EC-MFT-32 or EC-MFT-64),

* Support both T1 and E1, providing additional flexibility in configuring the Cisco MFT VWIC2s for supporting T1, fractional T1, E1, and fractional E1 for both voice and WAN applications.

*Include the drop-and-insert multiplexing capability

*enable each port to be clocked from independent clock sources for data applications.

Platform Support

Feature 1721,1751,1760 1841 (data only) 2600XM 2691 3662 3700 2800 3800
VWIC2-XXXX 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T

* Please see the following link for more info about WIC/NM/VIC constraint

** Data applications require at a minimum the IP Base feature set license and voice applications require at a minimum the IP Voice feature set license.

Return to Top

Multiflex trunk dedicated echo cancellation modules (EC-MFT-32, EC-MFT-64)

Cisco Multiflex Trunk Dedicated Echo Cancellation (MFT ECAN) Modules are dedicated resources for the Cisco Enhanced ITU-T G.168 ECAN feature, providing robust echo cancellation performance for demanding network environments. The modules are daughter cards that attach to Cisco Second-generation Multiflex Trunk Voice/WAN Interface Cards (MFT VWIC2 cards). The dedicated ECAN modules are available in 32- and 64-channel configurations, which match the requirements of the 1- and 2-port T1/E1 MFT VWIC2s, respectively.

Platform Support

Platform 1721,1751 and 1760 2600XM 2691 2800 3662 3700 3800
EC-MFC-XX 12.3(14)T, 12.4(1) 12.2(13)T 12.2(13)T 12.3(14)T, 12.4(1) 12.2(13)T 12.3(14)T, 12.4(1) 12.3(14)T, 12.4(1)

* Dedicated Echo Cancellation module is not supported on MFT VWIC2 when MFT VWIC2 is used on the Cisco 1751 or 1760.

** It is possible to install a Cisco 32-Channel MFT Dedicated ECAN Module on a 2-port MFT VWIC2. However, not all voice channels will be able to concurrently use the echo cancellation feature.

*** It is possible to install a Cisco 64-Channel MFT Dedicated ECAN Module on a 1-port MFT VWIC2. However, the extra echo cancellation channels will not be used. The only ports on the MFT VWIC2 that can use the module resources are the ports directly attached to the module.

Return to Top

MOD1700-VPN



Cisco 1700 series VPN module. Supports upto 100 tunnels and requires an IOS IPSec feature set. Fits into internal expansion slot.

Return to Top
