CISCO 2500 Series Router & Access Server Hardware View

The Cisco Access Server 2500 series provides a variety of access solutionsincluding low cost routing functionality for data-only applications (no voice support) for small office and remote site environments. With the added value of the optimized Cisco Internetworking Operating System (Cisco IOS) software, the new high-performance features of the Access Server series reinforce Cisco's status as the premier provider of remote access solutions. Cisco's 2500 Series Access Servers incorporate the latest in communications technology. By extending the popular Cisco 2500 access router and adding asynchronous capabilities, this new generation of servers provides robust and fast service.

There are currently two access servers to choose from, 8 or 16 asynchronous ports, each with 1 Ethernet port, for aggregating multiple network elements to provide a single Telnet access point (telemetry application)-or for attaching 8 to 16 external analog or digital modems in environments where T1/E1 digital circuits are not available, but multiple dial-up telephone lines can be leveraged for low cost remote access.

End-of-Sale / End-of-Life announcement for the Cisco 2500 series models. Product Substitution - CISCO 2600 Series


CISCO2501 - End Of Sale



1 AUI ethernet, dual serial router.


Return to Top

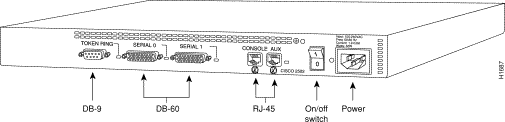

CISCO2502 - End Of Sale




1 token ring (DB9), dual serial router.


Return to Top

CISCO2503 - End Of Sale




1 AUI ethernet, dual serial, 1 ISDN router.


Return to Top

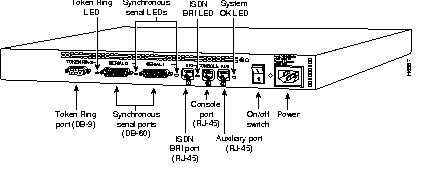

CISCO2504 - End Of Sale




1 token ring (DB9), dual serial, 1 ISDN router.


Return to Top

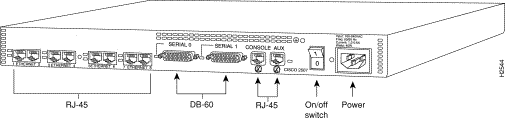

CISCO2505 - End Of Sale




8 hub ports sharing 10BaseT, dual serial router.


Return to Top

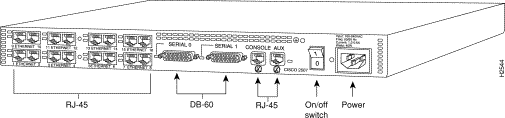

CISCO2507 - End Of Sale




16 hub ports sharing 10BaseT, dual serial router.


Return to Top

CISCO2509 - End Of Sale




8 port async, 1 AUI ethernet, dual serial router.

Note: The 68 pin async connector can be used for external modem/dumb terminal connection. Part number for the async cable CAB-OCTAL-xxxx.


Return to Top

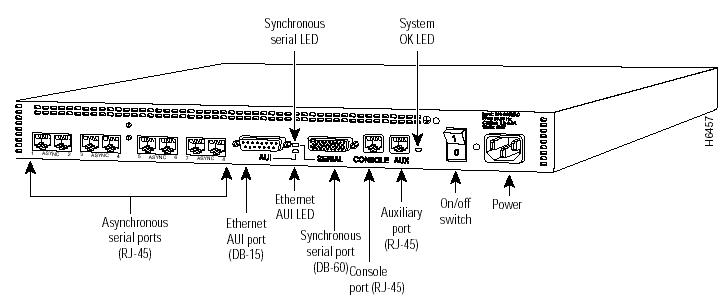

AS2509-RJ - End Of Sale




8 port async (RJ45), 1 AUI ethernet, 1 serial router.

Note: RJ45 cable for the async connection comes with the router.


Return to Top

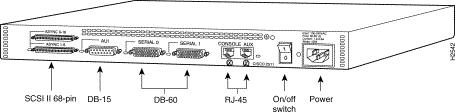

CISCO2511 - End Of Sale




16 port async, 1 AUI ethernet, dual serial router.

Note: Each async connector support 8 connections. The 68 pin async connector can be used for external modem/dumb terminal connection. Part number for the async cable CAB-OCTAL-xxxx.


Return to Top

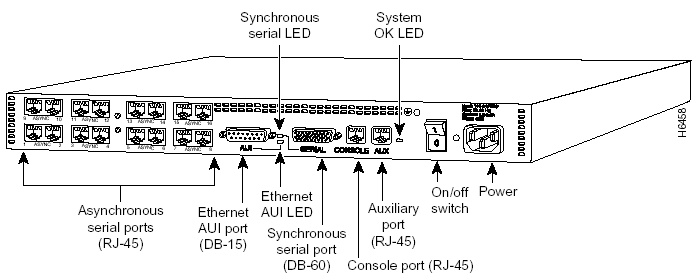

AS2511-RJ - End Of Sale




16 port async (RJ45), 1 AUI ethernet, 1 serial router.

Note: RJ45 cable for the async connection comes with the router.


Return to Top

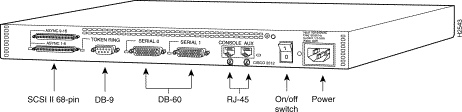

CISCO2512 - End Of Sale




16 port async, 1 token ring (DB9), dual serial router.

Note: Each async connector support 8 connections. The 68 pin async connector can be used for external modem/dumb terminal connection. Part number for the async cable CAB-OCTAL-xxxx.


Return to Top

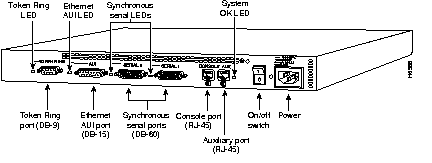

CISCO2513 - End Of Sale




1 token ring (DB9), 1 AUI ethernet, dual serial router.


Return to Top

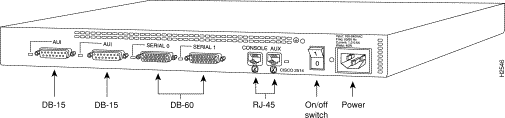

CISCO2514 - End Of Sale




Dual AUI ethernet, dual serial router.


Return to Top

CISCO2515 - End Of Sale




2 token ring (DB9), dual serial router.


Return to Top

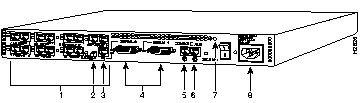

CISCO2516 - End Of Sale




14 hub ports sharing 10BaseT, dual serial, 1 ISDN router.


Return to Top

CISCO2520 - End Of Sale




2 high speed serial, 2 low async/sync speed serial, 1 ethernet AUI or RJ45, 1 ISDN (RJ45).

Note: High speed serial support 2Mbps. Low speed serial, async - 115.2K, sync - 128K.


Return to Top

CISCO2521 - End Of Sale




2 high speed serial, 2 low async/sync speed serial, 1 token ring (DB9) or RJ45, 1 ISDN (RJ45).

Note: High speed serial support 2Mbps. Low speed serial, async - 115.2K, sync - 128K.


Return to Top

CISCO2522 - End Of Sale




2 high speed serial, 8 low async/sync speed serial, 1 ethernet AUI or RJ45, 1 ISDN (RJ45).

Note: High speed serial support 2Mbps. Low speed serial, async - 115.2K, sync - 128K.


Return to Top

CISCO2523 - End Of Sale




2 high speed serial, 8 low async/sync speed serial, 1 token ring (DB9) or RJ45, 1 ISDN (RJ45).

Note: High speed serial support 2Mbps. Low speed serial, async - 115.2K, sync - 128K.
