CISCO 3800 Series Router Hardware View
Table of Contents

The Cisco 3800 Series is designed to provide secure data and voice connectivity and is considered the follow on product for the Cisco 3700 modular access routers. The architecture provides additional value compared to prior generations of Cisco routers at similar price points by offering a 2-3X performance improvement, increased default memory, and significantly increased slot density.

The Cisco 3800 Series comes in rack mount form factor with a metal chassis and integrated power supply that offers a number of new enhancements ideal for secure higher performance data applications. It provides 4 VIC/VWIC/WIC/HWIC interface card slots that support WAN Interface Cards, Voice Interface Cards, Multi-flex Trunk Voice/WAN Interface Cards and High-Speed WAN Interface Cards (such as the HWIC-4ESW and the HWIC-D-9ESW). The cards are shared across platforms, i.e. within the Cisco 1700 and 1800 Series Modular Access Routers, the Cisco 2600XM Series and the Cisco 3700 Series (with the exception of the HWICs that are only supported on the new integrated services routers).

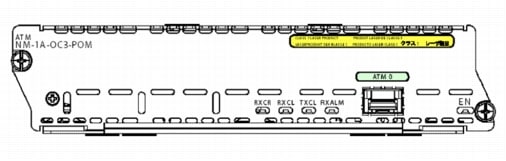

Base Models NM-1A-OC3-POM Echo cancellation module
CISCO3825 WAN Interface Cards HWICs
CISCO3845 WIC-1T
 HWIC-4ESW
Network Modules WIC-2T
 HWIC-D-9ESW
Ethernet Switching Network Module WIC-2A/S
 HWIC-4ESW-POE
NM-1FE-FX-V2 WIC-1DSU-56K4
 HWIC-D-9-ESW-POE
Gigabit Ethernet Network Module WIC-1B-U-V2
 HWIC-1GE-SFP
NM-2W WIC-1B-S/T-V3
 HWIC-4A/S
Fast Ethernet LAN/WIC Network Modules WIC-1ADSL
 HWIC-8A/S-RS232
NM-1T3/E3 WIC-1ADSL-DG
 HWIC-8A
NM-1HSSI WIC-1ADSL-I-DG HWIC-16A

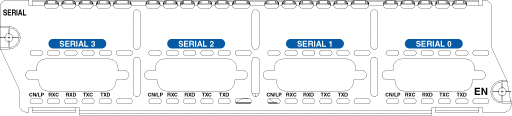

NM-4T WIC-1SHDSL - EoS HWIC-4T
Asynchronous/Synchronous Serial network module WIC-1SHDSL-V2 - EoS HWIC-AP-G-X

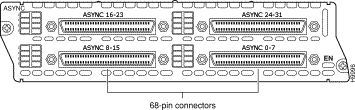

Asynchronous Serial Network Module WIC-1SHDSL-V3 HWIC-AP-AG-X
Channelized E1/T1/ISDN-PRI Network Module WIC-1AM HWIC-1ADSL
ISDN BRI network module WIC-2AM HWIC-ADSL-B-S/T
E3 ATM network module Extension Voice Module HWIC-1ADSLI
E1 ATM network module with IMA High-density Extension Modules HWIC-ADSLI-B-S/T

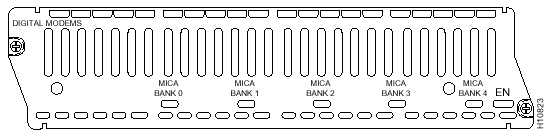

Digital-Modem Network Module Voice Interface Cards Advanced Integration Modules
Analog Modem Network Modules VIC-2DID AIM-ATM
High-density Voice and Fax Network Module
 VIC-4FXS/DID AIM-COMPR4
High-density Analog Voice and Fax Network Module VIC2-2FXS AIM-CUE
High-density E1Voice and Fax Network Module VIC2-2FXO AIM-VPN/EPII-PLUS
DSP Farm Network Module VIC2-4FXO AIM-VPN/HPII-PLUS
Content Engine Network Module VIC2-2E/M
NM-CIDS
 VIC2-2BRI-NT/TE
NM-CUE
 VWIC-1MFT-E1
NM-CUE-EC
 VWIC-1MFT-G703
NM-NAM
 VWIC-2MFT-E1
NM-AIC-64
 VWIC-2MFT-E1-DI
Circuit Emulation over IP Network Module
 VWIC-2MFT-G703
EtherSwitch Service Module 2nd Generation VWIC

CISCO3825 / CISCO3825-AC-IP / CISCO3825-DC

Front




  1. Cisco Redundant Power System (RPS) connector
  2. CompactFlash memory card slot
  3. USB ports
  4. LED indicators
  5. Power switch
  6. Power connector (AC shown)

Rear


  1. Network module slot 2
  2. Screw holes for grounding lug
  3. Network module slot 1
  4. HWIC slot 3
  5. HWIC slot 1
  6. HWIC slot 2
  7. HWIC slot 0
  8. Console and auxiliary ports
  9. Gigabit Ethernet ports
  10. Slot for optional SFP module

Product Description
CISCO3825 3825 with an AC power supply, 2 integrated Gigabit Ethernet ports,1integrated SFP port, 2 NME slots, 4 HWIC slots, and IP Base software by default.
CISCO3825-AC-IP 3825 with an PoE AC power supply, 2 integrated Gigabit Ethernet ports,1integrated SFP port, 2 NME slots, 4 HWIC slots, and IP Base software by default.
CISCO3825-DC 3825 with an DC power supply, 2 integrated Gigabit Ethernet ports,1integrated SFP port, 2 NME slots, 4 HWIC slots, and IP Base software by default.

Return to Top

CISCO3845 / CISCO3845-AC-IP / CISCO3845-DC

Front




  1. LED indicators
  2. Power switch
  3. Power connector (AC shown)
  4. Location of optional second power supply

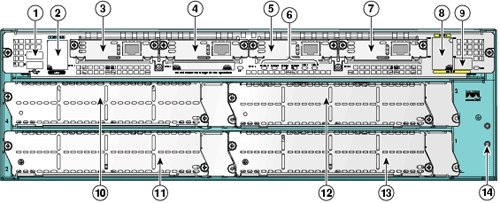

Rear


  1. USB ports
  2. Console and auxiliary ports
  3. HWIC slot 3
  4. HWIC slot 2
  5. HWIC slot 1
  6. LED indicators
  7. HWIC slot 0
  8. Gigabit Ethernet ports
  9. Slot for optional SFP module
  10. Network module slot 4
  11. Network module slot 2
  12. Network module slot 3
  13. Network module slot 1
  14. Screw holes for grounding lug

Product Description

Cisco3845

 3845 Router with an AC power supply, 2 integrated Gigabit Ethernet ports, 1SFP port, 4 NME slots, 4 HWIC slots, and IP Base IOS software by default.

Cisco3845-AC-IP

 3845 Router with an PoE AC power supply, 2 integrated Gigabit Ethernet ports, 1SFP port, 4 NME slots, 4 HWIC slots, and IP Base IOS software by default.

Cisco3845-DC

 3845 Router with an DC power supply, 2 integrated Gigabit Ethernet ports, 1SFP port, 4 NME slots, 4 HWIC slots, and IP Base IOS software by default.>

Return to Top

Etherswitch Network Modules

NM-16ESW


Product Description Features
NM-16ESW 16 port 10/100 EtherSwitch NM
  • 16 Full/Half duplex 10BaseT/100BaseTX Ports with auto detect.
  • QoS and VLAN support from 802.1P and 802.1Q standards. No ISL support.
  • 802.1D Spanning Tree protocols.
  • Optional Additional GE Port(s).
  • Optional In-Line Power.
GE-DCARD-ESW 1000BaseT daughtercard for Etherswitch NM
PPWR-DCARD-16ESW Power daughtercard for 16 port Etherswitch NM

Platform Support
Platform 2600 2600XM 2801 2811,2821,2851 3620 3631 3640, 3640A 3660, 3725, 3745 3800
IOS Support 12.2(8)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.3(8)T 12.2(8)T, 12.3(1) 12.2(8)T1, 12.3(1), 12.3(2)T 12.2(8)T, 12.3(1), 12.3(2)T 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Requires an IOS "Plus" image, or a Telco image listed below. In IOS 12.3, EtherSwitch Network Modules are supported in all of the new "Reformation" feature sets for the 2600XM Series, 2800 Series (Except 2801) and 3700 Series (Advanced Enterprise Services, Advanced IP Services, Advanced Security, IP Base, IP Voice, Enterprise Base, Enterprise Services, SP Services).


Return to Top

Etherswitch Network Modules

NM-16ESW-1GIG



Product Description Features
NM-16ESW-1GIG 16 port 10/100 EtherSwitch NM with 1 Gigabit Ethernet port
  • 16 Full/Half duplex 10BaseT/100BaseTX Ports with auto detect.
  • Includes gigabit ethernet daughter card.
  • QoS and VLAN support from 802.1P and 802.1Q standards. No ISL support.
  • 802.1D Spanning Tree protocols.
  • Optional Additional GE Port(s).
  • Optional In-Line Power.
PPWR-DCARD-16ESW Power daughtercard for 16 port Etherswitch NM

Platform Support
Platform 2600 2600XM 2801 2811,2821,2851 3620 3631 3640, 3640A 3660, 3725, 3745 3800
IOS Support 12.2(8)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.3(8)T 12.2(8)T, 12.3(1) 12.2(8)T1, 12.3(1), 12.3(2)T 12.2(8)T, 12.3(1), 12.3(2)T 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Requires an IOS "Plus" image, or a Telco image listed below. In IOS 12.3, EtherSwitch Network Modules are supported in all of the new "Reformation" feature sets for the 2600XM Series, 2800 Series (Except 2801) and 3700 Series (Advanced Enterprise Services, Advanced IP Services, Advanced Security, IP Base, IP Voice, yEnterprise Base, Enterprise Services, SP Services).


Return to Top

Etherswitch Network Modules

NM-16ESW-PWR


Product Description Features
NM-16ESW 16 port 10/100 EtherSwitch NM
  • 16 Full/Half duplex 10BaseT/100BaseTX Ports with auto detect.
  • Includes Inline power daughter card.
  • QoS and VLAN support from 802.1P and 802.1Q standards. No ISL support.
  • 802.1D Spanning Tree protocols.
  • Optional Additional GE Port(s).
  • Optional In-Line Power.
GE-DCARD-ESW 1000BaseT daughtercard for Etherswitch NM

Platform Support
Platform 2600 2600XM 2801 2811,2821,2851 3620 3631 3640, 3640A 3660, 3725, 3745 3800
IOS Support 12.2(8)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.3(8)T 12.2(8)T, 12.3(1) 12.2(8)T1, 12.3(1), 12.3(2)T 12.2(8)T, 12.3(1), 12.3(2)T 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Requires an IOS "Plus" image, or a Telco image listed below. In IOS 12.3, EtherSwitch Network Modules are supported in all of the new "Reformation" feature sets for the 2600XM Series, 2800 Series (Except 2801) and 3700 Series (Advanced Enterprise Services, Advanced IP Services, Advanced Security, IP Base, IP Voice, yEnterprise Base, Enterprise Services, SP Services).


Return to Top

Etherswitch Network Modules

NM-16ESW-PWR-1GIG


Product Description Features
NM-16ESW 16 port 10/100 EtherSwitch NM
  • 16 Full/Half duplex 10BaseT/100BaseTX Ports with auto detect.
  • Includes Inline power and Gigabit daughter card.
  • QoS and VLAN support from 802.1P and 802.1Q standards. No ISL support.
  • 802.1D Spanning Tree protocols.
  • Optional Additional GE Port(s).
  • Optional In-Line Power.

Platform Support
Platform 2600 2600XM 2801 2811,2821,2851 3620 3631 3640, 3640A 3660, 3725, 3745 3800
IOS Support 12.2(8)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.3(8)T 12.2(8)T, 12.3(1) 12.2(8)T1, 12.3(1), 12.3(2)T 12.2(8)T, 12.3(1), 12.3(2)T 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Requires an IOS "Plus" image, or a Telco image listed below. In IOS 12.3, EtherSwitch Network Modules are supported in all of the new "Reformation" feature sets for the 2600XM Series, 2800 Series (Except 2801) and 3700 Series (Advanced Enterprise Services, Advanced IP Services, Advanced Security, IP Base, IP Voice, yEnterprise Base, Enterprise Services, SP Services).


Return to Top

NMD-36-ESW


Product Description Features
NMD-36-ESW 36 port 10/100 EtherSwitch Double-wide NM
  • 36 Full/Half duplex 10BaseT/100BaseTX Ports with auto detect on a double-wide network module (requires chassis with double-wide network module support: 2851, 3660, 3725, 3745, or 3800).
  • QoS and VLAN support from 802.1P and 802.1Q standards. No ISL support.
  • 802.1D Spanning Tree protocols.
  • Optional Additional GE Port(s).
  • Optional In-Line Power.
GE-DCARD-ESW 1000BaseT daughtercard for Etherswitch NM
PPWR-DCARD-36ESW Inline power daughtercard for 36 port EtherSwitch NM

Platform Support
Platform 2600 2600XM 2801, 2811,2821 2851 3620 3631 3640, 3640A 3660, 3725, 3745 3800
IOS Support Not supported Not supported Not Supported 12.3(8)T Not supported Not supported Not supported 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Requires an IOS "Plus" image, or a Telco image listed below. In IOS 12.3, EtherSwitch Network Modules are supported in all of the new "Reformation" feature sets for the 2600XM Series, 2851, 3700 Series, and 3800 Series (Advanced Enterprise Services, Advanced IP Services, Advanced Security, IP Base, IP Voice, Enterprise Base, Enterprise Services, SP Services).


Return to Top

NMD-36ESW-2GIG


Product Description Features
NMD-36ESW-2GIG 36 port 10/100 EtherSwitch Double-wide NM with 2 Gigabit Ethernet ports
  • 36 Full/Half duplex 10BaseT/100BaseTX Ports with auto detect on a double-wide network module (requires chassis with double-wide network module support: 2851, 3660, 3725, 3745, or 3800).
  • Includes two gigabit ethernet ports, 1000Base-T.
  • QoS and VLAN support from 802.1P and 802.1Q standards. No ISL support.
  • 802.1D Spanning Tree protocols.
  • Optional Additional GE Port(s).
  • Optional In-Line Power.
PPWR-DCARD-36ESW Inline power daughtercard for 36 port EtherSwitch NM

Platform Support
Platform 2600 2600XM 2801, 2811,2821 2851 3620 3631 3640, 3640A 3660, 3725, 3745 3800
IOS Support Not supported Not supported Not Supported 12.3(8)T Not supported Not supported Not supported 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Requires an IOS "Plus" image, or a Telco image listed below. In IOS 12.3, EtherSwitch Network Modules are supported in all of the new "Reformation" feature sets for the 2600XM Series, 2851, 3700 Series, and 3800 Series (Advanced Enterprise Services, Advanced IP Services, Advanced Security, IP Base, IP Voice, Enterprise Base, Enterprise Services, SP Services).


Return to Top

NMD-36ESW-PWR


Product Description Features
NMD-36ESW-PWR 36 port 10/100 EtherSwitch Double-wide NM
  • 36 Full/Half duplex 10BaseT/100BaseTX Ports with auto detect on a double-wide network module (requires chassis with double-wide network module support: 2851, 3660, 3725, 3745, or 3800).
  • Includes Inline power daughtercard for 36 port Etherswitch Network Module
  • QoS and VLAN support from 802.1P and 802.1Q standards. No ISL support.
  • 802.1D Spanning Tree protocols.
  • Optional Additional GE Port(s).
  • Optional In-Line Power.
GE-DCARD-ESW 1000BaseT daughtercard for Etherswitch NM

Platform Support
Platform 2600 2600XM 2801, 2811,2821 2851 3620 3631 3640, 3640A 3660, 3725, 3745 3800
IOS Support Not supported Not supported Not Supported 12.3(8)T Not supported Not supported Not supported 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Requires an IOS "Plus" image, or a Telco image listed below. In IOS 12.3, EtherSwitch Network Modules are supported in all of the new "Reformation" feature sets for the 2600XM Series, 2851, 3700 Series, and 3800 Series (Advanced Enterprise Services, Advanced IP Services, Advanced Security, IP Base, IP Voice, Enterprise Base, Enterprise Services, SP Services).


Return to Top

NMD-36ESW-PWR-2GIG


Product Description Features
NMD-36ESW-PWR-2GIG 36 port 10/100 EtherSwitch Double-wide NM with 2 Gigabit Ethernet ports
  • 36 Full/Half duplex 10BaseT/100BaseTX Ports with auto detect on a double-wide network module (requires chassis with double-wide network module support: 2851, 3660, 3725, 3745, or 3800).
  • Includes two gigabit ethernet ports, 1000Base-T.
  • QoS and VLAN support from 802.1P and 802.1Q standards. No ISL support.
  • 802.1D Spanning Tree protocols.
  • Optional Additional GE Port(s).
  • Optional In-Line Power.

Platform Support
Platform 2600 2600XM 2801, 2811,2821 2851 3620 3631 3640, 3640A 3660, 3725, 3745 3800
IOS Support Not supported Not supported Not Supported 12.3(8)T Not supported Not supported Not supported 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Requires an IOS "Plus" image, or a Telco image listed below. In IOS 12.3, EtherSwitch Network Modules are supported in all of the new "Reformation" feature sets for the 2600XM Series, 2851, 3700 Series, and 3800 Series (Advanced Enterprise Services, Advanced IP Services, Advanced Security, IP Base, IP Voice, Enterprise Base, Enterprise Services, SP Services).


Return to Top

NM-1FE-FX / NM-1FE-FX-V2


Product Description Features
NM-1FE-FX 100 Mbps Fast Ethernet Network Module, 100 Base-FX.
  • Fiber optic 100 Base-FX interface (no MII port), 100 Mbps only.
  • Does not negotiate duplex. Use full-duplex to configure full duplex, or no full duplex for half-duplex.
  • ISL is supported in hardware, requires "Plus" Feature set.
NM-1FE-FX-V2 Provides a single auto-sensing 10/100BASE-FX connection via a . ber

Platform Support
IOS Support 2600, 2600XM 2800 3620 3631 3640 3660 2691, 3725, 3745 3800
NM-1FE-FX Not Supported Not Supported 11.3(1)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) Not Supported 11.3(1)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1), 12.3(2)T 12.0(5)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T
NM-1FE-FX-V2 Not Supported Not Supported 12.0(24), 12.1(17), 12.2(13), 12.2(13)T, 12.2(13)T Not Supported 12.0(24), 12.1(17), 12.2(13), 12.2(13)T, 12.3(1), 12.3(2)T 12.1(17), 12.2(13), 12.2(13)T, 12.3(1), 12.3(2)T 12.2(13)T, 12.3(1), 12.3(2)T 12.3(11)T

VLAN support requires a Cisco IOS "Plus" feature set prior to Cisco IOS 12.3 Mainline. After 12.3 Mainline, supported in Cisco IOS advanced security feature.


Return to Top

Gigabit Ethernet Network Module

NM-1GE


Product Description Features
NM-1GE Gigabit Ethernet Network Module with 1 GBIC Slot
  • Supports available copper and optical GBICs, including CWDM.
  • Optimize performance in the LAN through High Speed trunk uplink for InterVLAN Routing and Bridging.
  • 802.1q and ISL trunking.
  • No half duplex mode supported.

Platform Support
IOS Support 2600 2600XM 2800 3620, 3640, 3640A 3631 3660 2691, 3725, 3745 3800
NM-1GE Not supported Not supported Not supported Not supported Not supported 12.2(15)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(15)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

VLAN support requires a Cisco IOS "Plus" feature set prior to Cisco IOS 12.3 Mainline. After 12.3 Mainline, supported in Cisco IOS advanced security feature set.


Return to Top

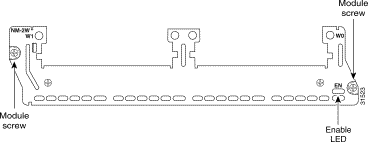

WIC Network Module


Product Description
NM-2W Network Module with 2 WIC slots.

Platform Support
IOS Support 2600 2800 2600XM 3620, 3640, 3660 3631 2691, 3725, 3745 3800
NM-2W 12.0(7)XK, 12.1(1)T, 12.2, 12.2T Not Supported 12.2(8)T1 12.0(7)XK, 12.1(1)T, 12.2, 12.2T Not Supported All IOS versions 12.3(11)T

Return to Top

Fast Ethernet LAN/WIC Network Modules

NM-1FE2W - End Of Sale

NM-2FE2W - End Of Sale

NM-1FE1R2W

NM-1FE2W-V2

NM-2FE2W-V2


Product Description Features

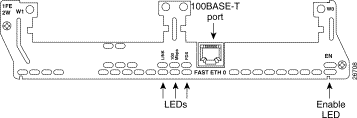

NM-1FE2W Network Module with 1 fast ethernet, 2 WIC slots
  • Fast Ethernet
    • RJ-45 connector, 100-Base-TX only
    • Supports 10 and 100 Mbps, auto-sensing.
    • Supports full and half duplex
    • Supports ISL and Token Ring ISL in hardware (ISL requires a "Plus" feature set)
    • Does not support fast etherchannel
  • Token Ring
    • RJ-45 and DB-9 connector (only one may be used at a time)
    • Supports full duplex token ring

  • Customers are encouraged to migrate to the Cisco NM-1FE2W-V2 and NM-2FE2W-V2. These newer LAN/WIN mixed media network modules are identical to the NM-1FE2W and NM-2FE2W in terms of features, functions, and performance with the important difference being the limited number of Cisco IOS ® Software releases supported.

NM-1FE1R2W Network Module with 1 fast ethernet, 1 token ring, 2 WIC slots
NM-2FE2W Network Module with 2 fast ethernets, 2 WIC slots
NM-1FE2W-V2 Network Module with 1 fast ethernet, 2 WIC slots
NM-2FE2W-V2 Network Module with 2 fast ethernets, 2 WIC slots

Platform Support
IOS Support 2600, 2600XM 2800 3620, 3640, 3660 3631 2691, 3725, 3745 3800
NM-1FE1R2W Not Supported Not Supported 12.0(7)XK, 12.1(1)T, 12.2, 12.2T Not Supported All IOS versions 12.3(11)T
NM-1FE2W Not Supported Not Supported 12.0(7)XK, 12.1(1)T, 12.2, 12.2T Not Supported All IOS versions 12.3(11)T
NM-2FE2W Not Supported Not Supported 12.0(7)XK, 12.1(1)T, 12.2, 12.2T Not Supported All IOS versions 12.3(11)T
NM-1FE2W-V2 Not Supported Not Supported 12.2(12)M, 12.3M and 12.2(13)T3 Not Supported 12.2(12)M, 12.3M and 12.2(13)T3 12.3(11)T
NM-2FE2W-V2 Not Supported Not Supported 12.2(12)M, 12.3M and 12.2(13)T3 Not Supported 12.2(12)M, 12.3M and 12.2(13)T3 12.3(11)T

Return to Top

1 T3/E3 Network Module

NM-1T3/E3


Product Description Features
NM-1T3/E3 Single port T3/E3 Network Module
  • Supports clear and sub-rate T3/E3. No channelized T3/E3
  • Supports up to 1 port of T3 or E3 rates.
  • Universal T3/E3 card. Software configures the “card type” to T3 or E3. Card type can be changed later.

Platform Support
IOS Support 2600 2650XM, 2651XM 2801 2811, 2821, 2851 3631, 3620, 3640 2691, 3660, 3725, 3745 3800
NM-1T3/E3 Not supported 12.2(15)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.3(8)T Not supported 12.2(15)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Return to Top

NM-1HSSI


Product Description Features
NM-1HSSI 1 HSSI Port Network Module Similar the PA-H.
Uses Cisco Mueselix serial controller
Supports speeds up to 45 Mbps

Platform Support
IOS Support 2600, 2600XM 2801 2811,2821,2851 3620, 3640 3631 3660 2691, 3725, 3745 3800
NM-1HSSI Not Supported Not Supported 12.3(8)T 11.3(5)T, all 12.x All IOS versions All IOS versions All IOS versions 12.3(11)T

Return to Top

4 Serial Network Module


Product Description Features
NM-4T 4 port Synchronous Serial Network Module
  • Four serial ports.
  • Cisco DB-60 connectors.
  • The module provides a synchronous data rate of 8 MB/sec on port 0, 4 MB/sec each on port 0 and port 2, or 2 MB on all four ports simultaneously.
  • No bisync or half-duplex support.

Platform Support
IOS Support 2600, 2600XM 2811, 2821, 2851 3620 3640 3631 3660 2691, 3725, 3745 3800
NM-4T Not supported 12.3(8)T 11.2(4)XA, 11.3(1), 11.3(1)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) 11.2(4)XA, 11.3(1), 11.3(1)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1), 12.3(2)T 12.2(13)T, 12.3(1), 12.3(2)T 12.0(5)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Return to Top

1 T3/E3 Network Module

NM-1T3/E3


Product Description Features
NM-1T3/E3 Single port T3/E3 Network Module
  • Supports clear and sub-rate T3/E3. No channelized T3/E3
  • Supports up to 1 port of T3 or E3 rates.
  • Universal T3/E3 card. Software configures the “card type” to T3 or E3. Card type can be changed later.

Platform Support
IOS Support 2600 2650XM, 2651XM 2801 2811,2821,2851 3631, 3620, 3640 2691, 3660, 3725, 3745 3800
NM-1T3/E3 Not supported 12.2(15)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.3(8)T Not supported 12.2(15)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Return to Top

Async/Sync Network Modules

NM-4A/S

NM-8A/S

NM-16A/S


Product Description Features
NM-4A/S 4 port Async/Sync Network Module
  • Four, Eight or 16 Async/Sync Ports
  • NM-4A/S and NM-8A/S use Cisco 60-pin "5-in-1" connectors
  • NM-16A/S uses Smart Serial connectors (same as WIC-2T)
  • Max speed 115.2 KBPS async, 128 Kbps sync external clock, 125 Kbps internal clock
NM-8A/S 8 port Async/Sync Network Module
NM-16A/S 16 port Async/Sync Network Module

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620, 3640 3631 3660 2691, 3725, 3745 3800
NM-4A/S All IOS versions Not Supported 12.3(8)T All IOS versions 12.3(11)T
NM-8A/S
NM-16A/S Not supported 12.2(15)ZJ Not Supported Not supported 12.2(15)ZJ 12.2(15)ZJ Not supported

Return to Top

16 and 32 Port Async Network Modules

NM-16A

NM-32A


Product Description Features
NM-16A 16 Async Ports
  • 16 or 32 async ports
  • Uses 68-pin connectors with the same cabling and connectors as the 2509 (CAB-OCTAL-xxxx or CAB-25AS-xxxx).
  • Supports 134 kbps async on all ports simultaneously.
NM-32A 32 Async Ports

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620 3640 3631 3660 2691, 3725, 3745 3800
NM-16A 11.3(3)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) 12.1(14), 12.2(12), 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.3(8)T 11.2(7)P, 11.3(1), 11.3(1)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) 11.2(7)P, 11.3(1), 11.3(1)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1), 12.3(2)T 12.2(8)T1, 12.3(1), 12.3(2)T 12.0(5)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T
NM-32A

Return to Top

16 and 32 Port Async Network Modules

NM-16A

NM-32A


Product Description Features
NM-16A 16 Async Ports
  • 16 or 32 async ports
  • Uses 68-pin connectors with the same cabling and connectors as the 2509 (CAB-OCTAL-xxxx or CAB-25AS-xxxx).
  • Supports 134 kbps async on all ports simultaneously.
NM-32A 32 Async Ports

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620 3640 3631 3660 2691, 3725, 3745 3800
NM-16A 11.3(3)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) 12.1(14), 12.2(12), 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.3(8)T 11.2(7)P, 11.3(1), 11.3(1)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) 11.2(7)P, 11.3(1), 11.3(1)T, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1), 12.3(2)T 12.2(8)T1, 12.3(1), 12.3(2)T 12.0(5)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T
NM-32A

Return to Top

1CE1T1-PRI & 2CE1T1-PRI Network Modules4 and 8 ISDN BRI Network Modules

NM-1CE1T1-PRI

NM-2CE1T1-PRI


Product Description Features
NM-1CE1T1-PRI 1-Port Channelized E1/T1/ISDN-PRI Network Module
  • Balanced or unbalanced E1 termination in the same module.
  • Supports PRI for data, T1-CAS, and E1-CAS R2 signaling.
  • E1 unframed and framed modes (G.703/G.704) available.
  • Cisco IOS® Software configurable for T1 or E1 operation.
NM-2CE1T1-PRI 2-Port Channelized E1/T1/ISDN-PRI Network Module

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620, 3640, 3640A 3631 3660 2691, 3725, 3745 3800
NM-1CE1T1-PRI Not supported 12.3(1), 12.3(2)T Not supported 12.3(8)T Not supported 12.3(1), 12.3(2)T 12.3(1), 12.3(2)T 12.3(1), 12.3(2)T 12.3(11)T
NM-2CE1T1-PRI Not supported 12.3(1), 12.3(2)T Not supported 12.3(8)T Not supported 12.3(1), 12.3(2)T 12.3(1), 12.3(2)T 12.3(1), 12.3(2)T 12.3(11)T

Functionality for the NM-1CE1T1-PRI and NM-2CE1T1-PRI modules are supported in all feature sets beginning in Cisco IOS 12.3(1) mainline and 12.3(1)T.

Return to Top

4 and 8 ISDN BRI Network Modules

NM-4B-S/T

NM-8B-S/T


Product Description
NM-4B-S/T 4-Port ISDN-BRI Network Module
NM-8B-S/T 8-Port ISDN-BRI Network Module

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620, 3640 3631 3660 2691, 3725, 3745 3800
NM-4B-S/T 11.3(4)T, all 12.x All IOS versions Not Supported 12.3(8)T All IOS versions All IOS versions 12.0(7)XK, 12.1T, 12.2, 12.2T All IOS versions 12.3(11)T
NM-8B-S/T 11.3(4)T, all 12.x All IOS versions Not Supported 12.3(8)T All IOS versions All IOS versions 12.0(7)XK, 12.1T, 12.2, 12.2T All IOS versions 12.3(11)T

Return to Top

ATM E3 Network Modules

NM-1A-E3/NM-1A-T3

Both versions provide a single ATM connection of either 44 Mbps for DS3, or 34 Mbps for E3 using 75-ohm BNC connectors. Both the DS3 and E3 ATM network modules support ATM Forum compliant framing standard AAL5. ATM Traffic Management support includes UBR, UBR+, VBR-rt, VBR-nrt, CBR, and ABR classes of traffic.


Product Description Features
NM-1A-T3 Single port ATM E3 75 ohm unbalanced Requires an IOS "Plus" or Service Provider ("-p-") feature set.
NM-1A-E3 Single port ATM E3 75 ohm unbalanced Requires an IOS "Plus" or Service Provider ("-p-") feature set.

Platform Support
IOS Support 2600 Series 2691 2811,2821,2851

3620, 3640,3660

 3725, 3745 3800
NM-1A-X3 12.1(2)T 12.2(8)T 12.3(8)T 12.1(2)T 12.2(8)T 12.3(11)T

Requires an IOS "Plus" or Service Provider ("-p-") feature set


Return to Top

ATM E1 IMA Network Modules

NM-4E1-IMA End of Sale

NM-8E1-IMA End of Sale


Product Description Features
NM-4E1-IMA 4-port E1 ATM network module with Inverse Multiplexing over ATM
  • E1 interface is software configurable for 75 and 120 ohm support (default 120 ohm).
  • Requires an IOS "Plus" or Service Provider ("-p-") feature set.
NM-8E1-IMA 8-port E1 ATM network module with Inverse Multiplexing over ATM

Platform Support
IOS Support 2600 2600XM 2800 3620, 3640 3631 3660 2691, 3725, 3745 3800
NM-4E1-IMA / NM-8E1-IMA 12.0(5)T, 12.0XK, 12.1, 12.1T, 12.2, 12.2T All IOS versions Not Supported 12.0(5)T, 12.0XK, 12.1, 12.1T, 12.2, 12.2T All IOS versions 12.0(5)XK, 12.1, 12.1T, 12.2, 12.2T 12.2(8)T 12.3(11)T

Requires an IOS "Plus" or Service Provider ("-p") feature set.


Return to Top

Digital Modems

NM-6DM / NM-12DM / NM-18DM /NM-24DM / NM-30DM



Product Description Features
NM-6DM - NM30DM Network Module with 6 to 30 digital modems in increments of 6. Field upgradeable in increments of 6 using MICA-6MOD=. Takes voice calls from T1, E1 and ISDN BRI (from a BRI network module, not a WIC) and routes them to the modems. Supports 56k flex, V.90, dial-out, fax modem and V.110.
MICA-6MOD= Modem card with 6 modems (same as 6DM=)

Platform Support
IOS Support 2600, 2600XM, 2691 3620 3631 3640 3660 3725, 3745 3800
NM-6DM - NM-30DM Not supported 11.3(4)T1, 12.0T, 12.0XK, 12.1, 12.1T, 12.2, 12.2T Not supported 11.2(9)XA, 11.2(10)P, 11.3(2)T, all 12.x 12.0(7)XK, 12.1T, 12.2, 12.2T All IOS versions 12.3(11)T

Return to Top

Analog Modem Network Modules

NM-8AM


NM-16AM


Product Description Features
NM-8AM Network Module with 8 analog modems
  • Supports speeds up to 33.6 kbps (V.34bis). No 56 kbps support.
  • Two wire leased line is supported beginning in 12.1(5)T with firmware version 1.2.8.
  • Supports fax-out utilizing the Cisco Dial-Out Client.
  • All connectors are RJ-11. Comes with 8 or 16 pink cables (bundle of 8 pink cables is available as CAB-NM-ANALOGMOD).
NM-16AM Network Module with 16 analog modems
NM-8AM-V2 Network Module with 8 analog modems
  • 8 or 16 internal V.34/V.92/V.90/V.44/V.42bis analog modems per network module
  • Up to 56 Kbps data download and 14.4 Kbps fax communication
  • V.92 Quick Connect and Modem-on-Hold features
  • Centrally managed modem capabilities Simple Network Management Protocol (SMNP) based tools used to
  • Manage the rest of the network (such as CiscoView and Cisco Works 2000)
NM-16AM-V2 Network Module with 16 analog modems

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620 3631 3640 3660 2691, 3725, 3745 3800
NM-8AM / NM-16AM 11.3(4)T1, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) 12.1(14), 12.2(12), 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported 11.3(4)T1, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) Not supported 11.3(4)T1, 12.0(1), 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1), 12.3(2)T 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported
NM-8AM-V2 / NM-16AM-V2 12.3(4)XD 12.3(4)XD Not Supported 12.3(8)T Not Supported. Not Supported. Not Supported. 12.3(4)XD 12.3(4)XD 12.3(11)T

Return to Top

IP Communications Voice/Fax Network Modules

NM-HD-1V


NM-HD-2V


NM-HD-2VE



Product Description
NM-HD-1V 1-slot IP communications voice/fax network module. Supports up to four channels of analog/BRI voice using any supported coder-decoder (codec). (No support for T1/E1 or data WAN.)
NM-HD-2V 2-slot IP communications voice/fax network module. Supports up to eight channels of analog/BRI voice using medium complexity codec or six channels using any supported codec. (No support for T1/E1 or data WAN)
NM-HD-2VE 2-slot IP communications enhanced voice/fax network module. Supports analog/BRI/T1/E1 voice and data WAN. Supports up to 48 channels of G.711 codec, 24 channels of medium-complexity codec, or 18 channels of any supported codec. Offers maximum investment protection with support for analog/digital voice and data WAN.

Platform Support
IOS Support 2600 2600XM 2691 2801 2811,2821,2851 3620 3631 3640, 3660 3725, 3745 3800
NM-HD-1V Not Supported 12.2(15)ZJ Not Supported 12.3(8)T Not Supported 12.2(15)ZJ 12.2(15)ZJ 12.3(11)T
NM-HD-2V
NM-HD-2VE

Note: Requires an IOS "Plus" feature set.


Return to Top

High Density Analog Voice Network Module

NM-HDA-4FXS



Product Description Features
NM-HDA-4FXS High density analog voice/fax network module with 4 FXS. Base Module.
  • DSPs are on the base board and the DSP expansion module
    • NM-HDA-FXS supports 8 high-complexity or 16 medium-complexity voice channels
    • DSP-HDA-16 supports an additional 8 high-complexity or 16 medium-complexity voice channels
  • You cannot use 2 EM-HDA-8FXS modules on the one card. All other combinations are valid
  • See Config Guide for details of codecs, signalling protocols, configuration and troubleshooting.
  • Requires an IOS Plus Feature set.
EM-HDA-8FXS 8-port voice/fax expansion module - FXS. Expansion module
EM-HDA-4FXO 4-port voice/fax expansion module - FXO. Expansion module
DSP-HDA-16 16-channel DSP module for NM-HDA

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620 3640, 3660 3631 2691, 3725, 3745 3800
NM-HDA 12.2(2)XT, 12.2(8)T 12.2(8)T1 Not Supported 12.3(8)T Not supported 12.2(2)XT, 12.2(8)T Not supported All IOS versions 12.3(11)T

Note: Requires an IOS "Plus" feature set.


Return to Top

IP Communications Voice/Fax Network Modules

NM-HDV-FARM-C36, NM-HDV-FARM-C54, NM-HDV-FARM-C90



Product Description
NM-HDV-FARM-C36 36-port transcoding and conferencing DSP farm
NM-HDV-FARM-C54 54-port transcoding and conferencing DSP farm
NM-HDV-FARM-C90 90-port transcoding and conferencing DSP farm

Platform Support
IOS Support 2650, 2651 2600XM 2691 2801 2811,2821,2851 3640, 3640A, 3661, 3662 3725, 3745 3800
NM-HDV-FARM-C36 12.2(13)T 12.2(13)T Not Supported 12.3(8)T4 12.2(13)T 12.2(13)T 12.3(11)T
NM-HDV-FARM-C54
NM-HDV-FARM-C90

Note: Requires an IOS "Plus" feature set. 12.3 Mainline and forward supported in "IP Voice" feature set.


Return to Top

Content Engine Network Modules

NM-CE-BP-20G-K9 / NM-CE-BP-40G-K9 / NM-CE-BP-80G-K9


NM-CE-BP-SCSI-K9



Product Description Features
NM-CE-BP-20G-K9 Content Engine Network Module - Basic Perf - 20GB
  • CE507 in a network module form factor.
  • Options: 20 GB disk, 40 GB disk, 80 GB disk, or SCSI controller (no disk).
NM-CE-BP-40G-K9 Content Engine Network Module - Basic Perf - 40GB
NM-CE-BP-80G-K9 Content Engine Network Module - Basic Perf - 80GB
NM-CE-BP-SCSI-K9 Content Engine Network Module - Basic Perf - SCSI Adapter
SF-NM-ACNS4.2-K9 Enterprise Caching and ECDN SW v4.2 for NM-CE-BP, 3DES
SF-NM-RCPS-8.0 Combined Real System V8 Proxy and Subscriber for Cisco NM-CE-BP
SF-NM-WMS-1.1 Microsoft Windows Media Server V4 for Cisco NM-CE-BP

Platform Support
IOS Support 2600 2600XM 2801

2811,2821,2851

 3620 3631 3640, 3640A, 3660 2691, 3725, 3745 3800
NM-CE-BP-20G-K9 12.2(13)T, 12.3(1) 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.3(8)T4 Not supported Not supported 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T
NM-CE-BP-40G-K9
NM-CE-BP-80G-K9
NM-CE-BP-SCSI-K9

Return to Top

NM-CIDS-K9 Network Module

NM-CIDS-K9


Product Description Features
NM-CIDS-K9Cisco IDS Network Module, 20-GB IDE hard disk
  • The available configuration is a 20-gigabyte hard disk for logging and storage of events.
  • The external Ethernet port is used for command and control to enable a secure outbound port for management. This setup also allows for both security operations and network operations to have their own command and control interfaces.

Platform Support
Platform 2600 2600XM 2801 2811,2821,2851 3620 3631 3640, 3640A 3660, 2691, 3725, 3745 3800
IOS Support 12.2(15)ZJ or later 12.2(15)ZJ or later Not Supported
12.3(8)T
Not Supported Not Supported Not Supported 12.2(15)ZJ or later 12.3(11)T

Note: Requires IDS feature.


Return to Top

Cisco Unity Express Network Module

NM-CUE



Product Description Features
NM-CUE

The Cisco Unity Express network module is fully self-contained with dedicated onboard processing, memory and storage, allowing for efficient message handling, a range of concurrent sessions, simultaneous processing, and ample voice mail storage capacity for a wide range of typical branch office profiles.

  • Internal Disk Storage: 20 Gig Harddrive.
  • Up to 100 hours of storage.
  • Can be licensed for up to 100 mailboxes.

Platform Support
Platform 2600 2600XM 2801 2811,2821,2851 3620,3631,3640,3640A,3660 2691, 3725, 3745 3800
IOS Support Not Supported 12.3(4)T Not Supported 12.3(8)T Not Supported 12.3(4)T 12.3(11)T

Return to Top

Cisco Unity Express Network Module

NM-CUE-EC



Product Description Features
NM-CUE-EC The Cisco Unity Express network module is fully self-contained with dedicated onboard processing, memory and storage, allowing for efficient message handling, a range of concurrent sessions, simultaneous processing, and ample voice mail storage capacity for a wide range of typical branch office profiles.
  • supports up to 16 ports of concurrent voice-mail or automated-attendant sessions and up to 250 voice mailboxes (new with Release 2.3).

Platform Support
Platform 2691 2600XM 2801 2811,2821,2851 3725,3745 3825, 3845 3800
IOS Support Yes Yes Not Supported Yes Yes Yes 12.3(11)T

Mimumum of Release 12.3(11)T5, 12.3(14)T1, 12.4(1) IOS release and Unity Express 2.1

Return to Top

Network Analysis Module

NM-NAM



Product Description Features
NM-NAMThe Cisco Branch Routers Series Network Analysis Module is an integrated traffic-monitoring network module that enables network managers to gain application-level visibility into traffic at remote sites to improve network performance, reduce failures, and maximize returns on investments.
  • WAN Usage Monitoring at the Application Level
  • Application Response Time Monitoring
  • Fault Isolation and Troubleshooting
  • VoIP and QoS Monitoring

Platform Support
Platform 2600 2600XM 2801 2811,2821,2851 3620,3631,3640,3640A 3660 2691, 3725, 3745 3800
IOS Support Not Supported 12.3(4)XD Not Supported 12.3(8)T Not Supported 12.3(4)XD 12.3(4)XD 12.3(11)T

Note: Only one NAM is supported per router chassis.


Return to Top

Alarm Interface Controller Network Module End Of Sale

NM-AIC-64


Product Description Features
NM-AIC-64 Cisco Alarm Interface Controller
  • Each Network Module can remotely monitor up to 64 network elements, and remotely control up to 16 network devices.
  • Ability to monitor powerplants for voltage fluctuations/thresholds.
  • Environmental condition monitoring for things such as, temperature and humidity.
  • Enhanced premise security monitoring, autonomous control of security camera's triggered by door/window alarm.
  • Software selectable TL1 or SNMP notification with multiple sessions.
  • More than one AIC can be installed per router for example a Cisco 366x can accommodate up to six AICs and can monitor up to 384 network elements, and remotely control up to 96 network devices.
  • Use the AIC Patch Panel to inject current into loops, and to break out the signals to RJ-21 telco connectors.

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620, 3640 3631 3660 2691, 3725, 3745 3800
NM-AIC-64 12.2(2)XG, 12.2(8)T 12.2(8)T1 Not Supported
12.3(8)T
12.2(2)XG, 12.2(8)T All IOS versions 12.2(2)XG, 12.2(8)T Not supported 12.3(11)T

Return to Top

Alarm Interface Controller Network Module End Of Sale

NM-AIC-64


Product Description Features
NM-AIC-64 Cisco Alarm Interface Controller
  • Each Network Module can remotely monitor up to 64 network elements, and remotely control up to 16 network devices.
  • Ability to monitor powerplants for voltage fluctuations/thresholds.
  • Environmental condition monitoring for things such as, temperature and humidity.
  • Enhanced premise security monitoring, autonomous control of security camera's triggered by door/window alarm.
  • Software selectable TL1 or SNMP notification with multiple sessions.
  • More than one AIC can be installed per router for example a Cisco 366x can accommodate up to six AICs and can monitor up to 384 network elements, and remotely control up to 96 network devices.
  • Use the AIC Patch Panel to inject current into loops, and to break out the signals to RJ-21 telco connectors.

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620, 3640 3631 3660 2691, 3725, 3745 3800
NM-AIC-64 12.2(2)XG, 12.2(8)T 12.2(8)T1 Not Supported 12.3(8)T 12.2(2)XG, 12.2(8)T All IOS versions 12.2(2)XG, 12.2(8)T Not supported 12.3(11)T

Return to Top

Circuit Emulation Modules

NM-CEM-4SER


NM-CEM-4TE1


Product Description Features
NM-CEM-4SER 4 Port Serial Circuit Emulation over IP Network Module
NM-CEM-4TE1 4 Port T1/E1 Circuit Emulation over IP Network Module

Platform Support
IOS Support 2600 2600XM 2801 2811,2821,2851 3620, 3640, 3631 3660 2691, 3725, 3745 3800
NM-CEM-4SER Not Supported 12.3(7)T and later Not Supported 12.3(8)T Not Supported 12.3(7)T and later 12.3(7)T and later 12.3(11)T
NM-CEM-4TE1

Note: Emulation network modules require one of the following feature sets:

  • SP Services and above (Cisco 2600XM Series, and Cisco 2691, 3725, and 3745)
  • SP Services
  • Advanced IP Services
  • Enterprise Services
  • Advanced and Enterprise Services
  • IP Plus and above (Cisco 3660 only)
Return to Top

Etherswitch Service Module (NME-16ES-1G, NME-16ES-1G-P, NME-X-23ES-1G, NME-X-23ES-1G-1P, NME-XD-24ES-1S-P, NME-XD-48ES-2S-P)


The new Cisco EtherSwitch service modules, greatly expand the capabilities of integrated switching within Cisco routers by providing support for new features such as IEEE 802.3af Power over Ethernet (PoE), local Layer 3 switching, Cisco Network Assistant and Cisco Emergency Responder, and Cisco StackWise™ interfaces (available on NME-XD-24-1S-P only), as well as software feature parity with Cisco Catalyst® 3750 Series switches

Cisco EtherSwitch service modules run their own software, independent of the router's Cisco IOS® Software image, allowing for easy upgrades and ongoing software feature parity with Cisco Catalyst 3750 Series switches

Product NME-16ES-1G NME-16ES-1GP NME-X-23ES-1G NME-X-23ES-1G-1P NME-XD-24ES-1S-P NME-XD-48ES-2S-P
Cisco pre-standard PoE support and IEEE 802.af PoE No Yes* No Yes* Yes* Yes*
Minimum Cisco IOS Software release for Cisco EtherSwitch service module 12.2(25)SEC 12.2(25)EZ 12.2(25)SEC 12.2(25)EZ 12.2(25)EZ 12.2(25)EZ

* When installed in Cisco 3700 Series routers, the modules can only provide Cisco's pre-standard PoE. The Cisco EtherSwitch service modules do not support any PoE when installed in the Cisco 2691 router.

Platform Support
IOS Support 2691 2800 series 3700 series

3800 series

NME-16ES-1G 12.4(3), 12.4(4)T 2811, 2821, and 2851 Only 12.4(3), 12.4(4)T 12.4(3), 12.4(4)T
NME-16ES-1G-P 12.3(14)T, 12.4(1)

2811, 2821, and 2851 Only

12.3(14)T, 12.4(1)

12.3(14)T, 12.4(1) 12.3(11)T12.3(14)T, 12.4(1)
NME-X-23ES-1G Not supported

2821 and 2851 Only

12.4(3), 12.4(4)T

 Not supported 12.4(3), 12.4(4)T
NME-X-23ES-1G-P Not supported

2821 and 2851 Only

12.3(14)T, 12.4(1)

Not supported 12.3(14)T, 12.4(1)
NME-XD-24ES-1S-P Not supported

2851 Only

12.3(14)T, 12.4(1)

Not supported 12.3(14)T, 12.4(1)
NME-XD-48ES-2S-P Not supported 2851 Only 12.3(14)T, 12.4(1) Not supported 12.3(14)T, 12.4(1)

Requires an IOS Base and above

Return to Top

NM-1A-OC3-POM ATM OC-3 Network Module


ATM OC3 module with single POM (SFP) slot,supports
ATM forum standard ATM Adaptation Layer 5 (AAL5)
ATM service classes: UBR, UBR+, VBR-rt, VBR-nrt, ABR, and CBR (data only)
Voice over IP (VoIP) and H.323 over ATM
Supported SFP and POM


Part Code Description
SFP-OC3-MM OC3/STM1 SFP, Multi-mode fiber
SFP-OC3-IR1 OC3/STM1 SFP, Single-mode fiber, Intermediate Reach
SFP-OC3-LR1 OC3/STM1 SFP, Single-mode fiber, Long Reach (40km

Platform Support
IOS Support 3825 3845
NM-1A-OC3-POM 12.4(3) Mainline and 12.4(4)T * 12.4(3) Mainline and 12.4(4)T *

*Requires an IOS SP services feature set

Return to Top

WIC-1T



One port serial (DB60, Cisco 60-pin "5-in-1" connector ). Supports Max sync speed 2 Mbps. Does not support hot swap.

Platform Support
Feature Carrier Module Cisco IOS software support Sync Max Speed Async Max Speed Bisync & Half Duplex
1600 On-Board All Cisco IOS versions 2.048 Mbps 115.2 Kbps Cisco IOS Versions 11.2(8)P and later
1700 On-Board All Cisco IOS versions 2.048 Mbps 115.2 Kbps All Cisco IOS versions
1800 On-Board 12.3(8)T4 2.048 Mbps - -
2600 On-Board, NM-2W All Cisco IOS versions 2.048 Mbps Not supported All Cisco IOS versions
2800 On-Board 12.3(8)T4 2.048 Mbps - -
3600 NM-1E2W, NM-1E1R2W, NM-2E2W, NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W All Cisco IOS versions 2.048 Mbps Not supported Cisco IOS Versions 11.2(4)XA, 11.3, 11.3T, and all 12.x
3631 On-Board Cisco IOS versions 12.2(13)T, 12.3(1), 12.3(2)T and higher 2.048 Mbps Not supported Cisco IOS versions 12.2(13)T, 12.3(1), 12.3(2)T and higher
2691, 3725, 3745 On-Board, NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T and higher 2.048 Mbps Not supported Cisco IOS versions 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T and higher
3800 On-Board, NM-2W, NM-1FE1R2W, NM-1FE2W, NM-2FE2W, NM-1FE2W-V2, NM-2FE2W-V2 12.3(11)T 2.048 Mbps - -

Return to Top

WIC-2T



Provides two serial ports using the "smart serial" connector.

  • Asynchronous support with a maximum speed (per port) of 115.2 Kbps, minimum 600 bps. If you need to run at speeds lower than 600 bps, use the AUX port instead.
  • Synchronous support with a maximum speed of 2.048 Mbps per port.
    • Supports one port at 8 Mbps when used in NM-1FE1R2W, NM-1FE2W, NM-2FE2W, or NM-2W, or Cisco 2600 chassis WIC slots. All other WIC ports on that network module or Cisco 2600 chassis must not be used.
    • Supports two ports at 4 Mbps each when used in NM-1FE1R2W, NM-1FE2W, NM-2FE2W, or NM-2W, or Cisco 2600 chassis WIC slots. All other WIC ports on that network module or Cisco 2600 chassis must not be used.
    • Supports 8 Mbps on all ports simultaneously on 2691, 3725, and 3745. No restrictions. Maximum six ports at 8 Mbps each.

Platform Support
Feature 1600 1700 1800 2600 2600XM 2800 3620, 3640, 3660 3631 2691, 3725, 3745 3800
Carrier Module Not Required On-Board On-Board On-Board NM-2W On-Board NM-2W On-Board NM-1E2W, NM-1E1R2W, and NM-2E2W NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W On-Board On-Board, NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W On-Board NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
Cisco IOS software support Not supported All Cisco IOS versions

12.3(8)T4

 All Cisco IOS versions 12.0(7)XK, 12.1(1)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T1 12.3(8)T4 Not supported 12.0(7)XK, 12.1(1)T, 12.2, 12.2T All Cisco IOS versions All Cisco IOS versions 12.3(11)T 12.3(11)T

The Cisco 1600 Series is not capable of supporting the WIC-2T due to lack of Serial Communications Controllers.

The NM-1E2W, NM-1E1R2W, and NM-2E2W Network Modules do not have enough performance power to support the WIC-2T due to hardware limitations.

Return to Top

WIC-2A/S


The WIC-2A/S provides two serial ports using the Smart Serial connector. The only difference between the WIC-2A/S and the WIC-2T is the maximum supported sync speed.

  • Aysnchronous support with a maximum speed of 115.2 Kbps, and a minimum of 600 bps. If you need to run at speeds lower than 600 bps, use the AUX port instead.
  • Synchronous support with a maximum speed of 128 Kbps.

Platform Support
Feature 1600 1700 1800 2600 2600XM 2800 3620, 3640, 3660 3631 2691, 3725, 3745 3800
Carrier Module Not Required On-Board On-Board On-Board NM-2W On-Board NM-2W On-Board NM-1E2W, NM-1E1R2W, and NM-2E2W NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W On-Board On-Board, NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W On-Board

On-Board, NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
Cisco IOS software support Not supported All Cisco IOS versions 12.3(8)T4 All Cisco IOS versions Cisco IOS versions 12.0(7)XK, 12.1(1)T, 12.2, 12.2T All Cisco IOS versions Cisco IOS versions 12.2(8)T1 12.3(8)T4 Not supported Cisco IOS versions 12.0(7)XK, 12.1(1)T, 12.2, 12.2T All Cisco IOS versions All Cisco IOS versions 12.3(11)T 12.3(11)T

The Cisco 1600 series is not capable of supporting the WIC-2A/S due to the lack of Serial Communications Controllers.

The NM-1E2W, NM-1E1R2W, and NM-2E2W Network Modules do not have enough performance power to support the WIC-2A/S due to hardware limitations.

Return to Top

WIC-1B-S/T End Of Sale, WIC-1B-S/T-V2, WIC-1B-S/T-V3


One ISDN BRI port (S/T interface, requires external NT-1, RJ-45 connector). Does not support hot swap.


Platform Support
Platform Cisco 1601(R), 1602 (R), and 1605-R Cisco 1603, 1603-R, 1604, and 1604-R Cisco 1720, 1721, 1751, 1760 Cisco 1750 Cisco 1800 Cisco 2600 and 2600XM Cisco 2800 Cisco 3620 and 3640, 3640A Cisco 3631 Cisco 3660 Cisco 2691, 3725, and 3745 Cisco 3800
Carrier Module On-Board On-Board On-Board On-Board On-Board On-Board NM-2W On-Board On-Board NM-2W On-Board NM-1E2W, NM-1E1R2W, and NM-2E2W NM-1FE2W, NM-1FE1R2W, and NM-2FE2W, NM-2W On-Board NM-1FE2W, NM-1FE1R2W, NM-2FE2W, and NM-2W Onboard, NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
WIC-1B-S/T All Cisco IOS versions Not supported All Cisco IOS versions All Cisco IOS versions Not supported All Cisco IOS versions Not supported Cisco IOS versions 11.2(4)XA, 11.2(5)P, 11.3, 11.3T, all 12.x All Cisco IOS versions All Cisco IOS versions All Cisco IOS versions Not supported
WIC-1B-S/T-V2 Not supported Not supported First supported in 12.0(25), 12.1(19), 12.2(16), and 12.3(1) Not supported - First supported in 12.0(25), 12.1(19), 12.2(16), and 12.3(1) - First supported in 12.0(25), 12.1(19), 12.2(16), and 12.3(1) First supported 12.3(1) First supported in 12.0(25), 12.1(19), 12.2(16), and 12.3(1) First supported in 12.3(1) -
WIC-1B-S/T-V3 Not Supported
 Not Supported
 12.3(10) Not Supported
 12.3(8)T4 12.3(10) 12.3(8)T Not Supported
 Not Supported
 12.3(10) 12.3(10) 12.3(11)T

Return to Top

WIC-1B-U-V2


1-port ISDN with NT-1 WIC. Provides a single ISDN BRI connection via an RJ-45 connector.


Platform Support
Platform Cisco 1700 Cisco 1800 Cisco 2600, 2600XM Cisco 2800 Cisco 3600 Cisco 2691, 3725, and 3745 Cisco 3800
WIC-1B-U-V2 12.1(18), 12.2(13), 12.2(13)T1 12.3(8)T4 12.0(23), 12.1(15), 12.2(10), 12.1(11)T 12.3(8)T 12.0(23), 12.1(15), 12.2(10), 12.1(11)T
 12.2(13)T 12.3(11)T

Return to Top

WIC-1DSU-56K4


1-port 4-wire 56/64Kbps DSU/CSU WIC. Provides a single serial connection at speeds up to 64 Kbps.


Platform Support
Platform Cisco 1721 Cisco 1751 Cisco 1760 Cisco 1800 Cisco 2600 Cisco 2600XM Cisco 2800 Cisco 3620, 3640 Cisco 3660 Cisco 2691, 3725, and 3745 Cisco 3800
WIC-1DSU-56K4 12.2(8)T 12.2(4)T 12.2(11)T 12.3(8)T 11.3(2)XA, 12.1(3)T 12.1(14), 12.2(2), 12.2(8)T1 12.3(8)T4 11.2(4)XA
 12.0(5)T 12.2(8)T 12.3(11)T

Return to Top

WIC-1ADSL


One RJ-11 ADSL interface. Supports ADSL over POTS with Annex A ITU 992.1 (G.dmt). Supports up to 23 virtual circuits per WIC. Dying gasp is not supported on WIC-1ADSL, For Dying gasp support please refer to WIC-1ADSL-DG.


Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1800 Cisco 2600 Cisco 2600XM Cisco 2800 Cisco 3600 Cisco 3631 Cisco 2691, 3725, and 3745 3800
Carrier Module On-Board On-Board On-Board On-Board, NM-2W On-Board, NM-2W On-Board NM-1E1R2W, NM-1E2W, NM-2E2W NM-1FE1R2W, NM-1FE2W, NM-2FE2W, NM-2W On-Board On-Board NM-1FE1R2W, NM-1FE2W, NM-2FE2W, NM-2W On-Board NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
WIC-1ADSL Not Supported 12.1(3)XJ, 12.1(3)XP, 12.1(3)XT1, 12.1(5)YB, 12.2(2)T 12.3(8)T4 12.1(5)YB, 12.2(4)T 12.2(8)T1 12.3(8)T4 Not Supported 12.1(5)YB, 12.2(4)T Not Supported All Cisco IOS versions All Cisco IOS versions 12.3(11)T 12.3(11)T

Requires an "ADSL" feature set for CISCO 1700 series. Requires a "Plus" feature set for CISCO 2600 / 2600XM / 3600 / 3700 series.

Return to Top

WIC-1ADSL-DG



One RJ-11 ADSL interface. Supports ADSL over POTS with Annex A ITU 992.1 (G.dmt). Supports up to 23 virtual circuits per WIC. Dying Gasp Support.

Platform Support
Platform Cisco 1721, 1751, 1760 Cisco 1800 Cisco 2600XM Cisco 2800 Cisco 2691, 3725, and 3745 3800
Carrier Module On-Board On-Board On-Board, NM-2W On-Board On-Board NM-1FE1R2W, NM-1FE2W, NM-2FE2W, NM-2W On-Board NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
WIC-1ADSL 12.3(4)T 12.3(8)T4 12.3(4)XD 12.3(8)T4 12.3(4)XD 12.3(4)XD 12.3(11)T 12.3(11)T

Requires an "ADSL" feature set for CISCO 1700 series. Requires a "Plus" feature set for CISCO 2600 / 2600XM / 3600 / 3700 series.
The term dying gasp refers to power status as defined in ITU-T standard G.991.2, section 7.1.2.5.3.

Return to Top

WIC-1ADSL-I-DG


Provides a single ADSL over ISDN connection, with Dying Gasp support, at uplink speeds up to 1 Mbps and downlink speeds up to 8 Mbps. This interface card inserts into a Cisco mixed-media network module or directly into a Cisco WIC expansion slot.


Platform Support
Platform Cisco 1721, 1751, 1760 Cisco 1841 Cisco 2610XM-51XM Cisco 2691 Cisco 2800 3725, 3745 3800
WIC-1ADSL-I-DG
12.3(4)T
12.3(8)T4
12.3(4)XD
12.3(4)XD
12.3(8)T4
12.3(4)XD
12.3(11)T

Requires an "ADSL" feature set for CISCO 1700 series. Requires a "Plus" feature set for CISCO 2600 / 2600XM / 3600 / 3700 series.
The term dying gasp refers to power status as defined in ITU-T standard G.991.2, section 7.1.2.5.3.

Return to Top

WIC-1SHDSL End Of Sale


One RJ-11 G.SHDSL interface. Symmetrical WAN speeds (up to 2.3 Mbps) over a single copper pair. Supports up to 23 virtual circuits per WIC.


Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1800

Cisco 2600

 Cisco 2600XM Cisco 2800 Cisco 3600 Cisco 3631 Cisco 2691, 3725, and 3745 Cisco 3800
WIC-1SHDSL Not Supported 12.2(13)T 12.3(8)T4 12.2(4)XL, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(8)T4 12.2(8)T 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Requires 1700, 1800, 2600, 2800, 3700, 3800 Chassis WIC Slot, or NM-1FE1R2W, NM-1FE2W, NM-2FE2W, NM-2W WIC slots. Not supported in NM-1E1R2W, NM-1E2W, or NM-2E2W.

Requires an "ADSL" feature set for CISCO 1700 series. Requires a "Plus" feature set for CISCO 2600 / 2600XM / 3600 / 3700 series.

Return to Top

WIC-1SHDSL-V2 End Of Sale


One RJ-11 G.SHDSL interface. Symmetrical WAN speeds up to 2.3Mbps over a single copper pair and up to 4.6Mbps over two copper pairs. Supports up to 23 virtual circuits per WIC.


Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1800 Cisco 2691 2610-2651XM 2800 3725, 3745 3800
WIC-1SHDSL-V2 Not Supported

12.3(8)T

 12.3(8)T4 12.3(4)XD 12.3(4)XD 12.3(8)T4 12.3(4)XD 12.3(11)T

Requires 1700, 1800,2600, 2800, 3800 Chassis WIC Slot, or NM-1FE2W-V2, NM-2FE2W-V2, and NM-FE1R2W-V2.

Return to Top

WIC-1SHDSL-V3


One RJ-11 G.SHDSL interface. Symmetrical WAN speeds up to 2.3Mbps over a single copper pair and up to 4.6Mbps over two copper pairs. Supports up to 23 virtual circuits per WIC.


Platform Support
Platform Cisco 1600 1721,1751,1760 1841 Cisco 2691 2610-2651XM 2811-2851 3725, 3745 2825,3845
WIC-1SHDSL-V3 Not Supported

IP/ADSL IP Base and up

IP Base and up IP Base and up IP Base and up IP Base and up IP Base and up IP Base and up

* Minimum IOS release 12.4(2)XA and Mimimum IOS T train support 12.4(3rd)T or 12.4(6)T

**Difference between V2 and V3 - Conexant Firmware Version as of 8/20/2005, A29733 (based on 2.3.1)for V2, 3.0.1 for V3

***Requires 1700, 1800,2600, 2800, 3800 Chassis WIC Slot, or NM-1FE2W-V2, NM-2FE2W-V2, and NM-1FE1R2W-V2.

Return to Top

Analogue Modem WICs

WIC-1AM


WIC-2AM


WIC-1AM and WIC-2AM provide V.90 analog modem interfaces for low density applications (router management, dial backup and access). WIC-1AM includes jack for handset sharing access to PSTN line.


Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1800 Cisco 2600 Cisco 2600XM Cisco 2800 Cisco 3600 Cisco 3631 Cisco 2691, 3725, and 3745 Cisco 3800
WIC-1AM Not Supported 12.2(4)YB 12.3(8)T4 12.2(2)XB, 12.2(8)T 12.2(8)T1 12.3(8)T4 12.2(2)XB, 12.2(8)T All Cisco IOS versions All Cisco IOS versions 12.3(11)T
WIC-2AM Not Supported 12.2(4)YB 12.3(8)T4 12.2(2)XB, 12.2(8)T 12.2(8)T1 12.3(8)T4 12.2(2)XB, 12.2(8)T All Cisco IOS versions All Cisco IOS versions 12.3(11)T

V.92 is not currently supported.

Return to Top

High-Density Extension Modules

EVM-HD-8FXS/DID


Product Description Features
EVM-HD-8FXS/DID
 High density voice/fax extension module-8 FXS/DID
  • Cisco high-density extension modules provide an integrated high-density analog/digital voice interface for small or medium branch offices. Together with selected expansion module the Cisco high-density extension module provides a maximum of 24 analog voice ports with 8 ports of DID capability.
  • The Cisco high-density extension module supports up to two expansion modules (EMs)
  • VoIP: H.323, MGCP and SIP
  • VoFR and VoATM (AAL5 and AAL2)
  • Packet voice technologies H.323, MGCP, SIP VoIP, VoFR, VoATM
  • EVM-HD-8FXS/DID is the baseboard
    • Plug in 0, 1 or 2 expansion modules - in any combination
  • EVM-HD uses chassis onboard DSP resources (PVDM2)
    • There is no DSP capability on the EVM module itself
EM-HDA-8FXS 8-port voice/fax expansion module-FXS
EM-4BRI-NT/TE 4-port voice/fax expansion module-BRI (NT and TE)
EM-HDA-6FXO 6-port voice/fax expansion module-FXO
EM-HDA-4FXO 4-port voice/fax expansion module-FXO
EM-HDA-3FXS/4FXO 7-port voice/fax expansion module-3FXS/4FXO

Platform Support
IOS Support 2600, 2600XM 2801, 2811 2821, 2851 3620, 3640, 3660 3631 2691, 3725, 3745 3800
EVM-HD-8FXS/DID Not Supported Not Supported 12.3(8)T4 Not Supported Not Supported Not Supported 12.3(11)T

Software Prerequisites: Cisco IOS software with IP Voice feature.

MENTION OF NON-CISCO PRODUCTS OR SERVICES IS FOR INFORMATION PURPOSES ONLY AND CONSTITUTES NEITHER AN ENDORSEMENT NOR A RECOMMENDATION

NOTE:

  1. The Cisco High-Density Extension Module operates in the Extension Voice Module (EVM) slot on the Cisco 2821 and Cisco 2851.
  2. The High-Density Extension Module operates in any network module or enhanced network module (NME) slot on the Cisco 3825 and Cisco 3845.
  3. The Cisco 3825 supports one Cisco High-Density Extension Module, and the Cisco 3845 supports one or two high-density extension modules.
  4. The EVM-HD-8FXS/DID Cisco high-density extension module is connected to a distribution frame or patch panel with an RJ-21 cable. RJ-21 cables are not provided with the network module. Cisco does not offer RJ-21 distribution panels and as such customers may, at their sole discretion, consider using a patch panel from Black Box Corporation. The Black Box patch panel accommodates RJ-11 and RJ-45 combinations (Black Box part number: JPM2194A).
Return to Top

VIC-2DID


2-port DID voice/fax interface card. Used to provide off-premises DID connection from central office. Serves only incoming calls from the PSTN. Supports caller ID. Connects to a telco line. Uses RJ-11 connectors.


Platform Support
IOS Support 1750, 1751 1841 2600 2600XM 2691 2801 2811,2821,2851 3620,3640,3660 3725, 3745 3800
VIC-2DID 12.2(2)XJ Not Supported 12.1(5)XM1, 12.2(2)T 12.2(8)T1 12.2(8)T1 12.3(8)T4 12.3(8)T4 12.1(5)XM1 12.2(8)T 12.3(11)T

Notes:

  1. When used in a Cisco 2600, 3600, or 3700 Series router, requires a voice / fax network module: NM-1V or NM-2V.
  2. When used in a Cisco 1751 or Cisco 1760 Series Router, requires a DSP module.
  3. . Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" feature set. 12.3 Mainline and forward supported in "IP Voice" feature set.
Return to Top

VIC-4FXS/DID


4-port FXS voice/fax interface card. FXS port is used to connect directly to phones, fax machines, and key systems. Generates battery polarity reversal and caller ID.


Platform Support
IOS Support 1751 1760 2600XM 2691 2801, 2811,2821,2851 3640,3660 3700 3800
VIC-4FXS/DID 12.3(4)T 12.3(4)T 12.3(4)T 12.3(4)T 12.3(8)T4 12.3(4)T 12.3(4)T 12.3(11)T

Notes:

1. When used in a Cisco 2600, 3600, or 3700 Series Router, requires a voice/fax network module: NM-1V or NM-2V
2. Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" features set. 12.3 Mainline and forward supported in "IP Voice" feature set.


Return to Top

VIC2-2FXS


2-port FXS voice/fax interface card. FXS port is used to connect directly to phones, fax machines, and key systems. Generates battery polarity reversal and caller ID.


Platform Support
IOS Support 1751, 1760 2600XM 2691 2801 2811,2821,2851 3631 3640, 3660 3725, 3745 3800
VIC2-2FXS 12.2(15)ZL, 12.3(2)XA, 12.3(2)XC, 12.3(2)XE, 12.3(4)T, 12.3(5) 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T, 12.3(4)XD 12.3(8)T4 12.3(8)T4 Not Supported. Voice is not supported on 3631. 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T 12.3(11)T

Note:
1. When used in a Cisco 2600, 3600, or 3700 Series Router, requires a voice / fax network module: NM-1V or NM-2V.
2. Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" feature set. 12.3 Mainline and forward supported in "IP Voice" feature set.

Return to Top

VIC2-2FXO


2-port FXO voice/fax interface card [universal card for all countries]. Also supports analog Centralized Automated Message Accounting (CAMA) on any port. FXO port is used to connect to PBX or key system, or to provide off-premises connections to PSTN or PTT. Supports battery reversal detection and caller ID. These Cisco VICs can be software configured to work in all countries. Also used to connect to analog CAMA trunk to provide dedicated E-911 service (North America only)


Platform Support
IOS Support 1750, 1751, and 1760 2691 2600XM 2801 2811,2821,2851 3631 3640, 3660 3745, 3725 3800
VIC2-2FXO 12.2(15)ZL, 12.3(2)XA, 12.3(2)XC, 12.3(2)XE, 12.3(4)T, 12.3(5) 12.2(15)ZJ, 12.3(4)T, 12.3(4)XD 12.2(15)ZJ, 12.3(4)T 12.3(8)T4 12.3(8)T4 Not Supported. 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T 12.3(11)T

Notes:
1. When used in a Cisco 2600, 3600, or 3700 Series Router, requires a voice / fax network module: NM-1V or NM-2V.
2. Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" feature set. 12.3 Mainline and forward supported in "IP Voice" feature set.


Return to Top

VIC2-4FXO


4-port FXO voice/fax interface card [universal card for all countries]. Also supports analog CAMA on any port. FXO port is used to connect to PBX or key system, or to provide off-premises connections to PSTN or PTT. Supports battery reversal detection and caller ID. These Cisco VICs can be software configured to work in all countries. Also used to connect to analog CAMA trunk to provide dedicated E-911 service (North America only)


Platform Support
IOS Support 1750, 1751, and 1760 2691 2600XM 3640 3620, 3631 3660 3725, 3745 3800
VIC2-4FXO 12.2(15)ZL, 12.3(2)XA, 12.3(2)XC, 12.3(2)XE, 12.3(4)T, 12.3(5) 12.2(15)ZJ, 12.3(4)T, 12.3(4)XD 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T Not Supported. 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T 12.3(11)T

Notes:
1. In the Cisco 1751 router, a maximum of one VIC2-4FXO card can be supported.
2. In the Cisco 1760 router, a maximum of two VIC2-4FXO cards can be supported.
3. When used in a Cisco 2600, 3600, or 3700 Series Router, requires a voice / fax network module: NM-1V or NM-2V.
4. Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" feature set. 12.3 Mainline and forward supported in "IP Voice" feature set.

Return to Top

VIC2-2E/M


2-port E&M voice/fax interface card. Used to connect to PBX or key system as tie lines.

Platform Support
IOS Support 1751, 1760 1800 2691 2600XM 2800 3620, 3640 3631 3640, 3660 3725, 3745 3800
VIC2-2E/M 12.2(15)ZL, 12.3(2)XA, 12.3(2)XC, 12.3(2)XE, 12.3(4)T, 12.3(5) Not Supported. 12.2(15)ZJ, 12.3(4)T, 12.3(4)XD 12.2(15)ZJ, 12.3(4)T 12.3(8)T4 11.3(1)T, all 12.x Not Supported. Voice is not supported on 3631. 12.2(15)ZJ, 12.3(4)T 12.2(15)ZJ, 12.3(4)T 12.3(11)T

Voice requires an IOS "Plus" feature set. 12.3 Mainline and forward supported in “IP Voice” feature set.

Return to Top

VIC2-2BRI-NT/TE


This two-port ISDN terminal-side or networkside Basic Rate Interface (BRI) voice interface card connects directly to PSTNs and PBX/PABXs and supports both onpremise and off-premise connections. Supports a total of four voice channels in a single interface card via two RJ-45 physical ports, and enables toll-bypass and voice-overpacket features.


Platform Support
IOS Support 1751 1760 2600XM 2691 2800 3640 3660 3700 3800
VIC2-2FXO 12.3(4)T 12.3(4)T 12.3(4)T 12.3(4)T 12.3(8)T4 12.3(4)T 12.3(4)T 12.3(4)T 12.3(11)T

Notes:
1. When used in a Cisco 2600, 3600, or 3700 Series Router, requires a voice / fax network module: NM-1V or NM-2V.
2. Prior to Cisco IOS 12.3 Mainline, requires a Cisco IOS "Plus" feature set. 12.3 Mainline and forward supported in "IP Voice" feature set.


Return to Top

1 and 2 Port E1 Multi-Flex Trunk VWIC


Product Description
VWIC-1MFT-E1 1-Port RJ-48 Multiflex Trunk - E1
VWIC-2MFT-E1 2-Port RJ-48 Multiflex Trunk - E1
VWIC-2MFT-E1-DI 2-Port RJ-48 Multiflex Trunk - E1 With Drop and Insert
VWIC-1MFT-G703 1-Port RJ-48 Multiflex Trunk - E1 for unstructured G.703
VWIC-2MFT-G703 2-Port RJ-48 Multiflex Trunk - E1 for unstructured G.703

This Multi-Flex Trunk may be used as a Voice Interface Card or as a WAN Interface Card (in a WIC slot in the 2600 or 3600). Thus it is a Voice WAN Interface Card (VWIC).


Platform Support
Feature 1600 1700 1800 2600 2600XM 2800 3600 3631 2691, 3725, 3745 3800
Carrier Module On-Board On-Board On-Board On-Board NM-2W High Density Voice NM On-Board NM-2W High Density Voice NM On-Board NM-1E2W, NM-1E1R2W, NM-2E2W NM-1FE2W, NM-1FE1R2W, NM-2FE2W, NM-2W High Density Voice NM On-Board On-Board NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W		 High Density Voice NM On-Board NM-1FE2W, NM-1FE2W-V2, NM-2FE2W,
NM-2FE2W-V2, NM-1FE1R2W, NM-2W
VWIC-1MFT-E1 Not supported 12.2(4)YB, 12.2(8)YJ 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T1 12.2(8)T1 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions

12.2(8)T
12.2(13)T3 for V2 NMs

 12.3(4)T 12.3(11)T
VWIC-2MFT-E1 Not supported 12.2(4)YB, 12.2(8)YJ 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T1 12.2(8)T1 12.3(8)T4 Not supported 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T
12.2(13)T3 for V2 NMs		 12.3(4)T 12.3(11)T
VWIC-2MFT-E1-DI Not supported 12.2(4)YB, 12.2(8)YJ 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T1 12.2(8)T1 12.3(8)T4 12.0(5)XK, 12.0(7)T, 12.1, 12.1T, 12.2, 12.2T 12.0(7)XK, 12.1(1)T, 12.2, 12.2T 12.0(7)XK, 12.1(2)T, 12.2, 12.2T All Cisco IOS versions 12.2(8)T
12.2(13)T3 for V2 NMs		 12.3(4)T 12.3(11)T
VWIC-1MFT-G703 Not supported 12.2(8)YJ 12.3(8)T4 12.1(1)T, 12.2, 12.2T 12.1(1)T, 12.2, 12.2T Not supported 12.2(8)T1 12.2(8)T1 Not supported 12.3(8)T4 12.1(1)T, 12.2, 12.2T 12.1(1)T, 12.2, 12.2T Not supported All Cisco IOS versions 12.2(8)T
12.2(13)T3 for V2 NMs		 12.3(4)T 12.3(11)T
VWIC-2MFT-G703 Not supported 12.2(8)YJ 12.3(8)T4 12.1(1)T, 12.2, 12.2T 12.1(1)T, 12.2, 12.2T Not supported 12.2(8)T1 12.2(8)T1 Not supported 12.3(8)T4 Not supported 12.1(1)T, 12.2, 12.2T Not supported All Cisco IOS versions 12.2(8)T
12.2(13)T3 for V2 NMs		 12.3(4)T 12.3(11)T

For futher reference please refer to http://www.cisco.com/en/US/products/hw/routers/ps274/products_tech_note09186a00800b6e0f.shtml


Return to Top

2nd Generation 1 and 2 Port T1E1 Multiflex Trunk Voice WAN Interface Cards


Product Description
VWIC2-1MFT-T1/E1 1-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card
VWIC2-2MFT-T1/E1 2-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card
VWIC2-1MFT-G703 1-Port G.703 Multiflex Trunk Voice/WAN Interface Card
VWIC2-2MFT-G703 2-Port G.703 Multiflex Trunk Voice/WAN Interface Card

* Have an onboard slot for a Cisco MFT Dedicated Echo Cancellation (ECAN) Module (part number EC-MFT-32 or EC-MFT-64),

* Support both T1 and E1, providing additional flexibility in configuring the Cisco MFT VWIC2s for supporting T1, fractional T1, E1, and fractional E1 for both voice and WAN applications.

*Include the drop-and-insert multiplexing capability

*enable each port to be clocked from independent clock sources for data applications.


Platform Support
Feature 1721,1751,1760 1841 (data only) 2600XM 2691 3662 3700 2800 3800
VWIC2-XXXX 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T

* Please see the following link for more info about WIC/NM/VIC constraint :

** Data applications require at a minimum the IP Base feature set license and voice applications require at a minimum the IP Voice feature set license.

Return to Top

Multiflex trunk dedicated echo cancellation modules (EC-MFT-32, EC-MFT-64)

Cisco Multiflex Trunk Dedicated Echo Cancellation (MFT ECAN) Modules are dedicated resources for the Cisco Enhanced ITU-T G.168 ECAN feature, providing robust echo cancellation performance for demanding network environments. The modules are daughter cards that attach to Cisco Second-generation Multiflex Trunk Voice/WAN Interface Cards (MFT VWIC2 cards). The dedicated ECAN modules are available in 32- and 64-channel configurations, which match the requirements of the 1- and 2-port T1/E1 MFT VWIC2s, respectively.


Platform Support
Feature 1721,1751,1760 1841 (data only) 2600XM 2691 3662 3700 2800 3800
VWIC2-XXXX 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T 12.3(14)T

* Dedicated Echo Cancellation module is not supported on MFT VWIC2 when MFT VWIC2 is used on the Cisco 1751 or 1760.

** It is possible to install a Cisco 32-Channel MFT Dedicated ECAN Module on a 2-port MFT VWIC2. However, not all voice channels will be able to concurrently use the echo cancellation feature.

*** It is possible to install a Cisco 64-Channel MFT Dedicated ECAN Module on a 1-port MFT VWIC2. However, the extra echo cancellation channels will not be used. The only ports on the MFT VWIC2 that can use the module resources are the ports directly attached to the module.

Return to Top

EtherSwitch 4- and 9-Port High-Speed WAN Interface Cards

HWIC-4ESW


HWIC-D-9ESW


Product Description Features
HWIC-4ESW
 4-port Cisco EtherSwitch 10BASE-T/100BASE-TX autosensing HWIC



  • 4 or 9 10BASE-T/100BASE-TX ports
  • Autosensing, Autonegotiation, and Auto-MDIX
  • Integrated switching
  • 802.1P QoS (Traffic Prioritization)
  • 802.1Q Trunking
  • 802.1D Spanning Tree Protocol
  • Voice VLAN (VLAN) 1
HWIC-4ESW-POE 4-port Cisco EtherSwitch 10BASE-T/100BASE-TX autosensing HWIC with power daughter card
HWIC-D-9ESW
 9-port Cisco EtherSwitch 10BASE-T/100BASE-TX autosensing HWIC
HWIC-D-9ESW-POE 9-port Cisco EtherSwitch 10BASE-T/100BASE-TX autosensing HWIC with power daughter card

Note:
1. This part number (HWIC-4ESW-POE / HWIC-D-9ESW-POE) should be ordered only if you require in-line power.
You must also order the matching internal power unit to support in-line power on a Cisco 2800 or Cisco 3800 router.

2. The HWIC-D-9ESW card provides inline power through only 8 of its ports, ports 0 through 7.

The ninth port (port 8) is intended to be a stacking port, and as such, does not support inline power.

3. The inline power daughter cards are NOT interchangeable between the 4-port and the (8+1)-port HWICs.

4. There is no option to unstack two HWIC switches. When two HWIC switches are in the same chassis,
they can operate only in stacked mode. If the user configures the switches to operate unstacked, the switches
will not operate correctly. All combinations of HWIC switches may be stacked: two HWIC-D-9ESWs, an

HWIC-D-9ESW with an HWIC-4ESW, or two HWIC-4ESWs.


Product Description
PWR-2801-AC-IP= Cisco 2801 AC inline power supply
PWR-2811-AC-IP= Cisco 2811 AC inline power supply
PWR-2821-51-AC-IP= Cisco 2821 and Cisco 2851 AC inline power supply
PWR-3825-AC-IP= Cisco 3825 AC-IP power supply
PWR-3845-AC-IP= Cisco 3845 AC-IP power supply

Platform Support
IOS Support 1800 2600 2600XM 2800 3620 3631 3640, 3640A, 3660 2691, 3725, 3745 3800
HWIC-4ESW 12.3(8)T4
 Not supported Not supported 12.3(8)T4 Not supported Not supported Not supported Not supported 12.3(11)T
HWIC-4ESW-POE Not supported
HWIC-D-9ESW Not supported
HWIC-D-9ESW-POE

Note: The Cisco 2801 can take 2 single-wide (HWIC) or 2 double-wide (HWIC-D) whilst the
Cisco 2811, 2821, 2851 can accept 4 single-wide (HWIC) or 2 double-wide (HWIC-D).

Return to Top

Gigabit Ethernet High-Speed WAN Interface Card

HWIC-1GE-SFP


Product Description Features
HWIC-1GE-SFP
1-port Gigabit Ethernet high-speed WAN interface card
  • The Cisco Gigabit Ethernet high-speed WAN interface card provides copper and optical Gigabit Ethernet connectivity through a small form-factor pluggable module (SFP), which is inserted into the interface card.

Platform Support
IOS Support 1700 1800 2600, 2600XM 2801 2811, 2821, 2851 3620, 3640, 3660 3631 2691, 3725, 3745 3800
HWIC-1GE-SFP Not Supported Not Supported Not Supported Not Supported 12.3(8)T4 Not Supported Not Supported Not Supported 12.3(11)T

NOTE:
1. The 2800 can support a maximum of 1 x HWIC-1GE-SFP modules and the 3800 supports a maximum 2 x HWIC-1GE-SFP modules.
2. The HWIC-1GE-SFP requires a SFP that must be purchases separately.


Return to Top

HWIC-4A/S


4-port multiprotocol low speed asynchronous/synchronous HWIC.
Protocols supported are Async (SLIP), Async (PPP), HDLC, Bisync, and transparent.

Interfaces supported are as follows:
- In both DTE and DCE formats: V35, X21, RS-232, and RS-449
- In DTE format only: EIA-530 and EIA-530A

The maximum data rate supported is 256 kbps per port (synchronous).
The maximum data rate supported is 256 kbps per port 230.4 kbps (asynchronous).


Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1841 Cisco 2600 and 2600XM Cisco 2800 Cisco 3600 Cisco 3700 Cisco 3800
HWIC-4A/S Not supported Not Supported 12.3(14)T Not supported 12.3(14)T Not supported Not supported 12.3(14)T

Notes:
Connector type is Smart Serial. Available cables can be found here.

Return to Top

HWIC-8A/S-RS232



The 8-port RS-232 asynchronous/synchronous HWIC provides 8 asynchronous/synchronous
RS-232 interfaces in both DCE and DTE formats. Data rates of up to 230.4 kbps are supported
in asynchronous mode, and up to 256 kbps in synchronous mode.

The 8-port RS-232 asynchronous/synchronous HWIC uses a quad cable, consisting of a 68-pin
connector on the interface card end and four DB25 connectors on the system end (as pictured).
This cable is available in either DCE or DTE format. The cables include:


Cables
Product Number Cable Type Length Connector Type

CAB-HD4-232FC

4-port EIA-232 DCE 10 ft (3m) Female DB-25

CAB-HD4-232MT

4-port EIA-232 DTE 10 ft (3m) Male DB-25

Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1841 Cisco 2600 and 2600XM Cisco 2800 Cisco 3600 Cisco 3700 Cisco 3800
HWIC-8A/S-RS232 Not supported Not Supported 12.3(14)T Not supported 12.3(14)T Not supported Not supported 12.3(14)T

Return to Top

HWIC-8A



The 8-port asynchronous HWIC, provides 8 asynchronous RS-232 interfaces in DTE format, at
data rates of up to 230.4 kbps.

The 8-Port Asynchronous High-Speed WAN Interface Card and 16-Port Asynchronous High-Speed
WAN Interface Card use one (HWIC-8A) or two (HWIC-16A) high-density 8-port connectors. The
8-port asynchronous cable provides the high-density connector on one end and eight RJ-45 plugs
on the other. RJ-45- to DB-25 modular adapters are used to convert the RJ-45 to DB-25 DTE or
DB-25 DCE connections.


Cables
Product Number Cable Type Length Connector Type

CAB-HD8-ASYNC

 8-port EIA-232 10 ft (3m) RJ-45

CAB-HD8-KIT

8-port EIA-232 plus eight CAB-25AS-MMOD 10 ft (3m) Male DB-25

CAB-25AS-MMOD

 RJ-45 to DB-25 adapter   Male DB-25

CAB-25AS-FDTE

 RJ-45 to DB-25 adapter   Female DB-25

Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1841 Cisco 2600 and 2600XM Cisco 2800 Cisco 3600 Cisco 3700 Cisco 3800
HWIC-8A Not supported Not Supported 12.3(14)T Not supported 12.3(14)T Not supported Not supported 12.3(14)T

Return to Top

HWIC-16A



The 16-port asynchronous HWIC, provides 16 asynchronous RS-232 interfaces in DTE format,
at data rates of up to 230.4 kbps.

The 16-Port Asynchronous High-Speed WAN Interface Card uses one two high-density 8-port
connectors. The cable provides the high-density connector (68-pin connector) on one end and
eight RJ-45 plugs on the other. RJ-45- to DB-25 modular adapters are used to convert the
RJ-45 to DB-25 DTE or DB-25 DCE connections.

Cables
Product Number Cable Type Length Connector Type

CAB-HD8-ASYNC

8-port EIA-232 10 ft (3m) RJ-45

CAB-HD8-KIT

8-port EIA-232 plus eight CAB-25AS-MMOD 10 ft (3m) Male DB-25

CAB-25AS-MMOD

RJ-45 to DB-25 adapter   Male DB-25

CAB-25AS-FDTE

RJ-45 to DB-25 adapter   Female DB-25

Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1841 Cisco 2600 and 2600XM Cisco 2800 Cisco 3600 Cisco 3700 Cisco 3800
HWIC-16A Not supported Not Supported Not Supported Not supported 12.3(14)T Not supported Not supported 12.3(14)T


Return to Top

HWIC-4T


The 4-port multiprotocol high speed HWIC. Protocols supported are Async (SLIP), Async (PPP),
HDLC, Bisync, and transparent.

Interfaces supported are as follows:
- In both DTE and DCE formats: V35, X21, RS-232, and RS-449
- In DTE format only: EIA-530 and EIA-530A
- The maximum data rate supported is 8 Mbps per port (synchronous).
- Asynchronous maximum Speed per port is 230.4 kbps.


Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1800 Cisco 2600 and 2600XM Cisco 2800 Cisco 3600 Cisco 3700 Cisco 3800
HWIC-8A Not supported Not Supported Not Supported Not supported 12.3(14)T Not supported Not supported 12.3(14)T

Notes:
- The HWIC-4T has Smart Serial interfaces. Suitable cables are listed here.

Return to Top

HWIC-AP-G-X


  1. Mounting screws
  2. RP-TNC connectors
  3. OK LED for the 802.11b/g radio
  4. DATA LED for the radio

This access point high-speed WAN interface card (AP HWIC) is a single-wide interface card that houses one radio (single-mode) for connection to a wireless LAN. This interface card operates as an access point when installed in a modular access router with AP HWIC support.

Dual-mode AP carrier card with RP-TNC connectors, dual antennas, and two radios: one 2.4-GHz 802.11b/g
radio and one 5-GHz 802.11a radio. The following are the Cisco part numbers and the geographic regions
for which the interface cards are configured:
– HWIC-AP-G-A—North America
– HWIC-AP-G-E—Europe
– HWIC-AP-G-J—Japan


Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1841 Cisco 2600 and 2600XM Cisco 2800 Cisco 3600 Cisco 3700 Cisco 3800
HWIC-AP-AG-x Not supported Not Supported 12.4 T Not supported 12.4 T Not supported Not supported 12.4 T

Notes:
- RP-TNC Swivel-mount Omnidirectional Dipole antennas are included with the HWICs.
- Only one AP HWIC is supported in the router at a time. Installation of two AP HWICs in the router is not supported.

Return to Top

HWIC-AP-AG-x


  1. Mounting screws
  2. RP-TNC connectors
  3. OK LED for the 802.11a radio
  4. OK LED for the 802.11b/g radio
  5. DATA LED for the 802.11a radio
  6. DATA LED for the 802.11b/g radio

This access point high-speed WAN interface card (AP HWIC) is a single-wide interface card that houses
two radios (dual-mode) for connection to a wireless LAN. This interface card operates as an access point
when installed in a modular access router with AP HWIC support.

Dual-mode AP carrier card with RP-TNC connectors, dual antennas, and two radios: one 2.4-GHz 802.11b/g
radio and one 5-GHz 802.11a radio. The following are the Cisco part numbers and the geographic regions
for which the interface cards are configured:
– HWIC-AP-AG-A—North America
– HWIC-AP-AG-E—Europe
– HWIC-AP-AG-J—Japan


Platform Support
Platform Cisco 1600 Cisco 1700 Cisco 1841 Cisco 2600 and 2600XM Cisco 2800 Cisco 3600 Cisco 3700 Cisco 3800
HWIC-AP-AG-x Not supported Not Supported 12.4 T Not supported 12.4 T Not supported Not supported 12.4 T

Notes:
- RP-TNC Swivel-mount Omnidirectional Dipole antennas are included with the HWICs.
- Only one AP HWIC is supported in the router at a time. Installation of two AP HWICs in the router is not supported.
- The 4.9-GHz band is not supported.


Return to Top

HWIC-1ADSL ( 1 port ADSL/Pots)


Supports ADSL over basic telephone service with Annex A ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+)

Supports Dying Gasp function and has one RJ-11 ADSL interface


Platform Support
Platform Cisco 1841 Cisco 2800 Cisco 3800
HWIC-1ADSL 12.4(4)T Base 12.4(4)T Base 12.4(4)T Base

* ADSL2+ downstream data rates of up to 24 Mbps and upstream data rates of up to 1.5 Mbps

* ADSL2 downstream rates of up to 12 Mbps and upstream data rates of up to 1 Mbps


Return to Top

HWIC-ADSL-B-S/T (2 port ADSL over Pots)


Has one backup ISDN BRI S/T port (data only) and 1 ADSL over Pots port

Supports ADSL over basic telephone service with Annex A ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+)

Supports Dying Gasp function and has one RJ-11 ADSL interface


Platform Support
Platform Cisco 1841 Cisco 2800 Cisco 3800
HWIC-ADSL-B-S/T 12.4(6)T Base 12.4(6)T Base 12.4(6)T Base

* ADSL2+ downstream data rates of up to 24 Mbps and upstream data rates of up to 1.5 Mbps

* ADSL2 downstream rates of up to 12 Mbps and upstream data rates of up to 1 Mbps


Return to Top

HWIC-1ADSLI ( 1 port ADSL over ISDN)


Supports ADSL over ISDN with Annex B G.992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+)

Supports reach-extended ADSL2 standard (G.992.3) Annex L

Supports Dying Gasp function and has one RJ-11 ADSL interface


Platform Support
Platform Cisco 1841 Cisco 2800 Cisco 3800
HWIC-1ADSLI 12.4(4)T Base 12.4(4)T Base 12.4(4)T Base

* ADSL2+ downstream data rates of up to 24 Mbps and upstream data rates of up to 1.5 Mbps

* ADSL2 downstream rates of up to 12 Mbps and upstream data rates of up to 1 Mbps


Return to Top

HWIC-ADSLI-B-S/T (2 port ADSL over ISDN)


Has one backup ISDN BRI S/T port (data only) and 1 ADSL over ISDN port

Supports ADSL over ISDN with Annex B G.992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+)

Supports reach-extended ADSL2 standard (G.992.3) Annex L

Supports Dying Gasp function and has one RJ-11 ADSL interface


Platform Support
Platform Cisco 1841 Cisco 2800 Cisco 3800
HWIC-ADSLI-B-S/T 12.4(6)T Base 12.4(6)T Base 12.4(6)T Base

* ADSL2+ downstream data rates of up to 24 Mbps and upstream data rates of up to 1.5 Mbps

* ADSL2 downstream rates of up to 12 Mbps and upstream data rates of up to 1 Mbps

Return to Top

AIM-ATM, AIM-VOICE-30, AIM-ATM-VOICE-30


Product Description Features
AIM-ATM ATM SAR Advanced Integration Module AAL1,2, and 5 Support.
PVC/SVC support.
Up to 30 Voice channels of AAL2 (AIM-ATM requires NM-HDV for voice support)
Up to 4 T1/E1 channels of AAL5 (with IMA support).
Up to 2048 VCs.
IEFT PPP over ATM Support.
AIM-ATM-VOICE-30 SAR and 30 Channel T1/E1 Digital Voice module
AIM-VOICE-30 30 Channel T1/E1 Digital Voice module

Platform Support
IOS Support 1800 2600 2600XM 2801 2811, 2821, 2851 3620, 3640 3631 3660 2691, 3725, 3745 3800
AIM-ATM Not Supported 12.2(2)XA, 12.2(8)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.3(8)T4 Not Supported 12.3(2)T 12.2(2)XB, 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T
AIM-ATM-VOICE-30 Not Supported 12.2(2)XB, 12.2(8)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported 12.2(2)XB, 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported
AIM-VOICE-30 Not Supported 12.2(2)XB, 12.2(8)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported 12.2(2)XB, 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported

Requires Cisco IOS "Plus" or "SP Services" Feature Sets

Return to Top

AIM-ATM, AIM-VOICE-30, AIM-ATM-VOICE-30


Product Description Features
AIM-ATM ATM SAR Advanced Integration Module AAL1,2, and 5 Support.
PVC/SVC support.
Up to 30 Voice channels of AAL2 (AIM-ATM requires NM-HDV for voice support)
Up to 4 T1/E1 channels of AAL5 (with IMA support).
Up to 2048 VCs.
IEFT PPP over ATM Support.
AIM-ATM-VOICE-30 SAR and 30 Channel T1/E1 Digital Voice module
AIM-VOICE-30 30 Channel T1/E1 Digital Voice module

Platform Support
IOS Support 1800 2600 2600XM 2801 2811, 2821, 2851 3620, 3640 3631 3660 2691, 3725, 3745 3800
AIM-ATM Not Supported 12.2(2)XA, 12.2(8)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.3(8)T4 Not Supported 12.3(2)T 12.2(2)XB, 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T
AIM-ATM-VOICE-30 Not Supported 12.2(2)XB, 12.2(8)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported 12.2(2)XB, 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported
AIM-VOICE-30 Not Supported 12.2(2)XB, 12.2(8)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported 12.2(2)XB, 12.2(8)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported

Requires Cisco IOS "Plus" or "SP Services" Feature Sets

Return to Top

AIM-COMPR2 / AIM-COMPR4


Product Description
AIM-COMPR2 Data Compression AIM for 2600 Series. Supports compressed data up to 2 E1 full duplex. Supports PPP STAC compression, MPPC compression, and FRF.9 frame relay compression. Supports a maximum of 128 LZS sessions, or a maximum of 64 MPPC sessions.
AIM-COMPR4 Data Compression AIM for 2691, 3660, and 3700 Series. Supports compressed data up to 4 E1 full duplex. Supports PPP STAC compression, MPPC compression, and FRF.9 frame relay compression. Supports a maximum of 256 LZS sessions, or a maximum of 128 MPPC sessions.

Platform Support
IOS Support 1800 2600 2600XM 2800 3620, 3640 3631 3660 2691, 3725, 3745 3800
AIM-COMPR2 Not Supported 12.0(1)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.3(1) 12.0(1)T 12.1(14), 12.2(12), 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported
AIM-COMPR4 Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported 12.0(5)T, 12.1(1), 12.1(1)T, 12.2(1), 12.2(2)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.2(13)T, 12.2(11)YT, 12.3(1), 12.3(2)T 12.3(11)T

Return to Top

AIM-CUE


Product Description
AIM-CUE

The Cisco Unity Express advanced integration module is fully self-contained with dedicated onboard processing, memory and storage. And, because the advanced integration module is internally installed on the router, it frees external interface slots for other services like analog and digital voice, VPN acceleration or switching.

Advanced integration module (AIM-CUE) has a robust onboard microprocessor. Please note the Cisco Unity Express as of version 2.0, now comes with 1GIG of industrial grade compact flash storage.
AIM-CUE-1GBCF Cisco Unity Express - 1GB Compact Flash
AIM-CUE-512CF Cisco Unity ExpressCompact - 512MB Compact Flash

Platform Support
IOS Support 2600XM 2691 2801,2811,2821,2851 3725, 3745 3825,3845
AIM-CUE 12.3(7)T 12.3(7)T 12.3(8)T4 12.3(7)T 12.3(11)T

Notes:
1. Requires IP Voice feature set.
2. Requires Cisco Unity Express License.

Return to Top

Virtual Private Network (VPN) modules


Product Description Performance
AIM-VPN/BP DES/3DES VPN Encryption AIM - Base Performance 2-6Mb/s, 150 tunnels max
AIM-VPN/EP DES/3DES VPN Encryption AIM - Enhanced Performance 4-14Mb/s, 400 tunnels
(2650 performance)
AIM-VPN/HP DES/3DES VPN Encryption AIM - High Performance 10-24Mb/s, 900 tunnels max
AIM-VPN/BPII DES/3DES/AES VPN Encryption/Compression Module for 2600XM 20-Mbps 3DES performance in 2611 and up to 22 Mbps on the Cisco 2651XM
AIM-VPN/EPII DES/3DES VPN Encryption AIM - High Performance up to 150 Mb/s, 2000 tunnels max
AIM-VPN/HPII DES/3DES VPN Encryption AIM - High Performance up to 180 Mb/s, 2000 tunnels max
NM-VPN/MP DES/3DES VPN Encryption NM for 3620/3640 - Mid Performance 5-12Mb/s, 400 tunnels max
AIM-VPN/BPII-PLUS DES/3DES/AES Encryption AIM - Base Performance
up to 20-22 Mbps
AIM-VPN/EPII-PLUS DES/3DES/AES Encryption AIM - Enhanced Performance up to 80-150 Mbps
AIM-VPN/HPII-PLUS DES/3DES/AES Encryption AIM - High Performance up to 180 Mbps

Platform Support
IOS Support 1800 2600 2600XM 2800 3620 3631 3640 3660 2691, 3725 3745 3825 3845
AIM-VPN/BP Not Supported 12.1(3a)XI1, 12.2(1), 12.2(2)T, 12.3(1) 12.2(12), 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported
AIM-VPN/EP Not Supported 12.2(2)T, 12.3(1) 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported Not Supported 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported
AIM-VPN/HP Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported 12.1(3a)XI1, 12.2(1), 12.2(2)T, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported
AIM-VPN/BPII Not Supported 12.1(3a)XI1, 12.2(1), 12.2(2)T, 12.3(1) 12.2(12), 12.2(8)T1, 12.2(11)YT, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported
AIM-VPN/EPII Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported 12.2(13)T, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported
AIM-VPN/HPII Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported 12.2(13)T, 12.3(1), 12.3(2)T Not Supported 12.2(13)T, 12.3(1), 12.3(2)T Not Supported Not Supported
NM-VPN/MP Not Supported Not Supported Not Supported Not Supported 12.1(3a)XI1, 12.2(1), 12.2(2)T, 12.3(1) Not Supported 12.1(3a)XI1, 12.2(1), 12.2(2)T, 12.3(1), 12.3(2)T Not Supported Not Supported Not Supported Not Supported Not Supported
AIM-VPN/BPII-PLUS 12.3(8)T Not Supported 12.3(5c)/12.3(6), 12.3(7)T Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported
AIM-VPN/EPII-PLUS Not Supported Not Supported Not Supported 12.3(8)T Not Supported Not Supported Not Supported Not Supported 12.3(5c)/12.3(6), 12.3(7)T Not Supported 12.3(11)T Not Supported
AIM-VPN/HPII-PLUS Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported 12.3(5c)/12.3(6), 12.3(7)T Not Supported 12.3(5c)/12.3(6), 12.3(7)T Not Supported 12.3(11)T

Software Prerequisites: Cisco IOS software with the "IPSEC" or "Advanced Security" or higher feature set and maximum ONE Encryption modules/AIMs per Router


Return to Top
