CISCO VPN 3000 SERIES CONCENTRATOR Hardware View

Cisco VPN 3000 Series Concentrators is a family of purpose-built, remote access Virtual Private Network (VPN) platforms and client software that incorporates high availability, high performance and scalability with the most advanced encryption and authentication techniques available today. With the Cisco VPN 3000 Series Concentrator, customers can take advantage of the latest VPN technology to vastly reduce their communications expenditures. Unique to the industry, it is the only scalable platform to offer field-swappable and customer-upgradeable components. These components, called Scalable Encryption Processing (SEP) modules, enable users to easily add capacity and throughput. Cisco VPN 3000 Series Concentrators include models to support a range of enterprise customers, from small businesses with 100 or fewer remote access users to large organizations with up to 10,000 simultaneous remote users. With all versions of the Cisco VPN 3000 Series Concentrator, the Cisco VPN Client is provided at no additional charge and includes unlimited distribution licensing. The Cisco VPN 3000 Series Concentrator is available in both non-redundant and redundant configurations, allowing customers to build the most robust, reliable and cost-effective networks possible.

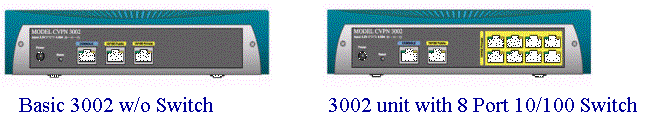

CVPN3002-K9 / CVPN3002-8E-K9



  • Instrumentation and Physical Ports
  • Front panel: status LEDs for Power, Tunnel Status and VPN establishment
  • Rear panel: status LEDs for Ethernet ports (amber/green)
  • Rear connectors for CVPN 3002-K9: three (3) RJ-45 ports including (1) public port, (1) private port and (1) console port with full signals
  • Rear connectors for CVPN 3002-8EK9: ten (10) RJ-45 ports including (1) public port, (8) private port switch and (1) console port with full signals
  • Reset switch: resets unit to factory defaults
  • Power cord connector

Return to Top

CVPN3005-E/FE




Two 10/100Base-T Ethernet interfaces (autosensing). Models Comparison


Return to Top

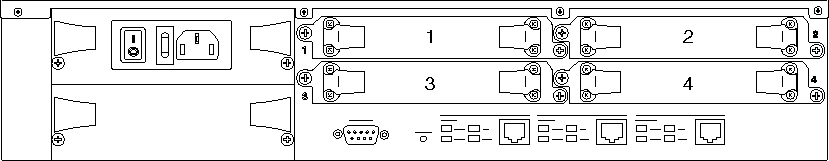

CVPN3015 / 3030 / 3060 / 3080




Three 10/100Base-T Ethernet interfaces (autosensing). Models Comparison


Return to Top

SEP / SEP-E




Cisco VPN 3000 Concentrator v4.0 introduces a new Scalable Encryption Processing (SEP) module known as the SEP-E. The SEP-E is supported with v4.0 and later software only. Older modules will also be supported with v4.0. The SEP-E module adds support for high-speed Advanced Encryption Standard (AES) encryption, in addition to Data Encryption Standard (DES) and Triple DES (3DES). Prior SEP modules will continue to support AES in software.
