CISCO CATALYST 3750 Series Switches Hardware View

The Cisco Catalyst 3750 Series is an innovative product line for mid-sized organizations and enterprise branch offices. Featuring Cisco StackWise technology, the products improve LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches.

Cisco StackWise Technology-A New Standard in Stackable Resiliency
Cisco StackWise Technology is a revolutionary stacking architecture that brings unparalleled levels of resiliency, automation and performance to stackable switches. With Cisco StackWise technology, customers can create a single, 32 Gbps switching unit with up to nine individual Catalyst 3750 switches.

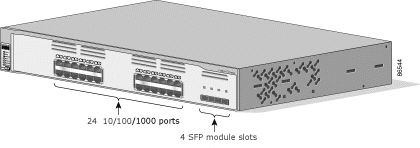

WS-C3750G-24TS-S / WS-C3750G-24TS-E



24 Ethernet 10/100/1000 ports and 4 SFP slots.

Return to Top

WS-C3750G-24T-S / WS-C3750G-24T-E



24 Ethernet 10/100/1000 ports.

Return to Top

WS-C3750G-12S-S / WS-C3750G-12S-E



12 SFP slots.

Return to Top

WS-C3750-24TS-S / WS-C3750-24TS-E



24 Ethernet 10/100 ports and 2 small form-factor pluggable (SFP) slots.

Return to Top

WS-C3750-48TS-S / WS-C3750-48TS-E



48 Ethernet 10/100 ports and 4 small form-factor pluggable (SFP) slots.

Return to Top

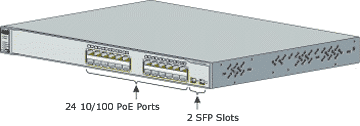

WS-C3750-24PS-S / WS-C3750-24PS-E



24 10/100 Ethernet ports and 2 small form-factor pluggable (SFP) slots. Ethernet ports provide 802.3af compliant and Cisco Inline PoE.

Return to Top

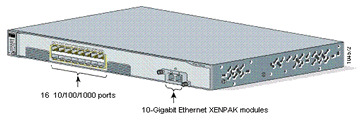

WS-C3750G-16TD-S / WS-C3750G-16TD-E



16 10/100/1000 Ethernet ports and 1 10-Gigabit Ethernet XENPAK uplink.

Return to Top

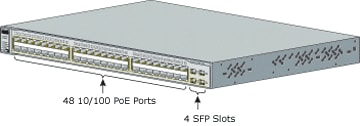

WS-C3750-48PS-S / WS-C3750-48PS-E



48 10/100 Ethernet ports and 4small form-factor pluggable (SFP) slots. Ethernet ports provide 802.3af compliant and Cisco Inline PoE.

Return to Top

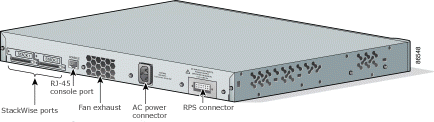

Rear Panel of 3750



Return to Top

GLC-T



The GLC-T 1000BASE-T SFP operates on standard Category 5 wiring of up to 100m link length.

Return to Top

GLC-ZX-SM



The GLC-ZX-SM, 1000BASE-ZX SFP operates on ordinary single-mode fiber optic link spans of up to 70 kilometers (km) in length. Link spans of up to 100 km are possible using premium single-mode fiber or dispersion-shifted single-mode fiber. The SFP provides an optical link budget of 23 dB-the precise link span length will depend on multiple factors such as fiber quality, number of splices, and connectors.

  • When shorter distances of single-mode fiber are used, it may be necessary to insert an inline optical attenuator in the link, to avoid overloading the receiver. A 5-decibel (dB) or 10-dB inline optical attenuator should be inserted between the fiber optic cable plant and the receiving port on the GLC-ZX-SM at each end of the link whenever the fiber optic cable span is less than 25 km.
Return to Top

GLC-LH-SM



The GLC-LH-SM, 1000BASE-LX/LH SFP operates on ordinary single-mode fiber optic link spans of up to 10,000 meters in length.

Return to Top

GLC-SX-MM



The GLC-SX-MM, 1000BASE-SX SFP operates on ordinary multimode fiber optic link spans of up to 550 meters in length.

Return to Top

GLC-GE-100FX



CISCO 100Base-FX SFP for Gigabit SFP ports. The SFP provides full-duplex 100Mbps connectivity between switches over multimode fiber (MMF) infrastructures.

Platform Support: Catalyst 3750, 3560, and 2970 Series.
Connector Type: Dual LC connector.
Cabling Length: Minimum distance is 2 meters (6.5 feet). Maximum distance is 2km (6562 ft).
Wavelength (nm): 1310
Fiber Type: Multimode Fiber (MMF)

Cisco 100FX SFP Compatibility Matrix
