WS-C4503 / WS-C4503-E |
 |
The Catalyst 4503 chassis has three slots for online-swappable modules. Slot 1 is reserved for the supervisor engine, which provides switching, local and remote management, and switch-status monitoring. Slots 2 and 3 are available for switching modules. |
Return to Top
WS-C4506 / WS-C4506-E |
 |
The Catalyst 4506 chassis has six slots for online-swappable modules. Slot 1 is reserved for the supervisor engine, which provides switching, local and remote management, and switch-status monitoring. Slots 2 through 6 are available for switching modules. |
Return to Top
WS-C4507R / WS-C4507R-E |
 |
The Catalyst 4507R chassis has seven slots for online-swappable modules. Slot 1 is reserved for the supervisor engine, which provides switching, local and remote management, and switch-status monitoring. Slot 2 is reserved for a redundant supervisor engine only. Slots 3 through 7 are available for switching modules. |
Return to Top
WS-C4510R / WS-C4510R-E |
 |
The Catalyst 4510R switch supports the Supervisor Engine V. The supervisor engine has two Gigabit Ethernet ports and a 96-Gbps, nonblocking, full-duplex, switching fabric that provides connections between the supervisor engine and the switching modules. The Gigabit Ethernet ports can be configured with any combination of copper 1000BASE-T, shortwave SX, LX/LH, and ZX interfaces, or CWDM and DWDM GBICs. |
Return to Top
WS-X4013+ |
 |
Return to Top
WS-X4013+10GE |
 |
Return to Top

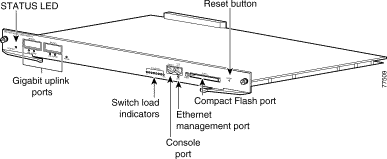

WS-X4515 |
 |
Return to Top

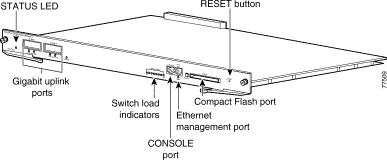

WS-X4516 |
 |
Return to Top
WS-X4516-10GE |
|
Catalyst 4500 Supervisor V-10GE , Console(RJ-45). superior 102 mpps and 136 Gbps L2-4 performance, Future proofing with 2-10GbE and 4GE uplinks uplinks |
Return to Top
WS-X45-SUP6-E |
 |
| Catalyst 4500 E-series Supervisor Engine 6-E, The Supervisor Engine 6-E is supported in the Catalyst 4503, 4506, 4507R, 4510R, 4503-E, 4506-E, 4507R-E, and 4510R-E switches. On the Catalyst 4503, 4503-E, 4506, and 4506-E switches, you can install the Supervisor Engine 6-E only in slot 1. On the Catalyst 4507R or 4510R switch, you install the primary supervisor engine in slot 1, and you can install an optional redundant supervisor engine in slot 2. On the Catalyst 4507R-E switch, you install the primary supervisor engine in slot 3, and you can install an optional redundant supervisor engine in slot 4. On the Catalyst 4510R-E switch, you install the primary supervisor engine in slot 5, and you can install an optional redundant supervisor engine in slot 6. The supervisors in a redundant system must be of the same type. The supervisor engine is hot swappable, but packets are not forwarded when the last supervisor engine has been removed from the switch. When a supervisor engine is reinserted into the switch, the supervisor reboots. |

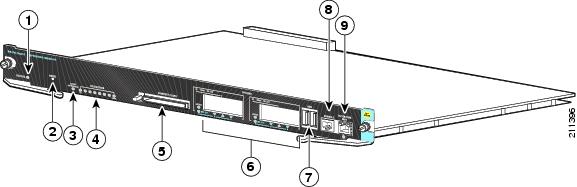

1 |
Status LED |
6 |
Uplink ports |
2 |
Reset button |
7 |
USB port |
3 |
Active Supervisor LED |
8 |
Console port |
4 |
Utilization LEDs |
9 |
Management port |
5 |
Compact flash port |
|
|
The Supervisor Engine 6-E provides the following features:
512-MB onboard SODIMM memory (upgradeable to 1 GB)
128-MB onboard flash memory (in addition to compact flash memory)
320-Gbps switching capacity, 250 million packets-per-second actual forwarding rate (v4),
125 million packets-per-second actual forwarding rate (v6)
Support for up to 55,000 MAC addresses for Layer 2 switching (up to 64,000 entries, 16-way associative lookup table)
Support for up to 4,096 VLANs, 802.1Q VLAN tagging on all ports
Up to 64,000 unicast and multicast forwarding entries, expandable to 256, 000 unicast and multicast IPV4 forwarding information base (FIB) entries
Support for Catalyst 4500 series and Catalyst 4500 E-series switching modules (except EoL models)
Return to Top
WS-X4648-RJ45V-E |
 |
WS-X4648-RJ45V-E Cisco Catalyst 4500 E-Series 48-Port 802.3af PoE 10/100/1000 (RJ-45) |
24 gigabits per slot capacity
48 ports
10/100/1000 module (RJ-45)
Cisco IOS Software Release 12.2(40)SG or later
Bandwidth is allocated across eight 6-port groups, providing 3 Gbps per port group (2:1)
L2-4 Jumbo Frame support (up to 9216 bytes)
IEEE 802.3af and Cisco prestandard PoE, IEEE 802.3x flow control
Enterprise and commercial: designed to power IP phones, wireless base stations, video cameras, and other IEEE-compliant powered devices
Campus and Branch applications requiring enhanced performance for large file transfers and network backups
Return to Top
WS-X4648-RJ45V+E |
|
WS-X4648-RJ45V+E Cisco Catalyst 4500 E-Series 48-Port Premium PoE 10/100/1000 (RJ-45)
|
24 gigabits per slot capacity
48 ports
10/100/1000 module (RJ-45)
Cisco IOS Software Release 12.2(40)SG or later
IEEE 802.3af and Cisco prestandard PoE, IEEE 802.3x flow control
Bandwidth is allocated across eight 6-port groups, providing 3 Gbps per port group (2:1)
L2-4 Jumbo Frame support (up to 9216 bytes)
Future support for 30W of PoE per port
Enterprise and commercial: designed to power next generation IP phones, wireless base stations, video cameras, and other PoE devices
Campus and Branch applications requiring enhanced performance for large file transfers and network backups
Return to Top
WS-X4606-X2-E |
 |
WS-X4606-X2-E Cisco Catalyst 4500 E-Series 6-port 10 Gigabit Ethernet (X2) |
24 gigabits per slot capacity
Up to 6 ports 10GE X2 or 12 ports 1GE SFP via TwinGig Converter Module
TwinGig modules must be used in groups of three: ports 1-3 or ports 4-6
10GBASE-X (X2) and 1GBASE-X (SFP)
Cisco IOS Software Release 12.2(40)SG or later
IEEE 802.3
24-gigabit bandwidth is allocated across six 10 Gigabit Ethernet ports (2.5:1)
L2-4 Jumbo Frame support (up to 9216 bytes)
Enterprise and commercial: designed for high-speed backbone, switch-to-switch applications, or small server farms
Return to Top
CVR-X2-SFP |
 |
CVR-X2-SFP
TwinGig Converter Module
|

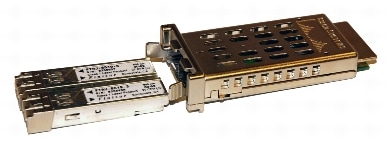

| The Cisco TwinGig Converter Module converts a single 10 Gigabit Ethernet X2 interface into two Gigabit Ethernet port slots, which can be populated with appropriate Small Form-Factor Pluggable (SFP) optics, providing a total of 12 wire-speed Gigabit Ethernet ports if used in all 6 X2 interface slots. The flexibility provided by the TwinGig Converter Module enables customers to aggregate Gigabit Ethernet and 10 Gigabit Ethernet LAN access switches on a single line card. The ability to support either Gigabit Ethernet uplinks or 10 Gigabit Ethernet ports on a single line card further demonstrates the flexibility and the investment protection of the Cisco Catalyst 4500 Series architecture. |
Return to Top
WS-X4124-FX-MT |
 |
Fast Ethernet Switching Module, 24 - 100FX (MTRJ). |
Return to Top
WS-X4148-FX-MT |
 |
Fast Ethernet Switching Module, 48 - 100FX (MTRJ). |
Return to Top
WS-X4148-FE-LX-MT |
 |
Fast Ethernet module, 48-port 100LX simple mode (MTRJ). |
|
Return to Top
WS-X4124-RJ45 |
 |
Cisco Catalyst 4500 10/100 Module, 24 ports (RJ-45) |
Return to Top
24-Port 10/100 Line Card with IEEE 802.3af and Cisco pre-standard Power over Ethernet |
Return to Top
WS-X4524-GB-RJ45V |
 |
Cisco Catalyst 4500 PoE 802.3af 10/100/1000, 24 ports (RJ-45) |
Return to Top
WS-X4124-RJ45 |
|
Cisco Catalyst 4500 10/100 Module, 24 ports (RJ-45) |
Return to Top
WS-X4148-RJ |
 |
10/100 Auto Module, 48-Ports (RJ-45). |
Return to Top
WS-X4148-RJ21 |
 |
10/100 Module, 48-Ports Telco (4 x RJ21). |
Return to Top
WS-X4148-RJ45V |
 |
Inline Power 10/100, 48-Ports (RJ45). |
Return to Top
WS-X4232-GB-RJ |
 |
32-10/100 (RJ-45),2-GE(GBIC) slots. |
Return to Top
WS-X4232-L3 |
 |
Layer 3 services module. 2 GBIC slots (Req. GBICs), 32 10/100BaseTX ports (RJ45). |
Return to Top
WS-X4232-RJ-XX |
 |
32-ports(RJ45) + Modular uplinks. |
Return to Top
WS-X4248-RJ45V |
 |
Catalyst 4500 PoE 802.3af 10/100, 48-Ports(RJ45) |
Return to Top
WS-X4248-RJ21V |
 |
Catalyst 4500 PoE 802.3af 10/100, 48-Ports(RJ21) |
Return to Top
WS-X4548-GB-RJ45V |
 |
Catalyst 4500 PoE 802.3af 10/100/1000, 48-Ports(RJ45) |
Return to Top
WS-X4424-GB-RJ45 |
 |
24-Port 10/100/1000 Module (RJ45). |
Return to Top
WS-X4306-GB |
 |
Gigabit Ethernet Module, 6-Ports GBIC slots. |
Return to Top
WS-X4302-GB |
 |
Gigabit Ethernet Module, 2-Ports GBIC slots. |
Return to Top
WS-X4418-GB |
 |
Gigabit Ethernet Module, 18-Ports GBIC slots. |
Return to Top
WS-X4448-GB-LX |
 |
48-Port 1000Base-LX, Uses SFP and are included. |
Return to Top
WS-X4448-GB-RJ45 |
 |
48-Port 10/100/1000 Module (RJ45). |
|
Return to Top
WS-X4448-GB-SFP |
 |
48-Port Modular 1000Base-X SFP Ethernet Switching Module |
Return to Top
WS-X4548-GB-RJ45 |
 |
48-Port Enhanced 10/100/1000 Module (RJ45). |
Return to Top
WS-U4504-FX-MT |
 |
FE Uplink module,4-port 100FX MMF(MTRJ). |
Return to Top

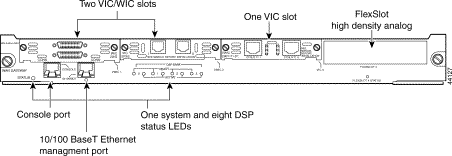

Access Gateway Module (AGM). |
Return to Top
WS-X4412-2GB-T - End of sale |
 |
Gigabit Ethernet Switching Module, 12 1000T(RJ45) + 2 1000X(GBIC Slot). |
Return to Top
WS-U4604-ESA - End of sale |
 |

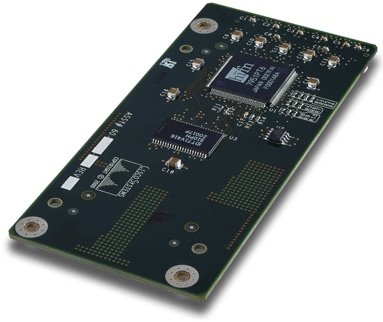

Catalyst 4000 AGM Integrated Service Adapter. |
Return to Top
WS-U4604-8FXS / WS-U4604-16FXS - End of sale |
 |

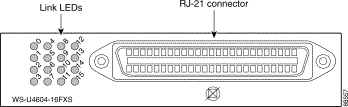

Catalyst 4000 AGM 8 Port RJ21 FXS module. |
 |
Catalyst 4000 AGM 8 or 16 Port RJ21 FXS module. |
Return to Top
WS-U4604-DSP - End of sale |
Catalyst 4000 DSP Set, 4x6 SIMMs for AGM. |
Return to Top
WS-G5484 |
 |
Return to Top
WS-G5486 |
|
Cisco 1000BASE-LX/LH GBIC. The Cisco 1000BASE-LX/LH GBIC fully complies with the IEEE 802.3z 1000BASE-LX standard. However, its higher optical quality allows it to reach 6.2 miles (10 kilometers) over single-mode fiber (SMF), compared with the 3.1 miles (5 km) specified in the standard. Cisco Optical GBIC Compatibility Matrix. |
Return to Top
WS-G5487 |
|
Cisco 1000BASE-ZX GBIC. The Cisco 1000BASE-ZX GBIC operates on ordinary single-mode fiber optic link spans up to 43.4 miles (70 km) long. Link spans of up to 62 miles (100 km) are possible using premium single-mode fiber or dispersion shifted single-mode fiber. The GBIC provides an optical link budget of 23 dB-the precise link span length will depend on multiple factors such as fiber quality, number of splices, and connectors.
When shorter distances of single-mode fiber are used, it might be necessary to insert an in-line optical attenuator in the link to avoid overloading the receiver:
- A 5-dB or 10-dB inline optical attenuator should be inserted between the fiber-optic cable plant and the receiving port on the Cisco 1000BASE-ZX GBIC at each end of the link whenever the fiber-optic cable span is less than 15.5 miles (25 km).
Cisco Optical GBIC Compatibility Matrix. |
