Optimizing PIM Sparse Mode in a Large IP Multicast Deployment
This module describes how to optimize Protocol Independent Multicast (PIM) sparse mode for a large deployment of IP multicast. You can set a limit on the rate of PIM register messages sent in order to limit the load on the designated router and RP, you can reduce the PIM router query message interval to achieve faster convergence, and you can delay or prevent the use of the shortest path tree.
Module History
This module was first published on May 2, 2005, and last updated on May 2, 2005.
Finding Feature Information in This Document
Not all features may be supported in your Cisco IOS software release. Use the "Feature Information for Optimizing PIM Sparse Mode in a Large IP Multicast Deployment" to find information about feature support and configuration.
Contents
•
Prerequisites for Optimizing PIM Sparse Mode in a Large IP Multicast Deployment
•
•
•
•
Prerequisites for Optimizing PIM Sparse Mode in a Large IP Multicast Deployment
This module assumes you have met the following prerequisites:
•
•
•
Information About Optimizing PIM Sparse Mode in a Large IP Multicast Deployment
Before optimizing PIM sparse mode for a large deployment, you should understand the following concepts:
•
•
PIM Registering Process
IP multicast sources do not use a signaling mechanism to announce their presence. Sources just send their data into the attached network, as opposed to receivers that use Internet Group Management Protocol (IGMP) to announce their presence. If a source sends traffic to a multicast group configured in PIM sparse mode (PIM-SM), the Designated Router (DR) leading toward the source must inform the rendezvous point (RP) about the presence of this source. If the RP has downstream receivers that want to receive the multicast traffic (natively) from this source and has not joined the shortest path leading toward the source, then the DR must send the traffic from the source to the RP. The PIM registering process, which is individually run for each (S, G) entry, accomplishes these tasks between the DR and RP.
The registering process begins when a DR creates a new (S, G) state. The DR encapsulates all the data packets that match the (S, G) state into PIM register messages and unicasts those register messages to the RP.
If an RP has downstream receivers that want to receive register messages from a new source, the RP can either continue to receive the register messages through the DR or join the shortest path leading toward the source. By default, the RP will join the shortest path, because delivery of native multicast traffic provides the highest throughput. Upon receipt of the first packet that arrives natively through the shortest path, the RP will send a register-stop message back to the DR. When the DR receives this register-stop message, it will stop sending register messages to the RP.
If an RP has no downstream receivers that want to receive register messages from a new source, the RP will not join the shortest path. Instead, the RP will immediately send a register-stop message back to the DR. When the DR receives this register-stop message, it will stop sending register messages to the RP.
Once a routing entry is established for a source, a periodic reregistering takes place between the DR and RP. One minute before the multicast routing table state times out, the DR will send one dataless register message to the RP each second that the source is active until the DR receives a register-stop message from the RP. This action restarts the timeout time of the multicast routing table entry, typically resulting in one reregistering exchange every 2 minutes. Reregistering is necessary to maintain state, to recover from lost state, and to keep track of sources on the RP. It will take place independently of the RP joining the shortest path.
PIM Version 1 Compatibility
If an RP is running PIM Version 1, it will not understand dataless register messages. In this case, the DR will not send dataless register messages to the RP. Instead, approximately every 3 minutes after receipt of a register-stop message from the RP, the DR encapsulates the incoming data packets from the source into register messages and sends them to the RP. The DR continues to send register messages until it receives another register-stop message from the RP. The same behavior occurs if the DR is running PIM Version 1.
When a DR running PIM Version 1 encapsulates data packets into register messages for a specific (S, G) entry, the entry is process-switched, not fast-switched or hardware-switched. On platforms that support these faster paths, the PIM registering process for an RP or DR running PIM Version 1 may lead to periodic out-of-order packet delivery. For this reason, we recommend upgrading your network from PIM Version 1 to PIM Version 2.
PIM Designated Router
Routers configured for IP multicast send PIM hello messages to determine which router will be the designated router (DR) for each LAN segment (subnet). The hello messages contain the router's IP address, and the router with the highest IP address becomes the DR.
The DR sends Internet Group Management Protocol (IGMP) host query messages to all hosts on the directly connected LAN. When operating in sparse mode, the DR sends source registration messages to the rendezvous point (RP).
By default, multicast routers send PIM router query messages every 30 seconds. By enabling a router to send PIM hello messages more often, the router can discover unresponsive neighbors more quickly. As a result, the router can implement failover or recovery procedures more efficiently. It is appropriate to make this change only on redundant routers on the edge of the network.
PIM Sparse-Mode Register Messages
Dataless register messages are sent at a rate of one message per second. Continuous high rates of register messages might occur if a DR is registering bursty sources (sources with high data rates) and if the RP is not running PIM Version 2.
By default, PIM sparse-mode register messages are sent without limiting their rate. Limiting the rate of register messages will limit the load on the DR and RP, at the expense of dropping those register messages that exceed the set limit. Receivers may experience data packet loss within the first second in which packets are sent from bursty sources.
Preventing Use of Shortest-Path Tree to Reduce Memory Requirement
Understanding PIM shared tree and source tree will help you understand how preventing the use of the shortest-path tree can reduce memory requirements.
PIM Shared Tree and Source Tree (Shortest-Path Tree)
By default, members of a multicast group receive data from senders to the group across a single data distribution tree rooted at the rendezvous point (RP). This type of distribution tree is called shared tree, as shown in Figure 1. Data from senders is delivered to the RP for distribution to group members joined to the shared tree.

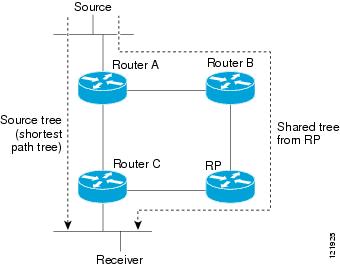

Figure 1 Shared Tree versus Source Tree (Shortest-Path Tree)
If the data rate warrants, leaf routers on the shared tree may initiate a switch to the data distribution tree rooted at the source. This type of distribution tree is called a shortest-path tree (SPT) or source tree. By default, the software switches to a source tree upon receiving the first data packet from a source.
The following process describes the move from shared tree to source tree in more detail:
1.
2.
3.
4.
5.
6.
7.
8.
Join and Prune messages are sent for sources and RPs. They are sent hop-by-hop and are processed by each PIM router along the path to the source or RP. Register and register-stop messages are not sent hop-by-hop. They are sent by the designated router that is directly connected to a source and are received by the RP for the group.
Multiple sources sending to groups use the shared tree.
Benefit of Preventing or Delaying the Use of the Shortest-Path Tree
The switch from shared to source tree happens upon the arrival of the first data packet at the last hop router (Router C in Figure 1). This switch occurs because the ip pim spt-threshold command controls that timing, and its default setting is 0 kbps.
The shortest-path tree requires more memory than the shared tree, but reduces delay. You might want to prevent or delay its use to reduce memory requirements. Instead of allowing the leaf router to move to the shortest-path tree immediately, you can prevent use of the SPT or specify that the traffic must first reach a threshold.
You can configure when a PIM leaf router should join the shortest-path tree for a specified group. If a source sends at a rate greater than or equal to the specified kbps rate, the router triggers a PIM Join message toward the source to construct a source tree (shortest-path tree). If the infinity keyword is specified, all sources for the specified group use the shared tree, never switching to the source tree.
How to Optimize PIM Sparse Mode in a Large IP Multicast Deployment
This section contains the following procedure:
•
Optimizing PIM Sparse Mode in a Large Deployment
Consider performing this task if your deployment of IP multicast is large.
Steps 3, 5, and 6 in this task are independent of each other and are therefore considered optional. Any one of these steps will help optimize PIM sparse mode. If you are going to perform Step 5 or 6, you must perform Step 4. Step 6 applies only to a designated router; changing the PIM query interval is only appropriate on redundant routers on the edge of the PIM domain.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
DETAILED STEPS
Configuration Examples for Optimizing PIM Sparse Mode in a Large IP Multicast Deployment
This section provides the following configuration example:
•
Optimizing PIM Sparse Mode in a Large IP Multicast Deployment: Example
The following example shows how to:
•
•
•
interface ethernet 0ip pim query-interval 1...!ip pim spt-threshold infinityip pim register-rate-limit 10!Additional References
The following sections provide references related to optimizing PIM sparse mode.
Related Documents
IP multicast concepts and tasks
Cisco IOS IP Multicast Configuration Guide, Release 12.4
IP multicast commands: complete command syntax, command mode, command history, defaults, usage guidelines, and examples
Cisco IOS IP Multicast Command Reference, Release 12.4
MIBs
—
To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL:
Technical Assistance
Feature Information for Optimizing PIM Sparse Mode in a Large IP Multicast Deployment
Table 1 lists the features in this module and provides links to specific configuration information. Only features that were introduced or modified in Cisco IOS Releases 12.2(1) or later appear in the table.
Not all commands may be available in your Cisco IOS software release. For details on when support for specific commands was introduced, see the command reference documents.
Cisco IOS software images are specific to a Cisco IOS software release, a feature set, and a platform. Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator (http://www.cisco.com/go/fn). You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.
Table 1 Feature Information for Optimizing PIM Sparse Mode in a Large IP Multicast Deployment
