Install Crosswork Applications
This section explains how to install Crosswork applications on the Cisco Crosswork UI.
The Crosswork Network Controller applications are bundled as Essentials, Advantage, and Add-on packages (see Cisco Crosswork Network Controller Packages for more information). Every package contains crosswork applications in a particular format unique to Crosswork known as CAPP (Crosswork APPlication). As a first step, the packages containing the application CAPP files (*.tar.gz) must be downloaded from cisco.com to a machine reachable from the Cisco Crosswork server. The package is then added to the Crosswork UI where the applications within can be installed.
You must first download the relevant Crosswork Network Controller package (Essential or Advantage or Add-on) from cisco.com and then proceed to install the applications which are part of the package.
Before you begin
Procedure
Step 1 |
Download and validate the CAPP files: |
Step 2 |

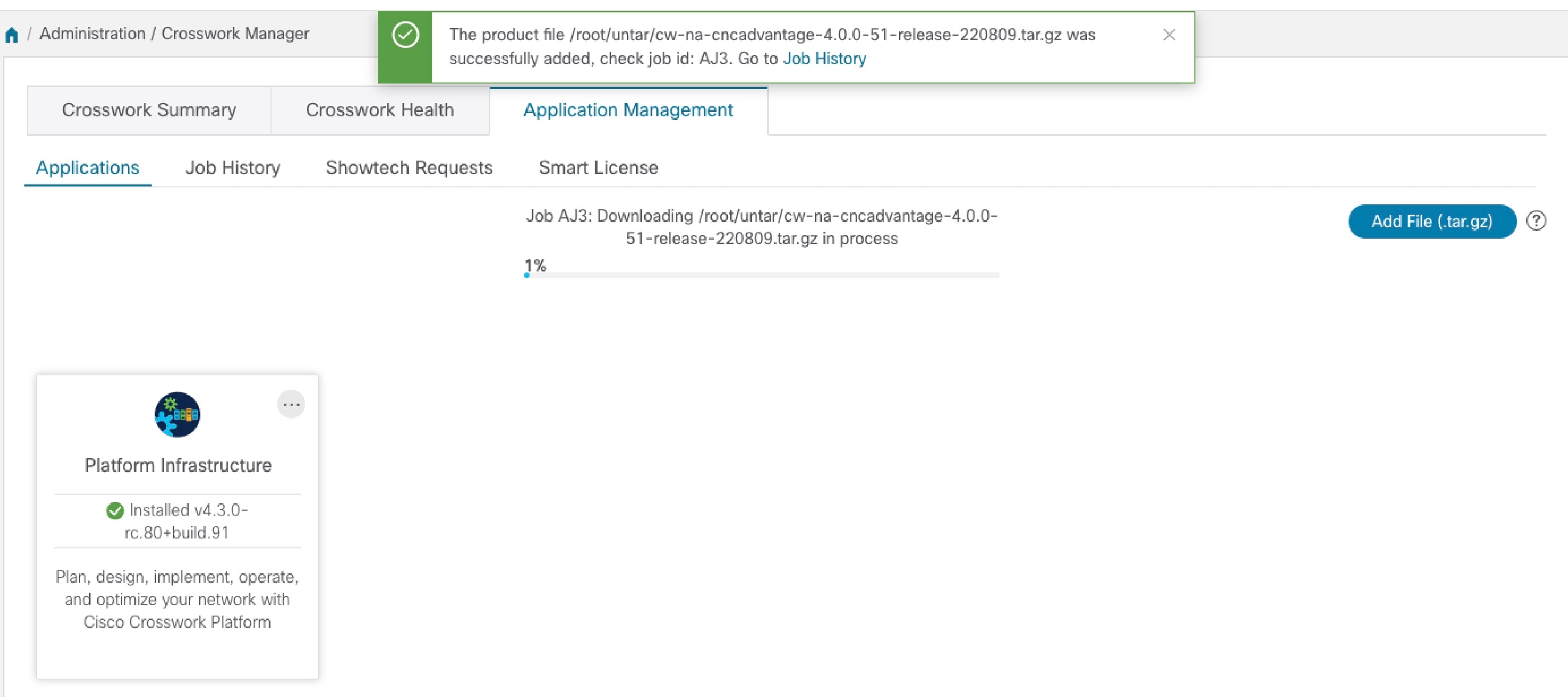

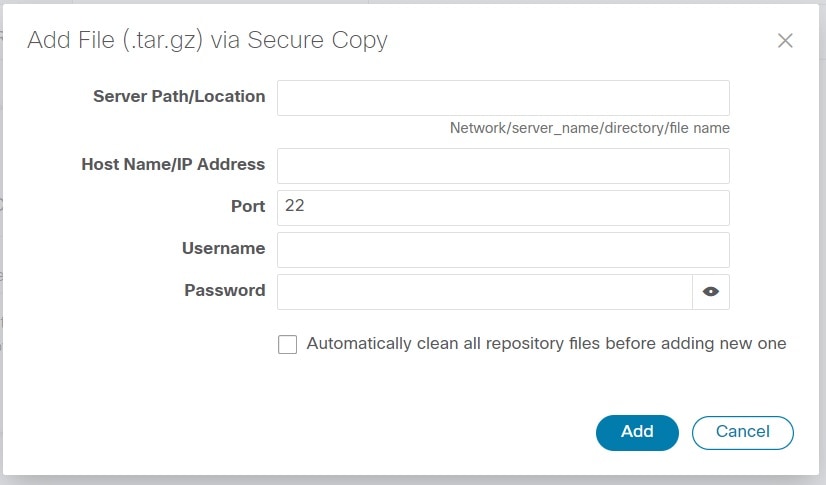

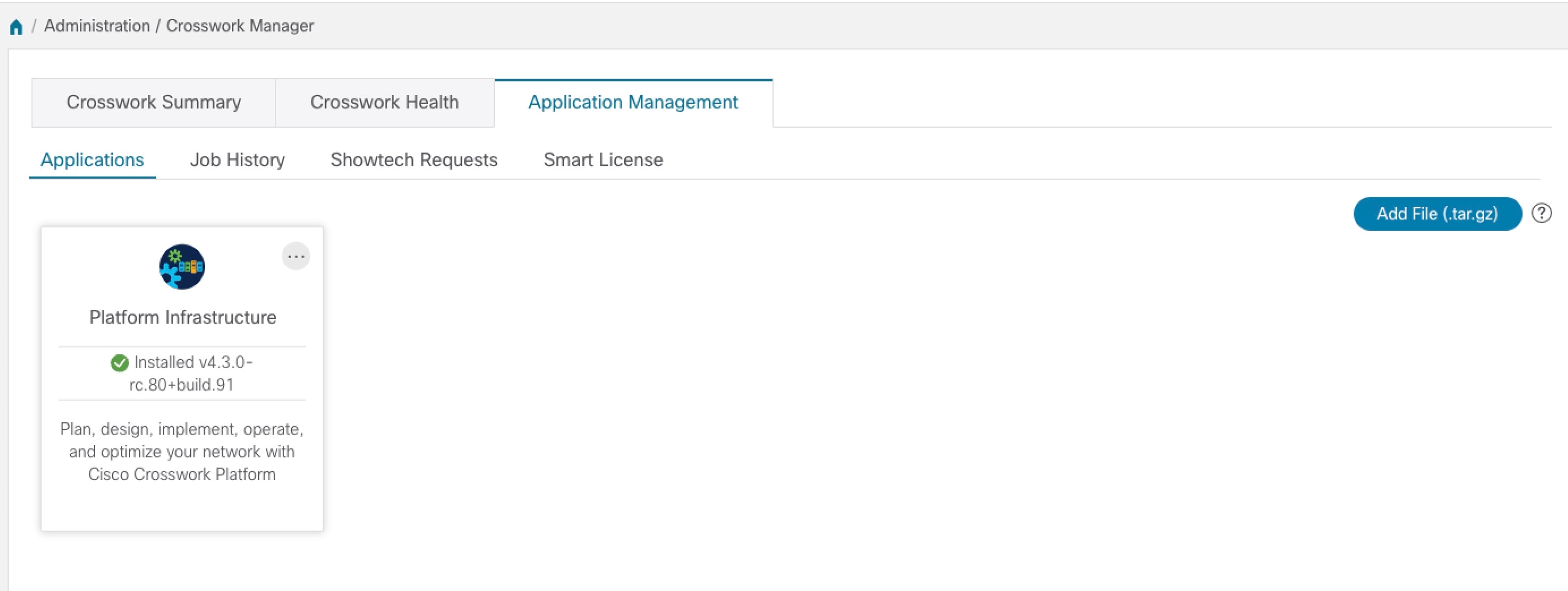

Add the downloaded CAPP file to Crosswork: |
Step 3 |

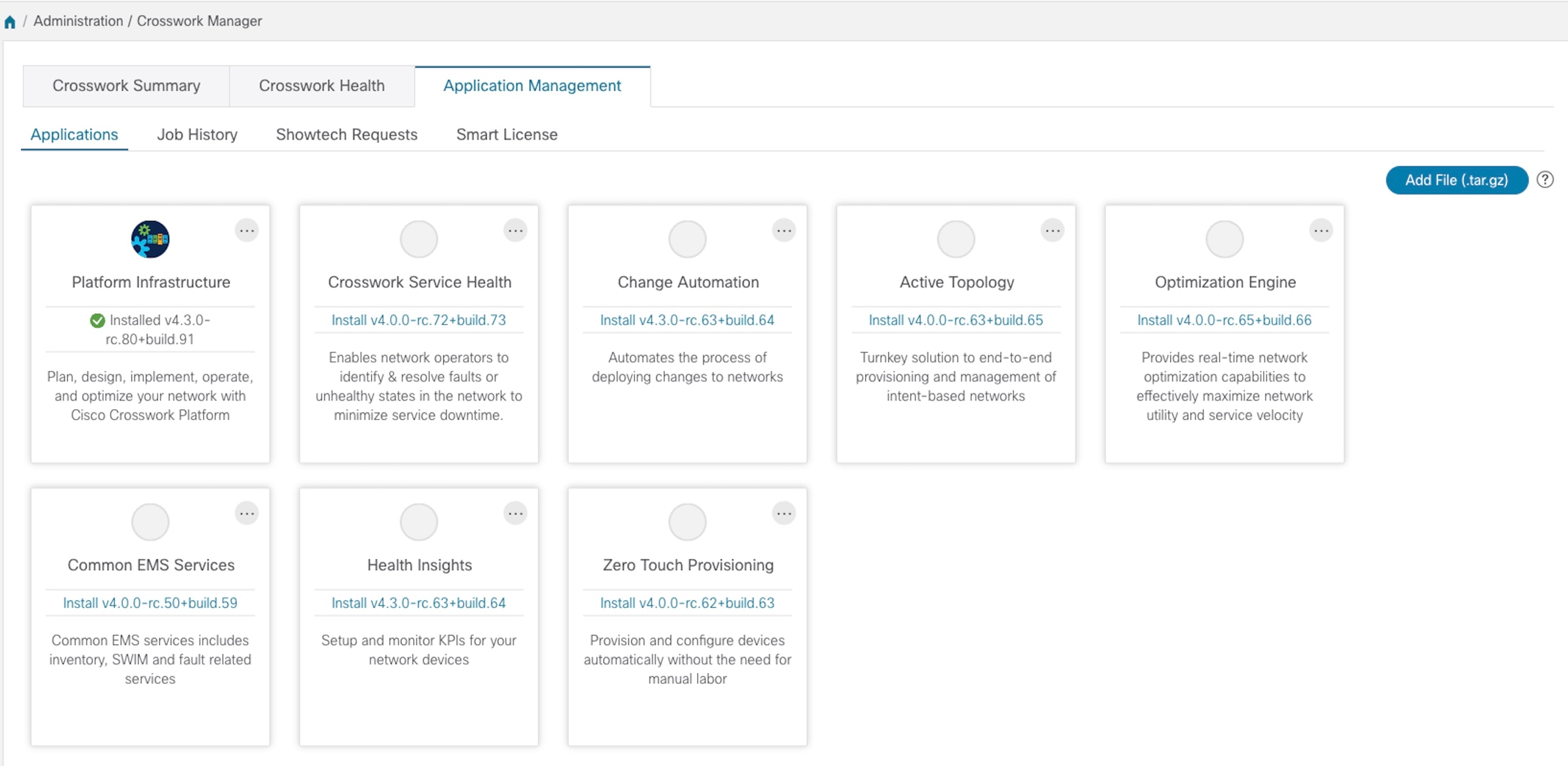

Install the Application CAPP file: |
Step 4 |
Repeat step 3 for installing any remaining applications. |
Step 5 |
(Optional) Click |
Step 6 |

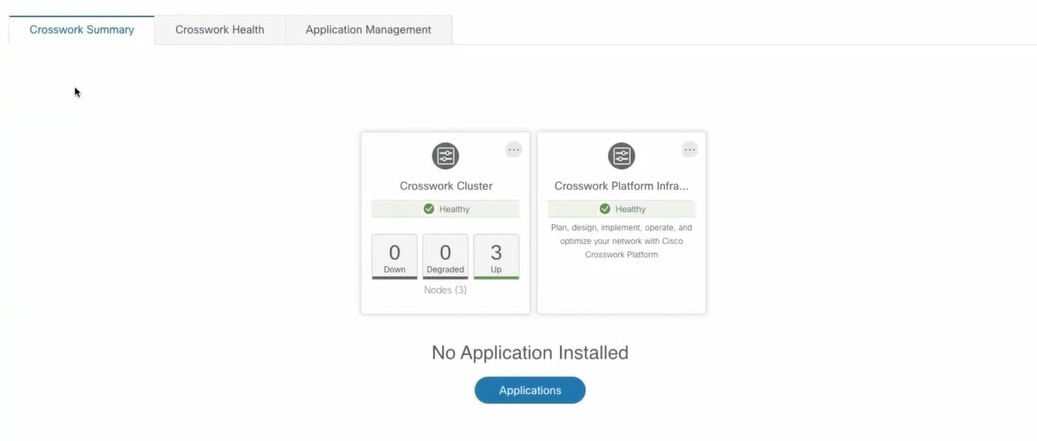

Once an application (or all applications) have been installed, check the health of the environment to make sure all the applications are healthy. It can take up to an hour for all the processes to launch and for the applications to report as healthy. If a newly installed application is not healthy after an hour, contact the Cisco Customer Experience team. |
What to do next
Return to the installation workflow:
