Configuring Cisco Cloud APIC Components

About Configuring the Cisco Cloud APIC

You create the Cisco Cloud APIC components using either the Cisco Cloud APIC GUI or the REST API. This section explains how to create configuration, application management, operations, and administrative components. `


Note

For information about the GUI, such as navigation and a list of configurable components, see About the Cisco Cloud APIC GUI.


Configuring the Cisco Cloud APIC Using the GUI

Creating a Tenant

The following sections describe how to create a managed tenant or unmanaged tenant.

Setting Up the Google Cloud Project for a User Tenant

Perform the procedures in this section to set up the Google Cloud project for a user tenant, where that user tenant is either a managed or an unmanaged tenant.

Procedure


Step 1

Create a Google Cloud project for the user tenant, if necessary.

Each user tenant is mapped one-to-one to a Google Cloud project. If you do not have a Google Cloud project created yet for your user tenant, follow these procedures to create a Google Cloud project.

  1. Log into your Google account.

  2. Navigate to IAM & Admin > Manage resources.

  3. Using the Select organization drop-down list at the top of the page, choose the organization where you want to create a project.

  4. Click + CREATE PROJECT.

  5. In the New Project window that appears, enter a project name and select a billing account as applicable.

    A project name can contain only letters, numbers, single quotes, hyphens, spaces, or exclamation points, and must be between 4 and 30 characters.

  6. Enter the parent organization or folder in the Location field.

    That resource will be the hierarchical parent of the new project.

  7. Click CREATE.

Step 2

In Google Cloud, enable the appropriate service APIs in the service account associated with this user tenant.

  1. In the Google Cloud GUI, log into the Google Cloud project that is associated with this user tenant.

    The Dashboard for the project is displayed.
  2. In the search bar at the top of the Dashboard, search for APIs & Services, then click the result from that search to access the APIs & Services window.

  3. In the APIs & Services window, click the + ENABLE APIS AND SERVICES tab.

    The API Library window appears.

  4. In the Search for APIs & Services field, search for and enable the necessary services.

    For each of the services in the list below:

    1. Search for the API or service in the Search for APIs & Services field.

    2. Click on the search result to display the page for that API or service.

    3. Click the ENABLE button in that API or service page.

    Following are the APIs and services that you must search for and enable:

    • Compute Engine API

    • Cloud Deployment Manager V2 API

    • Cloud Pub/Sub API

    • Cloud Resource Manager API

    • Service Usage API

    • Cloud Logging API

    Each API or service takes several minutes to enable. You will have to navigate back to the APIs & Services window after you enable each API or service.

    Note that the following additional APIs and services should be enabled automatically when you enable all of the APIs and services listed above:

    • Identity and Access Management (IAM) API

    • IAM Service Account Credentials API

    • Cloud OS Login API

    • Cloud DNS API

    • Recommender API

    If they are not enabled automatically, enable them manually.

Step 3

Set the necessary permissions for this user tenant in Google Cloud.

  1. In the Google Cloud GUI, log into the Google Cloud project that is associated with this user tenant.

    The Dashboard for the project is displayed.
  2. In the left nav bar, click on IAM & Admin, then choose IAM.

    The IAM window appears with several service accounts displayed.

  3. Locate the appropriate service account.

  4. Set the permissions for this service account.

    1. Click the pencil icon on the row for this service account.

      The Edit Permissions window is displayed.

    2. Click + ADD ANOTHER ROLE, then choose Editor as the role.

      You are returned to the IAM window with the service accounts displayed.

    3. Click + ADD ANOTHER ROLE again, then add the remaining necessary roles for this service account.

      Following is the full list of roles that you must assign to this service account, including the Cloud Functions Service Agent that you added in the first step of this process:

      • Editor

      • Role Admin

      • Project IAM Admin

    4. After you have added all the necessary roles, click SAVE.

      You are returned to the IAM window with the service accounts displayed and the necessary roles assigned to this service account.


Creating a Managed Tenant

The following sections provide the information that you'll need to create a managed tenant, where you will:

  • Create a managed tenant in Cisco Cloud APIC

  • Set the necessary permissions for the managed tenant in Google Cloud

Creating a Managed Tenant Using the Cisco Cloud APIC GUI

This section explains how to create a tenant that will be managed by Cisco Cloud APIC using the GUI.

Procedure

Step 1

Set up the Google Cloud project for the user tenant.

See Setting Up the Google Cloud Project for a User Tenant for those procedures.

Step 2

In the Cisco Cloud APIC GUI, navigate to Application Management > Tenants.

A table of already-configured tenants is displayed.

Step 3

Click Actions and choose Create Tenant.

The Create Tenant dialog box appears.

Step 4

Choose the appropriate options and enter the appropriate values in each field as listed in the following Create Tenant Dialog Box Fields table then continue.

Table 1. Create Tenant Dialog Box Fields

Properties

Description

Name

Enter the name of the tenant. Match the regular expression:

[a-z]([-a-z0-9]*[a-z0-9])?

This means that the first character must be a lowercase letter, and all the following characters must be hyphens, lowercase letters, or digits, except the last character, which cannot be a hyphen.

Description

Enter a description of the tenant.

Settings

Add Security Domain

To add a security domain for the tenant:

  1. Click Add Security Domain. The Select Security Domains dialog appears with a list of security domains in the left pane.

  2. Click to choose a security domain.

  3. Click Select to add the security domain to the tenant.

Google Cloud Project

Google Cloud Project ID

Enter the Google Cloud Project ID that will be associated with this Cisco Cloud APIC tenant.

Access Type

For a tenant that will be managed by the Cisco Cloud APIC, choose Managed Identity as the access type.

For more information, see Understanding Google Cloud Deployments with Cisco Cloud APIC.

Add Security Domain for Google Cloud Project

Note

Adding a security domain for Google Cloud is optional when creating a tenant.

To add a security domain for the account:

  1. Click Add Security Domain for Google Cloud Project. The Select Security Domains dialog appears with a list of security domains in the left pane.

  2. Click to choose a security domain.

  3. Click Select to add the security domain to the tenant.

Step 5

Click Save when finished.


What to do next

Complete the necessary configurations in Google Cloud for the managed tenant. Go to Setting the Necessary Permissions in Google Cloud for a Managed Tenant for those procedures.

Setting the Necessary Permissions in Google Cloud for a Managed Tenant

If you are creating a managed tenant, you must now set the necessary permissions in Google Cloud.


Note

You do not have to follow the steps in this procedure if you are creating an unmanaged tenant.


Procedure

Step 1

In the Google Cloud GUI, log into the Google Cloud project that is associated with this managed tenant.

The Dashboard for the project is displayed.

Step 2

In the left nav bar, click on IAM & Admin, then choose IAM.

The IAM window appears with several service accounts displayed.

Step 3

Locate the service account that was created in the project that is associated with the infra account.

Step 4

Copy the service account name.

Step 5

Add this service account name as an IAM user in the user tenant project.

Step 6

Set the permissions for this service account.

  1. Click the pencil icon on the row for this service account.

    The Edit Permissions window is displayed.

  2. Click + ADD ANOTHER ROLE, then choose Cloud Functions Service Agent as the role.

    You are returned to the IAM window with the service accounts displayed.

  3. Click + ADD ANOTHER ROLE again, then add the remaining necessary roles for this service account.

    Following is the full list of roles that you must assign to this service account, including the Cloud Functions Service Agent that you added in the first step of this process:

    • Cloud Functions Service Agent

    • Compute Instance Admin (v1)

    • Compute Network Admin

    • Compute Security Admin

    • Logging Admin

    • Pub/Sub Admin

    • Storage Admin

  4. After you have added all the necessary roles, click SAVE.

    You are returned to the IAM window with the service accounts displayed and the necessary roles assigned to this service account.


Creating an Unmanaged Tenant

The following sections provide the information that you'll need to create an unmanaged tenant, where you will:

  • Generate and download the necessary private key information from Google Cloud for an unmanaged tenant

  • Create an unmanaged tenant in Cisco Cloud APIC

Generating and Downloading Private Key Information from Google Cloud for an Unmanaged Tenant

If you are creating an unmanaged tenant, you must first generate and download the necessary private key information from Google Cloud.


Note

You do not have to follow the steps in this procedure if you are creating a managed tenant.


Procedure

Step 1

In Google Cloud, select the Google Cloud project that will be associated with this unmanaged tenant, if you have not selected it already .

Step 2

In the left nav bar, click on IAM & Admin, then choose Service Accounts.

The service accounts for this Google Cloud project are displayed.

Step 3

Select an existing service account or click + CREATE SERVICE ACCOUNT to create a new one.

Information on this service account is displayed, with the Details tab selected by default.

Step 4

Click the KEYS tab.

Step 5

Click ADD KEY > Create New Key.

A window appears, providing an option to create a private key for this service account.

Step 6

Leave the JSON key type selected, then click Create.

A window appears, saying that the private key has been saved to your computer.

Step 7

Locate the JSON file that was downloaded to your computer and move it to a secure location on your computer.

This JSON file will contain the key information that you need to fill in the fields for the unmanaged tenant.


Creating an Unmanaged Tenant Using the Cisco Cloud APIC GUI

This section explains how to create a tenant that will not be managed by Cisco Cloud APIC using the GUI.

Before you begin

Complete the procedures provided in Generating and Downloading Private Key Information from Google Cloud for an Unmanaged Tenant before proceeding with the procedures in this section.

Procedure

Step 1

Set up the Google Cloud project for the user tenant.

See Setting Up the Google Cloud Project for a User Tenant for those procedures.

Step 2

In the Cisco Cloud APIC GUI, navigate to Application Management > Tenants.

A table of already-configured tenants is displayed.

Step 3

Click Actions and choose Create Tenant.

The Create Tenant dialog box appears.

Step 4

Choose the appropriate options and enter the appropriate values in each field as listed in the following Create Tenant Dialog Box Fields table then continue.

Table 2. Create Tenant Dialog Box Fields

Properties

Description

Name

Enter the name of the tenant. Match the regular expression:

[a-z]([-a-z0-9]*[a-z0-9])?

This means that the first character must be a lowercase letter, and all the following characters must be hyphens, lowercase letters, or digits, except the last character, which cannot be a hyphen.

Description

Enter a description of the tenant.

Settings

Add Security Domain

To add a security domain for the tenant:

  1. Click Add Security Domain. The Select Security Domains dialog appears with a list of security domains in the left pane.

  2. Click to choose a security domain.

  3. Click Select to add the security domain to the tenant.

Google Cloud Project

Google Cloud Project ID

Enter the Google Cloud Project ID that will be associated with this Cisco Cloud APIC tenant.

Access Type

For a tenant that will not be managed by the Cisco Cloud APIC, choose Unmanaged Identity as the access type.

For more information, see Understanding Google Cloud Deployments with Cisco Cloud APIC.

Key ID

Enter the information from the private_key_id field in the JSON file that you downloaded in Generating and Downloading Private Key Information from Google Cloud for an Unmanaged Tenant.

RSA Private Key

Enter the information from the private_key field in the JSON file that you downloaded in Generating and Downloading Private Key Information from Google Cloud for an Unmanaged Tenant.

Client ID

Enter the information from the client_id field in the JSON file that you downloaded in Generating and Downloading Private Key Information from Google Cloud for an Unmanaged Tenant.

Email

Enter the email address associated with your Google Cloud project.

Add Security Domain for Google Cloud Project

Note

Adding a security domain for Google Cloud is optional when creating a tenant.

To add a security domain for the account:

  1. Click Add Security Domain for Google Cloud Project. The Select Security Domains dialog appears with a list of security domains in the left pane.

  2. Click to choose a security domain.

  3. Click Select to add the security domain to the tenant.

Step 5

Click Save when finished.


Creating an Application Profile Using the Cisco Cloud APIC GUI

This section explains how to create an application profile using the Cisco Cloud APIC GUI.

Before you begin

Create a tenant.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Application Management.

A list of Application Management options appear in the Intent menu.

Step 3

From the Application Management list in the Intent menu, click Create Application Profile. The Create Application Profile dialog box appears.

Step 4

Enter a name in the Name field.

Note the following restrictions:

  • Match the regular expression:

    [a-z]([-a-z0-9]*[a-z0-9])?

    This means that the first character must be a lowercase letter, and all the following characters must be hyphens, lowercase letters, or digits, except the last character, which cannot be a hyphen.

  • We recommend using 14 characters or fewer for this name, if possible, due to the restrictions imposed by the Google Cloud firewall rules. Refer to Naming Length Restrictions Imposed By Google Cloud Firewall Rules to better understand the restriction and the total number of characters allowed for each of the Cisco Cloud APIC components that make up the firewall rule name.

Step 5

Choose a tenant:

  1. Click Select Tenant.

    The Select Tenant dialog box appears.

  2. From the Select Tenant dialog, click to choose a tenant in the left column then click Select.

    You return to the Create Application Profile dialog box.

Step 6

Enter a description in the Description field.

Step 7

Click Save when finished.


Creating a VRF Using the Cisco Cloud APIC GUI

This section explains how to create a VRF using the Cisco Cloud APIC GUI.


Note

To configure a external VRF, you will select infra in the Tenant field below. The VRF will be identified as a external VRF if it is:


Before you begin

Create a tenant.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Application Management.

A list of Application Management options appear in the Intent menu.

Step 3

From the Application Management list in the Intent menu, click Create VRF. The Create VRF dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create VRF Dialog Box Fields table then continue.

Table 3. Create VRF Dialog Box Fields

Properties

Description

General

Name

Enter a name for the VRF in the Name field.

Note the following restrictions:

  • Match the regular expression:

    [a-z]([-a-z0-9]*[a-z0-9])?

    This means that the first character must be a lowercase letter, and all the following characters must be hyphens, lowercase letters, or digits, except the last character, which cannot be a hyphen.

  • We recommend using 14 characters or fewer for this name, if possible, due to the restrictions imposed by the Google Cloud firewall rules. Refer to Naming Length Restrictions Imposed By Google Cloud Firewall Rules to better understand the restriction and the total number of characters allowed for each of the Cisco Cloud APIC components that make up the firewall rule name.

All VRFs are assigned a vrfEncoded value. If the Tenant and VRF name combination has more than 32 characters, then a VRF name (which also contains the tenant name) is identified in the cloud router using the vrfEncoded value. To see the vrfEncoded value, navigate to Application Management > VRFs subtab. Click a VRF on the right hand pane and look for Encoded VRF Name in Cloud Router.

Tenant

To choose a tenant:

  1. Click Select Tenant. The Select Tenant dialog box appears.

  2. From the Select Tenant dialog, click to choose a tenant in the left column then click Select.

    You return to the Create VRF dialog box.

Description

Enter a description of the VRF.

Step 5

When finished, click Save.


Creating an External Network Using Cloud Native Routers Using the Cisco Cloud APIC GUI

This procedure describes how to create an external network. You can have a single external network that can connect to multiple routers on the on-premises site, or you can have multiple external networks with multiple VRFs that you can use to connect to CCRs.

Before you begin

You must have a hub network created before you can create an external network.

Procedure


Step 1

In the left navigation bar, navigate to Application Management > External Networks.

The configured external networks are displayed. Note that because Cisco Cloud APIC supports only one hub network, you will see only one hub network displayed in the Hub Network column.
Step 2

Click Actions, then choose Create External Network.

The Create External Network window appears.
Note

If there is no hub network configured yet, you will see a warning at the top of the page, saying that you must create a hub network before you can create an external network. Click the blue Cloud APIC Setup link in the message to create a hub network, then return here. For more information on creating a hub network, see the "Configuring Cisco Cloud APIC Using the Setup Wizard" chapter in the Cisco Cloud APIC for Google Cloud Installation Guide, Release 25.0(x) or later.

Step 3

Enter the appropriate values in each field as listed in the following Create External Network Dialog Box Fields table then continue.

Table 4. Create External Network Dialog Box Fields

Properties

Description

General

Name

Enter the name for the external network.

VRF

This external VRF will be used for external connectivity with the on-premises CCR. You can create multiple external VRFs for this purpose.

This VRF will be identified as an external VRF if the VRF has all three of the following characteristics:

  • Configured under the infra tenant

  • Associated with an external network

  • Not associated with a cloud context profile

Any VRF that is associated with an external network becomes an external VRF. At that point, that external VRF is not allowed to be created under any tenant other than the infra tenant, and that external VRF is not allowed to be associated with a cloud context profile or subnet.

To choose an external VRF:

  1. Click Select VRF.

    The Select VRF dialog box appears.

  2. From the Select VRF dialog, click to choose a VRF in the left column.

    You can also create a VRF using the + Create VRF option.

  3. Click Select.

    You return to the Create External Network dialog box.

Hub Network

The hub network is displayed automatically after you configured it in the First Time Setup.

Note

If there is no hub network configured yet, you must create a hub network before you can create an external network. For more information on creating a hub network, see the "Configuring Cisco Cloud APIC Using the Setup Wizard" chapter in the Cisco Cloud APIC for Google Cloud Installation Guide, Release 25.0(x) or later.

VPN Router

This field is not editable. The default VPN router is automatically selected.

Settings

Regions

To choose a region:

  1. Click Add Regions.

    The Select Regions dialog box appears.

    • The regions that you selected as part of the First Time Setup are displayed here.

    • You can select multiple regions to bring up the cloud router in multiple regions.

  2. From the Select Regions dialog, click to choose a region in the left column then click Select.

    You return to the Create External Network dialog box.

VPN Networks

The VPN networks entries are used for internal connectivity. All configured VPN networks will be applied to all the selected regions.

To add a VPN network:

  1. Click Add VPN Network.

    The Add VPN Network dialog box appears.

  2. In the Name field, enter a name for the VPN network.

  3. Click + Add IPSec Peer.

    Two tunnels are created for each IPSec peer entry.

  4. Enter values for the following fields for the IPSec peer that you want to add:

    • Public IP of IPSec Tunnel Peer

    • Pre-Shared Key

    • IKE Version: Select ikev1 or ikev2 for IPSec tunnel connectivity

    • BGP Peer ASN

    • Subnet Pool Name: Click Select Subnet Pool Name.

      The Select Subnet Pool Name dialog box appears. Select one of the available subnet pools that are listed, then click Select.

      Note

      Additional IPsec tunnel subnet pools can be added in the External Networks page, or through the Cloud APIC First Time Set Up, if necessary. For more information on adding additional subnet pools through the Cloud APIC First Time Set Up, see the chapter "Configuring Cisco Cloud Network Controller Using the Setup Wizard" in the Cisco Cloud APIC for GCP Installation Guide, Release 25.0(1)- 25.0(4). The subnet pool size should be large enough to accommodate the number of IPsec tunnels that will get created.

  5. Click the checkmark to add this IPSec tunnel.

    Click + Add IPSec Tunnel if you want to add another IPSec tunnel.

  6. Click Add in the Add VPN Network dialog box.

    You return to the Create External Network dialog box.

Step 4

When you have finished creating the external network, click Save.

After you click Save in the Create External Network window, cloud routers are then configured in Google Cloud.

To verify that cloud routers were configured in Google Cloud, in your Google Cloud account, navigate to Hybrid Connectivity > Cloud Routers. You should see the cloud routers created for the different regions (note that you might have to click Refresh to bring up the newly-configured cloud routers).

To see the IPSec sessions, navigate to Hybrid Connectivity > VPN > Cloud VPN Tunnels.

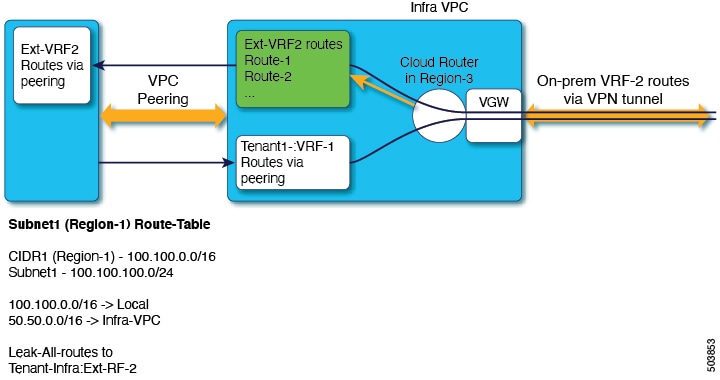

Configuring Inter-VRF Route Leaking Using the Cisco Cloud APIC GUI

Using inter-VRF route leaking, you can configure an independent routing policy to specify which routes to leak between a pair of VRFs when you are setting up routing between these types of sites:

  • Two cloud sites

  • A cloud site and a non-ACI on-premises site


Note

See Configuring Routing and Security Policies Separately for more information.


Procedure


Step 1

In the left navigation bar, navigate to Application Management > VRFs.

The configured VRFs are displayed.
Step 2

Click the Leak Routes tab.

Any already-configured leak routes are displayed.
Step 3

Click Actions, then choose Create Leak Route.

The Create Leak Route window appears.
Step 4

Enter the appropriate values in each field as listed in the following Create Leak Routes Dialog Box Fields table then continue.

Table 5. Create Leak Routes Dialog Box Fields

Properties

Description

Source VRF

To choose a source VRF:

  1. Click Select a Source VRF.

    The Select a VRF dialog box appears.

  2. From the Select a VRF dialog, click to choose a VRF in the left column to use for the source VRF.

    Note that the source VRF can be an internal or an external (transport) VRF.

  3. Click Select to select this source VRF.

    You return to the Create Leak Route dialog box.

Destination VRF

To choose a destination VRF:

  1. Click Select a Destination VRF.

    The Select a VRF dialog box appears.

  2. From the Select a VRF dialog, click to choose a VRF in the left column to use for the destination VRF.

  3. Click Select to select this destination VRF.

    You return to the Create Leak Route dialog box.

Type

Choose the type of leaked route that you want to configure:

  • Leak All: Select to configure all routes to leak between the VRFs.

    The entry 0.0.0.0/0 is entered automatically in the subnet IP area by default in this case.

  • Subnet IP: Select to configure a specific subnet IP address as the route to leak between VRFs. The Subnet IP box appears.

    In the Subnet IP box, enter a subnet IP address as the route to leak between VRFs.

    To configure multiple subnet IP addresses as the route to leak between VRFs, enter additional entries for the different subnets.

Step 5

When finished, click Save.

The Success window appears.
Step 6

Determine if you want to configure additional inter-VRF route leaking.

  • If you want to add another route to leak between a pair of VRFs, click the Add Another Route option in the Success window.

    You are returned to the Add Leak Route window. Repeat Step 4 through Step 5 to configure another route to leak between a pair of VRFs.

  • If you want to add a reverse route, where:

    • The destination VRF from the previous configuration now becomes the source VRF, and

    • The source VRF from the previous configuration now becomes the destination VRF

    Then click the Add Reverse Route option in the Success window.

    You are returned to the Add Leak Route window. Repeat Step 4 through Step 5 to configure another route, but this time:

    • In the Source VRF field, select the VRF that you had selected as a destination VRF in the previous configuration.

    • In the Destination VRF field, select the VRF that you had selected as a source VRF in the previous configuration.

Step 7

When you have finished configuring leak routes, click Done.

The Leak Routes tab in the main VRFs page is displayed again, with the newly configured leak route displayed.

Step 8

To get more information on a source or destination VRF, or to make changes to a configured leak route, double-click the VRF in the Leak Routes tab in the main VRFs page.

The Overview page for that VRF is displayed.
Step 9

Click the Application Management tab at the top of the VRF page, then click the Leak Routes tab in the left nav bar.

The leak routes associated with this particular VRF are displayed.
Step 10

Configure additional leak routes associated with this VRF, if necessary.

  • To add a leak route from this VRF, click Actions, then choose Add Leak Route from <VRF_name>.

    The Add Leak Route window appears. Enter the necessary information as you did previously using the information in Step 4. Note that the entry in the Source VRF is pre-selected and cannot be changed in this situation.

  • To add a leak route to this VRF, click Actions, then choose Add Leak Route to <VRF_name>.

    The Add Leak Route window appears. Enter the necessary information as you did previously using the information in Step 4. Note that the entry in the Destination VRF is pre-selected and cannot be changed in this situation.


Enabling Connectivity Between Google Cloud and External Devices

Follow these procedures to manually enable connectivity between a Google Cloud Router and an external device.

Downloading the External Device Configuration Files

Procedure


Step 1

In the Cisco Cloud APIC GUI, click on Dashboard.

The Dashboard view for the Cisco Cloud APIC appears.
Step 2

In the Connectivity area, under External Connectivity Status, click on the number above the Cloud Routers entry.

The External Connectivity window appears.
Step 3

Click Actions > Download External Device Configuration Files.

The Download External Device Configuration Files pop-up appears.
Step 4

Select the external device configuration files to download and click Download.

This action downloads a zip file that contains configuration information that you will use to enable connectivity between the Google Cloud Router and the external devices.

Enabling Connectivity Between Google Cloud and the External Devices

Before you begin

Download the external device configuration files using the procedures in Downloading the External Device Configuration Files.

Procedure


Step 1

Gather the necessary information that you will need to enable connectivity between the Google Cloud Router and the external devices.

Step 2

Log into the external device.

Step 3

Enter the configuration information to connect an external networking device with the cloud ACI fabric.

If you downloaded the external device configuration files using the instructions in Downloading the External Device Configuration Files, locate the configuration information for the first tunnel and enter that configuration information.

Following is an example of what the external device configuration file might look like for the first tunnel, where PRESHARED-KEY is taken from the vpn-connectivity configuration page:


! The following file contains configuration recommendation to connect an external networking device with the cloud ACI Fabric
! The configurations here are provided for an IOS-XE based device. The user is expected to understand the configs and make any necessary amends before using them
! on the external device. Cisco does not assume any responsibility for the correctness of the config.

! Tunnel to 54.215.245.58 5.500 for hcextnwTunnIf.acct-[infra]/region-[us-west1]/hubCtx-[1]-id-[0]/ext-[extnwfoo_us-west1]/vpn-[vpnnwfoo]/rtr-default-peer-54.215.245.58/src-1-dest-[54.215.245.58]
! USER-DEFINED: please define rd: RD
! USER-DEFINED: please provide preshared-key: PRESHARED-KEY
! USER-DEFINED: please define router-id: ROUTER-ID
! USER-DEFINED: please define gig-number: GIG-NUMBER
! USER-DEFINED: please define gig-gateway: GIG-GATEWAY
! ikev: ikev2
! vrf-name: extv1
! user name: root
! tunnel counter: 5
! IPV4 address: 35.220.50.132
! tunnel interface destination: 54.215.245.58
! tunne id: 500
! BGP peer address: 169.254.10.6
! BGP peer neighbor address: 169.254.10.5
! BGP peer ASN: 64513
! hcloudHubCtx ASN: 64512

vrf definition extv1
    rd RD:1
    address-family ipv4
    exit-address-family
exit

interface Loopback0
    vrf forwarding extv1
    ip address 41.41.41.41 255.255.255.255
exit


crypto ikev2 proposal ikev2-1
    encryption aes-cbc-256 aes-cbc-192 aes-cbc-128
    integrity sha512 sha384 sha256 sha1
    group 24 21 20 19 16 15 14 2
exit

crypto ikev2 policy ikev2-1
    proposal ikev2-1
exit

crypto ikev2 keyring keyring-root-5
    peer peer-ikev2-keyring
        address 35.220.50.132
        pre-shared-key PRESHARED-KEY
    exit
exit

crypto ikev2 profile ikev-profile-root-5
    match address local interface GIG-NUMBER
    match identity remote address 35.220.50.132 255.255.255.255
    identity local address 54.215.245.58
    authentication remote pre-share
    authentication local pre-share
    keyring local keyring-root-5
    lifetime 3600
    dpd 10 5 periodic
exit

crypto ipsec transform-set ikev-transport-root-5 esp-gcm 256
    mode tunnel
exit

crypto ipsec profile ikev-profile-root-5
    set transform-set ikev-transport-root-5
    set pfs group14
    set ikev2-profile ikev-profile-root-5
exit

interface Tunnel500
    vrf forwarding extv1
    ip address 169.254.10.6 255.255.255.252
    ip mtu 1400
    ip tcp adjust-mss 1400
    tunnel source GIG-NUMBER
    tunnel mode ipsec ipv4
    tunnel destination 35.220.50.132
    tunnel protection ipsec profile ikev-profile-root-5
exit

ip route 35.220.50.132 255.255.255.255 GIG-NUMBER GIG-GATEWAY

router bgp 64513
    bgp router-id ROUTER-ID
    bgp log-neighbor-changes

    address-family ipv4 vrf extv1
        network 41.41.41.41 mask 255.255.255.255
        neighbor 169.254.10.5 remote-as 64512
        neighbor 169.254.10.5 ebgp-multihop 255
        neighbor 169.254.10.5 activate
    exit-address-family
exit

The following figures provide more information on what each set of fields is used for in the external device configuration file:

  • The fields shown in the following figure are used to configure these areas:

    • VRF definition

    • IPSec global configurations

  • The fields shown in the following figure are used to configure these areas:

    • IPSec and ikev1 per tunnel configurations

    • BGP configurations for the VRF neighbor

  • The fields shown in the following figure are used to configure these areas:

    • Ikev2 global configurations

    • IPSec and ikev2 per tunnel configurations


Creating an EPG Using the Cisco Cloud APIC GUI

Use the procedures in this section to create an application EPG or an external EPG. The available configuration options vary, depending on which type of EPG you are creating.

Creating an Application EPG Using the Cisco Cloud APIC GUI

This section explains how to create an application EPG using the Cisco Cloud APIC GUI. Each service needs at least one consumer EPG and one provider EPG.

Before you begin

Create an application profile and a VRF.

Procedure


Step 1

Click the Intent icon.

The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Application Management.

A list of Application Management options appear in the Intent menu.

Step 3

From the Application Management list in the Intent menu, click Create EPG.

The Create EPG dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create EPG Dialog Box Fields table then continue.

Table 6. Create EPG Dialog Box Fields

Properties

Description

General

Name

Enter the name of the EPG.

Note the following restrictions:

  • Match the regular expression:

    [a-z]([-a-z0-9]*[a-z0-9])?

    This means that the first character must be a lowercase letter, and all the following characters must be hyphens, lowercase letters, or digits, except the last character, which cannot be a hyphen.

  • We recommend using 14 characters or fewer for this name, if possible, due to the restrictions imposed by the Google Cloud firewall rules. Refer to Naming Length Restrictions Imposed By Google Cloud Firewall Rules to better understand the restriction and the total number of characters allowed for each of the Cisco Cloud APIC components that make up the firewall rule name.

Tenant

To choose a tenant:

  1. Click Select Tenant. The Select Tenant dialog box appears.

  2. From the Select Tenant dialog, click to choose a tenant in the left column.

  3. Click Select. You return to the Create EPG dialog box.

Application Profile

To choose an application profile:

  1. Click Select Application Profile. The Select Application Profile dialog box appears.

  2. From the Select Application Profile dialog, click to choose an application profile in the left column.

    Note

    If you are creating an EPG in the infra tenant, we recommend that you do not choose the cloud-infra application profile because that application profile is used by EPGs in the overlay-1 VRF. Select a different application profile or click Create Application Profile to create a new one.

  3. Click Select. You return to the Create EPG dialog box.

Description

Enter a description of the EPG.

Settings

Type

Because this will be an application EPG, choose Application as the EPG type.

VRF

To choose a VRF:

  1. Click Select VRF. The Select VRF dialog box appears.

  2. From the Select VRF dialog, click to choose a VRF in the left column.

  3. Click Select. You return to the Create EPG dialog box.

Endpoint Selectors

Note

See Configuring Virtual Machines in Google Cloud for instructions on configuring virtual machines in Google Cloud as part of the endpoint selector configuration process.

To add an endpoint selector:

  1. Click Add Endpoint Selector to open the Add Endpoint Selector dialog.

  2. In the Add Endpoint Selector dialog, enter a name in the Name field.

  3. Click Selector Expression. The Key, Operator, and Value fields are enabled.

  4. Click the Key drop-down list to choose a key. The options are:

    • Choose IP if you want to use an IP address or subnet for the endpoint selector.

    • Choose Region if you want to use the Google Cloud region for the endpoint selector.

    • Choose Custom if you want to create a custom key for the endpoint selector.

      Note

      When choosing the Custom option, the drop-down list becomes a text box. You need to enter a name for the key in the spaces after custom: (for example, custom: Location).

  5. Click the Operator drop-down list to choose an operator. The options are:

    • equals: Used when you have a single value in the Value field.

    • not equals: Used when you have a single value in the Value field.

    • in: Used when you have multiple comma-separated values in the Value field.

    • not in: Used when you have multiple comma-separated values in the Value field.

    • has key: Used if the expression contains only a key.

    • does not have key: Used for an expression that does not contain a key.

  6. Enter a value in the Value field then click the check mark to validate the entries. The value you enter depends on the choices you made for the Key and Operator fields. For example, if the Key field is set to IP and the Operator field is set to equals, the Value field must be an IP address or subnet. However, if the Operator field is set to has key, the Value field is disabled.

  7. When finished, click the check mark to validate the selector expression.

  8. Determine if you want to create additional endpoint selector expressions to the endpoint selector. If you create more than one expression under a single endpoint selector, a logical AND exists between those expressions.

    For example, assume you created two sets of expressions under a single endpoint selector:

    • Endpoint selector 1, expression 1:

      • Key: Region

      • Operator: equals

      • Value: us-west1

    • Endpoint selector 1, expression 2:

      • Key: IP

      • Operator: equals

      • Value: 192.0.2.1/24

    In this case, if both of these expressions are true (if the region is us-west1 AND if the IP address belongs to subnet 192.0.2.1/24), then that endpoint is assigned to the Cloud EPG.

  9. Click the check mark after every additional expression that you want to create under this endpoint selector then click Add when finished.

    If you create more than one endpoint selector under an EPG, a logical OR exists between those endpoint selectors. For example, assume you had created endpoint selector 1 as described in the previous step, and then you created a second endpoint selector as described below:

    • Endpoint selector 2, expression 1:

      • Key: Region

      • Operator: in

      • Value: us-east1, us-central1

    In this case:

    • If the region is us-west1 AND the IP address belongs to the 192.0.2.1/24 subnet (endpoint selector 1 expressions)

      OR

    • If the region is either us-east1 or us-central1 (endpoint selector 2 expression)

    Then that end point is assigned to the Cloud EPG.

Step 5

Click Save when finished.


Creating an External EPG Using the Cisco Cloud APIC GUI

This section explains how to create an external EPG using the Cisco Cloud APIC GUI. Each service needs at least one consumer EPG and one provider EPG.

Before you begin

Create an application profile and a VRF.

Procedure


Step 1

Click the Intent icon.

The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Application Management.

A list of Application Management options appear in the Intent menu.

Step 3

From the Application Management list in the Intent menu, click Create EPG.

The Create EPG dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create EPG Dialog Box Fields table then continue.

Table 7. Create EPG Dialog Box Fields

Properties

Description

General

Name

Enter the name of the EPG.

Note the following restrictions:

  • Match the regular expression:

    [a-z]([-a-z0-9]*[a-z0-9])?

    This means that the first character must be a lowercase letter, and all the following characters must be hyphens, lowercase letters, or digits, except the last character, which cannot be a hyphen.

  • We recommend using 14 characters or fewer for this name, if possible, due to the restrictions imposed by the Google Cloud firewall rules. Refer to Naming Length Restrictions Imposed By Google Cloud Firewall Rules to better understand the restriction and the total number of characters allowed for each of the Cisco Cloud APIC components that make up the firewall rule name.

Tenant

To choose a tenant:

  1. Click Select Tenant. The Select Tenant dialog box appears.

  2. From the Select Tenant dialog, click to choose a tenant in the left column.

  3. Click Select. You return to the Create EPG dialog box.

Application Profile

To choose an application profile:

  1. Click Select Application Profile. The Select Application Profile dialog box appears.

  2. From the Select Application Profile dialog, click to choose an application profile in the left column.

    Note

    If you are creating an EPG in the infra tenant, we recommend that you do not choose the cloud-infra application profile because that application profile is used by EPGs in the overlay-1 VRF. Select a different application profile or click Create Application Profile to create a new one.

  3. Click Select. You return to the Create EPG dialog box.

Description

Enter a description of the EPG.

Settings

Type

Because this will be an external EPG, choose External as the EPG type.

VRF

To choose a VRF:

  1. Click Select VRF. The Select VRF dialog box appears.

  2. From the Select VRF dialog, click to choose a VRF in the left column.

  3. Click Select. You return to the Create EPG dialog box.

Route Reachability

The type of route reachability for the external EPG will be automatically selected (either Internet or External-Site).

Endpoint Selectors

Note

See Configuring Virtual Machines in Google Cloud for instructions on configuring virtual machines in Google Cloud as part of the endpoint selector configuration process.

To add an endpoint selector:

  1. Click Add Endpoint Selector to add an endpoint selector.

  2. Enter a name in the Name field.

  3. Enter a subnet in the Subnet.

  4. When finished, click the check mark to validate the endpoint selector.

  5. Determine if you want to create additional endpoint selectors.

    If you create more than one endpoint selector under an EPG, a logical OR exists between those endpoint selectors. For example, assume you created two endpoint selectors:

    • Endpoint selector 1:

      • Name: EP_Sel_1

      • Subnet: 192.1.1.1/24

    • Endpoint selector 2:

      • Name: EP_Sel_2

      • Subnet: 192.2.2.2/24

    In this case:

    • If the IP address belongs to the 192.1.1.1/24 subnet (endpoint selector 1)

      OR

    • If the IP address belongs to the 192.2.2.2/24 subnet (endpoint selector 2)

    Then that end point is assigned to the Cloud EPG.

Step 5

Click Save when finished.


Creating a Filter Using the Cisco Cloud APIC GUI

This section explains how to create a filter using the Cisco Cloud APIC GUI.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Application Management.

A list of Application Management options appear in the Intent menu.

Step 3

From the Application Management list in the Intent menu, click Create Filter. The Create Filter dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create Filter Dialog Box Fields table then continue.

Table 8. Create Filter Dialog Box Fields

Properties

Description

Name

Enter a name for the filter in the Name field.

Tenant

To choose a tenant:

  1. Click Select Tenant. The Select Tenant dialog box appears.

  2. From the Select Tenant dialog, click to choose a tenant in the left column then click Select. You return to the Create Filter dialog box.

Description

Enter a description of the filter.

Add Filter

To add a filter:

  1. Click Add Filter Entry. The Add Filter Entry dialog box appears.

  2. Enter a name for the filter entry in the Name field.

  3. Click the Ethernet Type drop-down list to choose an ethernet type. The options are:

    • IP

    • Unspecified

      Note

      When Unspecified is chosen, any traffic type is allowed, including IP, and the remaining fields are disabled.

  4. Click the IP Protocol drop-down menu to choose a protocol. The options are:

    • ICMP

    • TCP

    • UDP

    • Unspecified

      Note

      The remaining fields are enabled only when TCP or UDP is chosen.

  5. Enter the appropriate port range information in the Destination Port fields.

  6. When finished entering filter entry information, click Add. You return to the Create Filter dialog box where you can repeat the steps to add another filter entry.

Step 5

When finished, click Save.


Creating a Contract Using the Cisco Cloud APIC GUI

This section explains how to create a contract using the Cisco Cloud APIC GUI.

Before you begin

Create filters.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Application Management.

A list of Application Management options appear in the Intent menu.

Step 3

From the Application Management list in the Intent menu, click Create Contract. The Create Contract dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create Contract Dialog Box Fields table then continue.

Table 9. Create Contract Dialog Box Fields

Properties

Description

Name

Enter the name of the contract.

Note the following restrictions:

  • Match the regular expression:

    [a-z]([-a-z0-9]*[a-z0-9])?

    This means that the first character must be a lowercase letter, and all the following characters must be hyphens, lowercase letters, or digits, except the last character, which cannot be a hyphen.

  • We recommend using 14 characters or fewer for this name, if possible, due to the restrictions imposed by the Google Cloud firewall rules. Refer to Naming Length Restrictions Imposed By Google Cloud Firewall Rules to better understand the restriction and the total number of characters allowed for each of the Cisco Cloud APIC components that make up the firewall rule name.

Tenant

To choose a tenant:

  1. Click Select Tenant. The Select Tenant dialog box appears.

  2. From the Select Tenant dialog, click to choose a tenant in the left column.

  3. Click Select. You return to the Create Contract dialog box.

Description

Enter a description of the contract.

Settings

Scope

The scope limits the contract to any endpoint groups within the same application profile, within the same VRF instance, throughout the fabric (globally), or within the same tenant.

Note

Shared services enables communication between EPGs in different tenants and between EPGs in different VRFs.

To enable EPGs in one tenant to communicate with EPGs in another tenant, choose Global scope.

To enable an EPG in one VRF to communicate with another EPG in a different VRF, choose Global or Tenant scope.

Click the drop-down arrow to choose from the following scope options:

  • Application Profile

  • VRF

  • Global

  • Tenant

Add Filter

To choose a filter:

  1. Click Add Filter. The filter row appears with a Select Filter option.

  2. Click Select Filter. The Select Filter dialog box appears.

  3. From the Select Filter dialog, click to choose a filter in the left column then click Select. You return to the Create Contract dialog box.

Step 5

Click Save when finished.


Creating an Inter-Tenant Contract Using the Cisco Cloud APIC GUI

This section explains how to create an inter-tenant contract using the Cisco Cloud APIC GUI.

Before you begin

Create filters.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Application Management.

A list of Application Management options appear in the Intent menu.

Step 3

From the Application Management list in the Intent menu, click Create Contract. The Create Contract dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create Contract Dialog Box Fields table then continue.

Table 10. Create Contract Dialog Box Fields

Properties

Description

Name

Enter the name of the contract.

This is the name of the contract in Google Cloud. Match the regular expression:

[a-z]([-a-z0-9]*[a-z0-9])?

This means that the first character must be a lowercase letter, and all the following characters must be hyphens, lowercase letters, or digits, except the last character, which cannot be a hyphen.

Tenant

To choose a tenant:

  1. Click Select Tenant. The Select Tenant dialog box appears.

  2. From the Select Tenant dialog, click to choose a tenant in the left column.

  3. Click Select. You return to the Create Contract dialog box.

Description

Enter a description of the contract.

Settings

Scope

The scope limits the contract to any endpoint groups within the same application profile, within the same VRF instance, throughout the fabric (globally), or within the same tenant.

For inter-tenant communication, you will first create a contract with the Global scope in one of the tenants (for example, tenant1). This tenant’s EPG will always be the provider of this contract.

This contract will then be exported to the other tenant (for example, tenant2). For the other tenant that imports this contract, its EPG will be the consumer of the imported contract. If you want tenant2’s EPG to be the provider and tenant1’s EPG to be the consumer, then create a contract in tenant2 and then export it to tenant1.

Add Filter

To choose a filter:

  1. Click Add Filter. The filter row appears with a Select Filter option.

  2. Click Select Filter. The Select Filter dialog box appears.

  3. From the Select Filter dialog, click to choose a filter in the left column then click Select. You return to the Create Contract dialog box.

Step 5

Click Save when finished.

Step 6

Export the contract that you just created to another tenant.

For example, assume the following:

  • The contract that you created in the procedure above is named contract1 in tenant tenant1.

  • The contract that you want to export is named exported_contract1 and you are exporting it to tenant tenant2.

  1. Navigate to the Contracts page (Application Management > Contracts).

    The configured contracts are listed.

  2. Select the contract that you just created.

    For example, scroll through the list until you see the contract contract1 and click the box next to it to select it.

  3. Go to Actions > Export Contract.

    The Export Contract window appears.

  4. Click Select Tenant.

    The Select Tenant window appears.

  5. Select the tenant that you want to export the contract to, then click Save.

    For example, tenant2. You are returned to the Export Contract window.

  6. In the Name field, enter a name for the exported contract.

    For example, exported_contract1.

  7. In the Description field, enter a description for the exported contract, if necessary.

  8. Click Save.

    The list of contracts appears again.

Step 7

Configure the first tenant's EPG as the provider EPG, with the original contract, as the first part of the EPG communication configuration.

  1. Click the Intent button, then choose EPG Communication.

    The EPG Communication window appears.

  2. Click Let's Get Started.

  3. In the Contract area, click Select Contract.

    The Select Contract window appears.

  4. Locate and select the contract that you created at the beginning of these procedures.

    In this example, you would locate and select contract1.

  5. Click Select.

    The EPG Communication window appears.

  6. In the Provider EPGs area, click Add Provider EPGs.

    The Select Provider EPGs window appears.

  7. Leave the Keep selected items box checked, then select the first tenant's (tenant1) EPG.

  8. Click Select.

    The EPG Communication window appears.

  9. Click Save.

Step 8

Configure the second tenant's EPG as the consumer EPG, with the exported contract, as the second part of the EPG communication configuration.

  1. Click the Intent button, then choose EPG Communication.

    The EPG Communication window appears.

  2. Click Let's Get Started.

  3. In the Contract area, click Select Contract.

    The Select Contract window appears.

  4. Locate and select the contract that you created at the beginning of these procedures.

    In this example, you would locate and select exported_contract1.

  5. Click Select.

    The EPG Communication window appears.

  6. In the Consumer EPGs area, click Add Consumer EPGs.

    The Select Consumer EPGs window appears.

  7. Leave the Keep selected items box checked, then select the second tenant's (tenant2) EPG.

  8. Click Select.

    The EPG Communication window appears.

  9. Click Save.


Specifying Consumer and Provider EPGs Using the Cisco Cloud APIC

This section explains how to specify an EPG as a consumer or a provider.

Before you begin

  • You have configured a contract.

  • You have configured an EPG.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Configuration.

A list of Configuration options appears in the Intent menu.

Step 3

From the Configuration list in the Intent menu, click EPG Communication. The EPG Communication dialog box appears with the Consumer EPGs, Contract, and Provider EPGs information.

Step 4

To choose a contract:

  1. Click Select Contract. The Select Contract dialog appears.

  2. In the pane on the left side of the Select Contract dialog, click to choose a contract then click Select. The Select Contract dialog box closes.

Step 5

To add a consumer EPG:

  1. Click Add Consumer EPGs. The Select Consumer EPGs dialog appears.

    Note

    EPGs within the tenant (where the contract is created) are displayed.

  2. In the pane on the left side of the Select Consumer EPGs dialog, click to place a check in a check box to choose an EPG.

Step 6

To add a provider EPG:

  1. Click Add Provider EPGs. The Select Provider EPGs dialog appears.

    Note

    EPGs within the tenant (where the contract is created) are displayed.

  2. In the pane on the left side of the Select Provider EPGs dialog, click to place a check in a check box to choose a provider EPG.

    Note

    If the chosen contract is an Imported Contract, the provider EPG selection is disabled.

  3. When finished, click Select. The Select Provider EPGs dialog box closes, and you return to the EPG Communication Configuration window.

  4. Click Save.


Creating a Cloud Context Profile Using the Cisco Cloud APIC GUI

This section explains how to create a cloud context profile using the Cisco Cloud APIC GUI.

Before you begin

Create a VRF.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Application Management.

A list of Application Management options appear in the Intent menu.

Step 3

From the Application Management list in the Intent menu, click Create Cloud Context Profile. The Create Cloud Context Profile dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Cloud Context Profile Dialog Box Fields table then continue.

Table 11. Create Cloud Context Profile Dialog Box Fields

Properties

Description

Name

Enter the name of the cloud context profile. Match the regular expression:

[a-z]([-a-z0-9]*[a-z0-9])?

This means that the first character must be a lowercase letter, and all the following characters must be hyphens, lowercase letters, or digits, except the last character, which cannot be a hyphen.

Tenant

To choose a tenant:

  1. Click Select Tenant. The Select Tenant dialog box appears.

  2. From the Select Tenant dialog, click to choose a tenant in the left column then click Select. You return to the Create Cloud Context Profile dialog box.

Description

Enter a description of the cloud context profile.

Settings

Region

To choose a region:

  1. Click Select Region. The Select Region dialog box appears.

  2. From the Select Region dialog, click to choose a region in the left column then click Select. You return to the Create Cloud Context Profile dialog box.

VRF

To choose a VRF:

  1. Click Select VRF. The Select VRF dialog box appears.

  2. From the Select VRF dialog box, click to choose a VRF in the left column then click Select. You return to the Create Cloud Context Profile dialog box.

Add CIDR

Note

See Understanding VPCs and Subnets Under Google Cloud and Cloud Context Profiles Under Cloud APIC for more information on primary and secondary CIDRs and subnet group labels.

To add a CIDR:

  1. Click Add CIDR. The Add CIDR dialog box appears.

  2. Enter the address in the CIDR Block Range field.

  3. Click to check (enabled) or uncheck (disabled) the Primary check box.

    • You must have at least one primary CIDR added for each cloud context profile.

    • If you are adding additional secondary CIDRs and subnets for VPCs, leave the Primary box unchecked.

  4. Click Add Subnet and enter the following information:

    • In the Address field, enter the subnet address.

    • In the Name field, enter the name for this subnet.

    • In the Subnet Group Label field, choose one of the following:

      • Select Existing: Click Select Subnet Group Label, then choose an existing subnet group label to associate with this subnet.

      • Create New: Enter a unique name for the subnet group label to associate with this subnet.

  5. In the VRF field, make a selection, if necessary.

    • If you checked the box next to the Primary field, this CIDR is automatically associated with the primary VRF.

    • If you did not check the box next to the Primary field, you can associate this CIDR with a secondary VRF. Click the X next to the VRF, then click on Select VRF to select the secondary VRF to associate with this CIDR.

  6. When finished, click Add.

Step 5

Click Save when finished.


Configuring Virtual Machines in Google Cloud

When you configure endpoint selectors for Cisco Cloud APIC, you will also need to configure the virtual machines that you will need in Google Cloud that will correspond with the endpoint selectors that you configure for Cisco Cloud APIC.

This topic provides the requirements for configuring the virtual machines in Google Cloud. You can use these requirements to configure the virtual machines in Google Cloud either before you configure the endpoint selectors for Cisco Cloud APIC or afterward.

For example, assume that you are using Custom as the type of endpoint selector, as described in Endpoints and Endpoint Selectors.

  • You might go to your account in Google Cloud and create a custom tag or label in Google Cloud first, then create an endpoint selector using a custom tag or label in Cisco Cloud APIC afterward.

  • Or you might create an endpoint selector using a custom tag or label in Cisco Cloud APIC first, then go to your account in Google Cloud and create a custom tag or label in Google Cloud afterward.

Before you begin

You must configure a cloud context profile as part of the Google Cloud virtual machine configuration process. When you configure a cloud context profile, the configurations, such as the VRF and region settings, are pushed out to Google Cloud afterward.

Procedure


Step 1

Review your cloud context profile configuration to get the following information:

  • VRF name

  • Subnet information

  • Google Cloud Project ID

  • The resource group that corresponds to where the cloud context profile is deployed.

Note

In addition to the information above, if you are using tag-based EPGs, you also need to know the tag names. The tag names are not available in the cloud context profile configuration.

To obtain the cloud context profile configuration information:

  1. From the Navigation menu, choose the Application Management tab.

    When the Application Management tab expands, a list of subtab options appear.

  2. Choose the Cloud Context Profiles subtab option.

    A list of the cloud context profiles that you have created for your Cisco Cloud APIC are displayed.

  3. Select the cloud context profile that you will use as part of this Google Cloud virtual machine configuration process.

    Various configuration parameters are displayed for this cloud context profile, such as the region, VRF, IP address and subnets. Use the information displayed in this window when you configure the Google Cloud virtual machine.

Step 2

Log in to the Google Cloud portal account for the Cisco Cloud APIC user tenant and begin creating an Google Cloud VM using the information you gathered from the cloud context profile configuration.

Note

For information about how to create the VM in the Google Cloud portal, see the Google Cloud documentation.


Creating a Backup Configuration Using the Cisco Cloud APIC GUI

This section explains how to create a backup configuration.

Before you begin

Create a remote location and a scheduler, if needed.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Operations.

A list of Operations options appear in the Intent menu.

Step 3

From the Operations list in the Intent menu, click Create Backup Configuration. The Create Backup Configuration dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create Backup Configuration Dialog Box Fields table then continue.

Table 12. Create Backup Configuration Dialog Box Fields

Properties

Description

General

Name

Enter the name of the backup configuration.

Description

Enter a description of the backup configuration.

Settings

Backup Destination

Choose a backup destination.

  • Local

  • Remote

Backup Object

Choose the root hierarchical content to consider for the backup

  • Policy Universe

  • Selector Object—When chosen, this option adds the Object Type drop-down list and Object DN field.

    1. From the Object Type drop-down list, choose from the following options:

      • Tenant—When chosen the Select Tenant option appears.

      • Application Profile—When chosen the Select Application Profile option appears.

      • EPG—When chosen the Select EPG option appears.

      • Contract—When chosen the Select Contract option appears.

      • Filter—When chosen the Select Filter option appears.

      • VRF—When chosen the Select VRFoption appears.

      • Cloud Context Profile—When chosen the Select Cloud Context Profile option appears.

    2. Click the Select <object_name>. The Select <object_name> dialog appears.

    3. From the Select <object_name> dialog, click to choose from the options in the left column then click Select. You return to the Create Backup Configuration dialog box.

      Note

      The Object DN field is automatically populated with the DN of the object it will use as root of the object tree to backup

  • Enter DN—When chosen, this option displays the Object DN field.

    1. From the Object DN field, enter the DN of a specific object to use as the root of the object tree to backup.

Scheduler

  1. Click Select Scheduler to open the Select Scheduler dialog and choose a scheduler from the left-side column.

  2. Click the Select button at the bottom-right corner when finished.

Trigger Backup After Creation

Choose one of the following:

  • Yes—(Default) Trigger a backup after creating the backup configuration.

  • No—Do not trigger a backup after creating the backup configuration.

Step 5

Click Save when finished.


Creating a Tech Support Policy Using the Cisco Cloud APIC GUI

This section explains how to create a tech support policy.

Before you begin

When creating a tech support policy for a remote location, you must first create the remote location.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Operations.

A list of Operations options appear in the Intent menu.

Step 3

From the Operations list in the Intent menu, click Create Tech Support. The Create Tech Support dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create Tech Support Dialog Box Fields table then continue.

Table 13. Create Tech Support Dialog Box Fields

Properties

Description

General

Name

Enter the name of the tech support policy.

Description

Enter a description of the tech support.

Settings

Export Destination

Choose an export destination.

  • Controller

  • Remote Location—When chosen the Select Remote Location option appears.

    1. Click Select Remote Location. The Select Remote Location dialog box appears.

    2. From the Select Remote Location dialog, click to choose a remote location in the left column then click Select. You return to the Create Tech Suport dialog box.

Include Pre-Upgrade Logs

Click to place a check in the Enabled check box if you want to include pre-upgrade logs in the tech support policy.

Step 5

Click Save when finished.


Creating a Scheduler Using the Cisco Cloud APIC GUI

This section explains how to create a scheduler, which would be in User Laptop Browser local time and will be converted to the Cisco Cloud APIC default UTC time.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Operations.

A list of Operations options appear in the Intent menu.

Step 3

From the Operations list in the Intent menu, click Create Scheduler. The Create Scheduler dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create Scheduler Dialog Box Fields table then continue.

Table 14. Create Scheduler Dialog Box Fields

Properties

Description

General

Name

Enter the name of the trigger scheduler policy.

Description

Enter a description of the trigger scheduler.

Settings

Recurring Windows

Click Add Recurring Window. The Add Recurring Window dialog appears.

  1. From the Schedule drop-down list, choose from the following.

    • Every Day

    • Even Days

    • Odd Days

    • Monday

    • Tuesday

    • Wednesday

    • Thursday

    • Friday

    • Saturday

    • Sunday

  2. From the Start Time field, enter a time.

  3. In the Maximum Concurrent Tasks field, choose one of the following:

    • Unlimited: There is no maximum number of concurrent tasks that can be enforced on the scheduler window.

    • Custom: In the second Maximum Concurrent Tasks field, enter the maximum number of tasks that can be processed concurrently. The maximum value allowed in this field is 65535.

  4. In the Maximum Running Time field, choose one of the following:

    • Unlimited: There is no time limit enforced on the scheduler window.

    • Custom: In the second Maximum Running Time field, enter the maximum duration of the window. The acceptable format for this field is dd:hh:mm:ss.

  5. Click Add when finished.

Add One Time Window

Click Add One Time Window. The Add One Time Window dialog appears.

  1. From the Start Time field, enter a date and time.

  2. From the Maximum Concurrent Tasks field, enter a number or leave the field blank to specify unlimited.

  3. From the Maximum Running Time, click to choose Unlimited or Custom.

  4. Click Add when finished.

Step 5

Click Save when finished.


Creating a Remote Location Using the Cisco Cloud APIC GUI

This section explains how to create a remote location using the Cisco Cloud APIC.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Operations.

A list of Operations options appear in the Intent menu.

Step 3

From the Operations list in the Intent menu, click Create Remote Location. The Create Remote Location dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create Remote Location Dialog Box Fields table then continue.

Table 15. Create Remote Location Dialog Box Fields

Properties

Description

General

Name

Enter the name of the remote location policy.

Description

Enter a description of the remote location policy.

Settings

Hostname/IP Address

Enter the hostname or IP address of the remote location

Protocol

Choose a protocol:

  • FTP

  • SFTP

  • SCP

Path

Enter the path for the remote location.

Port

Enter the port for the remote location.

Username

Enter a username for the remote location.

Authentication Type

When using SFTP or SCP, choose the authentication type:

  • Password

  • SSH Key

SSH Key Content

Enter the SSH key content.

SSH Key Passphrase

SSH key passphrase.

Password

Enter a password for accessing the remote location.

Confirm Password

Reenter the password for accessing the remote location.

Step 5

Click Save when finished.


Creating a Login Domain Using the Cisco Cloud APIC GUI

This section explains how to create a login domain using the Cisco Cloud APIC GUI.

Before you begin

Create a provider before creating a non-local domain.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Administrative.

A list of Administrative options appear in the Intent menu.

Step 3

From the Administrative list in the Intent menu, click Create Login Domain. The Create Login Domain dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create Login Domain Dialog Box Fields table then continue.

Table 16. Create Login Domain Dialog Box Fields

Properties

Description

Name

Enter the name of the login domain.

Description

Enter a description of the login domain.

Realm

Choose a realm:

  • Local

  • LDAP—Requires adding providers and choosing an authenication type.

  • RADIUS—Requires adding providers.

  • TACACS+—Requires adding providers.

  • SAML—Requires adding providers.

Providers

To add a provider:

  1. Click Add Providers. The Select Providers dialog appears with a list of providers in the left pane.

  2. Click to choose a provider.

  3. Click Select to add the provider.

Advanced Settings

Displays the Authentication Type and LDAP Group Map Rules fields.

Authentication Type

When LDAP is chosen for realm option, choose one of the following authentication types:

  • Cisco AV Pairs—(Default)

  • LDAP Group Map Rules—Requires adding LDAP group map rules.

LDAP Group Map Rules

To add an LDAP group map rule:

  1. Click Add LDAP Group Map Rule. The Add LDAP Group Map Rule dialog appears with a list of providers in the left pane.

  2. Enter a name for the rule in the Name field.

  3. Enter a description for the rule in the Description field.

  4. Enter a group DN for the rule in the Group DN field.

  5. Add security domains:

    1. Click Add Security Domain. The Add Security Domain dialog box appears.

    2. Click Select Security Domain. The Select Security Domain dialog box appears with a list of security domains in the left pane.

    3. Click to choose a security domain.

    4. Click Select to add the security domain. You return to the Add Security Domain dialog box.

    5. Add a user role:

      1. From the Add Security Domain dialog box, click Select Role. The Select Role dialog box appears with a list of roles in the left pane.

      2. Click to choose a role.

      3. Click Select to add the role. You retun to the Add Security Domain dialog box.

      4. From the Add Security Domain dialog box, click the Privilege Type drop-down list and choose Read Privilege or Write Privilege.

      5. Click the check mark on the right side of the Privilege Type drop-down list to confirm.

      6. Click Add when finished. You return to the Add LDAP Group Map Rule dialog box where you can add another security domain.

Step 5

Click Save when finished.


Creating a Security Domain Using the Cisco Cloud APIC GUI

A security domain restricts the tenant to the security domains that you add. If you do not add a security domain, all security domains will have access to this tenant. This section explains how to create a security domain using the GUI.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Administrative.

A list of Administrative options appear in the Intent menu.

Step 3

From the Administrative list in the Intent menu, click Security > Security Domains > Create Security Domain. The Create Security Domain dialog box appears.

Step 4

In the Name field, enter the name of the security domain.

Step 5

In the Description field, enter a description of the security domain.

Step 6

In the Type field, choose the type of security domain:

  • Unrestricted: Users who are assigned to this domain are able to see policies, profiles, or users configured in other security domains.

  • Restricted: Users who are assigned to this domain will not be able to see policies, profiles, or users configured in other security domains.

Step 7

Click Save when finished.


Creating a Role Using the Cisco Cloud APIC GUI

This section explains how to create a role using the Cisco Cloud APIC GUI.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Administrative.

A list of Administrative options appear in the Intent menu.

Step 3

From the Administrative list in the Intent menu, click Create Role. The Create Role dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create Role Dialog Box Fields table then continue.

Table 17. Create Role Dialog Box Fields

Properties

Description

General

Name

Enter a name for the role in the Name field.

Description

Enter a description of the role.

Settings

Privilege

Click to place a check mark in the check boxes of the privileges you want to assign the user. The privileges are:

  • aaa—Used for configuring authentication, authorization, accouting and import/export policies.

  • access-connectivity—Used for Layer 1-3 configuration under infra, static route configurations under a tenant's L3Out, management infra policies, and tenant ERSPAN policies.

  • access-equipment—Used for access port configuration.

  • access-protocol—Used for Layer 1-3 protocol configurations under infra, fabric-wide policies for NTP, SNMP, DNS, and image management, and operations-related access policies such as cluster policy and firmware policies.

  • access-qos—Used for changing CoPP and QoS-related policies.

  • admin—Complete access to everything (combine ALL roles)

  • config-manager

  • custom-port-privilege

  • custom-privilege-1 through custom-privilege-22

  • fabric-connectivity—Used for Layer 1-3 configuration under the fabric, firmware and deployment policies for raising warnings for estimating policy deployment impact, and atomic counter, diagnostic, and image management policies on leaf switches and spine switches.

  • fabric-equipment—Used for atomic counter, diagnostic, and image management policies on leaf switches and spine switches.

  • fabric-protocol—Used for Layer 1-3 protocol configurations under the fabric, fabric-wide policies for NTP, SNMP, DNS, and image management, ERSPAN and health score policies, and firmware management traceroute and endpoint tracking policies.

  • none—No privilege.

  • nw-svc-params—Used for managing Layer 4 to Layer 7 service policies.

  • nw-svc-policy—Used for managing Layer 4 to Layer 7 service devices and network service orchestration.

  • ops—Used for operational policies including monitoring and troubleshooting policies such as atomic counter, SPAN, TSW, tech support, traceroute, analytics, and core policies.

  • site-admin

  • site-policy

  • tenant-connectivity—Used for Layer 1-3 connectivity changes, including bridge domains, subnets, and VRFs; for atomic counter, diagnostic, and image management policies on leaf switches and spine switches; tenant in-band and out-of-band management connectivity configurations; and debugging/monitoring policies such as atomic counters and health score.

  • tenant-epg—Used for managing tenant configurations such as deleting/creating endpoint groups, VRFs, and bridge domains.

  • tenant-ext-connectivity—Used for write access firmware policies; managing tenant L2Out and L3Out configurations; and debugging/monitoring/observer policies.

  • tenant-ext-protocol—Used for managing tenant external Layer 1-3 protocols, including BGP, OSPF, PIM, and IGMP, and for debugging/monitoring/observer policies such as traceroute, ping, oam, and eptrk. Generally only used for write access for firmware policies.

  • tenant-network-profile—Used for managing tenant configurations, such as deleting and creating network profiles, and deleting and creating endpoint groups.

  • tenant-protocol—Used for managing configurations for Layer 1-3 protocols under a tenant, for tenant traceroute policies, and as write access for firmware policies.

  • tenant-qos—Only used as Write access for firmware policies.

  • tenant-security—Used for Contract related configurations for a tenant.

  • vmm-policy—Used for managing policies for VM networking.

Step 5

Click Save when finished.


Creating a Certificate Authority Using the Cisco Cloud APIC GUI

This section explains how to create a certificate authority using the GUI.

Before you begin

  • Have the certificate chain.

  • If the certificate authority is for a tenant, create the tenant.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Administrative.

A list of Administrative options appears in the Intent menu.

Step 3

From the Administrative list in the Intent menu, click Create Certificate Authority. The Create Certificate Authority dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create Certificate Authority Dialog Box Fields table then continue.

Table 18. Create Certificate Authority Dialog Box Fields

Properties

Description

Name

Enter the name of the certificate authority.

Description

Enter a description of the certificate authority.

Used for

Choose from the following options:

  • Tenant—Choose if the certificate authority is for a specific tenant. When chosen, the Select Tenant option appears in the GUI.

  • System—Choose if the certificate authority is for the system.

Select Tenant

To choose a tenant:

  1. Click Select Tenant. The Select Tenant dialog box appears.

  2. From the Select Tenant dialog, click to choose a tenant in the left column then click Select. You return to the Create Certificate Authority dialog box.

Certificate Chain

Enter the certificate chain in the Certificate Chain text box.
Note

Add the certificates for a chain in the following order:

  1. CA

  2. Sub-CA

  3. Subsub-CA

  4. Server

Step 5

Click Save when finished.


Creating a Key Ring Using the Cisco Cloud APIC GUI

This section explains how to create a key ring using the Cisco Cloud APIC GUI.

Before you begin

  • Create a certificate authority.

  • Have a certificate.

  • If the key ring is for a specific tenant, create the tenant.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Administrative.

A list of Administrative options appear in the Intent menu.

Step 3

From the Administrative list in the Intent menu, click Create Key Ring. The Create Key Ring dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create Key Ring Dialog Box Fields table then continue.

Table 19. Create Key Ring Dialog Box Fields

Properties

Description

Name

Enter the name of the key ring.

Description

Enter a description of the key ring.

Used for

  • System—The key ring is for the system.

  • Tenant—The key ring is for a specific tenant. Displays a Tenant field for specifying the tenant.

Select Tenant

To choose a tenant:

  1. Click Select Tenant. The Select Tenant dialog box appears.

  2. From the Select Tenant dialog, click to choose a tenant in the left column then click Select. You return to the Create Key Ring dialog box.

Settings

Certificate Authority

To choose a certificate authority:

  1. Click Select Certificate Authority. The Select Certificate Authority dialog appears.

  2. Click to choose a certificate authority in the column on the left.

  3. Click Select. You return to the Create Key Ring dialog box.

Private Key

Choose one of the following:

  • Generate New Key—Generates a new key.

  • Import Existing Key—Displays the Private Key text box and enables you to use an existing key.

Private Key

Enter an existing key in the Private Key text box (for the Import Existing Key option).

Modulus

Click the Modulus drop-down list to choose from the following:

  • MOD 512

  • MOD 1024

  • MOD 1536

  • MOD 2048—(Default)

Certificate

Enter the certificate information in the Certificate text box.

Step 5

Click Save when finished.


Creating a Local User Using the Cisco Cloud APIC GUI

This section explains how to create a local user using the Cisco Cloud APIC GUI.

Procedure


Step 1

Click the Intent icon. The Intent menu appears.

Step 2

Click the drop-down arrow below the Intent search box and choose Administrative.

A list of Administrative options appear in the Intent menu.

Step 3

From the Administrative list in the Intent menu, click Create Local User. The Create Local User dialog box appears.

Step 4

Enter the appropriate values in each field as listed in the following Create Local User Dialog Box Fields table then continue.

Table 20. Create Local User Dialog Box Fields

Properties

Description

Username

Enter the username of the local user.

Password

Enter the password for the local user.

Confirm Password

Reenter the password for the local user.

Description

Enter a description of the local user.

Settings

Account Status

To choose the account status:

  • Active—Activates the local user account.

  • Blocked—Blocks the local user account.

  • Inactive—Deactivates the local user account.

First Name

Enter the first name of the local user.

Last Name

Enter the last name of the local user.

Email Address

Enter the email address of the local user.

Phone Number

Enter the phone number of the local user.

Security Domains

To add a security domain:

  1. Click Add Security Domain. The Add Security Domain dialog box appears.

  2. Click Select Security Domain. The Select Security Domain dialog box appears with a list of security domains in the left pane.

  3. Click to choose a security domain.

  4. Click Select to add the security domain. You return to the Add Security Domain dialog box.

  5. Add a user role:

    1. From the Add Security Domain dialog box, click Select Role. The Select Role dialog box appears with a list of roles in the left pane.

    2. Click to choose a role.

    3. Click Select to add the the role. You retun to the Add Security Domain dialog box.

    4. From the Add Security Domain dialog box, click the Privilege Type drop-down list and choose Read Privilege or Write Privilege.

    5. Click the check mark on the right side of the Privilege Type drop-down list to confirm.

    6. Click Add when finished. You return to the Create Local User dialog box where you can add another security domain.

Step 5

Click Advanced Settings and enter the appropriate values in each field as listed in the following Create Local User Dialog Box Fields: Advanced Settings table then continue.

Table 21. Create Local User Dialog Box Fields: Advanced Settings

Property

Description

Account Expires

If you choose Yes, the account is set to expire at the time that you choose.

Password Update Required

If you choose Yes, the user must change the password upon the next login.

OTP

Put a check in the box to enable the one-time password feature for the user.

User Certificate Attribute

The attribute for the user certificate.

User Certificates

To add a user certificate:

  1. Click Add X509 Certificate. The Add X509 Certificate dialog box appears.

  2. Enter a name in the Name field.

  3. Enter the X509 certificate in the User X509 Certificate text box.

  4. Click Add. The X509 certificate in the User X509 Certificate dialog box closes. You return to the Local User dialog box.

SSH Keys

To add a an SSH key:

  1. Click Add SSH Key. The Add SSH Key dialog box appears.

  2. Enter a name in the Name field.

  3. Enter the SSH key in the Key text box.

  4. Click Add. The Add SSH Key dialog box closes. You return to the Local User dialog box.

Step 6

Click Save when finished.


Managing Regions (Configuring a Cloud Template) Using the Cisco Cloud APIC GUI

With Google Cloud, the VPC resource is a global resource, which means that it spans all Google Cloud regions. By default, all regions are managed by Google Cloud and inter-region connectivity is present. Cisco Cloud APIC manages all 25 Google Cloud regions.

Procedure


Step 1

Click the Intent icon.

The Intent menu appears.
Step 2

In the Workflows area, click Cloud APIC Setup.

The Set up - Overview dialog box appears with options for DNS and NTP Servers, Region Management, and Smart Licensing.
Step 3

For Region Management, click Edit Configuration.

The Region Management window appears.
Step 4

Determine if you want to configure external connectivity.

Click the box next to Enable to enable external connectivity.

Step 5

Verify that all of the regions in the page are selected.

This page shows all of the regions that are supported by Google Cloud. All of the regions are managed by Cisco Cloud APIC.

Step 6

Click Next at the bottom of the page.

If you enabled external connectivity, the General Connectivity page appears.

Step 7

Enter the necessary information in the Hub Network area.

Hub network management is used to deploy cloud routers on specific managed regions. Configure the fabric infra connectivity for the cloud site and define the configuration template used for the cloud routers in the cloud site in this area.

Note the following restrictions:

  • You can create only one hub network in Google Cloud.

  • Under the hub network, only one cloud router is created in Google Cloud.

  1. In the Hub Network area, click Add Hub Network.

    The Add Hub Network window appears.

  2. In the Name field, enter a name for the hub network.

  3. Enter a value in the BGP Autonomous System Number field.

    The BGP Autonomous System Number (ASN) is used for BGP peering inside the cloud site and for MP-BGP IPv4 peering to other sites.

    The ASN must be a private ASN. Enter a value between 64512 and 65534 or between 4200000000 and 4294967294, inclusive, for each hub network, then click the check mark next to the field.

  4. In the Region field, select the appropriate regions.

    You can add up to four regions to deploy hub network in this area. The hub network will create one cloud router in each region selected.

  5. In the VPN Router field, enter a name for the VPN router.

    The infra VPC uses the cloud router and VPN Gateway to create IPSec tunnels and BGP sessions to on-premises sites or other cloud sites. The spoke VPCs peer with the infra VPC to share the VPN connections to external sites.

Step 8

Enter the necessary information in the IPSec Tunnel Subnet Pools area.

  1. In the IPSec Tunnel Subnet Pools area, click Add IPSec Tunnel Subnet Pools.

    The Add IPSec Tunnel Subnet Pools window appears.

  2. Enter the subnet pool to be used for IPSec tunnels, if necessary.

    By default, a subnet pool of 169.254.0.0/16 is populated to create the IPsec tunnels. You can delete the existing subnet pool and add additional subnet pools, if necessary.

    The subnets used for the IPSec Tunnel Subnet Pools entry must be common /30 CIDRs from the 169.254.0.0/16 block. For example, 169.254.7.0/24 and 169.254.8.0/24 would be acceptable entries for the subnet pools in this field.

    Click the check mark after you have entered in the appropriate subnet pools.

Step 9

When you have entered all the necessary information on this page, click Save and Continue at the bottom of the page.

You are given the option to create external networks and complete external connectivity configurations, if necessary. Go to Creating an External Network Using Cloud Native Routers Using the Cisco Cloud APIC GUI for those procedures.


Configuring Cisco Cloud APIC Using the REST API

Creating a Tenant Using the REST API

Before you begin

Review the information provided in Understanding Google Cloud Deployments with Cisco Cloud APIC before proceeding with the procedures in this section.

Procedure


Step 1

Enter the following POST to share the same credentials across multiple tenants, where you are duplicating the cloudCredentials object in each tenant and specifying the same Google Cloud Service Account.

Note the following:

  • Tenant T1 defines the cloudCredentials object that carries the private key for the Service Account.

  • Both tenant T1 and T2 then refer to this cloudCredentials object through the cloudRsCredentials relation.

  • The Service Account defined by tenant T1 must be a member of Google Cloud Projects project1 and project2 in this scenario.

  • The highlighted areas in the POST for tenant T2 show the credentials that are shared with the first user tenant


POST https://<cloud-apic-ip-address>/api/mo/uni.xml

<fvTenant name="T1">
    <cloudAccount id="project1" vendor="gcp" accessType="credentials" >
        <cloudRsCredentials tDn="uni/tn-T1/credentials-creds1" />
    </cloudAccount>
    <cloudCredentials name="creds1" keyId="de22a1bc-7872-4651-9d09-c5d820af7e1c" rsaPrivateKey="-----BEGIN .... -----END PRIVATE KEY-----\n" clientId="28763876" email="capic-395@project2.iam.gserviceaccount.com"/>
    <fvRsCloudAccount tDn="uni/tn-T1/acct-[project1]-vendor-gcp"/>
</fvTenant>

<fvTenant name="T2">
    <cloudAccount id="project2" vendor="gcp" accessType="credentials" >
        <cloudRsCredentials tDn="uni/tn-T2/credentials-creds1" />
    </cloudAccount>
   <cloudCredentials name="creds1" keyId="de22a1bc-7872-4651-9d09-c5d820af7e1c" rsaPrivateKey="-----BEGIN .... -----END PRIVATE KEY-----\n" clientId="28763876" email="capic-395@project2.iam.gserviceaccount.com"/>
    <fvRsCloudAccount tDn="uni/tn-T2/acct-[project2]-vendor-gcp"/>
</fvTenant>
Step 2

To create a user tenant where the Cisco Cloud APIC runs outside of Google Cloud (the infra tenant with credentials):

Note that the new properties added specifically for Google Cloud are highlighted below.


POST https://<cloud-apic-ip-address>/api/mo/uni.xml

<fvTenant name="infra">
    <cloudAccount id="project1" vendor="gcp" accessType="credentials" >
        <cloudRsCredentials tDn="uni/tn-infra/credentials-creds1" />
    </cloudAccount>
    <cloudCredentials name="creds1" keyId="de22a1bc-7872-4651-9d09-c5d820af7e1c" rsaPrivateKey="-----BEGIN .... -----END PRIVATE KEY-----\n" clientId="28763876" email="capic-395@project2.iam.gserviceaccount.com"/>
    <fvRsCloudAccount tDn="uni/tn-infra/acct-[project1]-vendor-gcp"/>
</fvTenant>

<fvTenant name="T2">
    <cloudAccount id="project2" vendor="gcp" accessType="credentials" >
        <cloudRsCredentials tDn="uni/tn-infra/credentials-creds1" />
    </cloudAccount>
    <fvRsCloudAccount tDn="uni/tn-T2/acct-[project2]-vendor-gcp"/>
</fvTenant>
Step 3

To create a managed user tenant where the user shares the infra service account across multiple Google Cloud projects:


POST https://<cloud-apic-ip-address>/api/mo/uni.xml

<fvTenant name="infra">
    <cloudAccount id="project1" vendor="gcp" accessType="managed" />
    <fvRsCloudAccount tDn="uni/tn-infra/acct-[project1]-vendor-gcp"/>
</fvTenant>

<fvTenant name="T2">
    <cloudAccount id="project2" vendor="gcp" accessType="managed" />
    <fvRsCloudAccount tDn="uni/tn-T2/acct-[project2]-vendor-gcp"/>
</fvTenant>

Configuring Inter-VRF Route Leaking Using the REST API

This example demonstrates how to configure leak routes for the Cisco Cloud APIC using the REST API. This example shows how to configure inter-VRF route leaking, between an external VRF and a cloud VRF, as shown in the following figure.

Procedure


To configure inter-VRF route leaking for this example:

Example:


<polUni>
    <fvTenant name="t1">
        <fvCtx name="VRF1">
            <leakRoutes>
                <leakInternalPrefix ip="0.0.0.0/0" status="">
                    <leakTo tenantName="infra" ctxName="Ext-VRF2" scope="public" status=""/>
                </leakInternalPrefix>
            </leakRoutes>
        </fvCtx>
        <cloudCtxProfile name="v1-us-west1" type="regular" vpcGroup="one" status="">
            <cloudRsToCtx tnFvCtxName="VRF1"/>
            <cloudRsCtxProfileToRegion tDn="uni/clouddomp/provp-gcp/region-us-west1"/>
            <cloudCidr addr="100.100.0.0/16" primary="yes">
                <cloudSubnet ip="100.100.100.0/20" scope="public,shared" subnetGroup="one">
                    <cloudRsZoneAttach tDn="uni/clouddomp/provp-gcp/region-us-west1/zone-default"/>
                </cloudSubnet>
            </cloudCidr>
        </cloudCtxProfile>
    </fvTenant>
    <fvTenant name="infra" status="">
        <fvCtx name="Ext-VRF2">
            <leakRoutes>
                <leakExternalPrefix ip="0.0.0.0/0" status="">
                    <leakTo tenantName="t1" ctxName="VRF1" scope="public" status=""/>
                </leakInternalPrefix>
            </leakRoutes>
        </fvCtx>
    </fvTenant>
</polUni>

Creating a Filter Using the REST API

This section demonstrates how to create a filter using the REST API.

Procedure


To create a filter:


https://<IP_Address>/api/node/mo/.xml
<?xml version="1.0" encoding="UTF-8"?>
<!-- api/node/mo/uni/.xml -->
<polUni>
    <fvTenant name="t15">
    <vzFilter name="rule1">
      <vzEntry etherT="ip" dToPort="22" prot="tcp" dFromPort="22" name="ssh"/>
      <vzEntry etherT="ip" prot="unspecified" name="any"/>
    </vzFilter>
    <vzFilter name="rule2">
      <vzEntry etherT="ip" dToPort="http" prot="tcp" dFromPort="http" name="http"/>
    </vzFilter>
    <vzFilter name="rule3">
      <vzEntry etherT="ip" dToPort="22" prot="tcp" dFromPort="22" name="ssh"/>
    </vzFilter>
    <vzFilter name='all_rule'>
        <vzEntry etherT="ip" prot="unspecified" name="any"/>
  </vzFilter>

    <vzBrCP name="c1">
        <vzSubj name="c1">
            <vzRsSubjFiltAtt tnVzFilterName="rule2"/>
            <vzRsSubjGraphAtt tnVnsAbsGraphName="c13_g1"/>
            <vzRsSubjFiltAtt tnVzFilterName="rule3"/>
            <vzRsSubjFiltAtt tnVzFilterName="all_rule"/>
      </vzSubj>
    </vzBrCP>

  </fvTenant>
</polUni>

Creating a Contract Using the REST API

This example demonstrates how to create a contract for the Cisco Cloud APIC using the REST API.

Before you begin

Create filters.

Procedure


To create a contract:


<polUni>
  <fvTenant name="t2" status="">
    <vzFilter descr="" name="http-family-destination" ownerKey="" ownerTag="">
      <vzEntry name="http" prot="tcp" etherT="ip" dFromPort="http" dToPort="http"/>
      <vzEntry name="https" prot="tcp" etherT="ip" dFromPort="https" dToPort="https"/>
    </vzFilter>
    <vzBrCP name="httpFamily">
      <vzSubj name="default" revFltPorts="yes" targetDscp="unspecified">
        <vzRsSubjFiltAtt action="permit" directives="" tnVzFilterName="http-family-destination"/>
      </vzSubj>
    </vzBrCP>
  </fvTenant>
</polUni>

Note the following restrictions for the name of the contract (the vzBrCP entry):

  • Match the regular expression:

    [a-z]([-a-z0-9]*[a-z0-9])?

    This means that the first character must be a lowercase letter, and all the following characters must be hyphens, lowercase letters, or digits, except the last character, which cannot be a hyphen.

  • We recommend using 14 characters or fewer for this name, if possible, due to the restrictions imposed by the Google Cloud firewall rules. Refer to Naming Length Restrictions Imposed By Google Cloud Firewall Rules to better understand the restriction and the total number of characters allowed for each of the Cisco Cloud APIC components that make up the firewall rule name.


Creating a Cloud Context Profile Using the REST API

This section demonstrates how to create a cloud context profile.

Before you begin

Create a VRF.

Procedure


Step 1

To create a basic cloud context profile:

Example:

<?xml version="1.0" encoding="UTF-8"?>
<!-- api/node/mo/uni/.xml -->
<polUni>
    <fvTenant name="tn15">
    <cloudCtxProfile name="cProfilewest1151">
        <cloudRsCtxProfileToRegion tDn="uni/clouddomp/provp-gcp/region-us-west1"/>
      <cloudRsToCtx tnFvCtxName="ctx151"/>
    <cloudCidr addr="15.151.0.0/16" primary="true" status="">
          <cloudSubnet ip="15.151.1.0/24" name="GatewaySubnet" usage="gateway">
              <cloudRsZoneAttach tDn="uni/clouddomp/provp-gcp/region-us-west1/zone-default"/>
        </cloudSubnet>
        <cloudSubnet ip="15.151.2.0/24" name="albsubnet" >
            <cloudRsZoneAttach tDn="uni/clouddomp/provp-gcp/region-us-west1/zone-default"/>
        </cloudSubnet>
          <cloudSubnet ip="15.151.3.0/24" name="subnet" usage="">
              <cloudRsZoneAttach tDn="uni/clouddomp/provp-gcp/region-us-west1/zone-default"/>
        </cloudSubnet>
    </cloudCidr>
    </cloudCtxProfile>
  </fvTenant>
</polUni>
Step 2

To create a cloud context profile where you are adding a secondary VRF, CIDR, and subnet for a VNet:

Example:

<?xml version="1.0" encoding="UTF-8"?>
<!-- api/node/mo/uni/.xml -->
<polUni>
    <fvTenant name="tenant1" status="">
        <fvCtx name="VRF1" />
        <fvCtx name="VRF2” />
        <cloudCtxProfile name="vpc1" status="">
            <cloudRsCtxProfileToRegion tDn="uni/clouddomp/provp-gcp/region-us-central1" status=""/>
            <cloudRsToCtx tnFvCtxName="VRF1" />
            <cloudRsCtxProfileToGatewayRouterP tDn="uni/tn-infra/gwrouterp-default" status=""/>
            <cloudCidr name="cidr1" addr="192.0.2.0/16" primary="yes" status="">
                <cloudSubnet ip="192.0.3.0/24" usage="gateway" status="">
                    <cloudRsZoneAttach status="" tDn="uni/clouddomp/provp-gcp/region-us-central1/zone-default"/>
                </cloudSubnet>
            </cloudCidr>
            <cloudCidr name="cidr1" addr="193.0.2.0/16" primary="no" status="">
                <cloudSubnet ip="193.0.3.0/24" usage="" status="">
                    <cloudRsSubnetToCtx tnFvCtxName="VRF2"/>
                    <cloudRsZoneAttach status="" tDn="uni/clouddomp/provp-gcp/region-us-central1/zone-default"/>
                </cloudSubnet>
            </cloudCidr>
        </cloudCtxProfile>
    </fvTenant>
</polUni>


Creating an Application Profile Using the REST API

This section demonstrates how to create an application profile using the REST API.

Before you begin

Create a tenant.

Procedure


To create an application profile:


https://<IP_Address>/api/node/mo/.xml
<?xml version="1.0" encoding="UTF-8"?>
<!-- api/node/mo/uni/.xml -->
<polUni>
    <fvTenant name="tn15">
        <fvRsCloudAccount tDn="uni/tn-infra/act-[<gcp-id>]-vendor-gcp" />


        <fvCtx name="ctx151"/>

        <cloudVpnGwPol name="VgwPol1"/>
        <cloudApp name="a1">

    </cloudApp>

  </fvTenant>
</polUni>

For the application profile name, note the following restrictions:

  • Match the regular expression:

    [a-z]([-a-z0-9]*[a-z0-9])?

    This means that the first character must be a lowercase letter, and all the following characters must be hyphens, lowercase letters, or digits, except the last character, which cannot be a hyphen.

  • We recommend using 14 characters or fewer for this name, if possible, due to the restrictions imposed by the Google Cloud firewall rules. Refer to Naming Length Restrictions Imposed By Google Cloud Firewall Rules to better understand the restriction and the total number of characters allowed for each of the Cisco Cloud APIC components that make up the firewall rule name.


Creating an EPG Using the REST API

Use the procedures in this section to create an application EPG or an external EPG using the REST API.

Creating a Cloud EPG Using the REST API

This example demonstrates how to create a cloud EPG using the REST API.

Before you begin

Create an application profile and a VRF.

Procedure


To create a cloud EPG:


<?xml version="1.0" encoding="UTF-8"?>
<!-- api/node/mo/uni/.xml -->
<polUni>
    <fvTenant name="tn15">
        <fvRsCloudAccount tDn="uni/tn-infra/act-[<gcp-id>]-vendor-gcp" />


        <fvCtx name="ctx151"/>

        <cloudVpnGwPol name="VgwPol1"/>
        <cloudApp name="a1">


        <cloudEPg name="epg1">
            <cloudRsCloudEPgCtx tnFvCtxName="ctx151"/>
            <cloudEPSelector matchExpression="custom:tag1=='value1'" name="selector-1"/>
        </cloudEPg>


    </cloudApp>

  </fvTenant>
</polUni>

Note the following restrictions:

  • Match the regular expression:

    [a-z]([-a-z0-9]*[a-z0-9])?

    This means that the first character must be a lowercase letter, and all the following characters must be hyphens, lowercase letters, or digits, except the last character, which cannot be a hyphen.

  • We recommend using 14 characters or fewer for this name, if possible, due to the restrictions imposed by the Google Cloud firewall rules. Refer to Naming Length Restrictions Imposed By Google Cloud Firewall Rules to better understand the restriction and the total number of characters allowed for each of the Cisco Cloud APIC components that make up the firewall rule name.


Creating an External Cloud EPG Using the REST API

This example demonstrates how to create an external cloud EPG using the REST API.

For the name of the external EPG, note the following restrictions:

  • Match the regular expression:

    [a-z]([-a-z0-9]*[a-z0-9])?

    This means that the first character must be a lowercase letter, and all the following characters must be hyphens, lowercase letters, or digits, except the last character, which cannot be a hyphen.

  • We recommend using 14 characters or fewer for this name, if possible, due to the restrictions imposed by the Google Cloud firewall rules. Refer to Naming Length Restrictions Imposed By Google Cloud Firewall Rules to better understand the restriction and the total number of characters allowed for each of the Cisco Cloud APIC components that make up the firewall rule name.

Before you begin

Create an application profile and a VRF.

Procedure


Step 1

To create an external cloud EPG:

Example:

<?xml version="1.0" encoding="UTF-8"?>
<!-- api/node/mo/uni/.xml -->
<polUni>
    <fvTenant name="tn15">
        <fvRsCloudAccount tDn="uni/tn-infra/act-[<gcp-id>]-vendor-gcp" />
        <fvCtx name="ctx151"/>
        <cloudVpnGwPol name="VgwPol1"/>
        <cloudApp name="a1">
        <cloudExtEPg routeReachability="internet" name="extEpg-1">
            <fvRsCons tnVzBrCPName="extEpg-1"/>
            <cloudRsCloudEPgCtx tnFvCtxName="ctx151"/>
            <cloudExtEPSelector name="extSelector1" subnet="0.0.0.0/0"/>
       </cloudExtEPg>
    </cloudApp>
  </fvTenant>
</polUni>
Step 2

To create an external cloud EPG with type site-external, or an infra L3Out EPG:

Example:

<?xml version="1.0" encoding="UTF-8"?>
<!-- api/node/mo/uni/.xml -->
<polUni>
    <fvTenant name="infra">
        <cloudApp name="a1">
        <cloudExtEPg routeReachability="site-ext" name="extEpg-1">
            <fvRsCons tnVzBrCPName="extEpg-1"/>
            <cloudRsCloudEPgCtx tnFvCtxName="ctx152"/>
            <cloudExtEPSelector name="extSelector1" subnet="10.100.0.0/16"/>
       </cloudExtEPg>
    </cloudApp>
  </fvTenant>
</polUni>

Creating Cloud Routers, External Networks, and External VRFs Using the REST API

This section demonstrates how to create cloud routers, external networks, and external VRFs using the REST API.

Procedure


Following is an example POST that shows how to bring up the cloud router in four regions and add an external network with an external VRF in each region.


<polUni>
    <fvTenant name="infra" status="">
        <fvCtx name="extv1" pcEnfPref="enforced" status=""/>
         <fvCtx name="extv2" pcEnfPref="enforced" status=""/>
          <fvCtx name="extv3" pcEnfPref="enforced" status=""/>

           <cloudtemplateInfraNetwork name="default" vrfName="overlay-1" hostRouterMode="manual" status="">
            <cloudtemplateIpSecTunnelSubnetPool subnetpool= "169.254.7.0/24" poolname="pool1" />
             <cloudtemplateIpSecTunnelSubnetPool subnetpool= "169.254.8.0/24" poolname="pool2" />
              <cloudtemplateIpSecTunnelSubnetPool subnetpool= "169.254.10.0/24" poolname="pool3" />

            <cloudtemplateHubNetwork name="default" status="" >
                <cloudtemplateHubNetworkName name="foo1" asn="64514" status="">
                    <cloudRegionName provider="gcp" region="us-west4" status="" />
                    <cloudRegionName provider="gcp" region="us-west2" status="" />
                    <cloudRegionName provider="gcp" region="us-east1" status="" />
                      <cloudRegionName provider="gcp" region="us-west1" status=""/>
                </cloudtemplateHubNetworkName>
            </cloudtemplateHubNetwork>

            <cloudtemplateIntNetwork name="default">
                <cloudRegionName provider="gcp" region="us-west1">
                    <cloudtemplateVpnRouter name="default" status=""/>
                </cloudRegionName>
                <cloudRegionName provider="gcp" region="us-west2">
                    <cloudtemplateVpnRouter name="default" status=""/>
                </cloudRegionName>
                <cloudRegionName provider="gcp" region="us-east1">
                    <cloudtemplateVpnRouter name="default" status=""/>
                  </cloudRegionName>
                    <cloudRegionName provider="gcp" region="us-west4">
                    <cloudtemplateVpnRouter name="default" status=""/>
                </cloudRegionName>
            </cloudtemplateIntNetwork>

            <cloudtemplateExtNetwork name="default">
         </cloudtemplateExtNetwork>
               <cloudtemplateExtNetwork name="extnwfoo1" vrfName="extv1" hubNetworkName="foo1" vpnRouterName="default" status="">
                    <cloudRegionName provider="gcp" region="us-west1" status=""/>
                       <cloudtemplateVpnNetwork name="onprem01" remoteSiteId="1" status="">
                    <cloudtemplateIpSecTunnel peeraddr="128.1.1.1" preSharedKey="abcd" poolname="pool1" status="">
                        <cloudtemplateBgpIpv4 peeraddr="0.0.0.0/0" peerasn="64529" status=""/>
                    </cloudtemplateIpSecTunnel>
                </cloudtemplateVpnNetwork>
            </cloudtemplateExtNetwork>
            <cloudtemplateExtNetwork name="extnwfoo2" vrfName="extv2" hubNetworkName="foo1" vpnRouterName="default" status="">
             <cloudRegionName provider="gcp" region="us-west2" status=""/>
                <cloudtemplateVpnNetwork name="onprem02" remoteSiteId="2" status="">
                       <cloudtemplateIpSecTunnel peeraddr="128.1.1.2" preSharedKey="def" poolname="pool2" status="">
                        <cloudtemplateBgpIpv4 peeraddr="0.0.0.0/0" peerasn="64529" status=""/>
                    </cloudtemplateIpSecTunnel>
                </cloudtemplateVpnNetwork>
            </cloudtemplateExtNetwork>
             <cloudtemplateExtNetwork name="extnwfoo3" vrfName="extv3" hubNetworkName="foo1" vpnRouterName="default" status="">
                <cloudRegionName provider="gcp" region="us-east1" status=""/>
                   <cloudtemplateVpnNetwork name="onprem03" remoteSiteId="3" status="">
                       <cloudtemplateIpSecTunnel peeraddr="128.1.1.3" preSharedKey="abc" poolname="pool3" status="">
                        <cloudtemplateBgpIpv4 peeraddr="0.0.0.0/0" peerasn="64529" status=""/>
                    </cloudtemplateIpSecTunnel>
                </cloudtemplateVpnNetwork>
                  </cloudtemplateExtNetwork>
        </cloudtemplateInfraNetwork>
    </fvTenant>
</polUni>
