Deploying in VMware ESX

Prerequisites and Guidelines

Before you proceed with deploying the Nexus Dashboard cluster in VMware ESX, you must:

  • Ensure that the ESX form factor supports your scale and services requirements.

    Scale and services support and co-hosting vary based on the cluster form factor and the specific services you plan to deploy. You can use the Nexus Dashboard Capacity Planning tool to verify that the virtual form factor satisfies your deployment requirements.


    Note

    This document describes how to initially deploy the base Cisco Nexus Dashboard cluster. If you want to expand an existing cluster with additional worker nodes, see the Infrastructure Management article instead, which is also available from the Cisco Nexus Dashboard UI.

    Some services (such as Nexus Dashboard Fabric Controller) may require only a single ESX virtual node for one or more specific use cases. In that case, the capacity planning tool will indicate the requirement and you can simply skip the additional node deployment step in the following sections.

    Standby nodes are not supported with this cluster form factor.

  • Review and complete the general prerequisites described in Deployment Overview and Requirements.

    Note that this document describes how to initially deploy the base Nexus Dashboard cluster. If you want to expand an existing cluster with additional nodes (such as worker or standby), see the "Infrastructure Management" chapter of the Cisco Nexus Dashboard User Guide instead, which is available from the Nexus Dashboard UI or online at Cisco Nexus Dashboard User Guide

  • Review and complete any additional prerequisites described in the Release Notes for the services you plan to deploy.

  • When deploying in VMware ESX, you can deploy two types of nodes:

    • Data Node—node profile with higher system requirements designed for specific services that require the additional resources.

    • App Node—node profile with a smaller resource footprint that can be used for most services.


    Note

    Some larger scale Nexus Dashboard Fabric Controller deployments may require additional worker nodes. If you plan to add worker nodes to your NDFC cluster, you can deploy all nodes (the initial 3-node cluster and the additional worker nodes) using the OVA-App profile. Detailed scale information is available in the Verified Scalability Guide for Cisco Nexus Dashboard Fabric Controller for your release.

    Ensure you have enough system resources:

    Table 1. Deployment Requirements

    Data Node Requirements

    App Node Requirements

    • VMware ESXi 7.0, 7.0.1, 7.0.2, 7.0.3

    • VMware vCenter 7.0.1, 7.0.2, 7.0.3 if deploying using vCenter

    • Each VM requires the following:

      • 32 vCPUs with physical reservation of at least 2.2GHz

      • 128GB of RAM with physical reservation

      • 3TB SSD storage for the data volume and an additional 50GB for the system volume

        Data nodes must be deployed on storage with the following minimum performance requirements:

        • The SSD must be attached to the data store directly or in JBOD mode if using a RAID Host Bus Adapter (HBA)

        • The SSDs must be optimized for Mixed Use/Application (not Read-Optimized)

        • 4K Random Read IOPS: 93000

        • 4K Random Write IOPS: 31000

    • We recommend that each Nexus Dashboard node is deployed in a different ESXi server.

    • VMware ESXi 7.0, 7.0.1, 7.0.2, 7.0.3

    • VMware vCenter 7.0.1, 7.0.2, 7.0.3 if deploying using vCenter

    • Each VM requires the following:

      • 16 vCPUs with physical reservation of at least 2.2GHz

      • 64GB of RAM with physical reservation

      • 500GB HDD or SSD storage for the data volume and an additional 50GB for the system volume

        Some services require App nodes to be deployed on faster SSD storage while other services support HDD. Check the Nexus Dashboard Capacity Planning tool to ensure that you use the correct type of storage.

        Note



        Beginning with Nexus Dashboard release 3.0(1i) and Nexus Dashboard Insights release 6.3(1), you can use the OVA-App node profile for the Insights service. However, you must change from the default 500GB disk requirement to 1536GB when deploying node VMs which will be used for hosting Insights.

    • We recommend that each Nexus Dashboard node is deployed in a different ESXi server.

  • If you plan to configure VLAN ID for the cluster nodes' data interfaces, you must enable VLAN 4095 on the data interface port group in vCenter for Virtual Guest VLAN Tagging (VGT) mode.

    If you specify a VLAN ID for Nexus Dashboard data interfaces, the packets must carry a Dot1q tag with that VLAN ID. When you set an explicit VLAN tag in a port group in the vSwitch and attach it to a Nexus Dashboard VM's VNIC, the vSwitch removes the Dot1q tag from the packet coming from the uplink before it sends the packet to that VNIC. Because the vND node expects the Dot1q tag, you must enable VLAN 4095 on the data interface port group to allow all VLANs.

  • After each node's VM is deployed, ensure that the VMware Tools' periodic time synchronization is disabled as described in the deployment procedure in the next section.

  • VMware snapshots are only supported for Nexus Dashboard VMs that are powered off and must be done for all Nexus Dashboard VMs belonging to the same cluster.

    Snapshots of powered on VMs are not supported.

  • VMware Distributed Resource Scheduler (DRS) is not supported for Nexus Dashboard cluster nodes.

    If you have DRS enabled at the ESXi cluster level, you must explicitly disable it for the Nexus Dashboard VMs during deployment as described in the following section.

  • This release does not support VMware snapshots of the Nexus Dashboard VMs.

  • You can choose to deploy the nodes directly in ESXi or using vCenter.

    If you want to deploy using vCenter, following the steps described in Deploying Nexus Dashboard Using VMware vCenter.

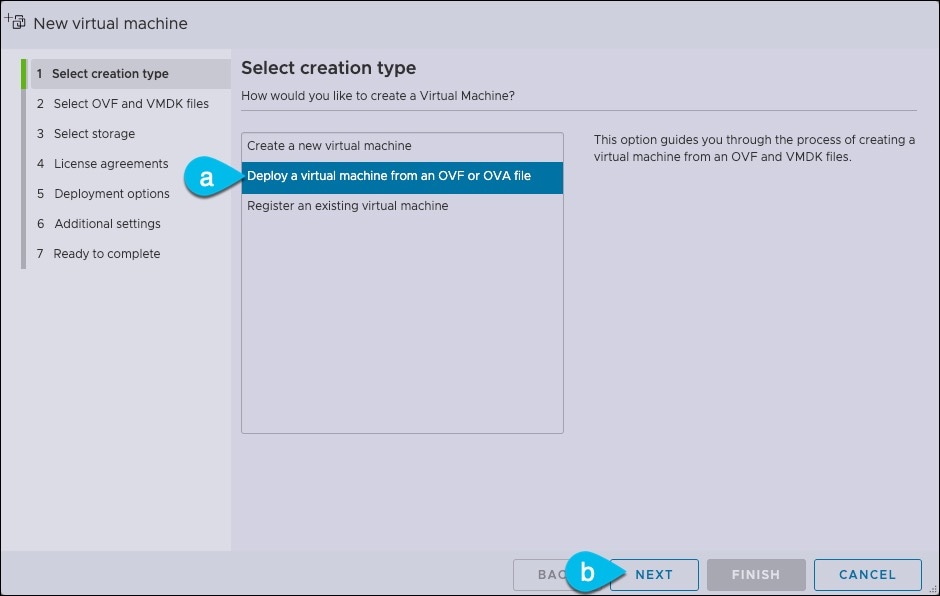

    If you want to deploy directly in ESXi, following the steps described in Deploying Nexus Dashboard Directly in VMware ESXi.


    Note

    If you plan to deploy Nexus Dashboard Insights using the OVA-App node profile, you must deploy using vCenter.

    Nexus Dashboard Insights requires a larger disk size than the default value for OVA-App node profiles. If you plan to deploy NDI using the OVA-App node profile, you must change the default disk size for OVA-App nodes from 500GB to 1.5TB during VM deployment. Disk size customization is supported when deploying through VMware vCenter only. For detailed Insights requirements, see the Nexus Dashboard Capacity Planning and the Nexus Dashboard Insights Deployment document.

Deploying Nexus Dashboard Using VMware vCenter

This section describes how to deploy Cisco Nexus Dashboard cluster using VMware vCenter. If you prefer to deploy directly in ESXi, follow the steps described in Deploying Nexus Dashboard Directly in VMware ESXi instead.

Before you begin

Procedure

Step 1

Obtain the Cisco Nexus Dashboard OVA image.

  1. Browse to the Software Download page.

    https://software.cisco.com/download/home/286327743/type/286328258/

  2. Choose the Nexus Dashboard release version you want to download.

  3. Click the Download icon next to the Nexus Dashboard OVA image (nd-dk9.<version>.ova).

Step 2

Log in to your VMware vCenter.

Depending on the version of your vSphere client, the location and order of configuration screens may differ slightly. The following steps provide deployment details using VMware vSphere Client 7.0.

Step 3

Start the new VM deployment.

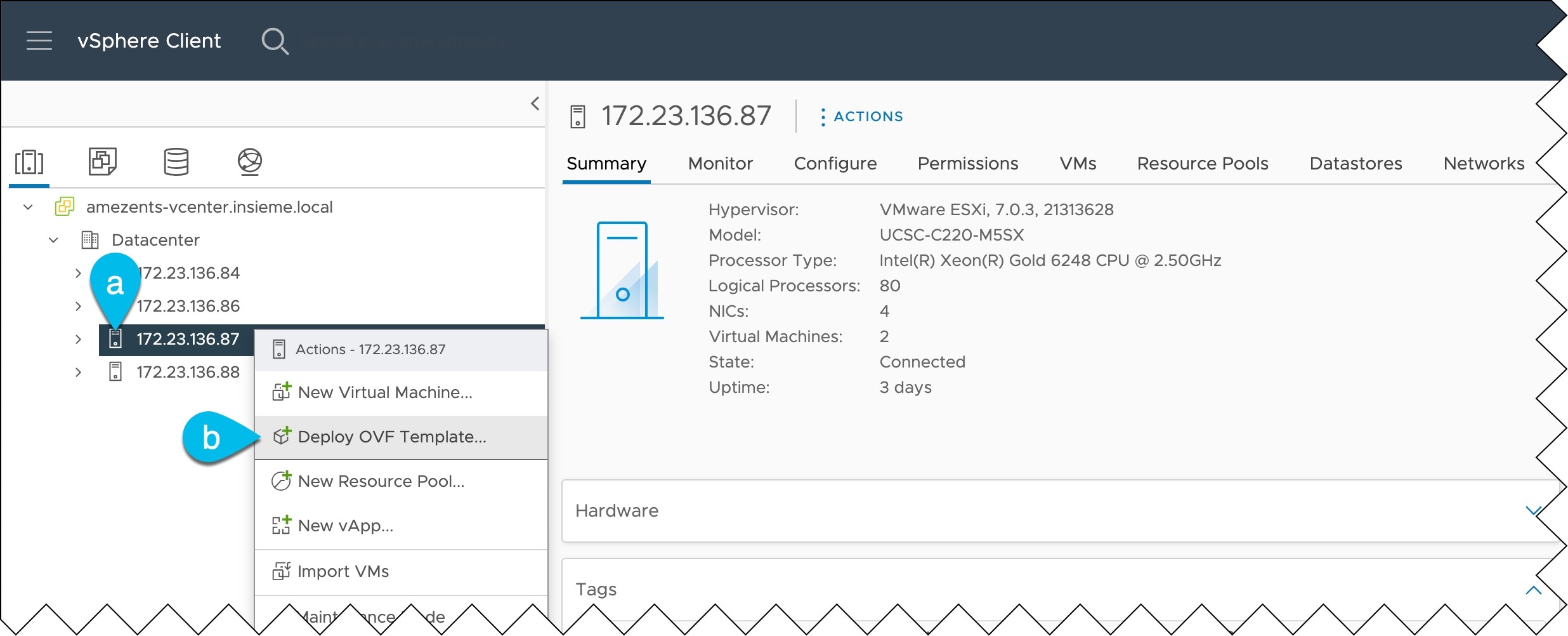

  1. Right-click the ESX host where you want to deploy the VM.

  2. Select Deploy OVF Template...

    The Deploy OVF Template wizard appears.

Step 4

In the Select an OVF template screen, provide the OVA image.

  1. Provide the location of the image.

    If you hosted the image on a web server in your environment, select URL and provide the URL to the image as shown in the above screenshot.

    If your image is local, select Local file and click Choose Files to select the OVA file you downloaded.

  2. Click Next to continue.

Step 5

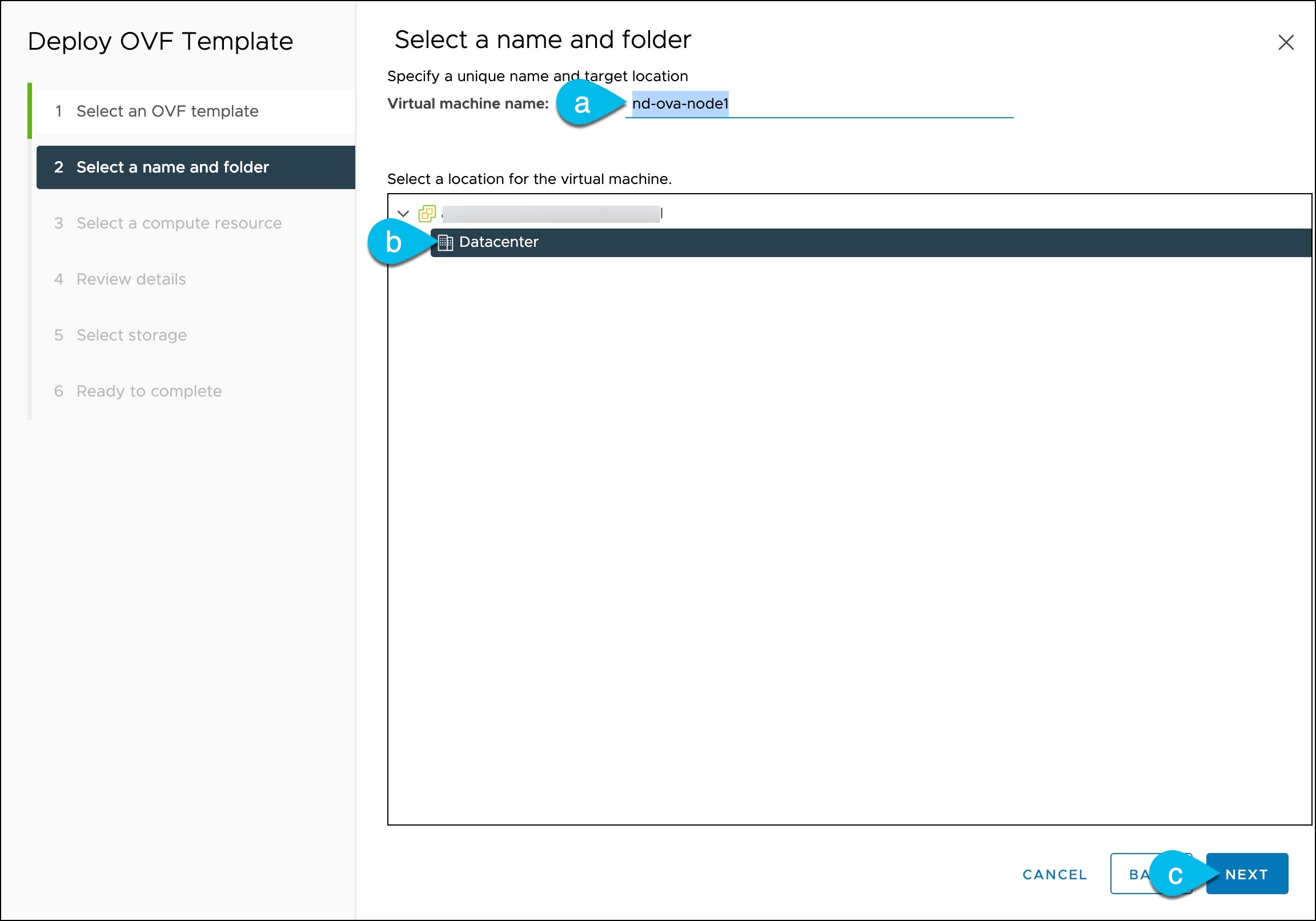

In the Select a name and folder screen, provide a name and location for the VM.

  1. Provide the name for the virtual machine.

    For example, nd-ova-node1.

  2. Select the location for the virtual machine.

  3. Click Next to continue

Step 6

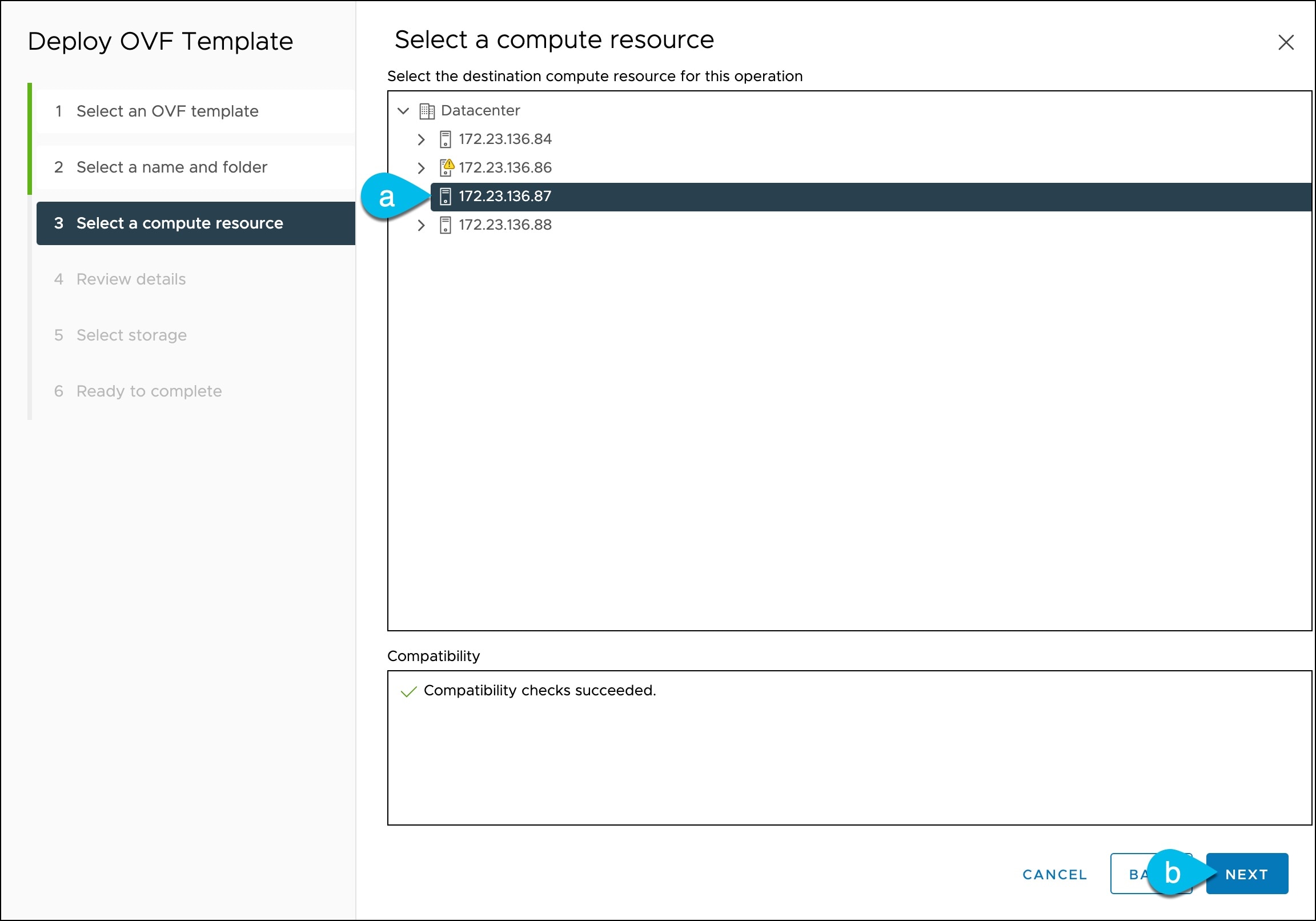

In the Select a compute resource screen, select the ESX host.

  1. Select the vCenter data center and the ESX host for the virtual machine.

  2. Click Next to continue

Step 7

In the Review details screen, click Next to continue.

Step 8

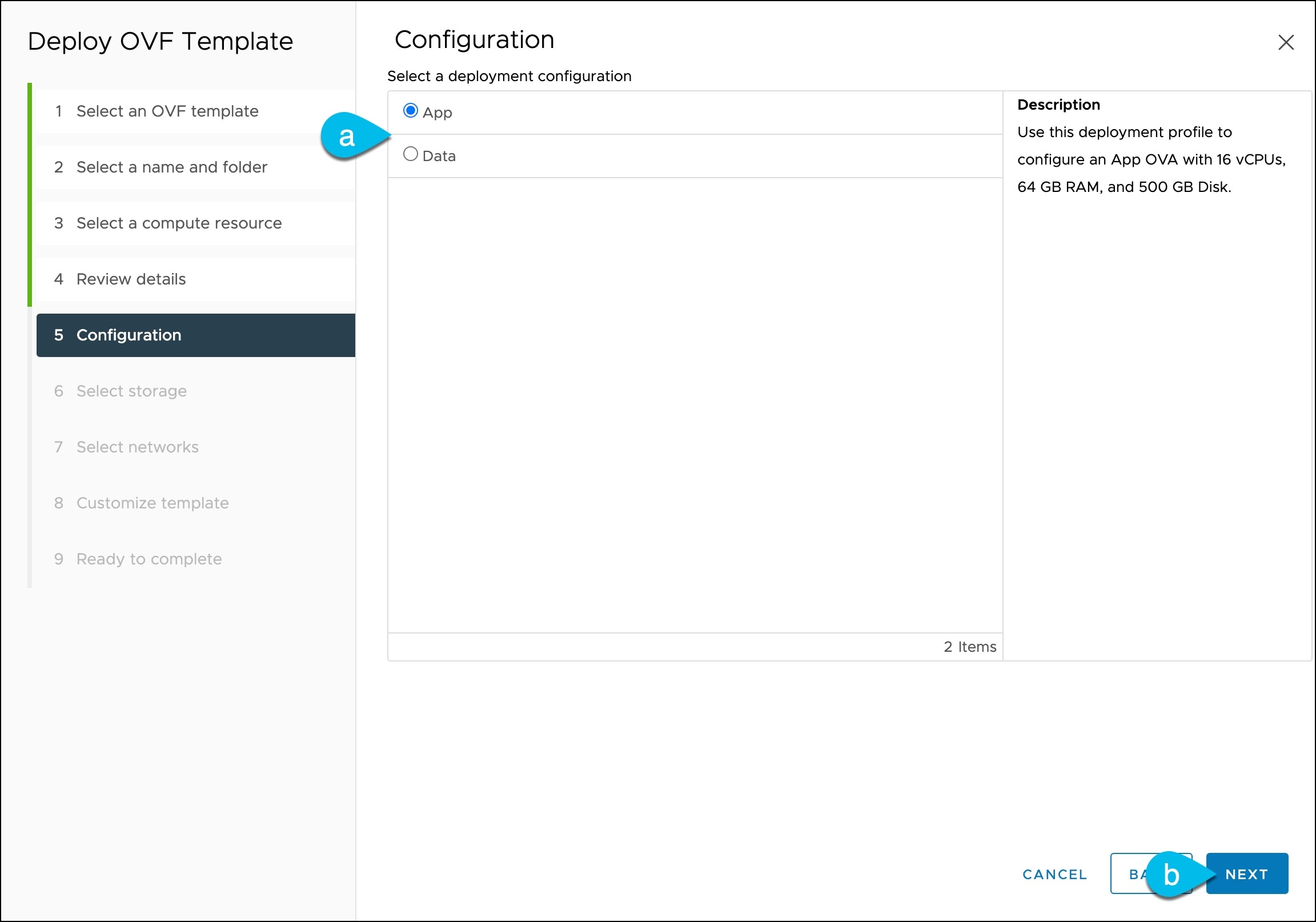

In the Configuration screen, select the node profile you want to deploy.

  1. Select either App or Data node profile based on your use case requirements.

    For more information about the node profiles, see Prerequisites and Guidelines.

  2. Click Next to continue

Step 9

In the Select storage screen, provide the storage information.

  1. From the Select virtual disk format drop-down, choose Thick Provisioning.

  2. Check the Disable Storage DRS for this virtual machine checkbox.

    Nexus Dashboard does not support VMware DRS. We recommend that you check the Disable Storage DRS for this virtual machine option in case DRS is enabled at the ESXi cluster level.

  3. Select the datastore for the virtual machine.

    We recommend a unique datastore for each node.

  4. Click Next to continue

Step 10

In the Select networks screen, choose the VM network for the Nexus Dashboard's Management and Data networks and click Next to continue.

There are two networks required by the Nexus Dashboard cluster:

  • fabric0 is used for the Nexus Dashboard cluster's Data Network

  • mgmt0 is used for the Nexus Dashboard cluster's Management Network.

For more information about these networks, see Prerequisites and Guidelines in the "Deployment Overview and Requirements" chapter.

Step 11

In the Customize template screen, provide the required information.

  1. Provide the size for the node's data volume.

    The default values will be pre-populated based on the type of node you are deploying, with App node having a single 500GB disk and Data node having a single 3TB disk. In addition to the data volume, a second 50GB system volume will also be configured but cannot be customized.

    Note



    If you want to specify a custom disk size for your node, you must do so during VM deployment. Resizing the disk after the node is brought up is not supported by Nexus Dashboard.

    If you plan to deploy Nexus Dashboard Insights using the OVA-App node profile, you must change the data disk size from the default 500GB value to 1536GB. For additional information about cluster sizing, system resource requirements, and node profile support, see the Nexus Dashboard Capacity Planning and the Nexus Dashboard Insights Deployment document.

  2. Provide and confirm the Password.

    This password is used for the rescue-user account on each node.

    Note



    You must provide the same password for all nodes or the cluster creation will fail.

  3. Provide the Management Network IP address and netmask.

  4. Provide the Management Network IP gateway.

  5. Click Next to continue.

Step 12

In the Ready to complete screen, verify that all information is accurate and click Finish to begin deploying the first node.

Step 13

Repeat previous steps to deploy the second and third nodes.

Note



If you are deploying a single-node cluster, you can skip this step.

You do not need to wait for the first node's VM deployment to complete, you can begin deploying the other two nodes simultaneously. The steps to deploy the second and third nodes are identical to the first node's.

Step 14

Wait for the VM(s) to finish deploying.

Step 15

Ensure that the VMware Tools periodic time synchronization is disabled, then start the VMs.

To disable time synchronization:

  1. Right-click the node's VM and select Edit Settings.

  2. In the Edit Settings window, select the VM Options tab.

  3. Expand the VMware Tools category and uncheck the Synchronize guest time with host option.

Step 16

Open your browser and navigate to https://<node-mgmt-ip> to open the GUI.

The rest of the configuration workflow takes place from one of the node's GUI. You can choose any one of the nodes you deployed to begin the bootstrap process and you do not need to log in to or configure the other two nodes directly.

Enter the password you provided in a previous step and click Login

Step 17

Provide the Cluster Details.

In the Cluster Details screen of the Cluster Bringup wizard, provide the following information:

  1. Provide the Cluster Name for this Nexus Dashboard cluster.

    The cluster name must follow the RFC-1123 requirements.

  2. (Optional) If you want to enable IPv6 functionality for the cluster, check the Enable IPv6 checkbox.

  3. (Optional) If you want to enable NTP server authentication, click Add NTP Key.

    In the additional fields, provide the following information:

    • NTP Key – a cryptographic key that is used to authenticate the NTP traffic between the Nexus Dashboard and the NTP server(s). You will define the NTP servers in the following step, and multiple NTP servers can use the same NTP key.

    • Key ID – each NTP key must be assigned a unique key ID, which is used to identify the appropriate key to use when verifying the NTP packet.

    • Auth Type – this release supports MD5, SHA, and AES128CMAC authentication types.

    • Choose whether this key is Trusted. Untrusted keys cannot be used for NTP authentication.

    Note



    For the complete list of NTP authentication requirements and guidelines, see Prerequisites and Guidelines.

    After you've entered the information, click the checkmark icon to save it.

  4. Click +Add NTP Host to add one or more NTP servers.

    In the additional fields, provide the following information:

    • NTP Host – you must provide an IP address; fully qualified domain name (FQDN) are not supported.

    • Key ID – if you want to enable NTP authentication for this server, provide the key ID of the NTP key you defined in the previous step.

    • Choose whether this NTP server is Preferred.

    After you've entered the information, click the checkmark icon to save it.

    Note



    If the node into which you are logged in is configured with only an IPv4 address, but you have checked Enable IPv6 in a previous step and provided an IPv6 address for an NTP server, you will get the following validation error:

    This is because the node does not have an IPv6 address yet (you will provide it in the next step) and is unable to connect to an IPv6 address of the NTP server.

    In this case, simply finish providing the other required information as described in the following steps and click Next to proceed to the next screen where you will provide IPv6 addresses for the nodes.

    If you want to provide additional NTP servers, click +Add NTP Host again and repeat this substep.

  5. Click +Add DNS Provider to add one or more DNS servers.

    After you've entered the information, click the checkmark icon to save it.

  6. Provide a Proxy Server.

    For clusters that do not have direct connectivity to Cisco cloud, we recommend configuring a proxy server to establish the connectivity. This allows you to mitigate risk from exposure to non-conformant hardware and software in your fabrics.

    The proxy server must have the following URLs enabled:

    dcappcenter.cisco.com
svc.intersight.com
svc.ucs-connect.com
svc-static1.intersight.com
svc-static1.ucs-connect.com

    If you want to skip proxy configuration, mouse over the information (i) icon next to the field, then click Skip.

  7. (Optional) If your proxy server required authentication, change Authentication required for Proxy to Yes and provide the login credentials.

  8. (Optional) Expand the Advanced Settings category and change the settings if required.

    Under advanced settings, you can configure the following:

    • Provide one or more search domains by clicking +Add DNS Search Domain.

      After you've entered the information, click the checkmark icon to save it.

    • Provide custom App Network and Service Network.

      The application overlay network defines the address space used by the application's services running in the Nexus Dashboard. The field is pre-populated with the default 172.17.0.1/16 value.

      The services network is an internal network used by the Nexus Dashboard and its processes. The field is pre-populated with the default 100.80.0.0/16 value.

      If you have checked the Enable IPv6 option earlier, you can also define the IPv6 subnets for the App and Service networks.

      Application and Services networks are described in the Prerequisites and Guidelines section earlier in this document.

  9. Click Next to continue.

    Note



    If your node has only an IPv4 management address but you have checked Enabled IPv6 and provided an IPv6 NTP server address, ensure that the NTP address is correct and click Confirm to proceed to the next screen where you will provide the nodes' IPv6 addresses.

Step 18

In the Node Details screen, update the current node's information.

You have defined the Management network and IP address for the node into which you are currently logged in during the initial node configuration in earlier steps, but you must also provide the Data network information for the node before you can proceed with adding the other primary nodes and creating the cluster.

  1. Click the Edit button next to the first node.

  2. Provide the Name for the node.

    The node's Serial Number and the Management Network information are automatically populated.

    The node's Name will be set as its hostname, so it must follow the RFC-1123 requirements.

  3. In the Data Network area, provide the node's Data Network information.

    You must provide the data network IP address, netmask, and gateway. Optionally, you can also provide the VLAN ID for the network. For most deployments, you can leave the VLAN ID field blank.

    If you had enabled IPv6 functionality in a previous screen, provide the IPv6 address, netmask, and gateway.

    Note



    If you want to provide IPv6 information, you must do it during cluster bootstrap process. To change IP configuration later, you would need to redeploy the cluster.

    All nodes in the cluster must be configured with either only IPv4, only IPv6, or dual IPv4/IPv6 stack.

  4. (Optional) If required, Enable BGP for the data network.

    BGP configuration is required for the Persistent IPs feature used by some services, such as Nexus Dashboard Insights with NDFC fabrics. This feature is described in more detail in Prerequisites and Guidelines and the "Persistent IP Addresses" sections of the Cisco Nexus Dashboard User Guide.

    Note



    You can enable BGP at this time or in the Nexus Dashboard GUI after the cluster is deployed.

    When you enable BGP, you must also provide the following information:

    • ASN (BGP Autonomous System Number) of this node.

      You can configure the same ASN for all nodes or a different ASN per node.

    • For pure IPv6, the Router ID of this node.

      The router ID must be an IPv4 address, for example 1.1.1.1

    • BGP Peer Details, which includes the peer's IPv4 or IPv6 address and peer's ASN.

  5. Click Update to save the changes.

Step 19

In the Node Details screen, click Add Node to add the second node to the cluster.

If you are deploying a single-node cluster, skip this step.

  1. In the Deployment Details area, provide the Management IP Address and Password for the second node

    You defined the management network information and the password during the initial node configuration steps.

  2. Click Validate to verify connectivity to the node.

    After network connectivity is validated, you can provide the other required information for the node.

  3. Provide the Name for the node.

    The node's Serial Number and the Management Network information are automatically populated during the management network information validation in the previous step.

  4. In the Data Network area, provide the node's Data Network information.

    You must provide the data network IP address, netmask, and gateway. Optionally, you can also provide the VLAN ID for the network. For most deployments, you can leave the VLAN ID field blank.

    If you had enabled IPv6 functionality in a previous screen, provide the IPv6 address, netmask, and gateway.

    Note



    If you want to provide IPv6 information, you must do it during cluster bootstrap process. To change IP configuration later, you would need to redeploy the cluster.

    All nodes in the cluster must be configured with either only IPv4, only IPv6, or dual IPv4/IPv6 stack.

  5. (Optional) If required, Enable BGP for the data network.

    BGP configuration is required for the Persistent IPs feature used by some services, such as Nexus Dashboard Insights with NDFC fabrics. This feature is described in more detail in Prerequisites and Guidelines and the "Persistent IP Addresses" sections of the Cisco Nexus Dashboard User Guide.

    Note



    You can enable BGP at this time or in the Nexus Dashboard GUI after the cluster is deployed.

    When you enable BGP, you must also provide the following information:

    • ASN (BGP Autonomous System Number) of this node.

      You can configure the same ASN for all nodes or a different ASN per node.

    • For pure IPv6, the Router ID of this node.

      The router ID must be an IPv4 address, for example 2.2.2.2

    • BGP Peer Details, which includes the peer's IPv4 or IPv6 address and peer's ASN.

  6. Click Add to save the changes.

Step 20

Repeat the previous step to add the 3rd node.

If you are deploying a single-node cluster, skip this step.

Step 21

In the Node Details page, click Next to continue.

After you have provided the management and data network information for all nodes, you can proceed to the final Confirmation screen.

Step 22

In the Confirmation screen, review and verify the configuration information and click Configure to create the cluster.

During the node bootstrap and cluster bring-up, the overall progress as well as each node's individual progress will be displayed in the UI. If you do not see the bootstrap progress advance, manually refresh the page in your browser to update the status.

It may take up to 30 minutes for the cluster to form and all the services to start. When cluster configuration is complete, the page will reload to the Nexus Dashboard GUI.

Step 23

Verify that the cluster is healthy.

It may take up to 30 minutes for the cluster to form and all the services to start.

After all three nodes are ready, you can log in to any one node via SSH as the rescue-user using the password you provided during node deployment and run the following command to verify cluster health:

  1. Verify that the cluster is up and running.

    You can check the current status of cluster deployment by logging in to any of the nodes and running the acs health command.

    While the cluster is converging, you may see the following outputs:

    $ acs health
k8s install is in-progress
    $ acs health
k8s services not in desired state - [...]
    $ acs health
k8s: Etcd cluster is not ready
    When the cluster is up and running, the following output will be displayed:
    $ acs health
All components are healthy

  2. Log in to the Nexus Dashboard GUI.

    After the cluster becomes available, you can access it by browsing to any one of your nodes' management IP addresses. The default password for the admin user is the same as the rescue-user password you chose for the first node of the Nexus Dashboard cluster.

Step 24

Configure the Network Scale parameters for your cluster.

This is described in the Infrastructure Management > Cluster Configuration section of the Cisco Nexus Dashboard User Guide, which is also available directly from your Nexus Dashboard's Help Center.

Deploying Nexus Dashboard Directly in VMware ESXi

This section describes how to deploy Cisco Nexus Dashboard cluster directly in VMware ESXi. If you prefer to deploy using vCenter, follow the steps described in Deploying Nexus Dashboard Directly in VMware ESXi instead.

Before you begin

Procedure

Step 1

Obtain the Cisco Nexus Dashboard OVA image.

  1. Browse to the Software Download page.

    https://software.cisco.com/download/home/286327743/type/286328258/

  2. Choose the Nexus Dashboard release version you want to download.

  3. Click the Download icon next to the Nexus Dashboard OVA image (nd-dk9.<version>.ova).

Step 2

Log in to your VMware ESXi.

Depending on the version of your ESXi server, the location and order of configuration screens may differ slightly. The following steps provide deployment details using VMware ESXi 7.0.

Step 3

Right-click the host and select Create/Register VM.

Step 4

In the Select creation type screen, choose Deploy a virtual machine from an OVF or OVA file, then click Next.

Step 5

In the Select OVF and VMDK files screen, provide the virtual machine name (for example, nd-ova-node1) and the OVA image you downloaded in the first step, then click Next.

Step 6

In the Select storage screen, choose the datastore for the VM, then click Next.

Step 7

In the Select OVF and VMDK files screen, provide the virtual machine name (for example, nd-node1) and the OVA image you downloaded in the first step, then click Next.

Step 8

Specify the Deployment options.

In the Deployment options screen, provide the following:

  • From the Network mappings dropdowns, choose the networks for the Nexus Dashboard management (mgmt0) and data (fabric0) interfaces.

    Nexus Dashboard networks are described in Deployment Overview and Requirements.

  • From the Deployment type dropdown, choose the node profile (App or Data).

    Node profiles are described in Prerequisites and Guidelines.

  • For Disk provisioning type, choose Thick.

  • Disable the Power on automatically option.

Step 9

In the Ready to complete screen, verify that all information is accurate and click Finish to begin deploying the first node.

Step 10

Repeat previous steps to deploy the second and third nodes.

Note



If you are deploying a single-node cluster, you can skip this step.

You do not need to wait for the first node deployment to complete, you can begin deploying the other two nodes simultaneously.

Step 11

Wait for the VM(s) to finish deploying.

Step 12

Ensure that the VMware Tools periodic time synchronization is disabled, then start the VMs.

To disable time synchronization:

  1. Right-click the node's VM and select Edit Settings.

  2. In the Edit Settings window, select the VM Options tab.

  3. Expand the VMware Tools category and uncheck the Synchronize guest time with host option.

Step 13

Open one of the node's console and configure the node's basic information.

  1. Begin initial setup.

    You will be prompted to run the first-time setup utility:

    [ OK ] Started atomix-boot-setup.
       Starting Initial cloud-init job (pre-networking)...
       Starting logrotate...
       Starting logwatch...
       Starting keyhole...
[ OK ] Started keyhole.
[ OK ] Started logrotate.
[ OK ] Started logwatch.

Press any key to run first-boot setup on this console...

  2. Enter and confirm the admin password

    This password will be used for the rescue-user SSH login as well as the initial GUI password.

    Note



    You must provide the same password for all nodes or the cluster creation will fail.


    Admin Password:
Reenter Admin Password:

  3. Enter the management network information.

    Management Network:
  IP Address/Mask: 192.168.9.172/24
  Gateway: 192.168.9.1

  4. For the first node only, designate it as the "Cluster Leader".

    You will log into the cluster leader node to finish configuration and complete cluster creation.

    Is this the cluster leader?: y

  5. Review and confirm the entered information.

    You will be asked if you want to change the entered information. If all the fields are correct, choose n to proceed. If you want to change any of the entered information, enter y to re-start the basic configuration script.

    Please review the config
Management network:
  Gateway: 192.168.9.1
  IP Address/Mask: 192.168.9.172/24
Cluster leader: no

Re-enter config? (y/N): n

Step 14

Repeat previous step to configure the initial information for the second and third nodes.

You do not need to wait for the first node configuration to complete, you can begin configuring the other two nodes simultaneously.

Note



You must provide the same password for all nodes or the cluster creation will fail.

The steps to deploy the second and third nodes are identical with the only exception being that you must indicate that they are not the Cluster Leader.

Step 15

Open your browser and navigate to https://<node-mgmt-ip> to open the GUI.

The rest of the configuration workflow takes place from one of the node's GUI. You can choose any one of the nodes you deployed to begin the bootstrap process and you do not need to log in to or configure the other two nodes directly.

Enter the password you provided in a previous step and click Login

Step 16

Provide the Cluster Details.

In the Cluster Details screen of the Cluster Bringup wizard, provide the following information:

  1. Provide the Cluster Name for this Nexus Dashboard cluster.

    The cluster name must follow the RFC-1123 requirements.

  2. (Optional) If you want to enable IPv6 functionality for the cluster, check the Enable IPv6 checkbox.

  3. (Optional) If you want to enable NTP server authentication, click Add NTP Key.

    In the additional fields, provide the following information:

    • NTP Key – a cryptographic key that is used to authenticate the NTP traffic between the Nexus Dashboard and the NTP server(s). You will define the NTP servers in the following step, and multiple NTP servers can use the same NTP key.

    • Key ID – each NTP key must be assigned a unique key ID, which is used to identify the appropriate key to use when verifying the NTP packet.

    • Auth Type – this release supports MD5, SHA, and AES128CMAC authentication types.

    • Choose whether this key is Trusted. Untrusted keys cannot be used for NTP authentication.

    Note



    For the complete list of NTP authentication requirements and guidelines, see Prerequisites and Guidelines.

    After you've entered the information, click the checkmark icon to save it.

  4. Click +Add NTP Host to add one or more NTP servers.

    In the additional fields, provide the following information:

    • NTP Host – you must provide an IP address; fully qualified domain name (FQDN) are not supported.

    • Key ID – if you want to enable NTP authentication for this server, provide the key ID of the NTP key you defined in the previous step.

    • Choose whether this NTP server is Preferred.

    After you've entered the information, click the checkmark icon to save it.

    Note



    If the node into which you are logged in is configured with only an IPv4 address, but you have checked Enable IPv6 in a previous step and provided an IPv6 address for an NTP server, you will get the following validation error:

    This is because the node does not have an IPv6 address yet (you will provide it in the next step) and is unable to connect to an IPv6 address of the NTP server.

    In this case, simply finish providing the other required information as described in the following steps and click Next to proceed to the next screen where you will provide IPv6 addresses for the nodes.

    If you want to provide additional NTP servers, click +Add NTP Host again and repeat this substep.

  5. Click +Add DNS Provider to add one or more DNS servers.

    After you've entered the information, click the checkmark icon to save it.

  6. Provide a Proxy Server.

    For clusters that do not have direct connectivity to Cisco cloud, we recommend configuring a proxy server to establish the connectivity. This allows you to mitigate risk from exposure to non-conformant hardware and software in your fabrics.

    The proxy server must have the following URLs enabled:

    dcappcenter.cisco.com
svc.intersight.com
svc.ucs-connect.com
svc-static1.intersight.com
svc-static1.ucs-connect.com

    If you want to skip proxy configuration, mouse over the information (i) icon next to the field, then click Skip.

  7. (Optional) If your proxy server required authentication, change Authentication required for Proxy to Yes and provide the login credentials.

  8. (Optional) Expand the Advanced Settings category and change the settings if required.

    Under advanced settings, you can configure the following:

    • Provide one or more search domains by clicking +Add DNS Search Domain.

      After you've entered the information, click the checkmark icon to save it.

    • Provide custom App Network and Service Network.

      The application overlay network defines the address space used by the application's services running in the Nexus Dashboard. The field is pre-populated with the default 172.17.0.1/16 value.

      The services network is an internal network used by the Nexus Dashboard and its processes. The field is pre-populated with the default 100.80.0.0/16 value.

      If you have checked the Enable IPv6 option earlier, you can also define the IPv6 subnets for the App and Service networks.

      Application and Services networks are described in the Prerequisites and Guidelines section earlier in this document.

  9. Click Next to continue.

    Note



    If your node has only an IPv4 management address but you have checked Enabled IPv6 and provided an IPv6 NTP server address, ensure that the NTP address is correct and click Confirm to proceed to the next screen where you will provide the nodes' IPv6 addresses.

Step 17

In the Node Details screen, update the current node's information.

You have defined the Management network and IP address for the node into which you are currently logged in during the initial node configuration in earlier steps, but you must also provide the Data network information for the node before you can proceed with adding the other primary nodes and creating the cluster.

  1. Click the Edit button next to the first node.

  2. Provide the Name for the node.

    The node's Serial Number and the Management Network information are automatically populated.

    The node's Name will be set as its hostname, so it must follow the RFC-1123 requirements.

  3. In the Data Network area, provide the node's Data Network information.

    You must provide the data network IP address, netmask, and gateway. Optionally, you can also provide the VLAN ID for the network. For most deployments, you can leave the VLAN ID field blank.

    If you had enabled IPv6 functionality in a previous screen, provide the IPv6 address, netmask, and gateway.

    Note



    If you want to provide IPv6 information, you must do it during cluster bootstrap process. To change IP configuration later, you would need to redeploy the cluster.

    All nodes in the cluster must be configured with either only IPv4, only IPv6, or dual IPv4/IPv6 stack.

  4. (Optional) If required, Enable BGP for the data network.

    BGP configuration is required for the Persistent IPs feature used by some services, such as Nexus Dashboard Insights with NDFC fabrics. This feature is described in more detail in Prerequisites and Guidelines and the "Persistent IP Addresses" sections of the Cisco Nexus Dashboard User Guide.

    Note



    You can enable BGP at this time or in the Nexus Dashboard GUI after the cluster is deployed.

    When you enable BGP, you must also provide the following information:

    • ASN (BGP Autonomous System Number) of this node.

      You can configure the same ASN for all nodes or a different ASN per node.

    • For pure IPv6, the Router ID of this node.

      The router ID must be an IPv4 address, for example 1.1.1.1

    • BGP Peer Details, which includes the peer's IPv4 or IPv6 address and peer's ASN.

  5. Click Update to save the changes.

Step 18

In the Node Details screen, click Add Node to add the second node to the cluster.

If you are deploying a single-node cluster, skip this step.

  1. In the Deployment Details area, provide the Management IP Address and Password for the second node

    You defined the management network information and the password during the initial node configuration steps.

  2. Click Validate to verify connectivity to the node.

    After network connectivity is validated, you can provide the other required information for the node.

  3. Provide the Name for the node.

    The node's Serial Number and the Management Network information are automatically populated during the management network information validation in the previous step.

  4. In the Data Network area, provide the node's Data Network information.

    You must provide the data network IP address, netmask, and gateway. Optionally, you can also provide the VLAN ID for the network. For most deployments, you can leave the VLAN ID field blank.

    If you had enabled IPv6 functionality in a previous screen, provide the IPv6 address, netmask, and gateway.

    Note



    If you want to provide IPv6 information, you must do it during cluster bootstrap process. To change IP configuration later, you would need to redeploy the cluster.

    All nodes in the cluster must be configured with either only IPv4, only IPv6, or dual IPv4/IPv6 stack.

  5. (Optional) If required, Enable BGP for the data network.

    BGP configuration is required for the Persistent IPs feature used by some services, such as Nexus Dashboard Insights with NDFC fabrics. This feature is described in more detail in Prerequisites and Guidelines and the "Persistent IP Addresses" sections of the Cisco Nexus Dashboard User Guide.

    Note



    You can enable BGP at this time or in the Nexus Dashboard GUI after the cluster is deployed.

    When you enable BGP, you must also provide the following information:

    • ASN (BGP Autonomous System Number) of this node.

      You can configure the same ASN for all nodes or a different ASN per node.

    • For pure IPv6, the Router ID of this node.

      The router ID must be an IPv4 address, for example 2.2.2.2

    • BGP Peer Details, which includes the peer's IPv4 or IPv6 address and peer's ASN.

  6. Click Add to save the changes.

Step 19

Repeat the previous step to add the 3rd node.

If you are deploying a single-node cluster, skip this step.

Step 20

In the Node Details page, click Next to continue.

After you have provided the management and data network information for all nodes, you can proceed to the final Confirmation screen.

Step 21

In the Confirmation screen, review and verify the configuration information and click Configure to create the cluster.

During the node bootstrap and cluster bring-up, the overall progress as well as each node's individual progress will be displayed in the UI. If you do not see the bootstrap progress advance, manually refresh the page in your browser to update the status.

It may take up to 30 minutes for the cluster to form and all the services to start. When cluster configuration is complete, the page will reload to the Nexus Dashboard GUI.

Step 22

Note



Step 23

Verify that the cluster is healthy.

It may take up to 30 minutes for the cluster to form and all the services to start.

After all three nodes are ready, you can log in to any one node via SSH as the rescue-user using the password you provided during node deployment and run the following command to verify cluster health:

  1. Verify that the cluster is up and running.

    You can check the current status of cluster deployment by logging in to any of the nodes and running the acs health command.

    While the cluster is converging, you may see the following outputs:

    $ acs health
k8s install is in-progress
    $ acs health
k8s services not in desired state - [...]
    $ acs health
k8s: Etcd cluster is not ready
    When the cluster is up and running, the following output will be displayed:
    $ acs health
All components are healthy

  2. Log in to the Nexus Dashboard GUI.

    After the cluster becomes available, you can access it by browsing to any one of your nodes' management IP addresses. The default password for the admin user is the same as the rescue-user password you chose for the first node of the Nexus Dashboard cluster.

    Note


    There may be an issue during the bootstrap process on 3-node vND (ESX) clusters which can cause the 'acs health' command to show the following error: 'k8s: services not in desired state - aaamgr,cisco-intersightdc,eventmonitoring,infra-kafka,kafka,mongodb,sm,statscollect'

    Contact Cisco TAC and open a case referring to open Bug ID CSCwf65557 requesting root access to run the workaround command on each node.

Step 24

Configure the Network Scale parameters for your cluster.

This is described in the Infrastructure Management > Cluster Configuration section of the Cisco Nexus Dashboard User Guide, which is also available directly from your Nexus Dashboard's Help Center.
