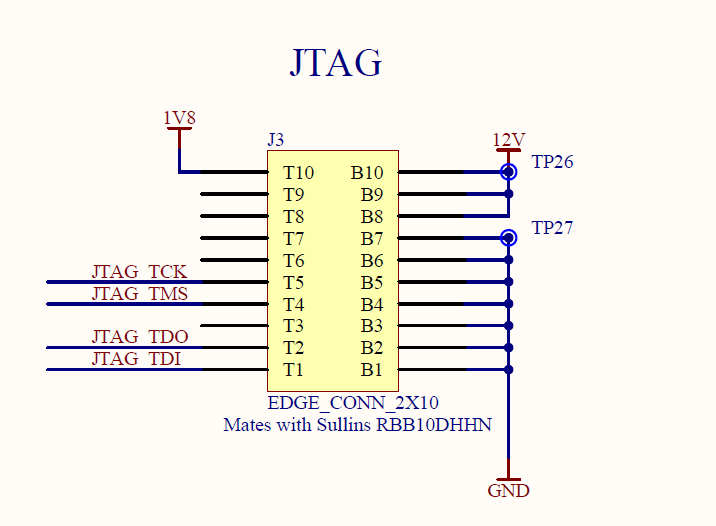

The SmartNIC K35-S & SmartNIC K35-Q have an edge connector available for JTAG connection. The pinout for the edge connector is as follows (T is the top of the board and B is the bottom of the board):
The JTAG signals are 1.8V logic levels. The 1.8V power rail is provided by the card and can be used as a reference. The 12V power rail should normally be left unconnected if the card is powered by a PCIe slot. Care should be taken not to inadvertantly connect JTAG signals to the 12V power rail, which could occur if the connector is plugged in upside-down.
