CNS Frame-Relay Zero Touch

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest caveats and feature information, see Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table at the end of this module.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

Restrictions for CNS Frame-Relay Zero Touch

The Cisco Networking Services Frame Relay Zero Touch solution does not support switched virtual circuits (SVCs).

The Frame Relay zero touch solution does not support IP over PPP over Frame Relay because routing to an interface (or subinterface) that supports IP over PPP over Frame Relay is not possible.

Information About CNS Frame-Relay Zero Touch

Cisco Networking Services Frame Relay Zero Touch

The Cisco Networking Services Frame Relay Zero Touch feature provides a Cisco Networking Services zero touch deployment solution over Frame Relay where the CPE router discovers its data-link connection identifier (DLCI) and IP address dynamically, and then contacts a Cisco Networking Services engine to retrieve its full configuration automatically. This capability is made possible through a single generic bootstrap configuration file common across all service provider end customers subscribing to the services. Within the Cisco Networking Services framework, customers who deploy Frame Relay can create this generic bootstrap configuration without device-specific or network-specific information such as the DLCI, IP address, interface type, controller type (if applicable), or the next hop interface used for the static default route.

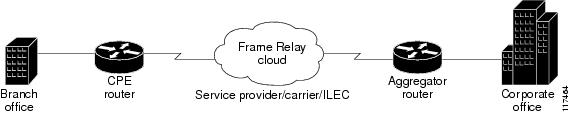

The following image illustrates a typical customer network architecture using Frame Relay.

Figure 1. Connectivity in a Frame Relay Customer Network

The CPE router is deployed at multiple sites. Each site connects to a Frame Relay cloud through a point-to-point permanent virtual circuit (PVC). Connectivity from the Frame Relay cloud to the corporate office is through a PVC that terminates at the corporate office. IP traffic sent to the Cisco Networking Services configuration engine is routed through the corporate office. The PVC is identified by its DLCI. The DLCI can vary between branch offices. In order to support zero touch deployment, the CPE router must be able to learn which DLCI to use to connect to the Cisco Networking Services configuration engine.

To support the zero touch capability, the Frame Relay functionality has been modified in the following two ways:

  • A new Cisco IOS command, the ip address dynamiccommand has been introduced to discover the CPE router’s IP address dynamically based on the aggregator router’s IP address. To configure IP over Frame Relay, the local IP address must be configured on the interface.
  • The CPE router can now read Local Management Interface (LMI) messages from a Frame Relay switch and determine the list of available DLCIs.

The Cisco Networking Services connect functionality is configured with a set of Cisco Networking Services connect templates. A Cisco Networking Services connect profile is created for connecting to the Cisco Networking Services configuration engine and to implement the Cisco Networking Services connect templates on a CPE router. Cisco Networking Services connect variables can be used as placeholders within a Cisco Networking Services connect template configuration. These variables, such as the active DLCI, are substituted with real values before the Cisco Networking Services connect templates are sent to the router’s parser.

When a CPE router is placed in a Frame Relay network, it contains a generic bootstrap configuration. This configuration includes customer-specific Frame Relay configuration (including the LMI type), Cisco Networking Services connect templates, Cisco Networking Services connect profiles, and the cns config initial command. This command initiates the Cisco Networking Services connect function.

The Cisco Networking Services connect functionality begins by selecting the first available controller or interface specified by the Cisco Networking Services connect profile and then performs multiple ping iterations through all the associated active DLCIs. For each iteration, the Cisco Networking Services connect function attempts to ping the Cisco Networking Services configuration engine. If the ping is successful, the pertinent configuration information can be downloaded from the Cisco Networking Services configuration engine.

When iterating over the active DLCIs on a Frame Relay interface, the router must be able to automatically go through a list of active DLCIs returned by the LMI messages for that interface and select an active DLCI to use. When more than one of the active DLCIs allow IP connectivity to the Cisco Networking Services configuration engine, the DLCI used will be the first one tried by the Cisco Networking Services connect functionality. If the ping attempt is unsuccessful, the next active DLCI is tried and so on. If connectivity to the Cisco Networking Services configuration engine is unsuccessful for all active DLCIs, the Cisco Networking Services connect function removes the configuration applied to the selected controller or interface, and the Cisco Networking Services connect process restarts with the next available controller or interface specified by the Cisco Networking Services connect profile.

The Cisco Networking Services Frame Relay Zero Touch feature provides the following benefits:

  • A service provider can have a single common bootstrap configuration.
  • The generic bootstrap configuration does not require the IP address to be hard-wired.
  • The point-to-point DLCI does not need to be known in advance.
  • IP directly over Frame Relay is allowed.
  • Use of a channel service unit (E1 or T1 controller) is allowed.

How to Configure CNS Frame-Relay Zero Touch

Deploying the Cisco Networking Services Device

Incremental or partial configuration allows the remote device to be incrementally configured after its initial configuration. You must perform these configurations manually through the Cisco Networking Services configuration engine. The registrar allows you to change the configuration templates, edit parameters, and submit the new configuration to the device without a software or hardware restart.

Before You Begin

Perform this task to manually install an initial Cisco Networking Services configuration.

Your remote device arrives from the factory with a bootstrap configuration. Upon initial power-on, the device automatically pulls a full initial configuration from the Cisco Networking Services configuration engine, although you can optionally arrange for this manually as well. After initial configuration, you can optionally arrange for periodic incremental (partial) configurations for synchronization purposes.

For more details on using the Cisco CNS configuration engine to automatically install the initial CNS configuration, see the Cisco CNS Configuration Engine Administrator's Guide at http://www.cisco.com/en/US/docs/net_mgmt/configuration_engine/1.3/administration/guide/ag13.html

Initial Cisco Networking Services Configuration

Initial configuration of the remote device occurs automatically when the device is initialized on the network. Optionally, you can perform this configuration manually.

Cisco Networking Services assigns the remote device a unique IP address or hostname. After resolving the IP address (using Serial Line Address Resolution Protocol (SLARP), ATM Inverse ARP (ATM InARP), or PPP protocols), the system optionally uses Domain Name System (DNS) reverse lookup to assign a hostname to the device and invokes the Cisco Networking Services agent to download the initial configuration from the Cisco Networking Services configuration engine.

Incremental Configuration

Before you can configure an incremental configuration, Cisco Networking Services must be operational and the required Cisco Networking Services agents configured.

SUMMARY STEPS

    1.    enable

    2.    configure terminal

    3.    cns template connect name

    4.    cli config-text

    5.    Repeat Step 4 to add all required CLI commands.

    6.    exit

    7.    cns connect name [retry-interval interval-seconds] [retries number-retries] [timeout timeout-seconds] [sleep sleep-seconds]

    8.    Do one of the following:

    • discover {line line-type | controller controller-type | interface [interface-type]}
    • template name

    9.    exit

    10.    cns config initial {host-name | ip-address} [encrypt] [port-number] [page page] [syntax-check] [no-persist] [source interface name] [status url] [event] [inventory]

    11.    exit


DETAILED STEPS
     Command or ActionPurpose
    Step 1 enable


    Example:
    Device> enable


    Enables privileged EXEC mode.

    • Enter your password if prompted.

    Step 2 configure terminal


    Example:
    Device# configure terminal


    Enters global configuration mode.


    Step 3 cns template connect name


    Example:
    Device(config)# cns template connect template 1


    Enters Cisco Networking Services template connect configuration mode and defines the name of a Cisco Networking Services connect template.


    Step 4 cli config-text


    Example:
    Device(config-templ-conn)# cli encapsulation ppp


    Specifies commands to configure the interface.


    Step 5 Repeat Step 4 to add all required CLI commands.

    Example:
    Device(config-templ-conn)# cli ip directed-broadcast


    Repeat Step 4 to add other CLI commands to configure the interface or to configure the modem lines.


    Step 6 exit


    Example:
    Device(config-templ-conn)# exit


    Exits Cisco Networking Services template connect configuration mode and completes the configuration of a Cisco Networking Services connect template.

    Note

    Entering the exit command is required. This requirement was implemented to prevent accidentally entering a command without the cli command.


    Step 7 cns connect name [retry-interval interval-seconds] [retries number-retries] [timeout timeout-seconds] [sleep sleep-seconds]


    Example:
    Device(config)# cns connect profile-1 retry-interval 15 timeout 90


    Enters Cisco Networking Services connect configuration mode and defines the parameters of a Cisco Networking Services connect profile for connecting to the Cisco Networking Services configuration engine.


    Step 8Do one of the following:
    • discover {line line-type | controller controller-type | interface [interface-type]}
    • template name


    Example:
    Device(config-cns-conn)# discover interface serial


    Example:
    Device(config-cns-conn)# template template-1


    (Optional) Configures a generic bootstrap configuration.

    • discover —Defines the interface parameters within a Cisco Networking Services connect profile for connecting to the Cisco Networking Services configuration engine.

    or

    • template —Specifies a list of Cisco Networking Services connect templates within a Cisco Networking Services connect profile to be applied to a device’s configuration.

    Step 9 exit


    Example:
    Device(config-cns-conn)# exit


    Exits Cisco Networking Services connect configuration mode and returns to global configuration mode.


    Step 10 cns config initial {host-name | ip-address} [encrypt] [port-number] [page page] [syntax-check] [no-persist] [source interface name] [status url] [event] [inventory]


    Example:
    Device(config)# cns config initial 10.1.1.1 no-persist


    Starts the Cisco Networking Services configuration agent, connects to the Cisco Networking Services configuration engine, and initiates an initial configuration. You can use this command only before the system boots for the first time.

    Note

    The optional encrypt keyword is available only in images that support Secure Socket Layer (SSL).

    Caution

    If you write the new configuration to NVRAM by omitting the no-persistkeyword, the original bootstrap configuration is overwritten.


    Step 11 exit


    Example:
    Device(config)# exit


    Exits global configuration mode and returns to privileged EXEC mode.



    Configuration Examples for CNS Frame-Relay Zero Touch

    Example: Using the Cisco Networking Services Frame-Relay Zero Touch

    Configuring IP over Frame Relay

    The following example shows the bootstrap configuration for configuring IP over Frame Relay on a CPE device:

    cns template connect setup-frame
     cli encapsulation frame-relay
     exit
    cns template connect ip-over-frame
     cli frame-relay interface-dlci ${dlci}
     cli ip address dynamic
     exit
    cns template connect ip-route
     cli ip route 10.0.0.0 0.0.0.0 ${next-hop}
     exit
    cns connect ip-over-frame
     discover interface Serial
     template setup-frame
     discover dlci
     template ip-over-frame
     template ip-route
    exit
    cns config initial 10.1.1.1


    Configuring IP over Frame Relay over T1

    The following example shows the bootstrap configuration for configuring IP over Frame Relay over T1 on a CPE device:

    cns template connect setup-frame
     cli encapsulation frame-relay
     exit
    cns template connect ip-over-frame
     cli frame-relay interface-dlci ${dlci}
     cli ip address dynamic
     exit
    cns template connect ip-route
     cli ip route 0.0.0.0 0.0.0.0 ${next-hop}
     exit
    cns template connect t1-controller
     cli framing esf
     cli linecode b8zs
     cli channel-group 0 timeslots 1-24 speed 56
     exit
    cns connect ip-over-frame-over-t1
     discover controller T1
     template t1-controller
     discover interface
     template setup-frame
     discover dlci
     template ip-over-frame
     template ip-route
    exit
    cns config initial 10.1.1.1


    Additional References

    Related Documents

    Related Topic

    Document Title

    Cisco IOS commands

    Cisco IOS Master Commands List, All Releases

    WSMA commands

    Cisco IOS Web Services Management Agent Command Reference

    IP access lists

    Security Configuration Guide: Access Control Lists in the Securing the Data Plan Configuration Guide Library

    IP access lists commands: complete command syntax, command mode, command history, defaults, usage guidelines, and examples

    Cisco IOS Security Command Reference

    Public Key Infrastructure

    Public Key Infrastructure Configuration Guide in the Secure Connectivity Configuration Guide Library

    Secure Shell and Secure Shell Version 2

    Secure Shell Configuration Guide in the Securing User Services Configuration Guide Library

    Security commands: complete command syntax, command mode, command history, defaults, usage guidelines, and examples

    Cisco IOS Security Command Reference

    WSMA schema files in XSD format

    ftp:/​/​ftp.cisco.com/​pub/​wsma/​schema/​

    RFCs

    RFC

    Title

    RFC 2132

    DHCP Options and BOOTP Vendor Extensions

    RFC 2246

    The TLS Protocol Version 1.0

    RFC 4251

    The Secure Shell (SSH) Protocol Architecture

    RFC 4252

    The Secure Shell (SSH) Authentication Protocol

    Technical Assistance

    Description

    Link

    The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

    http:/​/​www.cisco.com/​cisco/​web/​support/​index.html

    Feature Information for CNS Frame-Relay Zero Touch

    The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

    Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

    Table 1 Feature Information for Cisco Networking Services Frame-Relay Zero Touch

    Feature Name

    Releases

    Feature Information

    Cisco Networking Services Frame-Relay Zero Touch

    12.3(2)XF

    12.3(8)T

    The Cisco Networking Services Frame Relay Zero Touch feature provides a Cisco Networking Services zero touch deployment solution over Frame Relay where the CPE device discovers its DLCI and IP address dynamically and then contacts a Cisco Networking Services engine to retrieve its full configuration automatically.

    The following commands were introduced or modified: cli (cns), cns config connect-intf, cns connect, cns template connect, config-cli, discover (cns), line-cli, template (cns).

    Note

    The cns config connect-intf command was replaced by the cns connect and cns template connect commands.

    Note
