VRF-Aware IPv6 Rapid Deployment Tunnel

Virtual Routing and Forwarding - aware tunnels are used to connect customer networks separated by untrusted core networks or core networks with different infrastructures (IPv4 or IPv6). The VRF-Aware IPv6 Rapid Deployment Tunnel feature extends Virtual Routing and Forwarding (VRF) awareness to IPv6 rapid deployment tunnels.

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest feature information and caveats, see the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table at the end of this module.

Use Cisco Feature Navigator to find information about platform support and software image support. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.

Restrictions for the VRF-Aware IPv6 Rapid Deployment Tunnel

The VRF- Aware IPv6 Rapid Deployment Tunnel feature has the following restrictions:

  • The incoming physical interface, and the tunnel interface should have the same VRF instance defined.

  • The tunnel transport VRF and the egress physical interface, through which the traffic leaves should have the same VRF instance defined.

  • For IPv6 rapid deployment Customer Edge (CE) router configuration, the tunnel source and the Border Relay (BR) router address should have the same VRF instance defined as the physical interface through which the traffic flows.

Information About the VRF-Aware IPv6 Rapid Deployment Tunnel

The IPv6 Rapid Deployment Tunnel feature allows a service provider to provide a unicast IPv6 service to customers over its IPv4 network by using encapsulation of IPv6 in IPv4. Currently, the IPv6 Rapid Deployment Tunnel feature does not support VRF. Therefore, the forwarding table look up tasks for locating IPv6 overlay addresses and IPv4 transport addresses are performed in the global routing table. The VRF-Aware IPv6 Rapid Deployment Tunnel feature extends the IPv6 rapid deployment tunneling support for IPv6 overlay addresses and IPv4 transport addresses in VRF.

The following scenarios are supported for VRF-Aware IPv6 Rapid Deployment Tunnel feature:

  • The IPv6 rapid deployment tunnel is in the VRF and both IPv6 overlay address and the IPv4 transport address are in VRF.
  • IPv6 rapid deployment tunnel and the IPv4 address are in VRF. The incoming global routing table IPv6 traffic selects the correct VRF, based on the IPv6 rapid deployment domain.

The following figure explains the topology and sample configurations for the VRF Aware IPv6 Rapid Deployment Tunnel feature where both the IPv4 addresses and IPv6 addresses are in VRF.

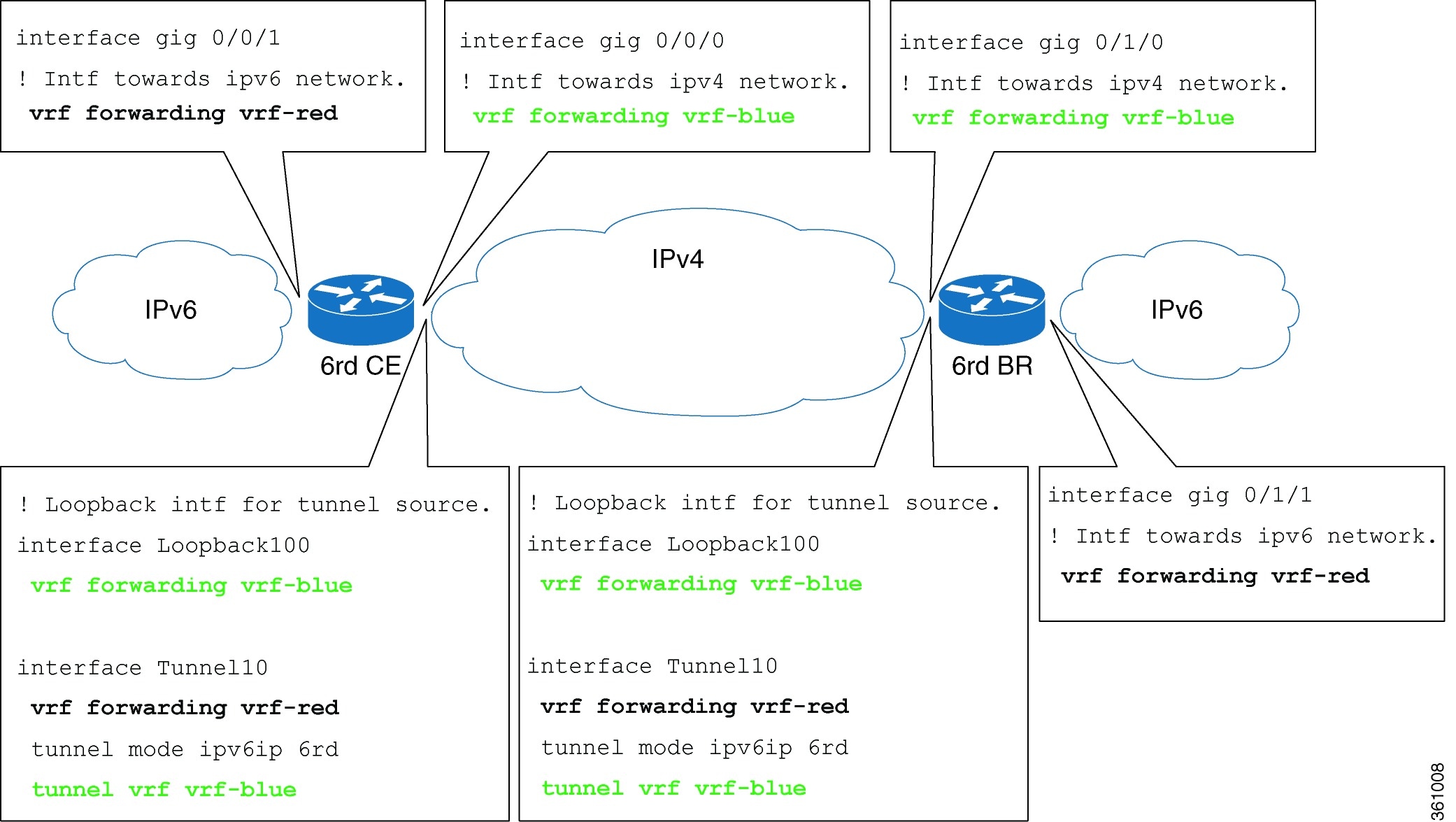

Figure 1. Topology of the VRF-Aware IPv6 Rapid Deployment Tunnel

How to Configure the VRF-Aware IPv6 Rapid Deployment Tunnel

Complete the steps in the following procedure to configure the VRF-Aware IPv6 Rapid Deployment Tunnel feature when both the IPv6 and IPv4 addresses are in VRF. You should perform these steps on the CE router and BR router unless specifically mentioned otherwise in the following procedure.

Configuring the VRF-Aware IPv6 Rapid Deployment Tunnel

SUMMARY STEPS

  1. enable
  2. configure terminal
  3. ipv6 unicast-routing
  4. vrf definition vrf-name1
  5. rd {ASN:nn | IP address: nn }
  6. route-target [import | export | both ] {ASN:nn |IP address: nn }
  7. address-family ipv6
  8. exit
  9. address-family ipv4
  10. exit
  11. exit
  12. vrf definition vrf-name2
  13. rd {ASN:nn | IP address: nn }
  14. route-target [import | export | both ] { ASN:nn | IP address: nn }
  15. address-family ipv4
  16. exit
  17. exit
  18. interface gigabitethernet slot / port
  19. vrf forwarding vrf-name1
  20. ipv6 address {ipv6-address prefix-length prefix-name sub-bits prefix-length}
  21. exit
  22. interface gigabitethernet slot / port
  23. vrf forwarding vrf-name2
  24. ip address ip-address mask
  25. exit
  26. interface loopback interface-number
  27. vrf forwarding vrf-name2
  28. ip address ip-address
  29. exit
  30. interface tunnel tunnel-number
  31. vrf forwarding vrf-name1
  32. ipv6 address {ipv6-address prefix-length prefix-name sub-bits prefix-length}
  33. tunnel source { ip-address| interface-type interface-number}
  34. tunnel mode ipv6ip [ 6rd | 6to4 | auto-tunnel | isatap ]
  35. tunnel 6rd ipv4 {prefix-length length} {suffix-length length}
  36. tunnel 6rd prefix {ipv6-prefix/ prefix-length}
  37. tunnel 6rd br ipv4-address
  38. tunnel vrf vrf-name2
  39. exit
  40. ipv6 route vrf vrf-name1 {ipv6-prefix / prefix-length} tunnel tunnel-number
  41. ipv6 route vrf vrf-name1 {ipv6-prefix/ prefix-length} tunnel tunnel-number ipv6-address
  42. end

DETAILED STEPS

  Command or Action Purpose
Step 1

enable

Example:

Router# enable

Enables the privileged EXEC mode. Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters the global configuration mode.

Step 3

ipv6 unicast-routing

Example:

Router(config)# ipv6 unicast-routing

Enables the task of forwarding IPv6 unicast datagrams.

Step 4

vrf definition vrf-name1

Example:

Router(config)# vrf definition VRF_RED

Configures a VRF instance and enters the VRF configuration mode.

Step 5

rd {ASN:nn | IP address: nn }

Example:

Router(config-vrf)# rd 1:1
Specifies a route distinguisher.
  • ASN:nn — Specifies an autonomous system number and an arbitrary number.

  • IP address: nn — Specifies an IP address and an arbitrary number.

Step 6

route-target [import | export | both ] {ASN:nn |IP address: nn }

Example:

Router(config-vrf)# route-target import 1:1
Creates a route target extended community for a VRF instance. Route target extended community attributes are used to identify a set of sites and VRF instances that can receive routes with a configured route target.
  • import — Imports routing information from the target VPN extended community.

  • export — Exports routing information to the target VPN extended community.

  • both — Imports both import and export routing information to the target VPN extended community

  • ASN:nn — Specifies an autonomous system number and an arbitrary number.

  • IP address: nn — Specifies an IP address and an arbitrary number.

Step 7

address-family ipv6

Example:

Router(config-vrf)# address-family ipv6

Selects IPv6 as address family type for a VRF table and enters VRF address family configuration mode. Configures separate route-target policies for IPv6.

Step 8

exit

Example:

Router(config-vrf-af)# exit

Exits the address family configuration mode.

Step 9

address-family ipv4

Example:

Router(config-vrf)# address-family ipv4

Selects IPv4 as address family type for a VRF table and enters VRF address family configuration mode. Configures the separate route-target policies for IPv4.

Step 10

exit

Example:

Router(config-vrf-af)# exit

Exits the address family configuration mode.

Step 11

exit

Example:

Router(config-vrf)# exit

Exits the VRF configuration mode.

Step 12

vrf definition vrf-name2

Example:

Router(config)# vrf definition VRF_GREEN

Configures a VRF instance and enters the VRF configuration mode.

Step 13

rd {ASN:nn | IP address: nn }

Example:

Router(config-vrf)# rd 1:1

Specifies a route distinguisher.

Step 14

route-target [import | export | both ] { ASN:nn | IP address: nn }

Example:

Router(config-vrf)# route-target import 1:1

Creates a route-target extended community for a VRF instance. Route-target extended community attributes are used to identify a set of sites and VRF instances that can receive routes with a configured route target

  • import — Imports routing information from the target VPN extended community.

  • export — Exports routing information to the target VPN extended community.

  • both — Imports and exports routing information to the target VPN extended community and from the target VPN extended community.

  • ASN:nn — Specifies an autonomous system number and an arbitrary number.

  • IP address: nn — Specifies an IP address and an arbitrary number.

Step 15

address-family ipv4

Example:

Router(config-vrf)# address-family ipv4

Selects IPv4 as address family for a VRF table and enters the VRF address family configuration mode. Configures separate route-target policies for IPv4.

Step 16

exit

Example:

Router(config-vrf-af)# exit

Exits the address family configuration mode.

Step 17

exit

Example:

Router(config-vrf)# exit

Exits the VRF configuration mode.

Step 18

interface gigabitethernet slot / port

Example:

Router(config)# interface gigabitethernet 3/1

Enters the interface configuration mode and specifies the Gigabit interface to configure.

Step 19

vrf forwarding vrf-name1

Example:

Router(config-if)# vrf forwarding VRF_RED

Associates a VRF instance with an interface or a subinterface.

Step 20

ipv6 address {ipv6-address prefix-length prefix-name sub-bits prefix-length}

Example:

Router(config-if)# ipv6 address 1::2/64

Specifies the IPv6 address assigned to the interface, and enables IPv6 processing on the interface.

Step 21

exit

Example:

Router(config-if)# exit

Exits the interface configuration mode.

Step 22

interface gigabitethernet slot / port

Example:

Router(config)# interface gigabitethernet 4/5

Enters the interface configuration mode and specifies the Gigabit interface to configure.

Step 23

vrf forwarding vrf-name2

Example:

Router(config-if)# vrf forwarding VRF_GREEN

Associates a VRF instance with an interface or a subinterface.

Step 24

ip address ip-address mask

Example:

Router(config-if)# ip address 17.1.1.1 255.255.255.0

Assigns an IP address and subnet mask to the interface.

Step 25

exit

Example:

exit

Exits the interface configuration mode.

Step 26

interface loopback interface-number

Example:

Router(config)# interface Loopback 100


Enters the interface configuration mode and specifies the new loopback interface.

Step 27

vrf forwarding vrf-name2

Example:

Router(config-if)# vrf forwarding VRF_GREEN

Associates a VRF instance with an interface or a subinterface.

Step 28

ip address ip-address

Example:

Router(config-if)# ip address 60.1.1.1 255.255.255.0

Assigns an IP address and subnet mask to the loopback interface.

Step 29

exit

Example:

Router(config-if)# exit

Exits the interface configuration mode.

Step 30

interface tunnel tunnel-number

Example:

Router(config)# interface tunnel 10

Specifies a tunnel interface and enters the interface configuration mode.

Step 31

vrf forwarding vrf-name1

Example:

Router(config-if)# vrf forwarding VRF_RED

Associates a VRF instance with an interface or a subinterface.

Step 32

ipv6 address {ipv6-address prefix-length prefix-name sub-bits prefix-length}

Example:

Router(config-if)# ipv6 address 2001:A000:100::1/128

Specifies the IPv6 address assigned to the interface and enables IPv6 processing on the interface.

Step 33

tunnel source { ip-address| interface-type interface-number}

Example:

Router(config-if)# tunnel source loopback 100

Specifies the source interface type and number for the tunnel interface.

Step 34

tunnel mode ipv6ip [ 6rd | 6to4 | auto-tunnel | isatap ]

Example:

Router(config-if)# tunnel mode ipv6ip 6rd

Configures a static IPv6 tunnel interface.

Step 35

tunnel 6rd ipv4 {prefix-length length} {suffix-length length}

Example:

Router(config-if)# tunnel 6rd ipv4 prefix-len 16 suffix-len 8

Specifies the prefix and suffix length of the IPv4 transport address that is common to all the 6rd tunnels.

Step 36

tunnel 6rd prefix {ipv6-prefix/ prefix-length}

Example:

Router(config-if)# tunnel 6rd prefix 2001:A000::/32

Specifies the common IPv6 prefix on IPv6 6rd tunnels.

Step 37

tunnel 6rd br ipv4-address

Example:

Router(config-if)# tunnel 6rd br 60.1.2.1

Bypasses security checks on a 6rd CE router.

  • ipv4-address — IPv4 address of the border relay (BR) router.

Note

Perform this step only on a CE router, not on a BR router.

Step 38

tunnel vrf vrf-name2

Example:

Router(config-if)# tunnel vrf  VRF_GREEN

Configures a VRF instance with a specific tunnel destination, interface, or a subinterface.

Note

This command specifies the VRF instance used for the tunnel IPv4 transport address lookup.

Step 39

exit

Example:

Router(config-if)# exit

Exits interface configuration mode.

Step 40

ipv6 route vrf vrf-name1 {ipv6-prefix / prefix-length} tunnel tunnel-number

Example:

Router(config)# ipv6 route vrf VRF_RED 2001:A000::/32 Tunnel10

Establishes static routes.

  • ipv6-prefix — Specifies the IPv6 network that is the destination of the static route. Can also be a host name when static host routes are configured.

  • ipv6-address — The IPv6 address of the next hop that can be used to reach the specified network..

Step 41

ipv6 route vrf vrf-name1 {ipv6-prefix/ prefix-length} tunnel tunnel-number ipv6-address

Example:

Router(config)# ipv6 route vrf VRF_RED 9000:1000::/64 Tunnel10 2001:A000:200::1

Establishes static routes.

  • ipv6-prefix — Specifies the IPv6 network that is the destination of the static route. Can also be a host name when static host routes are configured.

  • prefix-length — Specifies the length of the IPv6 prefix.

Step 42

end

Example:

Router(config)# end

Ends the current configuration session.

Example: Configuring VRF- Aware IPv6 Rapid Deployment Tunnel

The following example shows how to configure the VRF-Aware IPv6 Rapid Deployment Tunnel on a CE router:

Router# enable
Router# configure terminal
Router(config)# ipv6 unicast-routing
Router(config)# mls ipv6 vrf
Router(config)# vrf definition VRF_RED
Router(config-vrf)# rd 1:1
Router(config-vrf)# route-target export 1:1
Router(config-vrf)# route-target import 1:1
Router(config-vrf)# address-family ipv6
Router(config-vrf-af)# exit
Router(config-vrf)# address-family ipv4
Router(config-vrf-af)# exit
Router(config-vrf)# exit
Router(config)# vrf definition VRF_GREEN
Router(config-vrf)# rd 1:1
Router(config-vrf)# route-target export 1:1
Router(config-vrf)# route-target import 1:1
Router(config-vrf)# address-family ipv4
Router(config-vrf-af)# exit
Router(config-vrf)# exit
Router(config)# interface gigabitethernet 3/1
Router(config-if)# vrf forwarding VRF_RED
Router(config-if)# ipv6 address 1::2/64
Router(config-if)# exit
Router(config)# interface gigabitethernet 4/5
Router(config-if)# vrf forwarding VRF_GREEN
Router(config-if)# ip address 17.1.1.1 255.255.255.0
Router(config-if)# ip ospf 2 area 0
Router(config-if)# exit
Router(config)# interface Loopback 100
Router(config-if)# vrf forwarding VRF_GREEN
Router(config-if)# ip address 60.1.1.1 255.255.255.0
Router(config-if)# ip ospf 2 area 0
Router(config-if)# exit
Router(config)# interface tunnel 10
Router(config-if)# vrf forwarding VRF_RED
Router(config-if)# ipv6 address 2001:A000:100::1/128
Router(config-if)# mls 6rd reserve interface GigabitEthernet4/5
Router(config-if)# tunnel source loopback 100
Router(config-if)# tunnel mode ipv6ip 6rd
Router(config-if)# tunnel 6rd ipv4 prefix-len 16 suffix-len 8
Router(config-if)# tunnel 6rd prefix 2001:A000::/32
Router(config-if)# tunnel 6rd br 60.1.2.1
Router(config-if)# tunnel vrf  VRF_GREEN
Router(config-if)# exit
Router(config)# ipv6 route vrf VRF_RED 2001:A000::/32 Tunnel10
Router(config)# ipv6 route vrf VRF_RED 9000:1000::/64 Tunnel10 2001:A000:200::1
Router(config)# end

The following example shows how to configure the VRF-Aware IPv6 Rapid Deployment Tunnel on a BR router:

Router# enable
Router# configure terminal
Router(config)# ipv6 unicast-routing
Router(config)# vrf definition VRF_RED
Router(config-vrf)# rd 1:1
Router(config-vrf)# route-target export 1:1
Router(config-vrf)# route-target import 1:1
Router(config-vrf)# address-family ipv6
Router(config-vrf-af)# exit
Router(config-vrf)# address-family ipv4
Router(config-vrf-af)# exit
Router(config-vrf)# exit
Router(config)# vrf definition VRF_GREEN
Router(config-vrf)# rd 1:1
Router(config-vrf)# route-target export 1:1
Router(config-vrf)# route-target import 1:1
Router(config-vrf)# address-family ipv4
Router(config-vrf-af)# exit
Router(config-vrf)# exit
Router(config)# interface gigabitethernet 5/1
Router(config-if)# vrf forwarding VRF_RED
Router(config-if)# ipv6 address 9000:1000::/64
Router(config-if)# exit
Router(config)# interface gigabitethernet 4/1
Router(config-if)# vrf forwarding VRF_GREEN
Router(config-if)# ip address 17.1.1.2 255.255.255.0
Router(config-if)# ip ospf 2 area 0
Router(config-if)# exit
Router(config)# interface Loopback 100
Router(config-if)# vrf forwarding VRF_GREEN
Router(config-if)# ip address 60.1.2.1 255.255.255.0
Router(config-if)# exit
Router(config)# interface tunnel 10
Router(config-if)# vrf forwarding VRF_RED
Router(config-if)# ipv6 address 2001:A000:100::1/128
Router(config-if)# tunnel source loopback 100
Router(config-if)# tunnel mode ipv6ip 6rd
Router(config-if)# tunnel 6rd ipv4 prefix-len 16 suffix-len 8
Router(config-if)# tunnel 6rd prefix 2001:A000::/32
Router(config-if)# tunnel vrf  VRF_GREEN
Router(config-if)# exit
Router(config)# ipv6 route vrf VRF_RED 2001:A000::/32 Tunnel10
Router(config)# end

Additional References

Related Documents

Related Topic

Document Title

IPv6 addressing and connectivity

IPv6 Configuration Guide

Cisco IOS commands

Cisco IOS Master Commands List, All Releases

IPv6 commands

Cisco IOS IPv6 Command Reference

Cisco IOS IPv6 features

Cisco IOS IPv6 Feature Mapping

Standards and RFCs

Standard/RFC

Title

RFCs for IPv6

IPv6 RFCs

Technical Assistance

Description

Link

The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

http://www.cisco.com/cisco/web/support/index.html

Feature Information for the VRF-Aware IPv6 Rapid Deployment Tunnel

The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. An account on Cisco.com is not required.

Table 1. Feature Information for the VRF-Aware IPv6 Rapid Deployment Tunnel

Feature Name

Releases

Feature Information

VRF-Aware IPv6 Rapid Deployment Tunnel

Cisco IOS XE Release 3.10S

The IPv6 Rapid Deployment Tunnel feature allows a service provider to provide a unicast IPv6 service to customers over its IPv4 network by using encapsulation of IPv6 in IPv4. The VRF-Aware IPv6 Rapid Deployment Tunnel feature extends VRF awareness to IPv6 rapid deployment tunnels.
