VRF-Aware Cloud Web Security

The VRF-Aware Cloud Web Security feature adds virtual routing and forwarding (VRF) support to the Cisco Cloud Web Security configuration. VRF instances in IP-based networks enable a device to have multiple instances of the routing table at the same time. Because routing instances are independent of each other, they can use the same IP addresses without any conflict.

This feature describes the VRF-Aware Cloud Web Security feature and explains how to configure it.

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest caveats and feature information, see Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

Restrictions for VRF-Aware Cloud Web Security

  • While enabling a virtual routing and forwarding (VRF) instance on a device, configure the content-scan out command only on one interface to ensure that the tower polling mechanism is consistent.

  • The VRF-Aware Cloud Web Security feature works only in VRF-Lite scenarios.
  • Overlapping IP addresses must be resolved if multiple VRF instances converge into a single VRF.

Information About VRF-Aware Cloud Web Security

VRF-Aware Cloud Web Security Overview

Cisco Cloud Web Security provides content scanning of HTTP and secure HTTP (HTTPS) traffic and malware protection services to web traffic. It also helps devices transparently redirect HTTP and HTTPS traffic to the Cisco Web Security cloud. The VRF-Aware Cloud Web Security feature adds virtual routing and forwarding (VRF) support to Cisco Cloud Web Security.

VRF instances in IP-based networks enable a device to have multiple instances of the routing table at the same time. Because routing instances are independent of each other, they use the same IP addresses without any conflict.

You can use VRFs with or without Multiprotocol Label Switching (MPLS). When VRFs are used without MPLS, it is called VRF-Lite. The VRF-Aware Cloud Web Security feature works only in VRF-Lite scenarios.

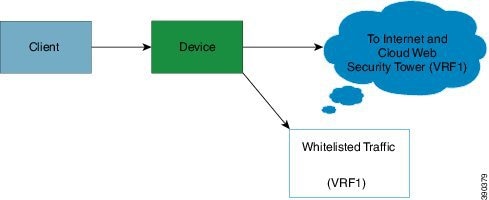

During content scan, the egress VRF ID of the interface on which the content-scan out command is configured is used. The VRF ID that is used during communication with the Cloud Web Security tower is same as the VRF ID of the interface on which the content-scan out command is configured. Based on your configuration, include the routes configured in the Cloud Web Security tower in the appropriate VRFs.

The whitelisted traffic flows through the interface on which the VRF that is connected to the Internet is configured. A whitelist is an approved list of entities that are provided a particular privilege, service, mobility, access, or recognition. Whitelisting means to grant access.

VRF-Aware Cloud Web Security Scenarios

This section describes some scenarios in which the VRF-Aware Cloud Web Security is configured:

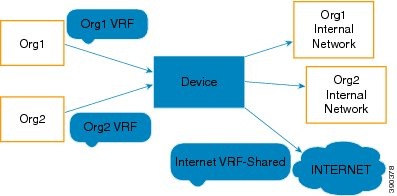

Figure 1. VRF-Aware Cloud Web Security: Scenario 1

In the illustration above, there are two separate networks, Org1 and Org2. The device provides connectivity to the Internet as a shared service between these organizations. Because each organization has a separate virtual routing and forwarding (VRF) instance, both have their individual routing table entries. The clients on Org1 and Org2 can both have the same IP addresses and still access the internal network of their organization.

Because the Internet VRF is shared, Network Address Translation (NAT) must be configured to distinguish the traffic from both the networks. Also, the respective routes from Org1 and Org2 must be advertised into the Internet VRF and vice versa, for proper routing of traffic. In Scenario 1, you can enable Cisco Cloud Web Security on the VRF-shared Internet. Enabling Cisco Cloud Web Security ensures that the HTTP and secure HTTP (HTTPS) traffic is redirected to the configured Cloud Web Security tower. Traffic is passed to the internal networks of both organizations through whitelisting.

Figure 2. VRF-Aware Cloud Web Security: Scenario 2

In the illustration above, clients belong to a global VRF. The Internet traffic belongs to another VRF, VRF1. Whitelisted traffic also uses VRF1 because the interface that is configured for content scan must be connected to whitelisted sites. When you configure content scan on interfaces, each interface will have a unique VRF.

Figure 3. VRF-Aware Cloud Web Security: Scenario 3

In the illustration above, the client traffic comes into the global VRF. All HTTP and HTTPS traffic is sent to VRF1, and non-HTTP and non-HTTPS traffic is sent to VRF2/global VRF. Content scan redirects the HTTP/HTTPS traffic to the Cloud Web Security tower. The classification of HTTP/HTTPS traffic must be done before content-scan redirection.

How to Configure VRF-Aware Cloud Web Security

In Cisco IOS Release 15.4(2)T, some of the Cloud Web Security commands were replaced by new commands. Releases prior to Cisco IOS Release 15.4(2)T still use the old commands.

This section consists of tasks that use the commands existing prior to Cisco IOS Release 15.4(2)T and a corresponding task that uses the commands introduced or modified in the Cisco IOS Release 15.4(2)T.

Configuring a Cloud Web Security Tower in Cisco IOS Release 15.4(2)T and Later Releases


Note

This task applies to Cisco IOS Release 15.4(2)T and later releases.

SUMMARY STEPS

    1.    enable

    2.    configure terminal

    3.    parameter-map type cws global

    4.    server primary ipv4 ipv4-address port http port-number https port-number

    5.    server secondary name name port http port-number https port-number

    6.    license {0 | 7} authentication-key

    7.    source address ipv4 ipv4-address

    8.    timeout server seconds

    9.    timeout session-inactivity seconds

    10.    user-group name [username name]

    11.    server on-failure {allow-all | block-all}

    12.    end


DETAILED STEPS
     Command or ActionPurpose
    Step 1enable


    Example:
    Device> enable

    Enables privileged EXEC mode.
    • Enter your password if prompted.

    Step 2configure terminal


    Example:
    Device# configure terminal


    Enters global configuration mode.


    Step 3parameter-map type cws global


    Example:
    Device(config)# parameter-map type cws global


    Configures a global Cloud Web Security parameter map and enters parameter-map type inspect configuration mode.


    Step 4server primary ipv4 ipv4-address port http port-number https port-number


    Example:
    Device(config-profile)# server primary ipv4 10.2.2.2 port http 8080 https 8080

    Configures a Cisco Cloud Web Security primary server for content scanning.
    • The default Cisco Cloud Web Security port for the proxied HTTP and HTTPS traffic is 8080.
    • You can use either the HTTP port or the HTTPS port or both.

    Step 5server secondary name name port http port-number https port-number


    Example:
    Device(config-profile)# server secondary name example1363.example.net port http 8080 https 8080

    Configures a Cisco Cloud Web Security secondary server for content scanning.
    • The default Cisco Cloud Web Security port for the proxied HTTP and HTTPS traffic is 8080.
    • You can use either the HTTP port or the HTTPS port or both.

    Step 6license {0 | 7} authentication-key


    Example:
    Device(config-profile)# license 0 F52409C9DAF22005CF33E64A7BC524C9

    Configures an unencrypted license key that is sent to Cisco Cloud Web Security for authentication.
    • To configure an encrypted license key, use the 7 keyword and specify an authentication key of 66 hexadecimal characters.

    Step 7source address ipv4 ipv4-address


    Example:
    Device(config-profile)# source address ipv4 192.168.4.4


    Configures the source address for content scan redirection.


    Step 8timeout server seconds


    Example:
    Device(config-profile)# timeout server 20


    Specifies a server keepalive time in seconds.


    Step 9timeout session-inactivity seconds


    Example:
    Device(config-profile)# timeout session-inactivity 180


    Specifies the session inactivity time in seconds.


    Step 10user-group name [username name]


    Example:
    Device(config-profile)# user-group group1 username user1


    Specifies a default user group.


    Step 11server on-failure {allow-all | block-all}


    Example:
    Device(config-profile)# server on-failure block-all


    Blocks all traffic to a web server when communication between the web server and the Cisco Cloud Web Security server fails.


    Step 12end


    Example:
    Device(config-profile)# end


    Exits parameter-map type inspect configuration mode and returns to privileged EXEC mode.



    Configuring a Cloud Web Security Tower


    Note

    This task applies to releases prior to Cisco IOS Release 15.4(2)T.

    SUMMARY STEPS

      1.    enable

      2.    configure terminal

      3.    parameter-map type content-scan global

      4.    server scansafe primary ipv4 ipv4-address port http port-number https port-number

      5.    server scansafe secondary name name port http port-number https port-number

      6.    license {0 | 7} authentication-key

      7.    source address ipv4 ipv4-address

      8.    timeout server seconds

      9.    timeout session-inactivity seconds

      10.    user-group name [username name]

      11.    server scansafe on-failure {allow-all | block-all}

      12.    end


    DETAILED STEPS
       Command or ActionPurpose
      Step 1enable


      Example:
      Device> enable

      Enables privileged EXEC mode.
      • Enter your password if prompted.

      Step 2configure terminal


      Example:
      Device# configure terminal


      Enters global configuration mode.


      Step 3parameter-map type content-scan global


      Example:
      Device(config)# parameter-map type content-scan global


      Configures a global content-scan parameter map and enters parameter-map type inspect configuration mode.


      Step 4server scansafe primary ipv4 ipv4-address port http port-number https port-number


      Example:
      Device(config-profile)# server scansafe primary ipv4 10.2.2.2 port http 8080 https 8080

      Configures a Cisco Cloud Web Security primary server for content scanning.
      • The default Cisco Cloud Web Security port for the proxied HTTP and HTTPS traffic is 8080.
      • You can use either the HTTP port or the HTTPS port or both.

      Step 5server scansafe secondary name name port http port-number https port-number


      Example:
      Device(config-profile)# server scansafe secondary name example1363.example.net port http 8080 https 8080

      Configures a Cisco Cloud Web Security secondary server for content scanning.
      • The default Cisco Cloud Web Security port for the proxied HTTP and HTTPS traffic is 8080.
      • You can use either the HTTP port or the HTTPS port or both.

      Step 6license {0 | 7} authentication-key


      Example:
      Device(config-profile)# license 0 F52409C9DAF22005CF33E64A7BC524C9

      Configures an unencrypted license key that is sent to Cisco Cloud Web Security for authentication.
      • To configure an encrypted license key, use the 7 keyword and specify an authentication key of 66 hexadecimal characters.

      Step 7source address ipv4 ipv4-address


      Example:
      Device(config-profile)# source address ipv4 192.168.4.4


      Configures the source address for content scan redirection.


      Step 8timeout server seconds


      Example:
      Device(config-profile)# timeout server 20


      Specifies a server keepalive time in seconds.


      Step 9timeout session-inactivity seconds


      Example:
      Device(config-profile)# timeout session-inactivity 180


      Specifies the session inactivity time in seconds.


      Step 10user-group name [username name]


      Example:
      Device(config-profile)# user-group group1 username user1


      Specifies a default user group.


      Step 11server scansafe on-failure {allow-all | block-all}


      Example:
      Device(config-profile)# server scansafe on-failure block-all


      Blocks all traffic to a web server when communication between the web server and the Cisco Cloud Web Security server fails.


      Step 12end


      Example:
      Device(config-profile)# end


      Exits parameter-map type inspect configuration mode and returns to privileged EXEC mode.



      Configuring VRF-Aware Cloud Web Security in Cisco IOS Release 15.4(2)T and Later Releases


      Note
      This task applies to Cisco IOS Release 15.4(2)T and later releases.
      SUMMARY STEPS

        1.    enable

        2.    configure terminal

        3.    ip vrf vrf-name

        4.    exit

        5.    interface type number

        6.    ip vrf forwarding name

        7.    ip address ip-address mask

        8.    cws out

        9.    ip virtual-reassembly in

        10.    ip virtual-reassembly out

        11.    duplex auto

        12.    speed auto

        13.    end


      DETAILED STEPS
         Command or ActionPurpose
        Step 1enable


        Example:
        Device> enable

        Enables privileged EXEC mode.
        • Enter your password if prompted.

        Step 2configure terminal


        Example:
        Device# configure terminal


        Enters global configuration mode.


        Step 3ip vrf vrf-name


        Example:
        Device(config)# ip vrf output


        Defines a virtual routing and forwarding (VRF) instance and enters VRF configuration mode.


        Step 4exit


        Example:
        Device(config-vrf)# exit


        Exits VRF configuration mode and enters global configuration mode.


        Step 5interface type number


        Example:
        Device(config)# interface gigabitethernet 0/0


        Configures an interface and enters interface configuration mode.


        Step 6ip vrf forwarding name


        Example:
        Device(config-if)# ip vrf forwarding output


        Associates a VRF instance and configures a VRF forwarding table on an interface.


        Step 7ip address ip-address mask


        Example:
        Device(config-if)# ip address 192.168.4.4 255.255.255.0


        Configures an IP address for an interface.


        Step 8cws out


        Example:
        Device(config-if)# cws out


        Configures the egress interface for Cloud Web Security content scanning.


        Step 9ip virtual-reassembly in


        Example:
        Device(config-if)# ip virtual-reassembly in


        Enables Virtual Fragment Reassembly (VFR) on the ingress.


        Step 10ip virtual-reassembly out


        Example:
        Device(config-if)# ip virtual-reassembly out


        Enables VRF on the egress.


        Step 11duplex auto


        Example:
        Device(config-if)# duplex auto


        Enables autonegotiation on an interface.


        Step 12speed auto


        Example:
        Device(config-if)# speed auto


        Configures the speed of an interface.


        Step 13end


        Example:
        Device(config-if)# end


        Exits interface configuration mode and enters privileged EXEC mode.



        Configuring VRF-Aware Cloud Web Security


        Note
        This task applies to releases prior to Cisco IOS Release 15.4(2)T.
        SUMMARY STEPS

          1.    enable

          2.    configure terminal

          3.    ip vrf vrf-name

          4.    exit

          5.    interface type number

          6.    ip vrf forwarding name

          7.    ip address ip-address mask

          8.    content-scan out

          9.    ip virtual-reassembly in

          10.    ip virtual-reassembly out

          11.    duplex auto

          12.    speed auto

          13.    end


        DETAILED STEPS
           Command or ActionPurpose
          Step 1enable


          Example:
          Device> enable

          Enables privileged EXEC mode.
          • Enter your password if prompted.

          Step 2configure terminal


          Example:
          Device# configure terminal


          Enters global configuration mode.


          Step 3ip vrf vrf-name


          Example:
          Device(config)# ip vrf output


          Defines a virtual routing and forwarding (VRF) instance and enters VRF configuration mode.


          Step 4exit


          Example:
          Device(config-vrf)# exit


          Exits VRF configuration mode and enters global configuration mode.


          Step 5interface type number


          Example:
          Device(config)# interface gigabitethernet 0/0


          Configures an interface and enters interface configuration mode.


          Step 6ip vrf forwarding name


          Example:
          Device(config-if)# ip vrf forwarding output


          Associates a VRF instance and configures a VRF forwarding table on an interface.


          Step 7ip address ip-address mask


          Example:
          Device(config-if)# ip address 192.168.4.4 255.255.255.0


          Configures an IP address for an interface.


          Step 8content-scan out


          Example:
          Device(config-if)# content-scan out


          Configures the egress interface for content scanning.


          Step 9ip virtual-reassembly in


          Example:
          Device(config-if)# ip virtual-reassembly in


          Enables Virtual Fragment Reassembly (VFR) on the ingress.


          Step 10ip virtual-reassembly out


          Example:
          Device(config-if)# ip virtual-reassembly out


          Enables VRF on the egress.


          Step 11duplex auto


          Example:
          Device(config-if)# duplex auto


          Enables autonegotiation on an interface.


          Step 12speed auto


          Example:
          Device(config-if)# speed auto


          Configures the speed of an interface.


          Step 13end


          Example:
          Device(config-if)# end


          Exits interface configuration mode and enters privileged EXEC mode.



          Configuration Examples for VRF-Aware Cloud Web Security

          Example: Configuring a Cloud Web Security Tower in Cisco IOS Release 15.4(2)T and Later Releases


          Note

          This example applies to Cisco IOS Release 15.4(2)T and later releases.

          Device# configure terminal
Device(config)# parameter-map type cws global
Device(config-profile)# server primary ipv4 10.2.2.2 port http 8080 https 8080
Device(config-profile)# server secondary name example1363.example.net port http 8080 https 8080
Device(config-profile)# license 0 F52409C9DAF22005CF33E64A7BC524C9
Device(config-profile)# source address ipv4 192.168.4.4
Device(config-profile)# timeout server 20
Device(config-profile)# timeout session-inactivity 180
Device(config-profile)# user-group group1 username user1
Device(config-profile)# server on-failure block-all
Device(config-profile)# end

          Example: Configuring a Cloud Web Security Tower


          Note

          This example applies to releases prior to Cisco IOS Release 15.4(2)T.

          Device# configure terminal
Device(config)# parameter-map type content-scan global
Device(config-profile)# server scansafe primary ipv4 10.2.2.2 port http 8080 https 8080
Device(config-profile)# server scansafe secondary name example1363.example.net port http 8080 https 8080
Device(config-profile)# license 0 F52409C9DAF22005CF33E64A7BC524C9
Device(config-profile)# source address ipv4 192.168.4.4
Device(config-profile)# timeout server 20
Device(config-profile)# timeout session-inactivity 180
Device(config-profile)# user-group group1 username user1
Device(config-profile)# server scansafe on-failure block-all
Device(config-profile)# end

          Example: VRF-Aware Cloud Web Security in Cisco IOS Release 15.4(2)T and Later Releases


          Note
          This example applies to Cisco IOS Release 15.4(2)T and later releases.
          Device# configure terminal
Device(config)# ip vrf output
Device(config-vrf)# exit
Device(config)# interface gigabitethernet 0/0
Device(config-if)# ip vrf forwarding output
Device(config-if)# ip address 192.168.4.4 255.255.255.0
Device(config-if)# cws out
Device(config-if)# ip virtual-reassembly in
Device(config-if)# ip virtual-reassembly out
Device(config-if)# duplex auto
Device(config-if)# speed auto
Device(config-if)# end

          Example: Configuring VRF-Aware Cloud Web Security


          Note
          This example applies to releases prior to Cisco IOS Release 15.4(2)T.
          Device# configure terminal
Device(config)# ip vrf output
Device(config-vrf)# exit
Device(config)# interface gigabitethernet 0/0
Device(config-if)# ip vrf forwarding output
Device(config-if)# ip address 192.168.4.4 255.255.255.0
Device(config-if)# content-scan out
Device(config-if)# ip virtual-reassembly in
Device(config-if)# ip virtual-reassembly out
Device(config-if)# duplex auto
Device(config-if)# speed auto
Device(config-if)# end

          Additional References for VRF-Aware Cloud Web Security

          Related Documents

          Related Topic

          Document Title

          Cisco IOS commands

          Cisco IOS Master Command List, All Releases

          Firewall commands

          Technical Assistance

          Description Link

          The Cisco Support website provides extensive online resources, including documentation and tools for troubleshooting and resolving technical issues with Cisco products and technologies.

          To receive security and technical information about your products, you can subscribe to various services, such as the Product Alert Tool (accessed from Field Notices), the Cisco Technical Services Newsletter, and Really Simple Syndication (RSS) Feeds.

          Access to most tools on the Cisco Support website requires a Cisco.com user ID and password.

          http:/​/​www.cisco.com/​support

          Feature Information for VRF-Aware Cloud Web Security

          The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

          Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.
          Table 1 Feature Information for VRF-Aware Cloud Web Security

          Feature Name

          Releases

          Feature Information

          VRF-Aware Cloud Web Security

          15.4(1)T

          15.4(2)T

          The VRF-Aware Cloud Web Security feature adds virtual routing and forwarding (VRF) support to the Cisco Cloud Web Security configuration. VRF instances in IP-based networks enable a device to have multiple instances of the routing table at the same time. Because routing instances are independent of each other, they can use the same IP addresses without any conflict.

          The following command was introduced or modified: show content-scan.

          In Cisco IOS Release 15.4(2)T, the show content-scan command was replaced by the show cws command.
