Cisco TrustSec SGT Exchange Protocol IPv4

Cisco TrustSec (CTS) builds secure networks by establishing domains of trusted network devices. Each device in the domain is authenticated by its peers. Communication on the links between devices in the domain is secured with a combination of encryption, message integrity check, and data-path replay protection mechanisms.

The Security Group Tag (SGT) Exchange Protocol (SXP) is one of several protocols that supports CTS and is referred to in this document as CTS-SXP. CTS-SXP is a control protocol for propagating IP-to-SGT binding information across network devices that do not have the capability to tag packets. CTS-SXP passes IP to SGT bindings from authentication points to upstream devices in the network. This process allows security services on switches, routers, or firewalls to learn identity information from access devices.

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest caveats and feature information, see Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

Prerequisites for Cisco TrustSec SGT Exchange Protocol IPv4

The CTS-SXP network needs to be established before implementing SXP. The CTS-SXP network has the following prerequisites:

  • To use the Cisco TrustSec functionality on your existing router, ensure that you have purchased a Cisco TrustSec security license. If the router is being ordered and needs the Cisco TrustSec functionality, ensure that this license is pre-installed on your router before it is shipped to you.

  • CTS-SXP software runs on all network devices

  • Connectivity exists between all network devices

  • The Cisco Identity Services Engine 1.0 is required for authentication. The Secure Access Control Server (ACS) Express Appliance server can also be used for authentication, however not all ACS features are supported by CTS. ACS 5.1 operates with a CTS-SXP license

  • Configure the retry open timer command to a different value on different routers.

Restrictions for Cisco TrustSec SGT Exchange Protocol IPv4

  • The Cisco TrustSec Support for IOS feature is supported on the Cisco Integrated Services Router Generation 2 (ISR G2) only.

  • CTS-SXP is supported only on physical interfaces, not on logical interfaces.

  • CTS-SXP does not support IPv6.

  • If the default password is configured on a router, the connection on that router should configure the password to use the default password. If the default password is not configured, the connection on that router should configure to not use the password configuration. The configuration of the password option should be consistent across the deployment network.

Information About Cisco TrustSec SGT Exchange Protocol IPv4

Security Group Tagging

CTS-SXP uses the device and user credentials acquired during authentication for classifying the packets by security groups (SGs) as they enter the network. This packet classification is maintained by tagging packets on ingress to the CTS-SXP network so that they can be properly identified for the purpose of applying security and other policy criteria along the data path. The Security Group Tag (SGT) allows the network to enforce the access control policy by enabling the endpoint device to act upon the SGT to filter traffic.

Using CTS-SXP for SGT Propagation Across Legacy Access Networks

Tagging packets with SGTs requires hardware support. There may be devices in the network that can participate in CTS authentication, but lack the hardware capability to tag packets with SGTs. However, if CTS-SXP is used, then these devices can pass IP-to-SGT mappings to a CTS peer device that has CTS-capable hardware.

CTS-SXP typically operates between ingress access layer devices at the CTS domain edge and distribution layer devices within the CTS domain. The access layer device performs CTS authentication of external source devices to determine the appropriate SGTs for ingress packets. The access layer device learns the IP addresses of the source devices using IP device tracking and (optionally) DHCP snooping, then uses CTS-SXP to pass the IP addresses of the source devices along with their SGTs to the distribution switches. Distribution switches with CTS-capable hardware can use this IP-to-SGT mapping information to tag packets appropriately and to enforce Security Group Access Control List (SGACL) policies as shown in the figure below. An SGACL associates an SGT with a policy. The policy is enforced when SGT-tagged traffic egresses the CTS domain.

Figure 1. How CTS-SXP Propagates SGT Information

You must manually configure a CTS-SXP connection between a peer without CTS hardware support and a peer with CTS hardware support. The following tasks are required when configuring the CTS-SXP connection:

  • If CTS-SXP data integrity and authentication are required, the same CTS-SXP password can be configured on both peer devices. The CTS-SXP password can be configured either explicitly for each peer connection or globally for the device. Although a CTS-SXP password is not required it is recommended.

  • Each peer on the CTS-SXP connection must be configured as either a CTS-SXP speaker or CTS-SXP listener. The speaker device distributes the IP-to-SGT mapping information to the listener device.

  • A source IP address can be specified to use for each peer relationship or a default source IP address can be configured for peer connections where a specific source IP address is not configured. If no source IP address is specified, then the device uses the interface IP address of the connection to the peer.

CTS-SXP allows multiple hops. That is, if the peer of a device lacking CTS hardware support also lacks CTS hardware support, the second peer can have a CTS-SXP connection to a third peer, continuing the propagation of the IP-to-SGT mapping information until a hardware-capable peer is reached. A device can be configured as a CTS-SXP listener for one CTS-SXP connection as a CTS-SXP speaker for another CTS-SXP connection.

A CTS device maintains connectivity with its CTS-SXP peers by using the TCP keepalive mechanism. To establish or restore a peer connection, the device repeatedly attempts the connection setup by using the configured retry period until the connection is successful or until the connection is removed from the configuration.

VRF-Aware CTS-SXP

The CTS-SXP implementation of Virtual Routing and Forwarding (VRF) binds a CTS-SXP connection with a specific VRF. It is assumed that the network topology is correctly configured for Layer 2 or Layer 3 VPNs, and that all VRFs are configured before enabling CTS-SXP.

CTS-SXP VRF support can be summarized as follows:

  • Only one CTS-SXP connection can be bound to one VRF.

  • Different VRFs may have overlapping CTS-SXP peer or source IP addresses.

  • IP-to-SGT mappings learned (added or deleted) in one VRF can be updated only in the same VRF domain. The CTS-SXP connection cannot update a mapping bound to a different VRF. If no SXP connection exits for a VRF, IP-SGT mappings for that VRF won’t be updated by SXP.

  • CTS-SXP does not support the establishment of connections with a source IPv6 address. However, multiple address families per VRF are supported where one CTS-SXP connection in a VRF domain can forward both IPv4 and IPv6 IP-to-SGT mappings.

  • CTS-SXP has no limitation on the number of connections and number of IP-to-SGT mappings per VRF.

Security Group Access Zone-Based Policy Firewall

CTS-SXP extends the deployment of network devices to additional places on the network by using the Security Group Access (SGA) Zone-Based Policy firewalls (ZBPFs). CTS-SXP is used for Identity distribution through inline devices where the identity information is learned from a primary communication path that exists across networks as shown in the figure below.

The Security Group Tag (SGT) is used by the SGA ZBPF to apply enforcement policy. IP-to-SGT mapping information is learned through CTS-SXP. When a packet arrives, source IP addresses in the packet are used to derive source tags. The Identity firewall applies a policy to the received IP packets based on the configured policy where the SGT is one of the attributes.

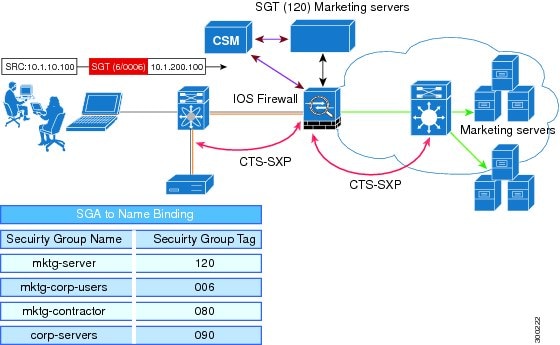

Figure 2. CTS-SXP SGA ZBPF Distribution Path Across Networks

How to Configure the Cisco TrustSec SGT Exchange Protocol IPv4

Enabling CTS-SXP

SUMMARY STEPS

    1.    enable

    2.    configure terminal

    3.    cts sxp enable


DETAILED STEPS
     Command or ActionPurpose
    Step 1 enable


    Example:
    Device> enable


    Enables privileged EXEC mode.

    • Enter your password if prompted.


    Step 2 configure terminal


    Example:
    Device# configure terminal


    Enters global configuration mode.


    Step 3 cts sxp enable


    Example:
    Device(config)# cts sxp enable


    Enables a CTS-SXP connection to any peer connection that is configured.

    Note

    Ensure that peer connections are configured. If peer connections are not configured, then CTS-SXP connections cannot be established with them.



    Configuring a CTS-SXP Peer Connection

    The CTS-SXP peer connection must be configured on both devices. One device is the speaker and the other is the listener. When using password protection, make sure to use the same password on both ends.


    Note

    If a default CTS-SXP source IP address is not configured and you do not configure a CTS-SXP source address in the connection, the Cisco TrustSec software derives the CTS-SXP source IP address from existing local IP addresses. The CTS-SXP source IP address might be different for each TCP connection initiated from the router.

    SUMMARY STEPS

      1.    enable

      2.    configure terminal

      3.    cts sxp connection peer ipv4-address {source | password} {default | none} mode {local | peer} [[listener | speaker] [vrf vrf-name]]

      4.    exit

      5.    show cts sxp {connections | sgt-map} [brief | vrf vrf-name]


    DETAILED STEPS
       Command or ActionPurpose
      Step 1 enable


      Example:
      Device> enable


      Enables privileged EXEC mode.

      • Enter your password if prompted.


      Step 2 configure terminal


      Example:
      Device# configure terminal


      Enters global configuration mode.


      Step 3 cts sxp connection peer ipv4-address {source | password} {default | none} mode {local | peer} [[listener | speaker] [vrf vrf-name]]


      Example:
      Device(config)# cts sxp connection peer 10.20.2.2 password default mode local speaker


      Configures the CTS-SXP peer address connection.

      The source keyword specifies the IPv4 address of the source device. If no address is specified, the connection uses the default source address, if configured, or the address of the port.

      The password keyword specifies the password that CTS-SXP uses for the connection using the following options:

      • default—Use the default CTS-SXP password you configured using the cts sxp default password command.

      • none—A password is not used.

      The mode keyword specifies the role of the remote peer device:

      • local—The specified mode refers to the local device.

      • peer—The specified mode refers to the peer device.

      • listener—Specifies that the device is the listener in the connection.

      • speaker—Specifies that the device is the speaker in the connection. This is the default.

      The optional vrf keyword specifies the VRF to the peer. The default is the default VRF.


      Step 4 exit


      Example:
      Device# exit


      Exits global configuration mode and returns to privileged EXEC mode.


      Step 5 show cts sxp {connections | sgt-map} [brief | vrf vrf-name]


      Example:
      Device# show cts sxp connections


      (Optional) Displays CTS-SXP status and connections.



      Configuring the Default CTS-SXP Password

      SUMMARY STEPS

        1.    enable

        2.    configure terminal

        3.    cts sxp default password [0 | 6 | 7] password

        4.    exit


      DETAILED STEPS
         Command or ActionPurpose
        Step 1 enable


        Example:
        Device> enable


        Enables privileged EXEC mode.

        • Enter your password if prompted.


        Step 2 configure terminal


        Example:
        Device# configure terminal


        Enters global configuration mode.


        Step 3 cts sxp default password [0 | 6 | 7] password


        Example:
        Device(config)# cts sxp default password Cisco123


        Configures the CTS-SXP default password. You can enter either a clear text password (using the 0 or no option) or an encrypted password (using the 6 or 7 option). The maximum password length is 32 characters.

        Note

        By default, CTS-SXP uses no password when setting up connections.


        Step 4 exit


        Example:
        Device# exit


        Exits global configuration mode and returns to privileged EXEC mode.



        Configuring the Default CTS-SXP Source IP Address

        SUMMARY STEPS

          1.    enable

          2.    configure terminal

          3.    cts sxp default source-ip src-ip-addr

          4.    exit


        DETAILED STEPS
           Command or ActionPurpose
          Step 1 enable


          Example:
          Device> enable


          Enables privileged EXEC mode.

          • Enter your password if prompted.


          Step 2 configure terminal


          Example:
          Device# configure terminal


          Enters global configuration mode.


          Step 3 cts sxp default source-ip src-ip-addr


          Example:
          Device(config)# cts sxp default source-ip 10.20.2.2


          Configures the CTS-SXP default source IP address that is used for all new TCP connections where a source IP address is not specified.

          Note

          Existing TCP connections are not affected when the default CTS-SXP source IP address is configured.


          Step 4 exit


          Example:
          Device# exit


          Exits global configuration mode and returns to privileged EXEC mode.



          Configuring the CTS-SXP Reconciliation Period

          After a peer terminates a CTS-SXP connection, an internal hold-down timer starts. If the peer reconnects before the internal hold-down timer expires, the CTS-SXP reconciliation period timer starts. While the CTS-SXP reconciliation period timer is active, the CTS software retains the SGT mapping entries learned from the previous connection and removes invalid entries. The default value is 120 seconds (2 minutes). Setting the CTS-SXP reconciliation period to 0 seconds disables the timer and causes all entries from the previous connection to be removed.

          SUMMARY STEPS

            1.    enable

            2.    configure terminal

            3.    cts sxp reconciliation period seconds

            4.    exit


          DETAILED STEPS
             Command or ActionPurpose
            Step 1 enable


            Example:
            Device> enable


            Enables privileged EXEC mode.

            • Enter your password if prompted.


            Step 2 configure terminal


            Example:
            Device# configure terminal


            Enters global configuration mode.


            Step 3 cts sxp reconciliation period seconds


            Example:
            Device(config)# cts sxp reconciliation period 150


            Sets the CTS-SXP reconciliation timer, in seconds. The range is from 0 to 64000. The default is 120.


            Step 4 exit


            Example:
            Device# exit


            Exits global configuration mode and enters privileged EXEC mode.



            Configuring the CTS-SXP Retry Period

            The CTS-SXP retry period determines how often the CTS software retries a CTS-SXP connection. If a CTS-SXP connection is not established successfully, then the CTS software makes a new attempt to set up the connection after the CTS-SXP retry period timer expires. The default value is 2 minutes. Setting the CTS-SXP retry period to 0 seconds disables the timer and retries are not attempted.

            SUMMARY STEPS

              1.    enable

              2.    configure terminal

              3.    cts sxp retry period seconds

              4.    exit


            DETAILED STEPS
               Command or ActionPurpose
              Step 1 enable


              Example:
              Device> enable


              Enables privileged EXEC mode.

              • Enter your password if prompted.


              Step 2 configure terminal


              Example:
              Device# configure terminal


              Enters global configuration mode.


              Step 3 cts sxp retry period seconds


              Example:
              Device(config)# cts sxp retry period 160


              Sets the CTS-SXP retry timer, in seconds. The range is from 0 to 64000. The default is 120.


              Step 4 exit


              Example:
              Device# exit


              Exits global configuration mode and returns to privileged EXEC mode.



              Creating Syslogs to Capture IP-to-SGT Mapping Changes

              SUMMARY STEPS

                1.    enable

                2.    configure terminal

                3.    cts sxp log binding-changes

                4.    exit


              DETAILED STEPS
                 Command or ActionPurpose
                Step 1 enable


                Example:
                Device> enable


                Enables privileged EXEC mode.

                • Enter your password if prompted.


                Step 2 configure terminal


                Example:
                Device# configure terminal


                Enters global configuration mode.


                Step 3 cts sxp log binding-changes


                Example:
                Device(config)# cts sxp log binding-changes


                Enables logging for IP-to-SGT binding changes causing CTS-SXP syslogs (sev 5 syslog) to be generated whenever a change to IP-to-SGT binding occurs (add, delete, change). These changes are learned and propagated on the CTS-SXP connection.

                Note

                This logging function is disabled by default.


                Step 4 exit


                Example:
                Device# exit


                Exits global configuration mode and returns to privileged EXEC mode.



                Configuring a Class Map for a Security Group Access Zone-Based Policy Firewall

                Perform this task to configure a class map for classifying Security Group Access (SGA) zone-based policy firewall network traffic.


                Note

                You must perform at least one match step.

                The zone-based firewall policy uses the security group tag (SGT) ID for filtering. In a zone-based firewall policy, only the first packet that creates a session matches the policy. Subsequent packets in this flow do not match the filters in the configured policy, but instead match the session directly. The statistics related to subsequent packets are shown as part of the inspect action.

                SUMMARY STEPS

                  1.    enable

                  2.    configure terminal

                  3.    class-map type inspect [match-any | match-all] class-map-name

                  4.    match security-group source tag sgt-number

                  5.    exit


                DETAILED STEPS
                   Command or ActionPurpose
                  Step 1 enable


                  Example:
                  Router> enable


                  Enables privileged EXEC mode.

                  • Enter your password if prompted.


                  Step 2 configure terminal


                  Example:
                  Router# configure terminal


                  Enters global configuration mode.


                  Step 3 class-map type inspect [match-any | match-all] class-map-name


                  Example:
                  Router(config)# class-map type inspect match-all cmap-1


                  Creates a Layer 3 or Layer 4 inspect type class map and enters class-map configuration mode.


                  Step 4 match security-group source tag sgt-number


                  Example:
                  Router(config-cmap)# match security-group source tag 100


                  Configures the match criterion for a class map based on the source SGT number.


                  Step 5 exit


                  Example:
                  Router(config-cmap)# exit


                  Exits QoS class-map configuration mode and enters global configuration mode.



                  Creating a Policy Map for a Security Group Access Zone-Based Policy Firewall

                  Perform this task to create a policy map for a Security Group Access (SGA) zone-based policy firewall that is attached to zone pairs. This task also helps to configure Identity Firewall (IDFW) to work with Security Group Tag (SGT) Exchange Protocol (SXP) or L2-tagged traffic on the interfaces that belong to the security zones.

                  SUMMARY STEPS

                    1.    enable

                    2.    configure terminal

                    3.    policy-map type inspect policy-map-name

                    4.    class type inspect class-name

                    5.    inspect

                    6.    exit

                    7.    zone-pair security zone-pair-name source source-zone destination destination-zone

                    8.    service-policy type inspect policy-map-name

                    9.    end

                    10.    interface type number

                    11.    zone-member security zone-name

                    12.    cts manual

                    13.    no propagate sgt

                    14.    policy static sgt tag [trusted]

                    15.    exit

                    16.    show policy-map type inspect zone-pair session


                  DETAILED STEPS
                     Command or ActionPurpose
                    Step 1 enable


                    Example:
                    Device> enable


                    Enables privileged EXEC mode.

                    • Enter your password if prompted.


                    Step 2 configure terminal


                    Example:
                    Device# configure terminal


                    Enters global configuration mode.


                    Step 3 policy-map type inspect policy-map-name


                    Example:
                    Device(config)# policy-map type inspect z1z2-policy


                    Creates a Layer 3 or Layer 4 inspect type policy map.

                    • Enters policy map configuration mode.


                    Step 4 class type inspect class-name


                    Example:
                    Device(config-pmap)# class type inspect cmap-1


                    Specifies the traffic (class) on which an action is to be performed and enters policy-map class configuration mode.


                    Step 5 inspect


                    Example:
                    Device(config-pmap-c)# inspect


                    Enables packet inspection.


                    Step 6 exit


                    Example:
                    Device(config-pmap-c)# exit


                    Exits policy-map class configuration mode and enters global configuration mode.


                    Step 7 zone-pair security zone-pair-name source source-zone destination destination-zone


                    Example:
                    Device(config)# zone-pair security z1z2 source z1 destination z2

                    Creates a zone pair and enters security zone configuration mode.
                    Note

                    To apply a policy, you must configure a zone pair.


                    Step 8 service-policy type inspect policy-map-name


                    Example:
                    Device(config-sec-zone)# service-policy type inspect z1z2-policy2

                    Attaches a firewall policy map to the destination zone pair.
                    Note

                    If a policy is not configured between a pair of zones, traffic is dropped by default.


                    Step 9 end


                    Example:
                    Device(config-sec-zone)# end


                    Exits security zone configuration mode and enters global configuration mode.


                    Step 10 interface type number


                    Example:
                    Device(config)# interface GigabitEthernet 0/1/1


                    Configures an interface and enters interface configuration mode.


                    Step 11 zone-member security zone-name


                    Example:
                    Device(config-if)# zone-member security Inside

                    Assigns an interface to a specified security zone.
                    Note

                    When you make an interface a member of a security zone, all traffic in and out of that interface (except traffic bound for the router or initiated by the router) is dropped by default. To let traffic through the interface, you must make the zone part of a zone pair to which you should apply a policy. If the policy permits traffic, traffic can flow through that interface.


                    Step 12 cts manual


                    Example:
                    Device(config-if)# cts manual


                    Enables the interface for Cisco TrustSec Security (CTS) SGT authorization and forwarding, and enters CTS manual interface configuration mode.


                    Step 13 no propagate sgt


                    Example:
                    Device(config-if-cts-manual)# no propagate sgt


                    Disables SGT propagation at Layer 2 on CTS interfaces.


                    Step 14 policy static sgt tag [trusted]


                    Example:
                    Device(config-if-cts-manual)# policy static sgt 100 trusted


                    Configures a static authorization policy for a CTS security group with a tagged packet that defines the trustworthiness of the SGT.


                    Step 15 exit


                    Example:
                    Device(config-if)# exit


                    Exits security zone configuration mode and enters privileged EXEC mode.


                    Step 16 show policy-map type inspect zone-pair session


                    Example:
                    Device# show policy-map type inspect zone-pair session


                    (Optional) Displays the Cisco IOS stateful packet inspection sessions created because of the policy-map application on the specified zone pair.

                    Note

                    The information displayed under the class-map field is the traffic rate (bits per second) of the traffic that belongs to the connection-initiating traffic only. Unless the connection setup rate is significantly high and is sustained for multiple intervals over which the rate is computed, no significant data is shown for the connection.



                    Example:

                    The following sample output of the show policy-map type inspect zone-pair session command displays the information about the Cisco IOS stateful packet inspection sessions created because of the policy-map application on the specified zone pair:

                    Device# show policy-map type inspect zone-pair session

Zone-pair: in-out
 Service-policy inspect : test

   Class-map: test (match-any)
     Match: group-object security source sgt
     Inspect
       Established Sessions
        Session 113EF68C (192.2.2.1:8)=>(198.51.100.252:153) icmp SIS_OPEN
         Created 00:00:02, Last heard 00:00:02
         Bytes sent (initiator:responder) [360:360]


   Class-map: class-default (match-any)
     Match: any
     Drop (default action)
       310 packets, 37380 bytes

                    Configuration Examples for Cisco TrustSec SGT Exchange Protocol IPv4

                    Example: Enabling and Configuring a CTS-SXP Peer Connection

                    The following example shows how to enable CTS-SXP and configure the CTS-SXP peer connection on Device_A, a speaker, for connection to Device_B, a listener:

                    Device# configure terminal
Device_A(config)# cts sxp enable
Device_A(config)# cts sxp default password Cisco123
Device_A(config)# cts sxp default source-ip 10.10.1.1
Device_A(config)# cts sxp connection peer 10.20.2.2 password default mode local speaker

                    The following example shows how to configure the CTS-SXP peer connection on Device_B, a listener, for connection to Device_A, a speaker:

                    Device# configure terminal
Device_B(config)# cts sxp enable
Device_B(config)# cts sxp default password Cisco123
Device_B(config)# cts sxp default source-ip 10.20.2.2
Device_B(config)# cts sxp connection peer 10.10.1.1 password default mode local listener

                    The following sample output for show cts sxp connections command displays CTS-SXP connections:

                    Device_B# show cts sxp connections

 SXP              : Enabled
 Default Password : Set
 Default Source IP: 10.10.1.1
Connection retry open period: 10 secs
Reconcile period: 120 secs
Retry open timer is not running
----------------------------------------------
Peer IP          : 10.20.2.2
Source IP        : 10.10.1.1
Conn status      : On
Connection mode  : SXP Listener
Connection inst# : 1
TCP conn fd      : 1
TCP conn password: default SXP password
Duration since last state change: 0:00:21:25 (dd:hr:mm:sec)
Total num of SXP Connections = 1

                    Example: Configuring a Security Group Access Zone-Based Policy Firewall

                    The following example shows the configuration of a class map and policy map for an SGA zone-based policy firewall.

                    Device> enable
Device# configure terminal
Device(config)# class-map type inspect match-all cmap-1
Device(config-cmap)# match security-group source tag 100
Device(config-cmap)# exit

Device(config)# policy-map type inspect z1z2-policy
Device(config-pmap)# class type inspect cmap-1
Device(config-pmap-c)# inspect
Device(config-pmap-c)# exit

Device(config)# zone-pair security z1z2 source z1 destination z2
Device(config-sec-zone)# service-policy type inspect z1z2-policy2
Device(config-sec-zone)# end

Device(config)# interface GigabitEthernet 0/1/1
Device(config-if)# zone-member security Inside
Device(config-if)# exit

                    Additional References for TrustSec SGT Handling: L2 SGT Imposition and Forwarding

                    Related Documents

                    Related Topic

                    Document Title

                    Cisco IOS commands

                    Cisco IOS Master Command List, All Releases

                    Security commands

                    Cisco IOS Security Command Reference: Commands A to C

                    Cisco IOS Security Command Reference: Commands D to L

                    Cisco IOS Security Command Reference: Commands M to R

                    Cisco IOS Security Command Reference: Commands S to Z

                    Cisco TrustSec switches

                    Cisco TrustSec Switch Configuration Guide

                    MIBs

                    MIB

                    MIBs Link

                    CISCO-TRUSTSEC-SXP-MIB

                    To locate and download MIBs for selected platforms, Cisco software releases, and feature sets, use Cisco MIB Locator found at the following URL:

                    http:/​/​www.cisco.com/​go/​mibs

                    Technical Assistance

                    Description

                    Link

                    The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

                    http:/​/​www.cisco.com/​cisco/​web/​support/​index.html

                    Feature Information for Cisco TrustSec SGT Exchange Protocol IPv4

                    The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

                    Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.
                    Table 1 Feature Information for Cisco TrustSec SGT Exchange Protocol IPv4

                    Feature Name

                    Releases

                    Feature Information

                    Cisco TrustSec SGT Exchange Protocol IPv4

                    12.2(53)SE2

                    12.2(50)SG5

                    12.2(33)SXI3

                    15.1(3)S

                    15.2(2)T

                    The Security Group Tag (SGT) Exchange Protocol (SXP) is one of several protocols that supports CTS and is referred to in this document as CTS-SXP. CTS-SXP is a control protocol for propagating IP-to-SGT binding information across network devices that do not have the capability to tag packets. CTS-SXP passes IP-to-SGT bindings from authentication points to upstream devices in the network. This allows security services on switches, routers, or firewalls to learn identity information from access devices.

                    In Cisco IOS Release 12.2(53)SE2, this feature was introduced on the Cisco Catalyst 3500 and 3750 Series Switches.

                    In Cisco IOS Release 12.2(50)SG5, this feature was introduced on the Cisco Catalyst 4500 Series Switch.

                    In Cisco IOS Release 12.2(33)SXI3, this feature was introduced on the Cisco Catalyst 6500 Series Switches.

                    In Cisco NX-OS 4.2.1 Release, this feature was introduced on the Nexus 7000 Series Switches.

                    This feature was introduced in Cisco IOS Release 15.1(3)S.

                    The following commands were introduced or modified: cts sxp enable, cts sxp connection peer, show cts sxp, cts sxp default source-ip, cts sxp reconciliation period, cts sxp retry period, cts sxp log binding-changes.

                    This feature was integrated into Cisco IOS Release 15.2(2)T.

                    Support for Cisco TrustSec Solution on ISR Platforms

                    15.2(2)T

                    This feature helps CTS-SXP extend the deployment of network devices through Security Group Access (SGA) Zone-Based Policy firewalls (ZBPFs).

                    This feature was integrated into Cisco IOS Release 15.2(2)T.

                    The following commands were introduced or modified: match security-group.
