PPP, described in RFC 1661, encapsulates network layer protocol information over point-to-point links. You can configure PPP on the following types of physical interfaces:

• Asynchronous serial
• High-Speed Serial Interface (HSSI)
• Synchronous serial

Magic Number support is available on all serial interfaces. PPP always attempts to negotiate for Magic Numbers, which are used to detect looped-back lines. Depending on how the down-when-loopedcommand is configured, the router might shut down a link if it detects a loop.

The Multilink PPP feature provides load balancing functionality over multiple WAN links while providing multivendor interoperability, packet fragmentation, proper sequencing, and load calculation on both inbound and outbound traffic. The Cisco implementation of MLP supports the fragmentation and packet sequencing specifications in RFC 1990. Additionally, you can change the default endpoint discriminator value that is supplied as part of user authentication. Refer to RFC 1990 for more information about the endpoint discriminator.

MLP allows packets to be fragmented and the fragments to be sent at the same time over multiple point-to-point links to the same remote address. The multiple links come up in response to a defined dialer load threshold. The load can be calculated on inbound traffic, outbound traffic, or on either, as needed for the traffic between the specific sites. MLP provides bandwidth on demand and reduces transmission latency across WAN links.

MLP is designed to work over synchronous and asynchronous serial types of single or multiple interfaces that have been configured to support both dial-on-demand rotary groups and PPP encapsulation.

Multilink PPP allows multiple PPP links to be established in parallel to the same destination. Multilink PPP is often used to increase the amount of bandwidth between points. The Multilink PPP Minimum Links Mandatory feature enables you to configure the minimum number of links in a Multilink PPP (MLP) bundle required to keep that bundle active.

The Multilink PPP Minimum Links Mandatory feature causes all Network Control Protocols (NCPs) for an MLP bundle to be disabled until the MLP bundle has the required minimum number of links. When a new link is added to the MLP bundle that brings the number of links up to the required minimum number of links, the NCPs are activated for the MLP bundle. When a link is removed from an MLP bundle, and the number of links falls below the required minimum number of links for that MLP bundle, the NCPs are disabled for that MLP bundle.

PPP with CHAP or PAP authentication is often used to inform the central site about which remote routers are connected to it.

With this authentication information, if the router or access server receives another packet for a destination to which it is already connected, it does not place an additional call. However, if the router or access server is using rotaries, it sends the packet out the correct port.

CHAP and PAP were originally specified in RFC 1334, and CHAP is updated in RFC 1994. These protocols are supported on synchronous and asynchronous serial interfaces. When using CHAP or PAP authentication, each router or access server identifies itself by a name. This identification process prevents a router from placing another call to a router to which it is already connected, and also prevents unauthorized access.

Access control using CHAP or PAP is available on all serial interfaces that use PPP encapsulation. The authentication feature reduces the risk of security violations on your router or access server. You can configure either CHAP or PAP for the interface.

Note	To use CHAP or PAP, you must be running PPP encapsulation.

When CHAP is enabled on an interface and a remote device attempts to connect to it, the local router or access server sends a CHAP packet to the remote device. The CHAP packet requests or "challenges" the remote device to respond. The challenge packet consists of an ID, a random number, and the host name of the local router.

The required response has two parts:

• An encrypted version of the ID, a secret password, and the random number
• Either the host name of the remote device or the name of the user on the remote device

When the local router or access server receives the response, it verifies the secret password by performing the same encryption operation as indicated in the response and looking up the required host name or username. The secret passwords must be identical on the remote device and the local router.

Because this response is sent, the password is never sent in clear text, preventing other devices from stealing it and gaining illegal access to the system. Without the proper response, the remote device cannot connect to the local router.

CHAP transactions occur only when a link is established. The local router or access server does not request a password during the rest of the call. (The local device can, however, respond to such requests from other devices during a call.)

When PAP is enabled, the remote router attempting to connect to the local router or access server is required to send an authentication request. If the username and password specified in the authentication request are accepted, the Cisco IOS or Cisco IOS XE software sends an authentication acknowledgment.

After you have enabled CHAP or PAP, the local router or access server requires authentication from remote devices. If the remote device does not support the enabled protocol, no traffic will be passed to that device.

Microsoft Point-to-Point Compression (MPPC) is a scheme used to compress PPP packets between Cisco and Microsoft client devices. The MPPC algorithm is designed to optimize bandwidth utilization in order to support multiple simultaneous connections. The MPPC algorithm uses a Lempel-Ziv (LZ)-based algorithm with a continuous history buffer called a dictionary.

The Compression Control Protocol (CCP) configuration option for MPPC is 18.

Exactly one MPPC datagram is encapsulated in the PPP information field. The PPP protocol field indicates the hexadecimal type of 00FD for all compressed datagrams. The maximum length of the MPPC datagram sent over PPP is the same as the MTU of the PPP interface; however, this length cannot be greater than 8192 bytes because the history buffer is limited to 8192 bytes. If compressing the data results in data expansion, the original data is sent as an uncompressed MPPC packet.

The history buffers between compressor and decompressor are synchronized by maintaining a 12-bit coherency count. If the decompressor detects that the coherency count is out of sequence, the following error recovery process is performed:

1. Reset Request (RR) packet is sent from the decompressor.
2. The compressor then flushes the history buffer and sets the flushed bit in the next packet it sends.
3. Upon receiving the flushed bit set packet, the decompressor flushes the history buffer.

Synchronization is achieved without CCP using the Reset Acknowledge (RA) packet, which can consume additional time.

Compression negotiation between a router and a Windows 95 client occurs through the following process:

1. Windows 95 sends a request for both STAC (option 17) and MPPC (option 18) compression.
2. The router sends a negative acknowledgment (NAK) requesting only MPPC.
3. Windows 95 resends the request for MPPC.
4. The router sends an acknowledgment (ACK) confirming MPPC compression negotiation.

A point-to-point interface must be able to provide a remote node with its IP address through the IP Control Protocol (IPCP) address negotiation process. The IP address can be obtained from a variety of sources. The address can be configured through the command line, entered with an EXEC-level command, provided by TACACS+ or the Dynamic Host Configuration Protocol (DHCP), or from a locally administered pool.

IP address pooling uses a pool of IP addresses from which an incoming interface can provide an IP address to a remote node through IPCP address negotiation process. IP address pooling also enhances configuration flexibility by allowing multiple types of pooling to be active simultaneously.

See the chapter "Configuring Asynchronous SLIP and PPP" in this publication for additional information about address pooling on asynchronous interfaces and about the Serial Line Internet Protocol (SLIP).

• Peer Address Allocation

• Precedence Rules

• Interfaces Affected


For situations in which a routed network needs connectivity to a remote bridged Ethernet network, a serial interface can be configured to function as a PPP half-bridge. The line to the remote bridge functions as a virtual Ethernet interface, and the serial interface on the router functions as a node on the same Ethernet subnetwork as the remote network.

The bridge sends bridge packets to the PPP half-bridge, which converts them to routed packets and forwards them to other router processes. Likewise, the PPP half-bridge converts routed packets to Ethernet bridge packets and sends them to the bridge on the same Ethernet subnetwork.

Note	An interface cannot function as both a half-bridge and a bridge.

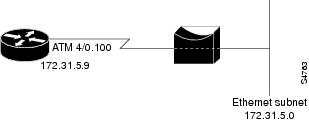

The figure below shows a router with an interface configured as a PPP half-bridge. The interface functions as a node on the Ethernet subnetwork with the bridge. Note that the interface has an IP address on the same Ethernet subnetwork as the bridge.

Figure 1

Router Interface Configured as a Half-Bridge

Note	The Cisco IOS XE software supports no more than one PPP half-bridge per Ethernet subnetwork.

• Multilink PPP


Interleaving on MLP allows large packets to be multilink encapsulated and fragmented into a small enough size to satisfy the delay requirements of real-time traffic; small real-time packets are not multilink encapsulated and are sent between fragments of the large packets. The interleaving feature also provides a special transmit queue for the smaller, delay-sensitive packets, enabling them to be sent earlier than other flows.

Weighted fair queueing on MLP works on the packet level, not at the level of multilink fragments. Thus, if a small real-time packet gets queued behind a larger best-effort packet and no special queue has been reserved for real-time packets, the small packet will be scheduled for transmission only after all the fragments of the larger packet are scheduled for transmission.

Weighted fair queueing is supported on all interfaces that support Multilink PPP, including MLP virtual access interfaces and virtual interface templates. Weighted fair-queueing is enabled by default.

Interleaving applies only to interfaces that can configure a multilink bundle interface.

Multilink and fair queueing are not supported when a multilink bundle is off-loaded to a different system using Multichassis Multilink PPP (MMP). Thus, interleaving is not supported in MMP networking designs.

1.    enable

2.    configure terminal

3.    interface fastethernet number

4.    encapsulation ppp

5.    end

To enable CHAP or PAP authentication, perform the steps mentioned in this section.

Caution

If you use a list name that has not been configured with the aaa authentication ppp command, you disable PPP on the line.

For an example of CHAP, see the section CHAP with an Encrypted Password Examples". CHAP is specified in RFC 1994, PPP Challenge Handshake Authentication Protocol (CHAP) .

For information about MS-CHAP, see MS-CHAP Support.

1.    enable

2.    configure terminal

3.    interface fastethernet number

4.    ppp authentication {chap | chap pap | pap chap | pap} [if-needed] [list-name | default] [callin]

5.   Do one of the following:

6.    exit

7.    username name [user-maxlinks link-number] password secret

8.    end

Link Quality Monitoring (LQM) is available on all serial interfaces running PPP. LQM will monitor the link quality, and if the quality drops below a configured percentage, the router will shut down the link. The percentages are calculated for both the incoming and outgoing directions. The outgoing quality is calculated by comparing the total number of packets and bytes sent with the total number of packets and bytes received by the destination node. The incoming quality is calculated by comparing the total number of packets and bytes received with the total number of packets and bytes sent by the destination peer.

Note	LQM is not compatible with Multilink PPP.

When LQM is enabled, Link Quality Reports (LQRs) are sent, in place of keepalives, every keepalive period. All incoming keepalives are responded to properly. If LQM is not configured, keepalives are sent every keepalive period and all incoming LQRs are responded to with an LQR.

LQR is specified in RFC 1989, PPP Link Quality Monitoring .

To enable LQM on the interface, use the following command in interface configuration mode:

1.    enable

2.    configure terminal

3.    interface fastethernet number

4.    ppp quality percentage

5.    exit

6.    end

1.    enable

2.    configure terminal

3.    interface fastethernet number

4.    encapsulation ppp

5.    compress [predictor | stac| mppc[ignore-pfc]]

6.    end

Before You Begin

Ensure that PPP encapsulation is enabled before you configure MPPC.

Note

The following restrictions apply to the MPPC feature: MPPC is supported only with PPP encapsulation. Compression can be processor intensive because it requires a reserved block of memory to maintain the history buffer. Do not enable modem or hardware compression because it may cause performance degradation, compression failure, or data expansion. Both ends of the point-to-point link must be using the same compression method (STAC, Predictor, or MPPC, for example). >

1.    enable

2.    configure terminal

3.    interface serial number

4.    compress [mppc[ignore-pfc]]

PPP Async2: protocol reject received for protocol = 0x2145
PPP Async2: protocol reject received for protocol = 0x2145
PPP Async2: protocol reject received for protocol = 0x2145

• Choosing the IP Address Assignment Method

• Defining the Global Default Address Pooling Mechanism

• Configuring IP Address Assignment


PPP reliable link is Cisco's implementation of RFC 1663, PPP Reliable Transmission , which defines a method of negotiating and using Numbered Mode Link Access Procedure, Balanced (LAPB) to provide a reliable serial link. Numbered Mode LAPB provides retransmission of error packets across the serial link.

Although LAPB protocol overhead consumes some bandwidth, you can offset that consumption by the use of PPP compression over the reliable link. PPP compression is separately configurable and is not required for use of a reliable link.

Note	PPP reliable link is available only on synchronous serial interfaces. PPP reliable link cannot be used over V.120, and does not work with Multilink PPP.

To configure PPP reliable link on a specified interface, use the following command in interface configuration mode:

1.    enable

2.    configure terminal

3.    interface type number

4.    ppp reliable-link

• Troubleshooting PPP


1.    enable

2.    configure terminal

3.    interface type number

4.    no peer neighbor-route

5.    peer neighbor-route

1.    enable

2.    configure terminal

3.    interface type number

4.   Do one of the following:

5.   Do one of the following:

• Configuring MLP on Synchronous Interfaces

• Creating a Multilink Bundle

• Assigning an Interface to a Multilink Bundle

• Configuring MLP Using Multilink Group Interfaces

• Configuring Multilink PPP Minimum Links Mandatory

• Changing the Default Endpoint Discriminator


MLP support for interleaving can be configured on virtual templates. To configure interleaving, complete the following tasks:

• Configure the virtual template.
• Configure MLP and interleaving on the interface or template.

Note	Fair queueing, which is enabled by default, must remain enabled on the interface.

• Configuring MLP Interleaving

• Disabling PPP Multilink Fragmentation


1.    enable

2.    show ppp multilink

3.    exit

The following example shows the configuration of multilink PPP with traffic shaping and QoS. In this example two bundles, with four links in each bundle, are configured between two devices. The ppp chap hostname command entries are required for originating and terminating multiple bundles on a single pair of devices.

controller T3 0/3/1
 framing c-bit
 cablelength 224
 t1 1 channel-group 0 timeslots 1-24
 t1 2 channel-group 0 timeslots 1-24
 t1 3 channel-group 0 timeslots 1-24
 t1 4 channel-group 0 timeslots 1-24
 t1 5 channel-group 0 timeslots 1-24
 t1 6 channel-group 0 timeslots 1-24
 t1 7 channel-group 0 timeslots 1-24
 t1 8 channel-group 0 timeslots 1-24
!
class-map match-all DETERMINISTICOUT
  match ip precedence 3
class-map match-all VOICEVIDEOCONTROLOUT
  match ip precedence 2
class-map match-all VOICEOUT
  match ip precedence 1
class-map match-all ROUTINGPROTOCOLS
  match ip precedence 5
class-map match-all CONTROLLEDLOADOUT
  match ip precedence 4
!
policy-map QOS304QCHILD
 class VOICEOUT
    priority level 1
    police cir percent 30
 class VOICEVIDEOCONTROLOUT
    priority level 2
    police cir percent 5
 class DETERMINISTICOUT
    bandwidth remaining ratio 20
 class CONTROLLEDLOADOUT
    bandwidth remaining ratio 18
 class ROUTINGPROTOCOLS
    bandwidth remaining ratio 4
 class class-default
    bandwidth remaining ratio 22
policy-map ASRMLPPP6MBPARENT
 class class-default
    shape average percent 98
   service-policy QOS304QCHILD
!
interface Multilink1
 ip address 192.168.1.1 255.255.255.0
 ppp chap hostname multilink_name-1
 ppp multilink
 ppp multilink group 1
 service-policy output ASRMLPPP6MBPARENT
!
interface Multilink2
 ip address 192.168.2.1 255.255.255.0
 ppp chap hostname multilink_name-2
 ppp multilink
 ppp multilink group 2
 service-policy output ASRMLPPP6MBPARENT
!
interface Serial0/3/1/1:0
 no ip address
 encapsulation ppp
 no keepalive
 ppp chap hostname multilink_name-1
 ppp multilink
 ppp multilink group 1
!
interface Serial0/3/1/2:0
 no ip address
 encapsulation ppp
 no keepalive
 ppp chap hostname multilink_name-1
 ppp multilink
 ppp multilink group 1
!
interface Serial0/3/1/3:0
 no ip address
 encapsulation ppp
 no keepalive
 ppp chap hostname multilink_name-1
 ppp multilink
 ppp multilink group 1
!
interface Serial0/3/1/4:0
 no ip address
 encapsulation ppp
 no keepalive
 ppp chap hostname multilink_name-1
 ppp multilink
 ppp multilink group 1
!
interface Serial0/3/1/5:0
 no ip address
 encapsulation ppp
 no keepalive
 ppp chap hostname multilink_name-2
 ppp multilink
 ppp multilink group 2
!
interface Serial0/3/1/6:0
 no ip address
 encapsulation ppp
 no keepalive
 ppp chap hostname multilink_name-2
 ppp multilink
 ppp multilink group 2
!
interface Serial0/3/1/7:0
 no ip address
 encapsulation ppp
 no keepalive
 ppp chap hostname multilink_name-2
 ppp multilink
 ppp multilink group 2
!
interface Serial0/3/1/8:0
 no ip address
 encapsulation ppp
 no keepalive
 ppp chap hostname multilink_name-2
 ppp multilink
 ppp multilink group 2
!

The following examples show how to enable CHAP on serial interface 0 of three devices:

hostname yyy
interface serial 0/0/0
 encapsulation ppp
 ppp authentication chap
username xxx password secretxy
username zzz password secretzy

hostname xxx
interface serial 0/0/0
 encapsulation ppp
 ppp authentication chap
username yyy password secretxy
username zzz password secretxz

hostname zzz
interface serial 0/0/0
 encapsulation ppp
 ppp authentication chap
username xxx password secretxz
username yyy password secretzy

hostname xxx
interface serial 0/0/0
 encapsulation ppp
 ppp authentication chap
username yyy password 7 121F0A18
username zzz password 7 1329A055

MLP provides characteristics most similar to hardware inverse multiplexers, with good manageability and Layer 3 services support. The figure below shows a typical inverse multiplexing application using two Cisco routers and Multilink PPP over four T1 lines.

Figure 2

Inverse Multiplexing Application Using Multilink PPP

The following example shows the configuration commands used to create the inverse multiplexing application:

hostname RouterA
!
!
username RouterB password your_password
ip subnet-zero
multilink virtual-template 1
!
interface Virtual-Template1
 ip unnumbered Ethernet0
 ppp authentication chap
 ppp multilink
!
interface Serial0
 no ip address
 encapsulation ppp
 no fair-queue
 ppp multilink
 pulse-time 3
!
interface Serial1
 no ip address
 encapsulation ppp
 no fair-queue
 ppp multilink
 pulse-time 3
!
interface Serial2
 no ip address
 encapsulation ppp
 no fair-queue
 ppp multilink
 pulse-time 3
!
interface Serial3
 no ip address
 encapsulation ppp
 no fair-queue
 ppp multilink
 pulse-time 3
!
interface GigabitEthernet0/0/0
 ip address 10.17.1.254 255.255.255.0
!
router rip
network 10.0.0.0
!
end

hostname RouterB
!
!
username RouterB password your_password
ip subnet-zero
multilink virtual-template 1
!
interface Virtual-Template1
 ip unnumbered Ethernet0
 ppp authentication chap
 ppp multilink
!
interface Serial0
 no ip address
 encapsulation ppp
 no fair-queue
 ppp multilink
 pulse-time 3
!
interface Serial1
 no ip address
 encapsulation ppp
 no fair-queue
 ppp multilink
 pulse-time 3
!
interface Serial2
 no ip address
 encapsulation ppp
 no fair-queue
 ppp multilink
 pulse-time 3
!
interface Serial3
 no ip address
 encapsulation ppp
 no fair-queue
 ppp multilink
 pulse-time 3
!
interface Ethernet0
 ip address 10.17.2.254 255.255.255.0
!
router rip
network 10.0.0.0
!
end

The following example configures MLP over an ATM PVC using a multilink group:

interface multilink 1
 ip address 10.200.83.106 255.255.255.252
 ip tcp header-compression iphc-format delay 20000
 service policy output xyz
 encapsulation ppp
 ppp multilink
 ppp multilink fragment delay 10
 ppp multilink interleave
 ppp timeout multilink link remove 10
 ip rtp header-compression iphc-format
interface virtual-template 3
 bandwidth 128
 ppp multilink group 1
interface atm 4/0.1 point-to-point
 pvc 0/32
 abr 100 80
 protocol ppp virtual-template 3
.

The following example defines a virtual interface template that enables MLP interleaving and a maximum real-time traffic delay of 20 milliseconds, and then applies that virtual template to the MLP bundle:

interface virtual-template 1
 ip unnumbered ethernet 0
 ppp multilink
 ppp multilink interleave
 ppp multilink fragment delay 20
 ip rtp interleave 32768 20 1000
multilink virtual-template 1
