Control Messages

First Published: December 5, 2006
Revised: December 23, 2006, OL-8176-01 Rev. C0

This appendix provides samples of control message packet captures and session states. The following topics are included:

•Session Up State

•Policy Directive

•Service Activate

•Service Deactivate

•Session Disconnect

Session Up State

Enter the following command to view session states.

Cisco_nas#: show subsc sess all

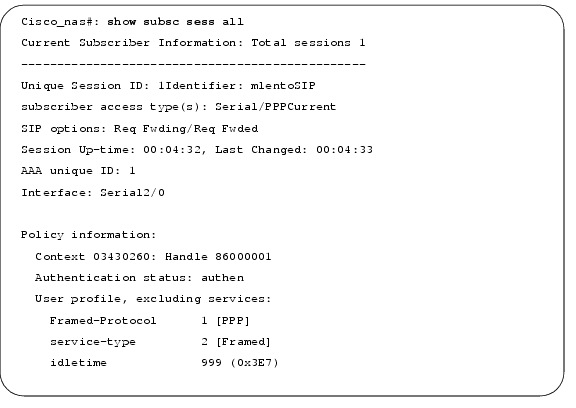

Figure 1 shows output for the show subscriber sessions all command.

Figure 1 Show subscriber sessions command output

Policy Directive

This section shows an example of a policy directive set up to capture specified packets. It includes the show command you can use to display the results of the packet capture.

This section includes the following topics:

•Policy Directive Packet Capture

•Policy Directive Resulting State

Policy Directive Packet Capture

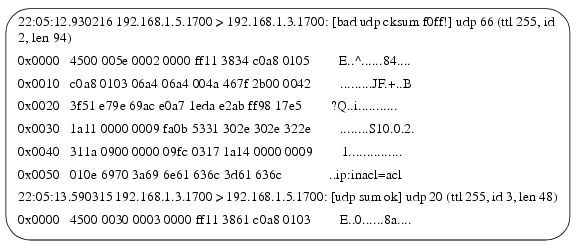

Figure 2 shows the policy directive packet capture configuration.

Figure 2 Policy Directive Packet Capture Configuration

Policy Directive Resulting State

Enter the following command to view session states for the policy directive packet capture output results.

Cisco_nas#: show subsc sess all

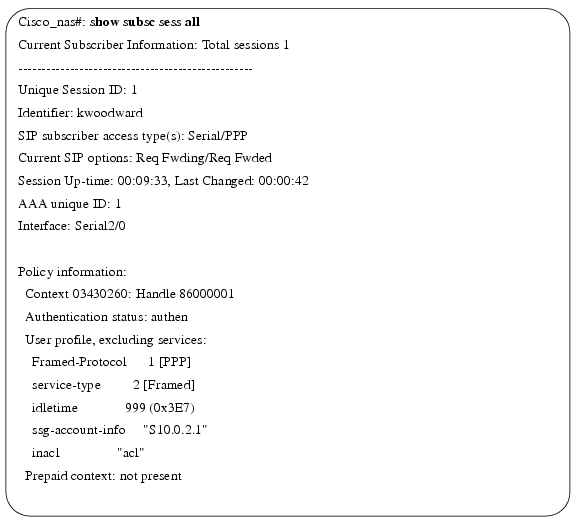

Figure 3 shows output for this command.

Figure 3 Policy Directive Packet Capture Output Results

Service Activate

This section shows an example of a service activation setup to capture specified packets. It includes the show command you can use to display the results of the packet capture.

This section includes the following topics:

•Service Activation Packet Capture

•Service Activation Resulting State

Service Activation Packet Capture

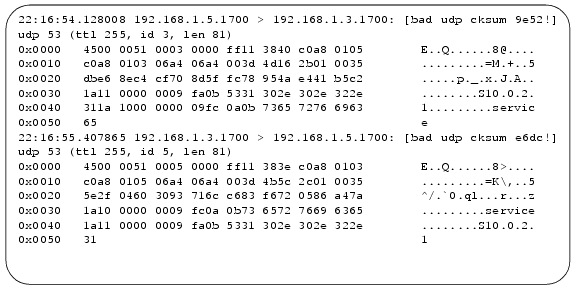

Figure 4 shows the service activation packet capture configuration.

Figure 4 Service Activation Packet Capture Configuration

Service Activation Resulting State

Enter the following command to view session states for the service activation packet capture output:

Cisco_nas#: show subsc sess all

Figure 5 shows output for this command.

Figure 5 Service Activation Packet Capture Output

Service Deactivate

This section shows an example of a service deactivation set up to capture specified packets. It includes the show command you can use to display the results of the packet capture.

This section includes the following topics:

•Service Deactivation Packet Capture

•Service Deactivation Resulting State

Service Deactivation Packet Capture

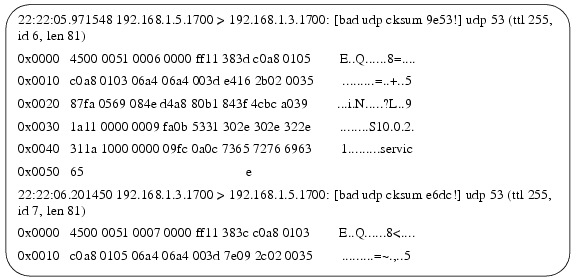

Figure 6 shows the service deactivation packet capture configuration.

Figure 6 Service Deactivation Packet capture configuration

Service Deactivation Resulting State

Enter the following command to view session states for the service activation packet capture output:

Cisco_nas#: show subsc sess all

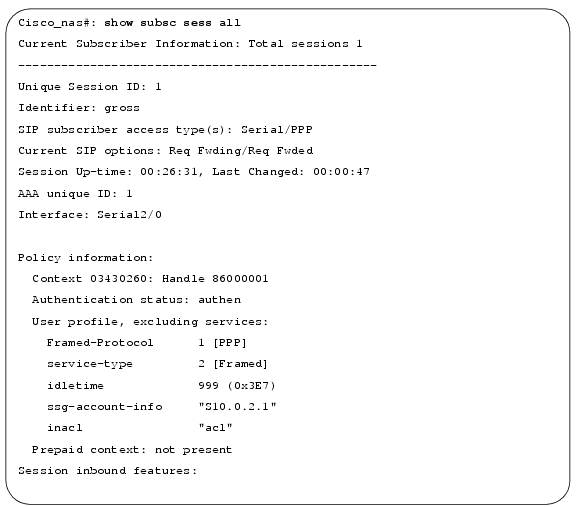

Figure 7 shows output for this command.

Figure 7 Service Deactivation Packet Capture Output

Session Disconnect

This section shows an example of a service disconnect setup to capture specified packets.

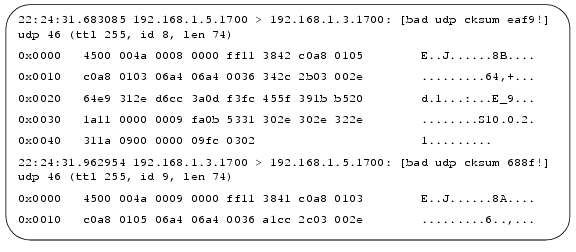

Figure 8 shows the service disconnect packet capture configuration.

Figure 8 Service Disconnect Packet Capture Configuration
