Cisco IOS XR Setup and Upgrade Guide for Cisco 8000 Series Routers
Bias-Free Language
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.
Manually deploying network devices in a large-scale environment requires skilled workers and is time consuming.
With Zero Touch Provisioning (ZTP), you can seamlessly provision thousands of network devices accurately within minutes and
without any manual intervention. This can be easily defined using a configuration file or script using shell or phyton. Currently,
ZTP only supports single name-server. When the DHCP server has more than one server address configured, ZTP fails to apply
the server configuration.
ZTP provides multiple options, such as:
Automatically apply specific configuration in a large-scale environment.
Download and install specific IOS XR image.
Install specific application package or third party applications automatically.
Deploy containers without manual intervention.
Upgrade or downgrade software versions effortlessly on thousands of network devices at a time
Benefits of Using ZTP
ZTP helps you manage large-scale service providers infrastructures effortlessly. Following are the added benefits of using
ZTP:
ZTP helps you to remotely provision a router anywhere in the network. Thus eliminates the need to send an expert to deploy
network devices and reduces IT cost.
Automated provisioning using ZTP can remove delay and increase accuracy and thus is cost-effective and provides better customer
experience.
By automating repeated tasks, ZTP allows network administrators to concentrate on more important stuff.
ZTP process helps you to quickly restore service. Rather than troubleshooting an issue by hand, you can reset a system to
well-known working status.
Use Cases
The following are some of the useful use cases for ZTP:
Using ZTP to install Chef
Using ZTP to integrate IOS-XR with NSO
Using ZTP to install Puppet
You can initiate ZTP in one of the following ways:
Fresh Boot: Use this method for devices that has no pre-loaded configuration. See Getting Started with ZTP on a Fresh Boot of a Router.
Manual Invocation: Use this method when you want to forcefully initiate ZTP on a fully configured device. To know the detailed steps of manual
invocation of ZTP, see Manual Invocation of ZTP.
ZTP Bootscript: Use this method when you want to hard code a script to be executed on every boot.
Follow the workflow to understand the tasks involved in provisioning the router using classic ZTP.

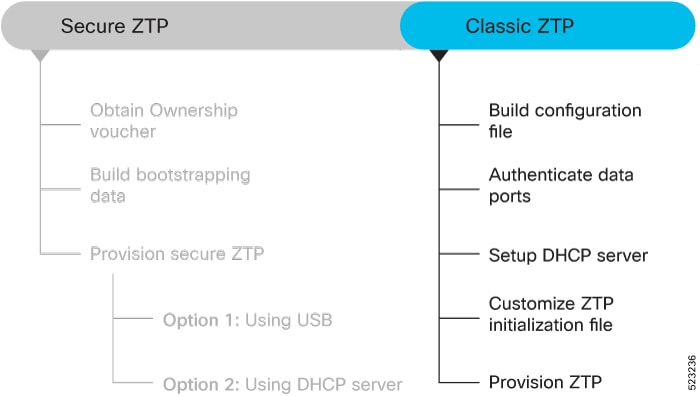

Figure 1. Classic ZTP Workflow
This section contains the following topics:
Deploy Router Using Classic ZTP
Manually deploying network devices in a large-scale environment requires skilled workers and is time consuming.
With Zero Touch Provisioning (ZTP), you can seamlessly provision thousands of network devices accurately within minutes and
without any manual intervention. This can be easily defined using a configuration file or script using shell or phyton. Currently,
ZTP only supports single name-server. When the DHCP server has more than one server address configured, ZTP fails to apply
the server configuration.
ZTP provides multiple options, such as:
Automatically apply specific configuration in a large-scale environment.
Download and install specific IOS XR image.
Install specific application package or third party applications automatically.
Deploy containers without manual intervention.
Upgrade or downgrade software versions effortlessly on thousands of network devices at a time
Benefits of Using ZTP
ZTP helps you manage large-scale service providers infrastructures effortlessly. Following are the added benefits of using
ZTP:
ZTP helps you to remotely provision a router anywhere in the network. Thus eliminates the need to send an expert to deploy
network devices and reduces IT cost.
Automated provisioning using ZTP can remove delay and increase accuracy and thus is cost-effective and provides better customer
experience.
By automating repeated tasks, ZTP allows network administrators to concentrate on more important stuff.
ZTP process helps you to quickly restore service. Rather than troubleshooting an issue by hand, you can reset a system to
well-known working status.
Use Cases
The following are some of the useful use cases for ZTP:
Using ZTP to install Chef
Using ZTP to integrate IOS-XR with NSO
Using ZTP to install Puppet
You can initiate ZTP in one of the following ways:
Fresh Boot: Use this method for devices that has no pre-loaded configuration. See Getting Started with ZTP on a Fresh Boot of a Router.
Manual Invocation: Use this method when you want to forcefully initiate ZTP on a fully configured device. To know the detailed steps of manual
invocation of ZTP, see Manual Invocation of ZTP.
ZTP Bootscript: Use this method when you want to hard code a script to be executed on every boot.
Follow the workflow to understand the tasks involved in provisioning the router using classic ZTP.
Figure 2. Classic ZTP Workflow
This section contains the following topics:
Build Configuration File
Based on the business need, you can use a configuration or script file to initiate the ZTP process.
Attention
When you use a USB flash drive as a source for ZTP, you cannot use the script file for provisioning. The script file is not
supported in the USB fetcher. Fetcher defines which port the ZTP process should use to get the provisioning details as defined
in the ztp.ini file.
The configuration file content starts with !! IOS XR and the script file content starts with #! /bin/bash, #! /bin/sh or #!/usr/bin/python.
Once you create the configuration file, apply it to the device using the ztp_helper function xrapply.
Note
We recommend that you don’t execute the APIs on a router that is already provisioned. ZTP Utility APIs are designed to be
executed from the ZTP script when you boot the router for the first time. The APIs perform additional operations to run the
requested actions during the boot process and bring changes in the existing configuration before executing any action.
ZTP utility APIs have prerequisites which are executed in the ZTP workflow before running the ZTP utility APIs. These prerequisites
help with running specific actions during the boot process and in making necessary configuration changes.
We recommend that you don’t use ZTP utilities outside the scope of ZTP script. The APIs in this script use username as ztp or ztp-user in every action. The ZTP utility executed outside the scope of the ZTP script may fail as it’s not executed from the ZTP
workflow. This may modify the configurations on the device and affect other related operations. If the ZTP utility is executed
outside the scope ZTP script, the logs display that the script is executed using username ztp or ztp-user, misleading that the script is executed from the workflow.
The following is the sample configuration file:
!! IOS XR
username root
group root-lr
password 0 lablab
!
hostname ios
alias exec al show alarms brief system active
interface HundredGigE 0/0/0/24
ipv4 address 10.10.10.55 255.255.255.0
no shutdown
!
You can also use a script file to initiate the ZTP process. This script or binary is executed in the IOS XR bash shell and
can be used to interact with IOS XR CLI to configure, verify the configured state and even run EXEC commands based on the
workflow that you choose. Build your ZTP script with either shell and python. ZTP includes a set of CLI commands and a set
of shell utilities that can be used within the user script. ZTP includes a set of shell utilities that can be sourced within
the user script. The ztp_helper.sh is a shell script that can be sourced by the user script. This script provides simple utilities to access XR functionalities.
For information on helper APIs, see the Github repository.
The following shows the sample script in python.
[apple2:~]$ python sample_ztp_script.py
###### Debugs enabled ######
###### Change context to user specified VRF ######
###### Using Child class method, setting the root user ######
2016-12-17 04:23:24,091 - DebugZTPLogger - DEBUG - Config File content to be applied !
username netops
group root-lr
group cisco-support
secret 5 $1$7kTu$zjrgqbgW08vEXsYzUycXw1
!
end
2016-12-17 04:23:28,546 - DebugZTPLogger - DEBUG - Received exec command request: "show
configuration commit changes last 1"
2016-12-17 04:23:28,546 - DebugZTPLogger - DEBUG - Response to any expected prompt ""
Building configuration...
2016-12-17 04:23:29,329 - DebugZTPLogger - DEBUG - Exec command output is ['!! IOS XR
Configuration version = 6.2.1.21I', 'username netops', 'group root-lr', 'group cisco-support',
'secret 5 $1$7kTu$zjrgqbgW08vEXsYzUycXw1', '!', 'end']
2016-12-17 04:23:29,330 - DebugZTPLogger - DEBUG - Config apply through file successful,
last change = ['!! IOS XR Configuration version = 6.2.1.21I', 'username netops', 'group
root-lr', 'group cisco-support', 'secret 5 $1$7kTu$zjrgqbgW08vEXsYzUycXw1', '!', 'end']
###### Debugs Disabled ######
###### Executing a show command ######
Building configuration...
{'output': ['!! IOS XR Configuration version = 6.2.1.21I',
'!! Last configuration change at Sat Dec 17 04:23:25 2016 by UNKNOWN',
'!',
'hostname customer2',
'username root',
'group root-lr',
'group cisco-support',
'secret 5 $1$7kTu$zjrgqbgW08vEXsYzUycXw1',
'!',
'username noc',
'group root-lr',
'group cisco-support',
'secret 5 $1$7kTu$zjrgqbgW08vEXsYzUycXw1',
'!',
'username netops',
'group root-lr',
'group cisco-support',
'secret 5 $1$7kTu$zjrgqbgW08vEXsYzUycXw1',
'!',
'username netops2',
'group root-lr',
'group cisco-support',
'secret 5 $1$7kTu$zjrgqbgW08vEXsYzUycXw1',
'!',
'username netops3',
'group root-lr',
'group cisco-support',
'secret 5 $1$7kTu$zjrgqbgW08vEXsYzUycXw1',
'!',
'cdp',
'service cli interactive disable',
'interface MgmtEth0/RP0/CPU0/0',
'ipv4 address 11.11.11.59 255.255.255.0',
'!',
'interface TenGigE0/0/0/0/24',
'shutdown',
'!',
'interface TenGigE0/0/0/0/25',
'shutdown',
'!',
'router static',
'address-family ipv4 unicast',
'0.0.0.0/0 11.11.11.2',
'!',
'!',
'end'],
'status': 'success'}
###### Apply valid configuration using a file ######
Building configuration...
{'status': 'success', 'output': ['!! IOS XR Configuration version = 6.2.1.21I', 'hostname
customer', 'cdp', 'end']}
###### Apply valid configuration using a string ######
Building configuration...
{'output': ['!! IOS XR Configuration version = 6.2.1.21I',
'hostname customer2',
'end'],
'status': 'success'}
###### Apply invalid configuration using a string ######
{'output': ['!! SYNTAX/AUTHORIZATION ERRORS: This configuration failed due to',
'!! one or more of the following reasons:',
'!! - the entered commands do not exist,',
'!! - the entered commands have errors in their syntax,',
'!! - the software packages containing the commands are not active,',
The XML-encoded YANG configuration that follows shows various network settings including:
Basic setup, including line configuration (TTY, VTY)
User setup such as System Utilities
Network configurations such as, domain service, Management IP address assignment, NETCONF, IP routing
Protocol configurations such as, SSH, LLDP, gRPC
Security (AAA)
Interface settings (Interface (IF) manager)
Router# python ztp_XML_test.py
# netconf_client_ztp_lib - version 1.2 #
2021-02-22 13:53:11,587 - DebugZTPLogger - DEBUG - netconf init attempt: 1
Building configuration...
2021-02-22 13:53:18,117 - DebugZTPLogger - DEBUG - Netconf yang agent is up
###################### Netconf response: Current running configuration #######################
<?xml version="1.0"?>
<rpc-reply message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<data>
<netconf xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-man-xml-ttyagent-cfg>
/* Enables NETCONF agent over TTY*/
<agent>
<tty>
<enable></enable>
</tty>
</agent>
</netconf>
<lldp xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-ethernet-lldp-cfg>
/*Enables and configures global LLDP subcommands*/
<enable>true</enable>
</lldp>
<ip-domain xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-ip-domain-cfg>
/*Configures domain service related commands*/
<vrfs>
<vrf>
<vrf-name>default</vrf-name>
<name>cisco.lab</name>
<servers>
<server>
<order>0</order>
<server-address>5.38.4.246</server-address>
</server>
</servers>
</vrf>
</vrfs>
</ip-domain>
<interface-configurations xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-ifmgr-cfg>
/*Configures Interfaces and controls their activation and deactivation*/
<interface-configuration>
<active>act</active>
<interface-name>HundredGigE0/0/0/14</interface-name>
<shutdown></shutdown>
</interface-configuration>
<interface-configuration>
<active>act</active>
<interface-name>MgmtEth0/RP0/CPU0/0</interface-name>
<ipv4-network xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-ipv4-io-cfg>
/*Configures IPv4 Interface input and output settings on the device*/
<addresses>
<primary>
<address>5.38.9.29</address>
<netmask>255.255.0.0</netmask>
</primary>
</addresses>
</ipv4-network>
</interface-configuration>
<interface-configuration>
<active>act</active>
<interface-name>FourHundredGigE0/0/0/0</interface-name>
<shutdown></shutdown>
</interface-configuration>
</interface-configurations>
<netconf-yang xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-man-netconf-cfg>
/*Configures Network Configuration Protocol (NETCONF) commands*/
<agent>
<ssh>
<enable></enable>
</ssh>
</agent>
</netconf-yang>
<tty xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-tty-server-cfg>
<tty-lines>
<tty-line>
<name>default</name>
<exec>
<timeout>
<minutes>0</minutes>
<seconds>0</seconds>
</timeout>
</exec>
<general>
<absolute-timeout>0</absolute-timeout>
</general>
</tty-line>
</tty-lines>
</tty>
<host-names xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-shellutil-cfg>
/*Configures various system utilities related to the shell environment
of the system such as Hostname, Time zone, Prompt, Environmental variable configurations.*/
<host-name>SF-1</host-name>
</host-names>
<grpc xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-man-ems-cfg>
<port>57400</port>
<no-tls></no-tls>
<enable></enable>
</grpc>
<aaa xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-aaa-lib-cfg>
/*Configures AAA (Authentication, Authorization, and Accounting) settings on the device*/
<usernames xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-aaa-locald-cfg>
<username>
<ordering-index>0</ordering-index>
<name>cafyauto</name>
<usergroup-under-usernames>
<usergroup-under-username>
<name>root-lr</name>
</usergroup-under-username>
<usergroup-under-username>
<name>cisco-support</name>
</usergroup-under-username>
</usergroup-under-usernames>
<secret>
<type>type10</type>
<secret10>$6$iY.Zo/7E7RIG5o/.$PH1YegMZiHsiRDTxKOjKQ0i8rd4n
s2vHMHEmQrsMQrrtNTlj/gcBEQRXj3WDR8bAv0rWzz3aGdElteshHYXXR1</secret10>
</secret>
</username>
</usernames>
<accountings>
<accounting>
<type>commands</type>
<listname>default</listname>
<type-xr>start-stop</type-xr>
<method1>local</method1>
</accounting>
</accountings>
</aaa>
<ssh xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-crypto-ssh-cfg>
/*Configures the Secure Shell (SSH) settings on a device such as Encryption, Authentication, Session Management*/
<server>
<timeout>120</timeout>
<rate-limit>600</rate-limit>
<session-limit>110</session-limit>
<v2></v2>
<vrf-table>
<vrf>
<vrf-name>default</vrf-name>
<enable></enable>
</vrf>
</vrf-table>
<netconf>830</netconf>
<netconf-vrf-table>
<vrf>
<vrf-name>default</vrf-name>
<enable></enable>
</vrf>
</netconf-vrf-table>
</server>
</ssh>
<router-static xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-ip-static-cfg>
/*Configures static IP routing on network devices*/
<default-vrf>
<address-family>
<vrfipv4>
<vrf-unicast>
<vrf-prefixes>
<vrf-prefix>
<prefix>0.0.0.0</prefix>
<prefix-length>0</prefix-length>
<vrf-route>
<vrf-next-hop-table>
<vrf-next-hop-next-hop-address>
<next-hop-address>5.38.0.1</next-hop-address>
</vrf-next-hop-next-hop-address>
</vrf-next-hop-table>
</vrf-route>
</vrf-prefix>
</vrf-prefixes>
</vrf-unicast>
</vrfipv4>
</address-family>
</default-vrf>
</router-static>
<vty xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-tty-vty-cfg>
/*Configures virtual terminal lines (VTY lines) to access a device through SSH or TTY protocols remotely.*/
<vty-pools>
<vty-pool>
<pool-name>cafyauto</pool-name>
<first-vty>5</first-vty>
<last-vty>99</last-vty>
<line-template>cafyauto</line-template>
</vty-pool>
</vty-pools>
</vty>
<netconf-yang xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-netconf-yang-cfg>
/*Configures the Network Configuration Protocol (NETCONF) settings and Yet Another Next Generation (YANG) data modelling.*/
<agent>
<ssh/>
</agent>
</netconf-yang>
<vty-pool xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-vty-pool-cfg>
/*Configures virtual terminal (VTY) lines on large number of network devices*/
<pools>
<pool>
<pool-name>cafyauto</pool-name>
<first-vty-number>5</first-vty-number>
<last-vty-number>99</last-vty-number>
<line-template>cafyauto</line-template>
</pool>
</pools>
</vty-pool>
<interfaces xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-interface-cfg>
/*Configures Interface settings such as interface, security, and performance on a device*/
<interface>
<interface-name>HundredGigE0/0/0/14</interface-name>
<shutdown/>
</interface>
<interface>
<interface-name>MgmtEth0/RP0/CPU0/0</interface-name>
<ipv4>
<addresses xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-if-ip-address-cfg>
/*Configures IP address settings on network interfaces of a device.*/
<address>
<address>5.38.9.29</address>
<netmask>255.255.0.0</netmask>
</address>
</addresses>
</ipv4>
</interface>
</interfaces>
<lldp xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-lldp-cfg/>
/*Configures the Link Layer Discovery Protocol (LLDP) settings on a network device.*/
<domain xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-domain-cfg>
/*Configures domain settings on the device*/
<name>cisco.lab</name>
<name-servers>
<name-server>
<order>0</order>
<address>5.38.4.246</address>
</name-server>
</name-servers>
</domain>
<xr-xml xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-xml-agent-cfg>
/*Configures XML agent settings such as Data formatting, Network Management, and Secure transport layers on the router.*/
<agent>
<ssl/>
<tty/>
<enable/>
</agent>
</xr-xml>
<netconf xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-xml-agent-cfg>
<agent>
<tty/>
</agent>
</netconf>
<router xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-router-static-cfg>
/*Configures the static routing settings on network devices*/
<static>
<address-family>
<ipv4>
<unicast>
<prefixes>
<prefix>
<prefix-address>0.0.0.0</prefix-address>
<prefix-length>0</prefix-length>
<nexthop-addresses>
<nexthop-address>
<address>5.38.0.1</address>
</nexthop-address>
</nexthop-addresses>
</prefix>
</prefixes>
</unicast>
</ipv4>
</address-family>
</static>
</router>
<ssh xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-ssh-cfg>
/*Configures the Secure Shell (SSH) settings such as secure remote access,
Encryption, and security on a network device.*/
<timeout>120</timeout>
<server>
<rate-limit>600</rate-limit>
<session-limit>110</session-limit>
<v2/>
<vrfs>
<vrf>
<vrf-name>default</vrf-name>
</vrf>
</vrfs>
<netconf>
<port>830</port>
<vrfs>
<vrf>
<vrf-name>default</vrf-name>
</vrf>
</vrfs>
</netconf>
</server>
</ssh>
<grpc xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-grpc-cfg>
/*Configures the gRPC (Google Remote Procedure Call) on a network device*/
<port>57400</port>
<no-tls></no-tls>
</grpc>
<hostname xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-hostname-cfg>
/*Configures the hostname on a network device*/
<system-network-name>SF-1</system-network-name>
</hostname>
<aaa xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-aaa-cfg>
<usernames xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-aaa-task-user-cfg>
/*Configures the AAA (Authentication, Authorization, and Accounting) parameters on a network device*/
<username>
<ordering-index>0</ordering-index>
<name>cafyauto</name>
<group>
<root-lr/>
<cisco-support/>
</group>
<secret>
<ten>$6$iY.Zo/7E7RIG5o/.$PH1YegMZiHsiRDTxKOjKQ0i8rd4ns2vHMHEmQrsMQrrtNTlj
/gcBEQRXj3WDR8bAv0rWzz3aGdElteshHYXXR1</ten>
</secret>
</username>
</usernames>
<accounting>
<commands>
<accounting-list>
<list-name>default</list-name>
<start-stop/>
<local/>
</accounting-list>
</commands>
</accounting>
</aaa>
<line xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-line-cfg>
<default>
<exec-timeout xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-line-exec-timeout-cfg>
/*Configures the exec timeout settings on network devices for the amount of time that the software waits for user to input after the last key has been pressed */
<timeout-in-minutes>0</timeout-in-minutes>
<timeout-in-seconds>0</timeout-in-seconds>
</exec-timeout>
<absolute-timeout xmlns=http://cisco.com/ns/yang/Cisco-IOS-XR-um-line-general-cfg>0</absolute-timeout>
/*Configures line settings on network devices*/
</default>
</line>
</data>
</rpc-reply>
Configuration Data Using JSON-encoded YANG Information
Table 1. Feature History Table
Feature Name
Release Information
Feature Description
Configuration Data Using JSON-encoded YANG Information
Release 24.1.1
We now support JSON-encoded data for YANG data instances of configuration for your router.
Previously, we supported only XML-encoded data for YANG data instances.
The JSON-encoded YANG configuration that follows shows various network settings including:
Basic setup, including line configuration (TTY, VTY)
User setup such as System Utilities
Network configurations such as, domain service, Management IP address assignment, NETCONF, IP routing
On fresh boot, ZTP process is initiated from management ports and may switch to data ports. To validate the connection with
DHCP server, authentication is performed on data ports through DHCP option 43 for IPv4 and option 17 for IPv6. These DHCP
options are defined in option space and are included within dhcpd.conf and dhcpd6.conf configuration files. You must provide following parameters for authentication while defining option space:
Authentication code—The authentication code is either 0 or 1; where 0 indicates that authentication is not required, and 1
indicates that MD5 checksum is required.
Note
If the option 43 for IPv4, and option 17 for IPv6 is disabled, the authentication fails.
Client identifier—The client identifier must be
'xr-config'.
MD5 checksum—This is chassis serial number. It can be obtained using echo -n $SERIALNUMBER | md5sum | awk '{print $1}' .
Here is the sample dhcpd.conf configuration. In the example below, the option space called VendorInfo is defined with three parameters for authentication:
Here is the sample dhcpd6.conf configuration file. In the example below, the option space called VendorInfo is defined that has code width 2 and length width 2 (as per dhcp standard for IPv6) with three parameters for authentication:
The following DHCP request sample provides a fixed IP address and a configuration file with the mac address of the management
interface along with capability to re-image the system using iPXE (
"xr-config" option):
DHCP server identifies the device and responds with either an IOS-XR configuration file or a ZTP script as the filename option.
The DHCP server responds with the following DHCP options:
DHCPv4 using BOOTP filename to supply script/config location.
DHCPv4 using Option 67 (bootfile-name) to supply script/config location.
DHCPv6 using Option 59 (OPT_BOOTFILE_URL) to supply script/config location
The following sample shows the DHCP response with bootfile-name (option 67):
option space cisco-vendor-id-vendor-class code width 1 length width 1;
option vendor-class.cisco-vendor-id-vendor-class code 9 = {string};
######### Network 11.11.11.0/24 ################
shared-network 11-11-11-0 {
####### Pools ##############
subnet 11.11.11.0 netmask 255.255.255.0 {
option subnet-mask 255.255.255.0;
option broadcast-address 11.11.11.255;
option routers 11.11.11.2;
option domain-name-servers 11.11.11.2;
option domain-name "cisco.local";
# DDNS statements
ddns-domainname "cisco.local.";
# use this domain name to update A RR (forward map)
ddns-rev-domainname "in-addr.arpa.";
# use this domain name to update PTR RR (reverse map)
}
######## Matching Classes ##########
class "cisco" {
match if (substring(option dhcp-client-identifier,0,11) = "FGE194714QS");
}
pool {
allow members of "cisco";
range 11.11.11.47 11.11.11.50;
next-server 11.11.11.2;
if exists user-class and option user-class = "iPXE" {
filename="http://11.11.11.2:9090/cisco-mini-x-6.2.25.10I.iso";
}
if exists user-class and option user-class = "xr-config"
{
if (substring(option vendor-class.cisco-vendor-id-vendor-class,19,99)="cisco")
{
option bootfile-name "http://11.11.11.2:9090/scripts/exhaustive_ztp_script.py";
}
}
ddns-hostname "cisco-local";
option routers 11.11.11.2;
}
}
Important
In Cisco IOS XR Release 7.3.1 and earlier, the system accepts the device sending user-class = "exr-config"; however starting Cisco IOS XR Release 7.3.2 and later, you must use only user-class = "xr-config".
This feature allows you to customize ztp.ini file to save the ZTP configuration hashes in the /disk0:/ztp/ location on the router. The router computes the ZTP configuration hash for all the secure ZTP configurations.
The ZTP configurations hashes are useful in detecting and preventing tampering between any secure ZTP configuration and the
subsequent reboot.
You can customize the following ZTP configurable options in the ztp.ini file:
ZTP: You can enable or disable ZTP at boot using CLI or by editing the ztp.ini file.
Retry: Set the ZTP DHCP retry mechanism: The available values are infinite and once.
Fetcher Priority: Fetcher defines which port ZTP should use to get the provisioning details. By default, each port has a fetcher priority
defined in the ztp.ini file. You can modify the default priority of the fetcher. Allowed range is from 0 to 9.
Note
Lower the number higher the priority. The value 0 has the highest priority and 9 has the lowest priority.
In the following example, the Mgmt4 port has the highest priority:
progress_bar: Enable progress bar on the console. By default, the progress bar is disabled. To enable the progress bar, add the following
entry in the ztp.ini file.
[Options]
progress_bar: True
config_check: Saves ZTP configuration hashes in the /disk0:/ztp/ location on the router. By default, the config check is disabled. To enable the config check, add the following entry in
theztp.ini file.
You can view the ZTP hashes by using the show ztp log command as seen below:
Router# show ztp log
============================== /var/log/ztp.log ==============================
2023-03-14 12:51:29,251 53612 [Configuration] INF: Provisioning via config replace
2023-03-14 12:51:43,131 53612 [Configuration] INF: Configuration has been applied
2023-03-14 12:51:43,131 53612 [Env ] DEB: cfg::createRefOnConfigCommit: called
2023-03-14 12:51:44,218 53612 [Env ] DEB: cfg:: Generating hash for File name: /disk0:/ztp/customer/config.inithash_tmp
2023-03-14 12:51:44,218 53612 [Env ] DEB: cfg::_generateCfgAndSaveHash:: HASH : c7980cfc23a401bbbf296e3d49c76bf9, type : 1
2023-03-14 12:51:59,715 53612 [Env ] DEB: cfg:: Generating hash for File name: /disk0:/ztp/customer/config.successhash_tmp
..........
2023-03-14 12:51:59,715 53612 [Env ] DEB: cfg::_generateCfgAndSaveHash:: HASH : c7980cfc23a401bbbf296e3d49c76bf9, type : 2
2023-03-14 12:52:04,901 53612 [Env ] DEB: cfg::getRefOnSuccess :: called
..........
2023-03-14 12:52:05,403 53612 [Engine ] INF: ZAdmin, current state:active, exit code:success
2023-03-14 12:52:05,403 53612 [Engine ] INF: ZAdmin, current state:final, exit code:success: state changed to final
By default, the ztp.ini file is located in the /pkg/etc/ location. To modify the ZTP configurable options, make a copy of the file in the /disk0:/ztp/ directory and then edit the ztp.ini file.
To reset to the default options, delete the ztp.ini file in the /disk0:/ztp/ directory.
Note
Do not edit or delete the ztp.ini file in the /pkg/etc/ location to avoid issues during installation.
The following example shows the sample of the ztp.ini file:
If you want to disable ZTP using CLI, use the ztpdisable command.
Configuration example
Router#ztp disable
Fri Jul 12 16:07:18.491 UTC
Disable ZTP? [confirm] [y/n] :y
ZTP Disabled.
Run ZTP enable to run ZTP again.
Provision ZTP
When you boot the device, the ZTP process initiates automatically if the device does not have a prior configuration. During
the process, the router receives the details of the configuration file from the DHCP server. The ZTP process initiates when
you boot the network-device with an IOS-XR image. The process starts only on the device that doesn't have a prior configuration.
Here is the high-level work flow of the ZTP process for the Fresh boot:
ZTP sends DHCP request to fetch the ZTP configuration file or user script. To help the Bootstrap server uniquely identify
the device, ZTP sends below DHCP option
The following is the default sequential flow of the ZTP process:
ZTP sends IPv4 DHCP request first on all the management port. In case there is a failure, then ZTP sends IPv6 DHCP request
on all the management port.
ZTP sends IPv4 DHCP request first on all the data port. In case there is a failure, then ZTP sends IPv6 DHCP request on all
the data port.
The default sequential flow is defined in configuration file and you can modify the sequence using the configuration file.
DHCP server identifies the device and responds with DHCP response using one of the following options: DHCP server should be
configured to respond with the DHCP options.
DHCPv4 using BOOTP filename to supply script/config location
DHCPv4 using Option 67 (bootfile-name) to supply script/config location
DHCPv6 using Option 59 (OPT_BOOTFILE_URL) to supply script/config location
The network device downloads the file from the web server using the URI location that is provided in the DHCP response.
The device receives a configuration file or script file from the HTTP server.
Note
If the downloaded file content starts with !! IOS XR it is considered as a configuration file.
If the downloaded file content starts with #! /bin/bash, #! /bin/sh or #!/usr/bin/python it is considered as a script file.
The device applies the configuration file or executes the script or binary in the default bash shell.
The Network device is now up and running.
Manual Invocation of ZTP
Procedure
Step 1
Use the ztp clean command to remove previous state information from ZTP.
Example:
Router#ztp clean
This would remove all ZTP temporary files.
Would you like to proceed? [no]: yes
All ZTP operation files have been removed.
ZTP logs are present in /var/log/ztp*.log for logrotate.
Please remove manually if needed.
If you now wish ZTP to run again from boot, do 'configure terminal/commit replace' followed by reload
Step 2
Use the commit replace command to replace the entire running configuration.
Example:
Router#configure terinal
Router(configure)#commit replace
execute "commit replace from configuration mode"
Note
ZTP triggers only if there’s no configuration/username.
The execution of ZTP can be affected by an existing configuration on interface such as DHCP or ACL.
If the ZTP work flow involves image upgrade, the presence of configuration makes ZTP to exit after reload.
Existing configuration can cause issue to image upgrade.
If the existing configuration isn’t compatible with the new image upgraded you’ll see failures after reimage.
Step 3
Do one of the following steps.
Use the reload command to initiate the ZTP process automatically during system boot on active RP.
Router#reload
Use the ztp initiate command to initiate ZTP manually.
Router#ztp initiate
Initiating ZTP may change your configuration.
Interfaces might be brought up if they are in shutdown state
Would you like to proceed? [no]: yes
ZTP will now run in the background.
If all conditions are met ZTP continues with fetch, otherwise exits. The ztp initiate command manually initiates ZTP for testing, bypassing all ZTP checks that is followed in the reload method. You shouldn’t
execute ztp initiate on up and running testbed, this command modifies the existing configuration on the router. If the execution of ztp initiate fails, make sure of provisioning the device manually.
If you initiate ZTP, using the ztp initate command, the ZTP workflow bypasses the exit checks. ZTP will continue running in the background indefinitely. ZTP will exit
only if the workflow has completed with a SUCCESS or if it is stopped manually. Ensure to stop ZTP using the ztp terminate command after initiating it, if ZTP is active/running on the device.
