Use Cases: Application Hosting

This chapter describes use cases for running applications on IOS XR.

Hosting iPerf in Docker Containers to Measure Network Performance using Application Manager

Measuring the network performance is important to test the efficiency of the network. Network throughput, bandwidth, latency, and packet loss are some of the parameters used to measure the network performance. iPerf is a commonly used application for measuring network performance. The iPerf application is hosted on systems at both ends of the connection that is measured. One system is used as the server, and the other system is used as the client. At least one system must be a Cisco IOS XR router, the other system can be any other external entity like a controller or another router.

This use case illustrates the procedure for hosting the iPerf application in docker containers on two Cisco IOS XR routers, Router A and Router B to measure network performance. Router A hosts the iPerf server and Router B hosts the iPerf client.

In this usecase, we demonstrate the example of testing network bandwidth when a route update takes place. Router A hosts the iPerf Server and Router B hosts the iPerf Client. Router C and Router D are intermediate routers that allow traffic flow from Router A to Router B and vice-versa.

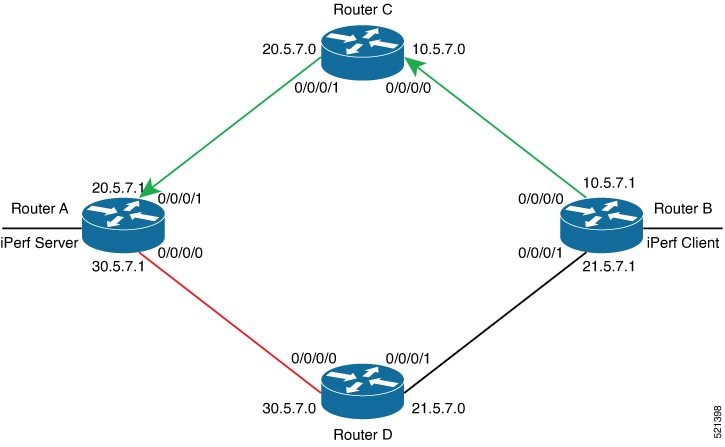

Figure 1. Hosting iPerf Application in Cisco IOS XR Routers

Verify Connection between Router A and Router B

The ping command verifies the connection between the IOS XR software on the routers, while the bash ping command verifies the connection between the linux kernel that hosts the IOS XR software on the routers.

Procedure

Check the connection between Router A and Router B using the ping and bash ping commands.

Router#show ip route 30.5.7.1
Tue Dec  1 19:27:28.623 UTC

Routing entry for 30.5.7.0/31
  Known via "ospf 10", distance 110, metric 2, type intra area
  Installed Dec  1 18:09:44.525 for 01:17:44
  Routing Descriptor Blocks
    21.5.7.0, from 100.0.0.7, via FourHundredGigE0/0/0/1
      Route metric is 2
  No advertising protos.
Router#ping 30.5.7.1
Tue Dec  1 19:27:28.769 UTC
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 30.5.7.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 20/24/30 ms
Router#bash ping -c 5 30.5.7.1
PING 30.5.7.1 (30.5.7.1) 56(84) bytes of data.
64 bytes from 30.5.7.1: icmp_seq=1 ttl=254 time=31.9 ms
64 bytes from 30.5.7.1: icmp_seq=2 ttl=254 time=37.7 ms
64 bytes from 30.5.7.1: icmp_seq=3 ttl=254 time=30.5 ms
64 bytes from 30.5.7.1: icmp_seq=4 ttl=254 time=27.5 ms
64 bytes from 30.5.7.1: icmp_seq=5 ttl=254 time=30.3 ms

--- 30.5.7.1 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4004ms
rtt min/avg/max/mdev = 27.549/31.621/37.719/3.371 ms

Install the iPerf Server Application

Procedure

Step 1

Install the iPerf application RPM on Router A. Only the RPM file format is supported.

Router#appmgr package install rpm /misc/disk1/iperf-0.1.0-XR_7.3.1.x86_64.rpm

Router#show appmgr source-table
Thu Dec  3 09:57:40.808 UTC
Name            File
--------------- ----------------------------------------------------------------
iperf    iperf.tar.gz
Router#
Step 2

Configure the application to run as iPerf server.

Router#config
Thu Dec  3 09:57:54.034 UTC
Router(config)#appmgr
Router(config-appmgr)#application iperf-server-app
Router(config-application)#activate type docker source iperf docker-run-opts "--net=host" docker-run-cmd "iperf3 -s -d"
Router(config-application)#commit
Thu Dec  3 09:57:54.398 UTC
Step 3

Verify the basic details (application name and state) about the activated iPerf server application.

Router#show appmgr application-table
Name                 Type    Config State  Status
--------             ------- ------------- -------------------------
iperf-server-app     Docker    Activated   Up 2 seconds
Router#
Thu Dec  3 09:57:54.398 UTC
Router#show appmgr application name iperf-server-app info summary
Thu Dec  3 09:58:15.569 UTC
Application: iperf-server-app
    Type: Docker
    Source: iperf
    Config State: Activated
    Container ID: 0118f9006cde2787e9809eb7c62ad8b552925b559a689c7aaa80f80d7ce43c02
    Image: alpine1:latest
    Command: "iperf3 -s -d"
    Status: Up 7 seconds
Thu Dec  3 09:57:54.398 UTC
Router#show appmgr application name iperf-server-app info detail
Thu Dec  3 09:58:26.401 UTC
Application: iperf-server-app
    Type: Docker
    Source: iperf
    Config State: Activated
    Docker Information:
        Container ID: 0118f9006cde2787e9809eb7c62ad8b552925b559a689c7aaa80f80d7ce43c02
        Container name: iperf-server-app
        Labels:
        Image: alpine1:latest
        Command: "iperf3 -s -d"
        Created at: 2020-12-03 09:58:08 +0000 UTC
        Running for: 18 seconds ago
        Status: Up 18 seconds
        Size: 0B
        Ports:
        Mounts:
        Networks: host
        LocalVolumes: 0
Router#show appmgr application name iperf-server-app stats
Thu Dec  3 09:58:39.594 UTC
Application Stats: iperf-server-app
   CPU Percentage: 0.00%
   Memory Usage: 624KiB / 31.23GiB
   Memory Percentage: 0.00%
   Network IO: 0B / 0B
   Block IO: 0B / 0B
   PIDs: 1
Router#
Step 4

Verify if the iPerf server is listening on the default port (5201) by using the netstat command inside the container.

The appmgr application exec name app_name docker-exec-cmd command can be used to execute any commands inside the container.

Router#appmgr application exec name iperf-server-app docker-exec-cmd name netstat -lnput
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 127.0.0.11:46727        0.0.0.0:*               LISTEN      -
tcp        0      0 0.0.0.0:5201         0.0.0.0:*               LISTEN      -
udp        0      0 127.0.0.11:39552        0.0.0.0:*
Router#

Install the iPerf Client Application

Procedure

Step 1

Install the iPerf application RPM on Router B.

Router#appmgr package install rpm /misc/disk1/iperf-0.1.0-XR_7.3.1.x86_64.rpm
Router#show appmgr source-table
Thu Dec  3 09:57:40.808 UTC
Name            File
--------------- ----------------------------------------------------------------
iperf      iperf.tar.gz
Router#
Step 2

Configure the application to run as iPerf client with a timeout (600s in this case).

Router#config
Thu Dec  3 09:57:54.034 UTC
Router(config)#appmgr
Router(config-appmgr)#application iperf-client-app
Router(config-application)#activate type docker source iperf docker-run-opts "--net=host" docker-run-cmd "iperf3 -c 30.5.7.1 -t 600"
Router(config-application)#commit
Thu Dec  3 09:57:54.398 UTC
Note

Hosting the iPerf client application on Router B by providing the iPerf server physical interface IP address (30.5.7.1) establishes communication between Router B and Router A.

Step 3

Verify the basic details (application name and state) about the activated iPerf client application.

Router#show appmgr application-table
Thu Dec  3 09:59:47.628 UTC
Name                 Type    Config State  Status
--------             ------- ------------- -------------------------
iperf-client-app     Docker    Activated   Up 2 seconds
Router#
Thu Dec  3 09:57:54.398 UTC
Router#show appmgr application name iperf-client-app info summary
Thu Dec  3 09:59:54.534 UTC
Application: iperf-client-app
    Type: Docker
    Source: iperf
    Config State: Activated
    Container ID: 40e1730a97666b2b44c8c9313b94b0138925c9198ae63244ff3bd386132d9c9c
    Image: alpine1:latest
    Command: "iperf3 -c 30.5.7.1 -t 600"
    Status: Up 9 seconds
Router#show appmgr application name iperf-client-app info detail
Application: iperf-client-app
    Type: Docker
    Source: iperf
    Config State: Activated
    Docker Information:
        Container ID: 40e1730a97666b2b44c8c9313b94b0138925c9198ae63244ff3bd386132d9c9c
        Container name: iperf-client-app
        Labels:
        Image: alpine1:latest
        Command: "iperf3 -c 30.5.7.1 -t 600"
        Created at: 2020-12-03 09:59:45 +0000 UTC
        Running for: 20 seconds ago
        Status: Up 20 seconds
        Size: 0B
        Ports:
        Mounts:
        Networks: host
        LocalVolumes: 0
Router#show appmgr application name iperf-client-app stats
Thu Dec  3 10:00:18.079 UTC
Application Stats: iperf-client-app
   CPU Percentage: 0.11%
   Memory Usage: 720KiB / 31.23GiB
   Memory Percentage: 0.00%
   Network IO: 0B / 0B
   Block IO: 0B / 0B
   PIDs: 1
Router#

Verify Connection between the iPerf Server and iPerf Client Applications

Procedure

Verify whether the connection is established between iPerf server and iPerf clients by executing the bash netstat -anput command on Router A. When the iPerf client is up and running, the entry in the State field displays "ESTABLISHED”.

Router#bash netstat -anput
Thu Dec  3 10:00:33.535 UTC
Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:646             0.0.0.0:*               LISTEN      8585/mpls_ldp
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      8567/ssh_server
tcp        0      0 0.0.0.0:830             0.0.0.0:*               LISTEN      8567/ssh_server
tcp6       0      0 :::5201                 :::*                    LISTEN      20829/iperf3
tcp6       0      0 :::22                   :::*                    LISTEN      8567/ssh_server
tcp6       0      0 :::830                  :::*                    LISTEN      8567/ssh_server
tcp6       0      0 30.5.7.1:5201           100.0.0.9:65322         ESTABLISHED 20829/iperf3
tcp6       0      0 30.5.7.1:5201           100.0.0.9:65302         ESTABLISHED 20829/iperf3
udp        0      0 0.0.0.0:646             0.0.0.0:*                           8585/mpls_ldp
udp        0      0 0.0.0.0:3232            0.0.0.0:*                           6833/pim
udp        0      0 0.0.0.0:3503            0.0.0.0:*                           10762/lspv_server
udp        0      0 0.0.0.0:68              0.0.0.0:*                           10704/xr_dhcpcd
udp        0      0 0.0.0.0:496             0.0.0.0:*                           6833/pim
udp6       0      0 :::3503                 :::*                                10762/lspv_server

Measure Network Performance

Procedure

Step 1

Verify the traffic route from Router B to Router A using the show ip route command, on Router B.

Router#show ip route 30.5.7.1
Thu Dec  3 10:08:01.859 UTC

Routing entry for 30.5.7.0/31
  Known via "ospf 10", distance 110, metric 2, type intra area
  Installed Dec  3 04:49:22.281 for 05:18:39
  Routing Descriptor Blocks
    21.5.7.0, from 100.0.0.7, via FourHundredGigE0/0/0/1
      Route metric is 2
  No advertising protos.
Router#
Step 2

Check the network performance between iPerf client and iPerf server (on Router B and Router A).

You can view the network monitoring parameters by executing the show appmgr application name iperf-client-app logs command, on Router B that hosts the iPerf client.

Router#show appmgr application name iperf-client-app logs
Tue Dec 1 12:50:27.862 UTC
Connecting to host 30.5.7.1, port 5201
[ 4] local 100.0.0.9 port 61384 connected to 30.5.7.1 port 5201
[ ID] Interval         Transfer     Bandwidth Retr     Cwnd
[ 4] 0.00-1.00 sec 1.05 MBytes     8.82 Mbits/sec 0     80.6 KBytes
[ 4] 1.00-2.00 sec 1.26 MBytes     10.6 Mbits/sec 0     136 KBytes
[ 4] 2.00-3.00 sec 1.18 MBytes     9.90 Mbits/sec 0     191 KBytes
[ 4] 3.00-4.00 sec 1.24 MBytes     10.4 Mbits/sec 0     246 KBytes
[ 4] 4.00-5.00 sec 1.18 MBytes     9.90 Mbits/sec 0     301 KBytes
[ 4] 5.00-6.00 sec 1.37 MBytes     11.5 Mbits/sec 0     362 KBytes
[ 4] 6.00-7.00 sec 1.37 MBytes     11.5 Mbits/sec 0     423 KBytes
[ 4] 7.00-8.00 sec 1.43 MBytes     12.0 Mbits/sec 0     486 KBytes
[ 4] 8.00-9.00 sec 1.30 MBytes     11.0 Mbits/sec 0     547 KBytes
[ 4] 9.00-10.00 sec 1.43 MBytes     12.0 Mbits/sec 0    611 KBytes
[ 4] 10.00-11.00 sec 1.62 MBytes     13.6 Mbits/sec 0   707 KBytes
[ 4] 11.00-12.00 sec 1.62 MBytes     13.6 Mbits/sec 0    875 KBytes
[ 4] 12.00-13.00 sec 1.93 MBytes     16.2 Mbits/sec 0    1.07 MBytes
[ 4] 13.00-14.00 sec 1.68 MBytes     14.1 Mbits/sec 0    1.29 MBytes
[ 4] 14.00-15.00 sec 1.06 MBytes     8.86 Mbits/sec 0    1.56 MBytes
[ 4] 15.00-16.00 sec 891 KBytes     7.30 Mbits/sec 0     1.83 MBytes
[ 4] 16.00-17.00 sec 970 KBytes     7.95 Mbits/sec 0     2.12 MBytes
[ 4] 17.00-18.00 sec 1.24 MBytes     10.4 Mbits/sec 0    2.58 MBytes
[ 4] 18.00-19.00 sec 885 KBytes     7.24 Mbits/sec 0     2.65 MBytes
[ 4] 19.00-20.00 sec 1.55 MBytes     13.0 Mbits/sec 0    3.10 MBytes
[ 4] 20.00-21.00 sec 820 KBytes     6.71 Mbits/sec 0     3.10 MBytes
[ 4] 21.00-22.00 sec 1.72 MBytes     14.4 Mbits/sec 6     2.42 MBytes
[ 4] 22.00-23.00 sec 0.00 Bytes     0.00 bits/sec 5       2.30 MBytes
[ 4] 23.00-24.00 sec 256 KBytes     2.10 Mbits/sec 0     1.35 MBytes
[ 4] 24.00-25.00 sec 1.56 MBytes     13.1 Mbits/sec 237   1.83 MBytes
[ 4] 25.00-26.00 sec 1.90 MBytes     15.9 Mbits/sec 0     2.17 MBytes
[ 4] 26.00-27.00 sec 382 KBytes     3.12 Mbits/sec 61     1.95 MBytes
[ 4] 27.00-28.00 sec 0.00 Bytes     0.00 bits/sec 0     1.39 MBytes
[ 4] 28.00-29.00 sec 3.35 MBytes     28.1 Mbits/sec 0     1.52 MBytes
[ 4] 29.00-30.00 sec 954 KBytes     7.82 Mbits/sec 0     1.58 MBytes
[ 4] 30.00-31.00 sec 1018 KBytes     8.34 Mbits/sec 0     1.64 MBytes
[ 4] 31.00-32.00 sec 1.24 MBytes     10.4 Mbits/sec 0     1.71 MBytes
[ 4] 32.00-33.00 sec 1.25 MBytes     10.5 Mbits/sec 0     1.76 MBytes
[ 4] 33.00-34.00 sec 1.61 MBytes     13.5 Mbits/sec 0     1.80 MBytes
[ 4] 34.00-35.00 sec 1.46 MBytes     12.2 Mbits/sec 0     1.82 MBytes
[ 4] 35.00-36.00 sec 1.18 MBytes     9.89 Mbits/sec 0     1.83 MBytes
[ 4] 36.00-37.00 sec 1.36 MBytes     11.4 Mbits/sec 0     1.84 MBytes
[ 4] 37.00-38.00 sec 1.36 MBytes     11.4 Mbits/sec 0     1.84 MBytes
[ 4] 38.00-39.00 sec 1.24 MBytes     10.4 Mbits/sec 0     1.84 MBytes
[ 4] 39.00-40.00 sec 1.25 MBytes     10.5 Mbits/sec 0     1.85 MBytes
[ 4] 40.00-41.00 sec 1.25 MBytes     10.5 Mbits/sec 0     1.86 MBytes
[ 4] 41.00-42.00 sec 1.40 MBytes     11.8 Mbits/sec 0     1.88 MBytes
[ 4] 42.00-43.00 sec 1.12 MBytes     9.37 Mbits/sec 0     1.91 MBytes
[ 4] 43.00-44.00 sec 1.12 MBytes     9.40 Mbits/sec 0     1.96 MBytes
[ 4] 44.00-45.00 sec 1.20 MBytes     10.1 Mbits/sec 0     2.02 MBytes
[ 4] 45.00-46.00 sec 1.27 MBytes     10.7 Mbits/sec 0     2.11 MBytes
[ 4] 46.00-47.00 sec 1.30 MBytes     10.9 Mbits/sec 0     2.22 MBytes
[ 4] 47.00-48.00 sec 1.25 MBytes     10.5 Mbits/sec 0     2.36 MBytes
[ 4] 48.00-49.00 sec 1.43 MBytes     12.0 Mbits/sec 0     2.53 MBytes
Step 3

Bring down the interface on Router D using the shut command to trigger a route update.

Router(config)#interface FourhundredGig0/0/0/0
Router(config-if)#shut
Router(config-if)#commit
Note

Because of the interface shutdown, the route to 30.5.7.1 needs to be updated and hence momentarily there will be no route to this address.

Step 4

During the route update, check the network performance by executing the show appmgr application name app_name logs command.

You will notice that the entries in the Bandwidth field is Zero for a short duration, when the new route is installed.

Router#show appmgr application name iperf-client-app logs
Tue Dec 1 12:59:40.349 UTC
Connecting to host 30.5.7.1, port 5201
[ 4] local 100.0.0.9 port 61384 connected to 30.5.7.1 port 5201
15
[ ID] Interval         Transfer Bandwidth     Retr     Cwnd
[ 4] 0.00-1.00 sec 1.05 MBytes 8.82 Mbits/sec 0     80.6 KBytes
[ 4] 1.00-2.00 sec 1.26 MBytes 10.6 Mbits/sec 0     136 KBytes
[ 4] 2.00-3.00 sec 1.18 MBytes 9.90 Mbits/sec 0     191 KBytes
[ 4] 3.00-4.00 sec 1.24 MBytes 10.4 Mbits/sec 0     246 KBytes
[ 4] 4.00-5.00 sec 1.18 MBytes 9.90 Mbits/sec 0     301 KBytes
[ 4] 5.00-6.00 sec 1.37 MBytes 11.5 Mbits/sec 0     362 KBytes
[ 4] 6.00-7.00 sec 1.37 MBytes 11.5 Mbits/sec 0     423 KBytes
[ 4] 7.00-8.00 sec 1.43 MBytes 12.0 Mbits/sec 0     486 KBytes
[ 4] 8.00-9.00 sec 1.30 MBytes 11.0 Mbits/sec 0     547 KBytes
[ 4] 9.00-10.00 sec 1.43 MBytes 12.0 Mbits/sec 0     611 KBytes
[ 4] 10.00-11.00 sec 1.62 MBytes 13.6 Mbits/sec 0     707 KBytes
[ 4] 11.00-12.00 sec 1.62 MBytes 13.6 Mbits/sec 0     875 KBytes
[ 4] 12.00-13.00 sec 1.93 MBytes 16.2 Mbits/sec 0     1.07 MBytes
[ 4] 13.00-14.00 sec 1.68 MBytes 14.1 Mbits/sec 0     1.29 MBytes
[ 4] 14.00-15.00 sec 1.06 MBytes 8.86 Mbits/sec 0     1.56 MBytes
[ 4] 15.00-16.00 sec 891 KBytes 7.30 Mbits/sec 0     1.83 MBytes
[ 4] 16.00-17.00 sec 970 KBytes 7.95 Mbits/sec 0     2.12 MBytes
[ 4] 17.00-18.00 sec 1.24 MBytes 10.4 Mbits/sec 0     2.58 MBytes
[ 4] 18.00-19.00 sec 885 KBytes 7.24 Mbits/sec 0     2.65 MBytes
[ 4] 19.00-20.00 sec 1.55 MBytes 13.0 Mbits/sec 0     3.10 MBytes
[ 4] 20.00-21.00 sec 820 KBytes 6.71 Mbits/sec 0     3.10 MBytes
[ 4] 21.00-22.00 sec 1.72 MBytes 14.4 Mbits/sec 6     2.42 MBytes
[ 4] 22.00-23.00 sec 0.00 Bytes 0.00 bits/sec 5     2.30 MBytes
[ 4] 23.00-24.00 sec 256 KBytes 2.10 Mbits/sec 0     1.35 MBytes
[ 4] 24.00-25.00 sec 1.56 MBytes 13.1 Mbits/sec 237     1.83 MBytes
[ 4] 25.00-26.00 sec 1.90 MBytes 15.9 Mbits/sec 0     2.17 MBytes
[ 4] 26.00-27.00 sec 382 KBytes 3.12 Mbits/sec 61     1.95 MBytes
[ 4] 27.00-28.00 sec 0.00 Bytes 0.00 bits/sec 0     1.39 MBytes
[ 4] 28.00-29.00 sec 3.35 MBytes 28.1 Mbits/sec 0     1.52 MBytes
[ 4] 29.00-30.00 sec 954 KBytes 7.82 Mbits/sec 0     1.58 MBytes
[ 4] 30.00-31.00 sec 1018 KBytes 8.34 Mbits/sec 0     1.64 MBytes
[ 4] 31.00-32.00 sec 1.24 MBytes 10.4 Mbits/sec 0     1.71 MBytes
[ 4] 32.00-33.00 sec 1.25 MBytes 10.5 Mbits/sec 0     1.76 MBytes
[ 4] 33.00-34.00 sec 1.61 MBytes 13.5 Mbits/sec 0     1.80 MBytes
[ 4] 34.00-35.00 sec 1.46 MBytes 12.2 Mbits/sec 0     1.82 MBytes
[ 4] 35.00-36.00 sec 1.18 MBytes 9.89 Mbits/sec 0     1.83 MBytes
[ 4] 36.00-37.00 sec 1.36 MBytes 11.4 Mbits/sec 0     1.84 MBytes
[ 4] 37.00-38.00 sec 1.36 MBytes 11.4 Mbits/sec 0     1.84 MBytes
[ 4] 38.00-39.00 sec 1.24 MBytes 10.4 Mbits/sec 0     1.84 MBytes
[ 4] 39.00-40.00 sec 1.25 MBytes 10.5 Mbits/sec 0     1.85 MBytes
[ 4] 40.00-41.00 sec 1.25 MBytes 10.5 Mbits/sec 0     1.86 MBytes
[ 4] 41.00-42.00 sec 1.40 MBytes 11.8 Mbits/sec 0     1.88 MBytes
[ 4] 42.00-43.00 sec 1.12 MBytes 9.37 Mbits/sec 0     1.91 MBytes
[ 4] 43.00-44.00 sec 1.12 MBytes 9.40 Mbits/sec 0     1.96 MBytes
[ 4] 44.00-45.00 sec 1.20 MBytes 10.1 Mbits/sec 0     2.02 MBytes
[ 4] 45.00-46.00 sec 1.27 MBytes 10.7 Mbits/sec 0     2.11 MBytes
[ 4] 46.00-47.00 sec 1.30 MBytes 10.9 Mbits/sec 0     2.22 MBytes
[ 4] 95.00-96.00 sec 1.48 MBytes 12.4 Mbits/sec 0     1.82 MBytes
[ 4] 96.00-97.00 sec 1.25 MBytes 10.5 Mbits/sec 0     1.83 MBytes
[ 4] 97.00-98.00 sec 1.25 MBytes 10.5 Mbits/sec 0     1.83 MBytes
[ 4] 98.00-99.00 sec 1.49 MBytes 12.5 Mbits/sec 0     1.84 MBytes
[ 4] 99.00-100.00 sec 1.25 MBytes 10.5 Mbits/sec 0     1.86 MBytes
[ 4] 100.00-101.00 sec 1.21 MBytes 10.2 Mbits/sec 0     1.89 MBytes
[ 4] 101.00-102.00 sec 1.34 MBytes 11.2 Mbits/sec 0     1.94 MBytes
[ 4] 102.00-103.00 sec 1.25 MBytes 10.5 Mbits/sec 0     2.01 MBytes
[ 4] 103.00-104.00 sec 1.30 MBytes 10.9 Mbits/sec 0     2.09 MBytes
[ 4] 104.00-105.00 sec 1.25 MBytes 10.5 Mbits/sec 0     2.17 MBytes
[ 4] 105.00-106.00 sec 1.39 MBytes 11.6 Mbits/sec 0     2.33 MBytes
[ 4] 106.00-107.00 sec 1.01 MBytes 8.47 Mbits/sec 0     2.46 MBytes
[ 4] 107.00-108.00 sec 526 KBytes 4.31 Mbits/sec 0     2.54 MBytes
[ 4] 108.00-109.00 sec 0.00 Bytes 0.00 bits/sec 0     2.54 MBytes
[ 4] 109.00-110.00 sec 0.00 Bytes 0.00 bits/sec 0     2.54 MBytes
[ 4] 110.00-111.00 sec 0.00 Bytes 0.00 bits/sec 0     2.54 MBytes
[ 4] 111.00-112.00 sec 0.00 Bytes 0.00 bits/sec 1     1.41 KBytes
[ 4] 112.00-113.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 113.00-114.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 114.00-115.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 115.00-116.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 116.00-117.00 sec 0.00 Bytes 0.00 bits/sec 1     1.41 KBytes
[ 4] 117.00-118.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 118.00-119.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 119.00-120.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 120.00-121.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 121.00-122.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 122.00-123.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 123.00-124.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 124.00-125.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 125.00-126.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 126.00-127.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 127.00-128.00 sec 0.00 Bytes 0.00 bits/sec 1     1.41 KBytes
[ 4] 128.00-129.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 129.00-130.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 130.00-131.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 131.00-132.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 132.00-133.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 133.00-134.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 134.00-135.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 135.00-136.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 136.00-137.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 137.00-138.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 138.00-139.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 139.00-140.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 140.00-141.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 141.00-142.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 142.00-143.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 143.00-144.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 144.00-145.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 145.00-146.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 146.00-147.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 147.00-148.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 148.00-149.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 149.00-150.00 sec 0.00 Bytes 0.00 bits/sec 0     1.41 KBytes
[ 4] 150.00-151.00 sec 700 KBytes 5.73 Mbits/sec 847    600 KBytes
[ 4] 151.00-152.00 sec 954 KBytes 7.82 Mbits/sec 993    1.32 MBytes
[ 4] 152.00-153.00 sec 509 KBytes 4.17 Mbits/sec 0     1.79 MBytes
[ 4] 153.00-154.00 sec 1.08 MBytes 9.07 Mbits/sec 0     1.85 MBytes
[ 4] 154.00-155.00 sec 1.38 MBytes 11.6 Mbits/sec 0     1.90 MBytes
[ 4] 155.00-156.00 sec 1.55 MBytes 13.0 Mbits/sec 0     1.98 MBytes
[ 4] 156.00-157.00 sec 1.16 MBytes 9.71 Mbits/sec 0     2.04 MBytes
[ 4] 157.00-158.00 sec 1.21 MBytes 10.2 Mbits/sec 0     2.10 MBytes
[ 4] 158.00-159.00 sec 1.26 MBytes 10.6 Mbits/sec 0     2.17 MBytes
[ 4] 159.00-160.00 sec 1.14 MBytes 9.56 Mbits/sec 0     2.23 MBytes
[ 4] 160.00-161.00 sec 1.29 MBytes 10.8 Mbits/sec 0     2.27 MBytes
[ 4] 161.00-162.00 sec 1.24 MBytes 10.4 Mbits/sec 0     2.34 MBytes
[ 4] 162.00-163.00 sec 1.42 MBytes 11.9 Mbits/sec 0     2.41 MBytes
[ 4] 163.00-164.00 sec 1.11 MBytes 9.34 Mbits/sec 0     2.46 MBytes
[ 4] 164.00-165.00 sec 1.39 MBytes 11.7 Mbits/sec 0     2.56 MBytes
[ 4] 165.00-166.00 sec 995 KBytes 8.16 Mbits/sec 0     2.69 MBytes
[ 4] 166.00-167.00 sec 1.88 MBytes 15.7 Mbits/sec 0     2.94 MBytes
[ 4] 167.00-168.02 sec 950 KBytes 7.69 Mbits/sec 0     3.12 MBytes
[ 4] 168.02-169.00 sec 1.79 MBytes 15.2 Mbits/sec 0     3.12 MBytes
[ 4] 169.00-170.01 sec 1.27 MBytes 10.6 Mbits/sec 0     3.12 MBytes
[ 4] 170.01-171.00 sec 1.25 MBytes 10.5 Mbits/sec 23     1.60 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[  4]   0.00-600.00 sec   704 MBytes  9.84 Mbits/sec  12069   sender
[  4]   0.00-600.00 sec   702 MBytes  9.82 Mbits/sec         receiver

iperf Done.

<!-On Router A!>
Router#show appmgr application name iperf-server-app stats
Thu Dec  3 11:45:47.790 UTC
Application Stats: iperf-server-app
   CPU Percentage: 0.00%
   Memory Usage: 816KiB / 31.23GiB
   Memory Percentage: 0.00%
   Network IO: 0B / 0B
   Block IO: 0B / 0B
   PIDs: 1
<!-On Router B!>
Router#show appmgr application name iperf-client-app stats
Thu Dec  3 11:45:59.418 UTC
Application Stats: iperf-client-app
   CPU Percentage: 0.00%
   Memory Usage: 0B / 0B
   Memory Percentage: 0.00%
   Network IO: 0B / 0B
   Block IO: 0B / 0B
   PIDs: 0

Stop iPerf Applications

Procedure

Stop the iPerf applications on Router A and Router B using the appmgr application stop name app_name command. The application stop command can only be used for applications that are registered, activated, and are currently running. The application stop command stops only the application and does not clean up the resources used by the application.

You can verify the status of the application using the show appmgr application-table command. The Status is displayed as Exited if the application has been stopped successfully.

Router#appmgr application stop name iperf-server-app
Mon Nov 30 13:38:36.202 UTC
Router#show appmgr application-table
Mon Nov 30 13:38:36.999 UTC
Name                 Type    Config State  Status
--------             ------- ------------- -------------------------
iperf-server-app     Docker    Activated   Exited (1) Less than a se
Router#

Start iPerf Applications

Procedure

Start or restart an application that has been stopped (and not deactivated) using the appmgr application start name app_name command.

Router#appmgr application start name iperf-server-app
Tue Dec 1 13:06:21.996 UTC
Router#show appmgr application-table
Mon Nov 30 13:38:36.999 UTC
Name                 Type    Config State  Status
--------             ------- ------------- -------------------------
iperf-server-app     Docker    Activated   UP(1) Less than a second
Router#

Deactivate iPerf Applications

Procedure

Step 1

Deactivate the iPerf applications using the no appmgr application app_name command. You deactivate the installed application when you want to release all resources used by the application.

Router#config
Router(config)#no appmgr application iperf-server-app
Router(config)#commit
Step 2

Verify the status of the application by using the show appmgr application-table app_name stats command.

Router#show appmgr application-table
Mon Nov 30 13:39:51.197 UTC
Router#
Note

You can activate a deactivated application using the appmgr application app_name activate type docker source source_name command.

Uninstall iPerf Applications

Procedure

Uninstall the applications using the appmgr package uninstall package package_name command.

After the application is successfully uninstalled, executing the show appmgr source-table command displays no result.

Router#appmgr package uninstall package iperf
table
Mon Nov 30 13:41:05.155 UTC
Router#show appmgr source-table
Mon Nov 30 13:41:05.936 UTC
Router#
