Configuring SGM to Run with Various Networking Options
Configuring SGM to Run with Various Networking Options
In addition to running on standard IP-connected networks, SGM has the flexibility to adapt to a variety of different networking environments, including Virtual Private Network (VPN), Network Address Translation (NAT), firewall, port-forwarding, and Secure Sockets Layer (SSL). SGM can run in each of these environments individually, or in any combination of networking environments.
This appendix describes communication between the SGM client and the SGM server. As shown in Figure D-1, this includes:
•
Two-way RMI communication between a Java-based GUI client and Java-based server processes. The client can send requests to and receive responses from the server, and the server can send unsolicited notifications to the client. For example, if the server detects that a router's state has changed, it sends a notification to all SGM clients to update their Topology windows.
•

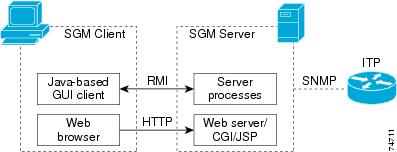

Figure D-1 SGM Communication
Note
This appendix includes the following sections:
•
VPN Communication
SGM client/server communication can run transparently through a VPN tunnel, which is a secure IP layer, without any user intervention. You can use VPN to connect to a corporate network, then start the SGM client to connect through the VPN tunnel to an SGM server in the corporate network.
When the client host establishes a VPN tunnel, the operating system (or system library) sees this as another virtual IP interface. The VPN tunnel does not affect HTTP communication between the Web browser and server, it only affects RMI communication between the SGM client and server processes.
For HTTP communication, the virtual IP address is transparent to the upper layer. The operating system automatically chooses the correct IP address to send out the request packet. For RMI communication, the SGM client needs to register with the SGM server server using the correct IP address, so that the server can invoke RMI callbacks and send unsolicited notifications to the client.
SGM solves this problem by automatically detecting the local IP interface so that the SGM server can send unsolicited notification to the correct IP address.
Figure D-2 shows a sample VPN network with the following characteristics:
•
•
Figure D-2 VPN Communication
When connecting to the SGM server, the SGM client automatically recognizes its VPN IP address, 10.1.1.2, and uses that address to register with the SGM server to receive RMI callbacks. This configuration is transparent to the user; no manual configuration is needed.
NAT Communication
SGM client/server communication can run through one or more static NAT-connected networks. (SGM does not support dynamic NAT or dynamic NAT pool overloading.)
In a static NAT network, the SGM client and server are located on different sides of the NAT network, with no routes between the client network and the server network. The NAT device statically maps the client IP address to a NAT address in the server network, and the server IP address to a NAT address in the client network.
The NAT device translates packets between the SGM client and server by replacing IP address headers when packets pass through. From the client's point of view, the server appears to be at a NAT IP address in the client network, and vice versa. For most protocols, this technique is sufficient to enable the client and server to communicate.
However, for RMI protocol, this is not sufficient. RMI protocol requires the client and server to keep remote object references by remote stubs. These remote stubs contain the remote objects' IP addresses, and are passed between the client and server using Java serialization. The NAT device only converts the IP addresses in the IP packet header, but the remote stub object is within the packet content. Therefore, the NAT device cannot recognize the IP address inside the packet, and fails to route it correctly.
SGM solves this problem by creating a specialized NAT-aware socket factory. Some manual configuration on the part of the user is required to enable SGM to "know" the network NAT configuration.
Figure D-3 shows a sample static NAT network with the following characteristics:
•
•
•
Figure D-3 Static NAT Communication
To configure SGM in this static NAT network, you must modify the SGM client's RMIOverNAT.properties file.
•
•
For the example shown in Figure D-3, you must add the following line to the file:
10.0.0.1 = 192.168.1.2
This line maps the SGM server's real IP address, 10.0.0.1 in Network B, to its NAT address, 192.168.1.2, in Network A, which is the server's IP address as seen by the client.
Note
Firewall Communication
To enable SGM client/server communication through a firewall, you need to set up the firewall so that it allows SGM communication packets to pass through freely.
Note
The port number used by SGM is configured in the System.properties file:
•
•
Set the following parameters on the server side of the file:
RMIREGISTRY_PORT = 44742
DATASERVER_PORT = 0
MLSERVER_PORT = 0
PMSERVER_PORT = 0
WEB_PORT = 1744
where:
•
•
•
•
•
If any of these port numbers changes, you must restart the SGM server before the changes take effect.
Set the following parameters on the client side of the file:
RMIREGISTRY_PORT = 44742
CLIENT_PORT = 0
where:
•
•
If any of these port numbers changes, you must restart the SGM client before the changes take effect.
Figure D-4 shows a sample firewall network with the following parameters set in the System.properties file:
•
RMIREGISTRY_PORT = 44742
DATASERVER_PORT = 44751
MLSERVER_PORT = 44752
PMSERVER_PORT = 44753
WEB_PORT = 1774
•
RMIREGISTRY_PORT = 44742
CLIENT_PORT = 56173

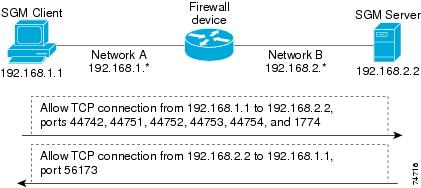

Figure D-4 Firewall Communication
Port-Forwarding Communication
To enable SGM to operate in a TCP port-forwarding environment, perform the following configuration tasks:
Step 1
Step 2
Step 3
Figure D-5 shows a sample network that uses Secure Shell (SSH) port-forwarding. Other port-forwarding configurations might use a single host with dual interfaces at the client's and server's networks. While other port-forwarding configurations may differ from this example, the general rules to configure SGM to operate in a port-forwarding environment are the same.

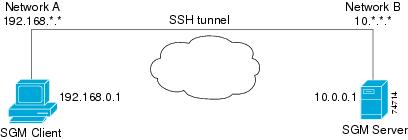

Figure D-5 Port-Forwarding Communication
The port-forwarding network shown in Figure D-5 has the following parameters set;
•
RMIREGISTRY_PORT = 44742
DATASERVER_PORT = 44751
MLSERVER_PORT = 44752
PMSERVER_PORT = 44753
WEB_PORT = 1774
•
RMIREGISTRY_PORT = 44742
CLIENT_PORT = 56173
•
10.0.0.1/44742 = 192.168.1.2/25742
10.0.0.1/44751 = 192.168.1.2/25751
10.0.0.1/44752 = 192.168.1.2/25752
10.0.0.1/44753 = 192.168.1.2/25753
10.0.0.1/1774 = 192.168.1.2/8080
•
Local port 25751 => remote host 10.0.0.1, port 44742
Local port 25751 => remote host 10.0.0.1, port 44751
Local port 25752 => remote host 10.0.0.1, port 44752
Local port 25753 => remote host 10.0.0.1, port 44753
Local port 8080 => remote host 10.0.0.1, port 1774
Remote port 56173 => local host 192.168.0.1, port 56173
Note
SSL Communication
If SSL is implemented and enabled in your SGM system, SGM uses secure socket communication for both RMI and HTTP communication between the SGM client and server.
SGM supports standard-based SSL encryption algorithms, including RSA, DSA public key algorithms, and 40-bit or 128-bit encryption. SGM can generate an X.509 certificate and a certificate signing request (CSR), which is interoperable with most certificate authorities (CAs).
Both the SGM Web server and the SGM server processes share the same SSL key/certificate pair. Both the SGM client and the Web browser can examine the server's certificate.
For more information, including descriptions of the SGM commands and procedures used to implement, enable, manage, and monitor SSL support, see the "Implementing SSL Support in SGM" section.
Figure D-6 shows a sample SGM-over-SSL network with the following characteristics:
•
•
•

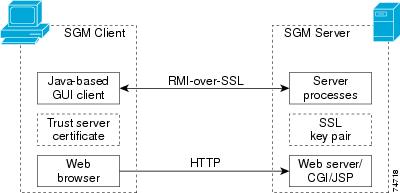

Figure D-6 SSL Communication
