Upgrade, Add, and Remove Cards and Nodes, for Cisco ONS 15454 DWDM and Cisco NCS 2000 Series
Note
Cisco ONS 15454 M2 chassis has reached its end-of-life status. For more information, see the Retirement Notification page.
Note
The terms
“Unidirectional Path Switched Ring” and “UPSR” may appear in Cisco literature.
These terms do not refer to using Cisco
ONS 15xxx
NCS products in a unidirectional path switched ring
configuration. Rather, these terms, as well as “Path Protected Mesh Network”
and “PPMN,” refer generally to Cisco's path protection feature, which may be
used in any topological network configuration. Cisco does not recommend using
its path protection feature in any particular topological network
configuration.
This document provides
procedures for adding and removing dense wavelength division multiplexing
(DWDM) cards and nodes.
Note
With references
provided to configuration guides, see:
For software
releases 9.3 to 9.8, the Cisco ONS 15454 DWDM Configuration Guide
For software
release 10.0 and later, an appropriate guide from one of these three:
Cisco ONS 15454 DWDM Control Card Configuration Guide or Cisco NCS 2000 Series Control Card Configuration Guide
Cisco ONS 15454 DWDM Line Card Configuration Guide or Cisco NCS 2000 Series Line Card Configuration Guide
Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2000 Series Network Configuration Guide
Note
The procedures and
tasks described in this document for the NCS platform is applicable to the
Cisco NCS 2002 and Cisco NCS 2006 platforms, unless noted otherwise.
Note
Unless otherwise
specified, “ONS 15454” refers to both ANSI and ETSI shelf assemblies.
Topics include:
Revision
History
Date
Notes
November 2016
Updated for R10.6.1.
January 2016
Updated for
R10.5.2.
December
2013
Revised the
part number and included Release 10.0 features.
July 2013
Added the
section "Limitations of USB Synchronization with TNC or TSC Cards".
August 2011
Added the
section “NTP-G261 Modify ANS Parameters in a Node when Ports are in IS State”.
March 2012
Updated the
section, “NTP-G129 Add a DWDM Node”.
July 2012
Updated the
section “NTP-G130 Remove a DWDM Node”.
Date
Notes
November 2016
Updated for R10.6.1.
January 2016
Updated for
R10.5.2.
December
2013
This is the
first release of this publication.
Limitations of USB Synchronization with TNC or TSC Cards
USB synchronization with TNC or TSC cards fails when the USB has the 9.8 package in either its active or protect volume
and when the TNC or TSC card is inserted as a standalone card in the chassis.
Scenario 1: The USB has the 9.8 package in its active volume and any other package in its protect volume The TNC or TSC card having a
package earlier than version 9.8, is loaded on the Cisco ONS 15454 M2 or Cisco ONS 15454 M6 chassis as a standalone card.
The USB acts as the master and pushes the 9.8 package from its active volume on the TNC or TSC card. Despite several attempts,
the package copy operation fails.
Scenario 2: The USB has any package earlier than version 9.8 in its active volume and the 9.8 package in its protect volume. The TNC
or TSC card having a package earlier than version 9.8, is loaded on the ONS 15454 M2 or ONS 15454 M6 chassis as a standalone
card. The USB acts as the master and pushes the package from its active volume on the TNC or TSC card. The card copies the
package and resets. When the card boots up after reset, the USB pushes the 9.8 package from its protect volume on the TNC
or TSC card. Despite several attempts, the package copy operation fails.
Workarounds:
For release 9.3 and later releases, use TNC-E or TSC-E cards.
For scenario 1, ensure that the TNC or TSC card has version 9.8 as the active package.
For scenario 2, ensure that the protect and the active volumes of USB are the same.
NTP-G107 Remove
Permanently or Remove and Replace DWDM Cards
Purpose
This procedure permanently removes or removes and replaces DWDM cards installed in the ONS 15454 and NCS shelf and rack.
Tools/Equipment
None
Prerequisite
Procedures
“NTP-G30 Install the DWDM Cards” and “NTP-G179 Install the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, ADM-10G, and OTU2_XP
Cards” task in the chapter “Turn Up a Node” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide
Required/As
Needed
As needed
Onsite/Remote
Onsite
Security Level
Provisioning or higher
Caution
Removing and
replacing cards can be traffic affecting.
Caution
Do not use this
procedure to replace control cards.
If you cannot log into Cisco Transport Controller (CTC) and you need to remove a card, remove the card as described in Step 6. After you log into CTC, troubleshoot the mismatched equipment alarm (MEA) with the Cisco ONS 15454 DWDM Troubleshooting Guide or Cisco NCS 2002 and NCS 2006 Troubleshooting Guide.
Step 2
Click the
Alarms tab.
Verify that
the alarm filter is not on. See the “DLP-G128 Disable Alarm Filtering” task in
the
Alarm and TCA Monitoring
and Management document as necessary.
Verify that no unexplained alarms appear on the network. If alarms appear, investigate and resolve them before continuing.
Refer to the Cisco ONS 15454 DWDM Troubleshooting Guide or Cisco NCS 2002 and NCS 2006 Troubleshooting Guide for procedures.
Step 3
If you are
removing and replacing a card, go to
Step 5.
Step 4
If you are
permanently removing a card, go to
Step 11.
Step 5
To remove and
replace a card, complete the following tasks, as needed:
The circuits traversing through the card that needs to be replaced (for example, an amplifier) need to be protection switched.
For instance, if the card you want to replace is an active transponder (TXP) or muxponder (MXP) in a Y-cable protection group,
complete the “DLP-G179 Apply a Force Y-Cable or Splitter Protection Switch” task in the Manage the Node document to force traffic away from the TXP or MXP that you will remove. If the card you want to replace is the standby TXP
or MXP in a Y-cable protection group, complete the “DLP-G182 Apply a Lockout” task in the Manage the Node document to prevent traffic from switching to the TXP or MXP that you will remove. See the Cisco ONS 15454 Procedure
Guide or the Cisco ONS 15454 SDH Procedure Guide for other types of protection switching (path protection, BLSR, optical, and electrical).
If the card is a node timing reference, complete the “NTP-G112 Change the Node Timing Reference” task in the chapter “Maintain
the Node” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide to change the timing reference to a card that will not be removed.
If the card
is an OSCM or OSC-CSM with an optical service channel (OSC) or TXP, MXP, GE_XP,
10GE_XP, GE_XPE, 10GE_XPE, ADM-10G, and OTU2_XP cards with generic
communications channel (GCC) termination, complete the “NTP-G85 Modify or
Delete OSC Terminations, GCC Terminations, and Provisionable Patchcords”
procedure in the
Manage the Node
document to delete the termination and recreate it on a card that will not be
removed.
Step 6
Physically
remove the card:
Disconnect
any cables.
Open the
card latches/ejectors.
Use the
latches/ejectors to pull the card forward and away from the shelf.
Step 7
Insert the new
card using one of the following procedures as applicable:
“NTP-G30 Install the DWDM Cards” task in the chapter “Turn Up a Node” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide
“NTP-G179 Install the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, ADM-10G, and OTU2_XP Cards” task in the chapter “Turn Up
a Node” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide
Step 8
Complete the “NTP-G34 Install Fiber-Optic Cables on DWDM Cards and DCUs” procedure in the chapter “Turn Up a Node” of the
Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide.
Step 9
Complete the
following tasks or procedures, as needed:
If you
switched a Y-cable protection group in
Step 5, complete the “DLP-G180 Clear a
Manual or Force Y-Cable or Splitter Protection Switch” task in the
Manage the Node
document.
If you deleted circuits in Step 5, complete the “DLP-G105 Provision Optical Channel Network Connections” task in the chapter “Create Optical Channel Circuits
and Provisionable Patchcords” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide.
If you switched the timing reference in Step 5, complete the “NTP-G112 Change the Node Timing Reference” procedure in the chapter “Maintain the Node” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide to change the reference back to the new card.
If you deleted an OSC or GCC termination in Step 5, complete the “NTP-G38 Provision OSC Terminations” procedure in the chapter “Turn Up a Node” or the “DLP-G76 Provision GCC
Terminations” task in the chapter “Create Optical Channel Circuits and Provisionable Patchcords” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide.
To permanently
remove a card, complete the following tasks:
Delete the circuits associated with the card being removed. Complete the “DLP-G106 Delete Optical Channel Network Connections”
task, the “DLP-G347 Delete Optical Channel Client Connections” task, or the “DLP-G418 Delete an Optical Channel Trail” task
in the chapter “Create Optical Channel Circuits and Provisionable Patchcords” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide as needed.

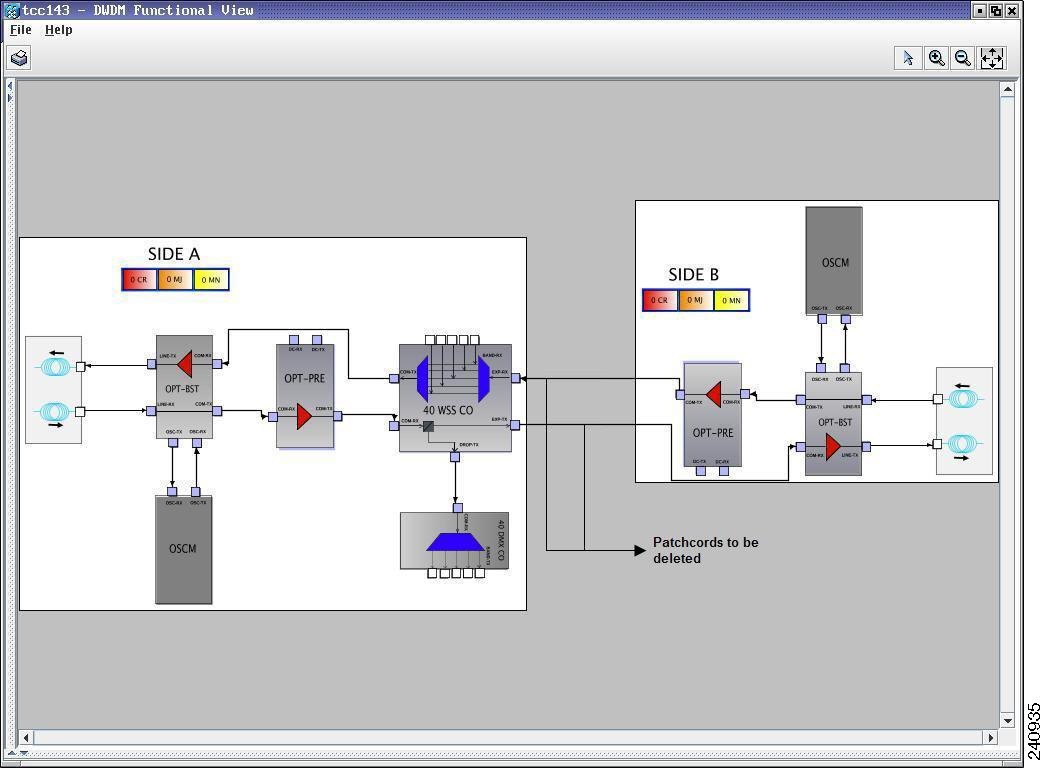

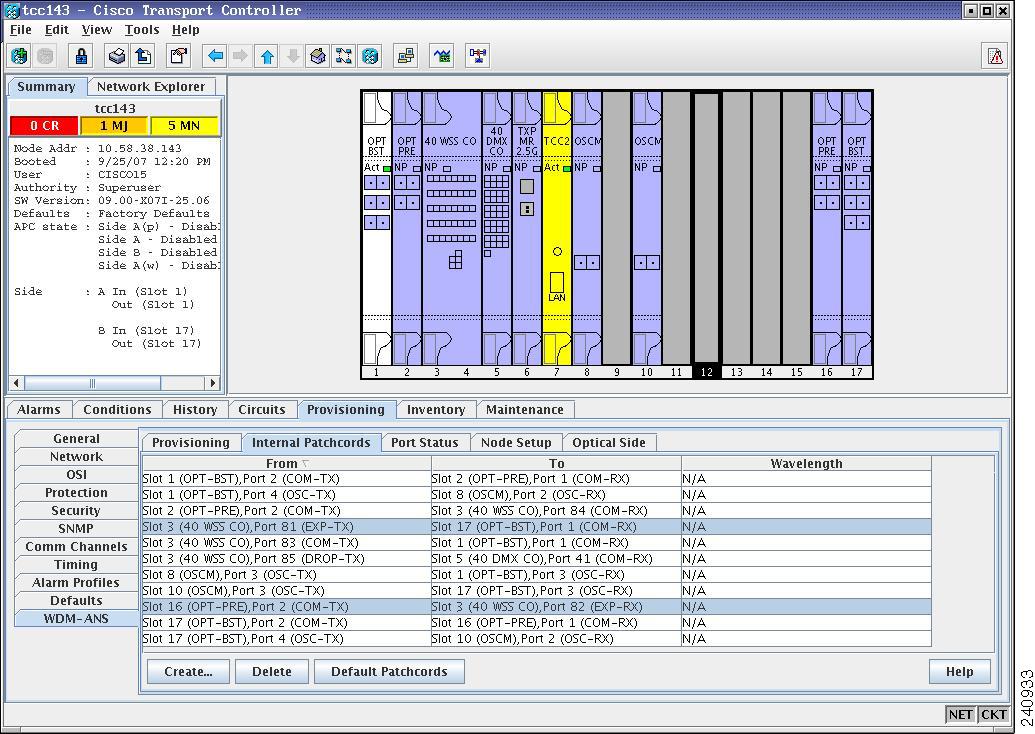

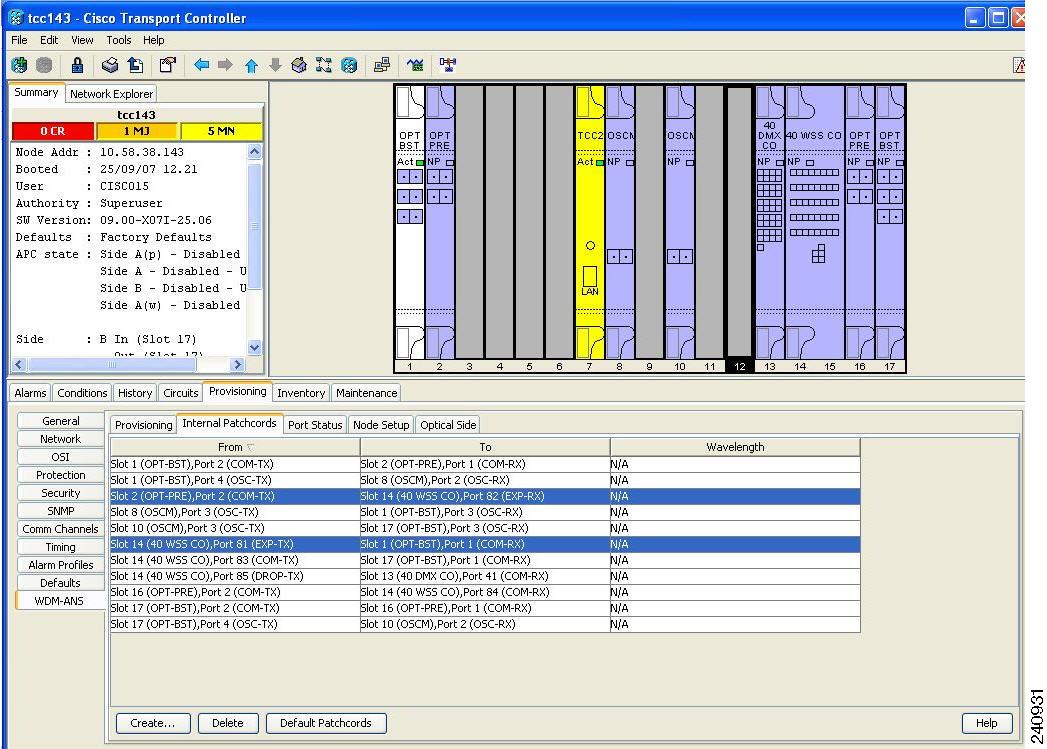

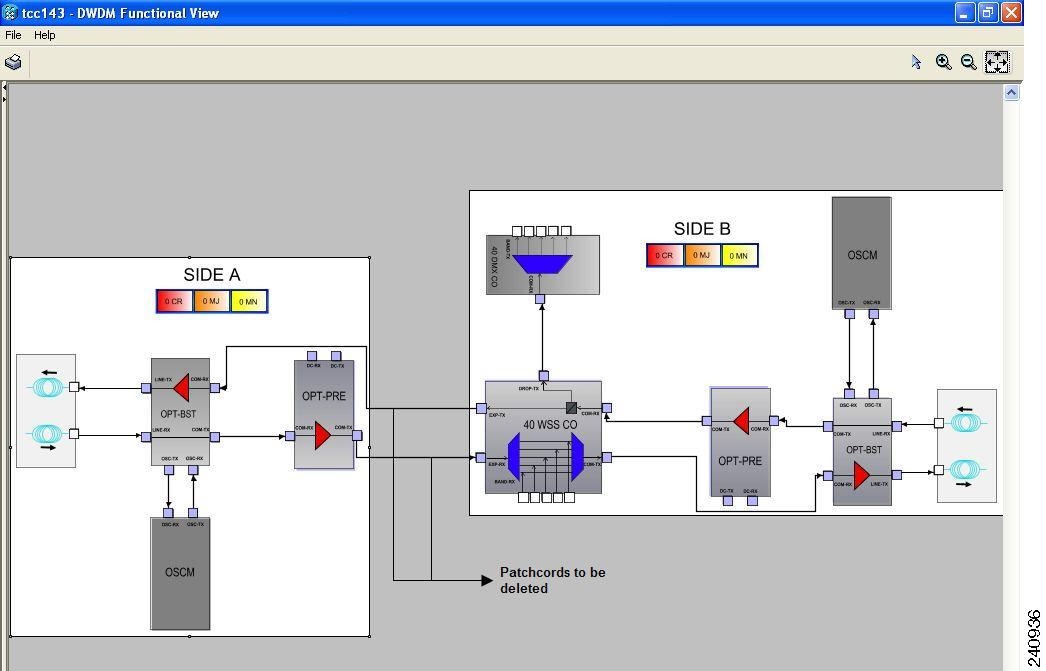

Delete the DWDM patchcords and optical side associated with the card being removed. Complete the “NTP-G209 Create, Edit, and
Delete Optical Sides” procedure in the chapter “Turn Up a Node” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide.
If there are pluggable port modules (PPMs) that terminate on the card, complete the “DLP-G280 Delete a PPM” task in the chapter
“Provision Transponder and Muxponder Cards” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide to delete these PPMs.
Physically
remove the card:
Disconnect and remove any cables, patchcords, and attenuators
attached to the card.
Open the
card latches/ejectors.
Use the
latches/ejectors to pull the card forward and away from the shelf.
Step 12
If the card you
are removing is an OSCM, OSC-CSM, DWDM Amplifier, or Filter card, complete the
following tasks; otherwise, go to
Step 13.
Reconfigure the circuits (OCHCC, OCHNC, Trails) as needed. Complete the “DLP-G280 Delete a PPM” procedure in the chapter “Provision
Transponder and Muxponder Cards”, the “DLP-G346 Provision Optical Channel Client Connections” task, or the “DLP-G395 Create
an Optical Channel Trail” task in the chapter “Create Optical Channel Circuits and Provisionable Patchcords”of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide.
Reload ANS provisioning. Complete the “NTP-G143 Import the Cisco Transport Planner NE Update Configuration File” procedure
in the chapter “Turn Up a Node”of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide.
Relaunch ANS. Complete the “NTP-G37 Run Automatic Node Setup” task in the chapter “Turn Up a Node” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide.
Step 13
Click the
Alarms tab.
Verify
that the alarm filter is not on. See the “DLP-G128 Disable Alarm Filtering”
task in the
Alarm and TCA Monitoring
and Management document as necessary.
Verify that no unexplained alarms appear on the network. If alarms appear, investigate and resolve them. Refer to the Cisco ONS 15454 DWDM Troubleshooting Guide or Cisco NCS 2002 and NCS 2006 Troubleshooting Guide for procedures.
Stop. You have completed
this procedure.
DLP-G254 Place
Amplifier Ports Out of Service
Purpose
This task
places OPT-BST, OPT-BST-E,
OPT-BST-L,
OPT-PRE,
OPT-AMP-L,
or OPT-AMP-17-C card ports out of service in preparation
for card removal.
On the shelf
graphic in CTC, double-click the OPT-BST, OPT-BST-E,
OPT-BST-L, OPT-AMP-L,
OPT-PRE, or OPT-AMP-17-C card with the ports that you want to
put out of service.
Step 2
Click the
Provisioning > Optical Line
>
Parameters tabs.
Step 3
In the Admin
State column for the card’s ports, choose
OOS,MT (ANSI) or
Locked,disabled (ETSI) for each port that does not
have an OOS-MA,DSBLD or Locked-enabled,disabled service state.
Step 4
Click
Apply.
Step 5
In the
confirmation dialog box, click
Yes.
Step 6
Click the
Provisioning >
Opt
Ampli Line >
Parameters tabs.
Step 7
In the Admin
State column for the card’s ports, choose OOS,MT or
IS,AINS (ANSI) or
Locked,maintenance or
unlocked,automaticinservice (ETSI) for each port
that does not have an OOS-MA,DSBLD or Locked,disabled service state.
Step 8
Click
Apply.
Step 9
In the
confirmation dialog box, click
Yes.
Step 10
Return to your originating procedure (NTP).
DLP-G318 Place
Amplifier Ports In Service
Purpose
This task
places OPT-BST, OPT-BST-E,
OPT-BST-L, OPT-AMP-L,
OPT-PRE, or OPT-AMP-17-C card ports in service.
On the shelf
graphic in CTC, double-click the OPT-BST, OPT-BST-E,
OPT-BST-L, OPT-AMP-L,
OPT-PRE, or OPT-AMP-17-C card with the ports that you want to
put in service.
Step 2
Click the
Provisioning >
Optical
Line >
Parameters tabs.
Step 3
In the Admin
State column for the card’s ports, choose
IS,AINS (ANSI) or Unlocked-automaticInService (ETSI) for Port 1 (COM-RX) of the
OPT-PRE card (or OPT-AMP-L or
OPT-AMP-17-C cards provisioned in OPT-PRE mode), or Port 2
(OSC-RX) and Port 3 (COM-TX) of the OPT-BST, OPT-BST-E,
or OPT-BST-L
cards (or OPT-AMP-L or
OPT-AMP-17-C cards provisioned in OPT-LINE mode).
Step 4
Click
Apply.
Step 5
In the
confirmation dialog box, click
Yes.
Step 6
Return to your originating procedure (NTP).
NTP-G129 Add a DWDM
Node
Purpose
This
procedure adds a DWDM node to an existing DWDM network.
Complete the turn up procedures in the “Turn Up a Node” chapter in the Cisco ONS 15454 DWDM Network Configuration Guid or Cisco NCS 2002 and NCS 2006 Network Configuration Guidefor the node to be added.
An
updated Cisco Transport Planner network plan recalculated with the new node.
Required/As
Needed
As needed
Onsite/Remote
Onsite
Security Level
Provisioning or higher
Caution
During this
procedure, spans will be disconnected in the network at the point where the new
node is added. This is traffic affecting for any unprotected circuits that pass
through these spans.
Procedure
Step 1
If the Cisco
Transport Planner network design has not been updated and recalculated for the
new node and client services, update and recalculate it now, using the
procedures in the
Cisco Transport Planner - DWDM Operations
Guide .
Step 2
Complete the “NTP-G51 Verify DWDM Node Turn Up” procedure in the chapter “Turn Up a Network” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide for the node to be added. If the node has not been turned up, do not continue. Complete the relevant procedures in the chapters
“Turn Up a Node” and “Perform Node Acceptance Tests” in the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide, before you begin this procedure again.
Step 3
Identify the
spans that must be disconnected to insert the new node.
Step 4
From the View
menu, choose
Go to
Network View.
Step 5
In network view,
click the
Circuits tab.
Step 6
Identify the
OCHCC, OCHNC, or OCHTRAIL circuits on the fiber spans identified in
Step 3 on both the Side B-to-Side A and
Side A-to-Side B directions.
Step 7
If the OCHCC,
OCHNC, or OCHTRAIL circuit is on the active path and is protected by a splitter
or Y-cable protection group, complete the “DLP-G179 Apply a Force Y-Cable or
Splitter Protection Switch” task in the
Manage the Node
document to divert traffic away from the span where the node will be added and
continue with
Step 9. If the circuit is unprotected, go
to
Step 8.
Step 8
(Optional) Place
the unprotected circuits in OOS,DSBLD (ANSI) or Locked,disabled (ETSI) state by
completing the following steps:
In the
network view, select the OCHNC, OCHCC, or OCHTRAIL circuit and click
Edit.
In the Edit
Circuit dialog box, click the
State tab.
In the State
field, choose the
OOS,DSBLD (ANSI) or
Locked,disabled
(ETSI) option from the drop-down list.
Click
Apply, then click
OK.
Step 9
Remove the
fibers from the cards at the adjacent nodes that will connect to the new node.
Step 10
Install the fibers from the adjacent nodes to the new node using the “NTP-G34 Install Fiber-Optic Cables on DWDM Cards and
DCUs” procedure in the chapter “Turn Up a Node” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide.
Step 11
Update the ANS
parameters for the adjacent nodes by completing the following steps:
Display an
adjacent node in the node view.
Complete the “NTP-G143 Import the Cisco Transport Planner NE Update Configuration File” procedure in the chapter “Turn Up
a Node” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide to load the new NE Update file to the node.
Complete the “NTP-G37 Run Automatic Node Setup” procedure in the chapter “Turn Up a Node”of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide to recalculate the ANS parameters of the node.
Repeat Steps
11.b and
11.c for the second adjacent node.
Step 12
Log out of CTC
and log back in.
Step 13
From the View
menu, choose the
Go to
Network View option to display the nodes. The new node must appear
on the network map. Wait for a few minutes to allow all the nodes to appear.
Step 14
Click the
Circuits tab and wait for all the circuits to
appear, including spans. Count the number of incomplete circuits.
Step 15
In the network
view, right-click the new node and choose the
Update
Circuits With New Node option from the shortcut menu. Wait for the
confirmation dialog box to appear. Verify that the number of updated circuits
that appear in the dialog box is correct.
Step 16
If the circuits
take more than a minute to appear, log out of CTC, and log back in.
Step 17
Click the
Circuits tab and verify there are no incomplete
circuits.
Step 18
Put the circuits
placed in OOS,DSBLD (ANSI) or Locked,disabled (ETSI) in
Step 8 back in service by completing the
following steps:
In the
network view, select the OCHNC, OCHCC, or OCHTRAIL circuit and click
Edit.
In the Edit
Circuit dialog box, click the
State tab.
In the
State field, choose the IS-AINS (ANSI)
or
Unlocked,automaticInService (ETSI) option from the
drop-down list.
Click
Apply, then click OK.
Step 19
Complete the
“DLP-G180 Clear a Manual or Force Y-Cable or Splitter Protection Switch” task
in the
Manage the Node
document for the circuits that were switched in
Step 7 to return the traffic to its
original paths.
Step 20
Complete the “DLP-G105 Provision Optical Channel Network Connections” task in the chapter “Create Optical Channel Circuits
and Provisionable Patchcords” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide to create new circuits.
Stop. You have completed this procedure.
NTP-G130 Remove a
DWDM Node
Purpose
This
procedure removes a node from a DWDM network.
Tools/Equipment
None
Prerequisite
Procedures
A Cisco
Transport Planner network plan recalculated for the new topology.
Required/As
Needed
As needed
Onsite/Remote
Onsite or
remote
Security Level
Provisioning or higher
Note
During this procedure, you will use TL1 commands to delete and recreate OCHNC or OCHCC cross-connects. You might need to refer
to the Cisco ONS SONET TL1 Command Guide, Cisco ONS SDH TL1 Command Guide or Cisco NCS TL1 Command Guide.
Caution
This procedure
will affect the service of unprotected circuits that pass through the span
where the node will be removed.
Procedure
Step 1
If the Cisco
Transport Planner network design has not been updated and recalculated with the
node removed, update and recalculate the design now by following the procedures
in the Cisco Transport Planner documentation.
Step 2
Complete the
"DLP-G46 Log into CTC" task in the "Connect the PC and Log into
the GUI" document at the DWDM target node that will be removed.
Step 3
Click the
Circuits tab.
Step 4
Identify all the
OCHNCs and OCHCCs that are passing through or are added and dropped at the node
that will be removed.
Step 5
Delete the OCHNCs and OCHCCs identified in Step 4 that terminate (add/drop) on the target DWDM node. See the “DLP-G347 Delete Optical Channel Client Connections” task and/or
the “DLP-G106 Delete Optical Channel Network Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide to delete OCHCCs and OCHNCs, respectively.
Step 6
For the
protected pass through circuits on the target node, perform
Step 7. Else, go to
Step 10.
Note
Non-protected
pass through circuits need not be modified or deleted.
Step 7
If the OCHNC and
OCHCC circuits pass through the target node on the active path and are
protected by a splitter or Y-cable protection group, navigate to an adjacent
node connected to the target node and complete the “DLP-G179 Apply a Force
Y-Cable or Splitter Protection Switch” task in the
Manage the Node
document to force the traffic away from the node that will be deleted.
Otherwise, continue with
Step 8.
Step 8
Complete the
following steps for the protected pass through circuits:
Select the
OCHNCs or OCHCCs and click
Edit.
In the Edit
Circuit dialog box, click the
State tab.
In the State
field, choose
OOS,DSBLD (ANSI) or
Locked,disabled
(ETSI) from the drop-down list.
Click
Apply, then click
OK.
Step 9
Complete the
following steps to delete the cross-connects on the target node for each
circuit placed in the OOS,DSBLD (ANSI) or Locked,disabled (ETSI) state in
Step 8:
From the
Tools menu, choose
Open
TL1 Connection.
In the
Select Node dialog box, select the new node and click OK.
In the TL1
dialog box, use the
DLT-OCHNC command to delete the OCHNC cross-connects
for each unprotected pass-through circuit as follows:
<SRC> is the source access identifier from the Channel section in a two-way wavelength.
<DST> is the destination access identifier from the LINEWL section in a two-way wavelength
<CKTID> is the cross-connect ID. The default is Blank or None. CKTD is a string of ASCII characters. The maximum length is
48. If CKTID is empty or null, the CKTID field will not be displayed.
<CMDMDE> is the command execution mode. NORM mode is the default behavior for all commands but you can specify FRCD to force
the system to override a state in which the command would normally be denied.
For additional information, including valid command values, refer to the Cisco ONS SONET TL1 Command Guide, Cisco ONS SDH TL1 Command Guide or Cisco NCS TL1 Command Guide.
Click
Close to close the TL1 dialog box.
Step 10
Remove the
fibers from the target node, and reconnect the fibers to the adjacent nodes.
Note that once the fibers are rerouted, the non-protected pass through circuits
will go to OOS-PARTIAL (ANSI) or Locked-partial (ETSI) state.
Step 11
Complete the
following steps to update the ANS parameters at the adjacent nodes:
Display an
adjacent node in node view.
Complete the “NTP-G143 Import the Cisco Transport Planner NE Update Configuration File” procedure in the chapter “Turn Up
a Node” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide to load the new NE Update file onto the node.
Complete the “NTP-G37 Run Automatic Node Setup” task in the chapter “Turn Up a Node” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide to recalculate the ANS parameters at the node.
Display the
next adjacent node in node view.
Repeat Steps
11.b and
11.c for the second adjacent node.
Step 12
Repeat
Step 8 to change the circuits placed in
OOS,DSBLD (ANSI) or Locked,disabled (ETSI) back in service by changing the
Target Circuit Admin State field to IS-AINS (ANSI) or
Unlocked,AutomaticInService (ETSI).
Step 13
Complete the
“DLP-G180 Clear a Manual or Force Y-Cable or Splitter Protection Switch” task
in the
Manage the Node
document for the OCHNCs and/or OCHCCs that were switched in
Step 7.
Step 14
To discover the
non-protected pass though circuits that are in the OOS-PARTIAL (ANSI) or
Locked-partial (ETSI) state after completing
Step 10, select the circuit and choose
Tools >
Circuits >
Reconfigure Circuits from the menu bar. The
Reconfigure Circuits dialog box is displayed; click
Yes.
Stop. You have completed
this procedure.
NTP-G261 Modify ANS
Parameters in a Node when Ports are in IS State
Purpose
This task
modifies ANS parameters when ports are in IS state.
Provisioning the
ANS parameters incorrectly may impact traffic. Therefore, this procedure must
be performed by Cisco qualified personnel only.
Procedure
Step 1
Complete the “NTP-G143 Import the Cisco Transport Planner NE Update Configuration File” task in the chapter “Turn Up a Node”
of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to re-import the updated configuration file. If the updated configuration file is not available, complete the “DLP-G681 Modify
an ANS Parameter” task in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to manually edit the ANS parameters.
Step 2
Complete the “NTP-G37 Run Automatic Node Setup” task in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Step 3
Verify if the
modified ANS parameters were applied. Perform the following steps:
In node view
(single-shelf mode) or multishelf view (multishelf mode), click the
Provisioning >
WDM-ANS >
Provisioning tabs.
Verify if
the Result column displays the value Success – Changed. This indicates that the
ANS parameter has been successfully changed with the ports in IS.
Verify if
the Set By column displays either of the following values:
ANS—This
indicates that the new value for the ANS parameters is applied immediately.
APC—This
indicates that the new value for the ANS parameters is increased or decreased
by 0.5 dB until the new power setpoint is reached.
Stop. You have completed this
procedure.
NTP-G146 Add a Rack,
Passive Shelf, Passive Unit, or Shelf to a Multishelf Node
Purpose
This
procedure adds a rack, passive shelf, passive unit, or subtending shelf to a
multishelf node.
NTP-L15 Connecting the NCS
2006 Multishelf Node and the NCS 2006 Subtending Shelves
NTP-G318 Connecting the NCS
2006 Multishelf Node and the NCS 2006 Subtending Shelves in a Ring Topology
Required/As
Needed
As needed
Onsite/Remote
Onsite
Security Level
Provisioning or higher
Note
Each shelf you
want to add to a multishelf configuration must have network connectivity. For
more information, see the "Connect the PC and Log into
the GUI" document.
Procedure
Step 1
Complete the
"DLP-G46 Log into CTC" task in the "Connect the PC and Log into
the GUI" document at the multishelf DWDM node where you want to add a
shelf.

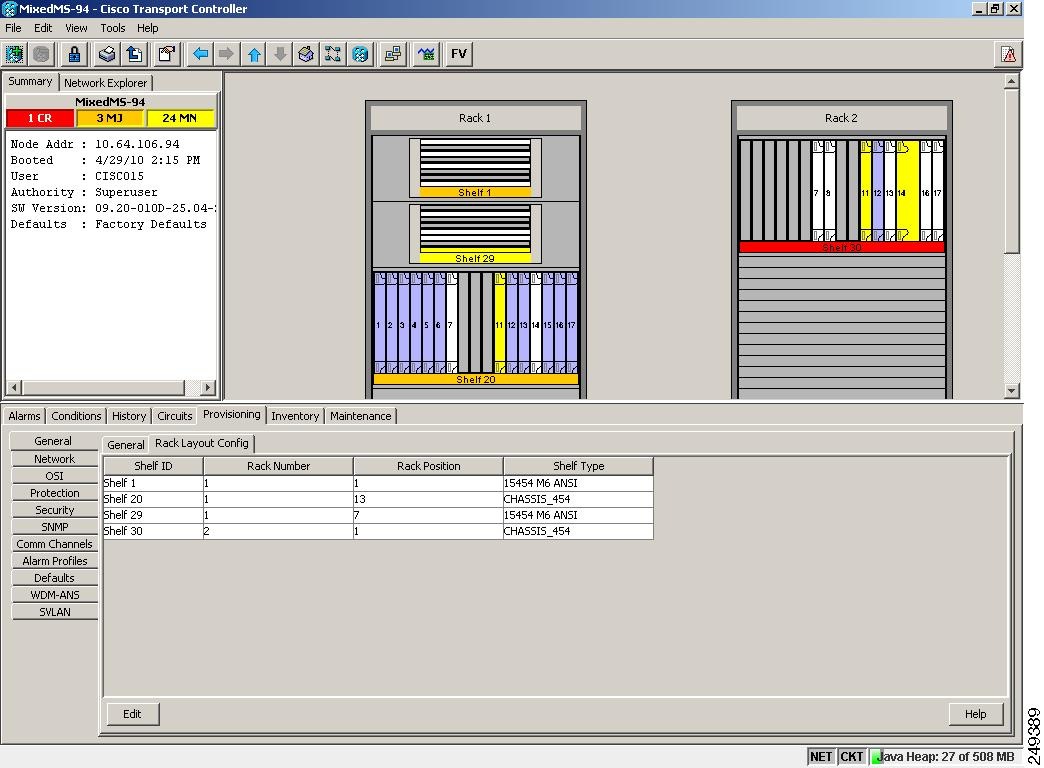

Step 2
To add a rack,
in the multishelf view, right-click the gray area and choose
Add
Rack. If you do not need to add a rack, continue with
Step 3.
Step 3
To add a passive
unit, in the multishelf view, right-click the gray space inside the rack and
choose the passive unit from the
Add
Shelf >
PASSIVE
CHASSIS options. The passive unit is added to the rack.
Note
This step
does not apply to passive units that are to be installed within the passive
shelf.
Note
To add a
passive DCU, you need to choose a slot number from the Slot Number Selection
dialog box and click
OK.
Step 4
To add a
MF-6RU unit, in the multishelf view right-click the gray space inside the rack
and choose
Add
Shelf >
PASSIVE SHELF MF. The Shelf ID Section dialog is
displayed.
Step 5
Choose a shelf
ID and click
OK. The MF-6RU unit is added to the rack.
Step 6
To add a
MF10-6RU unit, in the multishelf view right-click the gray space inside the
rack and choose
Add
Shelf >
PASSIVE SHELF MF10.The Shelf ID Section dialog is
displayed.
Step 7
Choose a shelf
ID and click
OK. The MF10-6RU unit is added to the rack.
Step 8
To add a
passive unit to the MF-6RU or MF10-6RU shelf, double-click the shelf to open
shelf mode or right-click the passive shelf and choose Open Shelf.
Step 9
Right-click a
slot inside the passive shelf and choose
Add
Card
>
WDM >
PASSIVE >
passive
unit
The
MF-2MPO-ADP, MF-4X4-COFS, MF-DEG-5, MF-MPO-8LC, MF-6AD-CFS, and MF-UPG-4
passive units can be provisioned in the MF-6RU passive shelf.
The
MF-10AD-CFS, MF-16AD-CFS, MF-16AE-CFS, MF-MPO-16LC, MF-8X10G-FO, and
MF-MPO-20LC passive units can be provisioned in the MF10-6RU passive shelf.
Step 10
To add a shelf for ONS 15454, in the multishelf view right-click the gray space inside the rack and choose Add Shelf > CHASSIS_454SDH(ETSI) or CHASSIS_454(ANSI) or 15454 M6 ANSI or 15454 M6 ETSI. and To add a shelf for NCS 2006 in the multishelf view right-click the gray space inside the rack and choose Add Shelf > NCS 2006.
Step 11
In the Shelf ID
Selection dialog box, choose a shelf ID from the drop-down list.
Step 12
Click
OK. The shelf appears in the multishelf view.
Step 13
Complete the
"DLP-G46 Log into CTC" task in the "Connect the PC and Log into
the GUI" document at the new shelf that has to be configured as a
subtending shelf.
Step 14
In multishelf
view, click the
Provisioning >
General >
Multishelf Config tabs.
Step 15
Click
Enable
as Subtended Shelf.
Step 16
From the Shelf
ID drop-down list, choose the shelf ID that you created in
Step 11.
Step 17
Click
Apply.
Step 18
In the
confirmation dialog box, click
Yes to reboot the shelf. The CTC view changes to
network view and the node icon changes to gray. (This might take several
minutes.)
Step 19
If you are
connecting the new ONS 15454 subtending shelf to the Ethernet Adapter Panel
(EAP), complete the following steps. If not, continue with
Step 22.
Using a
cross-over (CAT 5) LAN cable, plug one connector into the RJ-45 front panel
port of the subtending shelf TCC2/TCC2P/TCC3 card in Slot 7 and plug the other
end into the SSC port on the left patch panel.
Using a
cross-over (CAT 5) LAN cable, plug one connector into the RJ-45 front panel
port of the subtending shelf TCC2/TCC2P/TCC3 card in Slot 11 and plug the other
end into the SSC port on the right patch panel.
Step 20
If you are
connecting the ONS 15454 subtending shelf to the Catalyst 2950 or the Catalyst
3560 switch, complete the following steps. If not, continue with
Step 22.
Plug one end
of a cross-over (CAT-5) LAN cable into the RJ-45 front panel port of the
subtending shelf TCC2/TCC2P/TCC3 card in Slot 7 and plug the other end into
Port 2 of the active Catalyst 2950 or Catalyst 3560.
Plug one end
of a cross-over (CAT-5) LAN cable into the RJ-45 front panel port of the
subtending shelf TCC2/TCC2P/TCC3 card in Slot 11 and plug the other end into
Port 2 of the standby Catalyst 2950 or Catalyst 3560.
Step 21
To connect an ONS 15454 M6 or NCS 2006 subtending shelf to the Catalyst 3560 switches, complete the following:
Using a cross-over (CAT-5) LAN cable, plug one connector into the MSM port that corresponds to the TNC/TNCE/TSC/TSCE card
in Slot 1 of the subtending ONS 15454 M6 NCS 2006 shelf and plug the other end into Port 2 of the active Catalyst 3560.
Using a cross-over (CAT-5) LAN cable, plug one connector into the MSM port that corresponds to the TNC/TNCE/TSC/TSCE card
in Slot 8 and plug the other end into Port 2 of the standby Catalyst 3560.
Repeat Steps 21.a and 21.b for each subtending shelf in the multishelf configuration using Ports 3 through 21 on the Catalyst 3560 switches.
Note
In order to connect the ONS 15454 M6 or NCS 2006 subtending shelves to the ONS 15454 M6 or NCS 2006 node controller without using a catalyst, follow the steps described in “NTP-G308 Connect the ONS 15454 M6NCS 2006 Multishelf Node and the ONS 15454 M6 Subtending Shelves” in the Cisco ONS 15454 Hardware Installation Guide or NTP-L15 Connecting the NCS 2006 Multishelf Node and the NCS 2006 Subtending Shelves in the Cisco NCS 2002 and NCS 2006 Hardware Installation Guide. To connect an ONS 15454 subtending shelf to the ONS 15454 M6 node controller without using a catalyst switch, connect the
MSM ports that correspond to the TNC/TNCE/TSC/TSCE cards in Slot 1 and Slot 8 of the ONS 15454 M6 node controller to the ONS
15454 subtending shelf TCC2/TCC2P/TCC3 cards in Slot 7 and Slot 11.
Step 22
Repeat
Step 10
through
Step 22
for each subtending shelf in the multishelf configuration.
Stop. You have completed
this procedure.
NTP-G147 Delete a
Passive Unit, Passive Shelf, Shelf, or Rack from a Multishelf Node
Purpose
This
procedure deletes a passive unit, passive shelf, shelf, or rack from a
multishelf node.
NTP-L15 Connecting the NCS
2006 Multishelf Node and the NCS 2006 Subtending Shelves
NTP-G318 Connecting the NCS
2006 Multishelf Node and the NCS 2006 Subtending Shelves in a Ring Topology
Required/As
Needed
As needed
Onsite/Remote
Onsite or
remote
Security Level
Provisioning or higher
Note
You cannot delete
a node controller shelf from a multishelf node configuration.
Procedure
Step 1
Complete
the"DLP-G46 Log into CTC" task in the "Connect the PC and Log into
the GUI" document at the multishelf DWDM node where you want to delete a
passive unit, shelf, or rack. If you want to delete a passive unit, continue
with
Step 2.
If you want to delete a shelf, continue with
Step 6.
If you want to delete only a rack, go to
Step 13.
Step 2
Complete the
following tasks, as needed:
If passive units on the shelf carry unprotected circuits, you must delete the circuits. Complete the “DLP-G106 Delete Optical
Channel Network Connections” task and the “DLP-G347 Delete Optical Channel Client Connections” task in the chapter “Create
Optical Channel Circuits and Provisionable Patchcords”of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide.
If passive units use internal patchcords, complete the “DLP-G355 Delete an Internal Patchcord” task in the chapter “Turn Up
a Node” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide.
Step 3
From the View
menu, choose
Go to
Parent View to return to multishelf view.
Step 4
Right-click the
passive unit you want to delete and choose Delete Unit.
The shelf is automatically deleted.
Step 5
Right-click
the passive shelf that you want to delete and choose Delete Shelf.
The shelf is automatically deleted.
Note
You must
first delete the passive units from the passive shelf before deleting the
shelf.
Step 6
Complete the
following tasks, as needed:
If cards on the shelf carry unprotected circuits, you must delete the circuits. Complete the “DLP-G106 Delete Optical Channel
Network Connections” task and the “DLP-G347 Delete Optical Channel Client Connections” task in the chapter “Create Optical
Channel Circuits and Provisionable Patchcords” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide.
If cards use internal patchcords, complete the “DLP-G355 Delete an Internal Patchcord” task in the chapter “Turn Up a Node”
of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide.
If OSCM or
OSC-CSM cards with OSC or GCC terminations are on the shelf, complete the
“NTP-G85 Modify or Delete OSC Terminations, GCC Terminations, and Provisionable
Patchcords” task in the
Manage the Node
document to delete the terminations.
Put all ports in the Out-of-Service and Management, Disabled (OOS-MA,DSBLD) (ANSI) or Locked-enabled,disabled (ETSI) service
state. For more information, see the chapter “Change DWDM Card Settings” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide.
Note
It is not
necessary to delete the cards from the shelf before deleting a shelf.
If the shelf receives the timing signals from any client or trunk port, complete the “DLP-G95 Set Up External or Line Timing”
task in the chapter “Turn Up a Network” of the Cisco ONS 15454 DWDM Network Configuration Guide or Cisco NCS 2002 and NCS 2006 Network Configuration Guide, to receive timing signals from an external source.
Step 7
From the View
menu, choose
Go to
Parent View to return to multishelf view.
Step 8
Right-click the
subtending shelf you want to delete and choose
Delete
Shelf.
Step 9
In the
confirmation dialog box, click
Yes.
Step 10
To return the
deleted shelf to a single-shelf node, you must use the LCD panel:
Repeatedly
press the
Status button until Shelf Status appears.
Repeatedly
press the
Port button until Controller Status=MS Config
appears.
Press
Status again and press
Port to set multishelf mode to MS=N.
Press
Status again and press
Port until ID is set to ID=1.
Press
Status again and press
Port to set VLAN=N.
Press
Status to choose
Done.
Repeatedly
press
Status until “Save and Reboot?” appears, and then
press
Slot to choose Apply. This reboots the shelf. A
“Saving changes; TCC may reboot” message appears on the LCD.
Step 11
After the
control cards reboot is complete, complete the following steps to disconnect
the removed subtending shelf from the patch panel or Catalyst 2950 or Catalyst
3560:
Remove the cross-over (CAT 5) LAN cable from the RJ-45 front panel port of the TCC2/TCC2P/TCC3 card in Slot 7 of the ONS 15454 or from the MSM port that corresponds to TNC/TNCE/TSC/TSCE card in Slot 1 of the ONS 15454 M6 or NCS 2006.
Remove the cross-over (CAT 5) LAN cable from the RJ-45 front panel port of the TCC2/TCC2P/TCC3 card in Slot 11 of the ONS 15454 or from the MSM port that corresponds to TNC/TNCE/TSC/TSCE card in Slot 8 of the ONS 15454 M6 or NCS 2006.
Step 12
Reconnect the shelf to the LAN through either the backplane or one of the RJ-45 front panel ports of the TCC2/TCC2P/TCC3 cards of the ONS 15454, or the EMS port or one of the RJ-45 front panel ports of the TNC/TNCE/TSC/TSCE cards of the ONS 15454 M6 or NCS 2006. For more information, see the Connect the PC and Log into the GUI document.
Step 13
To delete an
empty rack from the CTC window, right-click the gray area on the rack graphic
and choose
Delete
Rack.
Stop. You have completed this
procedure.
NTP-G173 Convert an
OADM Node to a ROADM Node
Purpose
This
procedure converts an OADM node to a ROADM node.
Tools/Equipment
None
Prerequisite
Procedures
Turn Up a Network” chapter in the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
A
Cisco Transport Planner site plan recalculated for the new ROADM node.
Required/As
Needed
As needed
Onsite/Remote
Onsite
Security Level
Provisioning or higher
Note
Do not begin this
procedure until the Cisco Transport Planner site plan has been recalculated
with the new ROADM node. You will import the new NE Update file and run ANS to
recalculate the ANS parameters. In addition, you will run ANS at the two
adjacent nodes to recalculate the ANS parameters at those nodes.
Note
During this procedure, you will use TL1 commands to delete and recreate OCHNC or OCHCC cross-connects. You might need to refer
to the Cisco ONS SONET TL1 Command Guide, Cisco ONS SDH TL1 Command Guide or Cisco NCS TL1 Command Guide.
Caution
This procedure
will affect the service of unprotected circuits that pass through the OADM
node.
In node view
(single-shelf mode) or multishelf view (multishelf mode), display the OADM node
that you will convert to a ROADM node.
Step 3
Click the
Circuits tab.
Step 4
Make a list of
the following OCHNCs and/or optical channel client connections (OCHCCs) that:
Terminate
(add/drop) at the node.
Pass through
the node on the express path for both the Side B-to-Side A and Side A-to-Side B
directions.
Step 5
If OCHNCs and/or
OCHCCs identified in are routed on the active path of a splitter or Y-cable
protection group, complete the following steps. If not, continue with
Step 6.
Display the
node containing the TXP, MXP, ADM-10G, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or
ITU-T line card with the Y-cable or splitter protection.
Force the
traffic to the protect path in the opposite side of the ring using the
“DLP-G179 Apply a Force Y-Cable or Splitter Protection Switch” task in the
Manage the Node
document.
Step 6
In node view,
display the node that will be converted.
Step 7
Complete the “DLP-G347 Delete Optical Channel Client Connections” task and/or the “DLP-G106 Delete Optical Channel Network
Connections” task in the chapter “Create Optical Channel Circuits and Provisionable Patchcords” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to delete OCHCCs and/or OCHNCs identified inStep 4 that:
Terminate (add/drop) at the node.
Pass through the node on an unprotected express path for both the Side B-to-Side A and Side A-to-Side B directions.
Step 8
From the Tools
menu, choose
Open TL1
Connection.
Step 9
In the Select
Node dialog box, choose the OADM node and click
OK.
Step 10
In the TL1
dialog box, use the
DLT-OCHNC command to delete the OCHNC cross-connects
for the express path OCHNCs listed in
Step 4, using the following format:
<SRC> is the source access identifier from the Channel section in a two-way wavelength.
<DST> is the destination access identifier from the LINEWL section in a two-way wavelength.
<CKTID> is the cross-connect ID. The default is Blank or None. CKTD is a string of ASCII characters. The maximum length is
48. If CKTID is empty or null, the CKTID field will not be displayed.
<CMDMDE> is the command execution mode. NORM mode is the default behavior for all commands but you can specify FRCD to force
the system to override a state in which the command would normally be denied.
For additional information, including valid command values, refer to the Cisco ONS SONET TL1 Command Guide, Cisco ONS SDH TL1 Command Guide, or Cisco NCS TL1 Command Guide.
Step 11
In the TL1
dialog box, use the
DLT-OCHCC command to delete the OCHCC cross-connects
for the express path OCHCCs listed in
Step 4, using the following format:
<AID> is the access identifier from the Facility section.
<CKTID> is the cross-connect ID. The default is Blank or None. CKTD is a string of ASCII characters. The maximum length is
48. If CKTID is empty or null, the CKTID field will not be displayed.
<CMDMDE> is the command execution mode. NORM mode is the default behavior for all commands but you can specify FRCD to force
the system to override a state in which the command would normally be denied.
For additional information, including valid command values, refer to the Cisco ONS SONET TL1 Command Guide, Cisco ONS SDH TL1 Command Guide,or Cisco NCS TL1 Command Guide.
Step 12
Click
Close to close the TL1 dialog box.
Step 13
Delete the
internal patchcords:
In node view
(single-shelf mode) or multishelf view (multishelf mode), click the
Provisioning >
WDM-ANS > Internal
Patchcords tabs.
Highlight
all of the internal patchcords.
Click
Delete.
Click
Yes on the confirmation dialog box.
Step 14
Delete the OSC
terminations:
Click the
Provisioning >
Comm Channels >
OSC tabs.
Highlight
all of the OSC terminations.
Click
Delete.
Click
Yes on the confirmation dialog box.
Step 15
Remove any
amplifier cards (OPT-BST, OPT-PRE) that are installed but not required in the
ROADM node.
Step 16
Install the new ROADM cards in the slots identified by your Cisco Transport Planner site plan using the “NTP-G30 Install the
DWDM Cards” task in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Step 17
Complete the “NTP-G34 Install Fiber-Optic Cables on DWDM Cards and DCUs” procedure in the chapter “Turn Up a Node” of the
Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide for the ROADM node, following the new internal connections table generated by Cisco Transport Planner.
Step 18
Complete the “NTP-G152 Create and Verify Internal Patchcords” procedure in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to recreate the internal patchcords deleted in Step 13.
Step 19
Complete the NTP-G38 Provision OSC Terminations” procedure in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to recreate the OSC terminations deleted in Step 14.
Step 20
Import the recalculated ROADM site parameters using the “NTP-G143 Import the Cisco Transport Planner NE Update Configuration
File” procedure in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Step 21
Complete the “NTP-G37 Run Automatic Node Setup” task in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Step 22
Update the ANS
parameters at the adjacent nodes:
Display an
adjacent node in node view.
Complete the “NTP-G143 Import the Cisco Transport Planner NE Update Configuration File” procedure in the chapter “Turn Up
a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to load the new NE Update file onto the node.
Complete the “NTP-G37 Run Automatic Node Setup” task in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to recalculate the ANS parameters at the node.
Display
the next adjacent node in node view.
Repeat
22.b and
22.c for the second adjacent node.
Step 23
Display the
new ROADM node in node view.
Step 24
Recreate the
OCHNCs and/or OCHCCs deleted in
Step 7 using the following tasks:
“DLP-G346 Provision Optical Channel Client Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
“DLP-G105 Provision Optical Channel Network Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Step 25
Complete the
“DLP-G180 Clear a Manual or Force Y-Cable or Splitter Protection Switch” task
in the
Manage the Node
document for OCHNCs and/or OCHCCs that were switched to the opposite side of
the ring as part of a splitter or Y-cable protection group to return the
traffic to its condition before the card was added.
Stop. You have completed
this procedure.
NTP-G176 Convert an
Line Amplifier Node to an OADM Node
Purpose
This
procedure converts a full line amplifier node with OPT-PRE and OPT-BST cards
installed on each side of the shelf to an OADM node.
Tools/Equipment
Cisco
Transport Planner reports and NE Update file for the new OADM node.
Prerequisite
Procedures
Turn Up a Network” chapter in the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
A
Cisco Transport Planner site plan recalculated for the new ROADM node
Required/As
Needed
As needed
Onsite/Remote
Onsite
Security Level
Provisioning or higher
Procedure
Step 1
Complete the “NTP-G139 Verify Cisco Transport Planner Reports and Files” task in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to verify that you have the files and reports prepared by Cisco Transport Planner for the OADM node.
Make a list of
the OCHNCs, OCH trails, and OCHCCs that pass through the node on the express
path for both the Side B-to-Side A and Side A-to-Side B directions.
Caution
You will
delete the optical channel circuits in the next step and use the list to
recreate the circuits later. Do not proceed until you complete the circuit
list.
Step 5
Delete the
circuits identified in
Step 4 using one or more of the following
tasks:
“DLP-G347 Delete Optical Channel Client Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
“DLP-G418 Delete an Optical Channel Trail” task in the chapter “Create Optical Channel Circuits and Provisionable Patchcords”
of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
“DLP-G106 Delete Optical Channel Network Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
Step 6
Click the
Provisioning >
WDM-ANS >
Internal
Patchcords tabs.
Step 7
In the internal
patchcords table, click the OPT-PRE COM-TX to OPT-BST COM-RX internal
patchcord.
Step 8
Click
Delete.
Step 9
On the
confirmation dialog, click
OK.
Step 10
Remove the
physical fiber and attenuators, if present, that connect the COM-TX to COM-RX
ports and COM-RX to COM-TX ports between the OPT-BST and OPT-PRE cards
installed in Side B.
Step 11
Click
Default
Patchcords.
Step 12
Complete the “NTP-G143 Import the Cisco Transport Planner NE Update Configuration File” procedure in the chapter “Turn Up
a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Step 13
Complete the “NTP-G37 Run Automatic Node Setup” task in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Step 14
In node view,
click the
Circuits tab.
Step 15
Complete one or
more of the following procedures to recreate circuits identified in
Step 4 that will pass through the OADM
node:
“DLP-G346 Provision Optical Channel Client Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
“DLP-G105 Provision Optical Channel Network Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords”of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
“DLP-G395 Create an Optical Channel Trail” task in the chapter “Create Optical Channel Circuits and Provisionable Patchcords”
of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
Note
Cisco
recommends that you recreate the circuits one at a time.
Step 16
Verify that each
circuit appears on the Circuits table with a DISCOVERED status and an
IS/Unlocked state. If not, complete
Step 14 and
Step 15.
If the circuits
still do not appear with a DISCOVERED status and IS/Unlocked state, contact
your next level of support.
Step 17
Referring to the
Cisco Transport Planner Traffic Matrix report, repeat
Step 15 and
Step 16 to create the new add/drop
circuits at the node, as needed.
Stop. You have completed this
procedure.
NTP-G182 Convert a
Line Amplifier Node to a ROADM Node
Purpose
This
procedure converts a line amplifier node with OPT-PRE and OPT-BST cards
installed on each side of the shelf to an ROADM node.
Tools/Equipment
Cisco
Transport Planner reports and NE Update file for the new ROADM node.
Prerequisite
Procedures
“Turn Up a Network” chapter in the Cisco NCS 2002 and NCS 2006 Network Configuration Guide orCisco ONS 15454 DWDM Network Configuration Guide
A
Cisco Transport Planner site plan recalculated for the new ROADM node.
Required/As
Needed
As needed
Onsite/Remote
Onsite
Security Level
Provisioning or higher
Caution
This procedure
will affect the service of unprotected circuits that pass through the ROADM
node.
Caution
This procedure
applies to line amplifier nodes with OPT-BST and OPT-PRE cards installed on
both sides of the shelf. If the line amplifier node has a different
configuration, the upgrade might affect the adjacent nodes and require an
update of their ANS parameters. If the line amplifier node is not a full line
amplifier, contact your next level of support.
Procedure
Step 1
Complete the “NTP-G139 Verify Cisco Transport Planner Reports and Files” task in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to verify that you have the files and reports prepared by Cisco Transport Planner for the ROADM node.
Make a list of
the following OCHNCs, OCH trails, and OCHCCs that pass through the node on the
express path for both the Side B-to-Side A and Side A-to-Side B directions.
Caution
You will
delete the optical channel circuits in the next step and use the list to
recreate the circuits later. Do not proceed until you complete the circuit
list.
Step 5
Delete the
circuits identified in
Step 4 using one or more of the following
tasks:
“DLP-G347 Delete Optical Channel Client Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
“DLP-G418 Delete an Optical Channel Trail” task in the chapter “Create Optical Channel Circuits and Provisionable Patchcords”
of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
“DLP-G106 Delete Optical Channel Network Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
Step 6
Click the
Provisioning >
WDM-ANS > Internal
Patchcords tabs.
Step 7
In the internal
patchcords table, click the OPT-PRE COM-TX to OPT-BST COM-RX internal
patchcord.
Step 8
Click
Delete.
Step 9
In the
confirmation dialog box, click
OK.
Step 10
Remove the
physical fiber and attenuators, if present, that connect the COM-TX to COM-RX
ports and COM-RX to COM-TX ports between the OPT-BST and OPT-PRE cards
installed in Side B.
Step 11
Referring to the
Cisco Transport Planner Shelf Layout report, install one of the following sets
of cards on both Side B and Side A of the node as described by the Cisco
Transport Planner NE Update file:
32WSS and
32DMX cards
32WSS-L and
32DMX-L cards
40-WSS-C/40-WSS-CE and 40-DMX-C/40-DMX-CE cards
Step 12
Referring to the
Cisco Transport Planner Internal Connections report, connect the fibers to the
new wavelength selective switch and demultiplexer cards.
Step 13
Complete the “NTP-G143 Import the Cisco Transport Planner NE Update Configuration File” procedure in the chapter “Turn Up
a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
Step 14
Verify that the new internal patchcords are created for the physical cables connected to the new wavelength selective switch
and demultiplexer cards in Step 12. If not, complete the “NTP-G242 Create an Internal Patchcord Manually” task in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to manually create the internal patchcords.
Step 15
Complete the “NTP-G143 Import the Cisco Transport Planner NE Update Configuration File” procedure in the chapter “Turn Up
a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Step 16
Complete the “NTP-G37 Run Automatic Node Setup” task in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Step 17
In node view,
click the
Circuits tab.
Step 18
Complete one or
more of the following procedures to recreate circuits identified in
Step 4 that will pass through the ROADM
node:
DLP-G105 Provision Optical Channel Network Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords”of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
“DLP-G346 Provision Optical Channel Client Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
“DLP-G395 Create an Optical Channel Trail” task in the chapter “Create Optical Channel Circuits and Provisionable Patchcords”
of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide
or Cisco ONS 15454 DWDM Network Configuration Guide
Note
Cisco
recommends that you recreate the circuits one at a time.
Step 19
Verify that each
circuit appears on the Circuits table with a DISCOVERED status and an
IS/Unlocked state. If not, repeat
Step 17 and
Step 18.
If the circuits
still do not appear with a DISCOVERED status and IS/Unlocked state, contact
your next level of support.
Step 20
Referring to the
Cisco Transport Planner Traffic Matrix report, repeat
Step 17 and
Step 18 to create the new add/drop
circuits at the node, as needed.
Stop. You have completed this
procedure.
NTP-G195 Convert a
Protected ROADM Node from two Separate Nodes to a Single Multishelf
Node
Purpose
This
procedure converts a protected ROADM node from two separate nodes to a single
multishelf node.
Tools/Equipment
None
Prerequisite
Procedures
“Turn Up a Network” chapter in the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
A
Cisco Transport Planner site plan recalculated for the new node.
Required/As
Needed
As needed
Onsite/Remote
Onsite or
remote
Security Level
Provisioning or higher
Caution
This procedure
will affect the service of unprotected circuits that pass through the ROADM
node.
Caution
This procedure
applies to two ROADM nodes, where ROADM Node 1 has amplifier cards (such as,
OPT-BST and OPT-PRE) or optical service channel cards (OSCM or OSC-CSM)
installed on both the sides of the shelf and 40-WSS-C/40-DMX-C card (or the
32WSS/32DMX
and 32WSS-L/32DMX-L
cards) installed in Side A (Slots 1 through 6) and the ROADM
Node 2 has amplifier cards (such as, OPT-BST and OPT-PRE) or optical service
channel cards (OSCM or OSC-CSM) installed on both the sides of the shelf and
40-WSS-C/40-DMX-C card (or the 32WSS/32DMX
and 32WSS-L/32DMX-L
cards) installed in Side B (Slots 12 through 17).
Note
In this procedure,
ROADM Node 1 will be used as node controller and ROADM Node 2 will be added to
the multishelf configuration as a subtending shelf.
Procedure
Step 1
Complete the “NTP-G139 Verify Cisco Transport Planner Reports and Files” task in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to verify that you have the files and reports prepared by Cisco Transport Planner for the ROADM nodes.
Step 2
Complete the
"DLP-G46 Log into CTC" task in the "Connect the PC and Log into
the GUI" document at ROADM Node 1. The following figure shows the shelf
view of ROADM Node 1.
Figure 1. ROADM Node
1 Shelf View
The following
figure shows the functional view of ROADM Node 1.
Figure 2. ROADM Node
1 Functional View
Step 3
Click the
Circuits tab.
Step 4
Make a list of
all the OCHNCs, OCH trails, and OCHCCs that pass through or terminate
(add/drop) at the amplifier or optical service channel cards installed in Side
B of ROADM Node 1.
Caution
You will
delete only the pass-through circuits in the next step and use the list to
recreate the circuits later. Do not proceed until you complete the circuit
list. The add/drop circuits will not be deleted and continues to transport
traffic.
Step 5
If OCHNCs and/or
OCHCCs identified in
Step 4 are routed on the active path of a
splitter or Y-cable protection group, complete the following steps. If not,
continue with
Step 6.
Display the
node containing the amplifier or optical service channel cards with the Y-cable
or splitter protection.
Force the
traffic to the protect path in the opposite side of the ring using the
“DLP-G179 Apply a Force Y-Cable or Splitter Protection Switch” task in the
Manage the Node
document.
Step 6
Delete the
circuits identified in
Step 4 using one or more of the following
tasks:
“DLP-G347 Delete Optical Channel Client Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords”of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
“DLP-G418 Delete an Optical Channel Trail” task in the chapter “Create Optical Channel Circuits and Provisionable Patchcords”
of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
“DLP-G106 Delete Optical Channel Network Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords”of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
Step 7
Click the
Provisioning >
WDM-ANS >
Optical
Side tab.
Step 8
In the optical
sides table, click the optical side corresponding to the amplifier or optical
service channel cards installed in Side B of ROADM Node 1.
Step 9
Click
Delete.
Step 10
In the
confirmation dialog box, click
Yes.
Step 11
Click the
Provisioning >
WDM-ANS >
Internal
Patchcords tab.
Step 12
Look in the To
column of the internal patchcords table and make a list of internal patchcords
that connect the amplifier or optical service channel cards in Side B to the
40-WSS-C/40-DMX-C card (or the 32WSS/32DMX
and 32WSS-L/32DMX-L
cards) in Side A of ROADM Node 1.
Step 13
Click
Delete.
Step 14
In the
confirmation dialog box, click
Yes.
Step 15
Remove the
physical fiber and attenuators, if present, that connect the amplifier or
optical service channel cards in Side B to the 40-WSS-C/40-DMX-C card (or the
32WSS/32DMX
and 32WSS-L/32DMX-L
cards) in Side A of ROADM Node 1.
Complete the
"DLP-G46 Log into CTC" task in the "Connect the PC and Log into
the GUI" document at the ROADM Node 2. The following figure shows the
ROADM Node 2 shelf view.
Figure 3. OADM Node
2 Shelf View
The following
figure shows the functional view of ROADM Node 1.
Figure 4. ROADM Node
2 Functional View
Step 18
Click the
Circuits tab.
Step 19
Make a list of
all the OCHNCs, OCH trails, and OCHCCs that pass through or terminate
(add/drop) at the amplifier or optical service channel cards installed in Side
A of ROADM Node 2.
Caution
You will
delete all the pass-through and add/drop circuits in the next step and use the
list to recreate the circuits later. Do not proceed until you complete the
circuit list.
Step 20
If OCHNCs
and/or OCHCCs identified in
Step 19 are routed on the active path of a
splitter or Y-cable protection group, complete the following steps. If not,
continue with
Step 21.
Display
the node containing the amplifier or optical service channel cards with the
Y-cable or splitter protection.
Force the
traffic to the protect path in the opposite side of the ring using the
“DLP-G179 Apply a Force Y-Cable or Splitter Protection Switch” task in the
Manage the Node
document.
Step 21
Delete the
circuits identified in
Step 19 using one or more of the following
tasks:
“DLP-G347 Delete Optical Channel Client Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
“DLP-G418 Delete an Optical Channel Trail” task in the chapter “Create Optical Channel Circuits and Provisionable Patchcords”
of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
“DLP-G106 Delete Optical Channel Network Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
Step 22
If overhead circuits exist in the amplifier or optical service channel cards installed in Side A of ROADM Node 2, complete
“DLP-G112 Delete Overhead Circuits” task in the chapter “Create Optical Channel Circuits and Provisionable Patchcords” of
the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to delete these overhead circuits.
Step 23
Click the
Provisioning >
WDM-ANS >
Optical Side tab.
Step 24
In the optical
sides table, click the optical side corresponding to the amplifier or optical
service channel cards installed in Side A of ROADM Node 2.
Step 25
Click
Delete.
Step 26
In the
confirmation dialog box, click
Yes.
Step 27
Click the
Provisioning >
WDM-ANS >
Internal Patchcords tab.
Step 28
Look in the To
column of the internal patchcords table and make a list of internal patchcords
that connect the amplifier or optical service channel cards in Side A to the
40-WSS-C/40-DMX-C card (or the 32WSS/32DMX
and 32WSS-L/32DMX-L
cards) in Side B of ROADM Node 2.
Step 29
Click
Delete.
Step 30
In the
confirmation dialog box, click
Yes.
Step 31
Remove the
physical fiber and attenuators, if present, that connect the amplifier or
optical service channel cards in Side A to the 40-WSS-C/40-DMX-C card (or the
32WSS/32DMX
and 32WSS-L/32DMX-L
cards) in Side B of ROADM Node 2.
Step 32
If there are pluggable port modules (PPMs) that terminate on the ROADM Node 2, complete the “DLP-G280 Delete a PPM” task in
the chapter “Provision Transponder and Muxponder Cards” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to delete these PPMs.
Complete the “NTP-G163 Upgrade Nodes in Single-Shelf Mode to Multishelf Mode” task in the chapter “Turn Up a Node” of the
Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to upgrade ROADM Node 1 to a multishelf configuration and add ROADM Node 2 as a subtending shelf. The following figure shows
the final multishelf view of the node.
Step 35
In the
multishelf view, click the
Provisioning >
WDM-ANS > Internal
Patchcords tab.
Figure 5. Final
Multishelf View of the Node
Step 36
Click
Create. The Internal Patchcord Creation wizard
appears.
Step 37
In the Internal Patchcord Attributes page, choose OTS/OCH to OTS/OCH option and select the Bidirectional check box.
Step 38
Click
Next.
Step 39
In the
Internal Patchcord Origination page, provision the internal patchcord
origination parameters.
Shelf—Choose the shelf where the internal patchcord originates.
Slot—Choose one of the two 40-WSS-C cards (or the 32WSS/32DMX and 32WSS-L/32DMX-L cards) where the internal
patchcord originates.
Tx
Port—Choose the EXP TX port were the internal patchcord originates.
Step 40
Click
Next.
Step 41
In the
Internal Patchcord Termination page, provision the internal patchcord
origination parameters.
Shelf—Choose the shelf where the internal patchcord terminates.
Slot—Choose the other 40-WSS-C card (or the 32WSS/32DMX
and 32WSS-L/32DMX-L
cards) where the internal patchcord terminates.
Rx
Port—Choose the EXP RX port were the internal patchcord terminates.
Step 42
Click
Next.
Step 43
Review the
display-only information on the Internal Patchcord Origination Reverse page.
This page shows the shelf, slot, and port that CTC will use for the opposite
internal patchcord origination route
Step 44
Click
Next.
Step 45
Review the
information displayed on the Internal Patchcord Termination Reverse page. This
display-only page shows the shelf, slot, and port that CTC will use for the
reverse internal patchcord termination route.
Step 46
Click
Finish. The new internal patchcord appears on the
Internal Patchcord table.
Step 47
Complete the “NTP-G37 Run Automatic Node Setup” task in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Step 48
In node view,
click the
Circuits tab.
Step 49
Complete one
or more of the following procedures to recreate circuits identified in Steps 4
and
Step 19:
“DLP-G105 Provision Optical Channel Network Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
“DLP-G346 Provision Optical Channel Client Connections” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide
“DLP-G395 Create an Optical Channel Trail” task in the chapter “Create Optical Channel Circuits and Provisionable Patchcords”
of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide
or Cisco ONS 15454 DWDM Network Configuration Guide
Note
Cisco
recommends that you recreate the circuits one at a time.
Step 50
Complete the “NTP-G60 Create and Delete Overhead Circuits” task in the chapter “Create Optical Channel Circuits and Provisionable
Patchcords” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide to recreate circuits deleted in Step 22.
Step 51
Verify that
each circuit appears on the Circuits table with a DISCOVERED status and an
IS/Unlocked state. If not, repeat
Step 48 and
Step 49.
If the
circuits still do not appear with a DISCOVERED status and IS/Unlocked state,
contact your next level of support.
Step 52
Click the
Provisioning >
Pluggable Port Module >
Pluggable Port Module tab and click Create to
recreate the PPMs deleted in
Step 32.
Step 53
Complete the
“DLP-G180 Clear a Manual or Force Y-Cable or Splitter Protection Switch” task
in the
Manage the Node
document for OCHNCs and/or OCHCCs that were switched to the opposite side of
the ring as part of a splitter or Y-cable protection group to return the
traffic to its original condition.
Stop. You have completed
this procedure.
NTP-G242 Modify the
CD setting of TDC-CC and TDC-FC Cards
Purpose
This
procedure allows you to modify the CD settings of the TDC-CC and TDC-FC cards.
Tools/Equipment
None
Prerequisite
Procedures
"NTP-G30 Install the DWDM Cards” task in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Required/As
Needed
As needed
Onsite/Remote
Onsite or
remote
Security Level
Provisioning or higher
Procedure
Step 1
Complete the
"DLP-G46 Log into CTC" task in the
Connect the PC and Log into
the GUI document at the node where you want to change the TDC-CC or
TDC-FC card settings. If you are already logged in, continue with the next
step.
Step 2
Complete the “NTP-G103 Back Up the Database” task in the chapter “Maintain the Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Note
Changing the CD value of the T-DCU can severely affect the performance of the channels traveling through the T-DCU. As a general
rule the new value is provided through an additional analysis performed by the CTP. In this case, complete the “NTP-G328 Add,
Modify, and Delete ANS Parameters” task in the chapter “Turn Up a Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide. If for some reason, the “NTP-G328 Add, Modify, and Delete ANS Parameters” task cannot be applied, then a skilled operator
can directly change the CD value according to the CTP findings. To modify the CD setting of the TDC-CC or TDC-FC card proceed
to the next step.
Step 3
To modify the CD
setting of the TDC-CC or TDC-FC card, perform any of the following tasks as
needed:
Note
As the
operation is traffic affecting, change the CD value during a maintenance
window.
Complete the “NTP-G103 Back Up the Database” task in the chapter “Maintain the Node” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Stop. You have completed this procedure.
DLP-G526 Modify the
CD Value of the TDC-CC and TDC-FC When Connected to OPT-AMP-C, OPT-PRE,
40-SMR-1 and 40-SMR-2 Cards
Purpose
This
procedure allows you to modify the CD value when the TDC-CC and TDC-FC cards
are connected to the DC ports of the OPT-PRE, OPT-AMP-C, 40-SMR-1 and 40-SMR-2
cards.
Before you
modify the CD value of the TDC-CC or TDC-FC card, disable the Automatic Power
Control (APC) in the domain that has the TDC-CC or TDC-FC card. To disable the
APC domain, complete the “DLP-G157 Disable Automatic Power Control” task in the
Manage the Node
document.
Step 2
Modify the CD value for the TDC-CC or TDC-FC Card. To modify the CD value, Complete the “DLP-G545 Modify the Chromatic Dispersion
Value for the TDC-CC and TDC-FC Cards” task in the chapter “Change DWDM Card Settings” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Step 3
Enable the APC
domain that has the TDC-CC or TDC-FC card. To enable the APC domain, complete
the “DLP-G158 Enable Automatic Power Control” task in the
Manage the Node
document.
Step 4
Return to your
originating procedure (NTP).
DLP-G527 Modify the
CD Value of the TDC-CC and TDC-FC Cards when Connected to OPT-RAMP-C and
OPT-RAMP-CE Amplifiers
Purpose
This
procedure allows you to modify the CD value of the TDC-CC and TDC-FC cards when
connected to the DC ports of the OPT-RAMP-C and OPT-RAMP-CE amplifiers.
Before you
modify the CD value of the TDC-CC or TDC-FC card, run the APC. To run the APC,
complete the “DLP-G430 Run Automatic Power Control” task in the
Manage the Node
document.
Step 2
Modify the CD value for the TDC-CC or TDC-FC Card. To modify the CD value, Complete the “DLP-G545 Modify the Chromatic Dispersion
Value for the TDC-CC and TDC-FC Cards” task in the chapter “Change DWDM Card Settings” of the Cisco NCS 2002 and NCS 2006 Network Configuration Guide or Cisco ONS 15454 DWDM Network Configuration Guide.
Note
Do not change the compensation value directly in one instance. In order to avoid traffic drops and alarms, it is required
to change the CD value in steps not too large. For example, if you want to change the CD value of a TDC-CC from -880 to -1320
ps/nm, do not change the CD value in a single step, but in a couple of steps. Change the CD value to an intermediate value
of -1100 ps/nm and then to -1320 ps/nm. Change the CD value of the TDC-CC by steps no larger than 330 ps/nm and the CD value
of the TDC-FC by steps no larger than 270 ps/nm. This approach of changing the CD value avoids misleading alarms and traffic
drops.
Step 3
Run the APC. To
run the APC, complete the “DLP-G430 Run Automatic Power Control” task in the
Manage the Node
document.
Step 4
If the APC
correction skipped alarm appears, then force the APC correction. Do the
following:
Click the
alarmed port.
Click the
Maintenance tab.
Click the
Force APC correction button.
Step 5
Repeat
Step 2 and
Step 4 until the CD target value is set.
Step 6
Return to your
originating procedure (NTP).
Additional
References
Related
Documents
Use this document in
conjunction with the other release-specific documentation listed in this table:
Link
Description
Cisco ONS Documentation Roadmap
Provides quick access to publications of Cisco ONS releases.
Cisco ONS 15454 DWDM Control Card and Node Configuration Guide
Provides background and reference material and procedures for installation and configuration of control cards and node configuration
on Cisco ONS 15454 dense wavelength division multiplexing (DWDM) systems.
Cisco ONS 15454 DWDM Line Card Configuration Guide
Provides background and reference material and procedures for installation and configuration of line cards on Cisco ONS 15454
dense wavelength division multiplexing (DWDM) systems.
Cisco ONS 15454 DWDM Network Configuration Guide
Provides background and reference material, procedures for turn up, provisioning, and maintenance of Cisco ONS 15454 dense
wavelength division multiplexing (DWDM) systems.
Cisco ONS 15454 DWDM Troubleshooting Guide
Provides general troubleshooting instructions, alarm troubleshooting instructions, and a list of error messages that apply
to the Cisco ONS 15454 dense wavelength division multiplexing (DWDM) systems.
Release Notes for Cisco ONS 15454
Provides information about new features and enhancements for the Cisco ONS 15454 DWDM platforms.
Cisco ONS 15454 Hardware Installation Guide
Provides installation information of the Cisco ONS 15454 hardware.
Cisco ONS 15454 DWDM Licensing Guide
Provides information about installing and managing Cisco ONS 15454 DWDM licenses.
Cisco ONS SDH TL1 Command Guide
Cisco ONS SONET TL1 Command Guide
Provides a comprehensive list of TL1 commands.
Installing the GBIC, SFP, SFP+, XFP, CXP, CFP, and CPAK Optical Modules in Cisco ONS Platforms
Provides information about the Pluggable Port Modules support.
Link
Description
Cisco NCS 2000 Series Documentation Roadmap
Provides quick access to publications of Cisco NCS 2000 Series releases.
Cisco NCS 2000 Series Control Card and Node Configuration Guide
Provides background and reference material and procedures for installation and configuration of control cards and node configuration
on Cisco NCS 2000 Series systems.
Cisco NCS 2000 Series Line Card Configuration Guide
Provides background and reference material and procedures for installation and configuration of line cards on Cisco NCS 2000
Series systems.
Cisco NCS 2000 Series Network Configuration Guide
Provides background and reference material, procedures for turn up, provisioning, and maintenance of Cisco NCS 2000 Series
systems.
Cisco NCS 2000 Series Troubleshooting Guide
Provides general troubleshooting instructions, alarm troubleshooting instructions, and a list of error messages that apply
to the Cisco NCS 2000 Series systems.
Release Notes for Cisco NCS 2000 Series
Provides information about new features and enhancements for the Cisco NCS 2000 Series systems.
Cisco NCS 2000 Series Hardware Installation Guide
Provides installation information of the Cisco NCS 2000 Series hardware.
Cisco NCS 2000 Series Licensing Configuration Guide
Provides information about installing and managing NCS licenses.
Cisco NCS 2000 Series TL1 Command Guide
Provides a comprehensive list of TL1 commands.
Installing the GBIC, SFP, SFP+, XFP, CXP, CFP, and CPAK Optical Modules in Cisco NCS Platforms
Provides information about the Pluggable Port Modules support.
The Cisco
Support website provides extensive online resources, including documentation
and tools for troubleshooting and resolving technical issues with Cisco
products and technologies.
To receive
security and technical information about your products, you can subscribe to
various services, such as the Product Alert Tool (accessed from Field Notices),
the Cisco Technical Services Newsletter, and Really Simple Syndication (RSS)
Feeds.
Access to
most tools on the Cisco Support website requires a Cisco.com user ID and
password.
Communications, Services, and Additional Information
To receive timely, relevant information from Cisco, sign up at Cisco Profile Manager.
To get the business impact you’re looking for with the technologies that matter, visit Cisco Services.
To discover and browse secure, validated enterprise-class apps, products, solutions and services, visit Cisco DevNet.
To obtain general networking, training, and certification titles, visit Cisco Press.
To find warranty information for a specific product or product family, access Cisco Warranty Finder.
Cisco Bug Search Tool
Cisco Bug Search Tool (BST) is a web-based tool that acts as a gateway to the Cisco bug tracking system that maintains a comprehensive list of
defects and vulnerabilities in Cisco products and software. BST provides you with detailed defect information about your products
and software.
Feedback
