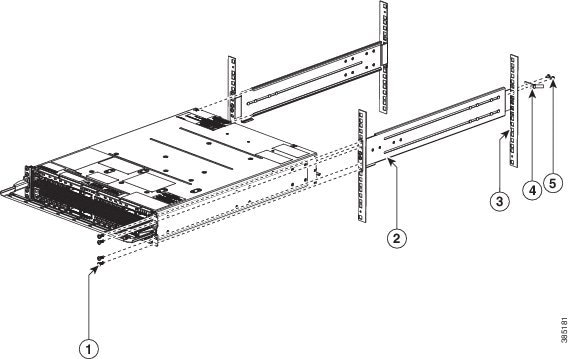

Mount Brackets on NCS 1002 for ANSI or ETSI Rack
Use this procedure to:
-
Mount 19-inch brackets on NCS 1002 for ANSI rack
-
Mount 23-inch brackets on NCS 1002 for ANSI rack
-
Mount 21-inch brackets on NCS 1002 for ETSI rack
![]() Caution |
Use only the fastening hardware provided with NCS 1002 to prevent loosening, deterioration, and electromechanical corrosion of the hardware and joined material. |
![]() Note |
In a ANSI rack, NCS 1002 can be installed in the front or the middle position. In a ETSI rack, NCS 1002 can be installed only in the front position. |
Procedure
Step 1 |

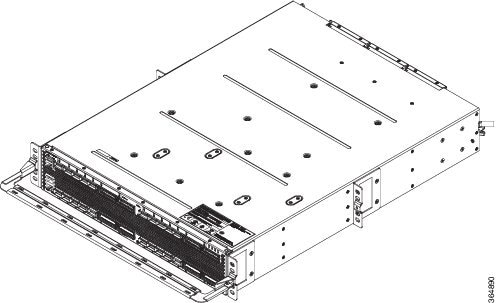

Place the wider side of the mounting bracket flush against NCS 1002. The narrow side of the mounting bracket must be towards the front of the shelf. ![]()
|
||||||
Step 2 |
Align the mounting bracket screw holes against NCS 1002 screw holes. |
||||||
Step 3 |
Insert the M4 flat screws and tighten them to a torque value of 11.5 in-lbs (1.3 N-m). |
||||||
Step 4 |
Repeat Step 1 to Step 3 to mount the bracket on the opposite side. |
||||||
Step 5 |

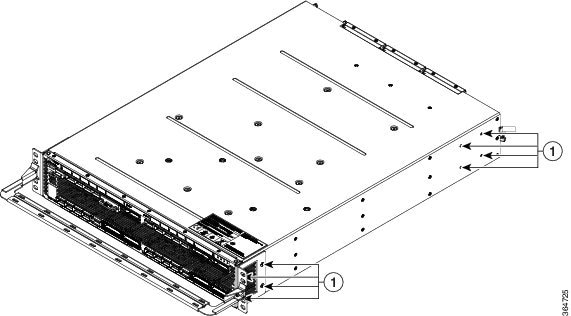

Align the cable management bracket screw hole against the mount bracket screw hole. ![]() |
||||||
Step 6 |
Insert the M4 screw and tighten it to a torque value of 6.5 in-lbs (0.75 N-m) .
|
||||||
Step 7 |
Repeat Step 5 and Step 6 to install the cable guide on the opposite side. |
