Automation Workflows

This chapter describes the installation and communication sequence of the Routed Optical Networking components. The chapter also includes some Routed Optical Networking ML service provisioning examples.

Sequence for Installation of Routed Optical Networking Components

We recommend this installation sequence:


Note


Cisco Crosswork Network Controller (Crosswork Optimization Engine, CAT) and Cisco Optical Network Controller are the minimum required components for the Routed Optical Networking solution.


Communication Sequence

This diagram displays the communication sequence between the Routed Optical Networking components:

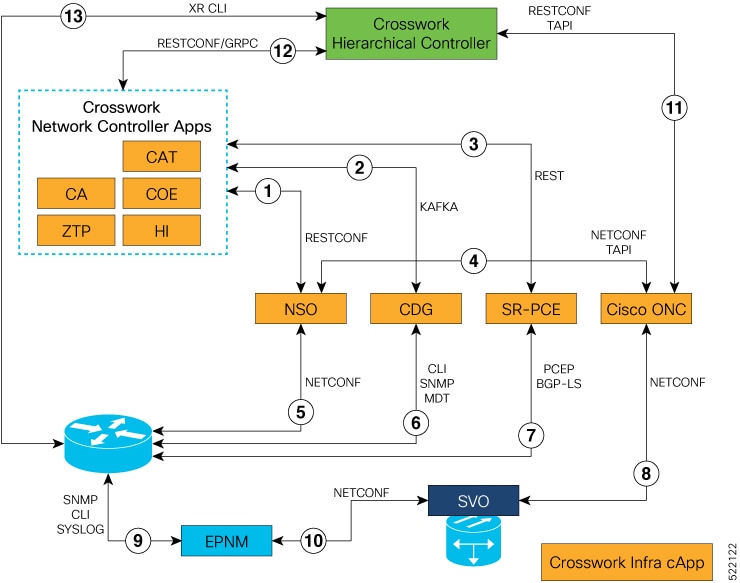

Figure 1. Routed Optical Networking Communication Flow
Routed Optical Networking Communication Flow
  1. Crosswork Network Controller discovers services. Crosswork Network Controller populates NSO with device information via RESTCONF and handles NSO provisioning requests. EMS collects fault and alarm data from devices.

  2. Crosswork Data Gateway sends device status to Crosswork Network Controller using Kafka. Crosswork Network Controller manages the Crosswork Data Gateway instance.

  3. SR-PCE sends SR-TE/RSVP-TE and topology information to Crosswork Network Controller via REST APIs.

  4. NSO discovers information from Cisco Optical Network Controller and provisions to Cisco Optical Network Controller via NETCONF TAPI.

  5. NSO manages XR router configuration using NETCONF.

  6. Crosswork Data Gateway collects network information from XR routers using CLI, SNMP, and MDT.

  7. SR-PCE acts as a network PCE and collects IGP topology information from the network using PCEP and BGP-LS.

  8. Cisco Optical Network Controller manages the SVO and NCS 1010 network nodes via NETCONF and gNMI. Cisco Optical Network Controller communicates with Cisco Optical Site Manager for NCS 1010

  9. EPNM performs router inventory, SWIM, fault, and performance data collection using SNMP, CLI, and SYSLOG.

  10. EPNM performs optical inventory, SWIM, fault, and performance data collection via NETCONF.

  11. Crosswork Hierarchical Controller discovers optical equipment, topology, and services and provisions optical services via TAPI. Crosswork Hierarchical Controller receives PM data using ONC RPC.

  12. Crosswork Hierarchical Controller discovers IGP nodes and topology and provisions services using Crosswork Network Controller NB API. Crosswork Hierarchical Controller receives PM data using GRPC.

  13. Crosswork Hierarchical Controller collects the inventory data for ZR/ZR+ optics discovery using XR adapter directly from routers. This is also used to verify successful provisioning.


    Note


    Routed Optical Networking components are not required in all the deployments.


Service Provisioning Examples

In this section, two service provisioning examples have been provided. These examples use the Cisco NSO Routed Optical Networking Core Function Pack for service provisioning. The examples are:

In this section, a service provisioning example has been provided. This example uses the Cisco NSO Routed Optical Networking Core Function Pack for service provisioning.

  • Cisco routers with ZR or ZR+ transceivers and NCS 2000 optical devices.

  • Cisco routers with ZR or ZR+ transceivers only. This example does not involve optical provisioning.

Provision End-to-end Service (Cisco Routers with ZR/ZR+ Optics and NCS 2000 Devices)

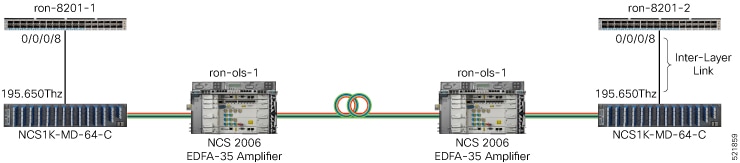

These diagrams display a network that contains Cisco routers with ZR or ZR+ optics and NCS 2000 devices.

Figure 2. Cisco Routers (with ZR/ZR+ Optics) and NCS 2000 Devices
Cisco Routers (with ZR/ZR+ Optics) and NCS 2000 Devices
Cisco Routers (with ZR/ZR+ Optics) and NCS 2000 Devices
  1. Define the inter-layer links.

    ron inter-layer-link ron-8201-1 0/0/0/8
     site "Los Angeles"
     ols-domain network-element ron-ols-1
     ols-domain optical-add-drop 1/2007/1/18,17
     ols-domain optical-controller onc-cw-100
    !
    ron inter-layer-link ron-8201-2 0/0/0/8
     site Phoenix
     ols-domain network-element ron-ols-2
     ols-domain optical-add-drop 1/2007/1/18,17
     ols-domain optical-controller onc-cw-100
    !


    Note


    The add drop port on ron-ols-1 in R/S/I/P format is 1/2007/1/17,18. Two ports are configured for both RX and TX but a single port can also be given.


    In the function pack, the network-element and optical-add-drop is converted into the TAPI inventory format.

    ron-ols-1 and 1/2007/1/18,17 = /ne=ron-ols-1/r=1/sh=2007/sl=1/s_sl=0/p=18,17

  2. Create Routed Optical Networking ML service with following parameters:

    Input

    Value

    End-points

    ron-8201-1, ron-8201-2

    Model

    Transponder (1x400G mode)

    Bandwidth

    400G

    Frequency

    Supplied by Cisco Optical Network Controller. This value may be user defined too.

    TX Power

    Supplied by Cisco Optical Network Controller. This value may be user defined too.

    IP Addressing

    10.2.1.10/31 and 10.2.1.11/31 on FourHundredGigE 0/0/0/8

    ron ron-ml ron-8201-1_ron-8201-2
     mode      transponder
     bandwidth 400
     ols-domain service-state UNLOCKED
     end-point ron-8201-1
      terminal-device-optical line-port 0/0/0/8
      ols-domain end-point-state UNLOCKED
      terminal-device-packet interface 0
       ip-address v4 10.2.1.10/31
      !
     !
     end-point ron-8201-2
      terminal-device-optical line-port 0/0/0/8
      ols-domain end-point-state UNLOCKED
      terminal-device-packet interface 0
       ip-address v4 10.2.1.11/31
      !
     !
    !

NSO Routed Optical Networking ML Service

This diagram displays the NSO Routed Optical Networking ML service workflow for an end-to-end service (Cisco routers with ZR/ZR+ optics and NCS 2000 devices).

Figure 3. NSO Routed Optical Networking ML Service Sequence
NSO Routed Optical Networking ML Service Sequence

The workflow of the Routed Optical Networking ML service is as follows:

  1. User populates the inter-Layer link DB for each router end-point.

  2. User initiates the Routed Optical Networking ML provisioning request.

  3. The Routed Optical Networking ML service retrieves the transceiver and line card PIDs for each router end-point using Cisco YANG models.

  4. The Routed Optical Networking ML service compares the received transceiver PIDs and determines if the transceivers can support the service.

  5. The Routed Optical Networking ML service compares the received line card PIDs, and determines if the line cards need to be configured.

  6. If there is no explicit SIP UUID, the Routed Optical Networking ML service performs a lookup for the SIP via the Optical Network Controller TAPI using the INVENTORY_ID.

  7. The Routed Optical Networking ML service sends a TAPI connectivity-service request to Optical Network Controller for optical provisioning using SIPs and ZR/ZR+ application IDs.

  8. Cisco Optical Network Controller returns the state after the provisioning is complete. Cisco Optical Network Controller optionally returns the wavelength and TX power if these parameters are not user-defined.

  9. The Routed Optical Networking ML service provisions the router optics ports. It optionally performs bundle and IP configuration using the Cisco YANG models.

  10. The Routed Optical Networking ML service stores the service information as NSO operational data and also returns the service state to user.

Provision End-to-end Service (Cisco Routers with ZR/ZR+ Optics Only)

These diagrams display a network that contains Cisco routers with ZR or ZR+ optics and a non-Cisco optical line system.

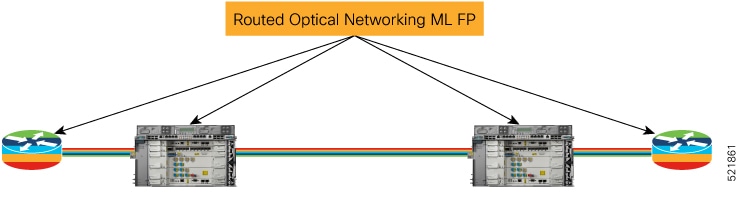

Figure 4. Cisco Routers (with ZR/ZR+ Optics)
Cisco Routers (with ZR/ZR+ Optics)
Cisco Routers (with ZR/ZR+ Optics)

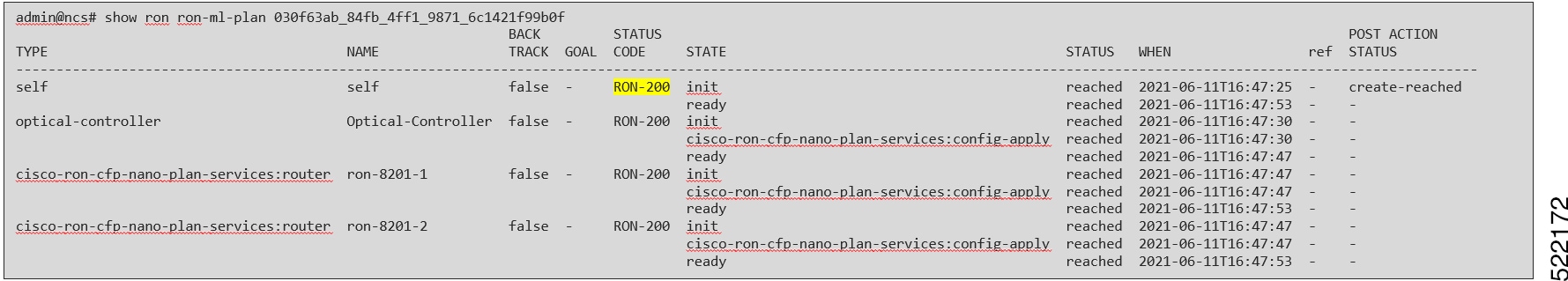

  1. Create Routed Optical Networking ML Service with the following parameters:

    Input

    Value

    End-points

    ron-8201-1, ron-8201-2

    Model

    Transponder (1x400G mode)

    Bandwidth

    400G

    Frequency

    1952000

    TX Power

    -12dB on both endpoints

    IP Addressing

    10.2.1.10/31 and 10.2.1.11/31 on FourHundredGigE 0/0/0/8

    ron ron-ml ron-8201-1_ron-8201-2
     mode      transponder
     bandwidth 400
     circuit-id "Router Only"
     frequency  1952000
     end-point ron-8201-1
      terminal-device-optical line-port 0/0/0/8
      terminal-device-optical transmit-power -120
      terminal-device-packet interface 0
       ip-address v4 10.2.1.10/31
      !
     !
     end-point ron-8201-2
      terminal-device-optical line-port 0/0/0/8
      terminal-device-optical transmit-power -120
      terminal-device-packet interface 0
       ip-address v4 10.2.1.11/31
      !
     !
    !


NSO Routed Optical Networking ML Service

This diagram displays the NSO Routed Optical Networking ML service workflow for an end-to-end service (only Cisco routers with ZR/ZR+ optics).

Figure 5. NSO Routed Optical Networking ML Service Sequence
NSO Routed Optical Networking ML Service Sequence

The workflow of the Routed Optical Networking ML service is as follows:

  1. User initiates the Routed Optical Networking ML provisioning request.

  2. The Routed Optical Networking ML service retrieves the transceiver and line card PIDs for each router end-point using Cisco native YANG models.

  3. The Routed Optical Networking ML service compares the received transceiver PIDs and determines if the transceivers can support the service.

  4. The Routed Optical Networking ML service compares the received line card PIDs, and determines if the line cards must be configured.

  5. The Routed Optical Networking ML service provisions the router optics ports. It optionally performs bundle and IP configuration using the Cisco YANG models.

  6. The Routed Optical Networking ML service stores the service information as NSO operational data and also returns the service state to user.

Crosswork Hierarchical Controller Provisioning Workflow

This section describes the workflow for provisioning the Routed Optical Networking circuit in the Crosswork Hierarchical Controller GUI via the Crosswork Network Controller.


Note


The workflow does not support provisioning an end-to-end service in a network that contains Cisco routers with ZR or ZR+ optics and a non-Cisco optical line system.

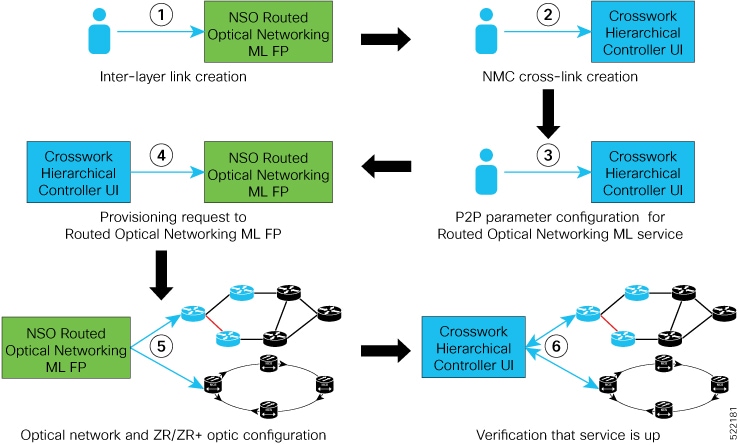

Figure 6. Crosswork Hierarchical Controller Provisioning Workflow
Crosswork Hierarchical Controller Provisioning Workflow

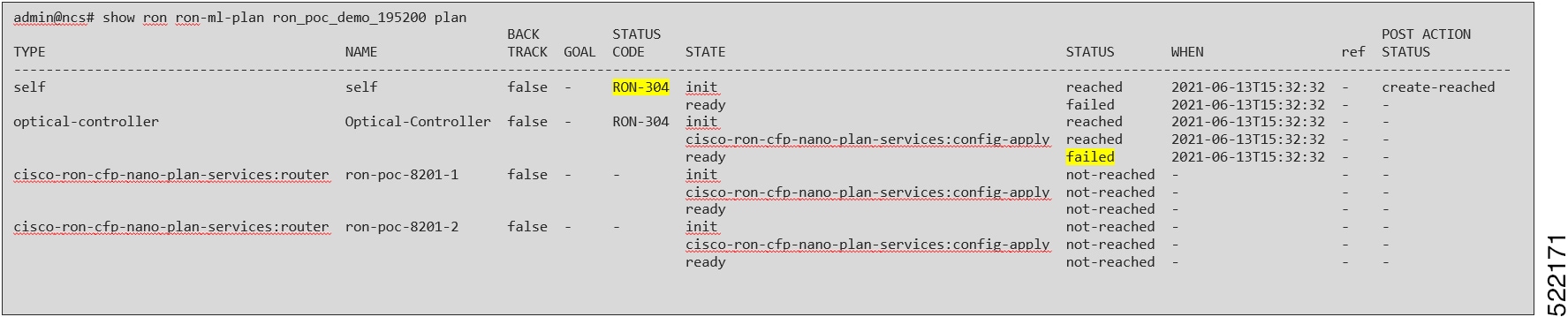

Troubleshoot Provisioning Issues

Provisioning on ZR or ZR+ Optics

  • To check the controller state on the router, use:

    RP/0/RP0/CPU0:ron-8201-1#show controllers optics 0/0/0/20
    Thu Jun  3 15:34:44.098 PDT

     Controller State: Up

     Transport Admin State: In Service

     Laser State: On

     LED State: Green

     FEC State: FEC ENABLED

     Optics Status

             Optics Type:  QSFPDD 400G ZR
             DWDM carrier Info: C BAND, MSA ITU Channel=10, Frequency=195.65THz,
             Wavelength=1532.290nm

             Alarm Status:
             -------------
             Detected Alarms: None


             LOS/LOL/Fault Status:

             Alarm Statistics:

             -------------
             HIGH-RX-PWR = 0            LOW-RX-PWR = 0
             HIGH-TX-PWR = 0            LOW-TX-PWR = 4
             HIGH-LBC = 0               HIGH-DGD = 1
             OOR-CD = 0                 OSNR = 10
             WVL-OOL = 0                MEA  = 0
             IMPROPER-REM = 0
             TX-POWER-PROV-MISMATCH = 0
             Laser Bias Current = 0.0 %
             Actual TX Power = -7.17 dBm
             RX Power = -9.83 dBm
             RX Signal Power = -9.18 dBm
             Frequency Offset = 9 MHz

    RP/0/RP0/CPU0:ron-8201-1#show controllers coherentDSP 0/0/0/20
    Thu Jun  3 15:38:04.565 PDT

    Port                                            : CoherentDSP 0/0/0/20
    Controller State                                : Up
    Inherited Secondary State                       : Normal
    Configured Secondary State                      : Normal
    Derived State                                   : In Service
    Loopback mode                                   : None
    BER Thresholds                                  : SF = 1.0E-5  SD = 1.0E-7
    Performance Monitoring                          : Enable
    Bandwidth                                       : 400.0Gb/s

    Alarm Information:
    LOS = 8 LOF = 0 LOM = 0
    OOF = 0 OOM = 0 AIS = 0
    IAE = 0 BIAE = 0        SF_BER = 0
    SD_BER = 0      BDI = 0 TIM = 0
    FECMISMATCH = 0 FEC-UNC = 0     FLEXO_GIDM = 0
    FLEXO-MM = 0    FLEXO-LOM = 0   FLEXO-RDI = 0
    FLEXO-LOF = 2
    Detected Alarms                                 : None

    Bit Error Rate Information
    PREFEC  BER                                     : 1.5E-03
    POSTFEC BER                                     : 0.0E+00
    Q-Factor                                        : 9.40 dB

    Q-Margin                                        : 2.20dB

    OTU TTI Received

    FEC mode                                        : C_FEC

  • To gather the performance measurement data, use:

    RP/0/RP0/CPU0:ron-8201-1#show controllers optics 0/0/0/20 pm current 30-sec optics 1
    Thu Jun  3 15:39:40.428 PDT

    Optics in the current interval [15:39:30 - 15:39:40 Thu Jun 3 2021]

    Optics current bucket type : Valid
                   MIN       AVG       MAX    Operational Configured TCA   Operational Configured TCA
                                              Th(min)     Th(min)   (min)  Th(max)     Th(max)   (max)
    LBC[% ]      : 0.0       0.0       0.0      0.0          NA       NO   100.0       NA          NO
    OPT[dBm]     : -7.17     -7.17     -7.17    -15.09       NA       NO   0.00        NA          NO
    OPR[dBm]     : -9.86     -9.86     -9.85    -30.00       NA       NO   8.00        NA          NO
    CD[ps/nm]    : -489      -488      -488     -80000       NA       NO   80000       NA          NO
    DGD[ps ]     : 1.00      1.50      2.00     0.00         NA       NO   80.00       NA          NO
    SOPMD[ps^2]  : 28.00     38.80     49.00    0.00         NA       NO   2000.00     NA          NO
    OSNR[dB]     : 34.90     35.12     35.40    0.00         NA       NO   40.00       NA          NO
    PDL[dB]      : 0.70      0.71      0.80     0.00         NA       NO   7.00        NA          NO
    PCR[rad/s]   : 0.00      0.00      0.00     0.00         NA       NO   2500000.00  NA          NO
    RX_SIG[dBm]  : -9.23     -9.22     -9.21    -30.00       NA       NO   1.00        NA          NO
    FREQ_OFF[Mhz]: -2        -1        4        -3600        NA       NO   3600        NA          NO
    SNR[dB]      : 16.80     16.99     17.20    7.00         NA       NO   100.00      NA          NO
    RP/0/RP0/CPU0:ron-8201-1#show controllers coherentDSP 0/0/0/20 pm current 30-sec fec
    Thu Jun  3 15:42:28.510 PDT

    g709 FEC in the current interval [15:42:00 - 15:42:28 Thu Jun 3 2021]

    FEC current bucket type : Valid
        EC-BITS   : 20221314973             Threshold : 83203400000            TCA(enable)  : YES
        UC-WORDS  : 0                       Threshold : 5                      TCA(enable)  : YES

                  MIN       AVG        MAX      Threshold      TCA     Threshold     TCA
                                                  (min)     (enable)    (max)     (enable)
    PreFEC BER  : 1.5E-03   1.5E-03   1.6E-03      0E-15        NO       0E-15        NO
    PostFEC BER :  E-15     0E-15     0E-15      0E-15        NO       0E-15        NO
    Q[dB]       : 9.40      9.40      9.40          0.00        NO        0.00        NO
    Q_Margin[dB]: 2.20      2.20      2.20          0.00        NO        0.00        NO

    Last clearing of "show controllers OTU" counters never

This table contains the streaming telemetry sensor paths and the information fields that you receive from them.

Sensor path Information Fields

Cisco-IOS-XR-controller-optics-oper:optics-

oper/optics-ports/optics-port/optics-info

alarm-detected, baud-rate, dwdm-carrier-frequency, controller-state, laser-state, optical-signal-to-noise-ratio, temperature, voltage

Cisco-IOS-XR-controller-optics-oper:optics-

oper/optics-ports/optics-port/optics-lanes/optics-lane

receive-power, receive-signal-power, transmit-power

Cisco-IOS-XR-controller-otu-

oper:otu/controllers/controller/info

bandwidth, ec-value, post-fec-ber, pre-fec-ber, qfactor, qmargin, uc

Cisco-IOS-XR-pmengine-oper:performance-

management/optics/optics-ports/optics-port/optics-

current/optics-second30/optics-second30-optics/optics-

second30-optic

dd__average, dgd__average, opr__average, opt__average, osnr__average, pcr__average, pmd__average, rx-sig-pow__average, snr__average, sopmd__average

Cisco-IOS-XR-pmengine-oper:performance-

management/otu/otu-ports/otu-port/otu-current/otu-

second30/otu-second30fecs/otu-second30fec

ec-bits__data, post-fec-ber__average, pre-fec-ber__average, q__average, qmargin__average, uc-words__data


Note


The performance management sensor paths show the sensor path for a 30-second performance measurement (PM) interval. They also support 15 minutes and 24 hours. To access these options, replace second30 in the sensor path with minute15 and hour24 respectively.


NSO Provisioning

The following figure displays a successful provisioning scenario.

Figure 7. **
**

The following figure displays a failed provisioning scenario, due to an error in the Cisco Optical Network Controller provisioning.

Crosswork Hierarchical Controller Provisioning

In the event of a failed configuration, the configuration state transitions to FAILED. The Last Operation is in the Rollback stage where it rolls back the configuration.

Figure 8. Crosswork Hierarchical Controller UI - Operations Tab
Crosswork Hierarchical Controller UI - Operations Tab

After clicking the service, you can click on ERRORS to check the reason for failure. In this case, the discovery of the operational state exceeded the discovery timeout. The reason for this is, one end of the link was in a loopback state, which did not prohibit the provisioning of the ports, but affected the reachability between the two endpoints.

Figure 9. Crosswork Hierarchical Controller UI - Operations Tab
Crosswork Hierarchical Controller UI - Operations Tab

The logs display both the provisioning flow and the rollback flow.

Figure 10. Crosswork Hierarchical Controller UI - Operations Tab
Crosswork Hierarchical Controller UI - Operations Tab
