Routed Optical Networking Solution Components

This chapter describes the Routed Optical Networking solution components.

Hardware Components

The hardware components that enable Routed Optical Networking are:

Cisco 8000 Series Routers

The Cisco 8000 series routers utilize Cisco's Silicon One ASIC to deliver full routing functionality at higher capacities and a lower environmental footprint than any other routing silicon available. The Silicon One architecture supports large forwarding tables, deep buffers, flexible packet operations, and enhanced programmability.

The 8000 series are highly scalable, deep-bufferred, 100G/400G/800G optimized routers. They are also available with additional on-chip High Bandwidth Memory (HBM) to support additional resource scale. The Cisco 8000 series routers support both ZR and ZR+ modules.

Cisco 8200 Series Routers

The Cisco 8200 Series uses a single Cisco Silicon One ASIC to deliver full routing functionality. The Cisco 8200 Series is designed for relatively high-buffer and high-scale use cases. These fixed port, high-density routers provide 10.8 Tbps of network bandwidth with dramatically lower power consumption than contemporary 10 Tbps systems.

This table details the specifications of the routers.

Router Capacity Form factor 400G QSFP-DD Ports 100G QSFP28 Ports
Cisco 8201 10.8 Tbps 1 RU 24 12
Cisco 8202 10.8 Tbps 2 RU 12 60
Cisco 8201-32FH 12.8 Tbps 1 RU

32

Cisco 8202-32FH-M

12.8 Tbps 2 RU

32

Cisco 8201-24H8FH

5.6 Tbps 1 RU

8

24

Cisco 8800 Series Routers

The Cisco 8800 Series delivers density and efficiency with the extensive scale, buffering, and all feature capabilities that are common to Cisco 8000 Series routers. The 8800 series routers provide up to approximately 260 Tbps through 648 400 GbE ports. The 8800 series includes four chassis to meet a broad set of network and facility requirements.

This table details the specifications of the routers.

Router Capacity Form factor 400G QSFP-DD Ports
Cisco 8804 Up to 57.6 Tbps 4-slot/10 RU

Up to 144

Cisco 8808 Up to 115.2 Tbps 8-slot/16 RU

Up to 288

Cisco 8812 Up to 172.8 Tbps 12-slot/21 RU

Up to 432

Cisco 8818 Up to 259.2 Tbps 18-slot/33 RU

Up to 648

Cisco 8800 Series Line Cards

The Cisco 8800 Series modular platform supports 400 GbE line cards.

This table details the specifications of the line cards.

Line Cards Bandwidth 400G QSFP-DD Ports
8800-LC-36FH 14.4 Tbps 36
88-LC0-36FH-M 14.4 Tbps 36
88-LC0-36FH 14.4 Tbps 36

For information on ZR/ZR+ port support, see 400G ZR/ZR+ Transceivers.

For more information about Cisco 8000 Series Routers, see the Cisco 8000 Series Routers Data Sheet.

Cisco Network Convergence System 5500 Series

The Network Convergence System (NCS) 5500 platform offers high port density, high-performance forwarding, low jitter, and low power consumption.

Cisco NCS-55A2 Series Fixed Port Routers

NCS-55A2-MOD-S is a fixed port, high density, 2-rack unit form-factor router. It supports 24 SFP/SFP+ ports capable of supporting Gigabit Ethernet or 10-Gigabit Ethernet, and 16 SFP/SFP+/SFP28 ports capable of supporting Gigabit Ethernet, 10-Gigabit Ethernet, or 25-Gigabit Ethernet. The router also supports up to 2 Modular Port Adapters (MPA).

This table details the specifications of the routers.

Router Capacity Form factor Nx100G QSFP-DD Ports on MPA-2D4H 100G QSFP28 Ports on MPA-4H
NCS-55A2-MOD-S 900Gbps 2 RU 8 8

For more information about Cisco NCS-55A2 Series Fixed Port Routers, see the Cisco Network Convergence System 5700 Series: NCS-55A2 Fixed Chassis Data Sheet.

Cisco NCS-57B1 Series Fixed Port Routers

The NCS-57B1-6D24-SYS and NCS-57B1-5DSE-SYS combine 4.8 Terabits of 400GE/100GE optimized forwarding capacity, QSFP-DD optics, deep packet buffering, full line-rate MACsec, Class C 1588 Precision Time Protocol (PTP), and Synchronous Ethernet (SyncE) in a power-efficient, 1-rack-unit package.

This table details the specifications of the routers.

Router Capacity Form factor 400G QSFP-DD Ports 100G QSFP-DD Ports
NCS-57B1-6D24-SYS Up to 4.8 Tbps 1 RU 6 24
NCS-57B1-5DSE-SYS Up to 4.4 Tbps 1 RU 5 24

For more information about Cisco NCS-57B1 Series Fixed Port Routers, see the Cisco Network Convergence System 5700 Series: NCS-57B1 Fixed Chassis Data Sheet.

Cisco NCS-57C1 Series Fixed Port Routers

NCS-57C1-48Q6D-S is a fixed chassis that combines low port densities of 1GE/10GE/25GE with higher port densities of 50GE/100GE/400GE and QSFP-DD optics, deep packet buffering, MACsec, Class C 1588 Precision Time Protocol (PTP), and Synchronous Ethernet (SyncE) in a power-efficient, 1-rack-unit package.

This table details the specifications of the routers.

Router Capacity Form factor 400G QSFP-DD Ports 100G QSFP28 Ports
NCS-57C1-48Q6-SYS Up to 2.4 Tbps 1 RU

6

four 400G and two Nx100G ports

-

For more information about Cisco NCS-57C1 Series Fixed Port Routers, see the Cisco Network Convergence System 5700 Series: NCS-57C1 Fixed Chassis Data Sheet.

Cisco NCS-57C3 Series Fixed Port Routers

The Cisco Network Convergence System 57C3 Series Routers are designed for cost-effective delivery of next-generation networking services. These routers are high-capacity and low-power-consuming devices available in a 3-rack-unit compact form factor. The chassis along with the Modular Port Adapters (MPAs) provide options of using different types of interfaces ranging from 1GE to 400GE along with industry-leading MACSec encryption and Class C Timing support. These devices also provide Control Plane redundancy, which enables high availability and reliability.

The Cisco NCS 57C3 Series Routers are well equipped for a range of applications such as Carrier Ethernet Aggregation, Subscriber Services, Business Ethernet, Mobile Edge, Campus, Peering, and Core roles. Powered by the industry-leading Cisco IOS® XR Software, the NCS 57C3 supports a rich and comprehensive set of features like QoS, IP/MPLS, Segment Routing, SRv6, and Ethernet VPN (EVPN).

This table details the specifications of the routers.

Router Capacity Form factor 400G QSFP-DD Ports on MPA-2D4H 100G QSFP28 Ports on Base Unit
NCS-57C3-MOD-S Up to 2.4 Tbps 3 RU

Slot 1 - 4 Nx100G ports, Slot 2 and 3 - two 400G ports or four Nx100G ports

8
NCS-57C3-MOD-SE Up to 2.4 Tbps 3 RU 4

For more information about Cisco NCS-57C1 Series Fixed Port Routers, see the Cisco Network Convergence System 5700 Series: NCS-57C3 Fixed Chassis Data Sheet.

Cisco NCS 5500 Modular Chassis

The Cisco NCS 5500 modular chassis series is available in three system sizes: NCS 5504, NCS 5508, NCS 5516. All NCS systems are highly reliable and resilient platforms. They support a wide range of line card options. NCS 5500 modular router line cards and fabric modules directly attach to each other with connecting pins. In contrast, most traditional modular platform designs require a midplane.

This table details the specifications of the routers.

Platform Capacity Form factor 400G QSFP-DD Ports 100G QSFP28 Ports
NCS 5504 Up to 14.4 Tbps 4-Slot / 7 RU Up to 96 Up to 144
NCS 5508 Up to 76.8 Tbps 8-Slot / 13 RU Up to 192 Up to 288
NCS 5516 Up to 153.6 Tbps 16-Slot / 21 RU Up to 384 Up to 576

For more information about Cisco Network Convergence System 5500 Series Modular Chassis, see the Cisco Network Convergence System 5500 Series Modular Chassis Data Sheet.

NCS 5700 Series Line Cards

NCS 5700 series line cards are 400G line cards for the NCS 5500 Series modular chassis. NCS 5700 series line cards consists of two versions of 400GE optimized line cards: the base version and the scale version. The two 400GE optimized line cards in the NCS5700 series are NC57-24DD and NC57-18DD-SE.

The Cisco NCS 5700 Series 100G optimized baseline card, NC57-36H6D-S is a combo line card with 4.8-Tbps throughput. NC57-36H6D-S provides a mix of 100GE, 200GE, and 400GE ports. NC57-36H6D-S line card provides flexible port configuration and can be used as 36x100GE or 24x100GE + 12x200GE(2x100GE) or 24x100GE + 6x400GE ports.

For information on ZR/ZR+ port support, see 400G ZR/ZR+ Transceivers.

For more information about Cisco Network Convergence System 5700 Series 400GE, see the Cisco Network Convergence System 5700 Series: 400GE and 100GE Line Cards Data Sheet.

NCS 5700 Series Modular Port Adapters

The Cisco Network Convergence System 5700 Series is designed to efficiently scale between data centers and large enterprises, web, and service provider WAN and aggregation networks. Equipping the chassis and the line cards with various interfaces is crucial to cater to a plethora of use cases and services. The Modular Port Adapters provide the much-needed flexibility and capability to the chassis and the line cards. They provide ports with bandwidth up to 400GE and pluggable form-factors like QSFP-DD.

NC57-MPA-2D4H-S MPA

NC57-MPA-2D4H-S is a 4-port 800GE modular port adapter (NC57-MPA-2D4H-S) that supports QSFP28 and QSFP-DD optical transceivers. All 4 ports support QSFP28-100GE transceivers. Ports 0 and 2 (even-numbered ports) support two QDD-400G transceivers at the same time. This configuration is supported in both the MPA slots of the NCS-55A2-MOD-HD-S, NC55-55A2-MOD-SE-S, NCS-55A2-MOD-S, or NCS-55A2-MOD-HX-S chassis. Port 0 supports only one QDD-400G transceiver in Nx100G modes in both the MPA slots of the NCS-55A2-MOD-HD-S, NC55-55A2-MOD-SE-S, NCS-55A2-MOD-S, or NCS-55A2-MOD-HX-S chassis.

NC55-OIP-02 MPA

NC55-OIP-02 is an 8-port modular port adapter that supports SFP+ optical transceivers. This MPA is supported in the NC55A2-MOD-S and NC57C3-MOD-SYS routers. This modular port adapter supports the following port modes:

  • Ethernet - 1GE, and 10GE

  • Fiber channel (FC) - 1GFC, 2GFC, 4GFC, 8GFC, 16GFC, 32GFC

  • Optical Transport Network (OTN) – OTU2, and OTU2e

  • SONET/SDH - OC-48/STM-16, OC-192/STM-64

NC55-OIP-02 MPA is used to support Private Line Emulation.

For more information about Cisco Network Convergence System 5700 Series Modular Port Adapters, see the Cisco Network Convergence System 5700 Series: Modular Port Adapters Data Sheet.

Cisco ASR 9000 Series Aggregation Services Routers

The Cisco ASR 9000 Series Aggregation Services Routers (ASR 9000 Series) represent an exciting new paradigm in edge and core routing, with exceptional scalability, carrier-class reliability, environmentally conscious design, incredible flexibility, and an attractive price-to-performance benchmark. The Cisco ASR 9000 Series has a wide product portfolio, ranging from the Cisco ASR 9001 (2 RU) to the Cisco ASR 9922 (44 RU), with each system that is designed to provide true carrier-class reliability using the Cisco IOS XR operating system, comprehensive system redundancy, and a full complement of network resiliency schemes. Finally, the Cisco ASR 9000 Series is designed to simplify and enhance the operational and deployment aspects of service-delivery networks.

The Cisco ASR 9000 Series offers advanced switching capacity, optimized power consumption and cooling, high-availability design, and a modular operating system to significantly lower the Total Cost of Ownership (TCO) for service providers.

This table details the specifications of the routers.

Router Capacity Form Factor 400G QSFP-DD Ports
ASR 9006 Up to 16 Tbps 10 RU Up to 20
ASR 9010 Up to 32 Tbps 21 RU Up to 32
ASR 9904 Up to 16 Tbps 6 RU Up to 8
ASR 9906 Up to 32 Tbps 14 RU Up to 16
ASR 9910 Up to 64 Tbps 21 RU Up to 32
ASR 9912 Up to 80 Tbps 30 RU Up to 40
ASR 9922 Up to 160 Tbps 44 RU Up to 80

For more information on Cisco ASR 9000 Series Aggregation Services Routers, see Cisco ASR 9000 Series Aggregation Services Routers Data Sheet.

Cisco ASR 9902 Compact High-Performance Router

The Cisco ASR 9902 Router is a compact, high-performance router that delivers up to 800 Gbps of nonblocking, full-duplex capacity in a Two-Rack-Unit (2RU) form factor. Based on the same Cisco IOS® XR software image as the other routers in the Cisco ASR 9000 Series, the Cisco ASR 9902 Router delivers the features and services found on the ASR 9000 Series platforms, allowing customers to standardize on the same Cisco IOS XR operating system. Multiple port rates are supported by ASR 9902: 100/40 Gigabit Ethernet, 25-Gigabit Ethernet, and 10-Gigabit Ethernet, providing customers the flexibility to mix and match interface types on the same chassis and offering operators the readiness for mass-scale networking.

This table details the specifications of the router.

Router Capacity Form Factor 100G QSFP-DD Ports
ASR 9902 Up to 800 Gbps 2 RU Up to 2

For more information on Cisco ASR 9902 Compact High-Performance Router, see Cisco ASR 9902 Compact High-Performance Router Data Sheet.

Cisco ASR 9903 Compact High-Performance Router

The Cisco ASR 9903 Router is a compact router that supports two redundant Route Processors (RP), two integrated switch fabrics, four AC or DC power supply modules, and four fans in redundant configuration. The router consists of the fixed board, with 16 integrated QSFP28-based 100GE ports, 20 integrated SFP+-based ports, and an optional Port Expansion Card (PEC), which you can insert into the dedicated slot on demand.

The ASR 9903 fixed board supports maximum 1.6T data bandwidth. The Cisco A9903-20HG-PEC offers 20 physical ports with maximum 2T data bandwidth capacity. Five of the 20 physical ports are 400GE/200GE/100GE multirate QSFP-DD/QSFP28-based ports, which you can individually migrate to 400GE using licenses. The other 15 ports are 100GE QSFP28-based ports.

This table details the specifications of the router.

Router Capacity Form Factor 400G QSFP-DD Ports
ASR 9903 Up to 7.2 Tbps 3 RU Up to 5

For more information on Cisco ASR 9903 Compact High-Performance Router, see Cisco ASR 9903 Compact High-Performance Router Data Sheet.

Cisco ASR 9000 Series Line Cards

The Cisco ASR 9000 Series routers support 400G line cards.

ASR 9000 Series 5th Generation High-Density Multi-Rate Line Cards

The ASR 9000 Series 5th Generation High-Density Multi-Rate Line Cards are fully compatible with the following routers:

  • Cisco ASR 9006

  • Cisco ASR 9010

  • Cisco ASR 9904

  • Cisco ASR 9906

  • Cisco ASR 9910

  • Cisco ASR 9912

  • Cisco ASR 9922

This table details the specifications of the line cards.

Line Card Bandwidth 400G QSFP-DD Ports
A9K-20HG-FLEX-SE 2 Tbps 5
A9K-20HG-FLEX-TR 2 Tbps 5
A9K-8HG-FLEX-SE 800 Gbps 2
A9K-8HG-FLEX-TR 800 Gbps 2

For more information on Cisco ASR 9000 Series 5th Generation High-Density Multi-Rate Line Cards, see Cisco ASR 9000 Series 5th Generation High-Density Multi-Rate Line Cards: 2 Terabit and 0.8 Terabit Cards Data Sheet.

ASR 9900 Series 5th Generation 10-Port 400-Gigabit Ethernet Line Cards

The ASR 9900 Series 5th Generation 10-Port 400-Gigabit Ethernet Line Cards are fully compatible with the following routers:

  • Cisco ASR 9904

  • Cisco ASR 9906

  • Cisco ASR 9910

  • Cisco ASR 9912

  • Cisco ASR 9922

This table details the specifications of the line cards.

Line Card Bandwidth 400G QSFP-DD Ports
A99-10X400GE-X-SE 4 Tbps 10
A99-10X400GE-X-TR 4 Tbps 10

For information on ZR/ZR+ port support, see Table 1.

For more information on Cisco ASR 9900 Series 5th Generation 10-Port 400-Gigabit Ethernet Line Card, see Cisco ASR 9900 Series 5th Generation 10-Port 400 Gigabit Ethernet Line Card Data Sheet.

Cisco Network Convergence System 540 Series Routers

Cisco Network Convergence System (NCS) 540 Series is a converged access platform that is designed to cost-effectively deliver services and applications. The NCS 540 is temperature-hardened, low power consumption, and small form factor suitable for indoor or outdoor use.

Cisco Network Convergence System 540 Large Density Routers

The Cisco Network Convergence System (NCS) 540 large density router is a 1-RU platform that supports QSFP56-DD ports and offers you a 400G coherent optics transport solution. The NCS 540 large density platform enhances the existing NCS 540 portfolio by offering high throughput and flexible port interfaces ranging from 1G up to 400G.

Cisco NCS 540 large density routers are suitable for both outdoor and indoor deployments. The NCS 540 large density platform offers 1-Tbps throughput and best-in-class security both from a hardware and software standpoint.

This table details the specifications of the router.

Router Capacity Form Factor 400G QSFP-DD Ports
N540-24Q8L2DD-SYS 1 Tbps 1 RU 2

For information on ZR/ZR+ port support, see Table 1.

For more informtion on Cisco Network Convergence System 540 Large Density Routers, see Cisco Network Convergence System 540 Large Density Routers Data Sheet.

400G ZR/ZR+ Transceivers

The QDD-400G-ZR-S and QDD-400G-ZRP-S optical modules offload wavelength-division multiplexing (WDM) functionality to the router. The QDD-400G-ZR-S and QDD-400G-ZRP-S optical modules are DWDM C-band (196.1 to 191.3 THz with 100-MHz spacing) tunable optical modules. These optical modules enable high-bandwidth 400G links and support 400G Ethernet rate.

This table lists some specifications of the ZR/ZR+ pluggable modules.

Parameter QDD-400G-ZR-S QDD-400G-ZRP-S
Client Speed 400G, 4x100G 400G, 4x100G, 3x100G, 2x100G, 1x100G
Trunk Speed 400G 400G, 300G, 200G, 100G
FEC cFEC oFEC, cFEC
Modulation 16-QAM 16-QAM, 8QAM, QPSK
Frequency C-Band, 196.1 To 191.3 THz C-Band, 196.1 To 191.3 THz

The ZR/ZR+ pluggable optical modules are based on the QSFP-DD form factor. This form factor is a universal standard and ensures interoperability with other vendors.

This table is the support matrix showing the supported ZR/ZR+ ports.

Table 1. ZR/ZR+ Support Matrix
Platform Line card/ Fixed Platform Ports Supporting ZR Ports Supporting ZR+ Breakout Modes Supported
Cisco ASR 9000 Series Routers

A99-10X400GE-X-TR

A99-10X400GE-X-SE

3, 4, 5, 7, 9 3, 4, 5, 7, 9 1x100, 2x100, 4x100, 1x400

A9K-8HG-FLEX-TR

A9K-8HG-FLEX-SE

0, 7 0, 7 1x100, 2x100, 4x100, 1x400

A9K-20HG-FLEX-TR

A9K-20HG-FLEX-SE

0, 7, 8, 12, 19 0, 7, 8, 12, 19 1x100, 2x100, 4x100, 1x400
A9903-20HG-PEC 0, 4, 8, 12, 16 0, 4, 8, 12, 16 1x100, 1x400

ASR-9902

-

11,37

1x100

Cisco NCS 540 Series Routers N540-24Q8L2DD-SYS 0, 1 0, 1 1x100, 2x100, 4x100, 1x400
Cisco 8000 Series Routers 8201-SYS 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22 1x100, 2x100, 3x100, 4x100, 1x400
8202-SYS

48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59

48, 50, 52, 54, 56, 58

1x100, 2x100, 3x100, 4x100, 1x400

8101-32FH

8201-32FH

All ports All ports 1x100, 2x100, 3x100, 4x100, 1x400

88-LC0-36FH-M

8800-LC-36FH

All ports 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34 1x100, 2x100, 3x100, 4x100, 1x400

88-LC0-36FH

All ports All ports 1x100, 2x100, 3x100, 4x100, 1x400

8201-24H8FH

0,2,4,6,8,10,12,14

0,2,4,6,8,10,12,14

1x100, 2x100, 3x100, 4x100, 1x400

8101-32FH-M

All ports All ports 1x100, 2x100, 3x100, 4x100, 1x400
Cisco NCS 5500 Series Routers

NCS57B1-6D24H-SYS

24, 25, 26, 27, 28, 29 24, 25, 26, 27, 28, 29 1x100, 2x100, 3x100, 4x100, 1x400

NCS57B1-5D-SE-SYS

24, 25, 26, 27, 28 24, 25, 26, 27, 28 1x100, 2x100, 3x100, 4x100, 1x400
NC57-24DD 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22 1x100, 2x100, 3x100, 4x100, 1x400
NC57-18DD-SE 12, 14, 16, 18, 20, 22, 24, 26, 28 14, 16, 18, 20, 22, 24 1x100, 2x100, 3x100, 4x100, 1x400
NC57-36H6D-S 24, 26, 28, 30, 32, 34 24, 26, 28, 30, 32, 34 1x100, 2x100, 3x100, 4x100, 1x400

The following table shows the maximum number of ZR and ZR+ modules that are supported in each breakout mode.

Platform Max no. of ZR supported in mode Max no. of ZR+ supported in mode
400G 4x100G 400G 4x100G 3x100G 2x100G 1x100G
NC57-24DD 12 12 12 12 12 12 12
NC57-18DD-SE 9 9 6 6 6 6 6
NC57-36H6D-S (400G ports) 6 6 6 6 6 6 6
NCS-57B1-6D24-SYS (400G ports) 6 6 6 6 6 6 6
NCS-57B1-5DSE-SYS (400G ports) 5 5 5 5 5 5 5
MPA-2D4H-S (400G mode MPA) - 1 - 1 1 2 4
NCS-55A2-MOD-S(E)-S with 2x400G MPA-2D4H - 2 - 2 2 4 8
MPA-2D4H-S (800G mode MPA) 2 2 2 2 2 4 4
NCS-57C3-MOD(S)-SYS with 2x800G+1x400G MPA-2D4H 4 5 4 5 5 10 12
NC57-MOD-S (Fixed ports) 2 2 2 2 2 2 2
NC57-MOD-S with 2x800G MPA-2D4H 6 6 6 6 6 10 10
NCS-57C1-48Q6-SYS 3 3 3 3 3 3 3
N540-24Q8L2DD-SYS 2 2 2 2 2 2 2
8201 24 24 12 12 12 12 12
8202 12 12 6 6 6 6 6
8800-LC-36FH 36 36 18 18 18 18 18
88-LC0-36FH-M 36 36 18 18 18 18 18
8101-32FH 32 32 16 16 16 16 16
8201-32FH 32 32 16 16 16 16 16

8201-24H8FH

8

8

8

8

8

8

8

8202-32FH-M

32

32

32

32

32

32

32

88-LC0-36FH 36 36 18 18 18 18 18
A99-10X400GE-X-SE/TR 5 5 5 5 - 5 5
A9K-20HG-FLEX-SE/TR 5 5 5 5 - - 5
A9K-8HG-FLEX-SE/TR 2 2 2 2 - - 2
A9903-20HG-PEC 5 - 5 - - - 5
ASR-9902 - - - - - - 2

This table is the support matrix showing the supported Bright ZR+ ports.

Table 2. Bright ZR+ Support Matrix
Line card/ Fixed Platform Ports Supporting Bright ZR+ Breakout Modes Supported

A9K-20HG-FLEX-TR

A9K-20HG-FLEX-SE

0, 7, 8, 12, 19 1x100, 2x100, 4x100, 1x400

A9K-8HG-FLEX-TR

A9K-8HG-FLEX-SE

0, 7

1x100, 2x100, 4x100, 1x400

8201-32FH

0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 1x100, 2x100, 3x100, 4x100, 1x400

8201-24H8FH

0,2,4,6,8,10,12,14

1x100, 2x100, 3x100, 4x100, 1x400
NCS-57C3-MOD-SYS with NC57-MPA-2D4H-S Slot 1, 2, 3: Ports 0, 1, 2, 3

Only on MPA ports

1x100, 2x100, 4x100, 1x400

For more information on Cisco 400G Digital Coherent Optics QSFP-DD Optical Modules, see the Cisco 400G Digital Coherent Optics QSFP-DD Optical Modules Data Sheet.

Cisco High-Power QSFP-DD ZR+

Cisco 400G QSFP-DD High-Power (Bright) Optical modules are high Tx power variants (+2dBm of Tx Power) of the 400G QSFP-DD.Modules.

These high-power optical modules allow easier interoperability with all deployed Add/Drop architectures and enhance unamplified reach by about 12dB as compared to QDD-400G-ZR-S and QDD-400G-ZRP-S. The optical specifications of these Bright ZR+ pluggables are aligned with current OpenZR+.

Cisco Bright QSFP-DD ZR+ modules operate at a default TX power of +1 dBm for all platforms. Unlike ZR/ZR+ TX power level at all speeds and modulations remain at +1 dBm. Configuring the FEC type to cFEC reduces power to -10dBm for ZR compatibility. Cisco Bright QSFP-DD ZR+ modules support the same modes as QDD-400G-ZRP-S -10dBm optics.

Cisco 400G QSFP-DD High-Power (Bright) Optical Module Ethernet Variant

Cisco 400G QSFP-DD High-Power (Bright) Optical module Ethernet variant is an enhanced version of the currently available QSFP-DD ZR+ Optical Module leveraging the same operational modes but providing as a major enhancement the increase of the Tx Optical Power up to +2dBm.

Supported client interface for this pluggable is Ethernet based, making this model perfectly suitable to be hosted on a router/switch host. The module asynchronously (GMP) maps an Ethernet signal from a switch/router to an intermediate 400ZR frame structure and then adapts the frame structure to the appropriate FEC engine. The encoded signal is then DSP framed and modulated for transmission as a coherent Dual-Polarity mQAM signal. The PID for this pluggable optical module is DP04QSDD-HE0.

In Cisco IOS XR Release 7.9.1, the following routers support Cisco Bright QSFP-DD ZR+.

  • NCS-57C3-MOD

  • 8201-32FH

  • 8201-24H8FH

  • A9K-20HG-FLEX-SE/TR

  • A9K-8HG-FLEX-SE/TR

From Cisco IOS XR Release 7.10.1, all NCS-5500 and NCS-5700 platforms support Bright ZR+ support Cisco Bright QSFP-DD ZR+.


Note


NCS-55A2-MOD-S(E)-S with MPA-2D4H support Bright ZR+ from Cisco IOS XR Release 7.11.1.


For more information on Bright ZR+ Optical Modules, see the Cisco 400G QSFP-DD High-Power (Bright) Optical Module Data Sheet.

Legacy 200G Modulation Modes

Cisco ZR+ modules support a ZR+ Legacy mode in 200G-8QAM 40Gbaud and 200G-16QAM 30GBaud modes. These modes allow 200G rate to fit within a 50Ghz spaced optical system. In the default mode, the modules operate in 200G QPSK at 60Gbaud.

OpenZR+ Compatibility Mode

Cisco QDD-400G-ZRP-S and DP04QSDD-HE0 modules have an OpenZR+ MSA compatibility mode. This mode:

  • Sets modem mode to standard

  • Is set by configuring optics controller Dac-Rate to

    • 1x1 for 400G, 300G, and 200G trunkrates on ZR+

    • 1x1.5 for all trunkrates on Bright ZR+ and 100G trunk rate on ZR+

  • Is used to interoperate with ZR+ optics from other vendors


Note


Setting a DAC rate of 1x1 disables TX shaping as it affects the TX power levels.


The following table contains the possible Transponder and Muxponder configuration values for the DP04QSDD-HE0 optical module:

Table 3. Bright ZR+ Transponder and Muxponder Configuration Values

TXP/MXP

Client

Trunk

Modulation

FEC

DAC Rate

400G-TXP

1 Client, 400G speed

1 trunk, 400G speed

16 QAM

oFEC

1x1.25

400G-TXP

1 Client, 400G speed

1 trunk, 400G speed

16 QAM

cFEC

1x1.5

400G-TXP

1 Client, 400G speed

1 trunk, 400G speed

16 QAM

oFEC

1x1.5

4x100G- MXP

4 clients, 100G speed

1 trunk, 400G speed

16 QAM

oFEC

1x1.25

4x100G- MXP

4 clients, 100G speed

1 trunk, 400G speed

16 QAM

oFEC

1x1.5

4x100G- MXP

4 clients, 100G speed

1 trunk, 400G speed

16 QAM

cFEC

1x1.5

3x100G-MXP

3 clients, 100G speed

1 trunk, 300G speed

8 QAM

oFEC

1x1.25

3x100G-MXP

3 clients, 100G speed

1 trunk, 300G speed

8 QAM

oFEC

1x1.5

2x100G-MXP

2 clients, 100G speed

1 trunk, 200G speed

QPSK

oFEC

1x1.5

2x100G-MXP

2 clients, 100G speed

1 trunk, 200G speed

8 QAM

oFEC

1x1.25

2x100G-MXP

2 clients, 100G speed

1 trunk, 200G speed

16 QAM

oFEC

1x1.25

1x100G-MXP

1 client, 100G speed

1 trunk, 100G speed

QPSK

oFEC

1x1.5

Device Supported Software

This table shows the IOS XR Software necessary on the routers.

This table shows the required IOS XR Software version on the routers to support specific breakout modes.

Platform ZR support ZR+ support
400G 4x100G 400G 4x100G 3x100G 2x100G 1x100G
NC57-24DD 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2
NC57-18DD-SE 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2
NC57-36H6D-S (400G ports) 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2
NCS-57B1-6D24-SYS (400G ports) 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2
NCS-57B1-5DSE-SYS (400G ports) 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2
NCS-55A2-MOD-S(E)-S - 7.5.1 - 7.5.1 7.5.1 7.5.1 7.5.1
With 2x400G MPA-2D4H
NCS-57C3-MOD(S)-SYS 7.8.1 7.8.1 7.8.1 7.8.1 7.8.1 7.8.1 7.8.1
With 2x800G+1x400G MPA-2D4H
NC57-MOD-S (Fixed ports) 7.8.1 7.8.1 7.8.1 7.8.1 7.8.1 7.8.1 7.8.1
NC57-MOD-S 7.8.1 7.8.1 7.8.1 7.8.1 7.8.1 7.8.1 7.8.1
With 2x800G MPA-2D4H
NCS-57C1-48Q6-SYS 7.5.2 7.5.2 7.5.2 7.5.2 7.5.2 7.5.2 7.5.2

NCS-57D2-18DD-SYS

7.8.1 7.8.1 7.8.1 7.8.1 7.8.1 7.8.1 7.8.1
N540-24Q8L2DD-SYS 7.4.1 7.4.1 7.4.1 7.4.1 7.4.1 7.4.1 7.4.1
8201 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2
8202 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2
8800-LC-36FH 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2
88-LC0-36FH-M 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2
8101-32FH 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2
8201-32FH 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2
88-LC0-36FH 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2 7.3.2
A99-10X400GE-X-SE/TR 7.3.2 7.3.2 7.3.2 7.3.2 7.9.1 7.3.2 7.3.2
A9K-20HG-FLEX-SE/TR 7.3.2 7.3.2 7.3.2 7.3.2 7.8.1 7.8.1 7.3.2
A9K-8HG-FLEX-SE/TR 7.3.2 7.3.2 7.3.2 7.3.2 7.8.1 7.8.1 7.3.2
A9903-20HG-PEC 7.3.2 7.3.2 7.3.2 7.8.1 7.8.1 7.8.1 7.3.2
ASR-9902 - - - - - - 7.7.1

The following table shows the required IOS XR Software version on the routers to support specific breakout modes on Bright ZR+ pluggable optical modules.

Table 4. Bright ZR+ Support
Platform 400G 4x100G 3x100G 2x100G 1x100G
NCS-57C3-MOD 7.9.1 7.9.1 7.9.1 7.9.1 7.9.1
8201-32FH 7.9.1 7.9.1 7.9.1 7.9.1 7.9.1
8201-24H8FH 7.9.1 7.9.1 7.9.1 7.9.1 7.9.1
A9K-20HG-FLEX-SE/TR 7.9.1 7.9.1 - 7.9.1 7.9.1
A9K-8HG-FLEX-SE/TR 7.9.1 7.9.1 - 7.9.1 7.9.1

Cisco Network Convergence System 2000 Series

The Cisco Network Convergence System 2000 Series delivers agility, programmability, and massive scale across ultra-long haul, metro, and enterprise optical networks. Using the Cisco NCS 2000 Series, you can deploy a simple, yet intelligent dense wavelength-division multiplexing (DWDM) network that scales with operational ease. The NCS 2000 devices are managed by Shelf Virtualization Orchestrator (SVO), Release 12.3.1.

Cisco NCS 2006 Shelf

The NCS 2006 shelf has eight horizontal cardslots. The Cisco NCS 2006 chassis is 6 RU and has six slots for service cards and two slots for controller cards. It supports multishelf management up of to 50 shelves.

For more information on Cisco Network Convergence System 2000 Series, see the Cisco Network Convergence System 2000 Series Data Sheet.

Shelf Virtualization Orchestrator

Cisco NCS 2000 Shelf Virtualization Orchestrator (SVO) introduces programmability of optical network elements and automation with NETCONF interface and YANG models. SVO enables end-to-end, software-defined automated networks that maximize revenue to customers and ease the network turn-up, operation, and maintenance.

SVO is available with a server on a blade encasing a high-speed processor with virtualized instances of multiple reconfigurable optical add/drop multiplexer (ROADM), optical line amplifier (OLA), and dynamic gain equalizer (DGE) sites of the network. An SVO line card along with the application software provides functionality-based licenses for alarm correlation, performance monitoring, connection verification, and optical time domain reflectometry (OTDR).

The Cisco NCS 2000 SVO helps to maintain and improve customers’ profitability with the orchestration of network elements and their functionalities. SVO allows the network elements to do only forwarding functions. SVO maintains the configuration and monitoring of the same at the node level with a centralized controller.

For more information on Cisco NCS 2000 Shelf Virtualization Orchestrator, see the Cisco NCS 2000 Shelf Virtualization Orchestrator Data Sheet.

Control Cards

Cisco NCS 2000 Series Transport Node Controller 2 with Optical Time Domain Reflectometry (TNCS-2O) Card performs system initialization, provisioning, alarm reporting, maintenance, diagnostics, IP addressing, Data-Communications-Channel (DCC) termination, monitoring of system input voltage, system fault detection, and multishelf management connections. Optical Time Domain Reflectometry (OTDR) is used to provide information about the basic characteristics of the Optical fiber among Optical nodes, such as insertion loss, concentrate-point of reflection, fiber-to-fiber connection losses and reflectance.

For more information on Cisco Transport Node Controller and Transport Shelf Controller Cards, see the Cisco Transport Node Controller and Transport Shelf Controller Cards Data Sheet.

ROADM Cards

The 20-SMRFS card is tunable over 96 channels in the C-band, at 50-GHz spacing on the ITU-T grid. The card provides the flex spectrum capability, which gives the flexibility to allocate channel bandwidth and increase the network scalability. With flex capability, the channel bandwidth is not fixed, but can be defined arbitrarily, with a specified granularity and within a given range. The card makes the network flexible as it allows you to reconfigure the optical channels on the run.

The 20-SMRFS card is a single-slot card that integrates two cross-connect blocks (multiplexer and demultiplexer), a variable-gain EDFA preamplifier, and a variable-gain EDFA booster amplifier. The card supports up to 20 directions for each ROADM node. The EDFA preamplifier in this card has gain ranges of 0–17 and 12–24 dB with controlled tilt and extended gain ranges of 20 dB and 35 dB with uncontrolled tilt.

For more information on Cisco NCS 2000 Flex Spectrum Single Module ROADM Line Cards, see the Cisco NCS 2000 Flex Spectrum Single Module ROADM Line Cards Data Sheet.

Amplifier Cards

The Cisco NCS 2000 offers enhanced optical amplifier cards operating in the C-band region of the optical spectrum to extend the reach and capacity of a metro, regional, or long-haul network. The optical amplifier cards are part of the Cisco NCS 2000 intelligent DWDM architecture that is engineered to reduce DWDM complexity and speed the deployment of next-generation networking solutions.

EDFA Cards

The OPT-EDFA-17 and OPT-EDFA-35 cards are C-band DWDM EDFA amplifiers and preamplifiers. The cards are true variable gain amplifiers, offering an optimal equalization of the transmitted optical channels over a wide gain range. They support 96 channels at 50-GHz channel spacing in the C-band (that is, 1528.77 to 1566.72-nm wavelength range). The OPT-EDFA-17 card delivers 20-dBm output power. The OPT-EDFA-35 card delivers +23-dBm output power. These cards do not contain midstage access loss for a Dispersion Compensation Unit (DCU). The cards provide a noise-figure optimized version of the EDFA amplifiers to cope with new modulation formats like PM-DQPSK, which do not need dispersion compensation.

For more information on Enhanced C-Band 96-Channel EDFA Amplifiers for the Cisco ONS 15454 Multiservice Transport Platform (MSTP), see the Enhanced C-Band 96-Channel EDFA Amplifiers for the Cisco ONS 15454 MSTP Data Sheet.

EDRA Cards

The double-slot EDRA-2-26 card combines standard erbium-doped fiber amplifiers and a Raman amplifier to enable amplification on long unregenerated spans. These plug-in modules support an ultra-low noise figure that is critical for long-distance, high-bit-rate transmission. Supporting 96 channels in the C-band (wavelengths from 1528.77 to 1566.72 nm), they provide the reach and optical performance required to meet the most demanding distance requirements of service provider and enterprise DWDM networks. EDRA-2-26 includes an erbium-doped preamplifier, EDFA1, with a nominal gain of 14 dB and an erbium-doped booster amplifier, EDFA2. It supports a maximum span of 26 dB on standard single-mode fiber.

For more information on Cisco Network Convergence System 2000 Series Erbium Doped Raman Amplifiers, see the Cisco Network Convergence System 2000 Series Erbium-Doped Raman Amplifiers Data Sheet.

Raman Amplifier Cards

The Cisco® ONS 15454 Multiservice Transport Platform (MSTP) High-Power Counter-Propagating Raman Amplifiers operate in the C-band region of the optical spectrum to extend the reach and capacity of regional, long-haul, and ultra-long-haul optical.

Raman amplifiers use the intrinsic properties of silica fiber in such a way that the transmission fibers themselves become a medium for amplification. This approach allows the attenuation of data signals transmitted over the fiber to be mitigated within the fiber itself. An amplifier using this principle is commonly known as a distributed Raman amplifier or simply, a Raman amplifier. The high-power counterpropagating unit injects counterpropagating optical power to generate a Raman effect in the span fiber and thus amplifies the signals propagating in the same fiber.

The single-slot RAMAN-CTP card supports counter Raman amplification on long unregenerated spans. The cards manage up to 96 ITU-T 50 GHz spaced channels over the C-band of the optical spectrum (wavelengths from 1528.77 to 1566.72 nm).

For more information on High-Power Counter-Propagating and Co-Propagating Raman units for the Cisco ONS 15454 Multiservice Transport Platform, see High Power Counter-Propagating and Co-Propagating Raman units for the Cisco ONS 15454 Multiservice Transport Platform (MSTP).

Passive Multiplexer and Demultiplexer Module

NCS1K-MD-64-C is an optical passive optical multiplexer and demultiplexer module. The new optical module is based on Athermal Wave Guide (AWG) providing 64 channels at 75-GHz space covering the extended C-band of optical spectrum. The passive module allows you to transmit 400G ZR and 400G ZR+ wavelengths.

NCS1K-MD-64-C is a bidirectional unit that has the MUX and the DEMUX functions implemented as two different sections. The NCS1K-MD-64-C module supports bidirectional connection toward the Router/DCI that is equipped with QDD-400G-ZR-S and QDD-400G-ZRP-S.

For more information on Cisco NCS 1000 Mux/Demux 64-Channel Patch Panel module, see Cisco NCS 1000 Mux/Demux 64-Channel Patch Panel Data Sheet

Passive Patch Panel Modules

The passive optical modules are used to build the optical network system.

MPO-16 to 16-LC Fan-Out Module

The MPO-16 to 16-LC fan-out module is a double slot module with one MPO-16 connector (COM) and eight LC duplex connectors (Port-i-TX/RX). It contains 16 photodiodes to monitor the power of the channel input ports. The MPO-16 to 16-LC fan-out module provides fan-out of the MPO-16 connector to or from the LC connections and interconnects the optical modules having LC connectors (TXP) with modules having MPO-16 connectors (SMR20 FS).

Cisco 1 x 6 Colorless FlexSpectrum Add/Drop Module

The Cisco 1 x 6 Colorless FlexSpectrum Add/Drop Module (6AD-CFS) is a passive unit including one 1 x 6 splitter and one 6 x 1 combiner, and 7 photodiodes. This module is single-slot height in the mechanical frame chassis. Its primary function is to provide optical multiplexing and demultiplexing for up to six optical signals. Because it is based on optical splitter and combiner technology, only transceivers employing coherent detection can be directly connected to the six client ports of the unit. Integrated photodiodes provide connectivity check and monitoring functions Virtual PDs are implemented by the unit on the output ports (AD-i-TX, COM-TX) by subtracting the insertion losses from the real PD reading. Power values and the manufacturing data stored in the flash memory are provided to a Cisco Transport Controller through the USB connection.

5-Degree Modular Patch Panel Module

The 5-Degree Patch Panel Module (MF-DEG-5) provides interconnections between five 8-port MPO connectors; it is used to connect any combination of up to five ROADM line degrees (express connections) and add or drop components (add or drop connections). The 40 optical paths are interconnected. Five photodiodes provide power monitoring of fiber 1 of each MPO connector. Power values and the manufacturing data stored in the flash memory are provided to a Cisco Transport Controller through the USB connection. This module is single-slot height in the mechanical frame chassis.

Cisco 4-Degree Upgrade Modular Patch Panel Module

The Cisco 4-Degree Upgrade Modular Patch Panel Module (MF-UPG-4) provides interconnections among eight 8-fiber MPO connectors; it is used to expand the number of degrees and the number of add or drop ports that are supported by the node. The 64 optical paths are interconnected. A total of eight photodiodes provides power monitoring of fiber 1 of each MPO connector. Power values, and the manufacturing data stored in the flash memory are provided to a Cisco Transport Controller through the USB connection. This module is single-slot height in the mechanical frame chassis.

For more information on Cisco Network Convergence System 2000 Series Passive Patch Panel Modules, see the Cisco Network Convergence System 2000 Series Passive Patch Panel Modules Data Sheet.

Cisco Network Convergence System 1010

Cisco NCS 1010 is a next-generation optical line system that is optimized for ZR/ZR+ WDM interfaces in the routers. It provides point-to-point connectivity between routers with WDM interfaces and multiplex WDM signals from multiple routers over single fiber. In addition, it supports ROADM express of up to 8 degrees. It caters to both C-band only and C+L combined WDM transmission to maximize capacity. Cisco NCS 1010 is a 3RU chassis that has an in-built External Interface Timing Unit (EITU) and the following field-replaceable modules.

  • Controller

  • Two power supply units

  • Two fan trays

  • Fan filter

  • Line card

There are five different variants of the line card:

  • OLT-C Line Card―C-band Optical Line Terminal without Raman

  • OLT-R-C Line Card―C-band Optical Line Terminal with Raman

  • ILA-C Line Card―C-band In-Line Amplifier without Raman

  • ILA-R-C Line Card―C-band In-Line Amplifier with one side Raman

  • ILA-2R-C―C-band In-Line Amplifier with both sides Raman

Figure 1. Perspective View of OLT-R-C Line Card
Perspective View of OLT-R-C Line Card
Figure 2. Front View of ILA-2R-C Line Card
Front View of ILA-2R-C Line Card

NCS 1010 for Routed Optical Networking

The following features of the NCS 1010 Optical Line Systems make it ideal for Routed Optical Networking:

  • Support for low-power coherent sources

    • Ingress EDFA amplifier on OLTs to support 400ZR and OpenZR+ DCOs.

    • Low loss couplers to support 95/140 G Baud-Rates that need higher Rx power.

  • Capacity scaling built-in by design

    • Hitless upgrade from C band to C+L band

    • Embedded channelized ASE for consistency in performance from day-1 to full capacity growth

    • 33-port Twin-WSS architecture to use as express or add/drop

  • Simplicity of the OLS

    • Simpler patching – integrated module

    • Independent degree operation

    • Automated turn-up

    • Full spectrum loading from the start

    • DGE on ILAs for equalization and better control of Raman Gain ripple

  • Automation of entire life cycle

    • Device automation - ZTP, OC YANG config, Telemetry

    • Automated E2E turn-up with embedded control loops

    • Automated Connection Verification for patch loss checks at each site

    • Enhanced visibility - OTDR, OSC, OCM

Cisco NCS 1000 32-Channel Mux/Demux Patch Panel

The Cisco NCS 1000 32-Channel Mux/Demux patch panels are a pair of passive Athermal Arrayed Waveguide Grating (AAWG) base modules (PIDs NCS1K-MD-32O-C and NCS1K-MD32E-C). Each mux/demux panel has 32 channels and works as an add/drop unit for the OLT-C and OLT-R-C line cards. Each mux/demux panel allows the multiplexing and demultiplexing of 32 channels with 150-GHz spacing. 75-GHz frequency shift exists between the ODD and EVEN panels. When both panels are used on the same OLT (OLT-C and OLT-R-C) line cards, the combined capacity becomes 64 channels with 75-GHz spacing. Each mux/demux panel provides a wide optical pass-band support. When used as a standalone, each panel acts as an add/drop unit for 32 channels at 140 gigabauds.

The NCS1K-MD32O/E-C panel operates in C-band. The Cisco NCS 1000 Mux/Demux patch panels are fully passive. The units are powered with a USB 3.0 connection in the NCS 1010 chassis. The panels monitor signals, verify connections, and retrieve the inventory data.

Cisco NCS 1000 Breakout Patch Panel and Modules

Cisco NCS 1000 Breakout Patch Panel

Cisco NCS 1000 Breakout Patch Panel is a colorless breakout-modular patch panel. It is powered by the NCS 1010 chassis using a single USB 3.0 cable. The breakout panel contains four USB 2.0 connections that power the passive optical modules. It allows connections between the OLT-C and OLT-R-C line cards that are installed in the NCS 1010 chassis and the optical passive modules using MPO cables. The breakout panel is 4 RU high and has adjustable fiber guides for fiber routing. The empty slots are covered with dummy covers.

The NCS1K-BRK-SA breakout panel is a 4RU breakout patch panel. It interfaces four passive optical modules with the NCS 1010 chassis. The breakout panel supports up to 72 colorless mux/demux channels. The breakout panel supports 8-directional interconnections.

The panel is shipped with USB 2.0 connectors that are connected to the corresponding dummy covers. The plastic transparent cover can be installed in front of the panel for fiber protection. The panel is designed to fit a 19-inch rack. The panel can also be installed on ETSI and 23-inch rack using adapter brackets.

Cisco NCS 1000 Breakout Modules

The Cisco NCS 1000 Breakout Modules are a set of three optical breakout units. The modules can be connected to the A/D 4-11, A/D 12-19, A/D 20-27 and A/D 28-33 MPO connector ports of the OLT-C and OLT-R-C line cards to provide ROADM node internal connections and for local channels add/drop. The breakout panel supports the following passive optical modules:

NCS1K-BRK-8

The NCS1K-BRK-8 module provides the breakout of 16 fibers from an MPO-24 connector to eight duplex line card connectors. It essentially performs an optical connection adaptation of MPO-to-LC connectors for the ADD/DROPi signals of the MPO ports of OLT line cards. For each port (MPO and LC), power monitors with tone detection capability are available. A filtered optical loopback (191.175 THz) from one MPO input port (fiber-1) to all MPO output ports is available for connection verification.

NCS1K-BRK-24

The NCS1K-BRK-24 module provides the breakout of 16 fibers from an MPO-24 connector to 24 duplex LC connectors. The signals on each fiber from the MPO input ports are split over three LC output ports by a 1x3 optical splitter. The signals from the three adjacent input LC ports are combined into a single MPO fiber output port through a 1x3 optical coupler. For each port (MPO and LC), power monitors with tone detection capability are available. A filtered optical loopback (191.175 THz) from one MPO input port (fiber-1) to all MPO output ports is available for connection verification.

For more information on Cisco Network Convergence System 1010, see the Cisco Network Convergence System 1010 Data Sheet .

Network Planning Components

Use the following components to plan the network:

Routed Optical Networking Planning Service

Cisco CX provides a unified planning service to help you simplify and plan the transition to a converged IP-Optical Routed Optical Network. By modeling your current and future architectures, Unified Networking Planning accelerates your progress toward Routed Optical Networking and create opportunities for customers to work on their OpEx reduction goals.

Cisco CX uses questionnaires, workshops, interviews, and documentation reviews to capture unified planning requirements. To execute network planning and assessment, Cisco CX:

  • Collects information on sites, traffic demand, modeling requirements, interface types, and so on.

  • Visualizes network layout with forecasted capacity and performs network modeling.

  • Estimates traffic behaviors in failure scenarios and assesses failure impact.

  • Compares network architectures in terms of number of interfaces, hardware, sites, rack space, and power requirements.

Cisco CX provides ongoing technical consultative advice and guidance for the customer planning teams to share interim and final planning service results and reports.

Cisco WAN Automation Engine

The Cisco WAN Automation Engine (WAE) platform is an open, programmable framework that interconnects software modules, communicates with the network, and provides APIs to interface with external applications.

Cisco WAE provides the tools to create and maintain a model of the current network through the continual monitoring and analysis of the network and the traffic demands that are placed on it. At a given time, this network model contains all relevant information about a network, including topology, configuration, and traffic information. You can use this information as a basis for analyzing the impact on the network due to changes in traffic demands, paths, node and link failures, network optimizations, or other changes.

Cisco WAE is used for IP and optical network planning of multi-vendor networks.

For more information, see Cisco WAN Automation Engine Data Sheet

Cisco Optical Network Planner

Cisco Optical Network Planner (Cisco ONP) is a tool that models and tests Optical Transport Networks and Dense Wavelength Division Multiplexing optical networks using a graphical environment. The primary purpose of Cisco ONP is to design and validate networks of the NCS 2000 series and NCS 1010. Using the Cisco ONP tool, you create multiple instances of a network, modify different parameters at each instance, and compare the instances. Cisco ONP performs the following:

  • Generates a rack view of all the sites in the network

  • Shows the differences between the instances

  • Provides a complete Bill of Materials (BOM) for the network

Cisco ONP models the optical network, generates the BOM, and provides detailed information about the network. This information includes connection reports, optical reports, and traffic matrix.


Note


Cisco ONP must be used to perform the final optical network feasibility analysis and generate production network designs.

For more information, see Cisco Optical Network Planner (CONP) Data Sheet

Automation Components

Automation of the Routed Optical Networking solution follows the IETF ACTN SDN controller framework. Cisco Optical Network Controller is the Cisco optical domain PNC, Crosswork Network Controller (Crosswork Network Controller) is the multivendor IP-domain PNC. Crosswork Hierarchical Controller unifies IP and optical information from Cisco Optical Network Controller and Crosswork Network Controller, providing multi-layer and multi-domain visualization, Routed Optical Networking service assurance, and Routed Optical Networking service management in the MDSC role.

Figure 3. IETF ACTN – Open Automation Reference Framework
IETF ACTN – Open Automation Reference Framework

The automation stack consists of the following components:

  • Crosswork Hierarchical Controller manages Routed Optical Networking deployments by leveraging advanced multi-layer and multi-vendor capabilities to provision and assure both IP and optical networks.

  • Cisco Optical Network Controller helps in configuring Cisco optical network elements, monitors the topology (physical or virtual) of networks, performs optical path computation, and collects information about the topology.

  • Crosswork Network Controller simplifies and automates intent-based network service provisioning, monitoring, and path optimization in a IP multi-vendor network environment with a common GUI and API.

  • EPNM is the unified EMS that performs deep inventory. It is an element management system for device lifecycle management for converged IP and optical networks. EPNM also collects fault and alarm information, and performs node-level performance measurement statistics collection.

Routed Optical Networking Automation Solution Architecture

The following diagram provides a high-level illustration of how the solution’s components work together.

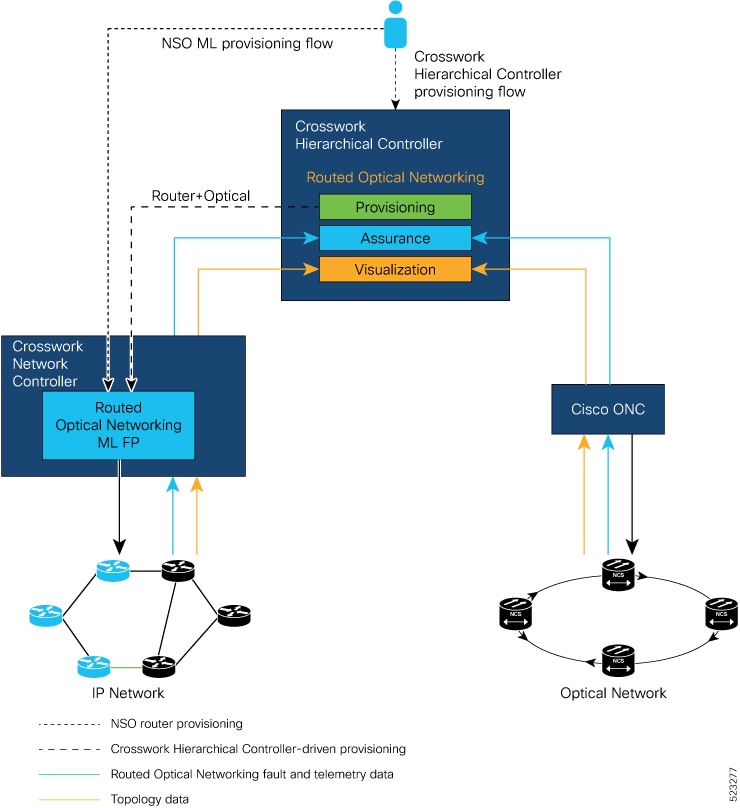

Figure 4. Routed Optical Networking Automation Architecture
Routed Optical Networking Automation Architecture
Table 5. Functions Performed by Automation Components
Function Application
IP Network Hardware Inventory

CW HCO 7.0

CNC 5.0 with EMS cApp

EPNM 7.0.1

Optical Network Hardware Inventory

CW HCO 7.0 (via Cisco Optical Network Controller)

CONC 2.1 (NCS 2000 and NCS 1010 API, NCS 1010 UI)

EPNM 7.0.1

IP Network Device Alarms

CNC 5.0 with EMS cApp

EPNM 7.0.1

IP Network Link and TE Faults

CW HCO 7.0 (via CNC)

CNC 5.0

EPNM 7.0.1

Optical Network Device Alarms

CONC 2.1 (NCS 2000 and NCS 1010 API, NCS 1010 UI)

EPNM 7.0.1 (NCS 2000)

SVO (NCS 2000 device UI)

Optical Network Faults including Services

CW HCO 7.0

CONC 2.1 (NCS 2000 and NCS 1010 API, NCS 1010 UI)

EPNM 7.0.1 (NCS 2000)

SVO (NCS 2000 device UI)

Multi-Layer Circuit Provisioning CW HCO 7.0
Routed Optical Multi-Layer Performance Monitoring CW HCO 7.0 (via CNC for router DCO, CONC for optical)
Optical Network Planning CONP 5.1

Cisco Crosswork Hierarchical Controller

Cisco Crosswork Hierarchical Controller provides an API and single pane of glass UI for Routed Optical Networking infrastructure and services. It manages your existing optical and packet domains with the same unified approach. Routed Optical Networking with Crosswork Hierarchical Controller dramatically simplifies the operation of multi-layer networks which before now were commonly managed by independent NMS/EMS products.

Crosswork Hierarchical Controller addresses the role of a multi-domain, multi-layer, and multi-vendor network controller. Crosswork Hierarchical Controller is capable to learn the mapping between IP/MPLS and optical layer ports (cross-layer mapping). This capability is key to providing a comprehensive view of the network. The system interfaces with SDN Domain Controllers for the packet layers (IP, MPLS) and transport layers (WDM, OTN, Packet-Optical) to create a coherent view of the entire transport network. Crosswork Hierarchical Controller enables automation of its functions and simplified abstracted interaction with Service Orchestrators and OSS tools.

Key Capabilities

Key capabilities of Crosswork Hierarchical Controller that Routed Optical Networking uses are:

  • Multi-layer discovery and visualization of Routed Optical Networking links based on network data allows you to create a trustworthy digital twin of your network to help operations and to feed OSS tools.

  • Multi-layer provisioning of Routed Optical Networking links with a multi-layer provisioning interface through domain controllers.

  • End-to-end assurance of service across all domains enables you to meet strict service requirements.

Figure 5. Crosswork Hierarchical Controller Workflow
Crosswork Hierarchical Controller Workflow

Adapters

Crosswork Hierarchical Controller uses adapters to connect to a device or management system. Crosswork Hierarchical Controller uses the adapters to collect information for the network model and configure the device. Routed Optical Networking requires the following adapters. These adapters are installed as part of the Crosswork Hierarchical Controller installation.

  • cisco-cnc-adpt –IP network topology and link state information

  • cisco-onc-adpt –Cisco optical network controller

  • cisco-ios-xr-adpt –Gathers inventory data and statistics

  • cisco-cdg-adpt – Collects performance measurement data using streaming telemetry

You can have multiple adapters of the same type. For instance, if you have multiple optical domains with different Cisco Optical Network Controller instances, each domain has a separate Cisco Optical Network Controller adapter.

Crosswork Hierarchical Controller Applications

The Crosswork Hierarchical Controller is a customized bundle of apps and adapters and can be installed using an executable installer. The Crosswork Hierarchical Controller web interface can be accessed using a custom URL. The Crosswork Hierarchical Controller consists of multiple applications that are described in the following figure.

For more information, see Cisco Crosswork Hierarchical Controller

Cisco Crosswork Network Controller

Cisco Crosswork Network Controller (Crosswork Network Controller) is a network automation solution for deploying and operating IP and Routed Optical Networking converged transport networks. Crosswork Network Controller delivers increased service agility, cost efficiency, and optimization for faster time-to-customer value and lower operating costs. The solution combines intent-based network automation to deliver critical capabilities for service orchestration and fulfillment, network optimization, service path computation, device deployment and management, and anomaly detection and automatic remediation. Using telemetry gathering and automated responses, Cisco Crosswork Network Controller delivers network optimization capabilities that are nearly impossible to replicate even with a highly skilled and dedicated staff operating the network.

The integrated solution combines core capabilities from multiple innovative, industry-leading products including Cisco Network Services Orchestrator (NSO), Cisco Segment Routing Path Computation Element (SR-PCE), and the Cisco Crosswork suite of applications. Its unified user interface allows real-time visualization of the network topology and services, as well as service and transport provisioning, through a single pane of glass.

The Crosswork Network Controller features are:

  • Active Topology: Active Topology’s logical and geographical maps provide real-time visibility into the physical and logical network topology, service inventory, and SR-TE policies and RSVP-TE tunnels, all in a single pane of glass. They enable operators to see, at-a-glance, the status and health of the devices, services, and policies.

  • Common UI and API: All Crosswork Network Controller functionality is provided within a single, common GUI. This common UI brings together the features of all components of Crosswork Network Controller, including common inventory, network topology and service visualization, service and transport provisioning, and system administration and management functions.

    All Crosswork Network Controller functionality is provided within a single, common GUI. This common UI brings together the features of all components of Crosswork Network Controller, including common inventory, network topology and service visualization, service and transport provisioning, and system administration and management functions.

  • Platform Infrastructure and Shared Services: The Platform Infrastructure provides a resilient and scalable platform on which all Cisco Crosswork applications can be deployed. It is a microservices-based platform that brings together streaming telemetry and model-driven application programming interfaces (APIs) to redefine service provider network operations. It retrieves real-time information from the network, analyzes the data, and uses APIs to apply network changes. It employs a cluster architecture to be extensible, scalable, and highly available.

The essential components of Crosswork Network Controller are:

  • Cisco Crosswork Optimization Engine: Cisco Crosswork Optimization Engine provides real-time network optimization allowing operators to effectively maximize network capacity utilization and increase service velocity. Crosswork Optimization Engine enables closed loop tracking of the network state, reacting quickly to changes in network conditions to support a self-healing network. See Cisco Crosswork Optimization Engine Data Sheet

  • Cisco Crosswork Data Gateway: Cisco Crosswork Data Gateway (Crosswork Data Gateway) is a secure, common collection platform for gathering network data from multivendor devices. It is an on-premise application that is deployed close to network devices. Crosswork Data Gateway supports multiple data collection protocols including MDT, SNMP, CLI, standards-based gNMI (dial-in), and syslog. Crosswork Data Gateway can collect any type of data as long as the data can be delivered over one of the supported protocols. See Cisco Crosswork Data Gateway Data Sheet

  • Cisco Segment Routing Path Computation Element: Cisco Segment Routing Path Computation Element (SR-PCE) is an IOS-XR multidomain stateful Path Computation Engine (PCE) supporting both segment routing (SR) and Resource Reservation Protocol (RSVP). Cisco SR-PCE builds on the native PCE abilities within IOS-XR devices, and provides the ability to collect topology and segment routing IDs through BGP-LS, calculates paths that adhere to service SLAs, and programs them into the source router as an ordered list of segments. A Path Computation Client (PCC) reports and delegates control of headend tunnels that are sourced from the PCC to a PCE peer. The PCC and PCE establish a Path Computation Element Communication Protocol (PCEP) connection that SR-PCE uses to push updates to the network and reoptimize paths where necessary.

  • Cisco Network Services Orchestrator (NSO) Function Packs: Cisco Crosswork Network Controller is packaged with the following Cisco NSO function packs:

    • SR-TE core function pack (CFP)

    • Sample function packs for IETF-compliant L2VPN and L3VPN provisioning

    • Sample IETF-compliant RSVP-TE function pack

The optional components of Crosswork Network Controller are:

  • Cisco Crosswork Health Insights: Cisco Crosswork Health Insights is a network health application that performs real-time Key Performance Indicator (KPI) monitoring, alerting, and troubleshooting. Cisco Crosswork Health Insights enables programmable monitoring and analytics. It provides a platform for dynamically addressing changes to the network infrastructure. See Cisco Crosswork Change Automation and Health Insights Data Sheet

  • Cisco Crosswork Zero-Touch Provisioning: The Cisco Crosswork Zero-Touch Provisioning (ZTP) application is an integrated solution for onboarding and provisioning new IOS-XR devices automatically. ZTP results in faster deployment of new hardware at lower operating costs. Operators can quickly and easily bring up devices using a Cisco-certified software image and a day-zero software configuration. Once provisioned in this way, the new device is onboarded to the Crosswork device inventory where it can be monitored and managed like other devices. See Cisco Crosswork Zero–Touch Provisioning Data Sheet

  • Cisco Service Health: Service Health substantially reduces the time required to detect and troubleshoot service quality issues. It monitors the health status of provisioned L2/L3 VPN services and enables operators to pinpoint why and where a service is degraded. It can also provide service-specific monitoring, troubleshooting, assurance, and proactive causality through a heuristic model that visualizes the:

    • Health status of subservices (device, tunnel) to a map when a single service is selected.

    • Service logical dependency tree and help the operator in troubleshooting in case of degradation by locating where the problem resides, an indication of possible symptoms, and impacting metrics in case of degradation.

    • Historical view of service health status up to 60 days

  • Crosswork EMS Services: Element Management System (EMS) services are bundled with the Crosswork Network Controller Advantage pack. The EMS functions include inventory, fault, and Software Image Management (SWIM).

    • Inventory service integrates deep inventory collection with Cisco Crosswork’s Device Lifecycle Management (DLM). It enriches the existing device onboarding workflow to gather more insights about the device. Built-in device packages enable deep inventory collection when the user manually attaches a device to the Crosswork Data Gateway. The collection is persisted in the database and monitored using the Inventory APIs.

    • Fault service is associated with alarm management. It provides API support for subscription, request, retrieval, and auto-clearing of alarms for Topology Visualization services. Monitored using the Fault APIs, the fault service improves the existing topology views by showing the alarm status for devices and links.

    • SWIM is integrated with Crosswork Change Automation and managed with SWIM APIs. It allows operators to view, import, and delete software images, as well as push software images to the devices in the network. SWIM improves compliance, accelerates upgrades, and improves the network engineer experience.

As it uses standards-based protocols, Cisco Crosswork Network Controller is multivendor capable for:

  • Network service orchestration

  • Telemetry data collection

  • Topology and transport discovery

  • Transport path computation

For more information on Cisco Crosswork Network Controller, see the Cisco Crosswork Network Controller Data Sheet.

Cisco Optical Network Controller

Cisco Optical Network Controller (Optical Network Controller) is an SDN Domain Controller for optical networks. Optical Network Controller collects optical data and uses it to provide network information in an abstracted format to higher layer controllers. This abstraction enables centralized control of optical networks.

Cisco Optical Network Controller serves as a domain controller for optical products and provides data to Hierarchical Controllers. Optical Network Controller supports a standardized TAPI model, which enables it to abstract the device level details from a hierarchical controller. As a Provisioning Network Controller, Optical Network Controller helps in configuring the network elements, monitors the topology (physical or virtual) of networks, and collects information about the topology. Cisco Optical Network Controller improves hardware capability by supporting addition of optical applications to the controller. It centralizes some of the control loop functions that are critical for maintaining and programming the optical components in the hardware.

For more information on Cisco Optical Network Controller, see the Cisco Optical Network Controller Data Sheet.

Cisco Network Services Orchestrator

Cisco Network Services Orchestrator (NSO) is an orchestration platform that takes advantage of pluggable function packs to translate networkwide service intent into device-specific configuration. Cisco NSO provides flexible service orchestration and lifecycle management across physical network elements and cloud-based virtual network functions (VNFs), fulfilling the role of the Network Orchestrator within the ETSI architecture. It provides complete support for physical and virtual network elements, with a consistent operational model across both. It can orchestrate across multivendor environments and support multiple technology stacks, enabling extension of end-to-end automation to virtually any use case or device.

Cisco NSO has a rich set of APIs designed to allow developers to implement service applications. It provides the infrastructure for defining and executing the YANG data models necessary to realize customer services. NSO is also responsible for providing the overall lifecycle management at the network service level.

For more information on Cisco Network Services Orchestrator, see Cisco Network Services Orchestrator Data Sheet

Cisco NSO Routed Optical Networking Core Function Pack

The NSO Routed Optical Networking CFP uses NSO to automate the management of the devices in the Routed Optical Networking network and perform end-to-end service provisioning seamlessly across the IP layer and optical layers. The NSO Routed Optical Networking CFP uses the same NSO instance as Crosswork Network Controller.

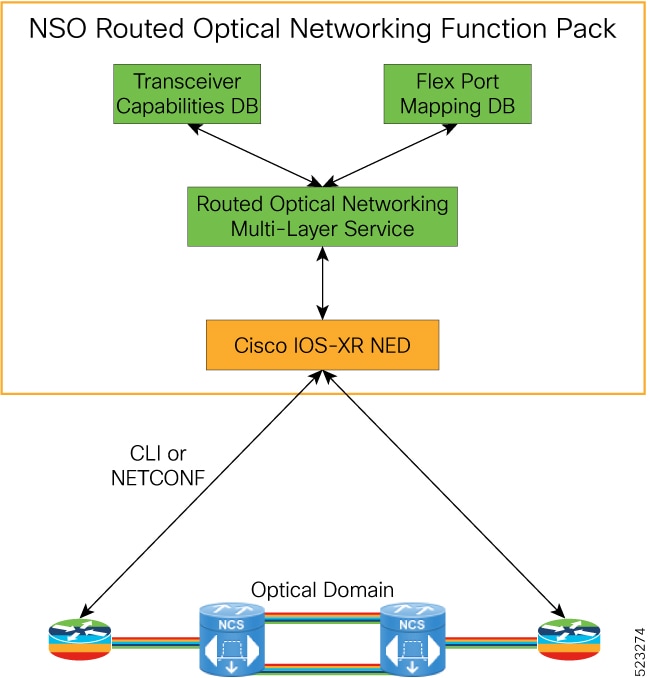

Figure 6. Routed Optical Networking ML Function Pack

This table describes the functions of different components of the Routed Optical Networking ML Function Pack.

Component

Function

Flex-port mapping DB

Maintains chassis and line card PID database for ports that must be pre-provisioned before the ZR configuration. NCS57-18DD-SE and ASR 9000 multi-rate line cards must be preprovisioned

Transceiver capabilities DB

Map ZR/ZR+ optics PIDs to capabilities for provisioning verification. ZR = 400G, 4x100G, ZR+ = 100G, 2x100G, 3x100G, 4x100G, or 400G

Routed Optical Networking ML service

Performs ZR/ZR+ optical layer configuration. Optionally IP layer configuration of LAG membership and IP addressing

Cisco IOS-XR NED

Used to provision router elements. NSO network equipment driver used for southbound communication to routers.


Note


The inter-layer link services are user-defined. Flex-port mapping and transceiver capabilities are installed as part of the function pack, but can be modified by the user.


The Routed Optical Networking ML service connects two DWDM optical ports with a fixed bandwidth of either 100, 200, 300, or 400G between the routers. This service is characterized by a single DWDM wavelength.

The Routed Optical Networking ML service helps to:

  • Provision line card modes to support 400G optics

  • Configure the optical parameters on the ZR or ZR+ optics

  • Assign IP address to Ethernet interfaces or bundle interfaces

  • Bundle discrete Ethernet interfaces

Cisco Evolved Programmable Network Manager

The Cisco Evolved Programmable Network Manager (EPNM) is an all-in-one management solution for today’s converging packet and optical networks.

Cisco EPN Manager supports the Cisco Routed Optical Network architecture and delivers Cisco Optical and IP full device management and Cisco optical circuit network assurance. The Cisco EPN Manager discovers and represents the physical and logical configuration of managed devices.

Cisco EPN Manager provides full software image management and configuration management for the Cisco optical and IP devices.

A graphical chassis view with status indications gives network operators a live-live view of the device. EPNM differentiates itself from other network management systems with the ability to discover optical circuit from the network and maintain up-to-date representation of the optical circuit and the infrastructure dependency.

EPNM helps reduce the time to know about network or optical circuit-affecting conditions by correlating raw events and associating alarm conditions with affected managed network elements, network connectivity, and circuit. Contextual dashboards and 360-degree views (device and port levels) display the most relevant information for fast and efficient problem identification and remediation. To help reduce the time to restore and repair, EPNM guides the troubleshooting process using alarm correlation, identification of affected components or optical circuit, and connectivity. EPNM collects fault and alarm information, and performs node-level performance measurement statistics collection.

For more information on Cisco Evolved Programmable Network Manager, see the Cisco Evolved Programmable Network Manager Data Sheet.

Routed Optical Networking Components Software Versions

This table lists the software versions of the Routed Optical Networking solution components.

Component Software Version
Cisco Crosswork Network Controller 5.0
Crosswork Network Controller cApps 5.0
Crosswork Data Gateway 5.0
Network Services Orchestrator 6.1
NSO RON Core Function Pack

2.1

Cisco Optical Network Planner 5.1
Cisco Crosswork Infrastructure

5.0 for Crosswork Network Controller

4.4 for Optical Network Controller

Cisco Optical Network Controller 2.1
Crosswork Hierarchical Controller 7.0
Cisco Evolved Programmable Network Manager 7.0.1

IOS-XR Software Components

Cisco IOS XR is a modern and flexible network operating system. XR improves operational efficiencies with management API integration to provide near real-time, actionable telemetry data. Two features of IOS XR that enable Routed Optical Networking are:

  • YANG-modeled management layer APIs: To automate device provisioning and management. These models include native IOS XR YANG models and OpenConfig models.

  • Streaming telemetry capabilities: For cadence-based or event-driven monitoring of data that is derived from YANG-modeled paths in the manageability layer over gRPC, TCP, or UDP.

Data models provide an alternate centralized way to configure devices instead of using the CLI or SNMP and to collect operational data from Cisco devices. Because the data models are standards-based, the same procedures are able to configure or collect data from non-Cisco devices as well. This ability makes them ideal for customers that support multiple vendors. You can use a centralized management platform to configure or collect data from multiple Cisco devices. The data model architecture allows for automating these procedures.

Network Configuration (NETCONF) Protocol

NETCONF is a standard-based and XML-encoded protocol. NETCONF provides the transport to communicate YANG formatted configuration or operational data requests from an application, which runs on a centralized management platform, to the Cisco device that you wish to configure or request operational data from. It provides transaction-based services, such as aborting the entire configuration request when a portion of that configuration request fails.

NETCONF uses a simple Remote Procedure Call based mechanism to facilitate communication between clients (centralized management platform script or application) and servers (Cisco switch or router). It uses SSH as the transport layer across network devices.

Yet Another Next Generation Data Modeling Language

YANG is a standards-based data modeling language. You can use YANG to create device configuration requests or requests for operational (show commands) data. It has a structured format similar to a computer program that is human-readable. Several applications that can run on a centralized management platform to create these configuration and operational data requests are available.

There are two types of YANG models:

  • Standard (common) YANG data model that applies to all vendors. (For example, a request to disable or shut down an Ethernet interface is identical for both Cisco and non-Cisco devices.)

  • Device (native, vendor-specific) data models that facilitate configuring or collecting operational data concerning proprietary vendor features.

This table lists Cisco native models, their Open Config equivalents used in the Routed Optical Networking solution and their functions.

Unified Model Open Config Function
Cisco-IOS-XR-platform-oper openconfig-platform Retrieve line card information for flex-port mapping
Cisco-IOS-XR-optics-port-mode-cfg No equivalent Configure flex port modes
Cisco-IOS-XR-controller-optics-oper

openconfig-platform

openconfig-platform-transceiver

Retrieve optics PID information
Cisco-IOS-XR-um-cont-optics-cfg

openconfig-terminal-device

openconfig-platform-transceiver

Configure ZR optical parameters
Cisco-IOS-XR-um-if-bundle-cfg openconfig-if-aggregate Bundle configuration
Cisco-IOS-XR-um-interface-cfg openconfig-interfaces IPv4/IPv6 interface configuration
Controller-otu-oper No equivalent Coherent DSP operation data

Cisco-IOS-XR-um-dac-rate-cfg

No equivalent

DAC Rate configuration

Cisco-IOS-XR-um-cont-breakout-cfg

No equivalent

Breakout configuration


Note


  • openconfig-terminal-device configures logical hierarchy of connections from ingress to egress. For Cisco optical devices, you can use OpenConfig to configure nx100G muxponder or transponder modes, and trunk rate.

  • Use openconfig-platform to configure the physical layer parameters:

    • Frequency

    • TX power

    • Operational-mode (Modulation, FEC, and TX shaping)

  • See Managing OpenZR+ and OIF ZR transceivers on Cisco routers using OpenConfig for info on managing pluggable digital coherent optics using OpenConfig.


Model Driven Telemetry

Telemetry is an automated communications process that you use to collect measurements and other data at remote or inaccessible points and transmit to receiving equipment for monitoring. Model-driven telemetry (MDT) provides a mechanism to stream YANG-modeled data to a data collector. Model-driven telemetry allows network devices to continuously stream real-time configuration and operating state information to subscribers.

Applications can subscribe to specific data items they need, by using standards-based YANG data models over NETCONF, RESTCONF, or gRPC Network Management Interface (gNMI) protocols. You can also create subscriptions by using CLIs if they are configured subscriptions. Devices publish structured data at a defined cadence, or on-change, based on the subscription criteria and data type. See Troubleshoot Provisioning Issues for information on telemetry sensor paths and corresponding data fields.

MDT leverages structured data models that the networking device supports. MDT provides critical data that is defined in those data models. Telemetry helps you to manage your multivendor network using a common network management system, a process, and applications. The data that is collected from the network are standards-based and are uniform across vendor implementations.
