Configure PCEP PCC on All Nodes in Tree-SID Path

Configure all nodes involved in the Tree-SID path (root, mid-point, leaf) as PCEP PCC. For detailed PCEP PCC configuration information, see Configure the Head-End Router as PCEP PCC.

Configure Affinity Maps on the SR-PCE

Use the affinity bit-map COLOR bit-position command in PCE SR-TE sub-mode to define affinity maps. The bit-position range is from 0 to 255.

Router# configure
Router(config)# pce
Router(config-pce)# segment-routing traffic-eng
Router(config-pce-sr-te)# affinity bit-map RED 23
Router(config-pce-sr-te)# affinity bit-map BLUE 24
Router(config-pce-sr-te)# affinity bit-map CROSS 25
Router(config-pce-sr-te)#

Configure P2MP SR Policy on SR-PCE

Configure the end-point name and addresses, Tree-SID label, and constraints for the P2MP policy.

Use the endpoint-set NAME command in SR-PCE P2MP sub-mode to enter the name of the end-point set and to define the set of end-point addresses.

Router(config-pce-sr-te)# p2mp
Router(config-pce-sr-te-p2mp)# endpoint-set BAR
Router(config-pce-p2mp-ep-set)# ipv4 10.1.1.2
Router(config-pce-p2mp-ep-set)# ipv4 10.1.1.3
Router(config-pce-p2mp-ep-set)# ipv4 10.1.1.4
Router(config-pce-p2mp-ep-set)# exit
Router(config-pce-sr-te-p2mp)#

Use the policy policy command to configure the P2MP policy name and enter P2MP Policy sub-mode. Configure the source address, endpoint-set color, Tree-SID label, affinity constraints, and metric type.

Router(config-pce-sr-te-p2mp)# policy FOO
Router(config-pce-p2mp-policy)# source ipv4 10.1.1.6
Router(config-pce-p2mp-policy)# color 10 endpoint-set BAR
Router(config-pce-p2mp-policy)# treesid mpls 15200
Router(config-pce-p2mp-policy)# candidate-paths
Router(config-pce-p2mp-policy-path)# constraints
Router(config-pce-p2mp-path-const)# affinity
Router(config-pce-p2mp-path-affinity)# exclude BLUE
Router(config-pce-p2mp-path-affinity)# exit
Router(config-pce-p2mp-path-const)# exit
Router(config-pce-p2mp-policy-path)# preference 100
Router(config-pce-p2mp-policy-path-preference)# dynamic
Router(config-pce-p2mp-path-info)# metric type te
Router(config-pce-p2mp-path-info)# root
Router(config)#

Configure Multicast on the Root and Leaf Nodes

On the root node of the SR P2MP segment, use the router pim command to enter Protocol Independent Multicast (PIM) configuration mode to statically steer multicast flows into an SR P2MP policy.

Note	Enter this configuration only on an SR P2MP segment. Multicast traffic cannot be steered into a P2P policy.

Router(config)# router pim
Router(config-pim)# vrf name
Router(config-pim-name)# address-family ipv4
Router(config-pim-name-ipv4)# sr-p2mp-policy FOO
Router(config-pim-name-ipv4-srp2mp)# static-group 235.1.1.5 10.1.1.6
Router(config-pim-name-ipv4-srp2mp)# root
Router(config)#

On the root and leaf nodes of the SR P2MP tree, use the mdt static segment-routing command to configure the multicast distribution tree (MDT) core as Tree-SID from the multicast VRF configuration submode.

Router(config)# multicast-routing
Router(config-mcast)# vrf TEST
Router(config-mcast-TEST)# address-family ipv4
Router(config-mcast-TEST-ipv4)# mdt static segment-routing

On the leaf nodes of an SR P2MP segment, use the static sr-policy p2mp-policy command to configure the static SR P2MP Policy from the multicast VRF configuration submode to statically decapsulate multicast flows.

Router(config)# multicast-routing
Router(config-mcast)# vrf TEST
Router(config-mcast-TEST)# address-family ipv4
Router(config-mcast-TEST-ipv4)# static sr-policy FOO

Prerequisites for Multicast VPN: Tree-SID MVPN With TI-LFA

• The underlay OSPF/IS-IS network is configured, and OSPF/IS-IS adjacency is formed between routers, across the network.

• BGP is configured for the network, and BGP adjacency is formed between routers. BGP MVPN configuration information is provided in this feature document.

• To understand the benefits, know-how, and configuration of SR and SR-TE policies, see About Segment Routing and Configure SR-TE Policies.

Information About Multicast VPN: Tree-SID MVPN With TI-LFA

Typically, a customer’s IP VPN is spread across VPN sites. IP VPN customer traffic is sent from one site to another over a VPN Service Provider (SP) network.

When IP multicast traffic within a (BGP/MPLS) IP VPN is transported over an SP network (say, from VPN1-Site-A to VPN1-Site-B, as shown in the image), the SP network requires protocols and procedures to optimally transport multicast traffic from a multicast sender in Site-A to multicast receivers in Site-B.

This use case explains how to enable SR multicast for an SP network, and efficiently transport IP VPN multicast traffic (sent from VPN1-Site-A and) received at PE router A, through to PE routers D and E, towards receivers in sites VPN1-Site-B and VPN1-Site-C.

To enable the Multicast VPN: Tree-SID MVPN With TI-LFA feature, the following protocols and software applications are used.

OSPF/IS-IS - The underlay network is created with OSPF/IS-IS routing protocol, and reachability is established across the network. See Configure Segment Routing for IS-IS Protocolor Configure Segment Routing for OSPF Protocol chapter for details.

BGP Multicast VPN (MVPN) – The PE routers (A, D, and E) are IP VPN end-points for IP multicast traffic arriving at the SP network (at PE router A) and exiting the SP network (at PE routers D and E). So, BGP MVPN is enabled on the PE routers. NSO is used to configure BGP MVPN on the PE routers.

BGP Auto-Discovery (AD) - To enable distributed VPN end-point discovery and C-multicast flow mapping and signalling, BGP AD function is configured on the PE routers. A BGP Auto-Discovery route contains multicast router (loopback IP address) and tree identity (segment ID) information. It carries the information in the Provider Multicast Service Interface (PMSI) Tunnel Attribute (PTA).

C-multicast states are signaled using BGP.

SR - To transport IP multicast traffic between the VPN end-points (PE routers A, D, and E), Provider (or P-) tunnels are used. In a P-tunnel, the PE devices are the tunnel end-points. P-tunnels can be generated using different technologies (RSVP-TE, P2MP LSPs, PIM trees, mLDP P2MP LSPs, and mLDP MP2MP LSPs). In this use case, Segment Routing (SR) is used for its benefits that were noted earlier.

With SR and SR-PCE, a Tree-SID Point-to-Multipoint (P2MP) segment is used to create P-Tunnels for MVPN. You can specify SR policy optimization objectives (such as metrics) and constraints (such as affinity) in an SR policy and send it to the SR-PCE controller, so that it can dynamically create SR multicast trees for traffic flow.

SR-PCE - This is a controller which, based on the provided SR policy information, computes optimal paths for a multicast tree, and deploys the tree forwarding state on the multicast routers. When a topology change occurs, SR-PCE automatically computes a new, optimal multicast tree, and deploys the new tree forwarding state on the multicast routers.

Overview of Multicast VPN: Tree-SID MVPN With TI-LFA

The following sections provide an overview of Tree-SID MVPN and TI-LFA. The topology remains the same, with PE routers A, D, and E acting as VPN end-points for carrying IP VPN multicast traffic.

Tree-SID MVPN Overview

1. For SR, A is designated as the SR head-end router, and D and E are designated as the SR end-points.

   For multicast traffic, A is the root of the SR multicast tree, and D and E are leaf routers of the tree. B and C are the other multicast routers. The objective is to send the IP multicast traffic arriving at A to D and E, as needed



2. A discovers leaf routers’ information through BGP MVPN.

3. Path Computation Element Protocol (PCEP) is used for the SR multicast policy communication between A and the SR-PCE server, and communication between PE routers and the SR-PCE server.

4. When the head-end router SR policy is created on A, and PCEP configurations are enabled on the SR-PCE server and all multicast routers, SR-PCE receives the SR policy and leaf router identity information from A.

5. Based on the policy information it receives, including TE objectives and constraints, SR-PCE builds multicast distribution trees in the underlay for efficient VPN traffic delivery.



6. SR-PCE assigns an SID for the SR multicast tree policy, and deploys the multicast tree forwarding state on the multicast routers.

7. When IP multicast traffic is sent from VPN1-SiteA to PE router A, it steers it into the SR policy, and sends it towards D and E, which forward it to multicast traffic receivers in the sites VPN1-SiteB and VPN1-SiteC.

8. When a leaf/multicast router is added or removed, PE router A updates the SR multicast policy and sends it to SR-PCE. SR-PCE computes new multicast routes, and deploys the multicast tree forwarding state information on the multicast routers.



TI-LFA FRR Overview

High-level TI-LFA FRR function is depicted in these steps:

1. Tree-SID FRR state information.

   • The link from A to B is protected.

   • SID 16002 is the node SID of B.

   • A programs a backup path to B, through C.

2. IP multicast traffic arrives at A which steers the flow onto the tree.

3. A encapsulates and replicates to B, but the link to B is down.



4. A sends the traffic on the backup path, to C.

5. C sends the traffic to B where normal traffic processing resumes.



SR Multicast Tree Types

This is an overview of the types of SR multicast trees you can configure, depending on your requirement. You can create a full mesh, on-demand, or optimal multicast tree for IP VPN multicast flow in the SP network.

1. A assigns Tree-ID 10 and invokes a Create an SR multicast tree request by sending the multicast router and tree ID information (A, 10) towards SR-PCE.

2. A announces BGP AD Inclusive PMSI (I-PMSI) route with the PTA (A, 10). Inclusive PMSI - Traffic that is multicast by a PE router on an I-PMSI is received by all other PEs in the MVPN. I-PMSIs are generated by Inclusive P-tunnels .

3. A discovers VPN endpoints D and E from their BGP AD Type I-PMSI route messages.

4. A invokes an Add SR multicast leaf router request (for D and E) to SR-PCE.

5. SR-PCE computes and generates the multicast tree forwarding state information on all the routers that are part of the tree.

1. A assigns Tree-ID 20 and invokes a Create an SR multicast tree request by sending the multicast router and tree ID information (A, 20) towards SR-PCE.

2. A announces BGP AD Selective PMSI (or S-PMSI) route with PTA (A, 20). A sets the leaf-info-required to discover endpoint interest set.

   Selective PMSI - Traffic multicast by a PE on an S-PMSI is received by some PEs in the MVPN. S-PMSIs are generated by Selective P-tunnels.

3. E has a receiver behind it, and announces a BGP-AD leaf route towards A. A discovers service endpoint E for the on-demand tree.

4. A invokes an Add SR multicast leaf router request (for E) to SR-PCE.

5. SR-PCE computes and generates the multicast tree information for all the routers that are part of the tree.

1. A decides to optimize a flow and assigns Tree-ID 30 and invokes a Create an SR multicast tree request by sending the multicast router and tree ID information (A, 30) towards SR-PCE.

2. A announces BGP AD I-PMSI route with PTA (A,30). A sets the leaf-info-required to discover endpoint interest set.

3. D has a receiver behind it, and announces a BGP-AD leaf route towards A. A discovers service endpoint D for optimized flow.

4. A invokes an Add SR multicast leaf router request (for D) to SR-PCE.

5. SR-PCE computes and generates the multicast tree information for all the routers that are part of the tree.

Configurations

Head End Router Configuration (Router A) - The following configuration is specific to the head end router.

Configure TE Constraints and Optimization Parameters

Router# configure terminal
Router(config)# segment-routing traffic-engineering

An affinity bit-map is created so that it can be applied to a link or interface.

Router(config-sr-te)# affinity-map name 10 bit-position 24
Router(config-sr-te)# commit

An affinity (or relationship) is created between the SR policy path and the link color so that SR-TE computes a path that includes or excludes links, as specified. The head-end router automatically follows the actions defined in the ODN template (for color 10) upon the arrival of VPN routes with a BGP color extended community that matches color 10.

Router(config)# segment-routing traffic-engineering
Router(config-sr-te)# on-demand color 10 dynamic
Router(config-sr-te-color-dyn)# affinity include-all name red
Router(config-sr-te-color-dyn)# affinity include-any name blue
Router(config-sr-te-color-dyn)# affinity exclude-any name green
Router(config-sr-te-color-dyn)# metric type te
Router(config-sr-te-color-dyn)# commit

The SR policy configuration on the head-end router A will be sent to the SR-PCE server, after a connection is established between A and SR-PCE.

Multicast Router Configuration

Configure PCEP Client on Multicast Routers

Associate each multicast router as a client of the SR-PCE server. The pce address ipv4 command specifies the SR-PCE server’s IP address.

Router# configure terminal
Router(config)# segment-routing traffic-engineering
Router(config-sr-te)# pcc pce address ipv4 3.3.3.3
Router(config-pcc-pce)# commit

SR PCE Server Configuration

Configure Label Range for Multicast Trees

Router(config)# pce segment-routing traffic-eng p2mp label-range min 30000 max 60000
Router(config)# commit

Configure FRR

The following configurations enable FRR for all SR multicast (P2MP) trees, including dynamic and static implementations.

The lfa keyword enables LFA FRR on the PCE server.

Router(config)# pce segment-routing traffic-eng p2mp fast-reroute lfa
Router(config)# commit

Alternatively, you can configure FRR for each individual tree using the following configuration. The lfa keyword under a specific multicast policy (tree1 in this example) enables LFA FRR function for the specified SR multicast P2MP tree.

For dynamic trees, L-flag in LSP Attributes PCEP object controls FRR on a tree.

Router(config)# pce
Router(config-pce)# address ipv4 192.168.0.5
Router(config-pce)# segment-routing traffic-eng p2mp policy tree1 fast-reroute lfa
Router(config-pce)# commit

You can create FRR node sets using the frr-node-set from ipv4 address and frr-node-set to ipv4 address commands to specify the from and to paths on a multicast router that requires FRR protection. In this configuration, the PCE server is configured to manage the FRR function for traffic from 192.168.0.3 sent towards 192.168.0.4 and 192.168.0.5.

Router(config)# pce
Router(config-pce)# address ipv4 192.168.0.5
Router(config-pce)# segment-routing traffic-eng
Router(config-pce-sr-te)# p2mp
Router(config-pce-sr-te-p2mp)# frr-node-set from ipv4 192.168.0.3
Router(config-pce-sr-te-p2mp)# frr-node-set to ipv4 192.168.0.4
Router(config-pce-sr-te-p2mp)# frr-node-set to ipv4 192.168.0.5
Router(config-pce-sr-te-p2mp)# commit

Router(config)# pce
Router(config-pce)# address ipv4 192.168.0.5
Router(config-pce)# segment-routing traffic-eng
Router(config-pce-sr-te)# p2mp
Router(config-pce-sr-te-p2mp)# frr-node-set from ipv4 192.168.0.3
Router(config-pce-sr-te-p2mp)# frr-node-set exclude-all-to ipv4 192.168.0.4
Router(config-pce-sr-te-p2mp)# frr-node-set to ipv4 192.168.0.5
Router(config-pce-sr-te-p2mp)# commit

Disable ECMP load splitting

To disable ECMP load splitting of different trees on the SR-PCE server, configure the multipath-disable command.

Router(config)# pce segment-routing traffic-eng p2mp multipath-disable
Router(config)# commit

Multicast Routing Configuration On PE Routers

The following MVPN configurations are required for VPN end-points, the 3 PE routers.

Configure Default MDT SR P2MP MVPN Profile

In this configuration, an MDT profile of the type default is created, and the SR multicast policy with color 10 will be used to send IP multicast traffic, as per the constraints and optimizations of the policy, through the multicast tree.

You can also specify the FRR LFA function with the mdt default segment-routing mpls fast-reroute lfa command.

Router(config)# multicast-routing vrf cust1
Router(config-mcast-cust1)# address-family ipv4
Router(config-mcast-cust1-ipv4)# mdt default segment-routing mpls color 10
Router(config-mcast-cust1-ipv4)# commit

Configure Partitioned MDT SR P2MP MVPN Profile

In this configuration, an MDT profile of the type partitioned is created, and the SR multicast policy with color 10 will be used to send IP multicast traffic, as per the constraints and optimizations of the policy, through the multicast tree.

You can also specify the FRR LFA function with the mdt partitioned segment-routing mpls fast-reroute lfa command.

Router(config)# multicast-routing vrf cust1
Router(config-mcast-cust1)# address-family ipv4
Router(config-mcast-cust1-ipv4)# mdt partitioned segment-routing mpls color 10
Router(config-mcast-cust1-ipv4)# commit

The following Data MVPN configuration is required at the Ingress PE (router A) where the multicast flows need to be steered onto the data MDT for SR multicast traffic flow.

Note - Data MDT can be configured for Default and Partitioned profiles.

Configure Data MDT for SR P2MP MVPN

In this configuration, an MDT profile of the type data is created, and the SR multicast policy with color 10 will be used to send IP multicast traffic, as per the constraints and optimizations of the policy, through the multicast tree.

• You can enable the FRR LFA function with the mdt data segment-routing mpls fast-reroute lfa command. This enables LFA FRR for SR multicast trees created for all data MDT profiles.

• As an alternative to the color keyword, you can specify a route policy in the route-policy command, and define the route policy separately (as mentioned in the next configuration).

• The threshold command specifies the threshold above which a multicast flow is switched onto the data MDT. The immediate-switch keyword enables an immediate switch of a multicast flow to the data MDT, without waiting for threshold limit to be crossed.

• The customer-route-acl keyword specifies an ACL to enable specific multicast flows to be put on to the data MDT.

• color and fast-reroute lfa keywords are mutually exclusive with the route-policy configuration. The objective is to apply constraints (through color ) or FRR (through LFA protection) to either all data MDTs, or apply them selectively per data MDT, using the set on-demand-color and set fast-reroute lfa options in the route policy (configured in the mdt data configuration).

Router(config)# multicast-routing vrf cust1
Router(config-mcast-cust1)# address-family ipv4
Router(config-mcast-cust1-ipv4)# mdt data segment-routing mpls 2 color 10
Router(config-mcast-cust1-ipv4)# commit

Route Policy Example

The route policy designates multicast flow-to-SR multicast policy mapping, with different colors.

• With this configuration, IP multicast flows for the 232.0.0.1 multicast group are steered into the SR multicast policy created with the on-demand color 10, while flows for 232.0.0.2 are steered into the policy created with color 20.

• The data MDT SR multicast tree created for the 232.0.0.2 multicast group is enabled with FRR LFA protection.

• Route policies can also be used to match other parameters, such as source address.

Router(config)# route-policy TSID-DATA
Router(config-rpl)# if destination in (232.0.0.1) then
Router(config-rpl-if)# set on-demand-color 10
Router(config-rpl-if)# pass
Router(config-rpl-if)# elseif destination in (232.0.0.2) then
Router(config-rpl-elseif)# set on-demand-color 20
Router(config-rpl-elseif)# set fast-reroute lfa
Router(config-rpl-elseif)# pass
Router(config-rpl-elseif)# endif
Router(config-rpl)# end-policy
Router(config)# commit

Configure MVPN BGP Auto-Discovery for SR P2MP

The following configuration is required on all PE routers, and is mandatory for default MDT, partitioned MDT, and data MDT.

Router(config)# multicast-routing vrf cust1
Router(config-mcast-cust1)# address-family ipv4
Router(config-mcast-cust1-ipv4)# bgp auto-discovery segment-routing
Router(config-mcast-cust1-ipv4-bgp-ad)# commit

Verification

View MVPN Context Information - You can view MVPN VRF context information with these commands.

View Default MDT Configuration

This command displays SR multicast tree information, including the MDT details (of default type, etc), and customer VRF information (route target, route distinguisher, etc).

Router# show mvpn vrf vpn1 context

MVPN context information for VRF vpn1 (0x9541cf0)

RD: 1:10 (Valid, IID 0x1), VPN-ID: 0:0
Import Route-targets : 2
  RT:192.168.0.4:0, BGP-AD
  RT:192.168.0.4:17, BGP-AD
BGP Auto-Discovery Enabled (I-PMSI added)
SR P2MP Core-tree data:
  MDT Name: TRmdtvpn1, Handle: 0x4150, idb: 0x956fc30
  MTU: 1376, MaxAggr: 255, SW_Int: 30, AN_Int: 60
  RPF-ID: 3, C:0, O:1, D:0, CP:0
  Static Type : - / -
  Def MDT ID: 524289 (0x93993f0), added: 1, HLI: 0x80001, Cfg: 1/0
  Part MDT ID: 0 (0x0), added: 0, HLI: 0x00000, Cfg: 0/0
  Ctrl Trees : 0/0/0, Ctrl ID: 0 (0x0), Ctrl HLI: 0x00000

View Partitioned MDT Configuration

This command displays SR multicast tree information, including the MDT details (of partitioned type, etc), and customer VRF information (route target, route distinguisher, etc).

Router# show mvpn vrf vpn1 context

MVPN context information for VRF vpn1 (0x9541cf0)

RD: 1:10 (Valid, IID 0x1), VPN-ID: 0:0
Import Route-targets : 2
  RT:192.168.0.4:0, BGP-AD
  RT:192.168.0.4:17, BGP-AD
BGP Auto-Discovery Enabled (I-PMSI added) , MS-PMSI sent
SR P2MP Core-tree data:
  MDT Name: TRmdtvpn1, Handle: 0x4210, idb: 0x956fc30
  MTU: 1376, MaxAggr: 255, SW_Int: 30, AN_Int: 60
  RPF-ID: 1, C:0, O:1, D:0, CP:0
  Static Type : - / -
  Def MDT ID: 0 (0x0), added: 0, HLI: 0x00000, Cfg: 0/0
  Part MDT ID: 524292 (0x9399318), added: 1, HLI: 0x80004, Cfg: 1/0
  Ctrl Trees : 0/0/0, Ctrl ID: 0 (0x0), Ctrl HLI: 0x00000

View Partitioned MDT Ingress PE Configuration

This command displays SR multicast tree information on the PE router that receives the multicast traffic on the SP network. The information includes PE router details, MDT details, Tree-SID details, and the specified customer VRF information.

Router# show mvpn vrf vpn1 pe

MVPN Provider Edge Router information

VRF : vpn1

PE Address : 192.168.0.3 (0x9570240)
  RD: 0:0:0 (null), RIB_HLI 0, RPF-ID 13, Remote RPF-ID 0, State: 0, S-PMSI: 2
  PPMP_LABEL: 0, MS_PMSI_HLI: 0x00000, Bidir_PMSI_HLI: 0x00000, MLDP-added: [RD 0, ID 0, Bidir ID 0, Remote Bidir ID 0], Counts(SHR/SRC/DM/DEF-MD): 0, 0, 0, 0, Bidir: GRE RP Count 0, MPLS RP Count 0RSVP-TE added: [Leg 0, Ctrl Leg 0, Part tail 0 Def Tail 0, IR added: [Def Leg 0, Ctrl Leg 0, Part Leg 0, Part tail 0, Part IR Tail Label 0
  Tree-SID Added: [Def/Part Leaf 1, Def Egress 0, Part Egress 0, Ctrl Leaf 0]
  bgp_i_pmsi: 1,0/0 , bgp_ms_pmsi/Leaf-ad: 1/1, bgp_bidir_pmsi: 0, remote_bgp_bidir_pmsi: 0, PMSIs: I 0x9570378, 0x0, MS 0x94e29d0, Bidir Local: 0x0, Remote: 0x0, BSR/Leaf-ad 0x0/0, Autorp-disc/Leaf-ad 0x0/0, Autorp-ann/Leaf-ad 0x0/0
 IIDs: I/6: 0x1/0x0, B/R: 0x0/0x0, MS: 0x1, B/A/A: 0x0/0x0/0x0

  Bidir RPF-ID: 14, Remote Bidir RPF-ID: 0
  I-PMSI:   Unknown/None (0x9570378)
  I-PMSI rem:  (0x0)
  MS-PMSI:   Tree-SID [524290, 192.168.0.3] (0x94e29d0)
  Bidir-PMSI:  (0x0)
  Remote Bidir-PMSI:  (0x0)
  BSR-PMSI:  (0x0)
  A-Disc-PMSI:  (0x0)
  A-Ann-PMSI:  (0x0)
  RIB Dependency List: 0x0
  Bidir RIB Dependency List: 0x0
    Sources: 0, RPs: 0, Bidir RPs: 0

View Partitioned MDT Egress PE Configuration

This command displays SR multicast tree information on the MVPN egress PE router that sends multicast traffic from the SP network towards multicast receivers in the destination sites. The information includes PE router, Tree-SID, MDT, and the specified customer VRF details.

Router# show mvpn vrf vpn1 pe

MVPN Provider Edge Router information

PE Address : 192.168.0.4 (0x9fa38f8)
  RD: 1:10 (valid), RIB_HLI 0, RPF-ID 15, Remote RPF-ID 0, State: 1, S-PMSI: 2
  PPMP_LABEL: 0, MS_PMSI_HLI: 0x00000, Bidir_PMSI_HLI: 0x00000, MLDP-added: [RD 0, ID 0, Bidir ID 0, Remote Bidir ID 0], Counts(SHR/SRC/DM/DEF-MD): 1, 1, 0, 0, Bidir: GRE RP Count 0, MPLS RP Count 0RSVP-TE added: [Leg 0, Ctrl Leg 0, Part tail 0 Def Tail 0, IR added: [Def Leg 0, Ctrl Leg 0, Part Leg 0, Part tail 0, Part IR Tail Label 0
  Tree-SID Added: [Def/Part Leaf 0, Def Egress 0, Part Egress 1, Ctrl Leaf 0]
  bgp_i_pmsi: 1,0/0 , bgp_ms_pmsi/Leaf-ad: 1/0, bgp_bidir_pmsi: 0, remote_bgp_bidir_pmsi: 0, PMSIs: I 0x9f77388, 0x0, MS 0x9fa2f98, Bidir Local: 0x0, Remote: 0x0, BSR/Leaf-ad 0x0/0, Autorp-disc/Leaf-ad 0x0/0, Autorp-ann/Leaf-ad 0x0/0
 IIDs: I/6: 0x1/0x0, B/R: 0x0/0x0, MS: 0x1, B/A/A: 0x0/0x0/0x0

  Bidir RPF-ID: 16, Remote Bidir RPF-ID: 0
  I-PMSI:   Unknown/None (0x9f77388)
  I-PMSI rem:  (0x0)
  MS-PMSI:   Tree-SID [524292, 192.168.0.4] (0x9fa2f98)
  Bidir-PMSI:  (0x0)
  Remote Bidir-PMSI:  (0x0)
  BSR-PMSI:  (0x0)
  A-Disc-PMSI:  (0x0)
  A-Ann-PMSI:  (0x0)
  RIB Dependency List: 0x9f81370
  Bidir RIB Dependency List: 0x0
    Sources: 1, RPs: 1, Bidir RPs: 0

View Data MDT Information

The commands in this section displays SR multicast tree information for data MDTs. The information includes cache, router-local, and remote MDT information.

View Data MDT Cache Information

Router# show pim vrf vpn1 mdt cache
Core Source      Cust (Source, Group)                Core Data        Expires
192.168.0.3      (26.3.233.1, 232.0.0.1)             [tree-id 524292]  never

192.168.0.4      (27.3.233.6, 232.0.0.1)             [tree-id 524290]  never

   Leaf AD:  192.168.0.3

View Local MDTs Information

Router# show pim vrf vpn1 mdt sr-p2mp local

Tree                           MDT             Cache DIP Local VRF Routes  On-demand
Identifier                     Source          Count     Entry Using Cache Color
[tree-id 524290 (0x80002)]     192.168.0.4     1     N   Y     1           10
   Tree-SID Leaf:  192.168.0.3

View Remote MDTs Information

Router # show pim vrf vpn1 mdt sr-p2mp remote

Tree                           MDT             Cache DIP Local VRF Routes  On-demand
Identifier                     Source          Count     Entry Using Cache Color
[tree-id 524290 (0x80002)]     192.168.0.4     1     N   N     1           0

View MRIB MPLS Forwarding Information

This command displays labels used for transporting IP multicast traffic, on a specified router.

Router# show mrib mpls forwarding

LSP information (XTC) :
  LSM-ID: 0x00000, Role: Head, Head LSM-ID: 0x80002
    Incoming Label       : (18000)
    Transported Protocol : <unknown>
    Explicit Null        : None
    IP lookup            : disabled

    Outsegment Info #1 [H/Push, Recursive]:
      OutLabel: 18000, NH: 192.168.0.3, Sel IF: GigabitEthernet0/2/0/0

LSP information (XTC) :
  LSM-ID: 0x00000, Role: Tail, Peek
  RPF-ID: 0x00011, Assoc-TIDs: 0xe0000011/0x0, MDT: TRmdtvpn1
    Incoming Label       : 18001
    Transported Protocol : <unknown>
    Explicit Null        : None
    IP lookup            : enabled

    Outsegment Info #1 [T/Pop]:
      No info.

SR-PCE Show Commands

View Tree Information On PCE Server

This command displays SR multicast tree information on the SR-PCE server.

Router# show pce lsp p2mp

Tree: sr_p2mp_root_192.168.0.1_tree_id_524290
 Label:    18000     Operational: up  Admin: up
 Metric Type: TE
 Transition count: 3
 Uptime: 00:00:03 (since Fri Jan 24 14:57:51 PST 2020)
 Source: 192.168.0.1
 Destinations: 192.168.0.4
 Nodes:
  Node[0]: 192.168.0.2 (rtrM)
   Role: Transit
   Hops:
    Incoming: 18000 CC-ID: 4
    Outgoing: 18000 CC-ID: 4 (17.17.17.4) [rtrR]
  Node[1]: 192.168.0.1 (rtrL1)
   Role: Ingress
   Hops:
    Incoming: 18000 CC-ID: 5
    Outgoing: 18000 CC-ID: 5 (12.12.12.2) [rtrM]
  Node[2]: 192.168.0.4 (rtrR)
   Role: Egress
   Hops:
    Incoming: 18000 CC-ID: 6

For dynamic SR multicast trees created for MVPN, the show command has filters to view root multicast router and Tree-ID information. When the root router is specified, all multicast trees from that root are displayed. When root and Tree-ID are specified, only the specified tree information is displayed.

Router# show pce lsp p2mp root ipv4 10.1.1.1 524289

Tree: sr_p2mp_root_10.1.1.1_tree_id_524289, Root: 10.1.1.1 ID: 524289
 Label:    20000     Operational: up  Admin: up
 PCC: 10.1.1.1

 Local LFA FRR: Disabled
 Metric Type: TE
 Transition count: 11
 Uptime: 00:03:37 (since Mon May 11 12:53:33 PDT 2020)
 Destinations: 10.1.1.3, 10.1.1.4, 10.1.1.5
 Nodes:
  Node[0]: 10.1.1.1 (root1)
   Role: Ingress
   Hops:
    Incoming: 20000 CC-ID: 26
    Outgoing: 20000 CC-ID: 26 (192.168.114.4) [mid-4]
    Outgoing: 20000 CC-ID: 26 (192.168.112.2) [mid-2]
  Node[1]: 10.1.1.4 (mid-4)
   Role: Egress
   Hops:
    Incoming: 20000 CC-ID: 27
  Node[2]: 10.1.1.2 (mid-2)
   Role: Transit
   Hops:
    Incoming: 20000 CC-ID: 28
    Outgoing: 20000 CC-ID: 28 (192.168.123.3) [leaf-3]
    Outgoing: 20000 CC-ID: 28 (192.168.125.5) [leaf-5]
  Node[3]: 10.1.1.3 (leaf-3)
   Role: Egress
   Hops:
    Incoming: 20000 CC-ID: 29
  Node[4]: 10.1.1.5 (leaf-5)
   Role: Egress
   Hops:
    Incoming: 20000 CC-ID: 30

The following output shows that LFA FRR is enabled on the hop from rtrR to rtrM. Unlike typical multicast replication where the address displayed is the remote address on the link to a downstream router, the IP address 192.168.0.3 (displayed with an exclamation mark) is the router-ID of the downstream router rtrM. The output also displays the LFA FRR state for the multicast tree.

Router# show pce lsp p2mp

Tree: sr_p2mp_root_192.168.0.4_tree_id_524290
 Label:    18000     Operational: up  Admin: up
 LFA FRR: Enabled
 Metric Type: TE
 Transition count: 1
 Uptime: 3d19h (since Thu Feb 13 13:43:40 PST 2020)
 Source: 192.168.0.4
 Destinations: 192.168.0.1, 192.168.0.2
 Nodes:
  Node[0]: 192.168.0.3 (rtrM)
   Role: Transit
   Hops:
    Incoming: 18000 CC-ID: 1
    Outgoing: 18000 CC-ID: 1 (12.12.12.1) [rtrL1]
    Outgoing: 18000 CC-ID: 1 (15.15.15.2) [rtrL2]
  Node[1]: 192.168.0.4 (rtrR)
   Role: Ingress
   Hops:
    Incoming: 18000 CC-ID: 2
    Outgoing: 18000 CC-ID: 2 (192.168.0.3!) [rtrM]
  Node[2]: 192.168.0.1 (rtrL1)
   Role: Egress
   Hops:
    Incoming: 18000 CC-ID: 3
  Node[3]: 192.168.0.2 (rtrL2)
   Role: Egress
   Hops:
    Incoming: 18000 CC-ID: 4

Multicast Tree Information on Routers

Router# show segment-routing traffic-eng p2mp policy

SR-TE P2MP policy database:
----------------------
! - Replications with Fast Re-route

Policy: sr_p2mp_root_192.168.0.1_tree_id_524290  LSM-ID: 0x2
 Role: Leaf
 Replication:
  Incoming label: 18001 CC-ID: 6

Policy: sr_p2mp_root_192.168.0.4_tree_id_524290  LSM-ID: 0x80002 (PCC-initiated)
 Color: 0
 LFA FRR: Disabled
 Role: Root
 Replication:
  Incoming label: 18000 CC-ID: 2
  Interface: None [192.168.0.3!]  Outgoing label: 18000 CC-ID: 2
 Endpoints:
  192.168.0.1, 192.168.0.2

For SR multicast policies originated locally on the router (root router of a dynamic MVPN multicast policy) additional policy information is displayed. The information includes color, end points, and whether LFA FRR is requested by the local application. When the SR-PCE server enables LFA FRR on a specific hop, the outgoing information shows the address of the next router with an exclamation mark and None is displayed for the outgoing interface.

For dynamic SR multicast trees created for MVPN, the show command has filters for displaying root multicast router and Tree-ID information. When the root router is specified, all multicast trees for that root are displayed. When root and Tree-ID are specified, only the specified tree information is displayed.

Router# show segment-routing traffic-eng p2mp policy root ipv4 1.1$

SR-TE P2MP policy database:
----------------------
! - Replications with Fast Re-route, * - Stale dynamic policies/endpoints

Policy: sr_p2mp_root_10.1.1.1_tree_id_524289  LSM-ID: 0x691
 Root: 10.1.1.1, ID: 524289
 Role: Transit
 Replication:
  Incoming label: 20000 CC-ID: 28
  Interface: Bundle-Ether23 [192.168.123.3]  Outgoing label: 20000 CC-ID: 28
  Interface: Bundle-Ether25 [192.168.125.5]  Outgoing label: 20000 CC-ID: 28

Policy: sr_p2mp_root_10.1.1.1_tree_id_524290  LSM-ID: 0x692
 Root: 10.1.1.1, ID: 524290
 Role: Transit
 Replication:
  Incoming label: 19999 CC-ID: 28
  Interface: Bundle-Ether23 [192.168.123.3]  Outgoing label: 19999 CC-ID: 28
  Interface: Bundle-Ether25 [192.168.125.5]  Outgoing label: 19999 CC-ID: 28

Overview of Multicast VPN: Tree-SID Multicast VPN

Typically, a customer’s IP VPN is spread across VPN sites. IP VPN customer traffic is sent from one site to another over a VPN Service Provider (SP) network.

When IP Multicast traffic within a (BGP/MPLS) IP VPN is transported over a provider network (say, from VPN1-Site-A to VPN1-Site-B, as shown in the image), the provider network requires protocols and procedures to optimally transport multicast traffic from a multicast sender in Site-A to multicast receivers in Site-B.

This use case explains how to enable SR multicast for a provider network, and efficiently transport IP VPN multicast traffic (sent from VPN1-Site-A and) received at PE router A, through to PE routers D and E, toward receivers in sites VPN1-Site-B and VPN1-Site-C.

To enable the Multicast VPN: Tree-SID multicast VPN feature, the following protocols and software applications are used:

• OSPF/IS-IS - The underlay network is created with OSPF/IS-IS routing protocol, and reachability is established across the network. See Configure Segment Routing for IS-IS Protocol or Configure Segment Routing for OSPF Protocol chapter for details, within this Guide.

• BGP Multicast VPN (multicast VPN) – The PE routers (A, D, and E) are IP VPN endpoints for IP Multicast traffic arriving at the provider network (at PE router A) and exiting the provider network (at PE routers D and E). So, BGP multicast VPN is enabled on the PE routers. NSO is used to configure BGP multicast VPN on the PE routers. See, Configure Segment Routing for BGP chapter for details, within this guide

• BGP Auto-Discovery (AD) - To enable distributed VPN endpoint discovery and C-multicast flow mapping and signaling, BGP AD function is configured on the PE routers. A BGP Auto-Discovery route contains multicast router (loopback IP address) and tree identity (segment ID) information. It carries the information in the Provider Multicast Service Interface (PMSI) Tunnel Attribute (PTA). See, Configure Segment Routing for BGP chapter for details, within this guide

• C-multicast states are signaled using BGP. See, Configure Segment Routing for BGP chapter for details, within this guide

• SR - To transport IP Multicast traffic between the VPN endpoints (PE routers A, D, and E), Provider (or P-) tunnels are used. In a P-tunnel, the PE devices are the tunnel endpoints. P-tunnels can be generated using different technologies (RSVP-TE, point-to-multipoint LSPs, PIM trees, mLDP point-to-multipoint LSPs, and mLDP MP2MP LSPs). In this use case, Segment Routing (SR) is used for its benefits that were noted earlier.

• With SR and SR-PCE, a Tree-SID point-to-multipoint (P2MP) segment is used to create P-Tunnels for multicast VPN. You can specify SR policy optimization objectives (such as metrics) and constraints (such as affinity) in an SR policy and send it to the SR-PCE controller, so that it can dynamically create SR multicast trees for traffic flow.

• SR-PCE - This is a controller which, based on the provided SR policy information, computes optimal paths for a multicast tree, and deploys the tree forwarding state on the multicast routers. When a topology change occurs, SR-PCE automatically computes a new, optimal multicast tree, and deploys the new tree forwarding state on the multicast routers.

Tree-SID multicast VPN

The topology remains the same, with PE routers A, D, and E acting as VPN endpoints for carrying IP VPN multicast traffic.

1. For SR, A is designated as the SR headend router, and D and E are designated as the SR endpoints.

   For multicast traffic, A is the root of the SR multicast tree, and D and E are leaf routers of the tree. B and C are the other multicast routers. The objective is to send the IP Multicast traffic arriving at A to D and E, as needed.



2. A discovers leaf routers’ information through BGP multicast VPN.

3. Path Computation Element Protocol (PCEP) is used for the SR multicast policy communication between A and the SR-PCE server, and communication between PE routers and the SR-PCE server.

4. When the headend router SR policy is created on A, and PCEP configurations are enabled on the SR-PCE server and all multicast routers, SR-PCE receives the SR policy and leaf router identity information from A.

5. Based on the policy information it receives, including traffic engineering objectives and constraints, SR-PCE builds multicast distribution trees in the underlay for efficient VPN traffic delivery.



6. SR-PCE assigns an SID for the SR multicast tree policy, and deploys the multicast tree forwarding state on the multicast routers.

7. When IP Multicast traffic is sent from VPN1-SiteA to PE router A, it steers it into the SR policy, and sends it toward D and E, which forward it to multicast traffic receivers in the sites VPN1-SiteB and VPN1-SiteC.

8. When a leaf or multicast router is added or removed, PE router A updates the SR multicast policy and sends it to SR-PCE. SR-PCE computes new multicast routes, and deploys the multicast tree forwarding state information on the multicast routers.



SR Multicast Tree Types

This is an overview of the types of SR multicast trees that you can configure, depending on your requirement. You can create the following tree types for IP VPN multicast flow in the provider network:

• Full Mesh Multicast Tree



  1. A assigns Tree-ID 10 and invokes a Create an SR multicast tree request by sending the multicast router and tree ID information (A, 10) toward SR-PCE.

  2. A announces BGP AD Inclusive PMSI (I-PMSI) route with the PTA (A, 10). Inclusive PMSI - Traffic that is multicast by a PE router on an I-PMSI is received by all other PEs in the multicast VPN. I-PMSIs are generated by Inclusive P-tunnels.

  3. A discovers VPN endpoints D and E from their BGP AD Type I-PMSI route messages.

  4. A invokes an Add SR multicast leaf router request (for D and E) to SR-PCE.

  5. SR-PCE computes and generates the multicast tree forwarding state information on all the routers that are part of the tree.

• On-Demand SR Multicast Tree



  1. A assigns Tree-ID 20 and invokes a Create an SR multicast tree request by sending the multicast router and tree ID information (A, 20) toward SR-PCE.

  2. A announces BGP AD Selective PMSI (or S-PMSI) route with PTA (A, 20). A sets the leaf-info-required to discover endpoint interest set.

     Selective PMSI - Traffic multicast by a PE on an S-PMSI is received by some PEs in the multicast VPN. S-PMSIs are generated by Selective P-tunnels.

  3. E has a receiver behind it, and announces a BGP-AD leaf route toward A. A discovers service endpoint E for the on-demand tree.

  4. A invokes an Add SR multicast leaf router request (for E) to SR-PCE.

  5. SR-PCE computes and generates the multicast tree information for all the routers that are part of the tree.

• Optimal Multicast Tree



  1. A decides to optimize a flow and assigns Tree-ID 30 and invokes a Create an SR multicast tree request by sending the multicast router and tree ID information (A, 30) toward SR-PCE.

  2. A announces BGP AD I-PMSI route with PTA (A, 30). A sets the leaf-info-required to discover endpoint interest set.

  3. D has a receiver behind it, and announces a BGP-AD leaf route toward A. A discovers service endpoint D for optimized flow.

  4. A invokes an Add SR multicast leaf router request (for D) to SR-PCE.

  5. SR-PCE computes and generates the multicast tree information for all the routers that are part of the tree.

Verification Steps

The show mrib nsf private command is enhanced to display the XTC info as well.

Router#show mrib nsf private
Mon Jul 31 13:27:05.056 UTC
IP MRIB Non-Stop Forwarding Status:
Multicast routing state: Normal
   NSF Lifetime:       00:03:00
   Respawn Count: 6
   Last NSF On triggered: Tue Jul 25 13:20:49 2023, 6d00h
   Last NSF Off triggered: Tue Jul 25 13:22:49 2023, 6d00h
   Last NSF ICD Notification sent: Tue Jul 25 13:22:49 2023, 6d00h
   Last Remote NSF On triggered: Tue Jul 25 13:10:18 2023, 6d00h
   Last Remote NSF Off triggered: Tue Jul 25 13:10:27 2023, 6d00h
   Last Label TE NSF On triggered: Tue Jul 25 13:10:18 2023, 6d00h
   Last Label TE NSF Off triggered: Tue Jul 25 13:10:27 2023, 6d00h
   Last Label mLDP NSF On triggered: Tue Jul 25 13:10:18 2023, 6d00h
   Last Label mLDP NSF Off triggered: Tue Jul 25 13:10:27 2023, 6d00h
   Last Label PIM NSF On triggered: Tue Jul 25 13:20:49 2023, 6d00h
   Last Label PIM NSF Off triggered: Tue Jul 25 13:22:49 2023, 6d00h
   Last Label PIM6 NSF On triggered: Tue Jul 25 13:31:22 2023, 5d23h
   Last Label PIM6 NSF Off triggered: Tue Jul 25 13:33:22 2023, 5d23h
   Last Label XTC NSF On triggered: Tue Jul 25 13:41:51 2023, 5d23h
   Last Label XTC NSF Off triggered: Tue Jul 25 13:41:52 2023, 5d23h

IP NSF :- Active: N, Assume N
MRIB connect timer: Inactive
NSF statistics:
   Enabled Cnt - 4, Disabled Cnt - 4
   Last Enabled: 6d00h, Last Disabled: 6d00h
Multicast COFO routing state: Normal
Current LMRIB clients: LDP RSVP_TE PIM PIM6 XTC
LMRIB NSF clients: LDP RSVP_TE PIM PIM6 XTC
Converged LMRIB clients: LDP RSVP_TE PIM PIM6 XTC

Network Handling

Understanding how each PCE operates in different states helps in configuring the SR-PCE HA and ensuring steady operability without any data loss. Following sections describe each state:

• Steady State

  In steady state, the following events occur:



  1. Root request SR-P2MP tree creation:

     • Delegates to PCE1

     • Sends the PCReport to PCE1 with D-bit set to 1

     • Sends the PCReport to PCE2 with D-bit set to 0

  2. PCE1 forwards the PCReport to PCE2.

  3. PCE1 acts as the compute PCE:

     • Sends PCInitiate to the Mid and Leaf nodes

     • Sends PCUpdate to Root

     • Syncs Tree State for all the nodes with state-sync PCE2

  4. All PCCs respond with PCReport:

     • With D-bit set to 1 to delegated “Creator” PCE (PCE1)

     • With D-bit set to 0 to the other PCE2

  5. PCE1 forwards all the reports with D-bit set from PCCs to PCE2.

• PCE Failure

  When PCE fails, the following events occur:



  1. PCE1 fails.

  2. Root re-delegate to PCE2 immediately and sends the PCReport with D-bit Set to 1

     • With the PCC-centric approach, Mid and Leaf nodes PCCs also re-delegate to PCE2 immediately and sends the PCReport with D-bit set to 1

  3. PCE2 becomes the Compute PCE, recomputes Tree-SID and sends the update to PCCs.

• PCE Restore


  When PCE restores, the following events occur:



  1. PCE1 is restored.

  2. Root redelegates to PCE1 after the delegation timer expires:

     • Sends the PCReport to PCE1 with D-bit set to 1

     • Sends the PCReport to PCE2 with D-bit set to 0

  3. With the PCC-Centric approach, Mid and Leaf nodes PCCs also re-delegate to PCE1 after the Delegation timer expires.

     • Sends the PCReport to PCE2 with D-bit set to 0

  4. PCE1 becomes the compute PCE and recomputes the Tree-SID.

     • Sends PCUpdate to PCCs participating in Tree-SID creation

• Redundant or Backup PCE Down or Up Event

  When the redundant or the backup PCE is down or up, the following events occur:



  1. When the backup PCE fails or is down, it is a "No-Operation" event from the Tree's point of view.

  2. When the backup PCE is back up then all the PCCs resend the PCReports with D-bit set to 0.

  3. PCE1 syncs all the delegated reports and locally computed Tree states with PCE2.

• PCC Initiated PCEP Session with the Root is Down

  When the PCC initiated PCEP session with the Root is down, the following events occur:



  1. PCEP session from the Root to PCE1 is down but the Mid and Leaf nodes continue to have the session with PCE1.

  2. Root redelegates to PCE2 immediately and sends the PCReport with D-bit set to 1.

  3. PCE2 takes the responsibility of the compute PCE, recomputes Tree, and sends the PCUpdate.

     Note	Mid or leaf nodes are still delegated to PCE1, any updates to these nodes are done through PCE1.

• PCC Initiated PCEP Session with the Root is Restored

  When the PCC initiated PCEP session with the Root is back up, the following events occur:



  1. PCEP session from the Root to PCE1 is restored.

  2. Root redelegates to PCE1 immediately after the delegation timer expires:

     • Sends the PCReport to PCE1 with D-bit set to 1

     • Sends the PCReport to PCE2 with D-bit set to 0

  3. PCE1 reclaims the responsibility of the compute PCE, recomputes Tree, and sends the PCUpdate.

• PCC Initiated - PCEP session with Mid or Leaf node is Down

  When the PCC initiated PCEP session with the Mid or Leaf node is down, the following events occur:



  1. PCEP session from Mid to PCE1 is down but the Root and Leaf node still has session to PCE1

     • PCE1 is still responsible for Tree compute.

     • PCE1 holds LSP state for Mid for sometime to allow redelegation and Report from PCE2 (60 seconds Tree-SID Peer Down Timer on PCE).

  2. With PCC-Centric approach, Mid redelegates immediately to PCE2 and sends a PCReport with D-bit set to 1.

  3. PCE2 forwards PCReport to PCE1.

  4. PCE1 sends PCUpdate to PCE2 for Mid immediately.

  5. PCE2 always forwards the PCUpdate to Mid (PCC) if the PCE2 still has delegation of LSP from the PCC.

     Note	A node, which does not have PCEP session is considered for P2PM path compute for new Tree. In this example, a new Tree from the Root to the same set of Leaf nodes cannot be brought up because PCE1 does not have a PCEP session to the Mid node.

• PCC Initiated - PCEP session with Mid or Leaf node is Restored

  When the PCC initiated PCEP session with the Mid or Leaf node is restored, the following events occur:



  1. PCEP session from Mid to PCE1 is restored.

     • Root and Leaf node still have the session to PCE1.

     • PCE1 is still responsible for path compute.

  2. With PCC-centric approach, Mid node redelegates to PCE1 after the delegation timer expires.

     • Sends a PCReport with D-bit set to 1.

  3. PCE1 sends PCUpdate to Mid node.

  4. Mid node sends a PCReport to PCE2 with D-bit set to 0.

  5. PCE2 withdraws "Interest" from PCE1.

  Note

  Even after the session between PCE1 and Mid node is restored, PCE1 keeps pushing updates to PCE2 until the "interest" from LSP is withdrawn. The PCE to which the LSP is delegated push the update down to PCC. It is possible that both OCEs have the D-bit set for the LSP momentarily. In such a case, both PCEs will push down the Updates. The PCC accepts the update from the PCE to which it has delegated to.

• PCC Initiated - Existing Tree Change with Split PCEP Session

  When there is a PCC Initiated - Existing Tree Change with Split PCEP Session, the following events occur:



  Root and Leaf node have PCEP session with PCE1 and the Mid-1 node has PCEP session restored and hence delegated to PCE2. The new mid node (Mid2) is introduced with PCEP sessions to both PCEs.

  1. Root updates Tree to add Leaf1

     • Sends PCReport to PCE1 with D-bitset

  2. PCE1 computes Tree

     • Option 1: PCE1 will not consider Mid-1 node because it does not have a direct PCEP session to it.

       • Sends PCInitiate to Mid-2 and Leaf1 node PCCs

       • Cons: This may not be the best path to Endpoint. The path to a given Endpoint may be different if it gets deleted and re-added.

     • Option 2 (Preferred): PCE1 will consider reachability through Mid-1 node because it knows Mid-1 node is part of the Tree and delegated to PCE2 (Over State-Sync channel)

       • Sends PCUpdate to Mid-1 node through PCE2

• PCC Initiated - New Tree with Split PCEP Session

  When there is a PCC Initiated - New Tree Change with Split PCEP Session, the following events occur:



  Root, Mid-2, and Leaf nodes have PCEP session with PCE1 and the Mid-1 node has PCEP session UP with PCE2.

  1. Root creates a new Tree to Leaf1 and Leaf2

     • Sends PCReport to PCE1 with D-bit set

  2. PCE1 computes Tree

     • PCE1 will not consider Mid-1 node because it does not have a direct PCEP session to it

     • Sends PCInitiate to Mid-2 and Leaf node PCCs

     Note	Con: Another (Existing) tree to the same Endpoints may be programmed through Mid-1 node.

Compute PCE Selection

The SR-PCE high availability (HA) support requires the network to have one SR-PCE assuming the role of a compute per SR-P2MP tree. This SR-PCE, referred to as the compute PCE, assumes the responsibility of computing the SR-P2MP tree and instantiating the tree on the participating Path Computation Element Clients (PCC).

The SR-PCE computes an SR-P2MP tree, based on its current view of the topology from the Root to the interested endpoints. When there is more than one SR-PCE available to manage a network, ensure that only one SR-PCE takes the role of computing SR-P2MP tree.

The SR-PCEs that manage the SR-P2MP trees, should be in sync with each other with respect to the state of the SR-P2MP tree. The SR-PCEs exchange and synchronize the delegated SR-P2MP LSP state with each other over the PCEP state-sync channel. Keeping the state-sync peers in a hot-standby state allows for a smooth transition if the computing PCE goes down. The SR-PCE taking over the compute maintains the current forwarding state on the PCCs until it recomputes the tree.

In the event of a network failure, the compute PCE gets the information about which SR-PCE the PCC is delegated to, from the PCReports.

Rest-Initiated Static TreeSID

The following figure shows an example of an SR network topology managed by two PCEs.

In this topology, all nodes participating in the SR-P2MP forwarding have a PCEP session with all SR-PCEs responsible for managing the tree. Additionally, the SR-PCEs also establish and maintain a PCEP session among themselves. This PCEP session between the PCEs is referred to as the PCE state-sync channel.

For REST initiated TreeSID, when a Crosswork Optimization Engine (COE) client sends a policy creation request, SR-PCE which receives the request acts as a compute PCE, creates a tree, and synchronizes the request with the peer PCE through the PCEP-sync channel.

The SR-PCEs should have a consistent view of the topology to allow for hitless switchover in the event of PCEP session failures between the PCC and the SR-PCEs.

For client-initiated TreeSID, the tree is created after receiving a request from Client at the SR-PCE. This install request contains information about the root, interested endpoints, and the constraints to be satisfied for the tree.

When a request is received on SR-PCE, that PCE is set as a compute PCE and the create request is forwarded to the peer PCE through the PCEP sync channel.

PCE State-Sync Session

The PCE state-sync channel is a PCEP session established between two SR-PCEs to synchronize the LSP state. This state-sync channel is used for the following purposes:

• Synchronizing delegated PCReport messages

• Proxy-forwarding P2MP Tree updates to PCCs through PCInitiate and PCUpdate messages

You should configure the state-sync channel on all SR-PCEs participating in PCE state-sync. TreeSID PCE HA is supported only over IPv4 PCEP state-sync sessions.

When the state-sync session is configured, the SR-PCE establishes a PCEP session with the peer mentioned in the configuration and performs an initial sync for SR-P2MP tree state. This process involves synchronizing all delegated SR-P2MP LSPs with the peer PCE.

PCReport State-Sync

A delegated PCReport shows that the LSP is delegated to a particular SR-PCE. For TreeSID PCE-HA, all such delegated reports are forwarded over the state-sync channel. The PCReport is forwarded to let the state-sync SR-PCEs know which SR-PCE a PCC has delegated the LSP to.

Use Case: Disjoint Live-Live Multicast

Some customers have stringent high-availability requirements for certain multicast applications. For such applications, customers implement multicast Live-Live, where an application generates two multicast streams for the same feed. Each of the streams must be carried within a separate network topology that must be completely disjointed from the other to prevent the two streams from being impacted at the same time. This can be accomplished with Flexible Algorithm constraint for Tree-SID path computation.

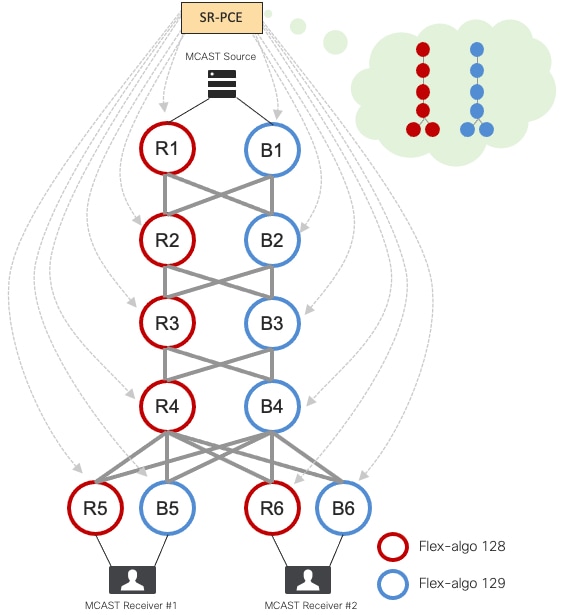

The figure below depicts two Flex Algos with disjoint topologies deployed across the network interconnecting multicast source and receivers. The objective is that copies of the multicast traffic are delivered over each Flex Algo topology.

1. Considering an mVPN scenario, a Root PE discovers the Leaf PEs using BGP mVPN autodiscovery procedures.

2. The root PE signals via PCEP to the SR-PCE a request to create an SR P2MP policy with a Flex-Algo constraint reaching the Leaf nodes.

3. The SR-PCE computes the tree based on Flex-Algo definition (optimization objective and constraints).

4. The SR-PCE allocates a Tree SID MPLS label for the policy.

5. The SR-PCE signals the forwarding state to all routers in the Tree using PCEP.



6. Routers in the tree install the corresponding forwarding entries. The figure below depicts two trees rooted at nodes R1 and B1 with leafs [R5, R6] and [B5, B6] respectively.



7. Multicast traffic from the source is encapsulated with the Tree SID label at the Root node.

   The transit nodes forward traffic based on the Tree SID label.

   The leaf nodes decapsulate and forward multicast traffic to the receivers.



Usage Guidelines and Limitations

Observe the following guidelines and limitations:

• The PCC and the SR-PCE must be running Cisco IOS XR release 7.11.1 or later to enable this feature in the network.

• Static Tree SID with Flex Algo constraint are supported.

• Dynamic Tree SID with Flex Algo constraint are supported.

• Any of the valid algorithm numbers for Flex Algo (128-255) can be associated with a Tree-SID.

• Inter-domain (multiple interconnected IGP domains) Tree SID is supported.

  • The Flex-Algo number must be the same across domains.

  • The metric type must be the same for the algorithm across domains.

  • The metric type is derived from the FAD definition learned in the IGP domain of the root node.

  • If the metric type is different in any other domain, then the domain is not used for path computation.

  • The affinity constraints in the FAD can be different across domains.

• When a Flex-Algo constraint is associated with a Tree-SID, then any metric type/affinity constraint specified outside of the Flex Algo are ignored.

• Inter-AS Tree SID is not supported.

Configuration: Dynamic Tree SID with Flex-Algo Constraint

Note	For more info, refer to Multicast VPN: Dynamic Tree-SID MVPN (with TI-LFA).

1. Configure the ODN color template with Flex-Algo constraint:

   Router(config)# segment-routing
   Router(config-sr)# traffic-eng
   Router(config-sr-te)# on-demand color 128
   Router(config-sr-te-color)# dynamic
   Router(config-sr-te-color-dyn)# exit
   Router(config-sr-te-color)# constraints
   Router(config-sr-te-color-const)# segments
   Router(config-sr-te-color-const-seg)# sid-algorithm 128
   Router(config-sr-te-color-const-seg)# commit



2. Configure default MDT with Tree SID with Flexible Algorithm Constraint MVPN profile:

   Router(config)# multicast-routing
   Router(config-mcast)# vrf red
   Router(config-mcast-red)# address-family ipv4
   Router(config-mcast-red-ipv4)# mdt default segment-routing mpls color 128



3. Configure partitioned MDT with Tree SID with Flexible Algorithm Constraint MVPN profile:

   Router(config)# multicast-routing
   Router(config-mcast)# vrf red
   Router(config-mcast-red)# address-family ipv4
   Router(config-mcast-red-ipv4)# mdt partitioned segment-routing mpls color 128



4. Configure data MDT with Tree SID with Flexible Algorithm Constraint:

   Router(config)# multicast-routing
   Router(config-mcast)# vrf red
   Router(config-mcast-red)# address-family ipv4
   Router(config-mcast-red-ipv4)# mdt data segment-routing mpls 10 color 128



5. Configure Route Policy for Data MDT with Tree SID with flexible algorithm constraint:

   Router# configure
   Router(config)# multicast-routing
   Router(config-mcast)# vrf red
   Router(config-mcast-red)# address-family ipv4
   Router(config-mcast-red-ipv4)# mdt data segment-routing mpls 10 color 128 route-policy sample-rpl



Configuration: Static Tree SID with Flex-Algo Constraint

• Configure Static Tree SID via Crosswork Optimization Engine – refer to the Cisco Crosswork Optimization Engine User Guide.

• Configure Static Tree SID via CLI at SR-PCE

  Caution

  A static Tree SID may be instantiated via CLI at the SR-PCE. However, this is not the recommended deployment model. Instead, configure the static Tree SID instantiated via CoE or dynamic Tree SID. These deployment models support SR-PCE High Availability.

Configuration: mVPN and Dynamic Tree SID with Flex Algo Constraint Use Case

The example below shows the configurations for each node in the following topology:

• Node 6 – SR-PCE

• PE node 1 – Root node

• P nodes 2 and 3 – Transit nodes

• PE nodes 4 and 5 – Leaf nodes

• Node 9 – BGP route reflector

Nodes are configured with TI-LFA. Root and Leaf nodes are also configured with Flex Algo with metric type delay.

SR-PCE

ipv4 access-list acl-allow-pcep
 10 permit ipv4 host 1.1.1.101 any
 20 permit ipv4 host 1.1.1.102 any
 30 permit ipv4 host 1.1.1.103 any
 40 permit ipv4 host 1.1.1.104 any
 50 permit ipv4 host 1.1.1.105 any
!
pce
 address ipv4 1.1.1.106
 peer-filter ipv4 access-list acl-allow-pcep
 segment-routing
  traffic-eng
   p2mp
    label-range min 15400 max 15600
   !
  !
 !
!

PE Node 1 - Root

vrf sample-mvpn1
 address-family ipv4 unicast
  import route-target
   100:10000
  !
  export route-target
   100:10000
  !
 !
!
interface Loopback200
 vrf sample-mvpn1
 ipv4 address 3.3.3.1 255.255.255.255
 !
!
route-policy TREESID-CORE
  set core-tree sr-p2mp
end-policy
!
router isis 100
 net 49.0000.0000.0000.0001.00
 address-family ipv4 unicast
  metric-style wide
  router-id Loopback0
  segment-routing mpls
 !
 flex-algo 128
  metric-type delay
  advertise-definition
 !
 interface Loopback0
  passive
  address-family ipv4 unicast
   prefix-sid absolute 100101
   prefix-sid algorithm 128 absolute 128101
  !
 !
 interface TenGigE0/0/0/0
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
 interface TenGigE0/0/0/1
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
!
router bgp 64000
 bgp router-id 1.1.1.1
 address-family vpnv4 unicast
 !
 address-family ipv4 mvpn
 !
 address-family l2vpn evpn
 !
 address-family vpnv4 multicast
 !
 neighbor-group iBGP-v4_neigh-vpn
  remote-as 64000
  update-source Loopback0
  address-family vpnv4 unicast
  !
  address-family ipv4 mvpn
  !
  address-family l2vpn evpn
  !
  address-family vpnv4 multicast
  !
 !
 neighbor 1.1.1.109
  use neighbor-group iBGP-v4_neigh-vpn
 !
 vrf sample-mvpn1
  rd auto
  address-family ipv4 unicast
   redistribute connected
  !
  address-family ipv4 mvpn
  !
 !
!
multicast-routing
 address-family ipv4
  interface Loopback0
   enable
  !
  mdt source Loopback0
 !
 vrf sample-mvpn1
  address-family ipv4
   interface all enable
   bgp auto-discovery segment-routing
   !
   mdt default segment-routing mpls color 128 fast-reroute lfa
   mdt data segment-routing mpls 20 color 128 fast-reroute lfa immediate-switch
  !
 !
!
multicast-routing
!
segment-routing
 traffic-eng
  on-demand color 128
   dynamic
   !
   constraints
    segments
     sid-algorithm 128
    !
   !
  !
  pcc
   source-address ipv4 1.1.1.101
   pce address ipv4 1.1.1.106
   !
  !
 !
!
router pim
 vrf sample-mvpn1
  address-family ipv4
   rpf topology route-policy TREESID-CORE
   mdt c-multicast-routing bgp
   !
  !
 !
!

P Node 2 - Transit

router isis 100
net 49.0000.0000.0000.0002.00
address-family ipv4 unicast
  metric-style wide
  router-id loopback0
  segment-routing mpls
 !
 flex-algo 128
  metric-type delay
  advertise-definition
 !
 interface Loopback0
  passive
  circuit-type level-2-only
  address-family ipv4 unicast
   prefix-sid absolute 16002
   prefix-sid algorithm 128 absolute 18002
  !
 !
 interface TenGigE0/0/0/0
  circuit-type level-2-only
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
 interface TenGigE0/0/0/1
  circuit-type level-2-only
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
 interface TenGigE0/0/0/2
  circuit-type level-2-only
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
 interface TenGigE0/0/0/3
  circuit-type level-2-only
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
//multicast-routing – is there any mcast routing config?
!
segment-routing
 traffic-eng
  pcc
   source-address ipv4 1.1.1.102
   pce address ipv4 1.1.1.106
   !
  !
 !
!

P Node 3 - Transit

router isis 100
net 49.0000.0000.0000.0003.00
address-family ipv4 unicast
  metric-style wide
  router-id loopback0
  segment-routing mpls
 !
 flex-algo 128
  metric-type delay
  advertise-definition
 !
 interface Loopback0
  passive
  circuit-type level-2-only
  address-family ipv4 unicast
   prefix-sid absolute 16003
   prefix-sid algorithm 128 absolute 18003
  !
 !
 interface TenGigE0/0/0/0
  circuit-type level-2-only
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
 interface TenGigE0/0/0/1
  circuit-type level-2-only
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
 interface TenGigE0/0/0/2
  circuit-type level-2-only
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
 interface TenGigE0/0/0/3
  circuit-type level-2-only
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
//multicast-routing – is there any mcast routing config?
!
segment-routing
 traffic-eng
  pcc
   source-address ipv4 1.1.1.103
   pce address ipv4 1.1.1.106
   !
  !
 !
!

PE Node 4 - Leaf Node

vrf sample-mvpn1
address-family ipv4 unicast
  import route-target
   100:10000
  !
  export route-target
   100:10000
  !
 !
!
interface Loopback200
 vrf sample-mvpn1
 ipv4 address 3.3.3.44 255.255.255.255
!
route-policy TREESID-CORE
  set core-tree sr-p2mp
end-policy
!
router isis 100
 net 49.0000.0000.0000.0004.00
 address-family ipv4 unicast
  metric-style wide
  router-id loopback0
  segment-routing mpls
 !
 flex-algo 128
  metric-type delay
  advertise-definition
 !
 interface Loopback0
  passive
  circuit-type level-2-only
  address-family ipv4 unicast
   prefix-sid absolute 100104
   prefix-sid algorithm 128 absolute 128104
  !
 !
 interface TenGigE0/0/0/0
  circuit-type level-2-only
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
 interface TenGigE0/0/0/1
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
 interface Bundle-Ether45
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
!
router bgp 64000
 bgp router-id 4.4.4.4
 address-family vpnv4 unicast
 !
 address-family ipv4 mvpn
 !
 address-family vpnv4 multicast
 !
 neighbor-group iBGP-v4_neigh-vpn
  remote-as 64000
  update-source Loopback0
  address-family vpnv4 unicast
  !
  address-family ipv4 mvpn
  !
  address-family vpnv4 multicast
  !
 !
 neighbor 1.1.1.109
  use neighbor-group iBGP-v4_neigh-vpn
 !
!
vrf sample-mvpn1
  rd auto
  address-family ipv4 unicast
   redistribute connected
  !
  address-family ipv4 mvpn
  !
 !
!
multicast-routing
 address-family ipv4
  interface Loopback0
   enable
  !
  mdt source Loopback0
 !
 vrf sample-mvpn1
  address-family ipv4
   interface all enable
   bgp auto-discovery segment-routing
   !
   mdt default segment-routing mpls color 128 fast-reroute lfa
   mdt data segment-routing mpls 20 color 128 fast-reroute lfa immediate-switch
  !
 !
!
multicast-routing
!
router igmp
 vrf sample-mvpn1
  interface Loopback200
   static-group 232.0.0.1 3.3.3.1
  !
 !
!
router igmp
!
segment-routing
 traffic-eng
  on-demand color 128
   dynamic
   !
   constraints
    segments
     sid-algorithm 128
    !
   !
  !
  pcc
   source-address ipv4 1.1.1.104
   pce address ipv4 1.1.1.106
    precedence 40
   !
  !
 !
!
router pim
 vrf sample-mvpn1
  address-family ipv4
   rpf topology route-policy TREESID-CORE
   mdt c-multicast-routing bgp
   !
  !
 !
!

PE Node 5 - Leaf Node

vrf sample-mvpn1
address-family ipv4 unicast
  import route-target
   100:10000
  !
  export route-target
   100:10000
  !
 !
!
interface Loopback200
 vrf sample-mvpn1
 ipv4 address 3.3.3.5 255.255.255.255
!
route-policy TREESID-CORE
  set core-tree sr-p2mp
end-policy
!
router isis 100
 net 49.0000.0000.0000.0005.00
 address-family ipv4 unicast
  metric-style wide
  router-id loopback0
  segment-routing mpls
 !
 flex-algo 128
  metric-type delay
  advertise-definition
 !
 interface Loopback0
  passive
  circuit-type level-2-only
  address-family ipv4 unicast
   prefix-sid absolute 100105
   prefix-sid algorithm 128 absolute 128105
  !
 !
 interface TenGigE0/0/0/0
  circuit-type level-2-only
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
 interface TenGigE0/0/0/1
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
 interface Bundle-Ether45
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
!
router bgp 64000
 bgp router-id 5.5.5.5
 address-family vpnv4 unicast
 !
 address-family ipv4 mvpn
 !
 address-family vpnv4 multicast
 !
 neighbor-group iBGP-v4_neigh-vpn
  remote-as 64000
  update-source Loopback0
  address-family vpnv4 unicast
  !
  address-family ipv4 mvpn
  !
  address-family vpnv4 multicast
  !
 !
 neighbor 1.1.1.109
  use neighbor-group iBGP-v4_neigh-vpn
 !
!
vrf sample-mvpn1
  rd auto
  address-family ipv4 unicast
   redistribute connected
  !
  address-family ipv4 mvpn
  !
 !
!
multicast-routing
address-family ipv4
  interface Loopback0
   enable
  !
  mdt source Loopback0
 !
 vrf sample-mvpn1
  address-family ipv4
   interface all enable
   bgp auto-discovery segment-routing
   !
   mdt default segment-routing mpls color 128 fast-reroute lfa
   mdt data segment-routing mpls 20 color 128 fast-reroute lfa immediate-switch
  !
 !
!
multicast-routing
!
router igmp
 vrf sample-mvpn1
  interface Loopback200
   static-group 232.0.0.1 3.3.3.1
  !
 !
!
router igmp
!
segment-routing
 traffic-eng
  on-demand color 128
   dynamic
   !
   constraints
    segments
     sid-algorithm 128
    !
   !
  !
  pcc
   source-address ipv4 1.1.1.105
   pce address ipv4 1.1.1.106
    precedence 40
   !
  !
 !
!
router pim
 vrf sample-mvpn1
  address-family ipv4
   rpf topology route-policy TREESID-CORE
   mdt c-multicast-routing bgp
   !
  !
 !
!

Node 9 - BGP RR

router bgp 64000
 bgp router-id 9.9.9.9
 address-family vpnv4 unicast
 !
 address-family ipv4 mvpn
 !
 address-family vpnv4 multicast
 !
 neighbor-group iBGP-v4_neigh-vpn_RRC
  remote-as 64000
  update-source Loopback0
  address-family vpnv4 unicast
  route-reflector-client
  !
  address-family ipv4 mvpn
   route-reflector-client
  !
  address-family vpnv4 multicast
   route-reflector-client
  !
 !
neighbor 1.1.1.101
 use neighbor-group iBGP-v4_neigh-vpn_RRC
!
neighbor 1.1.1.104
 use neighbor-group iBGP-v4_neigh-vpn_RRC
!
neighbor 1.1.1.105
 use neighbor-group iBGP-v4_neigh-vpn_RRC
!

Verification

The following output shows the paths calculated at the SR-PCE for the tree rooted at PE node 1, with leaf nodes at 4 and 5:

RP/0/RP0/CPU0:R6# show pce lsp p2mp root ipv4 1.1.1.101

Tree: sr_p2mp_root_1.1.1.101_tree_id_524289, Root: 1.1.1.101 ID: 524289
 PCC: 1.1.1.101
 Label:    15600
 Operational: up  Admin: up  Compute: Yes
 Local LFA FRR: Enabled
 Flex-Algo: 128  Metric Type: LATENCY
 Metric Type: TE
 Transition count: 1
 Uptime: 00:47:27 (since Wed Feb 07 12:50:52 PST 2024)
 Destinations: 1.1.1.104, 1.1.1.105
 Nodes:
  Node[0]: 1.1.1.101 (R1)
   Delegation: PCC
   PLSP-ID: 6
   Role: Ingress
   Hops:
    Incoming: 15600 CC-ID: 2
    Outgoing: 15600 CC-ID: 2 (1.1.1.103!) N-SID: 128103 [R3]
  Node[1]: 1.1.1.103 (R3)
   Delegation: PCC
   PLSP-ID: 1
   Role: Transit
   Hops:
    Incoming: 15600 CC-ID: 1
    Outgoing: 15600 CC-ID: 1 (1.1.1.104!) N-SID: 128104 [R4]
    Outgoing: 15600 CC-ID: 1 (1.1.1.105!) N-SID: 128105 [R5]
  Node[2]: 1.1.1.104 (R4)
   Delegation: PCC
   PLSP-ID: 2
   Role: Egress
   Hops:
    Incoming: 15600 CC-ID: 3
  Node[3]: 1.1.1.105 (R5)
   Delegation: PCC
   PLSP-ID: 3
   Role: Egress
   Hops:
    Incoming: 15600 CC-ID: 4


Tree: sr_p2mp_root_1.1.1.101_tree_id_524290, Root: 1.1.1.101 ID: 524290
 PCC: 1.1.1.101
 Label:    15599
 Operational: up  Admin: up  Compute: Yes
 Local LFA FRR: Enabled
 Flex-Algo: 128  Metric Type: LATENCY
 Metric Type: TE
 Transition count: 1
 Uptime: 00:47:27 (since Wed Feb 07 12:50:52 PST 2024)
 Destinations: 1.1.1.104, 1.1.1.105
 Nodes:
  Node[0]: 1.1.1.101 (R1)
   Delegation: PCC
   PLSP-ID: 7
   Role: Ingress
   Hops:
    Incoming: 15599 CC-ID: 2
    Outgoing: 15599 CC-ID: 2 (1.1.1.103!) N-SID: 128103 [R3]
  Node[1]: 1.1.1.103 (R3)
   Delegation: PCC
   PLSP-ID: 2
   Role: Transit
   Hops:
    Incoming: 15599 CC-ID: 1
    Outgoing: 15599 CC-ID: 1 (1.1.1.104!) N-SID: 128104 [R4]
    Outgoing: 15599 CC-ID: 1 (1.1.1.105!) N-SID: 128105 [R5]
  Node[2]: 1.1.1.104 (R4)
   Delegation: PCC
   PLSP-ID: 3
   Role: Egress
   Hops:
    Incoming: 15599 CC-ID: 3
  Node[3]: 1.1.1.105 (R5)
   Delegation: PCC
   PLSP-ID: 4
   Role: Egress
   Hops:
    Incoming: 15599 CC-ID: 4

The following output shows the paths calculated at the SR-PCE for the tree rooted at PE node 4, with leaf nodes at 1 and 5:

RP/0/RP0/CPU0:R6# show pce lsp p2mp root ipv4 1.1.1.104

Tree: sr_p2mp_root_1.1.1.104_tree_id_524289, Root: 1.1.1.104 ID: 524289
 PCC: 1.1.1.104
 Label:    15598
 Operational: up  Admin: up  Compute: Yes
 Local LFA FRR: Enabled
 Flex-Algo: 128  Metric Type: LATENCY
 Metric Type: TE
 Transition count: 1
 Uptime: 00:47:03 (since Wed Feb 07 12:51:20 PST 2024)
 Destinations: 1.1.1.101, 1.1.1.105
 Nodes:
  Node[0]: 1.1.1.104 (R4)
   Delegation: PCC
   PLSP-ID: 1
   Role: Ingress
   Hops:
    Incoming: 15598 CC-ID: 1
    Outgoing: 15598 CC-ID: 1 (1.1.1.105!) N-SID: 128105 [R5]
    Outgoing: 15598 CC-ID: 1 (1.1.1.102!) N-SID: 128102 [R2]
  Node[1]: 1.1.1.105 (R5)
   Delegation: PCC
   PLSP-ID: 5
   Role: Egress
   Hops:
    Incoming: 15598 CC-ID: 2
  Node[2]: 1.1.1.102 (R2)
   Delegation: PCC
   PLSP-ID: 1
   Role: Transit
   Hops:
    Incoming: 15598 CC-ID: 3
    Outgoing: 15598 CC-ID: 3 (1.1.1.101!) N-SID: 128101 [R1]
  Node[3]: 1.1.1.101 (R1)
   Delegation: PCC
   PLSP-ID: 8
   Role: Egress
   Hops:
    Incoming: 15598 CC-ID: 4

The following output shows the paths calculated at the SR-PCE for the tree rooted at PE node 5, with leaf nodes at 1 and 4:

RP/0/RP0/CPU0:R6# show pce lsp p2mp root ipv4 1.1.1.105

Tree: sr_p2mp_root_1.1.1.105_tree_id_524289, Root: 1.1.1.105 ID: 524289
 PCC: 1.1.1.105
 Label:    15597
 Operational: up  Admin: up  Compute: Yes
 Local LFA FRR: Enabled
 Flex-Algo: 128  Metric Type: LATENCY
 Metric Type: TE
 Transition count: 1
 Uptime: 00:46:58 (since Wed Feb 07 12:51:28 PST 2024)
 Destinations: 1.1.1.101, 1.1.1.104
 Nodes:
  Node[0]: 1.1.1.105 (R5)
   Delegation: PCC
   PLSP-ID: 2
   Role: Ingress
   Hops:
    Incoming: 15597 CC-ID: 1
    Outgoing: 15597 CC-ID: 1 (1.1.1.104!) N-SID: 128104 [R4]
    Outgoing: 15597 CC-ID: 1 (1.1.1.103!) N-SID: 128103 [R3]
  Node[1]: 1.1.1.104 (R4)
   Delegation: PCC
   PLSP-ID: 4
   Role: Egress
   Hops:
    Incoming: 15597 CC-ID: 2
  Node[2]: 1.1.1.103 (R3)
   Delegation: PCC
   PLSP-ID: 3
   Role: Transit
   Hops:
    Incoming: 15597 CC-ID: 3
    Outgoing: 15597 CC-ID: 3 (1.1.1.101!) N-SID: 128101 [R1]
  Node[3]: 1.1.1.101 (R1)
   Delegation: PCC
   PLSP-ID: 9
   Role: Egress
   Hops:
    Incoming: 15597 CC-ID: 4

The following ouput from PE node 1 shows the mVPN routes that are learned in the VRF sample-mvpn-1:

RP/0/RP0/CPU0:R1# show bgp vrf sample-mvpn1 ipv4 mvpn
BGP VRF sample-mvpn1, state: Active
BGP Route Distinguisher: 1.1.1.1:2
VRF ID: 0x6000000a
BGP router identifier 1.1.1.1, local AS number 64000
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 14
BGP table nexthop route policy:
BGP main routing table version 14
BGP NSR Initial initsync version 2 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 1.1.1.1:2 (default for vrf sample-mvpn1)
Route Distinguisher Version: 14
*> [1][1.1.1.101]/40  0.0.0.0                                0 i
*>i[1][1.1.1.104]/40  1.1.1.104                     100      0 i
*>i[1][1.1.1.105]/40  1.1.1.105                     100      0 i
*> [3][32][3.3.3.1][32][232.0.0.1][1.1.1.101]/120
                      0.0.0.0                                0 i
*>i[4][3][1.1.1.1:2][32][3.3.3.1][32][232.0.0.1][1.1.1.101][1.1.1.104]/224
                      1.1.1.104                     100      0 i
*>i[4][3][1.1.1.1:2][32][3.3.3.1][32][232.0.0.1][1.1.1.101][1.1.1.105]/224
                      1.1.1.105                     100      0 i
*>i[7][1.1.1.1:2][64000][32][3.3.3.1][32][232.0.0.1]/184
                      1.1.1.104                     100      0 i

Processed 7 prefixes, 7 paths

The following ouput from PE node 1 shows the mVPN context information for VRF sample-mvpn1:

RP/0/RP0/CPU0:R1# show mvpn vrf sample-mvpn1 context

MVPN context information for VRF sample-mvpn1 (0x55842fbf9bd0)

RD: 1.1.1.1:2 (Valid, IID 0x1), VPN-ID: 0:0
Import Route-targets : 2
  RT:1.1.1.101:0, BGP-AD
  RT:1.1.1.101:10, BGP-AD
BGP Auto-Discovery Enabled (I-PMSI added)
SR P2MP Core-tree data:
  MDT Name: TRmdtsample-mvpn1, Handle: 0x20008044, idb: 0x55842fc0e240
  MTU: 1376, MaxAggr: 255, SW_Int: 30, AN_Int: 60
  RPF-ID: 1, C:0, O:1, D:0, CP:0
  Static Type : - / -
  Def MDT ID: 524289 (0x55842f9ad558), added: 1, HLI: 0x80001, Cfg: 1/0
  Part MDT ID: 0 (0x0), added: 0, HLI: 0x00000, Cfg: 0/0
  Ctrl Trees : 0/0/0, Ctrl ID: 0 (0x0), Ctrl HLI: 0x00000

The following ouput from PE node 1 shows the SR ODN information for VRF sample-mvpn1:

RP/0/RP0/CPU0:R1# show mvpn vrf sample-mvpn1 database segment-routing

* - LFA protected MDT
Core Type      Core            Tree Core        State  On-demand
              Source           Information             Color

Default*        1.1.1.101       524289 (0x80001)    Up 128
   I-PMSI Leg:       1.1.1.104
                     1.1.1.105
Part*             0.0.0.0            0 (0x00000)  Down 128
Control*          0.0.0.0            0 (0x00000)  Down 128

The following ouput from PE node 1 shows the mVPN PE information of nodes 4 and 5 (leaf nodes) for VRF sample-mvpn1:

RP/0/RP0/CPU0:R1# show mvpn vrf sample-mvpn1 pe

MVPN Provider Edge Router information

VRF : sample-mvpn1

PE Address : 1.1.1.104 (0x55842fc10cc0)
  RD: 0:0:0 (null), RIB_HLI 0, RPF-ID 3, Remote RPF-ID 0, State: 0, S-PMSI: 0
  PPMP_LABEL: 0, MS_PMSI_HLI: 0x00000, Bidir_PMSI_HLI: 0x00000, MLDP-added: [RD 0, ID 0, Bidir ID 0, Remote Bidir ID 0], Counts(SHR/SRC/DM/DEF-MD/SR-POL): 0, 0, 0, 0, 0 Bidir: GRE RP Count 0, MPLS RP Count 0RSVP-TE added: [Leg 0, Ctrl Leg 0, Part tail 0 Def Tail 0, IR added: [Def Leg 0, Ctrl Leg 0, Part Leg 0, Part tail 0, Part IR Tail Label 0
  Tree-SID Added: [Def/Part Leaf 1, Def Egress 1, Part Egress 0, Ctrl Leaf 0]
  bgp_i_pmsi: 1,0/0 , bgp_ms_pmsi/Leaf-ad: 0/0, bgp_bidir_pmsi: 0, remote_bgp_bidir_pmsi: 0, PMSIs: I 0x55842fc0b040, 0x0, MS 0x0, Bidir Local: 0x0, Remote: 0x0, BSR/Leaf-ad 0x0/0, Autorp-disc/Leaf-ad 0x0/0, Autorp-ann/Leaf-ad 0x0/0
 IIDs: I/6: 0x1/0x0, B/R: 0x0/0x0, MS: 0x0, B/A/A: 0x0/0x0/0x0

  Bidir RPF-ID: 4, Remote Bidir RPF-ID: 0
  I-PMSI:   Tree-SID [524289, 1.1.1.104] (0x55842fc0b040)
  I-PMSI rem:  (0x0)
  MS-PMSI:  (0x0)
  Bidir-PMSI:  (0x0)
  Remote Bidir-PMSI:  (0x0)
  BSR-PMSI:  (0x0)
  A-Disc-PMSI:  (0x0)
  A-Ann-PMSI:  (0x0)
  RIB Dependency List: 0x0
  Bidir RIB Dependency List: 0x0
    Sources: 0, RPs: 0, Bidir RPs: 0

PE Address : 1.1.1.105 (0x55842fc11130)
  RD: 0:0:0 (null), RIB_HLI 0, RPF-ID 5, Remote RPF-ID 0, State: 0, S-PMSI: 0
  PPMP_LABEL: 0, MS_PMSI_HLI: 0x00000, Bidir_PMSI_HLI: 0x00000, MLDP-added: [RD 0, ID 0, Bidir ID 0, Remote Bidir ID 0], Counts(SHR/SRC/DM/DEF-MD/SR-POL): 0, 0, 0, 0, 0 Bidir: GRE RP Count 0, MPLS RP Count 0RSVP-TE added: [Leg 0, Ctrl Leg 0, Part tail 0 Def Tail 0, IR added: [Def Leg 0, Ctrl Leg 0, Part Leg 0, Part tail 0, Part IR Tail Label 0
  Tree-SID Added: [Def/Part Leaf 1, Def Egress 1, Part Egress 0, Ctrl Leaf 0]
  bgp_i_pmsi: 1,0/0 , bgp_ms_pmsi/Leaf-ad: 0/0, bgp_bidir_pmsi: 0, remote_bgp_bidir_pmsi: 0, PMSIs: I 0x55842fbf0670, 0x0, MS 0x0, Bidir Local: 0x0, Remote: 0x0, BSR/Leaf-ad 0x0/0, Autorp-disc/Leaf-ad 0x0/0, Autorp-ann/Leaf-ad 0x0/0
 IIDs: I/6: 0x1/0x0, B/R: 0x0/0x0, MS: 0x0, B/A/A: 0x0/0x0/0x0

  Bidir RPF-ID: 6, Remote Bidir RPF-ID: 0
  I-PMSI:   Tree-SID [524289, 1.1.1.105] (0x55842fbf0670)
  I-PMSI rem:  (0x0)
  MS-PMSI:  (0x0)
  Bidir-PMSI:  (0x0)
  Remote Bidir-PMSI:  (0x0)
  BSR-PMSI:  (0x0)
  A-Disc-PMSI:  (0x0)
  A-Ann-PMSI:  (0x0)
  RIB Dependency List: 0x0
  Bidir RIB Dependency List: 0x0
    Sources: 0, RPs: 0, Bidir RPs: 0

The following ouput from PE node 1 shows the data MDT cache information for the protocol independent multicast (PIM) for VRF sample-mvpn1:

RP/0/RP0/CPU0:R1# show pim vrf sample-mvpn1 mdt sr-p2mp cache

Core Source      Cust (Source, Group)                Core Data        Expires  Name
1.1.1.101        (3.3.3.1, 232.0.0.1)                [tree-id 524290]  never

   Leaf AD:    1.1.1.105
               1.1.1.104

The following ouput from PE node 1 shows the local data MDT information on the root PE for VRF sample-mvpn1:

RP/0/RP0/CPU0:R1# show pim vrf sample-mvpn1 mdt sr-p2mp local

Tree                           MDT             Cache DIP Local VRF Routes  On-demand Name
Identifier                     Source          Count     Entry Using Cache Color
[tree-id 524290 (0x80002)]    *1.1.1.101       1     N   Y     1           128
   Tree-SID Leaf:    1.1.1.104
                     1.1.1.105

The following ouput from PE node 1 shows the PIM topology table information for VRF sample-mvpn1:

RP/0/RP0/CPU0:R1# show pim vrf sample-mvpn1 topology

IP PIM Multicast Topology Table
Entry state: (*/S,G)[RPT/SPT] Protocol Uptime Info
Entry flags: KAT - Keep Alive Timer, AA - Assume Alive, PA - Probe Alive
    RA - Really Alive, IA - Inherit Alive, LH - Last Hop
    DSS - Don't Signal Sources,  RR - Register Received
    SR - Sending Registers, SNR - Sending Null Registers
    E - MSDP External, EX - Extranet
    MFA - Mofrr Active, MFP - Mofrr Primary, MFB - Mofrr Backup
    DCC - Don't Check Connected, ME - MDT Encap, MD - MDT Decap
    MT - Crossed Data MDT threshold, MA - Data MDT Assigned
    SAJ - BGP Source Active Joined, SAR - BGP Source Active Received,
    SAS - BGP Source Active Sent, IM - Inband mLDP, X - VxLAN
Interface state: Name, Uptime, Fwd, Info
Interface flags: LI - Local Interest, LD - Local Dissinterest,
    II - Internal Interest, ID - Internal Dissinterest,
    LH - Last Hop, AS - Assert, AB - Admin Boundary, EX - Extranet,
    BGP - BGP C-Multicast Join, BP - BGP Source Active Prune,
    MVS - MVPN Safi Learned, MV6S - MVPN IPv6 Safi Learned

(3.3.3.1,232.0.0.1)SPT SSM Up: 01:56:39
JP: Join(00:00:12) RPF: Loopback200,3.3.3.1* Flags: MT MA
  TRmdtsample-mvpn1           01:56:39  fwd BGP

The following ouput from PE node 1 shows all Multicast Routing Information Base (MRIB) information for VRF sample-mvpn1:

RP/0/RP0/CPU0:R1# show mrib vrf sample-mvpn1 route

IP Multicast Routing Information Base
Entry flags: L - Domain-Local Source, E - External Source to the Domain,
    C - Directly-Connected Check, S - Signal, IA - Inherit Accept,
    IF - Inherit From, D - Drop, ME - MDT Encap, EID - Encap ID,
    MD - MDT Decap, MT - MDT Threshold Crossed, MH - MDT interface handle
    CD - Conditional Decap, MPLS - MPLS Decap, EX - Extranet
    MoFE - MoFRR Enabled, MoFS - MoFRR State, MoFP - MoFRR Primary
    MoFB - MoFRR Backup, RPFID - RPF ID Set, X - VXLAN
Interface flags: F - Forward, A - Accept, IC - Internal Copy,
    NS - Negate Signal, DP - Don't Preserve, SP - Signal Present,
    II - Internal Interest, ID - Internal Disinterest, LI - Local Interest,
    LD - Local Disinterest, DI - Decapsulation Interface
    EI - Encapsulation Interface, MI - MDT Interface, LVIF - MPLS Encap,
    EX - Extranet, A2 - Secondary Accept, MT - MDT Threshold Crossed,
    MA - Data MDT Assigned, LMI - mLDP MDT Interface, TMI - P2MP-TE MDT Interface
    IRMI - IR MDT Interface, TRMI - TREE SID MDT Interface, MH - Multihome Interface

(*,224.0.0.0/24) Flags: D P
  Up: 02:26:26

(*,224.0.1.39) Flags: S P
  Up: 02:26:26

(*,224.0.1.40) Flags: S P
  Up: 02:26:26

(*,232.0.0.0/8) Flags: D P
  Up: 02:26:26

(3.3.3.1,232.0.0.1) RPF nbr: 3.3.3.1 Flags: RPF
  Up: 02:12:57
  Incoming Interface List
    Loopback200 Flags: A, Up: 02:12:57
  Outgoing Interface List
    TRmdtsample-mvpn1 Flags: F MA TRMI, Up: 02:12:57

The following ouput from PE node 1 shows the Multicast Routing Information Base (MRIB) information for Loopback200 (232.0.0.1) for VRF sample-mvpn1:

RP/0/RP0/CPU0:R1# show mrib vrf sample-mvpn1 route 232.0.0.1

IP Multicast Routing Information Base
Entry flags: L - Domain-Local Source, E - External Source to the Domain,
    C - Directly-Connected Check, S - Signal, IA - Inherit Accept,
    IF - Inherit From, D - Drop, ME - MDT Encap, EID - Encap ID,
    MD - MDT Decap, MT - MDT Threshold Crossed, MH - MDT interface handle
    CD - Conditional Decap, MPLS - MPLS Decap, EX - Extranet
    MoFE - MoFRR Enabled, MoFS - MoFRR State, MoFP - MoFRR Primary
    MoFB - MoFRR Backup, RPFID - RPF ID Set, X - VXLAN
Interface flags: F - Forward, A - Accept, IC - Internal Copy,
    NS - Negate Signal, DP - Don't Preserve, SP - Signal Present,
    II - Internal Interest, ID - Internal Disinterest, LI - Local Interest,
    LD - Local Disinterest, DI - Decapsulation Interface
    EI - Encapsulation Interface, MI - MDT Interface, LVIF - MPLS Encap,
    EX - Extranet, A2 - Secondary Accept, MT - MDT Threshold Crossed,
    MA - Data MDT Assigned, LMI - mLDP MDT Interface, TMI - P2MP-TE MDT Interface
    IRMI - IR MDT Interface, TRMI - TREE SID MDT Interface, MH - Multihome Interface

(3.3.3.1,232.0.0.1) RPF nbr: 3.3.3.1 Flags: RPF
  Up: 02:13:03
  Incoming Interface List
    Loopback200 Flags: A, Up: 02:13:03
  Outgoing Interface List
    TRmdtsample-mvpn1 Flags: F MA TRMI, Up: 02:13:03

The following ouput from PE node 1 shows the SR-TE process for the tree, showing the tree rooted at node 1, the default MDT (524289) and the data MDT (524290):

RP/0/RP0/CPU0:R1# show segment-routing traffic-eng p2mp policy root ipv4 1.1.1.101

SR-TE P2MP policy database:
----------------------
! - Replications with Fast Re-route, * - Stale dynamic policies/endpoints

Policy: sr_p2mp_root_1.1.1.101_tree_id_524289 (IPv4)  LSM-ID: 0x80001 (PCC-initiated)
 Root: 1.1.1.101, ID: 524289
 Color: 128
 Local LFA FRR: Enabled
 PCE Group: not-configured
 Flex-Algo: 128
 Delegated PCE: 1.1.1.106 (Feb  7 12:50:52.204)
 Delegated Conn: 1.1.1.106 (0x2)
 PCC info:
   Symbolic name: sr_p2mp_root_1.1.1.101_tree_id_524289
   PLSP-ID: 6
 Role: Root
 Replication:
  Incoming label: 15600 CC-ID: 2
  Interface: None [1.1.1.103!]  Outgoing label: 15600 N-SID: 128103 CC-ID: 2
 Endpoints:
  1.1.1.104, 1.1.1.105

Policy: sr_p2mp_root_1.1.1.101_tree_id_524290 (IPv4)  LSM-ID: 0x80002 (PCC-initiated)
 Root: 1.1.1.101, ID: 524290
 Color: 128
 Local LFA FRR: Enabled
 PCE Group: not-configured
 Flex-Algo: 128
 Delegated PCE: 1.1.1.106 (Feb  7 12:50:52.204)
 Delegated Conn: 1.1.1.106 (0x2)
 PCC info:
   Symbolic name: sr_p2mp_root_1.1.1.101_tree_id_524290
   PLSP-ID: 7
 Role: Root
 Replication:
  Incoming label: 15599 CC-ID: 2
  Interface: None [1.1.1.103!]  Outgoing label: 15599 N-SID: 128103 CC-ID: 2
 Endpoints:
  1.1.1.104, 1.1.1.105

The following ouput from PE node 1 shows the primary and backup interfaces for Flex Algo 128 to P node 3 (1.1.1.103):

RP/0/RP0/CPU0:R1# show isis fast-reroute flex-algo 128 1.1.1.103/32

L2 1.1.1.103/32 [12/115]
     via 20.1.3.3, TenGigE0/0/0/1, R3, SRGB Base: 100000, Weight: 0
       Backup path: LFA, via 20.1.2.2, TenGigE0/0/0/0, R2, SRGB Base: 100000, Weight: 0, Metric: 24

The following ouput from PE node 1 shows the interfaces to connect to P node 3 using the Flex Algo label of P node 3 (128103):

RP/0/RP0/CPU0:R1# show mpls forwarding labels 128103

Local  Outgoing    Prefix             Outgoing     Next Hop        Bytes
Label  Label       or ID              Interface                    Switched
------ ----------- ------------------ ------------ --------------- ------------
128103 Pop         SR Pfx (idx 28103) Te0/0/0/1    20.1.3.3        0
       128103      SR Pfx (idx 28103) Te0/0/0/0    20.1.2.2        0            (!)

The following ouput from PE node 1 shows the MRIB MPLS forwarding entry for Tree SID label 15599, showing the primary and backup interfaces:

RP/0/RP0/CPU0:R1# show mrib mpls forwarding labels 15599

LSP information (XTC) :
  LSM-ID: 0x00000, Role: Head, Head LSM-ID: 0x80002
    Incoming Label       : (15599)
    Transported Protocol : <unknown>
    Explicit Null        : None
    IP lookup            : disabled

    Outsegment Info #1 [H/Push, Recursive]:
      OutLabel: 15599, NH: 1.1.1.103, SID: 128103, Sel IF: TenGigE0/0/0/1
      Backup Tunnel: Un:0x0  Backup State: Ready, NH: 0.0.0.0, MP Label: 0
        Backup Sel IF: TenGigE0/0/0/0

The following ouput from PE node 1 shows the MPLS forwarding entry showing the primary interface to P node 3 for Tree SID label 15599:

RP/0/RP0/CPU0:R1# show mpls forwarding labels 15599

Local  Outgoing    Prefix             Outgoing     Next Hop        Bytes
Label  Label       or ID              Interface                    Switched
------ ----------- ------------------ ------------ --------------- ------------
15599  15599       mLDP/IR: 0x00000   Te0/0/0/1    20.1.3.3        0

The following ouput from PE node 1 shows the MRIB MPLS forwarding entry for Tree SID label 15600, showing the primary and backup interfaces:

RP/0/RP0/CPU0:R1# show mrib mpls forwarding labels 15600

LSP information (XTC) :
  LSM-ID: 0x00000, Role: Head, Head LSM-ID: 0x80001
    Incoming Label       : (15600)
    Transported Protocol : <unknown>
    Explicit Null        : None
    IP lookup            : disabled

    Outsegment Info #1 [H/Push, Recursive]:
      OutLabel: 15600, NH: 1.1.1.103, SID: 128103, Sel IF: TenGigE0/0/0/1
      Backup Tunnel: Un:0x0  Backup State: Ready, NH: 0.0.0.0, MP Label: 0
        Backup Sel IF: TenGigE0/0/0/0

The following ouput from PE node 1 shows the MPLS forwarding entry showing the primary interface for Tree SID label 15600:

RP/0/RP0/CPU0:R1# show mpls forwarding labels 15600

Local  Outgoing    Prefix             Outgoing     Next Hop        Bytes
Label  Label       or ID              Interface                    Switched
------ ----------- ------------------ ------------ --------------- ------------
15600  15600       mLDP/IR: 0x00000   Te0/0/0/1    20.1.3.3        0

The following ouput from P node 3 (transit) shows the SR-TE process for the tree, showing the tree rooted at node 1, the default MDT (524289) and the data MDT (524290):

RP/0/RP0/CPU0:R3# show segment-routing traffic-eng p2mp policy root ipv4 1.1.1.101

SR-TE P2MP policy database:
----------------------
! - Replications with Fast Re-route, * - Stale dynamic policies/endpoints

Policy: sr_p2mp_root_1.1.1.101_tree_id_524289   LSM-ID: 0x40001
 Root: 1.1.1.101, ID: 524289
 PCE Group: not-configured
 Flex-Algo: 128
 Creator PCE: 1.1.1.106 (Feb  7 12:50:52.408)
 Delegated PCE: 1.1.1.106 (Feb  7 12:51:14.098)
 Delegated Conn: 1.1.1.106 (0x2)
 Creator Conn: 1.1.1.106 (0x2)
 PCC info:
   Symbolic name: sr_p2mp_root_1.1.1.101_tree_id_524289
   PLSP-ID: 1
 Role: Transit
 Replication:
  Incoming label: 15600 CC-ID: 1
  Interface: None [1.1.1.104!]  Outgoing label: 15600 N-SID: 128104 CC-ID: 1
  Interface: None [1.1.1.105!]  Outgoing label: 15600 N-SID: 128105 CC-ID: 1

Policy: sr_p2mp_root_1.1.1.101_tree_id_524290   LSM-ID: 0x40002
 Root: 1.1.1.101, ID: 524290
 PCE Group: not-configured
 Flex-Algo: 128
 Creator PCE: 1.1.1.106 (Feb  7 12:50:52.411)
 Delegated PCE: 1.1.1.106 (Feb  7 12:51:14.100)
 Delegated Conn: 1.1.1.106 (0x2)
 Creator Conn: 1.1.1.106 (0x2)
 PCC info:
   Symbolic name: sr_p2mp_root_1.1.1.101_tree_id_524290
   PLSP-ID: 2
 Role: Transit
 Replication:
  Incoming label: 15599 CC-ID: 1
  Interface: None [1.1.1.104!]  Outgoing label: 15599 N-SID: 128104 CC-ID: 1
  Interface: None [1.1.1.105!]  Outgoing label: 15599 N-SID: 128105 CC-ID: 1

The following ouput from P node 3 (transit) shows the MRIB MPLS forwarding entry for Tree SID label 15599, showing the primary and backup interfaces:

RP/0/RP0/CPU0:R3# show mrib mpls forwarding

LSP information (XTC) :
  LSM-ID: 0x00000, Role: Mid
    Incoming Label       : 15597
    Transported Protocol : <unknown>
    Explicit Null        : None
    IP lookup            : disabled

    Outsegment Info #1 [M/Swap, Recursive]:
      OutLabel: 15597, NH: 1.1.1.101, SID: 128101, Sel IF: TenGigE0/0/0/0
      Backup Tunnel: Un:0x0  Backup State: Ready, NH: 0.0.0.0, MP Label: 0
        Backup Sel IF: TenGigE0/0/0/3

LSP information (XTC) :
  LSM-ID: 0x00000, Role: Mid
    Incoming Label       : 15599
    Transported Protocol : <unknown>
    Explicit Null        : None
    IP lookup            : disabled

    Outsegment Info #1 [M/Swap, Recursive]:
      OutLabel: 15599, NH: 1.1.1.104, SID: 128104, Sel IF: TenGigE0/0/0/2
      Backup Tunnel: Un:0x0  Backup State: Ready, NH: 0.0.0.0, MP Label: 0
        Backup Sel IF: TenGigE0/0/0/1
    Outsegment Info #2 [M/Swap, Recursive]:
      OutLabel: 15599, NH: 1.1.1.105, SID: 128105, Sel IF: TenGigE0/0/0/1
      Backup Tunnel: Un:0x0  Backup State: Ready, NH: 0.0.0.0, MP Label: 0
        Backup Sel IF: TenGigE0/0/0/2

LSP information (XTC) :
  LSM-ID: 0x00000, Role: Mid
    Incoming Label       : 15600
    Transported Protocol : <unknown>
    Explicit Null        : None
    IP lookup            : disabled

    Outsegment Info #1 [M/Swap, Recursive]:
      OutLabel: 15600, NH: 1.1.1.104, SID: 128104, Sel IF: TenGigE0/0/0/2
      Backup Tunnel: Un:0x0  Backup State: Ready, NH: 0.0.0.0, MP Label: 0
        Backup Sel IF: TenGigE0/0/0/1
    Outsegment Info #2 [M/Swap, Recursive]:
      OutLabel: 15600, NH: 1.1.1.105, SID: 128105, Sel IF: TenGigE0/0/0/1
      Backup Tunnel: Un:0x0  Backup State: Ready, NH: 0.0.0.0, MP Label: 0
        Backup Sel IF: TenGigE0/0/0/2

The following ouput from P node 3 shows the primary and backup interfaces to connect to PE node 4 using the Flex Algo label of PE node 4 (128104):

RP/0/RP0/CPU0:R3# show mpls forwarding labels 128104

Local  Outgoing    Prefix             Outgoing     Next Hop        Bytes
Label  Label       or ID              Interface                    Switched
------ ----------- ------------------ ------------ --------------- ------------
128104 Pop         SR Pfx (idx 28104) Te0/0/0/2    20.3.4.4        0
       128104      SR Pfx (idx 28104) Te0/0/0/1    20.3.5.5        0            (!)

The following ouput from P node 3 shows the primary and backup interfaces to connect to PE node 5 using the Flex Algo label of PE node 5 (128105):

RP/0/RP0/CPU0:R3# show mpls for labels 128105

Local  Outgoing    Prefix             Outgoing     Next Hop        Bytes
Label  Label       or ID              Interface                    Switched
------ ----------- ------------------ ------------ --------------- ------------
128105 Pop         SR Pfx (idx 28105) Te0/0/0/1    20.3.5.5        0
       128105      SR Pfx (idx 28105) Te0/0/0/2    20.3.4.4        0            (!)

PE Node 4 (Leaf)

The following output from PE node 4 shows the mVPN routes that are learned in the VRF sample-mvpn-1:

RP/0/RP0/CPU0:R4# show bgp vrf sample-mvpn1 ipv4 mvpn
BGP VRF sample-mvpn1, state: Active
BGP Route Distinguisher: 4.4.4.4:0
VRF ID: 0x60000005
BGP router identifier 4.4.4.4, local AS number 64000
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 11
BGP table nexthop route policy:
BGP main routing table version 11
BGP NSR Initial initsync version 4 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 4.4.4.4:0 (default for vrf sample-mvpn1)
Route Distinguisher Version: 11
*>i[1][1.1.1.101]/40  1.1.1.101                     100      0 i
*> [1][1.1.1.104]/40  0.0.0.0                                0 i
*>i[1][1.1.1.105]/40  1.1.1.105                     100      0 i
*>i[3][32][3.3.3.1][32][232.0.0.1][1.1.1.101]/120
                      1.1.1.101                     100      0 i
*> [4][3][1.1.1.1:2][32][3.3.3.1][32][232.0.0.1][1.1.1.101][1.1.1.104]/224
                      0.0.0.0                                0 i
*> [7][1.1.1.1:2][64000][32][3.3.3.1][32][232.0.0.1]/184
                      0.0.0.0                                0 i

Processed 6 prefixes, 6 paths

RP/0/RP0/CPU0:R4# show bgp vrf sample-mvpn1
BGP VRF sample-mvpn1, state: Active
BGP Route Distinguisher: 4.4.4.4:0
VRF ID: 0x60000005
BGP router identifier 4.4.4.4, local AS number 64000
Non-stop routing is enabled
BGP table state: Active
Table ID: 0xe0000005   RD version: 74
BGP table nexthop route policy:
BGP main routing table version 75
BGP NSR Initial initsync version 31 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 4.4.4.4:0 (default for vrf sample-mvpn1)
Route Distinguisher Version: 74
*>i3.3.3.1/32         1.1.1.101                0    100      0 ?
*> 3.3.3.4/32         0.0.0.0                  0         32768 ?
*>i3.3.3.5/32         1.1.1.105                0    100      0 ?

Processed 3 prefixes, 3 paths

The following ouput from PE node 4 shows the remote data MDT information on the root PE for VRF sample-mvpn1:

RP/0/RP0/CPU0:R4# show pim vrf sample-mvpn1 mdt sr-p2mp remote

Tree                           MDT             Cache DIP Local VRF Routes  On-demand Name
Identifier                     Source          Count     Entry Using Cache Color
[tree-id 524290 (0x80002)]     1.1.1.101       1     N   N     1           0

The following ouput from PE node 4 shows the PIM topology table information for VRF sample-mvpn1:

RP/0/RP0/CPU0:R4# show pim vrf sample-mvpn1 topology

IP PIM Multicast Topology Table
Entry state: (*/S,G)[RPT/SPT] Protocol Uptime Info
Entry flags: KAT - Keep Alive Timer, AA - Assume Alive, PA - Probe Alive
    RA - Really Alive, IA - Inherit Alive, LH - Last Hop
    DSS - Don't Signal Sources,  RR - Register Received
    SR - Sending Registers, SNR - Sending Null Registers
    E - MSDP External, EX - Extranet
    MFA - Mofrr Active, MFP - Mofrr Primary, MFB - Mofrr Backup
    DCC - Don't Check Connected, ME - MDT Encap, MD - MDT Decap
    MT - Crossed Data MDT threshold, MA - Data MDT Assigned
    SAJ - BGP Source Active Joined, SAR - BGP Source Active Received,
    SAS - BGP Source Active Sent, IM - Inband mLDP, X - VxLAN
Interface state: Name, Uptime, Fwd, Info
Interface flags: LI - Local Interest, LD - Local Dissinterest,
    II - Internal Interest, ID - Internal Dissinterest,
    LH - Last Hop, AS - Assert, AB - Admin Boundary, EX - Extranet,
    BGP - BGP C-Multicast Join, BP - BGP Source Active Prune,
    MVS - MVPN Safi Learned, MV6S - MVPN IPv6 Safi Learned

(3.3.3.1,232.0.0.1)SPT SSM Up: 01:59:13
JP: Join(BGP) RPF: TRmdtsample-mvpn1,1.1.1.101 Flags:
  Loopback200                 01:59:13  fwd LI LH

The following ouput from PE node 4 shows the SR-TE process for the tree, showing the tree rooted at node 1, the default MDT (524289) and the data MDT (524290):

RP/0/RP0/CPU0:R4# show segment-routing traffic-eng p2mp policy root ipv4 1.1.1.101

SR-TE P2MP policy database:
----------------------
! - Replications with Fast Re-route, * - Stale dynamic policies/endpoints

Policy: sr_p2mp_root_1.1.1.101_tree_id_524289   LSM-ID: 0x40001
 Root: 1.1.1.101, ID: 524289
 PCE Group: not-configured
 Flex-Algo: 128
 Creator PCE: 1.1.1.106 (Feb  7 11:35:30.279)
 Delegated PCE: 1.1.1.106 (Feb  7 11:35:58.546)
 Delegated Conn: 1.1.1.106 (0x3)
 Creator Conn: 1.1.1.106 (0x3)
 PCC info:
   Symbolic name: sr_p2mp_root_1.1.1.101_tree_id_524289
   PLSP-ID: 2
 Role: Leaf
 Replication:
  Incoming label: 15600 CC-ID: 3

Policy: sr_p2mp_root_1.1.1.101_tree_id_524290   LSM-ID: 0x40002
 Root: 1.1.1.101, ID: 524290
 PCE Group: not-configured
 Flex-Algo: 128
 Creator PCE: 1.1.1.106 (Feb  7 11:35:30.281)
 Delegated PCE: 1.1.1.106 (Feb  7 11:35:58.547)
 Delegated Conn: 1.1.1.106 (0x3)
 Creator Conn: 1.1.1.106 (0x3)
 PCC info:
   Symbolic name: sr_p2mp_root_1.1.1.101_tree_id_524290
   PLSP-ID: 3
 Role: Leaf
 Replication:
  Incoming label: 15599 CC-ID: 3

PE Node 5 (Leaf)

The following output from PE node 5 shows the mVPN routes that are learned in the VRF sample-mvpn-1:

RP/0/RP0/CPU0:R5# show bgp vrf sample-mvpn1 ipv4 mvpn
BGP VRF sample-mvpn1, state: Active
BGP Route Distinguisher: 5.5.5.5:0
VRF ID: 0x60000003
BGP router identifier 5.5.5.5, local AS number 64000
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 11
BGP table nexthop route policy:
BGP main routing table version 11
BGP NSR Initial initsync version 8 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 5.5.5.5:0 (default for vrf sample-mvpn1)
Route Distinguisher Version: 11
*>i[1][1.1.1.101]/40  1.1.1.101                     100      0 i
*>i[1][1.1.1.104]/40  1.1.1.104                     100      0 i
*> [1][1.1.1.105]/40  0.0.0.0                                0 i
*>i[3][32][3.3.3.1][32][232.0.0.1][1.1.1.101]/120
                      1.1.1.101                     100      0 i
*> [4][3][1.1.1.1:2][32][3.3.3.1][32][232.0.0.1][1.1.1.101][1.1.1.105]/224
                      0.0.0.0                                0 i
*> [7][1.1.1.1:2][64000][32][3.3.3.1][32][232.0.0.1]/184
                      0.0.0.0                                0 i

Processed 6 prefixes, 6 paths

The following ouput from PE node 4 shows the remote data MDT information on the root PE for VRF sample-mvpn1:

RP/0/RP0/CPU0:R5# show pim vrf sample-mvpn1 mdt sr-p2mp remote

Tree                           MDT             Cache DIP Local VRF Routes  On-demand Name
Identifier                     Source          Count     Entry Using Cache Color
[tree-id 524290 (0x80002)]     1.1.1.101       1     N   N     1           0

The following ouput from PE node 5 shows the SR-TE process for the tree, showing the tree rooted at node 1, the default MDT (524289) and the data MDT (524290):

RP/0/RP0/CPU0:R5# show segment-routing traffic-eng p2mp policy root ipv4 1.1.1.101

SR-TE P2MP policy database:
----------------------
! - Replications with Fast Re-route, * - Stale dynamic policies/endpoints

Policy: sr_p2mp_root_1.1.1.101_tree_id_524289   LSM-ID: 0x40001
 Root: 1.1.1.101, ID: 524289
 PCE Group: not-configured
 Flex-Algo: 128
 Creator PCE: 1.1.1.106 (Feb  7 11:58:58.821)
 Delegated PCE: 1.1.1.106 (Feb  7 11:59:34.323)
 Delegated Conn: 1.1.1.106 (0x2)
 Creator Conn: 1.1.1.106 (0x2)
 PCC info:
   Symbolic name: sr_p2mp_root_1.1.1.101_tree_id_524289
   PLSP-ID: 3
 Role: Leaf
 Replication:
  Incoming label: 15600 CC-ID: 4

Policy: sr_p2mp_root_1.1.1.101_tree_id_524290   LSM-ID: 0x40002
 Root: 1.1.1.101, ID: 524290
 PCE Group: not-configured
 Flex-Algo: 128
 Creator PCE: 1.1.1.106 (Feb  7 11:58:58.823)
 Delegated PCE: 1.1.1.106 (Feb  7 11:59:34.524)
 Delegated Conn: 1.1.1.106 (0x2)
 Creator Conn: 1.1.1.106 (0x2)
 PCC info:
   Symbolic name: sr_p2mp_root_1.1.1.101_tree_id_524290
   PLSP-ID: 4
 Role: Leaf
 Replication:
  Incoming label: 15599 CC-ID: 4
