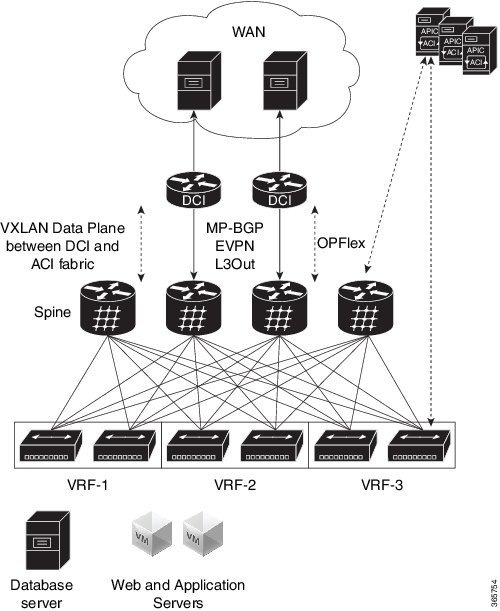

OpFlex Topology
Restrictions
Configure OpFlex
EVPN Default VRF Route Leaking
EVPN Service VRF Route Leaking

Implementing DCI VXLAN Layer 3 Gateway

This chapter module provides conceptual and configuration information for Data Center Interconnect (DCI) VXLAN Layer 3 Gateway on Cisco ASR 9000 Series Router.


Release	Modification
Release 5.3.2	This feature was introduced.
Release 6.1.x	OpFlex

Prerequisites for Implementing Data Center Interconnect Layer 3 Gateway

You must be in a user group associated with a task group that includes the proper task IDs. The command reference guides include the task IDs required for each command. If you suspect user group assignment is preventing you from using a command, contact your AAA administrator for assistance.
You need to have understanding of the following features:
- VxLAN: For detailed conceptual and configuration information, see the chapters Implementing Layer 2 VxLAN Gateway and Implementing Layer 3 VxLAN Gateway in Cisco ASR 9000 Series Aggregation Services Router L2VPN and Ethernet Services Configuration Guide and Cisco ASR 9000 Series Aggregation Services Router MPLS Layer 3 VPN Configuration Guide.
- MP-BGP: For detailed conceptual and configuration information, see the chapter Implementing BGP in the Cisco ASR 9000 Series Aggregation Services Router Routing Configuration Guide.
- MPLS L3VPN: For detailed conceptual and configuration information, see the Cisco ASR 9000 Series Aggregation Services Router MPLS Layer 3 VPN Configuration Guide.

Data Center Interconnect VXLAN Layer 3 Gateway

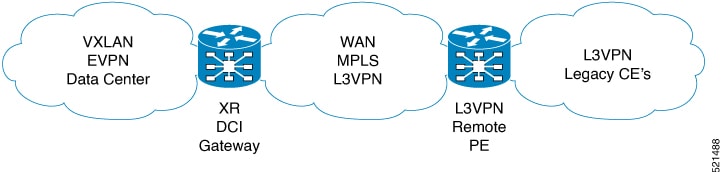

The Cisco ASR 9000 Series Router can serve as a Data Center Interconnect (DCI) L3 Gateway using stitching technology between VPNv4/v6 and EVPN-VXLAN. The DCI provides a solution for a new EVPN-VXLAN Data Center that needs to communicate with legacy and existing traditional MPLS VPN networks (VPNv4) having PE-CE architecture.

The DCI L3 gateway provides the following functions:

IP connectivity between multi-tenant remote Data Center sites: Consider the following network topology that has two Data Center sites connected through the intermediate service provider network. The multi-tenant Data Centers use VXLAN encapsulation to carry separate tenant IP traffic. The VXLAN-enabled Data Center sites use the MP-BGP EVPN control plane for distributing both Layer-2 and Layer-3 forwarding information within the site. The router uses MPLS L3VPN application service over the service provider network to provide L3 connectivity between the two Data Center sites. Making this translation between EVPN-VXLAN to VPNv4 overlay.
IP Connectivity between Data Center and remote PEs in a legacy network: Consider the following network topology that has one new Data Center site connected through the intermediate service provider network. The multi-tenant Data Center uses VXLAN encapsulation to carry separate tenant IP traffic. The VXLAN-enabled Data Center site uses the MP-BGP EVPN control plane for distributing both Layer-2 and Layer-3 forwarding information within the site. The router uses MPLS L3VPN application service over the service provider network to provide L3 connectivity between the Data Center services and the legacy CEs using VPNv4 to communicate with services placed inside the Data Center. Making this translation between EVPN-VXLAN to VPNv4 overlay.

Note

DCI gateway does not provide layer 2 inter-connectivity across Data Centers.

Topology

You can use SR-EVPN for Data Center on routers for a spine-leaf architecture with edge devices such as border leaf. DCI L3 stitching allows Data Centers that run SR-EVPN to communicate with legacy and existing MPLS VPN (VPNv4) sites.

In this topology,

Leaf (ToR) – Router acts as both access switch and distributed PE. Leaf establishes BGP EVPN neighborship with Spine route-reflector (RR). This router sends and receives prefixes from the DCI Gateway. Leaf ToR provides the following types of services:

Regular L3 VRF configuration using subinterfaces to attach some CE devices. Traditional PE-CE scenario without EVPN configuration.
L3 EVPN VRF using L2VPN configuration to attach multiple Data Centers services.

Leaf sends and receives prefixes from or to the DCI gateway:

Leaf sends prefixes to DCI: Leaf re-originates local learned VRF subnet route as EVPN Route Type 5 with the EVPN RT (stitching-rt or regular RT), then sends to Spine RR. Spine RR sends prefixes to DCI gateway.
Leaf receives prefixes from DCI: Leaf receives EVPN Route Type 5 from Spine RR that is re-originated at DCI gateway due to stitching between VPNv4 and EVPN. Leaf imports remote VPNv4 prefixes to local VRF matching VPNv4 RT (stitching-rt or regular RT).

Spine RR: Spine RR establishes BGP EVPN neighborship with Leaf (ToR) and Edge DCI Gateway serving as Route-Reflector for EVPN prefixes between the devices in the Data Center. Leaf and DCI Gateway must be configured as clients of Spine RR.

Edge (DCI gateway): Edge (DCI gateway) acts as an edge router that allows communication between services connected at Leaf and CEs in legacy MPLS network architecture. The edge DCI gateway establishes BGP EVPN neighborship with Spine RR and remote PEs, or RR depending on legacy MPLS network architecture.

The edge DCI gateway sends and receives prefixes from or to the Data Center:

DCI gateway receives prefixes from legacy MPLS VPNv4 network and sends prefixes to Leaf: DCI gateway receives L3VPN (VPNv4) routes from remote MPLS VPN (VPNv4) PE or RR depending on legacy MPLS network architecture matching the VPNv4 RT (stitching-rt or regular RT). Then re-originate these prefixes as EVPN Route Type 5 with the EVPN RT (stitching-rt or regular RT) advertising to Spine RR due to BGP EVPN neighbor with the Spine.
DCI gateway receives prefixes from Leaf and sends prefixes to legacy MPLS VPNv4 network: DCI gateway receives EVPN Route Type 5 originated from Leaf (ToR) by Spine RR due to BGP EVPN neighbor with the Spine. Leaf and DCI gateway does not have a direct BGP neighborship. Then import the routes to local VRF matching the EVPN RT (stitching-rt or regular RT) and re-originate this prefix as VPNv4 router with the VPNv4 RT (stitching-rt or regular RT) and advertise to remote MPLS VPN (VPNv4) PE or RR depending on legacy MPLS network architecture.

Remote PE: Remote PE receives traditional MPLS L3VPN prefixes (VPNv4) by DCI Gateway or RR depending on legacy MPLS network architecture. You must have a unique Route-Distinguisher (RD) between remote PEs and DCI gateway to allow stitching re-originate prefixes from VPNv4 to EVPN at DCI Gateway.

Stitching RTs and Regular RTs can be assigned to any side, EVPN or VPNv4, irrespective of the address-family. Consider the following supported scenarios:

VPNv4-Regular RT and EVPN-Stitching RT

For each VRF on the DCI gateway, there are two sets of manually configured import and export route-targets for VPNv4 as a regular side and EVPN as a stitching side. Consider the following sets:

Data Center Route-Targets for EVPN associated with EVPN BGP neighbor (Stitching RT).
MPLS L3VPN Route-Targets for VPNv4 or VPNv6 associated with L3VPN BGP neighbor (Regular RT).

This separation of RTs enables the two sets of RTs to be independently configured. The RTs associated with the EVPN BGP neighbor require stitching-rt keyword under VRF configuration. The route-types associated with the L3VPN BGP neighbor do not require the keyword.

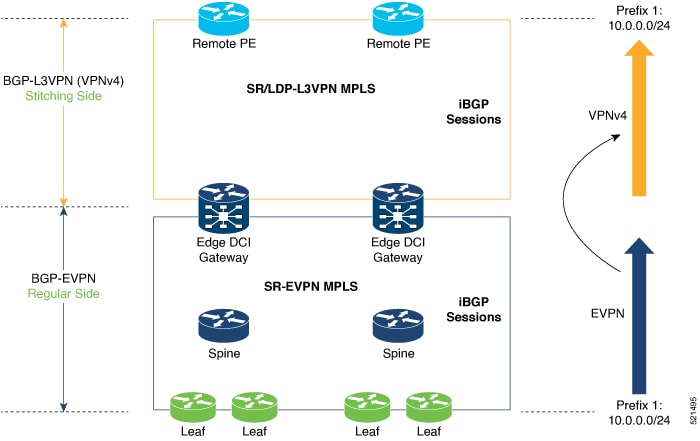

The following topology shows regular/normal and stitching side.

Route Targets

The RTs associated with the EVPN BGP neighbor are labelled as stitching RTs. The RTs associated with the L3VPN BGP neighbor are normal RTs.

Route Re-Origination

Consider control plane information propagation by the edge DCI gateway from the L3VPN (regular/normal side) to the Data Center (stitching side). Edge DCI gateway advertises to its BGP EVPN neighbor the routes that are re-originated after importing them from the L3VPN BGP neighbor. For this case of VPNv4 or VPNv6 routes being propagated to the BGP EVPN neighbors (Data Center neighbors), re-originating the routes refers to replacing the normal route-targets with the local route-target values (stitching-rt) associated with the BGP EVPN neighbors.

Route Address-Family and Encoded Address-Family

When an address-family is configured for a BGP neighbor, it means that the specified address-family routes encoded with the NLRI for that address-family are advertised to the neighbor. This does not hold for Data Center BGP neighbors because they use only EVPN address-family. Here, BGP neighbors advertise VPNv4 or VPNv6 unicast routes using the EVPN NLRI encoding. Thus, the encoded address-family and route address family can be possibly different. You can advertise the VPNv4 or VPNv6 address-family using the advertise vpnv4 unicast or advertise vpnv6 unicast command. For example, an EVPN address-family BGP neighbor configured with the advertise vpnv4 unicast command sends VPNv4 unicast routes in an EVPN encoded NLRI.

Local VPNv4 or VPNv6 Route Advertisement

On the edge DCI gateway, the locally sourced VPNv4 or VPNv6 routes (any CE directly connected not using L2VPN with BD/EVI/BVI, using only regular L3 VRF) can be advertised to the BGP EVPN neighbors with the normal route targets (RTs) configured for the VRF or the stitching RTs associated with the BGP EVPN neighbors. By default, these routes are advertised with the normal route targets. You can configure this local VPNv4 or VPNv6 route advertisements to be advertised with stitching RTs to the BGP EVPN neighbors by using the advertise vpnv4 unicast local stitching-rt or advertise vpnv6 unicast local stitching-rt command as required.

VPNv4 neighbors do not require any additional configuration. By default, these routes are advertised with the normal route-targets to BGP L3VPN neighbors.

Route Distinguishers

The Router Distinguisher (RD) associated per VRF must be unique per PE in the network. There are few available options to keep unique RD per device:

Manual configuration: You must manually assign a unique value per device in the network. For example, in this scenario:
- Leaf (ToR) = RD 1
- Edge DCI Gateway = RD 2
- Remote PE = RD 3
Use rd auto command under VRF. To assign a unique route distinguisher for each router, you must ensure that each router has a unique BGP router-id. If so, the rd auto command assigns a Type 1 route distinguisher to the VRF using the following format: ip-address:number. The IP address is specified by the BGP router-id statement and the number (which is derived as an unused index in the 0 to 65535 range) is unique across the VRFs.

Note

In a DCI deployment, for route re-originate with stitching-rt for a particular VRF, using the same Route Distinguisher (RD) between edge DCI gateway and MPLS-VPN PE or same RD between edge DCI gateway and Leaf (ToR) is not supported.

Configure VPNv4-Regular RT and EVPN-Stitching RT

This section describes tasks to configure VPNv4-Regular RT and EVPN-Stitching RT. Perform the following tasks to complete the configuration:

Configure Leaf (ToR)
Configure Spine-RR (Route Reflector)
Configure Edge DCI Gateway
Configure EVPN BGP neighbor and route advertisements
Configure L3VPN BGP neighbor relationship and route advertisements

Configure Leaf (ToR)

Configure VRF in Leaf (ToR) at BGP-EVPN (Stitching Side) with Stitching-RT.


vrf data-center1
 address-family ipv4 unicast
  import route-target
   1:2 stitching                           // BGP - EVPN (Stitching Side)
!
  export route-target
   1:2 stitching                          // BGP - EVPN (Stitching Side)
  !
router bgp 100
  neighbor 10.10.1.1                     // Spine Loopback IP Address
    address-family l2vpn evpn
       advertise vpnv4 unicast
       advertise vpnv6 unicast
  !

Note

Advertise vpnv4/vpnv6 unicast enables local learned regular L3 VRF prefixes to be advertised as EVPN prefixes to BGP – EVPN neighbor. This means any local prefixes such as PE-CE without L2VPN with BD/EVI/BVI configuration. If all the services are pure EVPN with L2VPN with BD/EVI/BVI configuration these commands are not required.

Configure Spine-RR

Configure Spine RR with Leaf (ToR) and edge DCI gateway as RR client for AFI L2VPN EVPN. VRF configuration is not required.


// VRF Config is not required //

router bgp 100
  neighbor 10.10.2.1                 // Leaf (ToR) Loopback IP Address
    address-family l2vpn evpn
       route-reflector-client
   !
  neighbor 10.10.3.1                // Edge DCI Gateway  Loopback IP Address
    address-family l2vpn evpn
       route-reflector-client
!

Configure Edge DCI Gateway

You can configure DCI with the same VRF as Leaf (ToR). Use the same RT as remote PE for L3VPN network or the same VRF if that is possible.

Configure VRF and Route Targets Import and Export rules

Perform the following steps to configure VRF and define route targets to be used for import and export of forwarding information.


vrf data-center1
 address-family ipv4 unicast
  import route-target
   1:1                             // BGP – L3VPN (Regular/normal Side)
   1:2 stitching                   // BGP - EVPN (Stitching Side)
!
  export route-target
   1:1                            // BGP – L3VPN (Regular/normal Side)
   1:2 stitching                  // BGP - EVPN (Stitching Side)
!

Configure EVPN BGP Neighbor and Route Advertisements

Perform this task on the edge DCI gateway to configure BGP neighbor relationship and route advertisements with the EVPN BGP neighbor.


router bgp 100
 addreess-family l2vpn evpn
!
 neighbor 10.10.1.1               // Spine Loopback IP Address
  address-family l2vpn evpn
   import stitching-rt re-originate  //Imp EVPN 1:2, reoriginate VPNv4 RT 1:1
   advertise vpnv4 unicast re-originated stitching-rt //Send routes EVPN 1:2
   advertise vpnv6 unicast re-originated stitching-rt //Send routes EVPN 1:2
!

Configure L3VPN BGP Neighbor Relationship and Route Advertisements

Perform the following steps to configure BGP neighbor relationship and route advertisements with the L3VPN BGP neighbor.


router bgp 100
 address-family vpnv4 unicast
!
 neighbor 10.10.1.1               // Spine Loopback IP Address
  address-family vpnv4 unicast      // Same config for VPNv6
   import re-originate stitching-rt // Imp VPNv4 1:1, re-originate EVPN 1:2
   advertise vpnv4 unicast re-originated   // Send routes VPNv4 RT 1:1
!

Configuration applies in two directions:

Stitching from VPNv4 to EVPN routes. Prefixes received from MPLS L3VPN network and re-originated as EVPN prefixes towards Data Center Spine RR and Leaf (ToR).

Importing VPNv4 routes with import re-originate stitching-rt command under AFI VPNv4 UNICAST. This command imports routes using RT 1:1 and then reoriginate with BGP EVPN 1:2 stitching-rt .
Advertising re-originated EVPN routes with VPNv4 RT with advertise vpvn4 unicast re-originated command under AFI L2VPN EVPN. This command advertises routes from MPLS L3VPN network (VPNv4) to BGP EVPN neighbors inside Data Center (Spine RR and then Leaf (ToR)), re-originating these routes using BGP EVPN 1:2 stitching-rt .

Stitching from EVPN to VPNv4 routes. Prefixes received from BGP-EVPN Data Center and re-originated as MPLS L3VPN prefixes towards VPNv4 RR or remote PE in L3VPN network.

Importing EVPN routes with import stitching-rt re-originate command under AFI L2VPN EVPN. This command imports routes using RT 1:2 stitching-rt and then re-originate with VPNv4 regular/normal VPNv4 RT 1:1.
Advertising re-originated EVPN routes with VPNv4 RT with advertise vpvn4 unicast re-originated command under AFI VPNv4 UNICAST. This command advertises routes from EVPN Data Center to VPNv4 RR or remote PEs, re-originating these routes using regular/normal VPNv4 RT 1:1.

Verification of Edge DCI Gateway Configuration


Router# show bgp l2vpn evpn

Fri Aug 21 00:24:10.773 PDT
BGP router identifier 30.30.30.30, local AS number 100
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 0
BGP main routing table version 16
BGP NSR Initial initsync version 1 (Reached)
BGP NSR/ISSU Sync-Group versions 16/0
BGP scan interval 60 secs

Status codes: s suppressed, d damped, h history, * valid, > best
	    i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 100:1
*>i[2][10000][48][0226.51bd.c81c][32][200::1001]/232
		   11.0.0.1                      100      0 i
*>i[2][10000][48][0226.51bd.c81c][32][200:1::1001]/232
		   11.0.0.1                      100      0 i
*>i[2][10000][48][0226.51bd.c81c][32][200.1.1.1]/136
   		   11.0.0.1                      100      0 i
*>i[2][10000][48][0226.51bd.c81c][32][200.1.1.2]/136
		   11.0.0.1                      100      0 i
*>i[5][4231][32][100.1.1.1]/80
		   11.0.0.1                      100      0 i
*>i[5][4231][32][100.1.1.2]/80
		   11.0.0.1                      100      0 i
*>i[5][4231][112][fec0::1001]/176
		   11.0.0.1                      100      0 i
*>i[5][4232][112][fec0::1:1001]/176
		   11.0.0.1                      100      0 i

Processed 8 prefixes, 8 paths


Router# show bgp l2vpn evpn rd 100:1 [5][4231][112][fec0::1001]/176 detail

Fri Aug 21 00:34:43.747 PDT
BGP routing table entry for [5][4231][112][fec0::1001]/176, Route Distinguisher: 100:1
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker                  5           5
    Flags: 0x04040001+0x00000000;
Last Modified: Aug 21 00:16:58.000 for 00:17:46
Paths: (1 available, best #1)
  Not advertised to any peer
  Path #1: Received by speaker 0
  Flags: 0x4000600025060005, import: 0x3f
  Not advertised to any peer
  Local
    11.0.0.1 (metric 2) from 20.0.0.1 (11.0.0.1)
      Received Label 16001
      Origin IGP, localpref 100, valid, internal, best, group-best, import-candidate, reoriginate, not-in-vrf
      Received Path ID 0, Local Path ID 1, version 5
      Extended community: Flags 0x6: RT:1:1
      Originator: 11.0.0.1, Cluster list: 20.20.20.20
      EVPN ESI: ffff.ffff.ffff.ffff.ff01, Gateway Address : fec0::254


Router# show bgp l2vpn evpn neighbors 20.0.0.1 detail
Fri Aug 21 00:25:37.383 PDT

BGP neighbor is 20.0.0.1
 Remote AS 100, local AS 100, internal link
 Remote router ID 20.20.20.20
  BGP state = Established, up for 00:08:58
  NSR State: NSR Ready
  Last read 00:00:34, Last read before reset 00:00:00
  Hold time is 180, keepalive interval is 60 seconds
  Configured hold time: 180, keepalive: 60, min acceptable hold time: 3
  Last write 00:00:36, attempted 19, written 19
  Second last write 00:01:36, attempted 143, written 143
  Last write before reset 00:00:00, attempted 0, written 0
  Second last write before reset 00:00:00, attempted 0, written 0
  Last write pulse rcvd  Aug 21 00:25:03.667 last full not set pulse count 33
  Last write pulse rcvd before reset 00:00:00
  Socket not armed for io, armed for read, armed for write
  Last write thread event before reset 00:00:00, second last 00:00:00
  Last KA expiry before reset 00:00:00, second last 00:00:00
  Last KA error before reset 00:00:00, KA not sent 00:00:00
  Last KA start before reset 00:00:00, second last 00:00:00
  Precedence: internet
  Non-stop routing is enabled
  Entered Neighbor NSR TCP mode:
    TCP Initial Sync :              Aug 21 00:18:07.291
    TCP Initial Sync Phase Two :    Aug 21 00:18:07.319
    TCP Initial Sync Done :         Aug 21 00:18:08.334
  Multi-protocol capability received
  Neighbor capabilities:            Adv         Rcvd
    Route refresh:                  Yes         Yes
    4-byte AS:                      Yes         Yes
    Address family VPNv4 Unicast:   Yes         No
    Address family VPNv6 Unicast:   Yes         No
    Address family L2VPN EVPN:      Yes         Yes
  Message stats:
    InQ depth: 0, OutQ depth: 0
                    Last_Sent               Sent  Last_Rcvd               Rcvd
    Open:           Aug 21 00:16:38.087        1  Aug 21 00:16:40.123        1
    Notification:   ---                        0  ---                        0
    Update:         Aug 21 00:24:01.421        9  Aug 21 00:24:03.652       13
    Keepalive:      Aug 21 00:25:01.434        8  Aug 21 00:25:03.667        9
    Route_Refresh:  Aug 21 00:24:01.377        3  ---                        0
    Total:                                    21                            23
  Minimum time between advertisement runs is 0 secs
  Inbound message logging enabled, 3 messages buffered
  Outbound message logging enabled, 3 messages buffered

 For Address Family: VPNv4 Unicast
  BGP neighbor version 35
  Update group: 0.3 Filter-group: 0.1  No Refresh request being processed
  Advertise Reorigination Enabled
  Advertise AFI EoR can be sent
  Route refresh request: received 0, sent 0
  0 accepted prefixes, 0 are bestpaths
  Cumulative no. of prefixes denied: 0.
  Prefix advertised 4, suppressed 0, withdrawn 0
  Maximum prefixes allowed 2097152
  Threshold for warning message 75%, restart interval 0 min
  AIGP is enabled
  An EoR was not received during read-only mode
  Last ack version 35, Last synced ack version 35
  Outstanding version objects: current 0, max 1
  Additional-paths operation: None
  Send Multicast Attributes

 For Address Family: VPNv6 Unicast
  BGP neighbor version 29
  Update group: 0.3 Filter-group: 0.1  No Refresh request being processed
  Advertise Reorigination Enabled
  Advertise AFI EoR can be sent
  Route refresh request: received 0, sent 0
  0 accepted prefixes, 0 are bestpaths
  Cumulative no. of prefixes denied: 0.
  Prefix advertised 0, suppressed 0, withdrawn 0
  Maximum prefixes allowed 1048576
  Threshold for warning message 75%, restart interval 0 min
  AIGP is enabled
  An EoR was not received during read-only mode
  Last ack version 29, Last synced ack version 29
  Outstanding version objects: current 0, max 0
  Additional-paths operation: None
  Send Multicast Attributes
  Advertise VPNv4 routes enabled with Reoriginate,Local with stitching-RT option

 For Address Family: L2VPN EVPN
  BGP neighbor version 18
  Update group: 0.2 Filter-group: 0.1  No Refresh request being processed
  Route refresh request: received 0, sent 3
  8 accepted prefixes, 8 are bestpaths
  Cumulative no. of prefixes denied: 0.
  Prefix advertised 4, suppressed 0, withdrawn 6
  Maximum prefixes allowed 2097152
  Threshold for warning message 75%, restart interval 0 min
  AIGP is enabled
  An EoR was received during read-only mode
  Last ack version 18, Last synced ack version 18
  Outstanding version objects: current 0, max 2
  Additional-paths operation: None
  Send Multicast Attributes
  Advertise VPNv4 routes enabled with Reoriginate, option
  Advertise VPNv6 routes is enabled with Reoriginate, option
  Import Stitching is enabled for this neighbor address-family
  Import Reoriginate is enabled for this neighbor address-family

  Connections established 1; dropped 0
  Local host: 30.0.0.1, Local port: 59405, IF Handle: 0x00000000
  Foreign host: 20.0.0.1, Foreign port: 179
  Last reset 00:00:00

At the end of each one AFI VPNv4, VPNv6, or L2VPN EVPN, you can see import and advertise information based on the configuration.


Router# show bgp sessions

Fri Aug 21 00:25:57.216 PDT

Neighbor        VRF                   Spk    AS   InQ  OutQ  NBRState     NSRState
20.0.0.1        default                 0   100     0     0  Established  NSR Ready[PP]
32.0.0.2        default                 0   200     0     0  Established  NSR Ready


Router# show bgp vpnv4 unicast

Fri Aug 21 00:28:41.253 PDT
BGP router identifier 30.30.30.30, local AS number 100
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 0
BGP main routing table version 39
BGP NSR Initial initsync version 4 (Reached)
BGP NSR/ISSU Sync-Group versions 39/0
BGP scan interval 60 secs

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 1:1
*> 1.1.1.0/24         32.0.0.2                               0 200 300 i
*> 1.1.2.0/24         32.0.0.2                               0 200 300 i
Route Distinguisher: 30.30.30.30:0 (default for vrf foo)
*> 1.1.1.0/24         32.0.0.2                               0 200 300 i
*> 1.1.2.0/24         32.0.0.2                               0 200 300 i
*>i100.1.1.1/32       11.0.0.1                      100      0 i
*>i100.1.1.2/32       11.0.0.1                      100      0 i
*>i200.1.1.1/32       11.0.0.1                      100      0 i
*>i200.1.1.2/32       11.0.0.1                      100      0 i


Router# show bgp vpnv4 unicast rd 30.30.30.30:0 1.1.1.0/24 detail

Fri Aug 21 00:28:57.824 PDT
BGP routing table entry for 1.1.1.0/24, Route Distinguisher: 30.30.30.30:0
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker                 26          26
    Flags: 0x04103001+0x00000000;
Last Modified: Aug 21 00:24:01.000 for 00:04:58
Paths: (1 available, best #1)
  Advertised to peers (in unique update groups):
    20.0.0.1
  Path #1: Received by speaker 0
  Flags: 0x4000c00005060001, import: 0x80
  Advertised to peers (in unique update groups):
    20.0.0.1
  200 300
    32.0.0.2 from 32.0.0.2 (40.40.40.40)
      Received Label 24001
      Origin IGP, localpref 100, valid, external, best, group-best, import-candidate, imported, reoriginated with stitching-rt
      Received Path ID 0, Local Path ID 1, version 26
      Extended community: RT: 1:2
      Source AFI: VPNv4 Unicast, Source VRF: default, Source Route Distinguisher: 1:1


Router# show bgp vrf foo

Fri Aug 21 00:24:36.523 PDT
BGP VRF foo, state: Active
BGP Route Distinguisher: 30.30.30.30:0
VRF ID: 0x60000002
BGP router identifier 30.30.30.30, local AS number 100
Non-stop routing is enabled
BGP table state: Active
Table ID: 0xe0000011   RD version: 35
BGP main routing table version 35
BGP NSR Initial initsync version 4 (Reached)
BGP NSR/ISSU Sync-Group versions 31/0

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 30.30.30.30:0 (default for vrf foo)
*> 1.1.1.0/24         32.0.0.2                               0 200 300 i
*> 1.1.2.0/24         32.0.0.2                               0 200 300 i
*>i100.1.1.1/32       11.0.0.1                      100      0 i
*>i100.1.1.2/32       11.0.0.1                      100      0 i
*>i200.1.1.1/32       11.0.0.1                      100      0 i
*>i200.1.1.2/32       11.0.0.1                      100      0 i

Processed 6 prefixes, 6 paths


Router# show bgp vrf foo ipv4 unicast 100.1.1.1/32 detail

Mon Dec  8 23:24:50.243 PST
BGP routing table entry for 100.1.1.1/32, Route Distinguisher:
30.30.30.30:0
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker                 43          43
    Local Label: 24001 (with rewrite);
    Flags: 0x05081001+0x00000200;
Last Modified: Dec  8 18:04:21.000 for 05:20:30
Paths: (1 available, best #1)
  Advertised to PE peers (in unique update groups):
    32.0.0.2
  Path #1: Received by speaker 0
  Flags: 0x400061000d060005, import: 0x80
  Advertised to PE peers (in unique update groups):
    32.0.0.2
  Local
    11.0.0.1 (metric 2) from 20.0.0.1 (11.0.0.1)
      Received Label 1234
      Origin IGP, localpref 100, valid, internal, best, group-best, import-candidate, imported, reoriginated
      Received Path ID 0, Local Path ID 1, version 43
      Extended community: RT:1:2
      Originator: 11.0.0.1, Cluster list: 20.20.20.20
      Source AFI: L2VPN EVPN, Source VRF: default, Source Route Distinguisher: 100:1


Router# show bgp vpnv4 unicast update-group

Fri Aug 21 00:27:57.910 PDT

Update group for VPNv4 Unicast, index 0.1:
  Attributes:
    Outbound policy: pass
    First neighbor AS: 200
    Send communities
    Send GSHUT community if originated
    Send extended communities
    4-byte AS capable
    Send Re-originated VPN routes
    Send multicast attributes
    Minimum advertisement interval: 30 secs
  Update group desynchronized: 0
  Sub-groups merged: 0
  Number of refresh subgroups: 0
  Messages formatted: 8, replicated: 8
  All neighbors are assigned to sub-group(s)
    Neighbors in sub-group: 0.2, Filter-Groups num:1
     Neighbors in filter-group: 0.2(RT num: 0)
      32.0.0.2

Update group for VPNv4 Unicast, index 0.3:
  Attributes:
    Neighbor sessions are IPv4
    Internal
    Common admin
    First neighbor AS: 100
    Send communities
    Send GSHUT community if originated
    Send extended communities
    4-byte AS capable
    Send AIGP
    Send Re-originated VPN routes
    Send multicast attributes
    Minimum advertisement interval: 0 secs
  Update group desynchronized: 0
  Sub-groups merged: 0
  Number of refresh subgroups: 0
  Messages formatted: 2, replicated: 2
  All neighbors are assigned to sub-group(s)
    Neighbors in sub-group: 0.1, Filter-Groups num:1
     Neighbors in filter-group: 0.1(RT num: 0)
      20.0.0.1


Router# show bgp l2vpn evpn update-group

Fri Aug 21 00:27:42.786 PDT

Update group for L2VPN EVPN, index 0.2:
  Attributes:
    Neighbor sessions are IPv4
    Internal
    Common admin
    First neighbor AS: 100
    Send communities
    Send GSHUT community if originated
    Send extended communities
    4-byte AS capable
    Send AIGP
    Send multicast attributes
    Minimum advertisement interval: 0 secs
  Update group desynchronized: 0
  Sub-groups merged: 0
  Number of refresh subgroups: 0
  Messages formatted: 4, replicated: 4
  All neighbors are assigned to sub-group(s)
    Neighbors in sub-group: 0.1, Filter-Groups num:1
     Neighbors in filter-group: 0.1(RT num: 0)
      20.0.0.1

EVPN-Regular RT and VPNv4-Stitching RT

For each VRF on the DCI gateway, there are two sets of manually configured import and export route-targets for EVPN as regular side and VPNv4 as stitching side. Consider the following sets:

Data Center Route-Targets for EVPN associated with EVPN BGP neighbor (Regular RT)
MPLS L3VPN Route-Targets for VPNv4 or VPNv6 associated with L3VPN BGP neighbor (Stitching RT)

This separation of RTs enables the two sets of RTs to be independently configured. The RTs associated with the EVPN BGP neighbor does not require the keyword, it remains a normal configuration. The RTs associated with the L3VPN BGP neighbor require stitching-rt keyword under VRF configuration.

The following topology shows regular or normal and stitching side.

Route Targets

The RTs associated with the L3VPN BGP neighbor are labelled as stitching RTs. The RTs associated with the EVPN BGP neighbor are normal RTs.

Route Re-Origination

Consider control plane information propagation by the edge DCI gateway from the L3VPN (stitching side) to the Data Center (regular/normal side). Edge DCI gateway advertises to its BGP EVPN neighbor the routes that are re-originated after importing them from the L3VPN BGP neighbor. For this case of VPNv4 or VPNv6 routes being propagated to the BGP EVPN neighbors (Data Center neighbors), re-originating the routes refers to replacing the stitching route-targets with the local route-target values (regular/normal) associated with the BGP EVPN neighbors.

Local VPNv4 or VPNv6 Route Advertisement

VPNv4 neighbors require an additional configuration on the existing legacy VRF to allow these routes to be advertised to VPNv4 RR or remote PEs. Configure stitching-rt keyword on existing VRF under import/export RT.

Route Distinguishers

The Router Distinguisher (RD) associated per VRF must be unique per PE in the network. There are few available options to keep unique RD per device:

Manual configuration: You must manually assign a unique value per device in the network. For example, in this scenario:
- Leaf (ToR) = RD 1
- Edge DCI Gateway = RD 2
- Remote PE = RD 3
Use rd auto command under VRF. To assign a unique route distinguisher for each router, you must ensure that each router has a unique BGP router-id. If so, the rd auto command assigns a Type 1 route distinguisher to the VRF using the following format: ip-address:number. The IP address is specified by the BGP router-id statement and the number (which is derived as an unused index in the 0 to 65535 range) is unique across the VRFs.

Note

Configure EVPN-Regular RT and VPNv4-Stitching RT

This section describes tasks to configure EVPN-Regular RT and VPNv4-Stitching RT. Perform the following tasks to complete the configuration:

Configure Leaf (ToR)
Configure Spine-RR (Route Reflector)
Configure Edge DCI Gateway
Configure EVPN BGP neighbor and route advertisements
Configure L3VPN BGP neighbor relationship and route advertisements

Configure Leaf (ToR)

Configure VRF in Leaf (ToR) at BGP-EVPN (regular/normal side). Note that the stitching-rt keyword is not required.


vrf data-center1
 address-family ipv4 unicast
  import route-target
   1:2                             // BGP - EVPN (Regular/Normal Side)
!
  export route-target
   1:2                            // BGP - EVPN (Regular/Normal Side)
  !
router bgp 100
  neighbor 10.10.1.1              // Spine Loopback IP Address
    address-family l2vpn evpn
       advertise vpnv4 unicast
       advertise vpnv6 unicast
!

Note

Advertise vpnv4/vpnv6 unicast enables local learned regular L3 VRF prefixes to be advertised as EVPN prefixes to BGP-EVPN neighbor. This means any local prefixes such as PE-CE without L2VPN with BD/EVI/BVI configuration. If all the services are pure EVPN with L2VPN with BD/EVI/BVI configuration these commands are not required.

Configure Spine-RR

Configure Spine RR with Leaf (ToR) and edge DCI gateway as RR client for AFI L2VPN EVPN.

// VRF Config is not required //
router bgp 100
  neighbor 10.10.2.1                      // Leaf (ToR) Loopback IP Address
    address-family l2vpn evpn
       route-reflector-client
  !
  neighbor 10.10.3.1                      // Edge DCI Gateway  Loopback IP Address
    address-family l2vpn evpn
       route-reflector-client
!

Configure Edge DCI Gateway

You can configure DCI with the same VRF as Leaf (ToR). Use the same RT as remote PE for L3VPN network or the same VRF if that is possible.

Configure VRF and Route Targets Import and Export rules

Perform the following steps to configure VRF and define route targets to be used for import and export of forwarding information.


vrf data-center1
 address-family ipv4 unicast
  import route-target
   1:1 stitching                  // BGP – L3VPN (Stitching Side)
   1:2                            // BGP - EVPN (Regular/normal Side)
!
  export route-target
   1:1 stitching                  // BGP – L3VPN (Stitching Side)
   1:2                            // BGP - EVPN (Regular/normal Side)
!

Configure EVPN BGP Neighbor and Route Advertisements

Perform this task on the edge DCI gateway to configure BGP neighbor relationship and route advertisements with the EVPN BGP neighbor.


router bgp 100
 address-family l2vpn evpn
!
 neighbor 10.10.1.1          // Spine Loopback IP Address
  address-family l2vpn evpn
   import re-originate stitching-rt //Imp EVPN RT 1:2, re-originate VPNv4 1:1
   advertise vpnv4 unicast re-originated //Send routes VPNv4 RT 1:1
!

Configure L3VPN BGP Neighbor Relationship and Route Advertisements

Perform the following steps to configure BGP neighbor relationship and route advertisements with the L3VPN BGP neighbor.


router bgp 100
 address-family vpnv4 unicast
!
 neighbor 10.10.1.1          // Spine Loopback IP Address
  address-family vpnv4 unicast     // Same config for VPNv6
   import stitching-rt re-originate // Imp VPNv4 1:1, reoriginate EVPN 1:2
   advertise vpnv4 unicast re-originated stitching-rt //Send Routes EVPN 1:2
   advertise vpnv6 unicast re-originated stitching-rt //Send Routes EVPN 1:2
!

Note

The stitching-rt applies for L3VPN RT and EVPN RT does not require the stitching-rt for this use case.

If there are existing regular local L3 VRF without L2VPN with BD/EVI/BVI in these devices, configure import/export Stitching-RT for existing VRFs to advertise to L3VPN RR or remote PEs.

Configuration applies in two directions:

Stitching from VPNv4 to EVPN routes. Prefixes received from MPLS L3VPN network and re-originated as EVPN prefixes towards Data Center Spine RR and Leaf (ToR)
1. Importing VPNv4 routes with import stitching-rt re-originate command under AFI VPNv4 UNICAST. This command imports routes using RT 1:1 stitching-rt and then re-originate with BGP EVPN 1:2
2. Advertising re-originated EVPN routes with VPNv4 RT with advertise vpvn4 unicast re-originated command under AFI L2VPN EVPN. This command advertises routes from MPLS L3VPN network (VPNv4) to BGP EVPN neighbors inside Data Center (Spine RR and then Leaf (ToR)), re-originating these routes using BGP EVPN 1:2.
Stitching from EVPN to VPNv4 routes. Prefixes received from BGP-EVPN Data Center and re-originated as MPLS L3VPN prefixes towards VPNv4 RR or remote PE in L3VPN network.
1. Importing EVPN routes with import re-originate stitching-rt command under AFI L2VPN EVPN. This command imports routes using RT 1:2 and then re-originate with VPNv4 RT 1:1 stitching-rt.
2. Advertising re-originated EVPN routes with VPNv4 RT with advertise vpvn4 unicast re-originated stitching-rt command under AFI VPNv4 UNICAST. This command advertises routes from EVPN Data Center to VPNv4 RR or remote PEs, re-originating these routes using VPNv4 RT 1:1 stitching-rt .

Verification of Edge DCI Gateway Configuration

Router# show bgp l2vpn evpn

Fri Aug 21 00:24:10.773 PDT
BGP router identifier 30.30.30.30, local AS number 100
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 0
BGP main routing table version 16
BGP NSR Initial initsync version 1 (Reached)
BGP NSR/ISSU Sync-Group versions 16/0
BGP scan interval 60 secs

Status codes: s suppressed, d damped, h history, * valid, > best
	    i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 100:1
*>i[2][10000][48][0226.51bd.c81c][32][200::1001]/232
		   11.0.0.1                      100      0 i
*>i[2][10000][48][0226.51bd.c81c][32][200:1::1001]/232
		   11.0.0.1                      100      0 i
*>i[2][10000][48][0226.51bd.c81c][32][200.1.1.1]/136
   		   11.0.0.1                      100      0 i
*>i[2][10000][48][0226.51bd.c81c][32][200.1.1.2]/136
		   11.0.0.1                      100      0 i
*>i[5][4231][32][100.1.1.1]/80
		   11.0.0.1                      100      0 i
*>i[5][4231][32][100.1.1.2]/80
		   11.0.0.1                      100      0 i
*>i[5][4231][112][fec0::1001]/176
		   11.0.0.1                      100      0 i
*>i[5][4232][112][fec0::1:1001]/176
		   11.0.0.1                      100      0 i

Processed 8 prefixes, 8 paths

Router# show bgp l2vpn evpn rd 100:1 [5][4231][112][fec0::1001]/176 detail

Fri Aug 21 00:34:43.747 PDT
BGP routing table entry for [5][4231][112][fec0::1001]/176, Route Distinguisher: 100:1
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker                  5           5
    Flags: 0x04040001+0x00000000;
Last Modified: Aug 21 00:16:58.000 for 00:17:46
Paths: (1 available, best #1)
  Not advertised to any peer
  Path #1: Received by speaker 0
  Flags: 0x4000600025060005, import: 0x3f
  Not advertised to any peer
  Local
    11.0.0.1 (metric 2) from 20.0.0.1 (11.0.0.1)
      Received Label 16001
      Origin IGP, localpref 100, valid, internal, best, group-best, import-candidate, reoriginate stitching-rt, not-in-vrf
      Received Path ID 0, Local Path ID 1, version 5
      Extended community: Flags 0x6: RT:1:1
      Originator: 11.0.0.1, Cluster list: 20.20.20.20
      EVPN ESI: ffff.ffff.ffff.ffff.ff01, Gateway Address : fec0::254

The main difference with scenario 1 is that the prefixes have a reoriginate stitching-rt keyword on the output versus scenario 1 having just reoriginate.

Router# show bgp l2vpn evpn neighbors 20.0.0.1 detail

Fri Aug 21 00:25:37.383 PDT

BGP neighbor is 20.0.0.1
 Remote AS 100, local AS 100, internal link
 Remote router ID 20.20.20.20
  BGP state = Established, up for 00:08:58
  NSR State: NSR Ready
  Last read 00:00:34, Last read before reset 00:00:00
  Hold time is 180, keepalive interval is 60 seconds
  Configured hold time: 180, keepalive: 60, min acceptable hold time: 3
  Last write 00:00:36, attempted 19, written 19
  Second last write 00:01:36, attempted 143, written 143
  Last write before reset 00:00:00, attempted 0, written 0
  Second last write before reset 00:00:00, attempted 0, written 0
  Last write pulse rcvd  Aug 21 00:25:03.667 last full not set pulse count 33
  Last write pulse rcvd before reset 00:00:00
  Socket not armed for io, armed for read, armed for write
  Last write thread event before reset 00:00:00, second last 00:00:00
  Last KA expiry before reset 00:00:00, second last 00:00:00
  Last KA error before reset 00:00:00, KA not sent 00:00:00
  Last KA start before reset 00:00:00, second last 00:00:00
  Precedence: internet
  Non-stop routing is enabled
  Entered Neighbor NSR TCP mode:
    TCP Initial Sync :              Aug 21 00:18:07.291
    TCP Initial Sync Phase Two :    Aug 21 00:18:07.319
    TCP Initial Sync Done :         Aug 21 00:18:08.334
  Multi-protocol capability received
  Neighbor capabilities:            Adv         Rcvd
    Route refresh:                  Yes         Yes
    4-byte AS:                      Yes         Yes
    Address family VPNv4 Unicast:   Yes         No
    Address family VPNv6 Unicast:   Yes         No
    Address family L2VPN EVPN:      Yes         Yes
  Message stats:
    InQ depth: 0, OutQ depth: 0
                    Last_Sent               Sent  Last_Rcvd               Rcvd
    Open:           Aug 21 00:16:38.087        1  Aug 21 00:16:40.123        1
    Notification:   ---                        0  ---                        0
    Update:         Aug 21 00:24:01.421        9  Aug 21 00:24:03.652       13
    Keepalive:      Aug 21 00:25:01.434        8  Aug 21 00:25:03.667        9
    Route_Refresh:  Aug 21 00:24:01.377        3  ---                        0
    Total:                                    21                            23
  Minimum time between advertisement runs is 0 secs
  Inbound message logging enabled, 3 messages buffered
  Outbound message logging enabled, 3 messages buffered

 For Address Family: VPNv4 Unicast
  BGP neighbor version 35
  Update group: 0.3 Filter-group: 0.1  No Refresh request being processed
  Advertise Reorigination Enabled
  Advertise AFI EoR can be sent
  Route refresh request: received 0, sent 0
  0 accepted prefixes, 0 are bestpaths
  Cumulative no. of prefixes denied: 0.
  Prefix advertised 4, suppressed 0, withdrawn 0
  Maximum prefixes allowed 2097152
  Threshold for warning message 75%, restart interval 0 min
  AIGP is enabled
  An EoR was not received during read-only mode
  Last ack version 35, Last synced ack version 35
  Outstanding version objects: current 0, max 1
  Additional-paths operation: None
  Send Multicast Attributes

 For Address Family: VPNv6 Unicast
  BGP neighbor version 29
  Update group: 0.3 Filter-group: 0.1  No Refresh request being processed
  Advertise Reorigination Enabled
  Advertise AFI EoR can be sent
  Route refresh request: received 0, sent 0
  0 accepted prefixes, 0 are bestpaths
  Cumulative no. of prefixes denied: 0.
  Prefix advertised 0, suppressed 0, withdrawn 0
  Maximum prefixes allowed 1048576
  Threshold for warning message 75%, restart interval 0 min
  AIGP is enabled
  An EoR was not received during read-only mode
  Last ack version 29, Last synced ack version 29
  Outstanding version objects: current 0, max 0
  Additional-paths operation: None
  Send Multicast Attributes
  Advertise VPNv4 routes enabled with Reoriginate,Local with stitching-RT option

 For Address Family: L2VPN EVPN
  BGP neighbor version 18
  Update group: 0.2 Filter-group: 0.1  No Refresh request being processed
  Route refresh request: received 0, sent 3
  8 accepted prefixes, 8 are bestpaths
  Cumulative no. of prefixes denied: 0.
  Prefix advertised 4, suppressed 0, withdrawn 6
  Maximum prefixes allowed 2097152
  Threshold for warning message 75%, restart interval 0 min
  AIGP is enabled
  An EoR was received during read-only mode
  Last ack version 18, Last synced ack version 18
  Outstanding version objects: current 0, max 2
  Additional-paths operation: None
  Send Multicast Attributes
  Advertise VPNv4 routes enabled with Reoriginate, option
  Advertise VPNv6 routes is enabled with Reoriginate, option
  Import Reoriginate is enabled for this neighbor address-family

  Connections established 1; dropped 0
  Local host: 30.0.0.1, Local port: 59405, IF Handle: 0x00000000
  Foreign host: 20.0.0.1, Foreign port: 179
  Last reset 00:00:00

At the end of each one AFI VPNv4, VPNv6, or L2VPN EVPN, you can see import and advertise information based on the configuration.

Based on whether stitching-side or regular side, import stitching applies on VPNv4 AFI. In Scenario 1 you can see import stitching under L2VPN EVPN.

Router# show bgp sessions

Fri Aug 21 00:25:57.216 PDT

Neighbor        VRF                   Spk    AS   InQ  OutQ  NBRState     NSRState
20.0.0.1        default                 0   100     0     0  Established  NSR Ready[PP]
32.0.0.2        default                 0   200     0     0  Established  NSR Ready

Router# show bgp vpnv4 unicast

Fri Aug 21 00:28:41.253 PDT
BGP router identifier 30.30.30.30, local AS number 100
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 0
BGP main routing table version 39
BGP NSR Initial initsync version 4 (Reached)
BGP NSR/ISSU Sync-Group versions 39/0
BGP scan interval 60 secs

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 1:1
*> 1.1.1.0/24         32.0.0.2                               0 200 300 i
*> 1.1.2.0/24         32.0.0.2                               0 200 300 i
Route Distinguisher: 30.30.30.30:0 (default for vrf foo)
*> 1.1.1.0/24         32.0.0.2                               0 200 300 i
*> 1.1.2.0/24         32.0.0.2                               0 200 300 i
*>i100.1.1.1/32       11.0.0.1                      100      0 i
*>i100.1.1.2/32       11.0.0.1                      100      0 i
*>i200.1.1.1/32       11.0.0.1                      100      0 i
*>i200.1.1.2/32       11.0.0.1                      100      0 i

In origin IGP line, you can see that the prefix was reoriginated with regular-RT.

Router# show bgp vpnv4 unicast rd 30.30.30.30:0 1.1.1.0/24 detail

Fri Aug 21 00:28:57.824 PDT
BGP routing table entry for 1.1.1.0/24, Route Distinguisher: 30.30.30.30:0
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker                 26          26
    Flags: 0x04103001+0x00000000;
Last Modified: Aug 21 00:24:01.000 for 00:04:58
Paths: (1 available, best #1)
  Advertised to peers (in unique update groups):
    20.0.0.1
  Path #1: Received by speaker 0
  Flags: 0x4000c00005060001, import: 0x80
  Advertised to peers (in unique update groups):
    20.0.0.1
  200 300
    32.0.0.2 from 32.0.0.2 (40.40.40.40)
      Received Label 24001
      Origin IGP, localpref 100, valid, external, best, group-best, import-candidate, imported, reoriginated
      Received Path ID 0, Local Path ID 1, version 26
      Extended community: RT: 1:2
      Source AFI: VPNv4 Unicast, Source VRF: default, Source Route Distinguisher: 1:1

Router# show bgp vrf foo

Fri Aug 21 00:24:36.523 PDT
BGP VRF foo, state: Active
BGP Route Distinguisher: 30.30.30.30:0
VRF ID: 0x60000002
BGP router identifier 30.30.30.30, local AS number 100
Non-stop routing is enabled
BGP table state: Active
Table ID: 0xe0000011   RD version: 35
BGP main routing table version 35
BGP NSR Initial initsync version 4 (Reached)
BGP NSR/ISSU Sync-Group versions 31/0

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 30.30.30.30:0 (default for vrf foo)
*> 1.1.1.0/24         32.0.0.2                               0 200 300 i
*> 1.1.2.0/24         32.0.0.2                               0 200 300 i
*>i100.1.1.1/32       11.0.0.1                      100      0 i
*>i100.1.1.2/32       11.0.0.1                      100      0 i
*>i200.1.1.1/32       11.0.0.1                      100      0 i
*>i200.1.1.2/32       11.0.0.1                      100      0 i

Processed 6 prefixes, 6 paths

Router# show bgp vrf foo ipv4 unicast 100.1.1.1/32 detail

Mon Dec  8 23:24:50.243 PST
BGP routing table entry for 100.1.1.1/32, Route Distinguisher:
30.30.30.30:0
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker                 43          43
    Local Label: 24001 (with rewrite);
    Flags: 0x05081001+0x00000200;
Last Modified: Dec  8 18:04:21.000 for 05:20:30
Paths: (1 available, best #1)
  Advertised to PE peers (in unique update groups):
    32.0.0.2
  Path #1: Received by speaker 0
  Flags: 0x400061000d060005, import: 0x80
  Advertised to PE peers (in unique update groups):
    32.0.0.2
  Local
    11.0.0.1 (metric 2) from 20.0.0.1 (11.0.0.1)
      Received Label 1234
      Origin IGP, localpref 100, valid, internal, best, group-best, import-candidate, imported, reoriginated with stitching-rt
      Received Path ID 0, Local Path ID 1, version 43
      Extended community: RT:1:2
      Originator: 11.0.0.1, Cluster list: 20.20.20.20
      Source AFI: L2VPN EVPN, Source VRF: default, Source Route Distinguisher: 100:1v

Router# show bgp vpnv4 unicast update-group

Fri Aug 21 00:27:57.910 PDT

Update group for VPNv4 Unicast, index 0.1:
  Attributes:
    Outbound policy: pass
    First neighbor AS: 200
    Send communities
    Send GSHUT community if originated
    Send extended communities
    4-byte AS capable
    Send Re-originated VPN routes
    Send multicast attributes
    Minimum advertisement interval: 30 secs
  Update group desynchronized: 0
  Sub-groups merged: 0
  Number of refresh subgroups: 0
  Messages formatted: 8, replicated: 8
  All neighbors are assigned to sub-group(s)
    Neighbors in sub-group: 0.2, Filter-Groups num:1
     Neighbors in filter-group: 0.2(RT num: 0)
      32.0.0.2

Update group for VPNv4 Unicast, index 0.3:
  Attributes:
    Neighbor sessions are IPv4
    Internal
    Common admin
    First neighbor AS: 100
    Send communities
    Send GSHUT community if originated
    Send extended communities
    4-byte AS capable
    Send AIGP
    Send Re-originated VPN routes
    Send multicast attributes
    Minimum advertisement interval: 0 secs
  Update group desynchronized: 0
  Sub-groups merged: 0
  Number of refresh subgroups: 0
  Messages formatted: 2, replicated: 2
  All neighbors are assigned to sub-group(s)
    Neighbors in sub-group: 0.1, Filter-Groups num:1
     Neighbors in filter-group: 0.1(RT num: 0)
      20.0.0.1

Router# show bgp l2vpn evpn update-group

Fri Aug 21 00:27:42.786 PDT

Update group for L2VPN EVPN, index 0.2:
  Attributes:
    Neighbor sessions are IPv4
    Internal
    Common admin
    First neighbor AS: 100
    Send communities
    Send GSHUT community if originated
    Send extended communities
    4-byte AS capable
    Send AIGP
    Send multicast attributes
    Minimum advertisement interval: 0 secs
  Update group desynchronized: 0
  Sub-groups merged: 0
  Number of refresh subgroups: 0
  Messages formatted: 4, replicated: 4
  All neighbors are assigned to sub-group(s)
    Neighbors in sub-group: 0.1, Filter-Groups num:1
     Neighbors in filter-group: 0.1(RT num: 0)
      20.0.0.1

OpFlex

OpFlex is an open and extensible policy protocol used for transferring the policy information between a network policy controller such as the Cisco Application Policy Infrastructure Controller (APIC) and network elements such as routers that are configured as Data Center Interconnect (DCI) gateway. The policies are distributed using the Cisco^® Application Centric Infrastructure (ACI) infrastructure within the fabric to the spine nodes. The spine nodes send policies to the DCI gateway through the OpFlex framework. An OpFlex framework resides between the spines and the DCIs. It enables the distribution of the DCI policy model from the fabric to the DCI gateways. DCI gateway acts as an OpFlex agent and the spine acts a policy repository. Fabric tenant interconnect (FTI) is the OpFlex agent application that runs on the DCI to generate and apply the tenant device configuration on the DCI. Policies configure the DCI service for a given tenant on the DCI gateway.

OpFlex Topology

Consider the topology where OpFlex framework is used between the DCI gateway and the Cisco ACI spine switches to automate fabric-facing tenant provisioning on the DCI gateway. When you configure a new external Layer 3 outside (L3Out) policy for a tenant on the Cisco Application Policy Infrastructure Controller (APIC), the controller programs all related information associated with that tenant, such as VRF instance name and BGP extended community route-target attributes for the Cisco ACI spine switches. The OpFlex framework running on the spine switches reads the L3Out managed object and converts it to the OpFlex model. This information is then pushed to the DCI gateway, which acts as a policy element for the OpFlex framework. On the DCI, the fabric facing configuration for the tenant VFR is auto-generated.

Restrictions

The OpFlex feature is supported with the following restrictions:

OpFlex feature is not supported on ASR9K with power PC based route-processor.
FTI cannot generate configuration for multiple RTs of one address family in a tenant VRF provisioned in one fabric.
On exhaustion of FTI configuration pools, the OpFlex notifications to add tenants are ignored. If existing tenants are deleted, the new tenants must be added again to enable OpFlex notifications to be re-sent to the DCI.
FTI supports only Type 0 RT format: 2 byte ASN + 4 byte value. Type 1 and Type 2 RT formats are not supported.
XML configuration and oper schema are not supported for FTI configuration and show commands.

Configure OpFlex

Perform the following tasks to configure the OpFlex session to automate fabric-facing tenant provisioning on the DCI gateway. This includes the one-time configuration that must be done on the DCI to enable DCI hand-off from an ACI fabric.

Configure BGP

Perform this task to enable address-family under BGP routing process for fabric and WAN peering.

SUMMARY STEPS

configure
router bgp as-number
bgp router-id ip-address
address-family {vpnv4 | vpnv6} unicast
address-family l2vpn evpn
Use the commit or end command.

DETAILED STEPS

	Command or Action	Purpose
Step 1	configure Example: `RP/0/RSP0/CPU0:router# configure`	Enters global configuration mode.
Step 2	router bgp `as-number` Example: `RP/0/RSP0/CPU0:router(config)# router bgp 1234`	Specifies the autonomous system number and enters the BGP configuration mode, allowing you to configure the BGP routing process.
Step 3	bgp router-id `ip-address` Example: `RP/0/RSP0/CPU0:router(config-bgp)# bgp router-id 198.51.100.1`	Configures the router with a specified router ID.
Step 4	address-family {vpnv4 \| vpnv6} unicast Example: `RP/0/RSP0/CPU0:router(config-bgp)# address-family vpnv4 unicast`	Specifies either the vpnv4 or vpnv6 address family.
Step 5	address-family l2vpn evpn Example: `RP/0/RSP0/CPU0:router(config-bgp-af)# address-fmaily l2vpn evpn`	Configures EVPN address family.
Step 6	Use the commit or end command.	commit - Saves the configuration changes and remains within the configuration session. end - Prompts user to take one of these actions: Yes - Saves configuration changes and exits the configuration session. No - Exits the configuration session without committing the configuration changes. Cancel - Remains in the configuration mode, without committing the configuration changes.

Configure BGP Session on the Fabric Side

Perform this task to configure BGP session on the fabric side.

SUMMARY STEPS

configure
router bgp asn_id
neighbor ip-address
remote-as autonomous-system-number
update-source loopback
address-family l2vpn evpn
import stitching-rt reoriginate
advertise {vpnv4 | vpnv6} unicast re-originated
Use the commit or end command.

DETAILED STEPS

	Command or Action	Purpose
Step 1	configure Example: `RP/0/RSP0/CPU0:router# configure`	Enters global configuration mode.
Step 2	router bgp `asn_id` Example: `RP/0/RSP0/CPU0:router(config)# router bgp 200`	Specifies the BGP AS number and enters the BGP configuration mode, allowing you to configure the BGP routing process.
Step 3	neighbor `ip-address` Example: `RP/0/RSP0/CPU0:router(config-bgp)# neighbor 209.165.201.1`	Places the router in neighbor configuration mode for BGP routing and configures the neighbor IP address 209.165.201.1 as a BGP peer.
Step 4	remote-as `autonomous-system-number` Example: `RP/0/RSP0/CPU0:router(config-bgp-nbr)# remote-as 100`	Creates a neighbor and assigns it a remote autonomous system number.
Step 5	update-source `loopback` Example: `RP/0/RSP0/CPU0:router(config-bgp-nbr)# update-source loopback2`	Allows BGP sessions to use the primary IP address from a particular interface as the local address.
Step 6	address-family l2vpn evpn Example: `RP/0/RSP0/CPU0:router(config-bgp-nbr)# address-fmaily l2vpn evpn`	Configures EVPN address family.
Step 7	import stitching-rt reoriginate Example: `RP/0/RSP0/CPU0:router(config-bgp-nbr-af)# import stitching-rt reoriginate`	Enables import of routing information from BGP EVPN NLRIs that has route target identifier matching the stitching route target identifier and exports this routing information after re-origination to the L2VPN BGP neighbor.
Step 8	advertise {vpnv4 \| vpnv6} unicast re-originated Example: `RP/0/RSP0/CPU0:router(config-bgp-nbr-af)# advertise vpnv4 unicast re-originated`	Configures advertisement of VPNv4 or VPNv6 unicast routes that are redistributed from the L2VPN BGP neighbor, to the EVPN BGP neighbor. The route targets are changed to the stitching route targets before advertising onto the EVPN BGP neighbor.
Step 9	Use the commit or end command.	commit - Saves the configuration changes and remains within the configuration session. end - Prompts user to take one of these actions: Yes - Saves configuration changes and exits the configuration session. No- Exits the configuration session without committing the configuration changes. Cancel - Remains in the configuration mode, without committing the configuration changes.

Configure BGP Session on the WAN Side

Perform this task to configure BGP session on the WAN side.

SUMMARY STEPS

configure
router bgp asn_id
neighbor ip-address
remote-as autonomous-system-number
update-source loopback
address-family vpnv4 unicast
import re-originate stitching-rt
advertise {vpnv4 | vpnv6} unicast re-originated
Use the commit or end command.

DETAILED STEPS

	Command or Action	Purpose
Step 1	configure Example: `RP/0/RSP0/CPU0:router# configure`	Enters global configuration mode.
Step 2	router bgp `asn_id` Example: `RP/0/RSP0/CPU0:router(config)# router bgp 200`	Specifies the BGP AS number and enters the BGP configuration mode, allowing you to configure the BGP routing process.
Step 3	neighbor `ip-address` Example: `RP/0/RSP0/CPU0:router(config-bgp)# neighbor 209.165.200.226`	Places the router in neighbor configuration mode for BGP routing and configures the neighbor IP address 209.165.200.226 as a BGP peer.
Step 4	remote-as `autonomous-system-number` Example: `RP/0/RSP0/CPU0:router(config-bgp-nbr)# remote-as 100`	Creates a neighbor and assigns it a remote autonomous system number.
Step 5	update-source `loopback` Example: `RP/0/RSP0/CPU0:router(config-bgp-nbr)# update-source loopback2`	Allows BGP sessions to use the primary IP address from a particular interface as the local address.
Step 6	address-family vpnv4 unicast Example: `RP/0/RSP0/CPU0:router(config-bgp-nbr)# address-family vpnv4 unicast`	Enters VPNv4 address family configuration mode for the VPNv4 address family.
Step 7	import re-originate stitching-rt Example: `RP/0/RSP0/CPU0:router(config-bgp-nbr-af)# import re-originate stitching-rt`	Enables import of routing information from BGP EVPN NLRIs that has route target identifier matching the stitching route target identifier and exports this routing information after re-origination to the L2VPN BGP neighbor.
Step 8	advertise {vpnv4 \| vpnv6} unicast re-originated Example: `RP/0/RSP0/CPU0:router(config-bgp-nbr-af)# advertise vpnv4 unicast re-originated`	Configures advertisement of VPNv4 or VPNv6 unicast routes that are redistributed from the L2VPN BGP neighbor, to the EVPN BGP neighbor. The route targets are changed to the stitching route targets before advertising onto the EVPN BGP neighbor.
Step 9	Use the commit or end command.	commit - Saves the configuration changes and remains within the configuration session. end - Prompts user to take one of these actions: Yes - Saves configuration changes and exits the configuration session. No- Exits the configuration session without committing the configuration changes. Cancel - Remains in the configuration mode, without committing the configuration changes.

Configure DCI Underlay for Fabric and WAN Interfaces

Perform this task to configure DCI underlay for fabric facing interface and WAN facing interface. Perform this task on both the interfaces.

SUMMARY STEPS

configure
interface type interface-path-id
ipv4 address ipv4-address mask
Use the commit or end command.

DETAILED STEPS

	Command or Action	Purpose
Step 1	configure Example: `RP/0/RSP0/CPU0:router# configure`	Enters global configuration mode.
Step 2	interface `type interface-path-id` Example: `RP/0/RSP0/CPU0:router(config)# interface GigabitEthernet 0/0/0/0`	Configures Gigabit Ethernet interface.
Step 3	ipv4 address `ipv4-address mask` Example: `RP/0/RSP0/CPU0:router(config-if)# ipv4 address 209.165.200.226 255.255.255.224`	Specifies the IPv4 address and subnet mask for the interface.
Step 4	Use the commit or end command.	commit - Saves the configuration changes and remains within the configuration session. end - Prompts user to take one of these actions: Yes - Saves configuration changes and exits the configuration session. No- Exits the configuration session without committing the configuration changes. Cancel - Remains in the configuration mode, without committing the configuration changes.

Configure IGP for ACI and WAN Reachability

Perform this task to configure IGP for ACI and WAN reachability.

SUMMARY STEPS

configure
router ospf process-name
area area-id
interface type interface-path-id
exit
exit
area area-id
nssa
interface loopback loopback-id
exit
interface type interface-path-id
Use the commit or end command.

DETAILED STEPS

	Command or Action	Purpose
Step 1	configure Example: `RP/0/RSP0/CPU0:router# configure`	Enters global configuration mode.
Step 2	router ospf `process-name` Example: `RP/0/RSP0/CPU0:router(config)# router ospf 100`	Enables OSPF routing for the specified routing process and places the router in router configuration mode.
Step 3	area `area-id` Example: `RP/0/RSP0/CPU0:router(config-ospf)# area 0`	Enters area configuration mode and configures an area for the OSPF process.
Step 4	interface `type interface-path-id` Example: `RP/0/RSP0/CPU0:router(config-ospf-ar)# interface GigabitEthernet 0/0/0/1`	Configures Gigabit Ethernet interface. Enables reachability to WAN.
Step 5	exit Example: `RP/0/RSP0/CPU0:router(config-ospf-ar-if)# exit`	Exits the interface submode and returns to area submode.
Step 6	exit Example: `RP/0/RSP0/CPU0:router(config-ospf-ar)# exit`	Exits the area submode and returns to router configuration mode.
Step 7	area `area-id` Example: `RP/0/RSP0/CPU0:router(config-ospf)# area 100`	Enters area configuration mode and configures an area for the OSPF process.
Step 8	nssa Example: `RP/0/RSP0/CPU0:router(config-ospf-ar)# nssa`	Specifies area as a NSSA area
Step 9	interface loopback `loopback-id` Example: `RP/0/RSP0/CPU0:router(config-ospf-ar)# interface loopback0`	Creates a loopback interface with the user-defined loopback identifier and enters the interface configuration mode.
Step 10	exit Example: `RP/0/RSP0/CPU0:router(config-ospf-ar-if)# exit`	Exits the interface submode and returns to area submmode.
Step 11	interface `type interface-path-id` Example: `RP/0/RSP0/CPU0:router(config-ospf-ar)# interface GigabitEthernet 0/0/0/0`	Configures Gigabit Ethernet interface. Enables reachability to ACI.
Step 12	Use the commit or end command.	commit - Saves the configuration changes and remains within the configuration session. end - Prompts user to take one of these actions: Yes - Saves configuration changes and exits the configuration session. No- Exits the configuration session without committing the configuration changes. Cancel - Remains in the configuration mode, without committing the configuration changes.

Configure MPLS towards WAN

Perform this task to configure MPLS on the DCI.

SUMMARY STEPS

configure
mpls ldp
interface type interface-path-id
exit
exit
interface loopback instance
ipv4 address ipv4-address mask
exit
interface nve nve-identifier
source-interface loopbackloopback-interface-identifier
Use the commit or end command.

DETAILED STEPS

	Command or Action	Purpose
Step 1	configure Example: `RP/0/RSP0/CPU0:router# configure`	Enters global configuration mode.
Step 2	mpls ldp Example: `RP/0/RSP0/CPU0:router# mpls ldp`	Enables MPLS LDP configuration mode.
Step 3	interface `type interface-path-id` Example: `RP/0/RSP0/CPU0:router(config-ldp)# interface GigabitEthernet 0/0/0/1`	Configures Gigabit Ethernet interface.
Step 4	exit Example: `RP/0/RSP0/CPU0:router(config-ldp-if)# exit`	Exits the interface submode and returns to MPLS LDP submode.
Step 5	exit Example: `RP/0/RSP0/CPU0:router(config-ldp)# exit`	Exits the MPLS LDP submode and returns to global configuration mode.
Step 6	interface loopback `instance` Example: `RP/0/RSP0/CPU0:router(config)# interface Loopback0`	Enters interface configuration mode and names the new loopback interface.
Step 7	ipv4 address `ipv4-address mask` Example: `RP/0/RSP0/CPU0:router(config-if)# ipv4 address 209.165.200.227 255.255.255.224`	Specifies the IPv4 address and subnet mask for the interface.
Step 8	exit Example: `RP/0/RSP0/CPU0:router(config-if)# exit`	Exits the interface submode and returns to global configuration mode.
Step 9	interface nve `nve-identifier` Example: `RP/0/RSP0/CPU0:router(config)# interface nve 1`	Creates the NVE interface and enters the NVE interface configuration sub-mode.
Step 10	source-interface loopback`loopback-interface-identifier` Example: `RP/0/RSP0/CPU0:router(config-if)# source-interface loopback 0`	Sets a loopback interface as the source interface for the VTEP.
Step 11	Use the commit or end command.	commit - Saves the configuration changes and remains within the configuration session. end - Prompts user to take one of these actions: Yes - Saves configuration changes and exits the configuration session. No- Exits the configuration session without committing the configuration changes. Cancel - Remains in the configuration mode, without committing the configuration changes.

Configure FTI Auto-Configuration Parameters

Perform this task to configure FTI auto-configuration parameters.

SUMMARY STEPS

configure
dci-fabric-interconnect
auto-configuration-pool
bgp-as AS number
bridge group bridge-group-name
vrfvrf name ipv4-addressipv4 address
bd-pool bd range minimum bd range maximum
bvi-pool bvi range minimum bvi range maximum
vni-pool vni minimum range vni maximum range
local-vtep nve index
Use the commit or end command.

DETAILED STEPS

	Command or Action	Purpose
Step 1	configure Example: `RP/0/RSP0/CPU0:router# configure`	Enters global configuration mode.
Step 2	dci-fabric-interconnect Example: `RP/0/RSP0/CPU0:router(config)# dci-fabric-interconnect`	Enters the fabric tenant interconnect submode.
Step 3	auto-configuration-pool Example: `RP/0/RSP0/CPU0:router(config-fti)# auto-configuration-pool`	Enters the auto configuration pool submode and enables to set the auto configuration pool parameters.
Step 4	bgp-as `AS number` Example: `RP/0/RSP0/CPU0:router(config-fti-acp)# bgp-as 1234`	Specifies the BGP AS number that is used when the configuration is generated. The BGP AS must be configured separately.
Step 5	bridge group `bridge-group-name` Example: `RP/0/RSP0/CPU0:router(config-fti-acp)# bridge group bg1`	Specifies the L2VPN bridge group to be used for generation of configuration.
Step 6	vrf`vrf name` ipv4-address`ipv4 address` Example: `vrf vrf1 ipv4-address 198.51.100.1`	Configures per-VRF BVI interface IP address. If the default IPv4 address from link-local range is not acceptable for tenant addressing, this IP address must be configured. If configured, this must match the WAN-side tenant VRF configuration.
Step 7	bd-pool `bd range minimum` `bd range maximum` Example: `RP/0/RSP0/CPU0:router(config-fti-acp)# bd-pool 1 1000`	Specifies the bridge domain range. The range is from 1 through 4000.
Step 8	bvi-pool `bvi range minimum` `bvi range maximum` Example: `RP/0/RSP0/CPU0:router(config-fti-acp)# bvi-pool 1 1000`	Specifies the bridge-group virtual interface (BVI) range. The range is from 1 through 4000.
Step 9	vni-pool `vni minimum range` `vni maximum range` Example: `RP/0/RSP0/CPU0:router(config-fti-acp)# vni-pool 1 1000`	Specifies the VNI range. The range is from 1 through 4000.
Step 10	local-vtep nve `index` Example: `RP/0/RSP0/CPU0:router(config-fti-acp)# local-vtep nve 1`	Specifies an NVE interface and configures it as VXLAN Tunnel EndPoint (VTEP) for the VXLAN.
Step 11	Use the commit or end command.	commit - Saves the configuration changes and remains within the configuration session. end - Prompts user to take one of these actions: Yes - Saves configuration changes and exits the configuration session. No - Exits the configuration session without committing the configuration changes. Cancel - Remains in the configuration mode, without committing the configuration changes.

Configure OpFlex Session

This task enables the fabric tenant interconnect to setup an OpFlex session with the spine.

SUMMARY STEPS

configure
dci-fabric-interconnect
fabric fabric identifier
opflex-peer spine IP address
exit
identity loopback IP address
Use the commit or end command.

DETAILED STEPS

	Command or Action	Purpose
Step 1	configure Example: `RP/0/RSP0/CPU0:router# configure`	Enters global configuration mode.
Step 2	dci-fabric-interconnect Example: `RP/0/RSP0/CPU0:router(config)# dci-fabric-interconnect`	Enters the fabric tenant interconnect submode.
Step 3	fabric `fabric identifier` Example: `RP/0/RSP0/CPU0:router(config-fti)# fabric 1001`	Enters the fabric submode and you can configure the fabric parameters. The fabric identifier range is from 1000 through 9999.
Step 4	opflex-peer `spine IP address` Example: `RP/0/RSP0/CPU0:router(config-fti-fabric)# opflex-peer 192.0.2.1`	FTI sets up an OpFlex session with the spine.
Step 5	exit Example: `RP/0/RSP0/CPU0:router(config-fti-fabric)# exit`	Exits the current configuration mode and returns to fti submode.
Step 6	identity `loopback IP address` Example: `RP/0/RSP0/CPU0:router(config-fti)# identity 203.0.113.1`	Specifies the DCI's BGP loopback IP address.
Step 7	Use the commit or end command.	commit - Saves the configuration changes and remains within the configuration session. end - Prompts user to take one of these actions: Yes - Saves configuration changes and exits the configuration session. No - Exits the configuration session without committing the configuration changes. Cancel - Remains in the configuration mode, without committing the configuration changes.

EVPN Default VRF Route Leaking

The EVPN Default VRF Route Leaking feature leak routes between EVPN address-family and IPv4/IPv6 unicast address-family (Default-VRF), enabling the data center hosts to access the Internet. This feature is an extension of Border Gateway Protocol (BGP) VRF Dynamic route leaking feature that provides connectivity between non-default VRF hosts and Default VRF hosts by exchanging routes between the non-default VRF and Default VRF. EVPN Default VRF Route Leaking feature extends the BGP VRF Dynamic leaking feature, by allowing EVPN/L3VPN hosts to communicate with Default VRF hosts.

The import process installs the Internet route in a VRF table or a VRF route in the Internet table, providing connectivity.

The BGP VRF Dynamic route leaking feature is enabled by:

Importing from default-VRF to non-default-VRF using the following command in VRF address-family configuration mode.

import from default-vrf route-policy route-policy-name [advertise-as-vpn]

If the advertise-as-vpn keyword is used, the paths imported from the default-VRF to the non-default-VRF are advertised to the (EVPN/L3VPN) PEs as well as to the CEs. If the advertise-as-vpn keyword is not used, the paths imported from the default-VRF to the non-default-VRF are not advertised to the PEs. However, the paths are still advertised to the CEs.

The EVPN Default VRF Route Leaking feature with advertise-as-vpn keyword, enables to advertise the paths imported from default-VRF to non-default VRFs to EVPN PE peers as well.

A new command advertise vpnv4/vpnv6 unicast imported-from-default-vrf disable is added under neighbor address-family configuration mode for EVPN and VPNv4/VPNv6 unicast to disable advertisement of Default-VRF leaked routes to that neighbor.
Importing from non-default-VRF to default-VRF using the following command in VRF address-family configuration mode.

export to default-vrf route-policy route-policy-name [advertise-as-vpn]

The Dynamic Route Leaking feature enables leaking of local and CE routes to Default-VRF.

A new optional keyword allow-imported-vpn is added to the above command, when configured, enables the leaking of EVPN and L3VPN imported/re-originated routes to the Default-VRF.

A route-policy is mandatory to filter the imported routes. This reduces the risk of unintended import of routes between the Internet table and the VRF tables and the corresponding security issues. There is no hard limit on the number of prefixes that can be imported. The import creates a new prefix in the destination VRF, which increases the total number of prefixes and paths.

Note

Each VRF importing global routes adds workload equivalent to a neighbor receiving the global table. This is true even if the user filters out all but a few prefixes.

Scale Limitation of Default Route Leaking

Default VRF route leaking uses Dynamic Route Leaking feature to leak prefixes between the default VRF and the DC VRF. Do not use Dynamic Route Leaking feature to leak default VRF prefixes to large number of DC VRFs, even if you filter out all prefixes except a few that are to be leaked.

The following are the key factors that affect the performance:

The default VRF prefix scale, which is approximately 0.7 million internet prefixes.
The number of DC VRFs the default VRF prefixes that are to be imported.

To improve the scale, either the prefix scale or the number of VRFs whose prefixes that are to be imported must be reduced.

To manage the scale limitation, Cisco recommends you to do the following:

Host the Internet prefixes on an adjacent PE with IPv4 unicast peering with DCI, and advertise a default route towards the DCI. On the DCI, import the default route from default VRF to DC VRFs.
Host the Internet prefixes on an adjacent PE with IPv4 unicast peering with DCI. On the DCI, configure a static default route in the DC VRF with the next hop of the default VRF pointing to the adjacent PE address.

Configure the static default route 0.0.0.0/0 on DC VRF with nexthop as “vrf default”.

Note

If the static routes are re-distributed to BGP, make sure it is not unintentionally advertised out.

EVPN Default VRF Route Leaking on the DCI for Internet Connectivity

The EVPN Default VRF Route Leaking feature leak routes between the Default-VRF and Data Center-VRF on the DCI to provide Internet access to data center hosts.

This feature is enabled by:

Leaking routes from Default-VRF to Data Center-VRF
Leaking routes to Default-VRF from Data Center-VRF

Leaking Routes from Default-VRF to Data Center-VRF

This section explains the process of leaking Default-VRF routes to Data Center-VRF.

Procedure

Step 1

The Internet routes are present in the Default-VRF on the DCI.

Note

A static default-route (0/0) can be configured under Default-VRF router static address-family configuration and redistributed to BGP.

Step 2

A route-policy is configured to select the routes to be leaked from Default-VRF to Data Center-VRF.

Example:


route-policy import-from-default-policy
  if destination in (100.10.0.0/16, 100.20.0.0/16) then
    pass
  endif
end-policy
!

route-policy import-from-default-policy-v6
  if destination in (100:10::0/64, 100:20::0/64) then
    pass
  endif
end-policy
!

Note

Instead of leaking the internet routes, you can leak the default-route 0/0 from Default-VRF to Data Center-VRF using the following policy.


route-policy import-from-default-policy
  if destination in (0.0.0.0/0) then
    pass
  endif
end-policy
!

route-policy import-from-default-policy-v6
  if destination in (0::0/0) then
    pass
  endif
end-policy
!

Step 3

Leak Default-VRF routes specified in the route-policy to Data Center-VRF by configuring import from default-vrf route-policy import-from-default-policy(-v6) under Data Center VRF address-family configuration mode.

Example:


vrf data-center-vrf
 address-family ipv4 unicast
  import from default-vrf route-policy import-from-default-policy
!
address-family ipv6 unicast
  import from default-vrf route-policy import-from-default-policy-v6
!

Step 4

Advertise the leaked (Default-VRF) routes in the Data Center-VRF as EVPN routes towards Data Center routers by configuring advertise-as-vpn option.

Example:


vrf data-center-vrf
 address-family ipv4 unicast
  import from default-vrf route-policy import-from-default-policy advertise-as-vpn
!
address-family ipv6 unicast
  import from default-vrf route-policy import-from-default-policy-v6 advertise-as-vpn
!

Note

To advertise any routes from L3VPN address-family to EVPN peers, use advertise vpnv4/vpnv6 unicast re-originated [stitching-rt] command under neighbor address-family L2VPN EVPN.

EVPN Default-originate

Instead of advertising the Default-VRF routes towards Data Center routers, default-originate can be configured under the EVPN neighbor address-family to advertise the default route. When default-originate is configured under the neighbor address-family for EVPN/L3VPN, there is no need to advertise the Default-VRF leaked routes to the data center and advertise-as-vpn need not be configured.

Example:


router bgp 100
  neighbor 40.0.0.1
    address-family l2vpn evpn
      default-originate

 vrf data-center-vrf
  rd auto
  address-family ipv4 unicast
    allow vpn default-originate
 !
  address-family ipv6 unicast
    allow vpn default-originate

Step 5

To block advertisement of the Default-VRF leaked routes towards a particular EVPN/L3VPN peer, use advertise vpnv4/vpnv6 unicast imported-from-default-vrf disable command under respective neighbor address-family.

Example:


router bgp 100
  neighbor 40.0.0.1
    address-family l2vpn evpn
      advertise vpnv4 unicast imported-from-default-vrf disable
      advertise vpnv6 unicast imported-from-default-vrf disable
!
router bgp 100
  neighbor 60.0.0.1
    address-family vpnv4 unicast
      advertise vpnv4 unicast imported-from-default-vrf disable
    address-family vpnv6 unicast
      advertise vpnv6 unicast imported-from-default-vrf disable

Leaking Routes to Default-VRF from Data Center-VRF

This section explains the process of leaking Data Center-VRF routes to Default-VRF.

Procedure

Step 1

Data Center routes are received on the DCI as EVPN Route-type 2 and Route-type 5 NLRI and imported to the Data Center VRFs.

Step 2

A route-policy is configured to select the routes to be leaked from Data Center-VRF to Default-VRF.

Example:


route-policy export-to-default-policy
  if destination in (200.47.0.0/16, 200.168.0.0/16) then
    pass
  endif
end-policy
!

route-policy export-to-default-policy-v6
  if destination in (200:47::0/64, 200:168::0/64) then
    pass
  endif
end-policy
!

Step 3

Leak Data Center-VRF routes specified in the above policy to Default-VRF by configuring export to default-vrf route-policy export-to-default-policy(-v6) [allow-imported-vpn] under Data Center-VRF address-family configuration mode.

Normally only local and CE VRF routes are allowed to be leaked to the Default-VRF, but allow-imported-vpn configuration enables leaking of EVPN/L3VPN imported routes to the Default-VRF.

Example:


vrf data-center-vrf
  address-family ipv4 unicast
    export to default-vrf route-policy export-to-default-policy [allow-imported-vpn]
  !
  address-family ipv6 unicast
    export to default-vrf route-policy export-to-default-policy-v6 [allow-imported-vpn]
  !

Step 4

The Leaked routes in the Default VRF are advertised to the Internet.

Note

Instead of advertising the leaked routes to the Internet, an aggregate can be configured and advertised to the Internet.

Sample Router Configuration

The following sample configuration specifies how EVPN Default VRF Route Leaking feature is configured on a DCI router to provide Internet access to the data center hosts.


vrf data-center-vrf
  address-family ipv4 unicast
    import from default-vrf route-policy import-from-default-policy advertise-as-vpn
    export to default-vrf route-policy export-to-default-policy allow-imported-vpn
  !
  address-family ipv6 unicast
    import from default-vrf route-policy import-from-default-policy-v6 advertise-as-vpn
    export to default-vrf route-policy export-to-default-policy-v6 allow-imported-vpn
  !

route-policy import-from-default-policy
  if destination in (100.10.0.0/16, 100.20.0.0/16) then
    pass
  endif
end-policy
!

route-policy import-from-default-policy-v6
  if destination in (100:10::0/64, 100:20::0/64) then
    pass
  endif
end-policy
!

route-policy export-to-default-policy
  if destination in (200.47.0.0/16, 200.168.0.0/16) then
    pass
  endif
end-policy
!

route-policy export-to-default-policy-v6
  if destination in (200:47::0/64, 200:168::0/64) then
    pass
  endif
end-policy
!

router bgp 100
  neighbor 40.0.0.1
    address-family l2vpn evpn
      import stitching-rt re-originate
      advertise vpnv4 unicast re-originated stitching-rt
      advertise vpnv6 unicast re-originated stitching-rt

  neighbor 60.0.0.1
    address-family vpnv4 unicast
      import re-originate stitching-rt
      advertise vpnv4 unicast re-originated
      advertise vpnv4 unicast imported-from-default-vrf disable

    address-family vpnv6 unicast
      import re-originate stitching-rt
      advertise vpnv6 unicast re-originated
      advertise vpnv6 unicast imported-from-default-vrf disable

Sample Router Configuration: with default-originate

The following sample configuration specifies how EVPN Default VRF Route Leaking feature is configured along with default-originate on a DCI router to provide Internet access to data center hosts.


vrf data-center-vrf
  address-family ipv4 unicast
    import from default-vrf route-policy import-from-default-policy <= Remove advertise-as-vpn=>
    export to default-vrf route-policy export-to-default-policy allow-imported-vpn
  !
  address-family ipv6 unicast
    import from default-vrf route-policy import-from-default-policy-v6 <= Remove advertise-as-vpn=>
    export to default-vrf route-policy export-to-default-policy-v6 allow-imported-vpn
  !
route-policy import-from-default-policy
  if destination in (100.10.0.0/16, 100.20.0.0/16) then
    pass
  endif
end-policy
!
route-policy import-from-default-policy-v6
  if destination in (100:10::0/64, 100:20::0/64) then
    pass
  endif
end-policy
!
route-policy export-to-default-policy
  if destination in (200.47.0.0/16, 200.168.0.0/16) then
    pass
  endif
end-policy
!
route-policy export-to-default-policy-v6
  if destination in (200:47::0/64, 200:168::0/64) then
    pass
  endif
end-policy
!
router bgp 100
  neighbor 40.0.0.1
    address-family l2vpn evpn
      import stitching-rt re-originate
      advertise vpnv4 unicast re-originated stitching-rt
      advertise vpnv6 unicast re-originated stitching-rt
      default-originate <= Added=>

  neighbor 60.0.0.1
    address-family vpnv4 unicast
      import re-originate stitching-rt
      advertise vpnv4 unicast re-originated
      advertise vpnv4 unicast imported-from-default-vrf disable

    address-family vpnv6 unicast
      import re-originate stitching-rt
      advertise vpnv6 unicast re-originated
      advertise vpnv6 unicast imported-from-default-vrf disable

 vrf data-center-vrf
  rd auto
  address-family ipv4 unicast
    allow vpn default-originate <= Added=>
  !
  address-family ipv6 unicast
    allow vpn default-originate <= Added=>

EVPN Service VRF Route Leaking

The EVPN Service VRF Route Leaking feature enables connectivity to the services in the Service VRF to customers in EVPN Data Center VRF. The Service VRF and Data Center VRF routes can be IPv4 and/or IPv6 addresses. The Services VRF is any L3 VRF providing services reachable through connected, static, re-distributed IGP or BGP routes.

This feature leaks routes between Data Center VRF and Service VRF, enabling the EVPN/L3VPN hosts to access the Services in the Service VRF. This feature rely on Border Gateway Protocol (BGP) VRF extranet feature that imports routes between two VRFs.

The import process installs the Data Center VRF routes in a Service VRF table or a Service VRF routes in the Data Center VRF table, providing connectivity.

The BGP Service VRF route leaking feature is enabled by:

Importing routes from Service VRF to Data Center VRF and advertising it as EVPN/L3VPN route from Data Center VRF.
- Importing Service VRF routes to Data Center VRF by attaching Data Center VRF import RTs to Service VRF routes.

  This can be achieved by configuring one or more Data Center VRF import RTs as export RT of Service VRF, or configuring a Service VRF export route-policy to attach import RT EXTCOMM to Service VRF routes matching the import RTs of Data Center VRF using the following command in Service VRF address-family configuration mode.

  export route-policy service-vrf-export-route-policy-name

  Where the route-policy "service-vrf-export-route-policy-name" attaches the RT EXTCOMM matching the one or more import RTs of Data Center VRF to Service VRF routes.
- Advertising Data Center VRF imported routes that are exported from Service VRFs as EVPN/L3VPN NLRI from Data Center VRF using the following command in Data Center VRF address-family configuration mode.

  import from vrf advertise-as-vpn

  If the advertise-as-vpn keyword is used, the paths imported from the Service VRF to the Data Center VRF are advertised to the (EVPN/L3VPN) PEs as well as to the CEs. If the advertise-as-vpn keyword is not used, the paths imported from the Service VRF to the Data Center VRF are not advertised to the PEs. However, the paths are still advertised to the CEs.
- Block advertising Data Center VRF leaked routes from being advertised to a neighbor using the following command in neighbor address-family configuration mode.

  advertise vpnv4/vpnv6 unicast imported-from-vrf disable

  A new command advertise vpnv4/vpnv6 unicast imported-from-vrf disable is added under neighbor address-family configuration mode for EVPN and VPNv4/VPNv6 unicast to disable advertisement of VRF to VRF leaked routes to that neighbor.
Importing EVPN/L3VPN routes from Data Center VRF to Service VRF
- Importing EVPN/L3VPN routes from Data Center VRF to Service VRF by attaching Service VRF import RTs.

  This can be achieved by configuring one or more Service VRF import RTs as export RT of Data Center VRF, or configuring a Data Center VRF export route-policy to attach import RT EXTCOMM to Data Center VRF routes matching the import RTs of Service VRF using the following command in Data Center VRF address-family configuration mode.

  export route-policy data-center-vrf-export-route-policy-name

  The route-policy "data-center-vrf-export-route-policy-name" attaches the RT EXTCOMM matching one or more import RTs of Service VRF.
- Allow leaking of Data Center VRF routes to Service VRF by using the following command in Data Center VRF address-family configuration mode.

  export to vrf allow-imported-vpn

Note

In order to prevent un-intended import of routes to VRFs, select unique RT's to import routes between Service VRF and Data Center VRF, which are not used for normal import of VPN/EVPN routes to Data Center VRFs.

The Extranet Route Leaking feature enables leaking of local and CE routes from one VRF to another VRF. A new command export to vrf allow-imported-vpn is added to enable the leaking of EVPN and L3VPN imported/re-originated Data Center VRF routes to the Service VRF.

Note

A route-policy is preferred to filter the imported routes. This reduces the risk of unintended import of routes between the Data Center VRF and the Service VRF, and the corresponding security issues. There is no hard limit on the number of prefixes that can be imported. The import creates a new prefix in the destination VRF, which increases the total number of prefixes and paths.

Note

This feature does not advertise EVPN/L3VPN PE routes imported to Data Center VRF and leaked to Service VRF as EVPN/L3VPN PE route.

EVPN Service VRF Route Leaking on the DCI for Service Connectivity

The EVPN Service VRF Route Leaking feature leaks routes between the Service VRF and Data Center VRF on the DCI to provide access to Services to data center hosts.

This feature is enabled by:

Leaking routes from Service VRF to Data Center VRF
Leaking routes to Service VRF from Data Center VRF

Leaking Routes from Service VRF to Data Center VRF

This section explains the process of leaking Service VRF routes to Data Center VRF.

Procedure

Step 1

The Service routes are present in the Service VRF on the DCI.

Step 2

A route-policy is configured to select the routes to be leaked from Service VRF to Data Center VRF.

Example:


route-policy service-vrf-export-policy
  if destination in (100.10.0.0/16, 100.20.0.0/16) then
    set extcommunity rt (1:1) additive <--- matches import RT of Data Center-VRF
  endif
end-policy
!
route-policy service-vrf-export-policy-v6
  if destination in (100:10::0/64, 100:20::0/64) then
    set extcommunity rt (1:1) additive <--- matches import RT of Data Center-VRF
  endif
end-policy
!

Step 3

Leak Service VRF routes specified in the route-policy to Data Center VRF by configuring export route-policy service-vrf-export-policy(-v6) under Service VRF address-family configuration mode.

Example:


vrf service-vrf
  address-family ipv4 unicast
    import route-target
      3:1
      4:1 stitching
    export route-policy service-vrf-export-policy
    export route-target
      3:1
      4:1 stitching
   !
  address-family ipv6 unicast
    import route-target
      3:1
      4:1 stitching
    export route-policy service-vrf-export-policy-v6
    export route-target
      3:1
      4:1 stitching
   !

Step 4

Advertise the leaked (Service VRF) routes in the Data Center VRF as EVPN/L3VPN routes towards Data Center routers by configuring import from vrf advertise-as-vpn under Data Center VRF address-family configuration mode..

Example:


vrf data-center-vrf
  address-family ipv4 unicast
    import from vrf advertise-as-vpn
    import route-target
      1:1
      100:1
      200:1 stitching
    export route-target
      100:1
      200:1 stitching
  !
  address-family ipv6 unicast
    import from vrf advertise-as-vpn
    import route-target
      1:1
      100:1
      200:1 stitching
    export route-target
      100:1
      200:1 stitching
  !

Note

To advertise any routes from L3VPN address-family to EVPN peers, use advertise vpnv4/vpnv6 unicast re-originated [stitching-rt] command under neighbor address-family L2VPN EVPN.

EVPN Default-originate

Instead of advertising the Service VRF routes towards Data Center routers, default-originate can be configured under the EVPN neighbor address-family to advertise the default route. When allow vpn default-originate is configured under the Data Center VRF, there is no need to advertise the Service VRF leaked routes to the data center and advertise-as-vpn need not be configured.

Example:


router bgp 100
  neighbor 40.0.0.1
    address-family l2vpn evpn
      default-originate

 vrf data-center-vrf
  rd auto
  address-family ipv4 unicast
    allow vpn default-originate
 !
  address-family ipv6 unicast
    allow vpn default-originate

Step 5

To block advertisement of the Service VRF leaked routes towards a particular EVPN/L3VPN peer, use advertise vpnv4/vpnv6 unicast imported-from-vrf disable command under respective neighbor address-family.

Example:


router bgp 100
  neighbor 40.0.0.1
    address-family l2vpn evpn
      import stitching-rt re-originate
      advertise vpnv4 unicast re-originated stitching-rt
      advertise vpnv4 unicast imported-from-vrf disable
      advertise vpnv6 unicast re-originated stitching-rt
      advertise vpnv6 unicast imported-from-vrf disable
    !
router bgp 100
  neighbor 60.0.0.1
    address-family vpnv4 unicast
      import re-originate stitching-rt
      advertise vpnv4 unicast re-originated
      advertise vpnv4 unicast imported-from-vrf disable
    address-family vpnv6 unicast
      import re-originate stitching-rt
      advertise vpnv6 unicast re-originated
      advertise vpnv6 unicast imported-from-vrf disable

Leaking Routes to Service VRF from Data Center VRF

This section explains the process of leaking Data Center VRF routes to Service VRF.

Procedure

Step 1

Data Center routes are received on the DCI as EVPN Route-type 2 and Route-type 5 NLRI and imported to the Data Center VRFs.

Step 2

A route-policy is configured to select the routes to be leaked from Data Center VRF to Service VRF.

The policy attaches RT EXTCOMM to Data Center VRF routes matching one or more import RT of the Service VRF.

Example:


route-policy data-center-vrf-export-policy
  if destination in (200.47.0.0/16) then <--- EVPN PE route
    set extcommunity rt (4:1) additive <--- matches import stitching-RT of service-VRF
  if destination in (200.168.0.0/16) then <--- VPNv4 PE route
    set extcommunity rt (3:1) additive <--- matches import RT of service-VRF
  endif
end-policy
!
route-policy data-center-vrf-export-policy-v6
  if destination in (200:47::0/64) then <--- EVPN PE route
    set extcommunity rt (4:1) additive <--- matches import stitching-RT of service-VRF
  elseif destination in (200:168::0/64) then <--- VPNv6 PE route
    set extcommunity rt (3:1) additive <--- matches import RT of service-VRF
  endif
end-policy
!

Note

An EVPN/L3VPN route received from a neighbor configured locally with "import stitching-rt re-originate" is imported to Data Center VRF if the route's RT EXTCOMM matches with one or more Data Center VRF import stitching RTs, and is leaked to Service VRF if the Data Center VRF route's RT EXTCOMM matches with one or more Service VRF import stitching RTs.

Step 3

Leak Data Center VRF routes specified in the above policy to Service VRF by configuring export route-policy data-center-vrf-export-policy(-v6) under Data Center VRF address-family configuration mode.

Normally only local and CE VRF routes are allowed to be leaked to the Service VRF, but allow-imported-vpn configuration enables leaking of EVPN/L3VPN imported routes to the Service VRF.

Example:


vrf data-center-vrf
  address-family ipv4 unicast
    import from vrf advertise-as-vpn
    import route-target
      1:1
      100:1
      200:1 stitching
    export route-policy data-center-vrf-export-policy
    export to vrf allow-imported-vpn
    export route-target
      100:1
      200:1 stitching
  !
  address-family ipv6 unicast
    import from vrf advertise-as-vpn
    import route-target
      1:1
      100:1
      200:1 stitching
    export route-policy data-center-vrf-export-policy-v6
    export to vrf allow-imported-vpn
    export route-target
      100:1
      200:1 stitching
  !

Step 4

The Data Center VRF leaked routes in the Service VRF are advertised to Service VRF CE peers.

Sample Router Configuration

The following sample configuration specifies how EVPN Service VRF Route Leaking feature is configured on a DCI router providing access to data center hosts to Services in the Service VRF.


vrf data-center-vrf
  address-family ipv4 unicast
    import from vrf advertise-as-vpn
    import route-target
      1:1
      100:1
      200:1 stitching
    export route-policy data-center-vrf-export-policy
    export to vrf allow-imported-vpn
    export route-target
      100:1
      200:1 stitching
  !
  address-family ipv6 unicast
    import from vrf advertise-as-vpn
    import route-target
      1:1
      100:1
      200:1 stitching
    export route-policy data-center-vrf-export-policy-v6
    export to vrf allow-imported-vpn
    export route-target
      100:1
      200:1 stitching
  !

vrf service-vrf
  address-family ipv4 unicast
    import route-target
      3:1
      4:1 stitching
    export route-policy service-vrf-export-policy
    export route-target
      3:1
      4:1 stitching
   !
  address-family ipv6 unicast
    import route-target
      3:1
      4:1 stitching
    export route-policy service-vrf-export-policy-v6
    export route-target
      3:1
      4:1 stitching
   !

route-policy data-center-vrf-export-policy
  if destination in (200.47.0.0/16) then
    set extcommunity rt (4:1) additive
  if destination in (200.168.0.0/16)
    set extcommunity rt (3:1) additive
  endif
end-policy
!

route-policy data-center-vrf-export-policy-v6
  if destination in (200:47::0/64) then
    set extcommunity rt (4:1) additive
  elseif destination in (200:168::0/64)
    set extcommunity rt (3:1) additive
  endif
end-policy
!

route-policy service-vrf-export-policy
  if destination in (100.10.0.0/16, 100.20.0.0/16) then
    set extcommunity rt (1:1) additive
  endif
end-policy
!

route-policy service-vrf-export-policy-v6
  if destination in (100:10::0/64, 100:20::0/64) then
    set extcommunity rt (1:1) additive
  endif
end-policy
!

route-policy pass-all
  pass
end-policy
!

router bgp 100
  neighbor 40.0.0.1
    remote-as 100
    address-family l2vpn evpn
      import stitching-rt re-originate
      advertise vpnv4 unicast re-originated stitching-rt
      advertise vpnv6 unicast re-originated stitching-rt
    !
  neighbor 60.0.0.1
    remote-as 200
    address-family vpnv4 unicast
      import re-originate stitching-rt
      route-policy pass-all in
      route-policy pass-all out
      advertise vpnv4 unicast re-originated
      advertise vpnv4 unicast imported-from-vrf disable
    address-family vpnv6 unicast
      import re-originate stitching-rt
      route-policy pass-all in
      route-policy pass-all out
      advertise vpnv6 unicast re-originated
      advertise vpnv6 unicast imported-from-vrf disable

Sample Router Configuration: with default-originate

The following sample configuration specifies how EVPN Service VRF Route Leaking feature is configured along with default-originate on a DCI router to provide data center hosts access to Services in the Service VRF..


vrf data-center-vrf
  address-family ipv4 unicast
    import from vrf advertise-as-vpn
    import route-target
      1:1
      100:1
      200:1 stitching
    export route-policy data-center-vrf-export-policy
    export to vrf allow-imported-vpn
    export route-target
      100:1
      200:1 stitching
  !
  address-family ipv6 unicast
    import from vrf advertise-as-vpn
    import route-target
      1:1
      100:1
      200:1 stitching
    export route-policy data-center-vrf-export-policy-v6
    export to vrf allow-imported-vpn
    export route-target
      100:1
      200:1 stitching
  !

vrf service-vrf
  address-family ipv4 unicast
    import route-target
      3:1
      4:1 stitching
    export route-policy service-vrf-export-policy
    export route-target
      3:1
      4:1 stitching
   !
  address-family ipv6 unicast
    import route-target
      3:1
      4:1 stitching
    export route-policy service-vrf-export-policy-v6
    export route-target
      3:1
      4:1 stitching
   !

route-policy data-center-vrf-export-policy
  if destination in (200.47.0.0/16) then
    set extcommunity rt (4:1) additive
  if destination in (200.168.0.0/16) then
    set extcommunity rt (3:1) additive
  endif
end-policy
!

route-policy data-center-vrf-export-policy-v6
  if destination in (200:47::0/64) then
    set extcommunity rt (4:1) additive
  elseif destination in (200:168::0/64) then
    set extcommunity rt (3:1) additive
  endif
end-policy
!

route-policy service-vrf-export-policy
  if destination in (100.10.0.0/16, 100.20.0.0/16) then
    set extcommunity rt (1:1) additive
  endif
end-policy
!

route-policy service-vrf-export-policy-v6
  if destination in (100:10::0/64, 100:20::0/64) then
    set extcommunity rt (1:1) additive
  endif
end-policy
!

route-policy pass-all
  pass
end-policy
!

router bgp 100
  neighbor 40.0.0.1
    remote-as 100
    address-family l2vpn evpn
      import stitching-rt re-originate
      advertise vpnv4 unicast re-originated stitching-rt
      advertise vpnv4 unicast imported-from-vrf disable
      advertise vpnv6 unicast re-originated stitching-rt
      advertise vpnv6 unicast imported-from-vrf disable
      default-originate <= Added=>
    !
  neighbor 60.0.0.1
    remote-as 200
    address-family vpnv4 unicast
      import re-originate stitching-rt
      route-policy pass-all in
      route-policy pass-all out
      advertise vpnv4 unicast re-originated
      advertise vpnv4 unicast imported-from-vrf disable
      default-originate <= Added=>
    address-family vpnv6 unicast
      import re-originate stitching-rt
      route-policy pass-all in
      route-policy pass-all out
      advertise vpnv6 unicast re-originated
      advertise vpnv6 unicast imported-from-vrf disable
      default-originate <= Added=>

  vrf data-center-vrf
    rd auto
    address-family ipv4 unicast
      allow vpn default-originate <= Added=>
    !
    address-family ipv6 unicast
      allow vpn default-originate <= Added=>

MPLS Layer 3 VPN Configuration Guide for Cisco ASR 9000 Series Routers, IOS XR Release 6.4.x

Bias-Free Language

Results

Chapter: Implementing DCI VXLAN Layer 3 Gateway

Implementing DCI VXLAN Layer 3 Gateway

Prerequisites for Implementing Data Center Interconnect Layer 3 Gateway

Data Center Interconnect VXLAN Layer 3 Gateway

Topology

VPNv4-Regular RT and EVPN-Stitching RT

Route Targets

Route Re-Origination

Route Address-Family and Encoded Address-Family

Local VPNv4 or VPNv6 Route Advertisement

Route Distinguishers

Configure VPNv4-Regular RT and EVPN-Stitching RT

Configure Leaf (ToR)

Configure Spine-RR

Configure Edge DCI Gateway

Configure VRF and Route Targets Import and Export rules

Configure EVPN BGP Neighbor and Route Advertisements

Configure L3VPN BGP Neighbor Relationship and Route Advertisements

Verification of Edge DCI Gateway Configuration

EVPN-Regular RT and VPNv4-Stitching RT

Route Targets

Route Re-Origination

Local VPNv4 or VPNv6 Route Advertisement

Route Distinguishers

Configure EVPN-Regular RT and VPNv4-Stitching RT

Configure Leaf (ToR)

Configure Spine-RR

Configure Edge DCI Gateway

Configure VRF and Route Targets Import and Export rules

Configure EVPN BGP Neighbor and Route Advertisements

Configure L3VPN BGP Neighbor Relationship and Route Advertisements

Verification of Edge DCI Gateway Configuration

OpFlex

OpFlex Topology

Restrictions

Configure OpFlex

Configure BGP

SUMMARY STEPS

DETAILED STEPS

Example:

Example:

Example:

Example:

Example:

Configure BGP Session on the Fabric Side

SUMMARY STEPS

DETAILED STEPS

Example:

Example:

Example:

Example:

Example:

Example:

Example:

Example:

Configure BGP Session on the WAN Side

SUMMARY STEPS

DETAILED STEPS

Example:

Example:

Example:

Example:

Example:

Example:

Example:

Example:

Configure DCI Underlay for Fabric and WAN Interfaces

SUMMARY STEPS

DETAILED STEPS

Example:

Example:

Example:

Configure IGP for ACI and WAN Reachability

SUMMARY STEPS

DETAILED STEPS

Example:

Example:
