This section describes how to monitor IoT FND system activity, including the following topics:
The IoT FND Dashboard (IoT FND Dashboard) displays dashlets to provide a visual overview of important network metrics.
This section describes the following Dashboard features:
■Setting the Dashlet Refresh Interval
The Dashboard displays three types of dashlets:
■Pie-chart dashlets display a ratio of device properties as a pie chart.
■Line-graph dashlets display graphs that show device counts over time.
■ Bar charts show percentages of a whole <421796next page>
Tip: Graphs set to intervals longer than one day may not display the data at the last datapoint exactly as shown in the matching field on the Device Info page. This is because data aggregation is occurring less frequently than polling to update the fields on the Device Info page. Set these graphs to the 6h or 1d intervals to update the data more frequently. Use intervals longer than one day to view data trends.
You can modify what displays in a given dashlet by using the following tools:
■Click the filter icon (pencil icon) within a chart to: (Options vary by chart)
–Define an interval by selecting a default value (such as 6h or 1d) or set your own Custom time interval
–Define a Series Selector, which allows you to define different possible states for a chart. For example, the Endpoint Config Group Mismatch Over Time chart has the following Series Selector options: Config Out of Sync and Config in Sync.

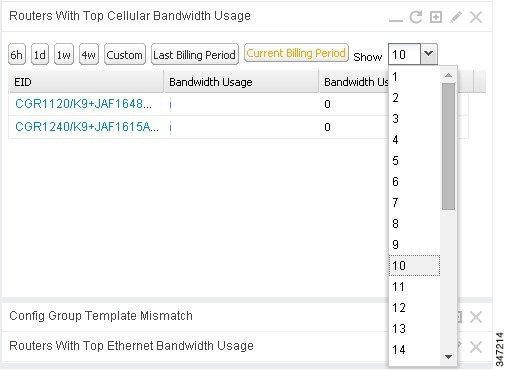

–Define the number of entries that display on the chart by selecting a value from the Show drop-down menu.
–Define a custom line-graph chart.
At top right of the Devices > Dashboard page, right-hand corner, you can do the following:
–Click the pencil icon, to open the Add a Filter window to define a chart.
–Remove a chart filter definition by toggling the pencil icon to display the Remove Filter button.
–Select the number of devices to chart for line-graph chart displays.
–Select a series to refine data in line-graph chart displays.
–Filter line-graph chart displays by group.
■Click the Settings (cog) button in the title bar to set the refresh interval for all charts and add dashlets back to the Dashboard.
The IoT FND Dashboard dashlets are described in the table below.
You can configure the Dashboard to display charts in your preferred arrangement.
■Click and drag the title bar of a chart to the desired position.
■Click (x) within a chart to remove the chart from the page.
■Collapse a dashlet to display only its title bar (such as Endpoint Inventory) by clicking the Minimize button (-).
To set the refresh interval for dashlets:
1. Choose DEVICES > Dashboard.
2. Click the Dashboard Settings button ( ).
3. Click Set Refresh Interval.

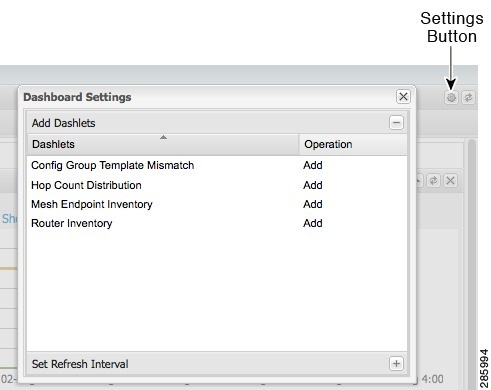

To add dashlets to the Dashboard:
1. Choose DEVICES > Dashboard.
2. Click the Settings button in the upper-right hand corner of the page.( ).
Note: No dashlets display in this dialog box if all are displaying on the Dashboard.
4. Click the name of the dashlet to add to the Dashboard.
5. Close the Dashboard Settings dialog box by clicking (x) in upper-right corner of panel when finished.
To remove dashlets from the Dashboard:
1. Choose DEVICES > Dashboard.
2. Close the dashlet by clicking (x) in the upper-right corner of the panel.
Mouse over any segment of a pie chart to display a callout with information on that segment.
Click the Router Inventory and Mesh Endpoint Inventory pie charts to display the devices in List View.
To specify the time interval for data collection for line-graph dashlets, click the interval icon ( ) in the title bar to display the 6h, 1d, 1w, 4w, or Custom buttons on the dashlet. The 6h button sets the data-collection time interval to the last six hours. The 1d button sets the time interval to the last 24 hours.
2. In the window that appears, select the time frame using the From and To fields. Click OK.
Click the minimize icon (-) at the upper-right of the dashlet window to hide the window.
You use the Series Selector to refine line-graphs to display by device status. The device options are:
■Routers: Down, Outage, Unsupported, Unheard, and Up
■Mesh Endpoint Config Group: Config Out of Sync and Config In Sync
■Mesh Endpoint Firmware Group: Membership Out of Sync and Membership In Sync
■Mesh Endpoint States: Down, Outage, Unheard, and Up
2. In the Series Selector dialog box, check the check boxes for the data series to show in the graph.
You use filters to refine the displayed line-graph data by groups. Applied filters display after the dashlet title.
1. Click the interval icon (pencil) in the upper-right corner of the panel to display the 2 filtering parameters on the chart: a time frame (such as 6h) and components (such as Endpoint Configuration Groups, CGE).
3. From the first drop-down menu, choose a group type.
4. From the third drop-down menu, choose a group.
The pencil icon is green and the filter displays next to the dashlet name to indicate that a filter is applied.
Note: Click the Remove Filter button to remove the filter and close the filter options.
You can export dashlet data to a CSV file.
1. On the desired dashlet, click the export button ().
A browser download session begins.
2. Navigate to your default download directory to view the export file.
The filename begins with the word “export-” and includes the dashlet name (for example, export-Node_State_Over_Time_chart-1392746225010.csv).
This section provides an overview of events and how to search and sort events, including the following topics:

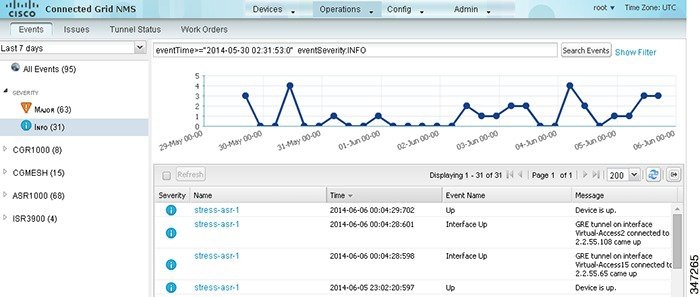

As shown in Events Page, the Events page (Operations > Events) lists all events for those devices that IoT FND tracks. All events are stored in the CG-NMS database server.
By default, the Events page displays the Events chart, which is a visual view of events in a time line. However, depending on the number of devices the CG-NMS server manages, this page can sometimes time out, especially when the system is fully loaded. In that case, open the Preferences window by choosing username > Preferences (top right), clearing the check boxes for showing chart and summary counts on the Events page, and clicking Apply.
To limit the amount of event data displayed on this page, use the Filter drop-down menu (at the top of the left pane). For example, you can show the events for the last 24 hours relative to the last 30 days, or events for a specific day within the last seven days.
To enable automatic refresh of event data to refresh every 14 seconds, check the check box next to the Refresh button. To immediately refresh event data click the Refresh button or the refresh icon.
Note: The amount of event data displayed on the Events page is limited by the data retention setting for events (Admin > System Management > Data Retention).
Use the preset filters in the All Events pane to only view those event types.
In the left pane, IoT FND tracks events for the following devices:
In the left pane, select an event severity level to filter the list view to devices with that severity level:
Each event type has a preset severity level. For example, a Router Down event is a Major severity level event.
IoT FND has a preset list of events it reports for each device it tracks. A list of those events is summarized under each device in the left pane on the Events page. For example, in the left pane click the show/hide icon ( ) next to Routers to expand the list of all events for routers.
1. Choose Operations > Events.
2. Click the SEVERITY show/hide arrow.
Note: Only severity levels that have occurred display.
3. Click a severity level (CRITICAL, MAJOR, MINOR, OR INFO).
All events of that severity level display in the Events pane.
To use the filter to search for events:
1. Choose OPERATIONS > Events.
2. Under All Events (left pane), select an event category to narrow down your search.

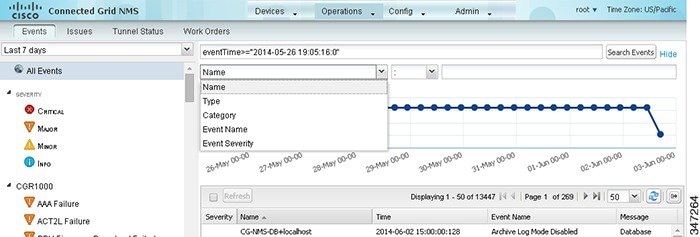

3. Click the Show Filter link at the top of the main pane.
4. Use the filter drop-down menus and fields to specify your search criteria.
5. Click the plus button () to add the search strings to the Search field.
Repeat the process of adding search strings to the Search field as needed.
6. Click Search Events or press Enter.
The search results display in the Events pane.
You can also add search strings manually, as shown in the following examples:

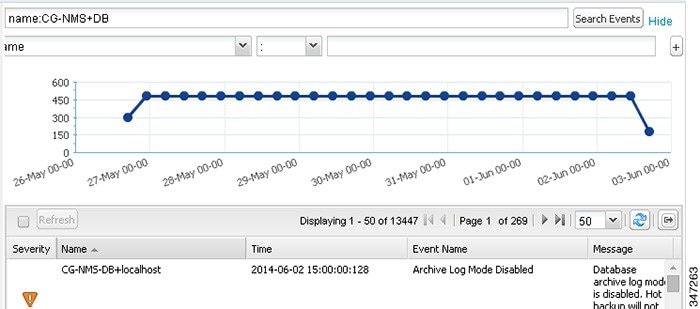

■To filter events by Name (EID), enter the following string in the Search Events field, as shown in Search Events by Name Filter: |
|
Note: Note the use of the asterisk (*) wild card with this filter. |

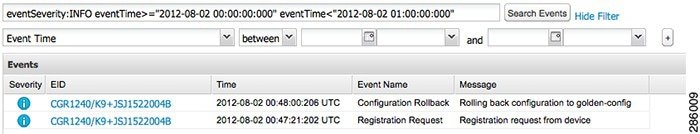

■To filter by event time period, enter the following string in the Search Events field, as shown in Search Events by Time Filter Example: |
Note: Do not enter a space between eventTime and the operator. Figure 3 Search Events by Time Filter Example |
To sort events in ascending or descending order, mouse over any column and select the appropriate option from the heading drop-down menu.

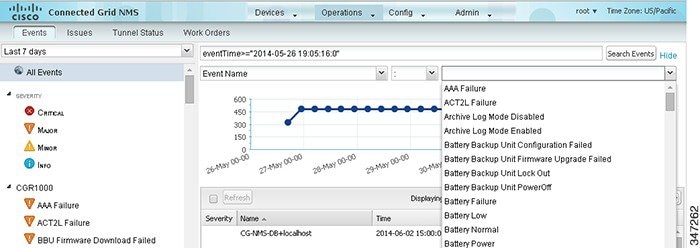

To search by event name (for example, Battery Low):
1. Choose Operations > Events.
2. Click the device type to search for in the left pane.
3. Click the Show Filter link at the top of the right pane.
The filter fields display under the Search Events field.
4. Choose Event Name from the left drop-down menu.
5. Choose the event name from the options in the right drop-down menu.
6. Click the plus button () at the right to add the filter to the Search Events field.
The filter syntax appears in the Search Events field.
Allows you to search and filter events based on Label names tagged to Field Devices.
1. Choose Operations > Events.
2. Click All Events in the left pane.
3. Click the Show Filter link at the top of the right pane.
4. Choose Label from the left drop-down menu.
5. Click the Show Filter link at the top of the right pane.
6. Choose the event name from the options in the right drop-down menu or create your own.
7. Click the plus button () at the right to add the filter to the Search Events field.
The filter syntax appears in the Search Events field.
You can export events to a CSV file to examine as a log of event severity, time, name and event description by device.
1. Choose Operations > Events.
2. Click the desired severity level or device type in the left pane.
3. Click the Export button ( ).
A browser download session begins.
4. Navigate to your default download directory to access the CSV file.
Events Reported lists the events reported by IoT FND 3.1.x (and later). Details include the event severity (Critical, Major, Minor, Information) and the devices that report those events.
This section provides an overview of issues and how to search for and close issues in IoT FND, including the following topics:
■Viewing Device Severity Status on the Issues Status Bar
■Searching Issues Using Predefined Filters
■Search Issues Using Custom Filters
IoT FND offers different ways to monitor issues:

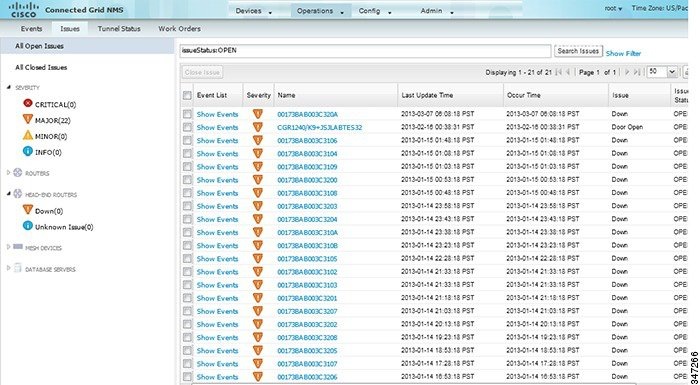

■The Operations > Issues page (Issues Page) provides a snapshot of the health of the network by highlighting only major and critical events that are active within the network.
■The Issues Status bar (Issues Status Bar) displays in the footer of the browser window and shows a count of all issues by severity for selected devices.
The Issues page provides an abbreviated subset of unresolved network events for quick review and resolution by the administrator. Issues remain open until either the associated event is resolved (and IoT FND generates a resolution event) or the administrator manually closes the event.
Only one issue is recorded when multiple entries for the same event are reported. Each issue has a counter associated with it. As an associated event is closed, the counter decrements by one. Every open or closed issue has an associated event.
Note: The amount of closed issues data that displays on the Issues page is limited by the Keep Closed Issues for data retention setting (Admin > System Management > Data Retention), which is based on the time the issue was closed. When the issue was closed displays as the Last Update Time for the issue.
A tally of issues listed by severity for the selected devices displays in the Issues status bar in the bottom-right of the browser window frame (Issues Status Bar). You can set the device types for issues that display in the Issues status bar in User Preferences.
Click the Issues status bar to view the Issues Summary pane (Issues Summary Pane), which displays issues listed by the selected device category. Click count links in the Issues Summary pane to view complete issue criteria filtered by severity on the Operations > Issues page.

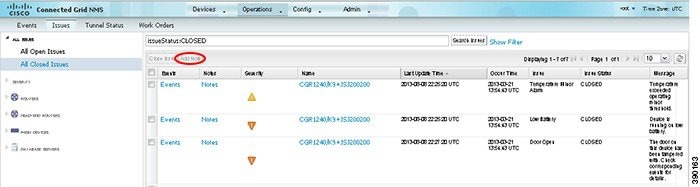

On the Operations > Issues page, you can maintain notes on issues for the device. Click the Notes link inline with the issue to access any notes entered in the issue or add a note on the Notes for Issues Name page. You can and edit and delete notes from issues on this page. Issues can have multiple notes. The Notes for Issues Name page displays the time the note was created, the name of the user who wrote the note, and the text of the note. You can also add a note when closing a issue. Notes are purged from the database with the issue.
1. Click the Notes link inline with the desired issue or check the check box of the device and click Add Note.
The Notes for Issues Name pane displays. The issue in the following example has existing notes.

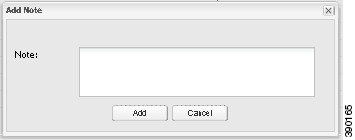

3. Insert your cursor in the Note field and type your note.
The note text displays on the Notes for Issues Name pane in the Note column.

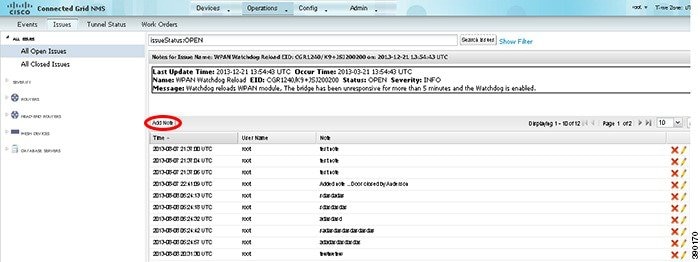

To add notes to issues with existing notes:
1. Click the Notes link inline with the issue or check the check box of the device and click Add Note.
The Notes for Issues Name pane displays.
2. To add a new note to the issue, click Add Note.
3. Insert your cursor in the Note field and type your note.
To edit an existing note in an issue:
1. Click the Notes link inline with the issue.
The Notes for Issues Name pane displays.
2. To edit an existing note, click the pencil icon () at the right of the note that you want to edit.
3. Edit the note, and click Done when finished.
To delete a note from an issue:
1. Click the Notes link inline with the issue.
The Notes for Issues Name pane displays.
2. To delete a note, click the red X icon () at the right of the note.
3. Click Yes to confirm the deletion.

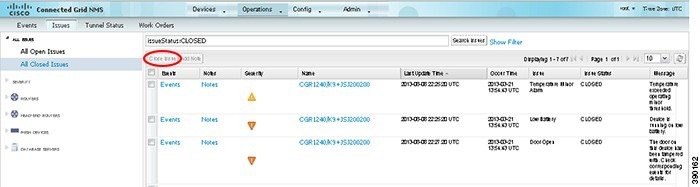

To add a note when closing an issue:
1. Check the check box of the issue to close.
3. In the Confirm dialog box, insert your cursor in the Note field and type the note text.
4. To confirm that you want to close the issue and save the note, click Yes.

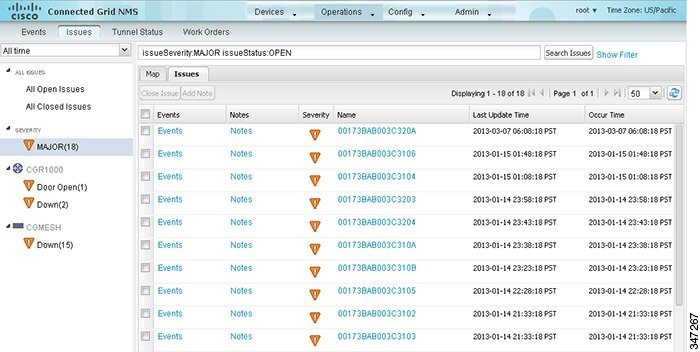

To search for open issues for a specific system or severity level:
1. Choose Operations > Issues.
To list only open issues, click All Open Issues (left pane).
Note: By default, IoT FND displays all issues that occurred within the specified data retention period (see Configuring Data Retention). To see Closed Issues associated with an event type or severity level, change issueStatus:OPEN to issueStatus:CLOSED in the Search Issues field, and then click Search Issues. To list all closed issues, in the left pane, click All Closed Issues.
2. Click a device category, event type, or severity level to filter the list.
The filter syntax appears in the Search Issues field, and the search results display in the main pane.
To search by creating custom filters:
1. Choose Operations > Issues.
3. From the Filter drop-down menus, choose the appropriate options.
For example, to filter severity levels by EID:
■In the third Filter field, enter the EID of the device to discover issues about. |
You can also enter the search string in the Search Issues field. For example:
issueSeverity:CRITICAL issueStatus:OPEN eid:CG-NMS-DB+localhost
The issues, if any, display in the Search Issues section (right pane).
5. Click the Events link to display events associated with an issue.

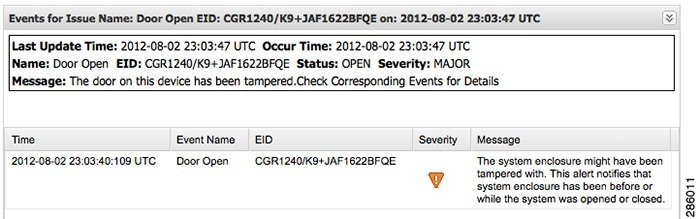

The Events for Issue Name pane displays all events for that device.
6. Click Search Issues or any link in the left pane to return to the Issues pane.
In most cases, when an event is resolved, the issue is closed automatically by the software. However, when the administrator has actively worked on resolving the issue, it might make sense to close the issue directly. When the issue is closed, IoT FND generates an event.
1. Choose Operations > Issues.
2. Locate the issue by following the steps in either the Searching Issues Using Predefined Filters or Search Issues Using Custom Filters section.
3. In the Search Issues section (right pane), check the check boxes of the issues to close.
IoT FND provides these charts in the Device Info pane on the Device Details page for any router:

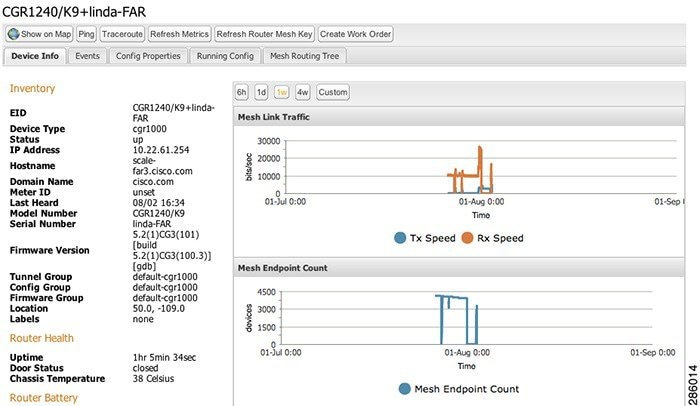

Router Device Charts shows the Mesh Link Traffic and Mesh Endpoint Count charts.
IoT FND provides the charts listed in Device Detail Charts in the Device Info pane on the Device Details page (Mesh Endpoint Device Charts) for any ME.
|
|
---|---|
Shows the RPL path cost value between the element and the root of the routing tree over time (see Configuring RPL Tree Polling). |
|
Shows the RPL cost value for the link between the element and its uplink neighbor over time. |
|
Shows the measured RSSI value of the primary mesh RF uplink (dBm) over time. |
Figure 8 Mesh Endpoint Device Charts
