Smart Licensing Using Policy (SLP)

This chapter contains the following sections:

SLP Overview

Smart Licensing Using Policy (SLP) is the default mode starting with IOS-XE release 17.4.1. SLP was previously referred to as Smart Licensing Enhanced (SLE), which replaced Smart Software Licensing. The ESR6300 can seamlessly transition from pre-17.3.3 releases, no additional workflows are required. Previously installed Authorization Code with HSEC licenses for export-control requirements still remain intact.

Some of the feature differences are:

  • An Authorization Code is required only for export control requirement

  • Throughput greater than 250MB requires an HSEC license

  • No more EVAL licenses. Authorized status has changed to In Use or Not In Use with an Enforcement Type class.

  • Cisco Smart Licensing Utility (CSLU) is a new tool interfacing between the devices and Cisco Smart Software Manager (CSSM) in specific customer topologies.

License Enforcement Types

A given license belongs to one of three enforcement types. The enforcement type indicates if the license requires authorization before use, or not.

  • Unenforced or Not Enforced

The vast majority of licenses belong to this enforcement type. Unenforced licenses do not require authorization before use in air-gapped networks, or registration, in connected networks. The terms of use for such licenses are as per the end user license agreement (EULA).

  • Enforced

Licenses that belong to this enforcement type require authorization before use. The required authorization is in the form of an authorization code, which must be installed in the corresponding product instance.

An example of an enforced license is the Media Redundancy Protocol (MRP) Client license, which is available on Industrial Ethernet Switches.

  • Export-Controlled

Licenses that belong to this enforcement type are export-restricted by U.S. trade-control laws and these licenses require authorization before use. The required authorization code must be installed in the corresponding product instance for these licenses as well. Cisco may pre-install export-controlled licenses when ordered with hardware purchase.

An example of an export-controlled license is the High Security (HSEC) license, which is available on certain Cisco Routers.

SLP Architecture

This section explains the various components that can be part of your SLP implementation.

Product Instance

A product instance is a single instance of a Cisco product, identified by a Unique Device Identifier (UDI).

A product instance records and reports license usage (RUM reports), and provides alerts and system messages about overdue reports, communication failures, etc. The RUM reports and usage data are also stored securely in the product instance.

A Resource Utilization Measurement report (RUM report) is a license usage report, which fulfils reporting requirements as specified by the policy. RUM reports are generated by the product instance and consumed by CSSM. The product instance records license usage information and all license usage changes in an open RUM report. At system-determined intervals, open RUM reports are closed and new RUM reports are opened to continue recording license usage. A closed RUM report is ready to be sent to CSSM.

A RUM acknowledgement (RUM ACK or ACK) is a response from CSSM and provides information about the status of a RUM report. Once the ACK for a report is available on the product instance, it indicates that the corresponding RUM report is no longer required and can be deleted.

CSSM displays license usage information as per the last received RUM report.

Cisco Smart Software Manager (CSSM)

CSSM is a portal that enables you to manage all your Cisco software licenses from a centralized location. CSSM helps you manage current requirements and review usage trends to plan for future license requirements.

You can access CSSM at https://software.cisco.com . Under the License tab, click the Smart Software Licensing link.

In CSSM you can:

  • Create, manage, or view virtual accounts.

  • Create and manage Product Instance Registration Tokens.

  • Transfer licenses between virtual accounts or view licenses.

  • Transfer, remove, or view product instances.

  • Run reports against your virtual accounts.

  • Modify your email notification settings.

  • View overall account information.

Prior to using CSSM, please view a short video about how to use the portal found here:

https://www.cisco.com/c/en/us/buy/smart-accounts/software-manager.html

Click on the View Video button.

Cisco Smart Licensing Utility (CSLU)

CSLU is a Windows-based reporting utility that provides aggregate licensing work-flows. It helps you administer all your licenses and their associated product instances from your premises instead of having to connect to CSSM.

This utility performs the following key functions:

  • Provides the options relating to how work-flows are triggered. The work-flows can be triggered by CSLU or by the product instance

  • Collects usage reports from the product instance and upload these usage reports to the corresponding smart account or virtual account – online, or offline, using files. Similarly, the RUM report ACK is collected online, or offline, and provided back to the product instance.

  • Sends authorization code requests to CSSM and receives authorization codes from CSSM.

CSLU can be part of your SLP topology in the following ways:

  • Install the windows application, to use CSLU as a standalone tool and connect it to CSSM.

  • Install the windows application, to use CSLU as a standalone tool and not connect it to CSSM. With this option, the required usage information is downloaded to a file and then uploaded to CSSM. This is suited to air-gapped networks.

  • Embed it in a controller such as Cisco DNA Center.

Customer Topologies

IoT Routing platforms use two different topologies.

  • Full Offline Access

  • CSLU has No Access to CSSM

The following figure illustrates the Full Offline Access:

In this topology, devices do not have connectivity to CSSM (software.cisco.com). The user must copy and paste information between Cisco products and CSSM to manually check in and out licenses.

The following figure illustrates the CSLU having No Access to CSSM:

In this topology the devices are connected to the CSLU controller, but there is no connectivity between CSLU and CSSM (Cisco Smart Software Manager – software.cisco.com).

Cisco devices will send usage information to a locally installed CSLU. The user must copy and paste information between the CSLU and CSSM to manually check-in and check-out licenses.

License Installation Procedure - Full Offline Access Topology

This procedure requires a manual exchange of required information between the router and CSSM.

Refer to the following graphic for the flow of information:

  1. Generate a License Usage Data file or AuthCode Request.

  2. Export to CSSM.

  3. Upload License Usage Data or AuthCode Request.

  4. Export ACK/AuthRequest file to Router.

  5. Upload ACK file or AuthRequestAuthCode

Procedure to Register Product Instance in CSSM

Procedure

Step 1

Generate a license usage file from the Router.

In exec mode, perform the following:

Example:


Router# license smart save usage all file flash:slp

Step 2

Export the license usage file (slp) to your host laptop/PC.

Step 3

Importing the license usage file to CSSM on Cloud. Click on the Usage Data Files tab.

Figure 1. Usage Data File

Step 4

The Upload Usage Data window appears. Click Browse , and navigate to where the file is.

Step 5

Click on Upload Data .

Figure 2. Browse and Upload

Step 6

Select the Virtual Account.

Figure 3. Select Account

Step 7

From the pull-down, select your respective virtual account.

Figure 4. Select Your Account

Step 8

Click Ok .

Step 9

Observe the Smart Software Licensing window. Initially, the Reporting Status state will be Pending . Wait until the window reflects No Errors before continuing.

Figure 5. Reporting Status

Step 10

Click Download to download the ACK file.

Step 11

Check under the Product Instances tab to verify your device is listed.

Figure 6. Product Instances

Step 12

Import the ACK file from CSSM to your device using the command line interface.

Importing the ACK file from CSSM to your Device

Procedure

Step 1

Copy the ACK file from CSSM to your host laptop or usbflash device. In exec mode on the device:

Example:


Router#license smart import <flash: | usbflash0:> ACK_slp
Import Data Successful
Router#
*Sep  1 21:12:58.576: %SIP-1-LICENSING: SIP service is Up. License report acknowledged.
*Sep  1 21:12:58.616: %SMART_LIC-6-POLICY_INSTALL_SUCCESS: A new licensing policy was successfully installed

Step 2

Verify Product Instance has imported the data

Example:


Router# show license usage
License Authorization:
  Status: Not Applicable
network-advantage_250M (ESR6300_P_250M_A):
  Description: network-advantage_250M
  Count: 1
  Version: 1.0
  Status: IN USE
  Export status: NOT RESTRICTED
  Feature Name: network-advantage_250M
  Feature Description: network-advantage_250M
  Enforcement type: NOT ENFORCED

Step 3

Verify the license is in use.

Example:


Router# show license summary
License Usage:
  License                                       Entitlement tag               Count   Status
  -------------------------------------------------------------------------------------
  network-advantage_250M  (ESR6300_P_250M_A)         1      IN USE

Router#
Router#show license all | beg Usage Reporting:
Usage Reporting:
  Last ACK received: Sep 01 21:12:58 2020 UTC
  Next ACK deadline: <none>
  Reporting Interval: 0 (no reporting)
  Next ACK push check: <none>
  Next report push: <none>
  Last report push: <none>
  Last report file write: <none>
Trust Code Installed: Sep 01 00:28:48 2020 UTC

Removing the Device from CSSM

Procedure

Step 1

Navigate back to the product instances tab. Locate your device.

Figure 7. Product Instances

Step 2

Click on Actions beside your device, and from those options click Remove .

The Confirm Remove Product Instance window appears.

Figure 8. Confirm Remove Product Instance

Step 3

Click Remove Product Instance .

License Installation Procedure - CSLU has No Access to CSSM

This procedure performs an online exchange of required information between the Router and CSLU.

Refer to the following graphic for the flow of information:

Procedure

Step 1

In CSLU, identify the devices that require an AuthCode, and initiate the request. An AuthCode file is created.

Step 2

Export the AuthCode file to CSSM.

Step 3

Upload the AuthCode to CSSM SA/VA account.

Step 4

Export the AuthRequestAuthcode file to CSLU.

Step 5

Upload ACK file or AuthRequestAuthCode

Procedure when devices are connected to the CSLU

First, perform these steps on the router using the CLI to get a license UDI:


Router#show license summary
License Reservation is ENABLED License Usage:
License Entitlement tag Count Status
network-advantage_250M (ESR6300 _P_250M_A) 1 IN USE

Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#platform hardware throughput level 2G
% 2G throughput level requires hseck9 license!

Router(config)#end
Router#sh license udi
UDI: PID:ESR-6300-CON-K9,SN:FOC23032UVB

Procedure

Step 1

Open the Cisco Smart License Utility (CSLU).

Step 2

Navigate to the Product Instances tab, then click on the UDI.

Figure 9. Select UDI

Step 3

The Edit Single Product Instance window appears.

Figure 10. Edit Single Product Instance

Step 4

The Edit Multiple Devices window appears. Supply your account password and click Save .

Figure 11. Edit Multiple Devices

Step 5

In the Product Instances window, click on the Actions for Selected Devices Tab.

Figure 12. Actions for Selected Devices

Step 6

Select Authorization Code Request .

Step 7

The Authorization Request Information window appears. Read the contents and then click Accept .

Figure 13. Authorization Request Information

Step 8

The CSLU downloads a Authorization Request file to your laptop. Click Save .

Figure 14. Authorization Request File

Exporting the AuthRequest File to CSSM

The next step is to take the Authorization Request file you just saved, and export it into Cisco Smart Software Manager (CSSM).

Launch CSSM.

Click on the Inventory Tab, select your Virtual Account.

Procedure

Step 1

Click on the Product Instances Tab.

Step 2

Click on Authorize License-Enforced Features .

Figure 15. Authorize License-Enforced Features

The Authorize License-Enforced Features window appears.

Figure 16. Authorize License-Enforced Features

Step 3

Choose Multiple or Single devices from the pull-down.

Step 4

The window changes to an option to select a device file. Click on Choose File .

Step 5

A popup window opens to navigate to where you saved your Authorization Request file on your laptop.

Figure 17. Open File Navigation Window

Step 6

Select your file, and then click Open .

Step 7

The authorization file loads, and the window changes to present your devices.

Figure 18. Present Devices

Step 8

When successful, click Next .

Step 9

The Select Licenses Tab opens.

Figure 19. Select Licenses

Step 10

Under Quantity per Device , enter the number you wish.

Figure 20. Enter Number

Step 11

If CSSM cannot identify your device from the identifying information, you can select it manually.

Figure 21. Select a Device Type

Step 12

Click Continue , and the window changes to Review and Confirm .

Figure 22. Review and Confirm

Step 13

Click on Reserve Licenses , and CSSM generates feature authorization codes.

Figure 23. Feature Authorization Codes

Step 14

Click Download Authorization Codes , and a window opens to navigate to where you wish to save the codes.

Figure 24. Save Authorization Code

Step 15

Click Ok .

Uploading the Authorization Request Code file into CSLU

Procedure

Step 1

Open the Cisco Smart License Utility (CSLU).

Step 2

Navigate to Product Instances , and then select Upload From Cisco .

Figure 25. Upload From Cisco

Step 3

There are two options to load your file. Drag and Drop , or Browse to where you saved your file. This example shows Browse.

Figure 26. Browse to File

Step 4

Select your authorization code file, and then click Open . The system uploads the authorization code file, then a successful upload message appears.

Figure 27. Successful Upload

License Installation Process in the Router

Perform the following from the command line interface.


Router#show license summary
License Reservation is ENABLED
License Usage:
  License	Entitlement tag	Count Status
  network-advantage_250M (ESR6300_P_250M_E)	1 IN USE
  hseck9	(ESR6300_HSEC)	1 IN USE

Router#show license usage
License Authorization:
  Status: Not Applicable
network-advantage_250M (ESR6300_P_250M_A):
  Description: network-advantage_250M
  Count: 1
  Version: 1.0
  Status: IN USE
  Export status: NOT RESTRICTED
  Feature Name: network-advantage_250M
  Feature Description: network-advantage_250M
  Enforcement type: NOT ENFORCED
hseck9 (ESR6300_HSEC_License):
  Description: hseck9
  Count: 1
  Version: 1.0
  Status: IN USE
  Export status: RESTRICTED - ALLOWED
  Feature Name: hseck9
  Feature Description: hseck9
  Enforcement type: EXPORT RESTRICTED

Router(config)#platform hardware throughput level 2G
% Please write mem and reload
% The config will take effect on next reboot
Router(config)#end
Router#
*Sep 30 18:05:55.654: %SYS-5-CONFIG_I: Configured from console by cisco on console
Router#show license summary
License Reservation is ENABLED License Usage:
  License                  Entitlement tag         Count   Status
  network-advantage_250M  (ESR6300_P_250M_A)       1      IN USE
  hseck9                  (ESR6300_HSEC_License)   1      IN USE
  network-advantage_2G    (ESR6300_P_2G_A)         1      IN USE

Removing the License from CSSM

Perform the following task to remove the license from CSSM when the authorization code is installed.

Procedure

Step 1

Launch CSSM and click on the Inventory Tab, select your Virtual Account.

Step 2

Select the license you wish to remove, and click Actions . From the pull-down, select Remove .

Step 3

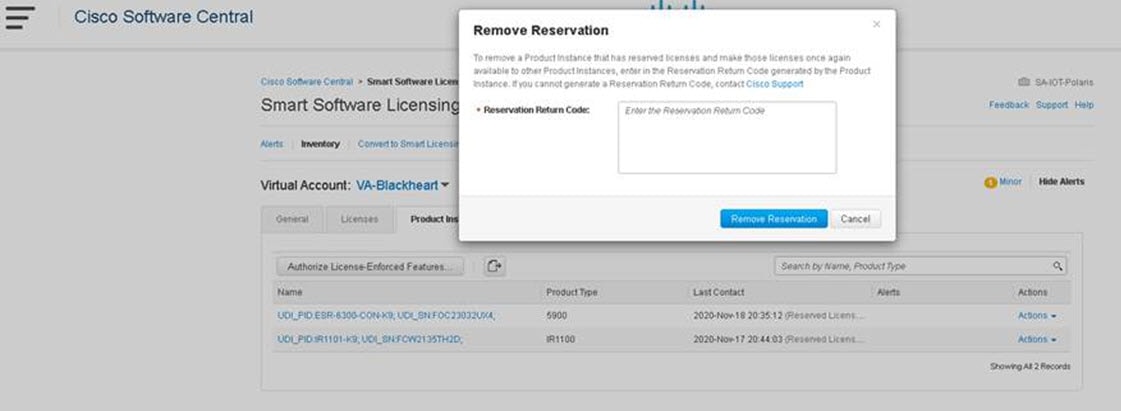

The Remove Reservation window appears.

Step 4

Execute the following command to get a license return code:

ESR6300#license smart reservation return all
Do you want to continue? [yes/no]: yes
Enter this return code in Cisco Smart Software Manager portal:
UDI: PID:ESR-6300-CON-K9,SN:FOC23032UX4
    Return code: CtSrRo-HB4Xzk-YDrCD8-tnjCNd-XeAoHS-SogpFY-rjmrhL-d7VDUq-K7D
ESR6300#
*Nov 18 21:04:59.920: %SMART_LIC-6-AUTHORIZATION_REMOVED:
A licensing authorization code has been removed from PID:ESR-6300-CON-K9,SN:FOC23032UX4.

Step 5

You can verify the license is not in use:

ESR6300#sh license summary
License Reservation is ENABLED

License Usage:
  License                 Entitlement Tag               Count Status
  -----------------------------------------------------------------------------
  network-essentials_50M  (ESR6300_P_50M_E)                 1 IN USE
  ESR6300_HSEC_License    (ESR6300_HSEC_License)            0 NOT IN USE

Step 6

Copy the license return code and paste it into the Reservation Return window.

Step 7

Click Remove Reservation , and then verify the removal was successful.

ESR6300#sh license summary
License Reservation is ENABLED

License Usage:
  License                 Entitlement Tag               Count Status
  -----------------------------------------------------------------------------
  network-essentials_50M  (ESR6300_P_50M_E)                 1 IN USE
